LG 22LY540M, 39LY541H, 42LY540H User Guide
OWNER’S MANUAL
*
LED TV
*LG LED TVs are LCD TVs with LED backlighting.
Please read this manual carefully before operating
your set and retain it for future reference.
LY31**
LY33**
LY34**
LY54**
LY53**
www.lg.com
2
TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
ENG
3 LICENSES
3 OPEN SOURCE SOFTWARE
NOTICE
4 ASSEMBLING AND PREPARING
4 Unpacking
7 Separate Purchase
8 Parts and Button
9 - Using the Joystick button
10 Lifting and Moving the TV
11 Setting up the TV
11 - Attaching the stand
14 Mounting on a table
17 Mounting on a wall
19 How to use Dual Lock™
21 MAKING CONNECTIONS

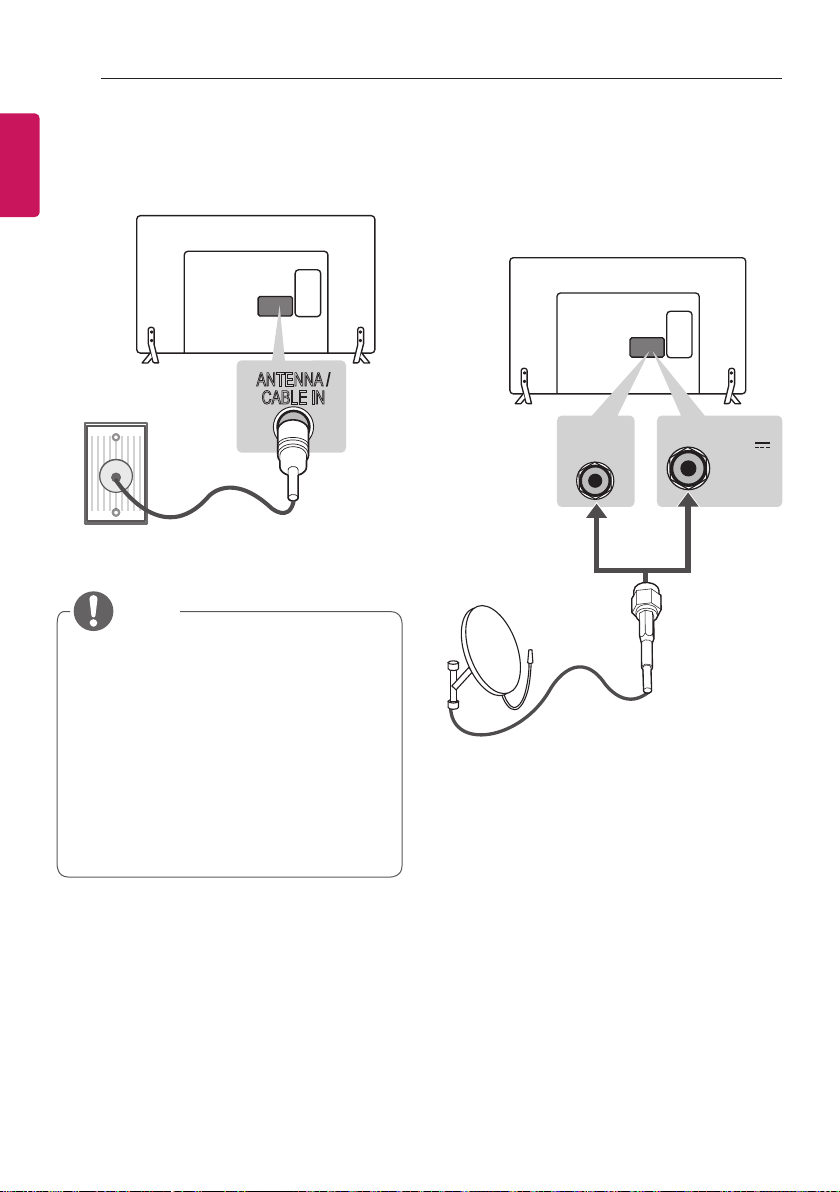

22 Antenna Connection
22 Satellite Dish Connection

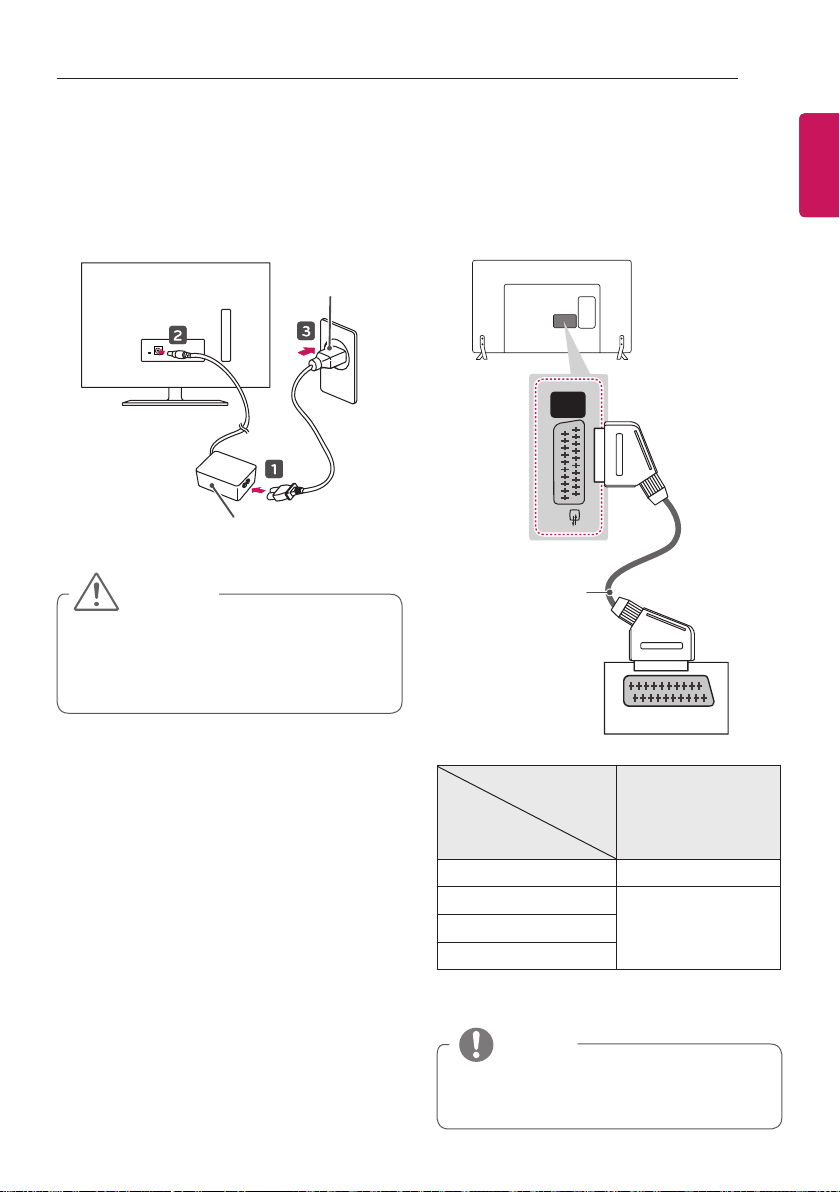

23 Adapter Connection
23 Euro Scart Connection

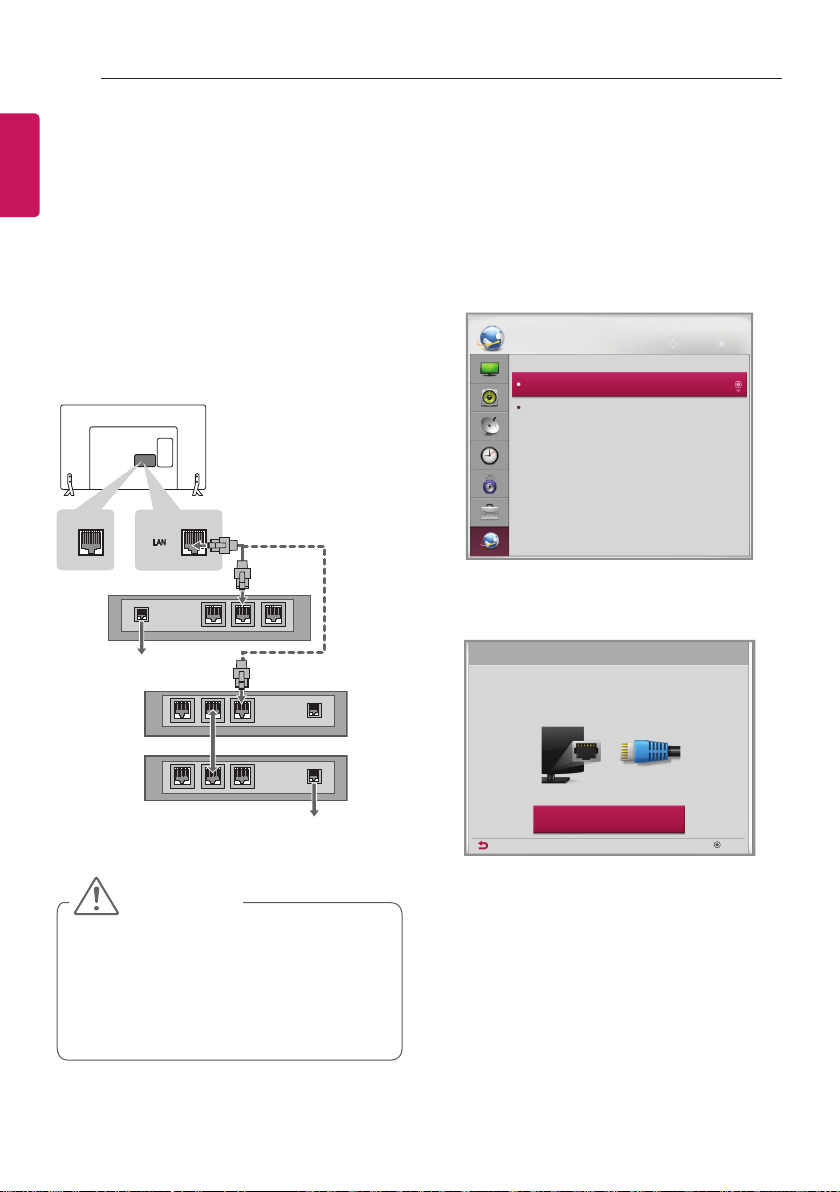

24 Network Setup
24 - Wired network connection
24 - Network setting

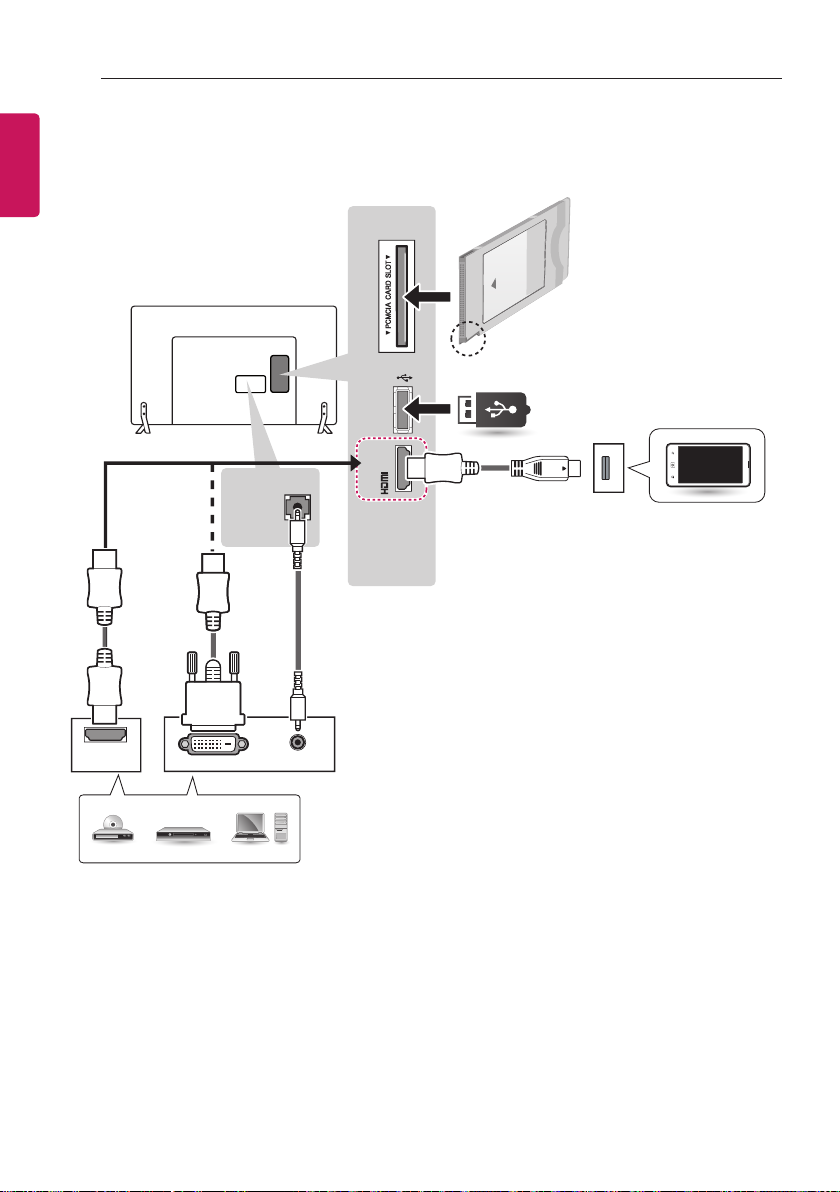

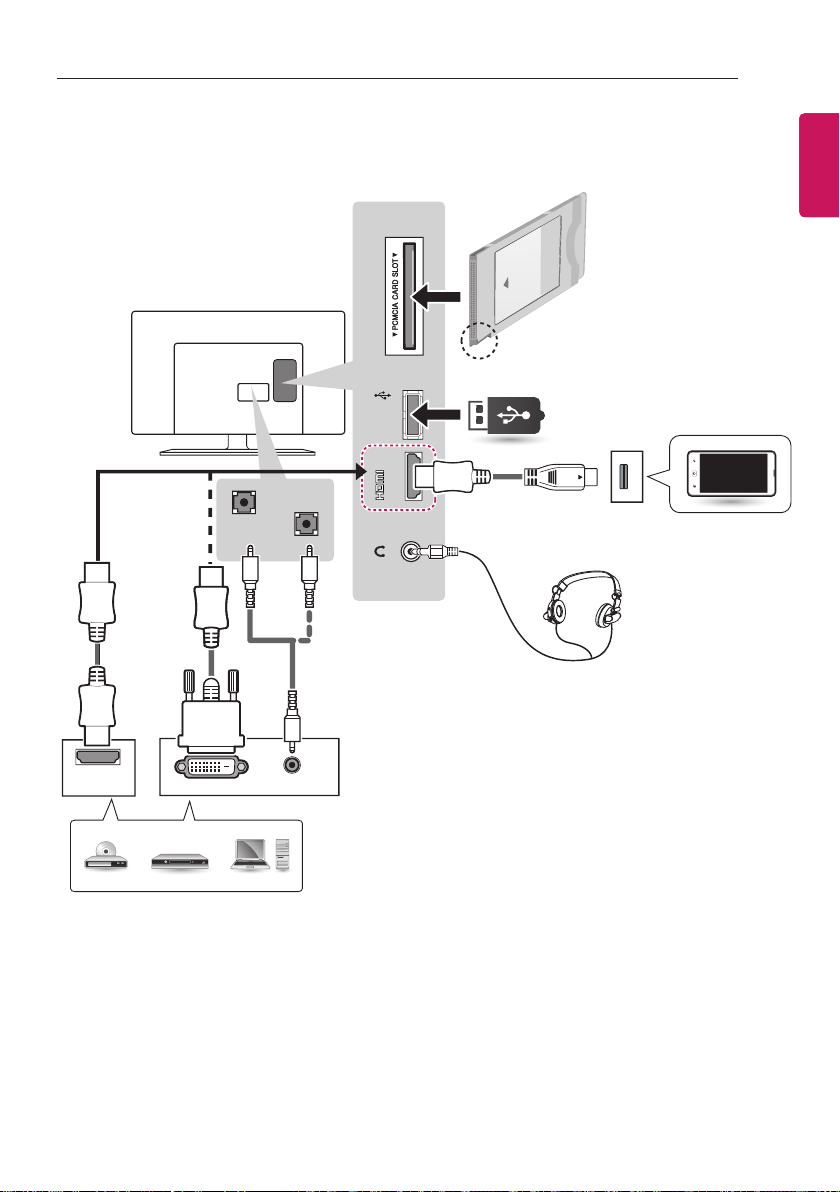

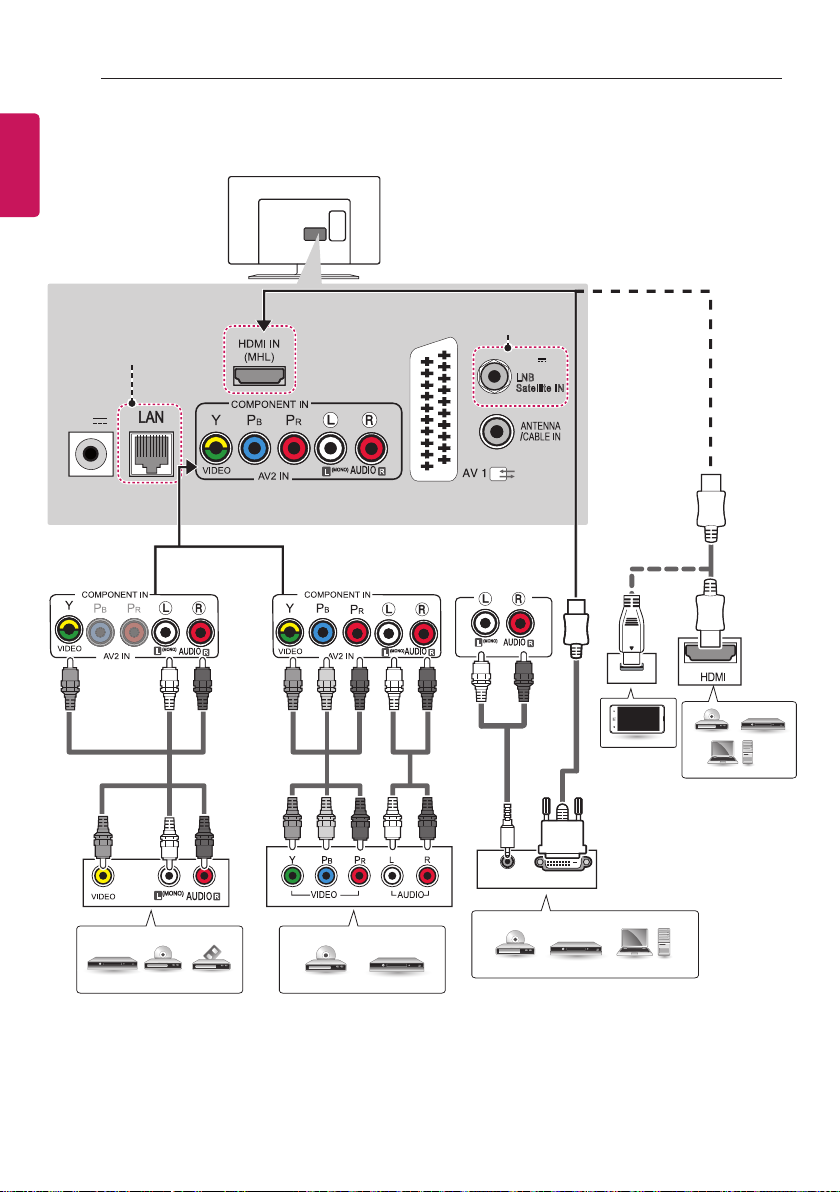

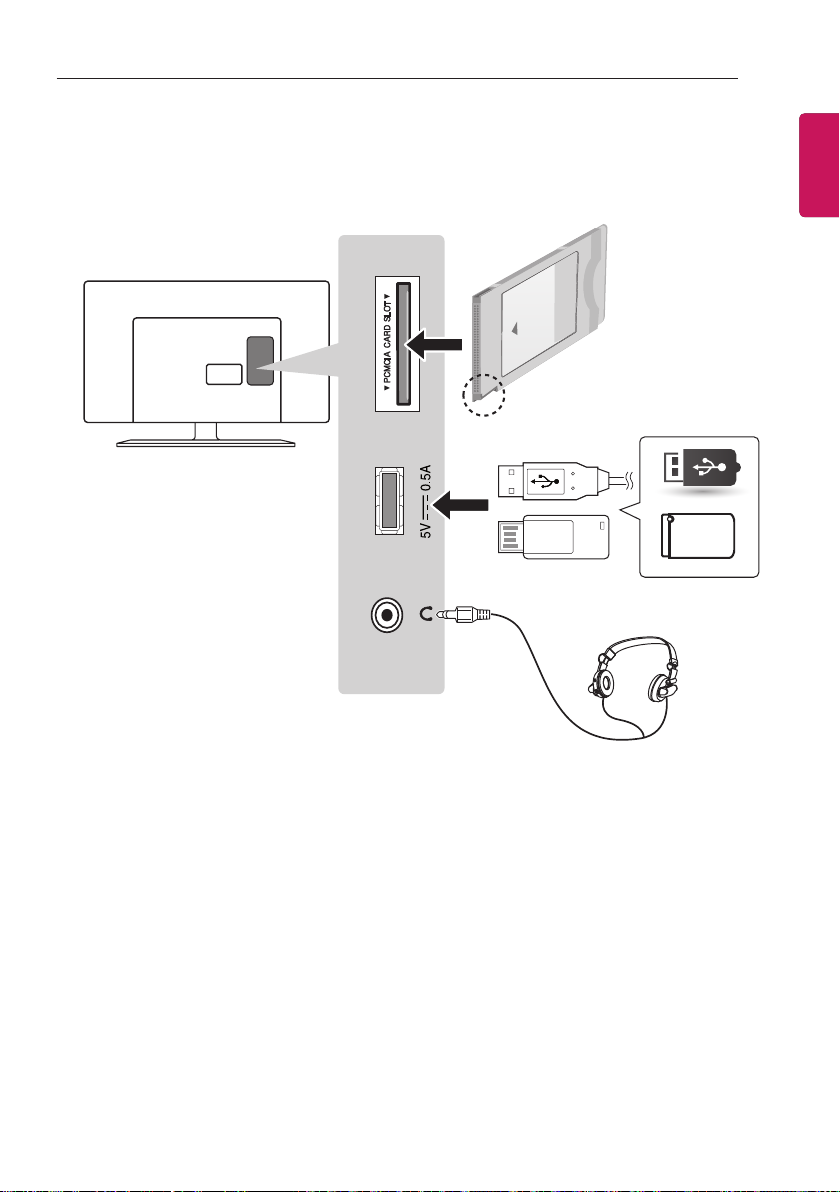

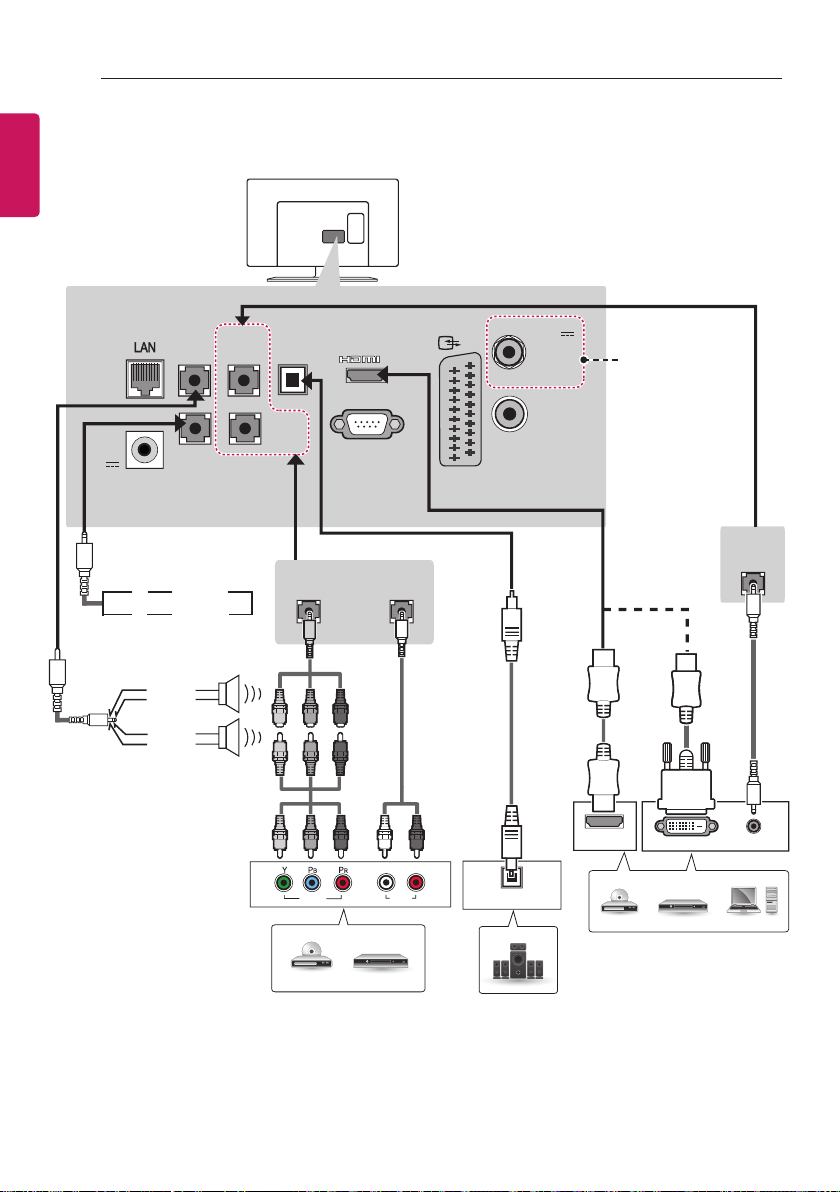

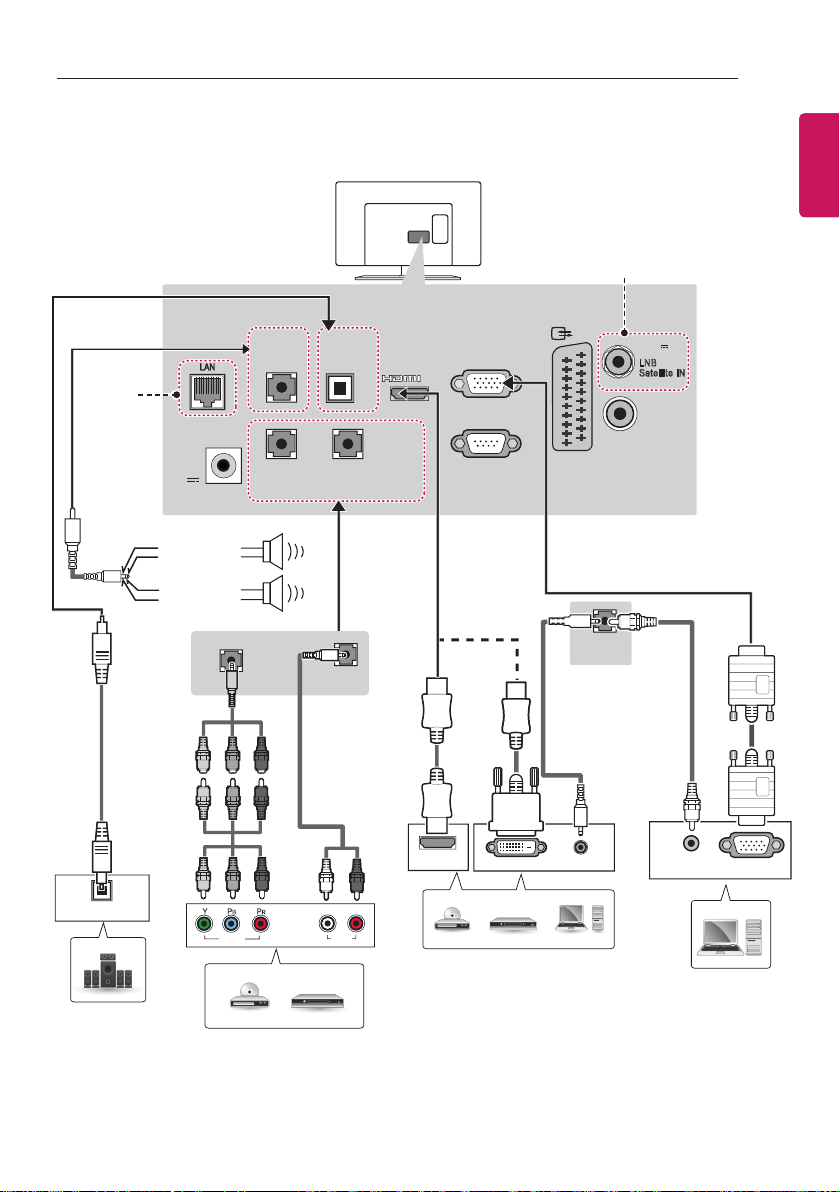

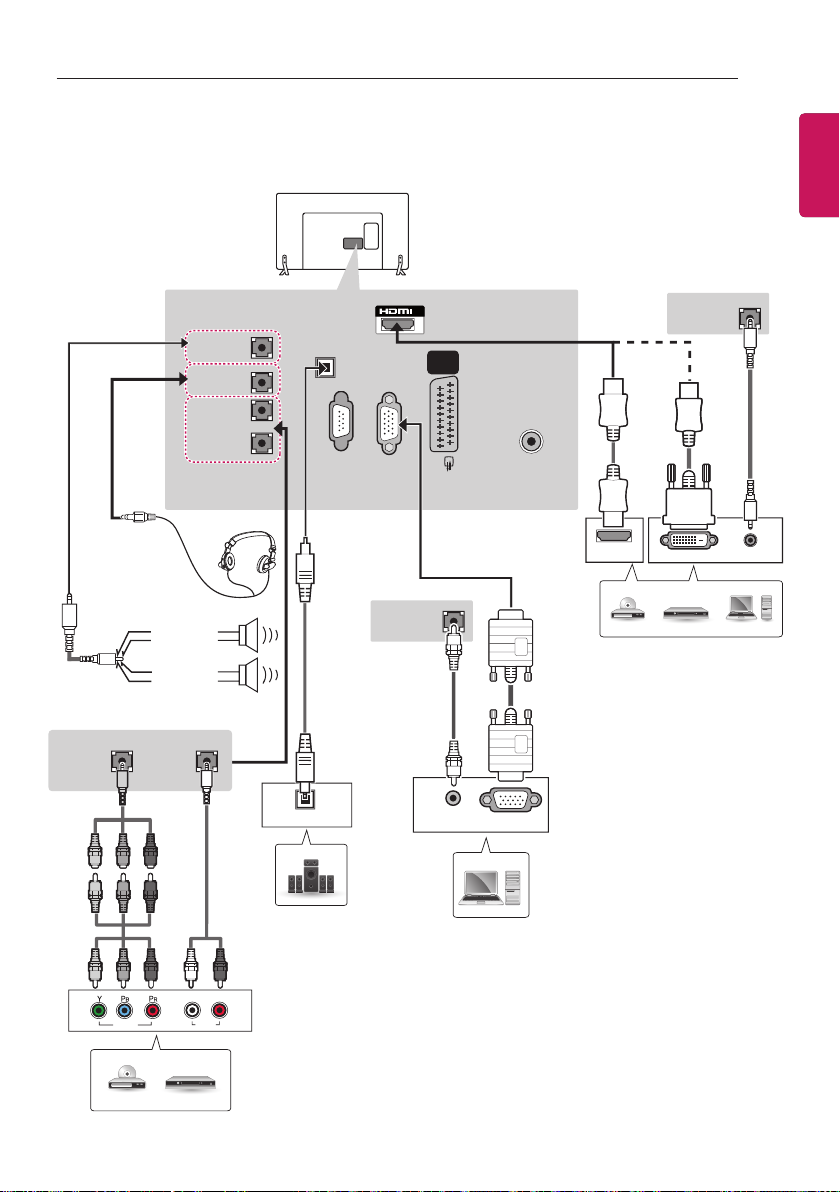

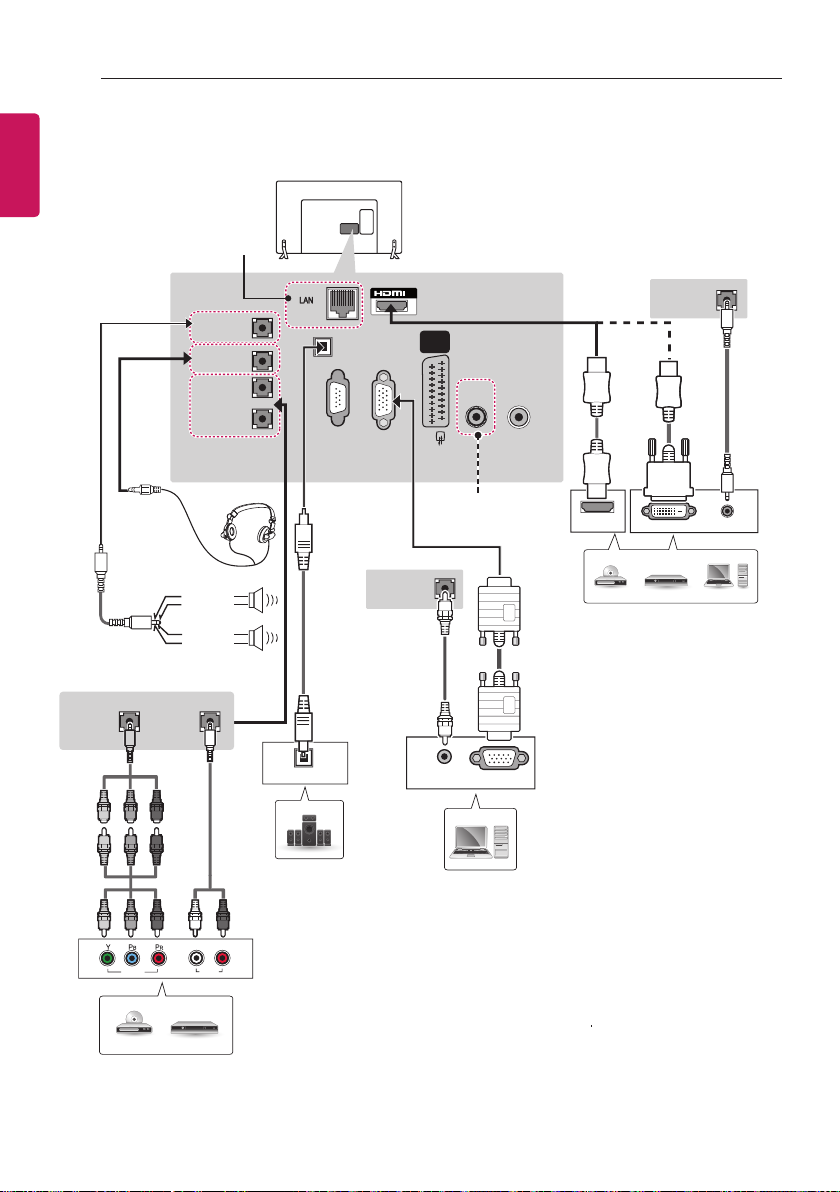

26 Other Connections

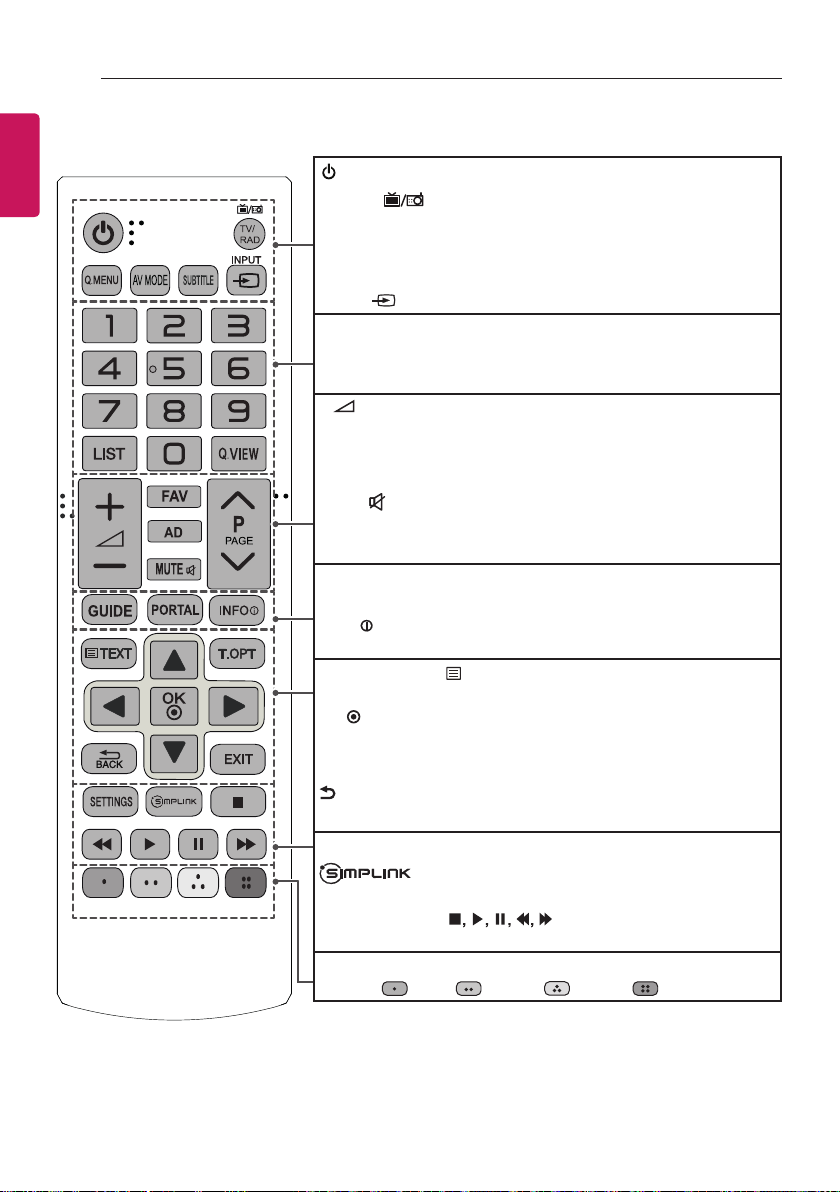

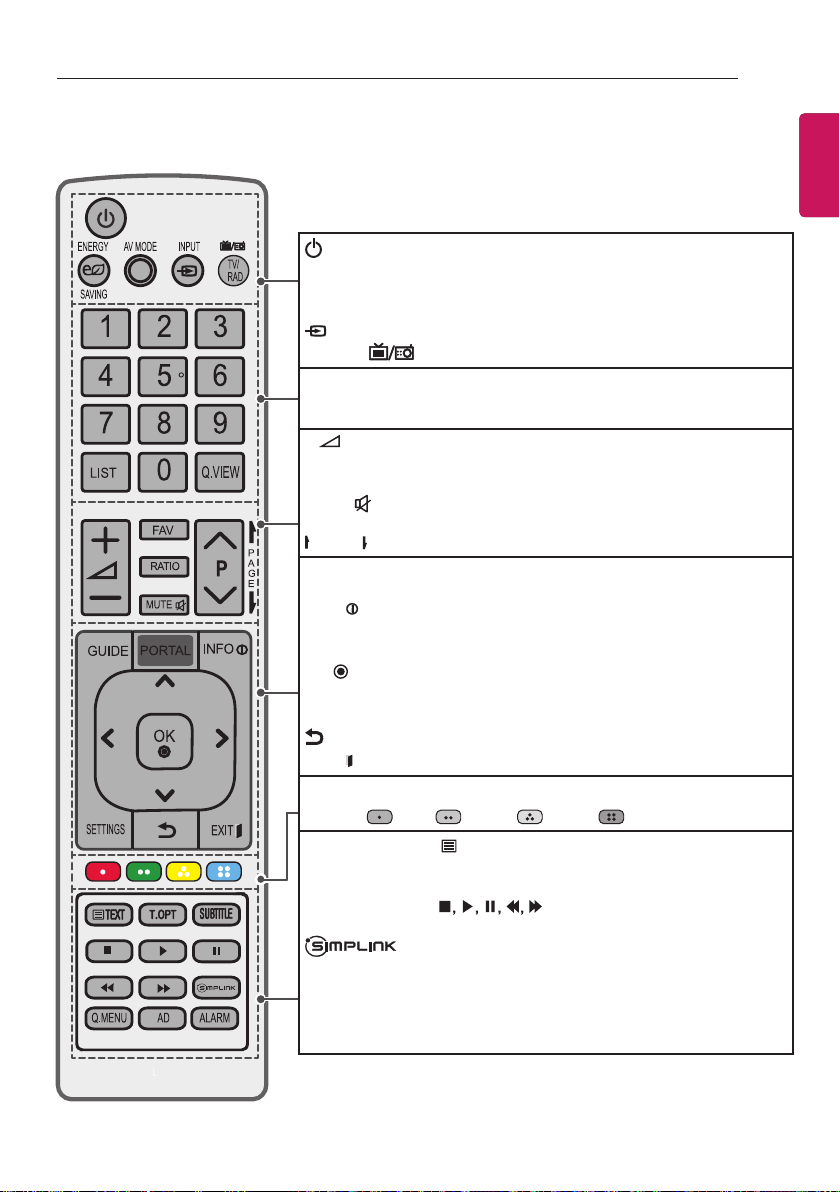

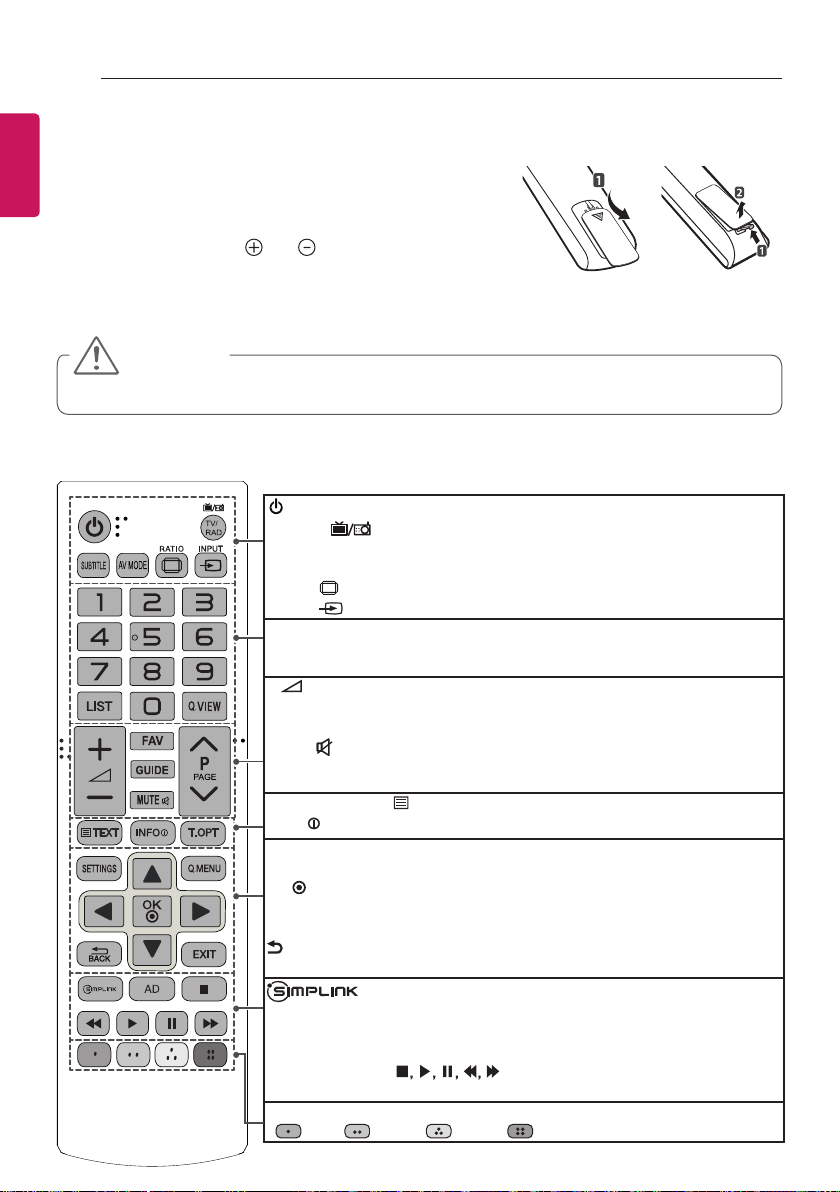

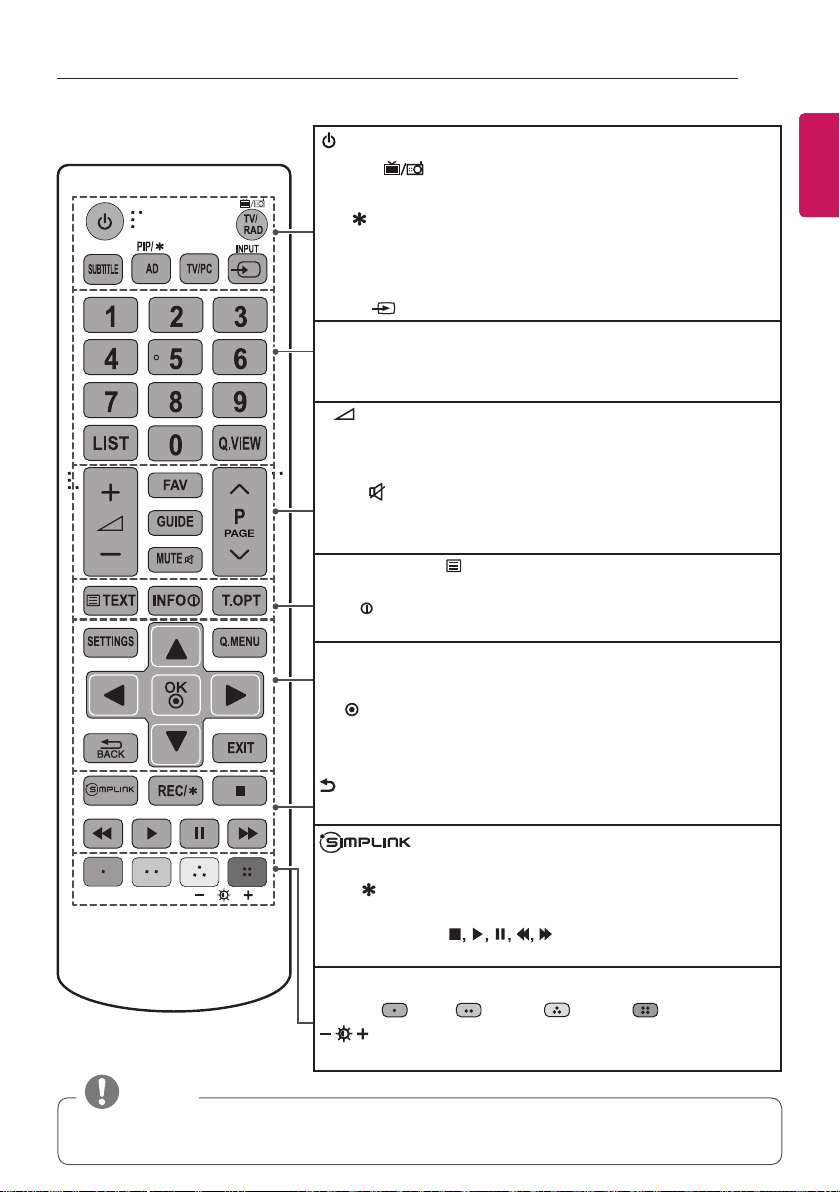

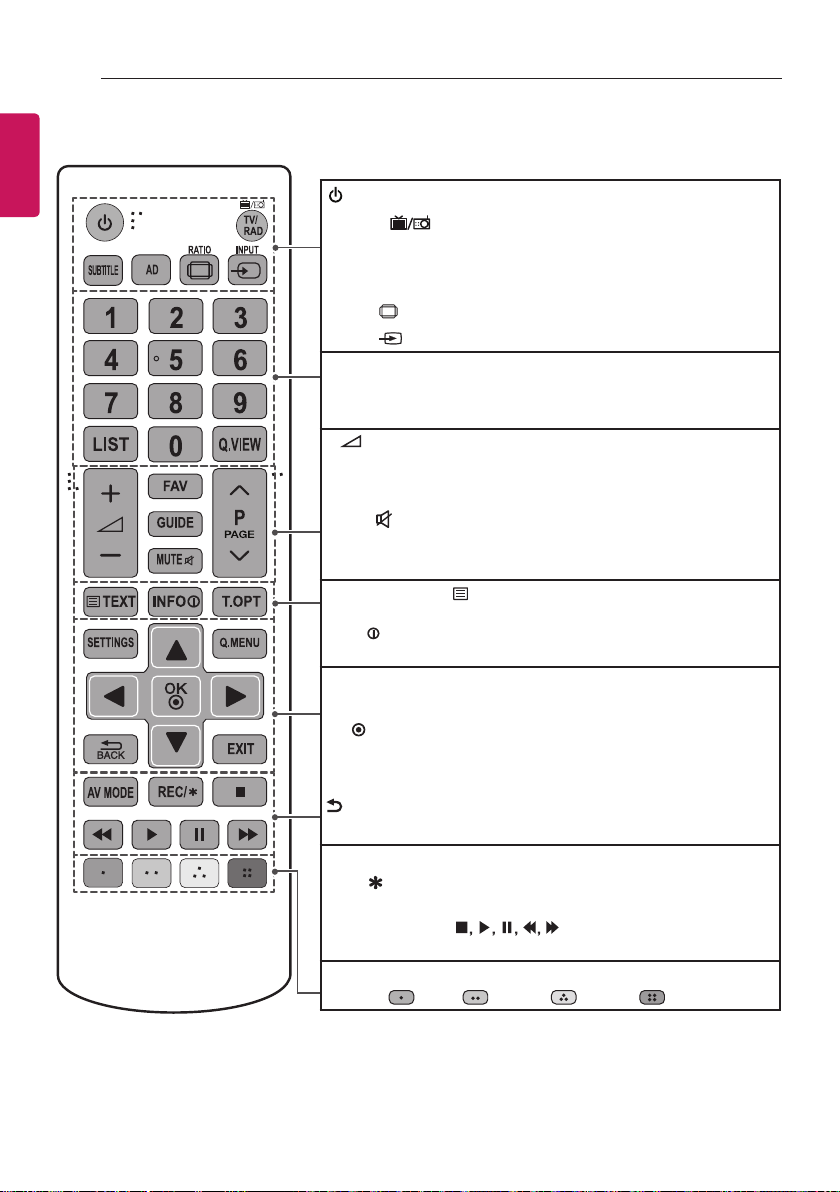

40 REMOTE CONTROL

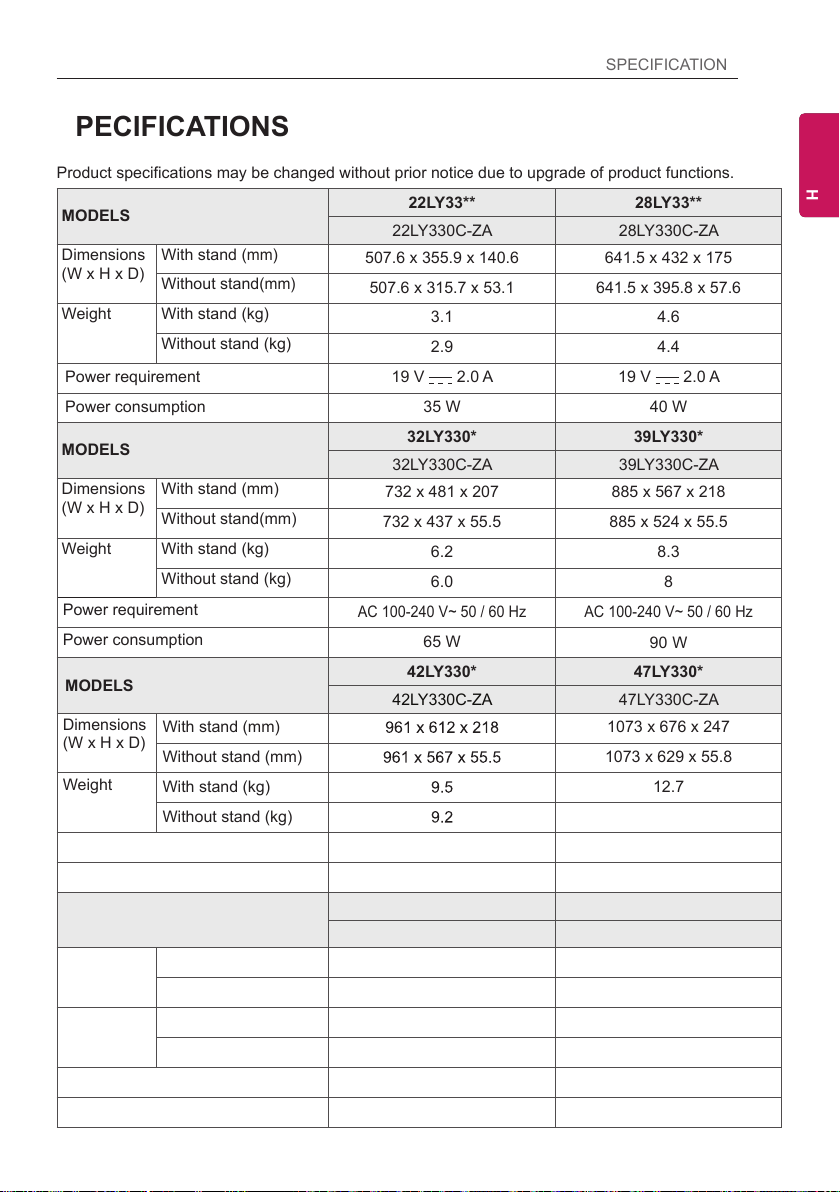

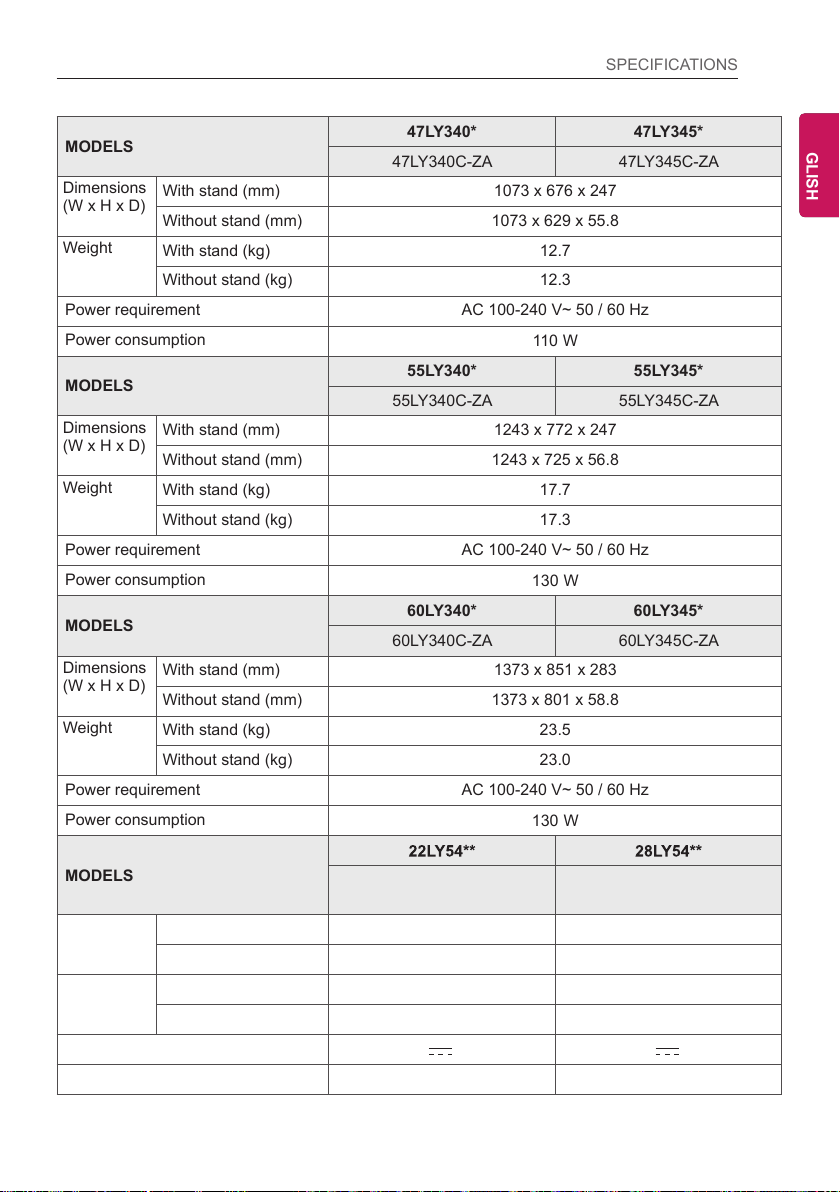

47 SPECIFICATIONS
56 IR CODES
57 EXTERNAL CONTROL DEVICE
SETUP

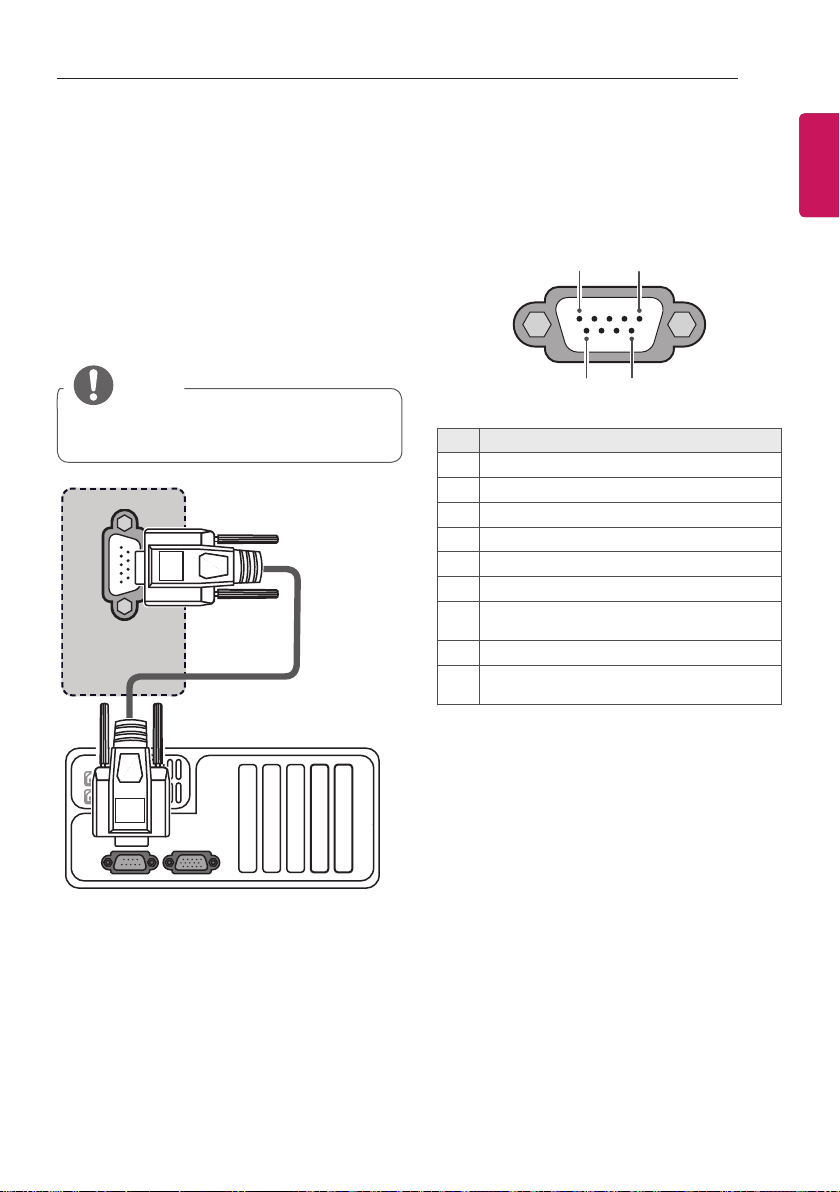

57 RS-232C Setup
57 Type of Connector:
D-Sub 9-Pin Male

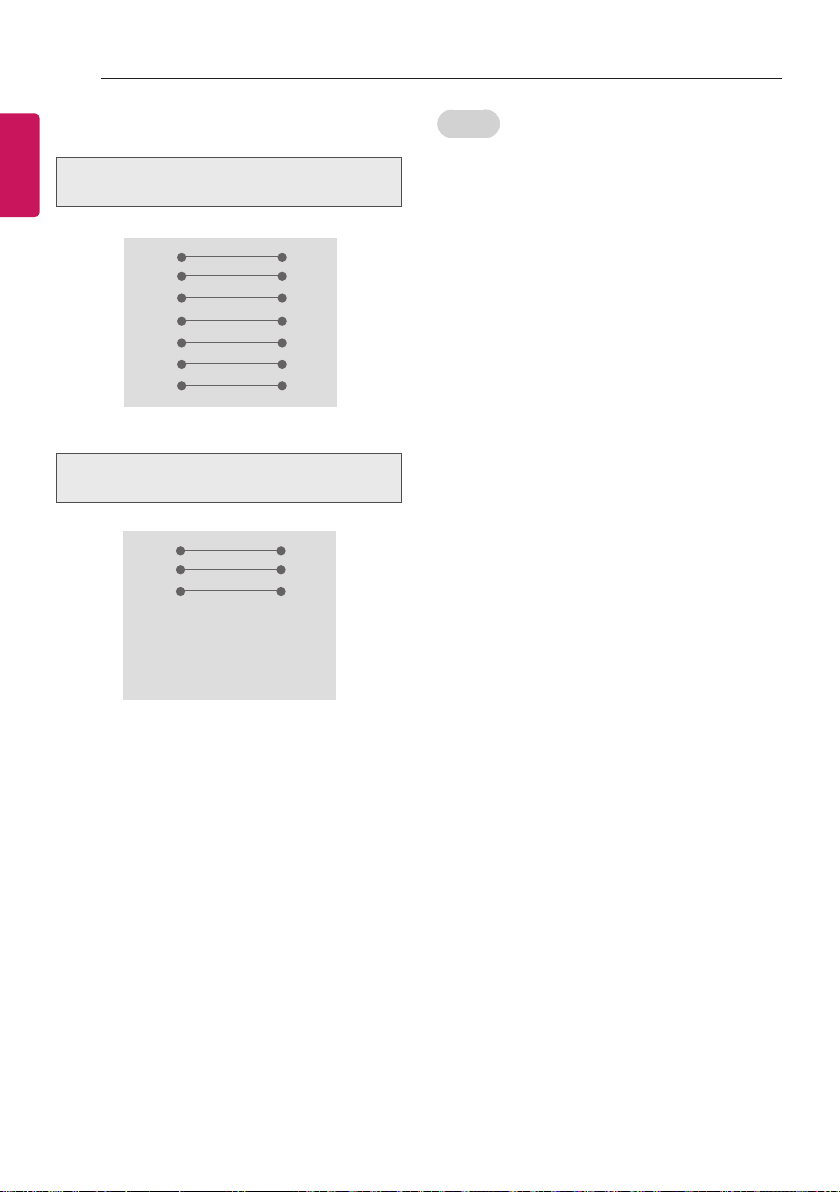

58 RS-232C Configurations
59 Communication Parameters
59 Command Reference List
60 Transmission / Receiving Protocol
WARNING
If you ignore the warning message, you
y
may be seriously injured or there is a
possibility of accident or death.
45 MAINTENANCE
45 Cleaning your TV
45 - Screen, frame, cabinet and stand
45 - Power cord
46 TROUBLESHOOTING
CAUTION
If you ignore the caution message, you
y
may be slightly injured or the product
may be damaged.
NOTE
The note helps you understand and use
y
the product safely. Please read the note
carefully before using the product.
LICENSES / OPEN SOURCE SOFTWARE NOTICE
3
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC,
a subsidiary of Rovi Corporation. This is an official DivX Certified® device
that has passed rigorous testing to verify that it plays DivX video. Visit divx.
com for more information and software tools to convert your files into DivX
videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must
be registered in order to play purchased DivX Video-on-Demand (VOD)
movies. To obtain your registration code, locate the DivX VOD section in
your device setup menu. Go to vod.divx.com for more information on how to
complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium
content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.”
ENGENGLISH
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained
in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of media, shipping and handling) upon email request
to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased
the product.
4
<
=
<
=
ASSEMBLING AND PREPARING
ENGLISH
ENG
NOTE
Image shown may differ from your TV.
y
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y
The available menus and options may differ from the input source or product model that you
y
are using.
New features may be added to this TV in the future.
y
The TV can be placed in standby mode in order to reduce the power consumption. And the
y
TV should be turned off if it will not be watched for some time, as this will reduce energy
consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the
y
picture is reduced, and this will reduce the overall running cost.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
CAUTION
Do not use any unapproved items to ensure the safety and product life span.
y
Any damages or injuries by using unapproved items are not covered by the warranty.
y
Some models have a thin film attached on to the screen and this must not be removed.
y
NOTE
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to
y
upgrade of product functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
y
thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not fit into your TV’s USB port.
A
Cable
B
*A
10 mm
*B
18 mm
B
A
Use a certified cable with the HDMI logo attached.
y
If you do not use a certified HDMI cable, the screen may not display or a connection error may
y
occur. (Recommended HDMI Cable Types)
- High-Speed HDMI
- High-Speed HDMI®/TM Cable with Ethernet
®/TM
ASSEMBLING AND PREPARING
5
ENGENGLISH
Remote control,
batteries (AAA)
(See p.40, 41, 42, 43, 44)
Power cord
(Depending on model)
Cable Managements
2EA
(Only 32/42/49LY31**,
32/39/42/47/55/60LY330*,
32/39/42/47/55/60LY340*,
32/39/42/47/55/60LY345*,
32/39/42/47/55/60LY540*,
32/42/55LY530*)
(See p.20)
Owner’s manual Cable Holder
(Depending on model)
(See p.20)
Stand Screws
4EA, M4 x L14
(Only 42/49LY31**,
39/42/47/55/60LY330*,
39/42/47/55/60LY340*,
39/42/47/55/60LY345*,
39/42/47/55/60LY540*,
42/55LY530*,
42/47/55LY541*,
42/47/55LY341*,
42/47/55LY331*)
(See p.11, 13)
Wall Mount Spacers
2EA
(Only 42LY31**, 42LY33**,
42LY34**, 42LY54**,
42LY53**)
(See p.18)
Stand Screws
4EA, M4 x L20
(Only 32LY31**, 32LY330*,
32LY340*, 32LY345*,
32LY540*, 32LY530*,
42/47/55LY541*,
42/47/55LY341*,
42/47/55LY331*)
6EA, M4 x L20
(Only 32/39LY541*,
32/39LY341*, 32/39LY331*)
(See p.11, 12, 13)
Stand Bases
(Only 32/42/49LY31**,
32/39/42/47/55/60LY330*,
32/39/42/47/55/60LY340*,
32/39/42/47/55/60LY345*,
32/39/42/47/55/60LY540*,
32/42/55LY530*)
(See p.11)
6
ENGLISH
ENG
ASSEMBLING AND PREPARING
AC-DC Adaptor
(Only 28LY31**,
22/28LY33**, 22/28LY34**,
22/28LY54**)
(Depending on model)
(See p.23)
Stand Base/Stand Body
(Only LY541*, LY331*,
LY341*)
(See p.12, 13)
Rubbers
2EA
(Only LY541*, LY331*,
LY341*)
(See p.14)
Stand Base
(Only 28LY31**, 22/28LY33**,
22/28LY34**, 22/28LY54**)
(See p.11)
Power Cord Holder/Screw
1EA
(Only 39/42/47/55LY541*,
39/42/47/55LY341*,
39/42/47/55LY331*)
(See p.20)
Washers for Stand Fixing
2EA
(Depending on model)
(See p.16)
Dual Lock™
(Only LY540H, LY541H,
LY540M, LY530H)
(See p.19)
Torx Plus Star-Head
Screws
2EA
(Only LY541*, LY331*,
LY341*)
(See p.12, 13)
Nuts for Stand Fixing
2EA
(Depending on model)
(See p.16)
Screws for Stand Fixing
2EA
(Depending on model)
(See p.16)
ASSEMBLING AND PREPARING
7
Separate Purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
The model name or design may be changed depending on the upgrade of product functions,
manufacturer’s circumstances or policies.
LG Audio Device LED Clock
LEC-003
(Only 32/39/42/47/55LY540H,
32/39/42/47/55LY541H,
32/42/55LY530H)
ENGENGLISH
8
ASSEMBLING AND PREPARING
ENGLISH
Parts and Button
ENG
A type : 32/42/49LY31**, 32/39/42/47/55/60LY330*,
32/39/42/47/55/60LY340*, 32/39/42/47/55/60LY345*,
32/39/42/47/55/60LY540*, 32/42/55LY530*
Screen
B type : 28LY31**, 22/28LY33**,
22/28LY34**, 22/28LY54**
Screen
Speakers
Remote control
and intelligent sensors
Power Indicator
1
Joystick Button
and intelligent sensors
2
C type : 32/39/42/47/55LY331*, 32/39/42/47/55LY541*,
32/39/42/47/55LY341*
Screen
Speakers
Remote control and
intelligent sensors
Power Indicator
1
Joystick button
2
Remote control
Power Indicator
Speakers
1
Joystick Button
2
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 Joystick Button - This button is located below the TV screen.
NOTE
You can set the power indicator light to on or off by selecting OPTION in the main menus.
y
ASSEMBLING AND PREPARING
9
Using the Joystick button
You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right.
Basic Functions
Power On
Power Off
Volume
Control
Programmes
Control
When the TV is turned off, place your finger on the joystick
button and press it once and release it.
When the TV is turned on, place your finger on the joystick
button and press it once for a few seconds and release it.
(However, if the Menu button is on the screen, pressing and
holding the joystick button will let you exit the Menu.)
If you place your finger over the joystick button and move it left
or right, you can adjust the volume level you want.
If you place your finger over the joystick button and move it up
or down, you can scrolls through the saved programmes you
want.
NOTE
When your finger over the joystick button and push it to the up, down, left or right, be careful
y
not to press the joystick button. If you press the joystick button first, you may not be able to
adjust the volume level and saved programmes.
ENGENGLISH
Adjusting the Menu
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items (
, , , ) moving the joystick button up, down, left or right.
TV off Turns the power off.
Settings Accesses the main menu.
Close Clears on-screen displays and returns to TV viewing.
Input List Changes the input source.
10
ASSEMBLING AND PREPARING
ENGLISH
Lifting and Moving the TV
ENG
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless
of its type and size.
CAUTION
Avoid touching the screen at all times, as
y
this may result in damage to the screen.
It is recommended to move the TV in the
y
box or packing material that the TV originally
came in.
Before moving or lifting the TV, disconnect
y
the power cord and all cables.
When holding the TV, the screen should face
y
away from you to avoid damage.
When transporting a large TV, there should
y
be at least 2 people.
When transporting the TV by hand, hold the
y
TV as shown in the following illustration.
When transporting the TV, do not expose the
y
TV to jolts or excessive vibration.
When transporting the TV, keep the TV
y
upright, never turn the TV on its side or tilt
towards the left or right.
Do not apply excessive pressure to cause
y
exing /bending of frame chassis as it may
damage screen.
CAUTION
yWhen handling the TV, be careful not to
damage the protruding joystick button.
(Depending on model)
Hold the top and bottom of the TV frame
y
rmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
ASSEMBLING AND PREPARING
1
2
11
Setting up the TV
Image shown may differ from your TV.
Attaching the stand
(
Only 32/42/49LY31**, 32/39/42/47/55/60LY330*,
32/39/42/47/55/60LY340*, 32/39/42/47/55/60LY345*,
32/39/42/47/55/60LY540*, 32/42/55LY530*)
1
A Stand Base
B Stand Base
2
(Only 28LY31**, 22/28LY33**, 22/28LY34**,
22/28LY54**)
1
Stand Base
2
ENGENGLISH
M4 x L14
(Only 42/49LY31**,
39/42/47/55/60LY330*,
39/42/47/55/60LY340*,
39/42/47/55/60LY345*,
39/42/47/55/60LY540*,
42/55LY530*)
4EA
M4 x L20
(Only 32LY31**,
32LY330*, 32LY340*,
32LY345*, 32LY540*,
32LY530*)
12
ASSEMBLING AND PREPARING
(Only 32/39LY541*, 32/39LY331*, 32/39LY341*)
ENGLISH
ENG
1
4 EA
M4 x L20
3
M4 x L20
2EA
or
Stand Base
2
Stand Body
Torx Plus Star-Head Screws
2EA
Tighten the two Torx head screws
(supplied with TV) with a Torx Bit Driver
(not supplied with TV).
ASSEMBLING AND PREPARING
13
(Only 42/47/55LY541*, 42/47/55LY331*,
42/47/55LY341*)
1
Stand Base
4 EA
M4 x L20
Stand Body
2
3
M4 x L14
4EA
or
M4 x L14
2EA
Torx Plus Star-Head Screws
2EA
Tighten the two of these four screws
and the two Torx screws (supplied with
TV) to secure the TV. Tighten the two
Torx screws with a Torx Bit Driver (not
supplied with TV).
ENGENGLISH
14
ASSEMBLING AND PREPARING
ENGLISH
ENG
y
y
y
y
CAUTION
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
Make sure that the screws are fastened
completely. (If they are not fastened
securely enough, the TV may tilt forward
after being installed.) Do not use too
much force and over tighten the screws;
otherwise screw may be damaged and
not tighten correctly.
NOTE
Remove the stand before installing the
TV on a wall mount by performing the
stand attachment in reverse.
The Rubber will protect the opening
from accumulating dust and dirt. When
installing the wall mounting bracket,
use the Rubber. (Only LY541*, LY331*,
LY341*)
Mounting on a table
1 Lift and tilt the TV into its upright position on
a table.
- Leave a 10 cm (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
Do not place the TV near or on sources
y
of heat, as this may result in fire or other
damage.
10 cm
10 cm
Rubber
2EA
ASSEMBLING AND PREPARING
15
Adjusting the angle of the TV to suit view
(Only LY541*, LY331*, LY341*)
Swivel 20 degrees to the left or right and adjust
the angle of the TV to suit your view.
20˚20˚
CAUTION
When adjusting the angle of the product,
y
watch out for your fingers.
»
Personal injury may occur if hands
or fingers are pinched. If the product
is tilted too much, it may fall, causing
damage or injury.
Attaching the TV to a desk
ENGENGLISH
(Depending on model)
The TV should be attached to a desk so
it cannot be pulled in a forward/backward
direction, potentially causing injury or damaging
the product.
A type )
4-Screws
(Not supplied with TV)
Stand
Desk
NOTE
Screw : M5 x L (*L: Table depth + 8~10
y
mm)
ex) Table depth: 15 mm, Screw: M5 x 25
16
ASSEMBLING AND PREPARING
B type )
ENGLISH
ENG
2-Screws for Stand Fixing,
2-Washers for Stand Fixing,
2-Nuts for Stand Fixing
(Supplied with TV)
Stand
Desk
Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV
brackets and bolts on the back of the TV.
- If there are bolts inserted at the eyebolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets
tightly with a sturdy rope.
Make sure to keep the rope horizontal with
the at surface.
CAUTION
Make sure that children do not climb on
y
or hang on the TV.
NOTE
Use a platform or cabinet that is strong
y
and large enough to support the TV
securely.
Brackets, bolts and ropes are not
y
provided. You can obtain additional
accessories from your local dealer.
ASSEMBLING AND PREPARING
17
Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
LG recommends that wall mounting be
performed by a qualified professional installer.
We recommend the use of LG’s wall mount
bracket.
When you do not use LG’s wall mount bracket,
please use a wall mount bracket where the
device is adequately secured to the wall with
enough space to allow connectivity to external
devices.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described
in the following table.
Separate purchase(Wall Mounting Bracket)
Model
VESA (A x B) 75 x 75 100 x 100
Standard
screw
Number of
screws
Wall mount
bracket
Model
VESA (A x B) 200 x 200 400 x 400
Standard
screw
Number of
screws
Wall mount
bracket
Model
VESA (A x B) 400 x 400
Standard
screw
Number of
screws
Wall mount
bracket
22LY33**
22LY34**
22LY54**
M4 X L10 M4 X L10
4 4
LSW140B LSW140B
32LY31**
32/39LY33**
32/39LY34**
32/39LY54**
32LY53**
M6 M6
4 4
LSW240B
MSW240
60LY33**
60LY34**
60LY54**
M6
4
LSW440B
28LY31**
28LY33**
28LY34**
28LY54**
42/49LY31**
42/47/55LY33**
42/47/55LY34**
42/47/55LY54**
42/55LY53**
LSW440B
MSW240
ENGENGLISH
A
B
18
ASSEMBLING AND PREPARING
ENGLISH
ENG
y
y
y
y
y
CAUTION
Disconnect the power first, and then
move or install the TV. Otherwise electric
shock may occur.
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorized LG wall mount and
contact the local dealer or qualified
personnel.
Do not over tighten the screws as this
may cause damage to the TV and void
your warranty.
Use the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an
improper accessory are not covered by
the warranty.
Screw length from outer surface of back
cover should be under 8 mm.
(Only 28LY31**, 22/28LY33**,
22/28LY34**, 22/28LY54**)
Wall mount Pad
Back Cover
NOTE
Use the screws that are listed on the
y
VESA standard screw specifications.
The wall mount kit includes an installation
y
manual and necessary parts.
The wall mount bracket is not provided.
y
You can obtain additional accessories
from your local dealer.
The length of screws may differ
y
depending on the wall mount. Make sure
to use the proper length.
For more information, refer to the manual
y
supplied with the wall mount.
When attaching a wall mounting bracket
y
to the TV, insert the wall mount spacers
into the TV wall mount holes to adjust the
vertical angle of the TV.
(Only 42LY31**, 42LY33**, 42LY34**,
42LY54**, 42LY53**)
Wall Mount
Spacers
Wall mount Pad
Back Cover
Standard screw
: M4 x L10
Max.8 mm
ASSEMBLING AND PREPARING
19
How to use Dual Lock™
(Only LY540H, LY541H, LY540M, LY530H)
Fix the set-top box to the TV and use it when
you want to.
1 After removing the protection paper from the
Dual Lock, stick it to the TV and the set-top
box as shown.
Dual Lock™
2 Attach the set-top box to the TV by pressing
the Velcro strips together.
NOTE
y Please make sure no foreign substances
exist on the surface of the product, and
then firmly attach the Dual Lock™.
Before attaching the set-top box to the
y
TV set, let the attached Dual Lock™ dry
for at least three days.
ENGENGLISH
20
ASSEMBLING AND PREPARING
ENGLISH
Tidying cables
ENG
Image shown may differ from your TV.
(Only 22/28LY33**, 22/28LY34**, 22/28LY54**,
28LY31**)
1 Gather and bind the cables with the cable
holder.
Cable Holder
(Only 32/39/42/47/55/60LY540*,
32/39/42/47/55/60LY330*,
32/39/42/47/55/60LY340*,
32/39/42/47/55/60LY345*, 32/42/49LY31**,
32/42/55LY530*)
1 Gather and bind the cables with the cable
holder.
2 Fix the Cable Management rmly to the TV.
Cable Holder
(Only 32LY541*, 32LY331*, 32LY341*)
1 Gather and bind the cables with the cable
holder.
Cable Holder
(Only 39/42/47/55LY541*, 39/42/47/55LY331*,
39/42/47/55LY341*)
1 Install the power cord holder and power
cord. It will help prevent the power cable
from being removed by accident.
2 Gather and bind the cables with the cable
holder.
Power Cord Holder/
Screw
Cable Management
Cable Holder
CAUTION
Do not move the TV by holding the cable
y
holder, as the cable holder may break,
and injuries and damage to the TV may
occur.
Loading...
