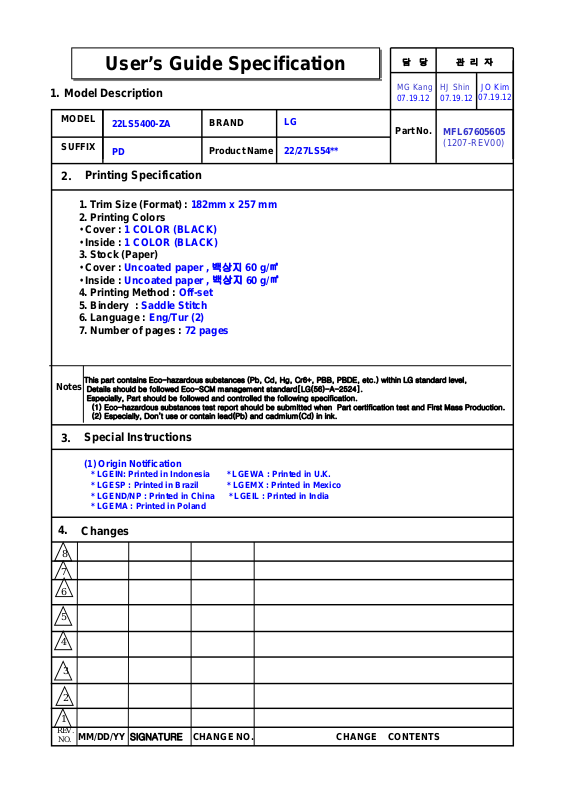

User’s Guide Specification |
|
|
|||
|
|
|
|
|
|||
1. Model Description |
|
|
MG Kang |
HJ Shin |
JO Kim |
||
|
|
07.19.12 |
07.19.12 |
07.19.12 |
|||
MODEL |
22LS5400-ZA |
BRAND |
LG |
Part No. |
MFL67605605 |
||
|
|
|
|
|
|||
SUFFIX |
PD |
Product Name |
22/27LS54** |
|
(1207-REV00) |
||
|
|
|
|||||
|
|
|
|
|
|||
2. |
Printing Specification |
|
|
|
|
|
1.Trim Size (Format) : 182mm x 257 mm
2.Printing Colors
•Cover : 1 COLOR (BLACK)
•Inside : 1 COLOR (BLACK)
3.Stock (Paper)
•Cover : Uncoated paper , 60 g/
•Inside : Uncoated paper , 60 g/
4.Printing Method : Off-set
5.Bindery : Saddle Stitch
6.Language : Eng/Tur (2)
7.Number of pages : 72 pages
This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level, Notes Details should be followed Eco-SCM management standard[LG(56)-A-2524].
Especially, Part should be followed and controlled the following specification.
(1)Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production.
(2)Especially, Don’t use or contain lead(Pb) and cadmium(Cd) in ink.
3. Special Instructions
(1) Origin Notification
* LGEIN: Printed in Indonesia |
* LGEWA : Printed in U.K. |
* LGESP : Printed in Brazil |
* LGEMX : Printed in Mexico |
* LGEND/NP : Printed in China |
* LGEIL : Printed in India |
*LGEMA : Printed in Poland
4.Changes
8
7
6
5
4
3
2
1
REVNO.. MM/DD/YY SIGNATURE CHANGE NO. |
CHANGE CONTENTS |
Pagination sheet
P/NO. MFL67605605
Total pages : 72pages
LG
|
|
Front cover |
|
|
|
|
|
|
|
|
|
P/no |
A-2 |
A-3 |
… |
… |
A-6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
LG(EN) |
|
|
|
|
|
|
|
|
|
Front cover |
|
|
|
|
|
|
|
|
|
|
2 |
3 |
… |
… |
… |
23 |
24 |
|
|
LG(Tur) |
|
|
|
|
|
|
|
|
|
Front cover |
|
|
|
|
|
|
|
|
|
|
2 |
3 |
… |
… |
… |
25 |
CIC no. |
|
Making |
|
|
|
|
|
|
|
|
LG(Eng) |
Connection |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
B-1 |
B-2 |
B-3 |
… |
… |
… |
B-13 |
Blank |
Blank |

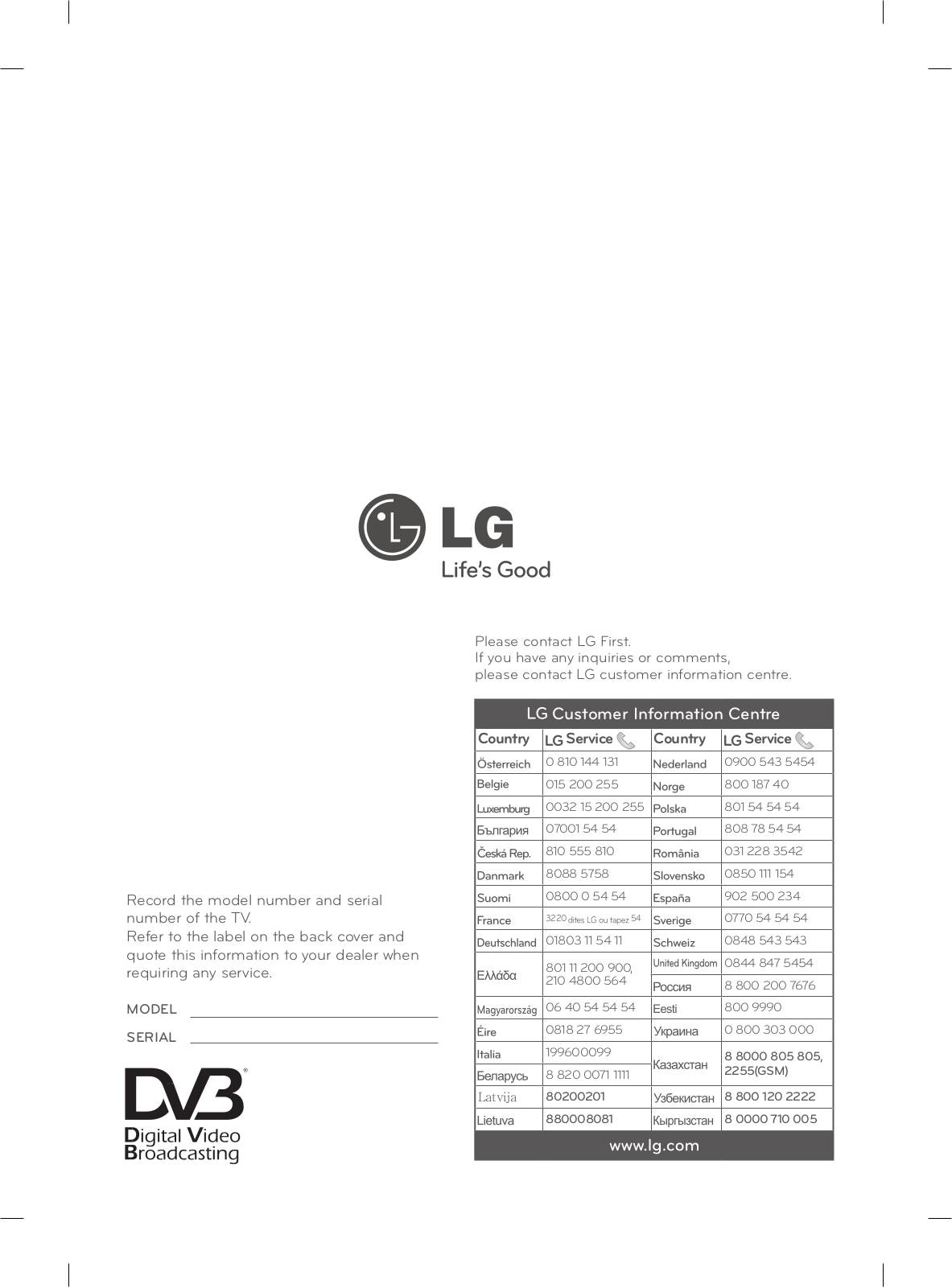

Back cover |
|
OWNER’S MANUAL
LED LCD TV
Please read this manual carefully before operating the your TV and retain it for future reference.
LED LCD TV MODEL
22LS5400 22LS540T 27LS5400 27LS540T
P/NO. MFL67605605 (1207-REV00) |
www.lg.com |
Printed in Korea |
A-2 TABLE OF CONTENTS
TABLE OF CONTENTS
A-3 SETTING UP THE TV
A-3 Attaching the stand
A-5 Tidying cables
A-6 Detaching the Stand
LANGUAGE LIST
English
Turkish

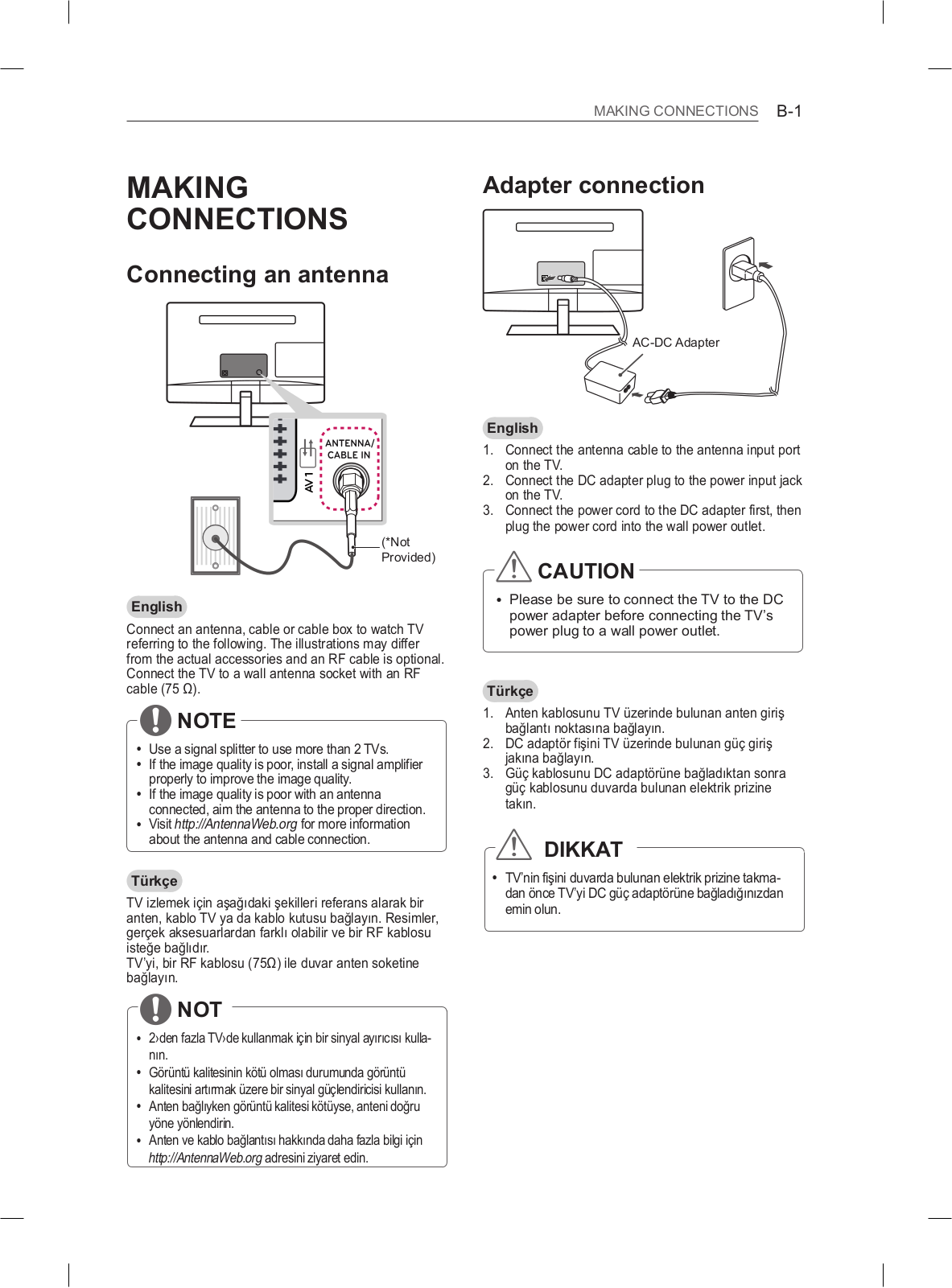

B-1 MAKING CONNECTIONS
B-1 Connecting an antenna B-1 Adapter connection

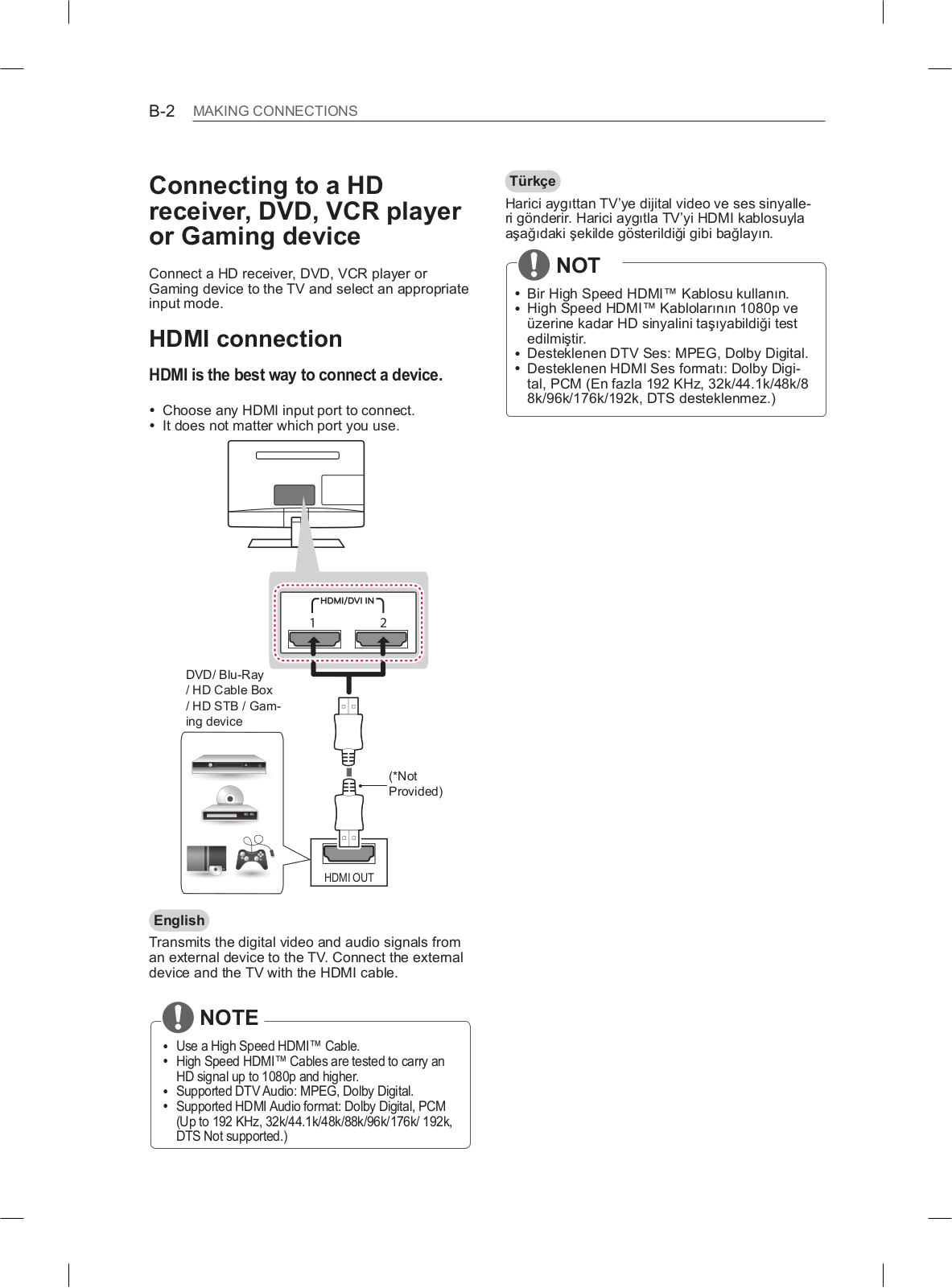

B-2 Connecting to a HD receiver, DVD, VCR player or Gaming device B-2 - HDMI connection

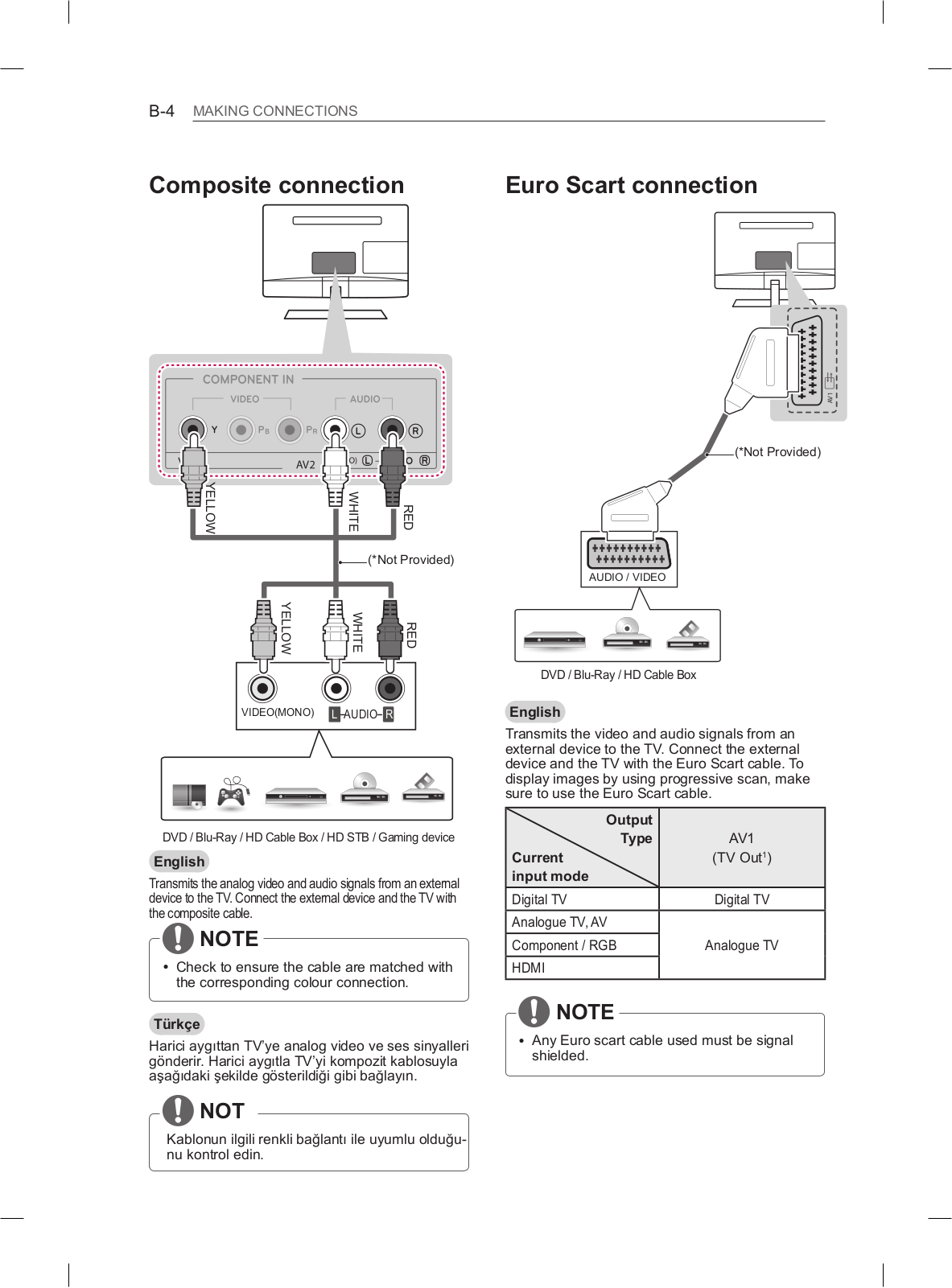

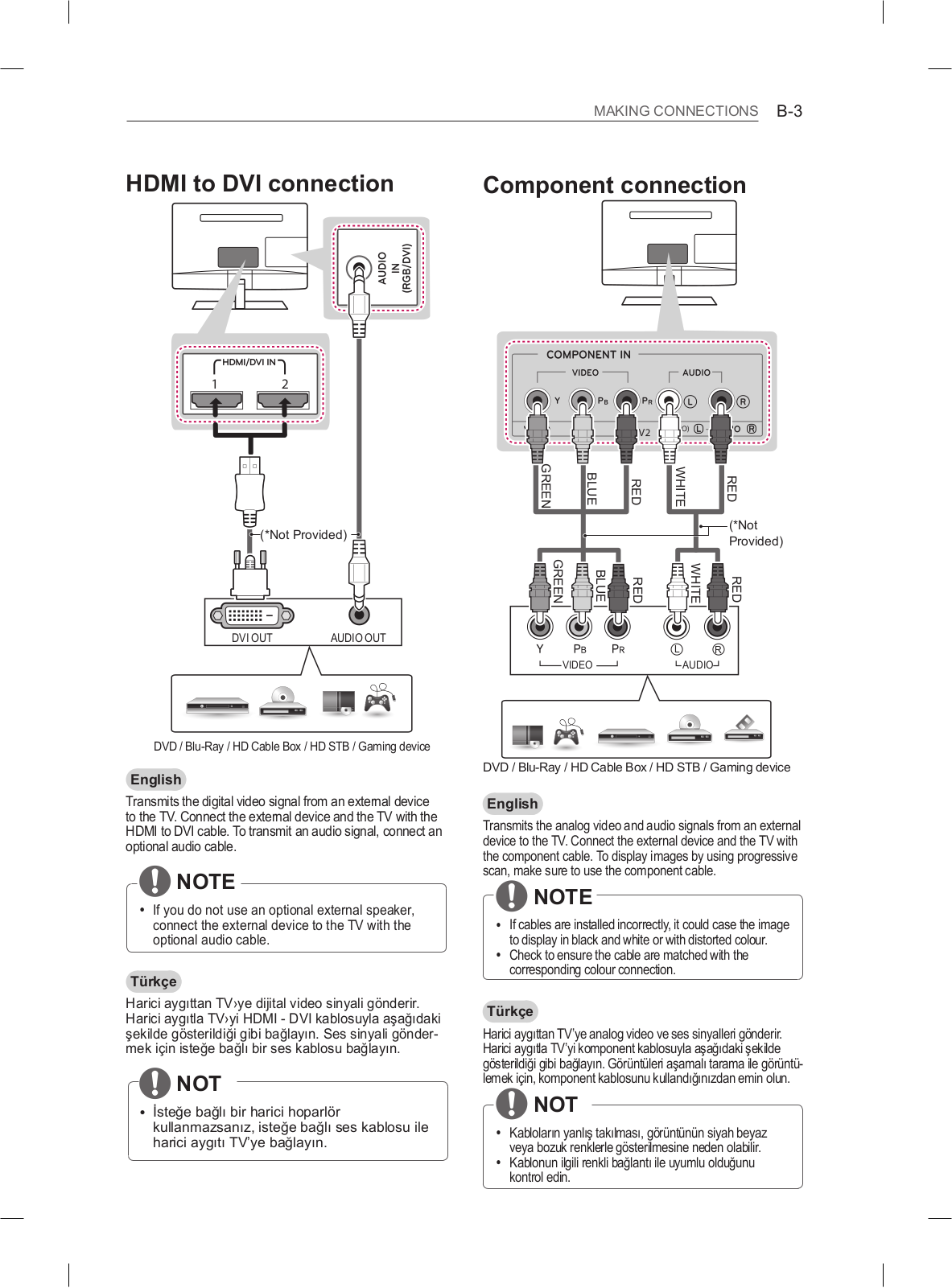

B-3 - HDMI to DVI connection B-3 - Component connection B-4 - Composite connection B-4 - Euro Scart connection

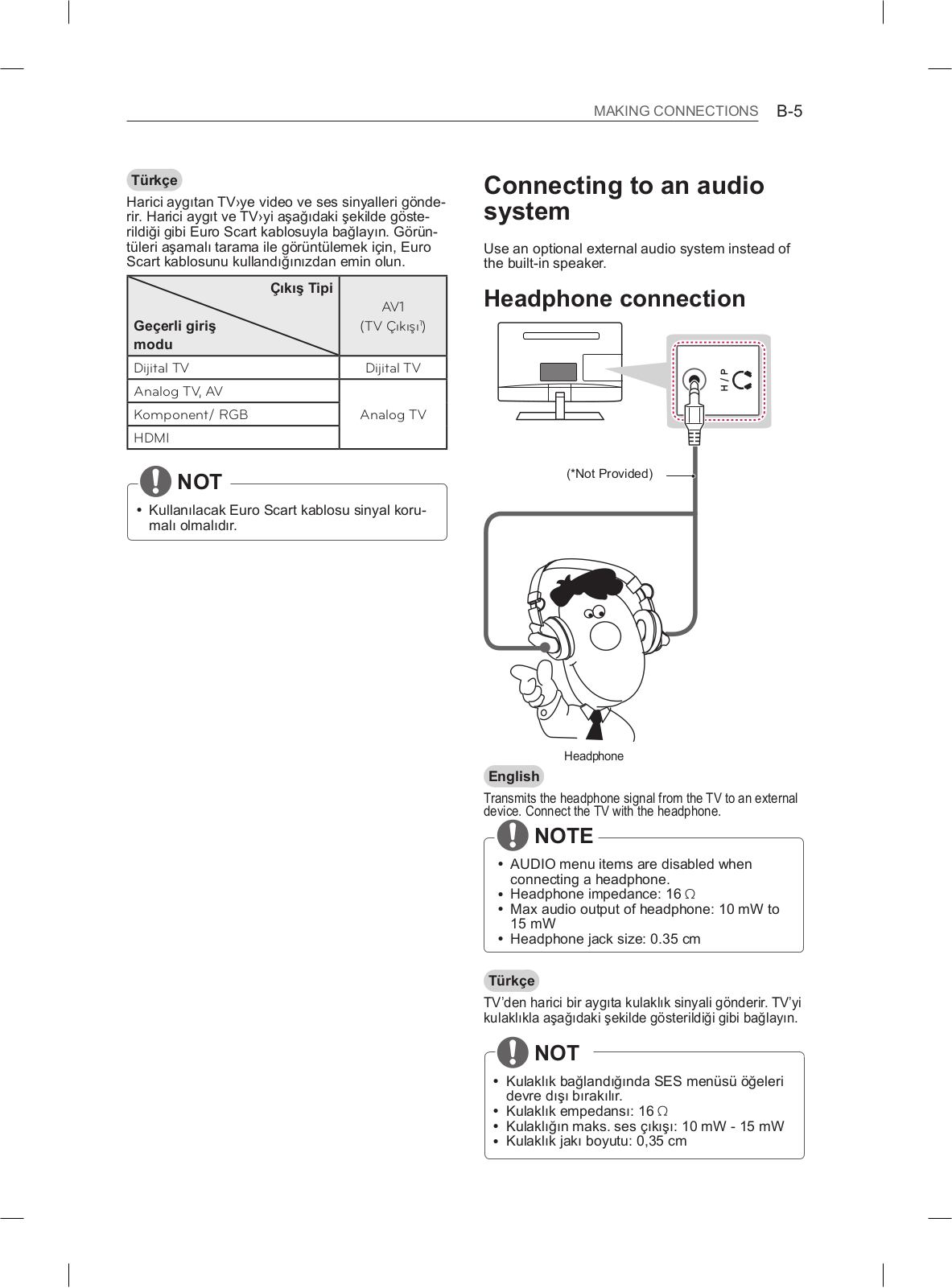

B-5 Connecting to an audio system B-5 - Headphone connection

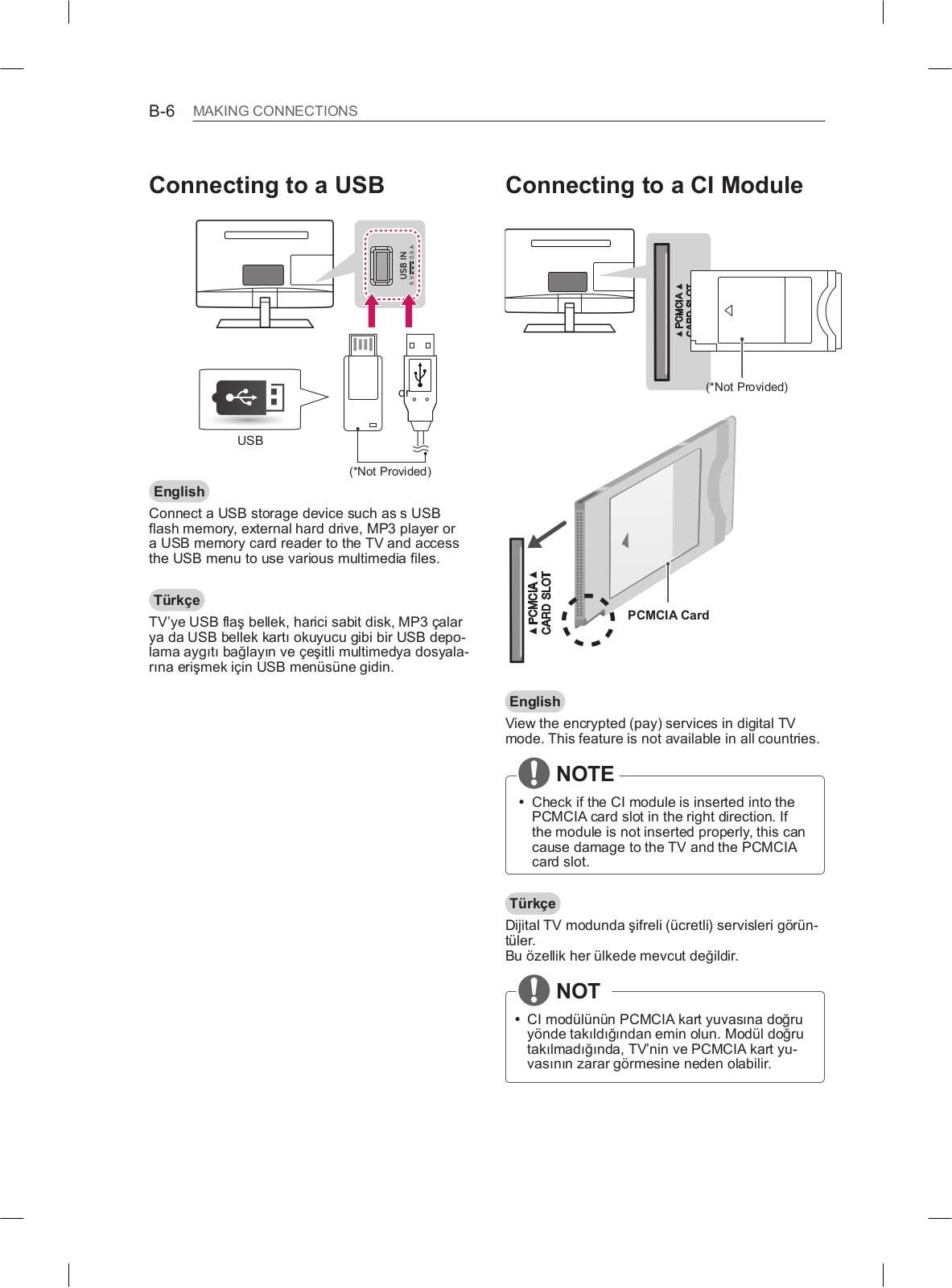

B-6 Connecting to a USB

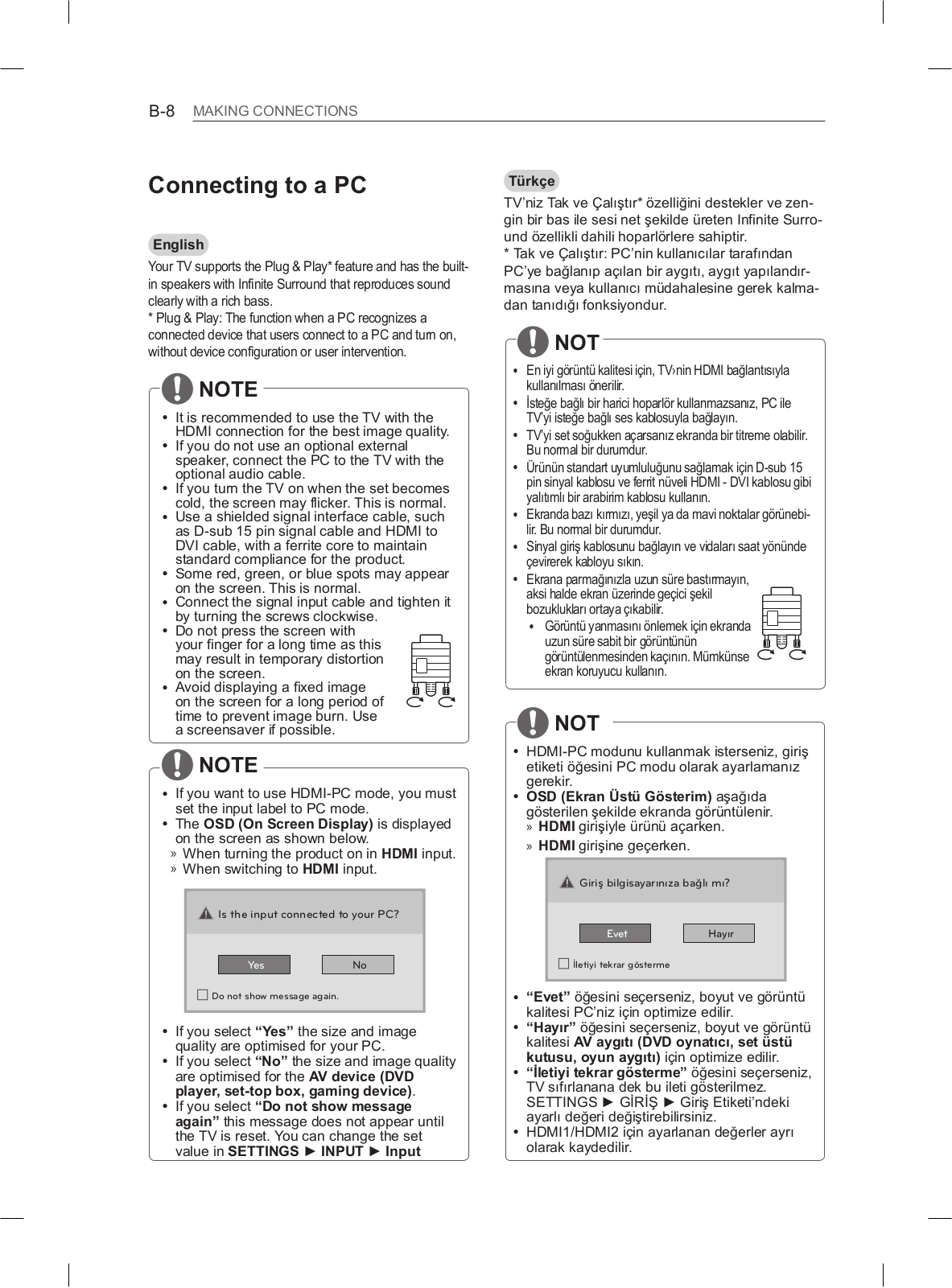

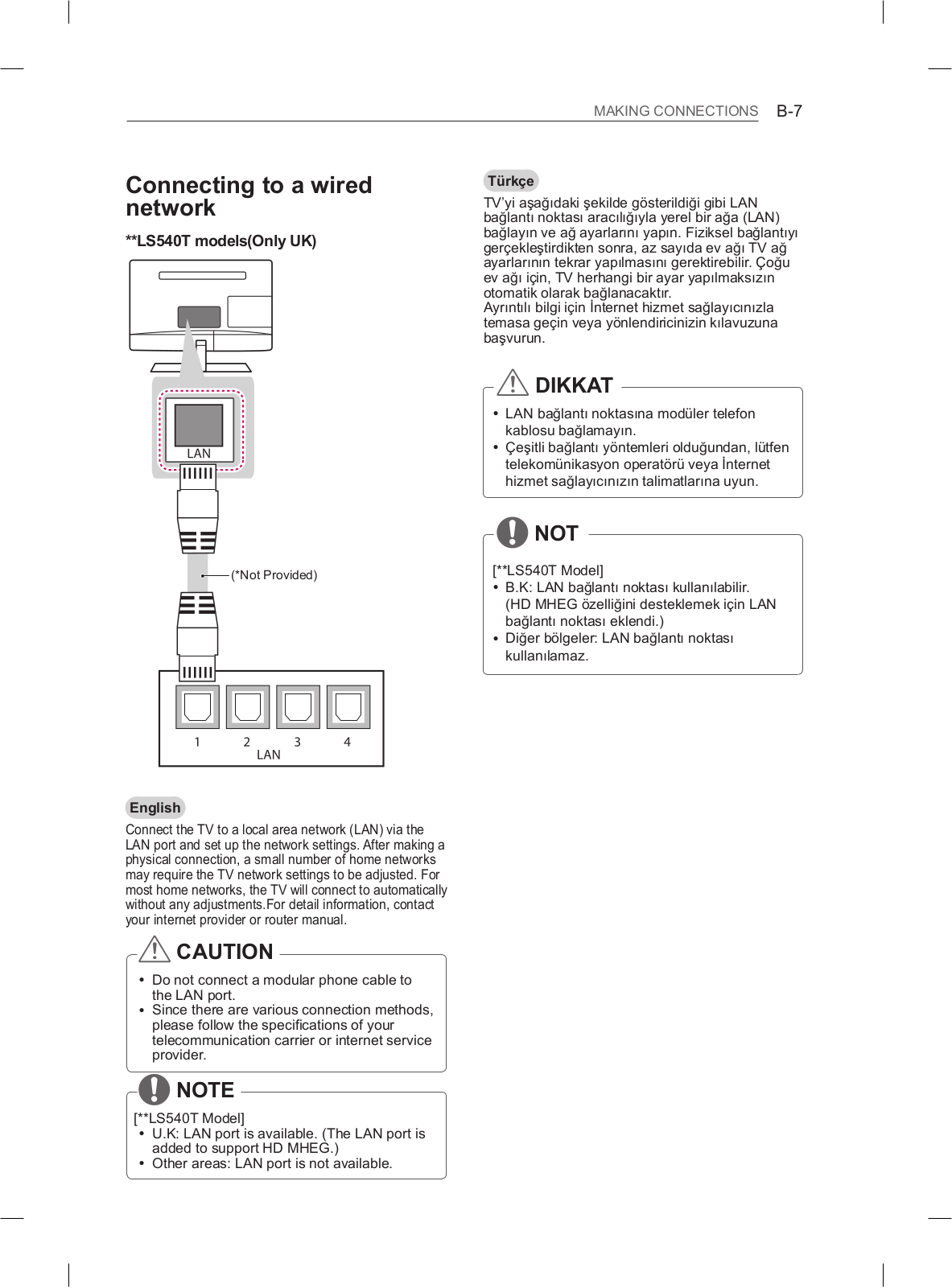

B-6 Connecting to a CI Module B-7 Connecting to a wired network B-8 Connecting to a PC

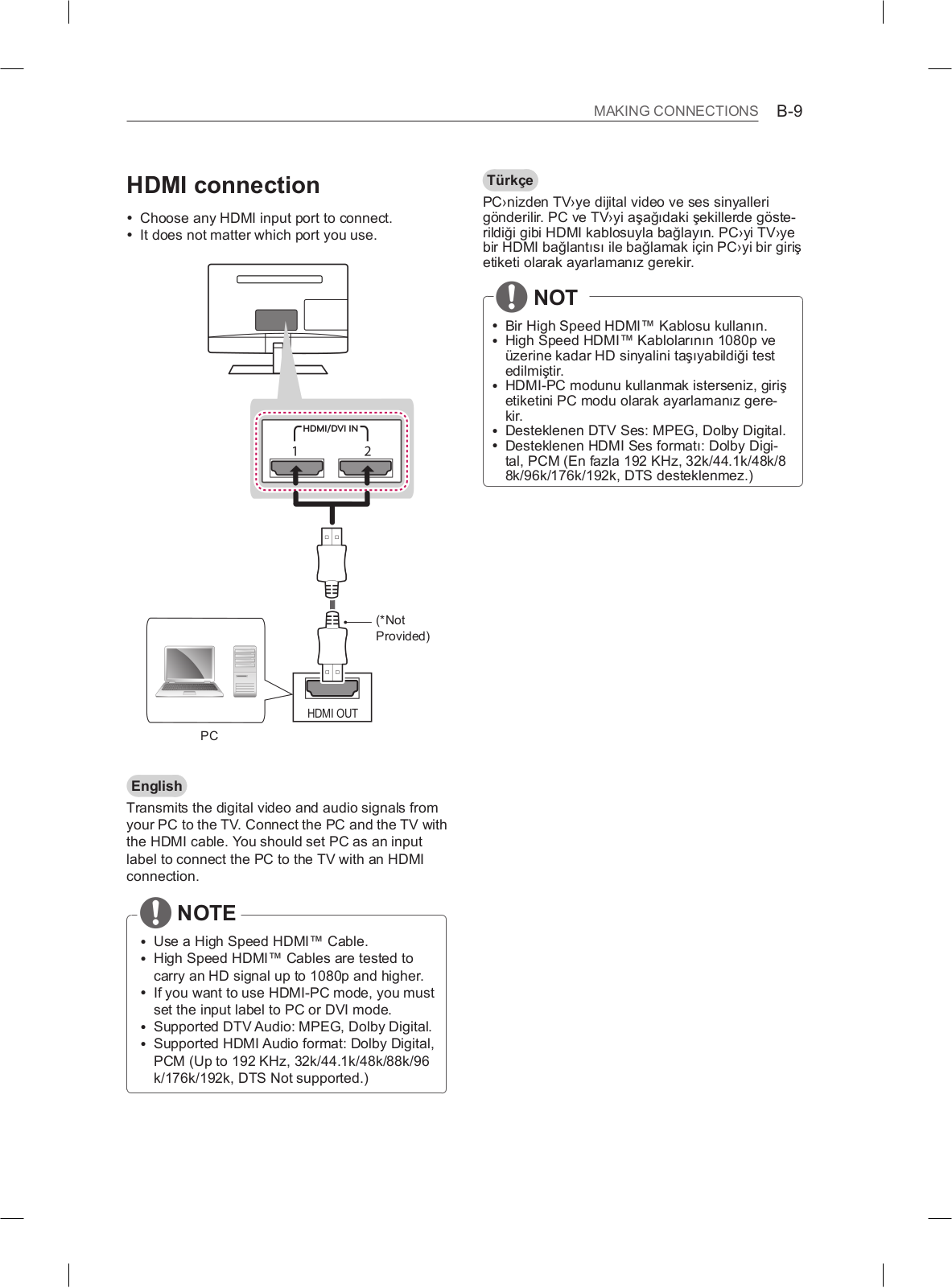

B-9 - HDMI connection

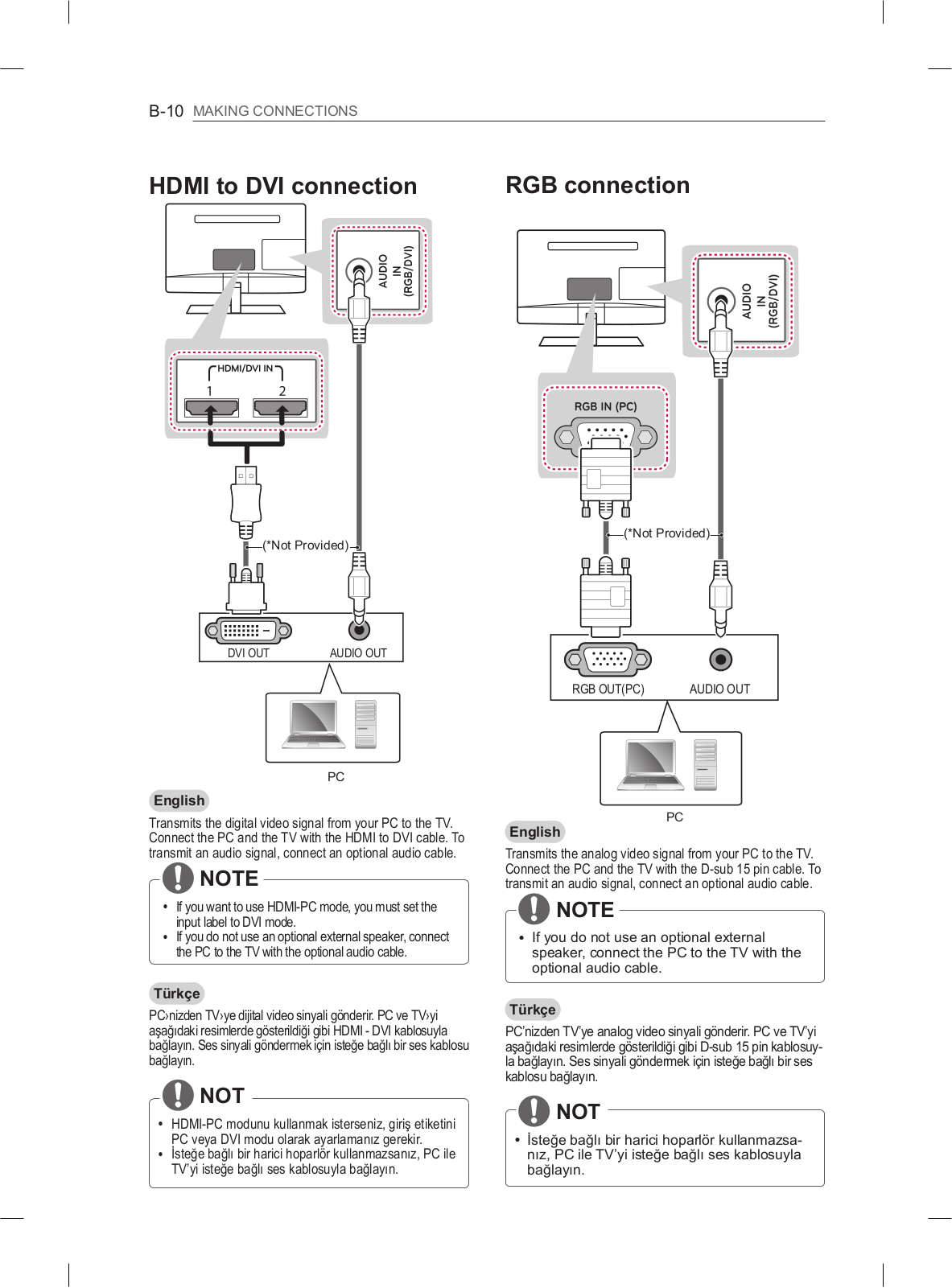

B-10 - HDMI to DVI connection B-10 - RGB connection

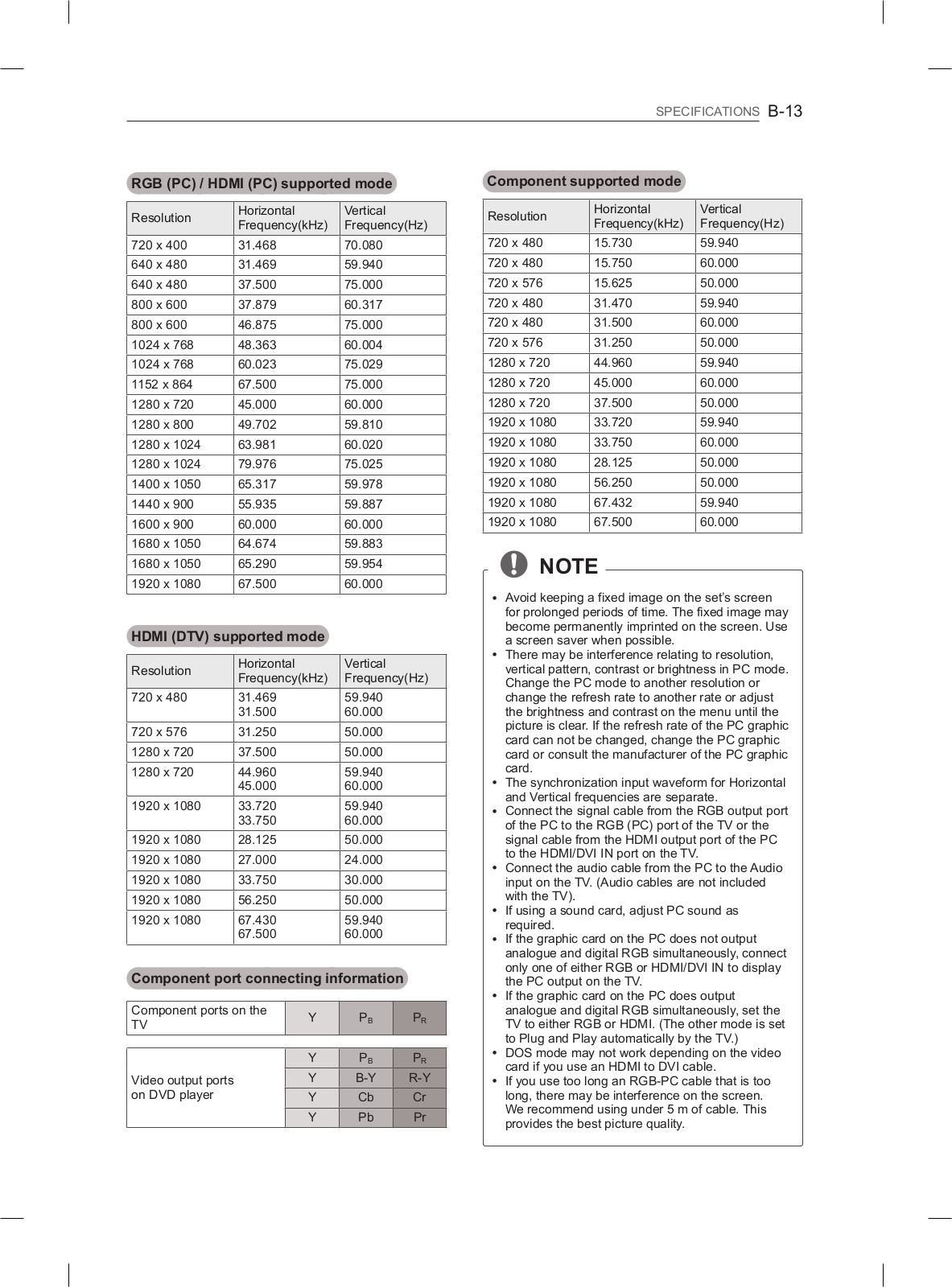

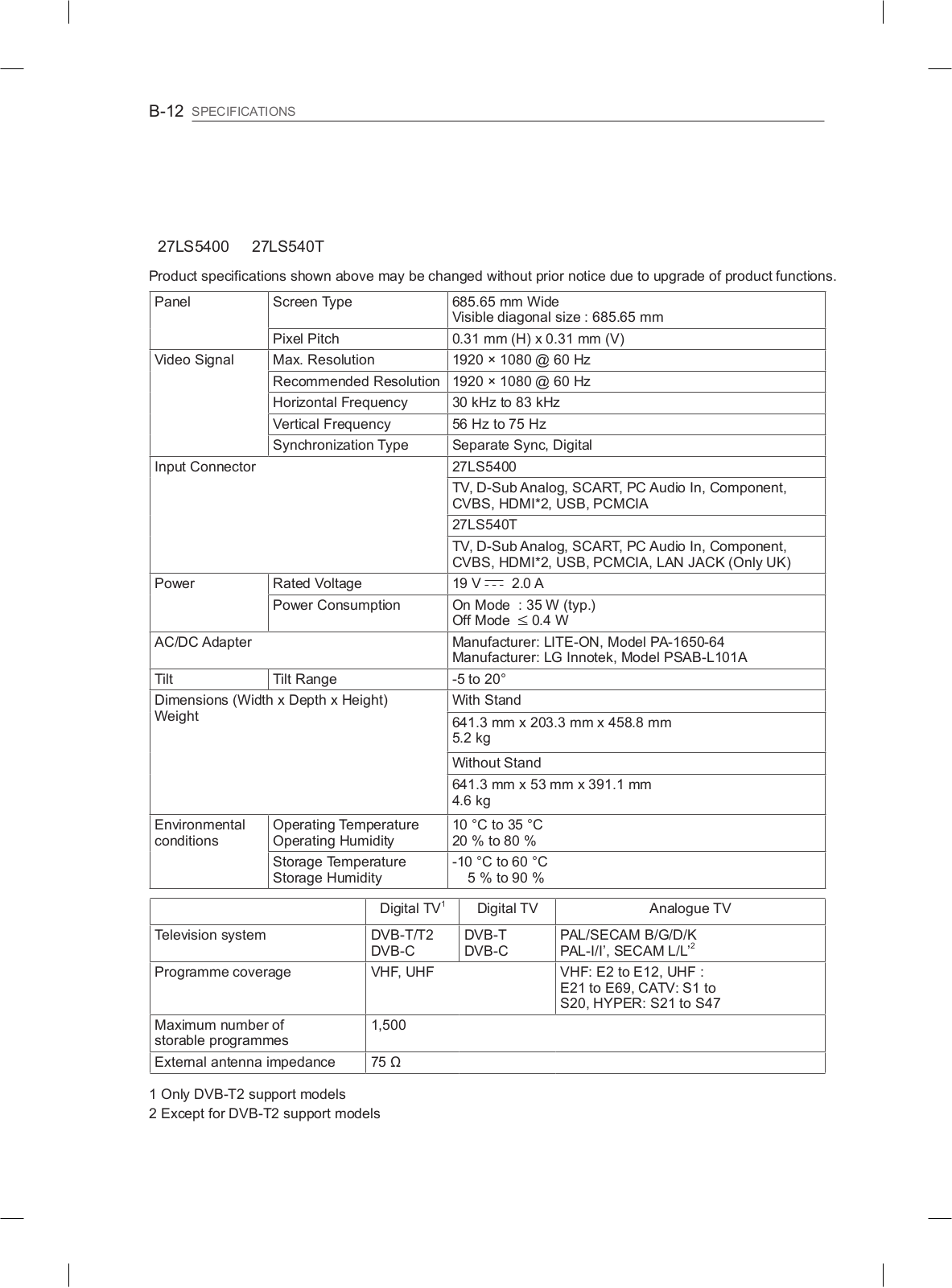

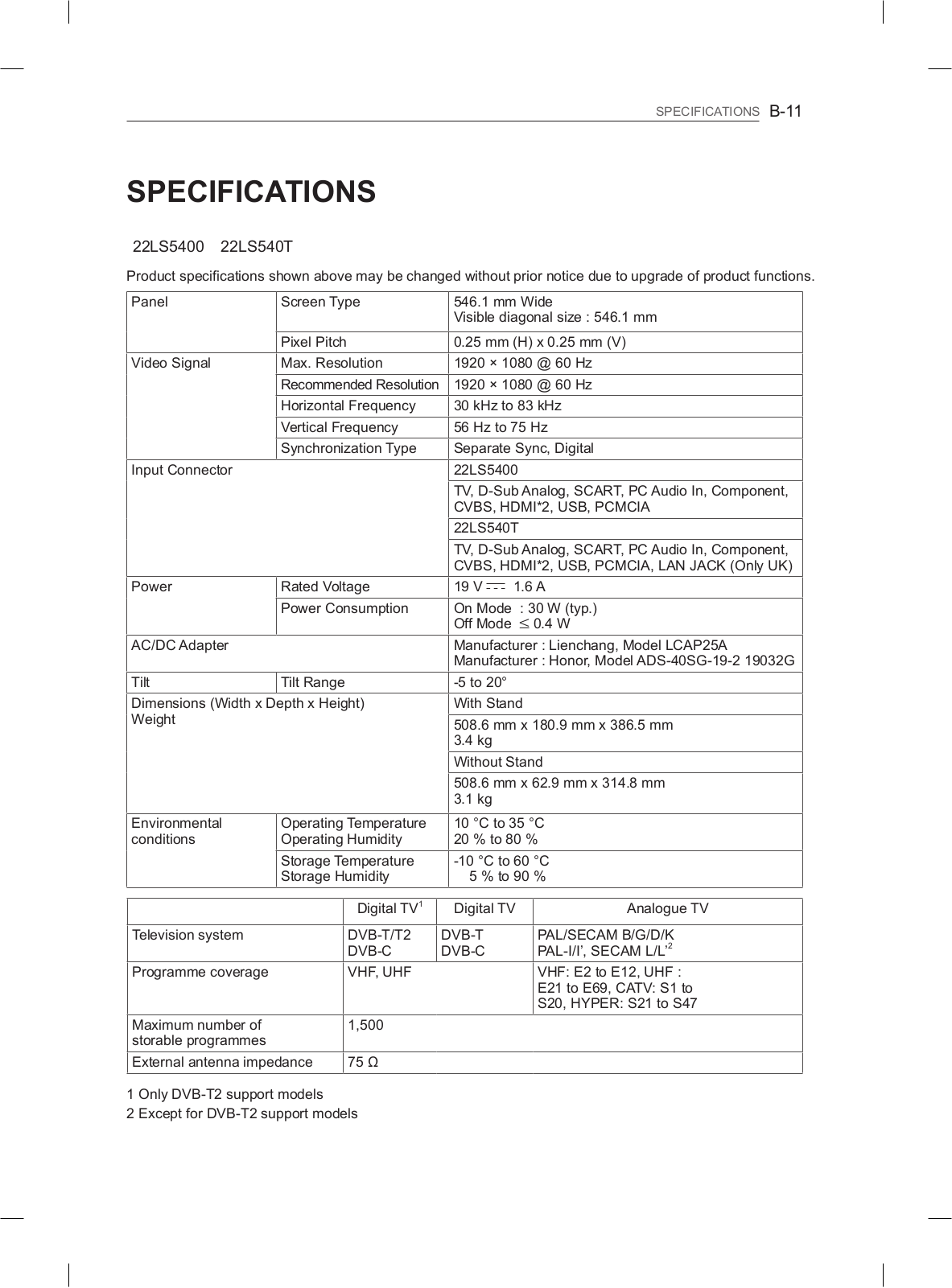

B-11 SPECIFICATIONS
COMMON
LANGUAGE
COMMON
|
|
|
SETTING UP THE TV A-3 |
|
Setting up the TV |
3 |
turning the screw to the right with a Coin. |
|
|
|
|
Attach the Stand Base from the Stand Body by |
||
22LS5400 |
22LS540T |
|
|
|
Attaching the Stand
If you are not mounting the TV to a wall, use the following instructions to attach the stand.
1 Place the TV with the screen side down on a flat and cushioned surface.
CAUTION
yy Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
yy When attaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
CAUTION
yy Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.
2 Attach the Stand Body from the TV.
A-4 SETTING UP THE TV
27LS5400 27LS540T |
3 Secure the TV and the Stand Body with the |
|
2 screws. |
If you are not mounting the TV to a wall, use the |
|
following instructions to attach the stand. |
|
1 Place the TV with the screen side down on a |
|
flat and cushioned surface. |
|
2Attach the Stand Body from the TV.
Insert the two Lockers of the Stand Body right into the groove of the TV head and secure them by pressing the left and right bottom sides.
WARNING
yy If you don`t fasten the screw tightly, TV will fall down and get damaged.
4Attach the Stand Base from the Stand Body by turning the screw to the right with a Coin.
Locker
CAUTION
yy Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.
SETTING UP THE TV A-5
CAUTION |
Tidying cables |
|
yy Do not carry the TV upside-down as this may cause it to fall off its stand, resulting in damage or injury.
yy The illustration shows a general example of installation and may look different from the actual product.
yyDo not carry the TV upside-down by holding the stand body as this may cause it to fall off, resulting in damage or injury.
yyThe illustration shows a general example of installation and may look different from the actual product.
Gather and bind the cables with the supplied cable tie.
Using the Kensington security system
The Kensington security system connector is located at the back of the TV. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.
Connect the Kensington security system cable between the TV and a table.
NOTE
yy The Kensington security system is optional. You can obtain additional accessories from most electronics stores.
A-6 SETTING UP THE TV
Detaching the Stand |
27LS5400 27LS540T |
||
22LS5400 |
22LS540T |
1 Place the TV with the screen side down on a |
|
flat and cushioned surface. |
|||
|
|
1 Place the TV with the screen side down on a flat and cushioned surface.
CAUTION
yy Lay a foam mat or soft protective cloth on the surface to protect the screen from damage. yy When detaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from
scratches.
2Turn the screw to the left, and then pull out the Stand Base from the Stand Body.
CAUTION
yy Lay a foam mat or soft protective cloth on the surface to protect the screen from damage. yy When detaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from
scratches.
2Turn the screw to the left, and then pull out the
Stand Base from the Stand Body.
3 Remove 2 screws and pull out the Stand Body from the TV.
3 Pull out the Stand Body from the TV.
OWNER’S MANUAL
LED LCD TV
Please read this manual carefully before operating the your TV and retain it for future reference.
www.lg.com
<![endif]>ENGLISH

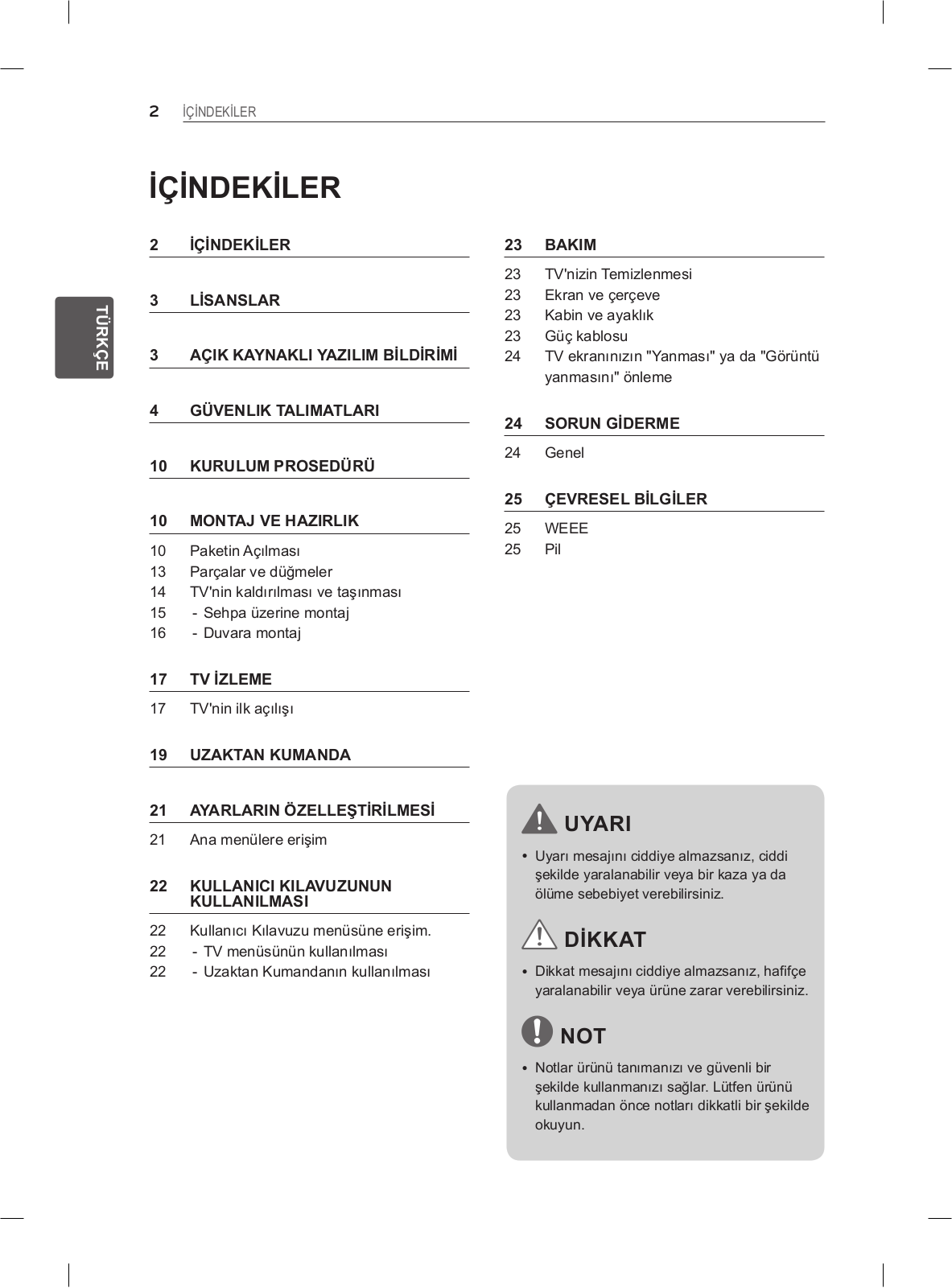

2TABLE OF CONTENTS
TABLE OF CONTENTS
2 |
TABLE OF CONTENTS |
24 |
TROUBLESHOOTING |
|
|
|
|
|
|
|
|
24 |
General |
|
3 |
LICENSES |
|
|
|
3OPEN SOURCE SOFTWARE NOTICE
4SAFETY INSTRUCTIONS
10 INSTALLATION PROCEDURE
10 ASSEMBLING AND PREPARING

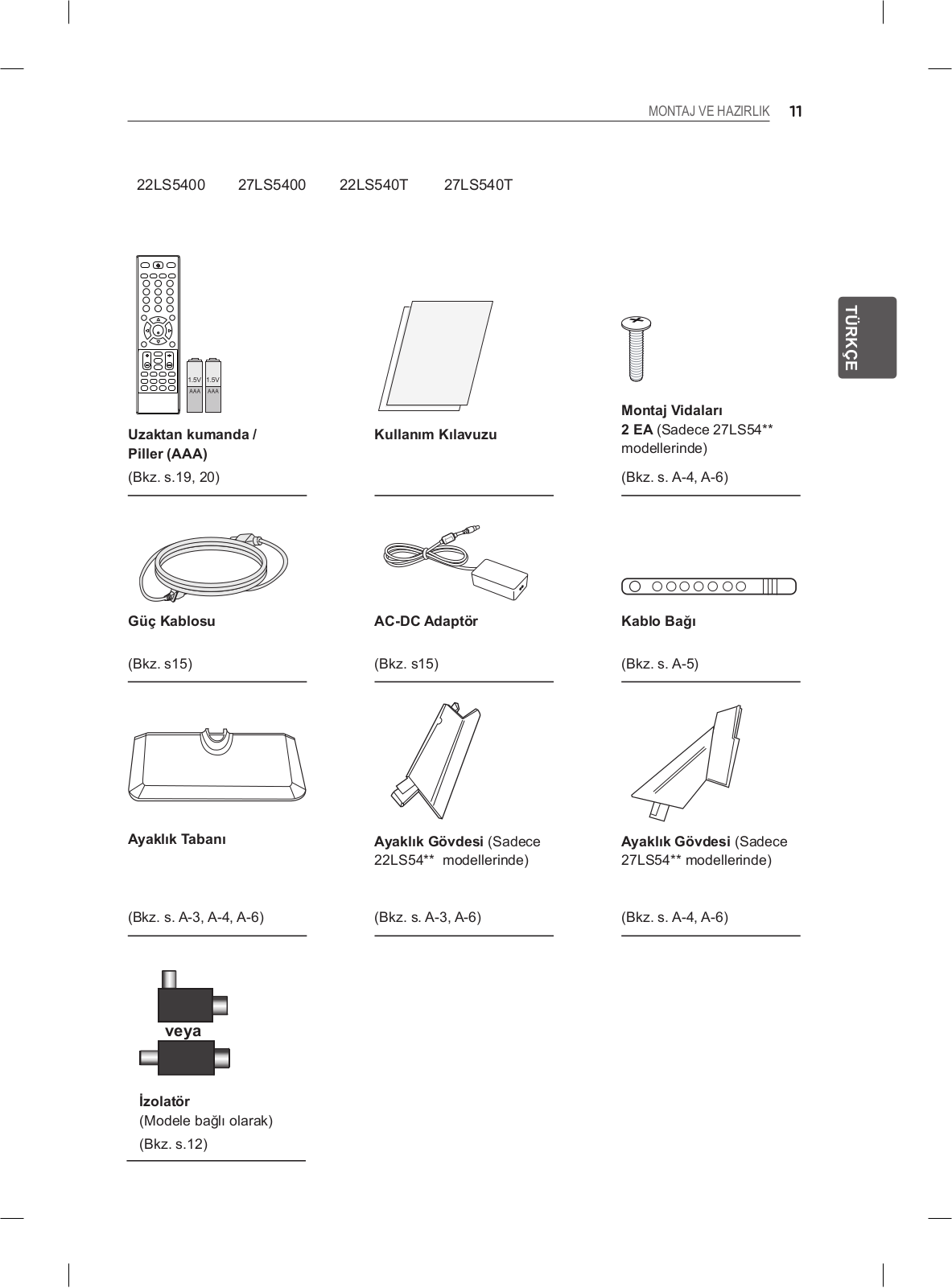

10 Unpacking

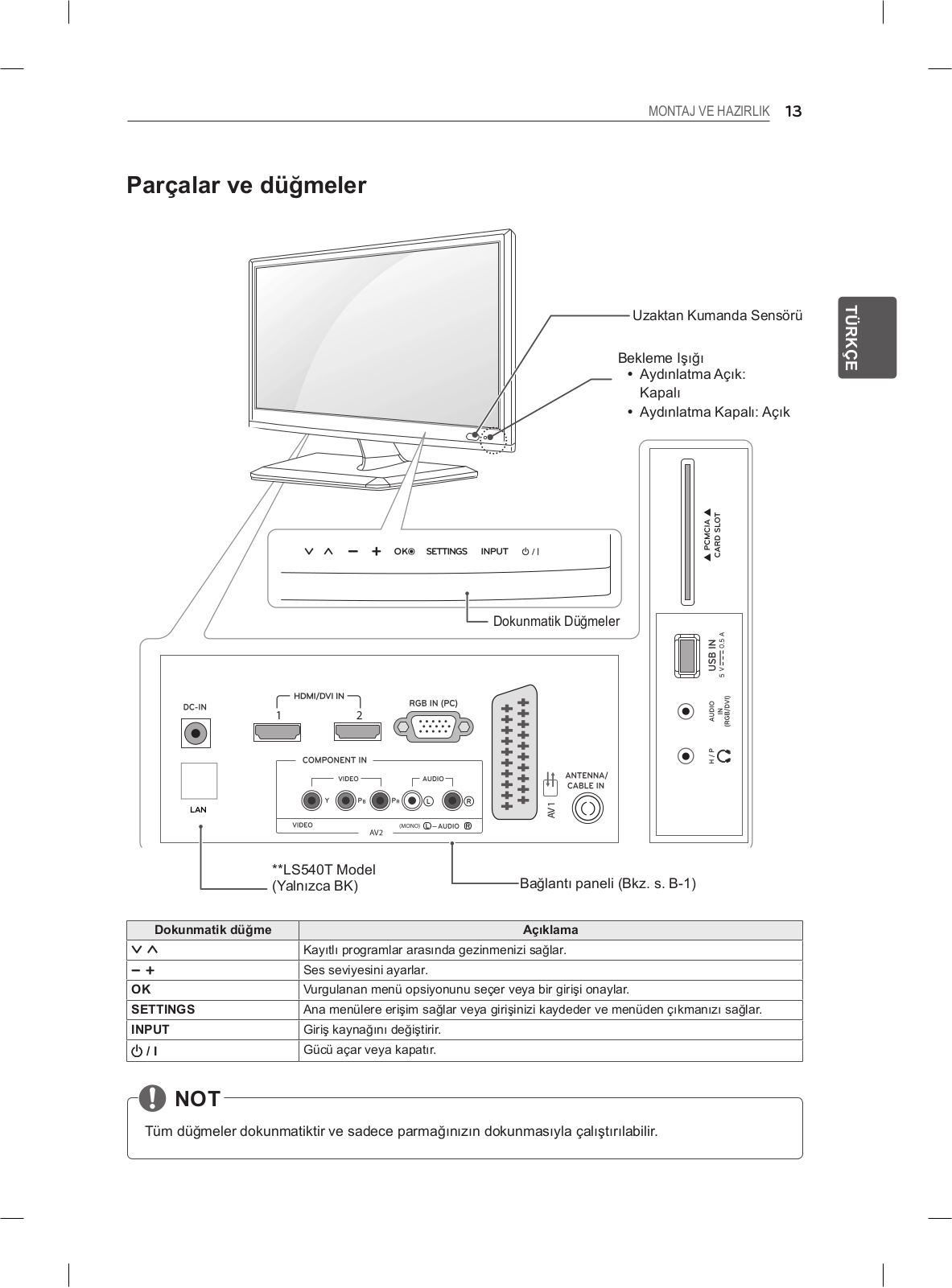

13Parts and buttons

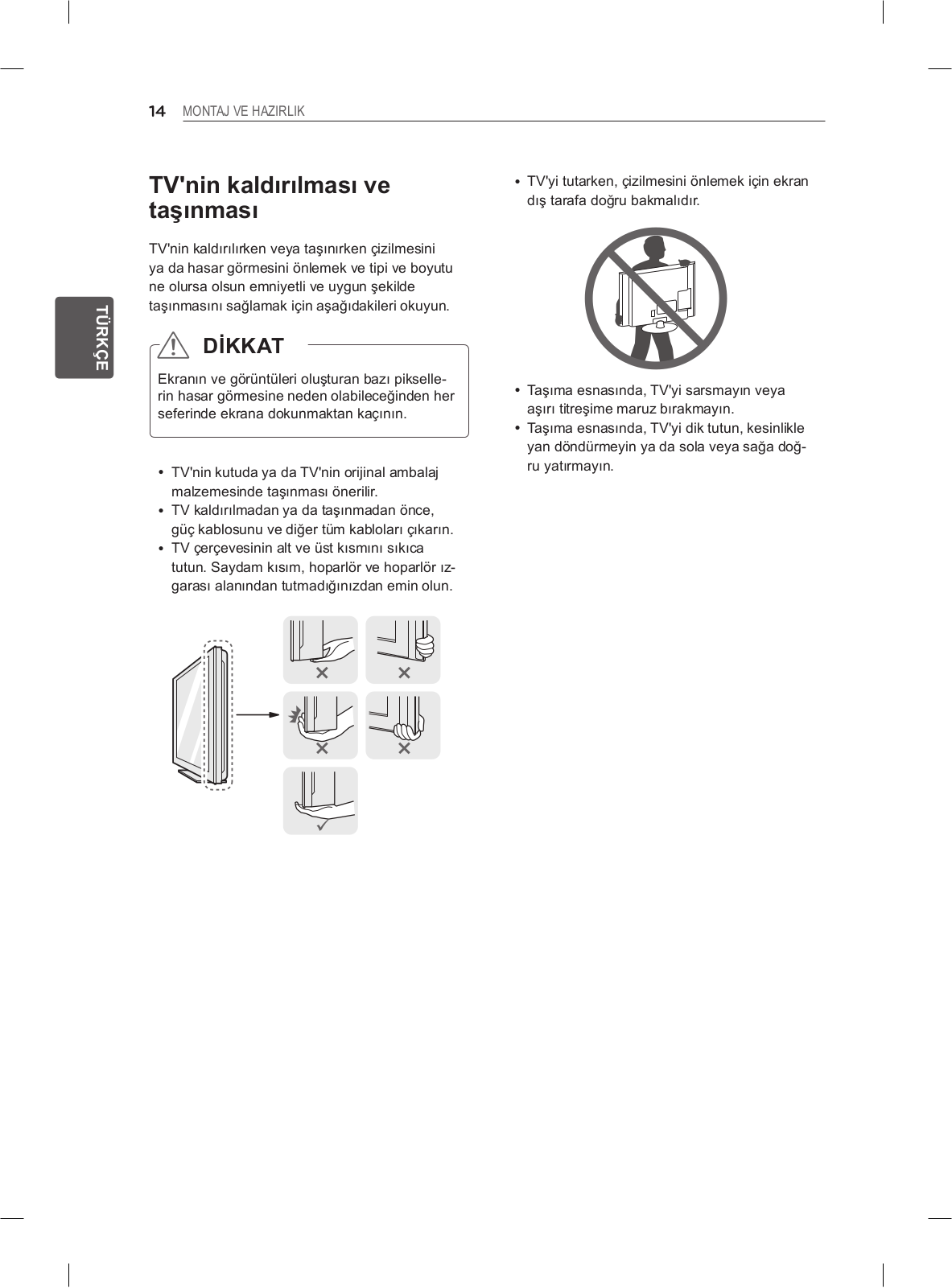

14Lifting and moving the TV

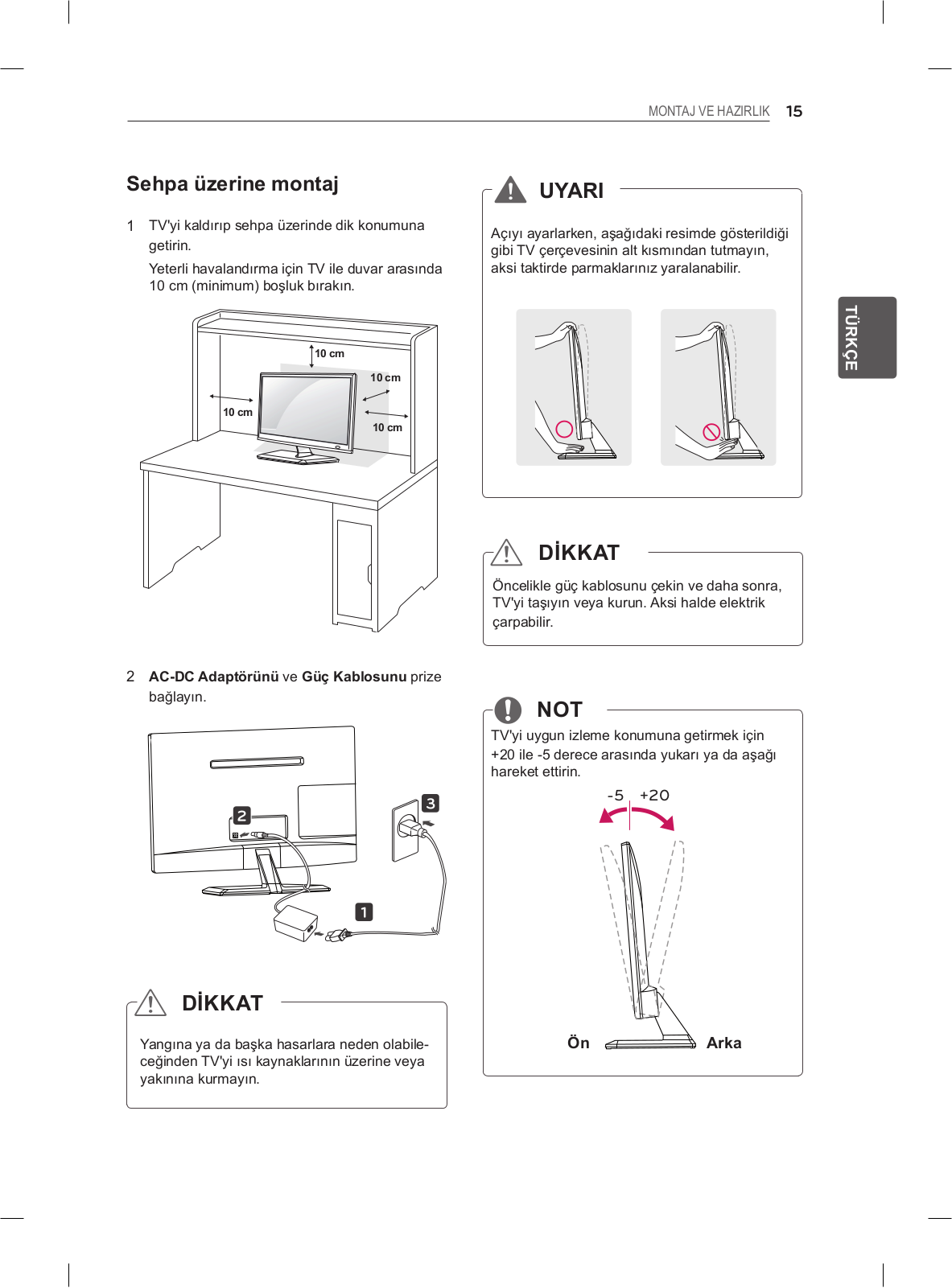

15- Mounting on a table

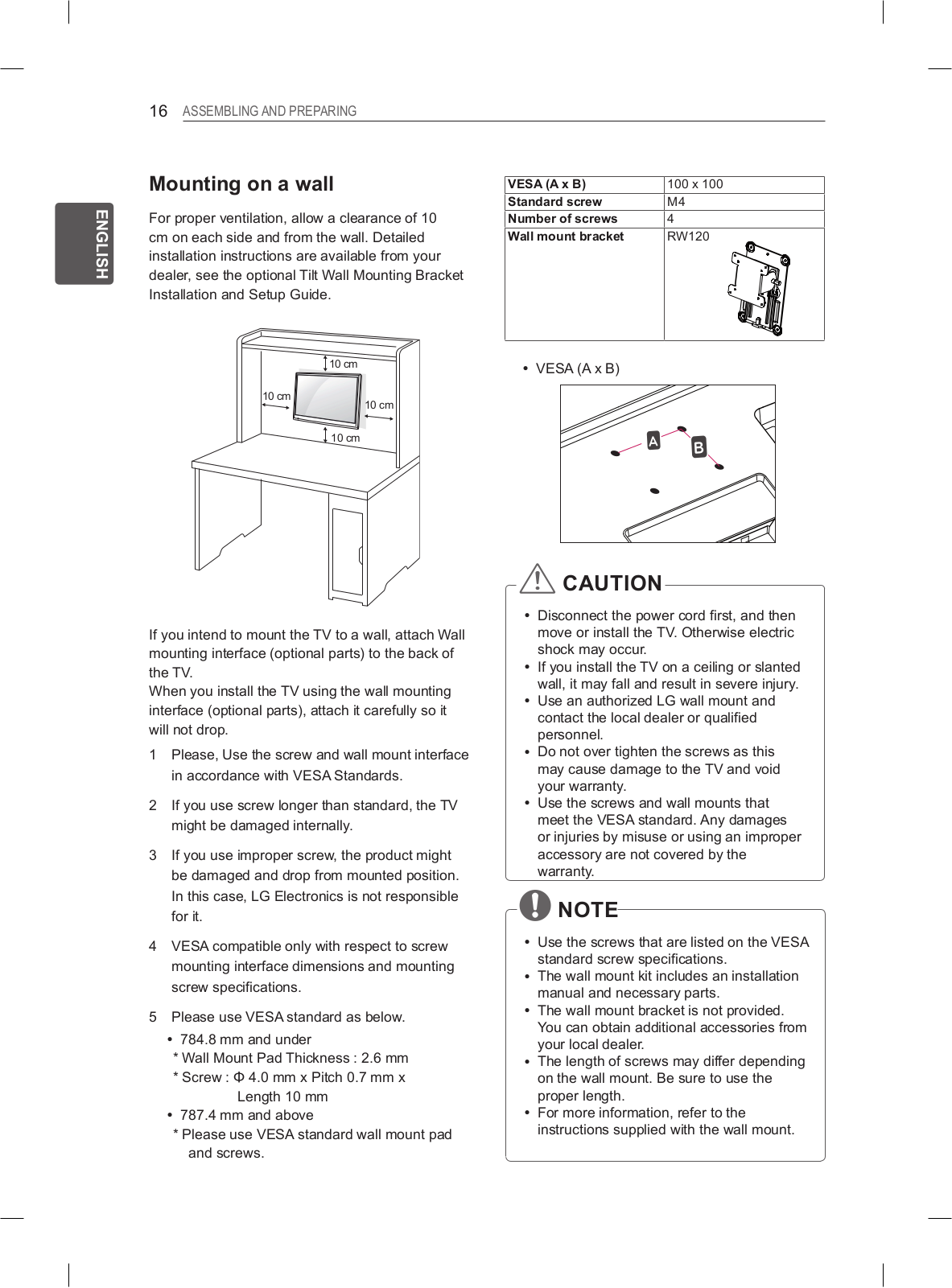

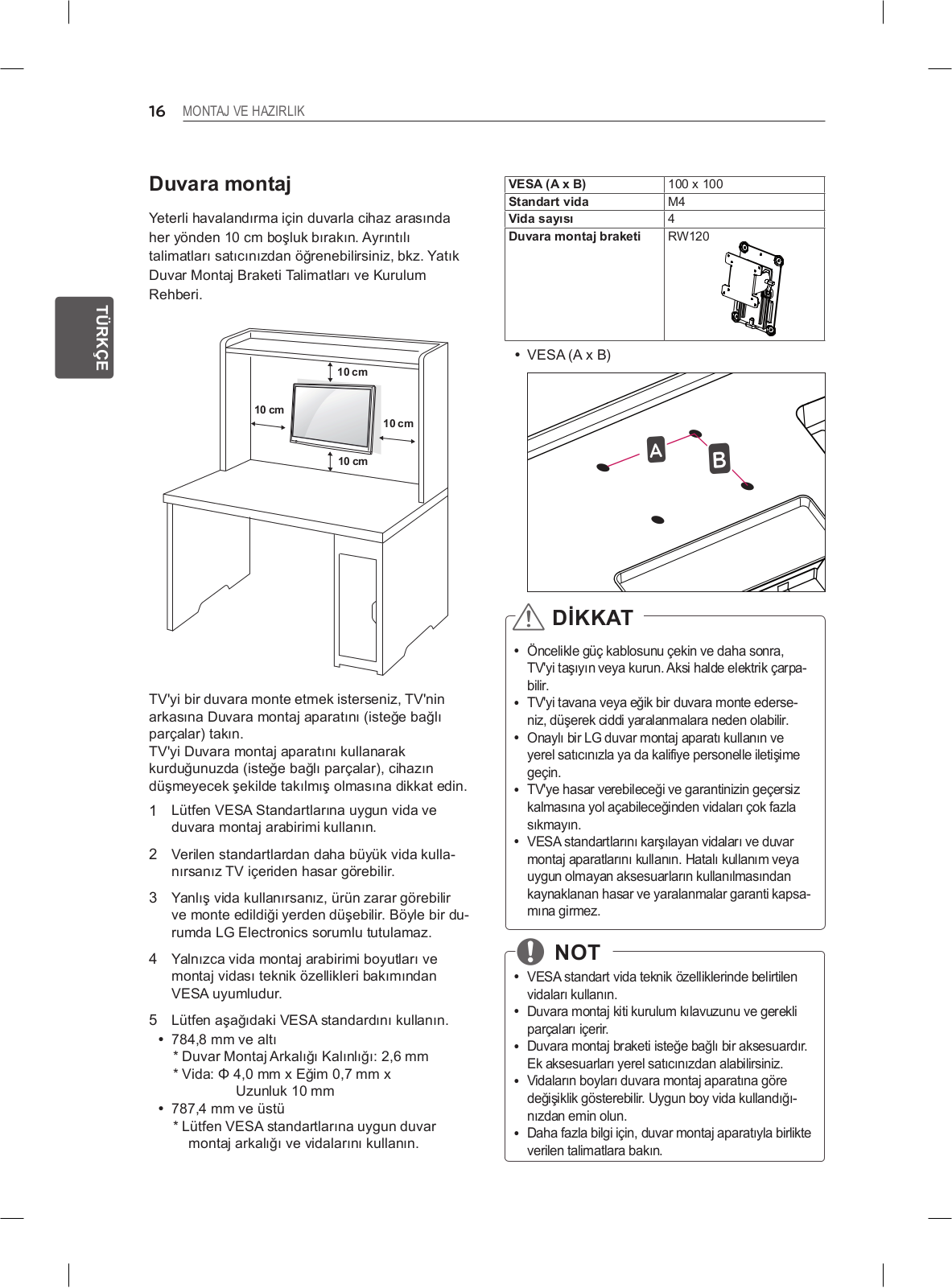

16- Mounting on a wall

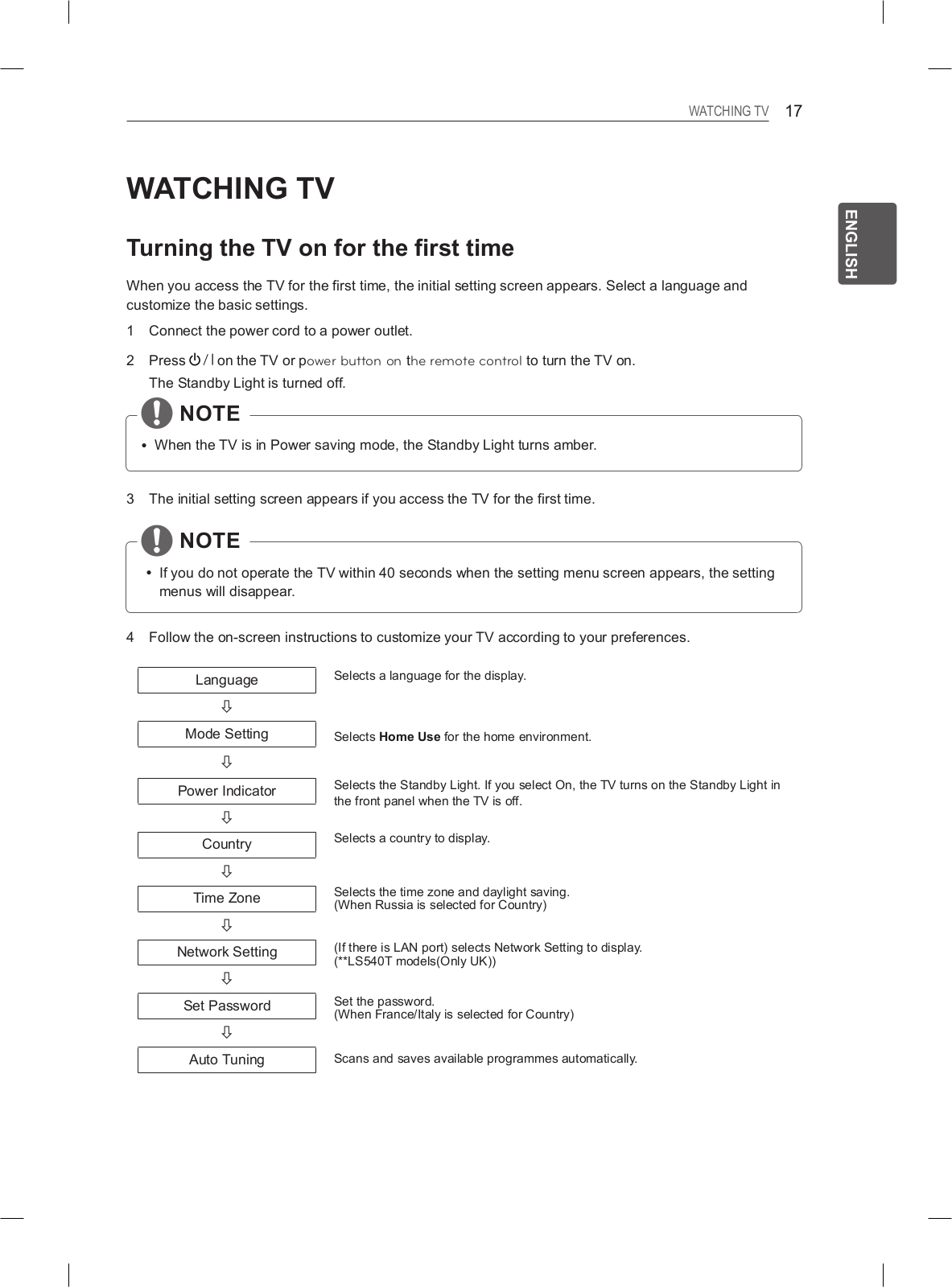

17 WATCHING TV

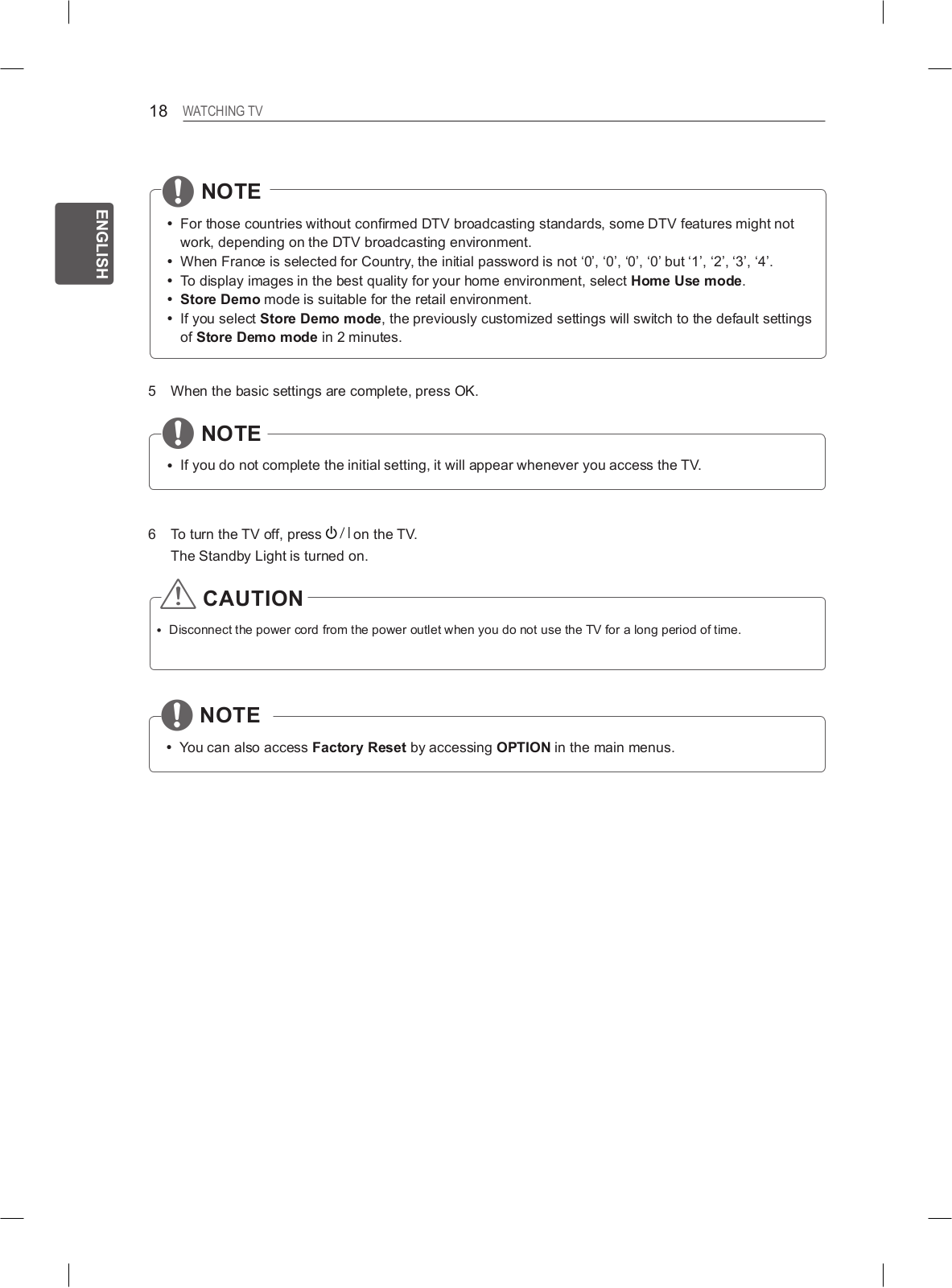

17 Turning the TV on for the first time

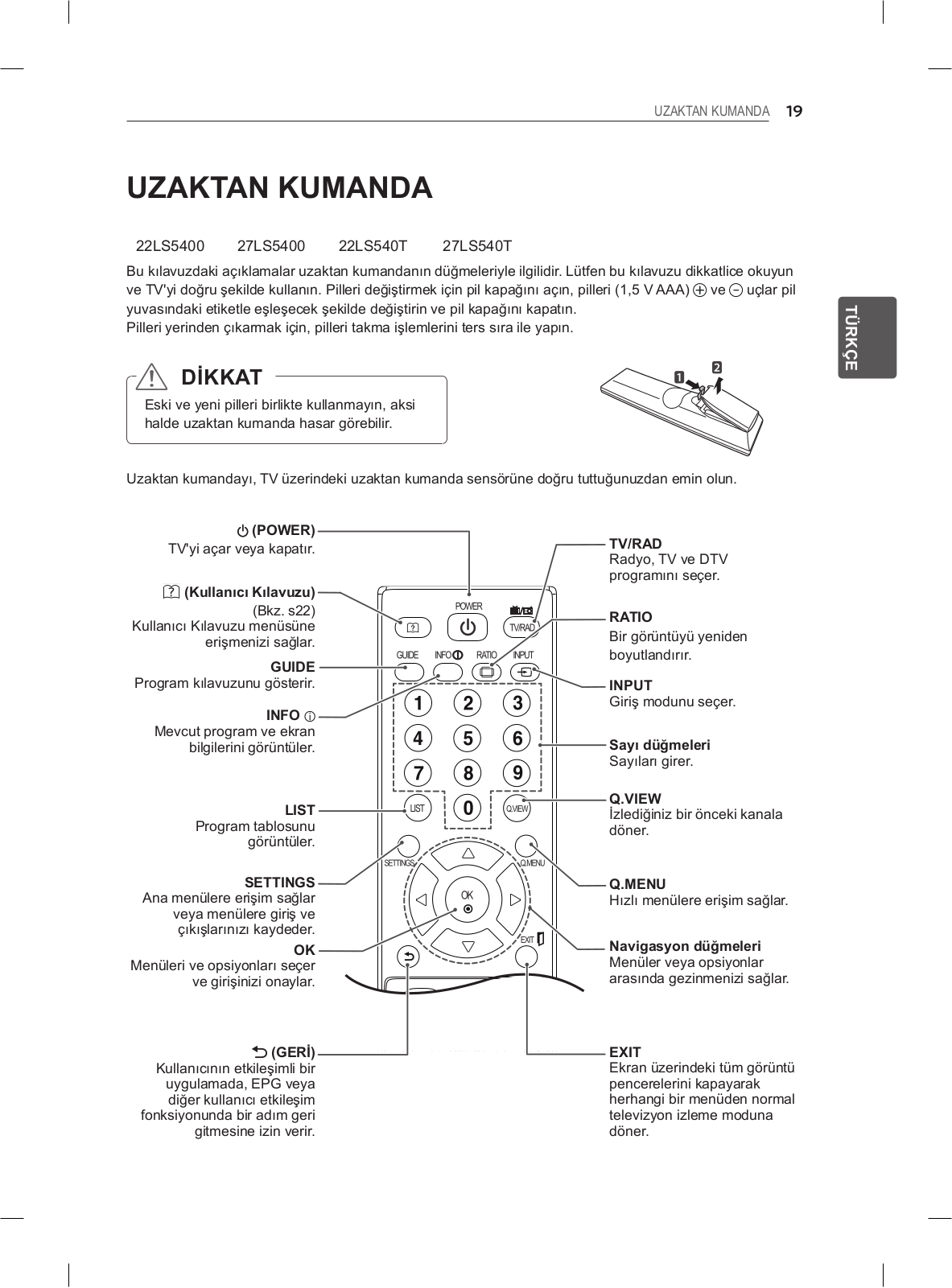

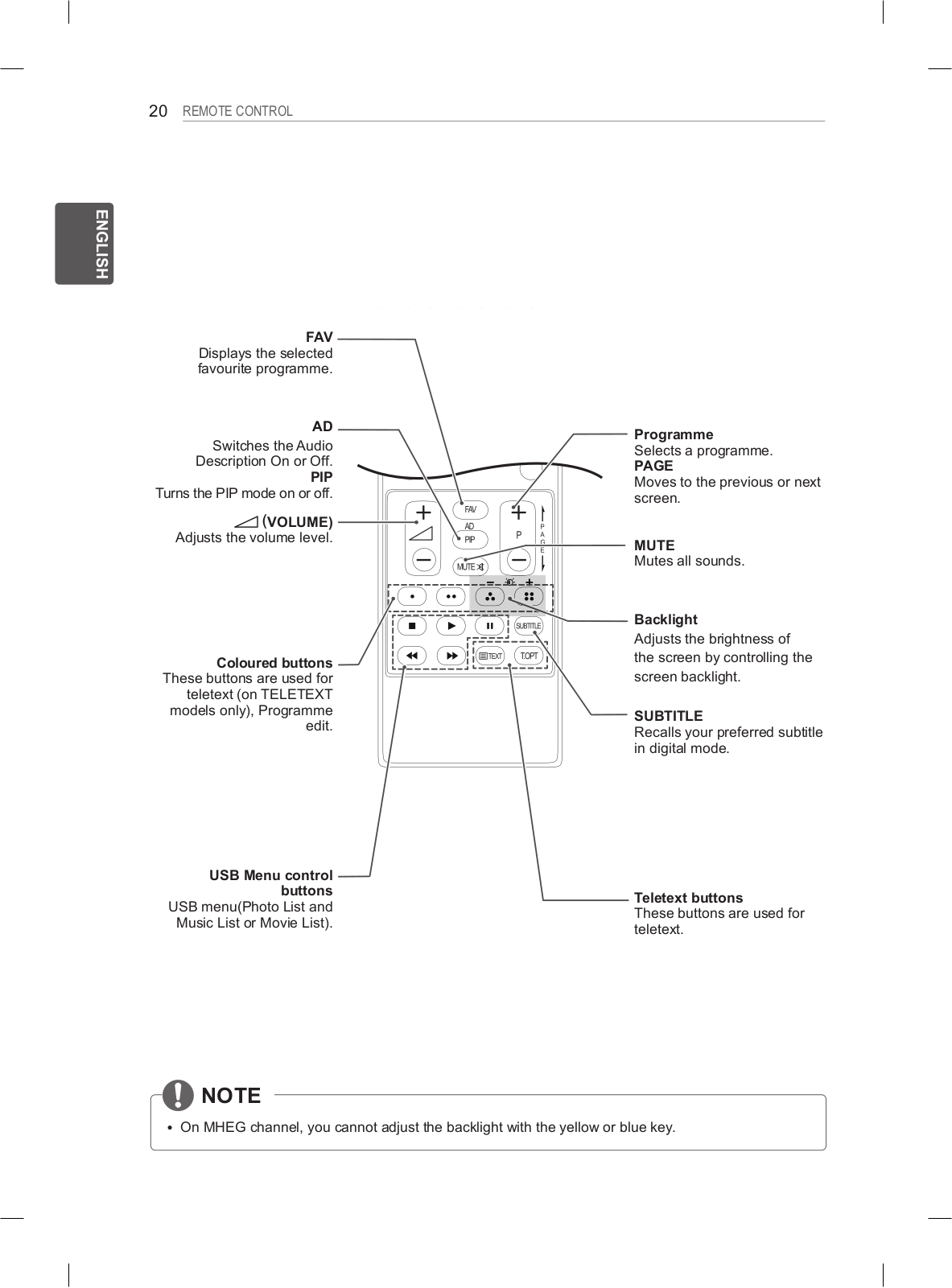

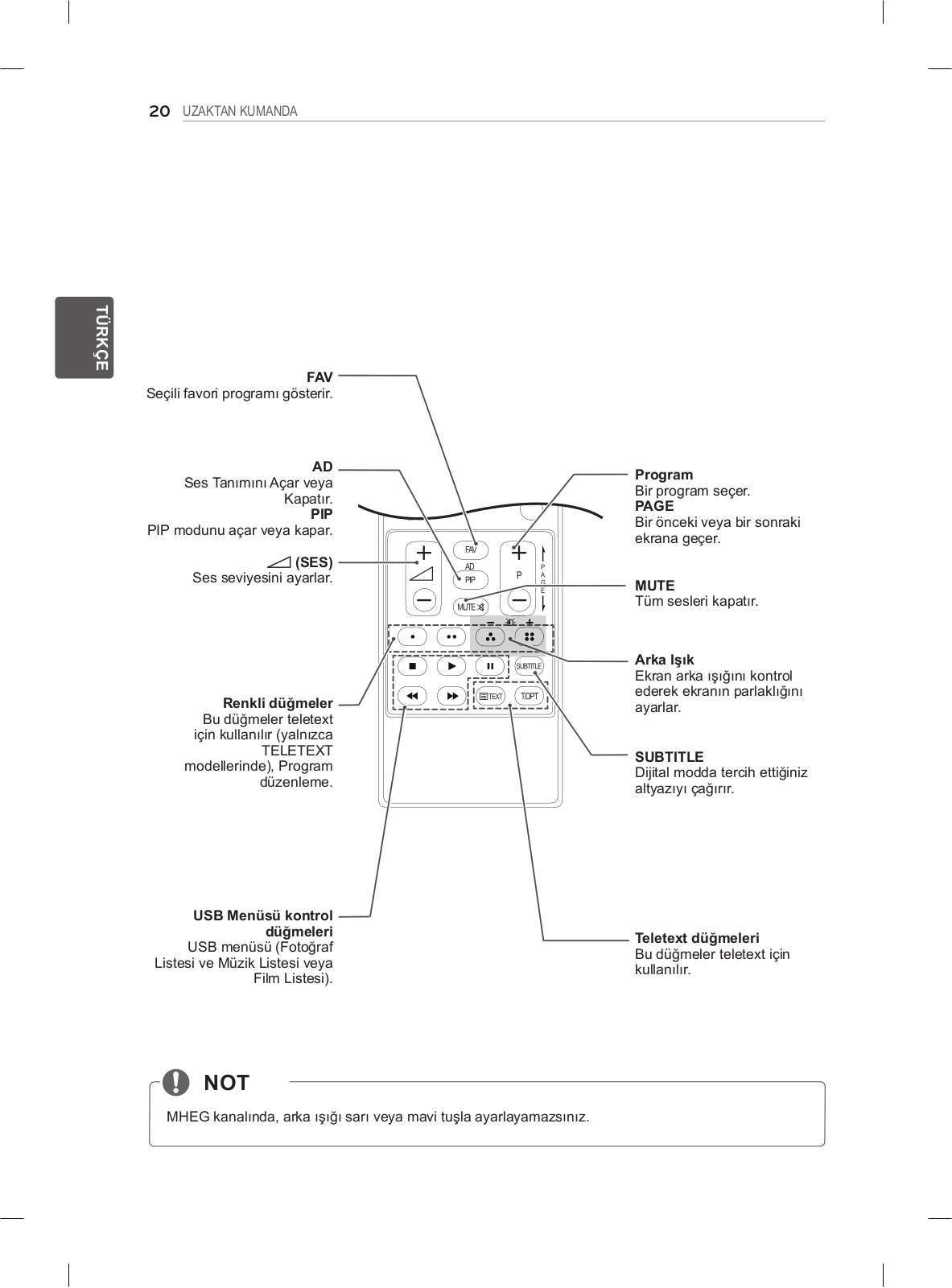

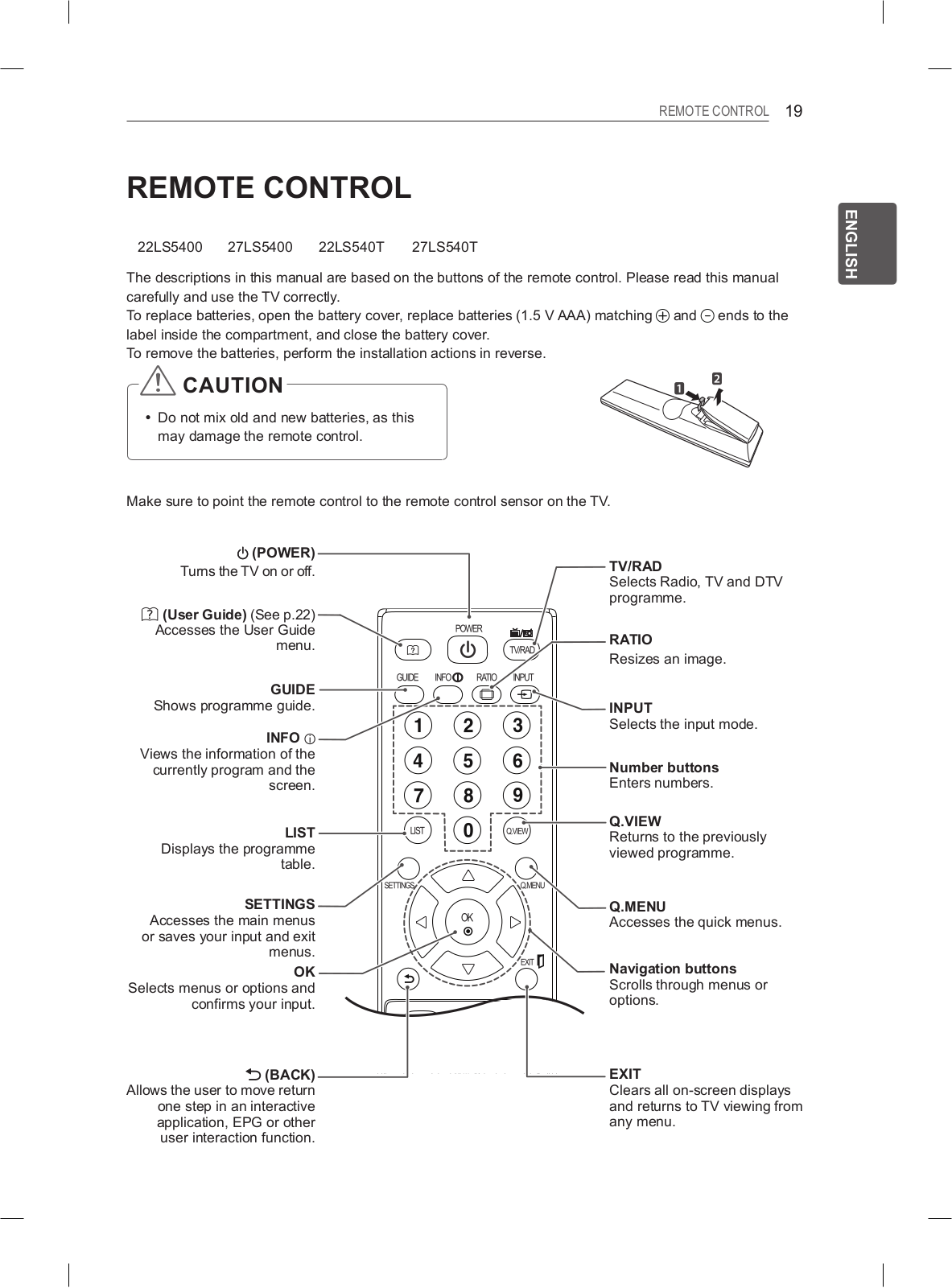

19 REMOTE CONTROL

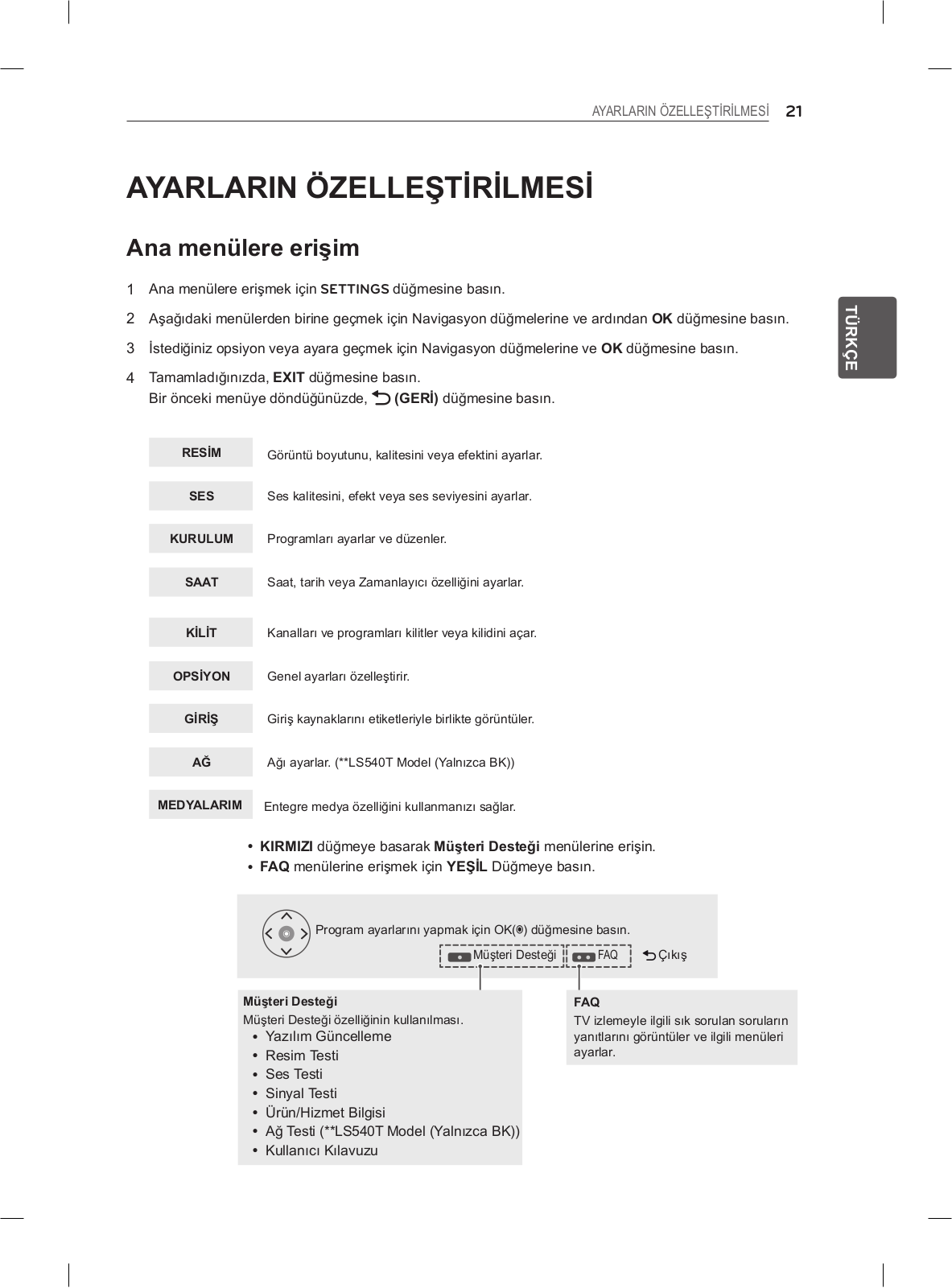

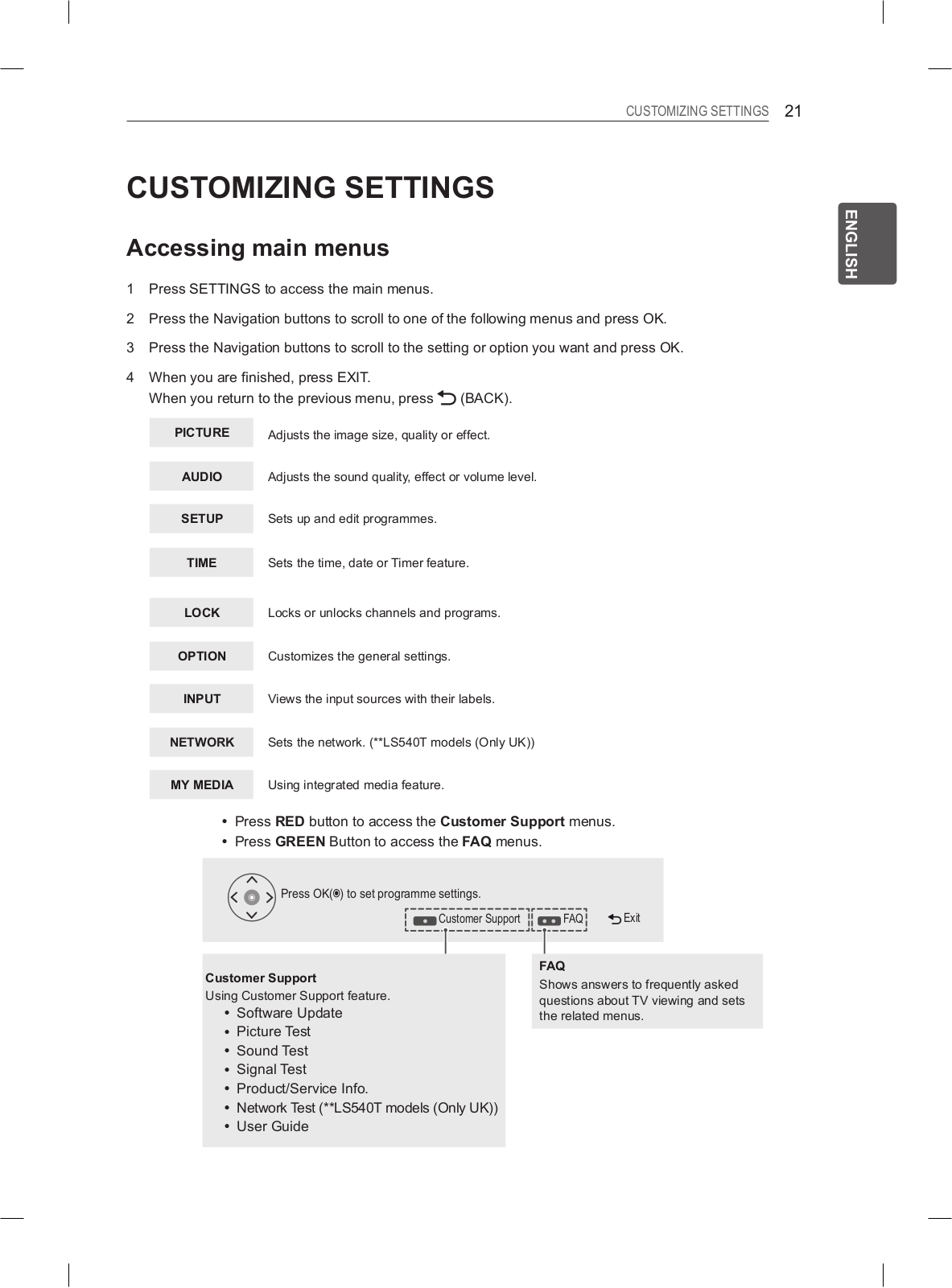

21 CUSTOMIZING SETTINGS
21 Accessing main menus

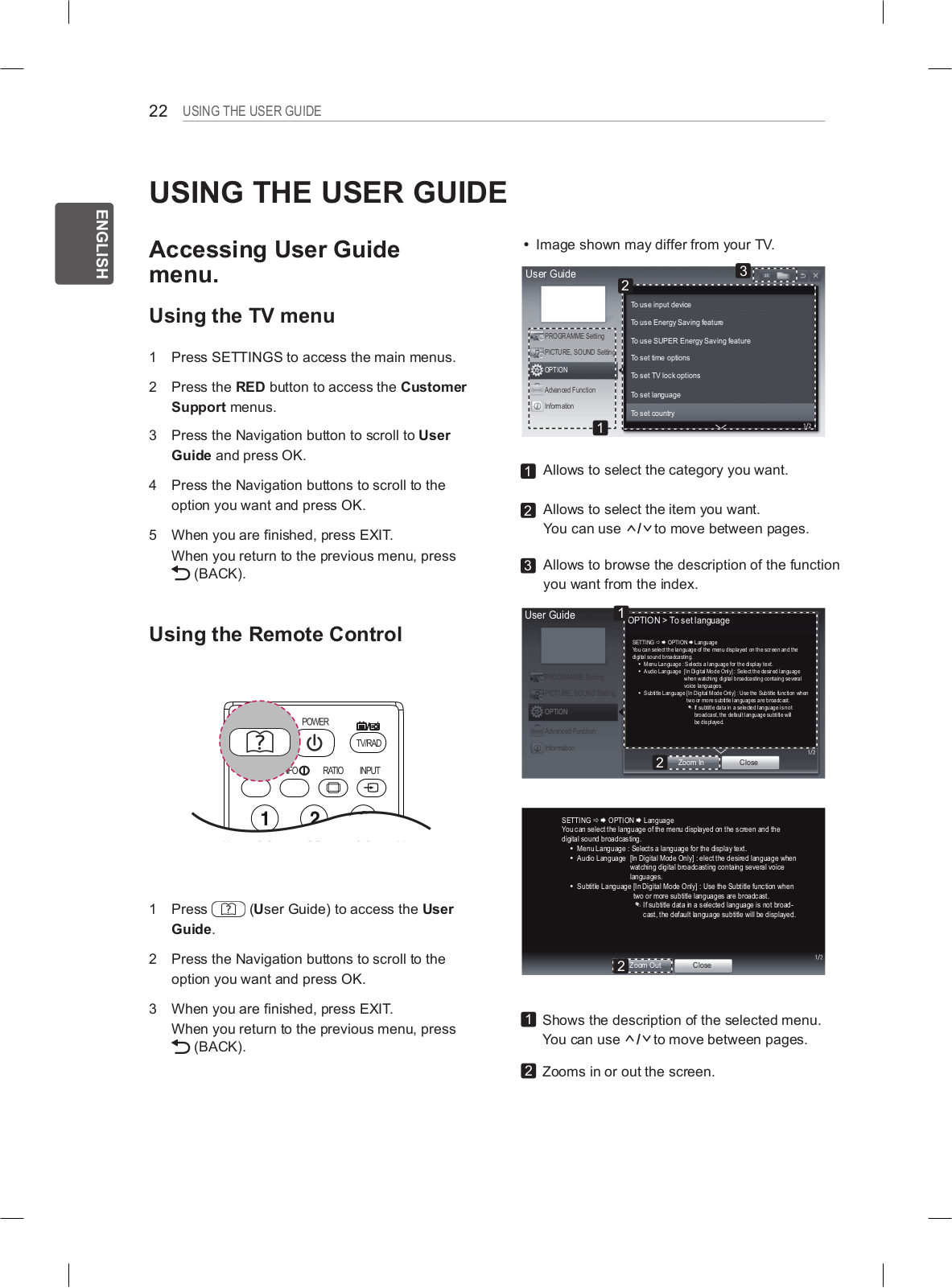

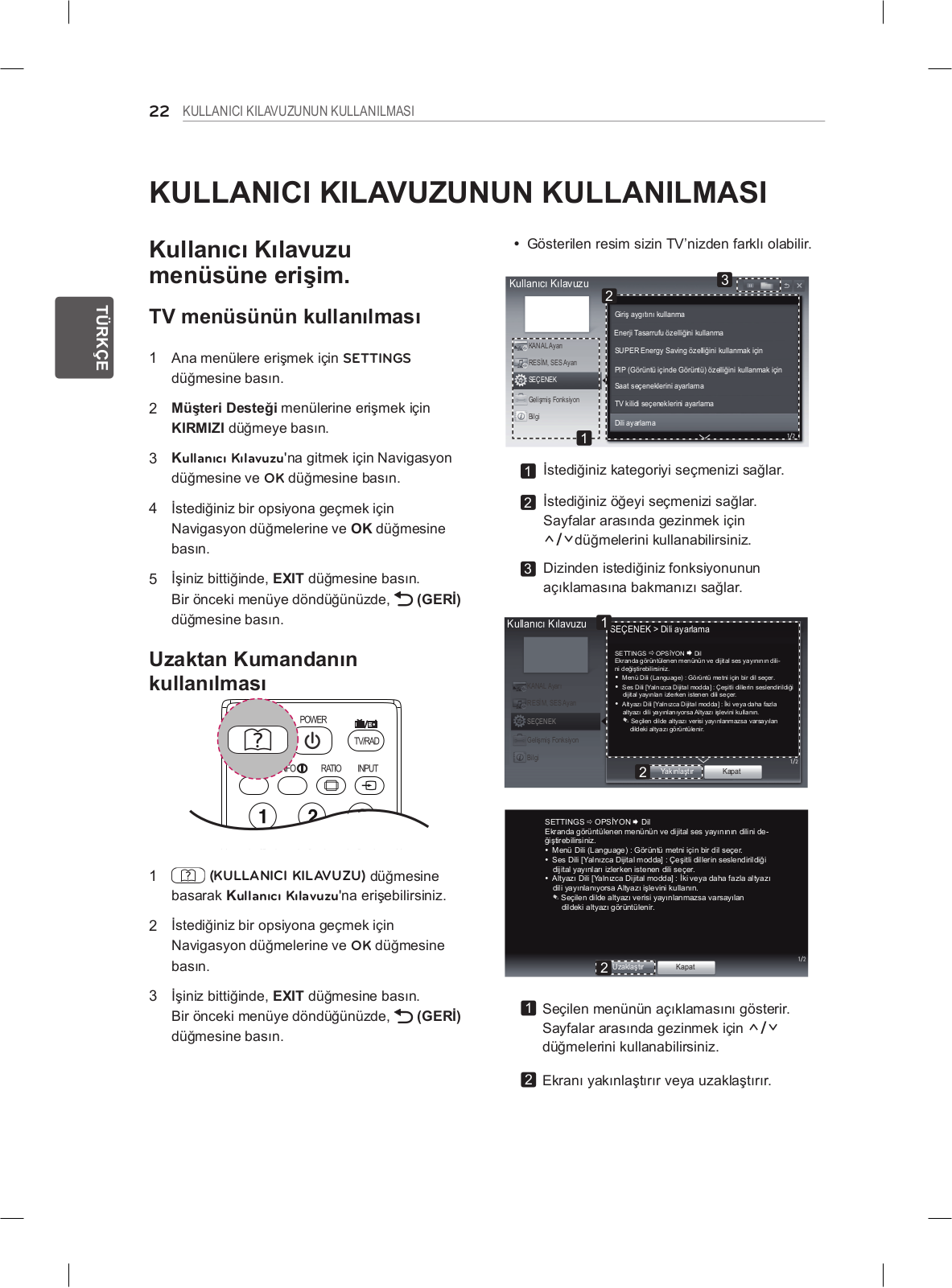

22 USING THE USER GUIDE
22 Accessing User Guide menu.
22 - Using the TV menu
22 - Using the Remote Control

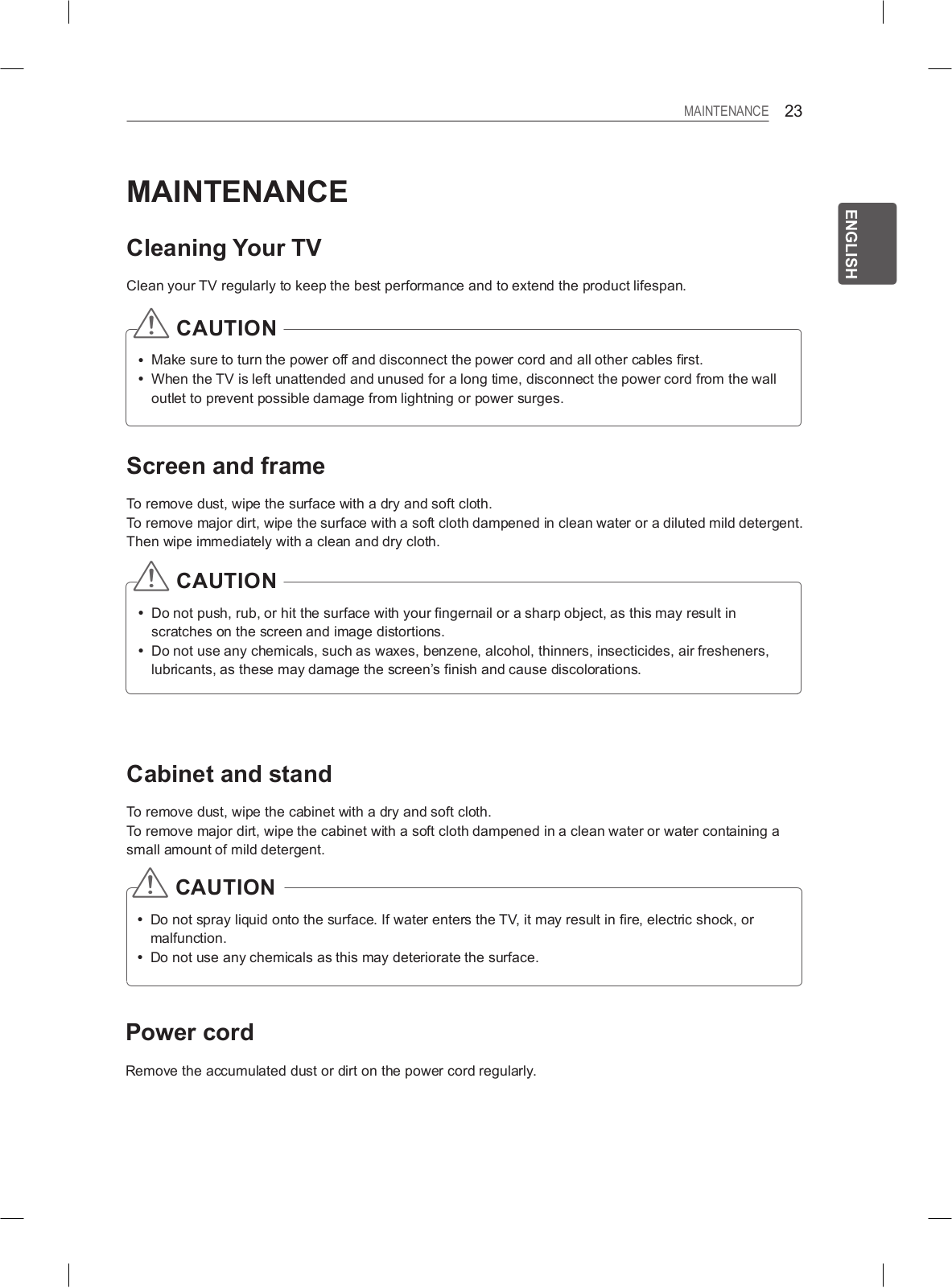

23 MAINTENANCE
23Cleaning Your TV
23Screen and frame
23Cabinet and stand
23Power cord

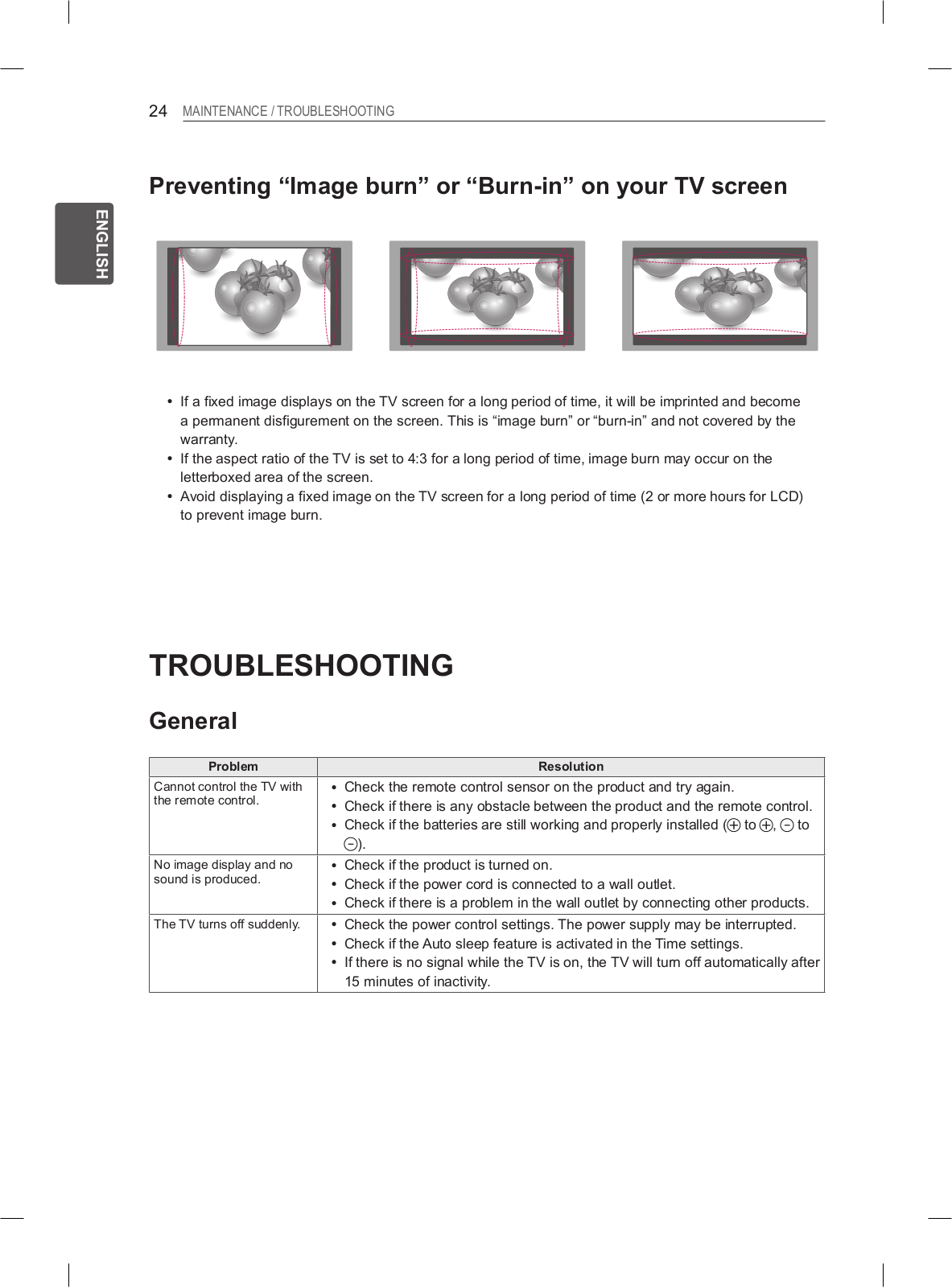

24Preventing “Image burn” or “Burn-in” on your TV screen
WARNING
yy If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
yy If you ignore the caution message, you may be slightly injured or the product may be damaged.
NOTE
yy The note helps you understand and use the product safely. Please read the note carefully before using the product.
LICENSES / OPEN SOURCE SOFTWARE NOTICE 3

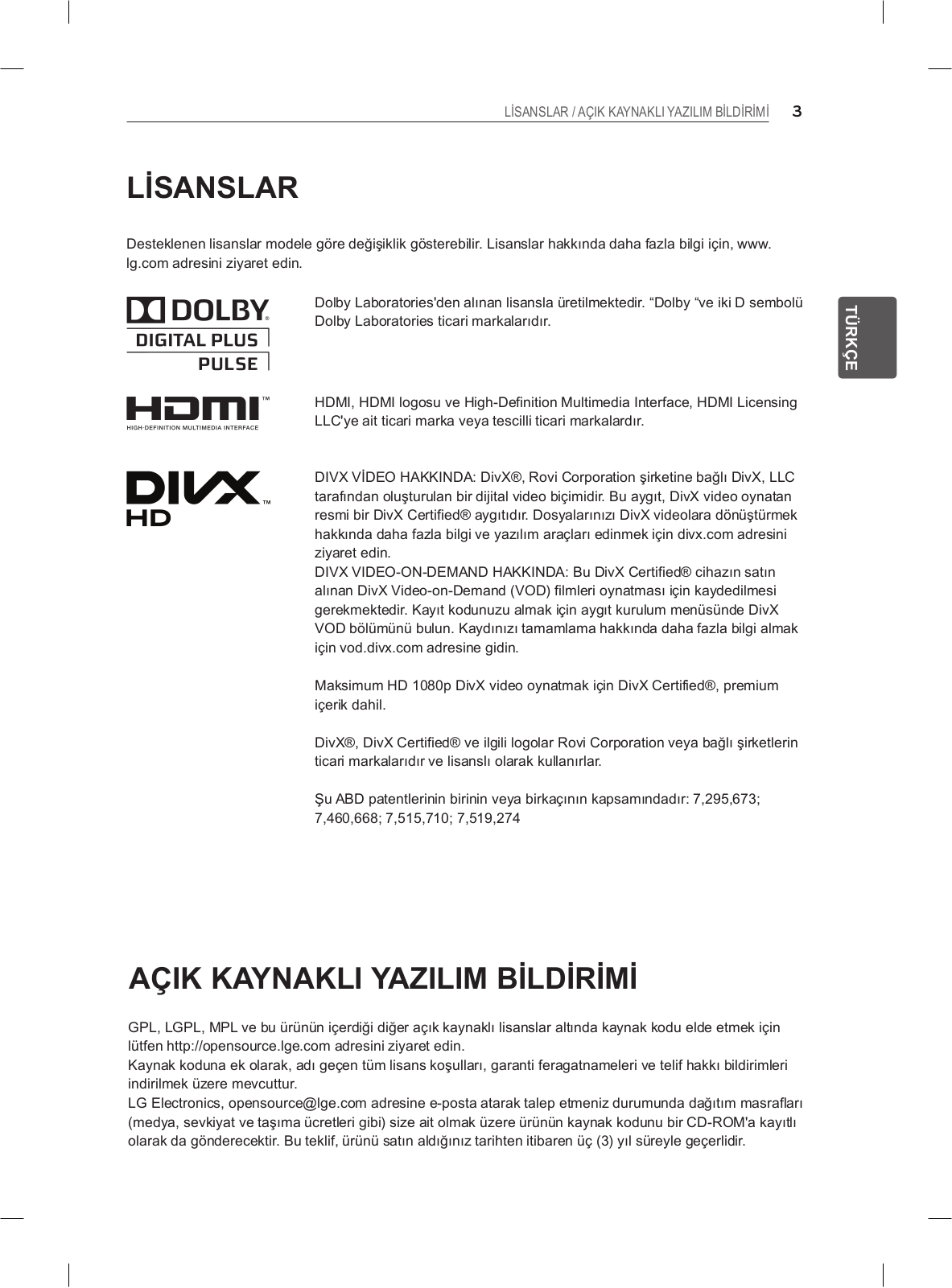

LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby “and the double-D symbol are trademarks of Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274
<![endif]>ENGLISH
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com .
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product.
<![endif]>ENGLISH

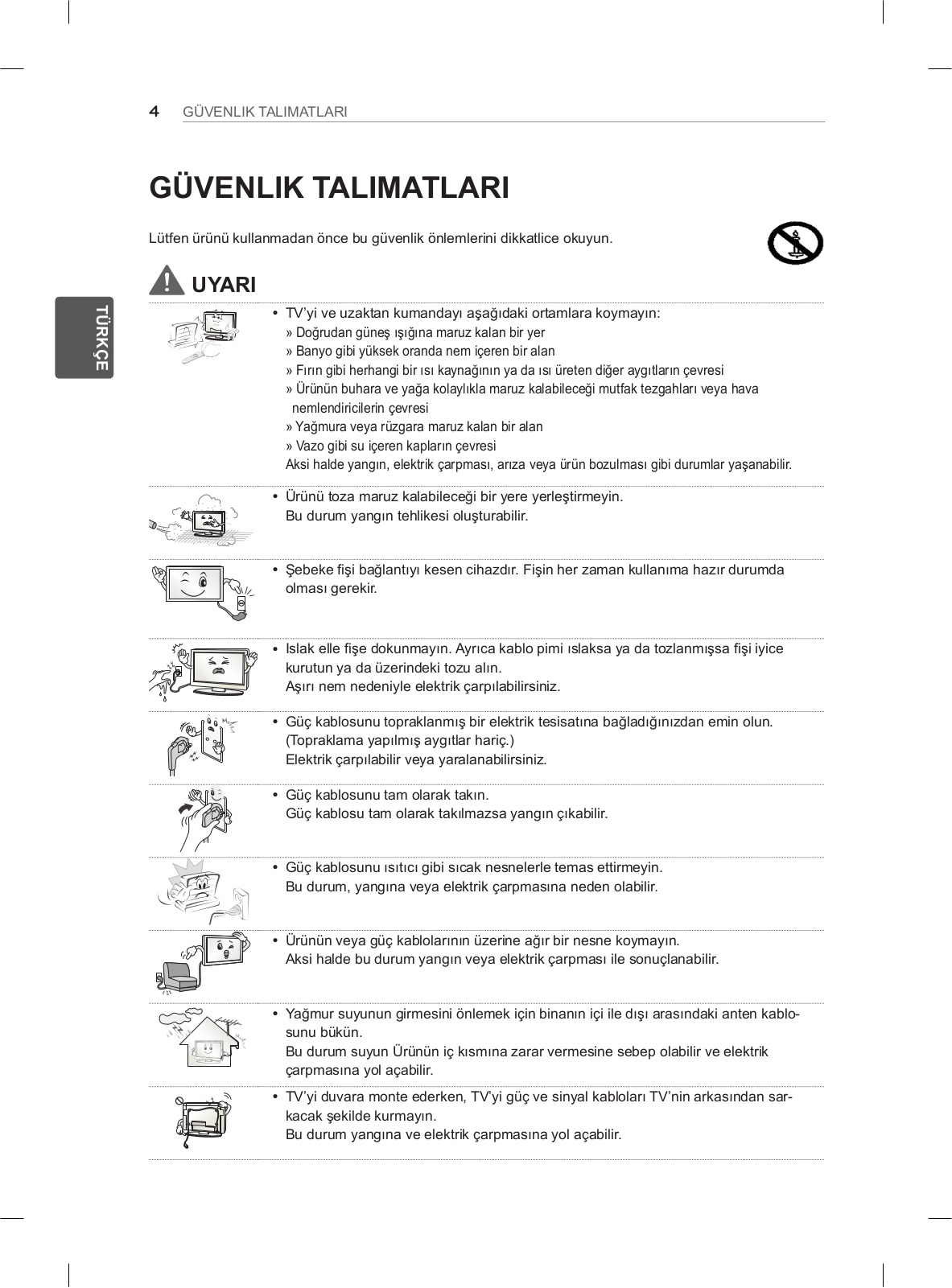

4SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
y Do not place the TV and remote control in the following environments:
» A location exposed to direct sunlight
» An area with high humidity such as a bathroom
»Near any heat source such as stoves and other devices that produce heat
»Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
»An area exposed to rain or wind
»Near containers of water such as vases
Otherwise, this may result in fire, electric shock, malfunction or product deformation.
y Do not place the product where it might be exposed to dust. This may cause a fire hazard.
y Mains plug is the disconnecting device. The plug must remain readily operable.
y Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.
You may be electrocuted due to excess moisture.
y Make sure to connect the power cable to the grounded current. (Except for devices which are not grounded.)
You may be electrocuted or injured.
y Fix the power cable completely.
If the power cable is not fixed completely, a fire can break out.
y Ensure the power cord does not come into contact with hot objects such as a heater.
This may cause a fire or an electric shock hazard.
y Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.
y Bend antenna cable between inside and outside building to prevent rain from flowing in.
This may cause water damaged inside the Product and could give an electric shock.
y When mounting a TV it on the wall, make sure not to install TV by hanging power and signal cables on the back of the TV.
It may cause fire, electric shock.
|
|
|
|
|
|
|

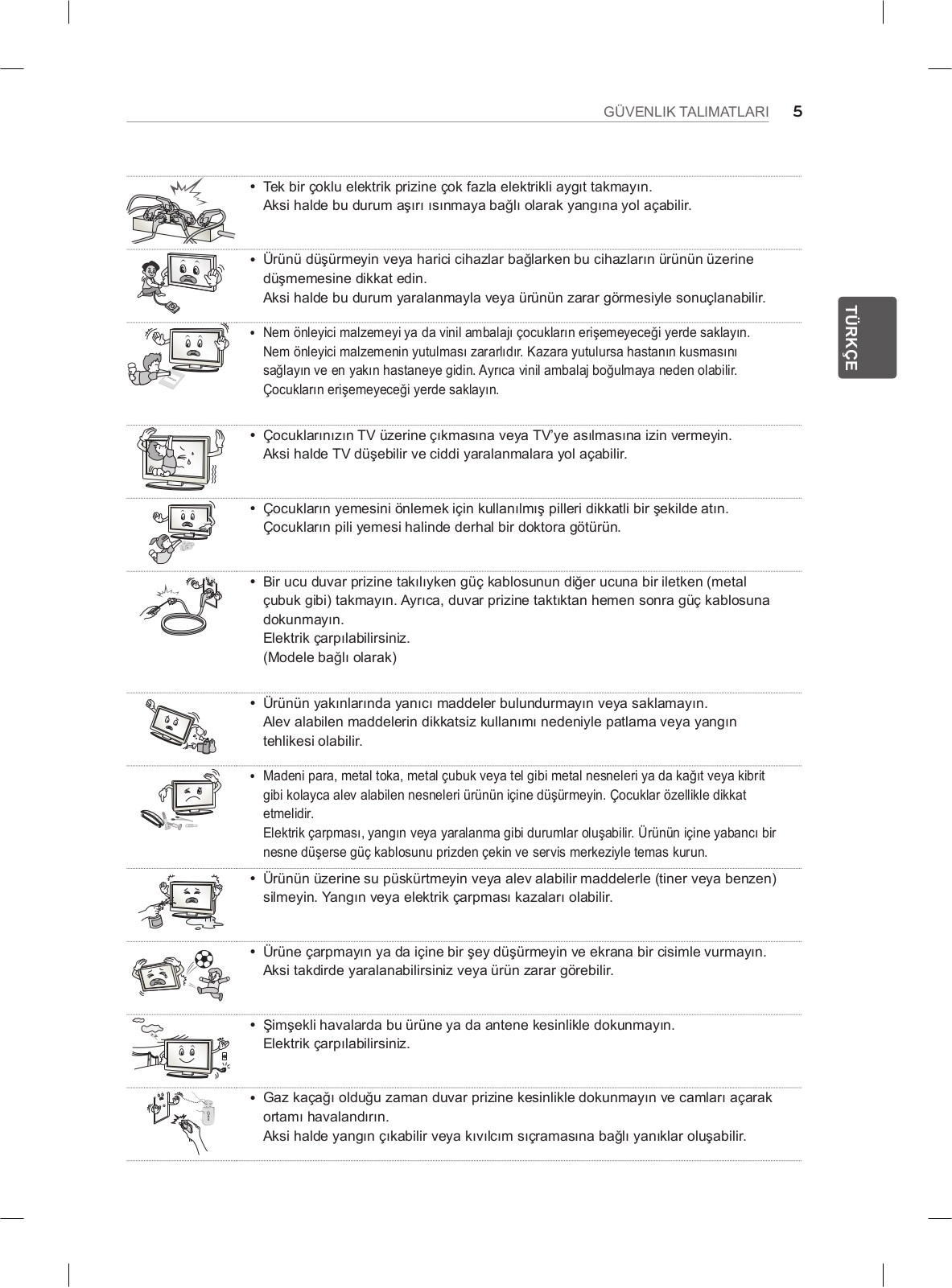

SAFETY INSTRUCTIONS |
5 |
|
|
|
|
|
|
|
|
y Do not plug too many electrical devices into a single multiple electrical outlet. |
|
|
|
|
|
|
|
|
|
Otherwise, this may result in fire due to over-heating. |
<![if ! IE]> <![endif]>ENGLISH |
|
|
|
|
|
|
|
|
y Do not drop the product or let it fall over when connecting external devices. |
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
Otherwise, this may result in injury or damage to the product. |
|
|
|
|
|
|
|
|
|
y Keep the packing anti-moisture material or vinyl packing out of the reach of |
|
|
|
|
|
|
|
|
|
children. |
|
|
|
|
|
|
|
|
|
Anti-moisture material is harmful if swallowed. If swallowed by mistake, force |
|
|
|
|
|
|
|
|
|
the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can |
|
|
|
|
|
|
|
|
|
cause suffocation. Keep it out of the reach of children. |
|
|
|
|
|
|
|
|
|
y Do not let your children climb or cling onto the TV. |
|
|
|
|
|
|
|
|
|
Otherwise, the TV may fall over, which may cause serious injury. |
|
|
|
|
|
|
|
|
|
y Dispose of used batteries carefully to protect a child from eating them. |
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
Please seek DoctorMedical Attention immediately if child consumes batteries. |
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
y Do not insert any metal objects/conductors (like a metal chopstick/cutlery/ |
|
|
|
|
|
|
|
|
|
screwdriver) between power cable plug and input Wall Socket while it is |
|
|
|
|
|
|
|
|
|
connected to the input terminal on the wall. Additionally, do not touch the power |
|
|
|
|
|
|
|
|
|
cable right after plugging into the wall input terminal. |
|
|
|
|
|
|
|
|
|
You may be electrocuted. |
|
|
|
|
|
|
|
|
|
(Depending on model) |
|
|
|
|
|
|
|
|
|
y Do not put or store inflammable substances near the product. |
|
|
|
|
|
|
|
|
|
There is a danger of combustion/explosion or fire due to careless handling of the |
|
|
|
|
|
|
|
|
|
inflammable substances. |
|
|
|
|
|
|
|
|
|
y Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the |
|
|
|
|
|
|
|
|
|
product, or inflammable objects such as paper and matches. Children must pay |
|
|
|
|
|
|
|
|
|
particular attention. |
|
|
|
|
|
|
|
|
|
Electrical shock, fire or injury can occur. If a foreign object is dropped into the |
|
|
|
|
|
|
|
|
|
product, unplug the power cord and contact the service centre. |
|
|
|
|
|
|
|
|
|
y Do not spray water on the product or scrub with an inflammable substance (thinner |
|
|
|
|
|
|
|
|
|
or benzene). Fire or electric shock accident can occur. |
|
|
|
|
|
|
|
|
|
y Do not allow a impact shock or any objects to fall into the product, and do not |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
drop onto the screen with something. |
|
|
|
|
|
|
|
|
|
You may be injured or the product can be damaged. |
|
|
|
|
|
|
|
|
|
y Never touch this product or antenna during a thunder or lighting storm. |
|
|
|
|
|
|
|
|
|
You may be electrocuted. |
|
|
|
|
|
|
|
|
|
y Never touch the wall outlet when there is leakage of gas, open the windows and |
|
|
|
|
|
|
|
|
|
ventilate. |
|
|
|
|
|
|
|
|
|
It may cause a fire or a burn by a spark. |
|
<![endif]>ENGLISH

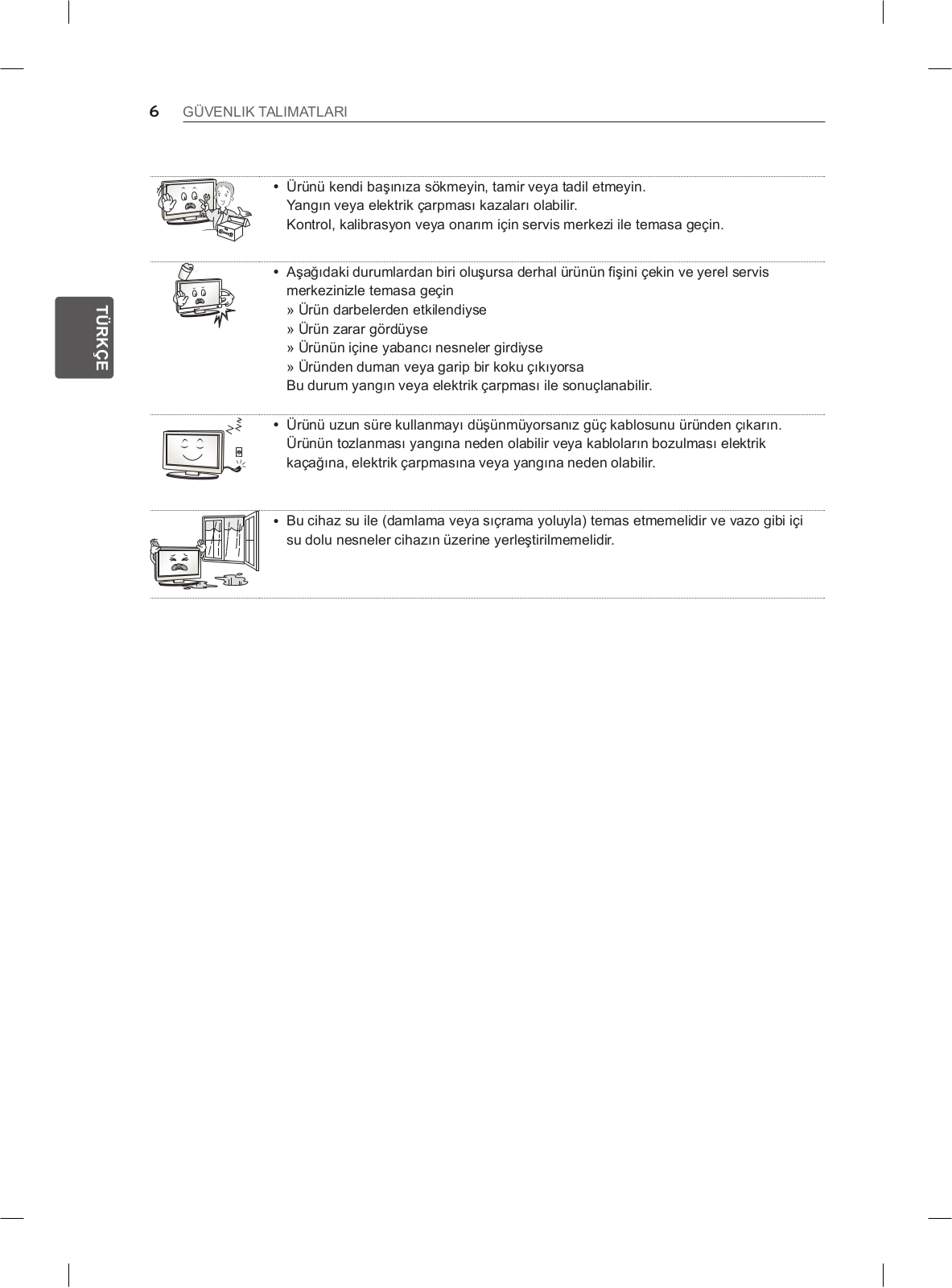

6SAFETY INSTRUCTIONS
yy Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur.
Contact the service center for check, calibration or repair.
yy If any of the following occur, unplug the product immediately and contact your local service centre.
» The product has been impacted by shock
»The product has been damaged
»Foreign objects have entered the product
»The product produced smoke or a strange smell This may result in fire or electric shock.
yy If you don’t intend to use the product for a long time, unplug the power cable from the product.
Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.
yy Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

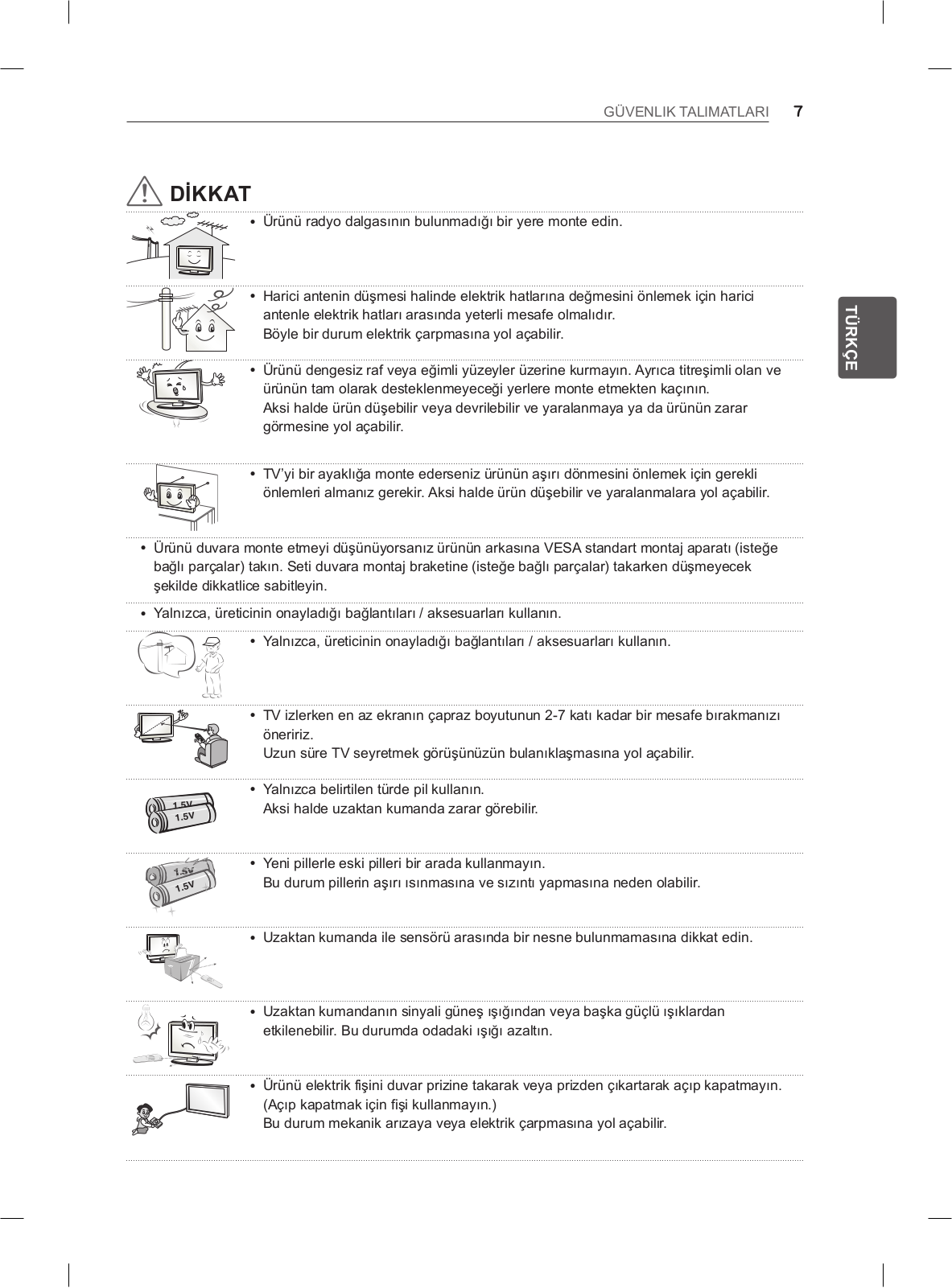

SAFETY INSTRUCTIONS |
7 |
CAUTION
yy Install the product where no radio wave occurs.
yy There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls.
This may cause an electric shock.
yy Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported.
Otherwise, the product may fall or flip over, which may cause injury or damage to the product.
yy If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.
yy If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
yy Only use the attachments / accessories specified by the manufacturer.
yy When installing the antenna, consult a qualified service man. This may create a fire hazard or an electric shock hazard.
yy We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV.
If you watch TV for a long period of time, this may cause blurred vision.
yy Only use the specified type of battery.
This could cause damage to the remote control.
yy Do not mix new batteries with old batteries.
This may cause the batteries to overheat and leak.
yy Make sure there are no objects between the remote control and its sensor.
yy Signal from the remote control may be disturbed by sun light or other strong light. In this case, darken the room.
yy When connecting external devices such as video game consoles, make sure the connecting cables are long enough.
Otherwise, the product may fall over, which may cause injury or damage the product.
<![endif]>ENGLISH
<![endif]>ENGLISH

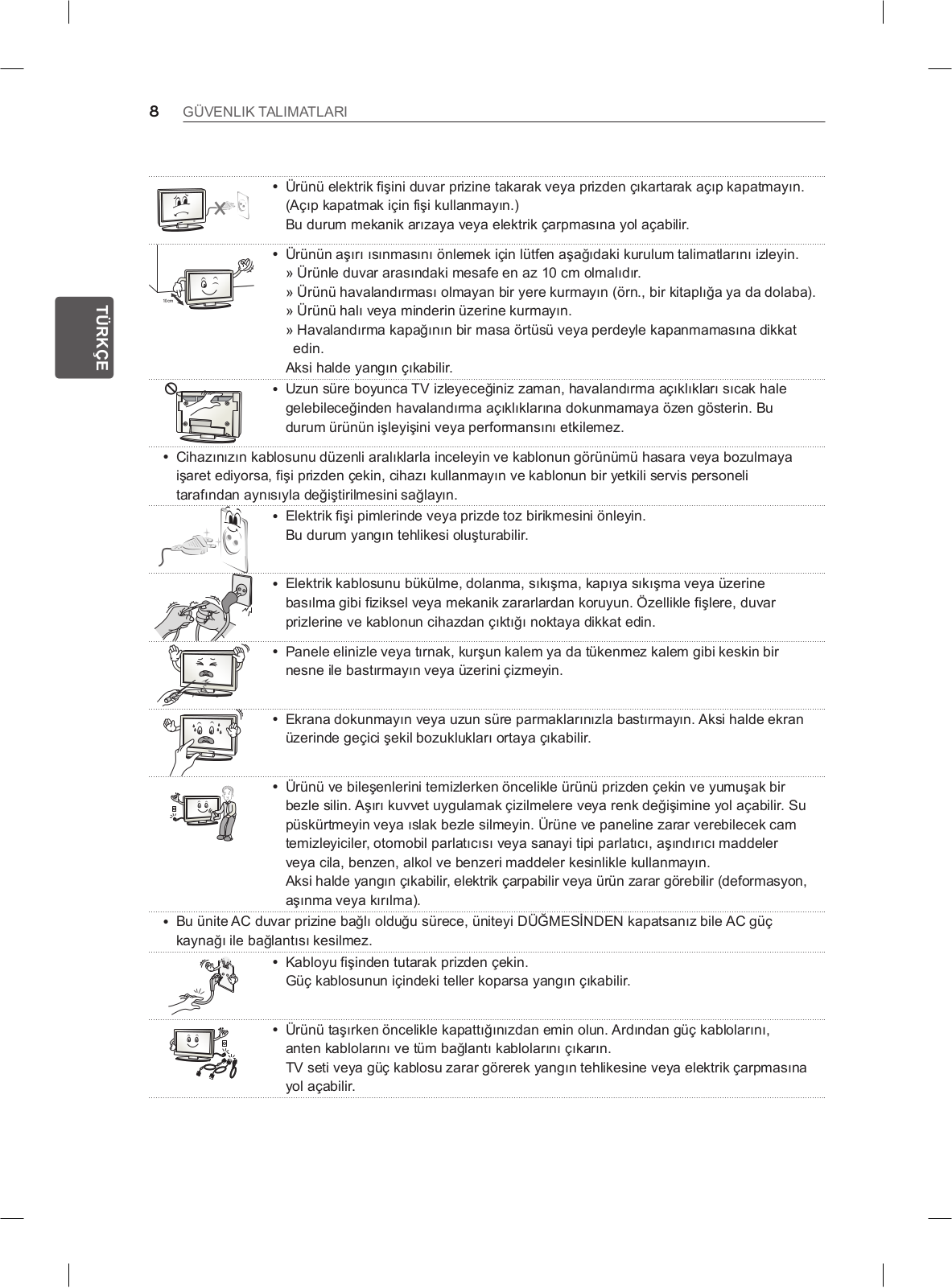

8SAFETY INSTRUCTIONS
yy Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.)
It may cause mechanical failure or could give an electric shock.
yy Please follow the installation instructions below to prevent the product from overheating.
» The distance between the product and the wall should be more than 10 cm.
» Do not install the product in a place with no ventilation (e.g., on a bookshelf or in
acupboard).
»Do not install the product on a carpet or cushion.
»Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.
yy Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
yy Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.
yy Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.
yy Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
yy Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.
yy Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.
yy When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel.
Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
yy As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.
yy When unplugging the cable, grab the plug and unplug it.
If the wires inside the power cable are disconnected, this may cause fire.
yy When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables.
The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.
SAFETY INSTRUCTIONS |
9 |

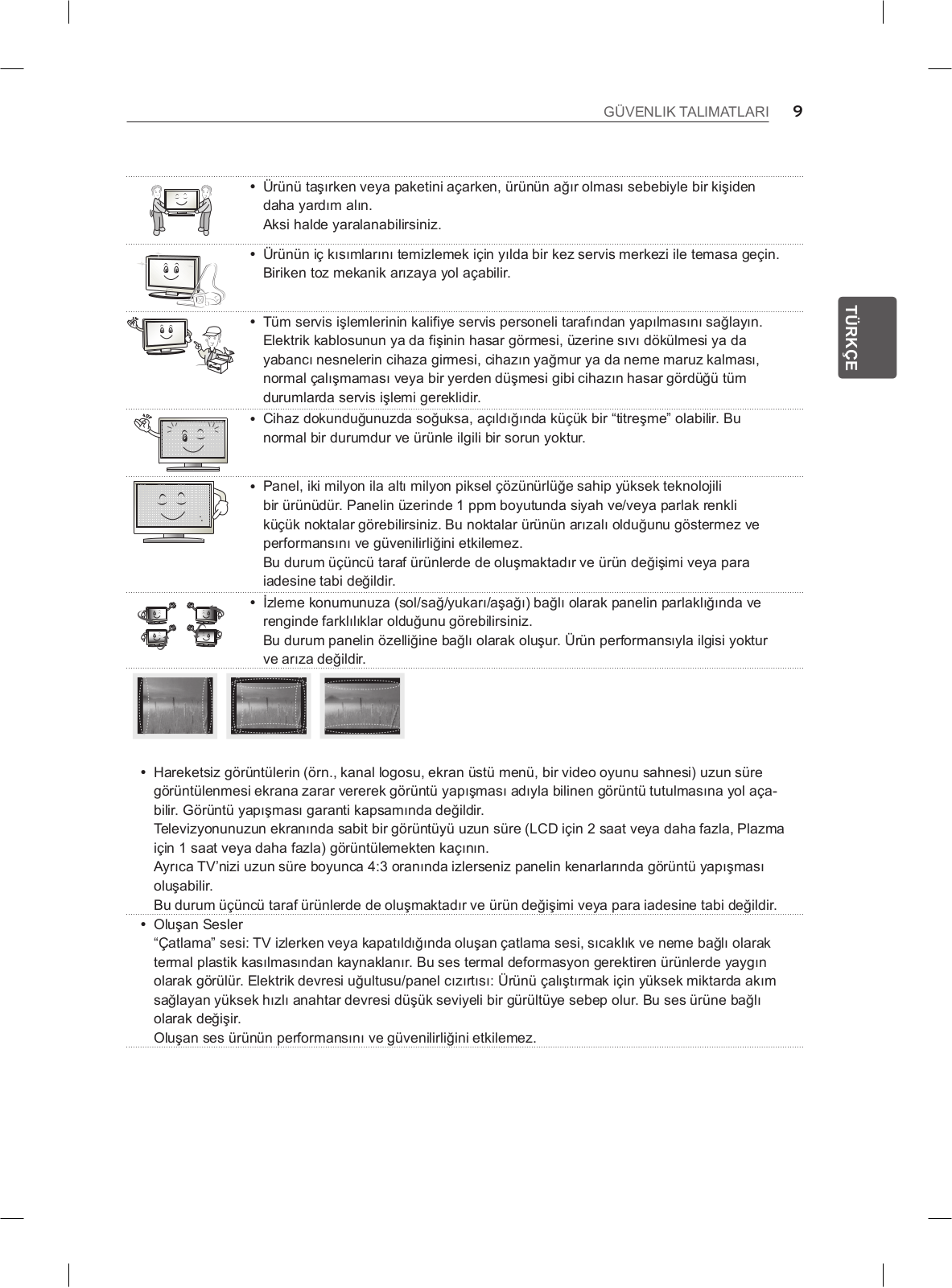

yy When moving or unpacking the product, work in pairs because the product is heavy.
Otherwise, this may result in injury.
yy Contact the service center once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.
yy Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
yy If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.
yy The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product.
This phenomenon also occurs in third-party products and is not subject to exchange or refund.
yy You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down).
This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

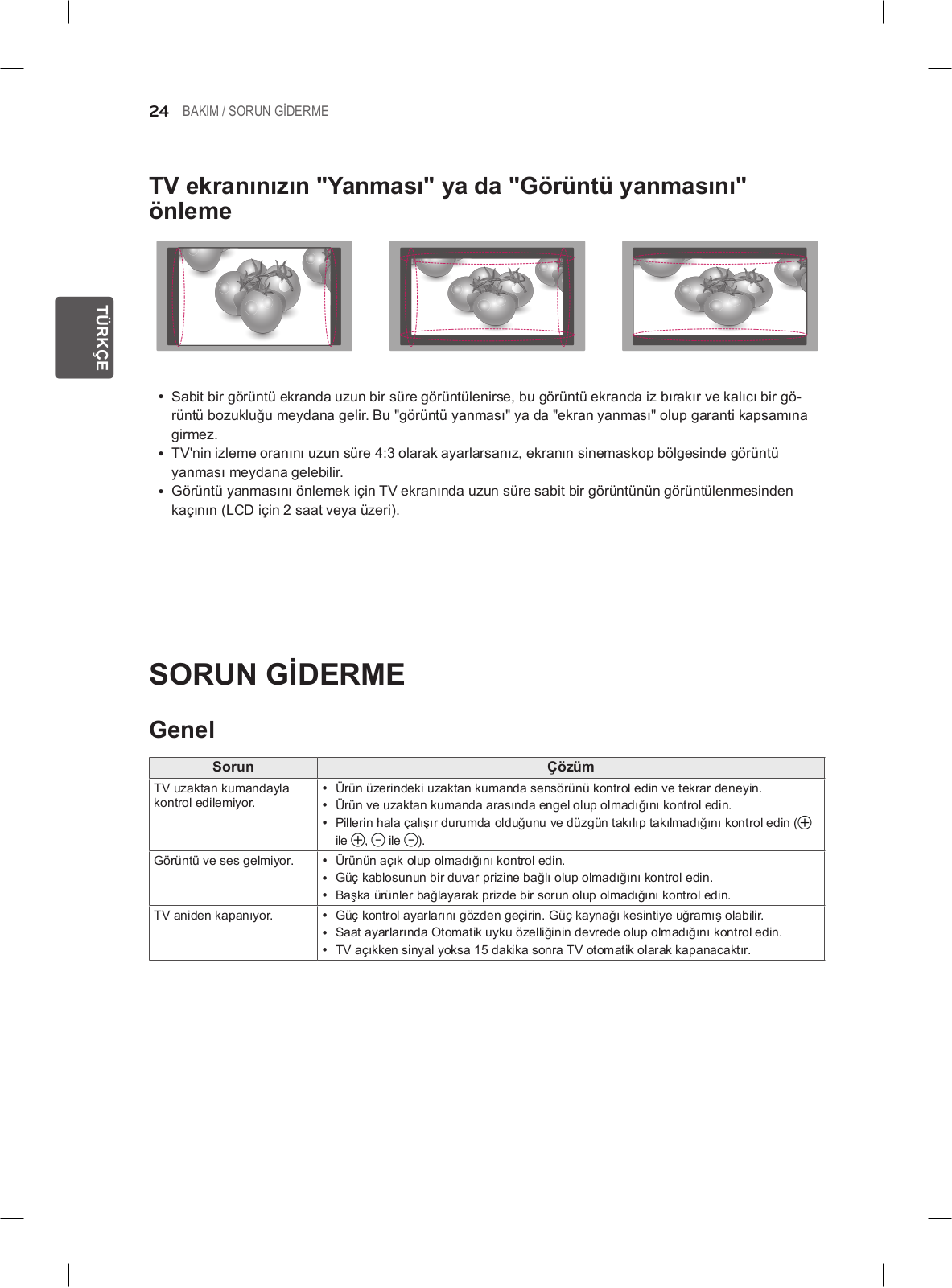

yy Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television’s screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma).
Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.
This phenomenon also occurs in third-party products and is not subject to exchange or refund.
yy Generated Sound
“Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depend-ing on the product.
This generated sound does not affect the performance and reliability of the product.
<![endif]>ENGLISH
<![endif]>ENGLISH

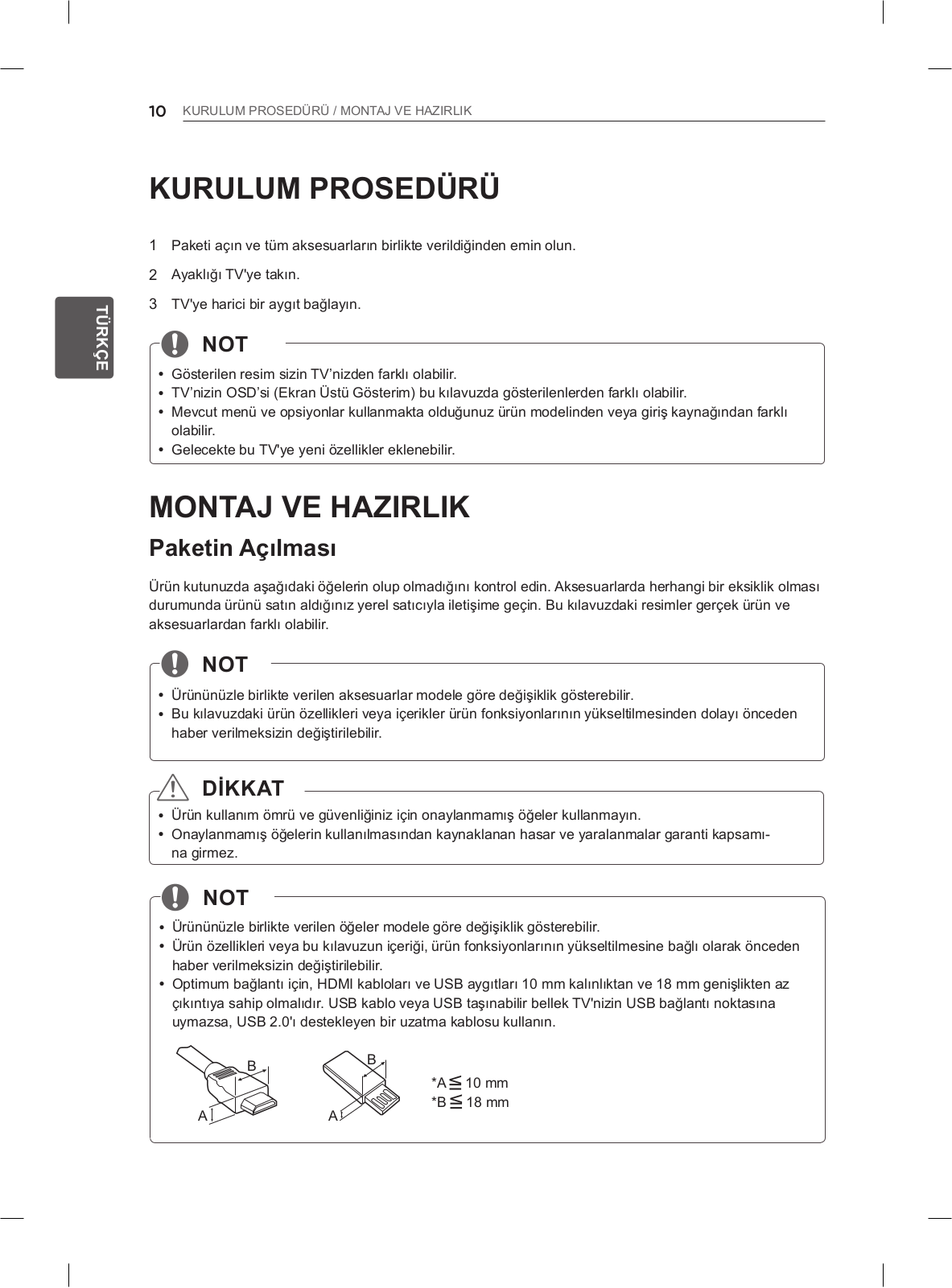

10 INSTALLATION PROCEDURE /ASSEMBLINGAND PREPARING
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2Attach the stand to the TV.
3Connect an external device to the TV.
NOTE
yy Image shown may differ from your TV.
yy Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yy The available menus and options may differ from the input source or product model that you are using. yy New features may be added to this TV in the future.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.
NOTE
yy The accessories supplied with your product may vary depending on the model.
yy Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.
CAUTION
yy Do not use any pirated items to ensure the safety and product life span.
yy Any damages or injuries by using pirated items are not covered by the warranty.
NOTE
yy The items supplied with your product may vary depending on the model.
yy Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
yy For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.
|
B |
|
B |
|
|
|
|
|
|
|
|
|
*A |
10 mm |
A |
|
A |
*B |
18 mm |
|
|
|
ASSEMBLINGAND PREPARING 11
22LS5400 27LS5400 22LS540T 27LS540T
<![if ! IE]><![endif]>ENGLISH
|
|
|
|
|
|
|
|
Screws for Assembly |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
||
Remote control / |
|
Owner's Manual |
|
||||||
Batteries (AAA) |
|
|
|
2 EA (Only 27LS54** model) |
|||||
(See p.19, 20) |
|
|
|
(See p. A-4, A-6) |
|||||
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
Power Cord |
|
AC-DC Adapter |
|
Cable Tie |
(See p.15) |
|
(See p.15) |
|
(See p. A-5) |
|
|
|
|
|
Stand Base |
|
Stand Body (Only 22LS54** |
Stand Body (Only 27LS54** |
|
|
|
model) |
model) |
|
(See p. A-3, A-4, A-6) |
|
(See p. A-3, A-6) |
(See p. A-4, A-6) |
|
|
|
|
|
|
or |
Isolator
(Depending on model) (See p.12)
<![endif]>ENGLISH

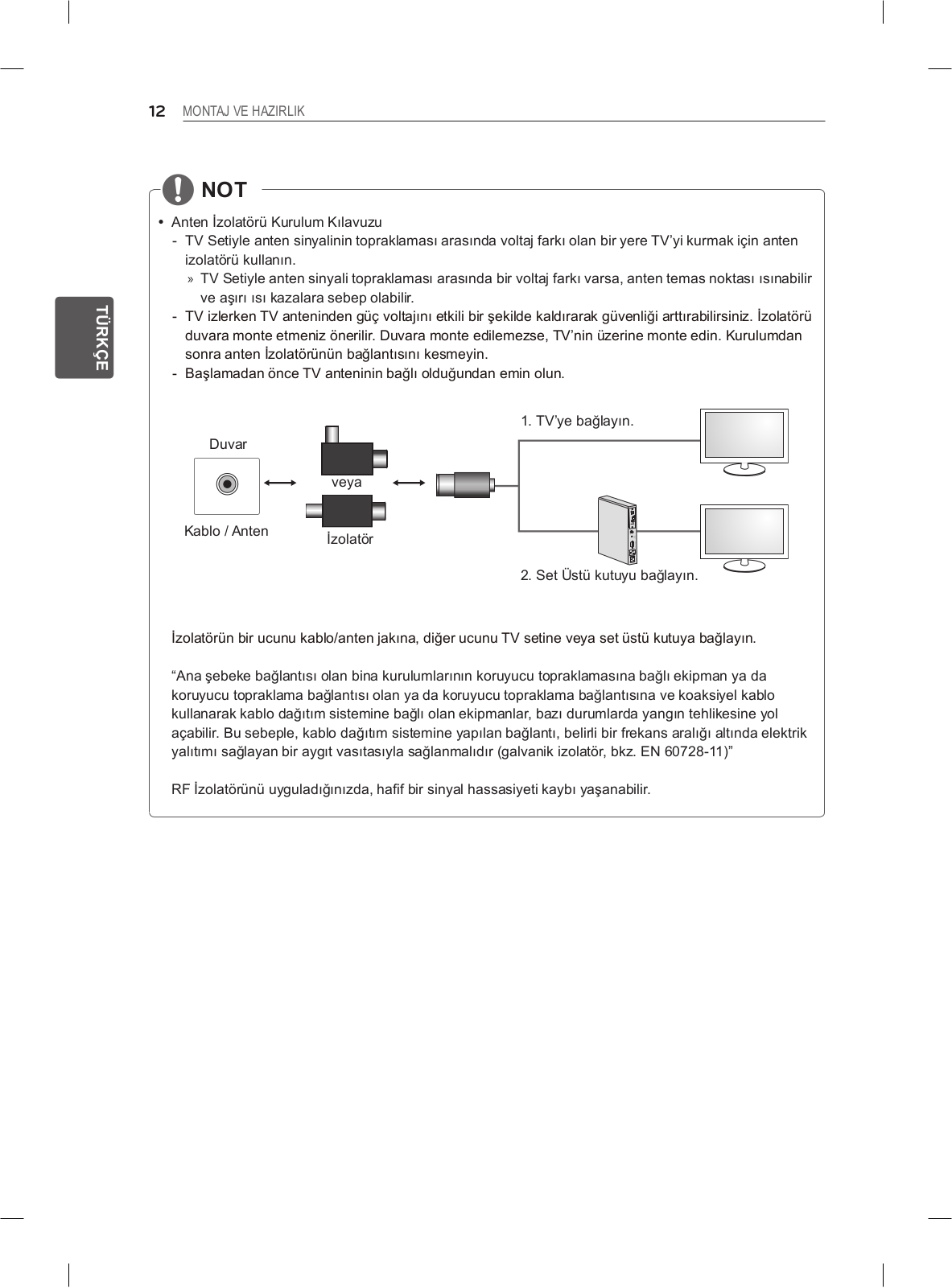

12 ASSEMBLINGAND PREPARING
NOTE
yy Antenna Isolator Installation Guide
-- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.
»» If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be heated and excessive heat might cause an accident.
-- You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
-- Before starting, be sure that the TV antenna is connected.
Wall |
1. Connect to TV. |
|
|
ANTENNA/ |
or |
|
Cable / Antenna |
Isolator |
2. Connect to Set-Top box.
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
ASSEMBLINGAND PREPARING 13
Parts and buttons
<![if ! IE]><![endif]>ENGLISH
Remote Control Sensor
Standby Light
yy Lighting On: Turned off yy Lighting Off: Turned on
Touch Buttons
LAN |
Connection panel (See p. B-1)
**LS540T models (Only UK)
Touch button |
Description |
|
Scrolls through the saved programmes. |
|
|
|
Adjusts the volume level. |
|
|
OK |
Selects the highlighted menu option or confirms an input. |
SETTINGS |
Accesses the main menus, or saves your input and exits the menus. |
INPUT |
Changes the input source. |
/ I |
Turns the power on or off. |
NOTE
yy All of the buttons are touch sensitive and can be operated through simple touch with your finger.
<![endif]>ENGLISH
14 ASSEMBLINGAND PREPARING
Lifting and moving the TV
When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for save transportation regardless of its type and size.
CAUTION
yy Avoid touching the screen at all times, as this may result in damage to the screen or some of the pixels used to create images.
yy It is recommended to move the TV in the box or packing material that the TV originally came in.
yy Before moving or lifting the TV, disconnect the power cord and all cables.
yy Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.
yy When holding the TV, the screen should face away from you to prevent the screen from scratches.
yy When transporting the TV, do not expose the TV to jolts or excessive vibration.
yy When transporting the TV, keep the TV upright, never turn the TV on its side, or tilt towards the left or right.
ASSEMBLINGAND PREPARING 15
Mounting on a table
1Lift and tilt the TV into its upright position on a table.
Leave a 10 cm(minimum) space from the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
WARNING
yy When you adjust the angle, do not hold the buttom of the TV frame as shown on the following illustration, as may injure your fingers.
<![endif]>ENGLISH
CAUTION
yy Disconnect the power cord first, and then move or install the TV. Otherwise electric shock may occur.
2Connect the AC-DC Adapter and Power Cord to a wall outlet.
NOTE
yy Tilt from +20 to -5 degrees up or down to adjust the angle of the TV to suit your view.
-5 +20
CAUTION
Front Rear
yy Do not place the TV near or on sources of heat, as this may result in fire or other damage.
