ENGLISH
OWNER’S MANUAL
LED LCD Monitor
(LED Monitor*)
Please read this manual carefully before operating
your set and retain it for future reference.
LED LCD MONITOR MODEL
22BK55WV
24BK55WV
www.lg.com
2
ENGLISH
ENG
CONTENTS
3 LICENSE
4 ASSEMBLING AND PREPAR-
ING
4 Unpacking
5 Parts and buttons
6 Setting up the Monitor set
6 - Attaching the Stand Base
6 - Detaching the stand base
7 - Detaching the stand body
7 - Using the cable holder
7 - Mounting on a table
8 - Adjusting the angle
9 - Adjusting the stand height
9 - Using the Kensington locking device
10 - Swivel stand
10 - Using the Pivot function
11 - Mounting on a wall
15 CUSTOMIZING SETTINGS
16 Customizing Settings
16 - Menu Settings
19 TROUBLESHOOTING
21 SPECIFICATIONS
21 22BK55WV
22 24BK55WV
23 Preset Modes (Resolution)
24 Indicator
12 USING THE MONITOR SET
12 Connecting to a PC
12 - D-SUB connection
12 - DVI-D connection
13 - HDMI connection
14 - Peripheral device connection
3
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
ENGLISH
ENG
The following content is only applied to the monitor which is sold in Europe market and which needs to meet the ErP
Directive:
* This monitor is set to be turned off automatically in 4 hours after you turned on display if there is no adjustment to
display.
* To make this setting be disabled, change the option to ‘Off’ in OSD menu of “Automatic Standby”.
4
ENGLISH
ENG
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
DVI-D Cable
countries.)
CD / Card
D-SUB Cable
(This cable is not included in all
countries.)
(This cable is not included in all
Power Cord
Audio Cable
( Depending on the country )
Stand Base
HDMI Cable
( This cable is not included
in all countries. )
One Screw
Cable Holder
CAUTION
Do not use any unapproved accessories to ensure the safety and product life span.
y
Any damages or injuries by using unapproved accessories are not covered by the warranty.
y
NOTE
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to upgrade
y
of product functions.
Parts and buttons
Power Indicator
LED On : Power is on
y
LED Off: Power is off
y
5
ENGLISH
ENG
Front Side Buttons
(Power Button)
6
ENGLISH
ENG
Setting up the Monitor set
Attaching the Stand Base
Place the Monitor set with the screen side
1
down on a flat and cushioned surface.
CAUTION
To protect the screen from scratches, cover
y
the surface with a soft cloth.
Check the
2
the stand body, then mount the
the
position (at the front and rear)
stand body
as shown in the figure.
Stand Body
stand base
of
on
Detaching the stand base
Place the monitor's screen face down.
1
To protect the screen from scratches, cover the
surface with a soft cloth.
Using a coin, turn the screw in the stand base
2
counterclockwise. Detach the
stand body
the
.
stand base
Stand Body
from
Using a coin, turn the screw clockwise to se-
3
cure the
stand base.
Stand Base
Stand Base
Stand Base
CAUTION
Illustrations in this document represent typi-
y
cal procedures, so they may look different
from the actual product.
Do not carry the monitor upside down by just
y
holding the stand base. This may cause the
monitor to fall off the stand and could result
in personal injury.
When lifting or moving the monitor, do not
y
touch the monitor screen. The force applied
to the monitor screen may cause damage to
it.
Do not apply foreign substances (oils, lubri-
y
cants, etc.) to the screw parts when assembling the product. (Doing so may damage the
product.)
Applying excessive force when tightening
y
screws may cause damage to the monitor.
Damage caused in this way will not be covered by the product warranty.
7
Detaching the stand body
Place the monitor's screen face down. To
1
protect the screen from scratches, cover the
surface with a soft cloth.
Using a screwdriver, remove the four screws
2
and detach the stand from the monitor.
Using the cable holder
1
Fix the Knob (Cable holder) to the
Hole(Hingebody).
Use one screw to fix the Cable Holder and
2
monitor set.
3
Close the Cable holder.
NOTE
The holes are used for wall mount bracket.
y
Varies depending upon your country or
y
model.
Mounting on a table
Lift the monitor and place it on the table in an
1
upright position.
100 mm
100 mm
100 mm
away from the wall to
100 mm
100 mm
Install at least
ensure sufficient ventilation.
ENGLISH
ENG
8
ENGLISH
ENG
2
3
Connect the Power cord to the monitor, then
1
plug the power cord into the wall outlet.
(Before connect please check the “ON/OFF”
knob in “O” state).
2
Press the “ON/OFF” knob in “ ” state
(Open the power).
Press the (Power) button on the front of the
monitor to turn on the monitor.
CAUTION
Unplug the power cord prior to moving or
y
installing the monitor. There is risk of electric
shock.
WARNING
To avoid injury to the fingers when adjusting
y
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
Be careful not to touch or press the screen
y
area when adjusting the angle of the monitor.
Adjusting the angle
Place the monitor mounted on the stand base
1
in an upright position.
Adjust the angle of the screen. The angle of
2
the screen can be adjusted up to 5° forwards
and 35° backwards for a comfortable viewing
experience.
Front SideRear Side
9

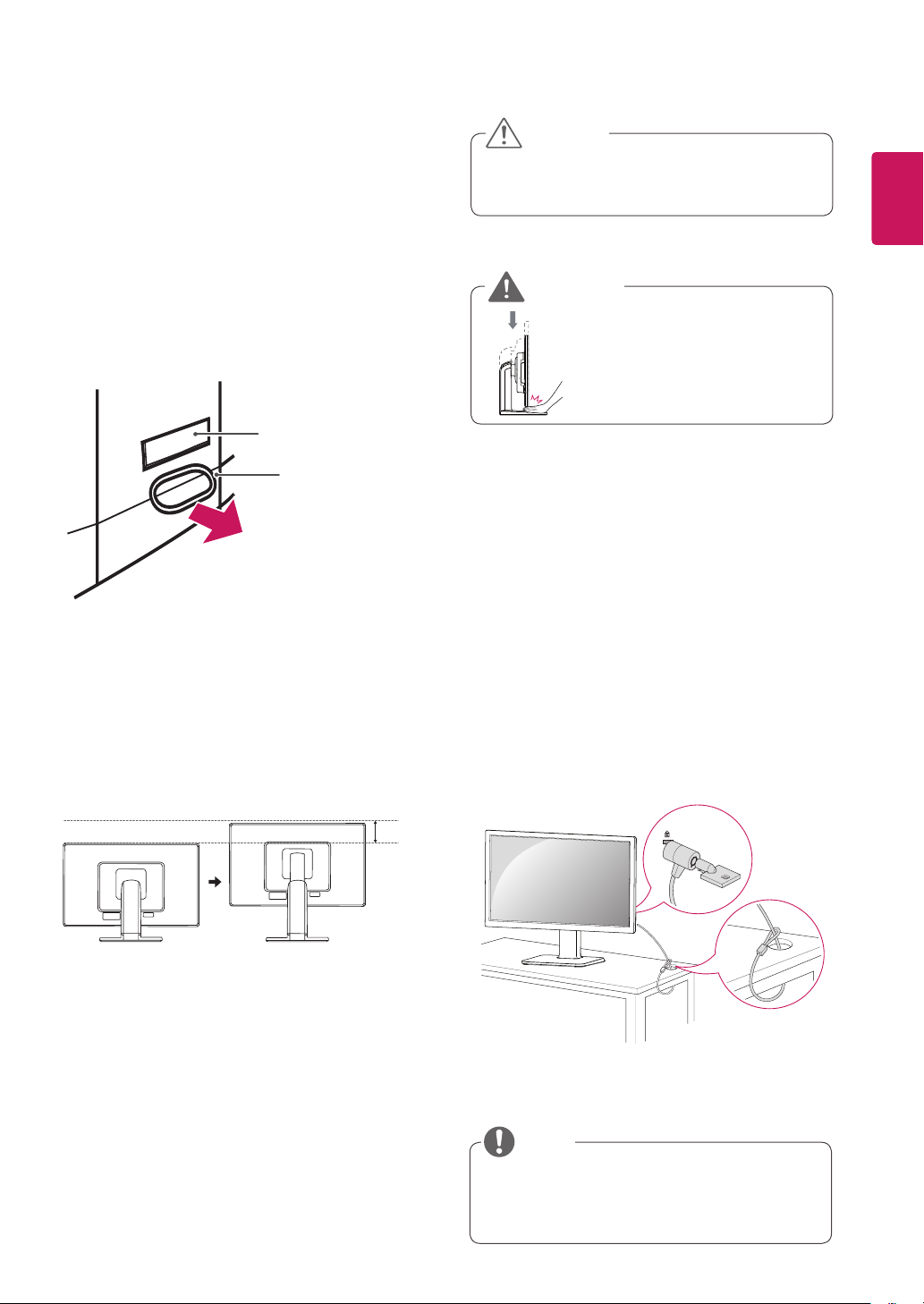

Adjusting the stand height
Place the monitor mounted on the stand base
1
in an upright position.
Remove the
2
of the
pin.
Stand Body
tape
stand body,
attached at the bottom rear
then pull out the
Tape
Locking Pin
locking
CAUTION
Once the pin is removed, it is not necessary
y
to re-insert it to adjust the height.
WARNING
Do not put your finger be-
y
tween the screen and the
base (chassis) when adjusting the screen's height.
Using the Kensington locking device
The connector for the Kensington lock is located
on the rear of the monitor.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
ENGLISH
ENG
The height can be adjusted up to
3
130 mm
.
130.0mm
Connect the monitor to the table with the Kensing-
ton lock cable.
NOTE
Using the Kensington lock is optional. The
y
accessories can be purchased at your local
electronics store.
ENGLISH
ENG
10

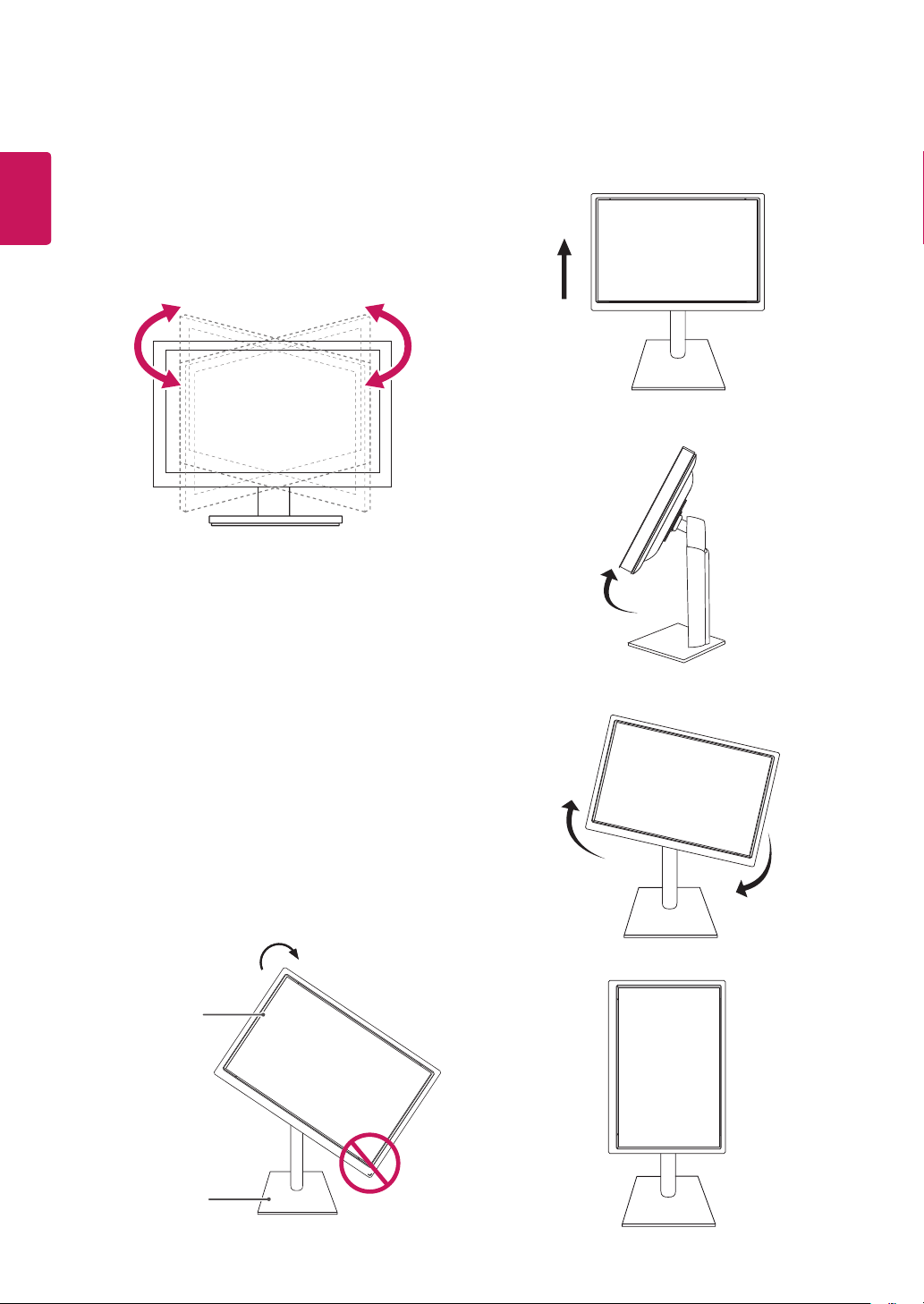

Swivel stand
Image shown may differ from your Monitor
y
set.
Swivel 355 degrees and adjust the angle of the
1
Monitor set to suit your view.
Be careful with the cables when rotating the
3
screen.
Using the Pivot function
The pivot function allows you to rotate the screen
90 degrees clockwise.
Lift the monitor to its highest height to utilize
1
the Pivot function.
Landscape & Portrait : You can rotate the panel
2
90° clockwise. Please be cautious and avoid
contact between the monitor head and the
Stand Base when rotating the screen to access
the Pivot function. If the monitor head touches
the Stand Base, then the Stand Base could
crack.
Head
section
Stand
section
11

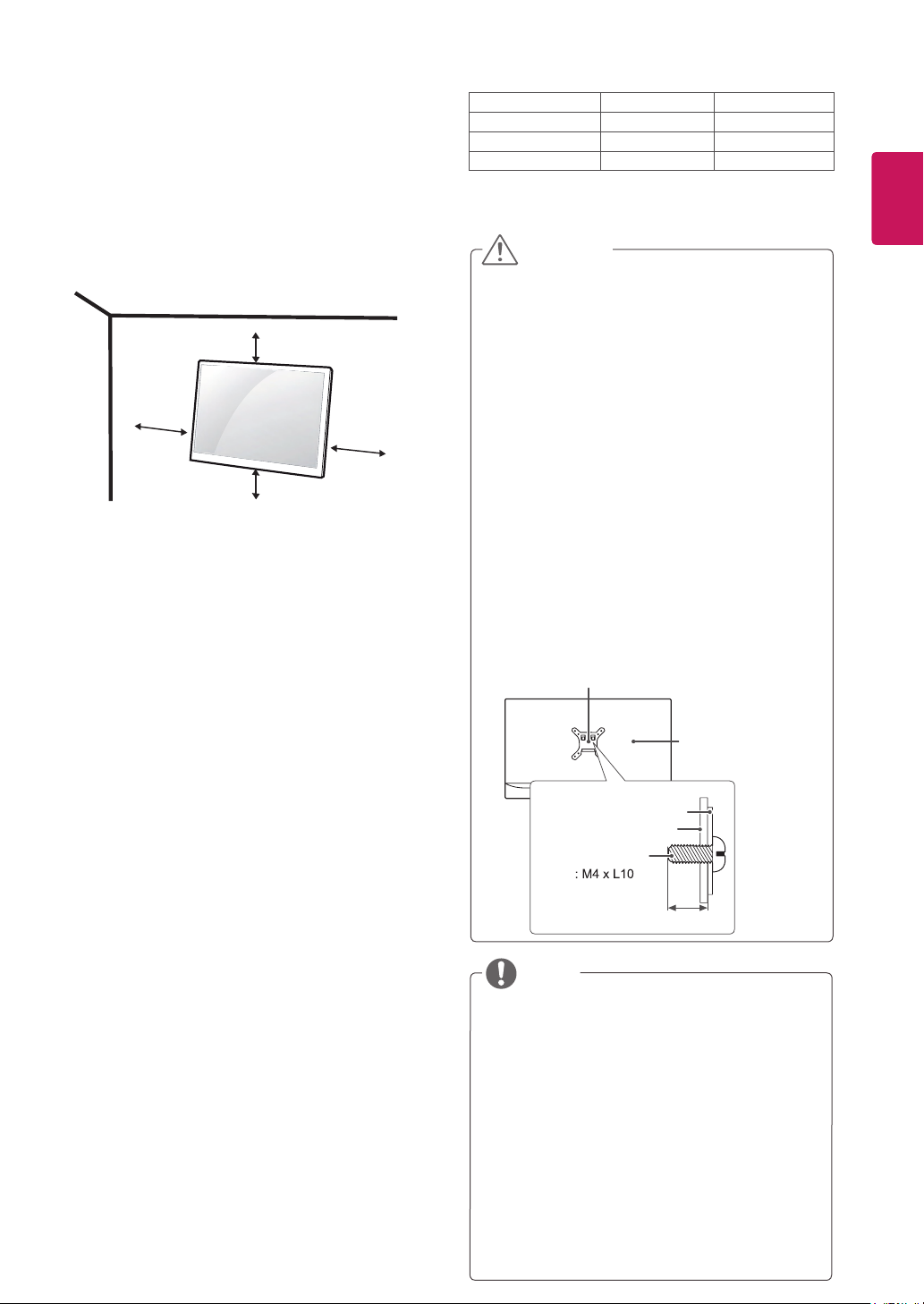

Mounting on a wall
For proper ventilation, allow a clearance of 100
mm on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
100 mm
100 mm
100 mm
100 mm
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
Please, Use the screw and wall mount interface
1
in accordance with VESA Standards.
Model
VESA (A x B)
Standard screw
Number of screws
22BK55WV 24BK55WV
100 x 100
M4
4
200 x 100
M4
4
CAUTION
Disconnect the power cord first, and then
y
move or install the Monitor set. Otherwise
electric shock may occur.
If you install the Monitor set on a ceiling or
y
slanted wall, it may fall and result in severe
injury.
Use only an authorized LG wall mount
y
and contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
y
cause damage to the Monitor set and void
your warranty.
Use only screws and wall mounts that
y
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
Screw length from outer surface of back
y
cover should be under 8mm.
Wall mount Pad
ENGLISH
ENG
If you use screw longer than standard, the
2
monitor might be damaged internally.
If you use improper screw, the product might be
3
damaged and drop from mounted position. In
this case, LG Electronics is not responsible for
it.
VESA compatible only with respect to screw
4
mounting interface dimensions and mounting
screw specifications.
Please use VESA standard as below.
5
784.8 mm (30.9 inch) and under
y
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
787.4 mm (31.0 inch) and above
y
* Please use VESA standard wall mount pad
and screws.
Back Cover
Wall mount Pad
Back Cover
Standard screw
Max.8mm
NOTE
Use the screws that are listed on the VESA
y
standard screw specifications.
The wall mount kit will include an installation
y
manual and necessary parts.
The wall mount bracket is optional. You can
y
obtain additional accessories from your local
dealer.
The length of screws may differ depending
y
on the wall mount. Be sure to use the proper
length.
For more information, refer to the
y
instructions supplied with the wall mount.
12
ENGLISH
ENG
USING THE MONITOR SET
Connecting to a PC
Your Monitor set supports Plug & Play*.
y
*Plug & Play: A PC recognizes a connected
device that users connect to a PC and turn
on, without device configuration or user
intervention.

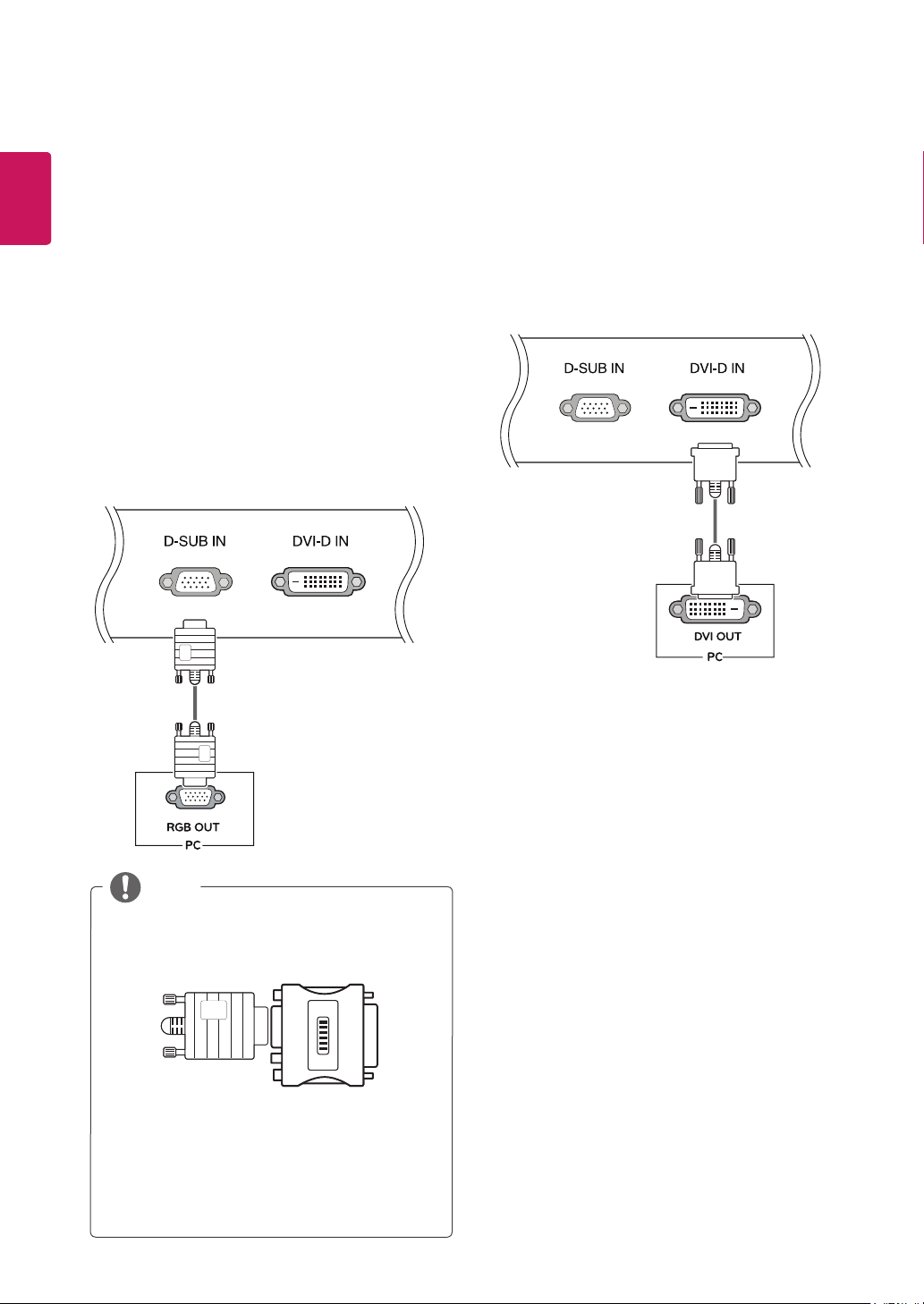

D-SUB connection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor set
with the supplied D-sub 15 pin signal cable as
shown in the following illustrations.
DVI-D connection
Transmits a digital video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with a DVI cable as shown in the following
illustrations.
NOTE
When using a D-Sub signal input cable
y
connector for Macintosh
Mac adapter
y
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
13

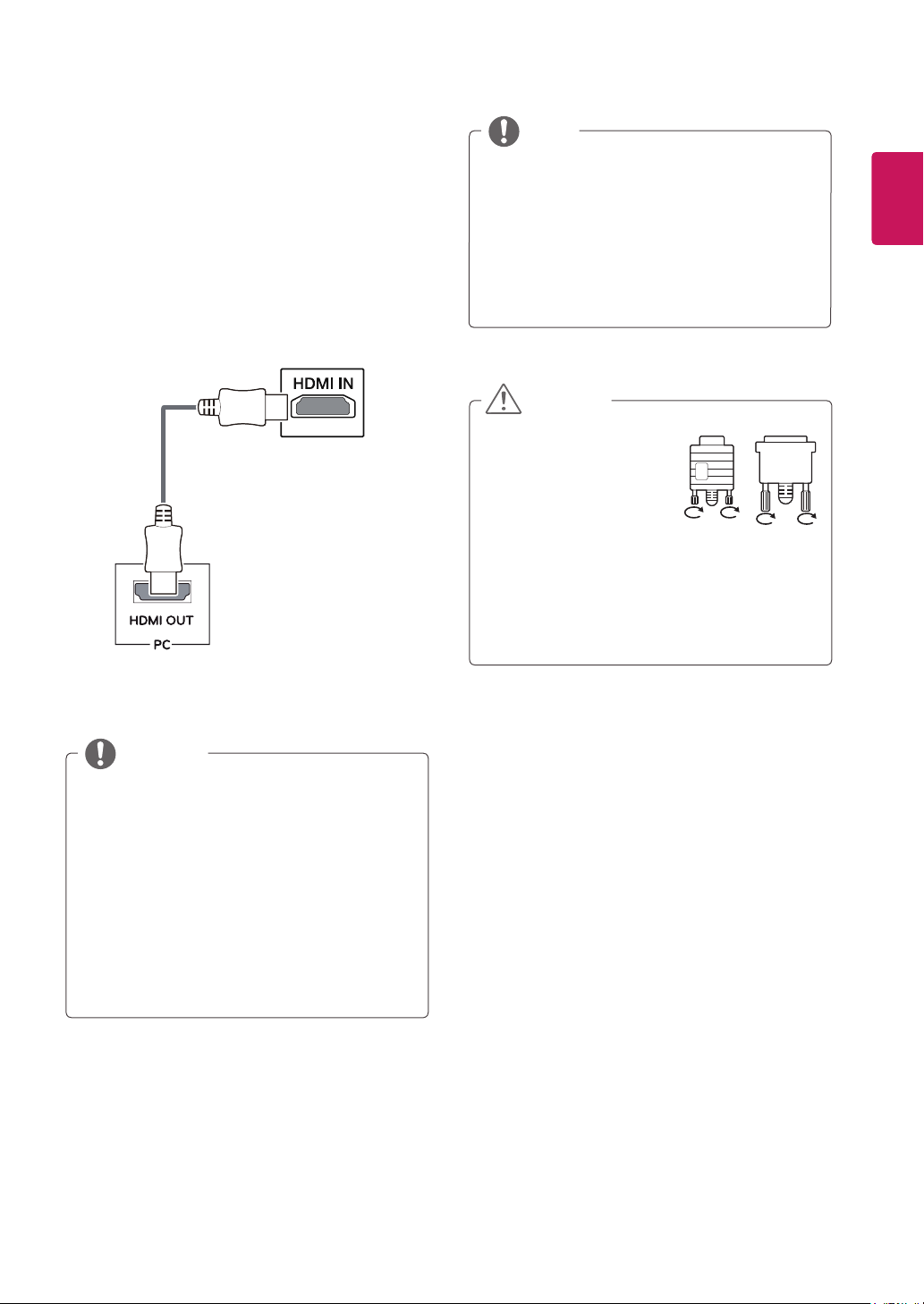

HDMI connection
Transmits the digital video and audio signals from your
PC and A/V devices to the monitor. Connect your PC
and AV device to the monitor with the HDMI cable as
illustrated below.
Press the menu button and then select the input option
from the input menu.
NOTE
When you want to use two PC in our Monitor,
y
please connect the signal cable(D-SUB/
DVI-D/HDMI) respectively in Monitor set.
If you turn the Monitor set on while it is cold,
y
the screen may flicker. This is normal.
Some red, green, or blue spots may appear
y
on the screen. This is normal.
CAUTION
Connect the signal
y
input cable and tighten
it by turning the screws
clockwise.
Do not press the screen
y
with your finger for a long time as this may
result in temporary distortion on the screen.
Avoid displaying a fixed image on the
y
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
ENGLISH
ENG
NOTE
If you use HDMI PC, it can cause compatibility
y
problem.
Use a certified cable with the HDMI logo attached.
y
If you do not use a certified HDMI cable, the
screen may not display or a connection error may
occur.
Recommended HDMI cable types
y
- High-Speed HDMI®/TM Cable
- High-Speed HDMI®/TM Cable with Ethernet
14
ENGLISH
ENG

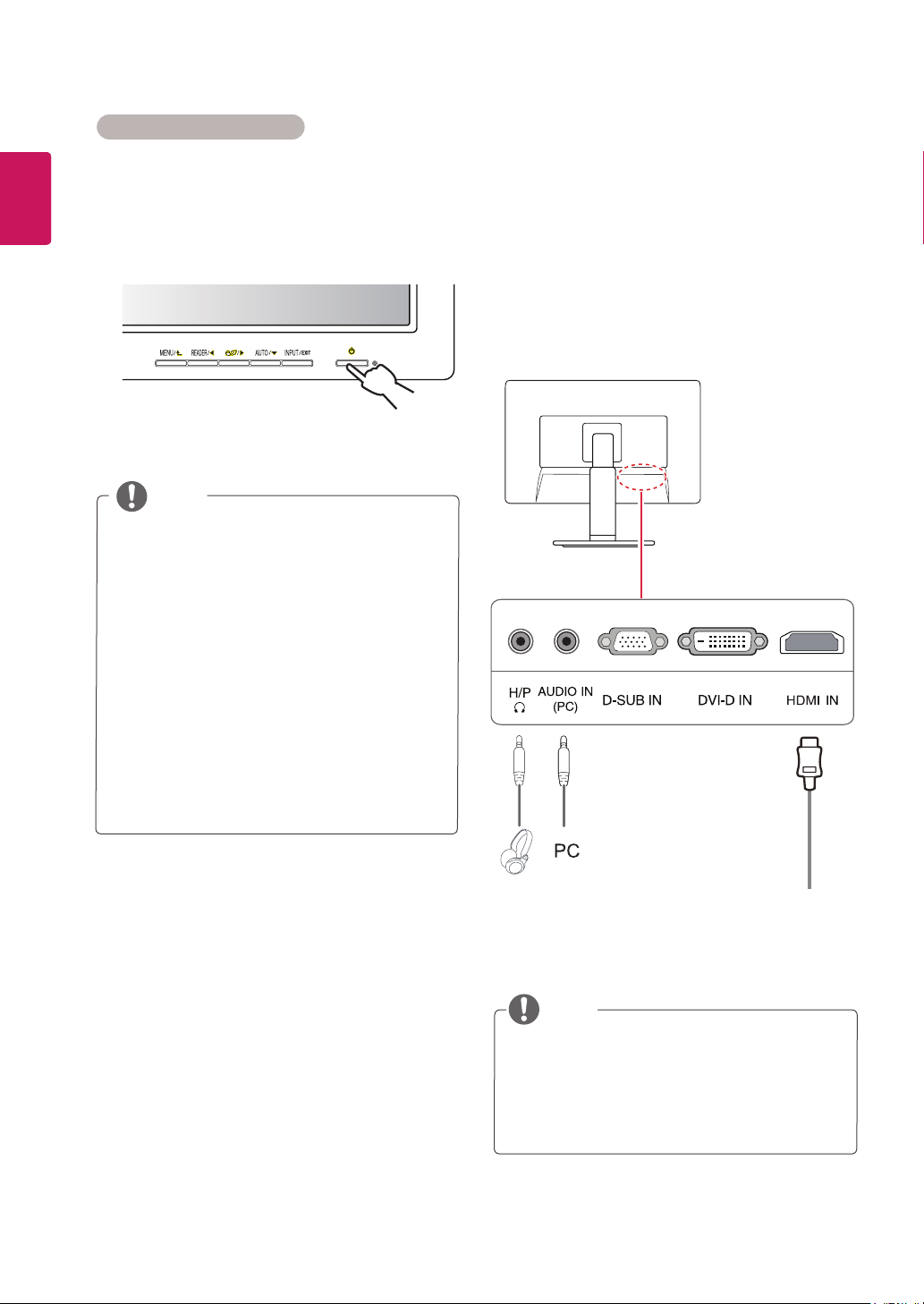

Self Image Setting Function
Press the power button on the bottom panel to
turn the power on. When monitor power is turned
on, the "
automatically. (Only supported in Analog Mode)
Self Image Setting
" Function is executed
NOTE
"Self Image Setting" Function.
y
This function provides the user with optimal
display settings.When the user connects
the monitor for the first time, this function
automatically adjusts the display to optimal
settings for individual input signals.(Only
supported in Analog Mode)
‘AUTO’ Function.
y
When you encounter problems such as
blurry screen, blurred letters, screen flicker
or tilted screen while using the device or
after changing screen resolution, press the
AUTO function button to improve resolution.
(Only supported in Analog Mode)
Peripheral device connection
Connect peripheral devices to the monitor.
Two USB Downstream ports
Connect these ports to a mouse, USB keyboard, memory
stick with current spec under 100mA.
One USB Upstream port
Connect this port to the downstream port of a computer,
laptop or USB monitor (Your computer or USB monitor
must support USB and have USB ports).
NOTE
Headphones or speakers may not work nor-
y
mally, depending on the server PC settings.
Virtual solutions may affect the functions or
y
speed of the specific USB storage device.
15
CUSTOMIZING SETTINGS
Press the desired button on the bottom of the Monitor set.
1
Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.
2
To return to the upper menu or set other menu items, use the up arrow ( ) button.
Select
3
EXIT
to leave the OSD menu.

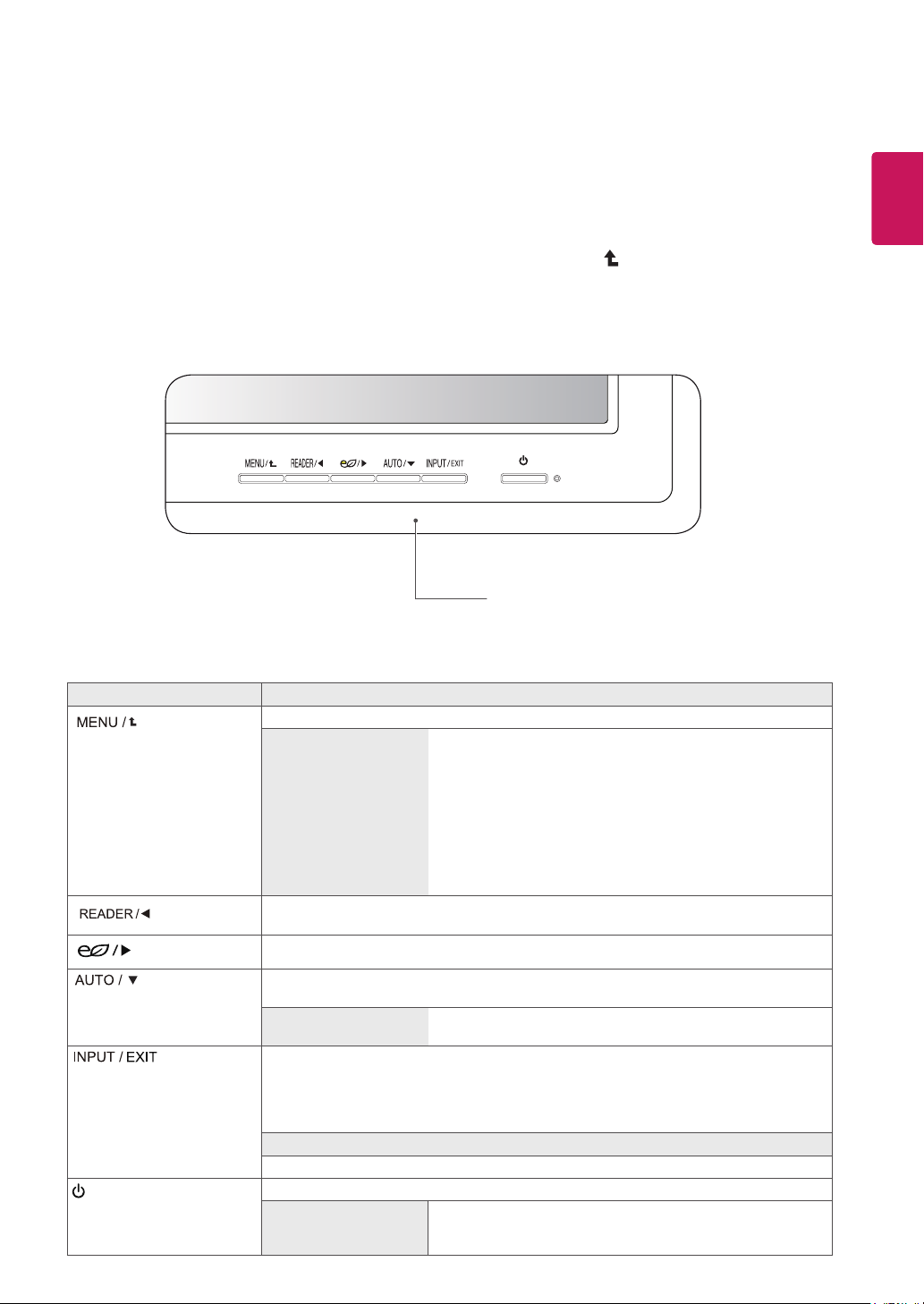

Monitor set Buttons
ENGLISH
ENG
Button Description
Accesses the main menus.(See p.16)
(Power Button)
OSD Locked/OSD
Unlocked
Use this button to enter Reader Mode menu. Its function works to display screen as
paper-like picture for Eye comfort.If you want to more information.(See p.18)
Use this button to enter SMART ENERGY SAVING menu.(See p.18)
When adjusting your display settings, always press the AUTO button on the MONITOR
SETUP OSD. (Only supported in Analog Mode)
The best display mode
You can choose the input signal.
• When two input signals are connected, you can select the input signal (D-SUB/DVI-D/
HDMI) you want.
• When only one signal is connected, it is automatically detected. The default setting is
D-SUB.
EXIT
Exit the OSD(On Screen Display).
Turns the power on or off.
Power Indicator
This function allow you to lock the current control settings, so
that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds. Then
OSD of “OSD Lock” will appear. After that, user can select
lock or unlock by pressing left/right button.
If user selects the “Lock” icon by pressing the “OK” button,
the message “OSD Locked” will appear. Otherwise, “OSD
Unlocked” will appear. After selecting the “Lock”, If you want
to change to Unlock, you can push the “MENU” button for
several seconds. The message “OSD Unlocked” will appear.
22BK55WV: 1680 x 1050
24BK55WV: 1920 x 1200
The power indicator stays white if the display is running
properly (On Mode). If the display is in Sleep Mode, the power
indicator blinks white.
ENGLISH
ENG
16
Customizing Settings
Menu Settings
Menu
Volume ● ● ●
Brightness
Response Time
(only for 24K55WV)
Wide/Original
Reset
Menu > Next Menu Analog Digital
Picture Contrast ● ● ●
Sharpness ● ● ●
Black Level ●
Overscan ●
Color Gamma
Color Temp
Six Color
Color Reset
Display Horizontal
Vertical
Clock
Phase
Audio
Others Language
Audio Input ●
Power Indicator
Automatic Standby
Analog:
y
Digital:
y
HDMI:
y
D-SUB(Analog signal) input.
DVI-D(Digital signal) input.
HDMI(HDMI signal) input.
Analog
●
● ●
●
●
Digital
HDMI Description
To adjust the volume
●
●
●
● ● ●
●
●
● ● ●
●
To adjust the brightness of the screen
You can set a response time for displayed pictures based
on the speed of the screen. For a normal environment, it is
●
recommended that you use 'Off'. For a fast-moving picture, it is
recommended that you use 'High'.
Wide
Switch to full screen mode according to input image signal.
Original
●
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor
set ratio (16:9).
Restore all factory default settings. Press the
●
reset immediately.
HDMI
buttons to
, ►
◄
Description
To adjust the contrast of the screen
To adjust the clearness of the screen
Sets the offset level (for HDMI only).
yOffset:
High Keeps the current contrast ratio of the screen.
Low Lowers the black levels and raises the white
To select the range of output image for DTV timing in
HDMI input.(only for HDMI input)Recommend overscan
function to turn on when connect AV equipment.
To customize the color of the screen
To adjust the position of the screen
To improve the clarity and stability of the screen
To select the audio input
To customize the screen status for a user's operating
environment
as a reference for a video signal, this is the
darkest color the monitor can display.
levels from the current contrast ratio of the
screen.
17
Menu > Next Menu > Picture Description
Contrast
Sharpness
Black Level
Overscan
Menu > Next Menu > Color Description
Gamma
Color Temp Custom
Six Color
Color Reset
To adjust the contrast of the screen.
To adjust the clearness of the screen.
Sets the offset level (for HDMI only).
yOffset:
High
Low
To select the range of output image for DTV timing in HDMI input.(only for HDMI
input)Recommend overscan function to turn on when connect AV equipment.
Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the monitor,
high gamma values display whitish images and low gamma values display
blackish images.
• Red:
• Green:
• Blue:
Select the screen color.
Warm:
Medium:
Cool:
Sets and stores the hue and saturation for six colors(Red/Green/Blue/Cyan/
Magenta/Yellow) to satisfy the color requirements of a user.
Hue
Saturation
Resets the color settings to the factory default settings for the current input
device.
as a reference for a video signal, this is the darkest color the monitor
can display.
Keeps the current contrast ratio of the screen.
Lowers the black levels and raises the white levels from the
current contrast ratio of the screen.
Set your own red color levels.
Set your own green color levels.
Set your own blue color levels.
Set the screen to warm color temperature (more red).
Set the screen to medium color temperature.
Set the screen to cool color temperature (more blue).
Adjusts the screen hue.
Adjusts the color sharpness on the screen. Lower values make
the color sharpness weaker and colors lighter while higher
values make the color sharpness stronger and colors dark.
ENGLISH
ENG
Menu > Next Menu > Display Description
Horizontal
Vertical
Clock
Phase
Menu > Next Menu > Audio Description
Audio Input
Menu > Next Menu > Others Description
Language
Power Indicator
Automatic Standby
To move image left and right.
To move image up and down.
To minimize any vertical bars or stripes visible on the screen background.The
horizontal screen size will also change.
To adjust the focus of the display. This item allows you to remove any horizontal
noise and clear or sharpen the image of characters.
To select the audio input
To choose the language in which the control names are displayed.
Use this function to set the power indicator on the bottom side of the monitor to
On or Off.If you set Off, it will go off.
If you set On at any time, the power indicator will automatically be turned on.
The monitor will automatically switch to standby mode after a certain period.
ENGLISH
ENG
18
Reader Mode Description
Reader 1 It is a mode that the screen is adjusted to the best for the newspaper. If you
Reader 2 It is a mode that the screen is adjusted to the best for the cartoon. If you want
Reader Off It is a mode that reader mode is off.
want screen more bright, you can control brightness in Menu OSD.
screen more bright, you can control brightness in Menu OSD.
NOTE
If option of Reader Mode is Reader 1 or Reader 2, SMART ENERGY SAVING will automatically be Off.
SMART ENERGY SAVING Description
High
Low
Off Disables SMART ENERGY SAVING.
SMART ENERGY SAVING:
*
Enables SMART ENERGY SAVING you can save energy with this energy- high efficient function.
Enables SMART ENERGY SAVING you can save energy with this energy- low efficient function.
Conserve energy by using luminance compensation algorithm.
NOTE
yThe value of energy saving data may differ depending on panel and panel suppliers.
y If you select the option of
depend on source.
If option of SMART ENERGY SAVING is High or Low, Reader Mode will automatically be Reader Off.
y
SMART ENERGY SAVING
is
High
Low
or
, monitor luminance become lower or higher
19
TROUBLESHOOTING
Check the following before calling for service.
No image appears
Is the power cord of the display
connected?
Is the power indicator light on?
Is the power on and the power
indicator White?
Is the power indicator flickering?
Do you see an "OUT OF RANGE"
message on the screen?
Do you see a "NO SIGNAL"
message on the screen?
Do you see a "OSD LOCKED" message on the screen?
Do you see “OSD LOCKED” when
you push MENU button?
yCheck and see if the power cord is connected properly to the power
outlet.
yPress the Power button.
yAdjust the brightness and the contrast.
yIf the display is in power saving mode, try moving the mouse or
pressing any key on the keyboard to bring up the screen.
yTry to turn on the PC.
yThis message appears when the signal from the PC (video card) is
out of horizontal or vertical frequency range of the display. See the
'Specifications' section of this manual and configure your display
again.
yAfter the monitor is on "NO SIGNAL", the monitor goes to DPM mode.
yThis is displayed when the signal cable between the PC and the
monitor is missing or disconnected. Check the cable and reconnect it.
yYou can secure the current control settings, so that they cannot be
inadvertently changed. You can unlock the OSD controls at any time
by pushing the MENU button for several seconds: the message “OSD
UNLOCKED” will appear.
ENGLISH
ENG
Display image is incorrect
Display Position is incorrect.
On the screen background, vertical
bars or stripes are visible.
Any horizontal noise appearing in
any image or characters are not
clearly portrayed.
yPress the
AUTO
button to automatically adjust your display image to
the ideal setting.
yPress the
AUTO
button to automatically adjust your display image to
the ideal setting.
yPress the
AUTO
button to automatically adjust your display image to
the ideal setting.
yCheck
Control Panel ► Display ► Settings
and adjust the display
to the recommended resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits (true color).
ENGLISH
ENG
20
CAUTION
Control Panel ► Display ► Settings
Check
y
changed. If yes, readjust the video card to the recommend resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the
y
screen may be dimmed, truncated or biased. Make sure to select the recommend resolution.
The setting method can differ by computer and O/S (Operation System), and resolution mentioned
y
above may not be supported by the video card performance. In this case, please ask to the computer
or the video card manufacturer.
Display image is incorrect
The screen color is mono or
abnormal.
The screen blinks.
yCheck if the signal cable is properly connected and use a screwdriver
to fasten if necessary.
yMake sure the video card is properly inserted in the slot.
ySet the color setting higher than 24 bits (true color) at
► Settings
yCheck if the screen is set to interlace mode and if yes, change it to the
recommend resolution.
and see if the frequency or the resolution were
Control Panel
.
Do you see an "Unrecognized monitor, Plug&Play (VESA DDC) monitor found" message?
Have you installed the display
driver?
yBe sure to install the display driver from our web site:
lg.com
.
yMake sure to check if the video card supports Plug&Play function.
http://www.
21
SPECIFICATIONS
22BK55WV
Display Screen Type
Pixel Pitch
Sync Input Horizontal Frequency
Vertical Frequency
Input Form
Video Input Signal Input
Input Form
Resolution Max
Recommend
Plug & Play
Power
Consumption
Power Input
Speaker Wattage 1 W + 1 W
Dimensions
(Width x Height x
Depth)
Weight
Environmental
conditions
Stand Base
Power cord
DDC 2B(Analog,Digital,HDMI)
On Mode : 16.1 W Typ. ( Outgoing condition ) *
Sleep Mode ≤ 0.3 W **
Off Mode ≤ 0.3 W
100-240 V~ 50/60 Hz 1.0 A
With Stand
Without Stand
4.9 kg
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Attached ( ), Detached (O)
Wall-outlet type
ENGLISH
ENG
Flat Panel Active matrix-TFT
LCDAnti-Glare coating
0.282 mm x 0.282 mm
30 kHz to 83 kHz (Automatic)
56 Hz to 75 Hz
Separate Sync. Digital
15 pin D-SUB Connector /DVI-D Connector (Digital)/
HDMI
RGB Analog (0.7 Vp-p/ 75 ohm), Digital
1680 × 1050 @ 60 Hz
1680 × 1050 @ 60 Hz
505.7 mm x 387.7 mm x 259 mm
505.7 mm x 338.6 mm x 58.9 mm
10°C to 35 °C
10 % to 80 %
-20°C to 60 °C
5 % to 90 % non-Condensing
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution)
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
22
ENGLISH
ENG
SPECIFICATIONS
24BK55WV
Display Screen Type
Pixel Pitch 0.27 mm x 0.27 mm (Pixel Pitch)
Sync Input Horizontal Frequency 30 kHz to 83 kHz (Automatic)
Vertical Frequency
Input Form Separate Sync. Digital
Video Input Signal Input 15 pin D-SUB Connector /DVI-D Connector (Digital)/
Input Form RGB Analog (0.7 Vp-p/ 75 ohm), Digital
Resolution Max
Recommend
Plug & Play
Power
Consumption
Power Input
Speaker Wattage 1 W + 1 W
Dimensions
(Width x Height x
Depth)
Weight
Environmental
conditions
Stand Base Attached ( ), Detached (O)
Power cord Wall-outlet type
DDC 2B(Analog,Digital,HDMI)
On Mode : 22 W Typ. ( Outgoing condition ) *
Sleep Mode ≤ 0.3 W **
Off Mode ≤ 0.3 W
100-240V~ 50/60Hz 1.2 A
With Stand 558.4 mm x 402.9 mm x 259 mm
Without Stand 558.4 mm x 370.5 mm x 59.2 mm
5.6 kg
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Flat Panel Active matrix-TFT
LCDAnti-Glare coating
56 Hz to 60 Hz
HDMI)
1920 × 1200 @ 60 Hz
1920 × 1200 @ 60 Hz
10°C to 35 °C
10 % to 80 %
-20°C to 60 °C
5 % to 90 % non-Condensing
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with LGE test standard (Full White pattern , Maximum
resolution)
** The monitor goes to the Sleep Mode in a couple of minutes(Max 5 minutes).
Preset Modes (Resolution)
D-SUB/DVI Timing
22BK55WV
23
ENGLISH
ENG
Display Modes (Resolution)
720 X 400 31.468 70.08 -/+
640 x 480 31.469 59.94 -/-
640 x 480 37.5 75 -/-
800 x 600 37.879 60.317 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75.029 +/+
1152 x 864 67.5 75 +/-
1280 x 1024 63.981 60.02 +/+
1280 x 1024 79.976 75.035 +/+
1680 x 1050 64.674 59.883 +/-
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
24BK55WV
Display Modes (Resolution)
640 x 480 31.469 59.94 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60 -/-
1152 x 864 53.7 60 -/+
1280 x 720 45 60 +/+
1280 x 800 49.702 59.81 -/+
1280 x 1024 63.981 60.02 -/+
1600 x 1200 75 60 +/+
1680 x 1050 65.29 59.954 -/+
1920 x 1080 67.5 60 +/+
1920 x 1200 74.038 59.95 +/-
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
Polarity(H/V)
24
ENGLISH
ENG
HDMI Timing (Video)
Factory support mode
(Preset Mode)
480p 31.5 60
576P 31.25 50
720p 37.5 50
720p 45.0 60
1080p 56.25 50 only for 24BK55WV
1080p 67.5 60 only for 24BK55WV
Horizontal Frequency(kHz)
Vertical
Frequency(Hz)
Remarks
Indicator
Mode LED Color
On Mode White
Sleep Mode Blinking White
Off Mode Off
The model and serial number of the product
are located on the back and on one side of the
product.
Record them below in case you ever need
service.
MODEL
SERIAL
Loading...
