Page 1
Page 2
Page 3
Pictorial index
Search by illustration
For safety
and security
Vehicle status
information and
indicators
Before driving
Driving
Interior features
Maintenance
and care
When trouble
arises
Vehicle
specifications
Make sure to read through them
(Main topics: Child seat, theft deterrent system)
Reading driving-related information
(Main topics: Meters, multi-information display)
Opening and closing the doors and windows, adjustment
before driving
(Main topics: Keys, doors, seats, power windows)
Operations and advice which are necessary for driving
(Main topics: Starting engine, refueling)
Usage of the interior features
(Main topics: Air conditioner, storage features)
Caring for your vehicle and maintenance procedures
(Main topics: Interior and exterior, light bulbs)
What to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
1
2
3
4
5
6
7
8
Index
Search by symptom
Search alphabetically
Page 4
2
TABLE OF CONTENTS
For your information......................................5
Reading this manual.......................................8
How to search ..................................................9
Pictorial index................................................ 10
1
For safety and security
1-1. For safe use
Before driving................................... 20
For safe driving...................................21
Seat belts .............................................22
SRS airbags ........................................26
Exhaust gas precautions.............. 33
1-2. Child safety
Riding with children.........................34
Child restraint systems ..................34
1-3. Theft deterrent system
Engine immobilizer system..........47
Double locking system ................. 48
Alarm ....................................................49
Vehicle status information and
2
indicators
2-1. Instrument cluster
Warning lights and indicators.....54
Gauges and meters .......................58
Multi-information display............. 66
Fuel consumption information....75
3
Before driving
3-1. Key information
Keys ......................................................80
3-2. Opening, closing and locking the
doors and trunk
Doors....................................................84
Trunk .................................................... 88
Smart entry & start system............91
3-3. Adjusting the seats
Front seats...........................................95
Power easy access system/driving
position memory/memory recall
function .............................................97
3-4. Adjusting the steering wheel and
mirrors
Steering wheel ...............................100
Inside rear view mirror ................ 101
Outside rear view mirrors......... 102
3-5. Opening, closing the windows and
moon roof
Power windows .............................105
Moon roof........................................ 107
4
Driving
4-1. Before driving
Driving the vehicle..........................112
Cargo and luggage....................... 118
Trailer towing....................................119
4-2. Driving procedures
Engine (ignition) switch.............. 120
Automatic transmission ..............123
Turn signal lever.............................127
Parking brake................................. 128
ASC (Acceleration Sound Control)
............................................................129
4-3. Operating the lights and wipers
Headlight switch............................ 130
Page 5
TABLE OF CONTENTS
3
AHB (Automatic High Beam)
............................................................ 132
Windshield wipers and washer
............................................................ 135
4-4. Refueling
Opening the fuel tank cap.......... 141
4-5. Using the driving support systems
Lexus Safety System + ................144
PCS (Pre-Collision System)..... 148
LDA (Lane Departure Alert with
steering control)......................... 155
Dynamic radar cruise control.. 162
Cruise control ................................. 171
BSM (Blind Spot Monitor) ........173
Lexus parking assist-sensor...... 182
Driving mode select switch.......188
Launch control ...............................189
Active rear wing ............................. 191
TVD (Torque Vectoring Differen-
tial).................................................... 194
Driving assist systems.................. 195
4-6. Driving tips
Winter driving tips .......................200
5
Interior features
5-1. Remote Touch/Display
Remote Touch...............................204
Center Display.............................. 206
5-2. Using the air conditioning system
Automatic air conditioning system
...........................................................208
Heated steering wheel/seat heat-
ers/seat ventilators.................... 215
5-3. Using the interior lights
Interior lights list .............................217
5-4. Using the storage features
List of storage features ................219
Trunk features .................................221
5-5. Using the other interior features
Other interior features...............222
6
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the vehi-
cle exterior................................... 228
Cleaning and protecting the vehi-
cle interior.....................................233
6-2. Maintenance
Maintenance requirements......236
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
.......................................................... 238
Hood .................................................240
Positioning a floor jack ................241
Engine compartment ..................243
Tires....................................................249
Replacing the tire..........................254
Tire inflation pressure ................ 259
Wheels ............................................. 260
Air conditioning filter ...................261
Electronic key battery.................263
Checking and replacing fuses
.......................................................... 265
Light bulbs........................................267
1
2
3
4
5
6
7
8
Page 6
4
TABLE OF CONTENTS
7
When trouble arises
7-1. Essential information
Emergency flashers..................... 270
If your vehicle has to be stopped in
an emergency.............................270
If the vehicle is trapped in rising
water................................................ 271
7-2. Steps to take in an emergency
If your vehicle needs to be towed
........................................................... 273
If you think something is wrong
........................................................... 276
Fuel pump shut off system........ 277
If a warning light turns on or a warn-
ing buzzer sounds..................... 278
If a warning message is displayed
........................................................... 285
If you have a flat tire.....................288
If the engine will not start ..........298
If you lose your keys....................300
If the fuel filler door cannot be
opened ..........................................300
If the electronic key does not oper-
ate properly..................................301
If the vehicle battery is discharged
...........................................................303
If your vehicle overheats...........306
If the vehicle becomes stuck ...308
Fuel information..............................319
8-2. Customization
Customizable features ..............320
8-3. Items to initialize
Items to initialize........................... 330
Index
What to do if... (Troubleshooting)
...........................................................332
Alphabetical Index ...................... 335
8
Vehicle specifications
8-1. Specifications
Maintenance data (fuel, oil level,
etc.) .................................................. 312
Page 7
5
For your information
Main Owner’s Manual
Please note that this manual applies to
all models and explains all equipment,
including options. Therefore, you may
find some explanations for equipment
not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Lexus policy
of continual product improvement, we
reserve the right to make changes at
any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of color and
equipment.
Accessories, spare parts and
modification of your Lexus
A wide variety of non-genuine spare
parts and accessories for Lexus vehicles are currently available in the market. Using these spare parts and
accessories which are not genuine
Lexus products may adversely affect
the safety of your vehicle, even though
these parts may be approved by certain authorities in your country. Toyota
Motor Corporation therefore cannot
accept any liability or guarantee spare
parts and accessories which are not
genuine Lexus products, nor for
replacement or installation involving
such parts.
This vehicle should not be modified
with non-genuine Lexus products.
Modification with non-genuine Lexus
products could affect its performance,
safety or durability, and may even violate governmental regulations. In addition, damage or performance
problems resulting from the modification may not be covered under warranty.
Installation of an RF-transmitter
system
The installation of an RF-transmitter
system in your vehicle could affect
electronic systems such as:
Multiport fuel injection sys-
tem/sequential multiport fuel injection system
Lexus Safety System +
Cruise control system
Anti-lock brake system
Vehicle dynamics integrated man-
agement
SRS airbag system
Seat belt pretensioner system
Be sure to check with your Lexus
dealer for precautionary measures or
special instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna
positions and installation provisions for
the installation of RF-transmitters, is
available on request at your Lexus
Page 8
6
dealer.
Vehicle data recording
The vehicle is equipped with sophisticated computers that will record certain data, such as:
• Engine speed / Electric motor
speed (traction motor speed)
• Accelerator status
•Brake status
• Vehicle speed
• Operation status of the driving
assist systems
• Images from the cameras
Your vehicle is equipped with cameras.
Contact your Lexus dealer for the location
of recording cameras.
The recorded data varies according to
the vehicle grade level and options
with which it is equipped.
These computers do not record conversations or sounds, and only record
images outside of the vehicle in certain
situations.
Data usage
Lexus may use the data recorded in this
computer to diagnose malfunctions, conduct research and development, and
improve quality.
Lexus will not disclose the recorded data to
a third party except:
• With the consent of the vehicle owner or
with the consent of the lessee if the vehicle is leased
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
• For research purposes where the data is
not tied to a specific vehicle or vehicle
owner
Event data recorder
This vehicle is equipped with an event
data recorder (EDR). The main purpose of an EDR is to record, in certain
crash or near crash-like situations, such
as an airbag deployment or hitting a
road obstacle, data that will assist in
understanding how a vehicle’s systems
performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or
less. However, data may not be
recorded depending on the severity
and type of a crash.
The EDR in this vehicle is designed to
record such data as:
• How various systems in your vehicle
were operating;
• How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a non-trivial crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no personal data (e.g., name,
gender, age, and crash location) are
Page 9
7
WARNING
recorded. However, other parties, such
as law enforcement, could combine the
EDR data with the type of personally
identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In
addition to the vehicle manufacturer,
other parties, such as law enforcement,
that have the special equipment, can
read the information if they have
access to the vehicle or the EDR.
Disclosure of the EDR data
Lexus will not disclose the data recorded in
an EDR to a third party except when:
• An agreement from the vehicle’s owner
(or the lessee for a leased vehicle) is
obtained
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
However, if necessary, Lexus may:
• Use the data for research on vehicle
safety performance
• Disclose the data to a third party for
research purposes without disclosing
information about the specific vehicle or
vehicle owner
Scrapping of your Lexus
The SRS airbag and seat belt
pretensioner devices in your Lexus
contain explosive chemicals. If the
vehicle is scrapped with the airbags
and seat belt pretensioners left as they
are, this may cause an accident such as
fire. Be sure to have the systems of the
SRS airbag and seat belt pretensioner
removed and disposed of by a qualified
service shop or by your Lexus dealer
before you scrap your vehicle.
■
General precautions while driving
Driving under the influence: Never drive
your vehicle when under the influence of
alcohol or drugs that have impaired your
ability to operate your vehicle. Alcohol
and certain drugs delay reaction time,
impair judgment and reduce coordination, which could lead to an accident that
could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and
be ready to avoid accidents.
Driver distraction: Always give your full
attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with
resulting death or serious injury to you,
your occupants or others.
■
General precaution regarding children’s safety
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof, or other features of the
vehicle. In addition, heat build-up or
extremely cold temperatures inside the
vehicle can be fatal to children.
Page 10
8
Reading this manual
Explains symbols used in this manual.
Symbols in this manual
Symbols Meanings
WARNING:
Explains something that,
if not obeyed, could
cause death or serious
injury to people.
NOTICE:
Explains something that,
if not obeyed, could
cause damage to or a
malfunction in the vehicle or its equipment.
Indicates operating or
working procedures. Follow the steps in numerical order.
Symbols in illustrations
Symbols Meanings
Indicates the action
(pushing, turning, etc.)
used to operate switches
and other devices.
Indicates the outcome of
an operation (e.g. a lid
opens).
Symbols Meanings
Indicates the component
or position being
explained.
Means Do not, Do not do
this, or Do not let this
happen.
Page 11
How to search
■
Searching by name
Alphabetical index: P.335
■
Searching by installation position
Pictorial index: P.10
9
■
Searching by symptom or sound
What to do if... (Troubleshooting):
P.332
■
Searching by title
Table of contents: P.2
Page 12
10
B
Pictorial index
Pictorial index
■Exterior
Doors ...........................................................................................................................P.84
A
Locking/unlocking..............................................................................................................P.84
Opening/closing the side windows............................................................................P.105
Locking/unlocking by using the mechanical key..................................................P.301
Warning lights/warning messages................................................................P.278, 285
Trunk ............................................................................................................................ P.88
Opening from inside the cabin......................................................................................P.89
Opening from outside.......................................................................................................P.89
Opening by using the mechanical key......................................................................P.301
Warning lights/warning messages................................................................P.278, 285
Outside rear view mirrors ................................................................................... P.102
C
Adjusting the mirror angle..............................................................................................P.102
Folding the mirrors ............................................................................................................P.103
Driving position memory...................................................................................................P.97
Defogging the mirrors......................................................................................................P.212
Page 13
Pictorial index
D
L
M
Windshield wipers...................................................................................................P.135
Precautions for winter season.....................................................................................P.200
Precautions against car wash......................................................................................P.230
Fuel filler door ........................................................................................................... P.141
E
Refueling method................................................................................................................P.141
Fuel type/fuel tank capacity...........................................................................................P.313
Tires ...........................................................................................................................P.249
F
Tire size/inflation pressure.............................................................................................P.317
Winter tires .........................................................................................................................P.200
Checking/rotation/tire pressure warning system ............................................. P.249
Coping with flat tires .......................................................................................................P.288
Hood ......................................................................................................................... P.240
G
Opening...............................................................................................................................P.240
Engine oil................................................................................................................................P.313
Coping with overheating ..............................................................................................P.306
Warning messages..........................................................................................................P.285
Active rear wing
H
*
...................................................................................................... P.191
11
Light bulbs of the exterior lights for driving(Replacing method: P.267)
Headlights/front position lights/daytime running lights............................ P.130
I
Turn signal lights ......................................................................................................P.127
J
Tail lights ................................................................................................................... P.130
K
Stop lights
Emergency brake signal..................................................................................................P.196
License plate lights ................................................................................................ P.130
Back up lights
Shifting the shift lever to R...............................................................................................P.124
*
:If equipped
Page 14
12
B
Pictorial index
■Instrument panel
Engine switch........................................................................................................... P.120
A
Starting the engine/changing the mode...................................................................P.120
Emergency stop of the engine.................................................................................... P.270
When the engine will not start ....................................................................................P.298
Warning messages..........................................................................................................P.285
Shift lever...................................................................................................................P.123
Changing the shift position.............................................................................................P.124
Precautions for towing....................................................................................................P.273
When the shift lever does not move...........................................................................P.124
Meters ......................................................................................................................... P.58
C
Reading the meters/adjusting the instrument panel lights ................................P.58
Warning lights/indicator lights...................................................................................... P.54
When a warning light comes on................................................................................. P.278
Multi-information display .......................................................................................P.66
D
Display.......................................................................................................................................P.66
Page 15
Pictorial index
F
J
N
O
When the warning messages are displayed .........................................................P.285
Parking brake.......................................................................................................... P.128
E
Applying/releasing............................................................................................................P.128
Precautions for winter season.......................................................................................P.201
Warning buzzer/message ...........................................................................................P.285
Headlight switch..................................................................................................... P.130
Turn signal lever ......................................................................................................P.127
Headlights/front position lights/tail lights/license plate lights/daytime running
lights.........................................................................................................................................P.130
Windshield wiper and washer switch ................................................................P.135
G
Usage ......................................................................................................................................P.135
Adding washer fluid......................................................................................................... P.248
Warning messages..........................................................................................................P.285
Headlight cleaners.............................................................................................................P.135
Emergency flasher switch ...................................................................................P.270
H
Trunk opener switch................................................................................................ P.89
I
Hood lock release lever ...................................................................................... P.240
Tilt and telescopic steering control switch
K
*1
.................................................. P.100
Adjustment...........................................................................................................................P.100
Driving position memory...................................................................................................P.97
Tilt and telescopic steering lock release lever
L
Air conditioning system....................................................................................... P.208
M
*1
........................................... P.100
Usage ....................................................................................................................................P.208
Rear window defogger ....................................................................................................P.212
Audio system
*2
13
Trunk opener main switch ..................................................................................... P.90
*1
: If equipped
*2
: Refer to “Navigation System Owner’s Manual”.
Page 16
14
C
E
■Switches
Pictorial index
Instrument panel light control switches .............................................................P.65
A
Odometer/trip meter/trip meter reset button ...............................................P.65
B
Active rear wing switch
Automatic High Beam switch
D
BSM (Blind Spot Monitor) main switch
*
........................................................................................ P.191
*
............................................................................P.132
*
........................................................... P.173
Lexus parking assist-sensor switch ................................................................... P.182
F
*
:If equipped
Tire pressure warning reset switch .................................................................. P.252
A
Page 17
Pictorial index
B
C
D
E
D
G
Outside rear view mirror switches ................................................................... P.102
Driving position memory buttons .........................................................................P.97
Window lock switch................................................................................................ P.106
Power window switches ....................................................................................... P.105
Door lock switches .................................................................................................. P.86
F
15
Audio remote control switches
A
Paddle shift switches .................................................................................... P.125, 126
B
Meter control switches ...........................................................................................P.67
C
Vehicle-to-vehicle distance switch
Cruise control switch
E
Cruise control
*2
....................................................................................................................P.171
Dynamic radar cruise control
LDA (Lane Departure Alert with steering control) switch
F
Talk switch
Telephone switches
H
*1
: Refer to “Navigation System Owner’s Manual”.
*2
: If equipped
*1
*1
*1
*2
............................................................... P.167
*2
...................................................................................P.162
*2
....................P.155
Page 18
16
A
D
F
H
Pictorial index
Driving mode select switch ................................................................................. P.188
VSC OFF switch ...................................................................................................... P.196
B
“LAUNCH” switch ................................................................................................ P.189
C
“TVD” switch
Seat heater switches
E
Seat ventilator switches
Heated steering wheel switch
G
Remote Touch
*1
: If equipped
*2
: Refer to “Navigation System Owner’s Manual”.
*1
..........................................................................................................P.194
*1
...........................................................................................P.215
*1
..................................................................................... P.216
*2
.................................................................................................... P.204
*1
..........................................................................P.215
Page 19
Pictorial index
E
F
■Interior
SRS airbags .................................................................................................................P.26
A
Floor mats ................................................................................................................... P.20
B
Front seats .................................................................................................................. P.95
C
Seat belts .................................................................................................................... P.22
D
Console box ..............................................................................................................P.221
17
Inside lock buttons ................................................................................................... P.86
*
Cup holders
G
Assist grips .............................................................................................................. P.223
H
Coat hooks .............................................................................................................. P.223
I
*
:If equipped
........................................................................................................... P.220
Page 20
18
A
D
Pictorial index
■Ceiling
Inside rear view mirror ........................................................................................... P.101
Sun visors
B
Vanity mirrors ........................................................................................................ P.224
C
Interior light .............................................................................................................. P.217
Personal lights ......................................................................................................... P.218
Moon roof switches
E
Intrusion sensor and tilt sensor cancel switch ................................................. P.50
F
*1
: NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIR-
BAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur. (P.36)
*1
.............................................................................................................. P.224
*2
............................................................................................ P.107
*2
: If equipped
Page 21
19
For safety and security
.
1-1. For safe use
Before driving................................ 20
For safe driving................................21
Seat belts ..........................................22
SRS airbags .....................................26
Exhaust gas precautions ........... 33
1-2. Child safety
Riding with children .....................34
Child restraint systems ...............34
1-3. Theft deterrent system
Engine immobilizer system.......47
Double locking system .............. 48
Alarm .................................................49
1
1
For safety and security
Page 22
20
WARNING
1-1.For safe use
1-1. For safe use
Before driving
tion.
Observe the following before starting off in the vehicle to ensure
safety of driving.
Installing floor mats
Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix
them securely in place onto the carpet.
1 Insert the retaining hooks (clips)
into the floor mat eyelets.
2 Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
Observe the following precautions.
Failure to do so may cause the driver’s
floor mat to slip, possibly interfering with
the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This
could lead to an accident, resulting in
death or serious injury.
■
When installing the driver’s floor mat
●
Do not use floor mats designed for
other models or different model year
vehicles, even if they are Lexus Genuine floor mats.
●
Only use floor mats designed for the
driver’s seat.
●
Always install the floor mat securely
using the retaining hooks (clips) provided.
●
Do not use two or more floor mats on
top of each other.
●
Do not place the floor mat bottom-side up or upside-down.
■
Before driving
●
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this
check after cleaning the floor.
Always align the marks.
The shape of the retaining hooks (clips)
may differ from that shown in the illustra-
A
●
With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not interfere with the floor mat.
Page 23
For safe driving
WARNING
C
For safe driving, adjust the seat and
mirror to an appropriate position
before driving.
Correct driving posture
Adjust the angle of the seatback so
A
that you are sitting straight up and
so that you do not have to lean forward to steer. (P.95)
Adjust the seat so that you can
B
depress the pedals fully and so that
your arms bend slightly at the
elbow when gripping the steering
wheel. (P.95)
Wear the seat belt correctly.
(P.22)
1-1. For safe use
●
Do not place a cushion between the
driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and
head restraint.
●
Do not place anything under the front
seats.
Objects placed under the front seats
may become jammed in the seat
tracks and stop the seat from locking in
place. This may lead to an accident
and the adjustment mechanism may
also be damaged.
●
Always observe the legal speed limit
when driving on public roads.
●
When driving over long distances, take
regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while
driving, do not force yourself to continue driving and take a break immediately.
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle. (P.22)
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the
vehicle’s seat belt. (P.34)
21
1
For safety and security
■
For safe driving
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●
Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver to lose
control of the vehicle.
Adjusting the mirrors
Make sure that you can see backward
clearly by adjusting the inside and outside rear view mirrors properly.
(P.101, 102)
Page 24
22
WARNING
1-1. For safe use
Seat belts
Make sure that all occupants are
wearing their seat belts before driving the vehicle.
Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or serious injury.
■
Wearing a seat belt
●
Ensure that all passengers wear a seat
belt.
●
Always wear a seat belt properly.
●
Each seat belt should be used by one
person only. Do not use a seat belt for
more than one person at once, including children.
●
Lexus recommends that children be
seated in the rear seat and always use
a seat belt and/or an appropriate child
restraint system.
●
To achieve a proper seating position,
do not recline the seat more than necessary. The seat belt is most effective
when the occupants are sitting up
straight and well back in the seats.
■
Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (
Women who are pregnant should position the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoiding belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a collision.
■
People suffering illness
Obtain medical advice and wear the seat
belt in the proper way. (
P.23)
P.23)
●
Do not wear the shoulder belt under
your arm.
●
Always wear your seat belt low and
snug across your hips.
■
When children are in the vehicle
P.43
■
Seat belt damage and wear
●
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Page 25
seat.
WARNING
A
B
1-1. For safe use
23
●
Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt
until it is replaced. Damaged seat belts
cannot protect an occupant from
death or serious injury.
●
Ensure that the belt and plate are
locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
●
Replace the seat assembly, including
the belts, if your vehicle has been
involved in a serious accident, even if
there is no obvious damage.
●
Do not attempt to install, remove,
modify, disassemble or dispose of the
seat belts. Have any necessary repairs
carried out by your Lexus dealer. Inappropriate handling may lead to incorrect operation.
Correct use of the seat belts
Do not twist the seat belt.
Not twisted
Twisted
■
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
●
Use a child restraint system appropriate
for the child, until the child becomes large
enough to properly wear the vehicle’s
seat belt. (P.34)
●
When the child becomes large enough to
properly wear the vehicle’s seat belt, follow the instructions regarding seat belt
usage. (P.22)
■
Seat belt regulations
If seat belt regulations exist in the country
where you reside, please contact your
Lexus dealer for seat belt replacement or
installation.
1
For safety and security
Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
Position the lap belt as low as possi-
ble over the hips.
Adjust the position of the seatback.
Sit up straight and well back in the
Page 26
24
A
WARNING
1-1. For safe use
Fastening and releasing the seat
belt
1 To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
2 To release the seat belt, press the
release button .
■
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop o r on impa ct. It may al so loc k if you
lean forward too quickly. A slow, easy
motion will allow the belt to extend so that
you can move around fully.
When you get into or out of the rear seats,
release the seat belt from the seat belt
guide.
■
When using the seat belt guide
●
Always make sure that the belt is not
twisted, and runs freely through the
guide.
●
Regardless of whether the guide is
used or not, always secure the seat belt
guide button.
●
Do not hang from or pull the guide
forcefully.
Seat belt pretensioners
Seat belt guide
When fastening a front seat belt,
ensure that it is passed through the seat
belt guide. Passing the seat belt
through the guide enables the seat belt
to be easily extended.
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehicle is subjected to certain types of
severe frontal collision.
The front seat belt pretensioners also activate when the vehicle is subjected to certain types of severe side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle
rollover.
Page 27
■
WARNING
Replacing the belt after the
pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the
second or subsequent collisions.
■
Seat belt pretensioners
If the pretensioner has activated, the SRS
warning light will come on. In that case,
the seat belt cannot be used again and
must be replaced at your Lexus dealer.
1-1. For safe use
25
1
For safety and security
Page 28
26
B
D
1-1. For safe use
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of severe
impacts that may cause significant injury to the occupants. They work together
with the seat belts to help reduce the risk of death or serious injury.
SRS airbag system
■
Location of the SRS airbags
SRS front airbags
SRS driver airbag/front passenger airbag
A
Can help protect the head and chest of the driver and front passenger from impact with
interior components
SRS knee airbags
Can help provide driver and front passenger protection
SRS side and curtain shield airbags
SRS side airbags
C
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
Can help protect primarily the head of occupants
Page 29
■
A
B
C
I
J
K
SRS airbag system components
Side impact sensors (rear)
Curtain shield airbags
Front side airbags
Driver airbag
D
SRS warning light
E
1-1. For safe use
27
1
For safety and security
Side impact sensors (front)
F
Seat belt pretensioners and force limiters
G
Front passenger airbag
H
Front impact sensors
Knee airbags
Airbag sensor assembly
Driver’s seat belt buckle switch
L
Driver’s seat position sensor
M
Side impact sensors (front door)
N
The main SRS airbag system components are shown above. The SRS airbag system is controlled by the airbag sensor assembly. As the airbags deploy, a chemical
reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain
the motion of the occupants.
■
If the SRS airbags deploy (inflate)
●
Slight abrasions, burns, bruising etc., may
be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
Page 30
28
●
1-1. For safe use
A loud noise and white powder will be
emitted.
●
Parts of the airbag module (steering
wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front
and rear pillars, and roof side rails, may
be hot for several minutes. The airbag
itself may also be hot.
●
The windshield may crack.
■
SRS airbag deployment conditions (SRS
front airbags)
●
The SRS front airbags will deploy in the
event of an impact that exceeds the set
threshold level (the level of force corresponding to an approximately 20 - 30
km/h [12 - 18 mph] frontal collision with a
fixed wall that does not move or deform).
However, this threshold velocity will be
considerably higher in the following situations:
• If the vehicle strikes an object, such as a
parked vehicle or sign pole, which can
move or deform on impact
• If the vehicle is involved in an underride
collision, such as a collision in which the
front of the vehicle “underrides”, or goes
under, the bed of a truck
●
Depending on the type of collision, it is
possible that only the seat belt
pretensioners will activate.
■
SRS airbag deployment conditions (SRS
side and curtain shield airbags)
●
The SRS side and curtain shield airbags
will deploy in the event of an impact that
exceeds the set threshold level (the level
of force corresponding to the impact
force produced by an approximately
1500 kg [3300 lb.] vehicle colliding with
the vehicle cabin from a direction perpendicular to the vehicle orientation at an
approximate speed of 20 - 30 km/h [12 18 mph]).
●
The SRS side and curtain shield airbags
will deploy in the event of a severe frontal
collision.
■
Conditions under which the SRS
airbags may deploy (inflate), other than
a collision
The SRS front airbags and SRS side and
curtain shield airbags may also deploy if a
serious impact occurs to the underside of
your vehicle. Some examples are shown in
the illustration.
●
Hitting a curb, edge of pavement or hard
surface
●
Falling into or jumping over a deep hole
●
Landing hard or falling
■
Types of collisions that may not deploy
the SRS airbags (SRS front airbags)
The SRS front airbags do not generally
inflate if the vehicle is involved in a side or
rear collision, if it rolls over, or if it is involved
in a low-speed frontal collision. But, whenever a collision of any type causes sufficient
forward deceleration of the vehicle, deployment of the SRS front airbags may occur.
●
Collision from the side
●
Collision from the rear
●
Vehicle rollover
■
Types of collisions that may not deploy
the SRS airbags (SRS side and curtain
shield airbags)
The SRS side and curtain shield airbags
may not activate if the vehicle is subjected
to a collision from the side at certain angles,
Page 31
or a collision to the side of the vehicle body
other than the passenger compartment.
●
Collision from the side to the vehicle
body other than the passenger compartment
●
Collision from the side at an angle
1-1. For safe use
29
The SRS side and curtain shield airbags do
not generally inflate if the vehicle is involved
in a rear collision, if it rolls over, or if it is
involved in a low-speed side or low-speed
frontal collision.
●
Collision from the rear
●
Vehicle rollover
■
When to contact your Lexus dealer
In the following cases, the vehicle will
require inspection and/or repair. Contact
your Lexus dealer as soon as possible.
●
Any of the SRS airbags have been
inflated.
●
The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS front airbags to inflate.
●
A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the SRS
side and curtain shield airbags to inflate.
●
The pad section of the steering wheel,
dashboard near the front passenger
airbag or lower portion of the instrument
panel is scratched, cracked, or otherwise
damaged.
●
The surface of the seats with the SRS side
airbag is scratched, cracked, or otherwise damaged.
1
For safety and security
●
The portion of the front pillars, rear pillars
Page 32
30
WARNING
1-1. For safe use
or roof side rail garnishes (padding) containing the SRS curtain shield airbags
inside is scratched, cracked, or otherwise
damaged.
■
SRS airbag precautions
Observe the following precautions
regarding the SRS airbags. Failure to do
so may cause death or serious injury.
●
The driver and all passengers in the
vehicle must wear their seat belts
properly.
The SRS airbags are supplemental
devices to be used with the seat belts.
●
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if the
driver is very close to the airbag.
Since the risk zone for the driver’s
airbag is the first 50 - 75 mm (2 - 3 in.)
of inflation, placing yourself 250 mm
(10 in.) from your driver airbag provides you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can change
your driving position in several ways:
• Move your seat to the rear as far as
you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many
drivers can achieve the 250 mm (10
in.) distance, even with the driver seat
all the way forward, simply by reclining
the back of the seat somewhat. If
reclining the back of your seat makes it
hard to see the road, raise yourself by
using a firm, non-slippery cushion, or
raise the seat if your vehicle has that
feature.
•If your steering wheel is adjustable, tilt
it downward. This points the airbag
toward your chest instead of your head
and neck.
The seat should be adjusted as recommended above, while still maintaining
control of the foot pedals, steering wheel,
and your view of the instrument panel
controls.
●
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury
especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the
airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
●
Improperly seated and/or restrained
infants and children can be killed or
seriously injured by a deploying airbag.
An infant or child who is too small to
use a seat belt should be properly
secured using a child restraint system.
Lexus strongly recommends that all
infants and children be placed in the
rear seats of the vehicle and properly
restrained. The rear seats are safer for
infants and children than the front passenger seat. (
P.34)
Page 33
WARNING
●
Do not sit on the edge of the seat or
lean against the dashboard.
●
Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
1-1. For safe use
●
Do not allow anyone to kneel on the
passenger seats toward the door or
put their head or hands outside the
vehicle.
●
Do not attach anything to or lean anything against areas such as the dashboard, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and knee airbags deploy.
31
1
For safety and security
●
Do not allow the front seat occupants
to hold items on their knees.
●
Do not lean against the door, the roof
side rail or the front, side and rear pillars.
●
Do not attach anything to areas such
as a door, windshield, side windshield,
front or rear pillar, roof side rail and
assist grip.
(Except for the speed limit sticker
P.290)
Page 34
32
WARNING
1-1. For safe use
●
Do not hang coat hangers or hard
objects on the coat hooks. All of these
items could become projectiles and
may cause death or serious injury,
should the SRS curtain shield airbags
deploy.
●
If a vinyl cover is put on the area where
the SRS knee airbag will deploy, be
sure to remove it.
●
Do not use seat accessories which
cover the parts where the SRS side
airbags inflate as they may interfere
with inflation of the airbags. Such
accessories may prevent the side
airbags from activating correctly, disable the system or cause the side
airbags to inflate accidentally, resulting
in death or serious injury.
●
Do not strike or apply significant levels
of force to the area of the SRS airbag
components.
Doing so can cause the SRS airbags to
malfunction.
●
Do not touch any of the component
parts immediately after the SRS
airbags have deployed (inflated) as
they may be hot.
■
Modification and disposal of SRS
airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Lexus dealer.
The SRS airbags may malfunction or
deploy (inflate) accidentally, causing
death or serious injury.
●
Installation, removal, disassembly and
repair of the SRS airbags
●
Repairs, modifications, removal or
replacement of the steering wheel,
instrument panel, dashboard, seats or
seat upholstery, front, side and rear pillars or roof side rails
●
Repairs or modifications of the front
fender, front bumper, or side of the
occupant compartment
●
Installation of a grille guard (bull bars,
kangaroo bar, etc.), snow plows or
winches
●
Modifications to the vehicle’s suspension system
●
Installation of electronic devices such
as mobile two-way radios (RF-transmitter) and CD players
●
If breathing becomes difficult after the
SRS airbags have deployed, open a
door or window to allow fresh air in, or
leave the vehicle if it is safe to do so.
Wash off any residue as soon as possible to prevent skin irritation.
●
If the areas where the SRS airbags are
stored, such as the steering wheel pad
and front and rear pillar garnishes are
damaged or cracked, have them
replaced by your Lexus dealer.
Page 35
Exhaust gas precautions
WARNING
Harmful substance to the human
body is included in exhaust gases if
inhaled.
1-1. For safe use
■
Exhaust pipe
The exhaust system needs to be checked
periodically. If there is a hole or crack
caused by corrosion, damage to a joint
or abnormal exhaust noise, be sure to
have the vehicle inspected and repaired
by your Lexus dealer.
33
1
Exhaust gases include harmful carbon
monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases
enter the vehicle and may lead to an
accident caused by light-headedness, or
may lead to death or a serious health
hazard.
■
Important points while driving
●
Keep the trunk lid closed.
●
If you smell exhaust gases in the vehicle even when the trunk lid is closed,
open the windows and have the vehicle inspected at your Lexus dealer as
soon as possible.
■
When parking
●
If the vehicle is in a poorly ventilated
area or a closed area, such as a
garage, stop the engine.
●
Do not leave the vehicle with the
engine on for a long time.
If such a situation cannot be avoided,
park the vehicle in an open space and
ensure that exhaust fumes do not enter
the vehicle interior.
For safety and security
●
Do not leave the engine running in an
area with snow build-up, or where it is
snowing. If snowbanks build up around
the vehicle while the engine is running,
exhaust gases may collect and enter
the vehicle.
Page 36
34
WARNING
1-2.Child safety
1-2. Child safety
Riding with children
Child restraint systems
Observe the following precautions
when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly
wear the vehicle’s seat belt.
It is recommended that children
sit in the rear seats to avoid accidental contact with the shift lever,
wiper switch, etc.
Use the window lock switch to
avoid children operating the
power window accidentally.
(P.106)
Do not let small children operate
equipment which may catch or
pinch body parts, such as the
power window, hood, trunk, seats,
etc.
Before installing a child restraint
system in the vehicle, there are precautions that need to be observed,
different types of child restraint systems, as well as installation methods, etc., written in this manual.
Use a child restraint system when
riding with a small child that cannot
properly use a seat belt. For the
child’s safety, install the child
restraint system to a rear seat. Be
sure to follow the installation
method that is in the operation
manual enclosed with the restraint
system.
Table of contents
Points to remember: P.34
When using a child restraint system:
P.35
■
When children are in the vehicle
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows
or other features of the vehicle. In addition, heat build-up or extremely cold
temperatures inside the vehicle can be
fatal to children.

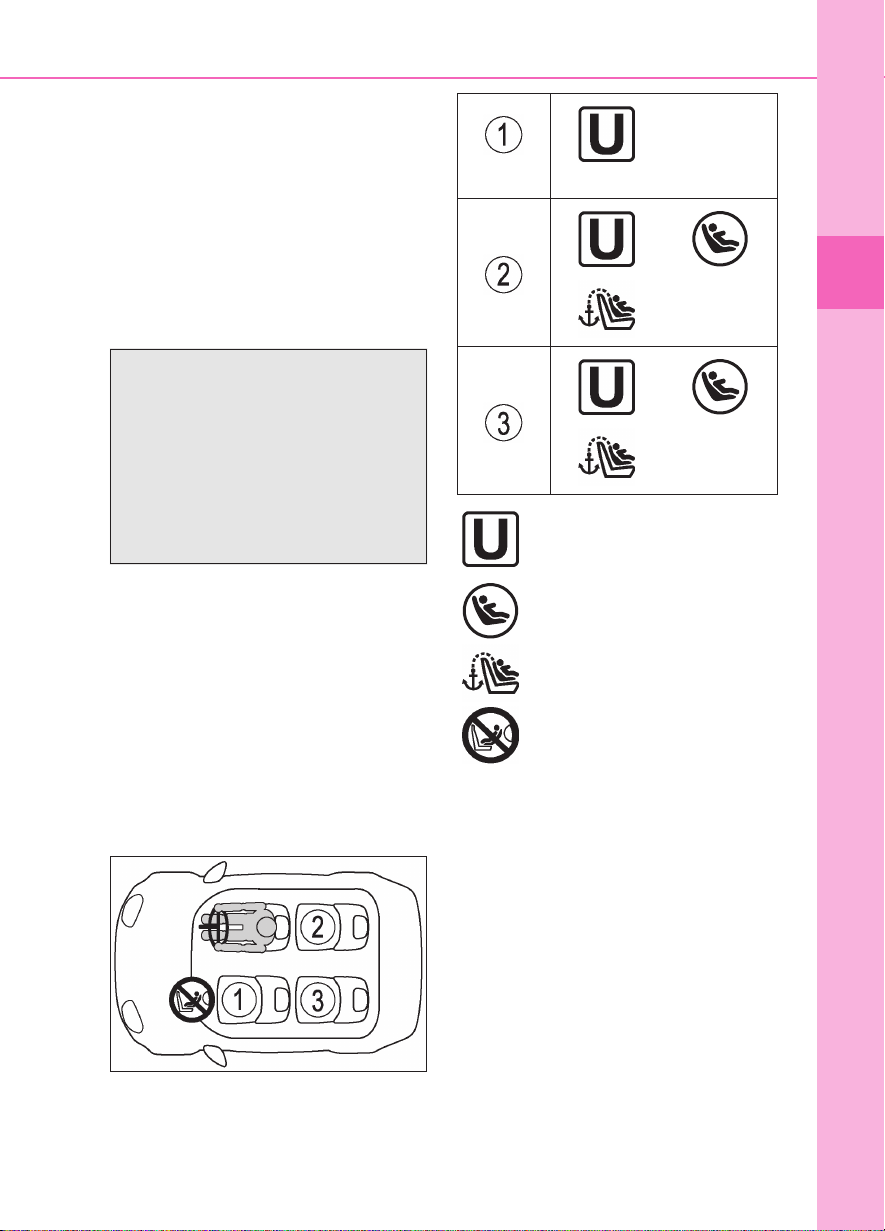

Child restraint system compatibility for
each seating position: P.38
Child restraint system installation
method: P.41
• Fixed with a seat belt: P.42
• Fixed with an ISOFIX rigid anchor:
P.44
• Using a child restraint anchor fitting:
P.45
Points to remember
Prioritize and observe the warn-
ings, as well as the laws and regula-
Page 37
1-2. Child safety
WARNING
35
tions for child restraint systems.
Use a child restraint system until the
child becomes large enough to
properly wear the vehicle’s seat belt.
Choose a child restraint system
appropriate to the age and size of
the child.
Note that not all child restraint sys-
tems can fit in all vehicles.
Before using or purchasing a child
restraint system, check the compatibility of the child restraint system
with seat positions.
■
When a child is riding
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●
For effective protection in automobile
accidents and sudden stops, a child
must be properly restrained, using a
seat belt or child restraint system
which is correctly installed. For installation details, refer to the operation manual enclosed with the child restraint
system. General installation instruction
is provided in this manual.
■
Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other passengers may be seriously injured or even
killed in the event of sudden braking, sudden swerving, or an accident.
●
If the vehicle were to receive a strong
impact from an accident, etc., it is possible that the child restraint system has
damage that is not readily visible. In
such cases, do not reuse the restraint
system.
●
Depending on the child restraint system, installation may be difficult or
impossible. In those cases, check
whether the child restraint system is
suitable for installment in the vehicle.
(P.38) Be sure to install and
observe the usage rules after carefully
reading the child restraint system fixing
method in this manual, as well as the
operation manual enclosed with the
child restraint system.
●
Keep the child restraint system properly secured on the seat even if it is not
in use. Do not store the child restraint
system unsecured in the passenger
compartment.
●
If it is necessary to detach the child
restraint system, remove it from the
vehicle or store it securely in the trunk.
1
For safety and security
●
Lexus strongly urges the use of a
proper child restraint system that conforms to the weight and size of the
child, installed on the rear seat.
According to accident statistics, the
child is safer when properly restrained
in the rear seat than in the front seat.
●
Holding a child in your or someone
else’s arms is not a substitute for a child
restraint system. In an accident, the
child can be crushed against the windshield or between the holder and the
interior of the vehicle.
When using a child restraint system
■
When installing a child restraint
system to a front passenger seat
For the safety of a child, install a child
restraint system to a rear seat. When
installing child restraint system to a
front passenger seat is unavoidable,
adjust the seat as follows and install the
child restraint system.
Page 38
36
WARNING
1-2. Child safety
Move the front seat fully rearward.
Adjust the seat height to the upper
most position.
Adjust the seatback angle to the
most upright position.
If there is a gap between the child seat and
the seatback, adjust the seatback angle
until good contact is achieved.
■
When installing a child restraint system
Observe the following when installing
child restraint system to the front passenger seat if it is unavoidable. The front passenger SRS airbag inflates with
considerable speed and force that if not
observed may lead to death or serious
injury to the child.
●
Extreme Hazard! Do not use a rearward facing child restraint on a seat
protected by an airbag in front of it!
This is because the force of the rapid
inflation of the front passenger airbag
can cause death or serious injury to
the child. There is a label(s) on the passenger side sun visor, indicating it is
forbidden to attach a rear-facing child
restraint system to the front passenger
seat.
Details of the label(s) are shown in the
illustration below.
Page 39
WARNING
WARNING
●
Only put a forward-facing child
restraint system on the front seat when
unavoidable. When installing a forward-facing child restraint on the front
passenger seat, move the seat as far
back as possible. Failing to do so may
result in death or serious injury if the
airbags deploy (inflate).
1-2. Child safety
●
Do not allow the child to lean his/her
head or any part of his/her body
against the door or the area of the seat,
front pillars or roof side rails from
which the SRS side airbags or SRS
curtain shield airbags deploy even if
the child is seated in the child restraint
system. It is dangerous if the SRS side
and curtain shield airbags inflate, and
the impact could cause death or serious injury to the child.
37
1
For safety and security
●
When a junior seat (booster seat) is
installed, always ensure that the shoulder belt is positioned across the center
of the child’s shoulder. The belt should
be kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
●
Use child restraint system suitable to
the age and size of the child and install
it to the rear seat.
Page 40
38
WARNING
A
B
1-2. Child safety
●
If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the
left-hand rear seat.
●
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
Child restraint system compatibility for each seating position
■
Child restraint system compatibility for each seating position
Compatibility of each seating position
with child restraint systems (P.39)
displays the type of child restraint systems that can be used and possible
seating positions for installation using
symbols.
Check the selected child restraint system together with the following
[Before confirming the compatibility of
each seating position with child
restraint systems].
■
Before confirming the compatibility of each seating position with
child restraint systems
1 Checking the child restraint system
standards.
Use a child restraint system that
conforms to UN(ECE) R44
UN(ECE) R129
*1, 2
.
*1
or
The following approval mark is displayed on child restraint systems
which are conformed.
Check for an approval mark
attached to the child restraint system.
Example of the displayed regulation Number
UN(ECE) R44 approval mark
*3
The weight range of the child who is
applicable for an UN(ECE) R44
approval mark is indicated.
UN(ECE) R129 approval mark
*3
The height range of the child who is
applicable as well as available
weights for an UN(ECE) R129
approval mark is indicated.
2 Checking the category of the child
restraint system.
Check the approval mark of the
child restraint system for which of
the following categories the child
restraint system is suitable.
Page 41
Also, if there are any uncertainties,
check the user’s guide included
with the child restraint system or
contact the retailer of the child
restraint system.
• “universal”
•“semi-universal”
•“restricted”
• “vehicle specific”
*1
: UN(ECE) R44 and UN(ECE) R129
are U.N. regulations for child restraint
systems.
*2
: The child restraint systems mentioned in
the table may not be available outside of
the EU area.
*3
: The displayed mark may differ depend-
ing on the product.
■
Compatibility of each seating position with child restraint systems
1-2. Child safety
*1, 2
*3
Suitable for “universal” category
child restraint system fixed with
the seat belt.
Suitable for ISOFIX child restraint
system.
Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front passenger seat.
*1
: Move the front seat fully rearward. If the
passenger seat height can be adjusted,
move it to the upper most position.
*2
: Adjust the seatback angle to the most
upright position. When installing a forward-facing child seat, if there is a gap
between the child seat and the
seatback, adjust the seatback angle
until good contact is achieved.
39
1
For safety and security
Page 42
40
■
1-2. Child safety
*3
: Use only a front-facing child restraint
Detail information for child restraint systems installation
Seating position
Seat position number
system.
Seating position suitable for universal belted
(Yes/No)
i-Size seating position (Yes/No) No No No
Seating position suitable for lateral fixture
(L1/L2/No)
Suitable rearward facing fixture
(R1/R2X/R2/R3/No)
Suitable forward facing fixture
(F2X/F2/F3/No)
Suitable junior seat fixture (B2/B3/No) No No No
*
: Adjust the position of the front seat as far forward as possible.
Yes
Forward
facing only
No No No
No
No F2X, F2 F2X, F2
Yes Yes
*
R1
R1
*
ISOFIX child restraint systems are divided into different “fixture”. The child
restraint system can be used in the seating positions for “fixture” mentioned in the
table above. For kind of “fixture” relation, confirm the following table.
If your child restraint system has no kind of “fixture” (or if you cannot find information in the table below), please refer to the child restraint system “vehicle list” for
compatibility information or ask the retailer of your child seat.
Fixture Description
F3 Full-height, forward-facing child restraint systems
F2 Reduced-height forward-facing child restraint systems
Page 43
Fixture Description
F2X Reduced-height forward-facing child restraint systems
R3 Full-size, rearward-facing child restraint systems
R2 Reduced-size, rearward-facing child restraint systems
R2X Reduced-size, rearward-facing child restraint systems
R1 Rearward-facing infant seat
L1 Left lateral-facing (carrycot) infant seat
L2 Right lateral-facing (carrycot) infant seat
B2 Junior seat
B3 Junior seat
When installing a child restraint in
the rear seats, adjust the front seat
so that it does not interfere with the
child or child restraint system.
When installing a child seat with
support base, if the child seat interferes with the seatback when latching it into the support base, adjust
the seatback rearward until there is
no interference.
If the seat belt shoulder anchor is
ahead of the child seat belt guide,
move the seat cushion forward.
1-2. Child safety
When installing a junior seat, if the
child in your child restraint system is
in a very upright position, adjust the
seatback angle to the most comfortable position. And if the seat belt
shoulder anchor is ahead of the
child seat belt guide, move the seat
cushion forward.
41
1
For safety and security
Child restraint system installation method
Confirm with the operation manual enclosed with the child restraint system about
the installation of the child restraint system.
Page 44
42
1-2. Child safety
Installation method Page
Seat belt attachment P.42
ISOFIX rigid anchor attachment
Child restraint anchor fitting
attachment
Child restraint system fixed with
a seat belt
■
Installing child restraint system
using a seat belt
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
If the child restraint system on hand is
P.44
P.45
not within the “universal” category (or
the necessary information is not in the
table), refer to the “Vehicle List” provided by the child restraint system
maker for various possible installation
positions, or check the compatibility
after asking the retailer of the child
seat. (P.38, 39)
1 If installing the child restraint sys-
tem to the front passenger seat is
Page 45
1-2. Child safety
WARNING
43
unavoidable, refer to P.35for the
front passenger seat adjustment.
2 Run the seat belt through the child
restraint system and insert the plate
into the buckle. Make sure that the
belt is not twisted. Securely fix the
seat belt to the child restraint system in accordance to the directions
enclosed with the child restraint
system.
3 If your child restraint system is not
equipped with a lock-off (a seat belt
locking feature), secure the child
restraint system using a locking clip.
■
Removing a child restraint system
installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system may spring up due to the
rebound of the seat cushion. Release the
buckle while holding down the child
restraint system.
Since the seat belt automatically reels itself,
slowly return it to the stowing position.
■
When installing a child restraint system
You may need a locking clip to install the
child restraint system. Follow the instructions provided by the manufacturer of the
system. If your child restraint system does
not provide a locking clip, you can purchase
the following item from your Lexus dealer:
Locking clip for child restraint system (Part
No. 73119-22010)
■
When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or
serious injury.
1
For safety and security
4 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(P.43)
●
Do not allow children to play with the
seat belt. If the seat belt becomes
twisted around a child’s neck, it may
lead to choking or other serious injuries that could result in death. If this
occurs and the buckle cannot be
unfastened, scissors should be used to
cut the belt.
●
Ensure that the belt and plate are
securely locked and the seat belt is not
twisted.
●
Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.
Page 46
44
WARNING
WARNING
1-2. Child safety
●
After securing a child restraint system,
never adjust the seat.
●
When a junior seat (booster seat) is
installed, always ensure that the shoulder belt is positioned across the center
of the child’s shoulder. The belt should
be kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
●
Follow all installation instructions provided by the child restraint system
manufacturer.
Child restraint system fixed with
an ISOFIX rigid anchor
■
ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchors are provided for the
each rear seats. (Mark displaying the
location of the anchorages are
attached to the seats.)
not within the “universal” category (or
the necessary information is not in the
table), refer to the “Vehicle List” provided by the child restraint system
maker for various possible installation
positions, or check the compatibility
after asking the retailer of the child
seat. (P.38, 39)
1 Check the positions of the exclu-
sive fixing bars, and install the child
restraint system to the seat.
■
Installation with ISOFIX rigid
anchor (ISOFIX child restraint system)
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
If the child restraint system on hand is
2 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
(P.43)
■
When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or
serious injury.
Page 47
WARNING
●
A
B
WARNING
A
B
C
D
After securing a child restraint system,
never adjust the seat.
●
When using the lower anchors, be
sure that there are no foreign objects
around the anchors and that the seat
belt is not caught behind the child
restraint system.
●
Follow all installation instructions provided by the child restraint system
manufacturer.
■
Using child restraint anchorages
WARNING: child restraint anchorages
are designed to withstand only those
loads imposed by correctly fitted child
restraints. Under no circumstances are
they to be used for adult seatbelts,
harnesses, or for attaching other items or
equipment to the vehicle.
Using a child restraint anchor fitting
■
Child restraint anchor fitting
Anchor fittings are provided for the
each rear seat.
Use anchor fitting when fixing the
strap.
1-2. Child safety
■
Fixing the strap to the anchor fitting
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
Open the anchor fitting cover, latch the
attaching clip onto the anchor fitting
and tighten the upper anchorage strap.
Make sure the upper anchorage strap is
securely latched. (P.43)
Attaching clip
Upper anchorage strap
Anchor fitting
Front of vehicle
45
1
For safety and security
Anchor fittings
Upper anchorage strap
■
When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●
Firmly attach the upper anchorage
strap and make sure that the belt is not
twisted.
●
Do not attach the upper anchorage
strap to anything other than the anchor
fitting.
Page 48
46
WARNING
NOTICE
1-2. Child safety
●
After securing a child restraint system,
never adjust the seat.
●
Follow all installation instructions provided by the child restraint system
manufacturer.
■
Using child restraint anchorages
WARNING: child restraint anchorages
are designed to withstand only those
loads imposed by correctly fitted child
restraints. Under no circumstances are
they to be used for adult seatbelts,
harnesses, or for attaching other items or
equipment to the vehicle.
■
Child restraint anchor fitting
When not in use, make certain to close
the lid. If it remains open, the lid may be
damaged.
Page 49
1-3.Theft deterrent system
NOTICE
Engine immobilizer system
The vehicle’s keys have built-in
transponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
1-3. Theft deterrent system
■
Conditions that may cause the system to
malfunction
●
If the grip portion of the key is in contact
with a metallic object
●
If the key is in close proximity to or touching a key registered to the security system (key with a built-in transponder chip)
of another vehicle
47
1
Never leave the keys inside the
vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.
Operating the system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■
To ensure the system operates correctly
Do not modify or remove the system. If
modified or removed, the proper operation of the system cannot be guaranteed.
For safety and security
■
System maintenance
The vehicle has a maintenance-free type
engine immobilizer system.
Page 50
48
WARNING
1-3. Theft deterrent system
Double locking system
Unauthorized access to the vehicle
is prevented by disabling the door
unlocking function from both the
interior and exterior of the vehicle.
Vehicles employing this system
have labels on the side windows.
Setting/canceling the double
locking system
■
Double locking system precaution
Never activate the double locking system when there are people in the vehicle
because both side doors cannot be
opened from inside the vehicle.
■
Setting
Turn the engine switch off, have all the
passengers exit the vehicle and ensure
that both side doors are closed.
Using the entry function: Touch the
sensor area on the outside door handle
twice within 5 seconds.
Using the wireless remote control:
Press twice within 5 seconds.
■
Canceling
Using the entry function: Hold the outside door handle.
Using the wireless remote control:
Press .
Page 51
1-3. Theft deterrent system
49
Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
A locked door is unlocked or
opened in any way other than
using the entry function, wireless
remote control or mechanical
key. (The doors will lock again
automatically.)
The trunk is opened in any way
other than using the entry function or wireless remote control.
The hood is opened.
The intrusion sensor detects
something moving inside the
vehicle. (Example: an intruder
breaks a window and gets into the
vehicle.)
The tilt sensor detects a change of
vehicle inclination.
Setting/deactivating/stopping
the alarm system
■
Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
Nobody is in the vehicle.
The windows and moon roof (if
equipped) are closed before the
alarm is set.
No valuables or other personal
items are left in the vehicle.
■
Setting
Close the doors, trunk and hood, and
lock both side doors. The system will
be set automatically after 30 seconds.
The indicator light changes from being on
to flashing when the system is set.
■
Deactivating or stopping
Do one of the following to deactivate
or stop the alarm:
Unlock the doors.
Open the trunk using the entry
function or wireless remote control.
Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)
■
System maintenance
The vehicle has a maintenance-free type
alarm system.
■
Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
1
For safety and security
Page 52
50
NOTICE
●
●
●
1-3. Theft deterrent system
The trunk is opened using the mechanical
key.
A person inside the vehicle opens a door,
the trunk or hood, or unlocks the vehicle
using an inside lock button.
The battery is recharged or replaced
when the vehicle is locked. (P.305)
■
To ensure the system operates correctly
Do not modify or remove the system. If
modified or removed, the proper operation of the system cannot be guaranteed.
Intrusion sensor and tilt sensor
■
The intrusion sensor and tilt sensor
detection
The intrusion sensor detects intrud-
ers or movement in the vehicle.
The tilt sensor detects changes in
vehicle inclination, such as when the
vehicle is towed away.
This system is designed to deter and
prevent vehicle theft but does not
guarantee absolute security against all
intrusions.
■
Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically lock to
prevent improper entry into the vehicle:
●
When a person remaining in the vehicle
unlocks the door and the alarm is activated.
●
While the alarm is activated, a person
remaining in the vehicle unlocks the door.
●
When recharging or replacing the battery
■
Setting the intrusion sensor and tilt
sensor
The intrusion sensor and tilt sensor will
be set automatically when the alarm is
set. (P.49)
■
Canceling the intrusion sensor and
tilt sensor
If you are leaving pets or other moving
things inside the vehicle, make sure to
disable the intrusion sensor and tilt
sensor before setting the alarm, as they
will respond to movement inside the
vehicle.
1 Turn the engine switch off.
2 Press the intrusion sensor and tilt
sensor cancel switch.
Press the switch again to re-enable the
Page 53
1-3. Theft deterrent system
51
intrusion sensor and tilt sensor.
Each time the intrusion sensor and tilt sen-
sor is canceled/set, a message will be
shown on the multi-information display in
the instrument cluster.
■
Canceling and automatic re-enabling of
the intrusion sensor and tilt sensor
●
The alarm will still be set even when the
intrusion sensor and tilt sensor are
canceled.
●
After the intrusion sensor and tilt sensor
are canceled, pressing the engine switch
or unlocking the doors using the entry
function, wireless remote control or
mechanical key will re-enable the intrusion sensor.
●
The intrusion sensor and tilt sensor will
automatically be re-enabled when the
alarm system is deactivated.
■
Intrusion sensor detection considerations
The sensor may trigger the alarm in the following situations:
●
People or pets are in the vehicle.
●
A window or the moon roof is open. In
this case, the sensor may detect the following:
• Wind or the movement of objects such as
leaves and insects inside the vehicle
• Ultrasonic waves emitted from devices
such as the intrusion sensors of other
vehicles
• The movement of people outside the
vehicle
●
Unstable items, such as dangling accessories or clothes hanging on the coat
hooks, are in the vehicle.
●
Places with extreme vibrations or noises,
or situations in which the vehicle is subject to repeated impacts or vibrations:
• When parked in a parking garage
• When ice adhering to the vehicle is
removed
• When the vehicle is in an automatic or
high-pressure car wash
• When in a hail or lightning storm
■
Tilt sensor detection considerations
The sensor may trigger the alarm in the following situations:
●
The vehicle is transported by a ferry,
trailer, train, etc.
●
The vehicle is parked in a parking garage.
●
The vehicle is inside a car wash that
moves the vehicle.
●
Any of the tires loses air pressure.
●
The vehicle is jacked up.
●
An earthquake occurs or the road caves
1
For safety and security
Page 54
52
NOTICE
1-3. Theft deterrent system
in.
■
To ensure the intrusion sensor function correctly
●
To ensure that the sensors operate
properly, do not touch or cover them.
●
Do not spray air fresheners or other
products directly into the sensor holes.
●
Installing accessories other than genuine Lexus parts or leaving objects
between the driver’s seat and front
passenger’s seat may reduce the
detection performance.
Page 55
53
Vehicle status information
and indicators
.
2-1. Instrument cluster
Warning lights and indicators
............................................................54
Gauges and meters .................... 58
Multi-information display.......... 66
Fuel consumption information
............................................................75
2
2
Vehicle status information and indicators
Page 56
54
2-1.Instrument cluster
2-1. Instrument cluster

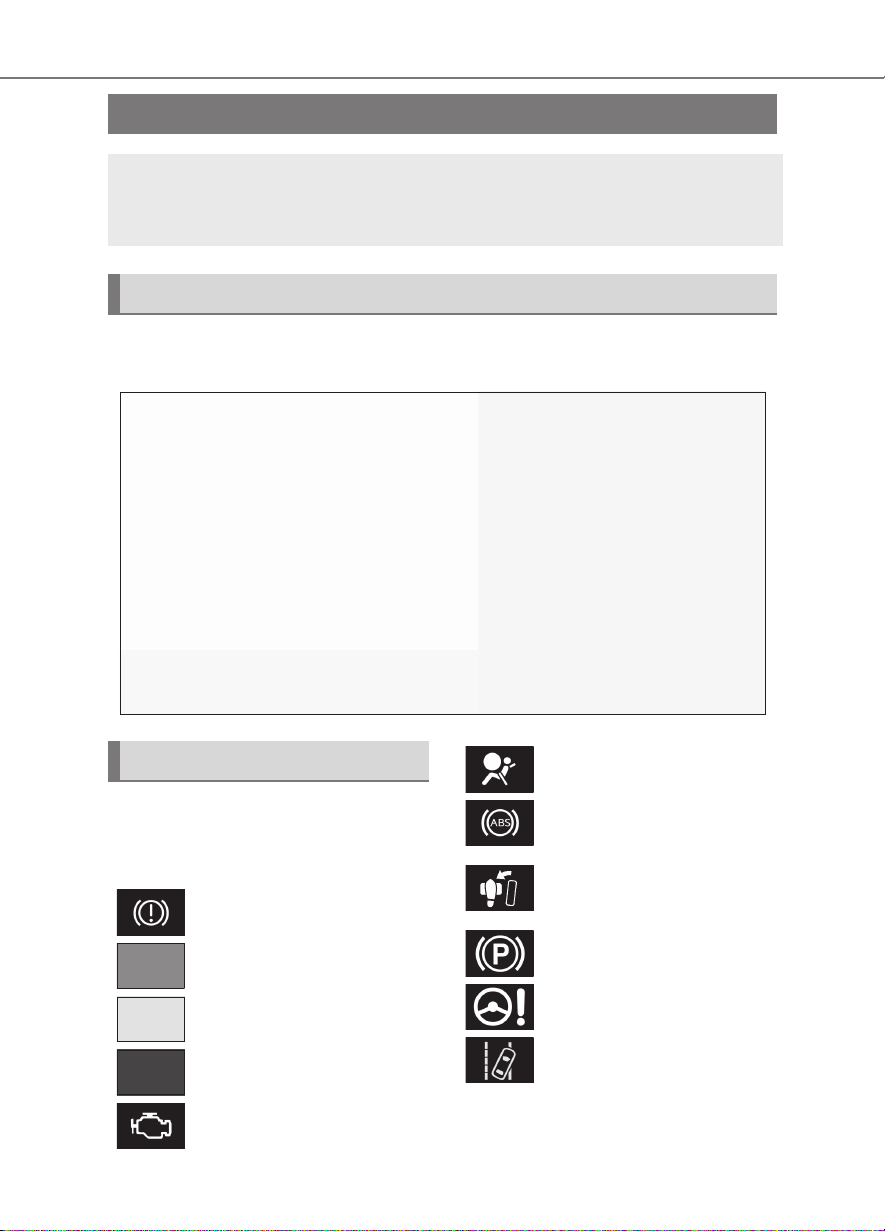

Warning lights and indicators
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.
Warning lights
Warning lights inform the driver of malfunctions in the indicated vehicle systems.
Brake system warning light*1
(P.278)
High coolant temperature
*2
warning light
Charging system warning
*1, 2
light
Low engine oil pressure warn-
ing light
Malfunction indicator lamp
(P.279)
(P.278)
(P.278)
*2
(P.278)
*1
(orange)
SRS warning light*1 (P.279)
*1
ABS warning light
(P.279)
Brake Override System warning light/Drive-Start Control
*2
warning light
(P.279)
Parking brake warning light
(P.280)
Electric power steering system
warning light
*1
(P.280)
LDA (Lane Departure Alert)
indicator (if equipped)
(P.280)
Page 57
2-1. Instrument cluster
WARNING
55

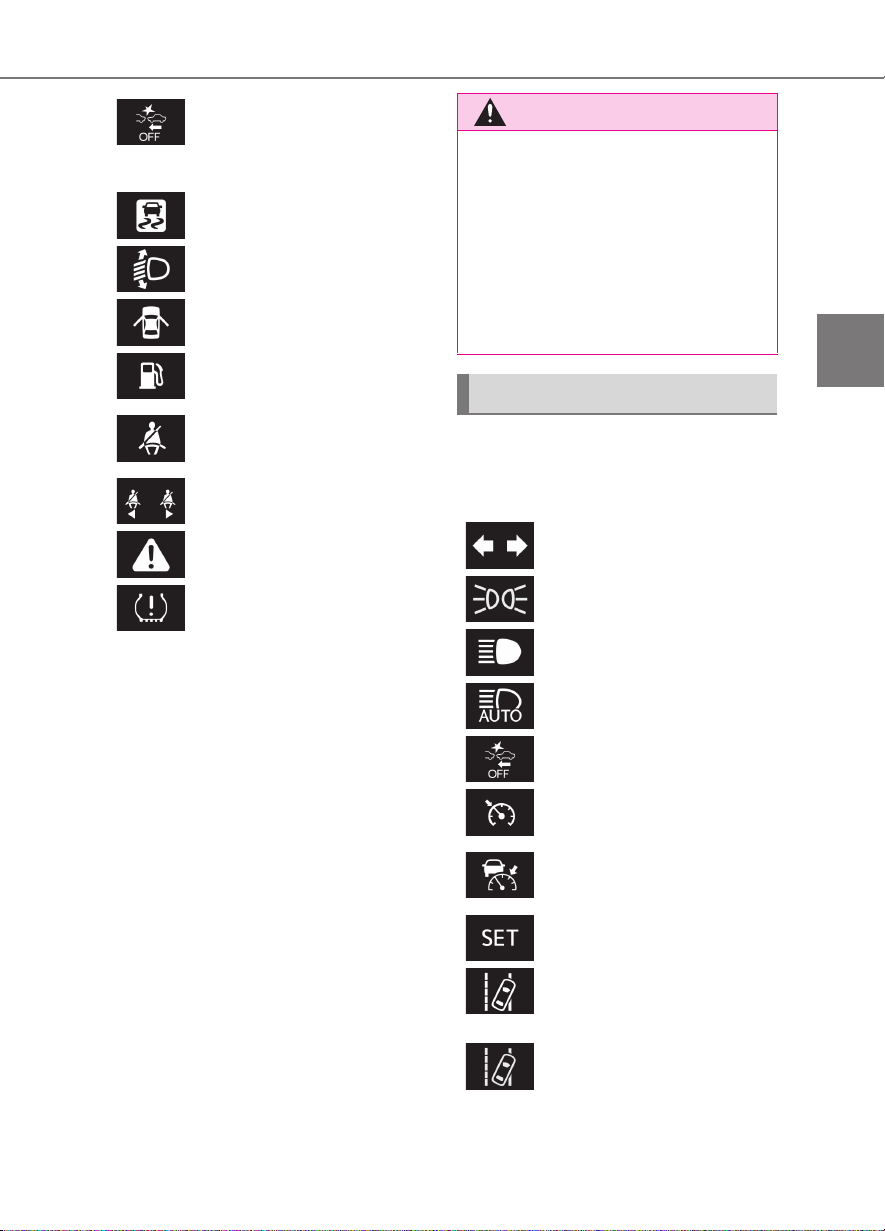

PCS warning light*1 (if
(flashes or
illuminates)
equipped) (P.281)
Slip indicator
*1
(P.281)
Automatic headlight leveling
system warning light (P.281)
Open door warning light
(P.281)
Low fuel level warning light
(P.282)
Driver’s and front passenger’s
seat belt reminder light
(P.282)
Rear passenger’s seat belt
*3
reminder lights
Master warning light
(P.282)
*1
(P.282)
Tire pressure warning light
(P.283)
*1
: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2
: This light illuminates on the multi-infor-
mation display.
*3
: This light illuminates on the center
panel.
■
If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs.
2
Indicators
Vehicle status information and indicators
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
Turn signal indicator (P.127)
*1
(white)
(green)
Tail light indicator (P.130)
Headlight high beam indicator
(P.131)
Automatic High Beam indicator
(if equipped)
PCS warning light
*1
(P.132)
*1, 2
(if
equipped) (P.150)
Cruise control indicator
(P.162, 171)
Dynamic radar cruise control
indicator (if equipped)
(P.162)
Cruise control “SET” indicator
(P.162, 171)
LDA (Lane Departure Alert)
indicator (if equipped)
(P.157)
LDA (Lane Departure Alert)
indicator (if equipped)
(P.157)
Page 58
56
2-1. Instrument cluster
LDA (Lane Departure Alert)
(orange)
(flashes)
indicator (if equipped)
(P.157)

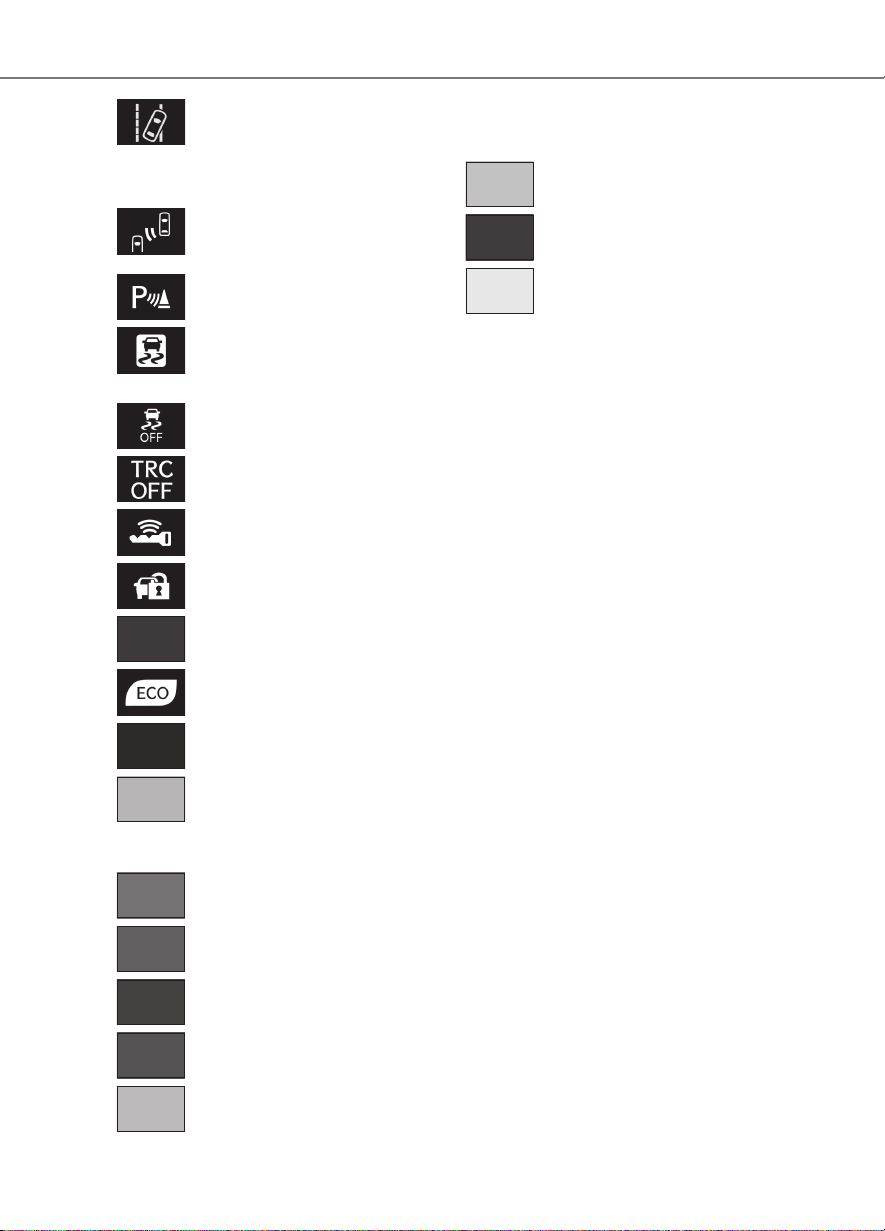

BSM (Blind Spot Monitor) outside rear view mirror indica-
*3, 4
(if equipped) (P.173)
tors
Lexus parking assist-sensor
indicator (P.182)
Slip indicator*1 (P.196)
(flashes)
VSC OFF indicator
(P.196)
TRC OFF indicator
(P.196)
Smart entry & start system indi-
*5
(P.120)
cator
Security indicator
49)
Low outside temperature indi-
*5, 7
cator
(P.54)
Eco Driving Indicator Light
(P.68)
“EXPERT” indicator (P.197)
“LAUNCH” indicator
(P.189)
Drive mode indicators
“NORMAL” indicator
(P.188)
Eco drive mode indicator
(P.188)
“SPORT S” indicator (P.188)
“SPORT S+” indicator
(P.188)
“COSTOM” indicator
(P.188)
*1, 2
*1, 2
*6
(P.47,
TVD (Torque Vectoring Differential)
control mode indicators
“STANDARD” indicator (if
equipped) (P.194)
“SLALOM” indicator (if
equipped) (P.194)
“TRACK” indicator (if
equipped) (P.194)
*1
: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2
: The light comes on when the system is
turned off.
*3
: In order to confirm operation, the BSM
outside rear view mirror indicators illu-
*1
minate in the following situations:
• When the engine switch is turned to
IGNITION ON mode while the
BSM main switch is turned on.
• When the BSM main switch is
turned on while the engine switch is
in IGNITION ON mode.
If the system is functioning correctly,
the BSM outside rear view mirror indicators will turn off after a few seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction in
the system. If this occurs, have the vehicle inspected by your Lexus dealer.
*4
: This light illuminates on the outside rear
view mirrors.
*5
: This light illuminates on the multi-infor-
Page 59
mation display.
*6
: This light illuminates on the center
panel.
*7
: When the outside temperature is
approximately 3°C (37°F) or lower, this
indicator will flash for approximately 10
seconds, then stay on.
2-1. Instrument cluster
57
2
Vehicle status information and indicators
Page 60
58
B
D
E
2-1. Instrument cluster
Gauges and meters
Meter display
■
Locations of gauges and meters
If the drive mode is changed, some of the meter displays and the gauge layout will
be changed.
Normal mode
Multi-information display
A
Presents the driver with a variety of vehicle data (P.66)
Displays warning messages in case of a malfunction (P.285)
Fuel gauge
Engine coolant temperature gauge
C
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will sound and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F). Low
outside temperature indicator comes on when the ambient temperature is 3°C (37°F) or
lower.
Page 61
Tachometer
H
I
JAB
C
D
F
Displays the engine speed in revolutions per minute
Digital speedometer
G
Analog speedometer
Shift position/shift range/gear position (P.123)
Odometer and trip meter display (P.65)
Eco drive mode
2-1. Instrument cluster
59
2
Vehicle status information and indicators
Multi-information display
Presents the driver with a variety of vehicle data (P.66)
Displays warning messages in case of a malfunction (P.285)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will sound and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
E
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F). Low
outside temperature indicator comes on when the ambient temperature is 3°C (37°F) or
lower.
Page 62
60
H
I
J
A
C
Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the lower the
number of blue segments displayed, indicating that your driving is less ecofriendly. This
meter is designed as a guideline to show the eco-friendliness of your driving.
2-1. Instrument cluster
Eco driving meter
F
Digital speedometer
G
Analog speedometer
Shift position/shift range/gear position (P.123)
Odometer and trip meter display (P.65)
SPORT S mode
These illustrations show the default meter display for SPORT S mode. The meter displays
for SPORT S mode can be changed on the settings display of the multi-information display.
Multi-information display
Presents the driver with a variety of vehicle data (P.66)
Displays warning messages in case of a malfunction (P.285)
Fuel gauge
B
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will sound and the indicator will turn red and start
flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
D
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Outside temperature
E
Page 63
2-1. Instrument cluster
G
H
B
C
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F). Low
outside temperature indicator comes on when the ambient temperature is 3°C (37°F) or
lower.
Tachometer
F
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.123)
I
Odometer and trip meter display (P.65)
J
SPORT S+ mode
61
2
Vehicle status information and indicators
These illustrations show the default meter display for SPORT S+ mode. The meter displays
for SPORT S+ mode can be changed on the settings display of the multi-information display.
Multi-information display
A
Presents the driver with a variety of vehicle data (P.66)
Displays warning messages in case of a malfunction (P.285)
Fuel gauge
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F). Low
outside temperature indicator comes on when the ambient temperature is 3°C (37°F) or
lower.
Engine coolant temperature gauge
D
Displays the engine coolant temperature. If the engine coolant temperature gauge indica-
tor ( ) enters the red zone, a buzzer will sound and the indicator will turn red and start
Page 64
62
G
H
I
flashing. Also, a warning message will be displayed.
Displays the engine oil temperature. If the engine oil temperature gauge indicator ( )
enters the red zone, the indicator will turn red and start flashing.
Displays the engine speed in revolutions per minute
2-1. Instrument cluster
Engine oil temperature gauge
E
Tachometer
F
Digital speedometer
Analog speedometer
Shift position/shift range/gear position (P.123)
Odometer and trip meter display (P.65)
J
■
Speed indicator
When the vehicle reaches the set
speed, the speed unit display will turn
yellow.
The indicators will be displayed in yellow
(corresponding to a speed set by a user) or
*
red (fixed at 200 km/h [125 mph])
This setting can be enabled on the
multi-information display.
*
: Always observe the legal speed limit
when driving on public roads.
■
Rev indicator (SPORT S
.
mode/SPORT S+ mode)
a buzzer will sound to notify you of
shift-up timing.
The indicator may be displayed when
downshifting, depending on the engine
speed.
These illustrations show the default meter
display for SPORT S mode and SPORT S+
mode. The meter displays for SPORT S
mode and SPORT S+ mode can be
changed on the settings display of the
multi-information display.
When the shift lever is in M, an indicator on the tachometer will be displayed
in 3 steps. When the 3rd level indicator
is displayed, the indicator will flash and
Page 65
SPORT S mode
A
SPORT S+ mode
B
■
Rev peak (Normal mode/SPORT
S mode)
The engine speed reaches or exceeds
3600 r/min, an afterimage of the
tachometer will be displayed at the
highest engine speed for approximately 1 second.
2-1. Instrument cluster
Changing the display
■
Meter display and layout
If the drive mode is changed, some of
the meter displays and the gauge layout will be changed. (P.188)
■
The meters and display illuminate when
The engine switch is in IGNITION ON
mode.
■
Welcome illumination of the analog
speedometer
●
When the driver’s door is opened, the
analog speedometer will illuminate. Then,
when the driver’s door is closed, the
analog speedometer will illuminate and
go off (pulsate) 3 times.
●
In the following situations, the analog
speedometer will not pulsate even
though the driver’s door is opened and
closed:
• Within 60 seconds after the analog
meter pulsation completes
• Within 60 seconds of turning the engine
switch off
■
Variable red zone
To help protect the engine, the engine
speed is controlled by starting the red zone
of the tachometer at different engine
speeds ranging from 3700 r/min to 7300
r/min depending on the engine coolant
temperature. Before driving under
extremely high load conditions, make sure
to sufficiently warm up the engine.
63
2
Vehicle status information and indicators
Page 66
64
WARNING
NOTICE
■
●
2-1. Instrument cluster
Eco driving meter
The number of blue segments displayed
on the eco driving meter
decreases/increases depending on the
vehicle acceleration. Use this meter as a
guideline when you wish to drive in an
eco-friendly manner that reduces fuel
consumption.
However, on a downward grade where
the vehicle can accelerate without the
accelerator pedal being depressed, the
eco driving meter may not display the
eco-driving state correctly.
●
When the shift lever is moved to P, N or
R, the segments will turn gray and the eco
driving meter will not operate.
■
Dimming the analog speedometer
lighting
The analog speedometer lighting will be
dimmed when the ambient light is bright,
such as during the daytime, and SPORT S
or SPORT S+ mode is selected.
■
Outside temperature display
●
In the following situations, the correct
outside temperature may not be displayed, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds
(less than 20 km/h [12 mph])
• When the outside temperature has
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
●
Wh en “_ _” or “E” i s dis play ed, t he sy stem
may be malfunctioning.
Take your vehicle to your Lexus dealer.
■
Pop-up display
●
In some situations, such as when a switch
operation is performed, a pop-up display
will be temporarily displayed on the
multi-information display.
●
Some pop-up displays can be set on/off.
(P.74)
■
Liquid crystal display
Small spots or light spots may appear on the
display. This phenomenon is characteristic
of liquid crystal displays, and there is no
problem continuing to use the display.
■
Customization
The meter display can be customized on
the multi-information display. (P.320)
■
The information display at low temperatures
Allow the interior of the vehicle to warm
up before using the liquid crystal information display. At extremely low temperatures, the information display monitor
may respond slowly, and display changes
may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine braking and possibly an accident resulting in
death or injury.
■
To prevent damage to the engine and
its components
●
Do not let the indicator of the tachometer enter the red zone, as it represents the engine speed range which
exceeds the maximum safe engine
speed.
●
In the following situations, the engine
may be overheating. In this case,
immediately stop the vehicle in a safe
place, and check the engine after it has
cooled completely. (P.306)
• The engine coolant temperature
gauge indicator ( ) is in the red
zone and flashing.
• The engine oil temperature gauge
indicator ( ) is in the red zone and
flashing.
Page 67
Odometer and trip meter dis-
A
B
play
■
Display items
Odometer
Displays the total distance the vehicle has
been driven.
Trip meter A/trip meter B
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
To reset, display the desired trip meter and
press and hold the odometer/trip meter
and trip meter reset button.
■
Changing the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is displayed, pressing and holding the switch
will reset the trip meter.
2-1. Instrument cluster
Darker
Brighter
■
Instrument panel brightness adjustment
The instrument panel brightness levels
when the tail lights are on and off can be
adjusted individually. However, when the
surroundings are bright (daytime, etc.),
turning on the tail lights will not change the
instrument panel brightness.
65
2
Vehicle status information and indicators
Changing the instrument panel
light brightness
The brightness of the instrument panel
lights can be adjusted.
Page 68
66
2-1. Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of
vehicle data.
Displays and menu icons
■
Display
Content display area
By selecting menu icons on the
multi-information display, a variety of
driving-related information can be displayed. The multi-information display
can also be used to change display settings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.
■
Menu icons
The menu icons will be displayed by
pressing or of the meter control switch.
Drive information
“F” content
Navigation system-linked display
Sub-content display area
Displays some “F” content in conjunction with the content display area.
Audio system-linked display
Driving assist system information
Warning message display
Settings display
■
Start-up display
When the engine is started, the name of the
vehicle is displayed on the multi-information
display.
While the start-up display is being displayed, the meter display cannot be
changed even if the drive mode is changed.
When the start-up display is finished, the
meter display for the currently selected
mode will be displayed.
Page 69
■
WARNING
B
C
Liquid crystal display
P.64
■
The information display at low temperatures
P.64

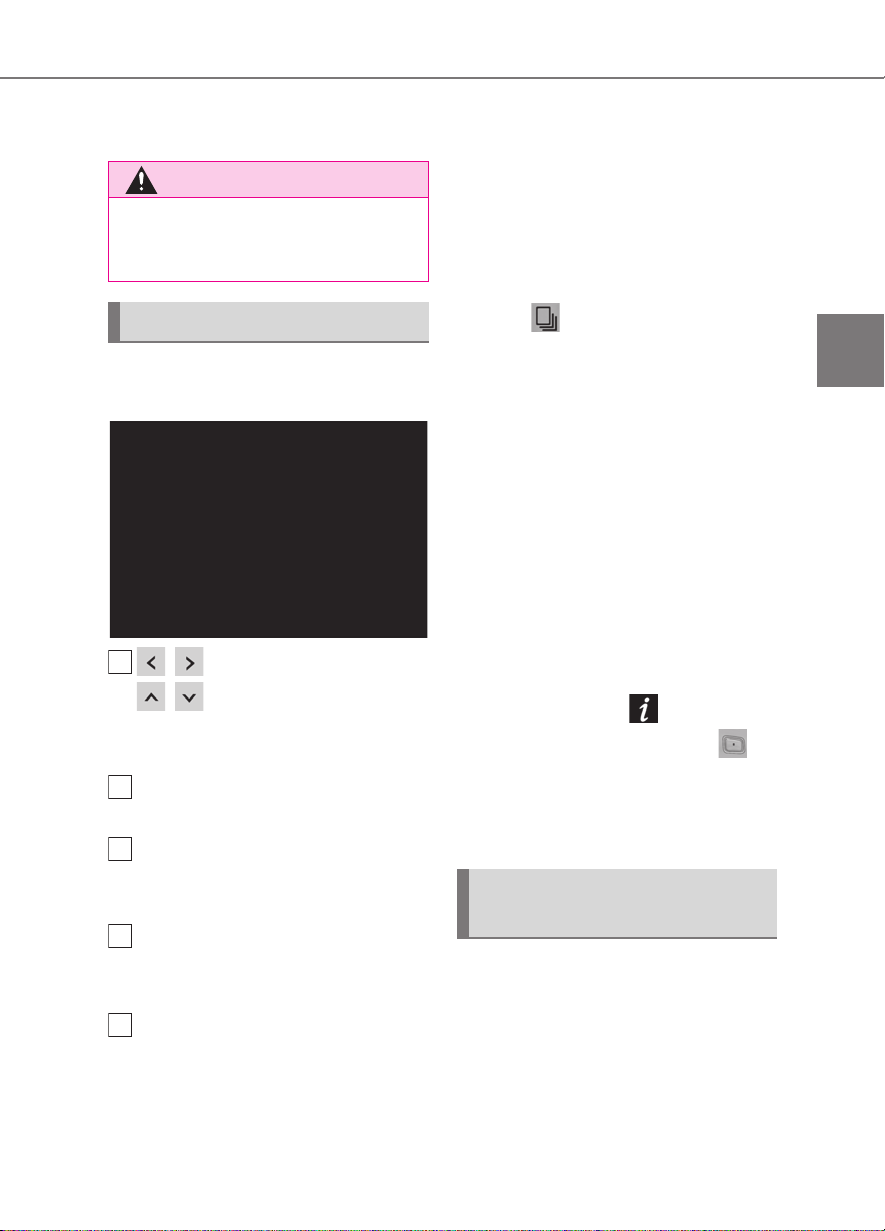

Changing the meter display
The multi-information display is operated using the meter control switches.
/ : Select menu icons
A
/ : Change displayed content, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Pressing and holding the switch will display
the first screen of the selected menu icon.
Press: Display the top screen
D
Press and hold: Register current
screen as the top screen
Call sending/receiving and history
E
display
Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
2-1. Instrument cluster
the “Navigation System Owner’s Manual”.
■
Registering a top screen
The displayed top screen can be
changed to a registered screen of your
choice.
To register a screen as the top screen,
display the desired screen and press
and hold .
A message asking to confirm if reg-
istration is desired will be displayed.
If the selected screen cannot be
registered, a registration failure
message will be displayed.
When no screen has been regis-
tered, the drive information screen
will be displayed.
■
Resetting drive information
To reset the average fuel economy
(after reset)/average vehicle speed
(after reset)/elapsed time (after reset)
that are displayed on , display the
desired item and press and hold .
If both of the displayed items are resettable, a message will be displayed asking
which item(s) to reset.
Content displayed as drive information
■
Drive information 1/Drive information 2/Drive information 3
Select to display various drive data.
Up to 2 of the following items can be
selected for each drive information
screen:
67
2
Vehicle status information and indicators
Page 70
68
2-1. Instrument cluster
Items displayed can be switched by
pressing or of the meter con-
trol switches to select and pressing
or .
Use the displayed values as a reference
only.
Drive information 1
• Current fuel consumption
• Average fuel economy (after reset)
Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
Drive information 3
• Average fuel economy (after refuel)
• Elapsed time (after start)
Displayed items (listed below) can be
changed on . (P.74)
Current fuel consumption
Displays instantaneous current fuel consumption
Average fuel economy
• After reset: Displays average fuel consumption since display reset
• After start: Displays average fuel consumption since engine start
• After refuel: Displays average fuel consumption since refuel
*1, 2
*2
*2, 3
Average vehicle speed
• After reset: Displays average vehicle
speed since display reset
• After start: Displays average vehicle
speed since engine start
*1
Elapsed time
• After reset: Displays elapsed time since
the display was reset
• After start: Displays elapsed time since
engine start
*1
Distance
• Driving range: Displays driving range
with remaining fuel
• After start: Displays drive distance since
vehicle start
*3, 4
Other
Blank: No item
*1
: Resetting: P.67
*2
: Use the displayed fuel consumption as a
reference.
*3
: When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display
may not be updated.
*4
: This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
■
Eco Driving Indicator
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator
Light will turn on.
When the acceleration exceeds the
Zone of Eco driving, or when the vehicle is stopped, the light turns off.
Page 71
Eco Driving Indicator will not operate
A
B
C
A
B
under the following conditions:
2-1. Instrument cluster
“F” content
■
Lap timer
Measures and displays current lap time
and previous lap times
Reading the display
Measured lap times since the timer was
last reset are displayed as follows:
• Content display area
69
2
The shift lever is in any position
other than D.
A paddle shift switch is operated.
Neither normal mode nor Eco drive
mode is selected. (P.188)
The vehicle speed is approximately
130 km/h (80 mph) or higher.
■
Gear positions
Displays the current gear position
when the shift lever is in D or M.
■
Vehicle sway warning (if equipped)
Detects the sway of the vehicle within a
lane, which is often associated with a
decrease in the driver’s attention level,
and displays the decrease in attention
using a bar display.
The shorter the bar length, the more
the driver may need to rest.
This display is a part of the LDA (Lane
Departure Alert with steering control) system. The display is enabled when the operating conditions of the vehicle sway
warning are met. (P.156)
■
Blank (No items)
Vehicle status information and indicators
Total lap time
Past lap times
Fastest lap (marked with a star)
• Sub-content display area
Current lap time
Most recent lap time
Operating the meter control
switches
Displays no drive information contents.
Page 72
70
A
B
A
B
2-1. Instrument cluster
Press: Start/stop lap timer
A
Press and hold: Reset
: Mark off one lap
B
: Change displayed content
While a lap time is being measured, the
display can be changed to show the following content:
• Torque distribution (if equipped)
•G-force
• Rear wing position
Resetting/saving measured lap
times
After stopping the lap timer, press and hold
.
When a confirmation screen is displayed,
select to reset/save the measured lap
times.
When saved, the lap time data will be displayed on the history screen. (P.70)
■
History (Lap timer)
Displays the saved lap times
Reading the display
• History top screen
Total lap time
Fastest lap time
•Past lap screen
Page
Past lap times (20 most recent lap
times)
Press / to scroll up and down the
screen.
Switching the display
To display the past lap screen, press
.
To return to the history top screen,
press
.
Deleting history
When the history top screen is displayed,
press and hold
to display a confir-
mation screen.
To delete the history, follow the instructions
displayed on the screen.
Page 73
■
A
Torque distribution (if equipped)
Displays the distribution of driving
torque between the left and right rear
wheels
Reading the display
• Normal display
Displays the amount of drive torque
applied to the left and right rear wheels
through bars that fluctuate in length on the
content display area.
• Advanced display
Displays the difference in torque applied to
the left and right rear wheels through displayed segments on the sub-content display area in addition to the bar display.
The greater the number of segments displayed, the greater the difference in torque
is.
2-1. Instrument cluster
To return to normal display, press
Peak hold function (advanced dis-
play only)
If the difference in torque of 4 segments or
more is applied to the left or right rear
wheel, a yellow outline will be displayed for
the highest segment that was reached, for
a certain amount of time.
■
G-force
Displays lateral G-forces on the vehicle
Also displays, around the periphery of
the G-force display, the left and right
steering amount, accelerator pedal
input, and brake fluid pressure
Reading the display
• Normal display
Displays the following on the content display area
71
.
2
Vehicle status information and indicators
Switching the display
To switch to advanced display, press
.
Acceleration G-force on the vehi-
Page 74
72
D
E
D
E
F
A
B
2-1. Instrument cluster
cle
Current G-force value (analyzed
B
value of front/rear and left/right
G-forces)
Accelerator pedal input
C
Brake fluid pressure
Steering amount
• Advanced display
Displays the following on the sub-content
display area and content display area
Content display area
G-force direction
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
This display is intended for use as a guideline. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.
Switching the display
Acceleration G-force on the vehi-
A
cle
Record of the maximum G-forces
B
Value of the maximum G-force
C
since display reset (analyzed value
of front/rear and left/right
G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount
Sub-content display area
To switch to advanced display, press
To return to normal display, press
Resetting the record of maximum
G-forces
With the record of maximum G-forces dis-
played, press and hold to reset the display.
Peak hold function (advanced dis-
play only)
If lateral G-forces of 0.5 G or greater are
generated, the G-force value displayed on
the sub-content display area will turn yellow and be held for 3 seconds.
.
.
Page 75
■
Rear wing position (vehicles with
an active rear wing)
Displays the raised/retracted state of
the active rear wing
■
Using the lap timer
If the engine is stopped while a lap is being
timed, the lap timer will stop and the lap
time up to that point will be recorded.
■
Torque distribution display (if equipped)
Torque distribution may not be displayed
correctly in some cases, such as when the
vehicle passes over road expansion joints.
■
G-force display
●
The G-force values may not be zero even
when the vehicle is parked, such as when
it is parked on an incline.
●
The steering amount, accelerator pedal
input, and brake fluid pressure displays
are disabled until the engine has warmed
up (the variable red zone of the tachometer has retracted to 7300 r/min).
After the engine has warmed up, these
displays will be enabled.
●
Depending on the vehicle usage conditions, the brake fluid pressure display may
not reach its maximum reading even
though the brake pedal is fully depressed.
●
If a battery terminal is disconnected and
reconnected, the steering amount display
may be disabled temporarily. After driving the vehicle for a while, the display will
be enabled.
2-1. Instrument cluster
Navigation system-linked display
Select to display the following navigation system-linked information.
Route guidance to destination
Compass display (heading-up dis-
play)
Audio system-linked display
Select to enable selection of an audio
source or track on the meter using the
meter control switches.
Driving support system information display
Select to display the operational status
of the following systems:
Cruise control (if equipped)
(P.171)
Dynamic radar cruise control (if
equipped) (P.162)
LDA (Lane Departure Alert with
steering control) (if equipped)
(P.155)
Warning message display
Select to display warning messages
and measures to be taken if a malfunction is detected. (P.285)
73
2
Vehicle status information and indicators
Page 76
74
2-1. Instrument cluster
Settings display
■
Meter display settings that can be
changed
Language
Select to change the language on the display.
Units
Select to change the units of measure displayed.
Eco Driving Indicator Light
(P.68)
Select to enable/disable the Eco Driving
Indicator Light.
Switch settings
Displays a procedure to register a desired
screen to .
You can register 1 screen as a shortcut,
which can be displayed by pressing .
Drive information screen (P.67)
Select to select up to 2 items that will be
displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen, and Drive information 3 screen) respectively.
Pop-up display (P.64)
Select to enable/disable the pop-up display.
• Intersection Guidance
• Telephone
•Audio Feedback
• Volume Feedback
•Adjust Brightness
• TVD MODE (if equipped)
Rev indicator (P.62)
• Select to enable/disable the Rev indicator.
• Select to set the desired engine speed at
which the Rev indicator will begin to be
displayed.
Rev peak (P.63)
Select to enable/disable the Rev peak.
Gauge options
Select to change the displayed meters for
each applicable drive mode.
Default setting
Select to reset the meter display settings to
the default setting.
■
Vehicle functions and settings that
can be changed
P.320
■
Suspension of the settings display
●
Some settings cannot be changed while
driving. When changing settings, park
the vehicle in a safe place.
●
If a warning message is displayed, operation of the settings display will be suspended.
■
When disconnecting and reconnecting
battery terminals
The following information data will be reset:
●
Drive information
●
Lap timer: Measured lap times, history
●
G-force: Record of the maximum
G-forces
■
Customization
Some functions can be customized.
(P.320)
Page 77
WARNING
■
NOTICE
A
B
C
Caution for use while driving
●
When operating the multi-information
display while driving, pay extra attention to the safety of the area around the
vehicle.
●
Do not look continuously at the
multi-information display while driving
as you may fail to see pedestrians,
objects on the road, etc. ahead of the
vehicle.
■
Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such as
a garage, exhaust gases including harmful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
2-1. Instrument cluster
Fuel consumption information
Fuel consumption information can
be displayed on the Center Display.
The fuel consumption information
can be displayed and operated on
the side display.
System components
75
2
Vehicle status information and indicators
■
While setting up the display
To prevent battery discharge, ensure that
the engine is running while setting up the
display features.
Center Display
“MENU” button
Touchpad
Consumption
■
Trip information
Press the “MENU” button on the
Remote Touch, then select on the
Page 78
76
C
D
E
A
B
C
D
E
2-1. Instrument cluster
menu screen, and then select “ECO”.
If a screen other than “Trip information”
is displayed, select “Trip information”.
Resetting the consumption data
A
Fuel consumption in the past 15
B
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine was
started.
Cruising range
F
Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the displayed average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.
■
History
Press the “MENU” button on the
Remote Touch, then select on the
menu screen, and then select “ECO”.
If a screen other than “History” is displayed, select “History”.
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consumption data
The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the displayed average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.
■
Updating the history data
Update the latest fuel consumption by
selecting “Clip” to measure the current fuel
consumption again.
■
Resetting the data
The fuel consumption data can be deleted
by selecting “Clear”.
■
Cruising range
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining.
This distance is computed based on your
average fuel consumption.
As a result, the actual distance that can be
driven may differ from that displayed.
Page 79
Using the side display
Display the vehicle information on the
side display (P.207), and then select
or to display the desired
screen.
The image is an example only, and may
vary slightly from actual conditions.
■
Trip information (type A)
Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.
2-1. Instrument cluster
■
History
Displays the average fuel consumption
and highest fuel consumption.
Use the displayed average fuel consumption as a reference.
77
2
Vehicle status information and indicators
Use the displayed average fuel consumption as a reference.
■
Trip information (type B)
Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.
Use the displayed average fuel consumption as a reference.
Page 80
78
2-1. Instrument cluster
Page 81
79
Before driving
.
3-1. Key information
Keys ...................................................80
3-2. Opening, closing and locking the
doors and trunk
Doors ................................................ 84
Trunk ................................................. 88
Smart entry & start system.........91
3-3. Adjusting the seats
Front seats....................................... 95
Power easy access system/driving
position memory/memory recall
function...........................................97
3-4. Adjusting the steering wheel and
mirrors
Steering wheel ............................100
Inside rear view mirror.............. 101
Outside rear view mirrors...... 102
3-5. Opening, closing the windows
and moon roof
Power windows ..........................105
Moon roof .....................................107
3
3
Before driving
Page 82
80
3-1.Key information
3-1. Key information
Keys
The keys
The following keys are provided with
the vehicle.
problem arises, such as when the card
key does not operate properly.
●
If it is difficult to take out the mechanical
key, push down the lock release button
using a pen tip etc. If it is still difficult to
pull it out, use a coin etc.
●
To store the mechanical key in the card
key, insert it while pressing the lock
release button.
●
If the battery cover is not installed and the
battery falls out or if the battery was
removed because the key got wet, reinstall the battery with the positive terminal
facing the Lexus emblem.
Electronic keys
A
• Operating the smart entry & start sys-
tem (P.91)
• Operating the wireless remote control
function (P.82)
Mechanical keys
B
Key number plate
C
Card key (electronic key) (if
D
equipped)
Operating the smart entry & start system
(P.91)
■
Card key (if equipped)
●
The card key is not waterproof.
●
The mechanical key that is stored inside
the card key should be used only if a
■
When riding in an aircraft
When bringing an electronic key onto an
aircraft, make sure you do not press any
buttons on the electronic key while inside
the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that
the buttons are not likely to be pressed accidentally. Pressing a button may cause the
electronic key to emit radio waves that
could interfere with the operation of the aircraft.
■
Electronic key battery depletion
●
The standard battery life is 1 to 2 years.
(The card key battery life is about a year
and a half.)
●
If the battery becomes low, an alarm will
sound in the cabin and a message will be
Page 83
3-1. Key information
NOTICE
81
shown on the multi-information display
when the engine is stopped.
●
As the electronic key always receives
radio waves, the battery will become
depleted even if the electronic key is not
used. The following symptoms indicate
that the electronic key battery may be
depleted. Replace the battery when necessary.
• The smart entry & start system or the
wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface
does not turn on.
●
To avoid serious deterioration, do not
leave the electronic key within 1 m (3 ft.)
of the following electrical appliances that
produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and
battery chargers
• Recharging cellular phones or cordless
phones
• Table lamps
• Induction cookers
■
Replacing the battery
P.263
■
Confirmation of the registered key
number
The number of keys already registered to
the vehicle can be confirmed. Ask your
Lexus dealer for details.
●
Do not attach metallic or magnetic
materials to the keys or place the keys
close to such materials.
●
Do not disassemble the keys.
●
Do not attach a sticker or anything else
to the surface of the electronic key.
●
Do not place the keys near objects that
produce magnetic fields, such as TVs,
audio systems and induction cookers.
■
Carrying the electronic key on your
person
Carry the electronic key 10 cm (3.9 in.)
or more away from electric appliances
that are turned on. Radio waves emitted
from electric appliances within 10 cm
(3.9 in.) of the electronic key may interfere with the key, causing the key to not
function properly.
■
In case of a smart entry & start system
malfunction or other key-related
problems
P.301
■
When an electronic key is lost
P.300
■
Handling the card key (if equipped)
●
Do not apply excess force when inserting the mechanical key into the card
key. Doing so may damage the card
key.
3
Before driving
■
To prevent key damage
●
Do not drop the keys, subject them to
strong shocks or bend them.
●
Do not expose the keys to high temperatures for long periods of time.
●
Do not get the keys wet or wash them
in an ultrasonic washer etc.
●
If the battery or card key terminals get
wet, the battery may corrode. If the key
is dropped into water, or if drinking
water etc. is spilled on the key, immediately remove the battery cover and
wipe the battery and terminals. (To
remove the battery cover, lightly grasp
and pull it.) If the battery is corroded,
have your Lexus dealer replace the
battery.
●
Do not crush the battery cover or use
a screwdriver to remove the battery
cover. Forcibly removing the battery
cover may bend or damage the key.
Page 84
82
NOTICE
E
F
3-1. Key information
Opens the trunk (P.89)
●
If the battery cover is frequently
removed, the battery cover may
become loose.
●
When installing the battery, make sure
to check the direction of the battery.
Installing the battery in the wrong
direction may cause the battery to
deplete rapidly.
●
The surface of the card key may be
damaged, or its coating may peel off in
the following situations:
• The card key is carried together with
hard objects, such as coins and keys.
• The card key is scraped with a sharp
object, such as the tip of a mechanical
pencil.
• The surface of the card key is wiped
with thinner or benzene.
Wireless remote control
The electronic keys are equipped with
the following wireless remote control:
Locks the doors (P.84)
A
Closes the windows and moon roof
B
(if equipped)
*
(P.84)
Sounds the alarm
*
: These settings must be customized at
your Lexus dealer.
■
Panic mode
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will flash
to deter any person from trying to break
into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
Using the mechanical key
To take out the mechanical key, push
the release button and take the key out.
The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(P.301)
Unlocks the doors (P.84)
C
Opens the windows and moon roof
D
(if equipped)
*
(P.84)
Page 85
■
When required to leave the vehicle’s
key with a parking attendant
Set the luggage security system (P.90)
on and lock the glove box (P.220) as circumstances demand.
Remove the mechanical key for your own
use and provide the attendant with the electronic key only.
■
If you lose your mechanical keys
P.300
■
If a wrong key is used
The key cylinder rotates freely, isolated
from the internal mechanism.
3-1. Key information
83
3
Before driving
Page 86
84
3-2.Opening, closing and locking the doors an d trunk
3-2. Opening, closing and locking the doors and trunk
Doors
Unlocking and locking the doors
from the outside
■
Smart entry & start system
Carry the electronic key to enable this
function.
1 Grip the driver’s door handle to
unlock the door. Grip the passenger’s door handle to unlock both
side doors.
Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.
*
: The door unlock settings can be
changed.
2 Touch the lock sensor (indentation
on the side of the door handle) to
lock the doors.
Check that the door is securely locked.
*
■
Wireless remote control
1 Locks both side doors
Check that the door is securely locked.
Press and hold to close the windows and
moon roof (if equipped).
*
2 Unlocks both side doors
Pressing the button unlocks the driver’s
door. Pressing the button again within 5
seconds unlocks the other door.
Press and hold to open the windows and
moon roof (if equipped).
*
: These settings must be customized at
your Lexus dealer.
■
Side window open/close function linked
to door operation
When a door is opened, its window opens
slightly. When a door is closed, its window
closes completely.
■
Switching the door unlock function
It is possible to set which doors the entry
function unlocks using the wireless remote
control.
1 Turn the engine switch off.
2 Cancel the intrusion sensor and tilt sen-
sor of the alarm system to prevent unintended triggering of the alarm while
changing the settings. (P.50)
3 When the indicator light on the key sur-
face is not on, press and hold ,
or for approximately 5
*
Page 87
3-2. Opening, closing and locking the doors and trunk
85
seconds while pressing and holding
.
The setting changes each time an operation
is performed, as shown below. (When
changing the setting continuously, release
the buttons, wait for at least 5 seconds, and
repeat step 3.)
Multi-information
display/Beep
Unlocking function
Holding the driver’s
door handle unlocks
only the driver’s
door.
Exterior: Beeps 3
times
Interior: Pings once
Holding the passenger’s door handle
unlocks both side
doors.
Holding either door
Exterior: Beeps
twice
handle unlocks both
side doors.
Interior: Pings once
■
Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: once;
Unlocked: twice)
A buzzer sounds to indicate that the windows and moon roof are operating.
■
Welcome light illumination control
The front position, tail and license plate
lights automatically turn on at night when
the doors are unlocked using the entry
function or wireless remote control if the
light switch is in the position.
■
Security feature
If a door is not opened within approximately
30 seconds after the vehicle is unlocked,
the security feature automatically locks the
vehicle again.
■
When the door cannot be locked by the
lock sensor on the surface of the door
handle
Use your palm to touch the lock sensor.
3
Before driving
To prevent unintended triggering of the
alarm, unlock the doors using the wireless
remote control and open and close a door
once after the settings have been changed.
(If a door is not opened within 30 seconds
after is pressed, the doors will be
locked again and the alarm will automati-
cally be set.)
In a case that the alarm is triggered, imme-
diately stop the alarm. (P.49)
■
Impact detection door lock release system
In the event that the vehicle is subject to a
strong impact, both side doors are
unlocked. Depending on the force of the
impact or the type of accident, however, the
system may not operate.
■
Open door warning buzzer
If an attempt to lock the doors is made when
a door is not fully closed, a buzzer sounds
continuously for 5 seconds. Fully close the
door to stop the buzzer, and lock the vehicle once more.
■
Setting the alarm
Locking the doors will set the alarm system.
(P.49)
■
Conditions affecting the operation of
the smart entry & start system or wireless remote control
P.92
Page 88
86
WARNING
■
Use the mechanical key and/or inside lock
buttons to lock and unlock the doors.
(P.301)
Replace the key battery with a new one if it
is depleted. (P.263)
■
Some functions can be customized.
(P.320)
3-2. Opening, closing and locking the doors and trunk
If the smart entry & start system or the
wireless remote control does not operate properly
Customization
■
To prevent an accident
Observe the following precautions while
driving the vehicle.
Failure to do so may result in a door
opening and an occupant being thrown
out of the vehicle, resulting in death or
serious injury.
●
Ensure that both side doors are properly closed and locked.
●
Do not pull the inside handle of the
doors while driving.
The doors may be opened even if the
inside lock buttons are in locked position.
Unlocking and locking the doors
from the inside
■
Door lock switches (to
lock/unlock)
1 Locks both side doors
2 Unlocks both side doors
■
Inside lock buttons (to lock/unlock)
■
Side window open/close function
linked to door operation
Do not hold the upper edge of the side
window when you close the door. Otherwise, your fingers or hand may be caught
in the window.
■
When using the wireless remote control and operating the power windows
or moon roof
Operate the power window or moon
roof after checking to make sure that
there is no possibility of any passenger
having any of their body parts caught in
the window or moon roof. Also, do not
allow children to operate the wireless
remote control. It is possible for children
and other passengers to get caught in
the power window or moon roof.
1 Locks the door
2 Unlocks the door
Both side doors can be opened by pulling
the inside handle even if the lock buttons
are in the lock position.
■
Locking the doors from the outside without a key
1 Move the inside lock button to the lock
position.
2 Close the door while pulling the door
handle.
The door cannot be locked if the engine
switch is in ACCESSORY or IGNITION
Page 89
3-2. Opening, closing and locking the doors and trunk
87
ON mode, or the electronic key is left
inside the vehicle. However, the key may not
be detected correctly and the door may be
locked.
■
If a symbol indicating one or more of the
doors open is shown on the multi-information display
The hood, one or more of the doors, or
trunk is not fully closed. If the vehicle
reaches a speed of 5 km/h (3 mph), the
master warning light flashes and a buzzer
sounds to indicate that the door(s) are not
fully closed. Make sure to close hood, all
doors and trunk.
Automatic door locking and
unlocking systems
The following functions can be set or
canceled:
For instructions on customizing, refer to
P.320
Function Operation
Both side doors are
Speed linked
door locking
function
automatically locked
when the vehicle
speed is approximately 20 km/h (12
mph) or higher.
Function Operation
Shift position
linked door
unlocking function
Driver’s door
linked door
unlocking function
Both side doors are
automatically unlocked
when the shift lever is
shifted to P.
Both side doors are
automatically unlocked
when driver’s door is
opened.
3
Before driving
Shift position
linked door locking function
Both side doors are
automatically locked
when the shift lever is
shifted to a position
other than P.
Page 90
88
WARNING
3-2. Opening, closing and locking the doors and trunk
Trunk
The trunk can be opened using the
trunk opener switch, entry function
or wireless remote control.
Observe the following precautions.
Failure to do so may result in death or
serious injury.
■
Before driving
●
Make sure that the trunk lid is fully
closed. If the trunk lid is not fully
closed, it may open unexpectedly
while driving and hit near-by objects or
luggage in the trunk may be thrown
out, causing an accident.
●
Do not allow children to play in the
trunk.
If a child is accidentally locked in the
trunk, they could suffer from heat
exhaustion, suffocation or other injuries.
●
Remove any heavy loads, such as snow
and ice, from the trunk lid before
opening it. Failure to do so may cause
the trunk lid to suddenly shut again
after it is opened.
●
When opening or closing the trunk lid,
thoroughly check to make sure the
surrounding area is safe.
●
If anyone is in the vicinity, make sure
they are safe and let them know that
the trunk is about to open or close.
●
Use caution when opening or closing
the trunk lid in windy weather as it may
move abruptly in strong wind.
●
On an incline it is more difficult to
open or close the trunk lid than on a
level surface, so beware of the trunk lid
unexpectedly opening or closing by
itself. Make sure that the trunk lid is
fully open and secure before using the
trunk.
●
When opening the trunk lid, take care
so that it does not hit anyone in the
face or any other part of the body.
●
Do not allow a child to open or close
the trunk lid.
Doing so may cause the trunk lid to
open unexpectedly, or cause the
child’s hands, head, or neck to be
caught by the closing trunk lid.
■
Important points while driving
Never let anyone sit in the trunk. In the
event of sudden braking or a collision,
they are susceptible to death or serious
injury.
■
Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the
body to be caught, resulting in serious
injury.
●
When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.
Page 91
3-2. Opening, closing and locking the doors and trunk
WARNING
●
When closing the trunk lid, make sure
to press it lightly on its outer surface. If
the trunk handle is used to fully close
the trunk lid, it may result in hands or
arms being caught.
●
Do not attach any accessories other
than genuine Lexus parts to the trunk
lid. Such additional weight on the trunk
lid may cause the lid to suddenly shut
again after it is opened.
Opening/closing the trunk
■
Trunk opener switch
Press the trunk opener switch.
■
Wireless remote control
Press and hold the switch.
A buzzer sounds.
89
3
Before driving
■
Smart entry & start system
While carrying the electronic key,
press the button on the trunk lid.
When both side doors are unlocked
using one of the following methods, the
trunk can be opened without the electronic key:
Entry function
Wireless remote control
Door lock switches
Automatic door unlocking system
Mechanical key
■
Trunk grip
Using the trunk grip, lower the trunk
without applying force to the side and
push the trunk down from the outside
to close it.
■
Trunk light
●
The trunk light turns on when the trunk is
opened.
●
If the trunk light is left on when the engine
Page 92
90
A
B
3-2. Opening, closing and locking the doors and trunk
switch is turned off, the light will go off
automatically after 20 minutes.
■
Function to prevent the trunk being
locked with the electronic key inside
●
When both side doors are locked, closing
the trunk lid with the electronic key left
inside the trunk will sound an alarm.
In this case, the trunk lid can be opened
by pressing the trunk release button on
the trunk lid.
●
If the spare electronic key is put in the
trunk with both side doors locked, the key
confinement prevention function is activated so the trunk can be opened. In
order to prevent theft, take all electronic
keys with you when leaving the vehicle.
●
If the electronic key is put in the trunk with
both side doors locked, the key may not
be detected depending on the location of
the key and the surrounding radio wave
conditions. In this case, the key confinement prevention function cannot be activated, causing the doors to lock when the
trunk is closed. Make sure to check
where the key is before closing the trunk.
●
The key confinement prevention function
cannot be activated if either door is
unlocked. In this case, open the trunk
using the trunk opener.
■
Using the mechanical key
The trunk can be also opened using the
mechanical key. (P.301)
■
If the smart entry & start system or the
wireless remote control does not operate properly
Use the mechanical key to unlock the trunk.
(P.301)
Replace the key battery with a new one if it
is depleted. (P.263)
■
If a symbol indicating the trunk opens is
shown on the multi-information display
P.87
■
Customization
Some functions can be customized.
(P.320)
Luggage security system
To protect luggage stored in the trunk
against theft, the luggage security system can be set to on.
1 Close the inside trunk door. (if
equipped) (P.222)
2 To disable the trunk opener, turn
the main switch in the glove box off.
On
Off
When the main switch is off, the trunk lid
cannot be opened even with the wireless
remote control or entry function.
■
When leaving a key to the vehicle with a
parking attendant
P.83
Page 93
3-2. Opening, closing and locking the doors and trunk
B
A
B
C
Smart entry & start system
The following operations can be
performed simply by carrying the
electronic key (including the card
key) on your person, for example in
your pocket. The driver should
always carry the electronic key.
Locks and unlocks the doors
(P.84)
Opens the trunk (P.89)
Starts the engine (P.120)
■
Antenna location
■
Effective range (areas within which the
electronic key is detected)
When locking or unlocking the doors
The system can be operated when the
electronic key is within about 0.7 m (2.3 ft.)
of an outside door handle. (Only the doors
detecting the key can be operated.)
When opening the trunk
The system can be operated when the
electronic key is within about 0.7 m (2.3 ft.)
of the trunk release button.
When starting the engine or changing
engine switch modes
The system can be operated when the
electronic key is inside the vehicle.
91
3
Before driving
■
Alarms and warning messages
An alarm sounds and warning messages
are displayed on the multi-information display to protect against unexpected accidents or theft of the vehicle resulting from
erroneous operation. When a warning message is displayed, take appropriate meas-
Antennas outside the cabin
A
Antennas inside the cabin
Antenna inside the trunk
C
Antenna outside the trunk
D
ures based on the displayed message.
(P.285)
When only an alarm sounds, circumstances
and correction procedures are as follows.
●
When an exterior alarm sounds once for
5 seconds
Page 94
92
3-2. Opening, closing and locking the doors and trunk
Situation
The trunk was closed
while the electronic key
was still inside the trunk
and both side doors were
locked.
An attempt was made to
lock the vehicle while a
door was open.
●
When an interior alarm sounds continu-
Correction
procedure
Retrieve the
electronic key
from the trunk
and close the
trunk lid.
Close both
side doors and
lock the doors
again.
ously
Situation
Correction
procedure
The engine switch was
turned to ACCESSORY
mode while the driver’s
door was open (or the
driver’s door was opened
while the engine switch
Turn the engine
switch off and
close the
driver’s door.
was in ACCESSORY
mode).
The engine switch was
turned off while the
driver’s door was open.
■
Battery-saving function
Close the
driver’s door.
The battery-saving function will be activated in order to prevent the electronic key
battery and the vehicle battery from being
discharged while the vehicle is not in operation for a long time.
●
In the following situations, the smart entry
& start system may take some time to
unlock the doors.
• The electronic key has been left within
approximately 2 m (6 ft.) of the outside of
the vehicle for 10 minutes or longer.
• The smart entry & start system has not
been used for 5 days or longer.
●
If the smart entry & start system has not
been used for 14 days or longer, the
doors cannot be unlocked at the passenger door. In this case, take hold of the
driver’s door handle, or use the wireless
remote control or mechanical key, to
unlock the doors.
■
Electronic Key Battery-Saving Function
When battery-saving mode is set, battery
depletion is minimized by stopping the electronic key from receiving radio waves.
Press twice while pressing and holding
. Confirm that the electronic key indica-
tor flashes 4 times.
While the battery-saving mode is set, the
smart entry & start system cannot be used.
To cancel the function, press any of the
electronic key buttons.
■
Conditions affecting operation
The smart entry & start system uses weak
radio waves. In the following situations, the
communication between the electronic key
and the vehicle may be affected, preventing
the smart entry & start system, wireless
remote control and engine immobilizer system from operating properly. (Ways of coping: P.301)
●
When the electronic key battery is
depleted
●
Near a TV tower, electric power plant,
gas station, radio station, large display,
airport or other facility that generates
strong radio waves or electrical noise
●
When carrying a portable radio, cellular
phone, cordless phone or other wireless
communication device
●
When the electronic key is in contact
with, or is covered by the following metal-
Page 95
3-2. Opening, closing and locking the doors and trunk
93
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil
inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●
When other wireless keys (that emit radio
waves) are being used nearby
●
When carrying the electronic key
together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a
wireless key that emits radio waves
• Personal computers or personal digital
assistants (PDAs)
• Digital audio players
• Portable game systems
●
If window tint with a metallic content or
metallic objects are attached to the rear
window
●
When the electronic key is placed near a
battery charger or electronic devices
■
Note for the entry function
●
Even when the electronic key is within the
effective range (detection areas), the system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors
are locked or unlocked.
• The electronic key is near the ground or
in a high place, or too close to the rear
bumper center when the trunk is opened.
• The electronic key is on the instrument
panel, rear package tray or floor, or in the
door pockets or glove box when the
engine is started or engine switch modes
are changed.
●
Do not leave the electronic key on top of
the instrument panel or near the door
pockets when exiting the vehicle.
Depending on the radio wave reception
conditions, it may be detected by the
antenna outside the cabin and the doors
will become lockable from the outside,
possibly trapping the electronic key
inside the vehicle.
●
As long as the electronic key is within the
effective range, the doors may be locked
or unlocked by anyone. However, only
the doors detecting the electronic key
can be used to unlock the vehicle.
●
Even if the electronic key is not inside the
vehicle, it may be possible to start the
engine if the electronic key is near the
window.
●
The doors may unlock or lock if a large
amount of water splashes on the door
handle, such as in the rain or in a car
wash, when the electronic key is within
the effective range. (The doors will automatically be locked after approximately
30 seconds if the doors are not opened
and closed.)
●
If the wireless remote control is used to
lock the doors when the electronic key is
near the vehicle, there is a possibility that
the door may not be unlocked by the
entry function. (Use the wireless remote
control to unlock the doors.)
●
Touching the door lock or unlock sensor
while wearing gloves may prevent lock or
unlock operation.
●
When the lock operation is performed
using the lock sensor, recognition signals
will be shown up to two consecutive
times. After this, no recognition signals
will be given.
●
If the door handle becomes wet while the
electronic key is within the effective
range, the door may lock and unlock
repeatedly. In this case, follow the following correction procedures to wash the
vehicle:
• Place the electronic key in a location 2 m
(6 ft.) or more away from the vehicle.
(Take care to ensure that the key is not
stolen.)
• Set the electronic key to battery-saving
mode to disable the smart entry & start
system. (P.92)
●
If the electronic key is inside the vehicle
and a door handle becomes wet during a
car wash, a message may be shown on
the multi-information display and a
buzzer will sound outside the vehicle. To
turn off the alarm, lock both side doors.
3
Before driving
Page 96
94
WARNING
●
3-2. Opening, closing and locking the doors and trunk
The lock sensor may not work properly if
it comes into contact with ice, snow, mud,
etc. Clean the lock sensor and attempt to
operate it again.
●
A sudden handle operation or a handle
operation immediately after entering the
effective range may prevent the doors
from being unlocked. Touch the door
unlock sensor and check that the doors
are unlocked before pulling the door
handle again.
●
Unlocking the vehicle may take more
time if another electronic key is within the
effective range.
■
When the vehicle is not driven for
extended periods
●
To prevent theft of the vehicle, do not
leave the electronic key within 2 m (6 ft.)
of the vehicle.
●
The smart entry & start system can be
deactivated in advance.
■
To operate the system properly
●
Make sure to carry the electronic key
when operating the system. Do not get
the electronic key too close to the vehicle
when operating the system from the outside of the vehicle.
Depending on the position and holding
condition of the electronic key, the key may
not be detected correctly and the system
may not operate properly. (The alarm may
go off accidentally, or the door lock prevention function may not operate.)
●
Do not leave the electronic key inside the
trunk.
The key confinement prevention function
may not operate, depending on the location of the key (close to a spare tire [if
equipped], the inside edge of the trunk),
conditions (inside a metal bag, close to
metallic objects) and the radio waves in
the surrounding area. (P.91)
■
If the smart entry & start system does
not operate properly
●
Locking and unlocking the doors and
opening the trunk: P.301
●
Starting the engine: P.302
■
Customization
Some functions can be customized.
(P.320)
■
If the smart entry & start system has
been deactivated in a customized setting
●
Locking and unlocking the doors and
opening the trunk:
Use the wireless remote control or
mechanical key. (P.84, 89, 301)
●
Starting the engine and changing engine
switch modes: P.302
●
Stopping the engine: P.121
■
Caution regarding interference with
electronic devices
●
People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable
cardioverter defibrillators should
maintain a reasonable distance
between themselves and the smart
entry & start system antennas. (P.91)
The radio waves may affect the operation of such devices. If necessary, the
entry function can be disabled. Ask
your Lexus dealer for details, such as
the frequency of radio waves and timing of the emitted radio waves. Then,
consult your doctor to see if you
should disable the entry function.
●
Users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable
cardioverter defibrillators should consult the manufacturer of the device for
information about its operation under
the influence of radio waves.
Radio waves could have unexpected
effects on the operation of such medical devices.
Ask your Lexus dealer for details on
disabling the entry function.
Page 97
3-3.Adjusting the seats
WARNING
A
B
C
D
E
Front seats
■
When adjusting the seat position
●
Take care when adjusting the seat
position to ensure that other passengers are not injured by the moving
seat.
●
Do not put your hands under the seat
or near the moving parts to avoid
injury.
Fingers or hands may become jammed in
the seat mechanism.
●
Make sure to leave enough space
around the feet so they do not get
stuck.
■
Seat adjustment
To reduce the risk of sliding under the lap
belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may
slide past the hips and apply restraint
forces directly to the abdomen, or your
neck may contact the shoulder belt,
increasing the risk of death or serious
injury in the event of an accident.
Adjustments should not be made while
driving as the seat may unexpectedly
move and cause the driver to lose control
of the vehicle.
3-3. Adjusting the seats
Adjustment procedure
Seat position adjustment
Seatback angle adjustment
Seat cushion (front) angle adjustment
Vertical height adjustment
Lumbar support adjustment
(driver’s seat only)
■
Power easy access system
The driver’s seat and steering wheel move
in accordance with engine switch mode and
the driver’s seat belt condition. (P.97)
■
When adjusting the seat
Take care when adjusting the seat so that
the head restraint does not touch the ceiling.
95
3
Before driving
Entering/exiting the rear seats
(lever-operated “Front, Fold &
Return” seat)
■
Before entering/exiting the rear
seats
Remove the seat belt from the seat belt
Page 98
96
WARNING
3-3. Adjusting the seats
guide. (P.24)
■
Entering/exiting the rear seat
1 Pull the lever.
The front seat will lower automatically.
2 Fold the seatback completely for-
ward.
The front seat will move forward automatically.
●
The lever-operated “Front, Fold &
Return” seat will not operate in the following situations:
• The front seat belt of the seat to be operated is fastened.
• The engine switch is in IGNITION ON
mode and the shift lever is in a position
other than P (driver’s seat only).
●
Operation of the lever-operated “Front,
Fold & Return” seat will stop in the following situations:
• A power seat adjusting switch or a driving position memory switch is pressed.
• The front seat belt of the seat which is
operating is fastened.
• The engine switch is in IGNITION ON
mode and the shift lever is moved to a
position other than P (driver’s seat only).
■
Jam protection function
While the lever-operated “Front, Fold &
Return” seat is operating, if an object is
stuck either in front of or behind the front
seat, the front seat will stop and then move
in the opposite direction slightly.
■
Returning the front seat to its original position
Move the seatback backward until it
locks. The front seat will return to its
original position automatically.
■
Lever-operated “Front, Fold & Return”
seat
●
After the front seat is moved forward by
operating the “Front, Fold & Return” seat
lever, if a power seat adjusting switch or a
driving position memory switch is
pressed, the front seat will not return to its
original position even if the front seatback
is moved backward until it locks.
■
Lever-operated “Front, Fold &
Return” seat
●
Before operating the lever-operated
“Front, Fold & Return” seat, ensure that
any surrounding passengers or objects
will not contact the seat.
●
Make sure the seatback is locked
securely before driving.
●
Never operate the lever-operated
“Front, Fold & Return” seat while the
vehicle is moving.
■
Jam protection function
Do not use a hand, foot, or any other part
of your body to intentionally activate the
jam protection function.
Page 99
3-3. Adjusting the seats
97
Power easy access system/driving position memory/memory recall function
This feature automatically adjusts
the driver’s seat, steering wheel
and outside rear view mirrors to
make entering and exiting the vehicle easier or to suit your preferences.
Power easy access system
The seat and steering wheel* are automatically adjusted to allow the driver to
enter and exit the vehicle easily.
When all of the following have been
performed, the driver’s seat and steer-
ing wheel
to a position that allows driver to enter
and exit the vehicle easily.
The shift lever has been shifted to P.
The engine switch has been turned
The driver’s seat belt has been
*
are automatically adjusted
off.
unfastened.
ing wheel
*
automatically return to their
original positions.
The engine switch has been turned
to ACCESSORY mode or IGNITION ON mode.
The driver’s seat belt has been fas-
tened.
*
: Power type
■
Operation of the power easy access system
When exiting the vehicle, the power easy
access system may not operate if the seat is
already close to the rear position, etc.
■
Customization
Some functions can be customized.
(P.320)
Recording a driving position into
memory
1 Check that the shift lever is in P.
2 Turn the engine switch to IGNI-
TION ON mode.
3 Adjust the driver’s seat, steering
wheel, and outside rear view mirrors to the desired positions.
4 While pressing the “SET” button, or
within 3 seconds after the “SET”
button is pressed, press button “1”,
“2” or “3” until the buzzer sounds.
If the selected button has already been
preset, the previously recorded position
3
Before driving
When any of the following has been
performed, the driver’s seat and steer-
Page 100
98
WARNING
3-3. Adjusting the seats
will be overwritten.
■
Seat adjustment caution
Take care during seat adjustment so that
the seat does not strike the rear passenger or squeeze your body against the
steering wheel.
Recalling a driving position
1 Check that the shift lever is in P.
2 Turn the engine switch to IGNI-
TION ON mode.
3 Press one of the buttons for the
driving position you want to recall
until the buzzer sounds.
●
Operate any of the seat adjustment
switches (only cancels seat position
recall).
●
Operate the tilt and telescopic steering
control switch (only cancels steering
wheel position recall).
■
Seat positions that can be memorized
(P.95)
The adjusted positions other than the position adjusted by lumbar support switch can
be recorded.
■
Operating the driving position memory
after turning the engine switch off
Recorded seat positions can be activated
up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is
closed again.
■
In order to correctly use the driving
position memory function
If a seat position is already in the furthest
possible position and the seat is operated in
the same direction, the recorded position
may be slightly different when it is recalled.
Registering/canceling/recall a
driving position to an electronic
key (including a card key) (memory recall function)
■
To stop the position recall operation
part-way through
Perform any of the following:
●
Press the “SET” button.
●
Press button “1”, “2” or “3”.
■
Registering procedure
Record your driving position to button
“1”, “2” or “3” before performing the
following:
Carry only the key you want to register,
and then close the driver’s door.
If 2 or more keys are in the vehicle, the
driving position cannot be recorded
properly.
1 Check that the shift lever is in P.
2 Turn the engine switch to IGNI-
TION ON mode.
