Lexus SC300 2004, SC400 2004, SC430 2004 Owner Manual

Page 1

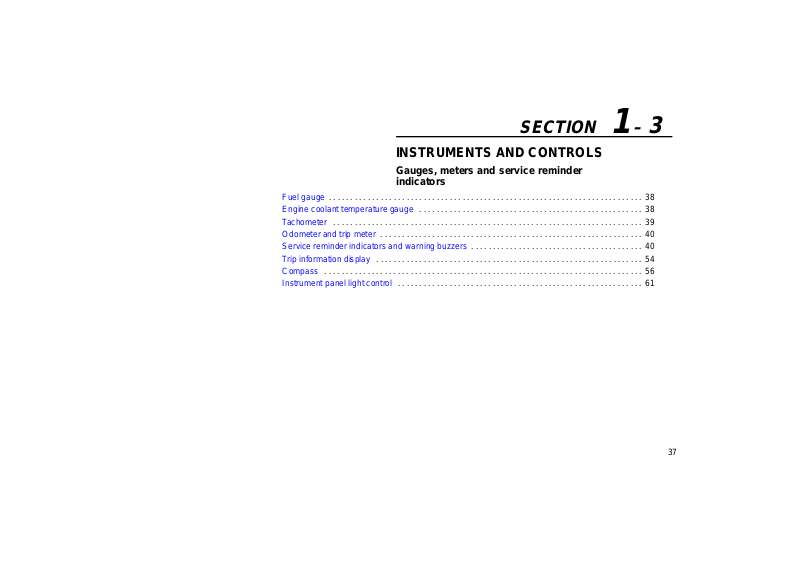

SECTION 1 –

INSTRUMENTS AND CONTROLS

Gauges, meters and service reminder indicators

Fuel gauge 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine coolant temperature gauge 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tachometer 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Odometer and trip meter 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service reminder indicators and warning buzzers 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trip information display 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Compass 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument panel light control 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 2

GAUGES, METERS AND SERVICE REMINDER INDICATORS

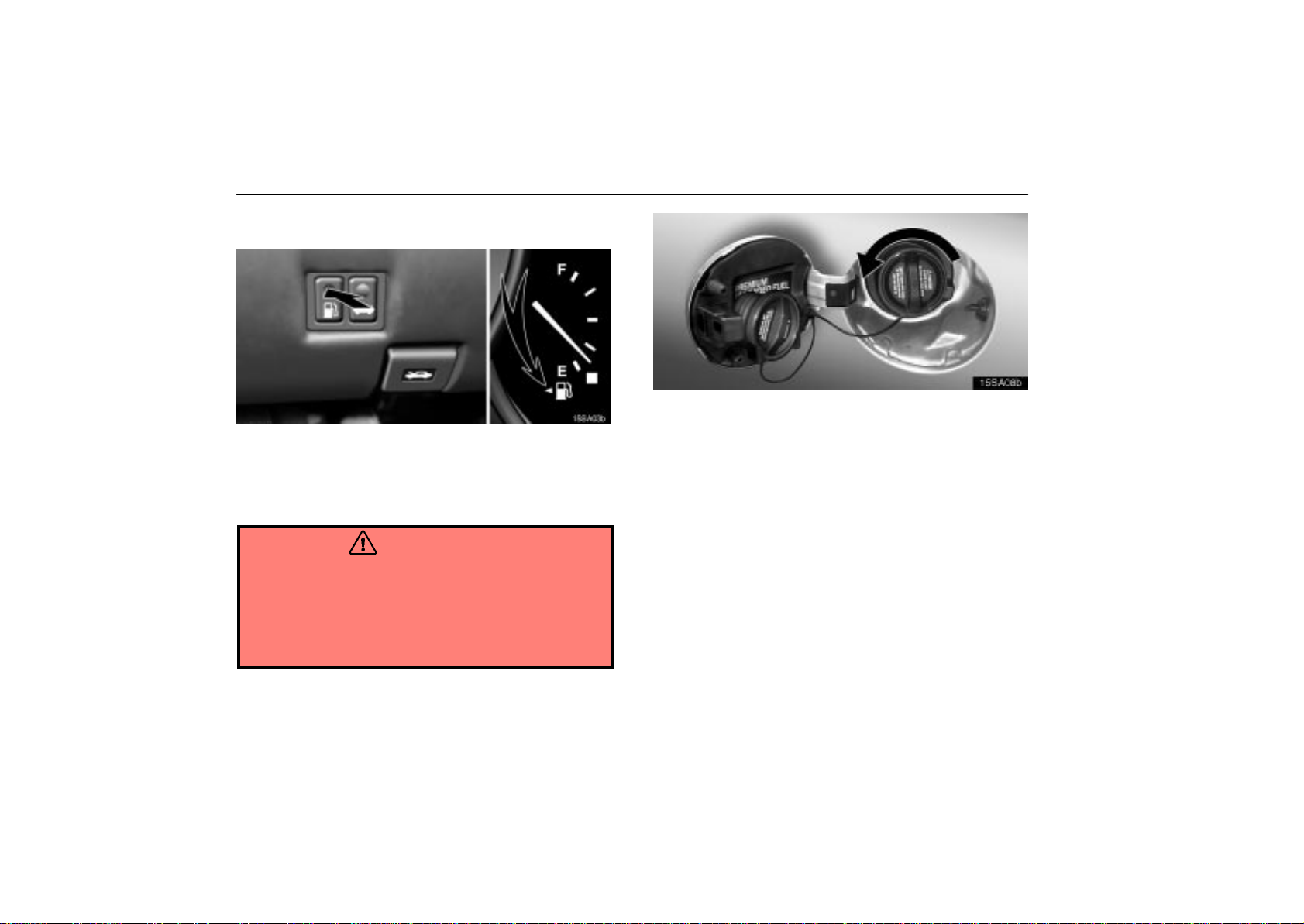

FUEL GAUGE

13sa01b



Low fuel level warning light

The gauge indicates the approximate quantity of fuel remaining in the tank when the ignition switch is on.

It is a good idea to keep the tank over 1/4 full. If the fuel level approaches ”E” or the low fuel level warning light

comes on, fill the fuel tank as soon as possible. On inclines or curves, due to the movement of fuel in the tank,

the fuel gauge needle may fluctuate or the low fuel level warning light may come on earlier than usual.

If the fuel tank is completely empty, the malfunction indicator lamp comes on. Fill the fuel tank immediately.

The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Lexus dealer as soon as possible.

See the inner back cover for fuel capacity and recommended fuel selection.

ENGINE COOLANT TEMPERATURE

GAUGE

13sa02c



Normal range

The gauge indicates the engine coolant temperature when the ignition switch is on. The engine operating temperature will vary with changes in weather and engine load.

If the needle points to the red zone or higher, stop your vehicle and allow the engine to cool.

Y our vehicle may overheat during severe operating conditions, such as:

 Driving up a long hill on a hot day.  Reducing speed or stopping after high speed driving.

Page 3

GAUGES, METERS AND SERVICE REMINDER INDICATORS

 Idling for a long period with the air conditioning on in

stop-and-go traffic.

NOTICE



Do not remove the thermostat in the engine cooling system as this may cause the engine to overheat. The thermostat is designed to control the flow of coolant to keep the temperature of the engine within the specified operating range.



Do not continue driving with an overheated engine. See ”If your vehicle overheats” on page 244.

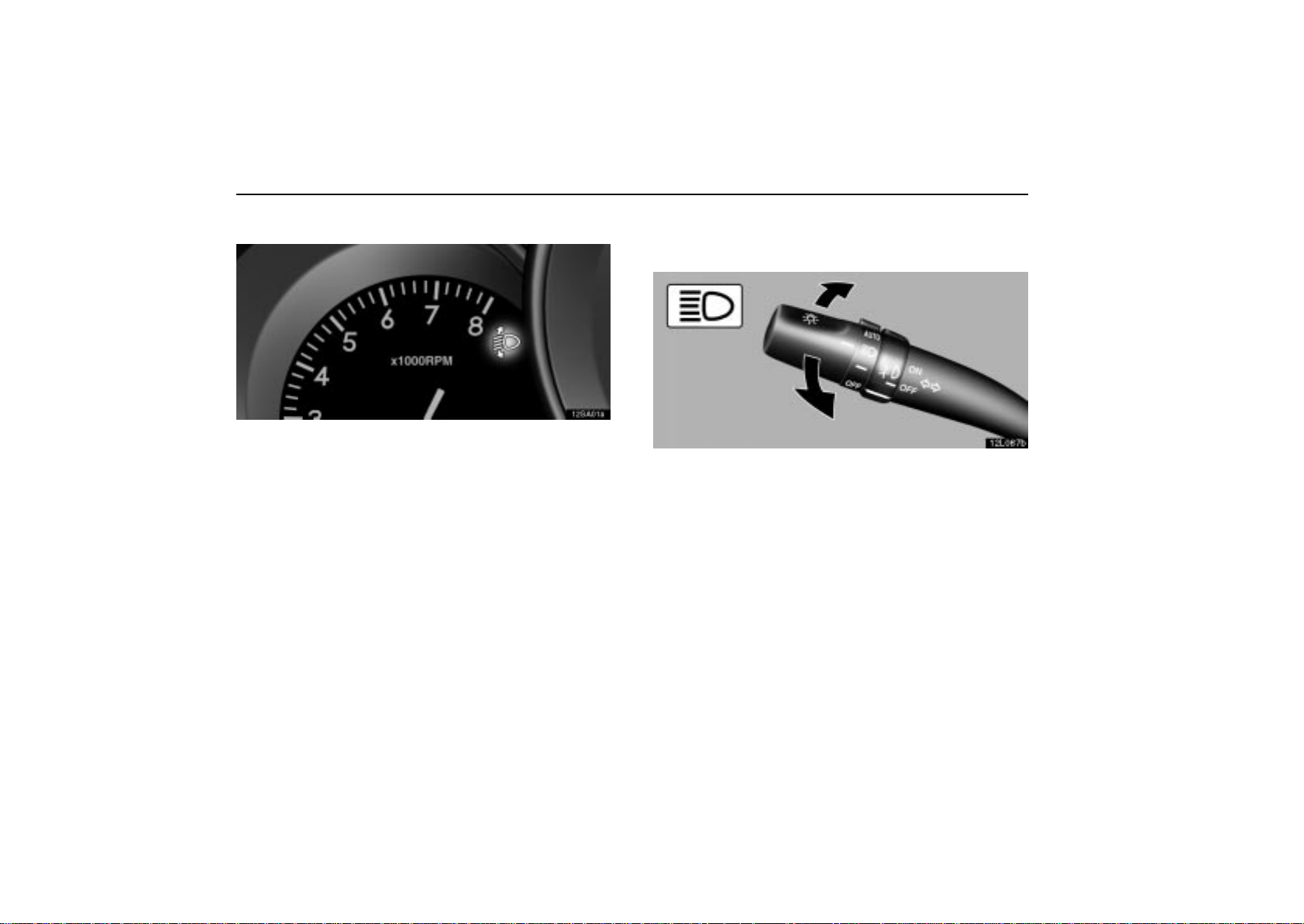

TACHOMETER

13sa03b

The tachometer indicates engine speed in thousands of rpm (revolutions per minute). Use it while driving to prevent engine over-revving.

Driving with the engine running too fast causes excessive engine wear and poor fuel economy. Remember, in most cases the slower the engine speed, the greater the fuel economy.

NOTICE

Do not let the indicator needle get into the red zone. This may cause severe engine damage.

Page 4

GAUGES, METERS AND SERVICE REMINDER INDICATORS

ODOMETER AND TRIP METER

13sa04b

This meter displays the odometer and two trip meters. To change the mode indication, push the ”ODO/TRIP” button.

The odometer records the total distance the vehicle has been driven. The twin trip meter records two different distances independently.

For example, you can use one meter to calculate the fuel economy and the other to measure the distance on each trip.

To change the trip meter indication from one trip to the other, push the ”ODO/TRIP” button. To set the A trip meter to zero, display the A meter reading, then push the ”RESET” button. The same applies for the B trip meter.

The data of trip meters will be cancelled if the electrical power source is disconnected.

When calibrating the compass, use both “ODO/TRIP” and “RESET” buttons. For details, see “Calibrating the compass” on page 58.

SERVICE REMINDER INDICATORS

AND WARNING BUZZERS

IF THIS INDICATOR OR BUZZER COMES ON ...

(a)

(Indicator and buzzer)

(b)

(Indicator and buzzer)

(c)

(d)

DO THIS.

If parking brake is off, stop immediately and contact Lexus dealer.

Fasten driver’s seat belt.

Fasten front passenger’s seat belt.

Take vehicle to Lexus dealer immediately.

Page 5

GAUGES, METERS AND SERVICE REMINDER INDICATORS

IF THIS INDICATOR OR BUZZER COMES ON ...

(e)

(f)

(g)

(h)

(i)

DO THIS.

Stop and check.

Add engine oil.

Take vehicle to Lexus dealer.

Take vehicle to Lexus dealer. If brake system warning light is also on, stop immediately and contact Lexus dealer.

IF THIS INDICATOR OR BUZZER COMES ON ...

(j)

(Indicator and buzzer)

(k)

(l)

(m)

(n)

and

DO THIS.

Close all doors.

Replace bulb.

Add washer fluid.

Take vehicle to Lexus dealer.

Page 6

GAUGES, METERS AND SERVICE REMINDER INDICATORS

IF THIS INDICATOR OR BUZZER COMES ON ...

(o)

(p)

(q)

(r)

Low fuel level warning light

Key reminder buzzer

Open retractable hardtop warning buzzer

DO THIS.

Adjust tire inflation pressure.

Fill up tank.

Remove key.

Stop immediately and open or close the retractable hardtop fully.

(a) Brake System Warning Light and Buzzer

This light comes on in the following cases when the ignition switch is in the “ON” position.

 When the parking brake is applied ...

This light comes on for a few seconds when the ignition switch is turned to the “ON” position even after the parking brake is released.

If you drive your vehicle without releasing the parking brake, the buzzer sounds.

 When the brake fluid level is low ...

CAUTION

It is dangerous to continue driving normally when the brake fluid level is low.

 When the hydraulic brake booster fails ...

If the hydraulic booster causes a problem resulting in poor braking performance, the warning light comes on and buzzer sounds continuously.

Page 7

GAUGES, METERS AND SERVICE REMINDER INDICATORS

Have your vehicle checked at your Lexus dealer in the following cases:

 The light does not come on even if the parking brake is

applied when the ignition switch is turned to the “ON”

position.

 The light does not come on even if the ignition switch is

turned on with the parking brake released.

A warning light turned on briefly during operation does not indicate a problem.

CAUTION

If either of the following conditions occurs, immediately stop your vehicle at a safe place and contact your Lexus dealer.

 The light does not turn off even after the parking

brake is released while the engine is running.

 The warning buzzer comes on together with the

warning light.

In either case, this can indicate that the brakes may not work properly and your stopping distance will become longer. Depress the brake pedal firmly and bring the vehicle to an immediate stop.

 The brake system warning light remains on together

with the “ABS” warning light.

In this case, not only the anti-lock brake system will fail but also the vehicle will become extremely unstable during braking.

Any of the following conditions may occur, but do not indicate the malfunction:

 The light may stay on for about 60 seconds after the ignition

switch is turned to the “ON” position. It is normal if it turns

off after a while.

 Depressing the brake pedal repeatedly may turn on the

warning light and buzzer. It is normal if the light turns of f and

the buzzer stops sounding after a few seconds.

 You may hear a small sound in the engine compartment

after the engine is started or the brake pedal is depressed repeatedly. This is a pump pulsating sound of the brake

system, and it is not a malfunction.

Page 8

GAUGES, METERS AND SERVICE REMINDER INDICATORS

(b) Driver’s Seat Belt Reminder Light and

Buzzer

This light and buzzer remind you to buckle up the driver’s seat belt.

Once the ignition switch is turned to ”ON” or ”START”, the reminder light flashes and buzzer comes on if the driver’s seat belt is not fastened. Unless the driver fastens the belt, the light stays flashing and the buzzer stops after about 4 to 8 seconds.

Light

This light reminds you to buckle up the front passenger’s seat belt.

Once the ignition switch is turned to ”ON” or ”START”, the reminder light flashes if a passenger sits in the front passenger seat and does not fasten the seat belt. Unless the front passenger fastens the belt, the light stays flashing. However, if a front passenger uses an additional seat cushion, the light may not flash even when the seat belt is not buckled up.

If luggage or other load is placed on the front passenger seat, depending on its weight and how it is placed on the seat, built-in sensors in the seat cushion may detect the pressure, causing the reminder light to come on.

(d) SRS Warning Light

This indicator comes on when the ignition switch is turned to the ”ON” position. It goes off after about 6 seconds. This means the SRS airbags and seat belt pretensioners are operating properly.

The SRS warning light system monitors the airbag sensor assembly, front airbag sensors, side airbag sensors, occupant detection sensor, seat belt buckle switch, front seat belt pretensioner assemblies, inflators, warning light, interconnecting wiring and power sources.

If either of the following conditions occurs, this indicates a malfunction somewhere in the parts monitored by the warning light system. Contact your Lexus dealer as soon as possible to service the vehicle.

 When the ignition switch is turned to the “ON” position, the

light does not come on, remains on or flashes.  The light comes on or starts flashing while driving. If the light stays on, it indicates that the SRS front airbags have

a problem. If the light flashes, the SRS side airbags and/or seat belt pretensioners have a problem.

Page 9

GAUGES, METERS AND SERVICE REMINDER INDICATORS

(e) Discharge Warning Light

This light warns that the battery is being discharged. If it comes on while you are driving, stop the vehicle, turn off the

engine, and check for the cause. Look first at the engine drive belt.

 If it is loose or broken, the generator will not charge the

battery properly.

 If the belt is O.K., there is a problem somewhere in the

charging system.

The engine ignition will continue to operate, however, until the battery is discharged. Turn off the air conditioning, blower, radio, etc., and drive directly to the nearest Lexus dealer or repair shop.

NOTICE

Do not continue driving if the engine drive belt is broken or loose.

(f) Low Engine Oil Pressure Warning Light

This light warns that the engine oil pressure is too low. If it flickers or stays on while you are driving, pull off the road

to a safe place and stop the engine immediately. Call a Lexus dealer or qualified repair shop for assistance.

The light may occasionally flicker when the engine is idling or it may come on briefly after a hard stop. There is no cause for concern if it then goes out when the engine is accelerated slightly.

The light may come on when the oil level is extremely low. It is not designed to indicate low oil level, and the oil level must be checked using the oil level dipstick.

NOTICE

Do not drive the vehicle with the warning light on - even for one block. It may ruin the engine.

Page 10

GAUGES, METERS AND SERVICE REMINDER INDICATORS

(g) Low Engine Oil Level Warning Light

This light warns that the engine oil level is too low. Add oil as soon as possible. (For instructions, see ”Checking the engine oil level” on page 316.)

While driving on steep inclines or rough roads which causes the vehicle to substantially sway or on curves, this light may come on due to the movement of engine oil in the engine.

In normal conditions, due to engine oil consumption, this light may come on earlier than the specified service interval of the scheduled maintenance. This is because the engine oil is consumed to the low level within the scheduled maintenance interval and does not indicate a problem. (For detailed information, see “Facts about engine oil consumption” on page

314.)

NOTICE

Continued engine operation with low engine oil will damage the engine.

(h) Malfunction Indicator Lamp

This lamp comes on when the ignition switch is turned to the “ON” position and goes off after the engine starts. This means that the warning light system is operating properly.

If the lamp remains on, or the lamp comes on while driving, first check the following:

 Empty fuel tank

If the fuel tank is empty, refuel immediately.  Loose fuel tank cap

If the fuel tank cap is loose, securely tighten it. These cases are temporary malfunctions. The malfunction

indicator lamp will go off after taking several driving trips. If the lamp does not go off even after several trips, contact your

Lexus dealer as soon as possible.

If the fuel tank is not empty or the fuel tank cap is not loose...

 There is a problem somewhere in the engine, emission

control system, electronic throttle control system, automatic transmission electrical system or warning light system itself.

Contact your Lexus dealer as soon as possible to service the vehicle.

Page 11

GAUGES, METERS AND SERVICE REMINDER INDICATORS

If this lamp comes on and engine speed does not increase with the accelerator pedal depressed, there may be a problem somewhere in your electronic throttle control system.

At this time, vibrations may occur. However , if you depress the accelerator pedal more firmly and slowly, you can drive your vehicle at low speeds. Have your Lexus checked by your Lexus dealer as soon as possible.

Even if the a b normality of the electronic throttle control system is corrected during low speed driving, the system may not be recovered until the engine is stopped and the ignition switch is turned to “ACC” or “LOCK” position.

Emissions inspection and maintenance (I/M) programs

Your vehicle may not pass a state emission inspection if the malfunction indicator lamp remains on. Contact your Lexus dealer to check your vehicle’s emission control system and OBD (On- Board Diagnostics) system before taking your vehicle for the inspection.

For details, see “Emissions inspection and maintenance (I/M) programs” on page 297.

(i) ”ABS” Warning Light

The light comes on when the ignition switch is turned to the “ON” position. If the anti-lock brake system and the brake assist system work properly, the light turns off after a few seconds. Thereafter, if either of the systems malfunctions, the light comes on again.

When the “ABS” warning light is on (and the brake system warning light is off), the anti-lock brake system, the brake assist system, the traction control system and/or the vehicle stability control system do/does not operate, but the brake system still operates conventionally.

When the “ABS” warning light is on (and the brake system warning light is off), the anti- lock brake system does not operate so that the wheels could lock up during a sudden braking or braking on slippery road surfaces.

 The light does not come on when the ignition switch is

turned to the “ON” position, or remains on.

 The light comes on while you are driving.

Page 12

GAUGES, METERS AND SERVICE REMINDER INDICATORS

A warning light turning on briefly during operation does not indicate a problem.

Either of the following conditions may occur, but do not indicate the malfunction:

 The light may stay on for about 60 seconds after the ignition

switch is turned to the “ON” position. It is normal if it turns

off after a while.

 Depressing the brake pedal repeatedly may turn on the

light. It is normal if it turns off after a few seconds.

CAUTION

If the “ABS” warning light remains on together with the brake system warning light, immediately stop your vehicle at a safe place and contact your Lexus dealer.

In this case, not only the anti-lock brake system will fail but also the vehicle will become extremely unstable during braking.

(j) Open Door Warning Light and Buzzer

This light remains on until both side doors and trunk lid are completely closed. The buzzer sounds if you drive your vehicle with the doors or trunk lid not closed completely.

(k) Rear Light Failure Warning Light

If this light comes on when the headlight switch is turned on (at the first or second clickstop), it indicates that one or more of the tail lights are burned out.

If it comes on when the brake pedal is depressed, one or more stop lights are burned out.

Have defective bulbs replaced as soon as possible.

(l) Low Washer Fluid Warning Light

This light comes on when the fluid level in the tank becomes very low. Fill the tank as soon as possible.

(m) Automatic Headlight Leveling System

Warning Light

This light warns that there is a problem somewhere in the automatic headlight leveling system.

If it comes on, have your vehicle checked by your Lexus dealer.

Page 13

GAUGES, METERS AND SERVICE REMINDER INDICATORS

(n) Vehicle Stability Control System Warning

Lights

These lights warn that there is a problem somewhere in the vehicle stability control system or traction control system.

If the ”VSC” warning light and ”VSC OFF” indicator light come on, have your vehicle checked by Lexus dealer as soon as possible.

The lights will come on when the ignition switch is turned to ”ON”, and will go off after about a few seconds.

The lights may stay on for 60 seconds after the ignition switch is turned to the “ON” position. It is normal if they go out after a while.

Depressing the brake pedal repeatedly may turn on the lights. It is normal if they go out after a few seconds.

If the ”VSC” warning light and ”VSC OFF” indicator light come on, the vehicle stability control system does not activate, however, it is no problem to continue your driving.

(o) Low Tire Pressure Warning Light and

Chimes

This light and chimes warn you that the tire inflation pressure is low. This light comes on when the ignition switch is turned to the “ON” position and goes off after a few seconds. This means the low tire pressure warning light is operating properly.

If the warning light does not go off, or comes on or blinks during driving, or the chimes sound, this indicates that tire inflation pressure is low. Make sure there is no flat tire. If the warning light comes on again even after air is put in the tires, a tire may still be flat.

If this warning light comes on, the action you must take is completely different depending on the type of tires used. You must understand how to distinguish tires between standard tires and run-flat tires in order to operate your vehicle safely and should refer to page 341.

If you drive over about 180 km/h (112 mph) with the tires not inflated at the designated pressure for high speed driving, the warning light may turn on. If the tires are at the designated pressure for ordinary speed driving, decreasing the speed will turn of f the warning light. (For the designated pressure for high speed driving, see “Specifications” on page 326.)

This warning light may turn on due to natural causes such as natural air leaks or tire inflation pressure changes caused by temperature. In this case, adjusting the tire inflation pressure will turn off the warning light. For details about adjusting the tire inflation pressure, see “Checking tire inflation pressure” on page 329.

Page 14

GAUGES, METERS AND SERVICE REMINDER INDICATORS

Vehicles with run-flat tires: If the warning light is on, the tire inflation pressure is lower

than specified. Stop your vehicle at a safe place as soon as possible and

check that the tire inflation pressure is as specified on the tire and loading information label. The tire pressure gauge is located in the tool bag. If the warning light comes on or blinks even after tire inflation pressure adjustment, it is probable that you have a flat tire. If you cannot verify the tire inflation pressure soon, go to the nearest Lexus dealer or authorized tire dealer at the moderate speed and do not ever exceed 90 km/h (55 mph) and have all your vehicle’s tires checked and adjusted. And whether there is a flat tire or not should be also checked at this time. If any tire must be replaced, see “If you have a flat tire” on page 245.

If the warning light does not go off more than 15 minutes after the tire inflation pressure is adjusted, the system might be malfunctioning. Consult your Lexus dealer.

CAUTION

If the warning light comes on, take your vehicle to the nearest Lexus dealer, tire dealer or gas station as soon as possible, observing the following instructions:

 Decelerate as soon as possible to the most

appropriate speed that conditions permit. Do not drive over 90 km/h (55 mph).

 Avoid abrupt steering wheel maneuvering and

braking. If the vehicle tires deteriorate, you could lose control of the steering wheel or the brakes, causing death or serious injury.

If the warning light blinks and chimes sound every few minutes, the tire inflation pressure is very low.

Decrease your speed as soon as possible and call a Lexus dealer, Roadside Assistance or Customer Service Assistance (see”Foreword”). And take your vehicle to the nearest Lexus dealer or authorized tire dealer at a speed below 90 km/h (55 mph).

When you drive your vehicle after the low tire pressure warning light blinks and chimes sound, the tire must be replaced. Do not use the repaired tire.

Page 15

GAUGES, METERS AND SERVICE REMINDER INDICATORS

CAUTION

If the warning light blinks and chimes sound, take your vehicle to the nearest Lexus dealer or authorized tire dealer as soon as possible, observing the following instructions:

 Decelerate as soon as possible to the most

appropriate speed that conditions permit. Do not drive for longer than 160 km (100 miles) or over 90 km/h (55 mph).

 Avoid abrupt steering wheel maneuvering and

braking. If the vehicle tires deteriorate, you could lose control of the steering wheel or the brakes, causing death or serious injury.

 The warning system may not activate immediately if

bursts or sudden air leakage should occur.

NOTICE



Take due care not to go over a curb stone and be careful of holes in the road because deflated tire pressure affects tire cushion performance. The wheels, tires, body, suspension and other components could be damaged.



When the tires must be replaced, have them replaced by the nearest Lexus dealer or authorized tire dealer. The tire pressure sensors will be affected by the installation or removal of tires.



Your ground clearance is reduced if the run-flat tire goes flat so avoid driving over obstacles and drive slowly on rough, unpaved roads and speed bumps. Also, do not attempt to go through an automatic car wash as the vehicle may get caught, resulting in damage.



When the tires must be replaced, replace the grommets for tire pressure sensors as well.



Do not use liquid sealants for flat tire as tire pressure sensors will be damaged.

Page 16

GAUGES, METERS AND SERVICE REMINDER INDICATORS

Vehicles with standard tires: If the warning light is on, the tire inflation pressure is lower

than specified. Stop your vehicle at a safe place as soon as possible and

The spare tire is not equipped with the tire pressure sensor. So, the warning light remains on even if the spare tire is mounted.

If the warning light does not go off more than 15 minutes after air is put in the deflated tire, the system might be malfunctioning. Consult your Lexus dealer.

CAUTION

If the warning light comes on, observe the following instructions:

 Decrease the speed as soon as possible.  Avoid abrupt steering wheel maneuvering and

braking. If the vehicle tires deteriorate, you could lose control of the steering wheel or the brakes, causing death or serious injury.

If the warning light blinks and chimes sound every few minutes, the tire inflation pressure is very low.

Stop your vehicle at a safe place as soon as possible and check that the tire inflation pressure is as specified on the tire and loading information label. The tire pressure gauge is located in the tool bag. Locate the deflated tire and change to the spare tire. For the procedure for changing the tire, see “If you have a flat tire (Vehicles with standard tires)” on page 247.

The spare tire is not equipped with the tire pressure sensor. So, the warning light remains on even if the spare tire is mounted.

CAUTION

If the warning light blinks and chimes sound, observe the following instructions:

 Decrease the speed as soon as possible.  Avoid abrupt steering wheel maneuvering and

braking. If the vehicle tires deteriorate, you could lose control of the steering wheel or the brakes, causing death or serious injury.

 The warning system may not activate immediately if

bursts or sudden air leakage should occur.

Page 17

GAUGES, METERS AND SERVICE REMINDER INDICATORS

NOTICE



When the tires must be repaired or replaced, have them repaired or replaced by the nearest Lexus dealer or authorized tire dealer. The tire pressure sensors will be affected by the installation or removal of tires.



When the tires must be replaced, replace the grommets for tire pressure sensors as well.



Do not use liquid sealants for a flat tire as tire pressure sensors will be damaged.

(p) Low Fuel Level Warning Light

This light comes on when the fuel level in the tank becomes very low. Fill the tank as soon as possible.

On inclines or curves, due to the movement of fuel in the tank, the low fuel level warning light may come on earlier than usual.

(q) Key Reminder Buzzer

This buzzer reminds you to remove the key when you open the driver’s door with the ignition switch in the ”ACC” or ”LOCK” position.

(r) Open Retractable Hardtop Warning

Buzzer

The buzzer continues sounding if you drive your vehicle with the retractable hardtop partially closed or opened. Immediately stop your vehicle and open or close the retractable hardtop fully.

How to check all the service reminder indicators

(except the low fuel level warning light):

1. Apply the parking brake.

2. Open the door. The following service reminder indicator should come on. It

goes off when you close the door completely.

3. Turn the ignition switch to ”ON”. The following service reminder indicators should come on.

w164

w158

Page 18

GAUGES, METERS AND SERVICE REMINDER INDICATORS

The following service reminder indicators go off after a few seconds.

The following service reminder indicator goes off after 6 seconds.

The lights other than the slip indicator light may stay on for about 60 seconds after the ignition switch is turned to the “ON” position. It is normal if they go out after a while.

If any service reminder indicator or warning buzzer does not function as described above, have it checked by your Lexus dealer as soon as possible.

w158

TRIP INFORMATION DISPLAY

13sa09b

The following information is shown on the automatic air conditioning control panel with the ignition switch turned on. Each time you push the “TRIP INFO” button, the displayed information is changed.

 Available driving distance  Average fuel consumption  Average vehicle speed  Blank

The displayed trip information values indicate the general driving condition and may not always reflect precise and actual conditions.

Page 19

GAUGES, METERS AND SERVICE REMINDER INDICATORS

 Available driving distance

(Figures with “Mi” or “km”)

w167a



When the fuel gauge is not close to ”E”

w173a



When the fuel gauge is close to ”E”

The available driving distance is calculated and displayed depending on the amount of remaining fuel.

 Average fuel consumption

(Figures with “MPG” or “L/100km”)

w155b

The average fuel consumption is calculated and displayed based on the total driving distance and the total fuel consumption with the engine running.

The value is updated every 10 seconds. To begin recalculating, push the ”TRIP INFO” button for more

than 1 second.

Page 20

GAUGES, METERS AND SERVICE REMINDER INDICATORS

 Average vehicle speed

(Figures with “MPH” or “km/h”)

w166a

The average vehicle speed is calculated and displayed based on the total driving distance and the total driving time with the engine running.

The displayed value is updated every 10 seconds. To begin recalculating, push the ”TRIP INFO” button for more

than 1 second.

COMPASS

(Vehicles without Navigation System)

13sa06a

When the ignition switch is on, the compass indicates the direction in which the vehicle is heading. The illustration shown above indicates the vehicle is heading north.

Displays

Directions

North

Northeast

East

Southeast

South

Southwest

West

Northwest

Page 21

GAUGES, METERS AND SERVICE REMINDER INDICATORS

The compass may not show the correct direction in the following conditions:

 The vehicle is stopped immediately after turning.

The compass does not adjust while the vehicle is stopped.

 The ignition switch is turned off immediately after turning.

The compass does not adjust while the vehicle is stopped.

 The vehicle is on an inclined surface.  The vehicle is in a place where the earth’s magnetic field is

subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a crossing, near a large

vehicle, etc.).

 The vehicle is magnetized. (There is a magnet or a metal

object near center of the instrument panel.)

 The battery has been disconnected.  Any door is open.

If the deviation is small, the compass works to calibrate the direction automatically while the vehicle is in motion.

For obtaining additional precision or for complete calibrating, see “CALIBRATING THE COMPASS” below.

COMPASS SENSOR

13SA10a



Compass sensor

The compass sensor is located behind the center of the instrument panel.

NOTICE

Do not put magnets or a metal object near the center of the instrument panel. Doing this may cause malfunction of the compass sensor.

Page 22

GAUGES, METERS AND SERVICE REMINDER INDICATORS

CALIBRATING THE COMPASS

The direction display on the compass deviates from the true direction determined by the earth’s magnetic field. The amount of deviation varies according to the geographic position of the vehicle.

To adjust for this deviation, stop the vehicle and with the ignition on, push the “ODO/TRIP” button together with the “RESET” button for longer than 3 seconds until the number (1-15) appears on the display. Then push the “RESET” button, referring to the following map to select the number of the zone where the vehicle is.

13sa11



Zone number

Page 23

GAUGES, METERS AND SERVICE REMINDER INDICATORS

Other Areas

A. Samoa

Hawaii

Guam

Saipan

Puerto Rico

Zone Number

7 7 9 9

CAUTION

Do not adjust the display while the vehicle is moving. Be sure to adjust the display only when the vehicle is stopped.

13sa07b

After you select the zone number, push the “ODO/TRIP” button. “--” blinks on the display. Then perform the circling calibration according to the following procedure.

Page 24

GAUGES, METERS AND SERVICE REMINDER INDICATORS

13sa08

Drive the vehicle slowly (at 8 km/h (5 mph) or lower) in a circle until the direction is displayed. If there is not enough space to drive in a circle, drive around the block until the direction is displayed.

After driving in 1 to 3 circles in the above method, calibration is complete with the direction shown on the display.

If calibration cannot be performed because of the vehicle is magnetized, take your vehicle to a Lexus dealer.

If you want to cancel the calibration before it is complete, push the “ODO/TRIP” button while “--” is blinking on the display.

 Do not perform circling calibration of the compass in a place

where the earth’s magnetic field is subject to interference by artificial magnetic fields (underground parking, under a steel tower, between buildings, roof parking, near a

crossing, near a large vehicle, etc.).

 During calibration, do not operate electric systems

(retractable hardtop, power windows, etc.) as they may

interfere with the calibration.

CAUTION

 When doing the circling calibration, be sure to secure

a wide space, and watch out for people and vehicles in the neighborhood. Do not violate any local traffic rules while performing circling calibration.

 Do not adjust the display while the vehicle is moving.

Be sure to adjust the display only when the vehicle is stopped.

Page 25

GAUGES, METERS AND SERVICE REMINDER INDICATORS

INSTRUMENT PANEL LIGHT

CONTROL

13SA05a

To adjust the brightness of the instrument panel lights, turn the knob.

When the headlight switch is in the first or second click stop, you can also adjust the brightness of the displays on the audio and air conditioning systems using this knob.

Page 26

GAUGES, METERS AND SERVICE REMINDER INDICATORS

Page 27

SECTION 1 –

INSTRUMENTS AND CONTROLS

Exterior equipment

Retractable hardtop 82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hood 86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trunk lid 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 28

EXTERIOR EQUIPMENT

RETRACTABLE HARDTOP

The retractable hardtop is opened or closed with a switch located in the automatic air conditioning control panel.

Opening the retractable hardtop

15sa01c

Be sure to stop your vehicle in a safe place. To open the retractable hardtop, turn the ignition switch

to “ON” position and hold down the switch on the “OPEN” side. The indicator remains on while the retractable hardtop is opening. When the retractable hardtop is fully opened, the indicator goes off and a beep sounds.

Conditions for retractable hardtop activation

 The luggage cover in the trunk is properly set. See page 79.  The trunk lid is closed. See page 89.  The trunk lid opener main switch in the glove box is on (in

pushed-in position). See page 88. If any of the conditions above is not met, the indicator blinks

and the retractable hardtop will not activate. However, if the indicator blinks and the retractable hardtop does not activate even with a l l t h e conditions above fulfilled, perform either of the following and then open the retractable hardtop.

 Start the engine.  Put the selector lever in “P”.

If the indicator remains on or off with the switch pushed, and the retractable hardtop does not activate, have your vehicle checked by your Lexus dealer.

If you hold down the switch on the “OPEN” side after or when the retractable hardtop is opened fully, the side windows will close.

If the quarter windows are not opened completely with the retractable hardtop fully opened, hold down the switch on the “OPEN” side again. The quarter windows will be opened.

Page 29

EXTERIOR EQUIPMENT

If you drive your vehicle without the retractable hardtop opened fully , a beep continues sounding. After you stop your vehicle in a safe place, immediately either open or close the retractable hardtop fully.

Closing the retractable hardtop

15sa02c

Be sure to stop your vehicle in a safe place. To close the retractable hardtop, turn the ignition switch

to “ON” position and hold down the switch on the “CLOSE” side. The indicator remains on while the retractable hardtop is closing. When the retractable hardtop is fully closed, the indicator goes off and a beep sounds.

Conditions for retractable hardtop activation

 The trunk lid is closed. See page 89.  The trunk lid opener main switch in the glove box is on (in

pushed-in position). See page 88.

If either of the conditions above is not met, the indicator blinks and the retractable hardtop will not activate. However, if the indicator blinks and the retractable hardtop does not activate even with a l l t h e c onditions above fulfilled, perform either of the following and then close the retractable hardtop.

 Start the engine.  Put the selector lever in “P”.

If the indicator remains on or off with the switch pushed, and the retractable hardtop does not activate, have your vehicle checked by your Lexus dealer.

If you hold down the switch on the “CLOSE” side after or when the retractable hardtop is closed fully, the side windows will close.

If the quarter windows are not closed completely with the retractable hardtop fully closed, hold down the switch on the “CLOSE” side again. The quarter windows will be closed.

Page 30

EXTERIOR EQUIPMENT

If you drive your vehicle without the retractable hardtop closed fully, a beep continues sounding. After you stop your vehicle in a safe place, immediately either open or close the retractable hardtop fully.

Indicator status and retractable hardtop activation:

Indicator status On Partially opened Blink Inoperative Off Fully opened or fully closed

The indicator blinks only while the switch is pushed. If the indicator blinks with the switch pushed, and the

retractable hardtop does not activate, see “Conditions for retractable hardtop activation” on page 82 and 83.

Retractable hardtop activation

CAUTION

To avoid serious personal injury, you must do the following:

 When opening or closing the retractable hardtop,

make sure there is no person around there.

 When opening or closing the retractable hardtop,

keep hands away from the hinges of the hardtop side rails and any part of the hardtop linkage mechanism.

 Do not stop operating the switch in the middle of

operation unless otherwise required. The roof will be gradually lowered, resulting in personal injury and damage to the hardtop mechanism.

 Do not open or close the retractable hardtop when

the wind is strong.

 The vehicle should never be driven with the

retractable hardtop partially opened. Make sure the hardtop has been either fully opened or fully closed before driving.

 While the vehicle is moving with the retractable

hardtop opened, nobody should stand up on the seat, sit on the package tray or lean over it. Otherwise, they could be seriously injured if the vehicle stops suddenly or if the vehicle is involved in an accident.

Page 31

EXTERIOR EQUIPMENT

 Before opening or closing the retractable hardtop,

first make sure it is safe to do so. Always make sure nobody places his/her head, hands or other parts of the body on the hardtop mechanism on the windows. If someone’s neck, head or hands get caught in the opening or closing retractable hardtop or the closing windows, it could result in serious injury. If any part of your body or something should be caught, release your hand from the switch immediately. The retractable hardtop operation will be stopped.

 Never leave small children alone in the vehicle,

especially with the ignition key still inserted. They could use the retractable hardtop switch and get trapped in the retractable hardtop or the windows. Unattended children can be involved in serious accidents.

 When small children are in the vehicle, never let them

use the switch.

NOTICE



When opening or closing the retractable hardtop, make sure there is nothing above the vehicle.



Make sure there are no items or packages in the package tray when opening or closing the retractable hardtop. Even small items may interfere with the retractable hardtop operation and can cause damage.



Do not sit or place excessive weight on the retractable hardtop when the hardtop is operating. Damage to the hardtop may occur.



Do not open or close the retractable hardtop when the temperature is below -20 windows or quarter windows cannot be opened because the y a r e frozen. Damage to the hardtop, rear window or quarter windows may result. If it is necessary to do so, warm the vehicle in a heated garage prior to operating the retractable hardtop mechanism.



Do not open the retractable hardtop if the hardtop is damp or wet. Possible interior water damage, water stains or mildew on the hardtop material may result.



When the retractable hardtop is completely opened, keep the rear window defogger turned off to avoid damage to the hardtop.



C (-4F), or the side

Page 32

EXTERIOR EQUIPMENT

Do not open the trunk when the retractable hardtop



is not closed or opened fully. The opened trunk may not be closed.



Do not open or close the retractable hardtop repeatedly within a short time. If the motor prevention circuit activates, the retractable hardtop operation is disabled. In this case, turn the ignition switch off and operate the switch again after a while.



Do not place anything on the luggage cover. Doing so could interfere with the retractable hardtop opening and damage its mechanism.



The luggage should be loaded with the cover closed securely. Otherwise the retractable hardtop opening could be interfered and its mechanism could be damaged.

INFORMATION



Do not operate the retractable hardtop when the vehicle is on the incline or gets on the step. The retractable hardtop may not activate properly.



If you operate the “OPEN/CLOSE” switch after the ignition switch is turned to off and then on with the retractable hardtop opened partially, it takes several seconds before activation. This does not indicate a malfunction.



When you open or close the retractable hardtop, audio sound is automatically adjusted. For details, see page 172.

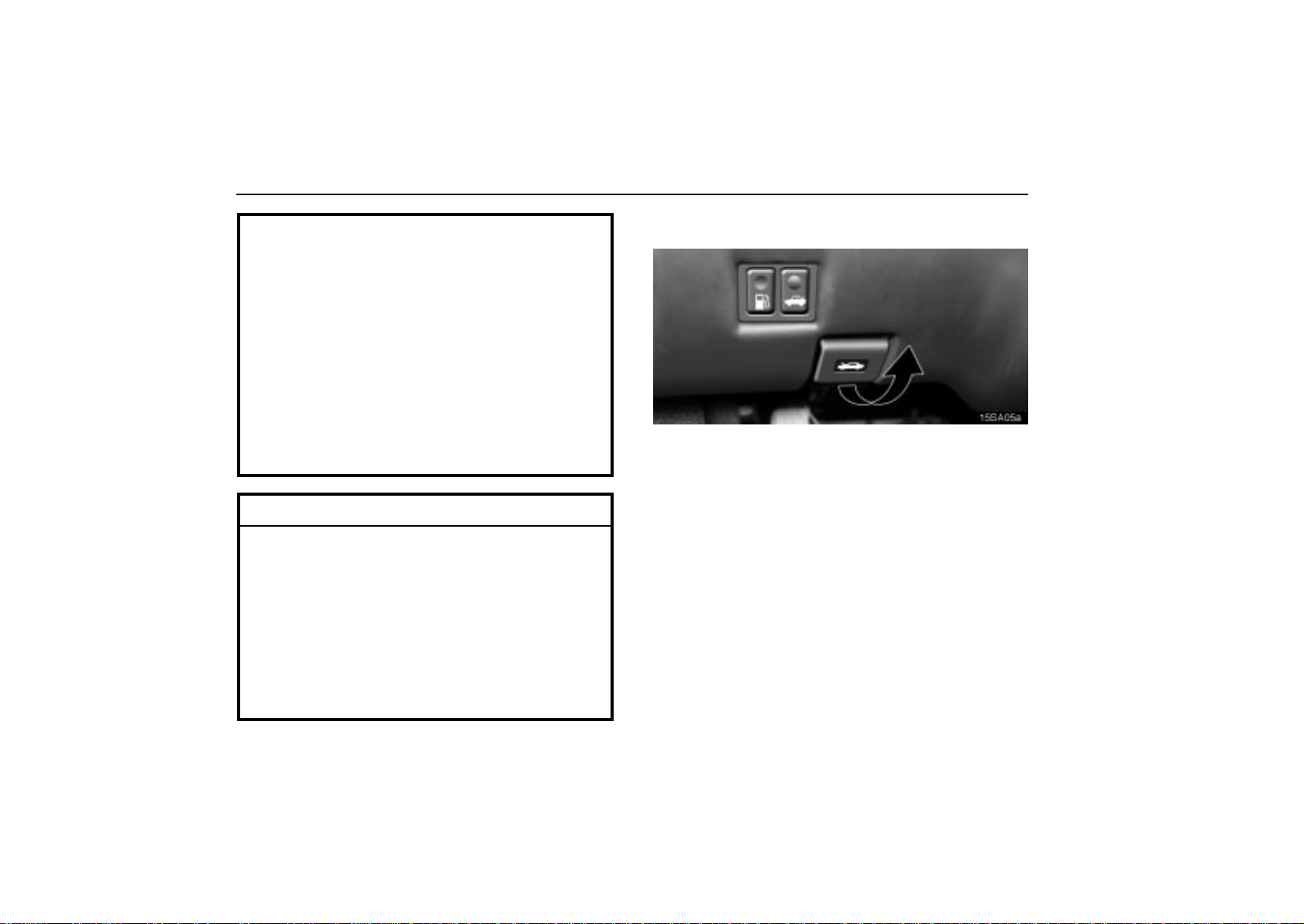

HOOD

15sa05a

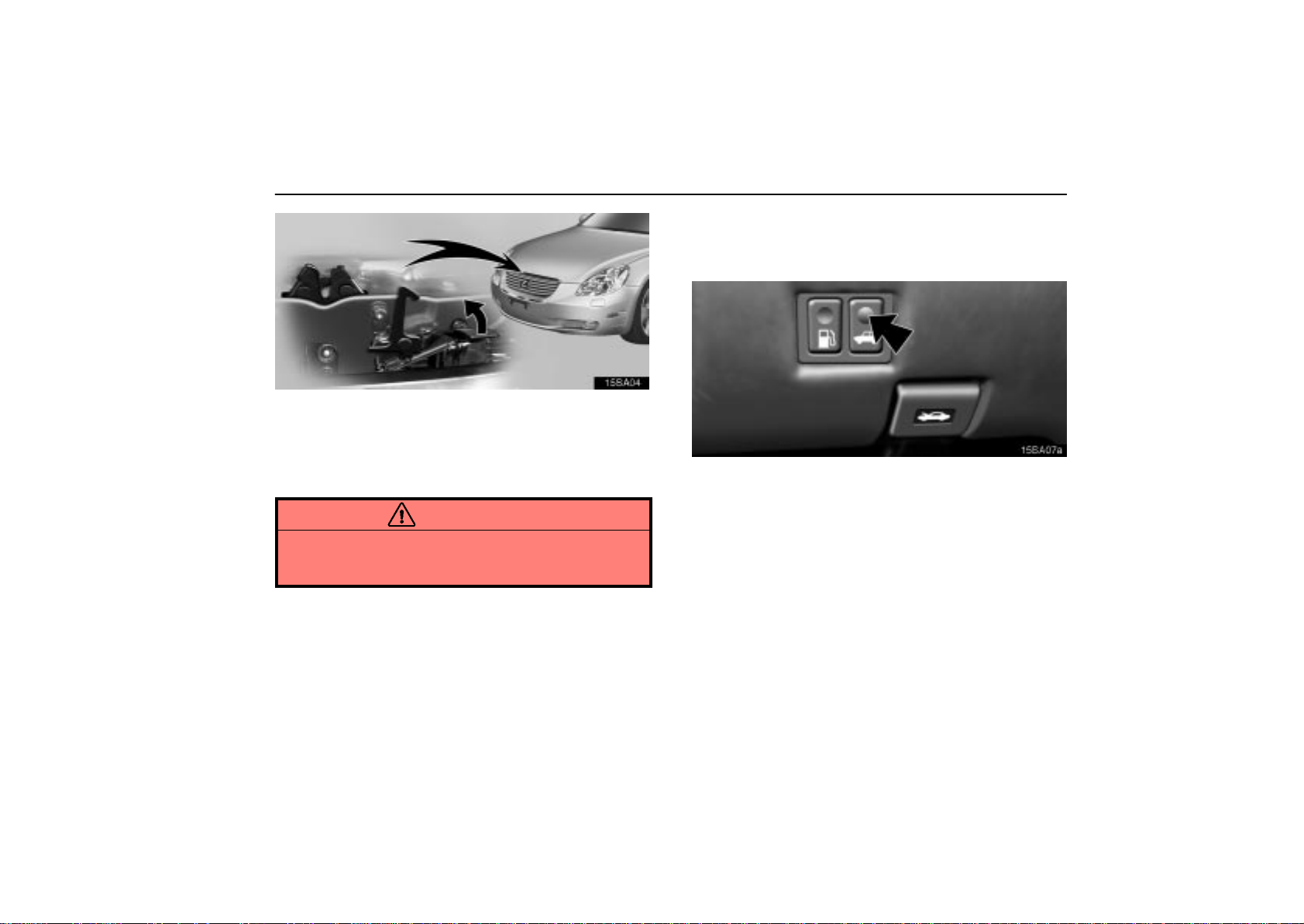

1. To open the hood, pull the hood lock release lever under the instrument panel. The hood will spring up slightly.

Page 33

15sa04

2. Insert your fingers under the hood, push up the auxiliary catch lever and lift the hood.

Before closing the hood, check to see that you have not forgotten any tools, rags, etc. Then lower the hood and make sure it locks.

CAUTION

Before driving, be sure that the hood is securely locked. Otherwise, the hood may open unexpectedly while driving and an accident may occur.

EXTERIOR EQUIPMENT

TRUNK LID

Trunk lid opener

15sa07a

To open the trunk lid while sitting in the driver’s seat, push the switch with the main switch in the glove box on.

The trunk lid can be unlocked using the wireless remote control key. For details, see page 15.

If the opener does not operate properly , use the lever located in the rear console box to unlock the trunk lid. See “(a) Unlocking the trunk lid, If the retractable hardtop does not close” on page 264.

Page 34

EXTERIOR EQUIPMENT

CAUTION

 Keep the tru n k lid closed while driving. This not only

prevents luggage from being thrown out, but also prevents exhaust gases from entering the vehicle.

 Always lock the trunk lid and all doors, and keep the

vehicle keys out the reach of children.

 Never leave children unattended in the vehicle.

Unsupervised children may lock themselves in the vehicle or trunk and suffer serious injuries or death.

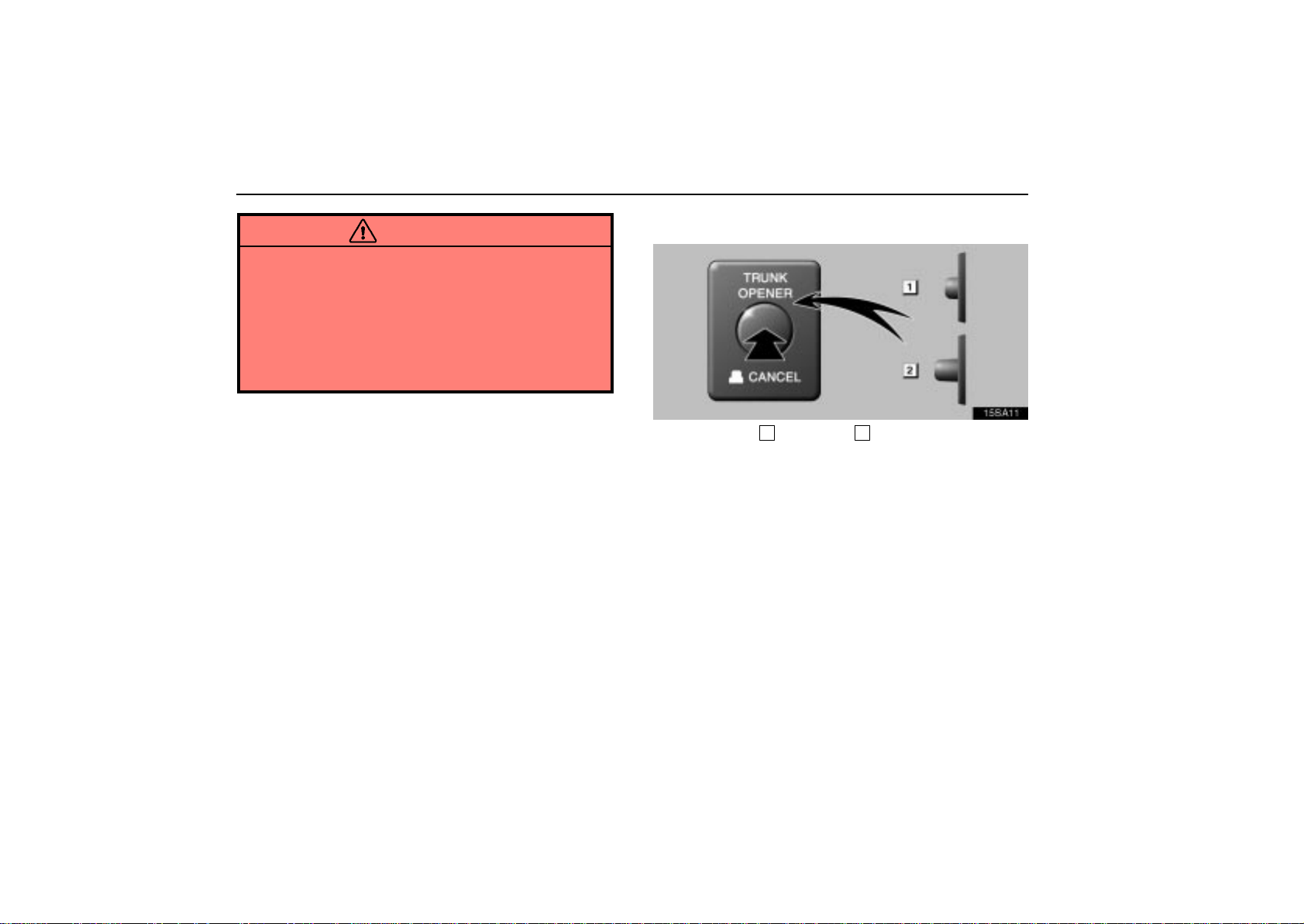

Trunk lid opener main switch

15sa11



Main switch 1Operative 2Inoperative

If you do not want to activate the trunk lid opener system, turn off the main switch on the left side in the glove box. To turn it on, push in the main switch.

The main switch should be on to activate the retractable hardtop.

The trunk lid can be opened using a loop of wire in the rear console box even w ith the main switch in the glove box turned off. When keeping items in the trunk, be sure to turn off the main switch and lock the glove box and rear console box. For locking the glove box, see page 70. For locking the rear console box, see page 68.

Page 35

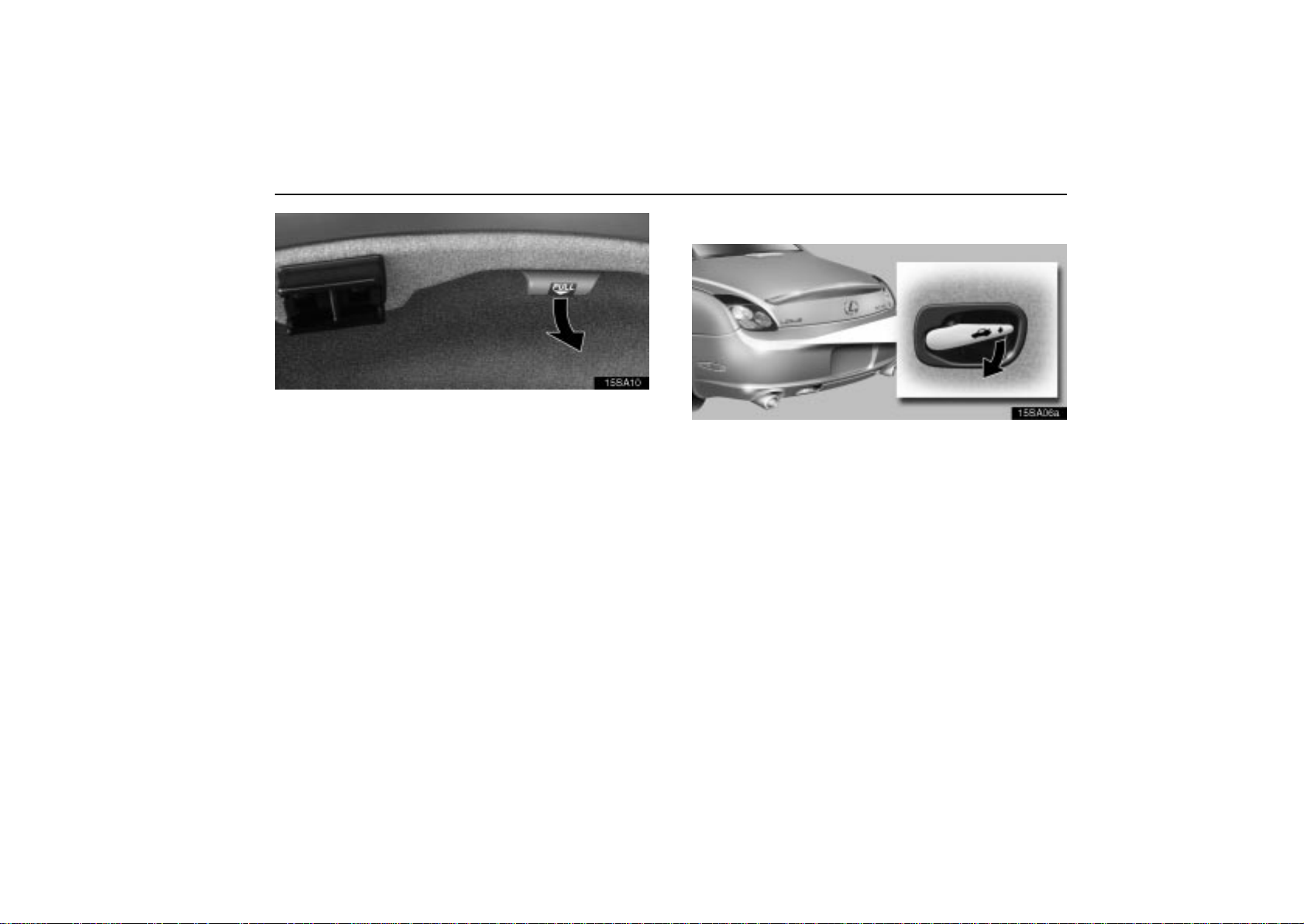

15sa10

To close the trunk lid, pull down the lever and push down the trunk lid. After closing the trunk lid, try pulling it up to make sure it is securely closed.

EXTERIOR EQUIPMENT

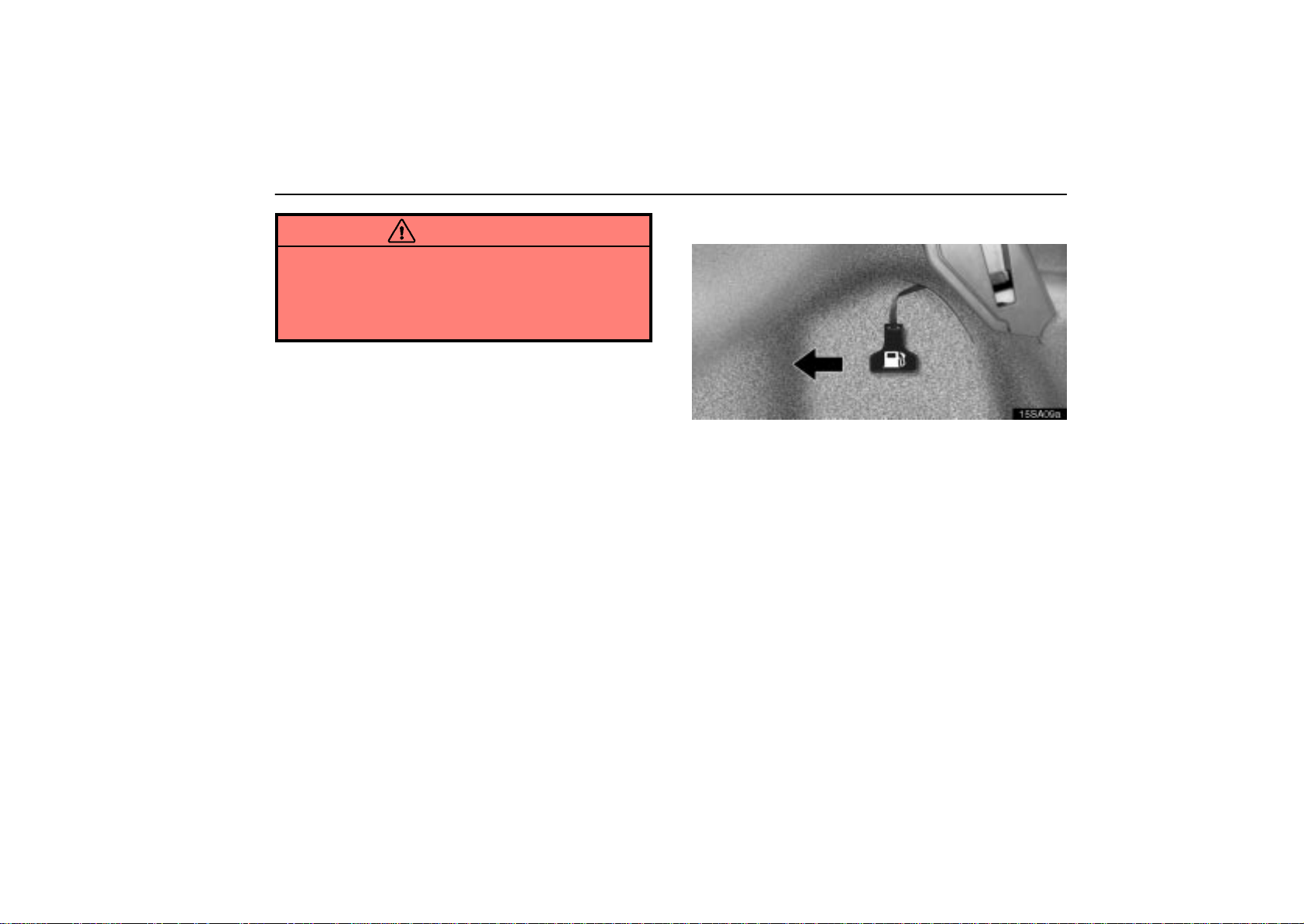

Internal trunk release handle

15sa06a

If a person is locked in the trunk, he/she can pull down the phosphorescent handle on the inside of trunk lid to open the trunk lid.

The phosphorescent (glow-in-the-dark) handle will continue to glow for a time after the trunk lid is closed. Exposing the handle to stronger light will cause it to glow longer.

Page 36

EXTERIOR EQUIPMENT

FUEL TANK CAP

15sa03b

1. To open the fuel filler door, push the switch. When refueling, turn off the engine. The arrow in the instrument cluster indicates that the fuel

filler door is on the left side of your vehicle.

CAUTION

 Do not smoke, cause sparks or allow open flames

when refuelling. The fumes are flammable.

 When opening the cap, do not remove the cap

quickly. In hot weather, fuel under pressure could cause injury by spraying out of the filler neck if the cap is suddenly removed.

15sa08b

2. To remove the fuel tank cap, turn the cap slowly counterclockwise, then pause slightly before removing it. The removed cap can be stored on the back side of the fuel filler door.

It is not unusual to hear a slight swoosh when the cap is opened. When installing the cap, turn the cap clockwise until you hear a click.

If the cap is not installed securely, the malfunction indicator lamp comes on. Make sure the cap is installed securely.

The indicator lamp goes off after driving several times. If the indicator lamp does not go off, contact your Lexus dealer as soon as possible.

Page 37

EXTERIOR EQUIPMENT

CAUTION

 Make sure the cap is installed securely to prevent fuel

spillage in the event of an accident.

 Use only a genuine Lexus fuel tank cap for

replacement. It is designed to regulate fuel tank pressure.

In case the opener is not actuated

15sa09a

Pull the manual lever toward the back.

This is used in case the fuel filler door cannot be opened due to a discharged battery or other trouble.

Refueling the vehicle

As soon as the correctly operated nozzle switches off automatically for the first time, the tank is full. Do not try to add more fuel, because fuel may spill out.

Page 38

EXTERIOR EQUIPMENT

Page 39

SECTION 1 –

INSTRUMENTS AND CONTROLS

Interior equipment

Vanity mirrors 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Interior light 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Personal lights 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Ignition switch light 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Clock 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cigarette lighter and ashtray 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear console box 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power outlet 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auxiliary box 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Glove box 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Garage door opener 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cup holder 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Coin box 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

First-aid kit space 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Floor mat 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage cover 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

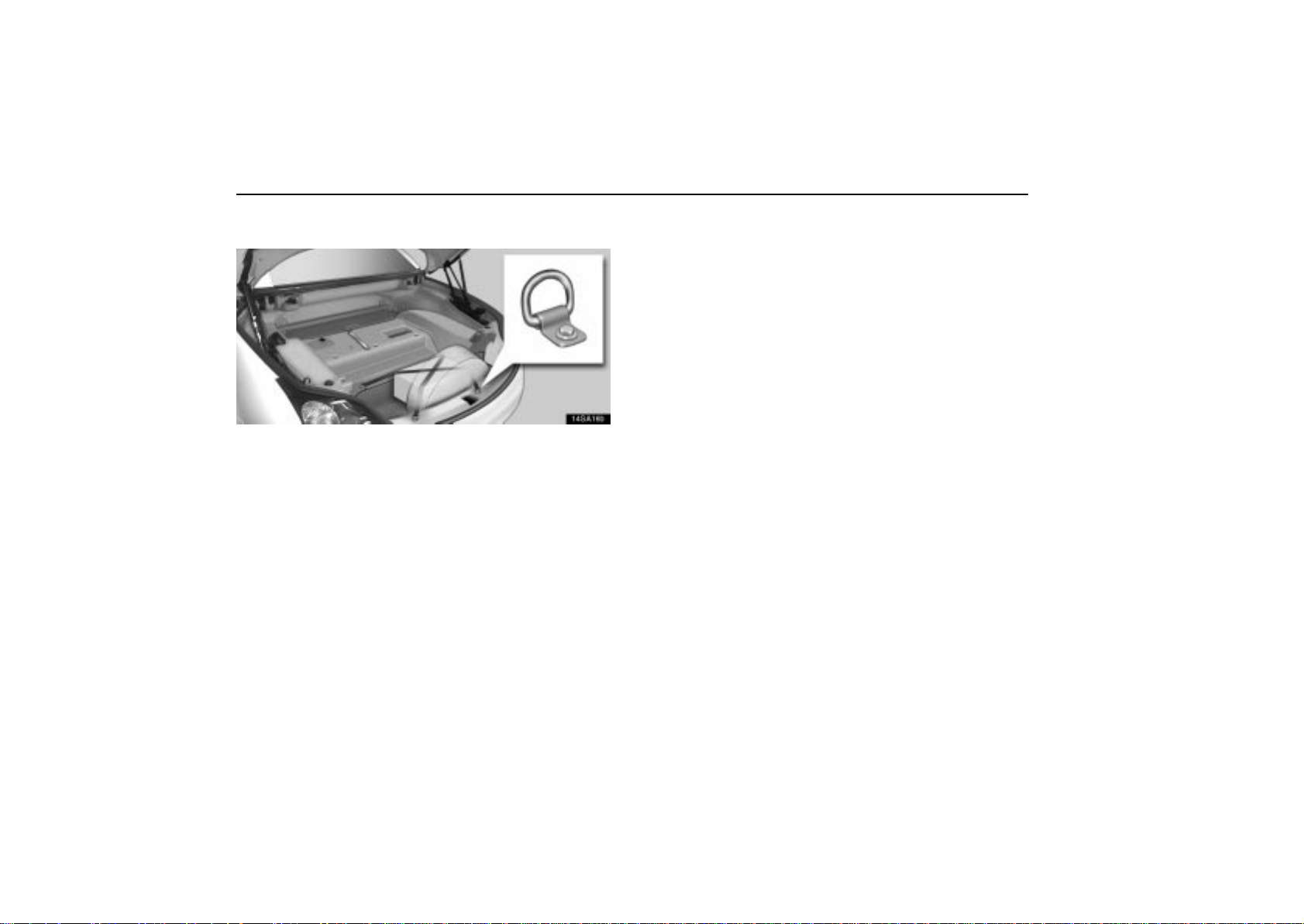

Tie-down hooks 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 40

INTERIOR EQUIPMENT

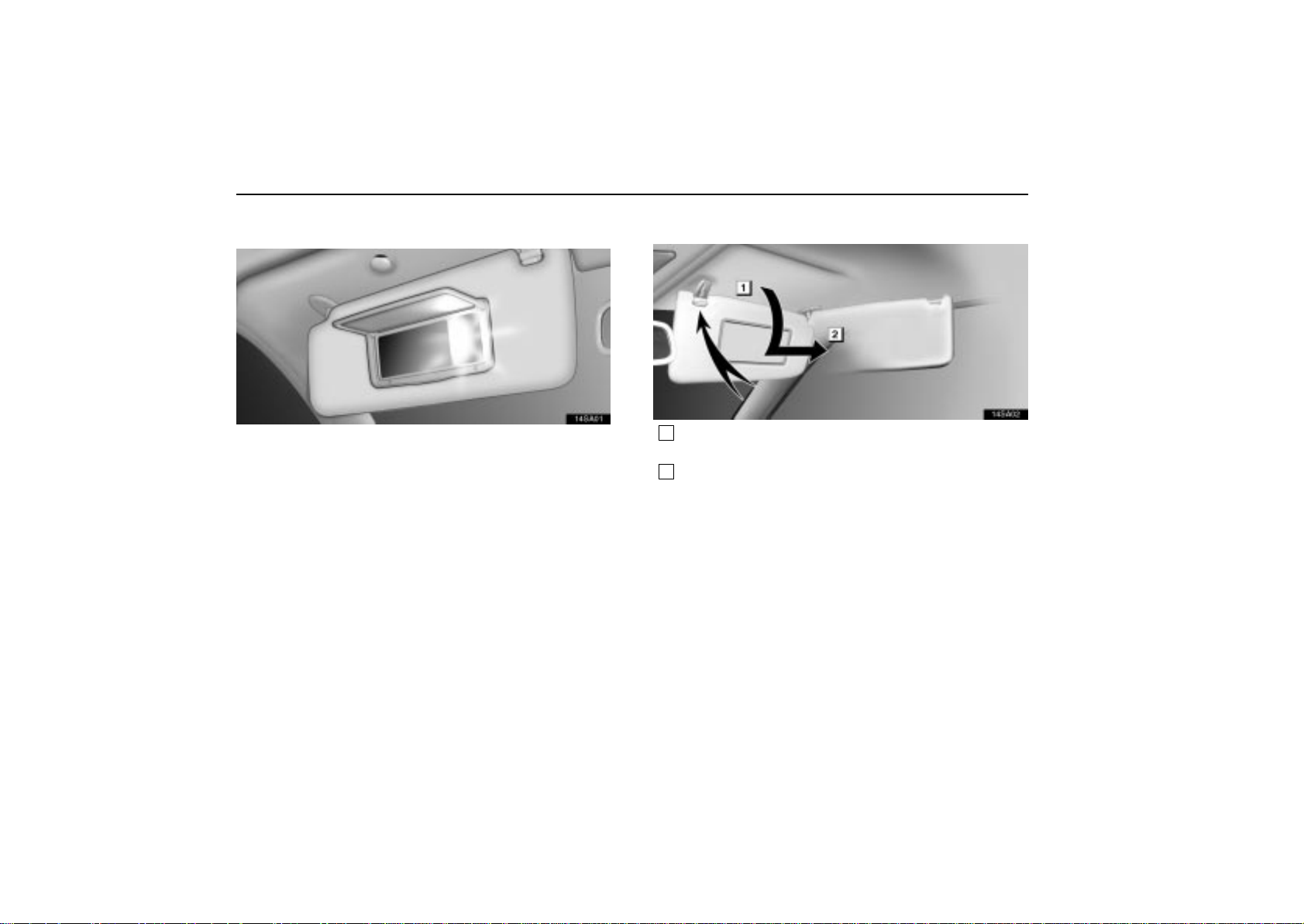

VANITY MIRRORS

14sa01

To use the vanity mirrors, swing the sun visor down and open the cover.

The vanity light comes on when you open the cover.

Sun visors

14sa02

To block out glare from the front, swing the sun visor down.

To block out glare from the side, remove the sun visor from the hook and swing it to the side.

At this position, the vanity light may not come on.

Page 41

INTERIOR EQUIPMENT

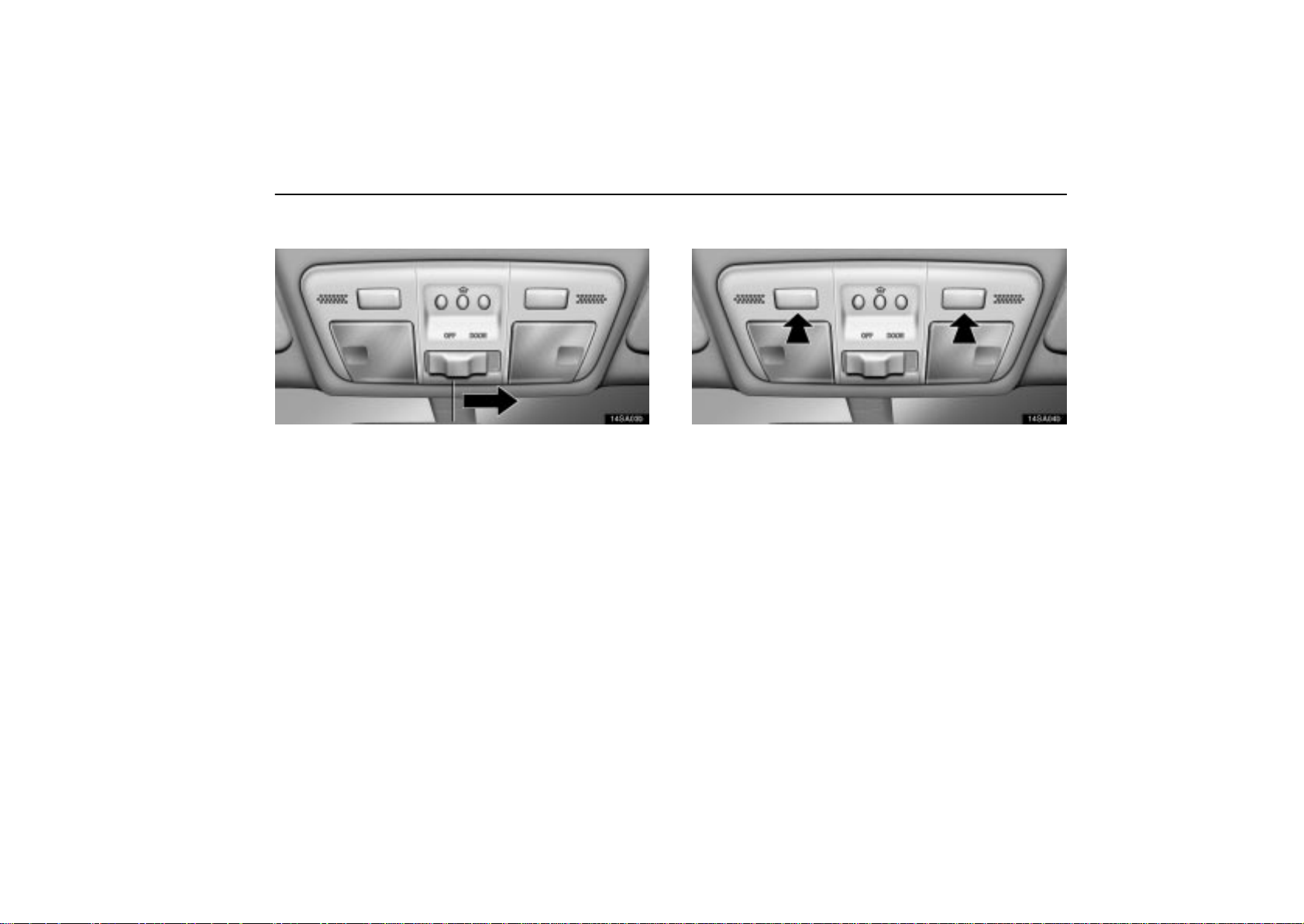

INTERIOR LIGHT

14sa03b

To turn on the interior light, slide the switch.

With the switch in the ”DOOR” position, the light comes on when either of the side doors is opened. After both doors are closed, the light remains on for about 15 seconds and then goes out.

However, in the following cases, the light goes out immediately:

1. Both doors are closed when the ignition switch is in ”ACC” or ”ON” position.

2. The ignition switch is turned to ”ACC” or ”ON” when the light is still on.

3. Both doors are locked when the light is still on.

4. One door is closed with the lock button pushed in while the other door is locked.

PERSONAL LIGHTS

14sa04b

To turn on the personal light, push the switch. To turn it off, push the switch again.

Page 42

INTERIOR EQUIPMENT

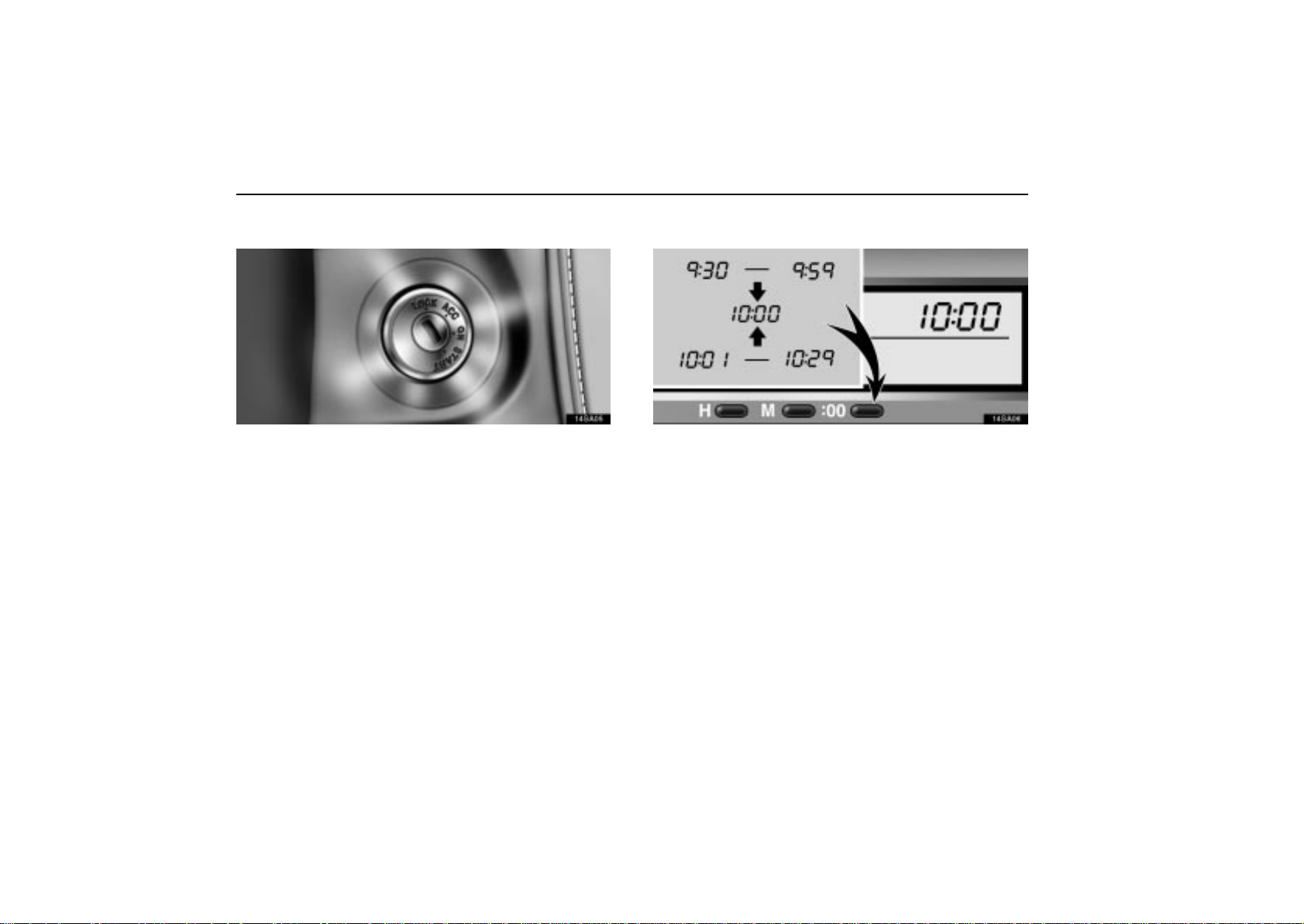

IGNITION SWITCH LIGHT

14sa05

For easy access to the ignition switch, the ignition switch light comes on when either of the side doors is opened.

The light remains on for about 15 seconds and goes out after both side doors are closed. However, the light goes out immediately when both doors are locked or the ignition switch is in the ”ACC” or ”ON” position.

CLOCK

14sa06

To reset the hour, press the ”H” button. To reset the minutes, press the ”M” button. To adjust the time to the nearest hour, press the ”:00” button.

For example, if the ”:00” button is pressed when the time is between 9:30 - 9:59 or between 10:01 - 10:29, the time will change to 10:00.

With the tail lights on, the background brightness of the time indication will be reduced.

If the electrical power source has been disconnected from the clock, the time display will automatically be set to 1:00 (one o’clock).

Page 43

INTERIOR EQUIPMENT

CIGARETTE LIGHTER AND

ASHTRAY

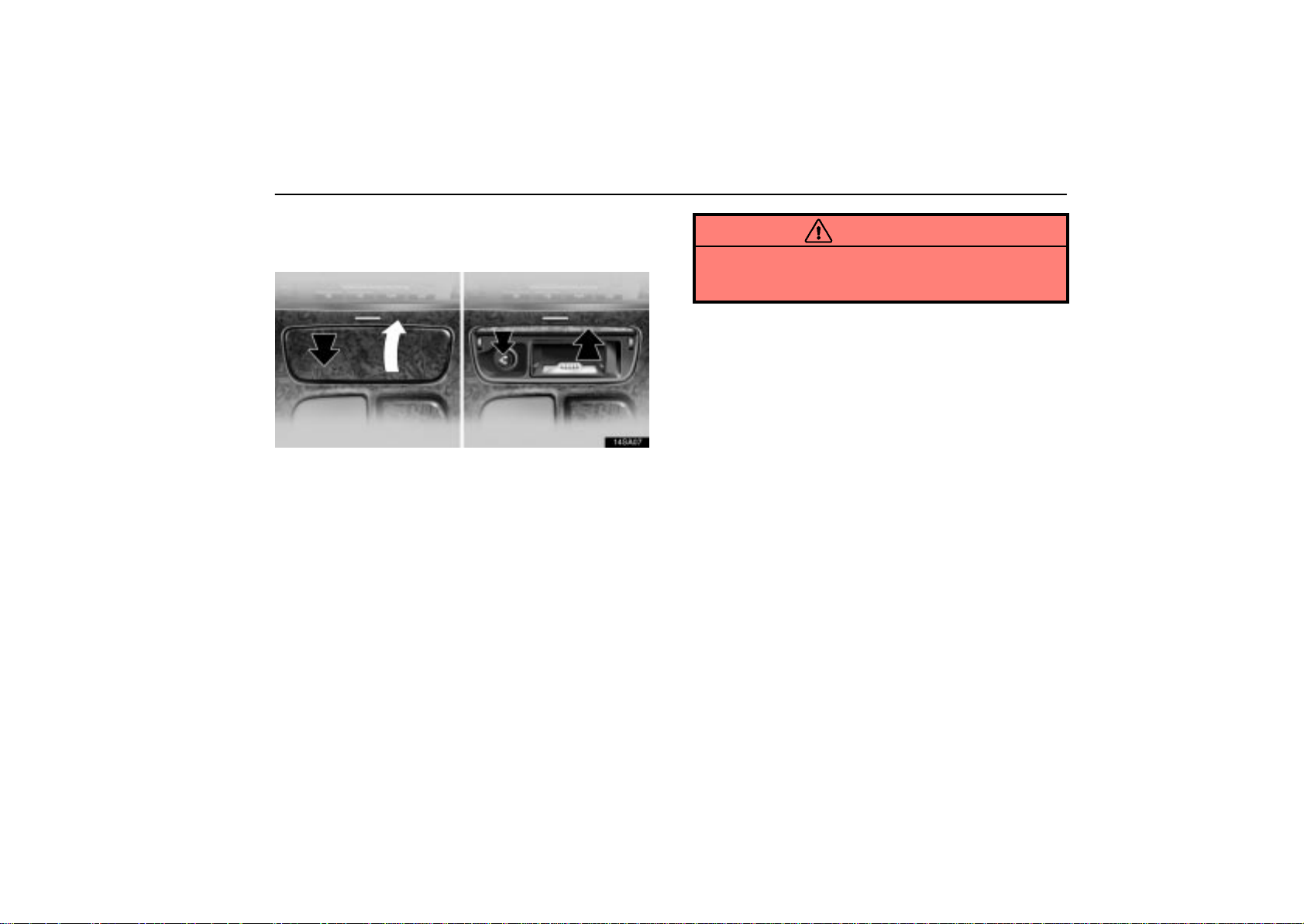

14sa07

To use the cigarette lighter and ashtray, first push against the ashtray cover. Then when the ashtray opens out, press in the cigarette lighter. After it finishes heating up, it automatically pops out ready for use.

Do not hold the cigarette lighter pressed in. If the engine is not running, the ignition switch must be in the

”ACC” position to use the lighter. When finished with your cigarette, thoroughly extinguish it in

the ashtray to prevent other cigarette butts from catching fire. After using the ashtray, push it back in completely.

To remove the ashtray , pull it out. Use a Lexus genuine cigarette lighter or equivalent for

replacement.

CAUTION

To reduce the chance of injury in case of an accident or sudden stop while driving, always close the ashtray completely after use.

Page 44

INTERIOR EQUIPMENT

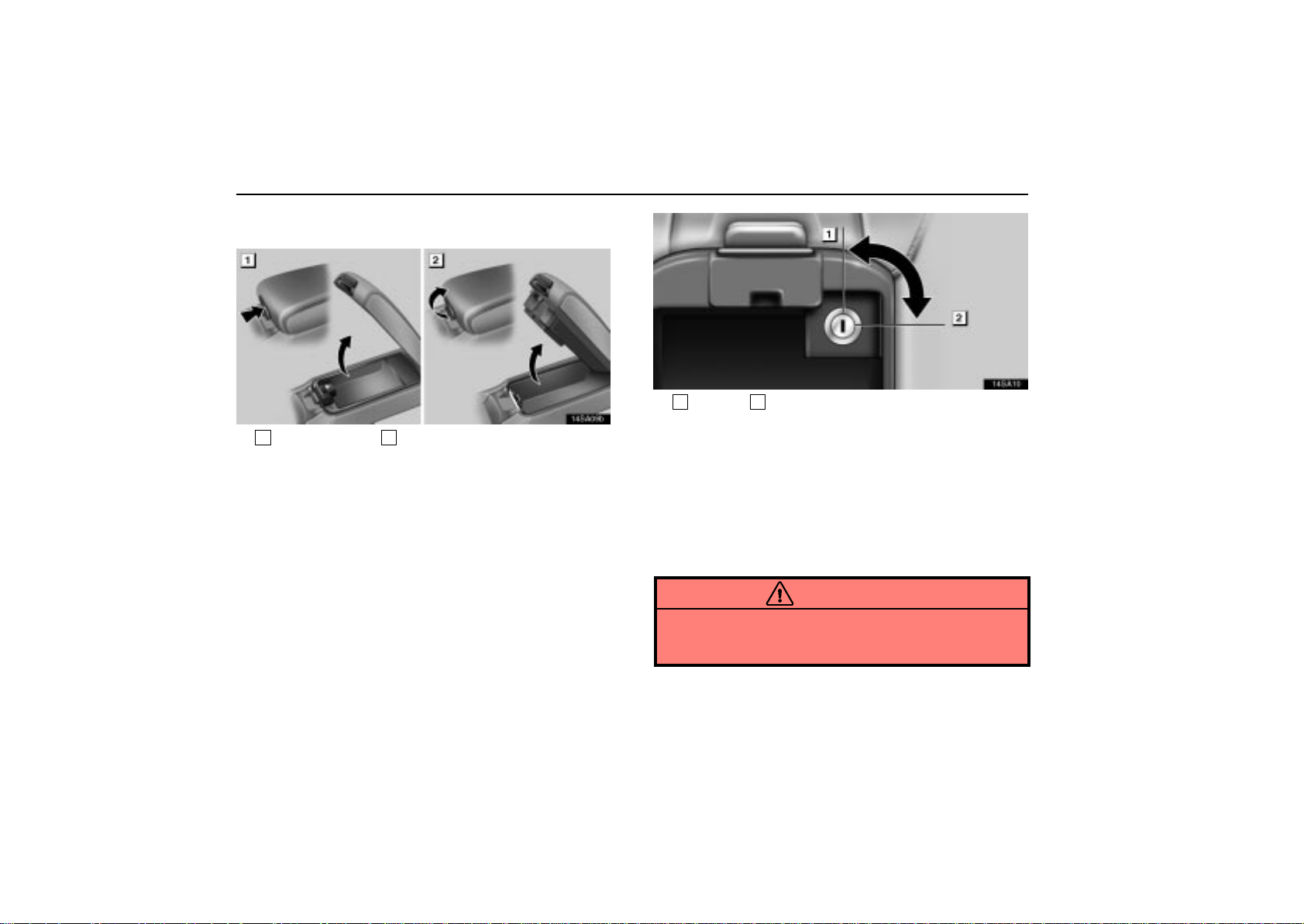

REAR CONSOLE BOX

14sa09b



For upper tray 2For lower box

To use the rear console box, open as shown in the illustration.

14sa10



Unlock 2Lock

To lock the lower box, insert the master key and turn it clockwise.

A loop of wire for unlocking the trunk lid is located in the lower box. When keeping items in the trunk, be sure to turn off the trunk lid opener main switch and lock the glove box and rear console box.

To turn off the trunk lid opener main switch, see page 88. For locking the glove box, see page 70.

CAUTION

To reduce the chance of injury in case of an accident or a sudden stop, always keep the console box lid closed while driving.

Page 45

INTERIOR EQUIPMENT

POWER OUTLET

14sa08

The power outlet located in the lower box contained in the rear console box is designed for power supply for car accessories.

The ignition switch must be in the ”ACC” or ”ON” position for the power outlet to be used.

NOTICE



To prevent the fuse from being blown, do not use the electricity over the total vehicle capacity of 12V 10A.



To prevent the battery from being discharged, do not use the power outlet longer than necessary when the engine is not running.



Close the power outlet lid when the power outlet is not in use. Inserting anything other than an appropriate plug that fits the outlet, or allowing any liquid to get into the outlet may cause electrical failure or short circuits.

Page 46

INTERIOR EQUIPMENT

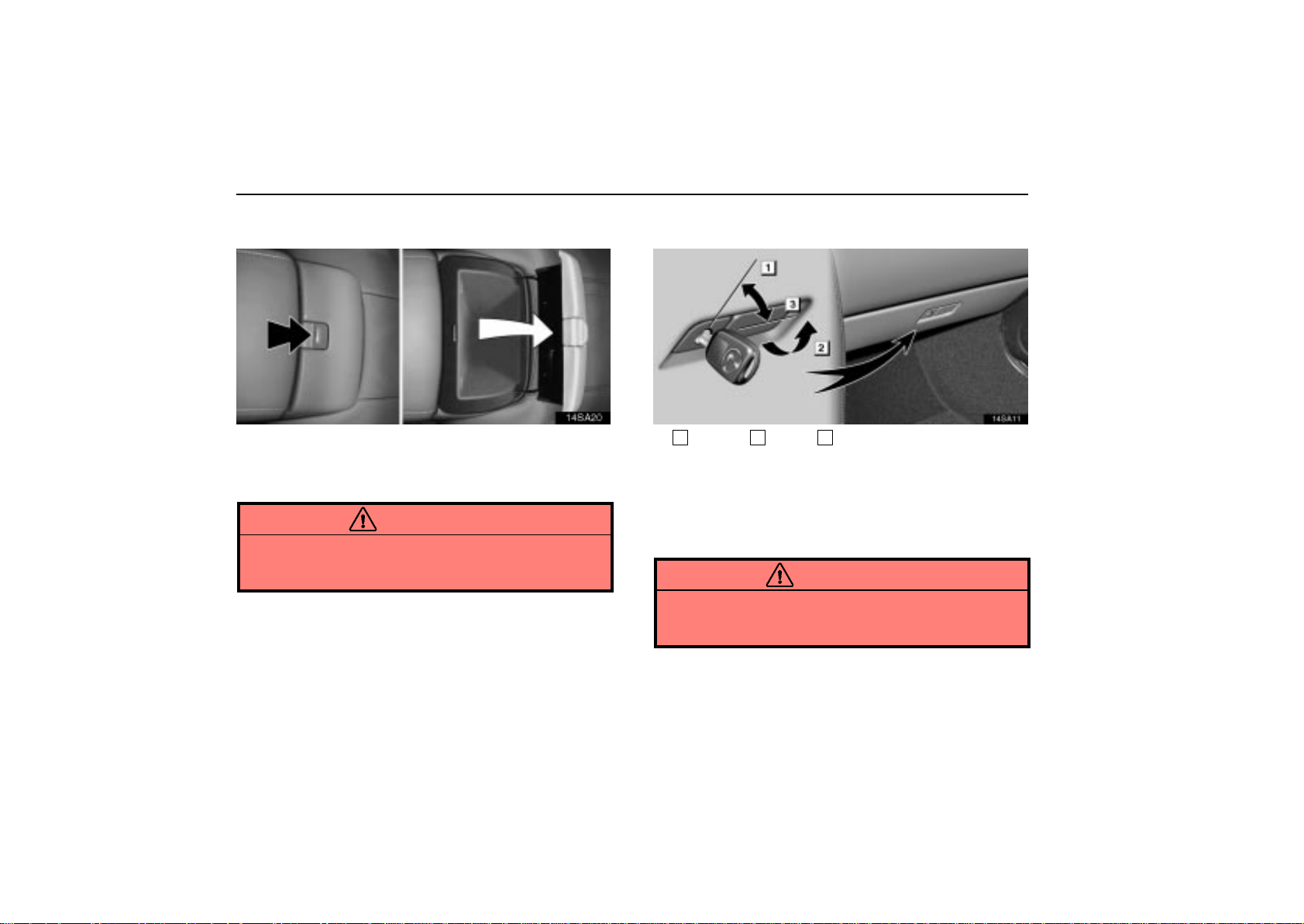

AUXILIARY BOX

14sa20

The auxiliary box is located behind the rear console box. To use the box, open the cover.

Do not keep the valuables in this box as it cannot be locked.

CAUTION

To reduce the chance of injury in case of an accident or a sudden stop, always keep the auxiliary box closed while driving.

GLOVE BOX

14sa11



Unlock 2Open 3Lock

To open the glove box door, pull the lever. To lock the glove box door, insert the master key and turn it clockwise.

With the tail lights on, the glove box light will come on when the glove box door is open.

CAUTION

To reduce the chance of injury in case of an accident or a sudden stop, always keep the glove box door closed while driving.

Page 47

INTERIOR EQUIPMENT

The trunk lid opener main switch is located in the glove box. When keeping items in the trunk, be sure to turn off the main switch and lock the glove box and rear console box in which a loop of wire for unlocking the trunk lid is located. To turn off the trunk lid opener main switch, see page 88. For locking the rear console box, see page 68.

GARAGE DOOR OPENER



Universal

The garage door opener ( Transceiver) is manufactured under license from HomeLink doors, gates, entry doors, door locks, home lighting systems, and security systems, etc.



and can be programmed to operate garage

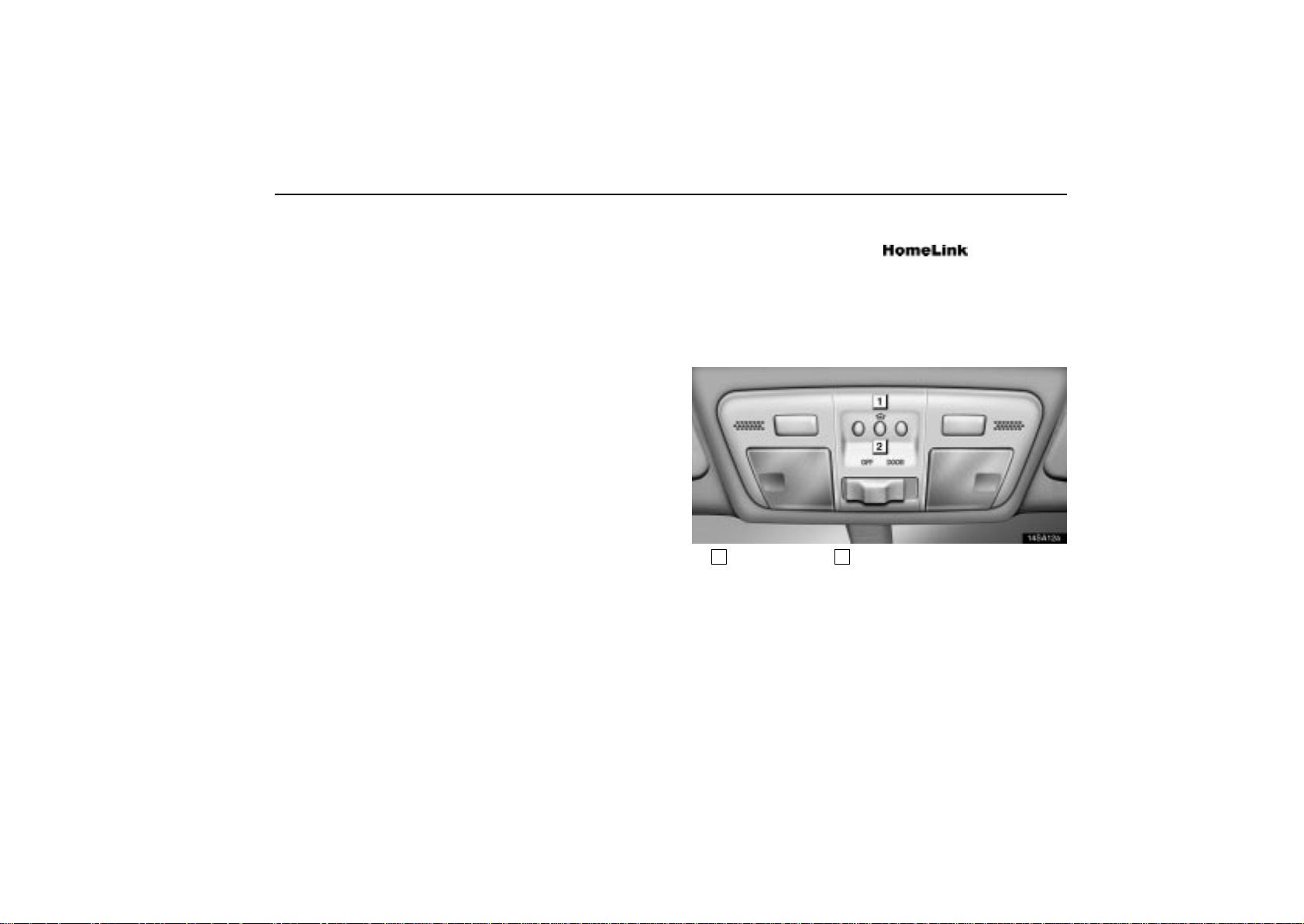

(a) Programming the HomeLink

14sa12a



Indicator light 2Buttons

The HomeLink in your vehicle has 3 buttons and you can store one program for each button.



To ensure correct programming into the HomeLink new battery in the hand-held transmitter prior to programming.

, install a

Page 48

INTERIOR EQUIPMENT

The battery side of the hand-held transmitter must be pointed away from the HomeLink



during the programming process.

For Canadian users, follow the procedure in “Programming an entrance gate/Programming all devices in the Canadian market”.



1. Decide which of 3 HomeLink

2. Place your hand-held garage transmitter 25 to 75 mm (1 to 3 in.) away from the surface of the HomeLink

Keep the indicator light on the HomeLink

buttons you want to program.



in view while

programming.

3. Simultaneously press and hold the hand- held garage transmitter button along with the selected HomeLink



button.

4. When the indicator light on the HomeLink changes from a slow to a rapid flash after 20 seconds, you can release both buttons.



5. Test the operation of the HomeLink

by pressing the newly programmed button. If programming a garage door opener, check to see if the garage door opens and closes.

If the garage door does not operate, identify if your garage transmitter is of the “Rolling Code” type. Press and hold the programmed HomeLink rolling code feature if the indicator light (on the HomeLink



button. The garage door has the



flashes rapidly and then remains lit after 2 seconds. If your garage transmitter is the “Rolling Code” type, proceed to the heading “Programming a rolling code system”.

6. Repeat steps 2 through 5 for each remaining HomeLink button to program another device.

Programming a rolling code system

If your device is “Rolling Code” equipped, it is necessary to follow steps 1 through 4 under the heading “Programming the HomeLink the steps listed below.

1. Locate the “training” button on the ceiling mounted garage door opener motor. The exact location and color of the button may vary by brand of garage door opener. Refer to the owner’s guide supplied by the garage door opener manufacturer for the location of this “training” button.

2. Press the “training” button on the ceiling mounted garage door opener motor.

Following this step, you have 30 seconds in which to initiate step 3 below.



” before proceeding with

)



Page 49

INTERIOR EQUIPMENT

3. Press and release the vehicle’s programmed HomeLink button twice. The garage door may open. If the door does open, the programming process is complete. If the door does not open, press and release the button a third time. This third press and release will complete the programming process by opening the garage door.

The ceiling mounted garage door opener motor should now recognize the HomeLink



unit and be able to activate the

garage door up/down.

4. Repeat steps 1 through 3 for each remaining HomeLink button to program another rolling code system.

INFORMATION

If you register a program in the HomeLink “Rolling Code” type transmitter, the transmitter must be reprogrammed to use it again.



using a



Programming an entrance gate / Programming all devices in the Canadian market

1. Decide which of the 3 HomeLink buttons you want to program.

2. Place your hand-held gate/device transmitter 25 to 75 mm (1 to 3 in.) away from the surface of the HomeLink



Keep the indicator light on the HomeLink programming.

3. Press and hold the selected HomeLink



4. Continuously press and release (cycle) the hand- held gate/device transmitter button every two seconds until step 5 is complete.

5. When the indicator light on the HomeLink slow to a rapid flash after 20 seconds, you can release both buttons.



6. Test the operation of the HomeLink

by pressing the newly programmed button. Check to see if the gate/device operates correctly.

7. Repeat steps 1 through 6 for each remaining HomeLink button to program another device.



in view while

button.



changes from a



Page 50

INTERIOR EQUIPMENT

Programming other devices

To program other devices such as home security systems, home door locks or lighting, contact your authorized Lexus dealer for assistance.

Reprogramming a button

Individual HomeLink reprogram a single button, follow the procedure “Programming the HomeLink



buttons cannot be erased, however, t o



”.

INFORMATION

Keep your hand-held garage transmitter even after programming. The hand-held garage transmitter will be required if reprogramming is necessary.

(b) Operating the HomeLink



To operate the HomeLink, press the appropriate HomeLink button to activate the programmed device. The HomeLink indicator light should come on. If the “Rolling Code” type program is registered, the HomeLink several times, then remains on. The HomeLink



indicator light flashes



continues to send the signal for up to 20 seconds as long as the button is pressed.

INFORMATION

The transmitting range from the HomeLink from that from your hand-held garage transmitter.



may differ

 

Page 51

INTERIOR EQUIPMENT

(all three programs)

To erase all previously programmed codes at one time, press and hold down the 2 outside buttons for 20 seconds until the indicator light flashes.

If you sell your vehicle, be sure to erase the programs stored in the HomeLink



memory.

CAUTION

 When programming the HomeLink Universal

Transceiver, you may be operating a garage door or other device. Make sure people and objects are out of the way of the garage door or other device to prevent potential harm or damage.



 Do not use this HomeLink

with any garage door opener that lacks the safety stop and reverse feature as required by federal safety standards. (This includes any garage door opener model manufactured before April 1, 1982.) A garage door opener which cannot detect an object (signaling the door to stop and reverse), does not meet current federal safety standards. Using a garage door opener without these features increases risk of serious injury or death.

Universal Transceiver

This device complies with Part 15 of the FCC Rules and with RSS-210 of the Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING: This transmitter has been tested and complies with FCC and Industry Canada DOC/MPAC rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device.

Page 52

INTERIOR EQUIPMENT

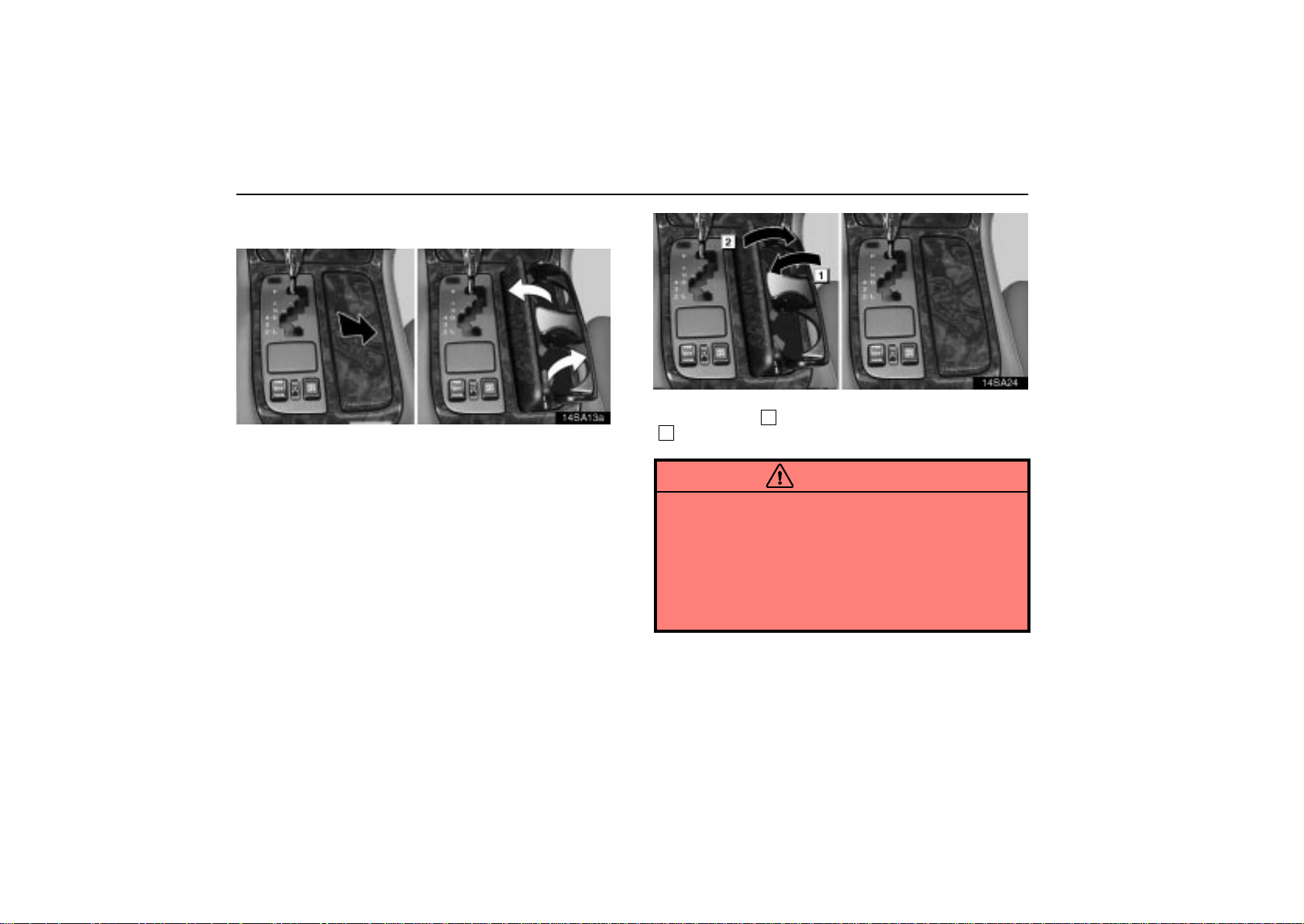

CUP HOLDER

14sa13a

14sa24

To use the cup holder, push the cup holder lid.

To close the cup holder, push in the cup holder in the arrow direction

and close the lid in the arrow direction

CAUTION

 Do not place anything else other than cups or

drink-cans in the cup holder, as such items may be thrown about in the compartment and possibly injure people in the vehicle during sudden braking or in an accident.

 To reduce the chance of injury in case of an accident

or sudden stop while driving, keep the cup holder closed when not in use.

Page 53

INTERIOR EQUIPMENT

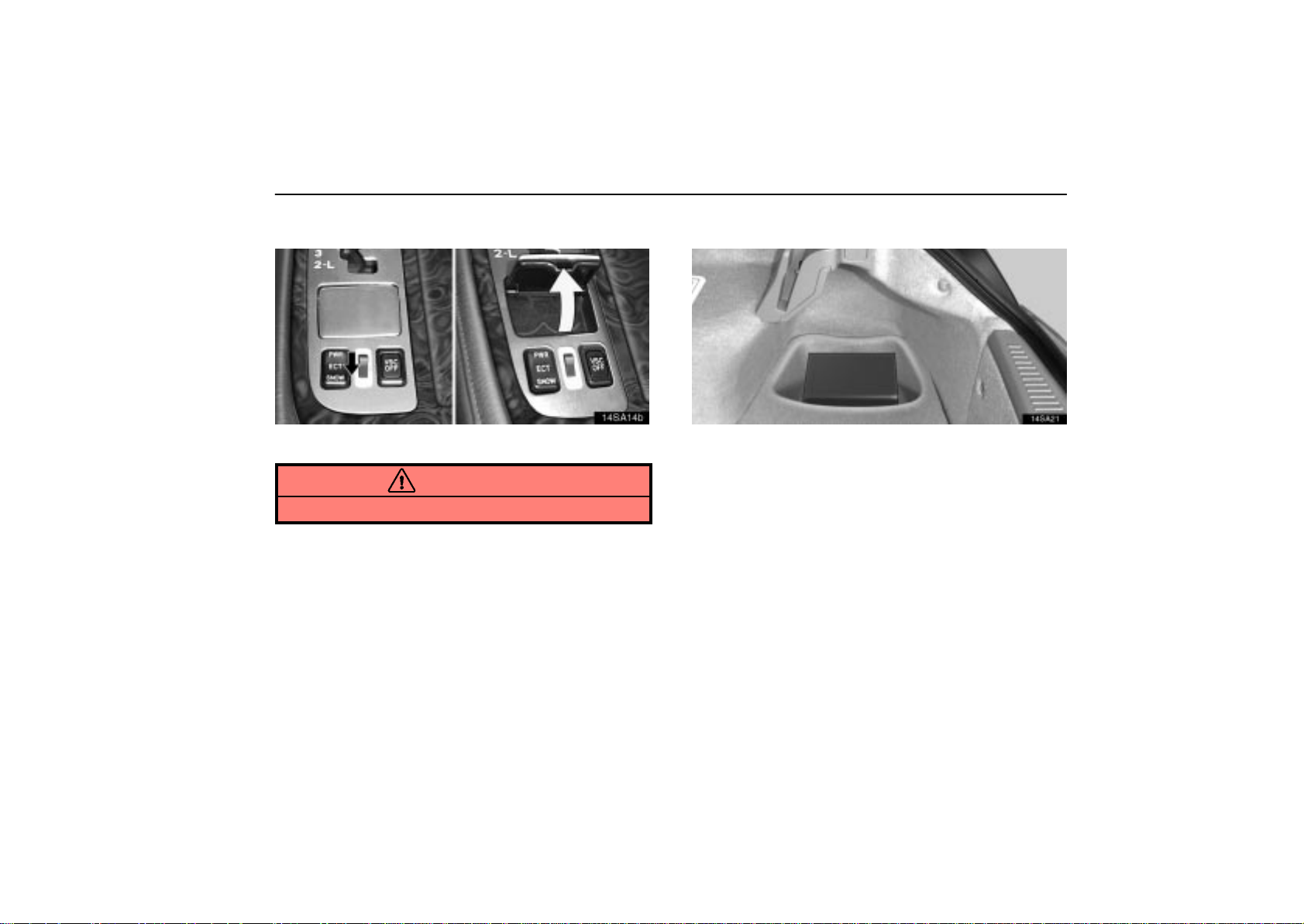

COIN BOX

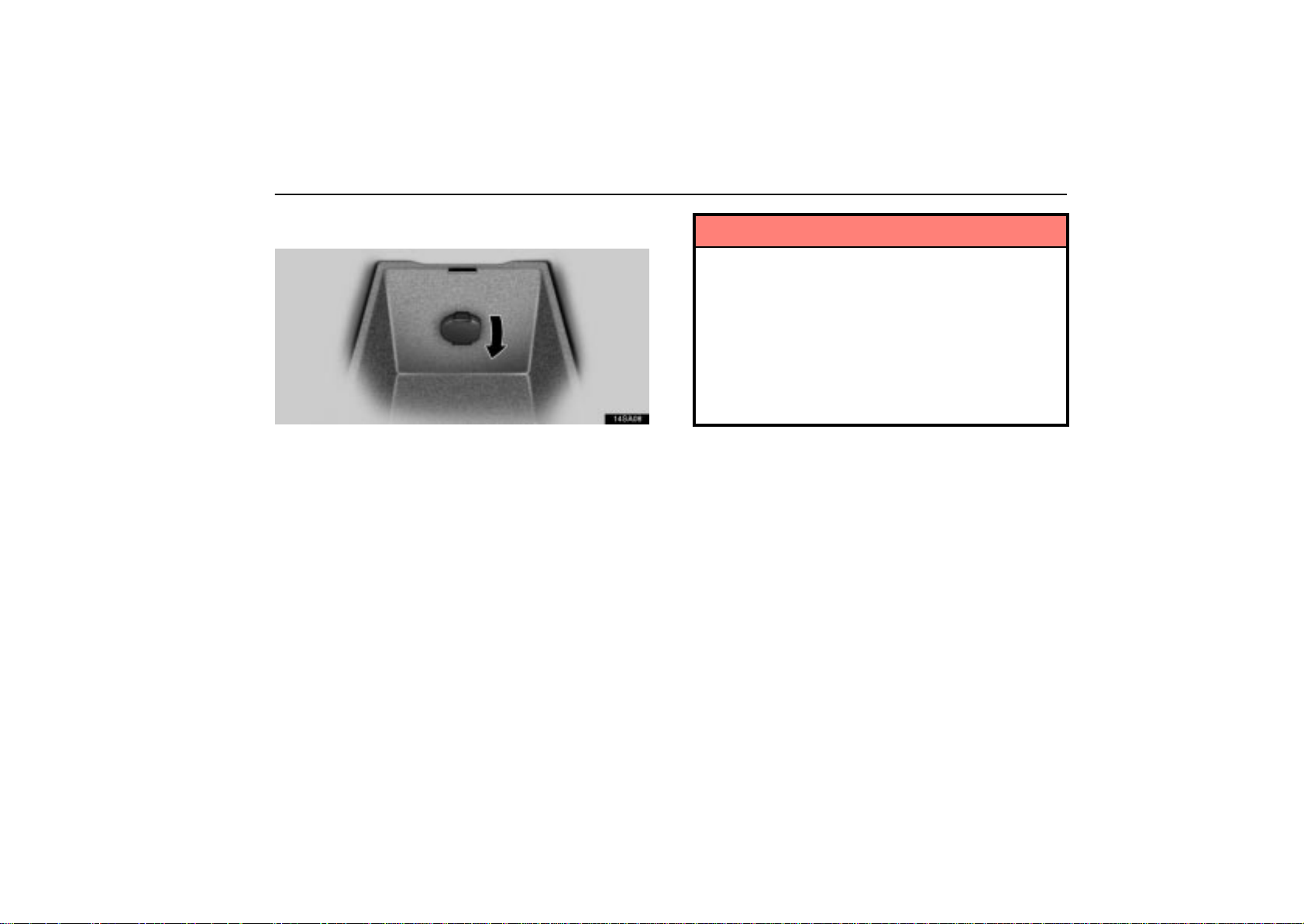

14sa14b

To use the coin box, slide the switch backward.

CAUTION

Keep the coin box closed when not in use.

FIRST-AID KIT SPACE

14sa21

This space is provided on the right side of the trunk to accommodate the first-aid kit.

Page 54

INTERIOR EQUIPMENT

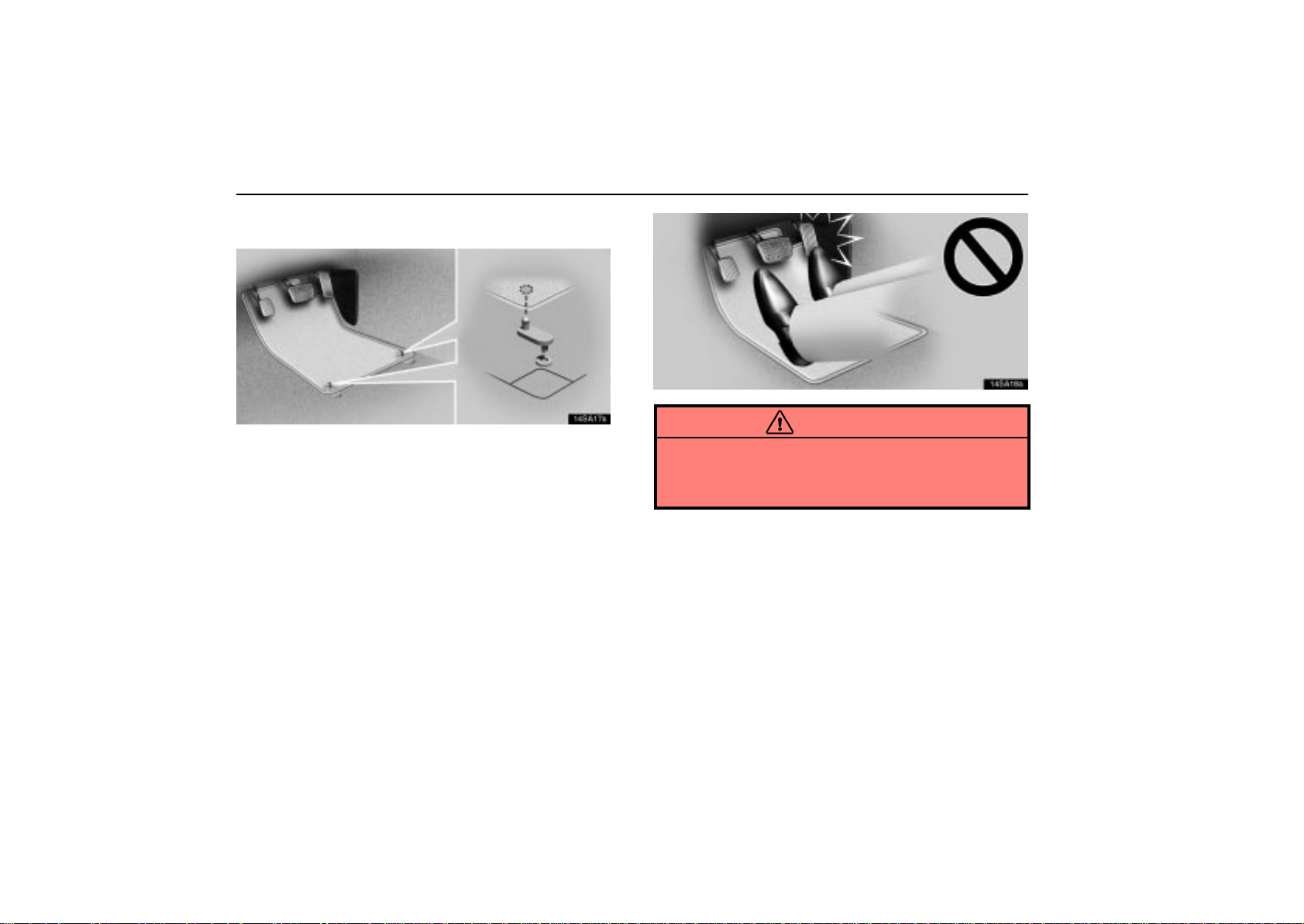

FLOOR MAT

14sa17a

14sa18a

Use a floor mat of the correct size.

If the floor carpet and floor mat have 2 holes, then they are designed for use with locking clips. Fix the floor mat with locking clips into the holes in the floor carpet.

CAUTION

Make sure the floor mat is properly placed on the floor carpet. If the floor mat slips and interferes with the movement of the pedals during driving, it may cause an accident.

Page 55

INTERIOR EQUIPMENT

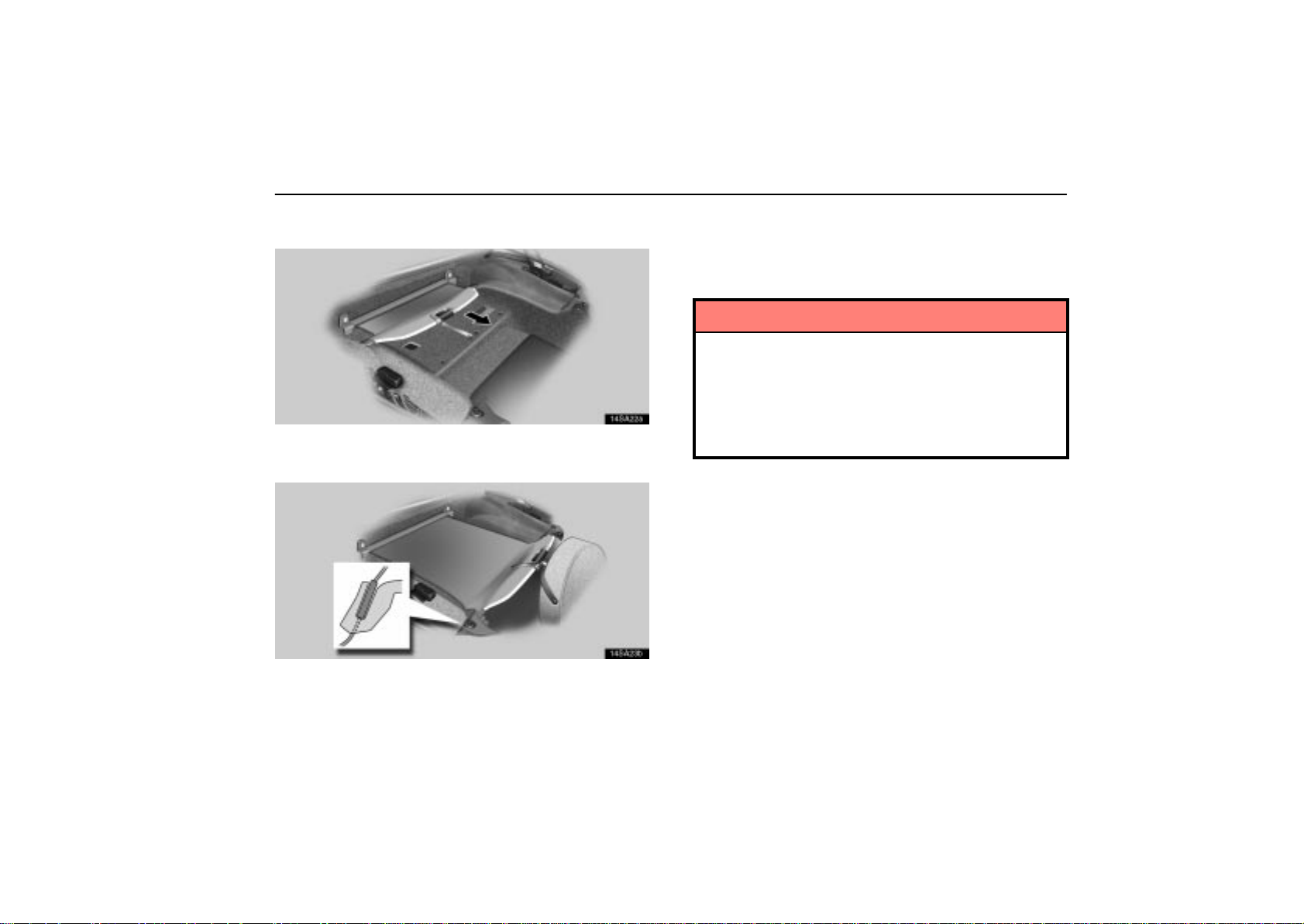

LUGGAGE COVER

14sa22a

To use the luggage cover,

1. Pull the luggage cover out of the retractor.

14sa23b

See “Cargo and luggage” on page 234 for precautions in loading luggage.

The retractable hardtop cannot be opened if the luggage cover is not set.

NOTICE



Do not place anything on the luggage cover. Doing so could interfere with the retractable hardtop opening and damage its mechanism.



The luggage should be loaded with the cover closed securely. Otherwise the retractable hardtop opening could be interfered and its mechanism could be damaged.

2. Hook the luggage cover on the anchors and secure the strap on the magnet on the tire or luggage cover.

Page 56

INTERIOR EQUIPMENT

TIE-DOWN HOOKS

14sa16b

To secure your luggage, use the tie- down hooks as shown above.

See “Cargo and luggage” on page 234 for precautions in loading luggage.

Page 57

SECTION 1 –

INSTRUMENTS AND CONTROLS

Switches

Headlight switch 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight dimmer and turn signal switches 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fog light switch 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield wiper and washer switches 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight cleaner switch 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear window and outside rear view mirror defogger switch 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power window switches 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

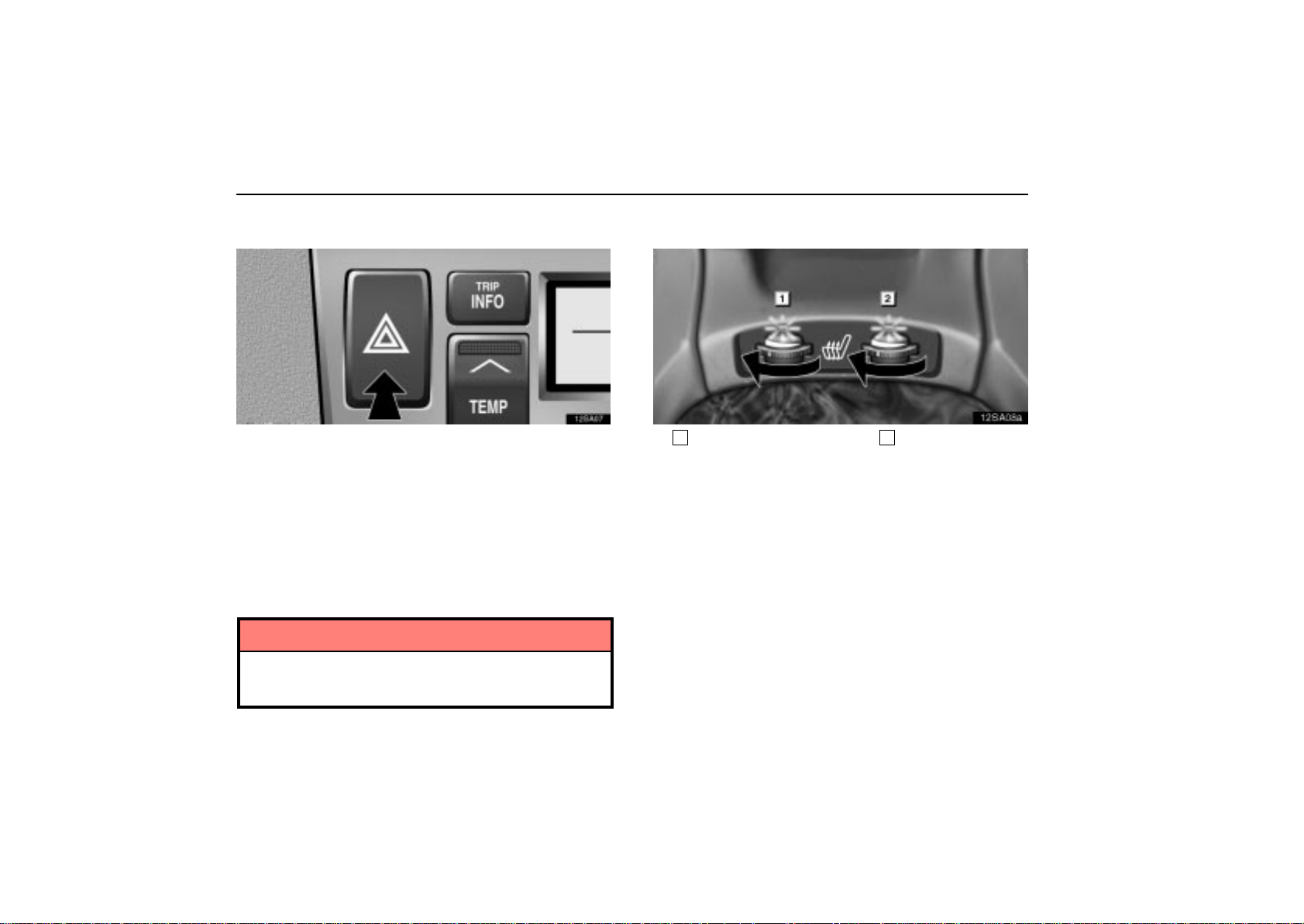

Emergency flasher switch 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Seat heater switches 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 58

SWITCHES

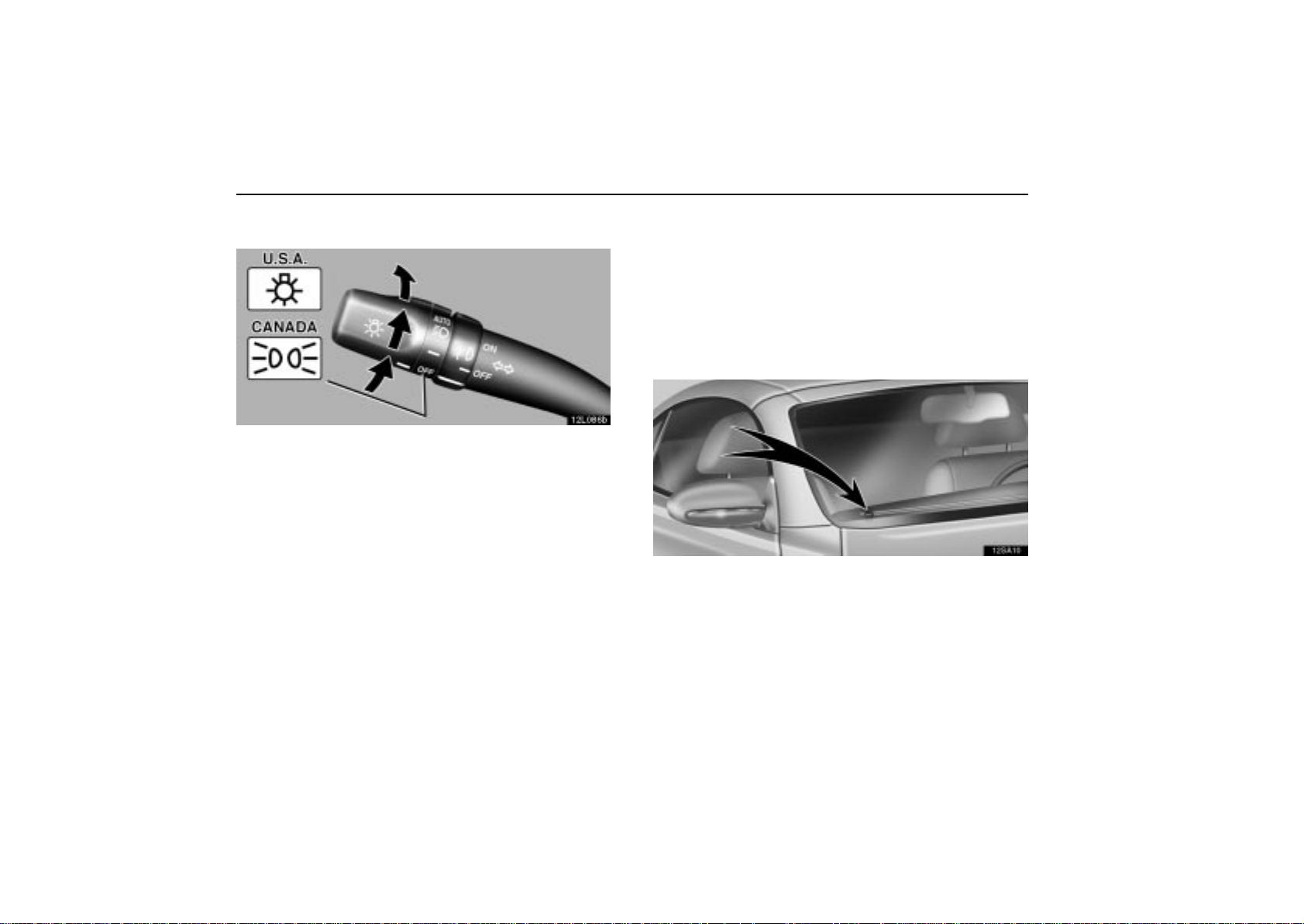

HEADLIGHT SWITCH

12L086b

To turn the lights on, twist the knob on the end of the lever .

FIRST CLICKSTOP: Only the parking, tail, license plate, side marker and instrument panel lights turn on.

SECOND CLICKSTOP: Headlights also turn on. THIRD CLICKSTOP (”AUTO”): The headlights and all other

lights automatically turn on depending on the darkness of the surroundings.*

Vehicles sold in U.S.A.: When the headlights are on, the headlight indicator lights up in the instrument cluster.

Vehicles sold in Canada: When the tail lights are on, the tail light indicator lights up in the instrument cluster.

Manually twist the knob to the second clickstop to turn on the headlights if they are needed immediately when entering a dark tunnel, parking structure, etc.

When the headlight switch is turned to the first or second clickstop, the brightness of the instrument cluster will be reduced slightly unless the instrument panel light control knob is turned fully on.

NOTE: *The operating condition or sensitivity can be

changed. Ask your Lexus dealer for details.

12sa10

The automatic light control sensor is on top of the passenger’s side instrument panel.

Do not place anything on the instrument panel, and/or do not affix anything on the windshield to block this sensor.

Page 59

SWITCHES

When you turn on the headlights, the lights automatically turn off about 30 seconds after either door is opened and closed with the ignition switch turned to the ”ACC” or ”LOCK” position.* To turn them on again, turn the ignition switch to the ”ON” position, or turn the headlight switch off and then twist the knob until the first or second clickstop. If you are going to park for over one week, make sure the headlight switch is off.

NOTE: *The time before turning off the lights can be

changed. Ask your Lexus dealer for details.

When the headlight switch is on with both side doors locked and the trunk closed, pushing the ”LOCK” button on the wireless remote control key turns off the headlights.

Daytime Running Light System

The headlights turn on at reduced intensity when the parking brake is released with the engine started, even with the light switch in the ”OFF” position. They will not go off until the ignition switch is turned off.

To turn on the other exterior lights and instrument panel lights, twist the knob to the first clickstop.

Twist the knob to the second clickstop to turn on the headlights to full intensity for driving at night.

When setting the knob to the third clickstop (”AUTO”), the headlights will automatically adjust to full intensity and/or turn on the other lights depending on the darkness of the surroundings. Likewise, as the surroundings become brighter, the headlights will turn to reduced intensity, ultimately turning off the other lights.

NOTICE

To prevent the battery from being discharged, do not leave the lights on longer than necessary when the engine is not running.

Page 60

SWITCHES

Automatic headlight leveling system

12sa01a

The headlight beam level is always maintained automatically at the proper level in all loading conditions so that your headlights do not dazzle other road users.

If this system fails, the warning light in the instrument cluster comes on. If this occurs, have your vehicle checked by Lexus dealer.

HEADLIGHT DIMMER AND TURN

SIGNAL SWITCHES

12L087b

For high beam, push the lever forward. Pull it back for low beam. For the headlight flasher, pull it further back.

A blue light in the instrument cluster indicates high beam or headlight flasher is on.

The headlight flasher works even when the headlight switch is off.

Page 61

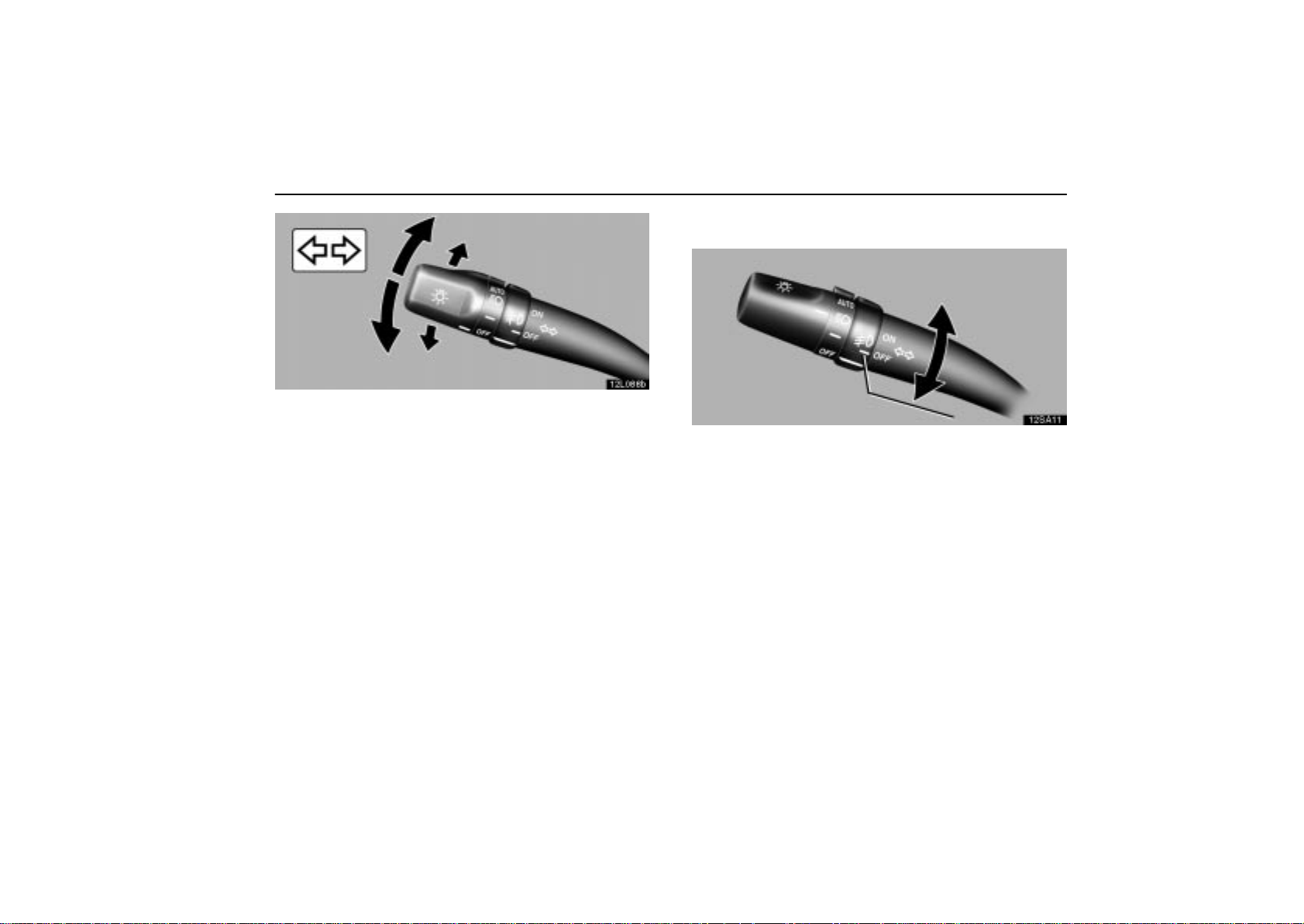

12L088b

For signaling turns, move the lever up or down in the conventional manner.

The ignition switch must be in the ”ON” position. The turn signal is self-cancelling after a turn, but after a lane

change, you may have to cancel it by hand. You can also signal a lane change by moving the turn signal lever partway and holding it there.

If the green light in the instrument cluster flashes faster than normal, it indicates that the front or rear turn signal bulb has burned out. If this indicator light does not come on, the fuse or the indicator light itself has probably failed.

SWITCHES

FOG LIGHT SWITCH

12SA11

To turn on the fog lights, turn the switch to the ”ON” position. The fog lights come on only when the headlights are on low beam.

Page 62

SWITCHES

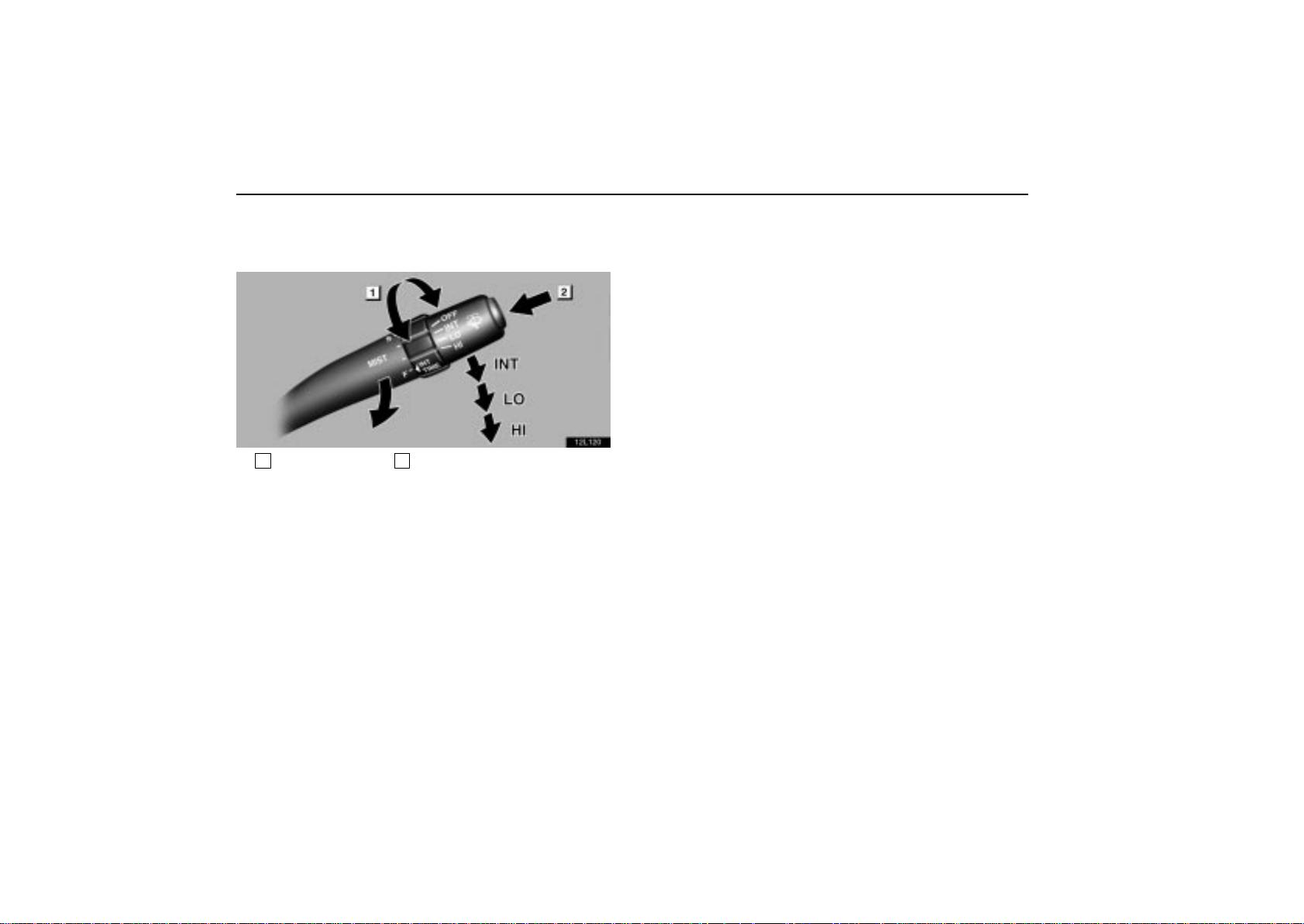

WINDSHIELD WIPER AND WASHER

SWITCHES

12L120a



Interval adjuster 2Washer on

To turn the wipers on, move the lever down until you reach the desired speed setting.

The ignition switch must be in the ”ON” position.

There are 3 settings: ”INT” position: Intermittent operation ”LO” position: Low speed operation ”HI” position: High speed operation T wist the interval adjuster upward to increase the wiping

time interval between sweeps, and downward to decrease it.

The wiper lever must be in the ”INT” position.

The time interval between sweeps is shortened when the vehicle speed increases. When the vehicle speed reaches more than about 20 km/h (12 mph) with the interval adjuster in ”F” position, the time interval becomes the shortest 1.5 seconds.

If you stop the vehicle with the wiper switch in the ”LO” position, the wiper speed automatically changes from low speed to intermittent operation speed.* This function does not work when the interval adjuster is in the ”F” position.

NOTE: *This feature can be deactivated. Ask your Lexus

dealer for details.

For mist wiper operations (a single wipe), pull the lever toward you and release it.

To make the washer squirt, push the button on the end of the lever.

If the wiper lever is in the ”OFF” position, the wipers will automatically make 3 wipes and then a single wipe later to sweep the windshield completely.* The interval between the 3 wipes and the last wipe will depend on the vehicle speed. The last sweep does not happen if the vehicle speed exceeds about 170 km/h (106 mph).

NOTE: *The last single wipe can be deactivated. Ask your

Lexus dealer for details.

The low washer warning light in the instrument cluster comes on when the fluid level in the tank becomes very low. For information on adding washer fluid, see ”Adding washer fluid” on page 363.

Page 63

SWITCHES

When the outside temperature is below 25 C ( 77 F), operating the wipers will automatically turn on the outside rear view mirror defogger. The outside rear view mirror defogger turns off 15 minutes after the wiper stops operating.

In cold weather, warm the windshield with the defroster before using the washer. This will help prevent icing, which could block your vision.

NOTICE

Do not operate the wipers if the windshield is dry. It m a y scratch the glass.

HEADLIGHT CLEANER SWITCH

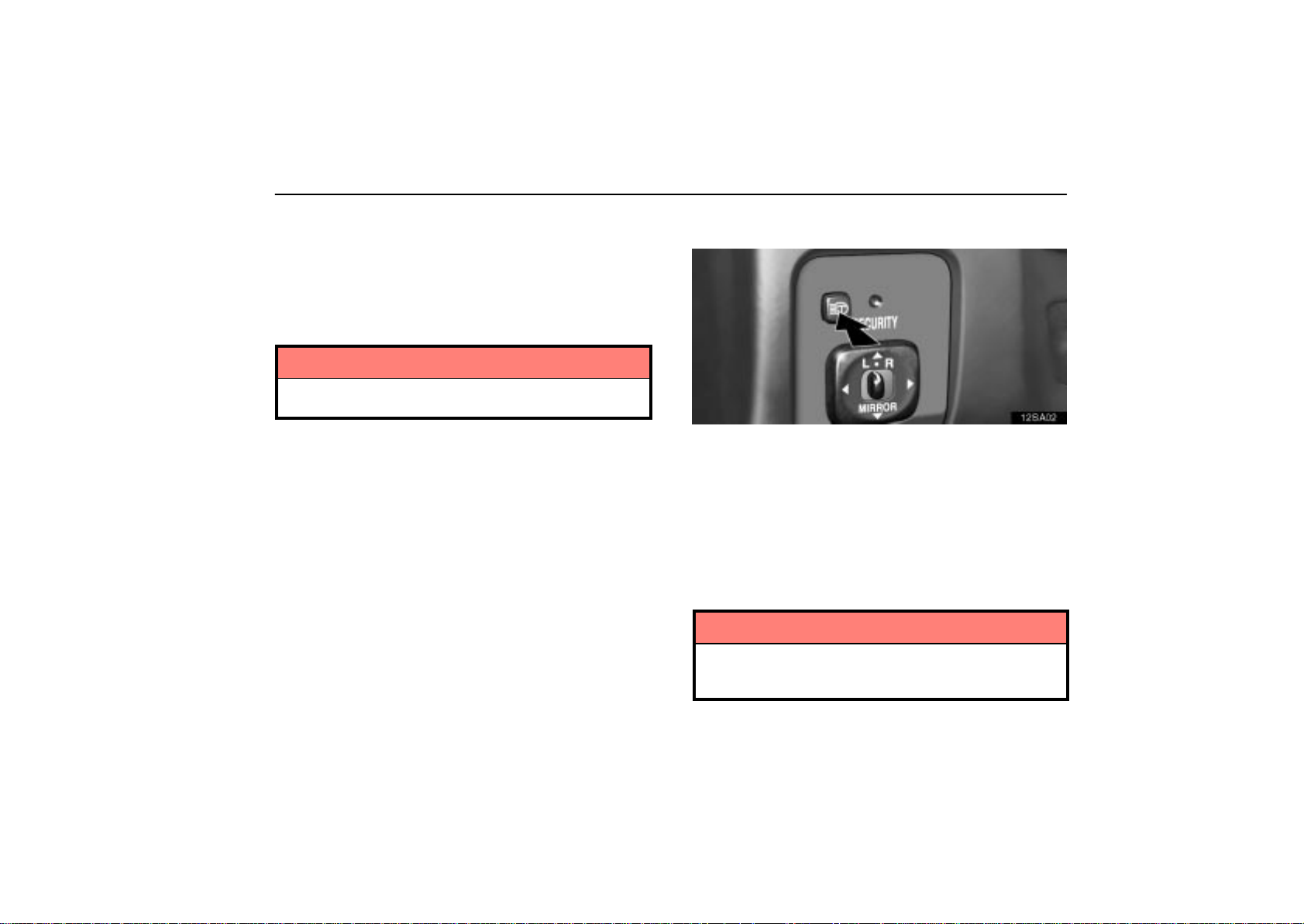

12sa02

To spray fluid on the headlights, push the switch with the headlights on.

The ignition switch must be in the ”ON” position. The low washer fluid warning light in the instrument cluster

comes on when the fluid level in the tank becomes very low. For information on adding washer fluid, see ”Adding washer fluid” on page 363.

If you push the windshield washer switch with the headlights on, the headlight cleaner operates once automatically.

NOTICE

Do not turn the headlight cleaner on with the washer fluid tank empty. It may cause the cleaner motor to overheat.

Page 64

SWITCHES

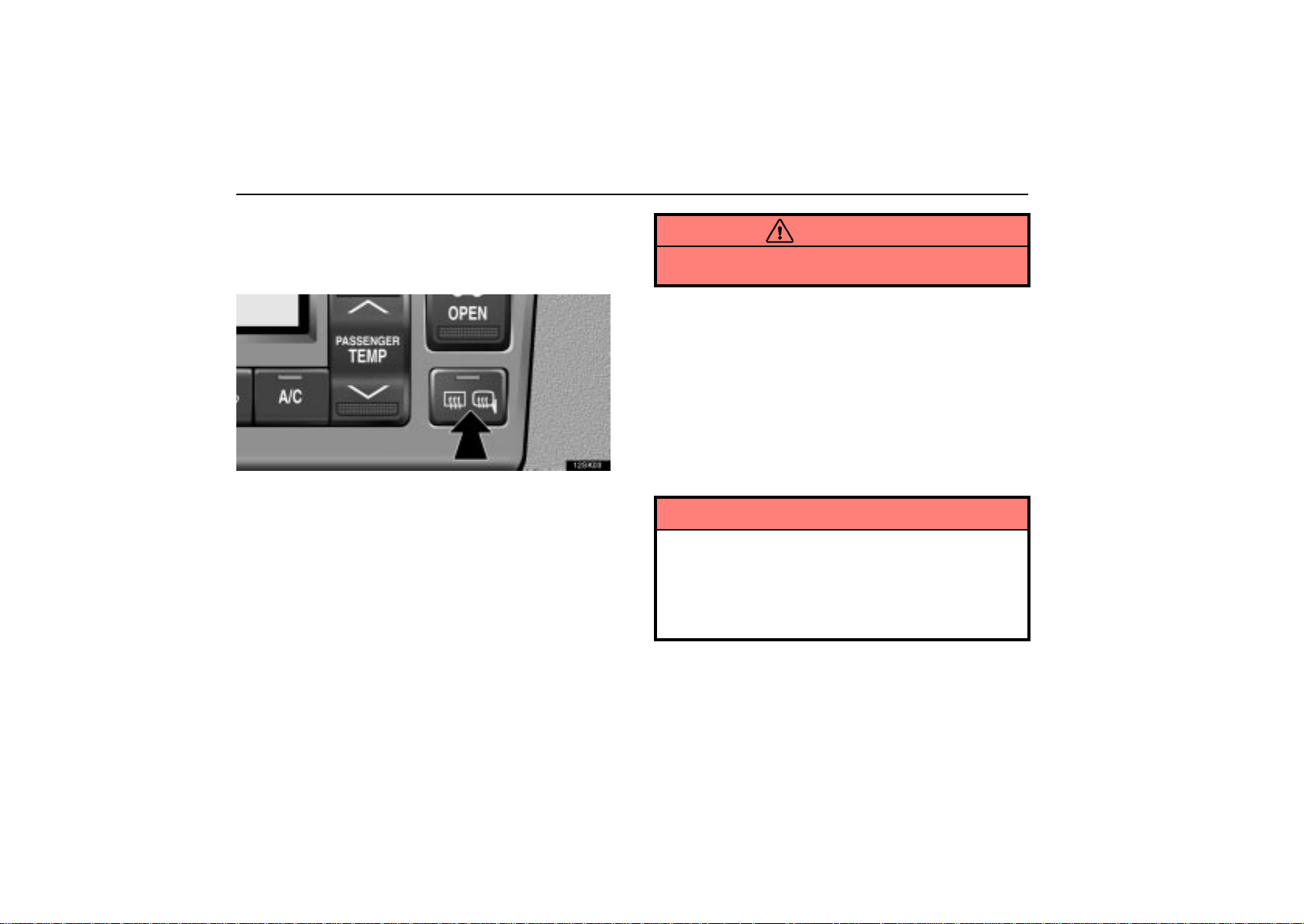

REAR WINDOW AND OUTSIDE

REAR VIEW MIRROR DEFOGGER

SWITCH

12sk03

To turn the electric rear window defogger on, push the switch.

The ignition switch must be in the ”ON” position. The thin heater wires on the inside of the rear window and the

heater panels in the outside rear view mirrors will quickly clear the surface. Keep your hands off the mirror faces when the switch is on. An indicator light is on when the defogger is operating.

The system will automatically shut off when the defogger has operated about 15 minutes.

CAUTION

Since the mirror surfaces can get hot, do not touch them when the switch is on.

If further defrosting or defogging is desired, simply actuate the switch again. When the surface has cleared, push the switch once again to turn the defogger off. Continuous use may cause the battery to discharge, especially during stop- and- go driving. The defogger is not designed to dry rain water or to melt snow.

If the outside rear view mirrors are heavily coated with ice, use a spray de-icer before operating the switch.

When the outside temperature is below 25 C ( 77 F), operating the wipers turns the outside rear view mirror defogger on automatically .

NOTICE



When cleaning the inside of the rear window, be careful not to scratch or damage the heater wires or connectors.



To prevent the battery from being discharged, do not operate the defogger continuously longer than necessary.

Page 65

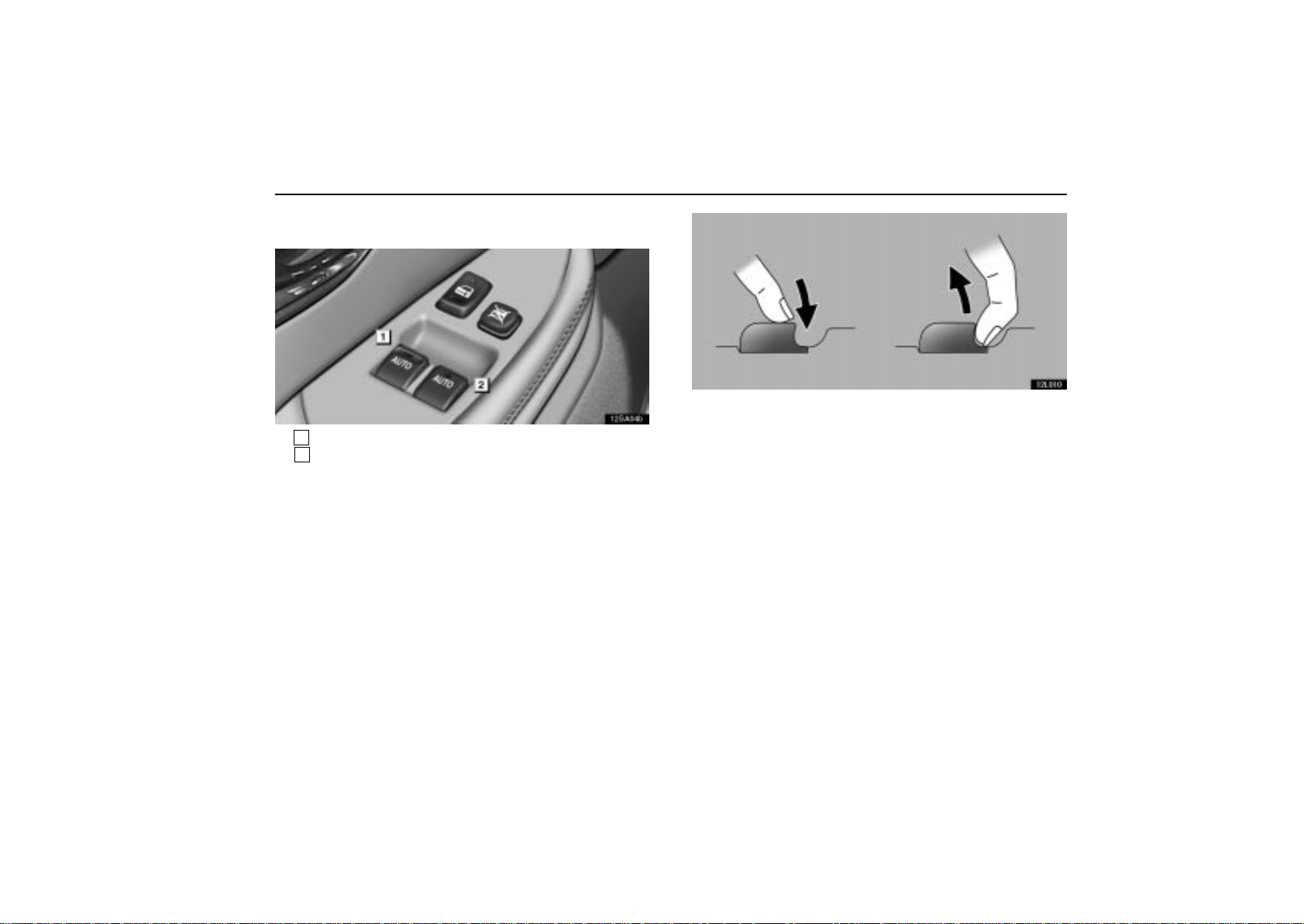

POWER WINDOW SWITCHES

12sa04b



For driver’s window

For front passenger’s window

To raise or lower the windows, use the switch on each door. The passenger’s window can also be controlled by the switch on the driver’s door.

The power windows work when the ignition switch is in the ”ON” position.

Key off operation: Even if the ignition switch is turned to the ”ACC” or ”LOCK” position, the window can be operated until either side door is opened (or for about 45 seconds).

SWITCHES

12L010

Operating the switches

To raise or lower the windows, pull the switch halfway up or push it halfway down.

Automatic operation: To fully raise or lower the window

automatically, pull the switch fully up or push it fully down. To stop the window partway, lightly push or pull the switch in

the opposite direction and then release it.

Page 66

SWITCHES

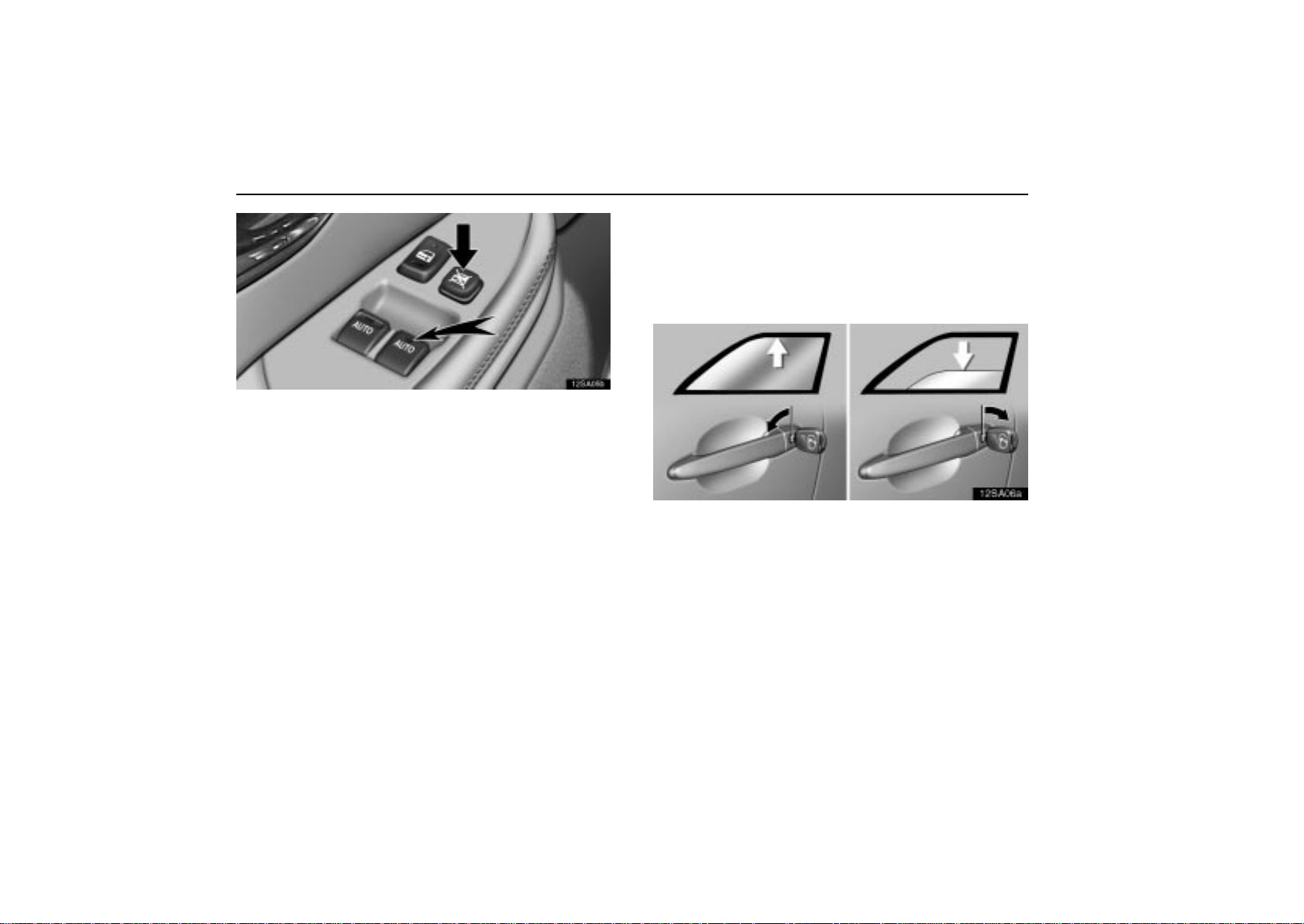

12sa05b



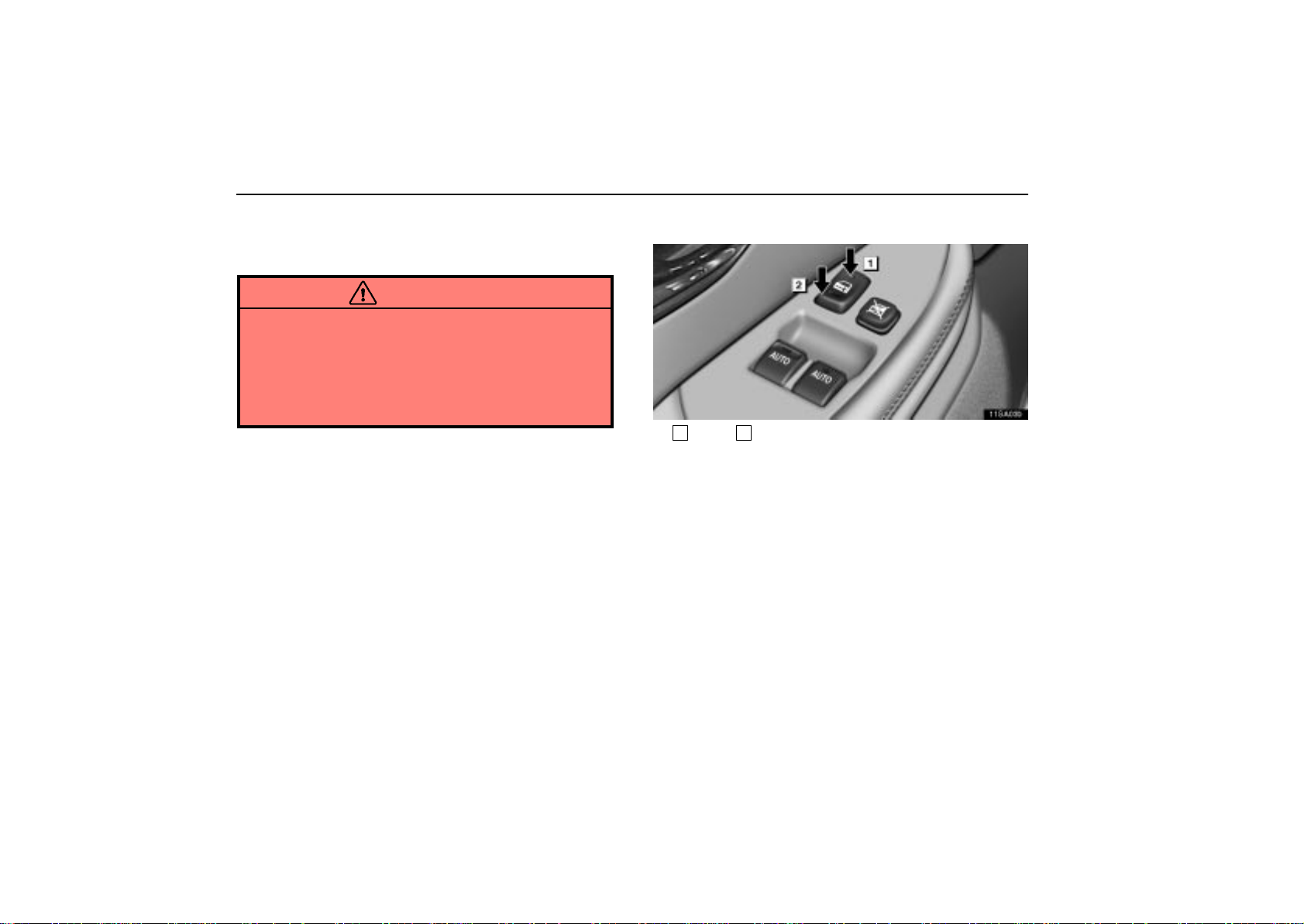

Indicator light

With the window lock switch pressed in, only the driver’s window can be raised or lowered.

The indicator lights on the switch tell you which of the switches can be operated.

Even with the window lock switch pressed in, the windows will be operated from outside the vehicle using an ignition key or wireless remote control.

Operating the windows from outside the vehicle

The windows can be operated using an ignition key.*

NOTE: *This feature can be deactivated. Ask your Lexus

dealer for details.

12sa06a

Insert the ignition key into the keyhole on the driver’s side. To close the windows: Turn the key in the locking direction

and hold it. After the door is locked, the windows begin to close. To stop

in the middle, return the key. To open the windows: Turn the key in the unlocking direction

and hold it. After the door is unlocked, the windows begin to open. To stop

in the middle, return the key. This function will work even with the window lock switch

pressed in.

Page 67

SWITCHES

Jam protection function

If something gets caught between the window and window frame during automatic raising operation, key off raising operation or raising operation using the ignition key from the outside, the window stops and is lowered.

If the window receives a strong impact, this function may work even if nothing is caught.

CAUTION

To avoid serious personal injury, you must do the following.

 Before you close the power windows, always make

sure there is nobody around the power windows. You must also make sure the heads, hands and other parts of the bodies of all occupants are kept completely inside the vehicle. If someone’s neck, head or hands get caught in a closing window, it could result in a serious injury. When anyone closes the power windows, make sure that he/she operates the windows safely.

 When small children are in the vehicle, never let them

use the power window switches without supervision. Use the window lock switch to prevent them from making unexpected use of the switches.

 Be sure to remove the ignition key when you leave

your vehicle.

 Never leave anyone (particularly a small child) alone

in your vehicle, especially with the ignition key still inserted. Otherwise, he/she could use the power window switches and get trapped in a window. Unattended person (particularly a small child) can be involved in a serious accident.

 Never try jamming any part of your body to activate

the jam protection function intentionally.

 The jam protection function may not work if

something gets caught just before the window fully closed.

Page 68

SWITCHES

EMERGENCY FLASHER SWITCH

12sa07

To turn on the emergency flashers, push the switch.

All the turn signal lights will flash. The emergency flashers will work with the engine running or off and with or without the ignition key.

Turn on the emergency flashers to warn other drivers if you must stop your vehicle where it might be a traffic hazard.

Always pull your vehicle as far off the road as possible. The turn signal light switch will not work when the emergency

flashers are in operation.

NOTICE

To prevent the battery from being discharged, do not leave the switch on longer than necessary when the engine is not running.

SEAT HEATER SWITCHES

12sa08a



For front passenger’s seat 2For driver’s seat

The seat heater has 2 dials. Turn the dials to the left to turn the respective seat heaters on. The indicator lights come on. To turn them off, turn the dials to the right until they stop. The indicator lights go off.

The ignition switch must be in the ”ON” position.

Page 69

CAUTION

Occupants must use caution when operating the seat heater because they may experience minor burns even at low temperatures. Use extra caution for;

 Babies, small children, elderly persons, sick persons

or persons with physical disabilities

 Persons who have delicate skin  Persons who are exhausted  Persons who have taken alcohol or drugs which

induce sleep (sleeping drug, cold remedy, etc.).

To prevent the seat from overheating, do not use the seat heater with a blanket, cushion, or other insulating objects which cover the seat.

NOTICE



Do not put unevenly weighted objects on the seat and do not stick sharp objects (needles, nails, etc.) into the seat.



When cleaning the seats, do not use organic substances (paint thinner, benzine, alcohol, gasoline, etc.). They may damage the heater and seat surface.



To prevent the battery from being discharged, turn the switches off when the engine is not running.

SWITCHES

Page 70

SWITCHES

Page 71

SECTION 1 –

INSTRUMENTS AND CONTROLS

Keys and doors

Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine immobilizer system 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wireless remote control 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Doors 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Theft deterrent system 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 72

KEYS AND DOORS

KEYS

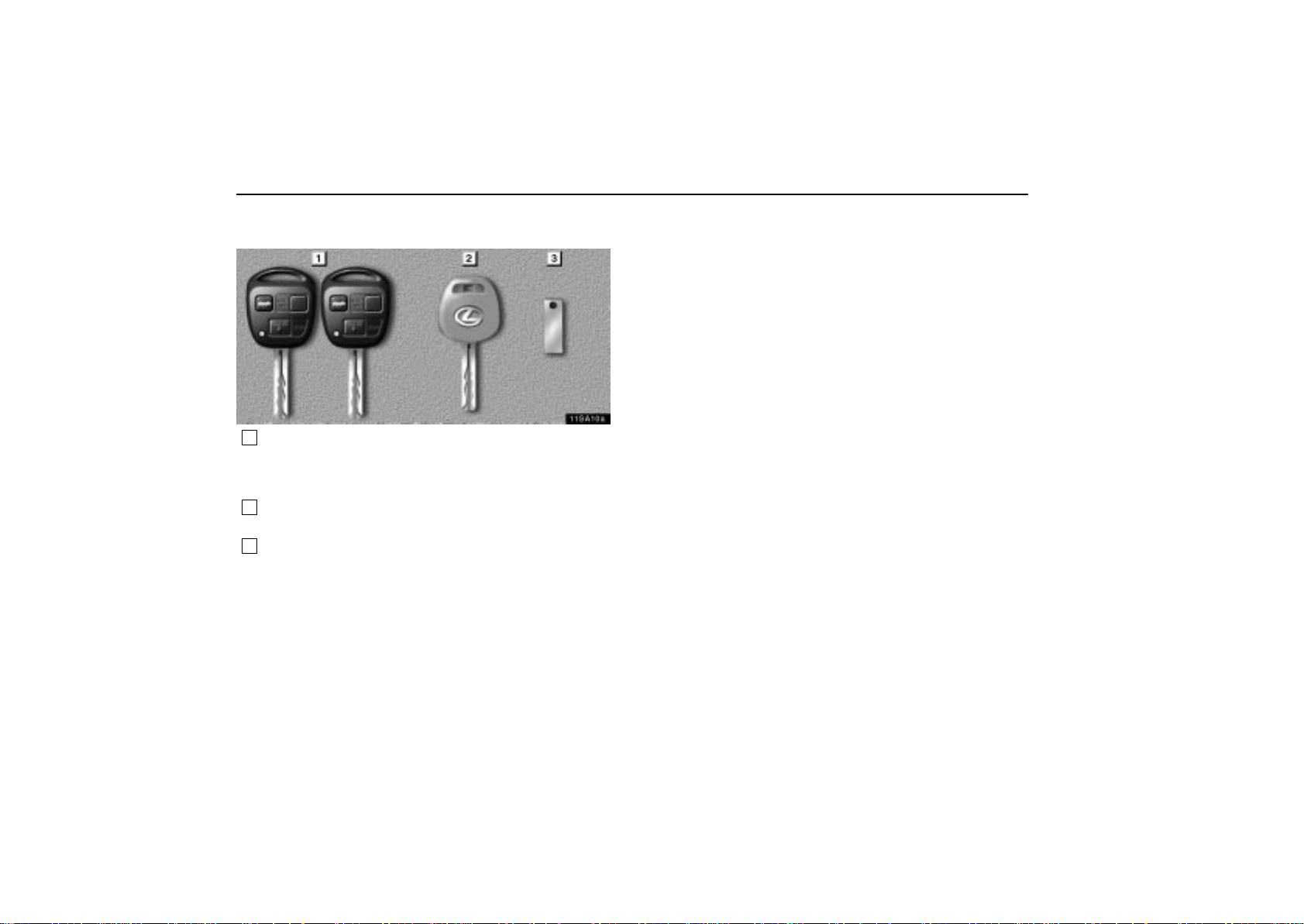

11sa10a

Master keys - These master keys work in every lock. For your Lexus dealer to make a new key with a built-in transponder chip, your dealer will need one of them.

Sub key - The sub key will not open the glove box and rear console box.

Key number plate - Keep the plate in a safe place such as your wallet, not in the vehicle.

A transponder chip for engine immobilizer system has been placed in the head of the master and sub keys. These chips are needed to enable the system to function correctly, so be careful not to lose these keys. If you make your own duplicate key, you will not be able to cancel the system or start the engine.

To protect items locked in the glove box or rear console box when using valet parking, leave the sub key with the attendant.

The trunk lid can be opened using a loop of wire in the rear console box even with the trunk lid opener main switch in the glove box turned off. When keeping items in the trunk, be sure to turn off the trunk lid opener main switch and lock the glove box and rear console box. To turn off the main switch in the glove box, see page 88. For locking the glove box, see page

70. For locking the rear console box, see page 68. Since the doors can be locked without a key, you should

always carry a spare master key in case you accidentally lock your keys inside the vehicle.

If you should lose your keys or if you need additional keys, duplicates can be made by a Lexus dealer using the key number.

We recommend writing down the key number and storing it in a safe place.

Page 73

KEYS AND DOORS

Flat key

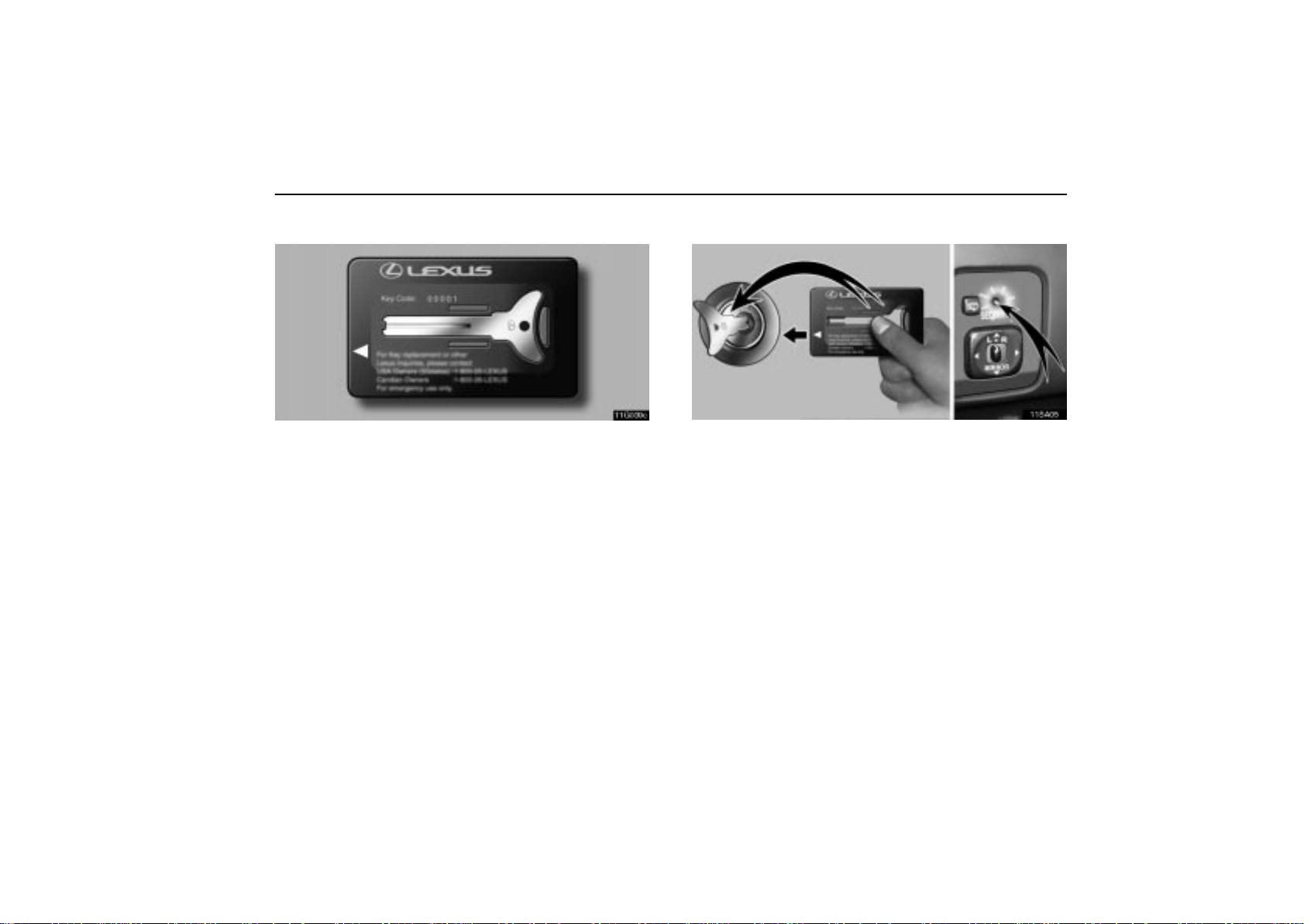

11g039c

As a transponder chip is built in its key case, you can start the engine with this key.

The flat key works in every lock.

A transponder chip for engine immobilizer system has been placed in the key case of the flat key. This chip is needed to enable the system to function correctly, so be careful not to lose this key . If you make your own duplicate key, you will not be able to cancel the system or start the engine.

Insert your key plate in its key case as shown. We recommend that you always carry this with you for emergency use. Do not leave it in your vehicle.

Starting the engine using a flat key

11sa05

1. Remove the key plate from the key case.

2. Insert the key plate into the ignition switch. The indicator light keeps flashing.

3. Bring the key case closer to the ignition switch within 10 seconds as indicated by the arrow head. The indicator light goes out. This means the engine immobilizer system is automatically canceled. (For details, see “Engine immobilizer system” on page 1 1.) You can put the key case away then. Y ou cannot cancel the engine immobilizer system if 10 seconds have passed after you inserted the key plate. You need to remove the key plate from the ignition switch and try it again from the step 2.

4. Start the engine within 20 seconds after the security indicator light goes out. You cannot start the engine if 20 seconds have passed after the security indicator went off. You need to remove the key plate from the ignition switch and try it again from the step 2.

Page 74

KEYS AND DOORS

NOTICE



Do not let the key case become bent as the key plate may fall out or become bent also.



The flat key is designed for emergency use only. So do not use it regularly instead of other master keys.

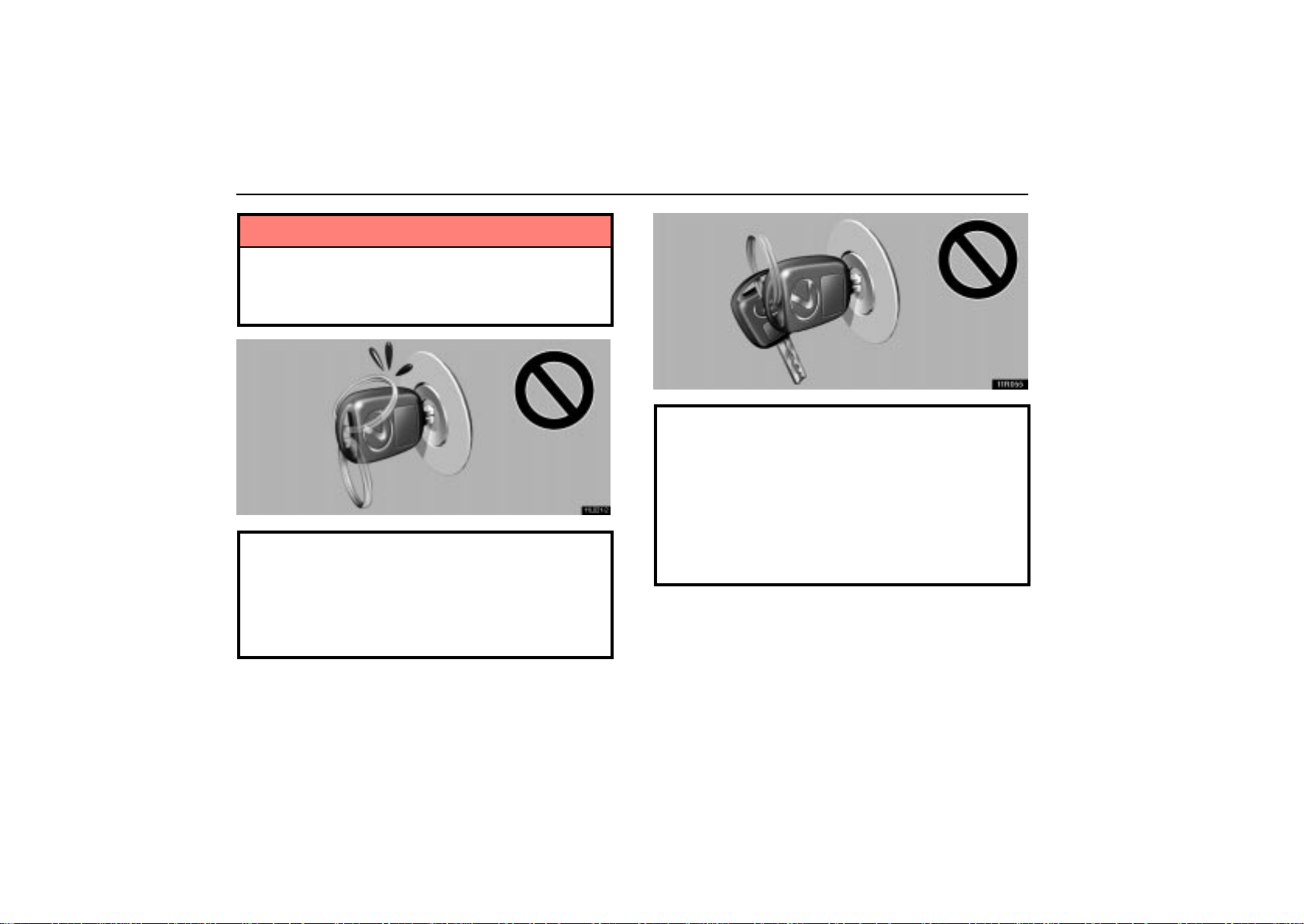

11L021-2

When using a key containing a transponder chip, observe the following precautions:



When starting the engine, do not use the key with a key ring resting on the key grip and do not press the key ring against the key grip. Doing so may prevent the engine from starting, or may cause the engine to stop soon after it starts.

11R055



When starting the engine, do not use the key in proximity with other transponder keys (including the flat key and keys of other vehicles), and do not press other key plates against the key grip. Doing so may prevent the engine from starting, or may cause the engine to stop soon after it starts. If this happens, remove the key once and then insert it again after removing other transponder keys (including the flat key and keys of other vehicles) from the ring or while gripping or covering them with your hand to start the engine.

Page 75

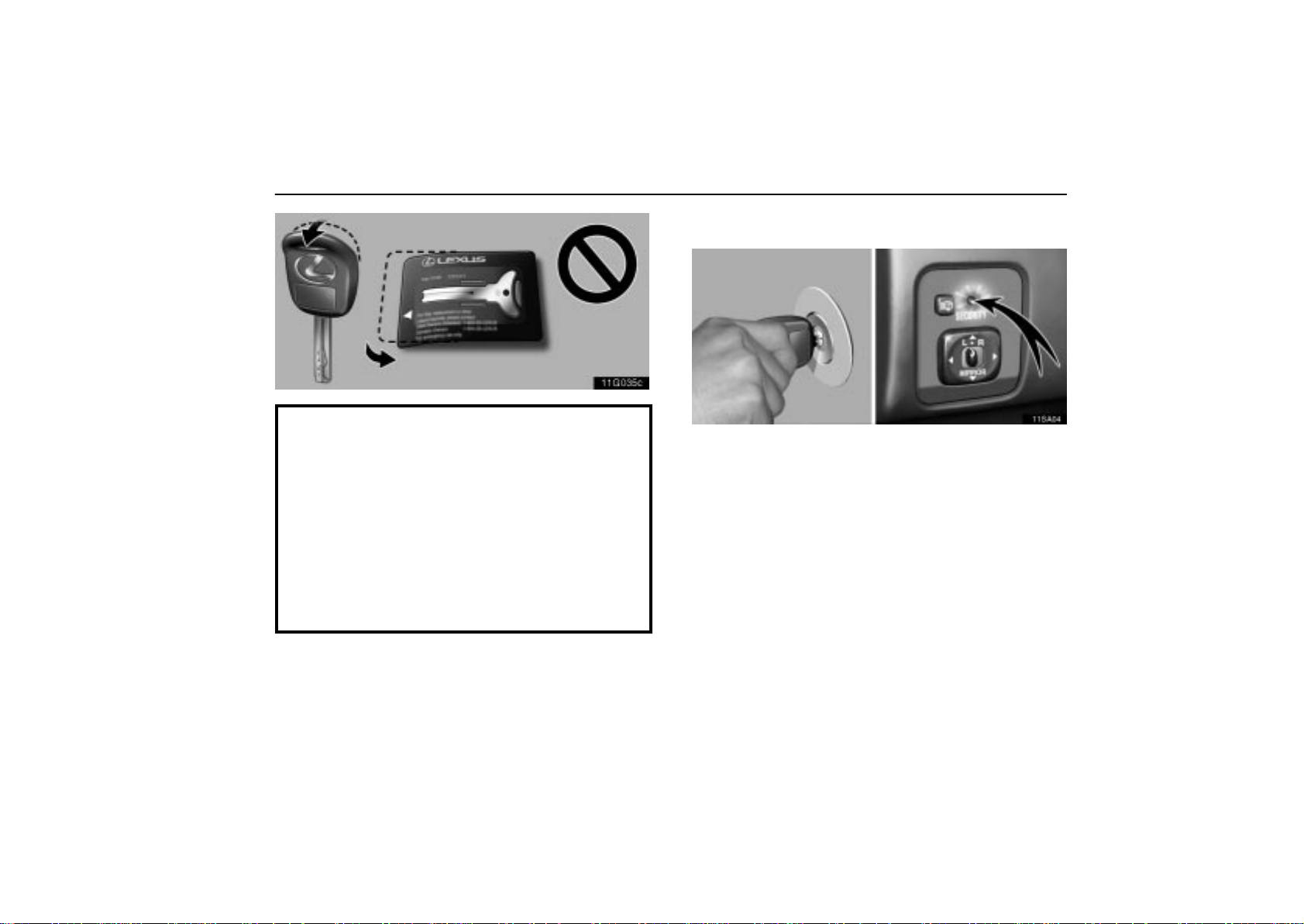

11G035c



Do not bend the key grip or flat key.



Do not cover the key grip or flat key with any material that cuts off electromagnetic waves.



Do not knock the key or flat key hard against other objects.



Do not leave the key or flat key exposed to high temperatures for a long period, such as on the dashboard and hood under direct sunlight.



Do not put the key or flat key in water or wash it in an ultrasonic washer.



Do not use the key or flat key with electromagnetic materials.

KEYS AND DOORS

ENGINE IMMOBILIZER SYSTEM

11sa04

The engine immobilizer system is a theft prevention system. When you insert the key in the ignition switch, the transponder chip in the key’s head transmits an electronic code to the vehicle. The engine will start only when the electronic code in the chip corresponds to the registered ID code for the vehicle.

The system is automatically set when the key is removed from the ignition switch. At this time, the security indicator light flashes. When you insert the key in the ignition switch, the security indicator light goes out and the system is canceled automatically, which enables the engine to start.

The transponder chip of the flat key is in its key case. You can cancel the engine immobilizer system using the flat key . (For details, see “Flat key” on page 9.)

Page 76

KEYS AND DOORS

For your Lexus dealer to make you a new key with a built-in transponder chip, your dealer will need your key number and master key. However, there is a limit to the number of additional keys your Lexus dealer can make for you.

If you make your own duplicate key, you will not be able to cancel the system or start the engine.

For vehicles sold in U.S.A.

FCC ID: MOZRI-4ATY-A

MADE IN JAPAN

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada

This device complies with RSS- 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Page 77

KEYS AND DOORS

WIRELESS REMOTE CONTROL*

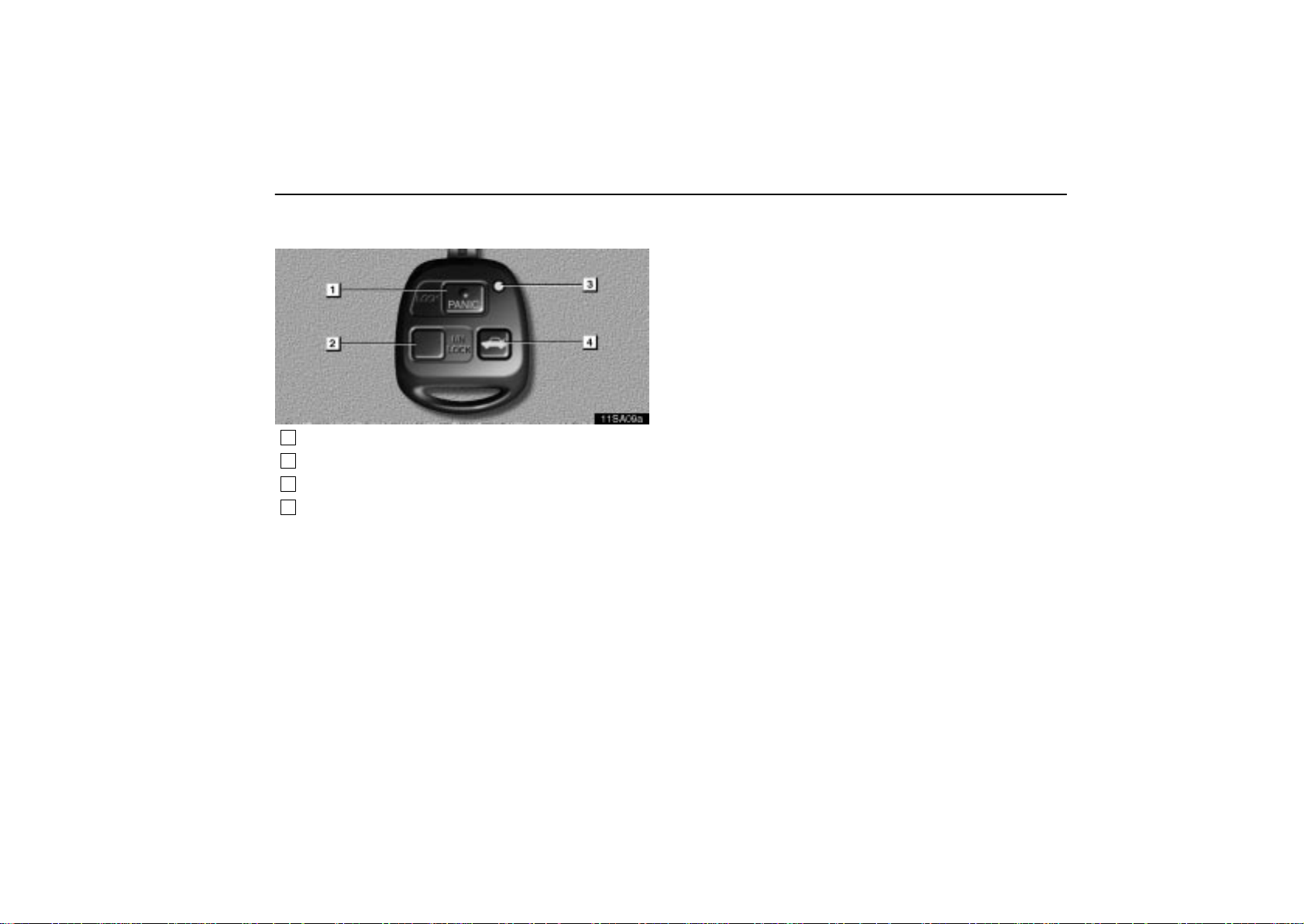

11sa09a

Locking the doors and sounding an alarm

Unlocking the doors and opening the side windows

Indicator light

Unlocking the trunk lid

NOTE: *This feature can be deactivated as vehicle theft deterrent measure in case of the loss of the wireless remote

control key. Ask your Lexus dealer for details.

When you operate any button on the key, push it slowly and surely. At this time, the indicator light on the key grip flashes once.

The operational range of the wireless remote control is approximately 1 m (3 ft.). The effective range may vary with different conditions. To activate the wireless remote control without fail, do it approximately 1 m (3 ft.) from your Lexus.

In the following cases, the battery in the key may be discharged. If this is the case, replace it using a special screwdriver.

 The remote control does not work.  The operational range of wireless remote control becomes

extremely short.

 The indicator light on the key is dimmed or does not come

on.

For the replacement of the battery, see ”Replacing the battery” on page 17. You can also have the battery of the key replaced by your Lexus dealer.

If you lose the wireless key, contact your Lexus dealer as soon as possible to avoid the possibility of theft, or an accident.

Y ou can use up to 4 wireless remote control keys for the same vehicle. Contact your Lexus dealer for detailed information.

The wireless remote control key is an electronic component. Observe the following instructions in order not to cause damage to the key.

 Do not leave the wireless remote control key in places

where the temperature becomes high such as on the

dashboard.

 Do not disassemble it.  Avoid knocking it hard against other objects or dropping it.  Avoid putting it in water.

Page 78

KEYS AND DOORS

Locking/Unlocking the doors

When you push the ”LOCK” button on the key briefly, all the doors can be locked from outside the vehicle.

When they are locked securely, the emergency flashers will flash and one beep will sound.* However, when you push the ”LOCK” button with any door not closed securely, the buzzer sounds for 10 seconds.** To stop the buzzer, close all the doors securely or push the ”UNLOCK” button. If the key is in the ignition switch, locking cannot be done.

Make sure all the doors are locked when you leave the vehicle. Push the ”LOCK” button once again. If they were already locked, the turn signal lights will flash.***

NOTE: *The emer g e ncy flashers can be set not to flash and beep volume can be changed. **The buzzer can be set not to sound if a door is not closed securely. ***The turn signal lights can be set not to flash. Ask your Lexus dealer for

details.

NOTICE

Do not push the ”LOCK” button any longer than 2 to 3 seconds. Pushing the button longer activates an alarm. For details, see page 15.

When you push the ”UNLOCK” button, the driver’s door is unlocked. Pushing that button once again within 3 seconds from the first push, the passenger’s door is also unlocked.*

NOTE: *The 2-step unlocking function can be changed.

Ask your Lexus dealer for details.

At this time, the emergency flashers will flash twice and two beeps will sound.* Together with the activation of unlocking, the interior light comes on for 15 seconds if the interior light switch is in ”DOOR” position.** However, this function does not work when the ignition switch is in the “ACC” or “ON” position. For further information, see ”Interior lights” on page

65. You have 30 seconds to open a door after using the wireless

remote unlock feature.*** If a door is not opened by then, all the doors will be automatically locked again.

Even if the ”LOCK” or ”UNLOCK” button is kept pressed in, the locking or unlocking operation is not repeated. Release the button and then push again.

NOTE: *The emergency flashers can be set not to flash and beep volume can be changed. **The interior light can be set not to come on or the duration of lighting can be changed. ***The time before automatic re-locking can be changed.

Ask your Lexus dealer for details.

Page 79

KEYS AND DOORS

Unlocking the trunk lid

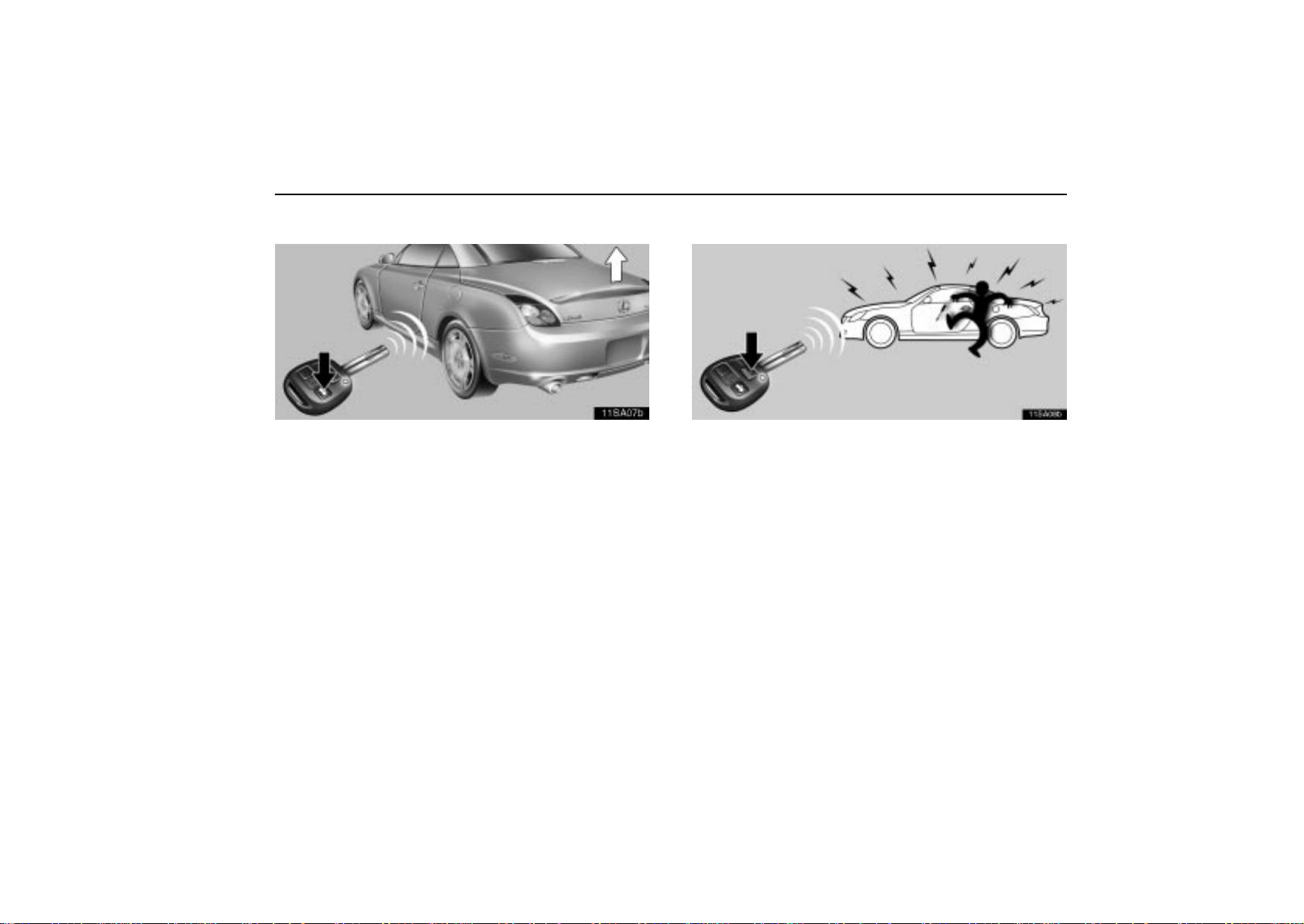

11sa07b

When you keep the button pushed for about 1 second, you can unlock the trunk lid.* One beep sounds.

This function does not work when the ignition switch is in the ”ON” position.

NOTE: *The operation method can be changed. Ask your

Lexus dealer for details.

Sounding an alarm*

11sa08b

When you push the ”LOCK” button for about 2 to 3 seconds, an alarm sounds to deter any person trying to break into or damage your vehicle.

If you want to stop the alarm, push any button. This function does not work when the ignition switch is in the

”ON” position.

NOTE: *The alarm can be set not to sound. Ask your Lexus

dealer for details.

Page 80

KEYS AND DOORS

Operating the side windows

The side windows can be operated using a wireless key from outside the vehicle.*

NOTE: *The windows can be deactivated. Ask your Lexus

dealer for details.

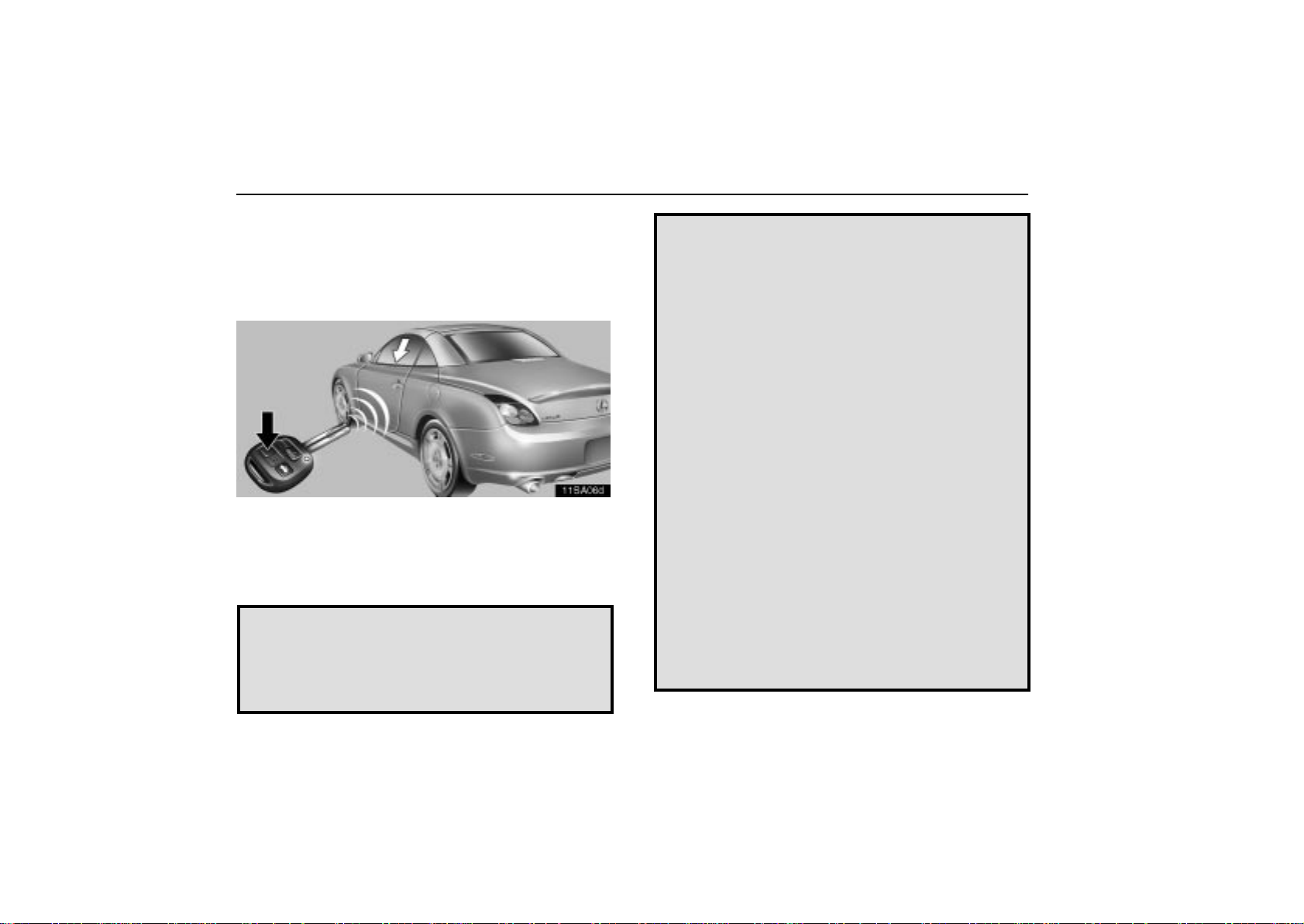

11sa06d

Push the ”UNLOCK” button until the windows start to move. When you release the button, the windows stop operating.

This function will work even with the window lock switch pressed in.

For vehicles sold in U.S.A.

NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and

receiver.

 Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

 Consult the dealer or an experienced radio / TV

technician for help.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Page 81

For vehicles sold in Canada

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Replacing the battery

When you replace the battery, prepare a lithium battery CR1616 or equivalent and a special screwdriver.

CAUTION

Special care should be taken to prevent small children from swallowing the removed battery or components.

KEYS AND DOORS

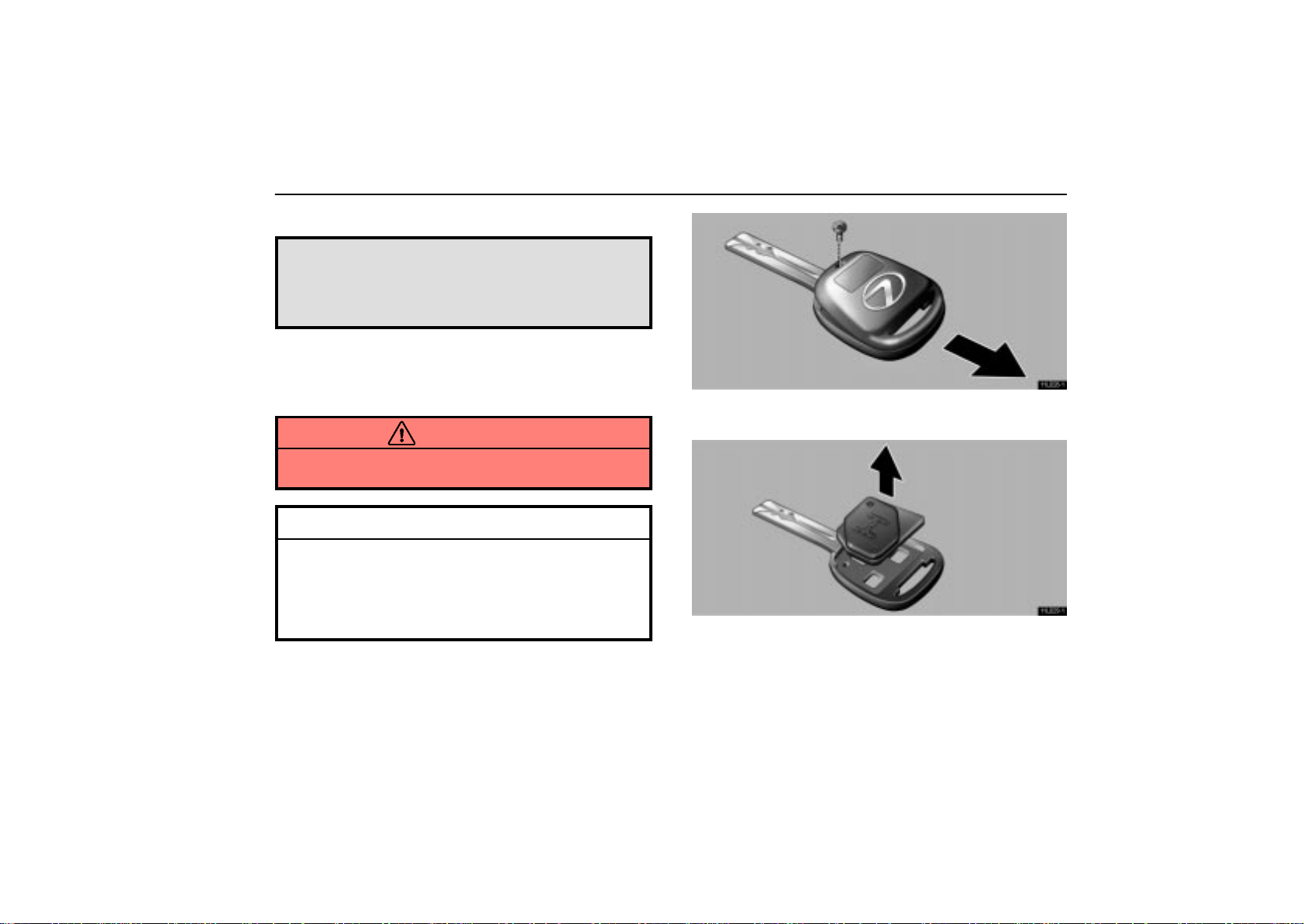

11L028-1

1. Remove the screw , and then the cover while pushing it in the arrow direction.

NOTICE



When replacing the battery, be car ef ul no t t o lose the components, screws and O-ring.



Replace only with the same or equivalent type recommended by a Lexus dealer.



Dispose of used batteries according to the local laws.

11L029-1

2. Remove the module from the key frame.

Page 82

KEYS AND DOORS

NOTICE

Take care not to damage or bend the O-ring when installing.

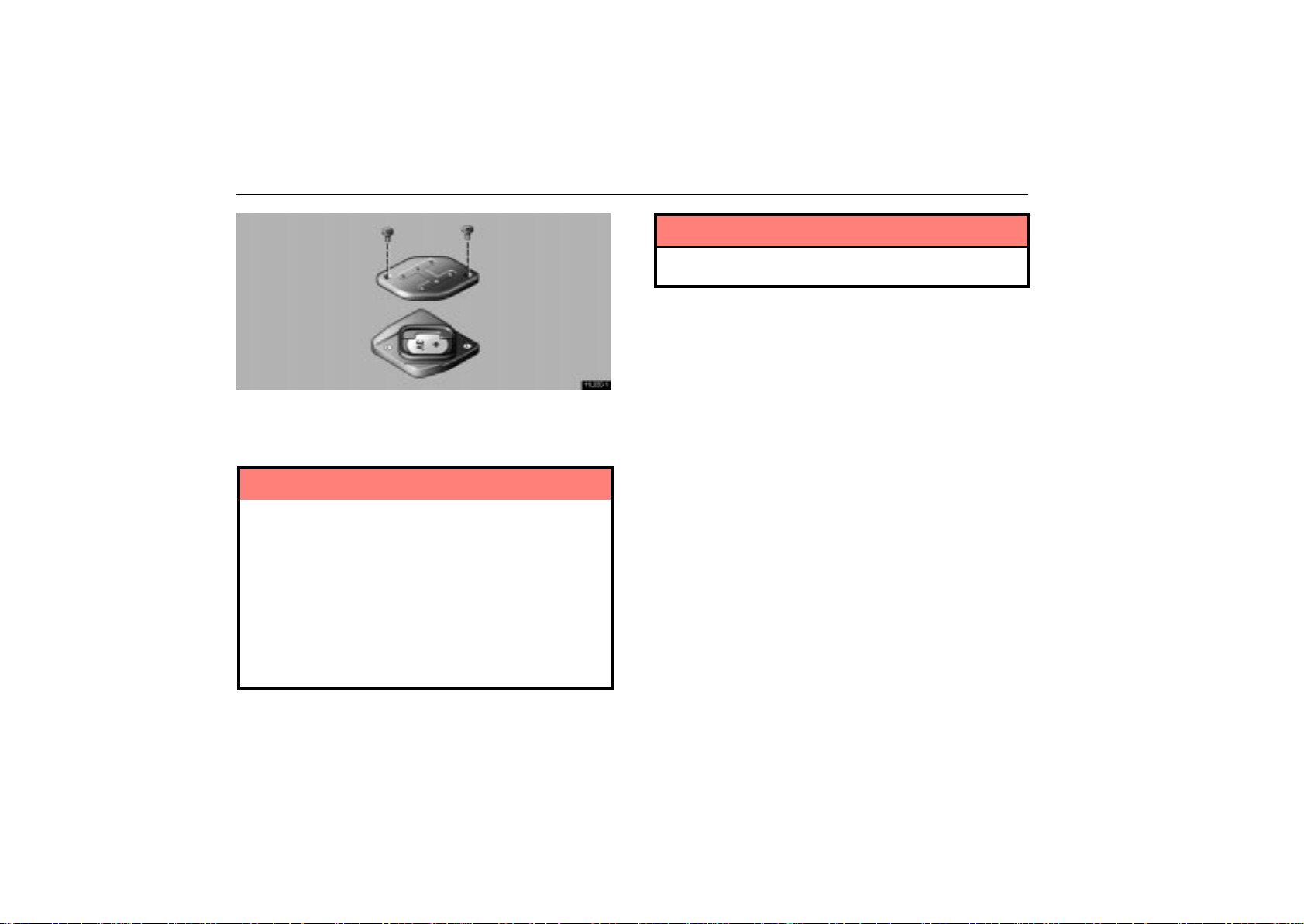

11L030-1

3. Remove the 2 screws to take out the lid of the module.

4. Take out the discharged battery and put in a new battery with the positive side up.

NOTICE



Make sure the positive side and negative side of the battery are faced correctly.



Do not replace the battery with wet hands. Water may cause unexpected rust.



Do not touch or move any components inside the transmitter or it may interfere with proper operation.



Be careful not to bend the electrode when inserting the battery and that dust or oils do not adhere to the inside of the module.



Take care not to lose the screws and O-ring.

5. Install the lid with 2 screws.

6. Install the module into the key frame and secure the cover with the screw.

7. When pushing any button on the wireless key, make sure the indicator light comes on.

Page 83

KEYS AND DOORS

DOORS

Locking with key

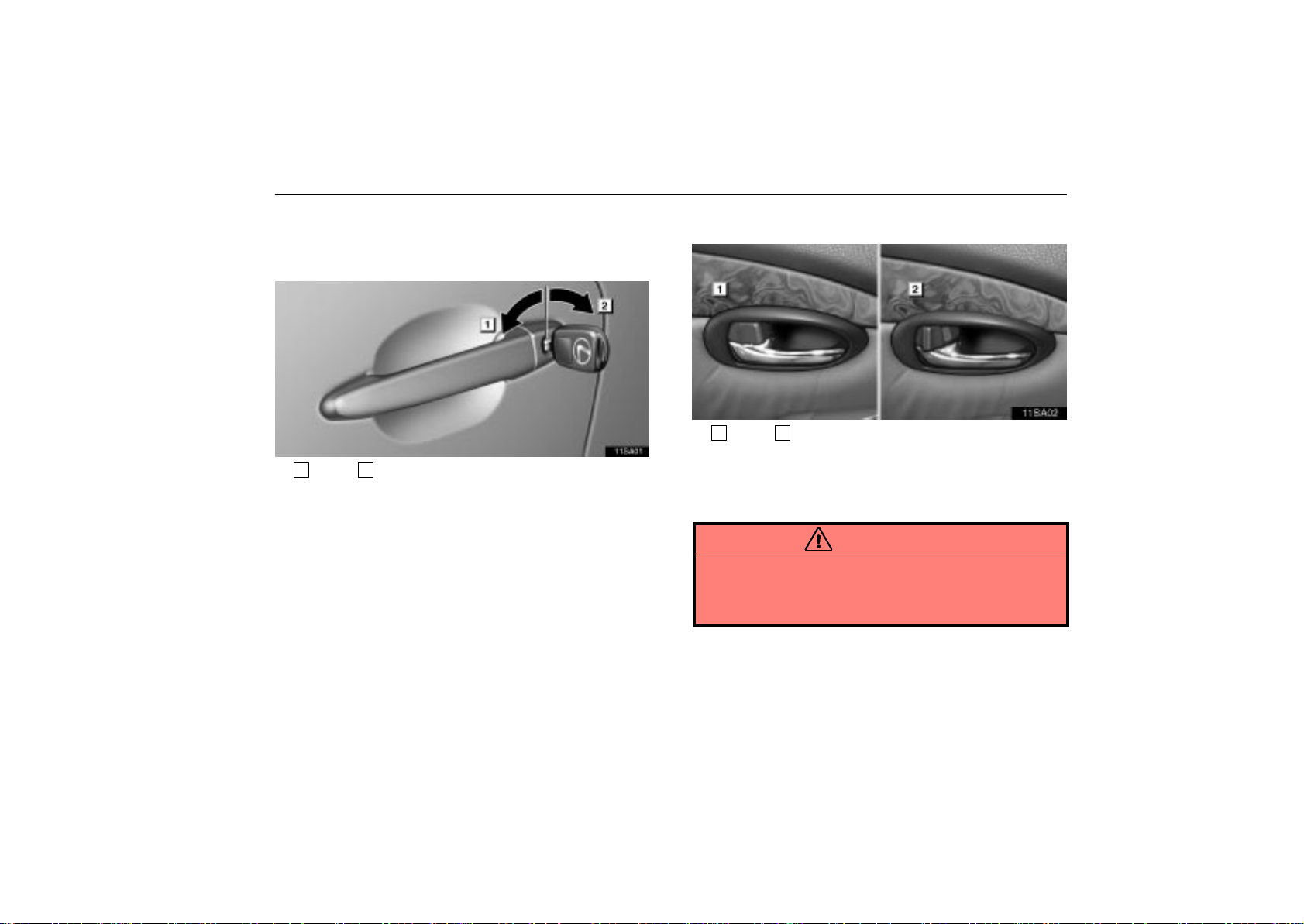

11sa01



Lock 2Unlock

Turn the key towards the front of the vehicle to lock and towards the back to unlock.

The doors lock and unlock simultaneously with driver’s door. Turning the key once will unlock the driver’s door and twice in succession will unlock both side doors simultaneously.*

NOTE: *The 2-step unlocking function can be changed.

Ask your Lexus dealer for details.

The side windows can be opened and closed from outside the vehicle using the key. For details, see “Power window switches” on page 31.

Locking with inside lock button

11sa02



Lock 2Unlock

Push in the lock button to lock and unlock the door.

The side doors can be opened by pulling the inside handles even if the lock buttons are in the locked position.

CAUTION

Do not pull the inside handle of the side doors while driving. The doors will open and an accident may occur. Lexus strongly recommends that all children be placed in the rear seat of the vehicle.

Closing the door with the lock button pushed in will also lock the door. Be careful not to lock your keys in the vehicle. Doors cannot be locked when either side door is open and the key is in the ignition.

Page 84

KEYS AND DOORS

If the vehicle is subjected to a severe frontal, rear or side impact with the ignition switch turned to the “ON” position, both side doors will unlock automatically after a few seconds.

CAUTION

Before driving, make sure the doors are closed and locked, especially when small children are in the vehicle. Along with the proper use of seat belts, locking the doors helps prevent the driver and passengers from being thrown out from the vehicle during an accident. It also helps prevent the doors from being opened unintentionally.

Locking with power door lock switch

11sa03b



Lock 2Unlock

To lock both side doors simultaneously, push the power door lock switch down on the front side. Pushing down on the rear side will unlock them.

The same switch is also found on the front passenger’s side. Auto door locking function*: Both side doors will lock

automatically when the selector lever is moved out of “P” position. This auto door locking function is operable while the ignition switch is turned to the “ON” position.

NOTE: * This auto door locking function can be disabled or

changed. Ask your Lexus dealer for details.

Page 85

THEFT DETERRENT SYSTEM

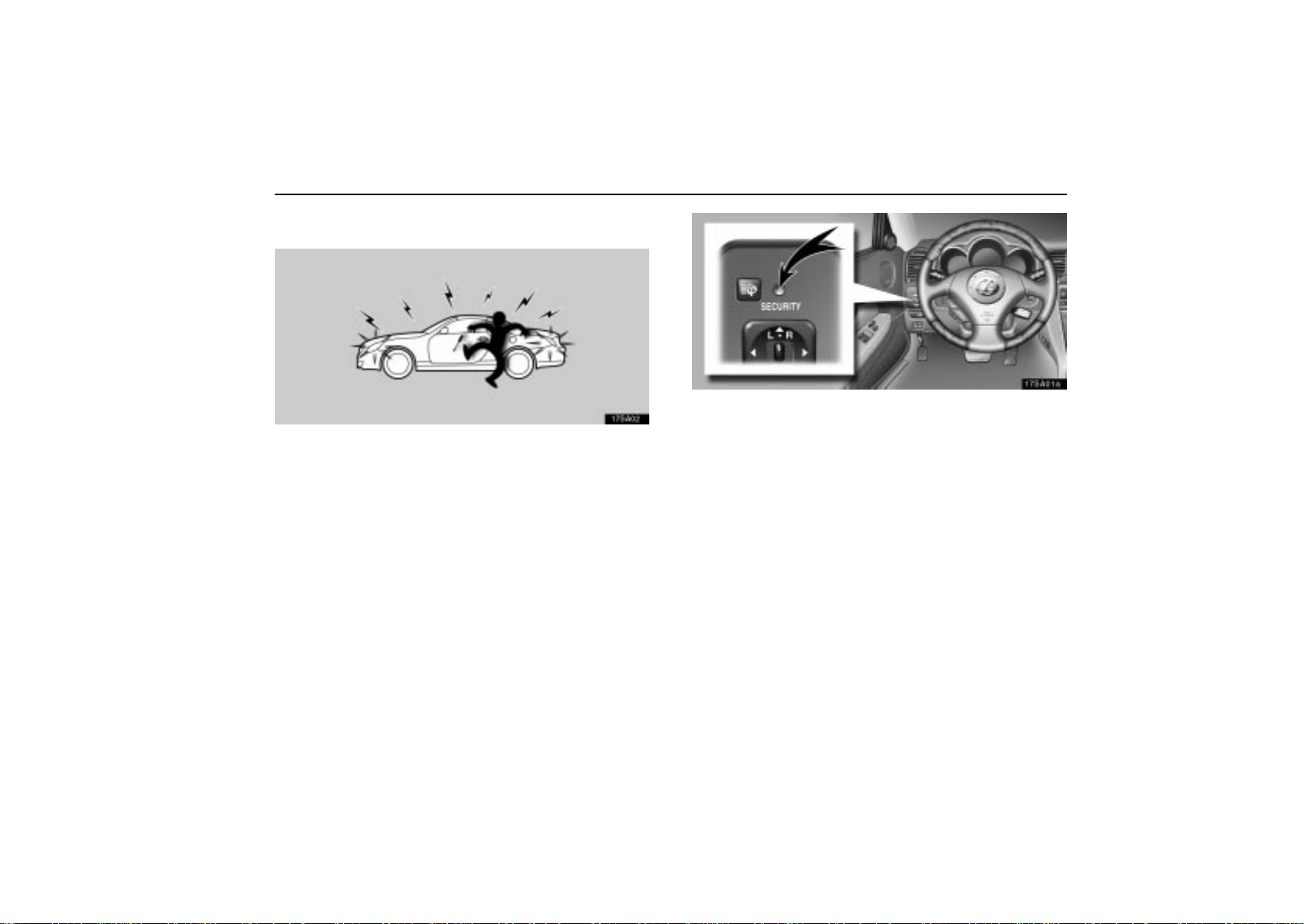

17sa02

17sa01a



Security indicator light

KEYS AND DOORS

To deter theft of the vehicle, this system is designed to sound an alarm if any of the doors, trunk or hood is forcibly unlocked or the battery terminal is disconnected and then reconnected while the vehicle is locked.

The alarm blows the horn intermittently, flashes the headlights, tail lights, turn signal lights and other exterior lights, and illuminates the interior lights.

Setting the system

1. If the retractable hardtop is opened, close it.

2. Turn the ignition switch to the ”LOCK” position and remove the key.

The engine immobilizer system causes the indicator light to flash.

3. Close and lock all the doors, trunk and hood using an ignition key or wireless remote control.

If you lock them with wireless remote control, the turn signals flash once.*

NOTE: *The turn signals can be set not to flash. Ask your

Lexus dealer for details.

The flashing indicator light remains on when all the doors, trunk and hood are closed and locked.

Page 86

KEYS AND DOORS

4. After 30 seconds, the indicator starts flashing and the system is set.

Cancelling the system

When you unlock any door or trunk using an ignition key or wireless remote control, the system is cancelled.

If you unlock any door or trunk with wireless remote control, the turn signals flash twice.*

NOTE: *The turn signals can be set not to flash. Ask your

Lexus dealer for details.

Activating the system

The alarm sounds for 60 seconds if any of the following are operated:

 Unlocking any door or trunk without using an ignition key or

wireless remote control.

 Opening the hood forcibly.  Reconnecting the battery.

If any door is unlocked and the ignition key is not in the ignition switch during the alarm sounding, its door is automatically locked.

To stop the alarm: Use either of the following methods.  Unlock the door or trunk using an ignition key or wireless

remote control.

 Turn the ignition switch on.

Testing the system

1. Open all the windows.

2. Set the system as described above.

The doors should be locked with the ignition key or wireless remote control. Be sure to wait until the indicator light starts flashing.

3. Unlock one of the doors from the inside.

The system should activate the alarm.

4. Unlock any of the doors with a key or the wireless remote control to cancel the system.

5. Repeat this operation for the other doors and hood.

When testing the hood, also check that the system is activated when the battery terminal is disconnected and then reconnected.

If the system does not work properly , have it checked by your Lexus dealer.

NOTICE

When disconnecting the battery, be sure to cancel the theft deterrent system. Otherwise, the system could activate an alarm and lock the unlocked door(s) automatically.

Page 87

BASIC OPERATION

QUICK REFERENCE

Driver’s seat 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Steering wheel 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Automatic transmission 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight and turn signal switches 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiper switch 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 88

QUICK REFERENCE

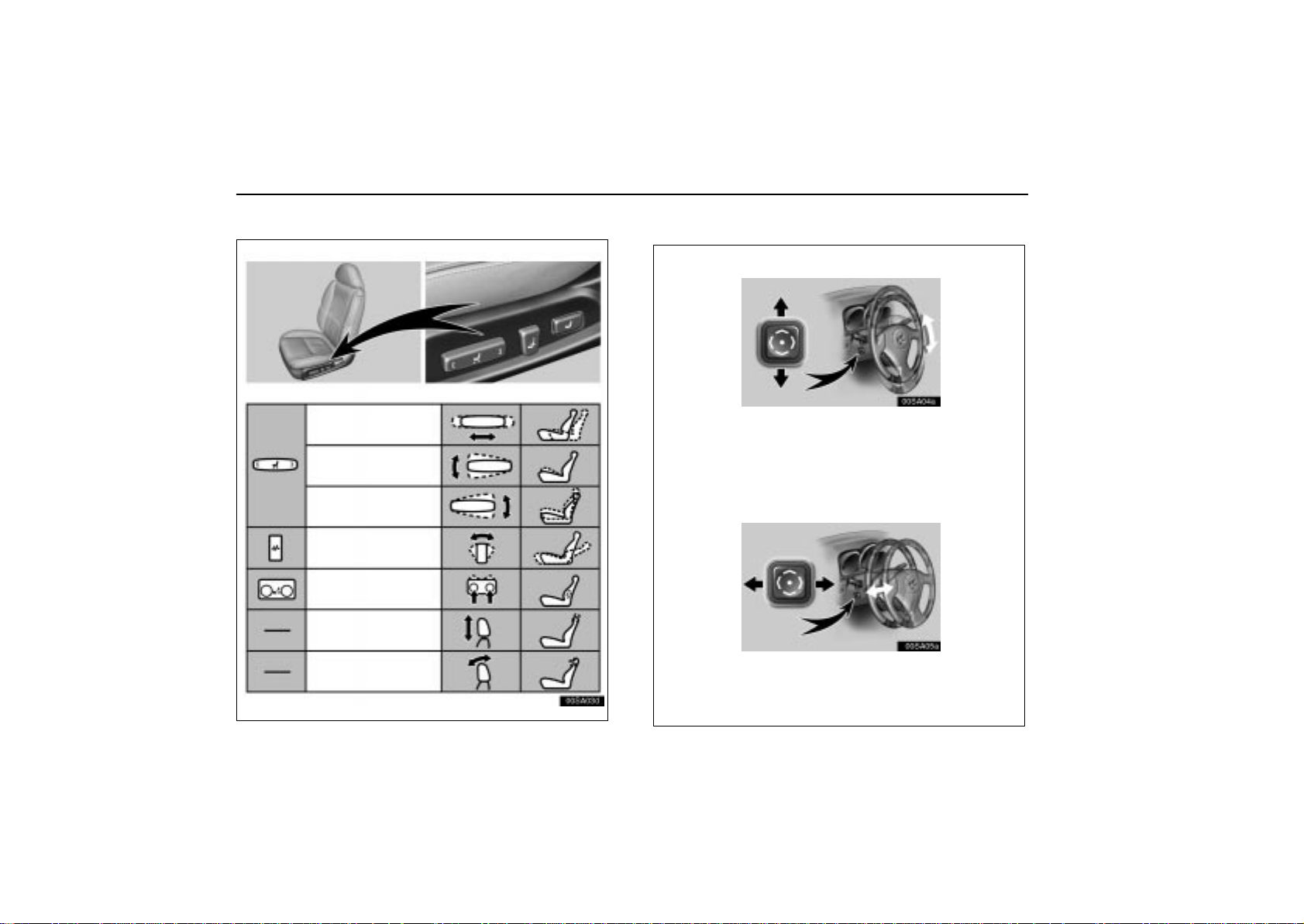

1. DRIVER’S SEAT 2. STEERING WHEEL

 TILT STEERING WHEEL

00sa04a

Seat adjustment

Seat

position

Seat cushion

angle

Seat cushion

height

Seatback

angle

Lumbar support

Head restraint

height

To tilt the steering wheel up or down to the desired angle, push the control switch in the required direction and release the button when the steering wheel reaches the desired angle.

 TELESCOPIC STEERING WHEEL

00sa05a

Head restraint

angle

To move the steering wheel to the desired position, push the control switch away from you or pull it toward you until the steering wheel reaches the desired position.

Page 89

3. AUTOMATIC TRANSMISSION

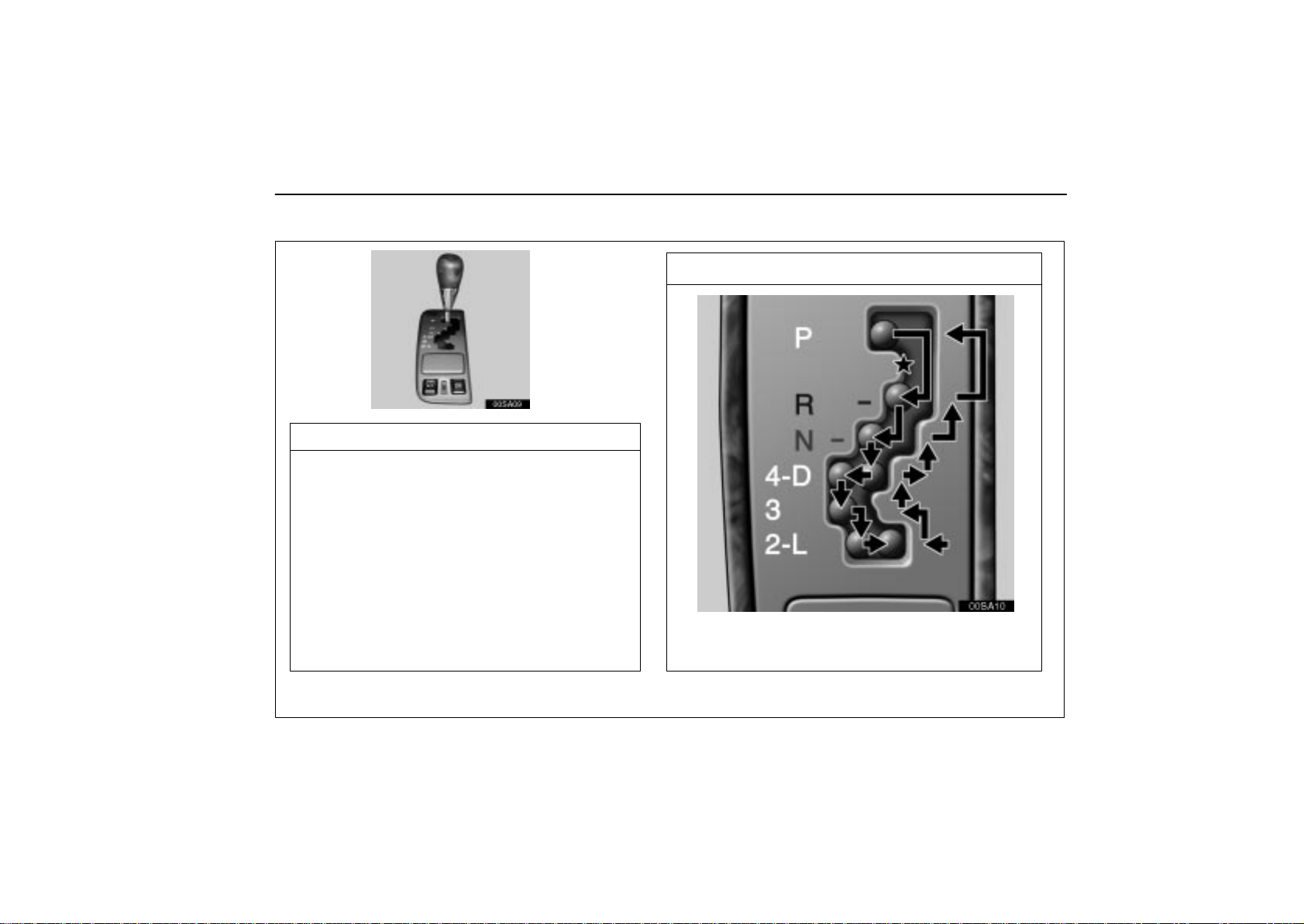

00sa09a

SELECTOR LEVER POSITION

P: Parking, engine starting and key removal

position

R: Reverse position N: Neutral position D: Normal driving position (Shifting into

overdrive possible)

4: Position for engine braking (Shifting into

overdrive not possible)*

3, 2: Position for more powerful engine braking

L: Position for maximum engine braking

QUICK REFERENCE

OPERATION OF SELECTOR LEVER

00sa10a

 Shift while pressing the brake pedal. (Ignition

switch must be in the ”ON” position.)

*When the cruise control is being used, even if you downshift from ”D” to ”4”, engine braking will not be enabled because the cruise control is not cancelled. For the operation to decrease the vehicle speed, see page 210.

Page 90

QUICK REFERENCE

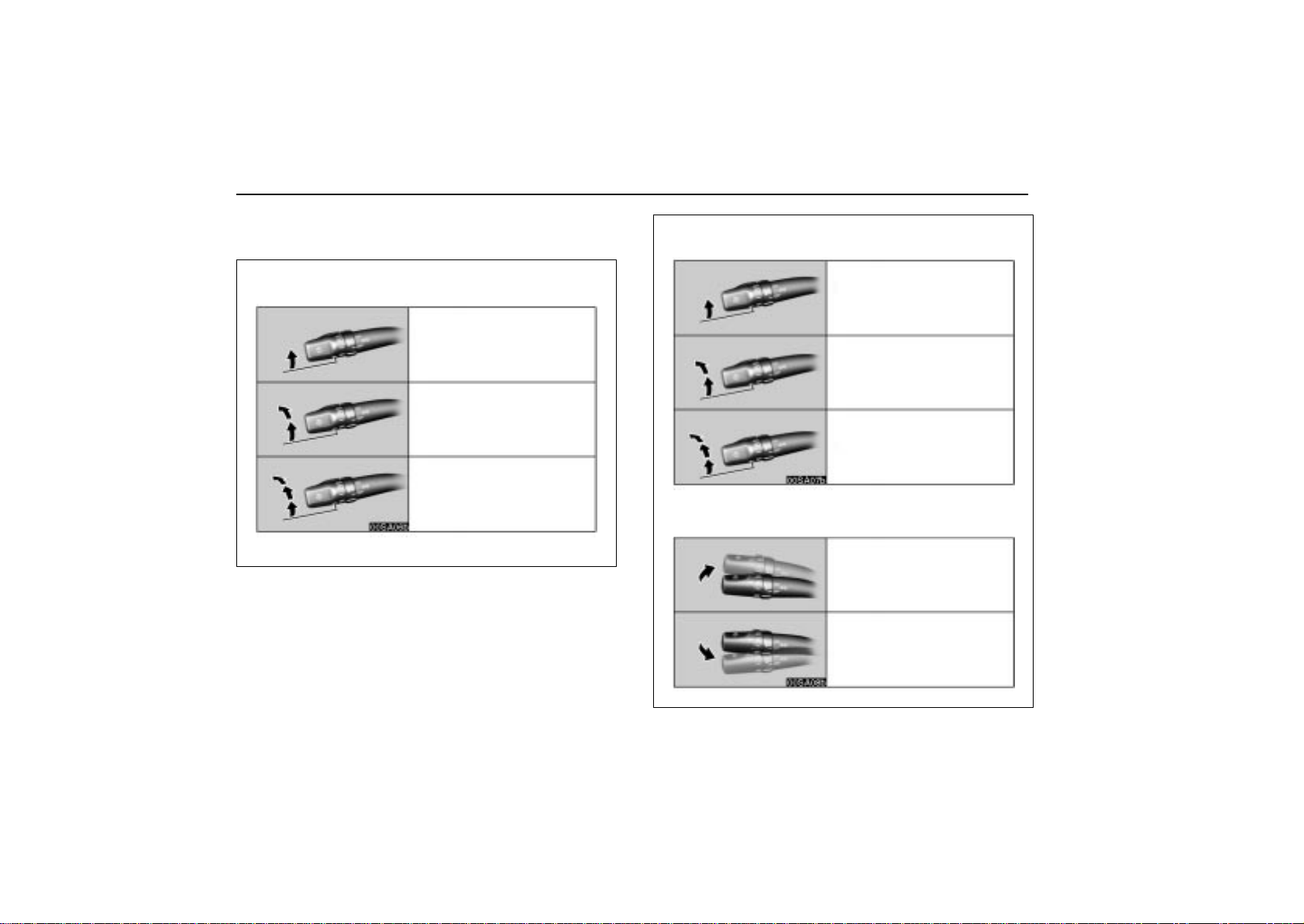

4. HEADLIGHT AND TURN SIGNAL SWITCHES

 HEADLIGHT SWITCH

With the ignition OFF

Parking, tail, license plate, side marker and instrument panel lights turn on.

00sa06b

Headlights also turn on.

Automatic light control

With the engine started and parking brake released

Parking, tail, license plate, side marker and instrument

00sa07b

00sa08b

With the ignition OFF or With the engine started and parking brake released

panel lights turn on.

Headlights also turn on at full intensity.

Automatic light control

High beam

Headlight flasher

Page 91

QUICK REFERENCE

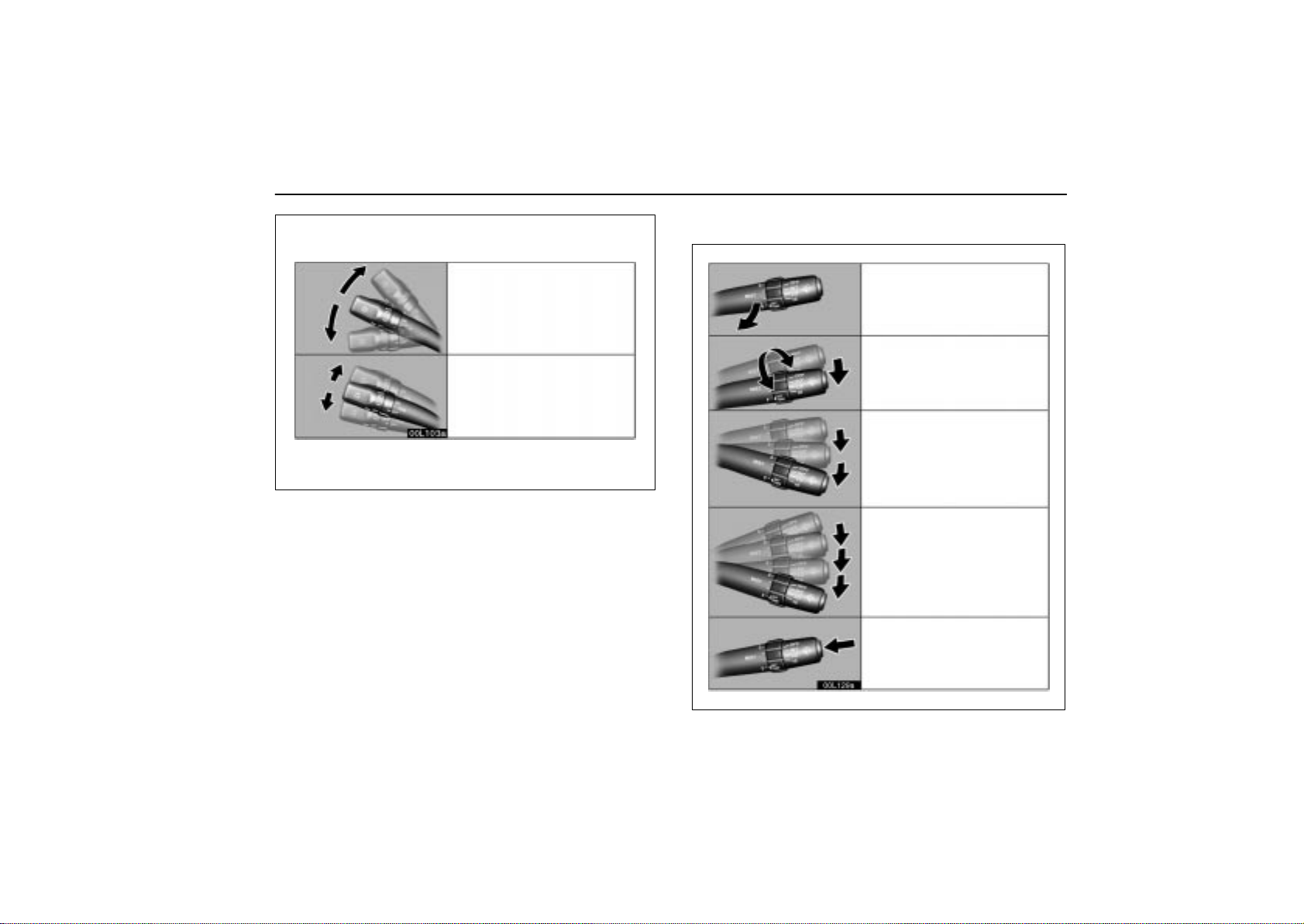

 TURN SIGNAL SWITCH

Right or left turn

00L103a

Lane change (Right or left)

5. WIPER SWITCH

Mist wiper operation

Intermittent operation

Low speed operation

High speed operation

Washer on

Page 92

QUICK REFERENCE

Page 93

SECTION 1 –

INSTRUMENTS AND CONTROLS

Occupant restraint systems

Seats 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front head restraints 100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Seat belts 101. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SRS driver airbag and front passenger airbag 110. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SRS side airbags 119. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Child restraint 127. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Driving position memory system 146. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 94

OCCUPANT RESTRAINT SYSTEMS

SEATS

While the vehicle is being driven, all vehicle occupants should have the seatback upright, sit well back in the seat and properly wear the seat belts provided.

CAUTION

 Do not drive the vehicle unless the occupants are

properly seated. Do not allow any passengers to sit in the luggage compartment or cargo area. Persons not properly seated and/or not properly restrained by seat belts can be severely injured in the event of emergency braking or a collision.

 During driving, do not allow any passengers to stand

up or move around between seats. Otherwise, severe injuries can occur in the event of emergency braking or a collision.

Front seat precautions

Driver seat

CAUTION

The SRS driver airbag deploys with considerable force, and can cause death or serious injury especially if the driver is very close to the airbag. The National Highway Traffic Safety Administration (”NHTSA”) advises:

Since the risk zone for driver airbag is the first 50-75 mm (2-3 in.) of inflation, placing yourself 250 mm (10 in.) from your driver airbag provides you with a clear margin of safety. This distance is measured from the center of the steering wheel to your breastbone. If you sit less than 250 mm (10 in.) away now, you can change your driving position in several ways:

 Move your seat to the rear as far as you can while still

reaching the pedals comfortably.

 Slightly recline the back of the seat. Although vehicle

designs vary, many drivers can achieve the 250 mm (10 in.) distance, even with the driver seat all the way forward, simply by reclining the back of the seat somewhat. If reclining the back of your seat makes it hard to see the road, raise yourself by using a firm, non-slippery cushion, or raise the seat if your vehicle has that feature.

Page 95

OCCUPANT RESTRAINT SYSTEMS

 If your steering wheel is adjustable, tilt it downward.

This points the airbag toward your chest instead of your head and neck.

The seat should be adjusted as recommended by NHTSA above, while still maintaining control of the foot pedals, steering wheel, and your view of the instrument panel controls.

Front passenger seat

CAUTION

The SRS front passenger airbag also deploys with considerable force, and can cause death or serious injury especially if the front passenger is very close to the airbag. The front passenger seat should be as far from the airbag as possible with the seat position and the seatback adjusted, so the front passenger sits upright.

Front seats

CAUTION

The SRS side airbags are installed in the driver and front passenger seats. Observe the following precautions.

 Do not lean against the door when the vehicle is in

use, since the side airbag inflates with considerable speed and force. Otherwise, you may be killed or severely injured.

 Do not use seat accessories which cover the area

where the side airbags inflate. Such accessories may prevent the side airbags from activating correctly, causing death or serious injury.

 Do not modify or replace the seats or upholstery of

the seats equipped with side airbags. Such change may prevent the side airbag system from activating correctly, disable the system or cause the side airbags to inflate accidentally, resulting in death or serious injury.

Page 96

OCCUPANT RESTRAINT SYSTEMS

Seat adjustment precautions

CAUTION

 Do not adjust the seat while the vehicle is moving as

the seat may unexpectedly move and cause the driver to lose control of the vehicle.

 Be careful that the seat does not hit a passenger,

luggage or the rear seat.

 After the seatback returns, try pushing the seatback

forward and rearward to make sure it is securely locked.

 While adjusting the seat, do not put your hands under

the seat or near the moving parts. Otherwise, your hands or fingers may be caught and injured.

NOTICE

Do not operate the control switch in more than one dimension at a time. It may cause electrical overload.

Adjusting front seats

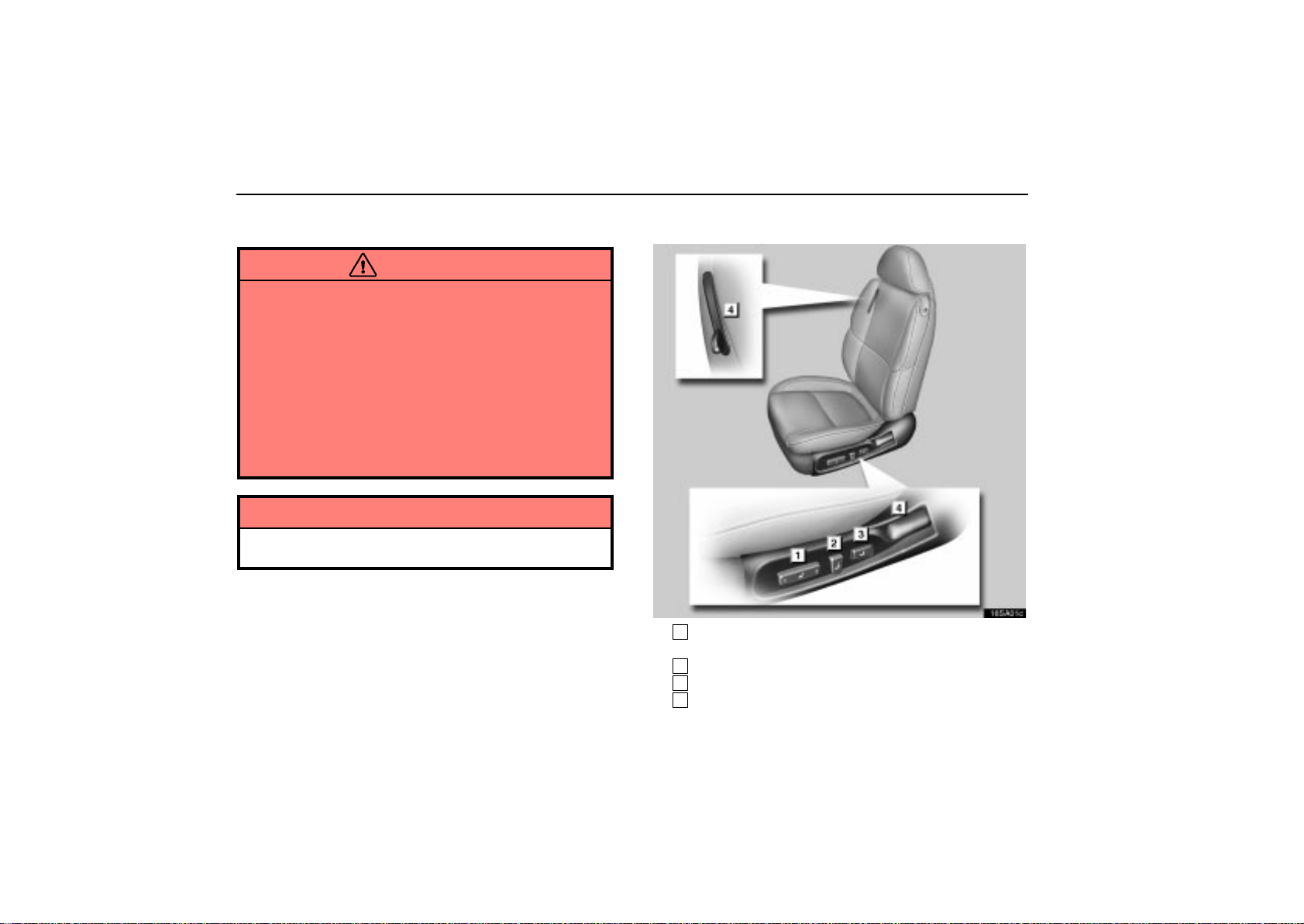

16sa01c



Seat position control switch, seat cushion angle and

height control switch

Seatback angle control switch

Lumbar support control switch

Seatback lock release lever

Page 97

OCCUPANT RESTRAINT SYSTEMS

Adjusting seat position

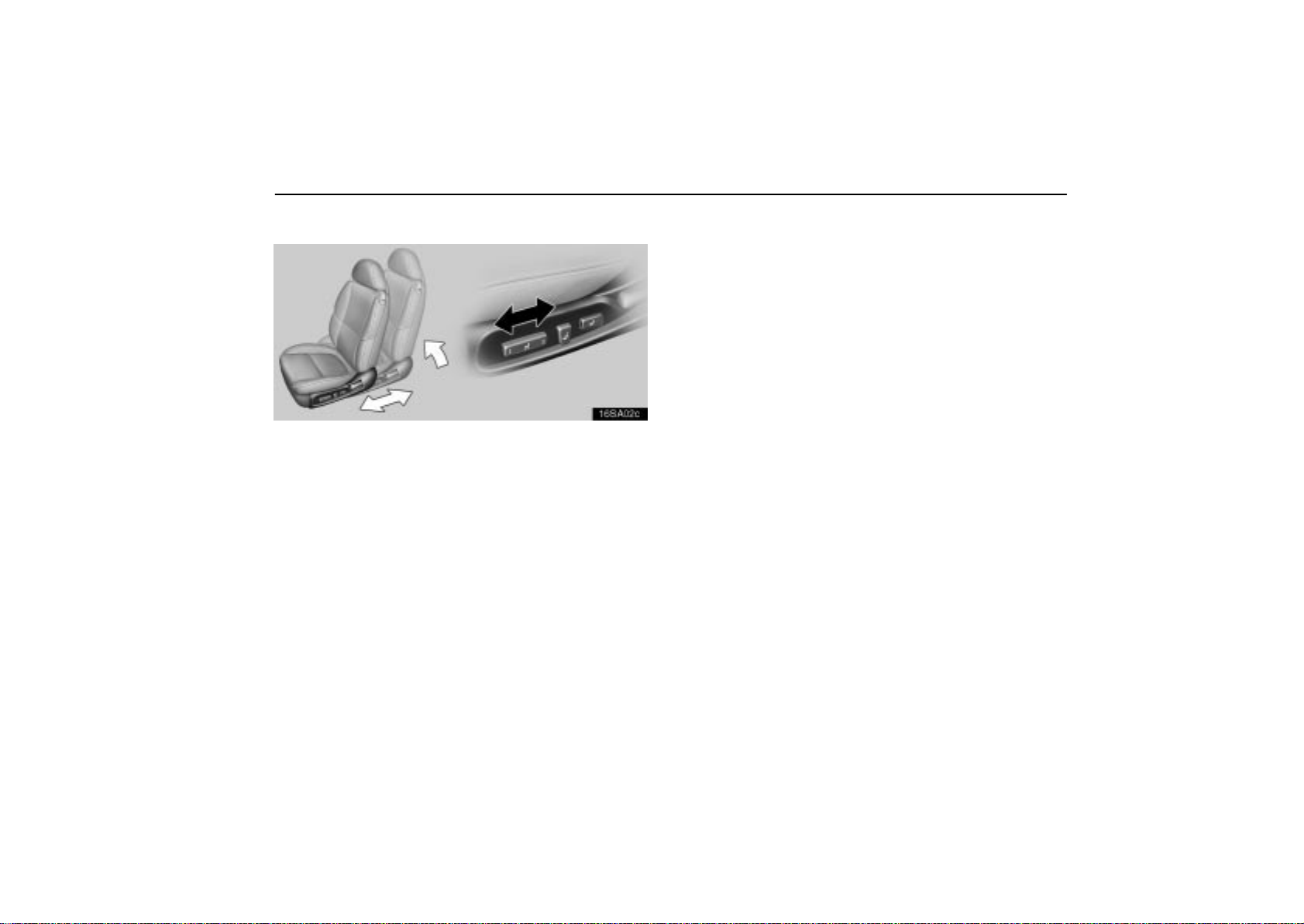

16sa02c

Move the control switch in the desired direction.

Releasing the switch will stop the seat in that position. Do not place anything under the seat, as this might interfere with the seat movement.

If you push back the seat backward when the seatback reclined too far backward, the seat will adjust the seatback angle forward. This function does not work after reconnecting the battery. In addition, the driving position memory system does not work in this case. When you push back the seat or recline the seatback backward, a buzzer sounds to warn that the rear seat may interfere with the seatback movement.

The following procedure must be performed after first reconnecting the battery.

1. Move the seat position control switch forward until a beeping sound is emitted.

2. Move the seatback angle switch forward until a beeping sound is emitted.

Page 98

OCCUPANT RESTRAINT SYSTEMS

Adjusting seatback angle

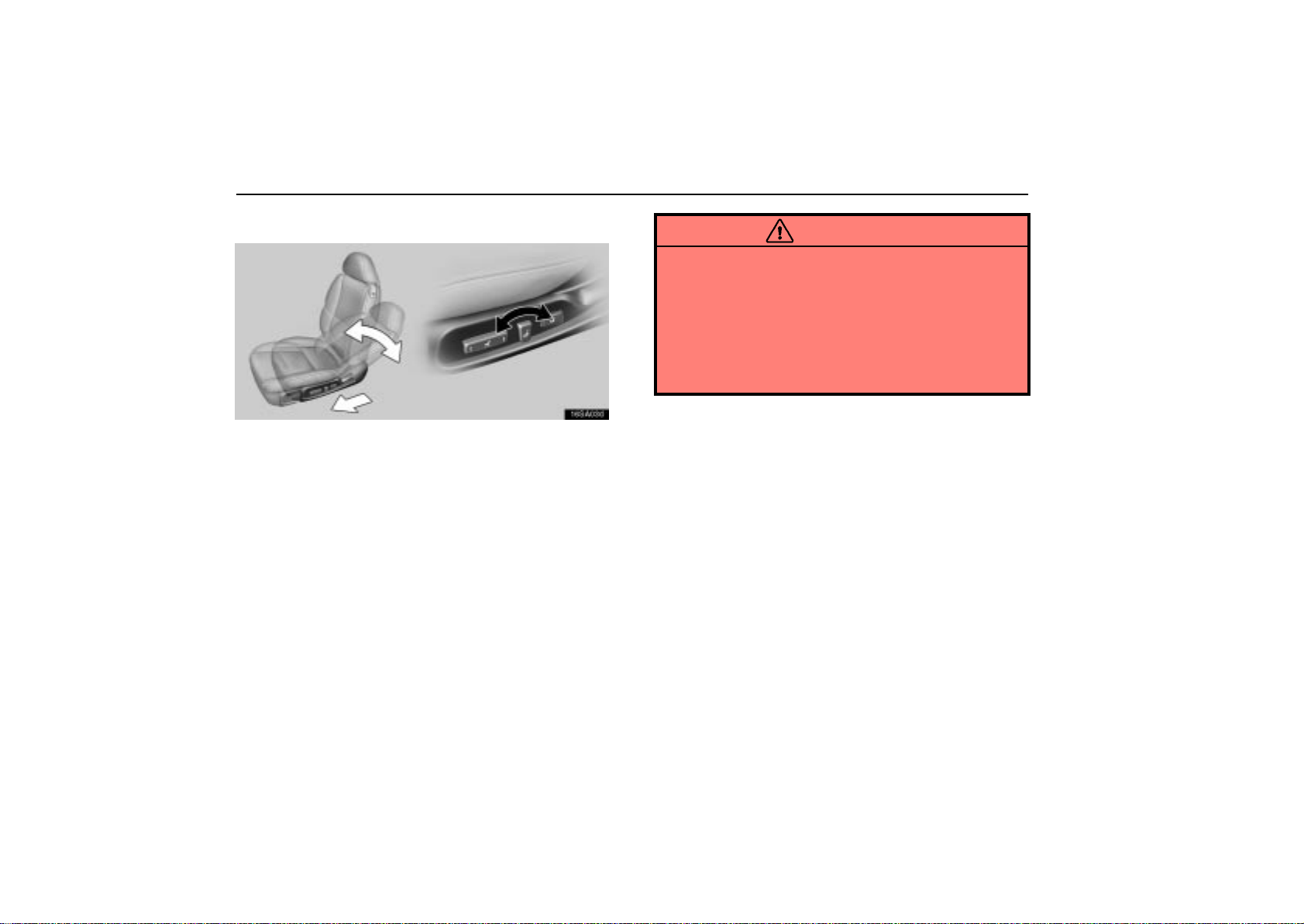

16sa03d

Move the control switch in the desired direction.

Releasing the switch will stop the seatback and the seat in that position.

If you recline the seatback too far backward when the seat is in the pushed back position, the seat will adjust the seat position forward. This function does not work after reconnecting the battery. For details, see Adjusting seat position on page 97.

CAUTION

To reduce the risk of sliding under the lap belt during a collision, avoid reclining the seatback any more than needed. The seat belts provide maximum protection in a frontal or rear collision when the driver and the front passenger are sitting up straight and well back in the seats. If you are reclined, the lap belt may slide past your hips and apply restraint forces directly to the abdomen. In the event of a frontal collision, the more the seat is reclined, the greater the risk of personal injury.

Page 99

OCCUPANT RESTRAINT SYSTEMS

Adjusting seat cushion angle and height

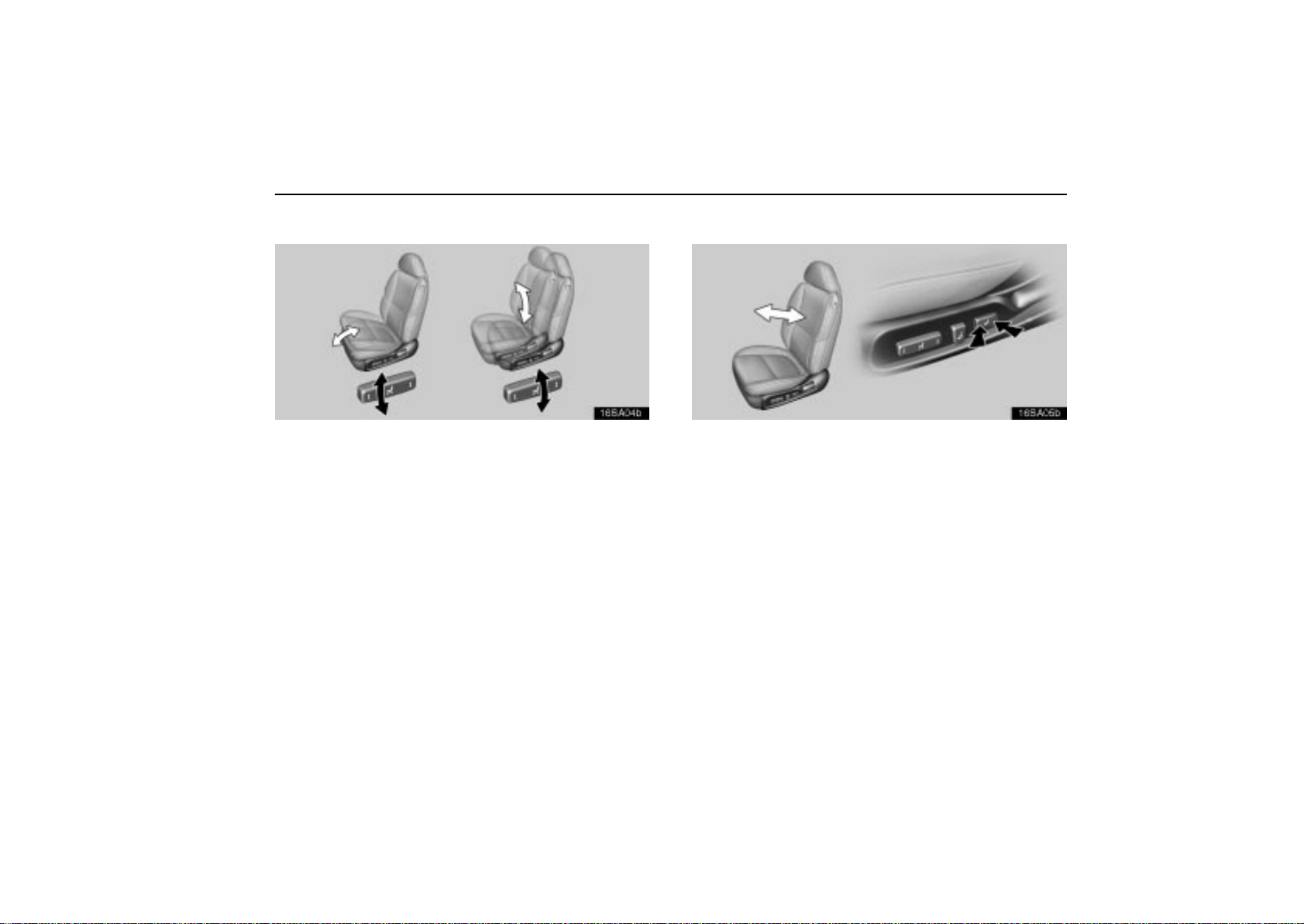

16sa04b

Move the control switch in the desired direction.

Releasing the switch will stop the seat cushion in that position.

Adjusting lumbar support

16sa05b

Push the control switch on either side.

The amount of lumbar support will change while the switch is pushed.

Page 100

OCCUPANT RESTRAINT SYSTEMS

Inclining front seats for rear seat entry

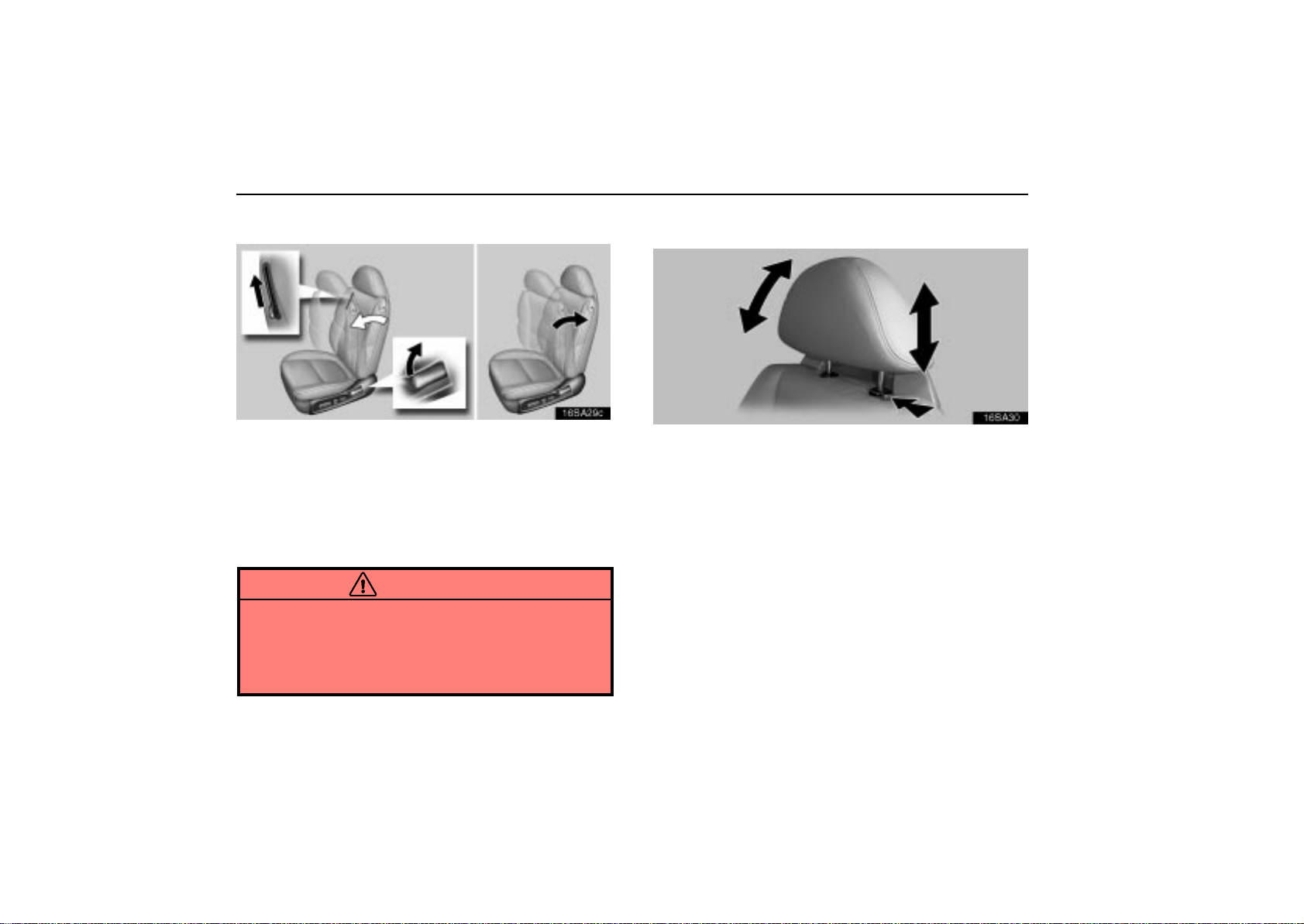

16sa29c

Lift the seatback lock release lever on the side of the seat or on the side of the seatback. The seatback will incline.

This allows passengers to get in or out of the rear seat easily . If a driver or front passenger uses a seat belt guide, be sure to

remove it before inclining the seatback. For seat belt guides, see page 105. After a passenger gets in or out, return the seatback until it locks.

CAUTION

 After the seatback returns, try pushing the seatback

forward and rearward to make sure it is securely locked.

 Never allow anyone to touch seatback lock release

levers while the vehicle is moving.

FRONT HEAD RESTRAINTS

16sa30

For your safety and comfort, adjust the head restraint before driving.

To raise the head restraint, pull it up. To lower it, press the lock release button and push the head restraint down. To move the head restraint forward or rearward, pull or push on the top.

The head restraint is most effective when it is close to your head. Therefore, using a cushion on the seatback is not recommended.

100
