Lexus LS 460l Navigation Manual
LS460_Navi_U
(L/O 0609)
i
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
Introduction
Thank you for your purchase of the Navigation System. Please read
this manual carefully to ensure proper use. Keep this manual in your
vehicle at all times.
The Navigation System is one of the most technologically advanced
vehicle accessories ever developed. The system receives satellite sig-
nals from the Global Positioning System (GPS) operated by the U.S.
Department of Defense. Using these signals and other vehicle sen-
sors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your
present starting location to your destination. The system is also designed
to direct you to a destination that is unfamiliar to you in an efficient manner.
The system uses DENSO maps. The calculated routes may not be the
shortest nor the least traffic congested. Your own personal local knowl-
edge or “short cut” may at times be faster than the calculated routes.
The navigation system’s database includes about 75 Point of Interest
categories to allow you to easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the street
address or a major intersection close to it and the system will guide you
there.
The system will provide both a visual map and audio instructions. The au-
dio instructions will announce the distance remaining and the direction to
turn in approaching an intersection. These voice instructions will help you
keep your eyes on the road and are timed to provide enough time to allow
you to maneuver, change lanes or slow down.
LS460_Navi_U
(L/O 0609)
ii
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
Please be aware that all current vehicle navigation systems have
certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite con-
dition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to
pages 302 through 303.
LS460_Navi_U
(L/O 0609)
iii
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch−screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination be set and route be se-
lected.
Important information about
this manual
Safety Instruction
LS460_Navi_U
(L/O 0609)
iv
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
CAUTION
D For safety, the driver should not
operate the navigation system
while he/she is driving.
Insufficient attention to the road
and traffic may cause an accident.
D While driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions.
If a traffic sign on the road has
been changed, route guidance
may provide wrong information
such as the direction of a one way
street.
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for reference. If the sys-
tem cannot determine the current vehicle
position correctly, there is a possibility of
incorrect, late, or non−voice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street clo-
sures, etc.) frequently change. Therefore,
before following any instruction from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency ser-
vices. If unsure about the safety of an
area, do not drive into it. Under no cir-
cumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.
v
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
No. Name Function Page
1
North−up or
heading−up
symbol
This symbol indicates a map view with
north−up or heading−up. Touching this
symbol changes the map orientation.
16
2
Scale indicator This figure indicates the map scale. 14
3
“MAP/VOICE”
button
Push this button to repeat a voice guid-
ance, cancel one touch scroll, start
guidance, and display the current posi-
tion.
8, 50
4
“DEST” button
Push this button to display the “Destina-
tion” screen.
vii, ix, xi,
xii, 18, 19
5
“MENU” button
Push this button to display the “Menu”
screen.
66, 68, 69, 70,
72, 85, 96, 313
Quick guide —
— Overview buttons and guidance screen
vi
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
No. Name Function Page
6
Zoom out button
Touch this button to reduce the map
scale.
14
7
“Mark”
Touch this button to register the current
position or the cursor position as a
memory point.
9
8
“Route” Touch this button to change the route. 52, 54
9
“Map View”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
58, 61, 62, 63
10
“AAOFF”
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “ON""”.
88
11
Zoom in button
Touch this button to magnify the map
scale.
14
12
Foot print map
button
Touch this button to display the foot print
map and the building information.
15
13
“INFO” button
Push this button to display the “Informa-
tion” screen.
2, 102, 105,
112, 169, 172,
173, 175
14
Screen
configuration
button
Touch this button to change the screen
mode.
12
15
“DISP” button
Push this button to display the “Display”
screen.
168
16
Distance and time
to destination
Displays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
51
17
XM Traffic mark
This mark is displayed when XM Traffic
information is received.
95
18
“GPS” mark
(Global
Positioning
System)
Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
302
19
Speech
command system
indicator
The microphone is shown by pulling the
talk switch. The speech command sys-
tem can be operated while this indicator
is shown.
164
vii
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
0U5056X
0U5057L
0U5058L
1U5060L
1 Push the “DEST” button.
2
Touch .
If home has not been registered, you can
register it by touching
.
3 There are 1 1 different methods to
search your home.
See “Destination search” on page 19.
4 Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering home
viii
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
0U5036L
5 T ouch “OK”.
Registration of home is complete.
You can also register home by touching
the “MENU” button. (See “ — Registering
home” on page 79.)
You can change the icon, quick access,
name, location and phone number. (See “
— Editing memory points” on page 74.)
ix
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
0U5056X
0U5059L
0U5060L
0U5061L
1 Push the “DEST” button.
2 Touch one of the quick access
buttons.
You can set a memory point to one of the
quick access buttons which has not been
set.
3 There are 12 different methods t o
search preset memory point.
See “Destination search” on page 19.
4 Touch “Enter”.
The “Memory Point” screen is displayed.
— Registering preset memory point
(Quick access)
x
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
0U5062L
5 T ouch “OK”.
Registration of preset memory point is
complete.
You can also register preset destinations
by touching the “MENU” button. (See “ —
Registering memory points” on page 73.)
You can change the icon, quick access,
name, location and phone number. (See “
— Editing memory points” on page 74.)
The registered points can be used on the
“Destination” screen. (See “ — Destination
search by Quick access” on page 22.)
xi
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
0U5056X
1 Push the “DEST” button.
2 There are 12 different methods t o
search destinations.
See “Destination search” on page 19.
3 Touch “Enter”.
The navigation system performs a search
for the route.
4 Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 40.)
5 Guidance to the destination is
given via voice and on the guid-
ance screen.
— Operation flow: guiding the route
xii
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
0U5056X
1U5061L
1U5040aL
1 Push the “DEST” button.
2
Touch .
The can be used if your home has
been registered. (To register “Home”, see
“ — Registering home” on page vii.)
3 Touch “Enter”.
The navigation system performs a search
for the route.
4 Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 40.)
5 Guidance to the destination is
given via voice and on the guid-
ance screen.
— Setting home as the destination
SECTION I
1
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
BASIC FUNCTIONS
Basic information before operation
D Initial screen 2
D Touch screen operation 3
D Inputting letters and numbers/List screen operation 4
D Function help 7
D Map screen operation 8
Current position display 8
Screen scroll operation 8
Switching the screens 12
Map scale 14
Foot print map 15
Orientation of the map 16
2
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
When the engine switch is in the “ACC” or
“IG−ON” mode, the initial screen will be
displayed and the system will begin oper-
ating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the
parking brake for safety.
After a few seconds, the “CAUTION”
screen will be displayed.
Touch “English”, “Français” or “Es-
pañol” to select a language.
When “I Agree” is touched
on the
screen, the map screen will be dis-
played.
The “CAUTION” screen will be displayed
when the “INFO” button is pushed and
“Language” is touched. Then select a
language. (See “Selecting a language” on
page 175.)
D Maintenance information
This system informs about when to replace
certain parts or components and shows
dealer information (if registered) on the
screen.
When the vehicle reaches a previously set
driving distance or date specified for a
scheduled maintenance check, the “Infor-
mation” screen will be displayed when the
navigation system is in operation.
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not op-
erated for several seconds.
To prevent this information screen from be-
ing displayed again, touch “Do Not
Display This Message Again.”.
To register “Maintenance information”, see
“Maintenance information” on page 102.
Initial screen
3
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
D Memo information
This system notifies about a memo entry.
At the specified date, the memo informa-
tion will be displayed when the navigation
system is in operation. The memo informa-
tion screen will be displayed every time the
system is turned on.
The memo of the current date can be
viewed by touching “Memo”. (See “ —
Editing a memo” on page 107.)
To disable this screen, touch “Do Not
Display This Message Again.”. This
screen goes off if the screen is not op-
erated for several seconds.
To prevent this information screen from be-
ing displayed again, touch “Do Not
Display This Message Again.”.
To register “Memo information”, see “Cal-
endar with memo” on page 105.
This system is operated mainly by the
touch−screen buttons on the screen.
To prevent damage to the screen, light-
ly touch buttons on the screen with the
finger. When a button on the screen is
touched, a beep sounds.
Do not use objects other than the finger
to touch the screen.
INFORMATION
D If the system does not respond to
a touch on a touch−screen button,
move the finger away from the
screen and then touch it again.
D Dimmed touch−screen buttons
cannot be operated.
D Wipe off fingerprints using a glass
cleaning cloth. Do not use chemi-
cal cleaners to clean the touch
screen.
D The displayed image may become
darker and moving images may be
slightly distorted when the display
is cold.
D Under extremely cold conditions,
the map may not be displayed and
the data input by a user may be de-
leted. Also, the touch−screen but-
tons may be harder than usual to
depress.
D When you look at the screen
through polarised material such as
polarised sunglasses, the screen
may be dark and hard to see. If so,
take off your sunglasses.
Touch screen operation
4
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
When searching for an address or a name,
or entering a memo, letters and numbers
can be input via the touch screen.
INFORMATION
Keyboard layout can be changed.
(See page 87.)
D To input letters
To display the alphabet keys, touch “A−Z”
or
“ ”.
Enter letters by touching the alphabet keys
directly.
: Touching this button erases one
letter. By holding this button, let-
ters will continue to be erased.
On certain letter entry screens, letters can
be entered in upper or lower case.
: To enter in lower case.
: To enter in upper case.
Inputting letters and
numbers/List screen
operation
5
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
D To input numbers and symbols
To display the number keys and symbol
keys, touch “0−9”.
Enter numbers and symbols by touching
the number keys and symbol keys directly.
:
Touching this button erases
one letter. By holding this
button, letters will continue to
be erased.
: Touching this button displays
other symbols.

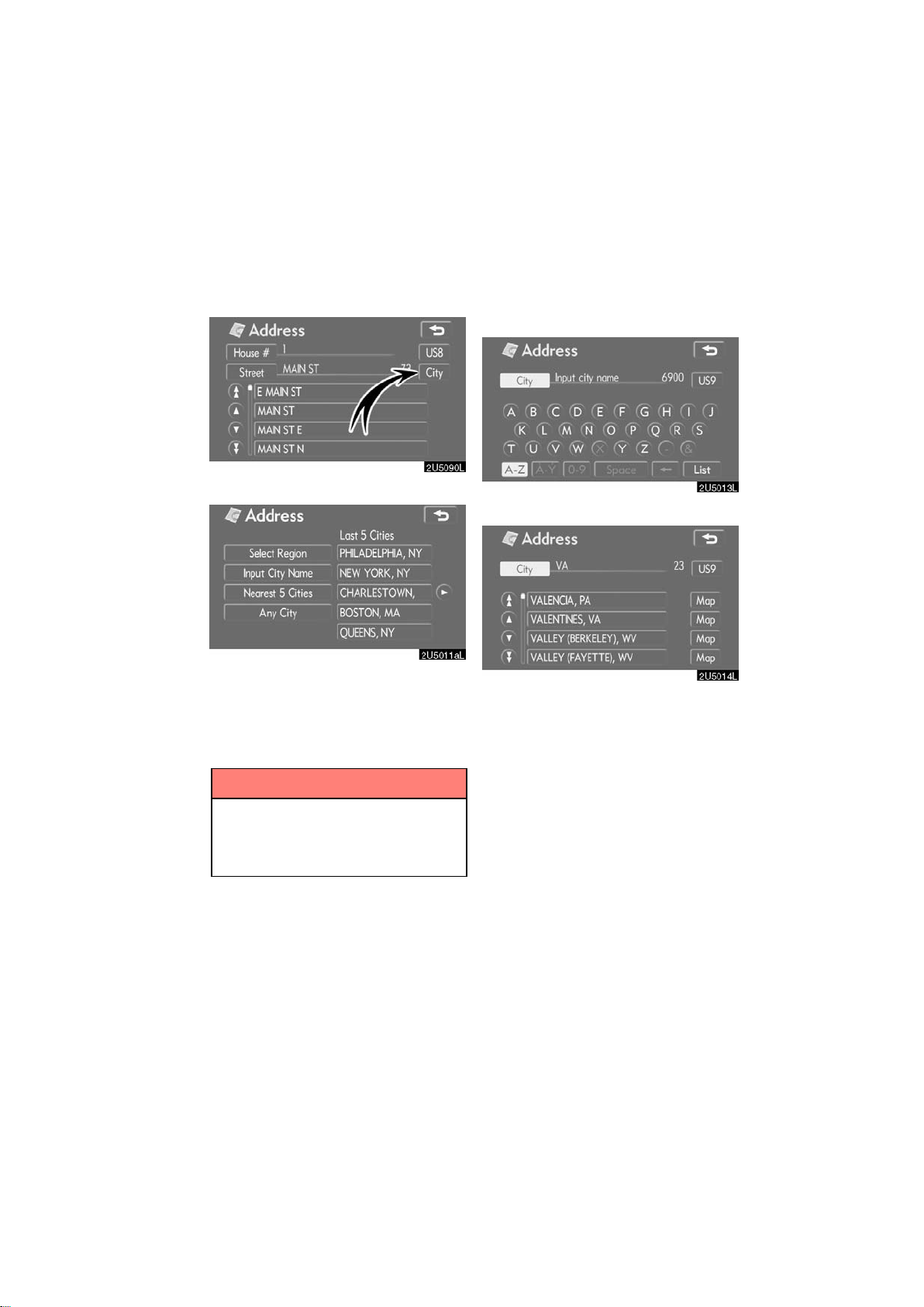

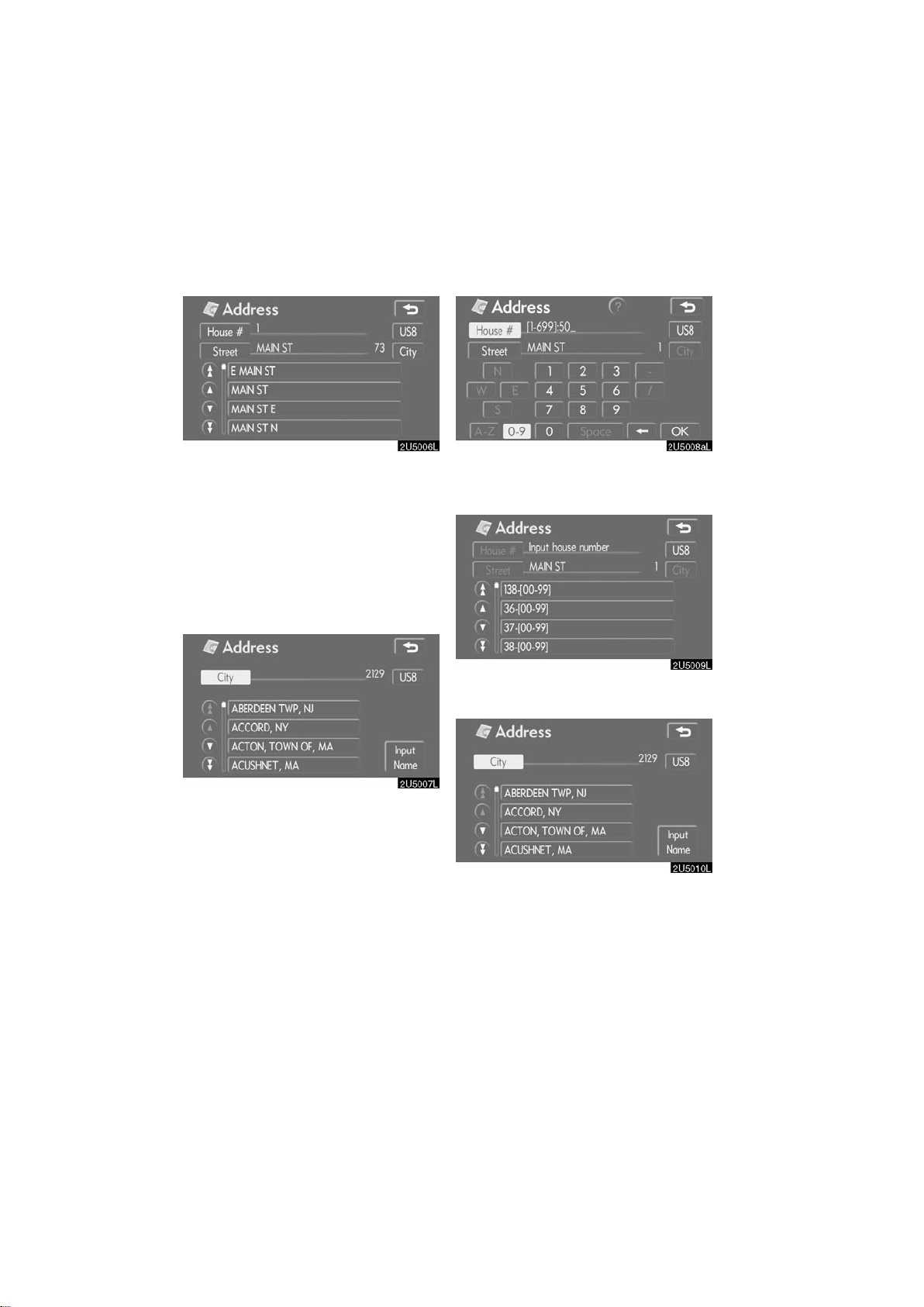

D To display the list
To search for an address or a name, touch
“List”. Matching items from the database
are listed even if the entered address or
name is incomplete.
If the number of matches is four or less, the
list is displayed without touching “List”.
INFORMATION
The number of matching items is
shown to the right side of the screen.
If the number of matching items is
more than 9,999, the system displays
“
∗∗∗∗” on the screen.
6
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
D List screen operation
When a list is displayed, use the appropri-
ate button to scroll through the list.
To shift to the next or previous
page.
To scroll up or down one item at a
time.
This expresses a displayed
screen position.
If appears to the right of the
item name, the complete name is
too long for the display. Touch
to scroll to the end of the name.
Touch to scroll to the beginning
of the name.

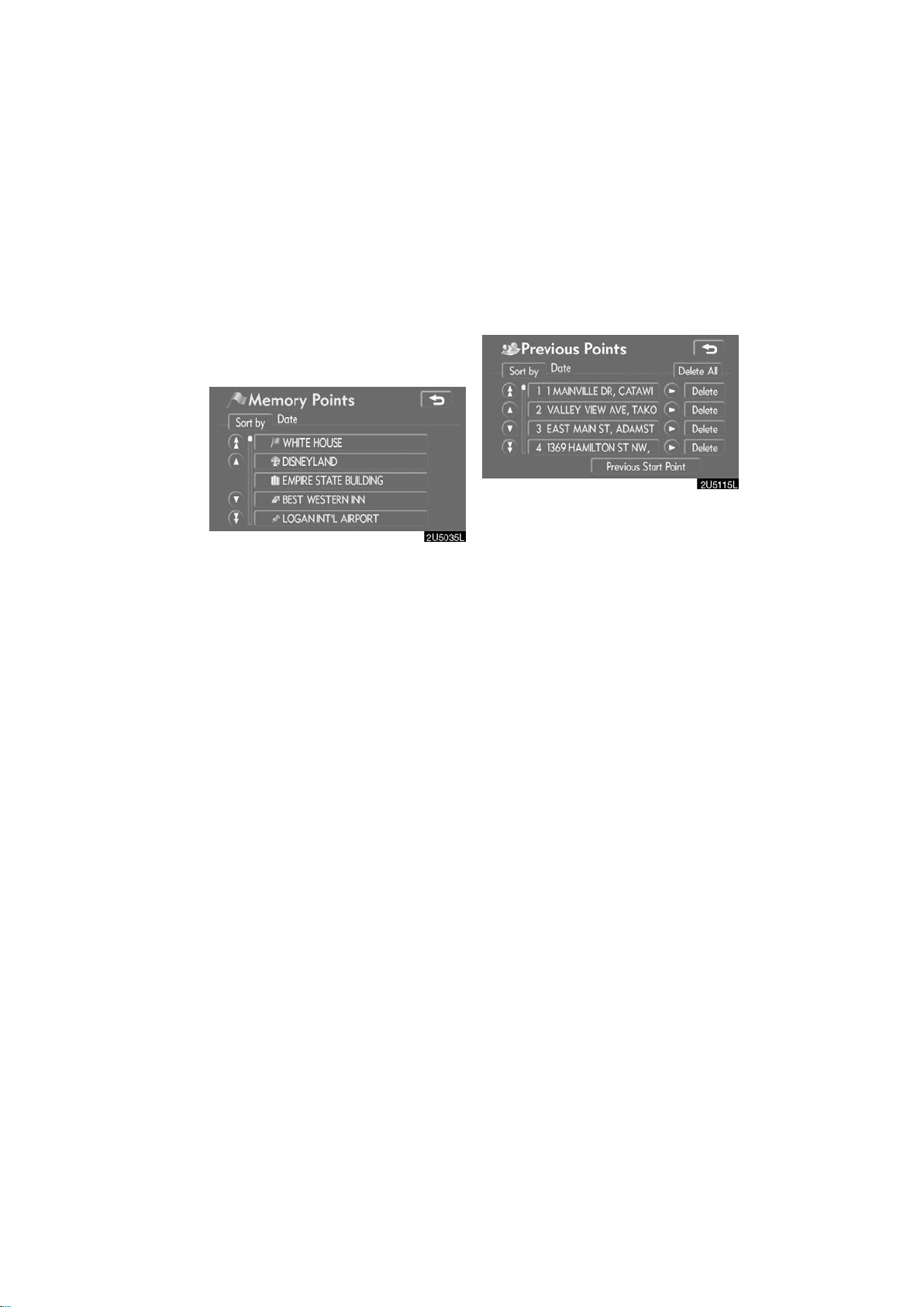

D Sorting
The order of a list displayed on the screen
can be rearranged.
TYPE A
1. Touch “Sort by”.
2. Select the desired sorting criteria.
Sorting criteria are as follows:
“Distance”: To sort in the order of dis-
tance from your current location.
“Date”: To sort in the order of the date.
“Category”: To sort in the order of the
category.
“Icon”: To sort in the order of the icons.
“Name”: To sort in order by name.
“Attribute”: To sort in order by attribute.
7
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
TYPE B
“Dist. Sort”: To sort in the order of dis-
tance from the current vehicle location.
The distance from current vehicle position
up to the destination is displayed to the
right of the name.
“Name Sort”: To sort in alphabetical order
by name.
Explanations for the functions of the “Des-
tination”, “Setup”, “Menu”, “Address” and
“XM NavTraffic” screens can be viewed.
Touch .
: To view the previous page.
: To view the next page.
: To return to the previous screen.
Function help
8
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
When starting the navigation system, the
current position is displayed first.
This screen displays the current vehicle
position and a map of the surrounding local
area.
The current vehicle position mark (
1
) ap-
pears in the center or bottom center of the
map screen.
A street name will appear on the bottom of
the screen, depending on the scale of the
map (
2
).
You can return to this map screen that
shows your current position at any time
from any screen by pushing the “MAP/
VOICE” button.
While driving, the current vehicle position
mark is fixed on the screen and the map
moves.
The current position is automatically set as
the vehicle receives signals from the GPS
(Global Positioning System). If the current
position is not correct, it is automatically
corrected after the vehicle receives sig-
nals from the GPS.
INFORMATION
D After battery disconnection, or on
a new vehicle, the current position
may not be correct. As soon as the
system receives signals from the
GPS, the correct current position
is displayed.
D To correct the current position
manually, see page 93.

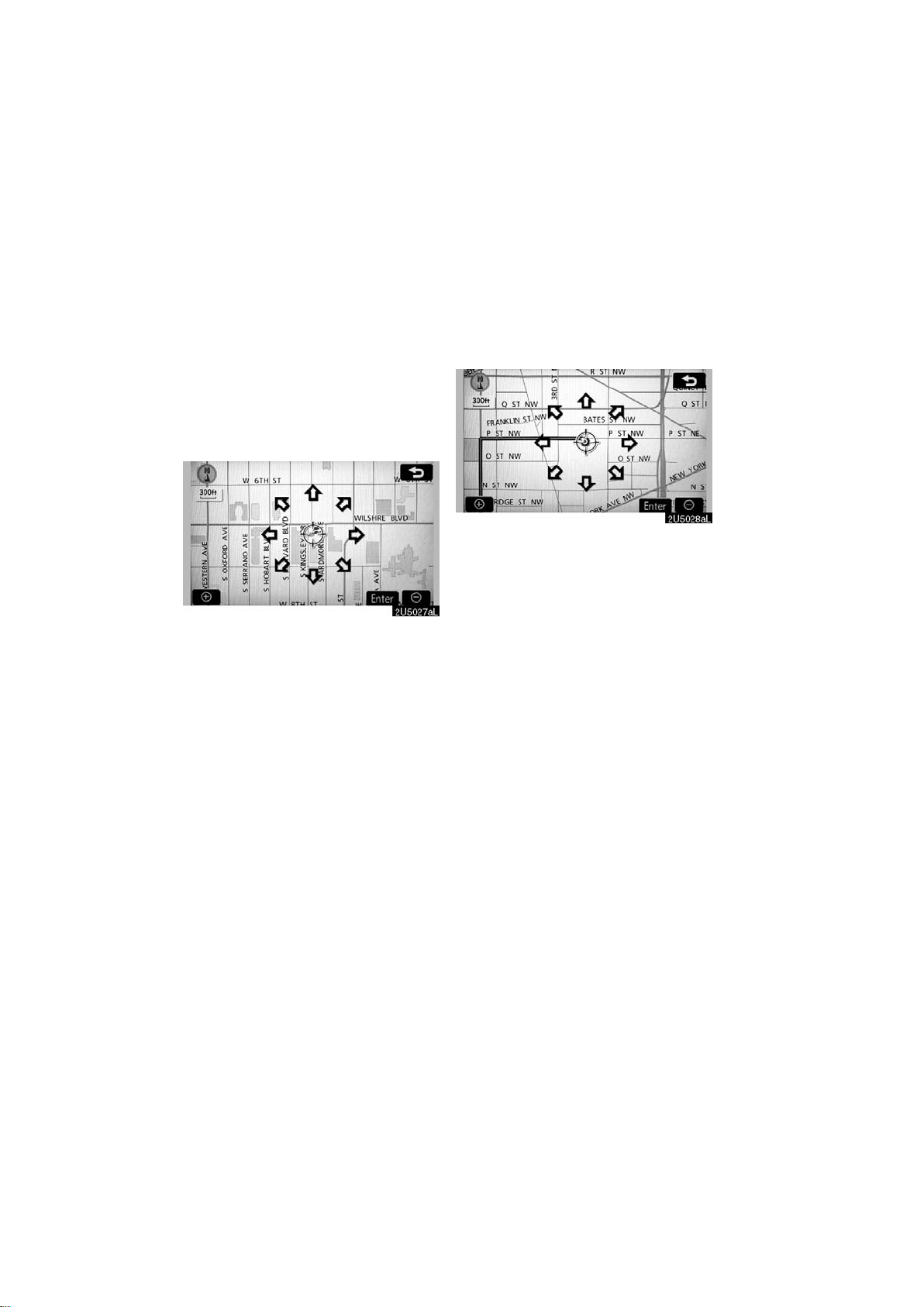

When any point on the map is touched,
that point moves to the center of the screen
and is shown by the cursor mark (
1
).
Use the scroll feature to move the desired
point to the center of the screen for looking
at a point on the map that is different from
the current position of the vehicle.
If the finger is continuously held on the
screen, the map will continue scrolling in
that direction until the finger is removed.
A street name, city name, etc. of the
touched point will be shown, depending on
the scale of the map (
2
). Distance from
the current position to
will also be
shown (
3
).
After the screen is scrolled, the map re-
mains centered at the selected location
until another function is activated. The cur-
rent vehicle position mark will continue to
move along your actual route and may
move off the screen. When the “MAP/
VOICE” button is pushed, the current ve-
hicle position mark returns to the center of
the screen and the map moves as the ve-
hicle proceeds along the designated route.
INFORMATION
When the one−touch scroll feature is
used, the current vehicle position
mark may disappear from the screen.
Move the map with a one−touch scroll
again or push the “MAP/VOICE” but-
ton to return to the current vehicle
position map location display.
Map screen operation —
— Current position display
— Screen scroll operation
(one−touch scroll)
9
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
D To set the cursor position as a des-
tination
A specific point on the map can be set as
a destination using the one−touch scroll
function.
Touch “Enter ”.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 40.)
D To register the cursor position as a
memory point
Memory point registration enables easy
access to a specific point.
Touch “Mark”.
When you touch “Mark”, the following
screen appears for a few seconds, and
then the map screen returns.
The registered point is shown by on the
map.

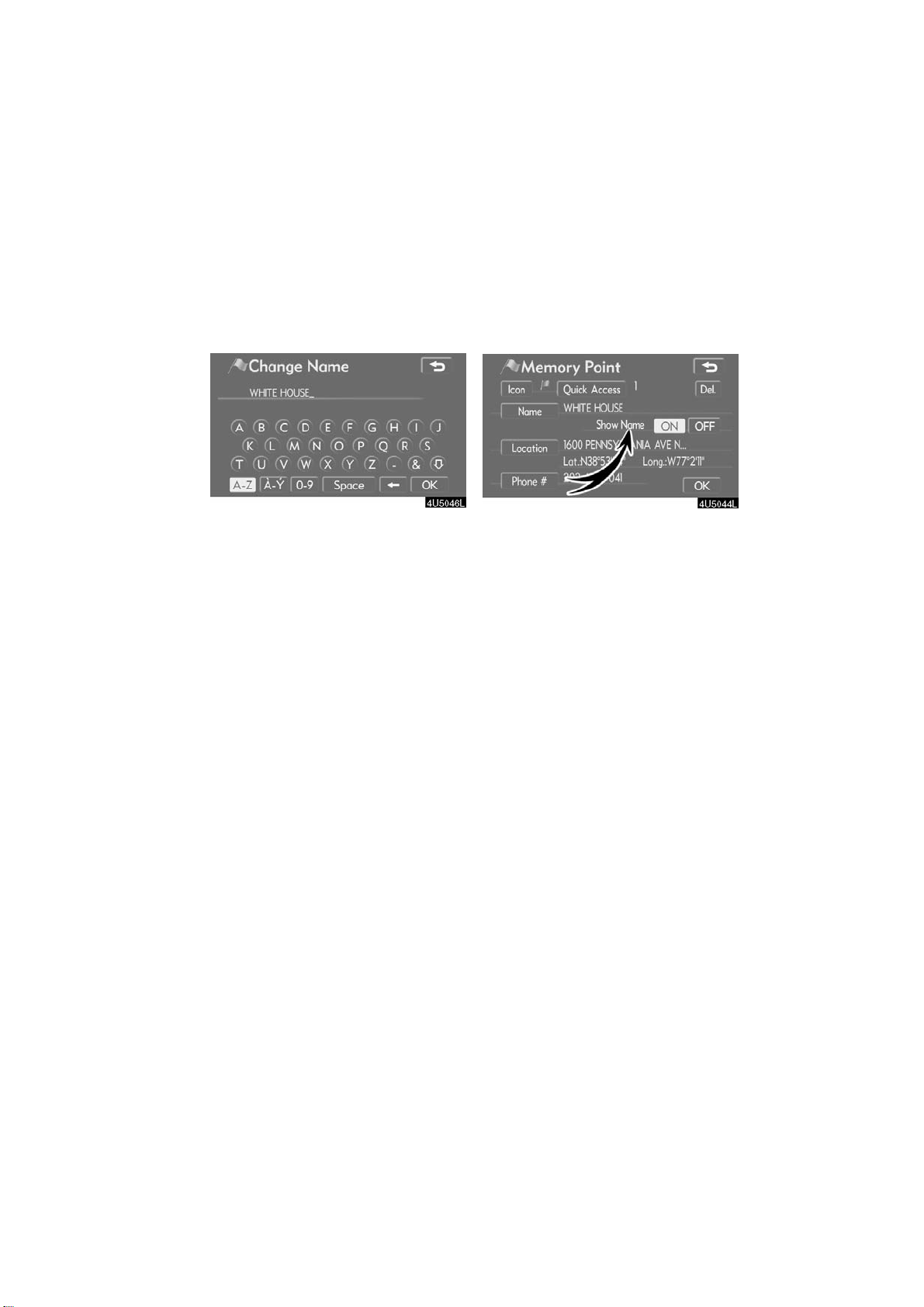

To change the icon or name, etc., see “ —
Editing memory points” on page 74.
Up to 106 memory points can be regis-
tered. If there is an attempt to register
more than 106, a message appears for
confirmation.
10
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
D To see information about the icon
where the cursor is set
To display information about an icon, set
the cursor on it.

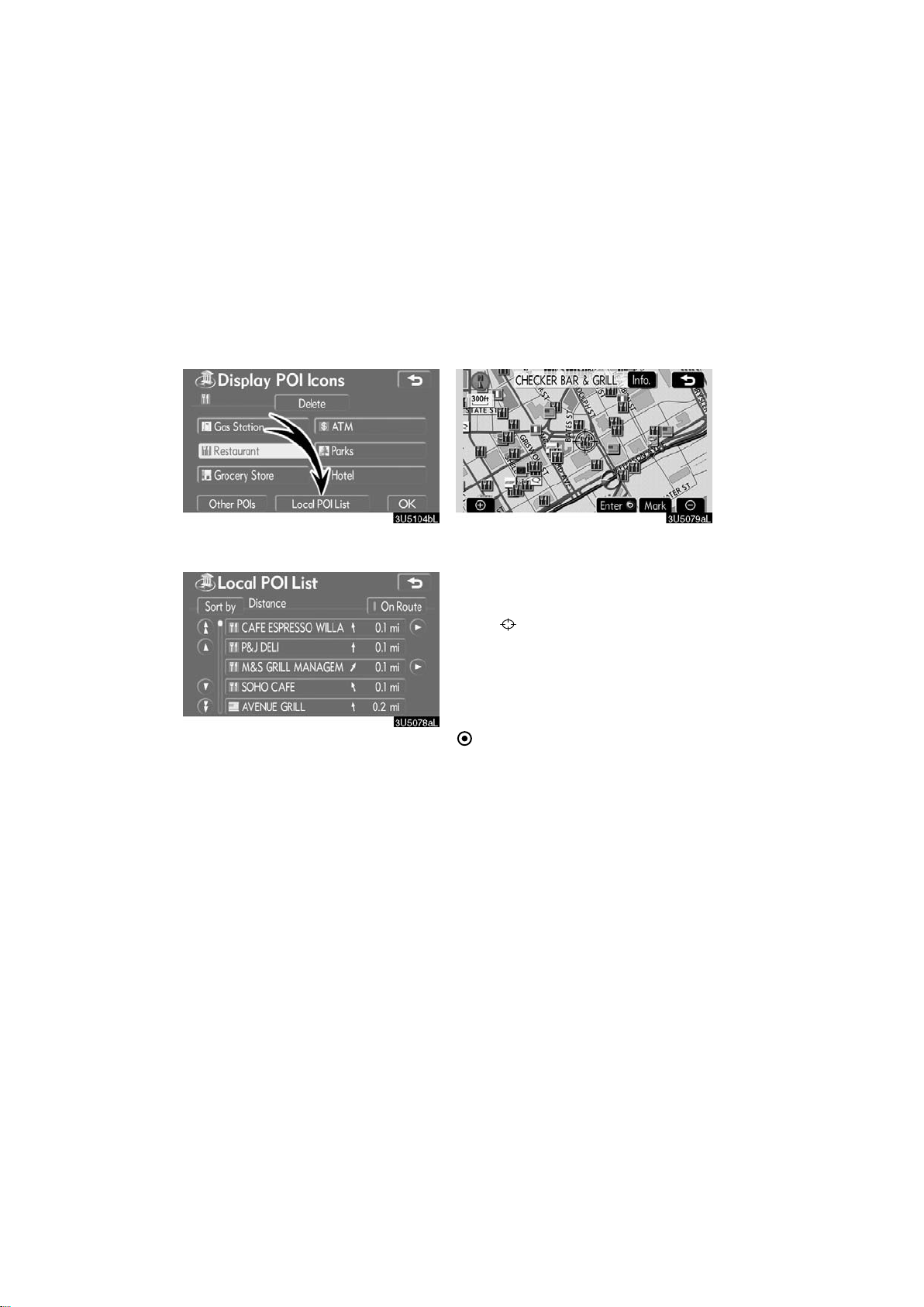

POI INFORMATION
When the cursor is set on a POI icon, the
name and “Info.” are displayed on the top
of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.
If there is already a set destination, “Add
to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
To register this POI as a memory point,
touch “Mark”. (See page 73.)
If
is touched, the registered telephone
number can be called.
INFORMATION
The desired Point of Interest can be
displayed on the map screen. (See “

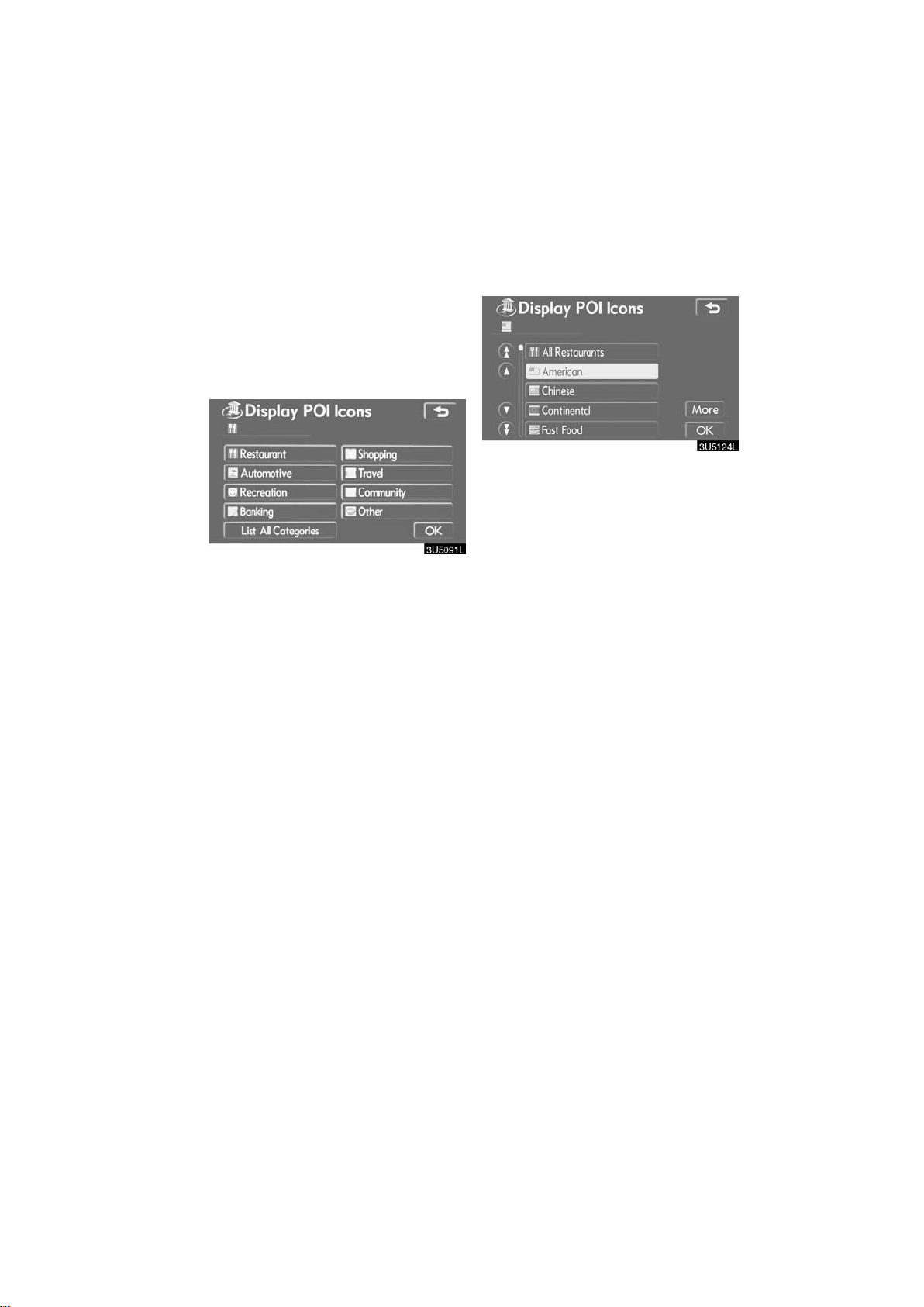

— Display POI icons” on page 58.)
11
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and “Info.” are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.
If there is already a set destination, “Add
to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing des-
tinations and set a new one.
To edit a memory point, touch “Edit”. (See
“ — Editing memory points” on page 74.)
To delete a memory point, touch “Delete”.
If
is touched, the registered telephone
number can be called.
DESTINATION INFORMATION
When the cursor is set on a destination
icon, the name and “Info.” are displayed
on the top of the screen.
Touch “Info.”.
Information such as the name, address,
and phone number are displayed.
To delete a destination, touch “Delete”.
If
is touched, the registered telephone
number can be called.
12
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
Any one of the screen configurations can
be selected .
1. Touch this button to display the fol-
lowing screen.
2. To select the desired screen config-
uration, touch one of the following but-
tons.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
: To display the single map screen.
(See page 13.)
: To display the dual map screen.
(See page 13.)
: To display the compass mode
screen. (See page 14.)
: To display the turn list screen.
(See page 48.)
: To display the arrow screen. (See
page 48.)
: To display the freeway information
screen. (See page 46.)
: To display the intersection guid-
ance screen or the guidance
screen on the freeway. (See page
47.)
— Switching the screens
13
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
D Screen configurations
SINGLE MAP
This is a regular map screen.
While on a different screen, touching
will display the single map screen.
The screen shows the single map.
DUAL MAP
A map can be displayed split in two.
While on a different screen, touching
will display the dual map screen.
The screen shows the dual map. The map
on the left is the main map.
The right side map can be edited.
Touch the right side map to display the
edit screen.
This screen can perform the following pro-
cedures:
1. Changing the map scale
2. Displaying the POI icon
3. Show XM Traffic Info. (See page 95.)
4. Changing the orientation of the map
Touch “OK” when you complete edi-
ting.
The screen returns to the dual map screen.
14
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
COMPASS MODE
Current vehicle position is indicated with a
compass, not with a map.
While on a different screen, touching
will display the compass mode screen.
Information about the destination and cur-
rent position, as well as a compass, is dis-
played on the screen.
The destination mark is displayed in the di-
rection of the destination. When driving re-
fer to the longitude and latitude coordi-
nates, and the compass, to make sure that
your vehicle is headed in the direction of
the destination.
INFORMATION
When the vehicle travels out of the
coverage area, the guidance screen
changes to the compass mode
screen.
Touch or to change the scale
of the map display. The scale bar and indi-
cator at the bottom of the screen indicates
the map scale menu. The scale range is
150 feet (50 m) to 250 miles (400 km).
Touch
or until the scale bar
changes. By continuing to touch the but-
ton, the scale bar changes continuously.
The scale of the map display can be
changed by touching the scale bar directly.
It is not available while driving.
The map scale is displayed under the
north−up symbol or heading−up symbol at
the top left of the screen.
INFORMATION
When the map scale is at the maxi-
mum range of 250 miles (400 km),
is not shown. When the map
scale is at the minimum range of 150
feet (50 m), is not shown. In
areas where the foot print map is
available the map scale changes from
to when at the minimum
range.
— Map scale
15
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
For the area which is covered by the foot
print map (Some areas in the following cit-
ies: Detroit, Chicago, N.Y., L.A), you can
switch to the foot print map on a scale of 75
feet (25 m).
D To switch to the foot print map
changes into when the map is
scaled down to 150 feet (50 m).
To display the foot print map, touch
.
To delete the foot print map display, touch
.
INFORMATION
D If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the
screen scale automatically
changes to 150 feet (50 m).
D On the foot print map, a one way
street is displayed by .
D It is not possible to perform scroll-
ing on the foot print map (one−
touch scroll) while driving.
D To display building information
Information is available only for buildings
for which information is recorded on the
map disc.
1. Touch “Info.” while the foot print
map is displayed.
If the map is displayed by a split screen,
the map will change into a single map dis-
play.
2. Using the eight−direction arrow,
move the cursor to the position of the
building to display building informa-
tion.
3. Touch “Building Info.”.
Foot print map
16
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
Details of POIs in some buildings may be
displayed.
For detailed POI information, touch the
building name. You can see details of the
selected POIs.
" North−up screen
" Heading−up screen
The orientation of the map can be changed
from North−up to Heading−up by touching
the orientation symbol at the top left of the
screen.
North−up symbol
Regardless of the direction of vehicle trav-
el, North is always up.
Heading−up symbol
The direction of vehicle travel is always up.
A red arrow indicates North.
— Orientation of the map
SECTION II
17
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
DESTINATION SEARCH
Destination search
D Quick reference (“Destination” screen) 18
D Destination search 19
Selecting the region to search 20
Destination search by Home 22
Destination search by Quick access 22
Destination search by “Address” 23
Destination search by “POI” 27
Destination search by “Phone #” 34
Destination search by “Emergency” 34
Destination search by “Memory” 35
Destination search by “Previous” 35
Destination search by “Map” 36
Destination search by “Intersection” 37
Destination search by “Freeway Ent./Exit” 38

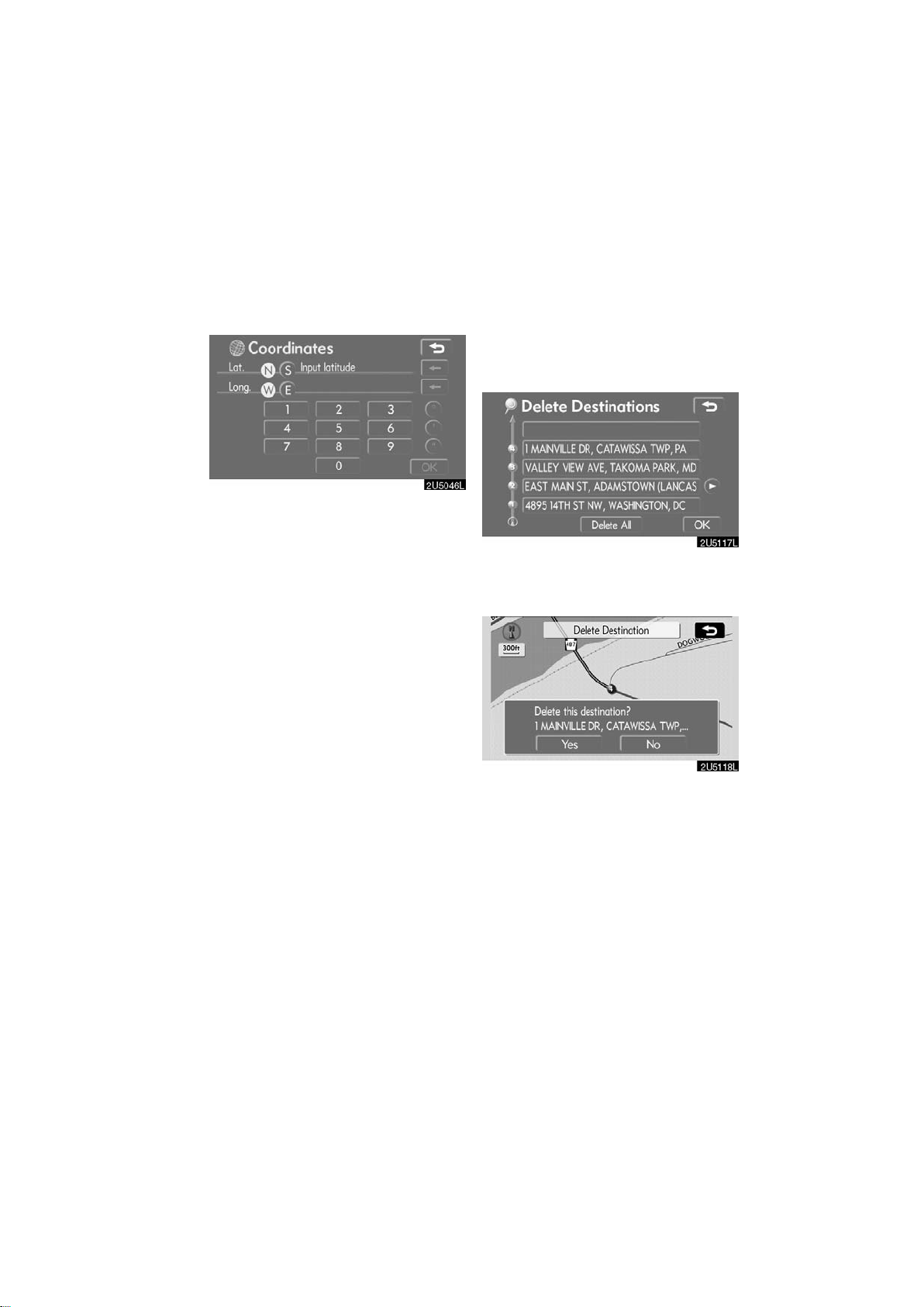

Destination search by “Coordinates” 39

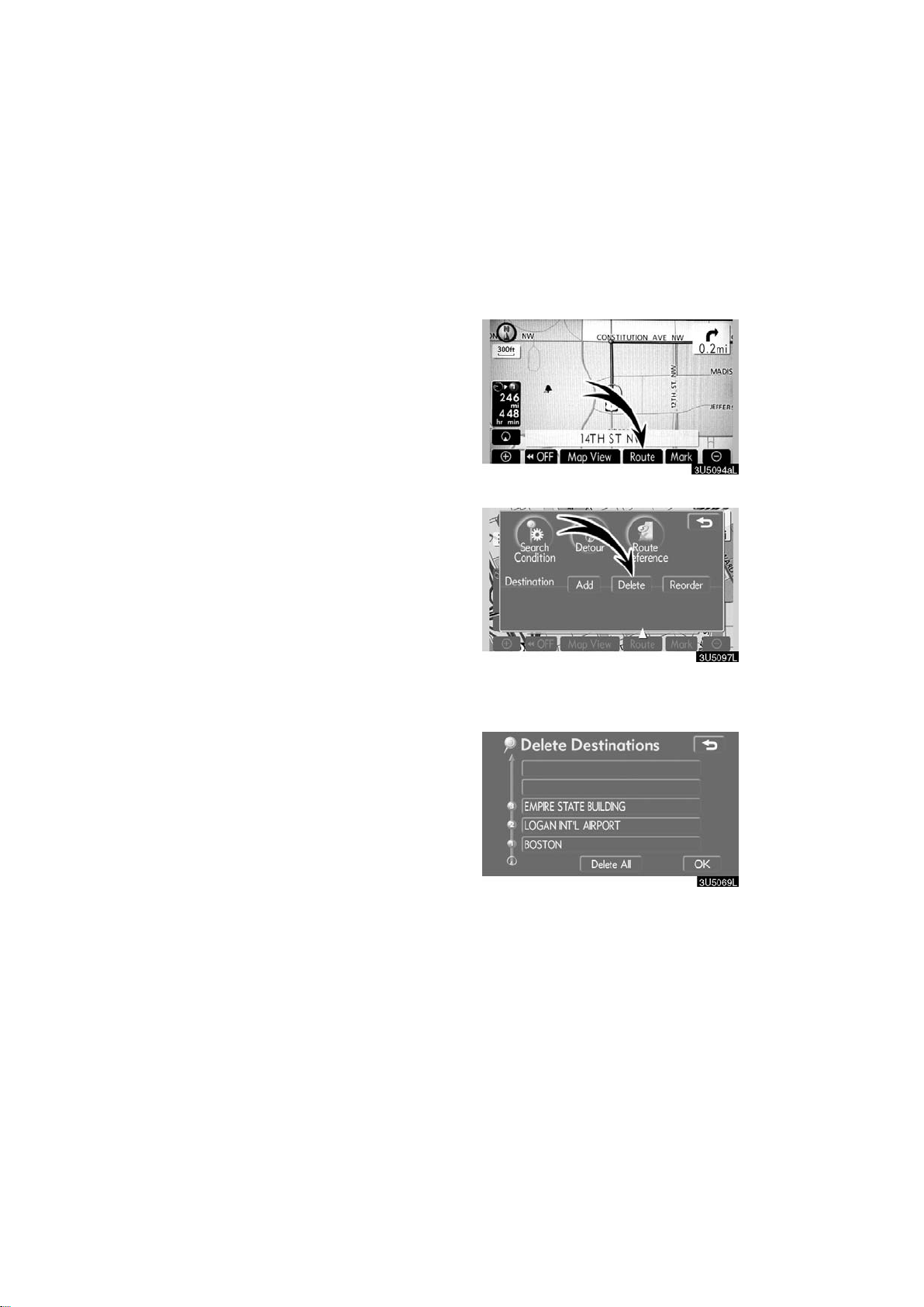

Deleting set destinations 39
D Starting route guidance 40
18
2007 LS460L/LS460 Navigation from Aug. ’06 Prod. (OM50750U)
1
“Address”
A house number and the street address
can be input by using the input keys.
23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
“POI”
Select one of the many POIs (Points of In-
terest) that have already been stored in the
system’s database. 27. . . . . . . . . . . . . . . .
3
“Phone #”
A destination can be entered by the tele-
phone number. 34. . . . . . . . . . . . . . . . . . . .
4
“Previous”
A destination can be selected from any of
the last 100 previously set destinations
and from the previous starting point.
35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
“Memory”
The location can be selected from the reg-
istered “Memory points”. (To register
memory points, see “ — Registering
memory points” on page 73.) 35. . . . . . . .
6
“Emergency”
One of the four categories of emergency
service points that are already stored in the
system’s database can be selected.
34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
“Map”
A destination can be selected simply by
touching the location on the displayed
map. 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
“Intersection”
The names of two intersecting streets can
be entered. This is helpful if only the gen-
eral vicinity, not the specific address, is
known. 37. . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick reference (“Destination” screen)
Loading...
