Page 1

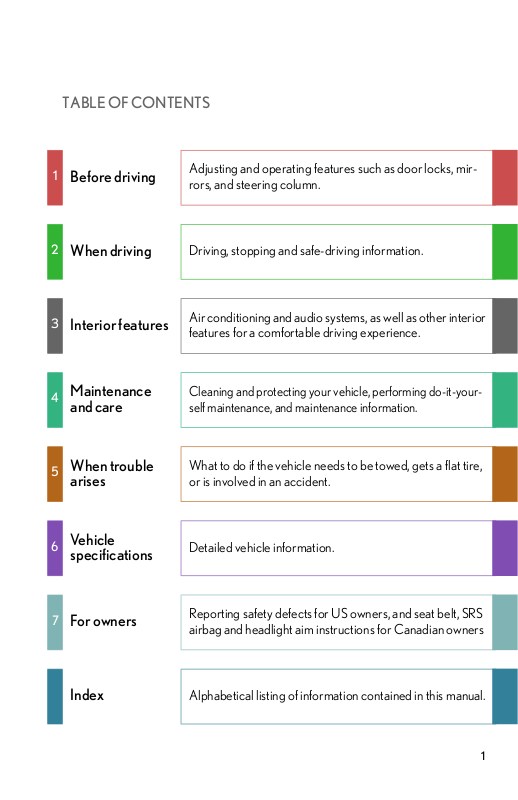

TABLE OF CONTENTS

Before driving

When driving

Interior features

Maintenance

and care

When trouble

arises

Vehicle

specifications

Adjusting and operating features such as door locks, mirrors, and steering column.

Driving, stopping and safe-driving information.

Air conditioning and audio systems, as well as other interior features for a comfortable driving experience.

Cleaning and protecting your vehicle, performing do-it-yourself maintenance, and maintenance information.

What to do if the vehicle needs to be towed, gets a flat tire, or is involved in an accident.

Detailed vehicle information.

For owners

Index

Reporting safety defects for US owners, and seat belt, SRS airbag and headlight aim instructions for Canadian owners

Alphabetical listing of information contained in this manual.

Page 2

TABLE OF CONTENTS Index

For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual” for information regarding the equipment listed below.

• Navigation system

• Air conditioning

• Rear view monitor system

• Intuitive parking assist

Before driving

1-1. Key information

Keys ...................................................... 28

• Audio/video system

• Rear window and outside rear view mirror defogging

• Climate control

1-4. Opening and closing the

windows and moon roof

Power windows................................ 78

Moon roof ........................................... 81

1-5. Refueling

1-2. Opening, closing and locking

the doors and trunk

Smart access system with

push-button start .......................... 32

Wireless remote control.............. 43

Doors.................................................... 46

Trunk...................................................... 51

1-3. Adjustable components

(seats, mirrors,

steering wheel)

Front seats.......................................... 55

Driving position memory ............. 56

Seat position memory ................... 60

Head restraints................................. 62

Seat belts ............................................ 65

Steering wheel.................................. 72

Anti-glare inside rear view

mirror ................................................ 74

Outside rear view mirrors........... 76

Opening the fuel tank cap.......... 85

1-6. Theft deterrent system

Engine immobilizer system........ 88

Alarm.................................................... 90

Theft prevention labels ................ 93

1-7. Safety information

Correct driving posture ............... 94

SRS airbags ....................................... 96

Front passenger occupant

classification system.................. 108

Child restraint systems ................. 113

Installing child restraints............... 117

Page 3

When driving

2-1. Driving procedures

Driving the vehicle........................ 128

Engine (ignition) switch .............. 138

Automatic transmission.............. 142

Turn signal lever .............................. 151

Parking brake ................................. 152

Horn.................................................... 153

2-2. Instrument cluster

Gauges and meters ..................... 154

Indicators and warning

lights................................................. 158

Multi-information display............. 161

2-3. Operating the lights and

windshield wipers

Headlight switch............................ 166

Fog light switch .............................. 170

Windshield wipers and

washer.............................................. 172

Headlight cleaner switch........... 176

2-4. Using other driving systems

Cruise control ................................. 177

Dynamic radar cruise

control.............................................. 181

Intuitive parking assist ................. 195

Driving assist systems.................. 201

PCS

(Pre-Collision System) ........... 207

2-5. Driving information

Cargo and luggage...................... 214

Vehicle load limits.......................... 217

Winter driving tips ........................ 218

Trailer towing................................. 220

Dinghy towing ................................ 221

Interior features

3-1. Using the air conditioning

system and defogger

Automatic air conditioning

system ............................................ 224

Rear window and

outside rear view

mirror defoggers....................... 232

Windshield wiper de-icer......... 233

3-2. Using the audio system

Audio system type....................... 234

Using the radio.............................. 237

Using the CD player................... 245

Playing back MP3 and

WMA discs.................................. 252

Operating an iPod....................... 260

Operating a USB memory....... 268

Optimal use of the audio

system ............................................ 277

Using the AUX port ................... 279

Using the steering wheel

audio switches............................. 281

Page 4

TABLE OF CONTENTS Index

3-3. Using the Bluetooth® audio

system

Bluetooth Using the Bluetooth

audio system ........ 284

audio

system ............................................ 287

Operating a Bluetooth

enabled portable player......... 292

Setting up a Bluetooth

enabled portable player......... 296

Bluetooth

audio system

setup .............................................. 302

3-4. Using the hands-free phone

system (for mobile phones)

Hands-free system for

mobile phones........................... 303

Using the hands-free system

(for mobile phones).................. 307

Making a phone call..................... 315

Setting a mobile phone............... 319

Security and system setup........ 324

Using the phone book............... 328

3-5. Using the interior lights

Interior lights list............................ 334

• Interior lights ............................... 336

• Personal lights ............................ 336

3-6. Using the storage features

List of storage features.............. 338

• Glove box .................................... 339

• Console box............................... 340

• Overhead console .................... 341

• Cup holders................................. 342

• Bottle holders/

door pockets............................... 344

• Auxiliary box ............................... 344

3-7. Other interior features

Sun visors......................................... 345

Vanity mirrors................................ 346

Clock................................................. 347

Satellite switches ......................... 348

Ashtrays ............................................ 351

Cigarette lighter........................... 352

Power outlet.................................. 353

Seat heaters.................................... 354

Armrest ............................................ 356

Trunk storage extension ........... 357

Coat hooks .................................... 359

Assist grips..................................... 360

Floor mat........................................... 361

Trunk features................................ 362

Garage door opener.................. 365

Compass.......................................... 372

Safety Connect ............................. 376

Page 5

Maintenance and care

When trouble arises

4-1. Maintenance and care

Cleaning and protecting

the vehicle exterior.................. 384

Cleaning and protecting

the vehicle interior................... 388

4-2. Maintenance

Maintenance requirements...... 391

General maintenance................ 393

Emission inspection and

maintenance (I/M)

programs ...................................... 396

4-3. Do-it-yourself maintenance

Do-it-yourself service

precautions.................................. 397

Hood................................................. 400

Positioning a floor jack................ 401

Engine compartment................. 403

Tires .................................................... 417

Tire inflation pressure................. 428

Wheels.............................................. 432

Air conditioning filter.................. 434

Electronic key battery................ 436

Checking and replacing

fuses............................................... 438

Headlight aim ................................ 452

Light bulbs....................................... 454

5-1. Essential information

Emergency flashers .................... 460

If your vehicle needs to be

towed .............................................. 461

If you think something is

wrong............................................. 467

Fuel pump shut off system........ 468

5-2. Steps to take in an emergency

If a warning light turns on

or a warning buzzer

sounds... ........................................ 469

If a warning message is

displayed....................................... 479

If you have a flat tire..................... 493

If the engine will not start ......... 502

If the shift lever cannot be

shifted from P............................. 503

If you lose your keys................... 504

If the electronic key does

not operate properly .............. 505

If the vehicle battery is

discharged .................................. 508

If your vehicle overheats .............. 511

If the vehicle becomes stuck .... 514

If your vehicle has to be

stopped in an emergency....... 515

Page 6

TABLE OF CONTENTS Index

Vehicle specifications

Index

6-1. Specifications

Maintenance data

(fuel, oil level, etc.)...................... 518

Fuel information............................ 529

Tire information............................. 532

6-2. Customization

Customizable features............... 544

6-3. Initialization

Items to initialize ........................... 549

For owners

Reporting safety defects

for U.S. owners........................... 552

Seat belt instructions

for Canadian owners

(in French)................................... 553

SRS airbag instructions

for Canadian owners

(in French)................................... 555

Headlight aim instructions

for Canadian owners

(in French).................................... 564

Abbreviation list................................... 568

Alphabetical index .............................. 570

What to do if... ........................................ 581

Page 7

Page 8

P. 166

Pictorial index

P. 151

P. 170

P. 166

P. 400

P. 172

P. 81

P. 76

P. 166

Hood

Exterior

Windshield wipers

Moon roof 

Outside rear view

mirrors

Side marker lights

Headlights (low/high beam)

Front fog lights

Front turn signal lights

Parking lights/daytime running lights

Headlights (high beam)

Page 9

Rear window defogger *

P. 232

P. 493

P. 527

P. 532

P. 166

P. 51

P. 46

P. 85

P. 151

Side marker lights

Tail lights

Doors

Tires

●Replacement

●Inflation pressure

●Information

Trunk

Rear turn signal lights

Fuel filler door

: If equipped

: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

Page 10

P. 78

Pictorial index

P. 65

P. 96

P. 361

P. 344

P. 62

P. 55

P. 342

P. 96

P. 340

P. 353

P. 351

P. 356

P. 279

P. 260, 268

P. 342

Seat belts

Interior

AUX port

USB port

Head restraints

Power window switches

Bottle holders/door pockets

Floor mats

SRS driver airbag

SRS knee airbags

SRS front passenger airbag

Cup holders

Armrest

Ashtray 

Power outlet

Front seats

Cup holders

SRS side airbags

Console box

Page 11

P. 336

P. 81

P. 336

P. 359

P. 96

P. 74

P. 341

P. 376

P. 360

P. 346

P. 345

P. 365

P. 372

Anti-glare inside rear view mirror

Overhead console

Personal lights

Moon roof switches 

Interior lights

Personal lights

Interior lights

“SOS” button 

Coat hooks

SRS curtain shield airbags

Assist grips

Vanity mirrors

Sun visors

Garage door opener switches

Compass 

: If equipped

Page 12

P. 56

P. 60

P. 46

P. 76

P. 78

Pictorial index

P. 46

Interior

Inside door lock buttons

Driving position memory switches

Seat position memory switches

Door lock switch

Outside rear view mirror switches

Window lock switch

Power window switches

Page 13

P. 354

P. 142

P. 503

P. 352

P. 351

P. 344

Automatic transmission shift lever

Seat heater switches

Shift lock override button

Cigarette lighter  Ashtray Auxiliary box



: If equipped

Page 14

P. 161

Pictorial index

P. 166

P. 151

P. 170

P. 145, 147

P. 154

P. 172

P. 138

P. 51

P. 339

P. 72

P. 152

P. 400

P. 153

Headlight switch

Turn signal lever

Fog light switch

Instrument panel

Paddle shift switches

Multi-information display

Gauges and meters

Windshield wiper and washer switch

Engine (ignition) switch

Trunk opener main switch

Glove box

Horn

Tilt and telescopic steering control switch

Parking brake pedal

Hood release lever

Page 15

P. 347

P. 234

P. 224

P. 232

P. 88, 90

P. 460

Without navigation system

Air conditioning system

Audio system

Clock

Rear window and outside rear view mirror defoggers

Security indicator

Emergency flasher switch

Page 16

Pictorial index

P. 347

P. 88, 90

P. 460

With navigation system

Instrument panel

Rear window and outside rear view mirror defoggers

Navigation

system

Clock

Audio system*

Security indicator

Air conditioning system

Emergency flasher switch

Page 17

P. 308

P. 177

P. 181

P. 144, 203

P. 162

P. 308

P. 281

Audio remote control switches

Talk switch *

Telephone switch *

“DISP” switch

F-sport mode total control switch

Cruise control switch  Dynamic radar cruise control switch



: If equipped

: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

: Refer to “Navigation System Owner’s Manual”.

Page 18

P. 51

P. 85

P. 176

P. 348

P. 156

P. 202

P. 144

Pictorial index

P. 181

P. 233

SNOW mode switch

Windshield wiper de-icer switch 

Instrument panel

Fuel filler door opener

Distance switch 

Headlight cleaner switch 

VSC off switch

Instrument panel light

control knob

Satellite switches

Trunk opener

: If equipped

Page 19

For your information

Main Owner’s Manual

Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed on your vehicle.

All specifications provided in this manual are current at the time of printing. However, because of the Lexus policy of continual product improvement, we reserve the right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustration may differ from your vehicle in terms of color and equipment.

Noise from under vehicle after turning off the engine

Approximately five hours after the engine is turned off, you may hear sound coming from under the vehicle for several minutes. This is the sound of a fuel evaporation leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Lexus

A wide variety of non-genuine spare parts and accessories for Lexus vehicles are currently available in the market. You should know that Toyota does not warrant these products and is not responsible for their performance, repair, or replacement, or for any damage they may cause to, or adverse effect they may have on, your Lexus vehicle.

This vehicle should not be modified with non-genuine Lexus products. Modification with non-genuine Lexus products could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.

Page 20

Installation of a mobile two-way radio system

The installation of a mobile two-way radio system in your vehicle could affect electronic systems such as:

● Multiport fuel injection system/sequential multiport fuel injection system

● Cruise control system

● Dynamic radar cruise control system

● Anti-lock brake system

● SRS airbag system

● Seat belt pretensioner system

Be sure to check with your Lexus dealer for precautionary measures or special instructions regarding installation of a mobile two-way radio system.

Page 21

Vehicle data recordings

Your Lexus is equipped with several sophisticated computers that will record certain data, such as:

•Engine speed

• Accelerator status

•Brake status

•Vehicle speed

•Shift position The recorded data varies according to the vehicle grade level and options with

which it is equipped. Furthermore, these computers do not record conversations, sounds or pictures.

● Data usage

Lexus may use the data recorded in these computers to diagnose malfunctions, conduct research and development, and improve quality.

Lexus will not disclose the recorded data to a third party except:

• With the consent of the vehicle owner or with the consent of the lessee if the

vehicle is leased

• In response to an official request by the police, a court of law or a government

agency

• For use by Lexus in a law suit

• For research purposes where the data is not tied to a specific vehicle or vehicle

owner

● Usage of data collected through Safety Connect / Lexus Enform (U.S. mainland

only)

If your Lexus has Safety Connect or Lexus Enform and if you have subscribed to those services, please refer to the Safety Connect / Lexus Enform Telematics Subscription Service Agreement for information on data collected and its usage.

Page 22

Event data recorder

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.

The EDR in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,

• How fast the vehicle was traveling.

These data can help provide a better understanding of the circumstances in which crashes and injuries occur.

NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation. To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.

Page 23

● Disclosure of the EDR data

Lexus will not disclose the data recorded in an EDR to a third party except when:

• An agreement from the vehicle's owner (or the lessee for a leased vehicle) is

obtained

• In response to an official request by the police, a court of law or a government

agency

• For use by Lexus in a law suit However, if necessary, Lexus may:

• Use the data for research on vehicle safety performance

• Disclose the data to a third party for research purposes without disclosing infor-

mation about the specific vehicle or vehicle owner

Scrapping of your Lexus

The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as they are, this may cause an accident such as fire. Be sure to have the systems of the SRS airbag and seat belt pretensioner removed and disposed of by a qualified service shop or by your Lexus dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These components may include airbag, seat belt pretensioners, and wireless remote control batteries.

Page 24

CAUTION

■ General precautions while driving

Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment and reduce coordination, which could lead to an accident that could result in death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or reading can result in a collision with resulting death or serious injury to you, your occupants or others.

■ General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with the cigarette lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

Page 25

Symbols used throughout this manual

CAUTION

NOTICE

Cautions & Notices

This is a warning against anything which may cause injury to people if the warning is ignored. You are informed about what you must or must not do in order to reduce the risk of injury to yourself and others.

This is a warning against anything which may cause damage to the vehicle or its equipment if the warning is ignored. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Lexus and its equipment.

Symbols used in illustrations

Safety symbol

The symbol of a circle with a slash through it means “Do not”, “Do not do this”, or “Do not let this happen.”

Arrows indicating operations

Indicates the action (pushing, turning, etc.) used to operate switches and other devices.

Indicates the outcome of an operation (e.g. a lid opens).

Page 26

Page 27

Before driving

1-1. Key information

Keys.............................................. 28

1-2. Opening, closing and

locking the doors and trunk

Smart access system with

push-button start ................... 32

Wireless remote control......... 43

Doors ............................................ 46

Trunk .............................................. 51

1-3. Adjustable components

(seats, mirrors, steering wheel)

Front seats................................... 55

Driving position memory ........ 56

Seat position memory.............. 60

Head restraints.......................... 62

Seat belts ..................................... 65

Steering wheel........................... 72

Anti-glare inside rear view

mirror......................................... 74

Outside rear view mirrors...... 76

1-4. Opening and closing the

windows and moon roof

Power windows.......................... 78

Moon roof .................................... 81

1-5. Refueling

Opening the fuel tank cap ..... 85

1-6. Theft deterrent system

Engine immobilizer

system........................................ 88

Alarm............................................ 90

Theft prevention labels ........... 93

1-7. Safety information

Correct driving posture ......... 94

SRS airbags ................................ 96

Front passenger occupant

classification system............ 108

Child restraint systems .......... 113

Installing child restraints......... 117

Page 28

1-1. Key information

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart access system with push-button start (P. 3 2)

• Operating the wireless remote control function (P. 4 3)

Mechanical keys Key number plate

■ Card key (Canada only)

Electronic key

Operating the smart access system with push-button start (P. 3 2)

Mechanical key

Keys

Page 29

Using the mechanical key

● To store the mechanical key in the card

key, insert it inside while pressing the lock release button.

1-1. Key information

Take out the mechanical key.

The mechanical key can only be inserted in one direction, as the key only has grooves on one side. If the key cannot be inserted in a lock cylinder, turn it over and re-attempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the mechanical key together with the electronic key. If the electronic key battery is depleted or the entry function does not operate properly, you will need the mechanical key. (P. 505)

■ Card key

● The mechanical key that is stored inside the card key should be used only if a

problem arises, such as when the key does not operate properly.

● If it is difficult to take out the mechanical key, push down the lock release button

using a pen tip etc. If it is still difficult to pull it out, use a coin etc.

Before driving

Page 30

1-1. Key information

● If the battery cover is not installed and

the battery falls out or if the battery was removed because the key got wet, reinstall the battery with the positive terminal facing the Lexus emblem.

● The card key is not waterproof.

■ When required to leave a key to the vehicle with a parking attendant

Turn the trunk opener main switch off and lock the glove box as circumstances demand. (P. 5 1, 3 38) Remove the mechanical key for your own use and provide the attendant with the electronic key only.

■ Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a mechanical key is lost, a new key can be made at your Lexus dealer using the key number plate. (P. 50 4)

■ When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press any buttons on the electronic key while inside the aircraft cabin. If you are carrying an electronic key in your bag etc, ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the electronic key to emit radio waves that could interfere with the operation of the aircraft.

Page 31

1-1. Key information

NOTICE

■ To prevent key damage

Observe the following:

● Do not drop the keys, subject them to strong shocks or bend them.

● Do not expose the keys to high temperatures for a long period of time.

● Do not get the keys wet or wash them in an ultrasonic washer etc.

● Do not attach metallic or magnetic materials to the keys or place the keys close to

such materials.

● Do not disassemble the keys.

● Do not place the keys near objects that produce magnetic fields, such as TVs,

audio systems and induction cookers, or medical electrical equipment, such as low-frequency therapy equipment.

■ Precautions for handling the card keys

● Do not apply excess force when inserting the mechanical key to the card key.

Doing so may damage the card key.

● If the battery or card key terminals get wet, the battery may corrode and the card

key may stop working. If the key is dropped into water, or if drinking water etc. is spilled on the key, immediately remove the battery cover and wipe the battery and terminals. (To remove the battery cover, lightly grasp and pull it.) If the battery is corroded, have your Lexus dealer replace the battery.

● Do not crush the battery cover or use a screwdriver to remove the battery cover.

Forcibly removing the battery cover may bend or damage the key.

● If the battery cover is frequently removed, the battery cover may become loose.

● When installing the battery, make sure to check the direction of the battery.

Installing the battery in the wrong direction may cause the battery to deplete rapidly.

● The surface of the card key may be damaged, or its coating may peel off in the

following situations:

• The card key is carried together with hard objects, such as coins or keys.

• The card key is scraped with a sharp object, such as a tip of mechanical pencil.

• The surface of the card key is wiped with thinners or benzene.

Before driving

Page 32

1-2. Opening, closing and locking the doors and trunk

The following operations can be performed simply by carrying the electronic key (including the card key



) on your person, for example in your pocket. (The driver should always carry the electronic key.)

Locks and unlocks the doors (P. 33 ) Unlocks the trunk (P. 33 ) Starts the engine (P. 13 8)

: Canada only

Electronic key

Smart access system with push-button start

Page 33

1-2. Opening, closing and locking the doors and trunk

Unlocking and locking the doors (front door handles only)

Grip the driver’s door handle to unlock the door. Grip the passenger’s door handle to unlock all the doors.*

Make sure to touch the sensor on the back of the handle.

The door cannot be unlocked for 3 seconds after the door is locked.

*: The door unlock settings can be

changed. (P. 3 7)

Press the lock button to lock the door.

Before driving

Unlocking the trunk

Press the button to unlock the trunk.

Page 34

1-2. Opening, closing and locking the doors and trunk

Antenna location and effective range

■ Antenna location

Antennas outside cabin Antennas inside cabin Antenna inside trunk Antenna outside trunk

Page 35

1-2. Opening, closing and locking the doors and trunk

■ Effective range (areas within which the electronic key is detected)

When locking or unlocking the doors

The system can be operated when the electronic key is within about 2.3 ft. (70 cm) of either of the outside front door handles. (Only the doors detecting the key can be operated.)

When unlocking the trunk

The system can be operated when the electronic key is within about 2.3 ft. (70 cm) of the trunk release button.

When starting the engine or changing “ENGINE START STOP” switch modes

The system can be operated when the electronic key is inside the vehicle.

Before driving

Page 36

1-2. Opening, closing and locking the doors and trunk

■ Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

■ Conditions affecting operation

The smart access system with push-button start uses weak radio waves. In the following situations, the communication between the electronic key and the vehicle may be affected, preventing the smart access system with push-button start from operating properly: (Ways of coping: P. 505)

● When the electronic key battery is depleted

● Near a TV tower, electric power plant, gas station, radio station, large display,

airport or other facility that generates strong radio waves or electrical noise

● When carrying a portable radio, cellular phone, cordless phone or other wire-

less communication devices

● When the electronic key is in contact with, or is covered by the following metal-

lic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

•Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

● When multiple electronic keys are in the vicinity

● When another wireless key (that emits radio waves) is being used nearby

● When carrying or using the electronic key together with the following devices

that emit radio waves

• Another vehicle's electronic key or a wireless key that emits radio waves

• Personal computer or personal digital assistant (PDA)

• Digital audio player

• Portable game system

● If window tint with a metallic content or metallic objects are attached to the rear

window

Page 37

1-2. Opening, closing and locking the doors and trunk

STEP 1

STEP 2

Multi-information

display

Unlocking doors Beep

Hold the driver's door handle to unlock only the driver's door.

Exterior: Beeps three times Interior: Pings once

Hold the front passenger’s door handle to unlock all doors.

Hold either front door handle to unlock all doors.

Exterior: Beeps twice Interior: Pings once

■ Switching the door unlock function

It is possible to set which doors the entry function unlocks.

Turn the “ENGINE START STOP” switch OFF.

When the indicator on the key surface is turned off, push and hold , , or for approximately 5 seconds while pushing

on the key.

The setting changes each time an operation is performed, as shown below. (When changing the setting continuously, release the buttons, wait for at least 5 seconds, and repeat step 2.)

To prevent unintended triggering of the alarm, unlock the doors using the wireless remote control and open and close a door once after the settings have been

changed. (If a door is not opened within 60 seconds after is pressed, the doors will be locked again and the alarm will automatically be set.)

In case that the alarm is triggered, immediately stop the alarm. (P. 9 0 )

Before driving

Page 38

1-2. Opening, closing and locking the doors and trunk

■ Battery-saving function

In the following circumstances, the entry function is disabled in order to prevent the vehicle and electronic key batteries from discharging.

● When the entry function has not been used for 30 days or more

● When the electronic key has been left within approximately 3 ft. (1 m) of the

vehicle for 10 minutes or more

The system will resume operation when...

● The vehicle is locked using the door handle lock switch.

● The vehicle is locked/unlocked using the wireless remote control function.

(P. 43 )

● The vehicle is locked/unlocked using the mechanical key. (P. 505)

■ Electronic key battery depletion

● The standard battery life is 1 to 2 years. (The card key battery life is about a year

and a half.)

● If the battery becomes low, an alarm will sound in the cabin when the engine

stops. (P. 48 9)

● The battery becomes depleted even if the electronic key is not used because

the key always receives radio waves. If the smart access system with push-button start or the wireless remote control does not operate, or the detection area becomes smaller, the battery may be depleted. Replace the battery when necessary. ( P. 4 36 )

● If the battery becomes low, an alarm will sound in the cabin when the engine

stops. (P. 40, 489)

● To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of

the following electrical appliances that produce a magnetic field.

•TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

• Induction cookers

• Table lamps

Page 39

1-2. Opening, closing and locking the doors and trunk

■ To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle.

Depending on the position and holding condition of the electronic key, the key may not be detected correctly and the system may not operate properly. (The alarm may go off accidentally, or the door lock prevention may not function.)

■ Note for the entry function

● Even when the electronic key is within the effective range (detection areas), the

system may not operate properly in the following cases.

• The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.

• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.

• The electronic key is on the instrument panel, rear package tray or floor, or in the glove box when the engine is started or “ENGINE START STOP” switch modes are changed.

● Do not leave the electronic key on top of the instrument panel or near the door

pockets when exiting the vehicle. Depending on the radio wave reception conditions, it may be detected by the antenna outside the cabin and the door will become lockable from the outside, possibly trapping the electronic key inside the vehicle.

● As long as the electronic key is within the effective range, the doors may be

locked or unlocked by anyone.

● Even if the electronic key is not inside the vehicle, it may be possible to start the

engine if the electronic key is near the window.

● The doors may unlock if a large amount of water splashes on the door handle,

such as in the rain or in a car wash. (The doors will automatically be locked after approximately 60 seconds if the doors are not opened and closed.)

● Gripping the door handle when wearing a glove may not unlock the door.

● If the wireless remote control is used to lock the doors when the electronic key

is near the vehicle, there is a possibility that the door may not be unlocked by the entry function. (Use the wireless remote control to unlock the doors.)

● A sudden approach to the effective range or door handle operation may prevent

the doors from being unlocked. In this case, return the door handle to the original position and check that the doors unlock before pulling the door handle again.

Before driving

Page 40

1-2. Opening, closing and locking the doors and trunk

Alarm Situation Correction procedure

Exterior alarm sounds once for 2 seconds

Tried to lock the doors using the entry function while the electronic key is still inside the passenger compartment

Retrieve the electronic key from the passenger compartment and lock the doors again.

Closed the trunk while the electronic key is still inside and all doors are locked

Retrieve the electronic key from the trunk and close the trunk lid.

Exterior alarm sounds once for 60 seconds

Tried to exit the vehicle with the electronic key and lock the doors without first turning the “ENGINE START STOP” switch OFF

Tu rn th e “E NG I NE START STOP” switch OFF and lock the doors again.

Exterior alarm sounds once for 10 seconds

Tried to lock the vehicle using the entry function while a door is open

Close all of the doors and lock the doors again.

■ When the vehicle is not driven for extended periods

To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the vehicle.

■ Security feature

If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the anti-theft system automatically locks the vehicle again.

■ Alarms and warning indicators

A combination of exterior and interior alarms as well as warnings displayed on the multi-information display is used to prevent theft of the vehicle and unforeseeable accidents resulting from erroneous operation. Take appropriate measures in response to any warning indications on the multi-information display. (P. 47 9)

The following table describes circumstances and correction procedures when only alarms are sounded.

Page 41

1-2. Opening, closing and locking the doors and trunk

Alarm Situation Correction procedure

Interior alarm sounds continuously

Tried to open the door and exit the vehicle without shifting the shift lever to P

Shift the shift lever to P.

Interior alarm pings continuously

Switched to ACCESSORY mode while the driver's door is open (Opened the driver's door when the “ENGINE START STOP” switch is in ACCESSORY mode.)

Close the driver's door.

Turned the “ENGINE START STOP” switch OFF while the driver's door is open

Close the driver's door.

■ If the smart access system with push-button start does not operate properly

● Locking and unlocking the doors and trunk: Use the mechanical key.

(P. 505)

● Starting the engine:P. 5 06

■ When the electronic key battery is fully depleted

P. 4 36

■ Customization that can be configured at Lexus dealer

It is possible to deactivate the operation signals of the system, such as the emergency flashers. (Customizable featuresP. 544)

■ Certification for the smart access system with push-button start

For vehicles sold in the U.S.A.

FCC ID: NI4TMLF-1 FCC ID: HYQ14AEM FCC ID: HYQ14ABB FCC ID: HYQ13BZS FCC ID: HYQ14ABK FCC ID: HYQ14ABS FCC ID: HYQ13CZA

Before driving

Page 42

1-2. Opening, closing and locking the doors and trunk

CAUTION

NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada

NOTE: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

■ Caution regarding interference with electronic devices

● People with implantable cardiac pacemakers, cardiac resynchronization therapy-

pacemakers or implantable cardioverter defibrillators should keep away from the smart access system antennas. (P. 3 4) The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Lexus dealer for details, such as the frequency of radio waves and timing of the emitted radio waves. Then, consult your doctor to see if you should disable the entry function.

● User of any electrical medical device other than implantable cardiac pacemak-

ers, cardiac resynchronization therapy-pacemakers or implantable cardioverter defibrillators should consult the manufacturer of the device for information about its operation under the influence of radio waves. Radio waves could have unexpected effects on the operation of such medical devices.

Ask your Lexus dealer for details for disabling the entry function.

Page 43

1-2. Opening, closing and locking the doors and trunk

The wireless remote control can be used to lock and unlock the vehicle and the trunk from outside the vehicle.

Locks all doors Unlocks all doors

Pressing the button unlocks the driver’s door. Pressing the button again within 3 seconds unlocks the other doors.

Opens the windows and moon roof (push and hold)*

Unlocks the trunk (push and hold)

Sounds alarm (push and hold) (P. 4 4)

*: This setting must be customized

at your Lexus dealer.

Wireless remote control

Before driving

■ Operation signals

Doors: A buzzer sounds and the emergency flashers flash to indicate that the

doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

Trunk: A buzzer sounds to indicate that the trunk has been unlocked.

Windows and moon roof: A buzzer sounds to indicate that the windows and moon roof are operating.

■ Door lock buzzer

If a door is not fully closed, a buzzer sounds if an attempt to lock the door is made. Fully close the door to stop the buzzer, and lock the vehicle once more.

■ Alarm

Using the wireless remote control to lock the doors will set the alarm system.

Page 44

1-2. Opening, closing and locking the doors and trunk

When is pushed for longer than about one second, an alarm will sound for about 60 seconds and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle.

To stop the alarm, push any button on the wireless remote control.

■ Pa ni c mo de

■ Electronic key battery depletion

P. 3 8

■ Security feature

P. 4 0

■ When the electronic key battery is fully depleted

P. 4 36

■ Conditions affecting operation

P. 3 6

■ Customization that can be configured at Lexus dealer

Settings (e.g. trunk unlocking function) can be changed. (Customizable features P. 544)

Page 45

1-2. Opening, closing and locking the doors and trunk

■ Certification for wireless remote control

For vehicles sold in the U.S.A.

FCC ID: HYQ14AEM FCC ID: HYQ14ABB FCC ID: HYQ13BZS FCC ID: HYQ14ABK FCC ID: HYQ14ABS FCC ID: HYQ13CZA

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada

Before driving

Page 46

1-2. Opening, closing and locking the doors and trunk

The vehicle can be locked and unlocked using the entry function, wireless remote control or door lock switch.

■ Entry function

P. 3 3

■ Wireless remote control

P. 4 3

■ Door lock switch

Locks all doors Unlocks all doors

■ Inside lock button

Locks the door Unlocks the door

The front doors can be opened by pulling the inside handle even if the lock buttons are in the lock position.

Doors

Page 47

1-2. Opening, closing and locking the doors and trunk

Locking the front doors from the outside without a key

The door cannot be locked if the “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode, or the electronic key is left inside the vehicle.

Depending on the position of the electronic key, the key may not be detected correctly and the door may be locked.

Rear door child-protector lock

The door cannot be opened from inside the vehicle when the locks are set.

Unlock Lock

These locks can be set to prevent children from opening the rear doors. Push down on each rear door switch to lock both rear doors.

Before driving

Page 48

1-2. Opening, closing and locking the doors and trunk

STEP 1

STEP 2

Automatic door locking and unlocking systems

The following functions can be set or cancelled:

Function Operation

Shift position linked door locking function

Shift position linked door unlocking function

Speed linked door locking function

Driver's door linked door unlocking function

Shifting the shift lever out of P locks all doors.

Shifting the shift lever to P unlocks all doors.

All doors are locked when the vehicle speed is approximately 12 mph (20 km/h) or higher.

All doors are unlocked when the driver's door is opened within approximately 45 seconds after turning the “ENGINE START STOP” switch OFF.

■ Setting and canceling the functions

To switch between setting and canceling, follow the procedure below:

Close all the doors and switch the “ENGINE START STOP” switch to IGNITION ON mode. (Perform the step 2 within 10 seconds.)

Shift the shift lever to P or N, press and hold the driver's door lock switch ( or ) for about 5 seconds then release.

The shift lever and switch positions corresponding to the desired function to be set are shown as follows.

Use the same procedure to cancel the function.

Page 49

1-2. Opening, closing and locking the doors and trunk

Function Shift lever position

Driver’s door lock

switch position

Shift position linked door locking function

Shift position linked door unlocking function

Speed linked door locking function

Driver's door linked door unlocking

function

When the setting or canceling operation is complete, all doors are locked and then unlocked.

■ Impact detection door lock release system

In the event that the vehicle is subject to a strong impact, all the doors are unlocked. Depending on the force of the impact or the type of accident, however, the system may not operate.

■ Using the mechanical key

The doors can also be locked and unlocked with the mechanical key. (P. 505)

■ Customization that can be configured at Lexus dealer

Settings (e.g. unlocking function using a key) can be changed. (Customizable features P. 544)

Before driving

Page 50

1-2. Opening, closing and locking the doors and trunk

CAUTION

■ To prevent an accident

Observe the following precautions while driving the vehicle. Failing to do so may result in a door opening and an occupant falling out, resulting in death or serious injury.

● Always use a seat belt.

● Always lock all doors.

● Ensure that all doors are properly closed.

● Do not pull the inside handle of the doors while driving.

The doors may be opened and the passengers may be thrown out of the vehicle, resulting in death or serious injury.

Be especially careful for the front doors, as the doors may be opened even if the inside lock buttons are in locked position.

● Set the rear door child protector locks when children are seated in the rear seat.

Page 51

1-2. Opening, closing and locking the doors and trunk

The trunk can be opened using the trunk opener, entry function or wireless remote control.

■ Opening the trunk from inside the vehicle

Press the opener switch.

■ Opening the trunk from outside the vehicle

Entry function P. 3 3

Wireless remote control P. 4 3

Tr u nk

Before driving

Locking the trunk opener feature

Turn the main switch in the glove box off to disable the trunk opener.

On Off

The trunk lid cannot be opened even with the wireless remote control or the entry function.

Page 52

1-2. Opening, closing and locking the doors and trunk

Off

Use the trunk handle when closing the trunk. Be careful not to pull the trunk lid sideways

when closing the trunk with the handle.

The trunk lid can be opened by pulling down on the glow-in-the-dark lever located on the inside of the trunk lid.

The lever will continue to glow for some time after the trunk lid is closed.

■ Tr u n k li g h t

When the trunk light switch is set to on, the trunk light turns on when the trunk is opened.

■ Tr u n k ha n dl e

■ Internal trunk release lever

■ Using the mechanical key

The trunk can be also opened using the mechanical key. (P. 505)

■ Which key to the vehicle is to leave with a parking attendant after disabling the

trunk opener main switch

P. 3 0

Page 53

1-2. Opening, closing and locking the doors and trunk

CAUTION

■ Caution while driving

● Keep the trunk lid closed while driving.

If the trunk lid is left open, it may hit near-by objects while driving or luggage in the trunk may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard. Make sure to close the trunk lid before driving.

● Before driving the vehicle, make sure that the trunk lid is fully closed. If the trunk

lid is not fully closed, it may open unexpectedly while driving, causing an accident.

● Never let anyone sit in the trunk. In the event of sudden braking or a collision, they

are susceptible to death or serious injury.

■ When children are in the vehicle

Observe the following precautions. Failure to do so may result in death or serious injury.

● Do not allow children to enter the trunk.

If a child is accidentally locked in the trunk, they could overheat or suffocate.

● Do not allow a child to open or close the trunk lid.

Doing so may cause the trunk lid to operate unexpectedly, or cause the child’s hands, head, or neck to be caught by the closing trunk lid.

Before driving

Page 54

1-2. Opening, closing and locking the doors and trunk

CAUTION

● The trunk lid may suddenly shut if it is not

opened fully. It is more difficult to open or close the trunk lid on an incline than on a level surface, so beware of the trunk lid unexpectedly opening or closing by itself. Make sure that the trunk lid is fully open and secure before using the trunk.

● When closing the trunk lid, take extra

care to prevent your fingers etc. from being caught.

● When closing the trunk lid, make sure to

press it lightly on its outer surface. If the trunk handle is used to fully close the trunk lid, it may result in hands or arms being caught.

■ Using the trunk

Observe the following precautions. Failure to do so may cause parts of the body to be caught, resulting in serious injury.

● Remove any heavy loads, such as snow and ice, from the trunk lid before opening

it. Failure to do so may cause the trunk lid to suddenly shut again after it is opened.

● When opening or closing the trunk lid, thoroughly check to make sure the sur-

rounding area is safe.

● If anyone is in the vicinity, make sure they are safe and let them know that the

trunk is about to open or close.

● Use caution when opening or closing the trunk lid in windy weather as it may

move abruptly in strong wind.

● Do not attach any accessories other than genuine Lexus parts to the trunk lid.

Such additional weight on the trunk lid may cause the lid to suddenly shut again after it is opened.

Page 55

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

Seat position switch Seatback angle switch Seat cushion (front) angle switch Vertical height adjustment switch Lumbar support switch

Front seats

Before driving

■ Seat adjustment

Do not recline the seat more than necessary when the vehicle is in motion to reduce the risk of sliding under the lap belt. If the seat is too reclined, the lap belt may slide past the hips and apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury in the event of an accident.

Page 56

1-3. Adjustable components (seats, mirrors, steering wheel)

Your preferred driving position (the position of the driver's seat, steering wheel and outside rear view mirrors) can be memorized and recalled with the touch of a button. It is also possible to set this function to activate automatically when the doors are unlocked. Three different driving positions can be entered into memory.

■ Entering a position to memory

Turn the “ENGINE START STOP” switch to IGNITION ON mode.

Adjust the driver’s seat, steering wheel, and outside rear view mirrors to the desired positions.

Push the “SET” button, then within 3 seconds push button “1”, “2” or “3” until the signal beeps.

If the selected button has already been preset, the previously recorded position will be overwritten.

■ Recalling the memorized position

Check that the shift lever is set in P.

Turn the “ENGINE START STOP” switch to IGNITION ON mode.

Push button “1”, “2” or “3” to recall the memorized position.

STEP 1

STEP 2

STEP 3

STEP 1

STEP 2

Driving position memory (driver’s seat)

Page 57

1-3. Adjustable components (seats, mirrors, steering wheel)

STEP 1

STEP 2

Linking driving position memory with door unlock operation

Record your driving position to button “1”, “2” or “3” before performing the following.

Using the wireless remote control

Turn the “ENGINE START STOP” switch OFF and close the driver's door.

While pressing the desired button (“1”, “2” or “3”), push on the wireless remote control until the

signal beeps.

The driving position is recalled when the driver's door is unlocked using the entry function or wireless remote control and the driver’s door is opened.

Before driving

To prevent unintended triggering of the alarm, open and close a door once after a driving position has been recorded. (If a door is not opened

within 60 seconds after is pressed, the doors will be locked again and the alarm will automatically be set.) In case that the alarm is triggered, immediately stop the alarm. (P. 9 0)

Page 58

1-3. Adjustable components (seats, mirrors, steering wheel)

STEP 1

STEP 2

Using the door lock switch Carry only the key (including the card key) to which you want to link

the driving position. If 2 or more keys are in the vehicle, the driving position cannot be linked properly.

Turn the “ENGINE START STOP” switch OFF and close the driver's door.

While pressing the desired button (“1”, “2” or “3”), press the lock or unlock side on the driver’s door lock switch until the signal beeps.

The driving position is recalled when the driver's door is unlocked using the entry function or wireless remote control and the driver's door is opened.

: Canada only

Page 59

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

STEP 1

STEP 2

■ Canceling the linked door unlock operation

Turn the “ENGINE START STOP” switch OFF and close the driver's door.

Using the wireless remote control: While pushing the “SET” button, press

on the wireless remote control until the signal beeps.

Using the door lock switch: While pressing the “SET” button, press the lock or unlock side on the door lock switch until the signal beeps.

■ Operating the driving position memory after turning the “ENGINE START

STOP” switch OFF

Memorized positions (except for the steering wheel position) can be activated up to 180 seconds after the driver’s door is opened and another 60 seconds after it is closed again, even after turning the “ENGINE START STOP” switch OFF.

■ To cancel seat position recall

Perform any of the following operations.

● Push the “SET” button.

● Push button “1”, “2” or “3”.

● Adjust the seat using the switches (only cancels seat position recall).

■ If the battery is disconnected

The memorized positions are erased when the battery is disconnected.

■ Seat adjustment caution

Take care during seat adjustment that the seat does not strike the rear passenger or squeeze your body against the steering wheel.

Before driving

Page 60

1-3. Adjustable components (seats, mirrors, steering wheel)

Your preferred front passenger seat position can be memorized and recalled with the touch of a button. Three different seat positions can be entered into memory.

■ Entering a position to memory

Turn the “ENGINE START STOP” switch to IGNITION ON mode.

Adjust the front passenger seat to the desired position.

Push the “SET” button, then within 3 seconds push button “1”, “2” or “3” until the signal beeps.

If the selected button has already been preset, the previously recorded position will be overwritten.

■ Recalling the memorized position

Check that the shift lever is set in P.

Push button “1”, “2” or “3” to recall the memorized position.

STEP 1

STEP 2

STEP 3

Seat position memory (front passenger’s seat)

Page 61

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Operating the seat position memory after turning the “ENGINE START STOP”

switch OFF

Memorized position can be activated up to 180 seconds after the front passenger door is opened, even after turning the “ENGINE START STOP” switch OFF.

■ To cancel seat position recall

Perform any of the following operations.

● Push the “SET” button.

● Push button “1”, “2” or “3”.

● Adjust the seat position using the switches.

■ If the battery is disconnected

The memorized positions are erased when the battery is disconnected.

■ Seat adjustment caution

Take care during seat adjustment that the seat does not strike the rear passenger.

Before driving

Page 62

1-3. Adjustable components (seats, mirrors, steering wheel)

Head restraints are provided for all seats.

Vertical adjustment (front seats)

Pull the head restraints up.

Down

Push the head restraint down while pushing the lock release button.

Folding operation (rear seats)

To stow the head restraint by folding it forward, pull the head restraint up while pushing the lock release button. Only the button on the right stay (when facing the front of the vehicle) can be used to fold the head restraint forward.

Lock release button

Pull the head restraint up while pushing the lock release button.

Lock release button

Head restraints

■ Removing the head restraints (front seats)

Page 63

1-3. Adjustable components (seats, mirrors, steering wheel)

Align the head restraint with the installation holes and push it down to the lock position.

Press and hold the lock release button when lowering the head restraint.

Lock release

button

Pull the head restraint up while pushing both of the lock release buttons.

Lock release buttons

Align the head restraint with the installation holes and push it down to the lock position.

■ Installing the head restraints (front seats)

■ Removing the head restraints (rear seats)

■ Installing the head restraints (rear seats)

Before driving

Page 64

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears.

■ Adjusting the height of the head restraints

■ When using the rear seat head restraints

Make sure the head restraints are not in the stowed/folded position while in use.

■ Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so may result in death or serious injury.

● Use the head restraints designed for each respective seat.

● Adjust the head restraints to the correct position at all times.

● After adjusting the head restraints, push down on them and make sure they are

locked in position.

● Do not drive with the head restraints removed.

Page 65

1-3. Adjustable components (seats, mirrors, steering wheel)

Make sure that all occupants are wearing their seat belts before driving the vehicle.

■ Correct use of the seat belts

● Extend the shoulder belt so

that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.

● Position the lap belt as low as possible over the hips.

● Adjust the position of the seatback. Sit up straight and well back in the seat.

● Do not twist the seat belt.

■ Fastening and releasing the seat belt

Fastening the belt

Push the tab into the buckle until a clicking sound is heard.

Releasing the belt

Press the release button.

Release button

Seat belts

Before driving

Page 66

1-3. Adjustable components (seats, mirrors, steering wheel)

■ Adjusting the height of the belt (front seats)

Down (while pressing the height adjuster)

Move the height adjuster up and down as needed until you hear a click.

Seat belt comfort guide (rear seats)

If the shoulder belt sits close to a person’s neck, slide the seat belt comfort guide forward.

Seat belt pretensioners

The pretensioner helps the seat belt to quickly restrain the occupant by retracting the seat belt when the vehicle is subjected to certain types of severe frontal collision.

The pretensioner may not activate in the event of a minor frontal impact, a side impact, a rear impact or a vehicle rollover.

Page 67

1-3. Adjustable components (seats, mirrors, steering wheel)

Obtain medical advice and wear the seat belt in the proper way. (P. 65)

Women who are pregnant should position the lap belt as low as possible over the hips in the same manner as other occupants. Extend the shoulder belt completely over the shoulder and position the belt across the chest. Avoid belt contact over the rounding of the abdominal area.

If the seat belt is not worn properly, not only a pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden braking or a collision.

Pre-collision seat belts (front seats of vehicles with pre-collision system)

If the pre-collision sensor detects that a collision is unavoidable, the precollision safety system will retract the seat belt, thus enhancing the effectiveness of the seat belt pretensioner in a crash.

The same will happen if the driver makes an emergency braking or loses control of the vehicle. (P. 20 7)

■ Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward or pull out the belt too quickly. Allow the belt to fully retract, and then slowly extend the belt. If the belt cannot be pulled out of the retractor, firmly pull the belt and release it. You will then be able to smoothly pull the belt out of the retractor.

■ Automatic locking retractor (ALR)

When a passenger's shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt and then pull the belt out once more. (P. 117)

■ Pregnant women

Before driving

Page 68

1-3. Adjustable components (seats, mirrors, steering wheel)

If your seat belts cannot be fastened securely because they are not long enough, a personalized seat belt extender is available from your Lexus dealer free of charge.

■ People suffering illness

Obtain medical advice and wear the seat belt in the proper way.

■ Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size.

● Use a child restraint system appropriate for the child, until the child becomes

large enough to properly wear the vehicle's seat belt. (P. 113)

● When the child becomes large enough to properly wear the vehicle's seat belt,

follow the instructions on P. 65 regarding seat belt usage.

■ Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent collisions.

■ Seat belt extender

Page 69

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

Observe the following precautions to reduce the risk of injury in the event of sudden braking, sudden swerving or an accident. Failing to do so may cause death or severe injury.

■ Wearing a seat belt

● Ensure that all passengers wear a seat belt.

● Always wear a seat belt properly.

● Each seat belt should be used by one person only. Do not use a seat belt for more

than one person at once, including children.

● Lexus recommends that children be seated in the rear seat and always use a seat

belt and/or an appropriate child restraint system.

● Do not recline the seat any more than necessary to achieve a proper seating

position. The seat belt is most effective when the occupants are sitting up straight and well back in the seats.

● Do not wear the shoulder belt under your arm.

● Always wear your seat belt low and snug across your hips.

■ When children are in the vehicle

Do not allow children to play with the seat belt. If the seat belt becomes twisted around a child’s neck, it may lead to choking or other serious injuries that could result in death. If this occurs and the buckle cannot be unfastened, scissors should be used to cut the belt.

■ Seat belt pretensioners

● Do not place anything, such as a cushion, on the front passenger's seat. Doing so

will disperse the passenger's weight, which prevents the sensor from detecting the passenger's weight properly. As a result, the seat belt pretensioner for the front passenger's seat may not activate in the event of a collision.

● If the pretensioner has activated, the SRS warning light will come on. In that case,

the seat belt cannot be used again and must be replaced at your Lexus dealer.

Before driving

Page 70

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or serious injuries in the event of a sudden stop, sudden swerve or collision. (P. 66)

■ Seat belt damage and wear

Inappropriate handling of the pretensioner may prevent it from operating properly resulting in death or serious injury.

● Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed

in the door.

● Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.

Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an occupant from death or serious injury.

● Ensure that the belt and tab are locked and the belt is not twisted.

If the seat belt does not function correctly, immediately contact your Lexus dealer.

● Replace the seat assembly, including the belts, if your vehicle has been involved in

a serious accident, even if there's no obvious damage.

● Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.

Have any necessary repairs carried out by your Lexus dealer.

■ Using a seat belt extender

● Do not wear the seat belt extender if you can fasten the seat belt without the

extender.

● Do not use the seat belt extender when installing a child restraint system because

the belt will not securely hold the child restraint system, increasing the risk of death or serious injury in the event of an accident.

● The personalized extender may not be safe on another vehicle, when used by

another person, or at a different seating position other than the one originally intended.

Page 71

1-3. Adjustable components (seats, mirrors, steering wheel)

NOTICE

■ When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the extender, not on the seat belt. This helps prevent damage to the vehicle interior and the extender itself.

Before driving

Page 72

1-3. Adjustable components (seats, mirrors, steering wheel)

The steering wheel can be adjusted to a comfortable position.

Up Down Away from the driver Toward the driver

Steering wheel

Auto tilt away

When the “ENGINE START STOP” switch is turned OFF, the steering wheel returns to its stowed position by moving up and away to enable easier driver entry and exit.

Switching to ACCESSORY or IGNITION ON mode will return the steering wheel to the original position.

Page 73

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ The steering wheel can be adjusted when

The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.

■ Automatic adjustment of the steering position

A desired steering position can be entered to memory and recalled automatically by the driving position memory. (P. 5 6)

■ Customization that can be configured at Lexus dealer

It is possible to deactivate the auto tilt-away function. (Customizable featuresP. 544)

■ Caution while driving

Do not adjust the steering wheel while driving. Doing so may cause the driver to mishandle the vehicle and cause an accident, resulting in death or serious injury.

Before driving

Page 74

1-3. Adjustable components (seats, mirrors, steering wheel)

In automatic mode, sensors are used to detect the headlights of vehicles behind and automatically reduce the reflected light.

Without compass

Turns automatic mode on Turns automatic mode off

The indicator comes on when automatic mode is turned on.

The anti-glare mirror default mode is automatic. The antiglare mirror is automatically set to automatic whenever the “ENGINE START STOP” switch is turned IGNITION ON mode.

With compass

Turns automatic mode on/off

The indicator comes on when automatic mode is turned on.

The anti-glare mirror default mode is automatic. The antiglare mirror is automatically set to automatic whenever the “ENGINE START STOP” switch is turned IGNITION ON mode.

Anti-glare inside rear view mirror

Page 75

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

To ensure that the sensors operate properly, do not touch or cover them.

Adjusting the height of rear view mirror

■ To prevent sensor error

Adjust the height of the rear view mirror by moving it up and down.

Before driving

■ Caution while driving

Do not adjust the position of the mirror while driving. Doing so may lead to mishandling of the vehicle and an accident, resulting in death or serious injury.

Page 76

1-3. Adjustable components (seats, mirrors, steering wheel)

Mirror angle can be adjusted using the switch when the “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.

Select a mirror to adjust (“L”: left or “R”: right)

Adjust the mirror up, down, in, or out using the switch

Push back in the direction of the vehicle's rear.

Outside rear view mirrors

■ The mirrors can be operated when

The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.

■ When the mirrors are fogged up

Turn on the mirror defoggers to defog the mirrors. (P. 232)

■ Folding back the mirrors

■ One-touch adjustment of the mirror angle

A desired mirror face angle can be entered to memory and adjusted with the touch of a button. (P. 5 6)

Page 77

1-3. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Linked mirror function when reversing

The outside rear view mirrors will automatically angle downwards when the vehicle is reversing in order to give a better view of the ground. However, this function will not operate when the mirror select switch is in the neutral position (between “L” and “R”).

■ Auto anti-glare function

When the anti-glare inside rear view mirror is set to automatic mode, the outside rear view mirrors will activate in conjunction with the anti-glare inside rear view mirror to reduce reflected light. (P. 74)

■ When driving the vehicle

Observe the following precautions while driving. Failing to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury.

● Do not adjust the mirrors while driving.

● Do not drive with the mirrors folded back.

● Both the driver and passenger side mirrors must be extended and properly

adjusted before driving.

■ When the mirror defoggers are operating

Do not touch the rear view mirror surfaces, as they can become very hot and burn you.

Before driving

Page 78

1-4. Opening and closing the windows and moon roof

The power windows can be opened and closed using the following switches.

Closing One-touch closing* Opening One-touch opening*

*: To stop the window partway,

operate the switch in the opposite direction.

Power windows

Lock switch

Press the switch down to lock the passenger window switches.

Use this switch to prevent children from accidentally opening or closing a passenger window.

The passenger windows can still be opened and closed using the driver’s switch even if the lock switch is on.

■ The power windows can be operated when

The “ENGINE START STOP” switch is in IGNITION ON mode.

■ Door lock linked window operation

The power windows can be opened and closed using the mechanical key. (P. 505)

Page 79

1-4. Opening and closing the windows and moon roof

STEP 1

STEP 2

STEP 3

■ Operating the power windows after turning the “ENGINE START STOP” switch

OFF

The power windows can be operated for approximately 45 seconds even after the “ENGINE START STOP” switch is switched to ACCESSORY mode or turned OFF. They cannot, however, be operated once either front door is opened.

■ Jam protection function

If an object becomes caught between the window and the window frame, window travel is stopped and the window is opened slightly.

■ When the power window does not close normally

If the jam protection function is operating abnormally and a window cannot be closed, perform the following operations using the power window switch on the relevant door.

● After stopping the vehicle, the window can be closed by holding the power win-

dow switch in the one-touch closing position while the “ENGINE START STOP” switch is turned to IGNITION ON mode.

● If the window still cannot be closed even by carrying out the operation

explained above, initialize the function by performing the following procedure.

Hold the power window switch in the one-touch closing position. Continue holding the switch for a further 6 seconds after the window has closed.

Hold the power window switch in the one-touch opening position. Continue holding the switch for a further 2 seconds after the window has opened completely.

Hold the power window switch in the one-touch closing position once again. Continue holding the switch for a further 2 seconds after the window has closed.

If you release the switch while the window is moving, start again from the beginning. If the window continues to close but then re-open slightly even after performing the above procedure correctly, have the vehicle inspected by your Lexus dealer.

■ Customization that can be configured at Lexus dealer

Settings (e.g. linked door lock operation) can be changed. (Customizable features P. 544)

Before driving

Page 80

1-4. Opening and closing the windows and moon roof

CAUTION

■ Closing the windows

Observe the following precautions. Failing to do so may result in death or serious injury.

● Check to make sure that all passengers do not have any part of their body in a

position where it could be caught when a window is being operated.

● Do not allow children to operate the power windows.

Closing a power window on someone can cause serious injury, and in some instances, even death.

■ Jam protection function

● Never try jamming any part of your body to activate the jam protection function

intentionally.

● The jam protection function may not work if something gets caught just before

the window fully closes.

Page 81

1-4. Opening and closing the windows and moon roof

Use the overhead switches to open, close, and tilt the moon roof up and down.

■ Opening and closing

Open*

The moon roof stops slightly before the fully opened position. Push the switch again to fully open.

Close*

*: Lightly press either of the moon

roof switches to stop the moon roof partway.

■ Tilting up and down

Til t up* Tilt down*

*: Lightly press either of the moon

roof switches to stop the moon roof partway.

: If equipped

Moon roof



Before driving

Page 82

1-4. Opening and closing the windows and moon roof

■ The moon roof can be operated when

The “ENGINE START STOP” switch is in IGNITION ON mode.

■ Moon roof open warning buzzer

The buzzer sounds and a message is shown on the multi-information display in the instrument panel when the “ENGINE START STOP” switch is turned OFF and the driver's door is opened with the moon roof open.

■ Door lock linked moon roof operation

The moon roof can be opened and closed using the mechanical key. (P. 505)

■ Operating the moon roof after turning the “ENGINE START STOP” switch OFF

The moon roof can be operated for approximately 45 seconds even after the “ENGINE START STOP” switch is switched to ACCESSORY mode or turned OFF. It cannot, however, be operated once either front door is opened.

■ Jam protection function

If an object is detected between the moon roof and the frame while closing or tilting down, travel is stopped and the moon roof opens slightly.

■ To reduce moon roof wind noise

Drive with the moon roof opened to slightly before the fully open position as driving with the moon roof opened fully will cause wind noise.

■ Sunshade

The sunshade can be opened and closed manually. However, the sunshade will open automatically when the moon roof is opened.

Page 83

1-4. Opening and closing the windows and moon roof

STEP 1

STEP 2

STEP 3

STEP 1

STEP 2

STEP 3

STEP 4

■ When the moon roof does not close normally

Perform the following procedure:

● If the moon roof closes but then re-opens slightly

Stop the vehicle.

Press and hold the “CLOSE” switch.* The moon roof will close, reopen and pause for approximately 10 sec-

Then it will close again, tilt up and pause for approximately 1 sec-

onds.*

ond. Finally, it will tilt down, open and close. Check to make sure that the moon roof is completely closed and then

release the switch.

● If the moon roof tilts down but then tilts back up

Stop the vehicle.

Press and hold the “TILT” switch*

until the moon roof moves into the tilt

up position and stops. Release the “TILT” switch once and then press and hold the “TILT” switch

again.*

The moon roof will pause for approximately 10 seconds in the tilt up posi-

Then it will adjust slightly and pause for approximately 1 second.

tion.* Finally, it will tilt down, open and close.

Check to make sure that the moon roof is completely closed and then release the switch.

: If the switch is released at the incorrect time, the procedure will have

to be performed again from the beginning.

: If the switch is released after the above mentioned 10 second pause,

automatic operation will be disabled. In that case, press and hold the “CLOSE” or “TILT” switch, and the moon roof will tilt up and pause for approximately 1 second. Then it will tilt down, open and close. Check to make sure that the moon roof is completely closed and then release the switch.

If the moon roof does not fully close even after performing the above procedure correctly, have the vehicle inspected by your Lexus dealer.

■ Customization that can be configured at Lexus dealer

Settings (e.g. linked door lock operation) can be changed. (Customizable features P. 544)

Before driving

Page 84

1-4. Opening and closing the windows and moon roof

CAUTION

■ Opening the moon roof

Observe the following precautions. Failing to do so may cause death or serious injury.

● Do not allow any passengers to put their hands or heads outside the vehicle while

it is moving.

● Do not sit on top of the moon roof.

■ Closing the moon roof

Observe the following precautions. Failing to do so may result in death or serious injury.

● Check to make sure that all passengers do not have any part of their bodies in a

position where they could be caught when the moon roof is being operated.

● Do not allow children to operate the moon roof.

Closing the moon roof on someone can cause death or serious injury.

■ Jam protection function

● Never try jamming any part of your body to activate the jam protection function

intentionally.

● The jam protection function may not work if something gets caught just before

the moon roof fully closes.

Page 85

1-5. Refueling

Perform the following steps to open the fuel tank cap.

■ Before refueling the vehicle

Turn the “ENGINE START STOP” switch OFF and ensure that all the doors and windows are closed.

■ Opening the fuel tank cap

Press the opener switch.

Turn the fuel tank cap slowly to open.

Hang the fuel tank cap on the back of the fuel filler door.

STEP 1

STEP 2

STEP 3

Opening the fuel tank cap

Before driving

Page 86

1-5. Refueling

The lever can be used to open the fuel filler door if the fuel filler door cannot be opened using the inside switch because the battery is discharged or for any other reason.

Closing the fuel tank cap

When replacing the fuel tank cap, turn it until a clicking sound is heard.

After releasing your hand, the cap will turn slightly in the opposite direction.

■ Fuel types

Use unleaded gasoline. (Octane rating 91 [Research Octane Number 96] or higher)

■ Fuel tank capacity (reference)

16.9 gal. (64 L, 14.0 Imp. gal.)

■ When the fuel filler door opener is inoperable

Page 87

1-5. Refueling

CAUTION

NOTICE

■ Refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do so may result in death or serious injury.

● Touch the vehicle or some other metal surface to discharge any static electricity.

Sparks resulting from discharging static electricity may cause the fuel vapors to ignite.

● Always hold the grips on the fuel tank cap and turn it slowly to remove it.

A whooshing sound may be heard when the fuel tank cap is loosened. Wait until the sound cannot be heard before fully removing the cap. In hot weather, pressurized fuel may spray out of the filler neck and cause injury.

● Do not allow anyone that has not discharged static electricity from their bodies to

come close to an open fuel tank.

● Do not inhale vaporized fuel.

Fuel contains substances that are harmful if inhaled.

● Do not smoke while refueling the vehicle.

Doing so may cause the fuel to ignite and cause a fire.

● Do not return to the vehicle or touch any person or object that is statically

charged. This may cause static electricity to build up, resulting in a possible ignition hazard.

■ When replacing the fuel cap

Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Failure to do so may cause a fire or other incident which may result in death or serious injury.

Before driving

■ Refueling

Do not spill fuel during refueling. Failing to do so may damage the vehicle, such as causing the exhaust systems to operate abnormally or damaging fuel system components or the vehicle's painted surface.

Page 88

1-6. Theft deterrent system

The vehicle's keys have built-in transponder chips that prevent the engine from starting if the key has not been previously registered in the vehicle's on-board computer.

Never leave the keys inside the vehicle when you leave the vehicle.

The indicator light flashes after the “ENGINE START STOP” switch has been turned OFF to indicate that the system is operating.

The indicator light stops flashing after the “ENGINE START STOP” switch has been turned to ACCESSORY or IGNITION ON mode to indicate that the system has been canceled.

Engine immobilizer system

■ System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■ Conditions that may cause the system to malfunction

● If the grip portion of the key is in contact with a metallic object

● If the key is in close proximity to or touching a key to the security system (key

with a built-in transponder chip) of another vehicle

Page 89

1-6. Theft deterrent system

CAUTION

NOTICE

■ Certifications for the engine immobilizer system

For vehicles sold in the U.S.A. FCC ID: NI4TMIMB-1

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For vehicles sold in Canada This device complies with Industry Canada licence-exempt RSS standard(s). Oper-

ation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Before driving

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

■ To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed.

Page 90

1-6. Theft deterrent system

The system sounds the alarm and flashes the lights when forcible entry is detected.

■ Triggering of the alarm

The alarm is triggered in the following situations when the alarm is set.

● A locked door or trunk is unlocked or opened in any way other than using the entry function, wireless remote door lock function or mechanical key.

● The hood is opened.

■ Setting the alarm system

Close the doors, trunk and hood, and lock all doors. The system will be set automatically after 30 seconds.

The indicator light changes from being on to flashing when the system is set.

■ Deactivating or stopping the alarm

Do one of the following to deactivate or stop the alarm.

● Unlock the doors or trunk.

● Turn the “ENGINE START STOP” switch to ACCESSORY or

IGNITION ON mode, or start the engine. (The alarm will be deactivated or stopped after a few seconds.)

Alarm

Page 91

1-6. Theft deterrent system

● A person inside the vehicle opens a door,

the trunk or hood.

● The battery is recharged or replaced

when the vehicle is locked.

■ Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of the following.

● Nobody is in the vehicle.

● The windows and moon roof are closed before the alarm is set.

● No valuables or other personal items are left in the vehicle.

■ Tr i g ge ri n g o f t he a la rm

The alarm may be triggered in the following situations. Stopping the alarm deactivates the alarm system.

Before driving

■ Alarm-operated door lock

● When the alarm is operating, the doors are locked automatically to prevent

intruders.

● Do not leave the key inside the vehicle when the alarm is operating, and make

sure the key is not inside the vehicle when recharging or replacing the battery.

■ When the battery is disconnected

Be sure to deactivate the alarm system. If the battery is disconnected before deactivating the alarm system, the alarm may be triggered when the battery is reconnected.

Page 92

1-6. Theft deterrent system

NOTICE

■ To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be guaranteed.

Page 93

1-6. Theft deterrent system

These labels are attached to the vehicle to reduce vehicle theft by facilitating the tracing and recovery of parts from stolen vehicles. Do not remove under penalty of law.

Theft prevention labels (U.S.A.)

Before driving

Page 94

1-7. Safety information

Drive in a good posture as follows:

Sit upright and well back in the seat. (P. 5 5)

Adjust the position of the seat forward or backward to ensure the pedals can be reached and easily depressed to the extent required. (P. 55 )

Adjust the seatback so that the controls are easily operable. (P. 5 5)

Adjust the tilt and telescopic positions of the steering wheel downward so the airbag is facing your chest. (P. 72 )

Lock the head restraint in place with the center of the head restraint closest to the top of your ears. (P. 6 2)

Wear the seat belt correctly. (P. 65 )

Correct driving posture

Page 95

1-7. Safety information

CAUTION

■ While driving

● Do not adjust the position of the driver’s seat while driving.

Doing so could cause the driver to lose control of the vehicle.

● Do not place a cushion between the driver or passenger and the seatback.

A cushion may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt and head restraint, increasing the risk of death or serious injury to the driver or passenger.

● Do not place anything under the front seats.

Objects placed under the front seats may become jammed in the seat tracks and stop the seat from locking in place. This may lead to an accident. The adjustment mechanism may also be damaged.

■ Adjusting the seat position:

● Take care when adjusting the seat position to ensure that other passengers are

not injured by the moving seat.

● Do not put your hands under the seat or near the moving parts to avoid injury.

Fingers or hands may become jammed in the seat mechanism.

Before driving

Page 96

1-7. Safety information

The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury.

SRS front airbags SRS driver airbag/front passenger airbag

Can help protect the head and chest of the driver and front passenger from impact with interior components.

SRS knee airbags Can help provide driver and front passenger protection.

SRS side and curtain shield airbags SRS side airbags

Can help protect the torso of the front seat occupants. SRS curtain shield airbags

Can help protect primarily the head of occupants.

SRS airbags

Page 97

Airbag system components

1-7. Safety information

Before driving

Knee airbags Front passenger airbag Curtain shield airbags “AIR BAG ON” and “AIR BAG

OFF” indicator lights Side airbags Side and curtain shield airbag

sensors Curtain shield airbag sensors SRS warning light

Driver airbag Seat belt pretensioners and

force limiters Driver's seat belt buckle switch Driver's seat position sensor Front passenger’s seat belt

buckle switch Airbag sensor assembly Front passenger occupant

classification system (ECU and sensors)

Front airbag sensors

Page 98

1-7. Safety information

Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US motor vehicle safety standards (FMVSS208). The airbag sensor assembly (ECU) controls airbag deployment based on information obtained from the sensors etc. shown in the system components diagram above. This information includes crash severity and occupant information. As the airbags deploy, a chemical reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain the motion of the occupants.

■ SRS warning light

This warning light system monitors the airbag sensor assembly, front airbag sensors, side and curtain shield airbag sensor assemblies, curtain shield airbag sensor assemblies, driver's seat position sensor, driver's seat belt buckle switch, front passenger occupant classification system (ECU and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF” indicator light, front passenger’s seat belt buckle switch, seat belt pretensioner assemblies, airbags, interconnecting wiring and power sources. (P. 4 70 )

■ If the SRS airbags deploy (inflate)

● Bruising and slight abrasions may result from contact with a deploying (inflating)

SRS airbag.

● A loud noise and white powder will be emitted.

● Parts of the airbag module (steering wheel, airbag cover and inflator) as well as

the front seats, and parts of the front pillar, rear pillar and roof side rail, may be hot for several minutes. The airbag itself may also be hot.

● The windshield may crack.

● For Safety Connect subscribers, if the SRS airbags deploy or in the event of a

severe rear-end collision, the system is designed to send an emergency call to the response center, notifying them of the vehicle’s location (without needing to push the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the level of emergency and assistance required. If the occupants are unable to communicate, the agent automatically treats the call as an emergency and helps to dispatch the necessary emergency services. (P. 376 )

Page 99

1-7. Safety information

■ SRS airbag deployment conditions (front airbags)

● The SRS front airbags will deploy in the event of an impact that exceeds the

set threshold level (the level of force corresponding to an approximately 12 18 mph [20 - 30 km/h] frontal collision with a fixed wall that does not move or deform).

However, this threshold velocity will be considerably higher if the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact, or if the vehicle is involved in an underride collision (e.g. a collision in which the front of the vehicle “underrides”, or goes under, the bed of a truck, etc.).

● Depending on the type of collision, it is possible that only the seat belt preten-

sioners will activate.

● The SRS front airbags for the front passenger will not activate if there is no pas-

senger sitting in the front passenger seat. However, the SRS front airbags for the front passenger may deploy if luggage is put in the seat, even if the seat is unoccupied. (P. 1 08 )

■ SRS airbag deployment conditions (side and curtain shield airbags)

● The SRS side airbags and SRS curtain shield airbags will deploy in the event of

an impact that exceeds the set threshold level (the level of force corresponding to the impact force produced by an approximately 3300 lb. [1500 kg] vehicle colliding with the vehicle cabin from a direction perpendicular to the vehicle orientation at an approximate speed of 12 - 18 mph [20 - 30 km/h]).

● The SRS side airbag on the passenger seat will not activate if there is no passen-

ger sitting in the front passenger seat. However, the side airbag on the passenger seat may deploy if luggage is put in the seat, even if the seat is unoccupied. (P. 1 08 )

Before driving

Page 100

1-7. Safety information

● Hitting a curb, edge of pavement or hard

surface

● Falling into or jumping over a deep hole

● Landing hard or vehicle falling

● Collision from the side

● Collision from the rear

● Vehicle rollover

■ Conditions under which the SRS airbags may deploy (inflate), other than a colli-

sion

The SRS front airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the illustration.

■ Types of collisions that may not deploy the SRS airbags (front airbags)

The SRS front airbags are generally not designed to inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a collision of any type causes sufficient forward deceleration of the vehicle, deployment of the SRS front airbags may occur.

100
