Lexus IS 300 2005 User Manual

04 07.13

Introduction

Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this manual
stored in your vehicle at all times.

The Lexus Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives satellite
signals from the Global Positioning System (GPS) operated by the U. S. Department of Defense. Using these signals and other vehicle sen­sors, the system can show you where you are and assist you in locating a desired destination.

The navigation system is designed to select efficient routes from your present starting location to your destination. The system is designed
to direct you to a destination that is unfamiliar to you in an efficient manner. The system uses the maps of DENSO based on NA VTEQ maps,
GDT maps and infoUSA POIs. The calculated routes are neither the shortest routes nor routes without traffic congestion. Your own personal
local knowledge or ”short cut” may at times be faster than the calculated routes.

The navigation system’s database includes about 50 point of interest categories to allow you to easily select destinations such as restaurants
and hotels. If a destination is not in the database, you can enter the street address or a major intersection close to it and the system will route
you there. The system will provide both a visual map and audio instructions. The audio instructions will announce the distance and direction
to go when you are approaching a fork or intersection. These voice instructions will help you keep your eyes on the road and are timed to
provide enough time to allow you to maneuver, change lanes or slow down.

Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or other circumstan­ces. For more information on the limitations of the system, refer to pages 49 through 50.

i

1.

FOREWORD

i

Congratulations on your selection of this Lexus. In Lexus vehicles we have invested all our engineering and design resources; all
the know– how we have gained in over 60 years of making automobiles; the highest motivation of our most talented employees; and
our tradition of incessant striving toward ever greater quality.

This Owner’s Manual explains the features of your new Lexus. Please read it and follow the instructions carefully so that you can
enjoy many years of safe motoring.

When it comes to service, remember that your Lexus dealer knows your vehicle very well and is interested in your complete
satisfaction. Your Lexus dealer will provide quality maintenance and any other assistance you may require.

If there is not a Lexus dealer near you, or you need emergency assistance for any reason, please call the following number:

U.S. OWNERS

 When traveling in the U.S. mainland or Canada:

Lexus Roadside Assistance 1–800–25–LEXUS (Toll–Free)

(1–800–255–3987)

 HAWAII:

Lexus Customer Service Assistance 1–800–25–LEXUS (Toll–Free)

(1–800–255–3987)

CANADIAN OWNERS

 When traveling in Canada or the U.S. mainland:

Lexus Roadside Assistance/Customer Service 1–800–26–LEXUS (Toll–Free)

(1–800–265–3987)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of the Lexus policy

of continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find

some explanations for equipment not installed on your vehicle.

04 06.30

2.

IMPORTANT INFORMATION ABOUT YOUR LEXUS

ii

IMPORTANT INFORMATION ABOUT

YOUR LEXUS

Occupant restraint systems

Lexus encourages you and your family to take the time to read
Section 1–6 of this Owner’s Manual carefully. In terms of
helping you understand how you can receive the maximum
benefit of the occupant restraint systems this vehicle provides,
Section 1–6 of this Owner’s Manual is the most important
section for you and your family to read.

Section 1–6 describes the function and operation concerning
seats, seat belts, SRS airbags and child restraint systems of
this vehicle and some potential hazards you should be aware
of. These systems work together along with the overall
structure of this vehicle in order to provide occupant restraint
in the event of a crash. The effect of each system is enhanced
when it is used properly and together with other systems. No
single occupant restraint system can, by itself, provide you or
your family with the equal level of restraint which these
systems can provide when used together. That is why it is
important for you and your family to understand the purpose
and proper use of each of these systems and how they relate
to each other.

The purpose of all occupant restraint systems is to help reduce
the possibility of death or serious injury in the event of a
collision. None of these systems, either individually or
together, can ensure that there is no injury in the event of
collision. However, the more you know about these systems
and how to use them properly, the greater your chances
become of surviving an accident without death or serious
injury.

Seat belts provide the primary restraint to all occupants of the
vehicle, and every occupant of the vehicle should wear seat
belts properly at all times. Children should always be secured
in child restraint systems that are appropriate for their age and
size. SRS (Supplemental Restraint System) airbags are, as
their names i m p l y, designed to work with, and be supplemental
to, seat belts and are not substitutes for them. SRS airbags can
be very effective in reducing the risk of head and chest injuries
by preventing contact of the head and chest with interior
portions of the vehicle.

In order to be effective, the SRS airbags must deploy with
tremendous speed. The rapid deployment of the SRS airbags
makes the SRS airbags themselves potential sources of
serious injury if an occupant is too close to an airbag, or if an
object or s o m e p a r t o f his or her body has been placed between
the occupant and the airbag at the time of deployment. This is
just one example of how the instructions in Section 1–6 of this
Owner’s Manual will help ensure proper use of the occupant
restraint systems, and increase the safety they can provide to
you and your family in the event of an accident.

Lexus recommends you to read the provisions in Section 1–6
carefully and refer to them as needed during your time of
ownership of this vehicle.

04 06.30

3.

IMPORTANT INFORMATION ABOUT YOUR LEXUS

iii

Event data recorder

Your vehicle has computers that monitor and control certain
aspects of your vehicle. These computers assist in driving and
maintaining optimal vehicle performance. Besides storing data
useful for troubleshooting, there is a system to record data in
a crash or a near car crash event. This is called an Event Data
Recorder (EDR).

The SRS airbag sensor assembly contains the EDR. In a crash
or a near car crash event, this device records some or all of the
following information:

 Engine speed
 Whether the brake pedal was applied or not
 Vehicle speed
 To what extent the accelerator pedal was depressed
 Position of the transmission selector lever
 Whether the driver and front passenger wore the seat belts

or not

 Driver’s seat position
 Front passenger’s occupant classification
 SRS airbag deployment data
 SRS airbag system diagnostic data

The information above is intended to be used for the purpose
of improving vehicle safety performance. Unlike general data
recorders, the EDR does not record sound data such as
conversation between passengers.

Lexus will not disclose the data recorded in an EDR to a third
party except when:

 An agreement from the vehicle’s owner (or the leasing

company for a leased vehicle) is obtained

 Officially requested by the police or other authorities
 Used as a defense for Lexus in a law suit
 Ordered by the court

However, if necessary Lexus will:
 Use the data for research on Lexus vehicle safety

performance

 Disclose the data to a third party for research purposes

without disclosing details of the vehicle owner, and only

when it is deemed necessary

 Disclose summarized data cleared of vehicle identification

information to a non–Lexus organization for research

purposes

04 06.30

4.

IMPORTANT INFORMATION ABOUT YOUR LEXUS

iv

New vehicle warranty

Your new vehicle is covered by the following Lexus limited
warranties:

 New vehicle warranty
 Emission control systems warranty
 Others

For further information, please refer to the “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.

Your responsibility for maintenance

It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled maintenance
information, please refer to the “Owner’s Manual
Supplement/Scheduled Maintenance”.

Important health and safety information about
your Lexus

CAUTION

 WARNING: Engine exhaust, some of its constituents,

and a wide variety of automobile components
contain or emit chemicals known to the State of
California to cause cancer and birth defects and
other reproductive harm. In addition, oils, fuels and
fluids contained in vehicles as well as waste
produced by component wear contain or emit
chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.

 Battery posts, terminals and related accessories

contain lead and lead compounds. Wash your hands
after handling. Used engine oil contains chemicals
that have caused cancer in laboratory animals.
Always protect your skin by washing thoroughly with
soap and water.

Accessories, spare parts and modification of
your Lexus

A wide variety of non–genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus vehicle.

04 06.30

5.

IMPORTANT INFORMATION ABOUT YOUR LEXUS

v

This vehicle should not be modified with non–genuine Lexus
products. Modification with non–genuine Lexus products
could af fect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance problems resulting from the modification may not
be covered under warranty.

Spark ignition system of your Lexus

The spark ignition system in your Lexus meets all
requirements of the Canadian Interference–Causing
Equipment Standard.

Installation of a mobile two–way radio system

As the installation of a mobile two–way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, anti–lock brake system, SRS airbag
system and seat belt pretensioner system, be sure to check
with your Lexus dealer for precautionary measures or special
instructions regarding installation.

Tires and loading on your Lexus

Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of steering
ability and braking ability, leading to an accident. Check
the tire inflation pressure periodically and be sure to
keep the load limits given in this Owner’s Manual. For
details about tire inflation pressure and load limits, see
pages 351 and 274.

Scrapping of your Lexus

The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive chemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as fire. Be sure to have the
systems of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.

04 06.30

1.

You should know as much about the quality and
importance of proper maintenance of your new
vehicle as the people who built it.

The Lexus authorized Repair Manual tells you
how to maintain your vehicle and enables you to
correctly perform your own maintenance.

The best way to keep your new vehicle in top running
order is to maintain it properly from the moment you
drive it off the showroom floor.

The Lexus authorized Repair Manual is packed with
literally everything you need to know to perform your
own maintenance in virtually every area of your new
vehicle.

04 06.30

2.

Maintenance procedures for the engine, chassis,
body, electrical system, and more, are clearly
explained and illustrated.

Periodic maintenance and tune–up

Periodic maintenance and tune–up helps to prevent small
problems from growing into larger ones later on. The repair
manual outlines exactly what maintenance is required and
clearly explains how to do the work yourself step–by–step.

Areas covered include such things as spark plug replacement,
valve clearance adjustment and engine oil and filter
replacement.

Where to obtain the

Repair Manual

The repair manual for IS300 may be purchased from any
Lexus dealer or the Material Distribution Center. To purchase
the repair manual, please contact your Lexus dealer or call the
Material Distribution Center toll–free at 1–800–622–2033.

04 06.30

WE REALLY CARE ABOUT YOU − PLEASE BUCKLE UP

Lexus has made a special effort to encourage use of seat belts.

Lexus belts are:

 Comfortable
 Easy to use
 Convenient

We encourage you to use your belts every time you drive.

cv2

04 06.30

04 07.13

Introduction

For safety reasons, this manual indicates
items requiring particular attention with the
following marks.

CAUTION

This is a warning against something
that may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to avoid or reduce the risk to
yourself and other people.

NOTICE

This is a warning against something
which may cause damage to the ve­hicle or its equipment if the warning is
ignored. You are informed about what
you must or must not do in order to
avoid or reduce the risk of damage to
your Lexus and its equipment.

INFORMATION

This provides additional information.

Initial screen

UN001

When you start the engine or turn the ignition
switch to ”ACC”, the initial ”LEXUS” screen
appears and the system begins operating.

CAUTION

When the vehicle is stopped with the
engine running, always apply the park­ing brake for safety.

After a few seconds, the ”CAUTION” screen
appears.

SSNU001

Please read it and follow the instructions.

If a screen other than for the navigation sys­tem is displayed, the current screen would
change to the ”CAUTION” screen by pushing
the

”MAP/VOICE”, ”MENU” or

”DEST” button on the navigation control-

ler.

When you push the
navigation controller as ”I agree” on the
display, the next screen appears.

On this screen, you can select the lan­guage shown on the screen. Select your
desired switch on the screen.

Eng: English

Fr: French

”ENT” button on the

ii

04 07.13

Safety Introduction

SSNU001

T o use your system as safely as possible, fol­low all the safety tips shown below.

This system is intended to assist you in
reaching your destination and, if used prop­erly , c an d o s o . You, as th e drive r, are solely
responsible for the safe operation of your ve­hicle and the safety of your passengers.

Do not use any feature of this system to the
extent it distracts you from safe driving. Your
first priority while you are driving should al­ways be the safe operation of your vehicle.
While you are driving, be sure to observe all
traffic regulations.

Before attempting to use this system while
you are driving, learn how to use it and be­come thoroughly familiar with it. Read the
entire ”Navigation System Owner’s Manual”
to make sure you understand the system.
Do not allow others to use this system until
they have read and understood these and
other instructions in this manual.

For your safety, some functions may become
inoperable when you start driving. Unavail­able switches are dimmed. You can input
your destination and select your route only
when the vehicle is not moving.

CAUTION

 For safety, the driver should not

operate the navigation system while
he/she is driving. Inattention to the
road and traffic may cause an
accident.

 While you are driving, be sure to

follow the traffic regulations and
keep the road condition in mind. If a
traffic sign on the road has been
changed, route guidance may
provide wrong information such as
the direction of a one way street.

While you are driving, listen to the voice in­structions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid­ance. Use it just for your information. If the
system cannot determine your current posi­tion correctly, there is a possibility of incor­rect, late or non–voice guidance.

The data in the system may occasionally be
incomplete. Road conditions, including driv­ing restrictions (no left turns, street closures,
etc.) frequently change. Therefore, before
you follow any instruction from the system,
look to see whether you can comply with the
instruction safely and legally.

This system cannot warn you about such
things as the safety of an area, condition of
streets, and availability of emergency ser­vices. If you are unsure about the safety of
an area, don’t drive into it. Under no circum-

stances is this system a substitute for the
driver’s personal judgement.

Use this system only in locations where it is
legal to do so. Some countries/provinces
may have laws prohibiting video screens
within sight of the driver.

iii

04 07.13

iv

cv3

GAS STATION INFORMATION

 Fuel selection:

Select premium unleaded gasoline with an Octane Rat­ing of 91 (Research Octane Number 96) or higher for
optimum engine performance. However, if such pre­mium type cannot be obtained, you may temporarily use
unleaded gasoline with an Octane Rating as low as 87
(Research Octane Number 91).

 Fuel tank capacity:

66 L (17.5 gal., 14.5 lmp.gal.)

 Engine oil:

“Toyota Genuine Motor Oil” or equivalent
Oil grade: API grade SL “Energy–Conserving” or ILSAC

multigrade engine oil.
Recommend oil viscosity – SAE 5W–30 if normal

temperatures are below 38C (100F)
Oil capacity: L (qt., lmp.qt.)

Drain and refill

with filter 5.4 (5.7, 4.8)
without filter 5.1 (5.4, 4.5)

See page 335 for detailed information.

 Engine coolant:

Capacity: 7.5 L (7.9 qt., 6.6 lmp.qt.)
Coolant type – “Toyota Super Long Life Coolant” or

similar high quality ethylene glycol based non–silicate,
non–amine, non–nitrite, and non–borate coolant with
long–life hybrid organic acid technology. (Coolant with
long–life hybrid organic acid technology is a
combination of low phosphates and organic acids.)

Do not use plain water alone.

For checking the engine coolant, see page 337.

 Automatic transmission:

Fluid type – Toyota Genuine ATF Type T–IV
See page 342 for detailed information.

 Tire information:

See page 351 through 374 for detailed information.

 Tire inflation pressure:

Tire size: 225/45ZR17, 215/45ZR17 or P205/55R16 89V
Tire pressure: cold tires

kPa (kgf/cm

2

or bar, psi)

Tire size Front Rear
225/45ZR17 – 240 (2.4, 35)
215/45ZR17 230 (2.3, 33) 230 (2.3, 33)
P205/55R16 89V 230 (2.3, 33) 230 (2.3, 33)

For sustained high speeds above 160 km/h (100 mph), in
countries where such speeds are permitted by law, add the
tire pressure given below to the front tires and rear tires, but
never exceed the maximum cold tire pressure molded on the

tire sidewall.

225/45ZR17 70kPa (0.8 kgf/cm

2

, 0.7 bar, 10 psi)

215/45ZR17 70kPa (0.8 kgf/cm

2

, 0.7 bar, 10 psi)

P205/55R16 89V

Sedan 70kPa (0.8 kgf/cm

2

, 0.7 bar, 10 psi)

SportCross Front: 70kPa (0.8 kgf/cm

2

, 0.7 bar, 10 psi)

Rear: 90kPa (0.9 kgf/cm

2

, 0.9 bar, 15 psi)

04 06.30

9.

SVPC023a

PICTORIAL INDEX

x

INSTRUMENT PANEL

04 06.30

10.

For detailed information, refer to the description given in each section.

PICTORIAL INDEX

xi

Page

1

Power door lock switch and power window

switches 22, 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Power rear view mirror control switches 181. . . . . .

3

Rear fog light switch 33. . . . . . . . . . . . . . . . . . . . . . . . .

4

Headlight cleaner switch 36. . . . . . . . . . . . . . . . . . . . .

5

Driving position memory switches 176. . . . . . . . . . .

6

Headlight, turn signal and fog light

switches 30, 32, 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

Transmission shift switches 242. . . . . . . . . . . . . . . . .

8

Instrument panel light control 58. . . . . . . . . . . . . . . . .

9

Cruise control switch 249. . . . . . . . . . . . . . . . . . . . . . .

10

Wiper and washer switches 34. . . . . . . . . . . . . . . . . . .

11

Ignition switch 235. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

Emergency flasher switch 40. . . . . . . . . . . . . . . . . . . .

13

Auxiliary box /Navigation system

(See “Navigation System Owner’s Manual”) 72. . . .

14

Outside temperature display/Clock 62. . . . . . . . . . . .

Page

15

Front passenger’s seat belt reminder light 51. . . . .

16

Automatic air conditioning controls 190. . . . . . . . . .

17

Audio system 204. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

Seat heater switches 40. . . . . . . . . . . . . . . . . . . . . . . . .

19

Glove box 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20

Parking brake lever 236. . . . . . . . . . . . . . . . . . . . . . . . .

21

Driving pattern selector switch

(Automatic transmission) 238. . . . . . . . . . . . . . . . . . . .

22

Ashtray 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

Cigarette lighter 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

Automatic transmission selector lever/

Manual transmission gear shift lever 238, 247. . . . .

25

Traction control system off/Snow mode

switch (Manual transmission) 252, 255. . . . . . . . . . . .

26

Hood lock release lever 86. . . . . . . . . . . . . . . . . . . . . .

04 06.30

11.

SVPC024

PICTORIAL INDEX

xii

INSTRUMENT CLUSTER (Vehicles sold in U. S. A.)

04 06.30

12.

For detailed information, refer to the description given in each section.

PICTORIAL INDEX

xiii

Page

1

Driver’s seat belt reminder light 51. . . . . . . . . . . . . . .

2

Open door warning light 55. . . . . . . . . . . . . . . . . . . . . .

3

Tachometer 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

Headlight high beam indicator light 32. . . . . . . . . . .

5

Low engine oil level warning light 53. . . . . . . . . . . . .

6

Vehicle stability control system

warning light 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

Turn signal indicator lights 32. . . . . . . . . . . . . . . . . . .

8

Cruise control indicator light 249. . . . . . . . . . . . . . . .

9

Momentary fuel consumption meter 46. . . . . . . . . . .

10

Voltmeter 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

Automatic headlight leveling system warning

light 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

Engine coolant temperature gauge 45. . . . . . . . . . . .

13

Anti–lock brake system warning light 54. . . . . . . . . .

14

Malfunction indicator lamp 54. . . . . . . . . . . . . . . . . . .

15

Fuel gauge 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Low fuel level warning light 55. . . . . . . . . . . . . . . . . . .

Page

17

Odometer and trip meter 48. . . . . . . . . . . . . . . . . . . . .

18

Power mode indicator light 240. . . . . . . . . . . . . . . . . .

19

Snow mode indicator light 240. . . . . . . . . . . . . . . . . . .

20

ODO/TRIP knob 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

21

Automatic transmission indicator lights 238. . . . . .

22

M mode indicator 241. . . . . . . . . . . . . . . . . . . . . . . . . . .

23

Gear position indicator for manual control 241. . . .

24

Discharge warning light 52. . . . . . . . . . . . . . . . . . . . . .

25

Rear light failure warning light 55. . . . . . . . . . . . . . . .

26

Security indicator light 27. . . . . . . . . . . . . . . . . . . . . . .

27

Traction control system

off indicator/warning light 55. . . . . . . . . . . . . . . . . . . .

28

Low engine oil pressure warning light 52. . . . . . . . .

29

Slip indicator light 252, 255, 258. . . . . . . . . . . . . . . . . .

30

Brake system warning light 50. . . . . . . . . . . . . . . . . . .

31

SRS warning light 51. . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

Engine oil replacement reminder light 53. . . . . . . . .

04 06.30

13.

SVPC025

PICTORIAL INDEX

xiv

INSTRUMENT CLUSTER (Vehicles sold in Canada)

04 06.30

14.

For detailed information, refer to the description given in each section.

PICTORIAL INDEX

xv

Page

1

Tachometer 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Headlight high beam indicator light 32. . . . . . . . . . .

3

Low engine oil level warning light 53. . . . . . . . . . . . .

4

Vehicle stability control system warning light 56. .

5

Turn signal indicator lights 32. . . . . . . . . . . . . . . . . . .

6

Cruise control indicator light 249. . . . . . . . . . . . . . . .

7

Momentary fuel consumption meter 46. . . . . . . . . . .

8

Voltmeter 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

Automatic headlight leveling system warning

light 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

Engine coolant temperature gauge 45. . . . . . . . . . . .

11

Anti–lock brake system warning light 54. . . . . . . . . .

12

Malfunction indicator lamp 54. . . . . . . . . . . . . . . . . . .

13

Fuel gauge 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

Low fuel level warning light 55. . . . . . . . . . . . . . . . . . .

15

Odometer and trip meter 48. . . . . . . . . . . . . . . . . . . . .

16

Power mode indicator light 240. . . . . . . . . . . . . . . . . .

Page

17

Snow mode indicator light 240. . . . . . . . . . . . . . . . . . .

18

ODO/TRIP knob 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

Automatic transmission indicator lights 238. . . . . .

20

M mode indicator 241. . . . . . . . . . . . . . . . . . . . . . . . . . .

21

Gear position indicator for manual control 241. . . .

22

Discharge warning light 52. . . . . . . . . . . . . . . . . . . . . .

23

Rear light failure warning light 55. . . . . . . . . . . . . . . .

24

Security indicator light 27. . . . . . . . . . . . . . . . . . . . . . .

25

Traction control system

off indicator/warning light 55. . . . . . . . . . . . . . . . . . . .

26

Low engine oil pressure warning light 52. . . . . . . . .

27

Slip indicator light 252, 255, 258. . . . . . . . . . . . . . . . . .

28

Brake system warning light 50. . . . . . . . . . . . . . . . . . .

29

SRS warning light 51. . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

Open door warning light 55. . . . . . . . . . . . . . . . . . . . . .

31

Driver’s seat belt reminder light 51. . . . . . . . . . . . . . .

04 06.30

15.

SVPC012

Power Type

Manual Type

PICTORIAL INDEX

xvi

SEAT AND STEERING WHEEL

Page

1

Tilt steering adjustment

lever 180. . . . . . . . . . . . . . . . . . . . . . . . .

2

Seat position, seat cushion
angle and height control

switch 97, 98. . . . . . . . . . . . . . . . . . . . . .

3

Seatback angle control switch 97. . .

4

Seat position lock release

lever 102. . . . . . . . . . . . . . . . . . . . . . . . .

5

Seat cushion front edge angle

adjusting knob 103. . . . . . . . . . . . . . . .

6

Seat cushion height adjusting

knob 103. . . . . . . . . . . . . . . . . . . . . . . . .

7

Seatback lock release lever 102. . . .

For detailed information, refer to the
description given in each section.

04 06.30

SVPC021

16.

PICTORIAL INDEX

xvii

EXTERIOR VIEW (Sedan)

Page

1

Rear window defogger 36. . . . . . . . . .

2

Trunk lid 87. . . . . . . . . . . . . . . . . . . . . . .

3

Moon roof 91. . . . . . . . . . . . . . . . . . . . .

4

Wiper and washer 34. . . . . . . . . . . . . .

5

Fuel filler door 89. . . . . . . . . . . . . . . . .

6

Outside rear view mirror 180. . . . . . .

7

Door 20. . . . . . . . . . . . . . . . . . . . . . . . . .

8

Tire and wheel 351. . . . . . . . . . . . . . . .

9

Headlights 30, 388. . . . . . . . . . . . . . . . .

10

Hood 86. . . . . . . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the
description given in each section.

04 06.30

SVPC022

17.

PICTORIAL INDEX

xviii

EXTERIOR VIEW (SportCross)

Page

1

Rear window defogger 36. . . . . . . . . .

2

Back door 24. . . . . . . . . . . . . . . . . . . . .

3

Moon roof 91. . . . . . . . . . . . . . . . . . . . .

4

Wiper and washer 34. . . . . . . . . . . . . .

5

Fuel filler door 89. . . . . . . . . . . . . . . . .

6

Outside rear view mirror 180. . . . . . .

7

Side door 20. . . . . . . . . . . . . . . . . . . . . .

8

Tire and wheel 351. . . . . . . . . . . . . . . .

9

Headlights 30, 388. . . . . . . . . . . . . . . . .

10

Hood 86. . . . . . . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the
description given in each section.

04 06.30

BASIC OPERATION

1

QUICK REFERENCE

Quick reference

Driver’s seat 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Steering wheel 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Automatic transmission 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight and turn signal switch 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wiper switch 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

04 06.30

QUICK REFERENCE

2

1. DRIVER’S SEAT

SVBA012

SVBA011

Power Type

Manual Type

Seat

position

Seatback

angle

Seat cushion

height

Seat cushion

angle

Head restraint

height

Head restraint

angle

Seat

position

Seat cushion

angle

Seatback

angle

Head restraint

height

Head restraint

angle

Seat adjustment

Seat adjustment

Seat cushion

height

04 06.30

QUICK REFERENCE

3

2. STEERING WHEEL

T o tilt the steering wheel up or down to the desired angle:

1. Pull the lever backward while holding the steering wheel.

2. Up or down the steering wheel to the desired angle.

3. Release the lever.

 TILT STEERING WHEEL

SVBA010

04 06.30

OPERATION OF SELECTOR LEVER

SELECTOR LEVER POSITION

P:Parking, engine starting and key removal position
R:Reverse position
N:Neutral position
D:Normal driving position (Shifting into overdrive

possible)

M:Position for manual shifting up or downshifting

(Shifting into overdrive possible)*

3, 2: Position for more powerful engine braking

L:Position for maximum engine braking

SVBA009

 Shift while pressing the brake pedal. (Ignition
switch must be in the “ON” position.)

*:When the cru i s e control is being used, even if you downshift from “5” to “4”, engine braking will not be enabled because
the cruise control is not cancelled. For the operation to decrease the vehicle speed, see page 251.

SV31020

QUICK REFERENCE

4

3. AUTOMATIC TRANSMISSION

04 06.30

QUICK REFERENCE

5

4. HEADLIGHT AND TURN SIGNAL

SWITCH

SVBA013

SVBA013

 HEADLIGHT SWITCH

With the ignition OFF

Parking, tail, license plate,
side marker and instrument
panel lights turn on.

Automatic light control

Headlights also turn on.

With the engine started and parking brake
released

Parking, tail, license plate,
side marker and instrument
panel lights turn on.

Headlights also turn on
at full intensity.

Automatic light control

SVBA014

SSBA011b

Right or left turn

Lane change
(Right or left)

High beam

Headlight flasher

 TURN SIGNAL SWITCH

04 06.30

QUICK REFERENCE

6

5. WIPER SWITCH

SVBA015

Low speed operation

SJBA006

Mist windshield wiper
operation

Intermittent operation

High speed operation

Washer on

 Front

 Rear

1

Wiper on
(Intermittent operation)

2

Wiper on
(Normal operation)

3

Washer also on

4

Washer on

04 06.30

04 07.13

SECTION

I

BASIC FUNCTIONS

Descriptions of basic operations in frequent use

Your navigation system 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inputting letters and numbers 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How to move the cursor 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input Explains 11 ways to input your destination Explains 11 ways

to input your destination 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Explains 11 ways to input your destination

Entering destination 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Route guidance screen 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Guidance screen 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Current position display 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voice guidance 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Typical voice guidance prompts 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Registration of your home 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Detour setting 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Displaying points of interest 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Turn list 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Map scale 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Screen scrolling 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Orientation of the map 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Limitations of the navigation system 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

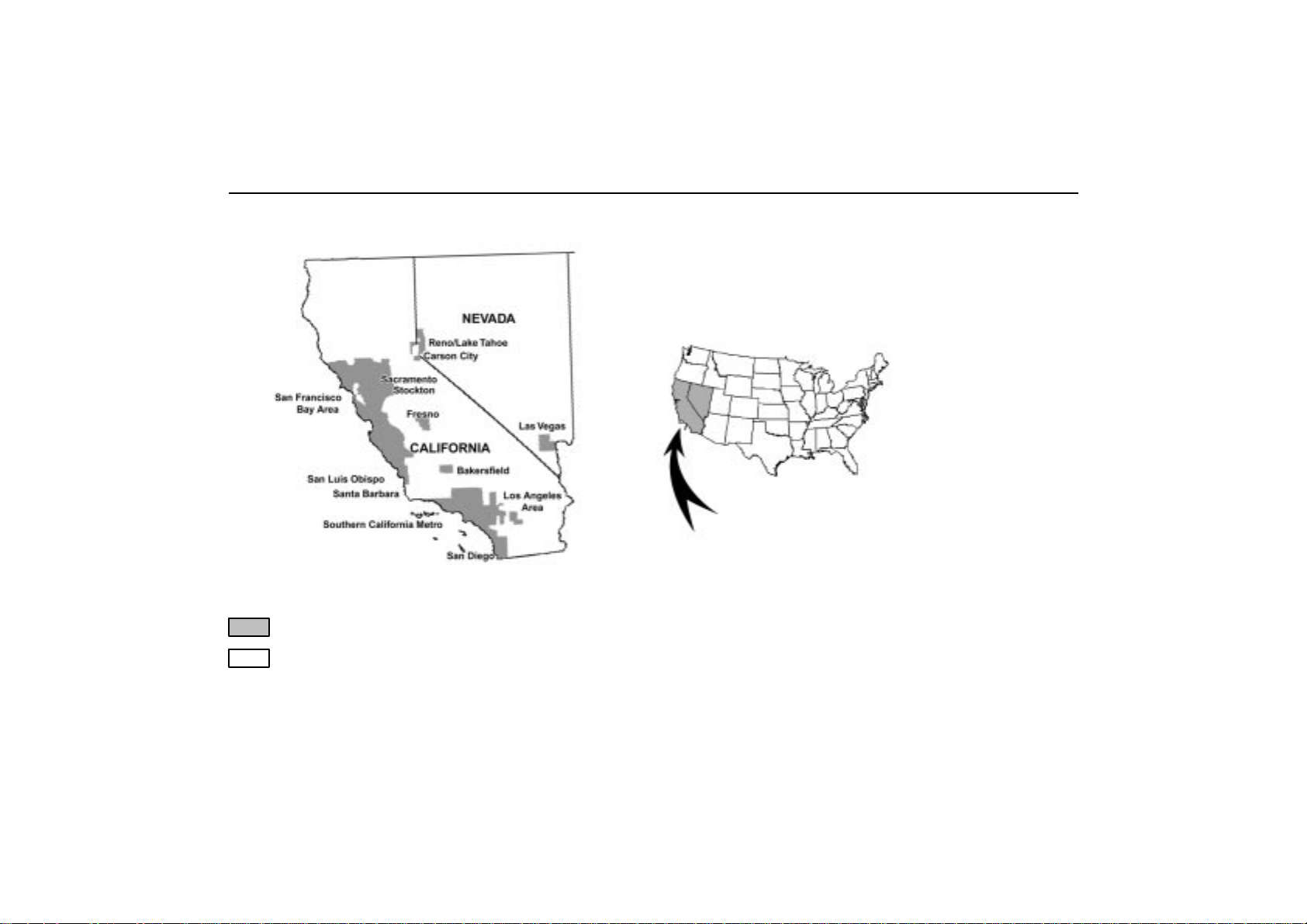

Map database information and updates 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

04 07.13

Your Navigation System

SSNU184

Push the ”OPEN/CLOSE” button to
open or close the retractable navigation
display and turn the system on or off.
Pushing the

”MENU”, ”DEST”, or ”INFO” button

on the navigation controller can also
open the display and turn the system on.

While you are using the navigation system,
turning the ignition switch to the ”LOCK” posi­tion will turn off the system and close the door
automatically. After this, if you turn the igni­tion switch back to the ”ACC” or ”ON” posi­tion, the display will be automatically opened
and the system will turn on the previous
mode you used.

”MAP/VOICE”,

If the retractable navigation display is
stopped in the middle of the opening (clos­ing) operation, push the

CLOSE”

button once and then push the

”OPEN/

”OPEN/CLOSE” button again.

Your navigation system works when the igni­tion switch is in the ”ACC” or ”ON” position.

SSNU221

To close the display with the navigation con­troller, push the

”Close” switch on the ”display adjust-

ment” screen shown above.

”DISP” button and select

CAUTION

Take care not to jam your hands while
opening or closing the retractable navi­gation display. Otherwise, you could be
injured.

NOTICE

Do not hold the retractable navigation
display while i t i s opening or closing. It
could damage your navigation system.

SSNU185a

2

04 07.13

Your Navigation System

When the display is hard to be read due to
the lights from your surroundings, the
display can be tilted. If the display is in
position
button will tilt the display to position

3, 4

der.
The display will automatically resume the

previous position you used when the
ignition switch is turned to ”ACC” or
”ON” position.

1

, each push of the

and then back to 1 in this or-

”TILT”

2

SSNU221

To tilt the display with the navigation control­ler, push the ”DISP” button and select

”Tilt” switch on the ”display adjustment”

screen shown above.

CAUTION

Take care not to jam your hands while
tilting the display. Otherwise, you could

,

be injured.

NOTICE

Do not hold the display while it is tilting.
It could damage your navigation sys­tem.

3

04 07.13

Inputting Letters and Numbers

The navigation system operates by navi­gation controller. To input letters and/or
numbers, move the select and scroll lever
to the 8 directions, and when the letter or
number you wish to input is lit up, push
the

”ENT” button. A beep sound is

heard, and the letter or number is input.
Repeat this procedure to input the name
or number, etc.

SSNU002

If you type a wrong letter, delete it using the

switch. Selecting the switch erases

one letter.
Selecting the

the screen will be changed to display the da­tabase items that match the name or ad­dress that you have entered on the screen.
The number of matching items is shown to
the right side of the screen.

”List” switch on the screen,

To input numerals, select the
and the display will change the screen to
number input display.

”0–9” switch

SSNU003

Selecting the ”A–Z” switch changes the
screen back to the alphabet input screen.

SSNU004

When a list is displayed, you can scroll the list
by using select and scroll lever on the navi­gation controller.

This expresses a displayed
screen position.

If a or a appears to the
right or left of the item
name, the complete name is
too lo ng for the disp lay.
Select the or switch, and
the name will scroll to the
end or beginning of its
name.

4

04 07.13

How to Move the Cursor Destination Input

SSNU283

1. Move the cursor to the desired
point by operating the select and scroll
lever. When you release the lever, scroll­ing stops.

SSNU290

2. In case of making the position indi­cated by the cursor on the display as
a destination, push
navigation controller and select your de­sired switch on the ”switch menu” on the
right of the screen.

”ENT” button of the

Push the
controller and the ”Destination” screen ap­pears.

”DEST” button on the navigation

SSNU006

The destination screen allows you to select
the country to be searched for your destina­tion.

To shift to the next or pre­vious page.

Select the ”Change” switch on the
screen to display a map of the United
States divided into 10 regions and a part
of Canada.

5

2

3

6

8

04 07.13

Destination Input

SSNU291

Select an area by the select and scroll lever
to select the search area and the destination
screen returns.

Once you choose the region of the country to
search, you can use one of 1 1 dif ferent meth­ods to enter your destination.

United States of America

Idaho
Oregon

1

Washington
California
Nevada
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
Iowa
Kansas
Minnesota
Missouri

4

Nebraska
North Dakota
South Dakota

Oklahoma

5

Texas
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
Alabama
Arkansas
Louisiana

7

Mississippi
Tennessee
Connecticut
Maine
Massachusetts
New Hampshire
New Jersey
New York
Rhode Island
Vermont

6

9

10

04 07.13

Destination Input

Delaware
Maryland
New Jersey
Pennsylvania
Virginia
West Virginia
Florida
Georgia
North Carolina
South Carolina

CANADA

Alberta
British Columbia
Manitoba
New Brunswick
Newfoundland and Labrador
Nova Scotia

11

Ontario
Prince Edward Island
Québec
Saskatchewan
Yukon Territory

You can find your destination using various
methods. See page 9 through 26 for the de­tailed steps.

1. By ”Address”: You can input the
house number and the street address
by using the input keys. See page 9
for th e detailed steps.

2. By ”Point of interest” (POI): You
can select one of the many points of
interest that have been already stored
in the system’s database. There are 54
categories to choose from including
restaurants, hotels and so on. See
page 12 for the detailed steps.

3. By ”Marked points”: You can se­lect your own favorite destinations as
”Marked points”. The system allows
you to store up 100 marked points.
See page 18 for the detailed steps.

4. By ”Previous destination”: You
can select a destination from any of
the last 20 previously set destinations.
See page 19 for the detailed steps.

5. By ”Emergency”: You can select
one of the three points of emergency
service points that have been already
stored in the system’s database. See
page 20 for the detailed steps.

6. By ”Intersection”: You can enter
the names of two intersecting streets.
This is helpful if you do not know the
specific street address of your destina­tion but know the general vicinity. See
page 21 for the detailed steps.

7

04 07.13

Destination Input

7. By ”Previous start point”: You

can enter a point where the system
has started to guide last time. See
page 24 for the detailed steps.

8. By ”Freeway Ent./Exit”: You can
enter the name of the freeway (inter­state) entrance or exit. See page 22
for th e detailed steps.

9. By ”Map selection”: You can se­lect a destination simply by selecting
the location on the displayed map. See
page 25 for the detailed steps.

10. By ”Preset destination (

You can choose the destination by se­lecting one of the preset destination
switch. In this case, it is necessary to
register your desired destination be­forehand. See page 26 for the detailed
steps.

11. By ”

your own home without entering the
address each time. In this case, it is
necessary to register your home be­forehand. See page 25 for the detailed
steps.

(home)”: You can select

1~5

)”:

INFORMATION



When inputting the destination, the
response to the switch may be slow.



”Points of interest” registration is
made based on the NAVTEQ
”Standard POI Inclusion List” and
infoUSA POI data.



If there is no point registered,
switches such as ”Marked point”,
”Home”, ”Previous destination” or
”Previous starting point” are
dimmed and not available.



The route for returning may not be
the same as that for going.



The route guidance to the destina­tion may not be the shortest route or
a route without traffic congestion.



Route guid a n c e m a y n o t b e available
if there is no road data for the speci­fied location.



When setting the destination, you
should use the map on a scale of one
half mile or smaller.



To select an ”Address”, ”Point of
interest”, ”Freeway Ent./Exit” or ”In­tersection” in a different region, a
search area’s change is necessary.

CAUTION

While you are driving, be sure to follow
traffic regulations and keep the road
condition in mind. If a traffic sign on the
road has been changed, the route guid­ance may provide wrong information.

8

04 07.13

Destination Input by Address

SSNU269

(a) Inputting a street name

Select the ”Address” switch on the
”Destination” screen. The ”Address”
screen appears, and then you can input a
house number.

SSNU002

There are 2 ways to input a destination by
address.

SSNU228

After inputting a house number, select the
”OK” switch which you can input a street
name.

It is possible to input a street name first. Se­lect the
display the screen which you can input a
street name.

”Street” switch on the display to

After each letter is inputted, the system
searches the database for street names that
match. Alphabet keys are dimmed if the da­tabase does not have a match for the next
letter in the remaining list of matching street
names.

When you input numerals, select the

”0–9” switch to display the screen for

numeral input.

Based on your input, the number of matching
sites appears at the top right of the screen.
After the number decreases to some extent,
select the
selection list. If the number of matches de­creases to 4 or less, the screen changes au­tomatically to the selection list.

”List” switch to display the street

9

04 07.13

Destination Input by Address

SSNU011

SSNU012

(b) Inputting a city name

The screen for selecting the last 5 towns ap­pears if you select the
”Address” screen on page 9.

”City” switch on the

SSNU232

When you find your desired street name,
select of the item. The screen
changes and displays the map location of
the selected destination and the route
preference. (See ”Entering Destination”
on page 27.)

If the same street exists in more than one city,
the current screen changes to the ”Select
city” screen. Select or enter your desired city.

10

If you input a street name first, the screen
changes. Y o u can then input the house num­ber.

SSNU013

If the above screen appears, you can select
an address range on that screen.

5 cities are displayed on the screen.
Select t he

The current screen changes to the
screen which is for inputting a street
name.

of the desired city name.

INFORMATION

Under the initial condition, town name
will not be displayed.

”All cities”: All cities are selected.

04 07.13

Destination Input by Address

”5 near cities”: 5 near cities are displayed.

Selecting a city in the list changes to the dis­play to input a street name.

”Input city name”: The screen for inputting
the city name appears.

The screen for inputting a city name appears
if you select the
switch on the ”Address” screen.

”Input city name”

SSNU004

SSNU238

SSNU014

Input the city name.
After the number decreases to some ex-

tent, select the
the city selection list. If the number of
matches decreases to 4 or less, the
screen changes automatically to the
selection list.

”List” switch to display

Select the of the desired city name.
Map: If you select this switch, the screen

changes and displays the map location of
the selected city and the route preference.
(See ”Entering Destination” on page 27.)

The current screen changes to the screen
which is for inputting a street name.

Input a street name. (See ”Input a street
name” on page 9.)

The screen changes and displays the
map location of the selected destination
and the route preference. (See ”Entering
Destination” on page 27.)

11

04 07.13

Destination Input by Point of Interest

There are 3 ways to select a point of in­terest location (POI).

(a) Input the name of the point of inter­est directly.

(b) Inputting a city name first.
(c) Selecting from the points of interest

categories.
It will not take a long time for you to find

your destination if you use a combination
of the searching ways of (a), (b) and (c).

(a) Input the name of the point
of interest directly

Select the ”POI” (Point of interest)
switch on the ”Destination” screen.

SSNU239

The ”POI” (Point of Interest) screen appears,
and then you can input the name of the point
of interest.

Select letters on the screen to input a name.
When you input numerals, sele c t t h e
switch to display the screen for numeral in­put.

If the number of sites becomes 4 or less, or
if you select the
right of the screen, the screen changes and
displays a list of sites.

”List” switch at the bottom

”0–9”

SSNU017

Select the of your desired destina­tion.

You can search it more easily with the

”City” and ”Category” switch. (See (b)

Inputting a city name and (c) Selection from
the point of interest categories.)

12

04 07.13

Destination Input by Point of Interest

(b) Inputting a city name

Select the ”City” switch on the ”POI”
(Point of interest) screen.

SSNU233

5 cities are displayed on the screen.
Select the

The current screen changes to the screen
which is for inputting a name of point of
interest.

Under the initial condition, town name
will not be displayed.

”All cities”: All cities are selected.
”5 near cities”: 5 near cities are displayed.

Selecting a city in the list changes to the dis­play to input the name of the point of interest.

of the desired city name.

INFORMATION

”Input city name”: The screen for inputting

the city name appears.

SSNU304

Input the city name.

If the number of sites becomes 4 or less, or
if you select the
right of the screen, the screen changes and
displays the selection list. Select the
the desired city name.

After entering the city name, input the
name of the point of i n t e r e s t .

”List” switch at the bottom

of

(c) Selection from the point of
interest categories

Select the ”Category” switch on the
”POI” (Point of interest) screen.

SSNU292

The categories are shown on the screen.
When you select the of your desired
category, more detailed categories are
shown.

13

04 07.13

Destination Input by Point of Interest

SSNU020

When you select the of your desired
category, the screen changes and dis­plays the previous screen.

”All” categories: You can select the point of

interest by the name in all categories.

14

SSNU016

Once you have selected a category, select
letters directly on the screen to input a name.
When you input numerals, select the
switch to display the screen for numeral in­put.

If the number of sites becomes 4 or less, or
if you select the
right of the screen, the screen changes and
displays a list of sites.

”List” switch at the bottom

”0–9”

SSNU240

When you select the of your desired
item, the screen changes and displays
the map location of the selected destina­tion and the route preference. (See ”En­tering Destination” on page 27.)

04 07.13

Destination Input by Point of Interest

List of points of interest

RESTAURANT

SSNU022

In case of having some POIs of the same
name, this screen appears.

”Name sort”: Select this switch to list the
categories in alphabetical order.

”Dist. sort”: Select this switch to list the
categories in order of nearest place from
your current location.

INFORMATION

The information on the desired point of
interest can be displayed on the map
screen.

SSNU277

Select the ”Info.” switch to display the se-
lected destination name, address and tele­phone number.

JAPANESE

CHINESE

FRENCH

ITALIAN

OTHER

AMERICAN

CONTINENTAL

15

04 07.13

Destination Input by Point of Interest

MEXICAN

SEAFOOD

SHOPPING

GROCERY STORE

GAS STATION

PARKING GARAGE/HOUSE

PARKING LOT

RENTAL CAR AGENCY

TOYOTA DEALERSHIPS

LEXUS DEALERSHIPS

AUTOMOBILE CLUB

AUTO SERVICE & MAINTE­NANCE

HOTEL

GOLF COURSE

SKI RESORT

AMUSEMENT PARK

SPORTS COMPLEX

CASINO

MARINA

TOURIST ATTRACTION

WINERY

CITY HALL

POLICE STATION

LIBRARY

16

04 07.13

Destination Input by Point of Interest

HOSPITAL

PARK/RECREATION

CIVIC/COMMUNITY
CENTER

CONVENTIO N/E X HIB IT IO N
CENTER

COURT HOUSE

TRAIN STATION

AIRPORT

BUS STATION

COMMUTER RAIL STATION

FERRY TERMINAL

PARK & RIDE

REST AREA

TOURIST INFORMATION

HISTORICAL MONUMENT

PERFORMING ARTS

MUSEUM

BANK

SCHOOL

AT M

HIGHER EDUCATION

BUSINESS FACILITY

CITY CENTER/NAMED
PLACE

17

04 07.13

Destination Input by Marked Point

Selecting the
on the ”Destination” screen displays
your list of registered marked points. (Re­fer to pages 66 through 70 on ”Register­ing”, ”Editing” or ”Deleting” marked
points.)

”Marked points” switch

SSNU024

When you select the of your desired
item, the screen changes and displays
the map location of the selected destina­tion and the route preference. (See ”En­tering Destination” on page 27.)

Then, select the
route guidance. This new destination will not
be registered as a marked point or alter the
location of the marked point.

There are 3 ways to list the marked point by
selecting switches.

”Enter” switch to start the

Sort by ”Icon”: Select this switch to list the

marked points by using the registered icon.
There are 46 icons and 4 sound icons. (For
details, see page 68.)

Sort by ”Date”: Select this switch to list the
marked points in order of registered date.

Sort by ”Name”: Select this switch t o list the
marked points in alphabetical order.

18

04 07.13

Destination Input by Previous Destination

Select the
switch on the ”Destination” screen.

”Previous destination”

SSNU025

The screen lists to 20 previously set destina­tions.

Select your desired destination. The
screen changes and displays the map
location of the selected destination and
the route preference. (See ”Entering Des­tination” on page 27.)

You can delete the list of previous destina­tions while you stop your vehicle if you no
longer need them.

(See page 80 for details.)

19

04 07.13

Destination Input by Emergency

By selecting the
on the ”Destination” screen, the display
changes to a screen to select police sta­tions, hospitals or dealers. During driv­ing, only nearby police stations, hospi­tals or dealers are shown. The current
position is shown with an address, the lat­itude and the longitude at the top of the
screen.

”Emergency” switch

SSNU027

When you select your desired emergency
category, the selected emergency category
list is displayed.

SSNU271

The distance from your current position up to
the destination is displayed on the right of the
name.

You can see the names of the emergency
destinations in alphabetical order by select­ing the
screen.

Select the
screen changes and displays the map
location of the selected destination and
the route preference. (See
tination” on page 27.)

Select the
lected emergency destination name, ad­dress and telephone number.

”Name sort” switch on the

of your desired item. The

”Entering Des-

”INFO” switch to display the se-

INFORMATION

In an area which has not been regis­tered for route guidance, the navigation
does not guide. (See page 51.)

20

04 07.13

Destination Input by Intersection

Select the
the ”Destination” screen.

”Intersection” switch on

SSNU029

Input the name of the two intersecting
streets which are located near the des­tination to be set.

When you select the
number of sites becomes 4 or less, the list of
matching street names appears.

”List” switch or the

SSNU241

Select the of your desired item. After
inputting the two intersecting streets, the
screen changes and displays the map
location of the selected destination and
the route preference. (See ”Entering Des­tination” on page 27.)

EMV3111U

SSNU235

If the same two streets cross at more than
one intersection, the screen changes and
displays the menu to select the city name
where the streets intersect. Select the city
and the map location of the selected destina­tion and the route preference. (See ”Entering
Destination” on page 27.)

21

04 07.13

Destination Input by Freeway Entrance or Exit

To input a freeway entrance or exit, select
the

”Freeway Ent./Exit” switch on

the ”Destination” screen.

SSNU031

Be sure to use the complete name of the
freeway or highway, including the hyphen,
when entering the destination. Freeways
and interstates use an ”I” (I–405). US high­ways use the state designation before the
number (CA–118).

As the number of matching freeways de­creases, you can select the
display the list. When the number of sites be­comes 4 or less, the list screen appears auto­matically.

22

”List” switch to

SSNU032

Choose the desired freeway by selecting
the .

SSNU033

You can then select either a freeway ”En-

trance”

or ”Exit”.

04 07.13

Destination Input by Freeway Entrance or Exit

There are 2 ways to list the freeway en­trance or exit.

”Dist. sort”: Select this switch to list the en-

trances or exits in order of distance from your

SSNU034

current location.

Select the of your desired entrance or
exit name. The screen changes and dis­plays the map location of the selected
destination and the route preference.
(See ”Entering Destination” on page 27.)

SSNU272

”Name sort”: Select this switch to list the en­trances or exits in alphabetical order.

23

04 07.13

Destination Input by Previous Starting Point

Select the ”
on the ”Destination” screen.

The screen changes and displays the
map location of the previous starting
point and the route preference. (See
”Entering Destination” on page 27.)

If you have not used the navigation yet, you
can not set the destination by the

start point”

Prev. start point” switch

”Prev.

switch.

24

04 07.13

Destination Input by Map Destination Input by Home

Select the
tination” screen.

”Map” switch on the ”Des-

SSNU278

The screen change and displays the map
location of the last map and the route pref­erence. (See ”Entering Destination” on
page 27.)

Select the
destination input screen.
The screen changes and displays the

map location of your home and the route
preference. (See ”Entering Destination”
on page 27.)

The screen changes to display the map loca­tion of your home about 3 seconds, and then
the system starts to search the way to your
home.

If you have not registered your home yet, you
can not set the destination by the

” (home)” switch on the

”

(home)” switch.

For the steps to register or delete your
home, see page 38 for details.

25

04 07.13

Destination input by Preset destination

SSNU006

Select one of the
”Destination” screen, the screen
changes and displays the map location of
your desired preset destination. In this
case, it is necessary to register your de­sired preset destination beforehand. (Re­fer t o p age 72 t hr ough 74 , ” Regist eri ng”
”Editing” or ”Deleting” preset destina­tion.)

26

1~5

switch on the

04 07.13

Entering Destination

After you input the destination by one of
the 11 methods, the screen changes and
displays the map location of the selected
destination and the route preference.

SSNU277

Select the ”Map scroll” switch on the
screen to move the cursor

You can move and set the cursor
sired point. (For the method of how to move
the cursor, see page 5.)

Change: Selecting this switch can change
”Route preference”. (For details, see page

28.)
When you select the

system starts searching for a route to your
destination using the conditions entered.

”Enter” switch, the

.

at a de-

SSNU192

SSNU193

If you want to set a preferred road point be­tween the starting point and the destination
or change the search condition, push the

”ENT” button on the navigation controller

to display the menu switches. And then se­lect the
screen. The screen changes and displays
the edit route menu. (For details, see page

81.)
You can start the route guidance by selecting

the
to move your vehicle.

When you keep pushing the
on the navigation controller until you hear a
beep, ”demo” mode will start.

”Edit route” switch on the

”Start” switch on the screen or starting

”ENT” button

27

04 07.13

Entering Destination

Route preference:
To change the conditions of the route

preference.
Select the

”Edit route” screen appears.

”Edit route” switch, and the

SSNU038

SSNU193

SSNU101

Select the ”Route preference”
switch.

28

Select either ”Allow” or ”Detour”
switch. When you select the ”OK”
switch, the system starts searching for a
route up to the destination.

Even if you select the
it cannot be avoid in some cases.

”Detour” switch,

INFORMATION

If the calculated route includes a trip by
ferry, the route guidance shows a sea
route. After you travel by ferry, the cur­rent vehicle position may be incorrect.
Upon reception of GPS signals, it is au­tomatically corrected.

Select the ”3 routes” switch.
”3 Routes”: You can choose your route out

of 3 types of route.

04 07.13

Entering Destination Route Guidance Screen

The route guidance system displays two
different screen modes.

SSNU190a

Choose one from the three routes.
”Quick”: A route on which you can reach the

destination in the shortest time.
”Short”: A route on which you can reach the

destination in the shortest distance.
”Alternative”: Other route.

SSNU191

SSNU242

Select the ”Time&distance” switch to
display the time and distance list.

Single screen: Only map is shown in a

screen mode like the above.

SSNU274

Split screen: Map and guidance screen are
shown in a screen mode like the above. (For
detail about guidance screen, see page 32.)

29

04 07.13

Route Guidance Screen

The two route guidance screens have a
number of indicators and switches with
which you should be familiar.

SSNU244

Map screen with switch: When the ”ENT”
on the navigation controller is pushed while
the map is displayed, the switch screen is
displayed on the right side of the screen.

[GPS]: Upon reception of signals from the
GPS (Global Positioning System), this mark
appears. (For details, see page 49.)

”Map orient”: To switch the map orientation
between ”North–up” and ”Heading–up”. (For
details, see page 46.)

”POI”: Select this switch, and symbols of
points of interest are shown on the screen.
(For details, see page 41.)

”Chg. route”: The ”Change route” screen
appears and the following settings are avail­able. (For details, see page 31.)

”Mark”: Select this switch for quick registra­tion of the marked point. (For details, see
page 71.)

”Guide”: Select this switch after the POI
icon is matched with the cursor
information about ”POI” (name, location,
phone No. etc.) is displayed on the screen.

: Select this switch when you have
several destinations to go. The distance and
time from the current position to the destina­tion can be displayed for each destination.

. Detailed

INFORMATION



The distance to your destination ap­pears on the left of the screen.



The time to your destination can also
be displayed. (For the setting steps,
see page 90.)

Selecting these
switches changes
the guidance
screen.

Selecting these
switches changes
the map screen.

30

04 07.13

Route Guidance Screen Guidance Screen

SSNU044

Searching condition: To change the condi­tion for reroute. (For details, see page 83.)

”Del. next dest.”: To delete the setting of the
next destination.

”Delete preferred road”: To delete the pre­ferred road that you registered.

”Start from adjacent road”: To start the
route guidance from the adjacent road.

(ex. When the route guidance guides the
route on the freeway, but you drive on the
parallel way along a freeway.)

”Detour for”: To change the condition for
detour. (For details, see page 39.)

”Whole route”: To calculate an entire new
route to the destination.

INFORMATION

If the calculated route includes a trip by
ferry, the route guidance shows a sea
route. After you travel by ferry, the cur­rent vehicle position may be incorrect.
Upon reception of GPS signals, it is au­tomatically corrected.

The right half of the screen can be used as
a guidance screen.

See also ”Route guidance” screen on page

29.

Split screen near the intersection.

SSNU194

The distance to the intersection is shown at
the bottom of the screen.

31

04 07.13

Guidance Screen

Split screen near the exit of the freeway.

SSNU196

Map appearance

Y ou can set the map mode and guidance
mode.

SSNU046

1. Push the ”MENU” button on the nav­igation controller to display the ”Menu”
screen and select the

ance”

switch.

”Map appear-

SSNU245

2. It changes to the ”Map appearance”
screen and you can select the ”Guidance
mode”

Guidance mode:

To display ”Arrow” screen

To display ”Turn list” screen

To display ”Map” screen

32

04 07.13

Guidance Screen

”Arrow” screen

SSNU273

This screen shows the current road name
and the distance to the next corner.

”Turn list” screen

SSNU279

The screen shows the ”turn list” like the
above. You cannot scroll through the list of
roads.

”Map” screen

SSNU242

The map screen has 2 modes.

Single mode

Dual mode

33

04 07.13

Current Position Display

SSNU242

The current vehicle position mark ap­pears in the center of the map screen. You
can return to this map screen showing
your cur r e n t position at any time from any
screen by pushing the
button on the navigation controller.

During driving, the current vehicle position
mark is fixed in the center of the screen and
the map moves.

If you move the map, the current vehicle
position mark continues to track your current
location.

”MAP/VOICE”

INFORMATION

When you use the map scroll feature,
the current vehicle position mark may
disappear from the screen. Move the
map again with map scroll or push the

”MAP/VOICE”

current vehicle position map location
display.

The current position is automatically set
as your vehicle receives signals from the
GPS (Global Positioning System). If your
current position is not correct, it is auto­matically corrected after your vehicle re­ceives signals from the GPS.

button to return to the

INFORMATION

After battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor­rect current position is displayed.

If you must correct the current position
manually, follow the steps on page 77.

The current street name will be displayed in
the bottom of the screen when the setting of
the current street name is on.

In some areas, the roads have not been
completely digitalized in our database yet.
For this reason, the route guidance may
guide the road that is not allowed to pass.

34

04 07.13

Voice Guidance

You can use voice guidance while driving
to the destination.

You can adjust the volume of the voice or turn
off voice guidance.

SSNU046

Push the ”MENU” button on the naviga­tion controller to display the ”Menu”
screen, and select the
switch.

”Volume”

SSNU047

Select the volume using the switches

1– 7

If you do not need voice guidance, select the

”Off” switch.

The selected item is highlighted in green.

During route guidance, the voice guid­ance continues even if the navigation
screen is changed to other screens.

Adaptive volume control: If you select the

”Adaptive volume control”, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).

.

INFORMATION

To turn the system of the ”Adaptive volume
control” on, select the switch. The indicator
will be highlighted.

35

04 07.13

Typical Voice Guidance Prompts

SSNU187

The voice guidance provides various mes­sages as you approach an intersection, or
other point where you need to maneuver the
vehicle.

1

2

3

4

On freeways, interstates or other high­ways with higher speed limits, the voice
guidance will be made at earlier points
than on city streets in order to allow
time to maneuver.

36

”Proceed about 5 miles.”
”In a half of a mile, right turn.”
”Next turn.”
Beep sound only

INFORMATION

SSNU188

1

2

3

4

5

6

”Proceed about 4 miles to the traf-

fic circle.”

”In a half of a mile, traffic circle

ahead, and then the 3rd exit.”

”The 3rd exit ahead.”
Beep sound only.
”The exit ahead.”
Beep sound only.

EMV3114U



: The system indicates a U–turn if the dis­tance between two one–way roads (of oppo­site directions) is less than 15 m (50 ft.) in
residential areas or 50 m (164 ft.) in non–
residential areas.

1

2

3

”In half of a mile, make a legal U–

turn ahead.”

”Make a legal U–turn ahead.”
Beep sound only.

04 07.13

Typical Voice Guidance Prompts

EMV3115U

The system announces your approach to the
final destination.

INFORMATION



Voice guidance may be made early
or delayed.



If the system cannot determine the
current position correctly, you may
not hear voice guidance or may not
see the magnified intersection on the
screen.



If you did not hear voice guidance
command, push the

VOICE”

button to hear it again.

”MAP/

1

2

”Your destination is ahead.”

”Y ou have arrived at your destina­tion. The route guidance is now fin­ished.”

37

04 07.13

Registration of Your Home

If you register your home address before­hand, you can easily set the route back to
your home.

SSNU046

1. Push the ”MENU” button on the nav­igation controller to display the ”Menu”
screen and select the

points”

38

switch.

”Marked

SSNU246

2. Select the ”Reg. home” switch for
registering your home address.

If your home is already registered, the

gister home”

switch changes to the

”Delete home” switch.

”Re-

SSNU050

You may register the location of your
home by some different methods: current
position, address, map location, etc. Se­lect your desired method from the menu
on the screen.

Input your home in the same way as the des­tination input. (See page 25.)

04 07.13

Registration of Your Home Detour Setting

 Deleting the registration of your home

SSNU046

1. Push the ”MENU” button on the nav­igation controller to display the ”Menu”
screen and select the

points”

switch.

”Marked

SSNU051

The screen changes and displays the map
location of the home and a message. If you
are sure, select the ”Yes” switch. If not, the

”No” switch.

When you are driving while the route
guidance is operating, you can change
the route to detour around a section of the
route where a delay is caused by road re­pairs, an accident, etc.

SSNU280

Select the ”Chg. route” switch on the
right side of the screen if you encounter
a reason to divert from the selected route.

2. Select the ”Delete home” switch.

39

04 07.13

Detour Setting

EMV3065U

This picture shows an example of how the
system would route you around a delay
caused by a traffic jam.

1

This part indicates the location where
traffic jam is occurring due to road re­pairs or an accident.

2

These show the detour route sug­gested by the system.

SSNU044

When you select the ”Chg. route”
switch, the screen changes to the ”Change
route” screen that allows you to select the
distance you want to detour. Select one of
the numeral keys to start the detour process.
After detouring, the system returns to the
original guidance route.

”Whole route”: If you select this switch, the
system will calculate an entire new route to
the destination.

INFORMATION



When your vehicle is on a freeway,
the detour distance selections are 5,
15, and 25 miles.



The system may not be able to calcu­late a detour route depending on the
selected distance and surrounding
road conditions.

”Search condition”: To change the condi-

tions of the searching route. (See page 83.)
”Quick”: A route on which you can reach the

destination in the shortest time.
”Short”: A route on which you can reach the

destination in the shortest distance.
”Alternative”: Other route.

40

04 07.13

Displaying Points of Interest

Points of interest such as gas stations
and restaurants can be displayed on the
map screen. You can also set their loca­tion as a destination and use them for
route guidance.

SSNU280

To display a particular type of point of in­terest on the screen, select the ”POI”
switch on the map right side of the
screen.

SSNU056

A window with a limited choice of points of
interest will be displayed. When you select

your desired type of point of interest, icons
will appear on the map screen indicating
where the POI addresses are located.

”More”: If you cannot find your desired point
of interest on the limited choice screen, se­lect this switch. The screen then displays the
more ”Point of Interest” listing screen.

You can show up to 5 types of icons on the
screen.

SSNU198

When you select the point of interest type
from more list, the screen will display the
complete ”Point of Interest” listing screen.

SSNU058

Selecting the ”Delete” switch will delete
the last selected icon.

41

04 07.13

Displaying Points of Interest

SSNU199

When you select a point of interest type from
either the limited list or the complete list, the
screen will display icons at those locations
on the map screen.

SSNU247

”Local POI list”: When you have chosen
some categories, you can search the near­est point of interest. Select this switch then
the system will list points within 20 miles.

Select the
est. Points of interest which you chose are
displayed on the map screen.

Sort by ”Icon”: Select this switch to list the
points of interest in order of the type of sym­bol.

Sort by ”Dist”: Select this switch to list the
points of interest in order of the distance.

Sort by ”Name”: Select this switch t o list the
points of interest in alphabetical order.

”Route”: Select this switch to list the points
of interest on the route in order of the dis­tance.

To turn off the icons of the points of inter­est on the map screen, select the

switch on the screen ”Show POI

off”

icons”.

of your desired point of inter-

”POI

Setting a POI as a destination

You can select one of the points of inter­est icons on the map screen as a destina­tion and use it for a route guidance.

SSNU258

1. Select the icon of the point of interest
that you want to set as a destination.

Operate the select and scroll lever to move
the cursor
the icon ”POI” is centered in the screen and
it overlaps with the cursor

your desired POI icon. Then

.

42

04 07.13

Displaying Points of Interest

SSNU259

2. Push the ”ENT” button on the navi­gation controller, and then the switch
menu appears.

3. Select the

”Guide” switch

SSNU260

When you push the
navigation controller, the information such as
the name and address, etc. are displayed.

”ENT” button on the

SSNU261

4. If you set the point of interest as a des­tination, select the
not, push the ”BACK” button on the
navigation controller, then the previous
screen returns.

”Enter ” switch. If

SSNU280

When there are 2 screens displayed, select

”Right screen” switch. You can display

the ”Edit right screen”.

The name of the point of interest is displayed
at the top of the screen. You can select the
other POI icon on the displayed map.

43

04 07.13

Displaying Points of Interest Turn List

You can change from the map screen to a
”Turn list” screen that displays the list of
the roads up to your destination. This list
can be used for a route guidance.

SSNU281

Select ”Show POI icons” POI icon is dis­played when the indicator next to the is
highlighted, and if not, the POI icon is not dis­played.

44

SSNU046

1. Push the ”MENU” button on the nav­igation controller to display the menu
screen and select the

view”

switch.

”Route over-

SSNU200

2. The screen will change to the ”Entire
route map” s c r e e n , push the ”ENT” but­ton on the navigation controller to display
the menu switches. And then select the

”Turn list” switch.

SSNU201

04 07.13

Turn List Map Scale

You can scroll through the list of roads. How­ever, not all road names in the route may ap­pear on the list. If a road changes its name
without requiring a turn (such as on a street
that runs through two or more cities), the
name change will not appear on the list. The
street name closest to the starting point will
be displayed with a mileage to the next turn.

These marks indicate the di­rection which you should
turn at an intersection.

Select the
screen of your desired point. The point which
you choose is displayed on the map screen.

”Map” switch on the ”Turn list”

INFORMATION



The current vehicle position mark
appears at the bottom of the screen
next to the name of the street you are
driving on. The mark does not move.



If you leave the guidance route, the
name of the street you are on is not
shown on the list next to the current
vehicle position mark.



If the road type you are on changes
between a highway, a main street or
a residential street (at an interchange
or fork), it will appear on the turn list.



If a long route has been selected, it
may take a long time to display the
turn list.



Push the
on the navigation controller to return
to the map display with route guid­ance.

”MAP/VOICE”

button

SSNU282

The map scale can be changed by pushing
the ”zoom IN”/”zoom OUT” button of
the navigation controller while the map is dis­played and while guiding as well. The scale
runs from 1/32th of a mile to 128 miles. Push
the

”zoom IN”/”zoom OUT” button on

the navigation controller until the scale bar
changes normally. If you continue to hold
your finger on the button, the scale bar
changes smoothly.

The map scale is displayed under the
”North–up” symbol or ”Heading–up” symbol
at the top left of the screen.

45

04 07.13

Screen Scrolling Orientation of the Map

After scrolling the screen, the map remains
centered at the selected location until you

SSNU283

push the
rent vehicle position mark will continue to
move along your actual route and may move
off the screen. When you push the

VOICE”

tion mark returns to the center of the screen
and the map moves as you proceed on your
route.

”MAP/VOICE” button. The cur-

”MAP/

button, the current vehicle posi-

SSNU284

If you wish to look at a different point on the
map other than your current vehicle position,
you can bring the desired point to the center
of the screen by using the scroll feature. (For
details, see page 71)

Move the cursor mark
sire by operating the select and scroll lever of
the navigation controller. Push the
button on the navigation controller, and se­lect the

”Enter ” switch. You can then set

this place as a destination.
If you continue to hold the lever by your finger

on the navigation controller, the map will con­tinue scrolling in that direction until you lift
your finger.

46

to the point you de-

”ENT”

INFORMATION

If you enter a destination using the
screen scrolling function, the road
nearest to the point you selected is set
as the destination. At this time, if the
nearest road is over 4 miles from des­tination point, the system may not be
able to calculate a guidance route.

SSNU285

04 07.13

Orientation of the Map

You can change the orientation of the
map from ”North–up” to ”Heading–up”.

”North–up” symbol

Regardless of the direction of vehicle travel,
the north is always up.

”Heading–up” symbol

The direction of the vehicle travel is always
up. A red arrow indicates the north.

SSNU286

SSNU287

1. Push the ”ENT” button while the map
screen is displayed.

SSNU280

2. When the ”Map orient” at the right
side of the screen is selected, the orienta­tion of the map screen is switched be­tween the ”North–up” and the ”Heading–
up.” When there are 2 map screens
displayed, the ”North–up” and the ”Head­ing–up ” of the left side map screen is
switched by this operation.

47

04 07.13

Orientation of the Map

SSNU280

3. When there are 2 map screens dis­played to switch the ”North–up”/”Head­ing–up” of the right screen map, select

”Right screen” switch.

48

SSNU288

4. Select the ”Map orient” of the ”Edit
right screen”, and then the ”North–
up”/”Heading–up” of the right screen is
switched.

When 2 map screens are displayed, you can
set one as the ”North–up” and the other one
as the ”Heading–up.”

04 07.13

Limitations of the Navigation System

This navigation system calculates the
current vehicle position using satellite
signals, various vehicle signals, map
data, etc. However, an accurate position
may not be shown depending on the sat­ellite condition, road configuration, ve­hicle condition or other circumstances.

The Global Positioning System (GPS) devel­oped and operated by the U.S. Department
of Defense provides an accurate current ve­hicle position using 3 to 4 satellites. The GPS
system has a certain level of inaccuracy built
in for security reasons. While the navigation
system will compensate for this most of the
time, occasional positioning errors of up to
300 feet can and should be expected. Gen­erally, position errors will be corrected within
a few seconds.

SSNU251

When your vehicle is not receiving signals
from the satellites, the ”GPS” mark does not
appear at the screen.

The GPS signal may be physically ob­structed, leading to inaccurate vehicle posi­tion on the map display. Tunnels, tall build­ings, trucks, or even the placement of
objects on the instrument panel may obstruct
the GPS signals.

The installation of window tinting may also
obstruct the GPS signals. Most window tint­ing contains some metallic content that will
interfere with GPS signal reception. We rec­ommend not to use the window tinting on ve­hicles equipped with navigation systems.

The GPS satellites may not send signals due
to repairs or improvements being made to
them.

Even when the navigation system is receiv­ing good GPS signals, the vehicle position
may not be shown accurately or inappropri­ate route guidance may occur in some
cases.

(a) Accurate current vehicle
position may not be shown in
the following cases:

 When driving on a small angled Y–

shaped road.

 When driving on a spiral road.
 When driving on a slippery road such as

in sand, gravel, snow, etc.

 When driving on a long straight road.
 When freeway and surface streets run in

parallel.

 After moving by ferry or vehicle carrier.
 When a long route is searched during high

speed driving.

 When driving without setting the current

position calibration correctly.

 After repeating a change of directions by

going forward and backward, or turning
on a turntable in the parking lot.

 When leaving a covered parking lot or

parking garage.

 When a roof carrier is installed.
 When driving with the tire chains installed.
 When the tires are worn.
 After replacing a tire or tires.

49

04 07.13

Limitations of the Navigation SystemLimitations of the Navigation System

 When using tires that are smaller or larger

than the factory specifications.

 When the tire pressure in any of the four

tires is not correct.

INFORMATION

If your vehicle cannot receive GPS sig­nals, you can correct the current posi­tion manually. For the information on
setting the current position calibration,
see page 77.

50

(b) Inappropriate route guidance
may occur in the following
cases:

 When turning at a wrong intersection off

the designated route guidance.

 If you are heading for a destination without

passing through a set preferred road, au­tomatic rerouting may display a route re­turning to the set preferred road.

 When turning at an intersection for which

there is no route guidance.

 When passing through an intersection for

which there is no route guidance.

 During automatic rerouting, the route

guidance may not be available for the next
turn to the right or left.

 It may take a long time to operate auto-

matic rerouting during high speed driving.
In automatic rerouting, a detour route may
be shown.

 During automatic rerouting, the route may

not be changed.

 The route in a U–turn may be shown or an-

nounced.

 A location may have multiple names and

the system will announce one or more.

 Some routes may not be searched.

 If the route to your destination includes

gravel, unpaved roads or alleys, the route
guidance may not be shown.

 Your destination point might be shown on

the opposite side of the street.

 When a portion of the route has regula-

tions prohibiting the entry of the vehicle
that vary by time or season or other rea­sons.

 The road and map data stored in your

navigation system may not be complete
or may not be the latest release.

After replacing the tire, implement the op­eration described in the ”Current Position
Calibration”. (For details, see page 77.)

This navigation system uses tire turning data
and is designed to work with factory–speci­fied tires for your Lexus. Installing tires that
are larger or smaller than the originally
equipped diameter may cause inaccurate
display of the vehicle’s position. The tire
pressure also affects the diameter of the tires
so please make sure the tire pressure of all
four tires is correct.

04 07.13

Map Database Information and Updates

This system uses the maps of DENSO
based on NAVTEQ maps, GDT maps and
infoUSA POIs.

 2003 NA VTEQ. All rights reserved.
 GDT, Geographic Data Technology, Inc.

Data by infoUSA copyright
rights reserved.

This product contains proprietary and
confidential property of NAVTEQ, GDT
and infoUSA. Unauthorized use, includ­ing duplication of this product is express­ly prohibited.

 2002, All

There are two types of areas available for
route guidance. (See the following
pages.) In one type of area, primarily
around metropolitan centers, detailed
route guidance is available for the entire
area. In the other type of area, all roads
are displayed on the map but route guid­ance is limited. The navigation route
might lack precision because the data (no
right turns, one–way traffic, etc.) is not
completed. It i s still possible to reach the
destination by following the arrow direc­tion and distance as shown on the bottom
left of t h e s c r een. The arrow points in the
direction of the destination. The distance
shown is as measured in a straight line
from the current vehicle position to the
destination area.

COPYRIGHT NOTICE: This area includes
information taken with permission from
Canadian authorities, including
Majesty the Queen in Right of Canada, 
Queen’s Printer for Ontario.

 Her

SSNU289

In order to provide you with accurate map in­formation as much as possible, we are al­ways gathering information such as on road
repairs and carrying out on–site investiga­tions. However , the names of roads, streets,
facilities, and their locations are often
changed. In some places, construction on
roads may be in progress. For that reason,
information on some areas in this system
might be different from the actual location.

The map database is normally updated once
a year. Contact your Lexus dealer for infor­mation about the availability and pricing of an
update.

51

04 07.13

Map Database Information and UpdatesMap Database Information and Updates

SSNU202



Sedan

DVD: To determine which version of the da-

tabase is currently in your vehicle, select the

”DVD” switch on the “Menu” screen. The

”DVD information” screen appears and dis­plays the map database version.

SSNU203

SSNU046

Route guidance availability
Route guidance available area for de-

tailed roads and for main roads are pro­vided.

The software covers the route guidance
available area as shown in the following
”Route guidance availability” illustrations.

Route guidance available areas may change
due to the upgrading of the map data.



52

SportCross

04 07.13

Map Database Information and Updates

Map Database

Route guidance availability

04US1a

2003 by NAVTEQ

Route guidance available areas

Route guidance available for main roads only

53

04 07.13

Map Database Information and Updates

Route guidance availability

04US2a

2003 by NAVTEQ

54

Route guidance available areas

Route guidance available for main roads only

04 07.13

Map Database Information and Updates

Route guidance availability

04US3a

2003 by NAVTEQ

Route guidance available areas

Route guidance available for main roads only

55

04 07.13

Map Database Information and Updates

Route guidance availability

04US4a

2003 by NAVTEQ

56

Route guidance available areas

Route guidance available for main roads only

04 07.13

Map Database Information and Updates

Route guidance availability

04US5a

2003 by NAVTEQ

Route guidance available areas

Route guidance available for main roads only

57

04 07.13

Map Database Information and Updates

Route guidance availability

04US6a

2003 by NAVTEQ

58

Route guidance available areas

Route guidance available for main roads only

04 07.13

Map Database Information and Updates

Route guidance availability

04US7a

2003 by NAVTEQ

Route guidance available areas

Route guidance available for main roads only

59

04 07.13

Map Database Information and Updates

Route guidance availability

04US8a

2003 by NAVTEQ

60

Route guidance available areas

Route guidance available for main roads only

04 07.13

Map Database Information and Updates

Route guidance availability

04US9a

2003 by NAVTEQ

Route guidance available areas

Route guidance available for main roads only

61

04 07.13

Map Database Information and Updates

Route guidance availability

04US10a

2003 by NAVTEQ

62

Route guidance available areas

Route guidance available for main roads only

04 07.13

Map Database Information and Updates

Route guidance availability

04CANa

2003 by NAVTEQ

Route guidance available areas

Route guidance available for main roads only

63

04 07.13

64

Overview of Select Screen and Switches

Switch operation

This system operates mainly by the navi­gation controller beside the parking
brake lever. When you select a switch on
the screen and push some buttons on the
navigation controller, a beep sounds.

INFORMATION



You cannot operate dimmed
switches.



Wipe off fingerprints on the surface
of the display using a glass cleaning
cloth.



The display may be tinged in purple
due to the reflection of sunlight, but
this is not a malfunction.



The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.



Under extremely cold conditions, the
display may take time to change and
the map may not be displayed. Also,
the buttons on the Navigation con­troller may be harder than usual to
depress, and the data input by a user
may be deleted.

Navigation display

Navigation controller

SSNU182

vii

Symbols and Switches

Symbols and Switches

GPS Mark

(Global Positioning System)

Whenever your vehicle is receiv-

ing signals from the GPS, this

mark is displayed. For details,

see page 49.

Current vehicle position mark

To indicate the current position.

For details, see page 34.

”OPEN/CLOSE” button

Push this button to open or close

the navigation door. For details,

see page 2.

”MAP/VOICE” button

Push this button to repeat a

guidance voice, cancel the one

select scroll and start a guid-

ance. For details, see page 34.

”MENU” button

Push this button to display the

menu screen. This screen al-

lows you to make adjustments or

correct settings of various op-

tions and functions.

”DEST” button

Push this button to display the

destination screen. For details,

see page 5.

”DISP” button

Push this button to display the

display screen. For details, see

page 108.

”OFF” button

Push this button when finishing

the navigation system.

SSNU236

”North–up” symb o l a n d s c a l e o f
map

To indicate a map view with the
north up. The figure also indicates
the map scale. For details, see
page 45 through 48.

Operation guide

To display the switch function of
the navigation controller on each
screen.

TILT button

Push this button to tilt the display.
For details, see page 2.

”ENT” button/select and scroll
lever

In case of selecting the function
and letters or moving cursor, press
down the lever to one direction out
of 8 directions. In case of deciding
the function after selecting it on the
screen, push down on the lever as
a button.

”zoom IN/zoom OUT” button

These switches magnify or reduce
the map scale. For details, see
page 45.

”BACK” button

Push this button when to call out
the screen just before.

”INFO” button

Push this button to display the
maintenance screen. For details,
see page 95.

viii

Symbols and Switches

SSNP001

Changing the map direction

When the dual screen is displayed, the left
screen can be switched to ”North–up” /
”Heading–up”.

SSNP002

Display of Point of Interest

Symbols such as restaurants and hotels, etc.
can be displayed on the screen. For details,
see page 41.

SSNP003

Changing the route guidance

When you select this switch, the ”Change
Route” screen will appear. For details, see
page 29.

SSNP004

Quick Registration of marked point

To register the current vehicle position as a
marked point. For details, see page 71.

SSNP005

Changing the map direction on the right
screen

When the map display is shown on the dual
screens, select this to call out the editing
menu (screen) on the right screen.

”Heading–up ” symbol
and scale of map

On the map, the vehicle travel direction is up.
The red arrow indicates the north.

ix

x

SECTION 1 –

1

7

INSTRUMENTS AND CONTROLS

Keys and doors

Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine immobilizer system 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wireless remote control 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Doors 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Back door 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Theft deterrent system 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

04 06.30

KEYS AND DOORS

8

KEYS

SV11024



Sedan

SV11025



SportCross

1

Master keys (black) – These keys work in every lock.
For your Lexus dealer to make you a new key with a
built–in transponder chip, your dealer will need an
original key to program the new one.

2

Valet key (gray) – The sub key will not open the trunk
and the glove box.

3

Key number plate – Keep the plate in a safe place
such as your wallet, not in the vehicle.

A transponder chip for engine immobilizer system has been
placed in the head of the master and sub keys. These chips are
needed to enable the system to function correctly, so be careful
not to lose these keys. If you make your own duplicate key, you
will not be able to cancel the system or start the engine.

To protect items locked in the trunk or glove box when using
valet parking, leave the valet key with the attendant.

Since the doors and trunk lid can be locked without a key , you
should always carry a spare master key in case you
accidentally lock your keys inside the vehicle.

If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.

We recommend writing down the key number and storing it in
a safe place.

04 06.30

KEYS AND DOORS

9

Flat key

SV11020

Since a transponder chip is built in its key case, you can
start the engine with this key.

The flat key works in every lock.

A transponder chip for engine immobilizer system has been
placed in the key case of the flat key. This chip is needed to
enable the system to function correctly, so be careful not to
lose this key . If you make your own duplicate key, you will not
be able to cancel the system or start the engine.

Insert your key plate in its key case as shown. We recommend
that you always carry this with you for emergency use. Do not
leave it in your vehicle.

Starting the engine using a flat key

SV11011

1. Remove the key plate from the key case.

2. Insert the key plate into the ignition switch. The indicator
light keeps flashing.

3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobilizer system is
automatically cancelled. (For details, see “Engine immobilizer
system“on page 12.) Y ou can put the key case away then. You
cannot cancel the engine immobilizer system if 10 seconds
have past after you inserted the key plate. You need to remove
the key plate from the ignition switch and try it again from the
step 2.

4. Start the engine within 20 seconds after the security
indicator light goes out. You cannot start the engine if 20
seconds have past after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.

04 06.30

KEYS AND DOORS

10

NOTICE



Do not let the key case become bent as the key plate
may fall out or become bent also.



The flat key is designed for emergency use only. So
do not use it regularly instead of other master keys.

11L021-2

When using a key containing a transponder chip,
observe the following precautions:



When starting the engine, do not use the key with a
key ring resting on the key grip and do not press the
key ring against the key grip. Otherwise the engine
may not start, or may stop soon after it starts.

04 06.30
