Page 1

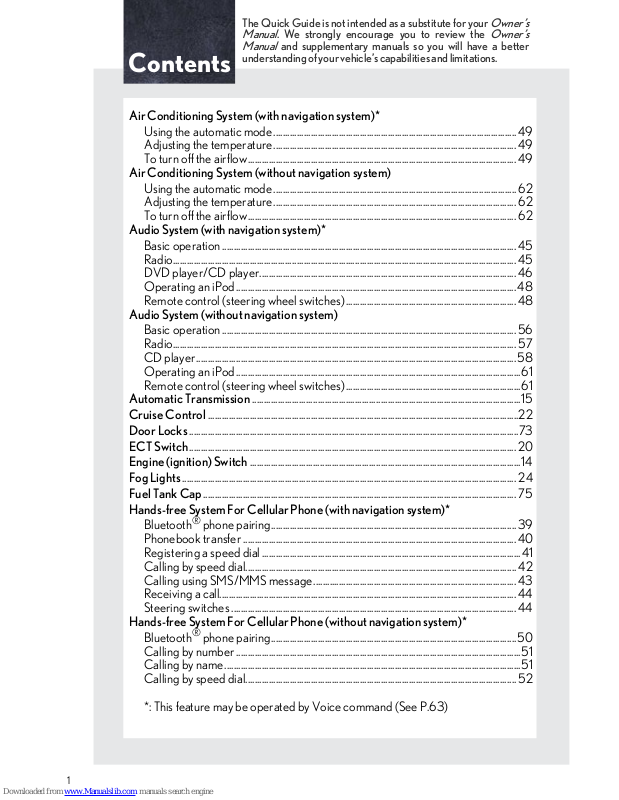

Contents
The Quick Guide is not intended as a substitute for your
Owner’s
Manual
. We strongly encourage you to review the
Owner’s
Manual
and supplementary manuals so you will have a better
understanding of your vehicle’s capabilities and limitations.
1
Air Conditioning System (with navigation system)*
Using the automatic mode........................................................................................................49
Adjusting the temperature........................................................................................................ 49
To turn off the airflow................................................................................................................... 49
Air Conditioning System (without navigation system)
Using the automatic mode........................................................................................................62
Adjusting the temperature........................................................................................................ 62
To turn off the airflow................................................................................................................... 62
Audio System (with navigation system)*
Basic operation ..............................................................................................................................45
Radio...................................................................................................................................................45
DVD player/CD player.............................................................................................................. 46
Operating an iPod........................................................................................................................ 48
Remote control (steering wheel switches)......................................................................... 48
Audio System (without navigation system)
Basic operation ..............................................................................................................................56
Radio................................................................................................................................................... 57
CD player.........................................................................................................................................58
Operating an iPod..........................................................................................................................61
Remote control (steering wheel switches)...........................................................................61
Automatic Transmission ...................................................................................................................15
Cruise Control .....................................................................................................................................22
Door Locks .............................................................................................................................................73
ECT Switch............................................................................................................................................20
Engine (ignition) Switch ....................................................................................................................14
Fog Lights ............................................................................................................................................... 24
Fuel Tank Cap ...................................................................................................................................... 75
Hands-free System For Cellular Phone (with navigation system)*
Bluetooth
®
phone pairing.........................................................................................................39
Phonebook transfer .....................................................................................................................40
Registering a speed dial ...............................................................................................................41
Calling by speed dial.................................................................................................................... 42
Calling using SMS/MMS message....................................................................................... 43
Receiving a call............................................................................................................................... 44
Steering switches .......................................................................................................................... 44
Hands-free System For Cellular Phone (without navigation system)*
Bluetooth
®
phone pairing.........................................................................................................50
Calling by number ..........................................................................................................................51
Calling by name...............................................................................................................................51
Calling by speed dial....................................................................................................................52
*: This feature may be operated by Voice command (See P.63)
Page 2
2
Phonebook transfer......................................................................................................................53
Changing the registered name................................................................................................54
Registering a speed dial..............................................................................................................55
Head Restraints.................................................................................................................................... 13
Headlights ..............................................................................................................................................23
Instrument Panel Light Control...................................................................................................29
Intuitive Parking Assist......................................................................................................................21
Keys..............................................................................................................................................................8
Lexus Enform with Safety Connect
...................................................................................................70
Moon Roof .............................................................................................................................................74
Multi-information Display ...............................................................................................................18
Navigation System*
Register home.................................................................................................................................33
Destination input Search by address ........................................................................34
Destination input Search points of interest by name..........................................36
Destination input Search points of interest by category...................................37
Destination input Search points of interest by telephone number.............. 38
Voice Command System...........................................................................................................63
Power Windows .................................................................................................................................. 74
Rear Window and Outside Rear View Mirror Defoggers .............................................29
Safety Connect ....................................................................................................................................68
Satellite Switches................................................................................................................................. 19
Seat Belts .................................................................................................................................................13
Seats (Manual) ........................................................................................................................................11
Seats (Power)......................................................................................................................................... 12
Smart Access System with Push-button Start .........................................................................9
Theft Deterrent System ....................................................................................................................10
Touch Screen
Basic operation...............................................................................................................................30
Display.................................................................................................................................................31
Screen scroll operation................................................................................................................ 31
Setting a route.................................................................................................................................32
Trunk .........................................................................................................................................................76
Turn Signal Lever ................................................................................................................................20
Voice Command System*
Basic operation...............................................................................................................................63
Command list..................................................................................................................................64
Windshield Wipers and Washer..................................................................................................25
XM Services .......................................................................................................................................... 72
*: This feature may be operated by Voice command (See P.63)
Page 3
3
Overview
Instrument Panel
Shift paddle switch
P.15
Headlight switch
Turn signal lever
Fog light switch
P.23
P.20
P.24
Inside lock button
P.73
Fuel filler door opener
P.75
Power window switches
P.74
Window lock switch
P.74
Trunk opener
P.76
Satellite switches
P.19
Multi-information
display
P.18
Door lock switch
P.73
Audio remote control switches
P.48, 61
Page 4
4
Shift paddle switch
P.15
Windshield wiper and washer switch
P.25
Engine (ignition) switch
P.14
Trunk opener main switch
P.76
ECT switch
P.20
Automatic transmission shift lever
P.15
Page 5
5
Air conditioning
system
P.62
Rear window and
outside rear
view mirror
defoggers switch
P.29
Security indicator
P.10
Audio system
P.56
Overview
Instrument Panel
Without navigation system
Page 6
6
Air conditioning
system
P.49
Rear window and
outside rear
view mirror
defoggers switch
P.29
Security indicator
P.10
Audio system
P.45
With navigation system
Navigation system
P.33
Page 7
7
Overview
Instrument Panel
Cruise control switch
P.22
Telephone switch
P.39, 50
“DISP” switch
P.18
Talk switch
P.63
Page 8
8
Keys
■ Electronic key
Smart access system with push-button start
(P.9 , 14)
*: If equipped
■ Mechanical key
● Locks and unlocks the doors
● Opens the trunk
● Locks and unlocks the glove box
The mechanical key is stored inside the electronic
key. To extract the key, release the latch and pull,
or if equipped with a card key, press the button
and pull.
■ Wireless remote control
Locks all doors
Unlocks all doors
Unlocks the trunk (press and hold)
Sounds alarm (press and hold)
(Use the alarm to attract attention to the vehicle in order to help deter break-ins. To stop the
alarm, press any button on the wireless remote
control.)
Card key*
1
2
3
4
Page 9
9
Smart Access System with Push-button Start
■ Entering the vehicle
To unlock the vehicle, simply grasp either of the
front door handles.
■ Exiting the vehicle
To lock the vehicle, press the lock button on either
of the front door handles.
■ Opening the trunk
To open the trunk, press and hold the trunk
release button.
The smart access system with push-button start allows you to enter and exit the vehicle
or start the engine by simply carrying the electronic key in your pocket or bag.
For details on starting the engine, see page 14.
For details on what to do when the electronic key does not operate properly, see page 79.
Page 10
10
Theft Deterrent System
■ Engine immobilizer system
The engine immobilizer system prevents the
engine from being started in the event that an
attempt is made to start the vehicle using an
unregistered key.
The security indicator light flashes to indicate that
the system is set.
■ Alarm
The system sounds the alarm and flashes lights when forcible entry is detected.
To set the alarm: close the doors, trunk and hood, and lock all doors. The security indicator
light comes on to indicate that the alarm is in its preparation state. When the indicator light
begins to flash, the system is armed.
To deactivate or stop the alarm: turn the “ENGINE START STOP” switch to ACCESSORY
or IGNITION ON mode or start the engine, or unlock the doors or trunk.
■ Steering lock
The steering wheel locks when the “ENGINE
START STOP” switch is OFF.
When the steering lock cannot be released, the
green indicator light on the “ENGINE START
STOP” switch will flash and a message will be
shown on the multi-information display. To release
it, gently turn the wheel left or right while pressing
the “ENGINE START STOP” switch.
The theft deterrent system includes the following features to help protect your vehicle from
theft.
Page 11
11
Seats (Manual)
■ Adjusting seat position
With the lever raised, slide the seat forward or
backward.
■ Adjusting seatback angle
With the lever raised, tilt the seatback forward or
backward.
■ Adjusting seat height
Raises the seat
Lowers the seat
■ Adjusting the front of the seat cushion
Raises the front of the seat cushion
Lowers the front of the seat cushion
1
2
1
2
Page 12
12
Seats (Power)
■ Adjusting seat position
Moves the seat forward
Moves the seat backward
■ Adjusting seatback angle
Tilts the seatback forward
Reclines the seatback
■ Adjusting the seat cushion
Raises and lowers the front of the cushion
Raises and lowers the entire seat
■ Adjusting the lumbar support (driver’s seat only)
Firmer
Softer
1
2
1
2
1
2
1
2
Page 13
13
Head Restraints
■ Vertical adjustment
To ra is e : push the head restraint upward.
To lower (front and center rear seats): push the
head restraint down while pressing the lock
release button.
To lower (outside rear seats): push the head
restraint down.
■ Folding (outside rear seats only)
Pull the head restraint up while pressing the lock
release button.
Seat Belts
■ Adjusting shoulder belt height (front seats only)
To ra is e : pull the anchor upward.
To lo we r: depress the button and push the anchor
down.
■ Seat belt comfort guides (outside rear seats only)
If the shoulder belt sits close to the neck, slide the
comfort guide forward.
Lock
release
button
Lock release button
Page 14
14
Engine (ignition) Switch
■ Starting the engine
Make sure the parking brake is engaged and the
shift lever is in P.
Depress the brake pedal.
The “ENGINE START STOP” switch indicator light turns green.
Press the “ENGINE START STOP” switch.
■ Stopping the engine
Engage the parking brake and shift the shift lever to P.
Press the “ENGINE START STOP” switch.
■ Changing power modes
To change power modes without turning on the engine, press the “ENGINE START STOP”
switch without depressing the brake pedal. The modes can be changed in the following
order:
With the electronic key on your person, the engine can be started by simply pressing the
“ENGINE START STOP” switch, while depressing the brake pedal.
(The mechanical key cannot be used to start the engine.)
ACCESSORY mode IGNITION ON mode
(Indicator light: amber)
OFF
(Indicator light: off)
Page 15
15
Automatic Transmission
■ Shift positions
P Pa rk
R Reverse
N Neutral (drive not engaged)
D Drive
S S mode
The vehicle can only be shifted out of P when
the “ENGINE START STOP” switch is in
IGNITION ON mode and the brake pedal is
depressed.
Page 16
16
■ Changing shift ranges in the D position
Operating the shift paddle switches allows shift ranges to be selected to suit the driving conditions.
Pull the “-” shift paddle switch toward you.
The indicator in the meter cluster will display the selected shift range.
Higher shift range:
Pull the “+” shift paddle switch toward you.
Lower shift range:
Pull the “-” shift paddle switch toward you.
Pulling and holding the “+” shift paddle switch for a certain period of time allows you to
return to normal D position driving. If the accelerator pedal is depressed for more than a
certain period of time in one range, shift range selection in the D position will be automatically deactivated.
Page 17
17
■ Changing shift ranges in the S position
Operating the shift lever or shift paddle switches allows shift ranges to be selected to suit the
driving conditions.
Shift the shift lever to S.
The indicator in the meter cluster will display the selected shift range.
Higher shift range:
Move the shift lever in the “+” direction, or
pull the “+” shift paddle switch toward you.
Lower shift range:
Move the shift lever in the “-” direction, or
pull the “-” shift paddle switch toward you.
Page 18
18
Multi-information Display
■ Display information
● Trip information
Outside temperature
Driving range
Average fuel consumption
Average fuel consumption after refueling
Current fuel consumption
Average vehicle speed
Gear position display
● Satellite switch mode display
● Intuitive parking assist display
(if equipped)
● Warnin g m es s ag es
■ Changing the display of trip information
Trip information items can be switched by pressing the DISP switch.
The multi-information display shows information about your vehicle, including the items
shown below.
■ When using intuitive parking assist, the appropriate display is shown on the screen.
■ In the event that a problem is detected in any of the vehicle's systems, a warning message is
shown on the multi-information display.
Page 19
19
Satellite Switches
The satellite switches can be used to change the
settings of the following items.
● Intuitive parking assist (if equipped)
● Tire pressure warning system initialization
● ID code selection for the tire pressure warning
system
● Vehicle speed indicator
● Tacho indicator
■ Changing the ON/OFF settings
To cycle through the functions, press either the
left or right selector switch.
To change the settings, press the ON/OFF
button.
The satellite switches can be used to change the settings of various functions. Settings
are shown on the multi-information display.
For detailed information of changing the settings, see the Owner’s Manual.
Page 20
20
Turn Signal Lever
Right turn signal
Left turn signal
ECT Switch
Power mode
For more powerful acceleration and uphill
driving.
Normal mode
Snow mode
For starting or accelerating on snow-covered
roads or other slippery surfaces.
An indicator comes on when in power or snow
mode.
1
2
To signal a lane change, move the lever partway and hold.
Use the ECT switch to select the driving mode that best suits the driving and road conditions.
1
2
3
Page 21
21
Intuitive Parking Assist (If Equipped)
Owners of models equipped with a navigation system should refer to the “Navigation System
Owner's Manual”.
■ Turning the system on and off
The system can be turned on and off using the satellite switch. (P.19 )
■ Multi-information display
Sensors are used to detect obstacles near the
vehicle. The distance to a detected obstacle is
shown by the number of indicator bars.
Indicates obstacles detected by the corner
sensors
Indicates obstacles detected by the back sensors
The system uses a screen display and buzzer to inform the driver of obstacles near the
vehicle when parking or driving at low speed.
1
2
Page 22
22
Cruise Control
Indicator
Cruise control switch
■ Setting the speed
Press the ON-OFF button.
The system will turn on.
Accelerate or decelerate to the desired
speed, and then push the lever down.
This sets the speed in the cruise control
memory.
■ Canceling
To temporarily cancel the cruise control, pull
the lever toward you. To resume the cruise
control, push the lever up.
To turn the system off, press the ON-OFF button.
■ Adjusting the speed setting
To increase speed: push the lever up.
To decrease speed: push the lever down.
Release the lever when the desired speed is
reached.
Cruise control allows the driver to maintain a constant speed without having to operate the
accelerator pedal.
Use for highway driving or when traveling at a constant speed for long periods of time.
1
2
1
2
Page 23
23
Headlights
Type A
The daytime running lights turn on.
The side marker, parking (vehicles with
halogen headlights), daytime running
lights, tail, license plate and instrument
panel lights turn on.
The headlights and all lights listed above
(except daytime running lights) turn on.
The headlights, parking lights, daytime
running lights and other lights turn on/
off automatically in accordance with
ambient light levels.
Type B
The daytime running lights turn on.
The side marker, parking (vehicles with
halogen headlights), daytime running
lights, tail, license plate and instrument
panel lights turn on.
The headlights and all lights listed above
(except daytime running lights) turn on.
The headlights, parking lights, daytime
running lights and other lights turn on/
off automatically in accordance with
ambient light levels.
To engage the high beams, push the lever forward.
To flash the high beams, pull the lever and hold.
1
2
3
4
1
2
3
4
Page 24
24
Fog Lights
Type A
The fog lights can be used only when the headlights (low beam) are on.
Turns the front fog lights off
Turns the front fog lights on
Type B
The fog lights can be used only when the headlights (low beam) are on.
Turns the front fog lights off
Turns the front fog lights on
1
2
1
2
Page 25
25
Windshield Wipers and Washer
■ Intermittent wiper with interval adjuster
Type A
Off
Intermittent windshield wiper operation
Low speed windshield wiper operation
High speed windshield wiper operation
Temporary operation
Releasing the lever returns to .
Type B
Off
Intermittent windshield wiper operation
Low speed windshield wiper operation
High speed windshield wiper operation
Temporary operation
Releasing the lever returns to .
1
2
3
4
5
1
2
3
4
5
Page 26
26
Intermittent operation: Wiper interval can be
adjusted by turning the band.
To spray washer fluid, pull the lever. The wipers
will operate automatically.
Page 27
27
■ Rain-sensing windshield wipers
Type A
Off
Rain-sensing windshield wiper opera-
tion
Low speed windshield wiper operation
High speed windshield wiper operation
Temporary operation
Releasing the lever returns to .
Type B
Off
Rain-sensing windshield wiper opera-
tion
Low speed windshield wiper operation
High speed windshield wiper operation
Temporary operation
Releasing the lever returns to .
1
2
3
4
5
1
2
3
4
5
Page 28
28
Automatic operation: Sensitivity can be adjusted
by turning the band.
To spray washer fluid, pull the lever. The wipers
will operate automatically.
Page 29
29
Rear Window and Outside Rear View
Mirror Defoggers
Without navigation system
To defog the rear window and the outside rear
view mirrors, press the switch.
Press again to cancel.
With navigation system
To defog the rear window and the outside rear
view mirrors, press the switch.
Press again to cancel.
Instrument Panel Light Control
Darker
Brighter
The system turns off automatically after 15 to 60 minutes.
1
2
Page 30
30
Touch Screen (with navigation system)
By touching the screen with your finger, you can control the audio system and air conditioning system, and adjust the screen display etc. For details, refer to the “Navigation System
Owner's Manual”.
■ Basic operation
The button positions, shapes and screen may slightly vary depending on the type of the
touch screen.
Press the button to display the screen. The “Setup” screen shown in the above illustration is
displayed when the “SETUP” button is pressed.
“General”: General settings screen
“Voice”: Voice settings screen
“Navigation”: Navigation settings screen
“Display”: Adjust picture quality
“Vehicle”: Vehicle settings screen
“MAP/VOICE”: Vehicle's current position
“DEST”: Destination screen
“SETUP”: Setup screen
“Other”: Other settings screen
“Audio”: Audio settings screen
“Bluetooth*”: Bluetooth
®
settings screen
“Phone”: Phone settings screen
“INFO”: Information screen
: Hands-free operation screen
“AUDIO”: Audio control screen
“CLIMATE”: Air conditioning operation screen
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Page 31
31
■ Display
Adjusting the screen display
Push the “SETUP” button on the side of the touch
screen and touch “Display” screen on the “Setup”
screen.
Displays the screen in “Day Mode” with the
headlight switch on
Turns the screen off
Change function
Adjust contrast/brightness
■ Screen scroll operation
When any point on the map is touched, that point
moves to the center of the screen.
Indicates the street name, city name, etc. for
the selected point
Displays various information for the selected
point
Indicates the distance from the current position to the pointer
Switches the map configurations
Zooms in on the map
Zooms out on the map
Adjusting the image the camera
display
1
2
3
4
1
2
3
4
5
6
Page 32
32
■ Setting a route
While route guidance is operating, you can change the route using the following method.
Touch “Route”.
The following settings can be accessed
Detour setting
Route preferences
Route overview
Pause and resume route guidance
1
2
3
4
Page 33
33
Navigation System (If Equipped)
■ Register home
Push the “SETUP” button on the side of the
touch screen. (P. 3 0 )
Touch “Navigation”.
Touch “Home”.
Tou ch “S e t H ome ”.
Touch “Address”.
Tou ch “C it y”.
Input a city name and touch “OK”.
Touch the screen button of the desired city
name from the displayed list.
For security reasons, use a point close to your
home instead of your actual home address.
Input the street name and touch “OK”.
When the desired street name is found, touch
the corresponding screen button.
Input a house number and touch “OK”.
Touch “Enter”.
Tou ch “O K” .
STEP 2
STEP 3
STEP 6
10
11
12
13
Page 34
34
■ Destination input Search by address
Select by city name
Push the “DEST” button on the side of the
touch screen. (P. 3 0 )
Tou ch “Add res s ”.
Tou ch “C ity ”.
Input a city name and touch “OK”.
Touch the screen button of the desired city
name from the displayed list.
Input the street name and touch “OK”.
When the desired street name is found, touch
the corresponding screen button.
Input a house number and touch “OK”.
Tou ch “G o to ” .
Tou ch “O K”.
STEP 2
STEP 3
STEP 4
10
Page 35
35
Select by street address
Push the “DEST” button on the side of the
touch screen. (P. 3 0 )
Touch “Address”.
Touch “Street Address”.
Input a house number and touch “OK”.
Input the street name and touch “OK”.
When the desired street name is found, touch
the corresponding screen button.
Input a city name and touch “OK”.
Touch the screen button of the desired city
name from the displayed list.
Tou ch “G o t o”.
Tou ch “O K” .
STEP 2
STEP 3
STEP 4
10
Page 36
36
■ Destination input Search points of interest by name
Push the “DEST” button on the side of the
touch screen. (P. 3 0 )
Touch “Point of Interest”.
Tou ch “ Nam e”.
Input the name of the point of interest and
touch “OK”.
Touch the screen button of the desired destination.
Tou ch “G o to ” .
Tou ch “O K”.
STEP 2
STEP 3
STEP 4
Page 37
37
■ Destination input Search points of interest by category
Push the “DEST” button on the side of the
touch screen. (P. 3 0 )
Touch “Point of Interest”.
Tou ch “C at eg o ry ”.
Touch “Near a Destination”.
Touch the screen button of the desired desti-
nation and set screen the search point.
Touch the desired point of interest category
from the displayed list.
Touch the screen button of the desired item.
Tou ch “G o t o”.
Tou ch “O K” .
STEP 2
STEP 3
STEP 4
Page 38
38
■ Destination input Search points of interest by telephone number
Push the “DEST” button on the side of the
touch screen. (P. 3 0 )
Touch “Point of Interest”.
Touch “Phone #”.
Input a telephone number and touch “OK”.
Tou ch “G o to ” .
Tou ch “O K”.
STEP 2
STEP 3
STEP 4
Page 39
39
Hands-free System For Cellular Phone
(with navigation system)
■ Bluetooth® phone pairing
Compatible Bluetooth®-equipped phones can be connected to the vehicle, enabling
hands-free operation. Please refer to the cellular phone manufacturer's user guide for pairing procedures, or go to “www.lexus.com/MobileLink” for more phone information.
To use a Bluetooth
®
phone, it is necessary to first
register it in the system.
Push the button on the side of the touch
screen or press on the steering wheel.
(P. 3 0 )
Touch “Yes”.
Enter the passcode displayed on the screen
into the phone.
Refer to the cellular phone user's manual for
cellular phone operation.
If a completion message is displayed, registration is complete.
STEP 1
STEP 2
STEP 3
Page 40
40
■ Phonebook transfer
Push the “SETUP” button on the side of the
touch screen. (P. 3 0 )
Touch “Phone”.
Touch “Phonebook”.
Touch “Manage Contacts”.
Tou ch “ Tran s fe r Con tac ts” .
Touch “Update Contacts”.
Transfer the phonebook data to the system
using the cellular phone.
Refer to the cellular phone user’s manual for
cellular phone operation.
STEP 2
STEP 5
STEP 7
Page 41
41
■ Registering a speed dial
Push the “SETUP” button on the side of the
touch screen. (P. 3 0 )
Tou ch “Ph on e ”.
Touch “Phonebook”.
Touch “Manage Speed Dials”.
Touch “New”.
Touch the data you want to register.
Touch the desired phone number.
Touch the button you want to register in.
STEP 2
STEP 5
STEP 6
Page 42
42
■ Calling by speed dial
Push the button on the side of the touch
screen or press on the steering wheel.
(P. 3 0 )
Tou ch “ Spe ed D ial s”.
Touch the desired number to call.
STEP 1
STEP 2
STEP 3
Page 43
43
■ Calling using SMS/MMS message
Push the button on the side of the touch
screen or press on the steering wheel.
(P. 3 0 )
Touch “Messages”.
Touch “SMS/MMS” tab.
Touch the desired received message from the
displayed list.
Press on the steering wheel.
STEP 1
STEP 2
The tab display may vary depending on the type of cellular phone.
Page 44
44
■ Receiving a call
When a call is received, this screen is displayed with a sound.
Press on the steering wheel to talk on
the phone.
To refuse the call, press on the steering
wheel.
■ Steering switches
Sending/Receiving/“Phone” screen display
End call/Refuse call
Start the voice command system
Increases/decreases volume
STEP 1
STEP 2
1
2
3
4
Page 45
45
Audio System (with navigation system)
The button positions, shapes and screen may slightly vary depending on the type of the
audio system.
■ Basic operation
Displays the audio control screen
Audio sources
AM: AM radio
FM: FM radio
SAT (if available): Satellite radio
Apps (if available): Internet radio broad
cast
DISC: DVD player/CD player
iPod: iPod
USB: USB memory
BT Audio: Bluetooth
®
audio
AUX: Auxiliary audio device
Sound quality modes
Mute/unmute or pause/resume the current
operation
Power/Volume
■ Radio
Displays the audio control screen
Station selector
Scanning for receivable stations
Using HD Radio
TM
Technology
Adjusting the frequency
Preset tuning/seeking the frequency
1
2
3
4
5
1
2
3
4
5
6
Page 46
46
■ Entering station presets
Touch the desired station by using the tune, seek or scan function.
Press and hold one of the preset buttons (1-6) until a beep is heard, indicating that the
station has been set.
■ DVD player/CD player
■
Playing an audio CD
Displays the audio control screen
Random playback
Repeat play
Pause/Playback
Track select
Track select/rewind/fast-forward
Eject
■ Playing a CD with MP3/WMA files
Displays the audio control screen
Random playback
Repeat play
Pause/Playback
Folder select
File select
File select/rewind/fast-forward
Eject
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
Page 47
47
■ Playing a DVD
Displays the audio control screen
Reverse
Stop
Pause/Playback
Image display (full screen)
Fast forward
Chapter select
Eject
1
2
3
4
5
6
7
8
Page 48
48
■ Operating an iPod
Displays the audio control screen
Random playback
Repeat play
Pause/Playback
Select play mode
Displays the iPod video control screen
Song select
Song select/rewind/fast-forward
■ Remote control (steering wheel switches)
Some audio features can be controlled using the switches on the steering wheel.
Increases/decreases volume
Radio mode: Selects a radio station
Audio CD mode: Selects a track
MP3/WMA disc mode: Selects a file and
folder
DVD mode: Selects a chapter
iPod mode: Selects a song
Press: Turns the power on, selects audio
source
Press and hold: Mute/unmute or pause/
resume the current operation
1
2
3
4
5
6
7
8
1
2
3
Page 49
49
Air Conditioning System
(with navigation system)
■ Using the automatic mode
Press to turn on the airflow and to adjust the temperature.
■ Adjusting the temperature
■
To simultaneously adjust the driver's side and passenger's side temperature settings
Touch to turn the “DUAL” indicator off ( ) and then press .
■
To individually adjust the driver's side and passenger's side temperature settings
Touch or press to turn the “DUAL” indicator on ( ) and then press or .
■ To turn off the airflow
Press .
Fan speed control
Air flows to the feet and the windshield
defogger operates
Outside temperature
Passenger’s side temperature display
Air outlet selector
Outside air/recirculated air mode
Passenger’s side temperature control
Rear window and outside rear view
mirror defoggers
Windshield defogger
Micro dust and pollen filter
Off
Automatic mode
Driver’s side temperature control
DUAL mode
Cooling and dehumidification function
on/off
Driver’s side temperature display
Air conditioning operation screen
display button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
12 13
14
13
14 7
13
7
11
Page 50
50
Hands-free System For Cellular Phone
(without navigation system)
■ Bluetooth® phone pairing
Compatible Bluetooth®-equipped phones can be connected to the vehicle, enabling
hands-free operation. Please refer to the cellular phone manufacturer's user guide for pairing procedures, or go to“www.lexus.com/MobileLink” for more phone information.
To use a Bluetooth
®
phone, it is necessary to first
register it in the system.
Press or .
Press and say “Pair phone”.
Press and say a name*.
*: This name will be used to identify your
phone in the case that more than one
phone has been registered to the system.
Press and say “Confirm” to display the
passkey.
Enter the passkey shown on the display into
the phone.
Refer to the cellular phone user's manual for
cellular phone operation.
Once the voice guidance for registration com-
pletion is finished, press .
STEP 1
: Pressing this switch turns the voice command system on. Say a command after the
beep.
Page 51
51
■ Calling by number
Press and say “Dial by number”.
Press and say the phone number.
Dialing
a. Press .
b. Press and say “Dial”.
■ Calling by name
You can call by saying a voice tag registered in the phonebook. For setting the voice recognition, refer to the “Owner's Manual”.
Press and say “Dial by name”.
Press and say a contact name.
Dialing
a. Press .
b. Press and say “Dial”.
STEP 1
STEP 1
: Pressing this switch turns the voice command system on. Say a command after the
beep.
Page 52
52
■ Calling by speed dial
Press .
Press the desired preset button (1-6).
Press .
STEP 1
STEP 2
Page 53
53
■ Phonebook transfer
Press .
Press and say “Phonebook”.
Press and say “Add entry”.
Press and say “By phone”.
Press and say “Confirm”.
Transfer the phonebook data to the system
using the cellular phone.
Refer to the cellular phone user’s manual for
cellular phone operation.
Press and say “Previous” or “Next” until
the desired data is displayed.
Press and say “Confirm”.
Press and say the desired name.
Press and say “Confirm”.
Press and say “Confirm” again.
STEP 1
10
11
Phonebook transfer may not be possible depending on phone model.
: Pressing this switch turns the voice command system on. Say a command after the
beep.
Page 54
54
■ Changing the registered name
Press .
Press and say “Phonebook”.
Press and say “Change name”.
Press and say the desired name.
Press and say “Confirm”.
Press and say the new name.
Press and say “Confirm”.
STEP 1
: Pressing this switch turns the voice command system on. Say a command after the
beep.
Page 55
55
■ Registering a speed dial
Press .
Press and say “Phonebook”.
Press and say “Set speed dial”.
Select the data to be registered.
Press and say the desired name.
Press and say “Confirm”.
Press the desired preset button (1-6).
Press and say “Confirm”.
STEP 1
STEP 7
: Pressing this switch turns the voice command system on. Say a command after the
beep.
Page 56
56
Audio System (without navigation system)
Owners of models equipped with a navigation system should refer to the “Navigation System
Owner's Manual”.
■ Basic operation
Ty pe A
Sound quality modes
Automatic Sound Levelizer (ASL)
Mute
Audio sources
AM
FM: AM radio/FM radio
SAT: Satellite radio
CD•AUX: CD player/Auxiliary audio
device/USB memory/iPod/
Bluetooth
®
audio player
Power/Volume
Ty pe B
Sound quality modes
Automatic Sound Levelizer (ASL)
Mute
Audio sources
AM: AM radio
FM: FM radio
CD: CD player
AUX: Auxiliary audio device/USB mem-
ory/iPod/Bluetooth
®
audio player
Power/Volume
1
2
3
4
5
1
2
3
4
5
Page 57
57
■ Radio
Ty pe A
Traffic information
Station presets
Text messages
Radio tuner
RDS genre select
Scanning radio stations
Seek
Ty pe B
Traffic information
Station presets
Radio tuner
Station select
Seek
■ Entering station presets
Press the desired station by using the tune, the seek or the scan function.
Press and hold one of the preset buttons (1-6) until you hear a beep, indicating that the
station is set.
1
2
3
4
5
6
7
1
2
3
4
5
Page 58
58
■ CD player
■
Playing an audio CD
Ty pe A
Random playback
Repeat play
Pause/Playback
Text information
Disc select
Disc load
Search playback
Playback
Eject
Track select/rewind/fast-forward
Ty pe B
Random playback
Repeat play
Pause/Playback
Text information
Disc select
Disc load
Playback
Eject
Track select/rewind/fast-forward
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
Page 59
59
■ Playing a CD with MP3/WMA files
Ty pe A
Random playback
Repeat play
Pause/Playback
Folder select
Text information
File select
Disc select
Disc load
Search playback
Playback
Eject
Ty pe B
Random playback
Repeat play
Pause/Playback
Folder select
Text information
File select
Disc select
Disc load
Playback
Eject
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
10
Page 60
60
■ Loading a CD
Press the “LOAD” button.
“WAIT” is shown on the display.
Insert a CD when the indicators on the slot turn from amber to green.
The display changes from “WAIT” to “LOAD”.
■ Loading multiple CDs
Press and hold the “LOAD” button until you hear a beep.
“WAIT” is shown on the display.
Insert a CD when the indicators on the slot turn from amber to green.
The display changes from “WAIT” to “LOAD”.
The indicators on the slot turn to amber when the CD is inserted.
Insert the next CD when the indicators on the slot turn from amber to green again.
Repeat the procedure for the remaining CDs.
To cancel the operation, press the “LOAD” button. If you do not insert a CD within 15
seconds, loading will cancelled automatically.
Page 61
61
■ Operating an iPod
Ty pe A
Random play
Repeat play
Pause/Playback
Go back
Text information
Playback
Menu/Song select
Song select/rewind/fast-forward
Ty pe B
Random play
Repeat play
Pause/Playback
Go back
Text information
Playback
Menu/Song select
Song select/rewind/fast-forward
■ Remote control (steering wheel switches)
The audio system can be operated using the remote control located on the steering wheel.
Volume
Radio mode: radio tuner
CD mode: disc/track/file (MP3/WMA) select
iPod mode: song select
Power on/change mode: press
Power off: press and hold
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
Page 62
62
Air Conditioning System (without navigation system)
Owners of models equipped with a navigation system should refer to the “Navigation System
Owner's Manual”.
■ Using the automatic mode
Press to turn on the airflow and to adjust the temperature.
■ Adjusting the temperature
■
To simultaneously adjust the driver's side and passenger's side temperature settings
Press to turn the “DUAL” indicator off ( ) and then press .
■ To individually adjust the driver's side and passenger's side temperature settings
Press or to turn the “DUAL” indicator on ( ) and then press or .
■ To turn off the airflow
Press .
Driver side temperature control
Switch to automatic mode
Driver side temperature display
OFF button
Fan speed controls
Air flow controls
Passenger side temperature display
Micro dust and pollen filter
Passenger side temperature control
Windshield defog/defrost
Outside air/recirculated air mode switch
A/C switch
Dual mode switch
1
2
3
4
5
6
7
8
9
10
11
12
13
2 1
13 1
13 9 1 9
4
Page 63
63
Voice Command System
■ Basic operation
Press .
- If you know the command:
Press again.
- If you do not know the command:
Follow the voice guidance to learn the com-
mand and then press again.
Say a command after the beep.
NOTE: When inputting voice commands you must wait until after the beep to speak.
STEP 1
■ Important voice commands information and tips
Voice commands can be used while driving.
You must wait until after the beep to say a command.
In vehicles with a navigation system, a large TALK icon will appear on the navi-
gation screen to prompt you to say a command.
If you know what command to use, you can press at any time to interrupt the
voice guidance.
Page 64
64
■ Command list
Without navigation system
With navigation system
Set a Destination
*: For example; Gas stations, Restaurants, etc.
PHONE
To Operate a
Bluetooth
®
Connected
Phone/Make
Calls, SAY:
“Phone” and
then SAY:
“Dial by Name”
NOTE: You
can also make
a call by simply
saying: “Call
XXX-555-
5555” ETC.
“Dial by Number”
“Redial”
“Call Back”
“Mute”
Command
Action
“Find Nearby <POI category>”
Displays a list of <POI category*> near the current
position.
“Enter an Address” Enables setting a destination by saying the address.
“Go Home” Displays the route to home.
“Call Destination Assist”
Connects Lexus Enform with Safety Connect
response center.
“Destination by Phone Num-
ber”
Enables setting a destination by saying the phone
number.
Page 65
65
Use the Phone
Play Music
*: Say the desired artist name or album name in the place of the “<>”.
Command
Action
“Call <name> <type>”
Calls made by saying a name from the phonebook.
For example: Say “Call John Smith”, “Call John Smith,
mobile” etc.
“Dial <number>”
Calls made by saying the phone number.
For example: Say “Dial 911”, “Dial 5556667777” etc.
“International Call”
Calls international numbers by saying the phone
number.
Command
Action
“Play Artist <name>”
Plays tracks by the selected artist.
For example: Say “Play artist <XXXXX>”
*
“Play Album <name>”
Plays tracks from the selected album.
For example: Say “Play album <XXXXX>”
*
“Play Song <name>”
Plays the selected track.
For example: Say “Play song Summertime”, “Play
song Concerto in A Major” etc.
“Play Playlist <name>”
Plays tracks from the selected playlist.
For example: Say “Play playlist My Favorite Songs”,
“Play Playlist Classic Hits” etc.
Page 66
66
Get Information
Select audio mode
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Command
Action
“Traffic” Displays the traffic incident list.
“Weather” Displays weather information.
“Sports Scores” Displays the sports list.
“Stock Quotes” Displays the stocks list.
“Fuel Prices” Displays the fuel prices list.
“Lexus Insider” Displays the Lexus insider list.
Command
Action
“Radio”, “AM”, “FM”, “Satellite
radio”, “Disc”, “Auxiliary”,
“Bluetooth
* audio”, “iPod”,
“USB audio”
Change the audio mode.
“A u d i o o n” Turns the audio system on.
“A u d i o o f f ” Turns the audio system off.
Page 67
67
Climate/air conditioning system command
Command
Action
“Automatic climate control” Turns air conditioning system on and off.
“Warmer” Turns temperature up.
“Cooler” Turns temperature down.
“Select audio mode” and “Climate/air conditioning system command” are enable when
expanded voice commands are turned “On”. Refer to the “Owner’s Manual” and “Navigation System Owner’s Manual”.
Page 68
68
Safety Connect (If Equipped)
■ System components
Microphone
LED light indicators
“SOS” button
■ Services
Subscribers have the following Safety Connect services available:
● Automatic Collision Notification*
In case of either airbag deployment or severe rear-end collision, the system is designed
to automatically call the response center. The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level of emergency. If the occupants are unable to communicate, the agent automatically treats the
call as an emergency, contacts the nearest emergency services provider to describe the
situation, and requests that assistance be sent to the location.
*: U.S. Patent No. 7,508,298 B2
● Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities to assist them in
locating and recovering the vehicle. After filing a police report, call the Safety Connect
response center at 1-800-25-LEXUS (1-800-255-3987) and follow the prompts for
Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle, Safety-Connect-equipped vehicle location data may, under certain circumstances, be shared with
third parties to locate your vehicle. Further information is available at Lexus.com.
Safety Connect is a subscription-based telematics service that uses Global Positioning
System (GPS) data and embedded cellular technology to provide safety and security
features to subscribers. Safety Connect is supported by Lexus’ designated response
center, which operates 24 hours per day, 7 days per week.
Safety Connect service is available by subscription on select, telematics hardwareequipped vehicles.
1
2
3
Page 69
69
● Emergency Assistance Button (SOS)
In the event of an emergency on the road, push the “SOS” button to reach the Safety
Connect response center. The answering agent will determine your vehicle’s location,
assess the emergency, and dispatch the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center agent that you are
not experiencing an emergency.
● Enhanced Roadside Assistance
Subscribers can press the “SOS” button to reach a Safety Connect response-center
agent, who can help with a wide range of needs, such as: towing, flat tire, fuel delivery, etc.
For a description of the Enhanced Roadside Assistance services and their limitations,
please see the Safety Connect Terms and Conditions, which are available at Lexus.com.
■ Subscription
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services.
A variety of subscription terms is available for purchase. Contact your Lexus dealer, call 1800-25-LEXUS (1-800-255-3987) or push the “SOS” button in your vehicle for further
subscription details.
Page 70
70
Lexus Enform with Safety Connect (If Equipped)
■ Function achieved by using a cellular phone
■
Services
Of the functions included with Lexus Enform with Safety Connect, only Apps can be
achieved by using a cellular phone.
Apps is a service that enables the usable contents of a cellular phone to be displayed on and
operated from the navigation screen.
● APPS
Each time “Apps” is activated, the system checks for updates. When there are no updates
available, the main menu screen will be displayed right after a screen indicating that
updates are being checked for has been displayed.
■ Subscription
Apps will be available on a trial period included upon purchase of a new vehicle. User registration is required to start using the service.
When a trial period has elapsed after purchasing a new vehicle, a fee will be charged to
renew the contract. Services requiring a separate contract can also be used. For details,
refer to http://www.lexus.com/enform/
or call 1-800-255-3987.
■ Function achieved by using DCM and the navigation system
■
Services
Of the functions included with Lexus Enform with Safety Connect, Destination Assist,
eDestination, and Lexus Insider can be achieved by making DCM cooperate with the
navigation system.
These are subscription-based telematics services that use Global Positioning System (GPS)
data, embedded cellular technology to provide safety and security as well as convenience
features to subscribers. The services are supported by Lexus’ designated response center,
which operates 24 hours per day, 7 days per week.
The services are available by subscription on select, telematics hardware-equipped vehicles.
Lexus Enform with Safety Connect is a feature that includes Apps, Destination Assist,
eDestination, Lexus Insider, and Safety Connect.
The functions included in Lexus Enform with Safety Connect are classified into the following three functions.
For details, refer to the “Owner’s Manual” and “Navigation System Owner’s Manual”.
Page 71
71
● Destination Assist
Destination Assist provides you with live assistance for finding destinations via the Lexus
Enform with Safety Connect response center. You can request either a specific business,
address, or ask for help locating your desired destination by category, such as restaurants, gas stations, shopping centers or other points of interest (POI).
After you tell the agent your choice of destination, its coordinates are sent wirelessly to
your vehicle’s navigation system.
● eDestination
With the eDestination feature, you can go online, via the Lexus.com owner’s Web site, to
select and organize destinations of your choice and then wirelessly send them to your
vehicle’s navigation system.
Up to 200 locations can be stored online and accessed or updated at any time.
Locations can be organized into up to 20 personalized folders.
You must first go online at www.lexus.com/drivers/
to view the Owners site where you
will need to register and log in. After this, personalized folders that contains the locations
to be sent to your vehicle can be created. (See Lexus Enform with Safety Connect Guide
for more information.)
● Lexus Insider
Lexus Insider is an optional service that can send audio messages, or articles, to participating owners’ vehicles via the navigation system. Potential Lexus Insider subjects might
include, for example, Lexus vehicle technology tips, updates on regional Lexus events, or
audio excerpts from Lexus Magazine articles. Up to 20 articles can be stored at a time.
You may opt out of receiving Lexus Insider messages at any time.
■ Subscription
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services. A variety of subscription terms is available for purchase.
Contact your Lexus dealer, call 1-800-25-LEXUS (1-800-255-3987), or touch “Destination Assist” in your vehicle for further subscription details.
■ Function achieved by using DCM
■
Services
Of the functions included with Lexus Enform with Safety Connect, Safety Connect can be
achieved by using DCM.
● Safety Connect (P. 6 8 )
Page 72
72
XM Services (If Equipped)
■ Services
With an active XM subscription, the following features are available:
● XM Sports and XM Stocks
*
1
XM Sports and XM Stocks are services included with an XM Satellite Radio subscription. These services are also available with an XM TravelLink subscription. With these
services, you can receive updates via the navigation system on your personally selected
sports teams and stocks.
● XM Fuel Prices
*
2
XM Fuel Prices is a service included with an XM TravelLink subscription. It enables the
navigation system to display current fuel prices and gas station locations, which can be
set as a destination if desired.
● XM NavWeather
TM*2
The subscription-based XM NavWeatherTM service allows the navigation system to display weather information on the map screen.
● XM NavTraffic
®*2
The subscription-based XM NavTraffic® service allows the navigation system to display
traffic information on the map screen.
*
1
: Available at no extra charge with an active XM Satellite Radio subscription.
*
2
: Available via separate XM subscription(s).
■ Subscription
XM NavTraffic®, XM NavWeatherTM and XM TravelLink require separate XM subscription(s). XM Sports
*, XM Stocks* and XM Fuel Prices are available with an XM TravelLink
subscription. After a 90-day trial, you must contact XM and set up the appropriate XM
subscription(s) to continue receiving these services.
*: XM Sports and XM Stocks are included with an XM Satellite Radio subscription.
XM services are subscription-based XM Satellite Radio services to provide convenient
features to subscribers.
For details, refer to the “Owner’s Manual” and “Navigation System Owner’s Manual”.
Page 73
73
Door Locks
■ Locking the vehicle from inside
Inside lock button
Locks
Unlocks
Door lock switch
Operates all door locks.
Locks
Unlocks
■ Locking the vehicle from outside
Using the entry function or wireless remote control (P.8, 9)
■ Rear door child-protector lock
Setting the switch to the LOCK position prevents
the rear doors from being opened from the inside.
Unlock
Lock
Always set the child protector locks when children are seated in the rear seat.
1
2
1
2
1
2
Page 74
74
Power Windows
Power window switches
To open: press the switch.
To close: pull the switch up.
Fully pulling up and releasing the switches
causes the windows to close fully. Fully
pressing down and releasing the switches
causes the windows to open fully.
Window lock switch
The window lock switch disables the operation of passenger window switches.
Moon Roof (If Equipped)
■ Opening and closing
Open
The moon roof stops slightly before the fully
opened position.
To fully open, press the switch again.
Close
■ Tilt up and down
Tilt up
Tilt down
1
2
1
2
1
2
Page 75
75
Fuel Tank Cap
Press the fuel filler door opener.
Slowly remove the cap by turning it counter-
clockwise.
After the cap is removed, it can be hung on the
inside of the fuel filler door.
Page 76
76
Trunk
■ Trunk opener
To open the trunk from inside the cabin, simply
press the trunk opener.
To disable the trunk opener, turn off the main
switch in the glove box.
On
Off
When the trunk opener is disabled, the trunk cannot be opened using the wireless remote control
or the entry function.
■ Entry function and wireless remote control
P.8, 9
1
2
Page 77
What to do if ...
77
List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
(Canada)
Brake system warning light
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
(U.S.A.)
(Canada)
Malfunction
indicator lamp
Electric power steering
system warning light
(Blinking and
then continu-
ously on)
Tire pressure warning light
SRS warning light
(U.S.A.)
(Canada)
ABS warning light
(Comes on)
Slip indicator
Have the malfunction repaired immediately.
Open door warning light
(On the
center panel)
Front passenger’s seat belt
reminder light
Low fuel level warning light
(Illuminates
without blink-
ing)
Tire pressure warning light
*1
(On the
instrument
cluster)
Driver’s seat belt
reminder light
Master warning light
For further information, refer to the Owner's Manual.
Page 78
78
*1
: Turns on due to natural causes such as natural air leaks or tire inflation pressure changes
caused by temperature including the spare tire. Adjust the tire inflation pressure to the
specified level. The light will turn off after a few minutes. In case the light does not turn off
even if the tire inflation pressure is adjusted, have the system checked by your Lexus
dealer.
*2
: If equipped
See the Owner's Manual
Tu rn si g n al in di ca t o r Cruise control indicator
Headlight high beam indicator Front fog light indicator
Headlight indicator (U.S.A.)
Intuitive parking assist
indicator
*2
Tail light indicator (Canada)
(Flashes)
Slip indicator
“ECT SNOW” indicator SRS airbag on-off indicator
“ECT PWR” indicator VSC off indicator
Shift position and shift range indicators
For further information, refer to the Owner's Manual.
Page 79
What to do if ...
79
If the electronic key does not operate
properly
■ Unlocking and locking the doors
To unlock or lock the vehicle, use the mechanical
key to remove the lock cover on the driver's door
handle. The mechanical key is stored inside the
electronic key.
Unlocks
Locks
■ Starting the engine
Depress the brake pedal.
Touch the Lexus emblem side of the electronic
key to the “ENGINE START STOP” switch.
Press the “ENGINE START STOP” switch
within 10 seconds of the buzzer, keeping the
brake pedal depressed.
1
2
If the electronic key battery becomes depleted, replace it with a new battery. For instructions on replacing the battery, refer to the Owner's Manual. If you need further assistance,
contact your Lexus dealer.
Page 80
80
If the engine doesn't start
Make sure that the correct operating procedures have been followed.
Make sure that the brake pedal is firmly
depressed when attempting to start the engine.
(P.1 4 )
Make sure that the steering wheel lock is released.
To release the steering wheel lock, gently turn the
wheel left or right while pressing the “ENGINE
START STOP” switch. (P. 1 0 )
Brake pedal
Steering wheel lock
If the engine still does not start, see the Owner's Manual for more information or contact
your Lexus dealer.
Page 81
What to do if ...
81
Electronic Key Alarm
The electronic key alarm uses an alarm and warning messages to indicate that the electronic
key has been used improperly. Take appropriate measure in response to any warning messages that are displayed. In some cases, an alarm may sound without an accompanying
warning message. If so, follow the correction procedure in the table below.
Alarm Situation Correction procedure
Exterior alarm sounds
once for 2 seconds
Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartment
Retrieve the electronic key
from the passenger compartment and lock the
doors again.
Closed the trunk while the
electronic key is still inside
and all doors are locked
Retrieve the electronic key
from the trunk and close
the trunk lid.
Exterior alarm sounds
once for 60 seconds
Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the “ENGINE
START STOP” switch OFF
Turn the “ENGINE START
STOP” switch OFF and
lock the doors again.
Exterior alarm sounds
once for 10 seconds
Tried to lock the vehicle
using the entry function
while a door is open
Close all of the doors and
lock the doors again.
Interior alarm sounds
continuously
Tried to open the door and
exit the vehicle without
shifting the shift lever to P
Shift the shift lever to P.
Interior alarm pings
continuously
Switched to ACCESSORY mode while the
driver's door is open
(Opened the driver's door
when the “ENGINE
START STOP” switch is in
ACCESSORY mode.)
Close the driver's door.
Tu rn ed th e “ EN GI NE
START STOP” switch OFF
while the driver's door is
open
Close the driver's door.
Page 82
82
Customizing Your Lexus
Your vehicle includes a variety of electronic features that can be personalized to your
preferences. Programming these preferences requires specialized equipment and may
be performed by an authorized Lexus dealership.
Some function settings are changed simultaneously with other functions being customized.
Contact your Lexus dealer for further details.
Item Function
Default
setting
Customized
setting
Smart access
system with
push-button start
Operation signal
(Emergency flashers)
On Off
Operation signal
(Buzzer)
On Off
Wireless remote
control
Unlocking operation
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in
one step
Automatic door lock function
to be activated if door is not
opened after being unlocked
On Off
Tim e elap s ed be f ore au to matic door lock function is
activated if door is not opened
after being unlocked
60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers)
On Off
Operation signal
(Buzzer)
On Off
Door lock buzzer On Off
Trunk unlocking function On Off
Trunk unlocking operation Push and hold
Push twice
One short push
Panic function On Off
Page 83
Customizing Your Lexus
83
Item Functio n
Default
setting
Customized
setting
Door lock
Unlocking using a key
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in
one step
Speed-detecting automatic
door lock function
Off On
Opening driver's door unlocks
all doors
Off On
Shifting gears to P unlocks all
doors
On Off
Shifting gears to position other
than P locks all doors
On Off
Steering wheel Auto tilt-away function On Off
Power windows
Linked door key operation
Open and
close
Off
Open only
Close only
Wireless remote control linked
operation
Off Open only
Moon roof
Linked door key operation
Open and
close
Off
Open only
Close only
Linked operation of components
when door key is used
Slide only Tilt only
Wireless remote control linked
operation
Off Open only
Linked operation of components
when wireless remote control is
used
Slide only Tilt only
Page 84
84
Item Function
Default
setting
Customized
setting
Automatic light
control system
Light sensor sensitivity Level 3 Level 1 to 5
Time elapsed before headlights
automatically turn off after
doors are closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
Daytime running light system
(U.S.A. only)
On Off
Windshield
wipers and
washer
Switching operation when the
vehicle is stationary
On Off
Drip prevention function On Off
Time elapsed before the drip
prevention function operates
Va r i a b l e
depending on
the vehicle
speed
3 seconds
Intuitive parking
assist
Back sensor operation display
and buzzer
On Off
Buzzer volume Level 3 Level 1 to 5
Distance which a sensor detects 4.9 ft. (150 cm) 2.0 ft. (60 cm)
Illumination
Time elapsed before lights turn
off
15 seconds
7.5 s e conds
30 seconds
Operation when the doors are
unlocked
On Off
Operation after the “ENGINE
START STOP” switch is turned
OFF
On Off
Front footwell lights On Off
Shift lever light On Off
Outer foot lights On Off
Seat belt
reminder
Vehicle speed linked seat belt
reminder buzzer
On Off
Page 85
Memo
85
Page 86
86
Your Lexus dealer
Your Lexus dealer will provide quality maintenance and any other assistance
you may require.
If there is not a Lexus dealer near you, please call the following number:
■ U.S. OWNERS
●In the U.S. mainland or Canada:
Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
●In Hawaii:
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
■ CANADIAN OWNERS
●In Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)
Please access our websites for further information.
●The U.S. mainland: www.lexus.com
●Hawaii: www.servcolexus.com
●Canada: www.lexus.ca
©2012 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of Toyota Motor Corporation.
Loading...
