Lexus HS250h (2011) Owner’s Manual

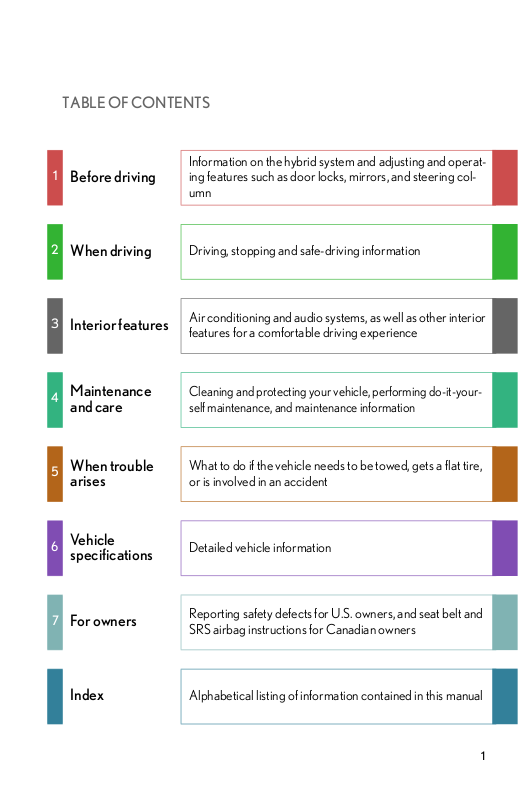

TABLE OF CONTENTS

1

Before driving

Information on the hybrid system and adjusting and operat­ing features such as door locks, mirrors, and steering col­umn

2

When driving

3

Interior features

Maintenance

4

and care

When trouble

5

arises

Vehicle

6

specifications

7

For owners

Driving, stopping and safe-driving information

Air conditioning and audio systems, as well as other interior
features for a comfortable driving experience

Cleaning and protecting your vehicle, performing do-it-your­self maintenance, and maintenance information

What to do if the vehicle needs to be towed, gets a flat tire,
or is involved in an accident

Detailed vehicle information

Reporting safety defects for U.S. owners, and seat belt and
SRS airbag instructions for Canadian owners

Index

Alphabetical listing of information contained in this manual

1

TABLE OF CONTENTS Index

For information regarding the equipment listed below, refer to the “Navigation
System Owner’s Manual”.

• Navigation system

• Air conditioning

• Audio/video system

• Rear window and outside rear view
mirror defogging

• Windshield wiper de-icer

• Rear view monitor system

• Climate control

• Wide view front monitor system

• Intuitive parking assist

1-4. Adjustable components

1

Before driving

1-1. Hybrid system

Hybrid system................................... 24

Hybrid system precautions ......... 28

Energy monitor/consumption

screen................................................ 33

Hybrid vehicle driving tips.......... 38

1-2. Key information

Keys ...................................................... 40

(seats, mirrors, steering wheel)

Front seats.......................................... 65

Driving position memory

(driver’s seat) ................................. 69

Head restraints................................. 72

Seat belts ............................................ 74

Steering wheel................................. 80

Inside rear view mirror.................. 82

Outside rear view mirrors........... 84

1-5. Opening and closing

the windows and moon roof

1-3. Opening, closing and locking

the doors

Smart access system with

push-button start .......................... 45

Wireless remote control.............. 55

Doors................................................... 58

Trunk...................................................... 61

2

Power windows................................ 87

Moon roof .......................................... 90

1-6. Refueling

Opening the fuel tank cap........... 94

1-7. Theft deterrent system

Immobilizer system ........................ 98

Alarm.................................................. 100

Theft prevention labels

(for U.S.A.).................................... 103

1-8. Safety information

Correct driving posture ............. 104

SRS airbags ..................................... 106

Front passenger occupant

classification system................... 118

Child restraint systems ............... 123

Installing child restraints.............. 127

2

When driving

2-1. Driving procedures

Driving the vehicle........................ 138

Power (ignition) switch............... 147

EV drive mode ............................... 152

Hybrid transmission ..................... 155

Turn signal lever .............................. 161

Parking brake ................................. 162

Horn.................................................... 163

2-2. Instrument cluster

Gauges and meters ..................... 164

Indicators and warning

lights................................................. 168

Multi-information display............ 172

Head-up display ............................ 178

2-3. Operating the lights and

windshield wipers

Headlight switch............................ 186

Automatic High Beam.................. 191

Fog light switch .............................. 197

Windshield wipers and

washer ............................................ 198

Headlight cleaner switch .......... 203

2-4. Using other driving systems

Cruise control ............................... 204

Dynamic radar cruise

control........................................... 208

LKA (Lane-Keeping Assist) ..... 221

Driving assist systems................. 229

Hill-start assist control ............... 234

Pre-Collision System.................. 236

2-5. Driving information

Cargo and luggage..................... 245

Vehicle load limits........................ 248

Winter driving tips ....................... 249

Trailer towing................................. 252

Dinghy towing ............................... 253

1

2

3

4

5

6

7

3

TABLE OF CONTENTS Index

3

Interior features

3-1. Using the air conditioning system

and defogger

Automatic air conditioning

system ............................................ 256

Rear window defogger

switch.............................................. 264

Windshield wiper de-icer......... 265

3-2. Using the audio system

Audio system ................................. 266

Using the radio.............................. 269

Using the CD player................... 277

Playing MP3 and WMA

discs ............................................... 285

Operating an iPod....................... 292

Operating a USB memory...... 300

Optimal use of the audio

system ........................................... 308

Using the AUX port....................... 311

Using the steering wheel

audio switches ............................. 312

3-3. Using the Bluetooth

®

audio

system

®

Bluetooth
Using the Bluetooth

audio system .......... 315

®

audio

system ............................................. 318

Operating a Bluetooth

®

enabled portable player......... 323

®

Setting up a Bluetooth

enabled portable player......... 326

®

Bluetooth

audio system

setup ................................................ 331

3-4. Using the hands-free phone

system (for cellular phones)

Hands-free system for cellular

phones ........................................... 332

Using the hands-free system

(for cellular phones)................. 336

Making a phone call.................... 344

Setting a cellular phone............. 349

Security and system setup........ 354

Using the phone book............... 358

3-5. Using the interior lights

Interior lights list............................ 364

• Interior lights ............................... 365

• Personal lights ............................ 365

4

3-6. Using the storage features

List of storage features............... 367

• Glove box ................................... 368

• Console box................................ 369

• Cup holders.................................. 371

• Bottle holders ............................. 373

• Auxiliary boxes........................... 374

3-7. Other interior features

Sun visors......................................... 375

Vanity mirrors................................ 376

Clock................................................. 377

Power outlets................................. 378

Seat heaters and

ventilators..................................... 379

Armrest ............................................. 381

Rear sunshade.............................. 382

Floor mat......................................... 384

Trunk compartment

features......................................... 386

Garage door opener................. 388

Compass.......................................... 396

Safety Connect ............................ 400

4

Maintenance and care

4-1. Maintenance and care

Cleaning and protecting

the vehicle exterior.................. 408

Cleaning and protecting

the vehicle interior..................... 412

4-2. Maintenance

Maintenance requirements...... 415

General maintenance.................. 417

Emission inspection and

maintenance (I/M)

programs ....................................... 421

4-3. Do-it-yourself maintenance

Do-it-yourself service

precautions.................................. 422

Hood ................................................. 425

Positioning a floor jack............... 426

Engine compartment.................. 428

12-volt battery................................ 439

Tires ................................................... 443

Tire inflation pressure.................. 451

Wheels ............................................. 454

Air conditioning filter.................. 456

Electronic key battery................ 459

Checking and replacing

fuses................................................. 461

Headlight aim

(LED headlights) ....................... 473

Light bulbs....................................... 475

1

2

3

4

5

6

7

5

TABLE OF CONTENTS Index

5

When trouble arises

5-1. Essential information

Emergency flashers.................... 488

If your vehicle needs to

be towed ...................................... 489

If you think something is

wrong ............................................. 495

Event data recorder.................... 496

5-2. Steps to take in an emergency

If a warning light turns on

or a warning buzzer

sounds........................................... 498

If a warning message is

displayed....................................... 507

If you have a flat tire..................... 527

If the hybrid system will not

start ................................................. 537

If you lose your keys................... 539

If the electronic key does

not operate properly .............. 540

If the vehicle 12-volt battery

is discharged ............................... 543

If your vehicle overheats .......... 548

If the vehicle becomes

stuck................................................ 552

If your vehicle has to

be stopped in

an emergency............................ 554

6

Vehicle specifications

6-1. Specifications

Maintenance data

(fuel, oil level, etc.).................... 556

Fuel information........................... 565

Tire information............................ 568

6-2. Customization

Customizable features.............. 580

6-3. Initialization

Items to initialize ........................... 592

7

For owners

Reporting safety defects

for U.S. owners........................... 594

Seat belt instructions

for Canadian owners

(in French)................................... 595

SRS airbag instructions

for Canadian owners

(in French).................................... 597

6

Index

Abbreviation list .................................. 608

Alphabetical index................................ 610

What to do if... ....................................... 624

1

2

3

4

5

6

7

7

Pictorial index

P. 90

P. 186

P. 197

P. 161

P. 186

P. 425

P. 186

P. 198

P. 84

P. 161

P. 186, 189

Exterior

Headlights (low beam)

Headlights (high beam) and
daytime running lights

Windshield wipers

Hood

Parking lights

Moon roof

Outside rear view

mirrors

8

Fog lights

Turn signal lights

Side marker lights

Turn signal lights

P. 186

Rear window defogger

P. 264

P. 443

P. 527

P. 563

P. 568

P. 186

P. 94

P. 161

P. 186

P. 58

P. 61

Turn signal lights

Fuel filler door

Doors

Tires

●Rotation

●Replacement

●Inflation pressure

●Information

Trunk

License plate lights

Tail lights

Side marker lights

9

P. 106

P. 384

Pictorial index

P. 106

P. 369

P. 373

P. 72

P. 74

P. 381

P. 106

P. 106

P. 445

P. 65

P. 371

P. 106

Interior

Bottle holders

Seat belts

Head restraints

SRS driver airbag

SRS knee airbags

SRS front passenger
airbag

Armrest

Rear SRS side airbags

Front SRS side airbags

10

Tire pressure
warning reset
switch

Cup holders

Floor mat

Front seats

Console box

Anti-glare inside rear view mirror

P. 82

P. 388

P. 396

P. 375

P. 374

P. 106

P. 365

P. 365

P. 90

P. 400

P. 388

P. 376

P. 376

P. 365

Garage door opener switches

Compass

Sun visors

Moon roof switches

“SOS” button

Interior light




SRS curtain shield airbags

Interior light

Personal light

Vanity lights

Vanity mirrors

Auxiliary box 

Garage door opener switches 

: If equipped

11

P. 69

P. 58

P. 87

P. 87

P. 58

Pictorial index

Driving position memory switches 

Interior

Inside door lock buttons

Window lock switch

Door lock switches

Power window switches

12

P. 371

P. 374

P. 378

P. 379

P. 379

P. 155

P. 155

OPEN CLOSE switch *

P. 311

P. 300

P position switch

Hybrid transmission
shift lever

TILT switch *

Remote Touch *
Auxiliary box

AUX port
USB port

Cup holders



Seat heater switches 

Seat heater/ventilator
switches



Power outlet

: If equipped

*: Refer to “Navigation System Owner's Manual”.

13

Pictorial index

P. 186

P. 161

P. 197

P. 80

P. 237

P. 162

P. 152

P. 157

P. 157

P. 425

P. 80

P. 368

P. 61

P. 147

P. 198

P. 164

P. 172

P. 266

Instrument panel

Gauges and meters
Multi-information display

Tilt and telescopic steering
control switch



Headlight switch

Turn signal lever

Fog light switch

Windshield wipers and
washer switch

Power (ignition) switch

Glove box

Trunk opener
main switch

14

Audio system *

EV drive mode switch
“ECO MODE” switch
Power mode switch

Tilt and telescopic steering control lever 

Pre-collision braking off switch 

Parking brake pedal

Hood lock release lever

2

Without navigation system

P. 264

P. 488

P. 98, 100

P. 377

P. 256

P. 488

P. 98, 100

Air
conditioning
system

Emergency flasher
switch

Clock

Security indicator

Rear window and
outside rear view
mirror defogger
switch

With navigation system

Emergency flasher
switch

Air conditioning
system

1

Navigation system

*

1

Clock*

Security indicator

1

*

Rear window and out­side rear view mirror
defogger switch

: If equipped

1

*

: Refer to “Navigation System Owner's Manual”.

2

*

: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

1

*

15

Pictorial index

P. 337

P. 172

P. 312

P. 204

P. 208

P. 208

P. 221

P. 163

P. 337

Instrument panel

Audio remote
control switches

Talk switch  *

Telephone switches  *

2

*

Distance switch 

Horn

LKA (Lane Keeping Assist)

Cruise control switch

Dynamic radar cruise control switch

2

Multi-information
switches



switch



2

16

Instrument panel light control switches

P. 165

P. 382

P. 203

P. 265

P. 61

P. 94

P. 178

P. 84

P. 178

P. 178

P. 230

P. 178

Outside rear view mirror
switches

Headlight cleaner



switch

HUD (Head-up Display)
main switch



HUD (Head-up
Display) contrast
adjustment switch



HUD (Head-up
Display) position
adjustment switch



NAVI switch

Rear sunshade



switch
VIEW switch *1

Windshield wiper de-icer



switch
VSC OFF switch
Trunk opener

Fuel filler door opener

: If equipped

1

*

: Refer to “Navigation System Owner's Manual”.

2

*

: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

17

For your information

Main Owner’s Manual

Please note that this manual applies to all models and explains all equipment, includ­ing options. Therefore, you may find some explanations for equipment not installed
on your vehicle.

All specifications provided in this manual are current at the time of printing. How­ever, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.

Depending on specifications, the vehicle shown in the illustrations may differ from
your vehicle in terms of color and equipment.

Noise from under vehicle after turning off the hybrid system

Approximately five hours after the hybrid system is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a fuel evapo­ration leakage check and, it does not indicate a malfunction.

Accessories, spare parts and modification of your Lexus

A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.

This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regulations. In addition, damage or perfor­mance problems resulting from the modification may not be covered under war­ranty.

18

Installation of a mobile two-way radio system

As the installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as the multiport fuel injection system/sequential multiport
fuel injection system, cruise control system, anti-lock brake system, SRS airbag sys­tem and seat belt pretensioner system, be sure to check with your Lexus dealer for
precautionary measures or special instructions regarding installation.

High voltage parts and cables on the hybrid vehicles emit approximately the same
amount of electromagnetic waves as the conventional gasoline powered vehicles or
home electronic appliances despite of their electromagnetic shielding.

Unwanted noise may occur in the reception of the mobile two-way radio.

Scrapping of your Lexus

The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.

Perchlorate Material

Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.

19

CAUTION

■ General precautions while driving

Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.

Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.

Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.

■ General precaution regarding children’s safety

Never leave children unattended in the vehicle, and never allow children to have or
use the key.

Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to children.

■ Disposal of the hybrid battery (traction battery)

If your vehicle is disposed of without the hybrid battery having been removed, there
is a danger of serious electric shock if high voltage parts, cables and their connec­tors are touched. In the event that your vehicle must be disposed of, the hybrid bat­tery must be disposed of by your Lexus dealer or a qualified service shop. If the
hybrid battery is not disposed of properly, it may cause electric shock that can result
in death or serious injury.

20

Symbols used throughout this manual

CAUTION

NOTICE

Cautions & Notices

This is a warning against something which, if ignored, may cause death or serious
injury to people. You are informed about what you must or must not do in order to
reduce the risk of death or serious injury to yourself and others.

This is a warning against something which, if ignored, may cause damage to the vehi­cle or its equipment. You are informed about what you must or must not do in order to
avoid or reduce the risk of damage to your Lexus and its equipment.

Symbols used in illustrations

Safety symbol

The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen”.

Arrows indicating operations

Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.

Indicates the outcome of an operation
(e.g. a lid opens).

21

22

Before driving

1

1-1. Hybrid system

Hybrid system ............................ 24

Hybrid system precautions ... 28

Energy monitor/

consumption screen............. 33

Hybrid vehicle driving tips..... 38

1-2. Key information

Keys.............................................. 40

1-3. Opening, closing and locking

the doors

Smart access system with

push-button start .................... 45

Wireless remote control......... 55

Doors ........................................... 58

Trunk .............................................. 61

1-4. Adjustable components

(seats, mirrors, steering
wheel)

Front seats................................... 65

Driving position memory

(driver’s seat) ........................... 69

Head restraints.......................... 72

Seat belts ..................................... 74

Steering wheel.......................... 80

Inside rear view mirror ........... 82

Outside rear view mirrors...... 84

1-5. Opening and closing

the windows and moon roof

Power windows.......................... 87

Moon roof ................................... 90

1-6. Refueling

Opening the fuel tank cap ..... 94

1-7. Theft deterrent system

Immobilizer system .................. 98

Alarm.......................................... 100

Theft prevention labels

(for U.S.A.) ............................. 103

1-8. Safety information

Correct driving posture ....... 104

SRS airbags .............................. 106

Front passenger occupant

classification system............. 118

Child restraint systems ......... 123

Installing child restraints........ 127

23

1-1. Hybrid system

Your vehicle is a hybrid vehicle. It has characteristics different from con­ventional vehicles. Be sure you are closely familiar with the characteristics
of your vehicle, and operate with care.

The hybrid system combines the use of a gasoline engine and an electric
motor (traction motor) according to driving conditions, improving fuel effi­ciency and reducing exhaust emissions.

Gasoline engine
Electric motor (Traction motor)

■ When stopped/during start off

The gasoline engine stops* when the vehicle is stopped. During
start off, the electric motor (traction motor) drives the vehicle. At
slow speeds or when traveling down a gentle slope, the engine is
stopped* and the motor is used.

When shift position N is selected, the hybrid battery (traction bat­tery) will not be charged. Thus, select P when the vehicle is stopped.
In addition, when driving in heavy traffic, use D or B.

Hybrid system

24

■ Regenerative braking

*: However, when the hybrid battery (traction battery) need to be

charged or while the engine is being warmed up, the gasoline
engine may not stop automatically.

■ During normal driving

The gasoline engine is predominantly used. The electric motor
(traction motor) charges the hybrid battery as necessary.

■ When accelerating sharply

The power of the hybrid battery (traction battery) is added to that of
the gasoline engine via the electric motor (traction motor).

■ When braking (regenerative braking)

The electric motor (traction motor) charges the hybrid battery
(traction battery).

In the following situations, kinetic energy is converted to electric energy and decel­eration force can be obtained in conjunction with the recharging of the hybrid bat­tery (traction battery).

● The accelerator pedal is released while driving with shift position D or B

selected.

● The brake pedal is depressed while driving with shift position D or B selected.

■ Conditions in which the gasoline engine may not stop

The gasoline engine starts and stops automatically. However, it may not stop auto­matically in the following conditions:

● During gasoline engine warm-up

● During hybrid battery (traction battery) charging

● When the temperature of the hybrid battery (traction battery) is high or low

● When the heater is switched on

1-1. Hybrid system

1

Before driving

25

1-1. Hybrid system

■ Charging the battery

As the gasoline engine charges the hybrid battery (traction battery), the battery
does not need to be charged from an outside source. However, if the vehicle is left
parked for a long time the hybrid battery will slowly discharge. For this reason, be
sure to drive the vehicle at least once every few months for at least 30 minutes or
10 miles (16 km). If the hybrid battery becomes fully discharged and you are unable
to jump-start the vehicle with the 12-volt battery, contact your Lexus dealer.

■ After the 12-volt battery has discharged or has been changed or removed

The gasoline engine may not stop even if the vehicle is running on the hybrid battery
(traction battery). If this continues for a few days, contact your Lexus dealer.

■ Sounds and vibrations specific to a hybrid vehicle

There may be no engine sounds or vibration even though the vehicle is able to
move. Always change the shift position to P, and apply the parking brake when
parked.

The following sounds or vibrations may occur when the hybrid system is operating
and are not a malfunction:

● Motor sounds may be heard from the engine compartment.

● Sounds may be heard from the hybrid battery (traction battery) behind the rear

seats when the hybrid system starts or stops.

● Sounds from the hybrid system may be heard when the trunk lid is open.

● Sounds may be heard from the transaxle when the engine is started or stopped,

or while the engine is idling.

● Engine sounds may be heard when accelerating sharply.

● Sounds may be heard due to regenerative braking when the brake pedal is

depressed and accelerator is loosened.

● Other sounds, such as motors and mechanical noises, may be heard from the

brake system when the brake pedal is depressed.

● Vibration may be felt when the gasoline engine starts or stops.

● Cooling fan sounds may be heard from the air intake vent on the side of rear left

seatback.
When driving in Eco drive mode, the fan noise may be louder than when driving
normally.

26

1-1. Hybrid system

■ Maintenance, repair, recycling, and disposal

Contact your Lexus dealer regarding maintenance, repair, recycling and disposal.
Do not dispose of the vehicle yourself.

1

Before driving

27

1-1. Hybrid system

Take care when handling the hybrid system, as it contains a high voltage
system (about 650V at maximum) as well as parts that become extremely
hot when the hybrid system is operating. Obey the caution labels attached
to the vehicle.

Air conditioning compressor
Power control unit
Hybrid battery (traction bat-

tery) and DC/DC converter
Service plug

High voltage cables (orange)
Electric motor (traction motor)
Caution label

Hybrid system precautions

28

1-1. Hybrid system

Hybrid battery air vent

There is an air intake vent on the
side of the rear left seatback for
the purpose of cooling the hybrid
battery (traction battery). If the
vent become blocked, the hybrid
battery may overheat, leading to a
reduction in hybrid battery output.

Emergency shut off system

When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks off the high voltage current and stops
the fuel pump to minimize the risk of electrocution and fuel leakage. If the
emergency shut off system activates, your vehicle will not restart. To
restart the hybrid system, contact your Lexus dealer.

1

Before driving

Hybrid warning message

A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted.

If a warning message is shown on
the multi-information display, read
the message and follow the
instructions. (P. 507)

29

1-1. Hybrid system

■ If a warning light comes on, a warning message is displayed, or the 12-volt battery

is disconnected

The hybrid system may not start. In that case, try to start the system again. If the
“READY” indicator does not come on, contact your Lexus dealer.

■ Electromagnetic waves

● High voltage parts and cables on the hybrid vehicles incorporate electromag-

netic shielding, and therefore emit approximately the same amount of electro­magnetic waves as conventional gasoline powered vehicles or home electronic
appliances.

● Your vehicle may cause sound interference in some third party-produced radio

parts.

■ Running out of fuel

When the vehicle has run out of fuel and the hybrid system cannot be started, refuel
the vehicle with at least enough gasoline to make the low fuel level warning light
(P. 501) go off. If there is only a small amount of fuel, the hybrid system may not
be able to start. (The minimum amount of fuel to add to make the low fuel level
warning light go out is about 2.6 gal. [10 L, 2.1 Imp.gal.], when the vehicle is on a
level surface. This value may vary when the vehicle is on a slope.)

■ Hybrid battery (traction battery)

The hybrid battery (traction battery) has a limited service life. The lifespan of the
hybrid battery (traction battery) can change in accordance with driving style and
driving conditions.

30

1-1. Hybrid system

CAUTION

● Never try to open the service plug access

hole located in the luggage compartment.
The service plug is used only when the
vehicle is serviced and is subject to high
voltage.

■ High voltage precautions

The vehicle has high voltage DC and AC systems as well as a 12-volt system. DC
and AC high voltage is very dangerous and can cause severe burns and electric
shock that may result in death or serious injury.

● Never touch, disassemble, remove or replace the high voltage parts, cables or

their connectors.

● The hybrid system will become hot after starting as the system uses high voltage.

Be careful of both the high voltage and the high temperature, and always obey
the caution labels attached to the vehicle.

1

Before driving

■ Road accident cautions

Observe the following precautions to reduce the risk of death or serious injury:

● Pull your vehicle off the road, change the shift position to P, apply the parking

brake, and turn the hybrid system off.

● Do not touch the high voltage parts, cables and connectors.

● If electric wires are exposed inside or outside your vehicle, an electric shock may

occur. Never touch exposed electric wires.

● If a fluid leak occurs, do not touch the fluid as it may be strong alkaline electrolyte

from the hybrid battery (traction battery). If it comes into contact with your skin or
eyes, wash it off immediately with a large amount of water or, if possible, boric
acid solution. Seek immediate medical attention.

● If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible. Never

use a fire extinguisher that is not meant for electric fires. Using even a small
amount of water may be dangerous.

31

1-1. Hybrid system

CAUTION

NOTICE

● If your vehicle needs to be towed, do so with front wheels raised. If the wheels

connected to the electric motor (traction motor) are on the ground when towing,
the motor may continue to generate electricity. This may cause an electricity
leakage leading to a fire. (

● Carefully inspect the ground under the vehicle. If you find that liquid has leaked

P. 4 89)

onto the ground, the fuel system may have been damaged. Leave the vehicle as
soon as possible.

■ Nickel-metal hydride battery

Your vehicle contains a sealed nickel-metal hydride battery. If disposed of improp­erly, it is hazardous to the environment and there is a risk of severe burns and elec­trical shock that may result in death or serious injury.

■ Emergency shut off system

Carefully check to see if there are exposed high voltage parts or cables. Never
touch the parts or cables. (

P. 2 8)

■ Hybrid battery air vent

● Do not put foreign objects near the air vent. The hybrid battery (traction battery)

may overheat and be damaged.

● Clean the air vent regularly to prevent the hybrid battery (traction battery) from

overheating.

● Do not wet or allow foreign substances to enter the air vent as this may cause a

short circuit and damage the hybrid battery (traction battery).

● Do not carry large amounts of water such as water cooler bottles in the vehicle. If

water spills onto the hybrid battery (traction battery), the battery may be dam­aged. Have the vehicle inspected by your Lexus dealer.

32

1-1. Hybrid system

You can view the status of your hybrid system on the multi-information dis­play and the navigation system screen.

Navigation system screen (if
equipped)

Multi-information display

Remote Touch*

“MENU” button
Remote Touch knob
“ENTER” button

*:For use of the Remote Touch,

refer to “Navigation System
Owner's Manual”.

Energy monitor/consumption screen

1

Before driving

Energy monitor

Navigation system (if equipped)

Press the “MENU” button on the
Remote Touch.

33

1-1. Hybrid system

Select on the screen

and press the “ENTER” button on
the Remote Touch.

Select and press the

“ENTER” button on the Remote
To u c h .

If the or
screen is displayed, select
and press the “ENTER” button on
the Remote Touch.

Multi-information display

34

Toggle the “ENTER” switch on the
steering wheel upward or down­ward through several items to
select the energy monitor display.

1-1. Hybrid system

When the vehicle is
powered by the
electric motor
(traction motor)

When the vehicle is
powered by both
the gasoline engine
and the electric
motor (traction
motor)

When the vehicle is
powered by the
gasoline engine

When the vehicle is
charging the hybrid
battery (traction
battery)

Navigation screen

Multi-information

display

1

Before driving

When there is no
energy flow

Hybrid battery

Low Full Low Full

(traction battery)
status

These images are examples only, and may vary slightly from actual conditions.

35

1-1. Hybrid system

Consumption (vehicles with a navigation system)

Press the “MENU” button on the Remote Touch and select .

Select and press the “ENTER” button on the Remote

To u c h .

If the screen does not appear, select and
press the “ENTER” button on the Remote Touch.

Fuel consumption in the past 30
minutes

Regenerated energy in the past
30 minutes

One symbol indicates 50 Wh. Up
to 4 symbols are shown.

Cruising range (P. 3 7)

36

Past record (vehicles with a navigation system)

Press the “MENU” button on the Remote Touch and select .

Select and press the “ENTER” button on the Remote

To u c h .

If the screen does not appear, select and
press the “ENTER” button on the Remote Touch.

Best past fuel consumption
Average fuel consumption

Displays the average fuel consump­tion between each reset of the total
average fuel consumption on the
multi-information display.

1-1. Hybrid system

1

Before driving

When resetting, if the total average
fuel consumption is better than the
best past fuel consumption, the best
past fuel consumption will be
updated.

These images are examples only, and may vary slightly from actual conditions.

■ Resetting the consumption data

Selecting on the screen will reset the average fuel consump-

tion. Selecting on the screen will reset the past records.
Selecting will confirm resetting of all the data (except cruising range).

■ Cruising range

Displays the estimated maximum distance that can be driven with the quantity of
fuel remaining.

This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.

37

1-1. Hybrid system

For economical and ecological driving, pay attention to the following
points:

■ Using Eco drive mode

When using Eco drive mode, the torque corresponding to the accelerator
pedal depression amount can be generated more smoothly than it is in
normal conditions. In addition, the operation of the air conditioning system
(heating/cooling) will be minimized, improving the fuel economy.
(P. 1 57 )

■ Use of Hybrid System Indicator

The environmentally-friendly driving is possible by keeping the indicate of
Hybrid System Indicator within Eco area. (P. 16 6)

■ When braking the vehicle

Make sure to operate the brakes gently and in good time. A greater
amount of electrical energy can be retained when slowing down.

■ Delays

Repeated acceleration and deceleration, as well as long waits at traffic
lights, will lead to bad fuel consumption. Check traffic reports before leav­ing and avoid delays as much as possible. When encountering a delay,
gently release the brake pedal to allow the vehicle to move forward slightly
while avoiding overuse of the accelerator pedal. Doing so can help control
excessive gasoline consumption.

■ Highway driving

Control your speed and keep at a constant speed. Also, before stopping at
a toll booth or similar, allow plenty of time to release the accelerator and
gently apply the brakes. A greater amount of electrical energy can be
retained when slowing down.

Hybrid vehicle driving tips

38

■ Air conditioning

Use the air conditioning only when necessary. Doing so can help control
excessive gasoline consumption.
In summer: In high temperatures, use the recirculated air mode. Doing so
will help to reduce the burden on the air conditioner and reduce fuel con­sumption as well.
In winter: Because the gasoline engine will not automatically cut out until
the gasoline engine and the interior of the vehicle are warm, it will con­sume fuel. Also, fuel consumption can be improved by avoiding overuse of
the heater.

■ Checking tire inflation pressure

Make sure to check the tire inflation pressure frequently. Improper tire
inflation pressure can cause poor fuel consumption.
Also, as snow tires can cause large amounts of friction, their use on dry
roads can lead to poor fuel consumption. Use a tire that is appropriate for
the season.

■ Luggage

Carrying heavy luggage can lead to poor fuel consumption. Avoid carry­ing unnecessary luggage. Installing a large roof rack can also cause poor
fuel consumption.

■ Warming up before driving

Since the gasoline engine starts up and cuts out automatically when cold,
warming up the engine is unnecessary. Moreover, frequently driving short
distances will cause the engine to repeatedly warm up, which can lead to
poor fuel consumption.

1-1. Hybrid system

1

Before driving

39

1-2. Key information

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart access
system with push-button start
(P. 4 5)

• Operating the wireless
remote control function
(P. 5 5)

Mechanical keys
Key number plate
Card key (electronic key) (if

equipped)

Operating the smart access sys­tem with push-button start
(P. 4 5)

Keys

40

Using the mechanical key

● To store the mechanical key in the card

key, insert it while pressing the lock
release button.

1-2. Key information

To take out the mechanical key:

Electronic keys: Slide the release
lever and take the key out.

Card key: Press the lock release
button and take the key out.

The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock
cylinder, turn it over and re-attempt
to insert it.

After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
(P. 5 40 )

■ Card key

● The mechanical key that is stored inside the card key should be used only if a

problem arises, such as when the card key does not operate properly.

● If it is difficult to take out the mechanical key, push down the lock release button

using a pen tip etc. If it is still difficult to pull it out, use a coin etc.

1

Before driving

41

1-2. Key information

● If the battery cover is not installed and

the battery falls out or if the battery was
removed because the key got wet, rein­stall the battery with the positive termi­nal facing the Lexus emblem.

● The card key is not waterproof.

■ When required to leave the vehicle’s key with a parking attendant

Turn the luggage security system on as circumstances demand. (P. 3 68 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.

■ Key number plate

Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. (P. 53 9)

■ When riding in an aircraft

When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves
that could interfere with the operation of the aircraft.

42

1-2. Key information

NOTICE

■ To prevent key damage

Observe the following:

● Do not drop the keys, subject them to strong shocks or bend them.

● Do not expose the keys to high temperatures for long periods of time.

● Do not get the keys wet or wash them in an ultrasonic washer etc.

● Do not attach metallic or magnetic materials to the keys or place the keys close to

such materials.

● Do not disassemble the keys.

● Do not attach a sticker or anything else to the surface of the electronic key.

● Do not place the keys near objects that produce magnetic fields, such as TVs,

audio systems and glass top ranges, or medical electrical equipment, such as low­frequency therapy equipment.

■ Carrying the electronic key on your person

Carry the electronic key 3.9 in. (10 cm) or more away from electric appliances that
are turned on. Radio waves emitted from electric appliances within 3.9 in. (10 cm)
of the electronic key may interfere with the key, causing the key to not function
properly.

■ In case of a smart access system with push-button start malfunction or other key-

related problems

Take your vehicle with all the electronic keys provided with your vehicle, including
the card key, to your Lexus dealer.

■ When a vehicle key is lost

If the key remains lost, the risk of vehicle theft increases significantly. Visit your
Lexus dealer immediately with all remaining electronic keys and the card key that
was provided with your vehicle.

1

Before driving

43

1-2. Key information

NOTICE

■ Precautions for handling the card key

● Do not apply excess force when inserting the mechanical key into the card key.

Doing so may damage the card key.

● If the battery or card key terminals get wet, the battery may corrode and the card

key may stop working.
If the key is dropped into water, or if drinking water etc. is spilled on the key,
immediately remove the battery cover and wipe the battery and terminals. (To
remove the battery cover, lightly grasp and pull it.) If the battery is corroded, have
your Lexus dealer replace the battery.

● Do not crush the battery cover or use a screwdriver to remove the battery cover.

Forcibly removing the battery cover may bend or damage the key.

● If the battery cover is frequently removed, the battery cover may become loose.

● When installing the battery, make sure to check the direction of the battery.

Installing the battery in the wrong direction may cause the battery to deplete rap­idly.

● The surface of the card key may be damaged, or its coating may peel off in the

following situations:

• The card key is carried together with hard objects, such as coins and keys.

• The card key is scraped with a sharp object, such as the tip of a mechanical
pencil.

• The surface of the card key is wiped with thinner or benzene.

44

1-3. Opening, closing and locking the doors

The following operations can be performed simply by carrying the elec­tronic key (including the card key) on your person, for example in your
pocket.
(The driver should always carry the electronic key.)

Locks and unlocks the doors (P. 46)
Unlocks the trunk (P. 46)
Starts the hybrid system (P. 147)

Electronic key

Electronic key Electronic key

Smart access system with push-button start

1

Before driving

45

1-3. Opening, closing and locking the doors

Unlocking and locking the doors (front door handles only)

Grip the handle to unlock the
doors.

Make sure to touch the sensor on
the back of the handle.

The doors cannot be unlocked for
3 seconds after the doors are
locked.

Touch the lock sensor (the inden­tation on the upper part of the
door handle) to lock the doors.

Unlocking the trunk

46

Press the button to unlock the
trunk.

Antenna location and effective range

■ Antenna location

1-3. Opening, closing and locking the doors

Antennas outside the cabin
Antennas inside the cabin
Antenna inside the trunk
Antenna outside the trunk

1

Before driving

47

1-3. Opening, closing and locking the doors

Touch both lock sensors on the upper and
lower part of the door handle simultaneously.

■ Effective range (areas within which the electronic key is detected)

When locking or unlocking
the doors

The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
either of the front outside
door handles. (Only the doors
detecting the key can be
operated.)

When unlocking the trunk

The system can be operated
when the electronic key is
within about 2.3 ft. (0.7 m) of
the trunk release button.

When starting the hybrid
system or changing
“POWER” switch modes

The system can be operated
when the electronic key is
inside the vehicle.

■ Operation signals

A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: Once; Unlocked: Twice)

■ When the door cannot be locked by the lock sensor on the upper part of the door

handle

48

1-3. Opening, closing and locking the doors

Alarm Situation Correction procedure

Exterior alarm
sounds once for 10
seconds.

An attempt was made to lock
the vehicle while a door was
open.

Close all of the doors
and lock the doors
again.

Interior alarm pings
repeatedly

The “POWER” switch was
turned to ACCESSORY
mode while the driver’s door
is open (The driver’s door
was opened when the
“POWER” switch is in
ACCESSORY mode.)

Turn the “POWER”
switch off and close the
driver’s door.

■ Alarms and warning indicators

A combination of exterior and interior alarms as well as warning messages shown
on the multi-information display is used to prevent theft of the vehicle and accidents
resulting from erroneous operation. Take appropriate measures in response to any
warning message on the multi-information display. (P. 5 07 )

The following table describes circumstances and correction procedures when only
alarms are sounded.

1

Before driving

■ Security feature

If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.

■ Battery-saving function

The battery-saving function will be activated in order to prevent the electronic key
battery and the 12-volt battery from being discharged while the vehicle is not in
operation for a long time.

● In the following situations, the smart access system with push-button start may

take some time to unlock the doors.

• The electronic key has been left in an area of approximately 6 ft. (2 m) of the

• The smart access system with push-button start has not been used for 5 days

outside of the vehicle for 10 minutes or longer.

or longer.

49

1-3. Opening, closing and locking the doors

● If the smart access system with push-button start has not been used for 14 days

or longer, the doors cannot be unlocked at any doors except the driver’s door. In
this case, take hold of the driver’s door handle, or use the wireless remote con­trol or the mechanical key, to unlock the doors.

■ Conditions affecting operation

The smart access system with push-button start uses weak radio waves. In the fol­lowing situations, the communication between the electronic key and the vehicle
may be affected, preventing the smart access system with push-button start, wire­less remote control and immobilizer system from operating properly.
(Ways of coping: P. 54 0)

● When the electronic key battery is depleted

● Near a TV tower, electric power plant, gas station, radio station, large display,

airport or other facility that generates strong radio waves or electrical noise

● When carrying a portable radio, cellular phone, cordless phone or other wire-

less communication devices

● When the electronic key is in contact with, or is covered by the following metal-

lic objects

• Cards to which aluminum foil is attached

• Cigarette boxes that have aluminum foil inside

• Metallic wallets or bags

•Coins

• Hand warmers made of metal

• Media such as CDs and DVDs

● When other wireless key (that emit radio waves) is being used nearby

● When carrying the electronic key together with the following devices that emit

radio waves

• Another vehicle’s electronic key or a wireless key that emits radio waves

• Personal computers or personal digital assistants (PDAs)

• Digital audio players

• Portable game systems

● If window tint with a metallic content or metallic objects are attached to the rear

window

50

1-3. Opening, closing and locking the doors

■ Note for the entry function

● Even when the electronic key is within the effective range (detection areas), the

system may not operate properly in the following cases:

• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.

• The electronic key is near the ground or in a high place, or too close to the
rear bumper center when the trunk is unlocked.

• The electronic key is on the instrument panel, rear package tray or floor, or in
the door pockets or glove box when the hybrid system is started or
“POWER” switch modes are changed.

● As long as the electronic key is within the effective range, the doors may be

locked or unlocked by anyone.

● Even if the electronic key is not inside the vehicle, it may be possible to start the

hybrid system if the electronic key is near the window.

● The doors may unlock if a large amount of water splashes on the door handle,

such as in the rain or in a car wash when the electronic key is within the effective
range. (The door will automatically be locked after approximately 60 seconds if
the doors are not opened and closed.)

● Gripping the door handle when wearing a glove may not unlock the door.

● If the wireless remote control is used to lock the doors when the electronic key

is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless remote control to unlock the doors.)

● A sudden approach to the effective range or door handle may prevent the

doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.

■ Notes for locking the doors

● Touching the door lock sensor while wearing gloves may delay or prevent lock

operation. Remove the gloves and touch the lock sensor again.

● When the lock operation is performed using the lock sensor, recognition signals

will be shown up to two consecutive times. After this, no recognition signals will
be given.

● If the door handle becomes wet while the electronic key is within the effective

range, the door may lock and unlock repeatedly. Place the key in a position 6 ft.
(2 m) or more separate from the vehicle while the vehicle is being washed. (Take
care to ensure that the key is not stolen.)

1

Before driving

51

1-3. Opening, closing and locking the doors

● If the electronic key is inside the vehicle and a door handle becomes wet during

a car wash, a message may be shown on the multi-information display and a
buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.

● The lock sensor may not work properly if it comes into contact with ice, snow,

mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock
sensor on the lower part of the door handle.

● Fingernails may scrape against the door during operation of the door handle.

Be careful not to injure fingernails or damage the surface of the door.

■ Notes for the unlocking function

● A sudden approach to the effective range or door handle may prevent the

doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.

● Gripping the door handle when wearing a glove may not unlock the door.

Remove the gloves and touch the sensor on the back of the handle again.

● If the door handle becomes wet while the electronic key is within the effective

range, the door may lock and unlock repeatedly. Place the key in a position 6 ft.
(2 m) or more separate from the vehicle while the vehicle is being washed. (Take
care to ensure that the key is not stolen.)

● If there is another electronic key in the detection area, it may take slightly longer

to unlock the doors after the door handle is gripped.

● Fingernails may scrape against the door during operation of the door handle.

Be careful not to injure fingernails or damage the surface of the door.

■ When the vehicle is not driven for extended periods

● To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m)

of the vehicle.

● The smart access system with push-button start can be deactivated in advance.

(P. 580)

■ Alarm

Using the smart access system with push-button start to lock the doors will set the
alarm system. (P. 100 )

■ To operate the system properly

Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.

52

1-3. Opening, closing and locking the doors

Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not operate.)

■ If the smart access system with push-button start does not operate properly

● Locking and unlocking the doors, unlocking the trunk: Use the mechanical key.

(P. 5 40 )

● Starting the hybrid system: P. 54 1

■ Electronic key battery depletion

● The standard battery life is 1 to 2 years. (The card key battery life is about a year

and a half.)

● If the battery becomes low, an alarm will sound in the cabin when the hybrid sys-

tem stops. (P. 49 )

● As the electronic key always transmits radio waves, the battery will become

depleted even if the electronic key is not used. The following symptoms indicate
that the electronic key battery may be depleted. Replace the battery when nec­essary. (P. 459 )

• The smart access system with push-button start or the wireless remote con­trol does not operate.

• The detection area becomes smaller.

• The LED indicator on the key surface does not turn on.

● To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of

the following electrical appliances that produce a magnetic field:

•TVs

• Personal computers

• Cellular phones, cordless phones and battery chargers

• Recharging cellular phones or cordless phones

•Glass top ranges

• Table lamps

■ When the electronic key battery is fully depleted

P. 4 59

■ Customization

Settings (e.g. smart access system with push-button start) can be changed.
(Customizable features P. 5 80 )

1

Before driving

53

1-3. Opening, closing and locking the doors

CAUTION

■ Certification for the smart access system with push-button start

For vehicles sold in the U.S.A.

FCC ID: HYQ14ACX FCC ID: HYQ14ADF

FCC ID: HYQ14AEB FCC ID: HYQ14AEF
FCC ID: HYQ13CZK FCC ID: HYQ13CZL

FCC ID: NI4TMLF8-13

NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol­lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada

NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer­ence that may cause undesired operation of the device.

■ Caution regarding interference with electronic devices

● People with implanted pacemakers or cardiac defibrillators should keep away

from the smart access system antennas. (P. 47 )
The radio waves may affect the operation of such devices. If necessary, the entry
function can be disabled. Ask your Lexus dealer for details, such as the frequency
of radio waves and timing of emitting the radio waves. Then, consult your doctor
to see if you should disable the entry function.

● Users of any electrical medical device other than implanted pacemakers and

implanted cardiac defibrillators should consult the manufacturer of the device for
information about its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.

Ask your Lexus dealer for details on disabling the entry function.

54

1-3. Opening, closing and locking the doors

The wireless remote control can be used to lock and unlock the vehicle.

Locks all the doors
Unlocks all the doors

Pressing the button unlocks the
driver’s door. Pressing the but­ton again within 3 seconds
unlocks the other doors.

Opens the windows and
moon roof (press and hold)*

Unlocks the trunk (press and
hold)

Sounds the alarm
(press and hold) (P. 56)

*: This setting must be customized

at your Lexus dealer.

Wireless remote control

1

Before driving

■ Operation signals

Doors: A buzzer sounds and the emergency flashers flash to indicate that the

Trunk: A buzzer sounds to indicate that the trunk has been unlocked.
Windows and moon roof: A buzzer sounds to indicate that the windows and moon

■ Door lock buzzer

If an attempt to lock the doors is made when a door is not fully closed, a buzzer
sounds continuously. Fully close the door to stop the buzzer, and lock the vehicle
once more.

doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)

roof are opening.

55

1-3. Opening, closing and locking the doors

When is pressed for longer than about
one second, an alarm will sound intermit-

tently and the vehicle lights will flash to deter
any person from trying to break into or dam­age your vehicle.

To stop the alarm, press any button on the
electronic key.

■ Pa ni c mo de

■ Security feature

P. 4 9

■ Alarm

Using the wireless remote control to lock the doors will set the alarm system.
(P. 100)

■ Conditions affecting operation

P. 5 0

■ If the wireless remote control does not operate properly

Locking and unlocking the doors, unlocking the trunk: Use the mechanical key.
(P. 5 40)

■ Electric key battery depletion

P. 5 3

■ When the electric key battery is fully depleted

P. 4 59

■ Customization

Settings (e.g. door unlocking function) can be changed.
(Customizable features P. 5 80 )

56

1-3. Opening, closing and locking the doors

■ Certification for wireless remote control

For vehicles sold in the U.S.A.
FCC ID: HYQ14ACX FCC ID: HYQ14ADF

FCC ID: HYQ14AEB FCC ID: HYQ14AEF

FCC ID: HYQ13CZK FCC ID: HYQ13CZL
FCC ID: NI4TMLF8-13

NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol­lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

For vehicles sold in Canada
NOTE:

Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer­ence that may cause undesired operation of the device.

1

Before driving

57

1-3. Opening, closing and locking the doors

The vehicle can be locked and unlocked using the entry function, wireless
remote control or door lock switch.

■ Entry function

P. 4 5

■ Wireless remote control

P. 5 5

■ Door lock switches

Locks all the doors
Unlocks all the doors

■ Inside lock buttons

Locks the door
Unlocks the door

The front doors can be opened
by pulling the inside handle even
if the lock buttons are in the lock
position.

Doors

58

1-3. Opening, closing and locking the doors

Locking the front doors from the outside without a key

Move the inside lock button to the lock position.
Close the door.

The door cannot be locked if the “POWER” switch is in ACCESSORY or
ON mode, or the electronic key is left inside the vehicle.

The key may not be detected correctly and the door may be locked.

Rear door child-protector lock

The door cannot be opened from
inside the vehicle when the lock is
set.

These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.

1

Before driving

■ Impact detection door lock release system

In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.

■ Using the mechanical key

The doors can also be locked and unlocked with the mechanical key. (P. 5 40 )

■ If a wrong key is used

The key cylinder rotates freely to isolate inside mechanism.

■ Customization

Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 5 80 )

59

1-3. Opening, closing and locking the doors

CAUTION

■ To prevent an accident

Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out, resulting
in death or serious injury.

● Always use a seat belt.

● Always lock all the doors.

● Ensure that all doors are properly closed.

● Do not pull the inside handle of the doors while driving.

The doors may be opened and the passengers are thrown out of the vehicle and it
may result in serious injury or death.

Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.

● Set the rear door child-protector locks when children are seated in the rear seats.

60

1-3. Opening, closing and locking the doors

The trunk can be opened using the trunk opener, entry function or wireless
remote control.

■ Opening the trunk from inside the vehicle

Press the opener switch to
release the trunk lid.

■ Opening the trunk from outside the vehicle

Entry function

P. 4 5

Wireless remote control

P. 5 5

Tr u nk

1

Before driving

Luggage security system

To protect luggage stored in the trunk against theft, do the following:

On
Off
Turn the main switch in the glove

box off to disable the trunk
opener.

The trunk lid cannot be opened
even with the wireless remote con­trol or the entry function.

61

1-3. Opening, closing and locking the doors

Use the trunk handle when closing the trunk.

The trunk lid can be opened by pulling down
on the glow-in-the-dark lever located on the
inside of the trunk lid.

The lever will continue to glow for some time
after the trunk lid is closed.

■ Tr u n k ha n dl e

■ Function to prevent the trunk being locked with the electronic key inside

● When all doors are being locked, closing the trunk lid with the electronic key left

inside the trunk will sound an alarm.
In this case, the trunk lid can be opened using the entry function.

● Even when the spare electronic key is put in the trunk with all the doors locked,

the key confinement prevention function can be activated so the trunk can be
opened. In order to prevent theft, take all electronic keys with you when leaving
the vehicle.

● Even when the electronic key is put in the trunk with all the doors are locked, the

key may not be detected depending on the places and the surrounding radio
wave conditions. In this case, the key confinement prevention function cannot
be activated, causing the doors to lock when the trunk is closed. Make sure to
check where the key is before closing the trunk.

● The key confinement prevention function cannot be activated if any one of the

doors is unlocked. In this case, open the trunk using the trunk opener.

■ Internal trunk release lever

■ Using the mechanical key

The trunk can be also opened using the mechanical key. (P. 5 40)

62

1-3. Opening, closing and locking the doors

CAUTION

■ Which key to the vehicle is to leave with a parking attendant after disabling the

trunk opener main switch

P. 4 2

1

■ Caution while driving

● Keep the trunk lid closed while driving.

If the trunk lid is left open, it may hit near-by objects while driving or luggage in
the trunk may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a serious
health hazard. Make sure to close the trunk lid before driving.

● Before driving the vehicle, make sure that the trunk lid is fully closed. If the trunk

lid is not fully closed, it may open unexpectedly while driving, causing an accident.

● Never let anyone sit in the trunk. In the event of sudden braking or a collision, they

are susceptible to death or serious injury.

■ When children are in the vehicle

Observe the following precautions.
Failure to do so may result in death or serious injury.

● Do not allow children to enter the trunk.

If a child is accidentally locked in the trunk, they could have heat exhaustion or
suffocate.

● Do not allow a child to open or close the trunk lid.

Doing so may cause the trunk lid to operate unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing trunk lid.

Before driving

63

1-3. Opening, closing and locking the doors

CAUTION

● The trunk lid may fall if it is not opened

fully. It is more difficult to open or close
the trunk lid on an incline than on a level
surface, so beware of the trunk lid unex­pectedly opening or closing by itself.
Make sure that the trunk lid is fully open
and secure before using the trunk.

● When closing the trunk lid, take extra

care to prevent your fingers etc. from
being caught.

● When closing the trunk lid, make sure to

press it lightly on its outer surface. If the
trunk handle is used to fully close the
trunk lid, it may result in hands or arms
being caught.

■ Using the trunk

Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in serious injury.

● Remove any heavy loads, such as snow and ice, from the trunk lid before opening

it. Failure to do so may cause the trunk lid to fall closed again after it is opened.

● When opening or closing the trunk lid, thoroughly check to make sure the sur-

rounding area is safe.

● If anyone is in the vicinity, make sure they are safe and let them know that the

trunk is about to open or close.

● Use caution when opening or closing the trunk lid in windy weather as it may

move abruptly in strong wind.

● Do not attach any accessories other than genuine Lexus parts to the trunk lid.

Such additional weight on the trunk lid may cause the lid to fall closed again after
it is opened.

64

1-4. Adjustable components (seats, mirrors, steering wheel)

Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjustment switch
Vertical height adjustment switch
Lumbar support adjustment switch

Front seats

1

Before driving

65

1-4. Adjustable components (seats, mirrors, steering wheel)

Power easy access system (vehicles with driving position memory)

When the driver enters and exits the vehicle, the driver’s seat and steer­ing wheel will automatically perform the following operations:

Exiting the vehicle: When all of the
following actions have been per­formed, the steering wheel will
move up and back to the point far­thest away from the driver and the
seat will move backward (auto
away function):

• The “POWER” switch has been
turned off

• The driver seat belt has been
unfastened

Entering the vehicle: When either
of the following actions has been
performed, the steering wheel will
move toward the driver and seat
will move forward (auto return
function):

66

• The “POWER” switch has been
turned to ACCESSORY or ON
mode

• The driver seat belt has been fas­tened

1-4. Adjustable components (seats, mirrors, steering wheel)

Inner
structure

During
rear-end
collision

Active head restraints

When the occupant’s lower back
presses against the seatback dur­ing a rear-end collision, the head
restraint moves slightly forward
and upward to help reduce the risk
of whiplash on the seat occupant.

■ The auto away function for exiting the driver seat

If the seat is already close to the rearmost position, the auto away function may not
operate when the driver exits the vehicle.

■ Active head restraints

Even small forces applied to the seatback may cause the head restraint to move.
Pushing up a locked head restraint forcibly may appear the head restraint inner
structure. These do not indicate problems.

1

Before driving

■ Customization

The distance that the driver’s seat moves backward during the auto away function
can be changed. (Customizable featuresP. 580 )

67

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Seat adjustment

To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.

68

1-4. Adjustable components (seats, mirrors, steering wheel)

Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto­matically when the doors are unlocked.
Three different driving positions can be entered into memory.

■ Entering a position to memory

Check that the shift position is in P.
Turn the “POWER” switch to ON mode.
Adjust the driver’s seat, steering wheel and outside rear view

mirrors to the desired positions.

While pressing and holding the
“SET” button, or within 3 sec­onds of pressing the “SET” but­ton, press button 1, 2 or 3 until
the signal beeps.

If the selected button has
already been preset, the previ­ously recorded position will be
overwritten.

■ Recalling the memorized position

Check that the shift position is in P.
Turn the “POWER” switch to ON mode.

Press button 1, 2 or 3 until the
signal beeps to recall the
desired position.

Driving position memory (driver’s seat)



1

Before driving

: If equipped

69

1-4. Adjustable components (seats, mirrors, steering wheel)

Linking driving position memory with door unlock operation

Record your driving position to button 1, 2 or 3 before performing the fol­lowing:

Carry only the key (including the card key) to which you want to link the
driving position. If 2 or more keys are in the vehicle, the driving position
cannot be linked properly.

Shift the shift position to P and close the driver’s door. Turn the
“POWER” switch to ON mode.

Press the desired button (1, 2 or 3)
to recall the position. Then, while
keep pressing the button, press the
driver’s door lock switches (either
lock or unlock) until the signal
beeps.

The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.

70

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Operating the driving position memor y after turning the “POWER” switch off

Memorized positions (except for the steering wheel position) can be activated up
to 180 seconds after the driver’s door is opened and another 60 seconds after it is
closed again, even after turning the “POWER” switch off.

■ Canceling the linked door unlock operation

Turn the “POWER” switch to ON mode and close the driver’s door.

While pressing the “SET” button, press the driver’s door lock switches
(either lock or unlock) until the signal beeps.

■ Stopping seat position operation part-way through

Perform any of the following operations:

● Press the “SET” button.

● Press button 1, 2 or 3.

● Adjust the seat using the switches (only cancels seat position recall).

● Adjust the steering wheel using the tilt and telescopic steering control switch

(only cancels steering wheel position recall).

■ Correct seat position

When the seat is in the most forward or most backward position, and the seat is
being moved in those directions, the system may not correctly recognize the cur­rent position and the memorized position will not be correctly recalled.

■ Customization

If a seat position is memorized, the driver seat will move back the set distance
(P. 580) from that memorized position.

1

Before driving

■ Seat adjustment caution

Take care during seat adjustment so that the seat does not strike the rear passenger
or squeeze your body against the steering wheel.

71

1-4. Adjustable components (seats, mirrors, steering wheel)

Head restraints are provided for all seats.

Up

Pull the head restraints up.

Down

Push the head restraint down
while pressing the lock release
button.

Lock release button

Pull the head restraint up while pressing the
lock release button.

Lock
release
button

Align the head restraint with the installation
holes and push it down to the lock position.

Press and hold the lock release button when
lowering the head restraint.

Lock
release
button

Head restraints

■ Removing the head restraints

■ Installing the head restraints

72

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

■ Adjusting the height of the head restraints (front seats)

■ Adjusting the rear seat head restraints

Always raise the head restraint one level from the stowed position when using.

■ Head restraint precautions

Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.

● Use the head restraints designed for each respective seat.

● Adjust the head restraints to the correct position at all times.

● After adjusting the head restraints, push down on them and make sure they are

locked in position.

● Do not drive with the head restraints removed.

1

Before driving

73

1-4. Adjustable components (seats, mirrors, steering wheel)

Make sure that all occupants are wearing their seat belts before driving the
vehicle.

■ Correct use of the seat belts

● Extend the shoulder belt so

that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.

● Position the lap belt as low as
possible over the hips.

● Adjust the position of the
seatback. Sit up straight and
well back in the seat.

● Do not twist the seat belt.

■ Fastening and releasing the seat belt

To fasten the seat belt, push
the plate into the buckle until
a click sound is heard.

To release the seat belt, press
the release button.

Release button

Seat belts

74

1-4. Adjustable components (seats, mirrors, steering wheel)

■ Adjusting the seat belt shoulder anchor height (front seats)

Push the seat belt shoulder
anchor down while pressing
the release button.

Push the seat belt shoulder
anchor up.

Move the height adjuster up and
down as needed until you hear a
click.

Seat belt pretensioners (front and outside rear seats)

The pretensioner helps the seat
belt to quickly restrain the occu­pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal colli­sion.

1

Before driving

The pretensioner may not activate
in the event of a minor frontal
impact, a side impact or a rear
impact.

Pre-collision seat belts (front seats of vehicles with pre-collision system)

If the pre-collision sensor detects that a collision is unavoidable, the pre­collision system will retract the seat belt using a motor, thus enhancing the
effectiveness of the seat belt pretensioner in a crash.

The same will happen if the driver makes an emergency braking or loses con­trol of the vehicle. (P. 23 6)

75

1-4. Adjustable components (seats, mirrors, steering wheel)

Obtain medical advice and wear the seat belt
in the proper way. (P. 74)

Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoul­der and position the belt across the chest.
Avoid belt contact over the rounding of the
abdominal area.

If the seat belt is not worn properly, not only
the pregnant woman, but also the fetus could
suffer death or serious injury as a result of
sudden braking or a collision.

■ Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.

■ Automatic locking retractor (ALR)

When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. (P. 1 27 )

■ Pregnant women

■ People suffering illness

Obtain medical advice and wear the seat belt in the proper way. (P. 74 )

■ Child seat belt usage

The seat belts of your vehicle were principally designed for persons of adult size.

● Use a child restraint system appropriate for the child, until the child becomes

large enough to properly wear the vehicle’s seat belt. (P. 12 3)

● When the child becomes large enough to properly wear the vehicle’s seat belt,

follow the instructions on P. 74 regarding seat belt usage.

76

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

If your seat belts cannot be fastened securely
because they are not long enough, a person­alized seat belt extender is available from
your Lexus dealer free of charge.

■ Replacing the belt after the pretensioner has been activated

If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the second or subsequent collisions.

■ Seat belt extender

■ Wearing a seat belt

Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury.

● Ensure that all passengers wear a seat belt.

● Always wear a seat belt properly.

● Each seat belt should be used by one person only. Do not use a seat belt for more

than one person at once, including children.

● Lexus recommends that children be seated in the rear seat and always use a seat

belt and/or an appropriate child restraint system.

● To achieve a proper seating position, do not recline the seat more than necessary.

The seat belt is most effective when the occupants are sitting up straight and well
back in the seats.

● Do not wear the shoulder belt under your arm.

● Always wear your seat belt low and snug across your hips.

1

Before driving

77

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

■ Seat belt pretensioners

● Do not place anything, such as a cushion, on the front passenger’s seat. Doing so

will disperse the passenger’s weight, which prevents the sensor from detecting
the passenger’s weight properly. As a result, the seat belt pretensioner for the
front passenger’s seat may not activate in the event of a collision.

● If the pretensioner has activated, the SRS warning light will come on. In that case,

the seat belt cannot be used again and must be replaced at your Lexus dealer.

■ Adjustable shoulder anchor

Always make sure the shoulder belt is positioned across the center of your shoul­der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or accident.
(P. 75 )

■ Child restraint lock function belt precaution

Do not allow children to play with the child restraint lock function belt. If the belt
becomes twisted around a child’s neck, it will not be possible to pull the belt out
leading to choking or other serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.

■ Seat belt damage and wear

● Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed

in the door.

● Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.

Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.

● Ensure that the belt and plate are locked and the belt is not twisted.

If the seat belt does not function correctly, immediately contact your Lexus
dealer.

● Replace the seat assembly, including the belts, if your vehicle has been involved in

a serious accident, even if there’s no obvious damage.

● Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.

Have any necessary repairs carried out by your Lexus dealer. Inappropriate han­dling of the pretensioner may prevent it from operating properly, resulting in
death or serious injury.

78

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

NOTICE

■ Using a seat belt extender

● Do not wear the seat belt extender if you can fasten the seat belt without the

extender.

● Do not use the seat belt extender when installing a child restraint system because

the belt will not securely hold the child restraint system, increasing the risk of
death or serious injury in the event of an accident.

● The personalized extender may not be safe on another vehicle, when used by

another person, or at a different seating position other than the one originally
intended.

■ When using a seat belt extender

When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

1

Before driving

79

1-4. Adjustable components (seats, mirrors, steering wheel)

The steering wheel can be adjusted to a comfortable position.

■ Manual adjustment



Hold the steering wheel and
push the lever down.

Adjust to the ideal position by
moving the steering wheel hori­zontally and vertically.

After adjustment, pull the lever
up to secure the steering wheel.

■ Power adjustment



Operating the switch moves the steering wheel in the following direc­tions:

Up
Down
Away from the driver
Toward the driver

Steering wheel

80

: If equipped

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

Auto tilt away

When the “POWER” switch is
turned off, the steering wheel
returns to its stowed position by
moving up and away to enable
easier driver entry and exit.

Turning the “POWER” switch to
ACCESSORY or ON mode will
return the steering wheel to the
original position.

■ The steering wheel can be adjusted when

The “POWER” switch is in ACCESSORY or ON mode*.

*: Vehicles with driving position memory: If the driver’s seat belt is fastened, the

steering wheel can be adjusted regardless of “POWER” switch mode.

■ Automatic adjustment of the steering position (vehicles with driving position

memory)

A desired steering position can be entered to memory and recalled automatically
by the driving position memory system. (P. 6 9)

1

Before driving

■ Caution while driving

Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.

■ After adjusting the steering wheel (manually adjustable type only)

Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident,
and resulting in death or serious injury.

81

1-4. Adjustable components (seats, mirrors, steering wheel)

In automatic mode, sensors are used to detect the headlights of vehicles
behind and the reflected light is automatically reduced.

Type A

Turns automatic mode on/ off

The indicator comes on when
automatic mode is turned on.

The mirror will revert to auto­matic mode each time the
“POWER” switch is turned to
ON mode.

Type B

Turns automatic mode on/off

The indicator comes on when
automatic mode is turned on.

The mirror will revert to auto­matic mode each time the
“POWER” switch is turned to
ON mode.

Indicator

Indicator

Inside rear view mirror

Adjusting the height of rear view mirror

Adjust the height of the rear view
mirror by moving it up and down.

82

■ To prevent sensor error

CAUTION

To ensure that the sensors operate properly,
do not touch or cover them.

To ensure that the sensors operate properly,
do not touch or cover them.

Ty pe A

Ty pe B

1-4. Adjustable components (seats, mirrors, steering wheel)

1

Before driving

■ Caution while driving

Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.

83

1-4. Adjustable components (seats, mirrors, steering wheel)

Mirror angle can be adjusted using the switch.

To select a mirror to adjust,
press the switch.

Left
Right

To adjust the mirror, press the
switch.

Up
Right
Down
Left

Outside rear view mirrors

Folding the mirrors

84

Push the mirror back in the direc­tion of the vehicle’s rear.

1-4. Adjustable components (seats, mirrors, steering wheel)

■ Mirror angle can be adjusted when

The “POWER” switch is in ACCESSORY or ON mode.

■ Linked mirror function when reversing (vehicles with driving position memory)

The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).

■ Rain clearing mirrors (if equipped)

When water droplets collects on the mirror surface, for example when it rains, the
rain clearing (hydrophilic) effect of the mirrors causes the droplets to be spread out
into a film making the rear view clearer. In the following cases, the rain clearing
effect will be reduced temporarily, but will return after 1 or 2 days’ exposure to
direct sunlight.

● After wiping dirt off the mirrors

● When the mirrors fog up

● After waxing your vehicle in an automatic car wash

● After your vehicle has been parked for a long period in underground parking

lots etc. where there is no direct sunlight

■ When the mirrors are fogged up

Turn on the mirror defoggers to defog the mirrors. (P. 2 64)

■ Automatic adjustment of the mirror angle (vehicles with driving position mem-

ory)

A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. (P. 69)

■ Auto anti-glare function (if equipped)

When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir­ror to reduce reflected light. (P. 82 )

1

Before driving

85

1-4. Adjustable components (seats, mirrors, steering wheel)

CAUTION

NOTICE

■ When driving the vehicle

Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.

● Do not adjust the mirrors while driving.

● Do not drive with the mirrors folded.

● Both the driver and passenger side mirrors must be extended and properly

adjusted before driving.

■ When a mirror is moving

To avoid personal injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.

■ When the mirror defoggers are operating

Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.

■ If the mirrors become iced up (if equipped)

In order to retain the rain-clearing properties of the mirror, do not attempt to scrape
the ice off. Instead, remove it by turning on the mirror defoggers or by applying
warm water.

86

1-5. Opening and closing the windows and moon roof

The power windows can be opened and closed using the switches.

Operating the switch moves the windows as follows:

Closing
One-touch closing*
Opening
One-touch opening*

*: Pushing the switch in the oppo-

site direction will stop window
travel partway.

Indicator

Power windows

1

Before driving

Window lock switch

Press the switch down to lock the
passenger window switches.

The indicator will come on.

Use this switch to prevent children
from accidentally opening or clos­ing a passenger window.

The passenger windows can still be
opened and closed using the
power window switches on the
driver’s side even if the lock switch
is on.

87

1-5. Opening and closing the windows and moon roof

■ The power windows can be operated when

The “POWER” switch is in ON mode.

■ Operating the power windows after turning the hybrid system off

The power windows can be operated for approximately 43 seconds even after the
“POWER” switch is turned to ACCESSORY mode or turned off. They cannot,
however, be operated once either front door is opened.

■ Jam protection function

If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.

■ When the power window does not close normally

If the jam protection function is operating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rel­evant door.

● After stopping the vehicle, the window can be closed by holding the power win-

dow switch in the one-touch closing position while the “POWER” switch is
turned to ON mode.

● If the window still cannot be closed even by carrying out the operation

explained above, initialize the function by performing the following procedure.

Hold the power window switch in the one-touch closing position. Con­tinue holding the switch for a further 6 seconds after the window has
closed.

Hold the power window switch in the one-touch opening position. Con­tinue holding the switch for a further 2 seconds after the window has
opened completely.

Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win­dow has closed.

If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by your Lexus dealer.

88

1-5. Opening and closing the windows and moon roof

CAUTION

■ Door lock linked window operation

● The power windows can be opened and closed using the mechanical key. *

(P. 5 40 )

● The power windows can be opened using the wireless remote control. *

(P. 5 5)

*: This setting must be customized at your Lexus dealer.

■ When the 12-volt battery is disconnected

The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.

■ Customization

Settings (e.g. linked door lock operation) can be changed.
(Customizable features P. 5 80 )

■ Closing the windows

Observe the following precautions.
Failing to do so may result in death or serious injury.

● Check to make sure that all passengers do not have any part of their body in a

position where it could be caught when a window is being operated.

● Do not allow children to operate the power windows.

Closing a power window on someone can cause serious injury, and in some
instances, even death.

● To prevent inadvertent power windows operation, never let a small child have and

use the wireless remote control. (P. 55 )

■ Jam protection function

● Never use any part of your body to intentionally activate the jam protection func-

tion.

● The jam protection function may not work if something gets caught just before

the window fully closes.

1

Before driving

89

1-5. Opening and closing the windows and moon roof

Use the overhead switches to open and close the moon roof and tilt it up
and down.

■ Opening and closing

Opens the moon roof*

The moon roof stops slightly
before the fully open position to
reduce wind noise.

Press the switch again to fully
open the moon roof.

Closes the moon roof*

*: Lightly press either of the moon

roof switches to stop the moon
roof partway.

■ Tilting up and down

T

ilts the moon roof up

*

Tilts the moon roof down

*

*: Lightly press either of the moon

roof switches to stop the moon
roof partway.

Moon roof

90

1-5. Opening and closing the windows and moon roof

■ The moon roof can be operated when

The “POWER” switch is in ON mode.

■ Operating the moon roof after turning the hybrid system off

The moon roof can be operated for approximately 43 seconds even after the
“POWER” switch is turned to ACCESSORY mode or turned off. It cannot, how­ever, be operated once either front door is opened.

■ Jam protection function

If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stopped and the moon roof opens slightly.

■ To reduce moon roof wind noise

Drive with the moon roof opened to slightly before the fully open position as driving
with the moon roof opened fully will cause wind noise.

■ Sunshade

The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.

■ Door lock linked moon roof operation

● The moon roof can be opened and closed using the mechanical key.*

(P. 5 40 )

● The moon roof can be opened using the wireless remote control.* However, this

function is available only when the door windows can be opened and closed
with the wireless remote control. (P. 55 )

*: This setting must be customized at your Lexus dealer.

1

Before driving

91

1-5. Opening and closing the windows and moon roof

■ When the moon roof does not close normally

Perform the following procedure:

● If the moon roof closes but then re-opens lightly

Stop the vehicle.

Press and hold the “CLOSE” switch.*
The moon roof will close, reopen and pause for approximately 10 sec-

2

Then it will close again, tilt up and pause for approximately 1 sec-

onds.*

1

ond. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then

release the switch.

● If the moon roof tilts down but then tilts back up

Stop the vehicle.

1

Press and hold the “UP” switch*

until the moon roof moves into the tilt up

position and stops.
Release the “UP” switch once and then press and hold the “UP” switch

1

again.*
The moon roof will pause for approximately 10 seconds in the tilt up posi-

2

Then it will adjust slightly and pause for approximately 1 second.

tion.*
Finally, it will tilt down, open and close.

Check to make sure that the moon roof is completely closed and then
release the switch.

1

: If the switch is released at the incorrect time, the procedure will have to

*

be performed again from the beginning.

2

:If the switch is released after the above mentioned 10 second pause,

*

automatic operation will be disabled. In that case, press and hold the
“CLOSE” or “UP” switch, and the moon roof will tilt up and pause for
approximately 1 second. Then it will tilt down, open and close. Check to
make sure that the moon roof is completely closed and then release
the switch.

If the moon roof does not fully close even after performing the above procedure
correctly, have the vehicle inspected by your Lexus dealer.

■ Moon roof open warning buzzer

The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the “POWER” switch is turned off and the driver’s door is
opened with the moon roof open.

92

1-5. Opening and closing the windows and moon roof

CAUTION

■ Customization

Settings (e.g. linked door lock operation) can be changed.
(Customizable features P. 5 80 )

1

■ Opening the moon roof

Observe the following precautions.
Failing to do so may cause death or serious injury.

● Do not allow any passengers to put their hands or heads outside the vehicle while

it is moving.

● Do not sit on top of the moon roof.

■ Closing the moon roof

Observe the following precautions.
Failing to do so may result in death or serious injury.

● Check to make sure that all passengers do not have any part of their body in a

position where it could be caught when the moon roof is being operated.

● Do not allow children to operate the moon roof.

Closing the moon roof on someone can cause death or serious injury.

● To prevent inadvertent moon roof operation, never let a small child have and use

the wireless remote control. (P. 55 )

■ Jam protection function

● Never use any part of your body to intentionally activate the jam protection func-

tion.

● The jam protection function may not work if something gets caught just before

the moon roof fully closes.

Before driving

93

1-6. Refueling

Perform the following steps to open the fuel tank cap:

■ Before refueling the vehicle

Turn the “POWER” switch off and close all the doors and windows.

■ Opening the fuel tank cap

Press the opener to open the
fuel filler door.

Turn the fuel tank cap slowly to
open.

Hang the fuel tank cap on the
back of the fuel filler door.

Opening the fuel tank cap

94

Closing the fuel tank cap

The lever can be used to open the fuel filler
door if the fuel filler door cannot be opened
using the inside switch.

■ If the fuel filler door opener is inoperable

1-6. Refueling

After refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.

1

Before driving

■ Fuel types

Use unleaded gasoline. (Octane rating 87 [Research Octane Number 91] or
higher)

■ Fuel tank capacity

Approximately 14.5 gal. (55 L, 12.5 lmp. gal.)

■ Use of ethanol blended gasoline in a gasoline engine

Lexus allows the use of ethanol blended gasoline where the ethanol content is up to
10%. Make sure that the ethanol blended gasoline to be used has a Research
Octane Number that follows the above.

95

1-6. Refueling

CAUTION

■ When refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do so may
result in death or serious injury.

● After exiting the vehicle and before opening the fuel door, touch an unpainted

metal surface to discharge any static electricity. It is important to discharge static
electricity before refueling because sparks resulting from static electricity can
cause fuel vapors to ignite while refueling.

● Always hold the grips on the fuel tank cap and turn it slowly to remove it.

A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressur­ized fuel may spray out of the filler neck and cause injury.

● Do not allow anyone that has not discharged static electricity from their body to

come close to an open fuel tank.

● Do not inhale vaporized fuel.

Fuel contains substances that are harmful if inhaled.

● Do not smoke while refueling the vehicle.

Doing so may cause the fuel to ignite and cause a fire.

● Do not return to the vehicle or touch any person or object that is statically

charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.

■ When refueling

Securely insert the fuel nozzle into the fuel filler neck. If fuel is added with the nozzle
slightly lifted away from the fuel filler neck, the automatic shut off function may not
operate, resulting in fuel overflowing from the tank.

■ When replacing the fuel cap

Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Doing so may cause a fire or other incident which may result in death or serious
injury.

96

1-6. Refueling

NOTICE

■ Refueling

Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control system to
operate abnormally or damaging fuel system components or the vehicle’s painted
surface.

1

Before driving

97

1-7. Theft deterrent system

The vehicle’s keys have built-in transponder chips that prevent the hybrid
system from starting if a key has not been previously registered in the vehi­cle’s on-board computer.

Never leave the keys inside the vehicle when you leave the vehicle.

Without navigation system

The indicator light flashes after
the “POWER” switch has been
turned off to indicate that the
system is operating.

The indicator light stops flashing
after the “POWER” switch has
been turned to ACCESSORY
or ON mode to indicate that the
system has been canceled.

With navigation system

The indicator light flashes after
the “POWER” switch has been
turned off to indicate that the
system is operating.

The indicator light stops flashing
after the “POWER” switch has
been turned to ACCESSORY
or ON mode to indicate that the
system has been canceled.

Immobilizer system

98

1-7. Theft deterrent system

CAUTION

NOTICE

■ System maintenance

The vehicle has a maintenance-free type immobilizer system.

■ Conditions affecting operation

Depending on the surrounding environment and conditions, the immobilizer sys­tem may not operate properly. This may prevent the hybrid system from starting.
(P. 5 0)

■ Certifications for the immobilizer system

For vehicles sold in the U.S.A.

FCC ID: NI4TMIMB-1

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol­lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

For vehicles sold in Canada

Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer­ence that may cause undesired operation of the device.

1

Before driving

■ Certifications for the immobilizer system

Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

■ To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.

99

1-7. Theft deterrent system

The system sounds the alarm and flashes the lights when forced entry is
detected.

■ Triggering of the alarm

The alarm is triggered in the following situations when the alarm is
set:

● A locked door or trunk is unlocked or opened in any way other
than using the entry function, wireless remote control or mechan­ical key. (The doors will lock again automatically.)

● The hood is opened.

■ Setting the alarm system

Without navigation system

Close the doors, trunk and
hood, and lock all the doors
using the entry function or wire­less remote control. The system
will be set automatically after
30 seconds.

The indicator light changes from
being on to flashing when the
system is set.

With navigation system

Close the doors, trunk and
hood, and lock all the doors
using the entry function or wire­less remote control. The system
will be set automatically after
30 seconds.

The indicator light changes from
being on to flashing when the
system is set.

Alarm

100
