2019
OWNER’S MANUAL
3WARNING
California Proposition 65 Warning
Operating, servicing and maintaining a passenger vehicle or off-highway motor vehicle can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle. For more information go to www.P65Warnings.ca.gov/passenger-vehicle.
Event Data Recorders
This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an air bag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed. The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is designed to record such data as:
•How various systems in your vehicle were operating;
•Whether or not the driver and passenger safety buckled/fastened;
•How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
•How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs; no data are recorded by the EDR under normal driving conditions and no personal data (e.g., name, gender, age, and crash location) are recorded. However, other parties, such as law enforcement, could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.
The data belongs to the vehicle owner and may not be accessed by anyone else except as legally required or with the permission of the vehicle owner.
Service Diagnostic Recorders
This vehicle is equipped with service-related devices that record information about powertrain performance. The data can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may also be combined with data from other sources for research purposes, but it remains
. Some diagnostic and maintenance information is to Honda upon vehicle start up.
California Perchlorate Contamination Prevention Act
The airbags, seat belt tensioners, and CR type batteries in this vehicle may contain perchlorate materials - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/
As you read this manual, you will find information that is preceded by a NOTICE symbol. This information is intended to help you avoid
damage to your vehicle, other property, or the environment.
Software End User License Agreement
Your vehicle comes equipped with software, which is governed by the End User License Agreement in Owner’s Manual, and which contains a binding arbitration clause. Please refer to the End User License Agreement for the terms and conditions governing your use of the installed software, as well as the applications, services, functions, and content provided through the software. Your use of the installed software will serve as your consent to the terms and conditions of the End User License Agreement. You may opt out within 30 days of your initial use of the Software by sending a signed, written notice to HONDA at American Honda Motor Co., Inc. Honda Automobile Customer Services Mail Stop 100-5E-8A, 1919 Torrance Blvd. Torrance, CA 90501-2746.
Privacy Notice
This vehicle may share location and usage information. To manage this setting, visit www.hondalink.com/vehicle-data-choices.
Your safety, and the safety of others, is very important. operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.
Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. You must use your own good judgment.
You will find this important safety information in a variety of forms, including:
●Safety Labels - on the vehicle.
●Safety Messages - preceded by a safety alert symbol 3 and one of three signal words: DANGER, WARNING, or CAUTION. These signal words mean:
3DANGER
3WARNING
3CAUTION
You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.
You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.
You CAN be HURT if you don't follow instructions.
●Safety Headings - such as Important Safety Precautions.
●Safety Section - such as Safe Driving.
●Instructions - how to use this vehicle correctly and safely.
This entire book is filled with important safety information - please carefully.
This owner’s manual should be considered a permanent part of the vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find descriptions of equipment and features that are not on your particular model.
Images throughout this owner’s manual (including the front cover) represent features and equipment that are available on some, but not all, models. Your particular model may not have some of these features.
This owner’s manual is for vehicles sold in the United States and Canada.
The information and specifications included in this publication were in effect at the time of approval for printing. Honda Motor Co., Ltd. reserves the right, however, to discontinue or change specifications or design at any time without notice and without incurring any obligation.
2 |
Safe Driving P. 31 |
|
|
|
For Safe Driving P. 32 |
Seat Belts P. 36 |
Airbags P. 46 |
||
|
|
|
|
|
2 |
Instrument Panel P. 75 |
|
|
|
Indicators P. 76 |
Gauges and Displays P. 103 |
|
||
|
|
|
|
|
2 |
Controls P. 121 |
|
|
|
Clock P. 122 |
Locking and Unlocking the Doors P. 124 |
|||
Opening and Closing the Windows P. 151 |
|
|
||
Operating the Switches Around the Steering Wheel P. 154 |
||||
Interior Lights/Interior Convenience Items P. 187 |
|
|||
|
|
|
|
|
2 |
Features P. 205 |
|
|
|
Audio System P. 206 |
|
Audio System Basic Operation P. 212, 233 |
||
Customized Features P. 321, 328 |
Bluetooth® HandsFreeLink® P. 343, 368 |
|||
|
|
|
|
|
2 |
Driving P. 399 |
|
|
|
Before Driving P. 400 |
Towing a Trailer P. 405 |
|
||
Multi-View Rear Camera P. 481 |
|
|
||
|
|
|
|
|
2 |
Maintenance P. 487 |
|
|
|
Before Performing Maintenance P. 488 |
Maintenance MinderTM P. 491 |
Checking and Maintaining Wiper Blades P. 518
Heating and Cooling System*/Climate Control System* Maintenance P. 536
2 Handling the Unexpected P. 543
Tools P. 544 |
If a Tire Goes Flat P. 545 |
|
Overheating P. 558 |
Indicator, Coming On/Blinking P. 560 |
Fuses P. 564 |
2 Information P. 573
P. 574 |
Identification Numbers P. 576 |
Testing P. 580 |
Warranty Coverages P. 582 |
|
|
|
Child Safety P. 60 |
Exhaust Gas Hazard P. 73 |

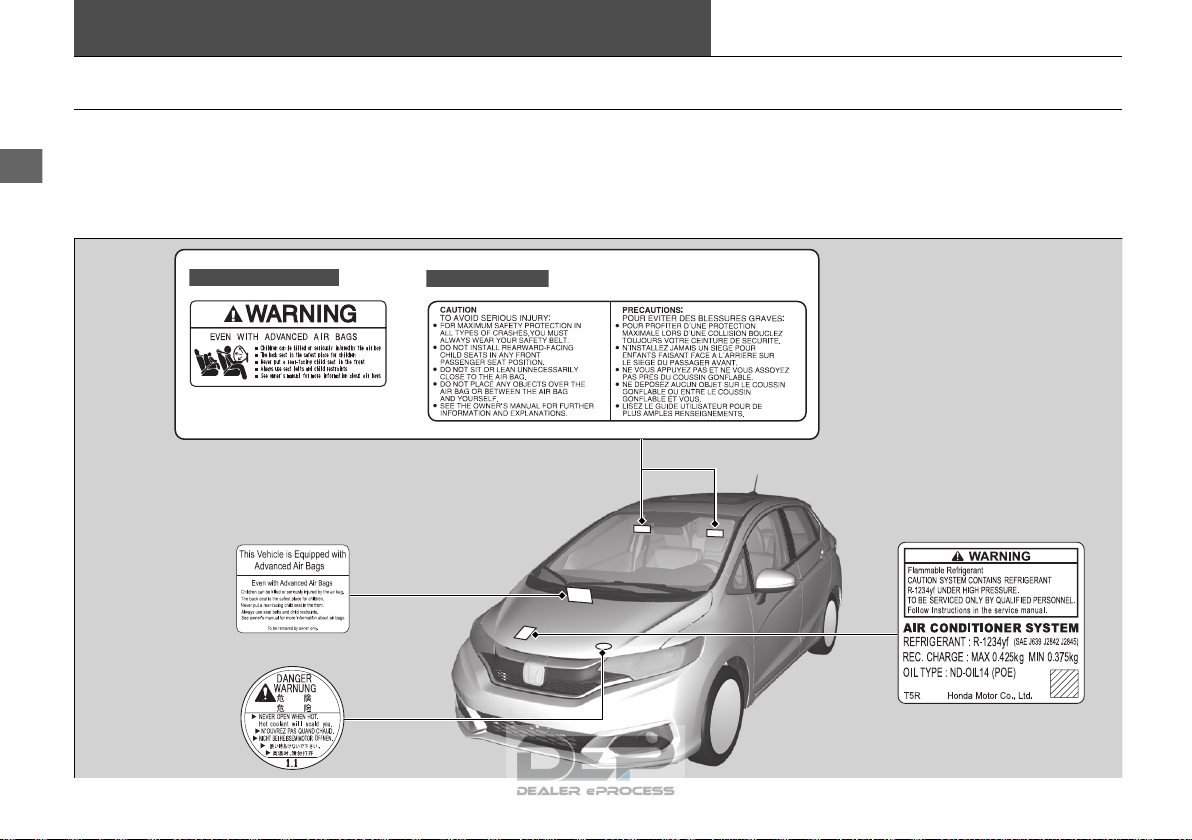

Safety Labels P. 74 |
|
|
|
|
|
|
|
|
|
|
|
|
Opening and Closing the Tailgate P. 145 |
Security System P. 148 |
Opening and Closing the Moonroof* P. 153 |
|
Adjusting the Mirrors P. 174 |
Adjusting the Seats P. 175 |
Heating and Cooling System* P. 197 |
Climate Control System* P. 200 |
|
|
|
|
Audio Error Messages P. 312 |
General Information on the Audio System P. 317 |
|
|
|
|
When Driving P. 409 |
Braking P. 468 |
Parking Your Vehicle P. 480 |
Refueling P. 483 |
Fuel Economy and CO2 Emissions P. 486 |
|
|
|
|
|
|
|
Maintenance Under the Hood P. 499 |
Replacing Light Bulbs P. 511 |
|
Checking and Maintaining Tires P. 522 |
Battery P. 532 |
Remote Transmitter Care P. 534 |
Cleaning P. 537 |
Accessories and Modifications P. 542 |
|
|
|
|
|
|
|
Engine Does Not Start P. 552 |
Jump Starting P. 555 |
Shift Lever Does Not Move P. 557 |
Emergency Towing P. 569 |
When You Cannot Open the Tailgate P. 570 |
|
|
|
|
|
|
|
Contents
Quick Reference Guide P. 4
Safe Driving P. 31
Instrument Panel P. 75
Controls P. 121
Features P. 205
Driving P. 399
Maintenance P. 487
Handling the Unexpected P. 543
Information P. 573
Index P. 587
Devices that Emit Radio Waves P. 577 |
Reporting Safety Defects P. 579 |
Authorized Manuals P. 584 |
Customer Service Information |
Guide Reference Quick
ECON Button* (P427)
System Indicators (P76)
Gauges (P103)
Information Display* (P104)
Multi-Information Display* (P107)
Hazard Warning Button |
Audio System (P206) |
Navigation System* |
() See the Navigation System Manual
|
Rear Defogger (P172) |
|
Heated Mirror Button* (P172) |
|
Heating and Cooling System* |
|
(P197) |
|
Climate Control System* (P200) |
|
ENGINE START/STOP Button*1 (P155) |
|
Ignition Switch* (P154) |
|
Steering Wheel Adjustments (P173) |
Tire Pressure Monitoring System (TPMS) Button* (P464) |
|
(Vehicle Stability Assist® (VSA®) System OFF) Button (P460) |
|
Collision Mitigation Braking SystemTM (CMBSTM) OFF Button* (P472) |
|
Road Departure |
Button* (P447) |
*1: Models with the smart entry system have an ENGINE START/STOP |
switch. |
4
Headlights/Turn Signals (P159, 160) |
Quick |
||
Fog Lights* (P163) |
|
||
LaneWatchTM* (P461) |
|
||
Paddle Shifter (Shift Down)* (P 422) |
Reference |
||
|
(Display) Button* (P234) |
|
|
|
(Select/Reset) Knob (P104) |
|
|
|
Guide |
||
Brightness Control (P171) |
|
||
Paddle Shifter (Shift Up)* (P422) |
|
||
Wipers/Washers (P169) |
|
|
|
Adaptive Cruise Control (ACC) Buttons* |
|
||
|
(P433) |
|
|
Interval Button* (P441) |
|
|
|
Cruise Control Buttons* (P428) |
|
||
Lane Keeping Assist System (LKAS) Button* |
|
||
|
(P452) |
|
|
Horn (Press an area around |
.) |
|
|
Bluetooth® HandsFreeLink® System |
|
||
|
Voice Control Buttons (P343, 368) |
|
|
Navigation System Voice Control Buttons* |
|
() See the Navigation System Manual
Audio |
* (P210) |
* Not available on all models |
5 |
|
|
Visual Index
Quick |
Power Window Switches (P151) |
|
Power Door Lock Master Switch (P137) |
||
Door Mirror Controls (P174) |
||
Guide Reference |
||
Interior Fuse Box (P566) |
||
Driver’s Front Airbag (P49) |
||
|
Passenger’s Front Airbag (P49)
Accessory Power Socket (P192)
USB Port (P207)
Glove Box (P189)
Shift Lever
Continuously Variable
Transmission* (P417, 419)
Manual Transmission* (P423)
Seat Heater Switches* (P196) |
Parking Brake (P468) |
Hood Release Handle (P500)
Fuel Fill Door Release
6
Rearview Mirror (P174)
Sun Visors
Vanity Mirrors
Map Lights (P188)
Moonroof Switch* (P153)
Side Curtain Airbags (P55)
Ceiling Light (P187)
Grab Handle
Coat Hook (P193)
(Only on the rear left side)
Seat Belts (P36)
Seat Belt (Installing a Child Seat) (P67)Seat Belt to Secure a Child Seat (P69)
Seat Belt with Detachable Anchor
(P43)
Cargo Area Cover* (P195)
Cargo Area Light (P188)
Cargo Floor Box (P191) |
LATCH to Secure a Child Seat (P65) |
Rear Seat (P179) |
Side Airbags (P53) |
Accessory Power Socket* (P192) |
USB Port |
Front Seat (P175)
Guide Reference Quick
* Not available on all models |
7 |
|
|
Guide Reference Quick
Visual Index
Maintenance Under the Hood (P499) |
Windshield Wipers (P169, 518) |
Power Door Mirrors (P174) |
Door Lock/Unlock Control (P127) |
Headlights (P160, 511)
Front Turn Signal/Parking Lights (P159, 512)
Side Marker Lights (P160, 513)
Tires (P522, 545)
Fog Lights* (P163, 513) |
How to Refuel (P484) |
Audio Antenna (P209) |
High-Mount Brake Light (P516) |
Rear Wiper (P170, 520) |
Opening/Closing the Tailgate (P145) |
Tailgate Outer Handle/Release Button (P146) |
License Plate Lights (P517) |
Multi-View Rear Camera (P481) |
Brake/Tail/Rear Side Marker Lights (P516)
Back-Up Lights (P515)
Rear Turn Signal Lights (P515)
8
ECON Button* (P427)
Helps maximize fuel economy.
Ambient Meter
●The color of the ambient meter changes to green to indicate that the vehicle is being driven in a fuel efficient manner.
Models with multi-information display
The message is displayed for a few seconds when the ECON button is pressed.
ECON Mode Indicator*
(P85)
Comes on when the ECON button is pressed.
Guide Reference Quick
* Not available on all models |
9 |
|
|
Guide Reference Quick
Airbags (P46)
●Your vehicle is fitted with airbags to help protect you and your passengers during a moderate-to-severe collision.
Child Safety (P60)
●All children 12 and younger should be seated in the rear seat.
●Smaller children should be properly restrained in a forward-facing child seat.
●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P73)
● Your vehicle emits dangerous exhaust gases that contain carbon monoxide. Do not run the engine in confined spaces where carbon monoxide gas can accumulate.
Seat Belts (P36)
● Fasten your seat belt and sit upright well back in the seat.
● Check that your passengers are wearing their seat belts correctly.
Before Driving Checklist (P400)
● Before driving, check that the front seats, head restraints, |
|
steering wheel, and mirrors have been properly |
Fasten your lap belt as |
|
low as possible. |
10
Gauges (P103)/Information Display* (P104) Multi-Information Display* (P107)/System Indicators (P76)
Models with information display |
|
|
|
|
Speedometer |
||
Lights Indicators |
|
Tachometer |
|
||||
|
|
Information Display |
|||||
|
|
|
|
|
|
|
|
|
|
Fog Light Indicator* |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
System Indicators
System Indicators
Charging System
Indicator
Low Temperature
Indicator (Blue)
Security System
Alarm Indicator
Fuel Gauge
M (7-speed manual shift mode)
Indicator/Shift Indicator*
Shift Lever Position Indicator*
System Indicators |
System Indicators |
|
Maintenance |
|
|
|
|
|
Minder Indicator |
|
CRUISE CONTROL |
|
||
|
|
|
|
|
Indicator* |
ECON Mode |
|
U.S. models only |
|
Low Tire Pressure/ |
|
Indicator* |
|
|
|
|
TPMS Indicator |
Washer Level
Indicator*
U.S.
Canada
U.S. Brake System
Indicator (Amber)
Canada
Guide Reference Quick
* Not available on all models |
11 |
|
|
Guide Reference Quick
Models with multi-information display
System Indicators
Shift Lever Position Indicator* |
Multi-information Display |
Speedometer
High Temperature
Indicator (Red)
Low Temperature
Indicator (Blue)
Smart Entry System
Indicator*
U.S.
Canada
U.S. Brake System
Indicator (Amber)
Canada
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Security System Alarm Indicator |
|
|
||||
|
|
|
M (7-speed manual shift mode) |
|
|
||||
Tachometer |
Fuel Gauge |
||||||||
Indicator/Shift Indicator* |
|||||||||
|
|
System Indicators |
|
System Message |
Lights Indicators |
Indicator |
|
|
|
|
|
|
|
Fog Light Indicator* |
Shift Up / Down |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
Indicator* |
|
|
|
|
|
Auto High-Beam |
|
|
|
|
|
|
Indicator |
System Indicators
Adaptive Cruise
Control (ACC)
Indicator (Amber/
Green)
Road Departure
Mitigation (RDM)
Indicator
Collision Mitigation
Braking SystemTM
(CMBSTM) Indicator
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)
12
Clock (P122)
Models with navigation system
The navigation system receives signals from GPS satellites, updating the clock automatically.
Models without navigation system
Clock
The clock in the information display is automatically updated along with the audio system’s clock display.
Models with display audio system |
|
Models with color audio system |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
a Select the |
|
(HOME) icon, then select |
a Press and hold the MENU/CLOCK |
||||||||||||||||
|
|||||||||||||||||||
Settings. |
|
|
|
button. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
b Select System, Clock/Info, then Clock |
b Rotate |
|
to change hour, then press |
||||||||||||||||
Adjustment. |
|
|
|
. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
c Touch the 3 / 4 icon to adjust the |
c Rotate |
|
to change minute, then |
||||||||||||||||
numbers up or down. |
|
press . |
|||||||||||||||||
d Select OK. |
|
|
d Select SET, then press . |
||||||||||||||||
|
|
|
|
These indications are used to show how to |
|||||||||||||||
|
|
|
|
operate the LIST/SELECT (List/Selector) knob. |
|||||||||||||||
|
|
|
|
• |
Rotate |
to select. |
|||||||||||||
|
|
|
|
• |
Press to enter. |
Guide Reference Quick
* Not available on all models |
13 |
|
|
Guide Reference Quick
Engine START/STOP
Button* (P155)
Press the button to change the vehicle’s power mode.
Turn Signals (P159)
Turn Signal Control Lever
Right
Left
Lights (P160)
U.S. models
Light Control Switches
High Beam
Low Beam
Flashing
Canadian models
High Beam
Low Beam
Wipers and Washers
(P169)
Wiper/Washer Control Lever
Pull toward you to spray washer fluid.
Adjustment Ring*
: Lower speed, fewer sweeps : High speed, more sweeps
MIST
OFF
INT: Low speed with intermittent LO: Low speed wipe
HI: High speed wipe
14
Steering Wheel (P173)
●To adjust, pull the adjustment lever towards you, adjust to the desired position, then lock the lever back in place.
To adjust
To lock
Unlocking the Front Doors from the Inside
(P136)
●Pull either front door inner handle to unlock and open it in one motion.
●Unlocking and opening the driver’s door from the inner handle unlocks all the other doors.
Tailgate (P145)
Models without smart entry system
●With all the doors unlocked, pull the tailgate outer handle, and lift up to open it.
Models with smart entry system
●With all the doors unlocked, push the tailgate release button on the tailgate to open it.
●Press the tailgate release button to unlock and open the tailgate when you carry the smart entry remote.
Guide Reference Quick
* Not available on all models |
15 |
|
|
Guide Reference Quick
Power Door Mirrors
(P174)
●With the ignition switch in ON w*1, move the selector switch to L or R.
●Push the appropriate edge of the adjustment switch to adjust the mirror.
Selector Switch
Adjustment Switch
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
Power Windows (P151)
●With the ignition switch in ON w*1, open and close the power windows.
●If the power window lock button is in the off position, each passenger’s window can be opened and closed with its own switch.
●If the power window lock button is in the on position (indicator on), each passenger’s window switch is disabled.
Power Window Lock Button
Window Switch |
|
|
|
|
|
|
|
|
|
|
|
Indicator |
||
|
16
Heating and Cooling System* (P197)
●Rotate the fan control dial to adjust the fan speed.
●Rotate the mode control dial ( / / / / ) to select the vents air flows from.
●Rotate the temperature control dial to adjust the temperature.
●Rotate the fan control dial to OFF to turn the system off.
●Rotate the mode control dial to to defrost the windshield.
Air flows |
Air flows from |
Air flows |
Air flows from |
Air flows from |
from |
floor and |
from floor |
floor and |
windshield |
dashboard |
dashboard |
vents. |
windshield |
defroster |
vents. |
vents. |
|
defroster vents. |
vents. |
Fan Control Dial
Temperature Control Dial |
|
|
|
|
|
Mode Control Dial |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A/C (Air Conditioning) Button*
Fresh Air/Recirculation Lever
Guide Reference Quick
* Not available on all models |
17 |
|
|
Guide Reference Quick
Climate Control System* (P200)
●Select the AUTO icon to activate the climate control system.
●Select the icon to turn the system on or off.
●Select the icon to defrost the windshield.
Air flows from |
Air flows from |
Air flows from |
Air flows from |
||||
dashboard |
floor and |
floor vents. |
floor and |
||||
vents. |
dashboard vents. |
|
windshield |
||||
|
|
|
|
|
defroster vents. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Temperature Control Icons |
Fan Control Icons |
AUTO Icon |
|
(ON/OFF) Icon |
(windshield Defroster) Icon |
A/C (Air Conditioning) Icon |
(Fresh Air) Icon |
(Recirculation) Icon |
Mode Control Icons |
18
Features (P205) |
Audio System (P206) |
|
For navigation system operation () See the Navigation System Manual
Audio Remote Controls*
(P210) |
|
|
|
|
Models with color audio system |
|
|
|
|
|
|
|
|
|
|
|
|
/ |
/ |
/ |
Buttons |
|
|
|
|
|
|
|
|
|
Audio/Information Screen |
|
|
|
|
|
|
(Day/Night) Button |
CD Slot |
|
|
|
|
|
|
|
(CD Eject) Button |
|
|
|
|
|
|
RADIO Button |
|
SOURCE Button |
|
|
|
|
(Phone) Button |
||
● |
/ |
Button |
|
|
|
|
(Sound) Button |
|
Press to adjust the volume up/down. |
MEDIA |
|
||||
● |
SOURCE Button |
|
|
|
Selector Knob |
||
|
|
|
Button |
||||
|
|
|
|
|
|
||
|
Models with color audio system |
|
MENU/CLOCK Button |
||||
|
|
VOL / |
|||||
|
Press to change the audio mode: FM/AM/ |
|
|||||
|
(Volume/Power) |
|
|||||
|
CD/USB/iPod/Bluetooth® Audio. |
|
|||||
|
Knob |
|
|||||
|
Models with display audio system |
|
|||||
|
|
|
Press to change the audio mode: FM/AM/ |
|
/ |
|
|
|
|
|
|
|
|
|
(Back) Button |
|
|
|
|
|
|
|
|
|
|
|||
SiriusXM®/USB/iPod/Bluetooth® Audio/Pandora®*/ |
|
|
|
|
|
|
|
|
|
|
|
|
(Skip/Seek) Buttons |
|
|
|
|
|
|
|
|||||
Apps/Apple CarPlayTM/Android AutoTM. |
|
|
|
|
|
|
|
Preset Buttons (1-6) |
||||
|
|
|
|
|
|
|
● / Button
Radio:Press to change the preset station. Press and hold to select the next or previous strong station.
CD*/USB device:
Press to skip to the beginning of the next song or return to the beginning of the current song. Press and hold to change a folder.
Guide Reference Quick
* Not available on all models |
19 |
|
|
Guide Reference Quick
Models with display audio system
(Day/Night) Button |
|
|
|
Audio/Information Screen |
|
||||
|
|
(Home) Icon
(Menu) Icon
(Back) Icon
VOL/ (Power/Volume) Knob
20
Manual Transmission* (P423)
Continuously Variable Transmission*
(P417, 419)
● Shift to (P and depress the brake pedal when starting the engine.
Shifting
Models with |
|
Models without |
||
paddle shifters |
|
paddle shifters |
||
|
|
|
|
|
|
|
|
|
|
Park
Turn off or start the engine. Transmission is locked.
Reverse
Used when reversing.
Neutral
Transmission is not locked.
Depress the brake pedal and press the release button to move out of (P.
Move the shift lever without pressing the release button.
Press the release button to move the shift lever.
Shift Lever
Release
Button
7-Speed Manual Shift Mode* (P421)
●Allows you to manually shift the transmission up or down without removing your hands from the steering wheel.
When the shift lever is in (S
●Pulling a paddle shifter changes the mode from continuously variable transmission to 7-speed manual shift mode.
●The M indicator and the selected speed number are displayed in the shift indicator.
When the shift lever is in (D
●Pulling a paddle shifter temporarily changes the mode from continuously variable transmission to 7-speed manual shift mode. The selected speed number is displayed in the shift indicator.
M Indicator |
Shift Down |
Shift Up |
||
Paddle Shifter |
Paddle Shifter |
|||
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Shift Indicator
Drive
Normal driving.
On models with paddle shifters, 7-speed mode can be used temporarily.
Models with paddle shifters
Drive (S)
7-speed manual shift mode can be used.
Models without paddle shifters
Drive (S)
●Better acceleration
●Used to increase engine braking
●Used when going up or down hills
Low |
|
● Used to |
braking |
● Used |
hills |
Guide Reference Quick
* Not available on all models |
21 |
|
|
Guide Reference Quick
VSA® On and Off (P460)
●The Vehicle Stability Assist® (VSA®) system helps stabilize the vehicle during cornering, and helps maintain traction while accelerating on loose or slippery road surfaces.
●VSA® comes on automatically every time you start the engine.
●To partially disable VSA functionality/ features, press and hold button until you hear a beep.
Cruise Control* (P428)
●Cruise control allows you to maintain a set speed without keeping your foot on the accelerator pedal.
●To use cruise control, press the CRUISE button, then press the -/SET button once you have achieved the desired speed (above 25 mph or 40 km/h).
CMBSTM On and Off*
(P475)
●When a possible collision is likely unavoidable, the CMBSTM can help you to reduce the vehicle speed and the severity of the collision.
●To turn the CMBSTM on or off, press and hold the button until you hear a beep.
U.S. models only
Tire Pressure Monitoring
System (TPMS) (P463)
●Detects a change in tire conditions and overall dimensions due to decrease in tire pressures.
●TPMS is turned on automatically every time you start the engine.
●A calibration procedure must be performed when certain conditions arise.
22
Refueling (P483)
Fuel recommendation: Unleaded gasoline, pump octane number 87 or higher Fuel tank capacity: 10.6 US gal (40 L)
a Pull the fuel fill door release handle.
b Turn the fuel fill cap slowly to remove the cap.
c Place the cap in the holder on the fuel fill door.
d After refueling, screw the cap back on until it clicks at least once.
Guide Reference Quick
* Not available on all models |
23 |
|
|
Guide Reference Quick
Honda Sensing®*
Honda Sensing® is a driver support system which employs the use of two distinctly different kinds of sensors, a radar sensor located at in the front grille and a front sensor camera mounted to the interior side of the windshield, behind the rearview mirror.
The camera is located behind the rearview mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is in the front grille.
Adaptive Cruise Control
(ACC) (P 433)
Helps maintain a constant vehicle speed and a set following-interval behind a vehicle detected ahead of yours, without you having to keep your foot on the brake or the accelerator.
Road Departure
Mitigation (RDM) System
(P 447)
Alerts and helps to assist you when the system detects a possibility of your vehicle unintentionally crossing over detected lane markings and/or leaving the roadway altogether.
Lane Keeping Assist
System (LKAS) (P 452)
Provides steering input to help keep the vehicle in the middle of a detected lane and provides tactile and visual alerts if the vehicle is detected drifting out of its lane.
Collision Mitigation
Braking SystemTM
(CMBSTM) (P 472)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a pedestrian detected in front of yours. The CMBSTM is designed to alert you when a potential collision is determined, as well as to reduce your vehicle speed to help minimize collision severity when a collision is deemed unavoidable.
24
Under the Hood (P499)
● Check engine oil, engine coolant, and window washer |
Wiper Blades (P518) |
|
|
fluid. Add when necessary. |
|
||
|
|||
● Check brake/clutch* fluid |
● Replace blades if they leave streaks |
||
● Check the battery condition monthly. |
|||
across the windshield. |
|||
a Pull the hood release handle under the corner of |
|||
|
|
||
the dashboard. |
|
|
|
|
|
|
b Locate the hood latch lever, push it to the side, and then raise the hood. Once you have raised the hood slightly, you can release the lever.
Tires (P522) |
|
|
|
Lights (P511) |
|
|
|||
● Inspect tires and wheels regularly. |
|
● Inspect all lights regularly. |
||
● Check tire pressures regularly. |
|
|
||
|
winter |
|
|
|
c When finished, close the hood and make sure it is |
|
|
||
firmly locked in place. |
|
|
Guide Reference Quick
* Not available on all models |
25 |
|
|
Guide Reference Quick
Flat Tire (P545)
●Park in a safe location and replace the flat tire with the compact spare tire in the cargo area.
Engine Won’t Start (P552) |
Overheating (P558) |
||||
● If the battery is dead, jump start using a |
● Park in a safe location. If you do not see |
||||
booster battery. |
steam under the hood, open the hood, |
||||
|
|
|
|
|
and let the engine cool down. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Indicators Come On
(P560)
●Identify the indicator and consult the owner’s manual.
Blown Fuse (P564) |
Emergency Towing (P569) |
||||||
● Check for a blown fuse if an electrical |
● Call a professional towing service if you |
||||||
device does not operate. |
need to tow your vehicle. |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
26
U.S. models with manual transmission
Canadian models
The ignition switch does not turn from 0 to q*1.
Why?
● The steering wheel may be locked.
Models without smart entry system
●Try to turn the steering wheel left and right while turning the ignition key.
Models with smart entry system
●Move the steering wheel left and right after pressing the ENGINE START/STOP.
Continuously variable transmission |
The shift lever should be moved to P. |
models without smart entry system |
|
The ignition switch does |
|
not turn from q to 0 and |
|
I cannot remove the key. |
|
Why? |
|
|
|
Continuously variable transmission |
|
models with smart entry system |
|
The power mode does not |
|
change from ACCESSORY |
|
to VEHICLE OFF (LOCK). |
|
Why? |
|
Why does the brake pedal pulsate slightly when applying the brakes?
This can occur when the ABS activates and does not indicate a problem. Apply firm, steady pressure on the brake pedal. Never pump the brake pedal.
System (ABS) (P470)
*1: Models with the smart entry system have an ENGINE START/STOP |
switch. |
Guide Reference Quick
27
Guide Reference Quick
The rear door cannot be opened from inside the vehicle. Why?
Check if the childproof lock is in the lock position. If so, open the rear door with the outside door handle.
To cancel this function, push the lever to the unlock position.
Why do the doors lock |
If you do not open the doors within 30 seconds, the doors are |
after I unlocked the doors? |
relocked automatically for security. |
Why does the beeper sound when I open the driver’s door?
The beeper sounds when:
● The exterior lights are left on.
Models without smart entry system
● The key is left in the ignition switch.
Models with smart entry system
● The power mode is in ACCESSORY.
Why does a beeper sound |
The beeper sounds if you move outside the walk away auto |
|
when I walk away from the |
door lock operating range before the door completely closes. |
|
vehicle after I close the |
|
2 Locking the vehicle (Walk away auto lock) (P128) |
door? |
|
|
|
|
|
Why does the beeper |
The beeper sounds when: |
|
sound when I start driving? |
● |
Driver and/or front passenger are not wearing their seat belts. |
|
● |
The parking brake lever is not fully released. |
|
|
|
28
