Lexmark e238, e240, e340, e342 Parts List

4511-xxx

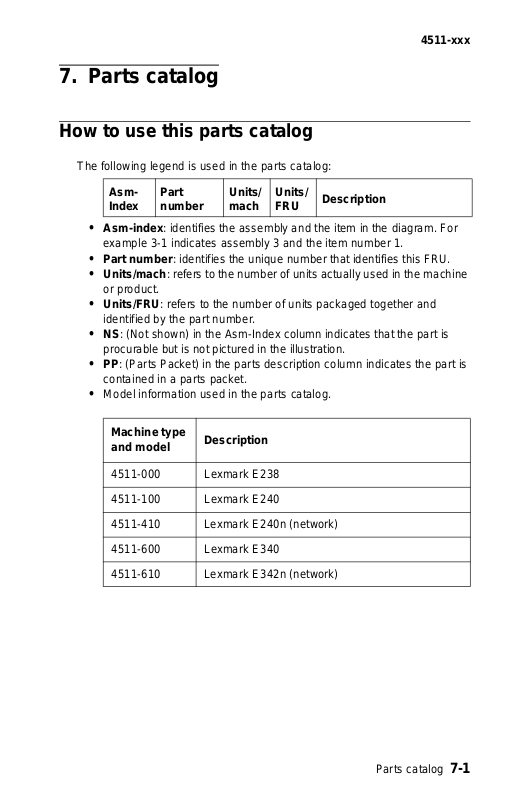

7. Parts catalog

How to use this parts catalog

The following legend is used in the parts catalog:

Asm­Index

Part
number

Units/
mach

Units/
FRU

Description

• Asm-index: identifies the assembly and the item in the diagr am . For

example 3-1 ind icates assembly 3 and the item number 1.

• Part number: identifies the unique num ber that identifi es thi s FRU.

• Units/mach: ref er s to the number of units actually used in the machine

or product.

• Units/FRU: refers to the number of units packaged together and

identified by the part number.

• NS: (Not shown) in the Asm-Index column indicates that the part is

procurable but is not pictured in the illustration.

• PP: (Parts Packet) in the parts de s c r ip tion column indica te s the part is

contained in a parts packet.

• Model information used in the parts catalog.

Machine type
and model

4511-000 Lexmark E238
4511-100 Lexmark E240
4511-410 Lexmark E240n (network)
4511-600 Lexmark E340

Description

4511-610 Lexmark E342n (network)

Parts catalog

7-1

4511-xxx

Assembly 1: Covers



























7-2 Service Manual

4511-xxx

Assembly 1: Covers

Asm­Index

1—1 40X1335 1 Top cover assembly

Part
number

2 40X1339 1 Rear cover assembly
3 40X1320 1 Right side cover
4 40X1341 1 Optional media dra wer assembl y

5 40X1342 1 Optional tray 2
6 40X1340 1 Main tray
7 40X1336 1 Left side cover
8 40X1356 1 15 Language ov erlays
9 40X1357 1 1 LCD bezel, E340 cover
9 40X1327 1 1 LCD bezel, E342n cover

10 40X1309 1 F ront access co ver assem bly, E340,

11 40X1310 1 F ront access cov er assembly, no

12 40X1354 1 Springs, A CM and front acce ss door
13 40X1359 1 Logo plate co ver, E238
13 40X1311 1 Logo plate co ver, E240
13 40X1312 1 Logo plate co ver, E240n

Units/
mach

Units/
FRU

Description

(no tray)

E342n

logo, E238, E240, E240n

Parts catalog

7-3

4511-xxx

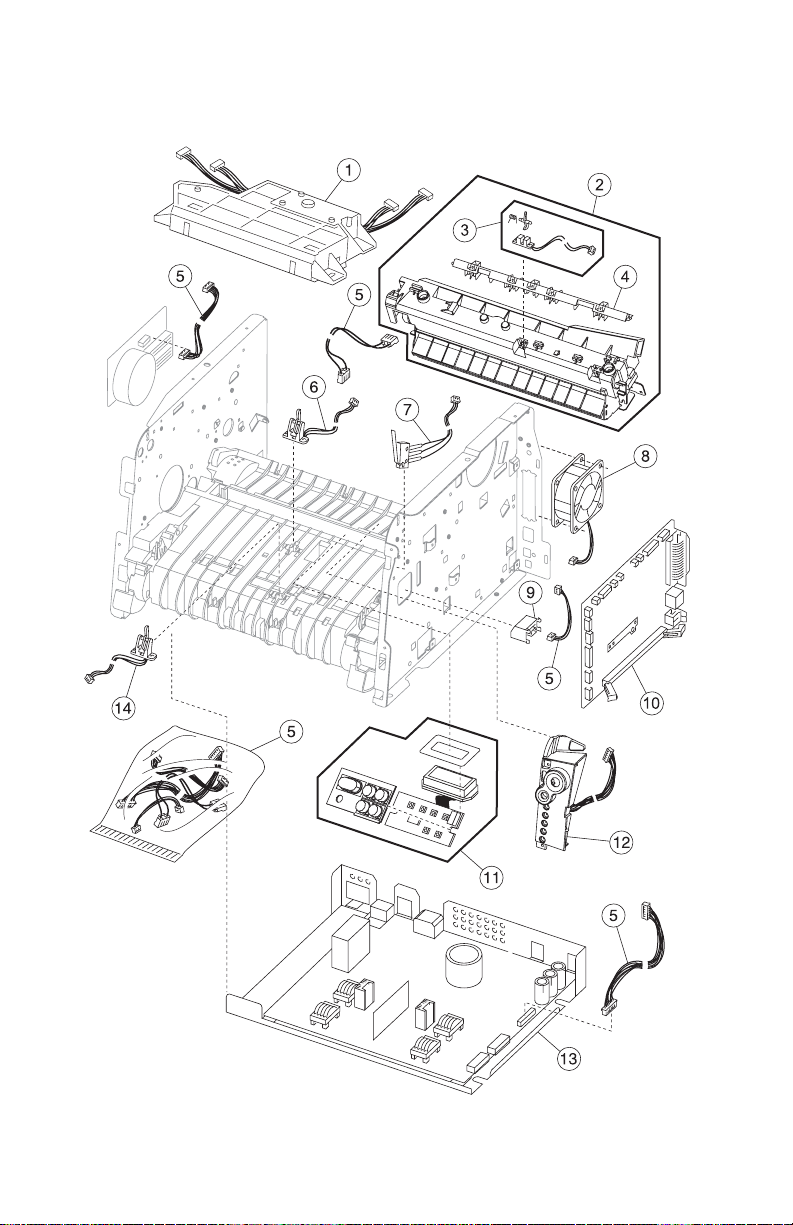

Assembly 2: Electronics

7-4 Service Manual

4511-xxx

Assembly 2: Electronics

Asm­Index

2–1 40X1303 1 Laser/mirror printhe ad assem bly,

Part
number

1 40X1304 1 Laser/mirro r prin thead assembly,

2 40X1300 1 Fuser assembl y, 110 V
2 40X1301 1 Fuser assembl y, 220 V
2 40X1302 1 Fuser assembl y, 100 V
3 40X1325 1 Exit sensor assembly
4 40X3480 1 1 Fuser upper exit guide
5 40X1333 1 Miscellaneous cable assemblies

6 40X1323 1 Input #1 sensor assembly
7 40X1326 1 Cover ope n sensor assembly
8 40X1328 1 Cooling fan

9 40X1332 1 Toner level sensor
10 40X1305 1 Controller card, E238/E240
10 40X1306 1 Controller card, E240n
10 40X1307 1 Controller card, E340
10 40X1308 1 Controller card, E342n
11 40X1316 1 LED operator panel assembly,

12 40X1315 1 LCD operator panel assembly,

12 40X1358 1 LCD operator panel assembly,

13 40X1317 1 LVPS/HVPS card assembly, 110 V
13 40X1318 1 LVPS/HVPS card assembly, 220 V
14 40X1324 1 Input #2 sensor assembly (manual)

Units/
mach

Units/
FRU

Description

E238/ E240/E240n

E340/E342n

• Fuser power

• Toner sensor

• LVPS/HVPS to controller

• Main drive motor

E238/E240/E240n

E340/E342n

Katakana

Parts catalog

7-5

4511-xxx

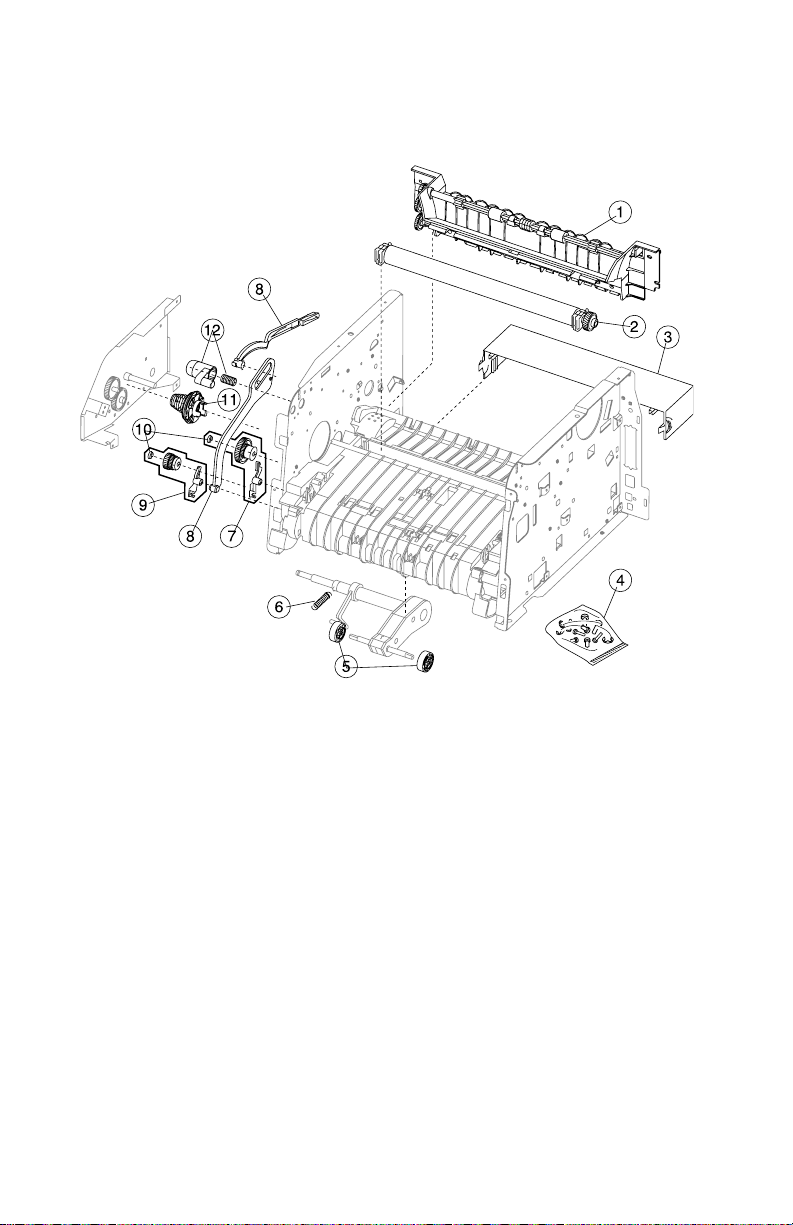

Assembly 3: Frame

7-6 Service Manual

4511-xxx

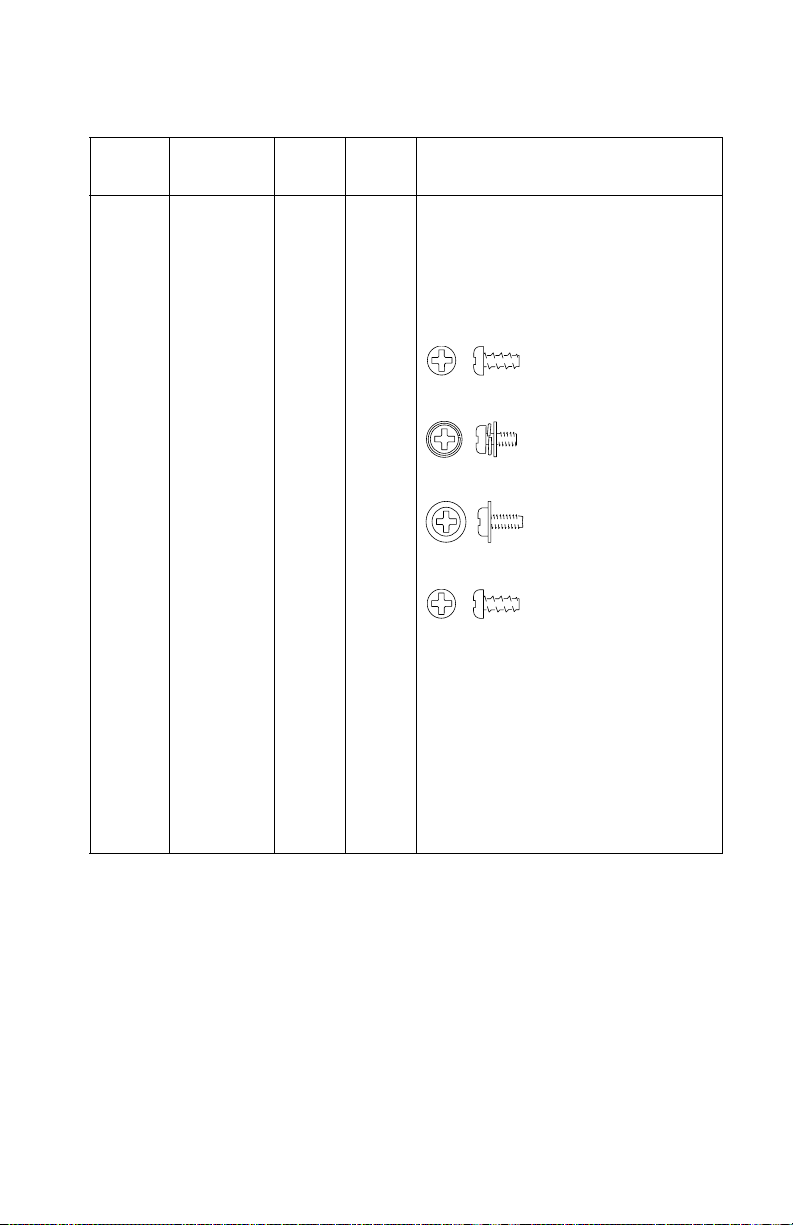

Assembly 3: Frame

Asm­Index

3–1 40X1334 1 Paper exit guide assembly

Part
number

2 40X1322 1 Transfer roll, bearings, gear, spring

3 40X1321 1 Legal-size paper ext ender cover

4 40X1353 N/A Screws, miscellaneous (act ual size)

5 40X1319 2 Paper feed, rubber tires

6 40X1354 1 Fron t access door and ACM springs

7 40X1331 1 ACM clutch CBM

8 40X1338 1 Door-fuser idle gear li nk CBM

9 40X1330 1 Manual feed clutch CBM
10 40X1355 2 Plastic snap rings
11 40X1329 1 Dev eloper drive coupling assembly
12 40X1337 1 F ront access cover latch CBM

Units/
mach

Units/
FRU

Description

TP2NC-3.0+6P-Ni (2)

M3.0*0.5+6P-Ni,2 Washer (2)

MT3.0*0.5+6PF-Ni (5)

TP2NC-3.0+6PF-Ni (4)

Parts catalog

7-7

4511-xxx

Assembly 4: Options

Asm­Index

NS 40X1564 1 32MB flash card assembly
NS 40X1513 1 Simplified Chinese font card

NS 40X1514 1 Traditional Chinese font card

NS 40X1512 1 Japanese font card assembly
NS 40X1515 1 Korean font card assembly
NS 40X1364 1 32MB SDR DIMM
NS 40X1365 1 64MB SDR DIMM
NS 40X1366 1 128MB SDR DIMM

Part
number

Units/
mach

Units/
FRU

Description

assembly

assembly

7-8 Service Manual

4511-xxx

Assembly 5: Miscellaneous

Asm­Index

NS 40X1368 1 USB cable, packaged (2 m)
NS 40X1367 1 Parallel cable, packaged (3 m)
NS 7372839 1 Field location package assembl y
NS 40X0289 1 Pow er cord, 1.8M (straight)— USA,

NS 40X0278 1 Power cord, 6 foot (straight)—

NS 40X0288 1 Power cord, 8 foot (straight)—

NS 40X0271 1 Power cord, 8 foot (straight)—

NS 40X0275 1 Power cord, 6 foot (straight)—Israel
NS 40X0274 1 Power cord, 6 foot (straight)—

NS 40X0276 1 Pow er cor d, 6 f o ot (str aig ht)—South

NS 40X0287 1 Power cord, 6 foot (straight)—

NS 40X0279 1 Power cord, 6 foot (straight)—

NS 40X0277 1 Power cord, 6 foot (straight)—Brazil
NS 40X0282 1 Power cord, 1.8M (straight)—PRC
NS 40X0270 1 Power cord, 2.5M (straight)—Japan
NS 40X0280 1 Power cord, 1.8M (straight)—Korea
NS 40X0281 1 Power cord, 1.8M (straight)—

NS 40X0296 1 Power cord, 1.8M (straight)—

Part
number

Units/
mach

Units/
FRU

Description

Canada

Europe and others

Argentina

United Kingdom

Switzerland

Africa

Traditional Italy

Danish

Taiwan

Australia

Parts catalog

7-9
