Lexmark C750

Setup Guide

August 2001

www.lexmark.com

Edition: August 2001

The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK

INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any time.

Comments about this publication may be addressed to Lexmark International, Inc., Department F95/032-2, 740 West New Circle Road, Lexington, Kentucky 40550, U.S.A. In the United Kingdom and Eire, send to Lexmark International Ltd., Marketing and Services Department, Westhorpe House, Westhorpe, Marlow Bucks SL7 3RQ. Lexmark may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you. You can purchase additional copies of publications related to this product by calling 1-800553-9727. In the United Kingdom and Eire, call 0628-481500. In other countries, contact your point of purchase.

References in this publication to products, programs, or services do not imply that the manufacturer intends to make these available in all countries in which it operates. Any reference to a product, program, or service is not intended to state or imply that only that product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any existing intellectual property right may be used instead. Evaluation and verification of operation in conjunction with other products, programs, or services, except those expressly designated by the manufacturer, are the user’s responsibility.

Lexmark and Lexmark with diamond design, MarkNet, and MarkVision are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. ImageQuick is a trademark of Lexmark International, Inc.

PostScript® is a registered trademark of Adobe Systems Incorporated. PostScript 3 is Adobe Systems’ designation of a set of printer commands (language) and functions included in its software products. This printer is intended to be compatible with the PostScript 3 language. This means the printer recognizes PostScript 3 commands used in various application programs, and that the printer emulates the functions corresponding to the commands.

Sun, Sun Microsystems, Sun Ray, Solaris, and the Solaris logo are trademarks or registered trademarks of Sun Microsystems, Inc., in the U. S. and other countries, and are used under license.

Other trademarks are the property of their respective owners.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark International, Inc., Lexington, KY 40550.

FCC emissions information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any questions on this statement should be directed to:

Director of Lab Operations Lexmark International, Inc. 740 West New Circle Road Lexington, KY 40550 (859) 232-3000

Refer to the Lexmark C750 Publications CD for details.

Safety information

• If your product is NOT marked with this symbol , it MUST be

connected to an electrical outlet that is properly grounded.

• The power cord must be connected to an electrical outlet that is near the product and easily accessible.

• Refer service or repairs, other than those described in the operating instructions, to a professional service person.

• This product is designed, tested, and approved to meet strict global safety standards with the use of specific Lexmark components. The safety features of some parts may not always be obvious. Lexmark is not responsible for the use of other replacement parts.

• Your product uses a laser. CAUTION: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Your product uses a printing process that heats the pr int media,

and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

Conventions

It may help you to recognize the caution, note, and warning conventions used in this book. These appear in the left column for easy reference.

CAUTION! A caution identifies something

that could cause you harm.

Note: A note provides information you may

find useful.

Warning! A warning identifies something

that could damage your printer hardware or software.

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

About your printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .v

Other sources of information . . . . . . . . . . . . . . . . . . . . . . . . . vi

Step 1: Unpack the printer . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Step 2: Set up the printer and paper handling options . . . 3

Installing a 2000-sheet drawer . . . . . . . . . . . . . . . . . . . . . . . . .4

Installing a 500-sheet drawer . . . . . . . . . . . . . . . . . . . . . . . . . .5

Installing a duplex unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Positioning the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Installing an output expander . . . . . . . . . . . . . . . . . . . . . . . . .10

Installing a 5-bin mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Step 3: Set up the print supplies . . . . . . . . . . . . . . . . . . . . 15

Setting up the print cartridges . . . . . . . . . . . . . . . . . . . . . . . . .15

Attaching an adhesive operator panel overlay . . . . . . . . . . . .21

Step 4: Install memory and option cards . . . . . . . . . . . . . 22

Removing the system board access cover . . . . . . . . . . . . . . .22

Installing a memory card . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Installing a firmware card . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Installing a hard disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Installing an option card . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Replacing the system board access cover . . . . . . . . . . . . . . .30

Step 5: Load paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Loading the 500-sheet trays . . . . . . . . . . . . . . . . . . . . . . . . . .32

iii

Loading the 2000-sheet tray . . . . . . . . . . . . . . . . . . . . . . . . . .34

Loading the multipurpose feeder . . . . . . . . . . . . . . . . . . . . . .37

Step 6: Attach cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Network printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Local printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Step 7: Verify printer setup . . . . . . . . . . . . . . . . . . . . . . . . 41

Turning on the printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Printing a network setup page . . . . . . . . . . . . . . . . . . . . . . . .42

Printing a menu settings page . . . . . . . . . . . . . . . . . . . . . . . .43

Step 8: Configure for TCP/IP . . . . . . . . . . . . . . . . . . . . . . . 44

Setting the printer IP address . . . . . . . . . . . . . . . . . . . . . . . . .44

Verifying the IP settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Configuring for Pull Printing . . . . . . . . . . . . . . . . . . . . . . . . . .45

Step 9: Install printer drivers . . . . . . . . . . . . . . . . . . . . . . . 46

Network printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Local printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Step 10: Distribute information to users . . . . . . . . . . . . . . 51

Discovering printer users . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Finding helpful information . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Distributing the information . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Storing quick reference cards . . . . . . . . . . . . . . . . . . . . . . . . .52

Appendix: Statement of limited warranty . . . . . . . . . . . . . . 53

Introduction

About your printer Your printer is available in four models:

5-bin mailbox

(see page 12)

Output expander

(see page 10)

Printer

(see page 8)

Duplex unit

(see page 7)

500-sheet drawer

(see page 5)

2000-sheet drawer

(see page 4)

• Lexmark C750, with 1200 dots

per inch (dpi) resolution, 64MB of standard memory, one 500-sheet tray, and USB and parallel connectors

• Lexmark C750n, a network

model that has an Ethernet 10BaseT/100BaseTx print server installed, and USB and Ethernet connectors

• Lexmark C750in, a network

internet model with an ImageQuick firmware card installed

• Lexmark C750dn, a network

model with duplexing capabilities, 128MB of standard memory, and one additional 500-sheet drawer

If you purchased a multifunction printer that scans, copies, and faxes, refer to the documentation that came with the device for information about setting up components other than the printer.

There are several different configuration options for your printer. Launch the Lexmark C750 Publications CD and click Printer Overview for information about configuration options.

Other sources of

information

If you need more information after you have completed setup, refer to the other printer documentation.

Lexmark C750 Publications

Quick Reference and

Clearing Jams cards

Drivers CD The drivers CD contains all the printer

The Lexmark C750 Publications CD provides information about loading paper, clearing error messages, ordering and replacing supplies, installing maintenance kits, and troubleshooting. It also provides general information for administrators.

The information on the Lexmark C750 Publications CD is also available on Lexmark’s Web site at www.lexmark.com/publications.

The Quick Reference card and Clearing Jams card provide easy access to information about loading print media, printing confidential jobs, understanding common printer messages, and clearing paper jams.

drivers necessary to get your printer up and running.

Depending on which version of the drivers CD shipped with your printer, it may also contain MarkVision™ Professional, other printer utilities, worldwide customer support phone numbers, screen fonts, and additional documentation.

Lexmark Web site Visit our Web site at www.lexmark.com

for updated printer drivers, utilities, and other printer documentation.

Step 1: Unpack the printer

30 cm (12 in.)

CAUTION! The printer weighs 47.7 kg

(105 lb) and requires at least two people to lift it safely.

137 cm (54 in.)

30 cm (12 in.)

51 cm (20 in.)

1 Select a location for your

Lexmark™ C750 printer:

— Leave enough room to open

the printer trays, covers, and doors; access options; and allow for proper ventilation.

— Provide the proper

environment:

-- A firm, level surface

-- Away from the direct airflow of air conditioners, heaters, or ventilators

-- Free of temperature, sunlight, or humidity extremes or fluctuations

-- Clean, dry, and free of dust

Unpack the printer

Power cord

Note: Leave the printer in the box until

you are ready to install it. Then have someone help you lift it using the handholds (see “Positioning the printer” on page 8).

Drivers CD

2 Remove all items except the

printer from the box.

Make sure you have the following items:

— Printer with one 500-sheet tray

— Power cord

— Four print cartridges

(preinstalled)

— Setup Guide with a Lexmark

C750 Publications CD

— Quick Reference card,

Clearing Jams card, and

printer pocket

— Drivers CD

If any items are missing or damaged, refer to the publications CD for the designated Lexmark support phone number for your country.

Save the carton and packing materials in case you need to repack the printer.

Setup Guide with Lexmark C750 Publications CD

Unpack the printer

Quick Reference card, Clearing Jams card, and

printer pocket

Step 2: Set up the printer and

paper handling options

Note: Be sure to set up the items in the

order listed in the table.

Topi c Go to page...

Installing a 2000-sheet drawer 4

Installing a 500-sheet drawer 5

Installing a duplex unit 7

Positioning the printer 8

Installing an output expander 10

Installing a 5-bin mailbox 12

Use the following table to locate the instructions you need to set up your printer and any paper handling options you may have purchased.

Set up the printer and paper handling options

Installing a

2000-sheet drawer

Your printer supports one optional 2000-sheet drawer.

Warning! If you have an optional

duplex unit, you must install one 500-sheet drawer between the duplex unit and the 2000-sheet drawer.

1 Unpack the 2000-sheet drawer

and remove any packing material.

2 Place the drawer in the location

you have chosen for your printer.

3 If you are installing a 500-sheet

drawer on top of the 2000-sheet drawer, attach stabilizing bars to each corner.

a Turn the drawer upside down.

b Place the lower bracket piece

over the holes on the drawer.

c Insert the stabilizing bar into

the opening by the bracket and then lay it flat.

d Place the upper bracket piece

over the bar, aligning its holes with the holes in the lower bracket piece.

e Screw the bracket into place

using four screws.

f Repeat steps b–e for the

remaining three corners.

g Turn the drawer right-side up.

Set up the printer and paper handling options

Leveling feet

Note: You will install the power cord for

the 2000-sheet drawer later.

4 Adjust the four leveling feet on the

bottom of the drawer.

5 Continue with “Installing a

500-sheet drawer” on page 5 or “Positioning the printer” on

page 8.

Installing a

500-sheet drawer

Warning! If you have an optional

duplex unit and a 2000-sheet drawer, you must install one 500-sheet drawer between the duplex unit and the 2000-sheet drawer.

Set up the printer and paper handling options

Your printer supports up to three additional 500-sheet drawers. However, if you install a 2000-sheet drawer, you can only add one additional 500-sheet drawer.

1 Unpack the 500-sheet drawer and

remove any packing material.

2 Place the drawer in the location

you have chosen for your printer or install it on another drawer:

a Align the holes in the

500-sheet drawer with the positioning posts on the lower drawer.

b Lower the 500-sheet drawer

into place. Make sure it is seated securely on the other drawer.

3 If you are installing a 500-sheet

drawer on top of a 2000-sheet drawer, secure them with stabilizing screws.

a Insert the screws through the

holes next to the positioning posts on the 500-sheet drawer.

b Hand-tighten the screws.

Even when fully inserted, the screws allow some space between the drawers.

4 Install another 500-sheet drawer,

or continue with “Installing a duplex unit” on page 7 or “Positioning the printer” on page 8.

Set up the printer and paper handling options

Installing a duplex unit Your printer supports an optional duplex

unit that lets you print on both sides of a sheet of paper.

Warning! If you have a 2000-sheet

drawer, you must install one 500-sheet drawer between the duplex unit and the 2000-sheet drawer.

1 Unpack the duplex unit and

remove any packing material.

2 Place the duplex unit in the

location you have chosen for your printer or install it on a 500-sheet drawer:

a Align the positioning posts on

the drawer with the holes in the duplex unit.

b Lower the duplex unit into

place. Make sure it is seated securely on the drawer.

3 Continue with “Positioning the

printer” on page 8.

Set up the printer and paper handling options

Positioning the printer Once you have selected a location and

set up any optional drawers or a duplex unit, you are ready to position the printer.

CAUTION! The printer weighs 47.7 kg

(105 lb) and requires at least two people to lift it safely.

1 Have someone help you lift the

printer out of the box.

Use the handholds on the front and rear of the printer.

Set up the printer and paper handling options

2 Have someone help you place the

printer in the location you have chosen.

If you are installing the printer on an optional drawer or a duplex unit, align the positioning posts on the option with the holes in the printer. Make sure the printer is seated securely on the option.

3 Remove any tape or packing

material from the outside of the printer.

Set up the printer and paper handling options

Installing an

output expander

Your printer supports an optional output expander that lets you stack up to 650 sheets of paper in one bin.

Note: After you unpack the output

expander, install it immediately. Otherwise, the edges of the mounting brackets could damage tabletops or fabrics.

Warning! The output expander tray is

designed to hold the weight of print material only. Do not use it as a shelf; excess weight may cause it to disengage from the output expander.

1 Unpack the output expander and

remove any packing material.

2 Remove the printer top cover.

Set up the printer and paper handling options

3 Align the mounting brackets on

the bottom of the output expander with the slots in the top of the printer.

4 Lower the output expander into

place.

5 Attach the printer top cover to the

output expander.

Set up the printer and paper handling options

6 Attach the output expander paper

bail to the top cover.

7 Go to "Step 3: Set up the print

supplies" on page 15.

Installing a

5-bin mailbox

Note: After you unpack the mailbox,

install it immediately. Otherwise, the edges of the mounting brackets could damage tabletops or fabrics.

Set up the printer and paper handling options

Your printer supports a 5-bin mailbox that lets you collate and stack up to 500 sheets of paper.

1 Unpack the mailbox and remove

any packing material.

Warning! The mailbox is designed to

hold the weight of print material only. Do not use it as a shelf; excess weight may damage it.

2 Remove the printer top cover.

3 Align the mounting brackets on

the bottom of the mailbox with the slots in the top of the printer.

4 Lower the mailbox into place.

Set up the printer and paper handling options

5 Attach the printer top cover to the

mailbox.

6 Attach the mailbox paper bail to

the top cover.

Set up the printer and paper handling options

Step 3: Set up the print supplies

This step describes how to prepare the print cartridges and remove the packing materials inside the printer.

To avoid damage, do not turn on the printer until you have completed this step and removed all packing materials.

Setting up the

print cartridges

1 Open the printer front cover.

Set up the print supplies

2 Remove the packing material on

top of the cartridges.

3 Remove the print cartridges. For

each cartridge:

a Pull up slightly on the

handhold.

b Pull the cartridge straight out

and use the handle to lift it off the guides.

Handle

Handhold

c Set the cartridge on a hard,

flat, clean surface in the upright position.

Set up the print supplies

Warning! Do not touch the image

transfer unit belt with your fingers.

4 Remove the packing material from

the image transfer unit belt:

a Grasp the material located on

the right side on the inside of the machine.

b Gently but firmly pull the

material up and out of the printer.

Make sure you also remove the packing material covering the top of the transfer belt.

Set up the print supplies

5 Open the front access door and

pull the plastic shim out of the printer.

6 Reinstall the print cartridges. For

each cartridge:

a Shake the cartridge in all

directions to distribute the toner.

b Turn the cartridge over so that

the handle is on the bottom.

Set up the print supplies

Warning! Failure to remove the packing

material from the print cartridges damages the printer.

Warning! Do not touch the

photoconductor drum on the bottom of the print cartridge.

c Remove the plastic packing

material from the photoconductor drum.

Discard the packing material.

d Turn the cartridge so that the

handle is on the top.

e Holding the cartridge by the

handle, rest the spokes on the cartridge on top of the guides inside the printer.

Be sure to match the cartridge color with the colored label in the printer.

Set up the print supplies

f Slide the cartridge in as far as

it will go.

The cartridge lowers into place.

7 Close the front cover.

Warning! If the front cover does not

close completely, reopen the cover and press in firmly on the cartridges to make sure they are fully seated.

Set up the print supplies

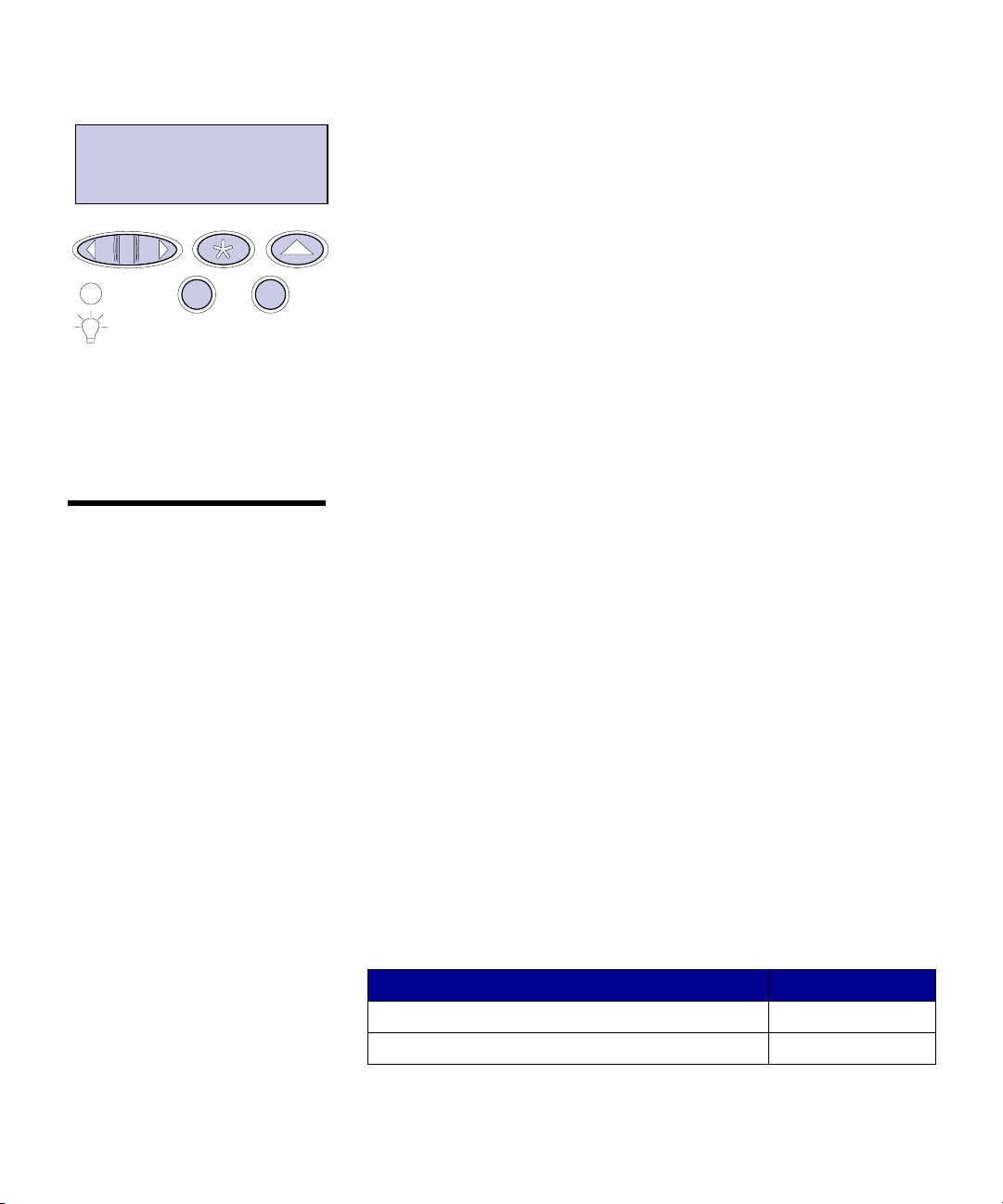

Attaching an adhesive

operator panel overlay

What do I do next?

If English is not your preferred language and your printer shipped with an adhesive operator panel overlay, attach the overlay that has the appropriately translated button names:

1 Locate the adhesive overlay

packaged with your printer.

2 Peel the protective backing off the

overlay.

3 Align the holes in the overlay with

the buttons on the operator panel, and then press it into place.

4 Peel the protective covering away

from the overlay.

Refer to the publications CD for instructions on changing the language of the text displayed on the operator panel.

Task Go to page…

Install memory and option cards 22

Load paper 31

Set up the print supplies

Step 4: Install memory and

option cards

CAUTION! If you are installing memory

or option cards sometime after setting up the printer, turn the printer off and unplug the power cord and any other cables before continuing.

Removing the system

board access cover

You can customize your printer memory capacity and connectivity by adding optional cards or hard disk.

1 Locate the access cover on the

back of the printer.

2 Loosen the four screws at the top

of the access cover, but do not remove the screws completely.

3 Remove the four screws at the

bottom of the cover.

4 Slide the cover down to remove it. 5 Use the illustration on page 23 to

locate the connector for the card you want to install.

Install memory and option cards

Hard disk connector

Option card connector

Firmware card connector

Memory and flash memory card connectors

6 Use the following table to locate

the instructions you need.

To install a... Go to page...

Memory card 24

Firmware card 25

Hard disk 26

Option card 28

Install memory and option cards

Installing a

memory card

Follow the instructions in this section to install either a printer memory card or a flash memory card. Memory cards must have 168-pin connectors.

Connection points

Note: Memory options designed for

other Lexmark printers may not work with your printer.

Warning! Printer memory and flash

memory cards are easily damaged by static electricity. Touch something metal on the printer before you touch a memory card.

Latch

The system board has three connectors for optional memory cards. You can install any combination of printer memory and flash memory cards in the connectors. However, the printer only recognizes one flash memory card at a time.

1 Remove the system board access

cover (see page 22).

2 Unpack the memory card.

Avoid touching the connection points along the edge of the card. Save the packaging.

3 Push open the latches on both

ends of the memory connector you want to use.

4 Align the notches on the bottom of

the card with the notches on the connector.

Notch

Install memory and option cards

Notch

5 Push the memory card firmly into

the connector until the latches on either end of the connector snap into place.

It may require some force to fully seat the card.

6 Make sure each latch fits over the

notch on the end of the card.

Installing a

firmware card

Follow the instructions in this section to install a firmware card.

Note: Firmware cards designed for

other Lexmark printers may not work with your printer.

Warning! Firmware cards are easily

damaged by static electricity. Touch something metal on the printer before you touch a card.

Pins

System board holes

If an option card has been installed, you must remove it before installing the firmware card.

If you have a Lexmark C750in, an ImageQuick™ firmware card is already installed.

1 Remove the system board access

cover (see page 22).

2 Unpack the firmware card.

Avoid touching the metal pins on the bottom of the card. Save the packaging.

3 Holding the card by its sides, align

the pins on the card with the holes on the system board.

4 Push the firmware card firmly into

place.

The entire length of the connector on the firmware card must touch the system board.

Be careful not to damage the card’s connectors.

Install memory and option cards

Installing a hard disk Follow the instructions in this section to

install an optional hard disk. You need a small Phillips screwdriver to attach the hard disk to the mounting plate.

Warning! Hard disks are easily

damaged by static electricity. Touch something metal on the printer before you touch a disk.

Hard disk

Ribbon cable

Mounting plate

If an option card has been installed, you may need to remove it before installing the hard disk.

1 Remove the system board access

cover (see page 22).

2 Remove the mounting plate, hard

disk, ribbon cable, and attachment screws from the package.

3 Align the ribbon cable connector

with the connector pins on the hard disk.

4 Attach the ribbon cable to the hard

disk.

5 Align the screw holes on the

mounting plate with the holes in the hard disk.

6 Secure the mounting plate to the

hard disk with the screws.

Install memory and option cards

7 Press the ribbon cable connector

into the connector on the system board.

8 Flip the hard disk over, and then

press the three posts on the mounting plate into the holes on the system board. The hard disk

snaps into place.

Install memory and option cards

Installing an

option card

Card Function

Your printer has one expansion card slot that supports a number of option cards. The following table describes their function.

MarkNet internal print server Adds an Ethernet or Token-Ring port so you can connect your printer to a

USB/Parallel 1284-C Interface Card Adds a Universal Serial Bus (USB) port or a parallel port.

Coax/Twinax Adapter for SCS Adds a coaxial/twinaxial port.

Tri-Port Adapter Adds LocalTalk, serial, and infrared ports. For details on setting up and using

Infrared Adapter Adds infrared functionality.

Note: The Lexmark C750n,

Lexmark C750in, and Lexmark C750dn printers ship with an Ethernet print server already installed.

network.

Install a MarkNet™ N2501e or N2401e internal print server if you received either of these cards as part of a multifunction printer upgrade.

the Tri-Port Adapter, refer to the documentation that shipped with the card.

You need a small Phillips screwdriver to install these options.

1 Remove the system board access

cover (see page 22).

2 Remove the screw from the metal

plate that covers the connector slot, and then lift the plate off.

Save the screw.

Install memory and option cards

Warning! Option cards are easily

damaged by static electricity. Touch something metal on the printer before you touch an option card.

3 Unpack the option card.

Save the packing materials.

4 Align the connector on the option

card with the connector on the system board.

The cable connectors on the side of the option card must fit through the connector slot.

5 Push the option card firmly into

the option card connector.

6 Secure the card to the system

board with the screw.

Install memory and option cards

Replacing the system

board access cover

After you have finished installing cards on the printer system board, you must replace the system board access cover.

1 Align the slots at the top of the

access cover with the screws near the top of the printer.

2 Slide the cover up under the top

cover lip as far as it will go, and then tighten the screws at the top of the cover.

3 Insert and tighten the four screws

to the bottom of the cover.

Install memory and option cards

Step 5: Load paper

The following table lists page numbers where you can find loading instructions for the standard and optional trays, as well as for the multipurpose feeder.

Source Paper sizes supported Paper types supported Capacity Go to page...

500-sheet trays Letter, A4, A5, Legal,

2000-sheet tray Letter, A4, A5, Legal,

Multipurpose feeder

Supported as selected paper with tray size sensing turned off in the appropriate trays.

When selected, the page is formatted for 215.9 x 355.6 mm (8.5 x 14 in.) unless otherwise specified.

Load narrow media with the length in the feed direction (portrait).

If you print large quantities of labels or other glossy print media, replace the fuser housing with a web oiler field upgrade kit. Refer to the publications CD for more information.

Capacity will vary with media weight and construction.

Executive, JIS B5, Folio1, Statement

Executive, JIS B5

Letter, A4, A5, Legal, Executive, JIS B5, Folio Statement

7¾, 9, 10, DL, C5, B5, other

, Universal

Paper, transparencies, labels, card stock

2,3

Paper • 2000 sheets of 20 lb

Paper, transparencies,

labels, card stock

2,3

Envelopes 10 envelopes

• 500 sheets of 20 lb paper

• 400 transparencies

• 250 sheets of labels or

card stock

paper

• 100 sheets of 20 lb paper

• 85 transparencies

• 85 sheets of labels or

card stock

4 5

Load paper

Loading the

500-sheet trays

Follow these instructions to load any of the 500-sheet trays.

1 Remove the tray.

2 Squeeze the front guide lever and

slide the guide to the front of the tray.

3 Squeeze the side guide lever and

slide the guide to the correct position for the size paper you are loading.

Icons along the back of the tray indicate paper sizes.

Load paper

Maximum height guide

4 Flex the sheets back and forth to

loosen them, and then fan them.

Do not fold or crease the paper. Straighten the edges of the stack on a level surface.

5 Place the paper against the back

left corner of the tray, print side down.

Do not load bent or wrinkled paper.

Note: Do not exceed the maximum

stack height indicated on the front guide. Overfilling the tray may cause jams.

Load paper

6 Squeeze the front guide lever and

slide the guide until it lightly touches the stack of paper.

7 Reinstall the tray.

Make sure the tray is pushed completely into the printer.

Loading the

2000-sheet tray

Follow these instructions to load a 2000-sheet tray. Do not load any print

media other than paper in the 2000-sheet tray.

1 Pull open the tray.

Load paper

2 Squeeze the side guide lever, lift

the guide, and place it into the appropriate slot for the size paper you are loading.

3 Squeeze the two front guide

levers and slide the guide to the correct position for the size paper you are loading.

Load paper

4 Slide the bottom support toward

the front of the tray until it touches the front guide.

5 Flex the sheets back and forth to

loosen them, and then fan them.

Do not fold or crease the paper. Straighten the edges of the stack on a level surface.

6 Place the paper against the back

left corner of the tray, print side down.

Do not load bent or wrinkled paper.

7 Close the tray.

Make sure the tray is pushed completely into the printer.

Note: Do not exceed the maximum

stack height. Overfilling the tray may cause jams.

Load paper

Loading the

multipurpose feeder

You can use the multipurpose feeder one of two ways:

• Paper tray—As a paper tray, you

can load print media in the feeder with the intention of leaving the media in the feeder.

• Manual bypass feeder—As a

manual bypass feeder, you send a print job to the feeder while specifying the type and size of media from your computer. The printer then prompts you to load the appropriate print media before it prints.

Follow these instructions to load the multipurpose feeder.

1 Open the multipurpose feeder. 2 Squeeze the paper guide lever

and slide the guide all the way toward the front of the printer.

3 Flex the sheets back and forth to

loosen them, and then fan them.

Do not fold or crease the print media. Straighten the edges of the stack on a level surface.

Load paper

Note: Do not exceed the maximum

stack height. Overfilling the feeder may cause jams.

4 Arrange the stack of print media

correctly for the size, type, and print method you are using.

5 Place the print media, print side

up, along the left side of the multipurpose feeder, and then push it in as far as it will go.

Do not force the print media.

6 Squeeze the paper guide lever

and slide the guide until it lightly touches the side of the stack.

Load paper

Step 6: Attach cables

The Lexmark C750 can be attached to a network or locally (directly to a computer).

Network printing You can attach your printer to a network using standard network

cables.

A 10BaseT/100BaseTX Fast Ethernet port is standard on Lexmark C750n, Lexmark C750in, and Lexmark C750dn models. You can add a Token-Ring or 10Base2 Ethernet port to any printer model by installing an optional MarkNet internal print server.

To attach the printer to a network:

1 Make sure the printer is turned off and unplugged. 2 Connect the printer to a LAN drop or hub using standard

cabling that is compatible with your network.

Token-Ring, Ethernet 10BaseT, or Ethernet 100BaseTX networks (Category 5) use an RJ-45 connector.

The printer automatically adjusts itself for the network speed.

Token-Ring networks (Shielded Twisted Pair) use a DB9 connector.

Ethernet 10Base2 networks (Thin Coax) use a BNC T connector.

Attach cables

Local printing You can attach your printer locally using either the USB port or

parallel port.

Note: All Windows operating

systems support parallel connections. However, only the Windows 98, Windows Me, and Windows 2000 operating systems support USB connections. Some UNIX, Linux, and Macintosh computers also support USB connections. Refer to your computer documentation to see if your system supports USB.

• A USB port is standard on all Lexmark C750 printer models.

We recommend Lexmark USB cable part number 12A2405 (2 m).

• A parallel port requires an IEEE-1284 compliant parallel cable,

such as Lexmark part number 1329605 (10 ft) or 1427498 (20 ft).

If you install an optional USB/Parallel Interface Card to the Lexmark C750n, Lexmark C750in, or Lexmark C750dn, you need a 1284 A-C parallel cable, such as Lexmark part number 43H5171 (9.8 ft), or a USB cable such as Lexmark part number 12A2405 (2 m).

If you have installed an optional Tri-Port Adapter, you can locally attach the printer with a serial cable. We recommend Lexmark part number 1038693 (50 ft). For details on LocalTalk or infrared connections, refer to the documentation that shipped with the Tri-Port Adapter.

To attach the printer to a computer:

1 Make sure the printer, computer, and any other attached

devices are turned off and unplugged.

2 Connect the printer to the computer using a parallel or USB

cable.

Use an IEEE-1284 compliant parallel cable to ensure that you can access all of your printer functions.

Attach cables

Be sure to match the USB symbol on the cable to the USB symbol on the printer.

Step 7: Verify printer setup

Turn ing on

the printer

1 Remove the shipping paper from the left access door. Hold

down the lever and pull the paper out.

2 Plug one end of the printer power cord into the socket at the

back of the printer and the other end into a properly grounded outlet.

If you installed an optional 2000-sheet drawer, plug the printer power jumper cord into the back of the drawer, and then plug the drawer’s cord into a properly grounded outlet.

Verify printer setup

3 Turn on the printer. Setup Required appears on the operator

panel.

If the printer is attached locally (directly to a computer), leave the computer and any other attached devices turned off. You will turn these on in a later step.

4 Press Go. The message Performing Self Test appears on

the operator panel display while the printer warms up. After the printer completes its internal tests, the Ready message indicates the printer is ready to receive jobs.

If you see Setup Required instead of the Read y message, check to make sure you have removed all the packing materials and that you have installed the options correctly. See Steps 1 through 6 for detailed instructions.

If you see a message other than Setup Required or Ready, refer to the publications CD for instructions on clearing the message. Click Printing, and then click Understanding

printer messages.

5 If you attached your printer to a network, continue with “Printing

a network setup page.”

Otherwise, go on to “Printing a menu settings page” on page 43.

Printing a network

setup page

Note: If an optional MarkNet

card is installed in slot 1, you see Print Net1 Setup on the display. If the card is installed in slot 2, you see Print Net2 Setup.

Verify printer setup

If the printer is attached to a network, print a network setup page to verify the network connection. This page also provides important information that helps you configure for network printing.

1 Press Menu until you see Utilities Menu, and then press

Select.

2 Press Menu until you see Print Net Setup, and then press

Select. The network setup page prints and the printer returns

to Ready status.

Utilities Menu

Select 3Return

3 Check the first section on the network setup page and confirm

that Status is “Connected.”

If Status is “Not Connected,” your LAN drop may not be active or your network cable may be malfunctioning. Consult your

network support person, and then print another network setup page to verify that you are connected to your network.

Stop

Printing a menu

settings page

Note: For more information

about using the printer operator panel and changing menu settings, refer to the publications CD.

Save the network setup page for later use.

Print the menu settings page to review the default printer settings and to verify that printer options are installed correctly.

1 Press Menu until you see Utilities Menu, and then press

Select.

2 Press Menu until you see Print Menus, and then press Select

to print the page. The message Printing Menus is displayed.

3 Verify that the options you installed are correctly listed under

“Installed Features.”

If an option you installed is not listed, turn the printer off, unplug the power cord, and reinstall the option.

4 Verify the amount of memory installed is correctly listed under

“Printer Information.”

5 Verify that the paper trays are configured for the sizes and

types of paper you loaded.

What do I do next?

Task Go to page…

Configure for TCP/IP 44

Install printer drivers 46

Verify printer setup

Step 8: Configure for TCP/IPP/IP

If you have TCP/IP available on your network, we recommend that you assign an IP address to the printer.

Setting the printer

IP address

Note: You can find instructions

for other methods of setting the IP address in the online documentation on the drivers CD that shipped with your printer. Launch the CD, click

View Documentation, and then Network Printer Install.

If your network is using DHCP, an IP address is automatically assigned after you connect the network cable to the printer.

1 Look for the address under the TCP/IP heading on the network

setup page you printed in “Printing a network setup page” on page 42.

2 Go to “Verifying the IP settings” on page 45 and begin with

step 2.

If your network is not using DHCP, you must manually assign an IP address to the printer. One of the easiest ways is to use the operator panel:

1 Press Menu until you see Network Menu, and then press

Select.

2 Press Menu until you see Standard Network, and then press

Select.

Standard Network appears if you purchased a printer with a network port on the printer system board. If you have an optional MarkNet card installed in slot 1 or 2, you see Network Option 1 or Network Option 2.

3 Press Menu until you see Std Net Setup (or Network 1 Setup

or Network 2 Setup), and then press Select.

4 Press Menu until you see TCP/IP, and then press Select. 5 Press Menu until you see Set IP Address, and then press

Select.

Configure for TCP/IP

6 Change the address by pressing Menu to increase or decrease

each number. Press

Select when you are finished.

The message Saved appears briefly.

Select to move to the next segment. Press

7 Press Menu until you see Set IP Netmask, and then press

Select.

8 Repeat step 6 to set the IP Netmask. 9 Press Menu until you see Set IP Gateway, and then press

Select.

10 Repeat step 6 to set the IP Gateway. 11 When you are finished, press Go to return the printer to the

Ready state.

Verifying the

IP settings

Note: On Windows computers,

click Start Command Prompt.

Programs

Configuring for

Pull Printing

1 Print another network setup page. Look under the “TCP/IP”

heading and make sure the IP address, netmask, and gateway are what you expected.

See “Printing a network setup page” on page 42 if you need help.

2 Ping the printer and verify that it responds. For example, at a

command prompt on a network computer type “ping” followed by the new printer IP address:

ping xxx.xxx.xxx.xx

If the printer is active on the network, you should receive a reply.

If your printer has an optional ImageQuick firmware card installed, it can be configured for Pull Printing once an IP address has been assigned.

For detailed configuration instructions, refer to the CD that shipped with the ImageQuick card.

Configure for TCP/IP

Step 9: Install printer drivers

A printer driver is software that lets your computer communicate with your printer.

The following table is a quick guide to finding the specific installation instructions you need.

Type of printer installation Network environment or operating system Go to page

Network

(Ethernet or Token-Ring connections)

Local (parallel or USB connections)

Windows 95/98/Me, Windows NT 4.0, Windows 2000 46

Macintosh 47

UNIX/Linux 48

NetWare 48

Windows 95/98/Me, Windows NT 4.0, Windows 2000 49

Macintosh 50

UNIX/Linux 50

Network printing The following instructions explain how to install printer drivers on

printers attached to a network.

Windows In Windows network environments, Lexmark printers can be

configured for direct printing or for shared printing.

Supported network printer ports

• Microsoft IP port (Windows NT 4.0 and Windows 2000)

• Lexmark network port (Windows 95/98/Me, Windows NT 4.0,

and Windows 2000)

Install printer drivers

Supported printer drivers

Note: Using the Lexmark C750

custom printer driver and a Lexmark network port provides enhanced functionality, such as printer status alerts.

• Windows system printer driver

• Lexmark C750 custom printer driver

System drivers are built into Windows operating systems. Custom drivers are available on the drivers CD.

Updated system and custom drivers are available on the Lexmark Web site at www.lexmark.com.

Supported printing methods

• Direct IP printing—when you just want to print directly to a

printer on your network

• Shared printing (point and print, peer-to-peer)—when you need

to centrally manage network printers

You can find detailed information about using each of these printing methods on the drivers CD. Click View Documentation and look for information about network printer installation.

Creating ports and installing drivers

Read the detailed instructions on the drivers CD. Click View Documentation and look for information about network printer

installation for your specific Windows environment.

Macintosh Your printer connects automatically to AppleTalk networks and

Note: A PostScript Product

Description (PPD) file provides detailed information about the capabilities of a printer to UNIX or Macintosh drivers or applications.

If you choose to install without using the instructions on the drivers CD, you need a basic understanding of network printing on TCP/IP

networks, installing printer drivers, and the process involved in creating new network ports.

becomes readily visible to other network clients.

You must create a printer object (icon) on the desktop of each network client using the LaserWriter 8 printer driver and the Lexmark C750 PPD file.

Specific information about installing the printer on your AppleTalk network can be found in the online documentation on the drivers CD that shipped with your printer.

Install printer drivers

You can find a Lexmark PPD Installer in the downloadable Web package available on the Lexmark Web site at www.lexmark.com.

Depending upon which version of the drivers CD shipped with your printer, you may also find this software on the drivers CD. Launch the Lexmark PPD Installer and follow the instructions to install the PPDs. Send a test print job when you have finished.

UNIX/Linux Your printer supports many UNIX and Linux platforms, such as Sun

Solaris and Red Hat.

Note: The Sun Solaris package

is located both on the drivers CD and on the Lexmark Web site at www.lexmark.com.

NetWare Your printer works with both Novell Distributed Print Services (NDPS)

Lexmark provides a printer driver package for each supported UNIX and Linux platform. The package contains all the necessary drivers and PPDs. The User’s Guide in each package gives detailed instructions for installing and using Lexmark printers in UNIX and Linux environments.

You can download these printer driver packages from Lexmark’s Web site at www.lexmark.com. Depending on which version of the drivers CD shipped with your printer, you may also find the driver package you need on the CD.

and regular queue-based NetWare environments.

NDPS (Novell Distributed Print Services)

If you have an NDPS environment, we recommend you install the Lexmark NDPS IP Gateway. The gateway tightly integrates your printers with NDPS so you can easily monitor, control, and print to them.

You can get the gateway, the snap-ins, the support files, and a white paper with installation instructions from Lexmark’s Web site at www.lexmark.com/networking/ndps.html.

You can find other information about installing network printers in NetWare environments on the drivers CD that shipped with your printer. Click View Documentation and look for information about network printer installation.

Install printer drivers

Non-NDPS (queue-based)

For the latest information about Lexmark support for non-NDPS environments, click View Documentation on the drivers CD and look for information about network printer installation.

Local printing In order to print, you must install a printer driver on the computer

attached to the printer.

Windows Not all Windows operating systems support all types of connections.

In addition to the following information, you may need to refer to the documentation that shipped with your computer and your Windows software.

Installation instructions

Read the detailed online instructions on the drivers CD. Click View Documentation and look for information about local printer

installation. Detailed instructions are provided for parallel and USB connections.

Supported connections

Parallel or USB refers to the type of printer cable you used in “Attach cables” on page 39 to attach the printer to your computer.

• Parallel (works with Windows 95/98/Me, Windows NT 4.0, and

Windows 2000)

• USB (works with Windows 98/Me and Windows 2000 only)

Install printer drivers

Supported printer drivers

Note: Using the Lexmark C750

custom printer driver provides enhanced functionality, such as printer status alerts.

Macintosh You must install the Lexmark C750 PPD and use it with the

UNIX/Linux Your printer supports many UNIX and Linux platforms, such as Sun

• Windows system printer driver

• Lexmark C750 custom printer driver

System drivers are built into Windows operating systems. Custom drivers are available on the drivers CD.

Updated system and custom drivers are available on Lexmark’s Web site at www.lexmark.com.

LaserWriter 8 printer driver or the Adobe PostScript driver.

You can find the Lexmark C750 PPD and specific information about local printer installation on Macintosh computers on the drivers CD that shipped with your printer. Click View Documentation and look for information about local printer installation.

After the printer is installed, print a test page to verify your printer is correctly set up.

Solaris and Red Hat.

Note: The Sun Solaris package

is located both on the drivers CD and on the Lexmark Web site at www.lexmark.com.

Install printer drivers

All the driver packages support local printing using a parallel connection. The driver package for Sun Solaris supports USB connections to Sun Ray appliances and Sun workstations.

Step 10: Distribute information

to users

Discovering

printer users

Finding helpful

information

Note: The Lexmark C750

Publications CD is shipped inside the Setup Guide.

Several types of users may need access to the information stored on the Lexmark C750 Publications CD:

• Users sending print jobs

• Network printer administrators

• Help desk personnel

• Information Technology support staff

Launch the CD and browse the contents to see a complete list of the available information. If you have a version of Acrobat capable of full text searching, we have created catalog entries to help you find the information you need.

The type of helpful information provided on the Lexmark C750 Publications CD includes:

• Tips for successful printing

• Ways to improve print quality

• Information about using the printer operator panel

• Instructions for replacing a print cartridge

• Solutions to common printing problems

• Methods for clearing paper jams

Distribute information to users

Distributing the

information

You can give users access to the information on the publications CD in several ways:

• Give the publications CD to a system administrator or the Help

desk.

• Copy the entire contents of the CD (or just specific topics) to a

shared network drive or Intranet site.

Each topic on the publications CD is a separate PDF. Launch the CD, click Other resources, and then click File locations.

• Send Lexmark’s printer documentation URL to printer users

(www.lexmark.com/publications). Users with Internet access can browse the site.

• Print the information on the publications CD and store it near

the printer for easy access. For printing instructions, launch the CD and then click Navigation.

Storing quick

reference cards

In addition to the Lexmark C750 Publications CD, your printer shipped with one or more quick reference cards. We recommend that you store these cards in their convenient printer pocket. You can attach the pocket to the printer or any flat surface near the printer.

Congratulations! You are now ready to use your new printer. Save this book if you

anticipate purchasing printer options in the future.

Distribute information to users

Statement of limited warranty

Lexmark International, Inc., Lexington, KY

This warranty applies to the United States and Canada. For customers outside the U.S. and Canada, refer to the country-specific warranty information that came with your printer.

Lexmark C750

This Statement of Limited Warranty applies to this product if it was originally purchased for your use, and not for resale, from Lexmark or a Lexmark remarketer, referred to in this statement as “Remarketer.”

Warranty

Lexmark warrants that this product:

• Is manufactured from new parts, or new and serviceable used parts, which perform like new parts

• Is free from defects in material and workmanship

• Conforms to Lexmark’s official published specifications

• Is in good working order

If this product does not function as warranted during the warranty period, contact a Remarketer or Lexmark for repair without charge.

If this product is a feature or option, this statement applies only when that feature or option is used with the product for which it was designed. To obtain warranty service, you may be required to present the feature or option with the product.

If you transfer this product to another user, warranty service under the terms of this statement is available to that user for the remainder of the warranty period. You should transfer proof of original purchase and this statement to that user.

Warranty service

The warranty period is 12 months and starts on the date of original purchase as shown on the purchase receipt.

To obtain warranty service you may be required to present proof of original purchase. Warranty service will be provided at your location.

When warranty service involves the exchange of a product or part, the item replaced becomes the property of the Remarketer or Lexmark. The replacement may be a new or repaired item. The replacement item assumes the remaining warranty period of the original product.

Replacement is not available to you if the product you present for exchange is defaced, altered, in need of a repair not included in warranty service, or damaged beyond repair. Also, such product must be free of any legal obligation or restrictions that prevent its exchange.

Before you present this product for warranty service, remove all programs, data, and removable storage media.

Statement of limited warranty

For further explanation of your warranty alternatives and the nearest Lexmark authorized servicer in your area, please contact Lexmark at 1-800-LEXMARK (1-800-539-6275), or on the World Wide Web at http://www.lexmark.com.

Free remote technical support is provided for this product throughout its warranty period. Lexmark offers a variety of extended warranty programs that include an extension of technical support. For products no longer covered by a Lexmark warranty, technical support may only be available for a fee.

Extent of warranty

We do not warrant uninterrupted or error-free operation of a product.

Warranty service does not include repair of failures caused by:

• Modification or attachments

• Accidents or misuse

• Unsuitable physical or operating environment

• Maintenance by anyone other than Lexmark or a Lexmark authorized servicer

• Operation of a product beyond the limit of its duty cycle

• Failure to have installed a maintenance kit as specified (if applicable)

• Use of printing media outside of Lexmark specifications

• Use of other than Lexmark supplies (such as toner cartridges, inkjet cartridges, and ribbons)

• Use of other than Lexmark product or component

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD. NO WARRANTIES, EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD.

Limitation of liability

Your sole remedy under this Statement of Limited Warranty is set forth in this section. For any claim concerning performance or nonperformance of Lexmark or a Remarketer for this product under this Statement of Limited Warranty, you may recover actual damages up to the limit set forth in the following paragraph.

Lexmark's liability for actual damages from any cause whatsoever will be limited to the greater of 1) $5,000 or 2) the amount you paid for the product that caused the damages. This limitation of liability will not apply to claims by you for bodily injury or damage to real property or tangible personal property for which Lexmark is legally liable. In no event will Lexmark be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages. This is true even if you advise Lexmark or a Remarketer of the possibility of such damages. Lexmark is not liable for any claim by you based on a third party claim.

This limitation of remedies also applies to any developer of materials supplied to Lexmark. Lexmark’s and the developer’s limitations of remedies are not cumulative. Such developer is an intended beneficiary of this limitation.

Additional rights

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

Statement of limited warranty

This is a placeholder for the inside back cover.

P/N 10B2601 E.C. 2B0151

Lexmark and Lexmark with diamond design are trademarks of Lexmark International, Inc., registered in the United States and/or other countries.

www.lexmark.com

Lexmark C750 Setup Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

About your printer Your printer is available in four models:

Installing a duplex unit Your printer supports an optional duplex

Positioning the printer Once you have selected a location and

Installing a hard disk Follow the instructions in this section to

Network printing You can attach your printer to a network using standard network

Local printing You can attach your printer locally using either the USB port or

Network printing The following instructions explain how to install printer drivers on

Local printing In order to print, you must install a printer driver on the computer

Statement of limited warranty
