LevelOne WGR-6013 User Manual

LevelOne

User Manual

Ver. 1.0

WGR-6013

300Mbps Wireless Gigabit Router

Safety

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

CE Declaration of conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class B for ITE, the essential protection requirement of Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic compatibility.

CE Marking Warning

Hereby, Digital Data Communications, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The CE-Declaration of Conformity can be downloaded at: http://www.levelone.eu/support.php

NCC Marking Warning

第十二條型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。

低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干

擾。

General Public License

This product incorporates open source code into the software and therefore falls under the guidelines governed by the General Public License (GPL) agreement.

Adhering to the GPL requirements, the open source code and open source license for the source code are available for free download at

http://global.level1.com.

If you would like a copy of the GPL or other open source code in this software on a physical CD medium, LevelOne (Digital Data Communications) offers to mail this CD to you upon request, for a price of US$9.99 plus the cost of shipping.

Table of Contents

IP Address

192.168.1.1

Password

admin

Wireless Mode

Enable

Wireless SSID

LevelOne

Wireless Security

None

Chapter 1 Introduction ........................................................................... 5

1.1 Packing List ................................................................................. 5

1.2 Spec Summary Table ................................................................. 5

1.3 Hardware Configuration ............................................................. 7

1.4 LED indicators ............................................................................. 8

1.5 Button Definition.......................................................................... 9

1.6 Procedure for Hardware Installation ........................................ 9

Chapter 2 Getting Start........................................................................ 11

Chapter 3 Making Configuration ........................................................ 17

2.1 Login to Configure from Wizard.............................................. 18

2.2 System Status ........................................................................... 23

2.3 Advanced ................................................................................... 24

Appendix A FAQ and Troubleshooting ............................................. 89

What can I do when I have some trouble at the first time? ...... 89

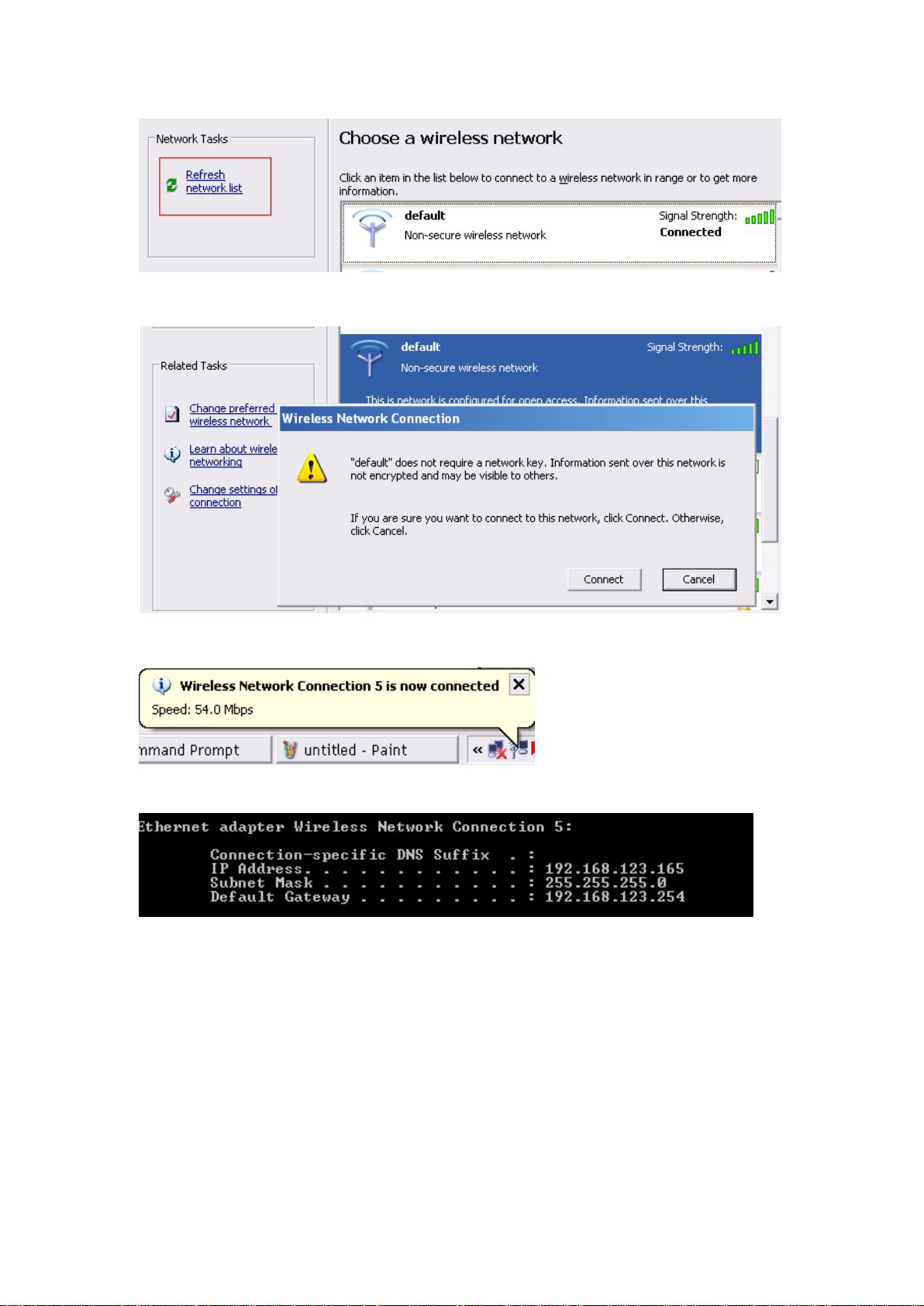

How do I connect router by using wireless? ............................... 91

Device Interface

Ethernet WAN

1 x RJ-45 port, 10/100/1000Mbps, auto-MDI/MDIX

Ethernet LAN

4 x RJ-45 port, 10/100/1000Mbps, auto-MDI/MDIX

Antenna

2 dBi detachable antenna

WPS Button

For WPS connection

Reset Button

Reset router setting to factory default

LED Indication

Power/Status / WAN / LAN1 ~ LAN4/ WiFi

Power Jack

DC Power Jack, powered via external DC 5V/1.2A switching power adapter

Wireless LAN (WiFi)

Standard

IEEE 802.11b/g/n compliance

SSID

SSID broadcast or in stealth mode

Channel

Auto-selection, manually

Security

WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

WPS

WPS (Wi-Fi Protected Setup)

WMM

WMM (Wi-Fi Multimedia)

Congratulations on your purchase of this outstanding Wireless Broadband Router. This product is specifically designed for Small Office and Home Office needs. It provides a complete SOHO solution for Internet surfing, and is easy to configure and operate even for non-technical users. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product.

1.1 Packing List

WGR-6013 Power Adapter RJ-45 LAN Cable Quick Installation Guide CD Manual/QIG Antenna

1.2 Spec Summary Table

Functionality

Ethernet WAN

PPPoE, DHCP client, Static IP

WAN Connection

Auto-reconnect, dial-on-demand, manually

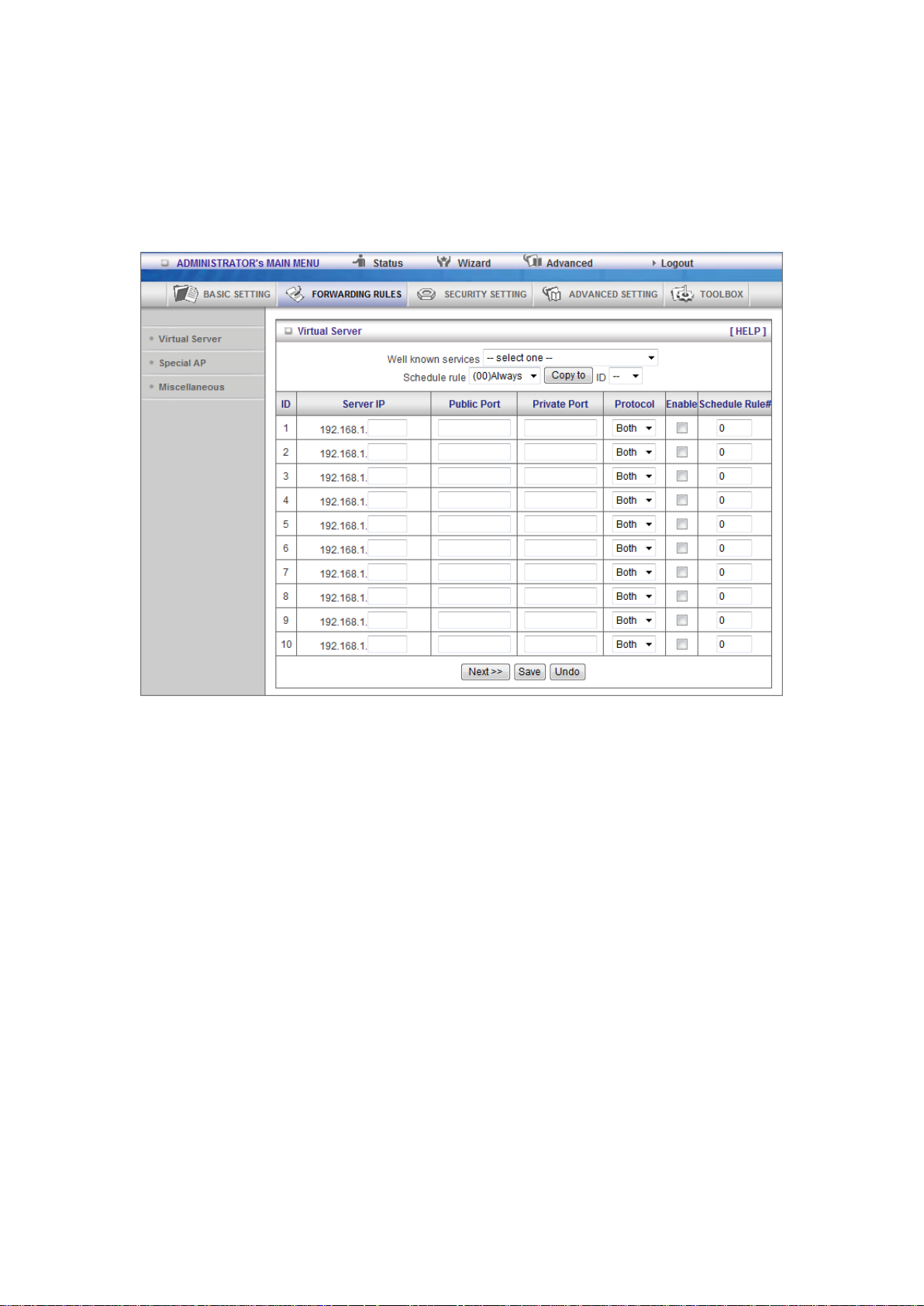

One-to-Many NAT

Virtual server, special application, DMZ, Super DMZ(IP pass-through)

NAT Session

Support NAT session(20000)

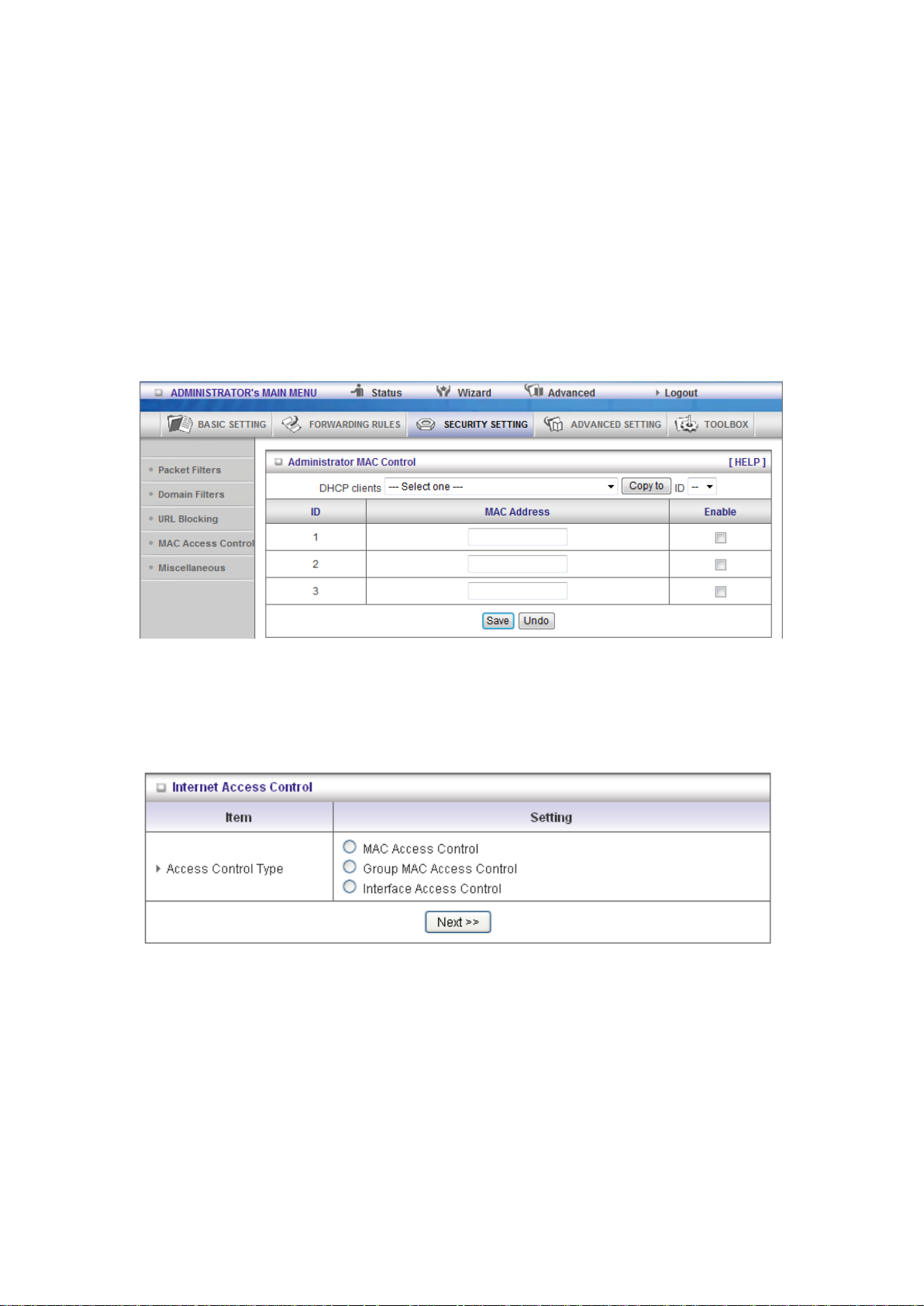

SPI Firewall

IP/Service filter, URL blocking, Internet Access Control

DoS Protection

DoS (Deny of Service) detection and protection

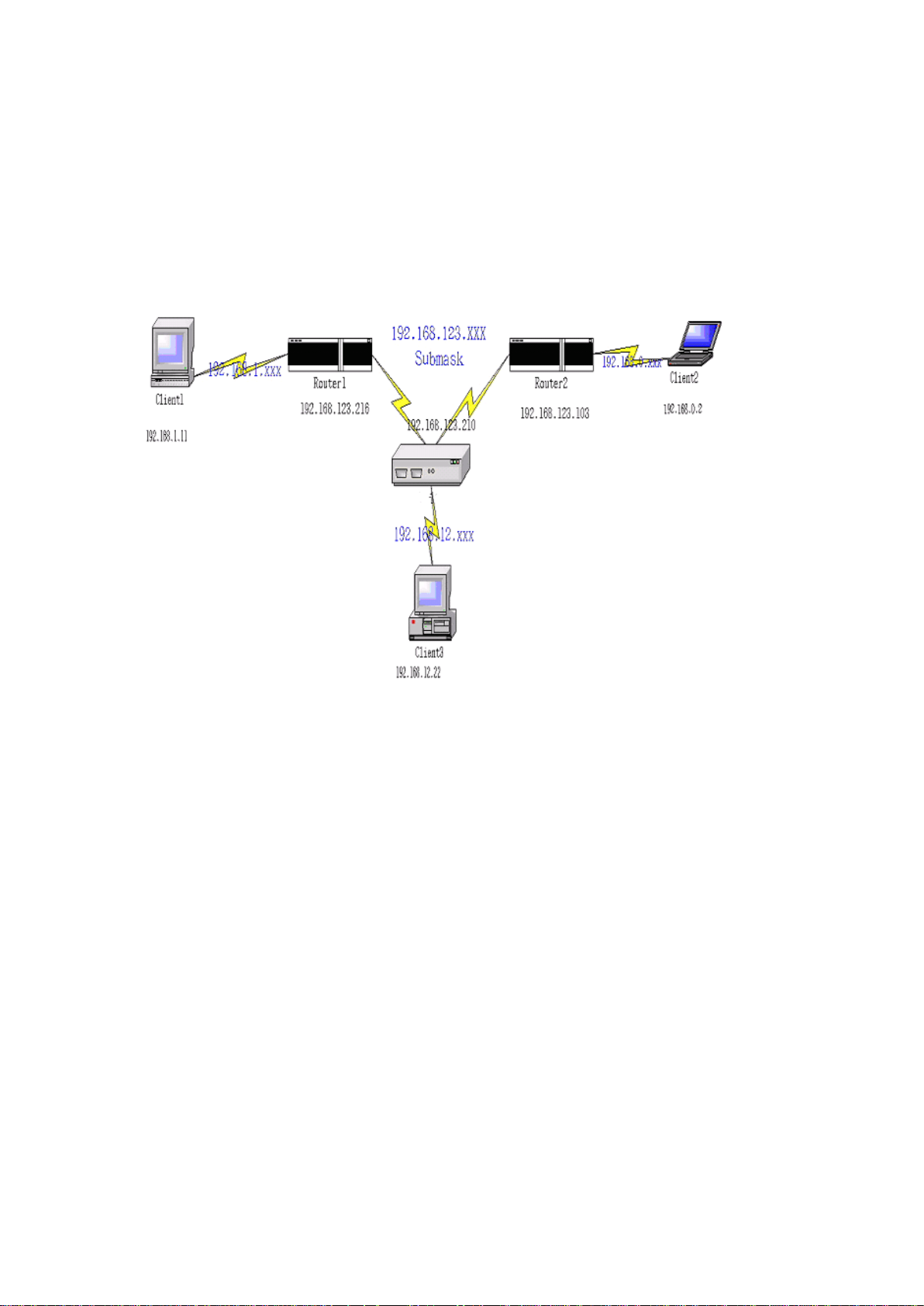

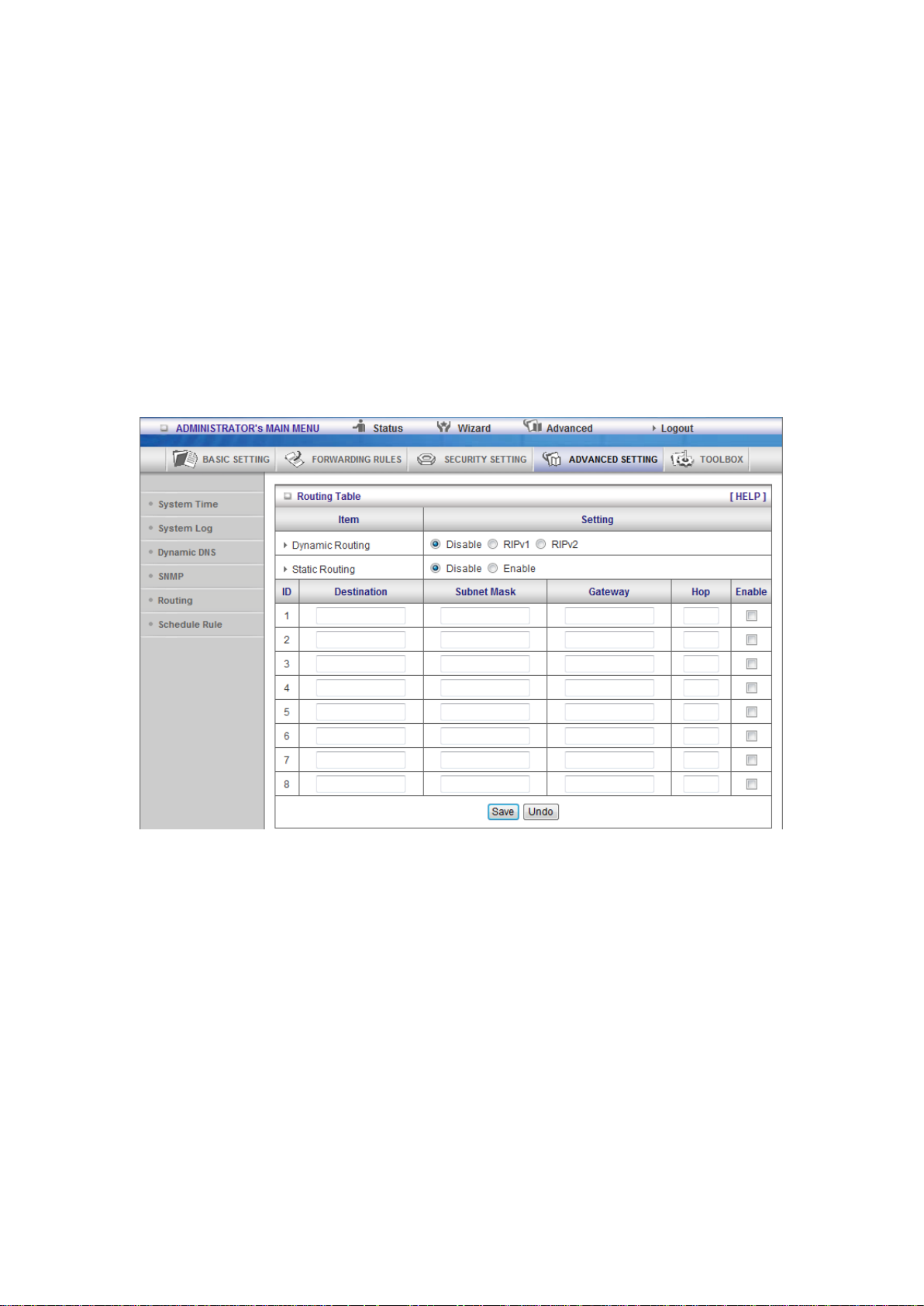

Routing Protocol

Static route, dynamic route (RIP v1/v2)

Management

SNMP, UPnP IGD, syslog, DDNS

Administration

Web-based UI, remote login, backup/restore setting

Performance

NAT up to 700Mbps and Wireless up to150Mbps

Environment & Certification

Information

Device dimension (mm) 185x119x32

Operation Temp.

Temp.: 0~40°C, Humidity 10%~90% non-condensing

Storage Temp.

Temp.: -10~70°C, Humidity: 0~95% non-condensing

EMI Certification

CE/FCC compliance

RoHS

RoHS compliance

*Specifications are subject to change without prior notice.

1.3 Hardware Configuration

Auto MDI/MDIX RJ-45 Ports Automatically sense the types of WAN and LAN when connecting to Ethernet

Power Jack

Antenna

LED status

Description

Status

Green in flash

Device status is working.

WAN LED Green

RJ45 cable is plugged

Green in flash

Data access

LAN LED Green

RJ45 cable is plugged

Green in flash

Data access

WiFi LED Green

WLAN is on

Green in flash

Data access

Green in fast flash

Device is in WPS PBC mode

Green in dark

Wi-Fi Radio is disabled

LAN1~LAN4

LEDs

Wi-Fi

LED

WAN

LED

2 in1 Button

1.WPS

2.Wireless ON

Status

LED

Reset

Button

1.4 LED indicators

1.5 Button Definition

Description

WPS

When Wireless is On, press this button (about 1 sec) to execute WPS function.

Wireless On

When Wireless is off, Press this button (about 5 sec) to enable "Wireless Radio". when wireless schedule is enabled, wireless

schedule has higher priority than wireless on/off button.

Reset

1. Press this button then Power on the device

2. Press about 6 second, the device will reset to default then Status LED flashes per sec in Normal status.

Notice: If Status LED flashes very fast, it means to press this button too long and please try again.

Step 1 Insert the Ethernet cable into LAN Port:

Insert the Ethernet patch cable into LAN port on the back panel of Router, and an available Ethernet port on the network adapter in the computer you will use to configure the unit.

1.6 Procedure for Hardware Installation

Step 2 Insert the Ethernet patch cable into Wired WAN port:

Insert the Ethernet patch cable form DSL Modem into Wired WAN port on the back panel of Router.

Step 3. Power on Router:

Connect the power adapter to the receptor on the back panel of your Router.

Step 4. Complete the setup.

When complete, the Status LED will flash.

2.1. Select Language then click “Next” for

continues.

2.2 Setup mode

You can select Wizard mode to run the

setup step-by-step or run advanced mode to diagnose the network settings of the router.

Insert the CD into CD reader on your PC. The program, AutoRun, will be executed automatically.

And then you can click the Easy setup Icon for this utility.

Configure the settings by the following steps.

2.3 Advanced mode Setup.

Check the PC, Router or Internet icons for the Status of PC, Router or Internet.

2.4 Quick Wizard Install mode Setup

1. Make sure the router is powered on.

2. Make sure your network adapter is

connected to the LAN port of the router

3. Make sure your network adapter has

an IP address.

Click “Next” for continues

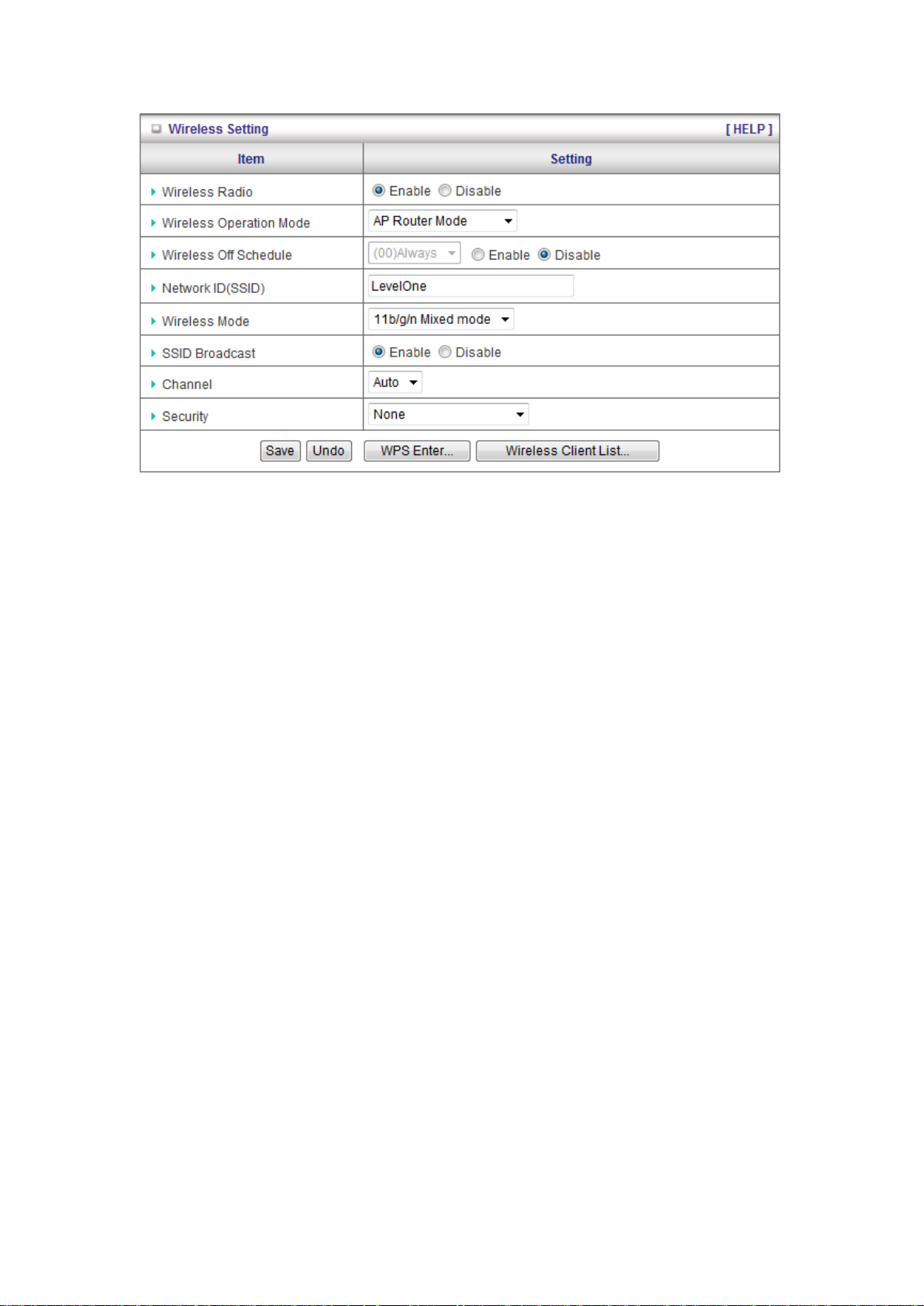

2.5. Wireless Setting.

Key in the SSID, Channel and Security options, and then click “Next” for continues.

2.6 Auto Detect WAN Service.

Click “Next” for continue. Click the button, “Let me select WAN service by myself”, to disable this function.

Note: The Item supports to detect the Dynamic and PPPoE WAN Services only

Example, the Dynamic WAN type is

detected.

2.7. Manual select WAN Service

In the manual mode, Click the any icons for continues.

2.8 Summary of the settings and Next

to “Reboot”

Click “Next” for continue.

2.9 Apply the Settings or Modify.

Click “Next” for continue.

2.10 Test the Internet connection.

Test WAN Networking service. Click “Next” for continue.

You can ignore the by select the “Ignore Test”.

2.11 Setup Completed.

The EzSetup is finish, you can open the

default web browser to configure advanced settings of the Router.

Click “Finish” to complete the installation.

This product provides Web based configuration scheme, that is, configuring by your Web browser, such as Mozilla Firefox or or Internet Explorer. This approach can be adopted in any MS Windows, Macintosh or UNIX based platforms.

Type in the IP Address (http://192.168.1.1)

Type password, the default is

“admin” and click ‘login’ button.

Press “Wizard” for basic

settings with simple way.

2.1 Login to Configure from Wizard

Press “Next” to start wizard.

Step 1: Set up your system password.

Step 2: Select Wan Type.

Auto Detecting or Setup Manually.

Step 3: Setup the LAN IP and WAN Type.

Step 4:

Please fill in PPPoE service information which is provided by your ISP.

Example:

Step 5: Set up your Wireless.

Set up your Authentication and Encryption.

Step 6: Then click Apply Setting. And then the device will reboot.

Step 7: Click Finish to complete it.

2.2 System Status

This option provides the function for observing this product’s working status: WAN Status. If the WAN port is assigned a dynamic IP, there may appear a “Renew” or “Release” button on the Sidenote column. You can click this button to renew or release IP manually.

Statistics of WAN: enables you to monitor inbound and outbound packets

2.3 Advanced

2.3.1 Basic Setting

Please Select “Advanced Setup” to Setup

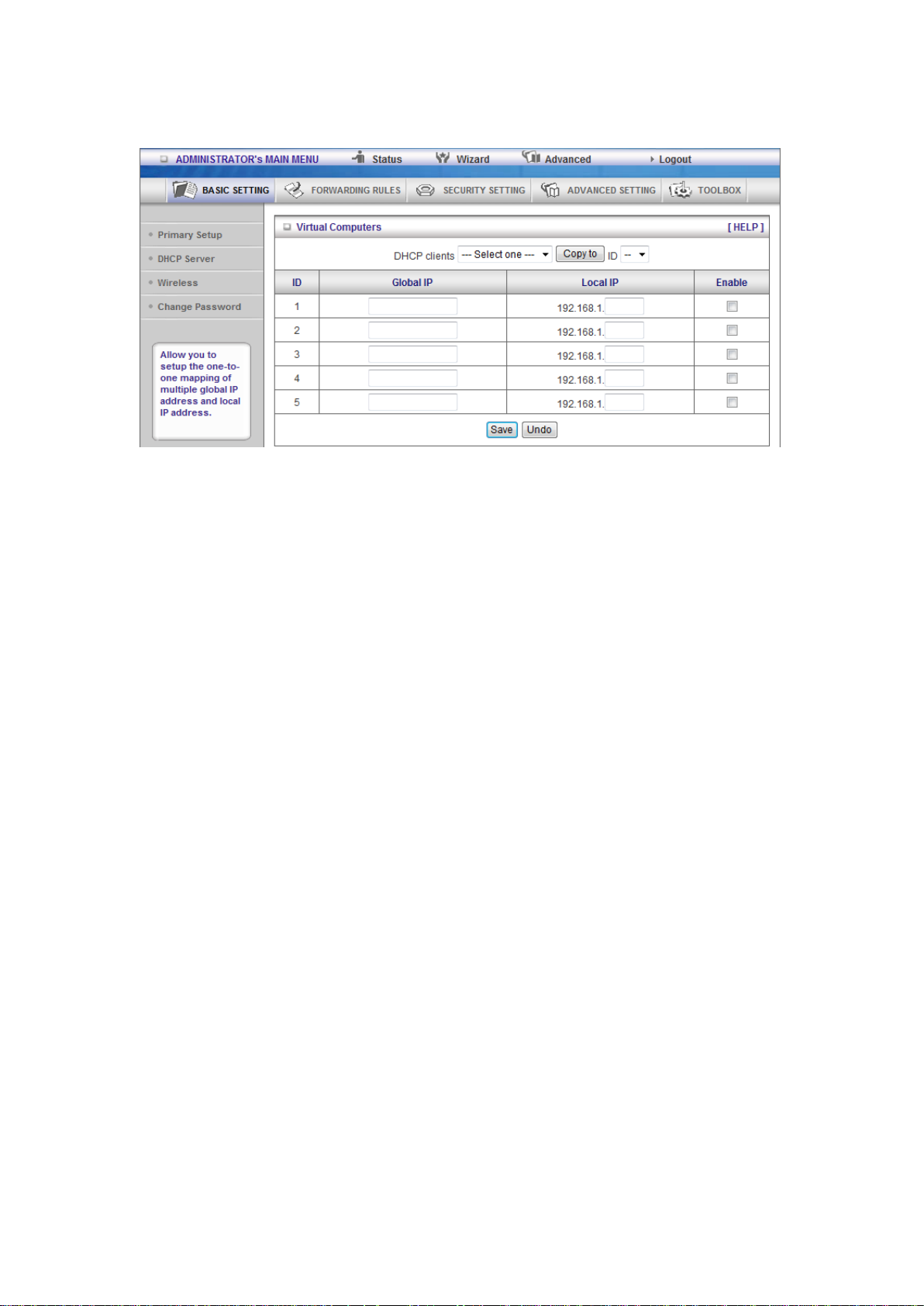

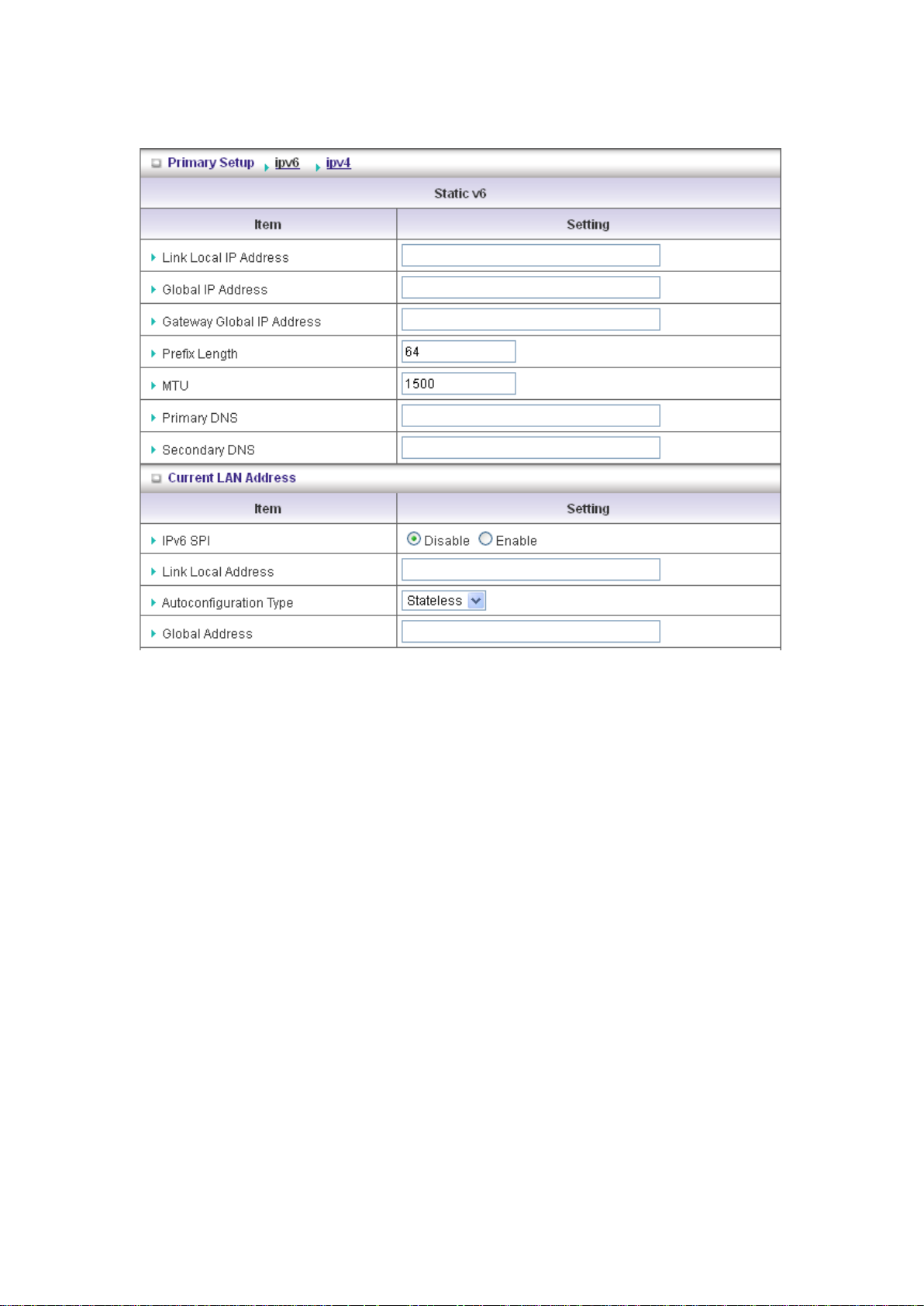

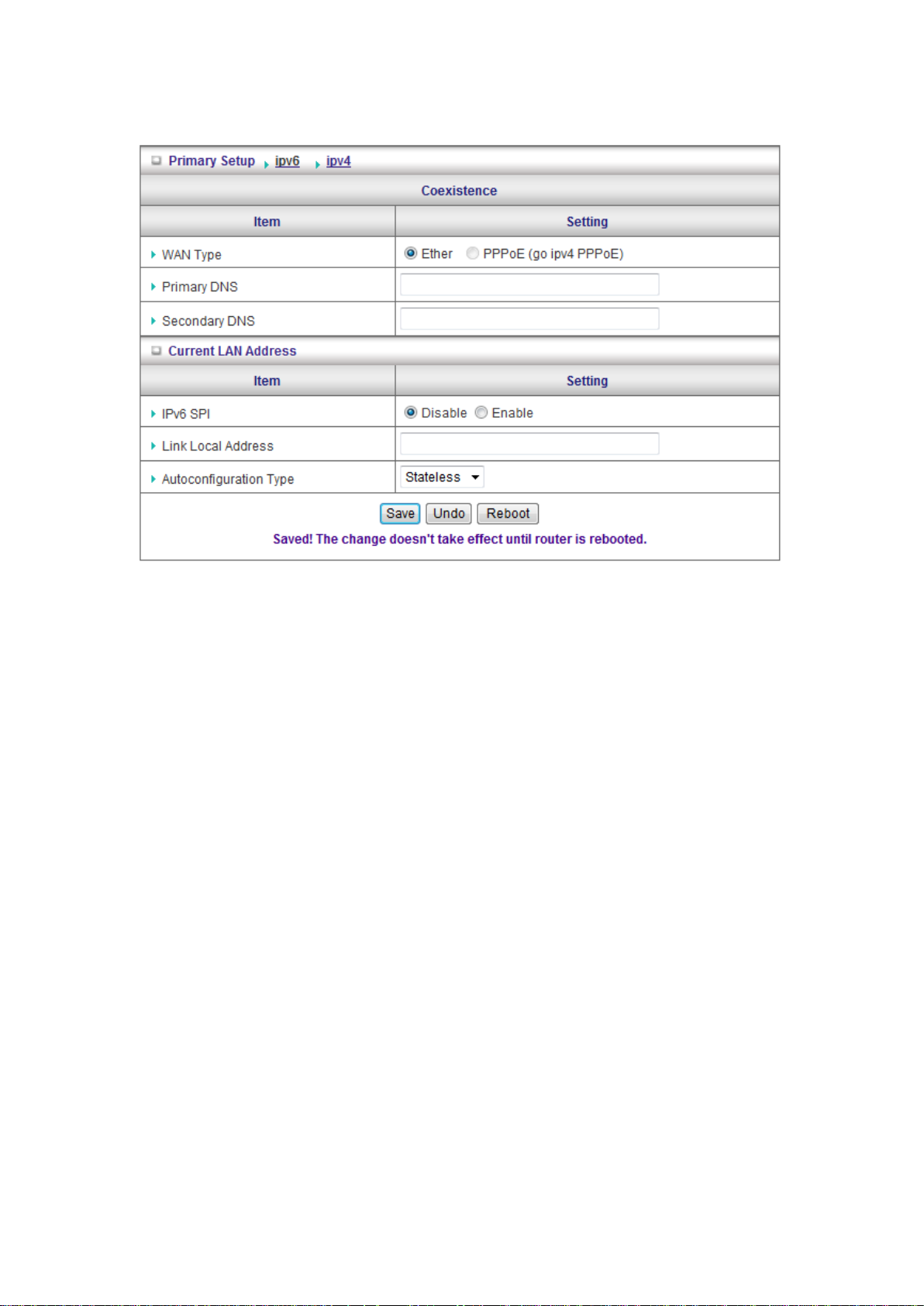

2.3.1.1 Primary Setup – WAN Type, Virtual Computers

Press “Change”

This option is primary to enable this product to work properly. The setting items and the web appearance depend on the WAN type. Choose correct WAN type before you start.

1. LAN IP Address: the local IP address of this device. The computers on your network must use the LAN IP address of your product as their Default Gateway. You can change it if necessary.

2. WAN Type: WAN connection type of your ISP. You can click Change button to choose a correct one from the following four options:

A. Static IP Address: ISP assigns you a static IP address. B. Dynamic IP Address: Obtain an IP address from ISP automatically. C. PPP over Ethernet: Some ISPs require the use of PPPoE to connect to their

services. D. PPTP: Some ISPs require the use of PPTP to connect to their services. E. L2TP: Some ISPs require the use of L2TP to connect to their services F. WISP: All the Ethernet ports are bridged together and the wireless interface of this

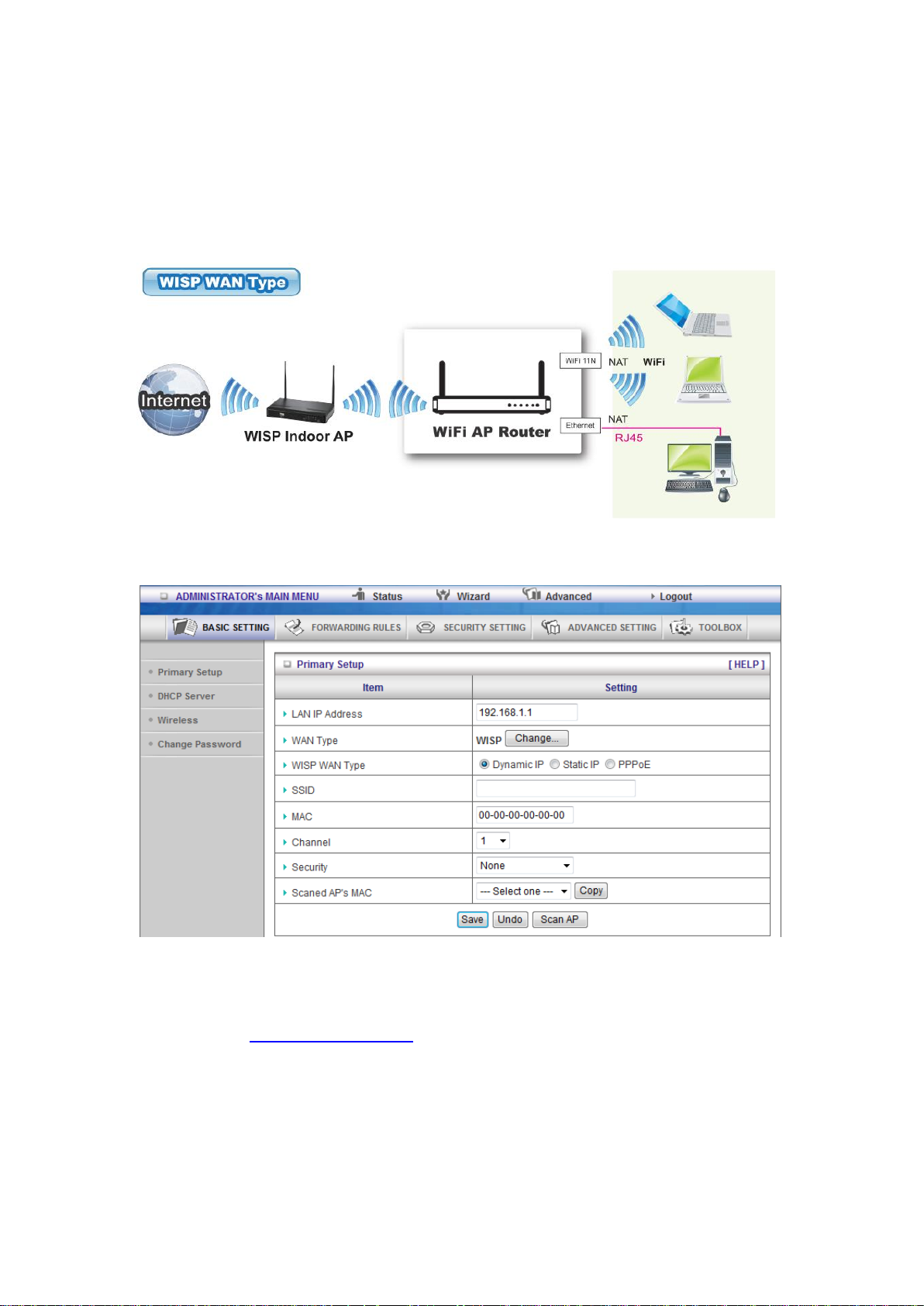

router will connect to ISP's Access Point. The NAT is enabled and PCs in Ethernet

ports share the same IP to ISP through wireless LAN. The connection type can be

setup in WAN page by using PPPoE, DHCP client or static IP.

Static IP Address: ISP assigns you a static IP address:

WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS: enter the proper setting provided by your ISP.

Dynamic IP Address: Obtain an IP address from ISP automatically.

Host Name: optional. Required by some ISPs, for example, @Home. Renew IP Forever: this feature enables this product to renew your IP address automatically when the lease time is expiring-- even when the system is idle.

PPP over Ethernet: Some ISPs require the use of PPPoE to connect to their services.

PPPoE Account and Password: the account and password your ISP assigned to you. For security, this field appears blank. If you don't want to change the password, leave it empty. PPPoE Service Name: optional. Input the service name if your ISP requires it. Otherwise, leave it blank. Maximum Idle Time: the amount of time of inactivity before disconnecting your PPPoE session. Set it to zero or enable Auto-reconnect to disable this feature. Maximum Transmission Unit (MTU): Most ISP offers MTU value to users. The most common MTU value is 1492. Connection Control: There are 3 modes to select: Connect-on-demand: The device will link up with ISP when the clients send outgoing packets. Auto-Reconnect(Always-on):The device will link with ISP until the connection is established. Manually :The device will not make the link until someone clicks the connect-button in the Status-page.
