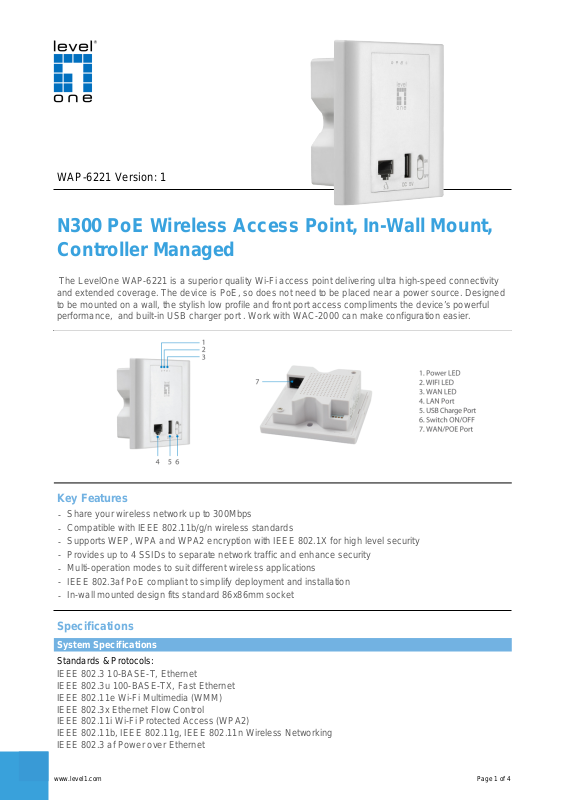

WAP-6221 Version: 1
N300 PoE Wireless Access Point, In-Wall Mount,
Controller Managed
The LevelOne WAP-6221 is a superior quality Wi-Fi access point delivering ultra high-speed connectivity
and extended coverage. The device is PoE, so does not need to be placed near a power source. Designed
to be mounted on a wall, the stylish low profile and front port access compliments the device’s powerful
performance, and built-in USB charger port . Work with WAC-2000 can make configuration easier.
Key Features
Share your wireless network up to 300Mbps
Compatible with IEEE 802.11b/g/n wireless standards
Supports WEP, WPA and WPA2 encryption with IEEE 802.1X for high level security
Provides up to 4 SSIDs to separate network traffic and enhance security
Multi-operation modes to suit different wireless applications
IEEE 802.3af PoE compliant to simplify deployment and installation
In-wall mounted design fits standard 86x86mm socket
-
Specifications
System Specifications
Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.11e Wi-Fi Multimedia (WMM)
IEEE 802.3x Ethernet Flow Control
IEEE 802.11i Wi-Fi Protected Access (WPA2)
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wireless Networking
IEEE 802.3 af Power over Ethernet
www.level1.com Page 1 of 4
Page 2
Connectors and Cabling:
1x USB2.0 Port
1x 10/100Mbps Base-TX
1x 10/100Mbps Base-TX PoE Port
Button/Knob:
Reset button
Power on/off button
Indicator:
WLAN LED
Power LED
system status LED
ethernet LED
Power Input:
IEEE802.3af
Power Consumption:
<8W
Wireless
Operating Mode:
AP, Gateway, Universal Repeater
Encryption:
WEP 64/128-bit Web share key encryption
WPA, WPA2 128-bit TKIP/AES encryption
WPA, WPA2-PSK TKIP/AES encryption
Receive Sensitivity(dBm):
802.11n (40MHZ): Range (-68) dBm
802.11n (20MHZ): Range (-68 ) dBm
802.11g: Range (-68) dBm
802.11b: Range (-85) dBm
Channel:
Ch.1 ~ 11 USA
Ch.1 ~ 13 EU
EIRP(dBm):
802.11n: up to 15dBm ± 1dBm
802.11g: up to 16dBm ± 1dBm
802.11b: up to 20dBm ± 1dBm
Antenna:
2*3 dBi inside Omni Antenna
Frequency Band (GHz):
2.4 ~ 2.4835 GHz
Data Transfer Rate:
802.11n: 300 ~ 78 Mbps
802.11g: 54 ~ 6 Mbps
802.11b: 11 ~ 1 Mbps
Features
General:
Multi-SSID: 4 SSIDs
PoE:
802.3af
www.level1.com Page 2 of 4
Page 3
Security:
SSID Broadcast On/Off
Management:
Web-Based GUI Configuration
Syslog monitoring (fit model)
QoS:
802.11e WMM Supported
Ease of Use:
Web-based GUI with Quick Installation Wizard
Web-based (HTTP) firmware upgrade
Performance
Number of Clients:
Max: 36
Recommend:32
Environment
Temperature (°C):
Operating:-10°C ~ -50°C
Storage: -30°C ~ 70°C
Humidity (Non-condensing):
Storage: 10 ~ 95%
Operating: 5 ~ 90%
Deployment:
Wall Mount
Physical Specifications
Dimensions (W x D x H mm):
86mm*86mm*68mm
Weight (g):
267
Approval and Compliance
EMI/EMS:
CE
www.level1.com Page 3 of 4
Page 4
Diagram
Order Information
WAP-6221
Package Contents
WAP-6221
Quick Installation Guide
Powered by TCPDF (www.tcpdf.org)
No liability or responsibility for any errors or omissions in the content.
Specifications are subject to change without notice.
All mentioned brand names are registered trademarks and property of their owners.
Copyright © Digital Data Communications GmbH, Germany. All Rights Reserved.
