Level One WAP-6017 User Manual
N300 / AC1200 WIRELESS ACCESS POINT,
WAP-6017/WAP-8021
CONTROLLER MANAGED
User’s Manual
V1. 0_20170915
1
1. Check box contents:
Antenna
QIG
Power Adapter
2. Warning:
Attention:
2
Contents
CHAPTER 1 HARDWARE AND OPERATION MODE INSTRUCTION .................................................. 4
1.1 LED INDICATOR: .................................................................. 4
1.2 AP INTERFACE: ................................................................... 5
CHAPTER 2 CONNECT WIRELESS AP WITH PC .................................................................................... 6
CHAPTER 3 LOGIN ......................................................................................................................................... 7
CHAPTER 4 WEB GUI INTERFACE SETTING ....................................................................................... 9
4.1 STATUS: ........................................................................ 9
4.2 WIZARD CONFIGURATION: ........................................................... 12
4.2.1 Gateway Mode: ................................................................................................................................. 12
4.2.2 WiFi Repeater mode ......................................................................................................................... 14
4.2.3 WISP Operation mode: .................................................................................................................... 18
4.2.4 AP Operation mode: ......................................................................................................................... 19
4.3 ADVANCED SETTING: ............................................................... 21
4.3.1 Device Status: .................................................................................................................................... 21
4.3.2 Wireless Basic settings: .................................................................................................................... 22
4.3.3 Virtual AP: ........................................................................................................................................ 23
4.3.4 Access Control: ................................................................................................................................. 23
4.3.5 Advanced Settings: ........................................................................................................................... 24
4.3.6 Network: ............................................................................................................................................ 24
4.3.7 Management: .................................................................................................................................... 25
CHAPTER 5 SHARE INTERNET AND OBTAIN IP ADDRESS AUTOMATICALLY ....................... 30
CHAPTER 6 TROUBLE SHOOTING ....................................................................................................... 31
APPENDIX A LICENSE STATEMENT / GPL CODE STATEMENT ..................................................... 32
3
LEDs
Full Name
Description
Power
Power Light
On The Device is powered
Off The Device is not powered
USB
USB Light
On USB is connected
5.8G
5.8G WIFI
On 5.8G WIFI is on
2.4G
2.4G WIFI
On 2.4G WIFI is on
System
System Light
Blink operating properly.
On without blink or off operating not properly.
5.8G
2.4G
System
Chapter 1 Hardware and Operation mode Instruction
P1 WAP-6017
1.1 LED indicator:
P2 WAP -8021
4
1.2 AP Interface:
Port
Description
WAN
The WAN port is used to connect to network devices, such as a switch
LAN
The LAN port is used to connect to network devices, such as a switch or PC
Reset
With the AP powered on, press the Reset button for 15 seconds until the USB LED
blink with green light and System LED on without blink. The AP will restart itself and
reset the device to factory default settings.
USB
To connect with USB storage device
Power
To power the device by DC
P3 WAP-6017
P4 WAP-8021
5
Chapter 2 Connect Wireless AP with PC
Use can connect the PC with wireless AP by Wireless SSID and LAN cable:
The diagram of wireless connection showed as follow:
Pls note: the default SSID is
Wireless2.4G/5.8G, SSID’s password is 66666666
P5 Connect router with PC in WiFi
The diagram of LAN cable connection showed as follow:
P6 Connection way
6
Chapter 3 Login
The necessary information about log in is displayed on the sticker of the product, including the URL, User
Name and Pass Word
1）Connect the Ceiling AP with computer
2）Configure the PC’s local connection IP address as 192.168.188.X (X is number from 2 to 252), subnet
mask is 255.255.255.0, follow P7 and P8 to finish.
P7 Setting of computer’s IP address
P 8 Setting of computer’s IP address
7
3) Input 192.168.188.253 into IE browser, then pop up the login page, the default login password: admin, then
login, pls do following P9
P9 Login

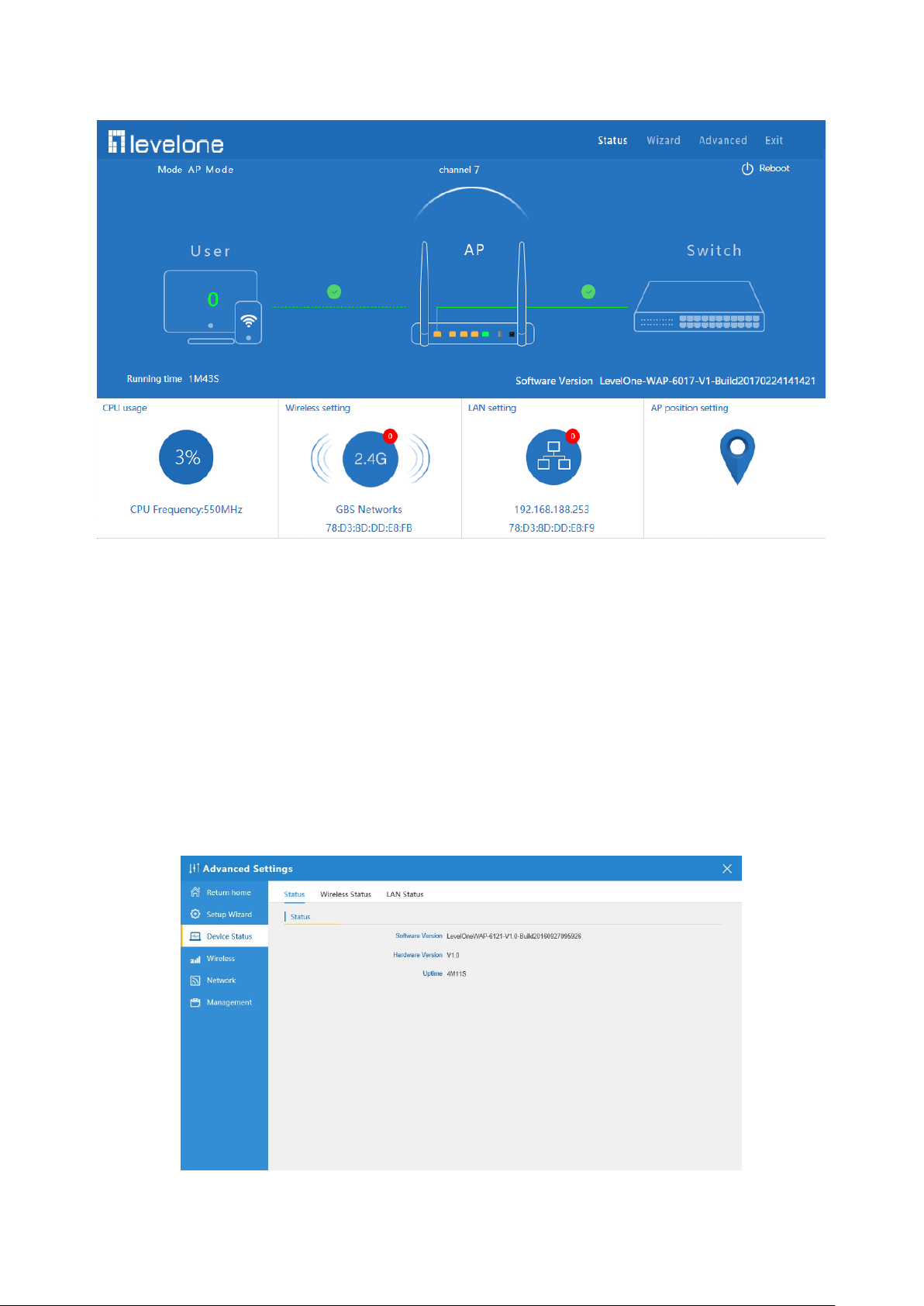

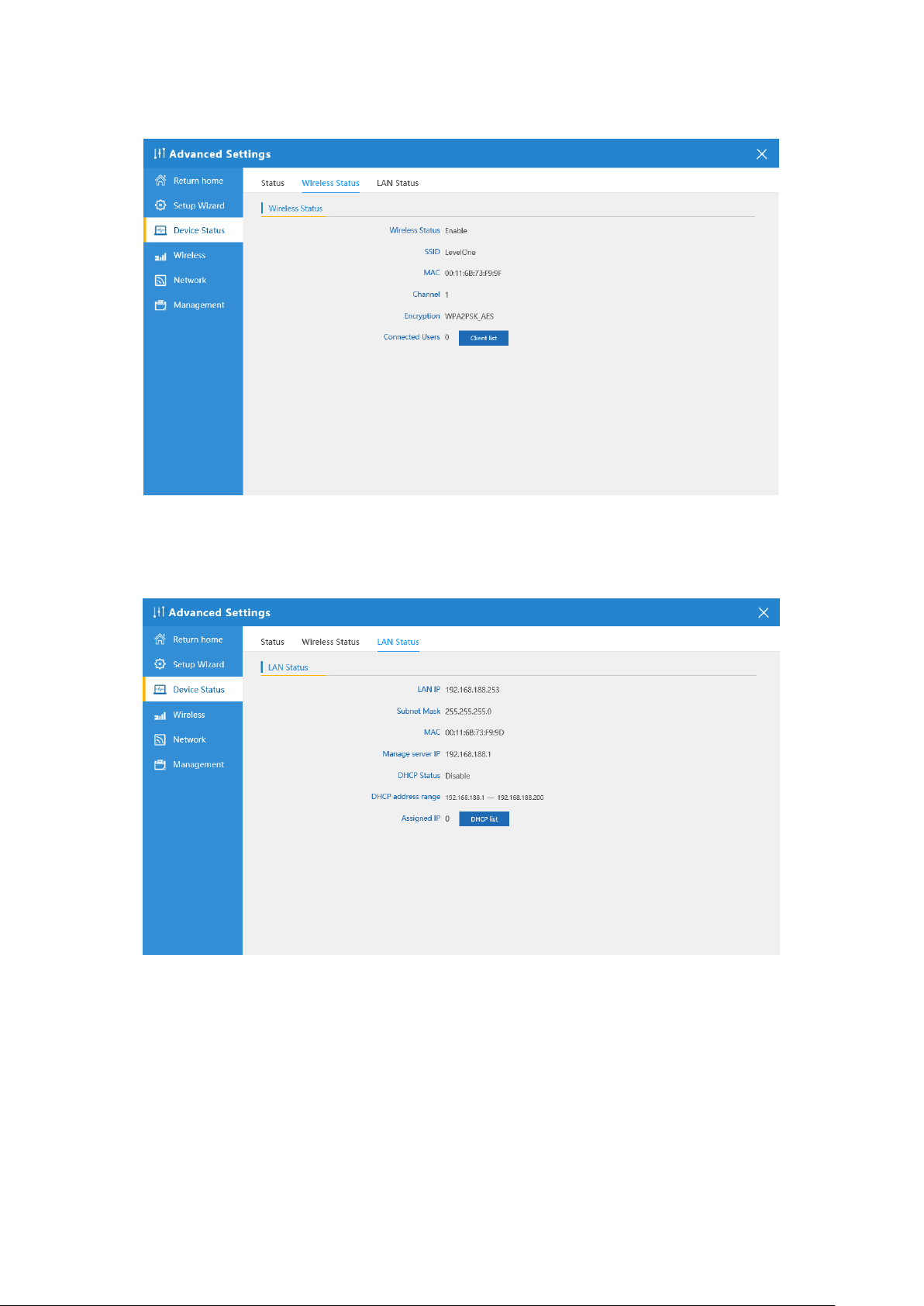

4) After login, then P10 Device Status will be showed;
This page will show the Wireless AP’s default operation mode, channel, connection status, CPU usage,
Wireless settings, LAN Setting, Wireless AP’s Location, hardware/firmware version.
P10: WAP-6017 Device Status
8
P11: WAP-8021 Device Status
Chapter 4 WEB GUI interface Setting
4.1 Status:
After login, then P12 Device Status and home page will be showed:
P12: WAP-6017 Device Status
9
P13: WAP-8021 Device Status
In this page, show the AP’s default operation mode, channel, end user QTY, connection status, CPU usage status,
Wireless, LAN and AP location info.

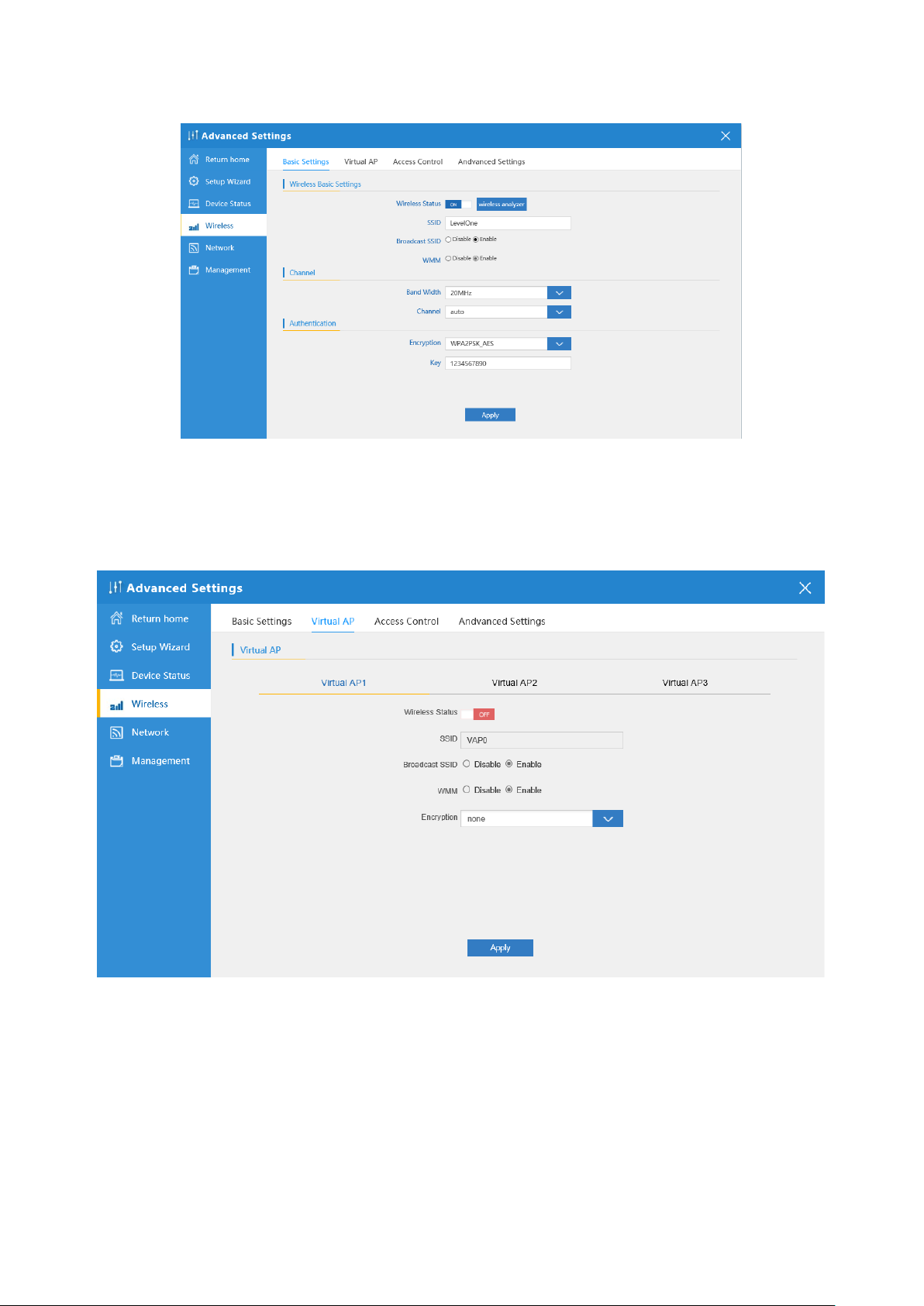

Then in Wireless Setting, GUI configuration page showed as below:
User can configure the SSID, password, band width, channel here, then Apply to finish.
P14. Wireless setting
10
LAN Setting to configure the DHCP or Fix IP
P15 LAN Setting
AP location setting: can mark where the AP set up, and AP name as P14:
P16 AP Postion setting
11
4.2 Wizard Configuration:
Wizard: It instruct users to configure wireless AP’s operation mode based on needs: there are four operation mode
including gateway, repeater, WISP, Wireless AP. Please confirm the operation mode first before configuration
starting.
Click Wizard in Status page, will pop up following page to configure the operation mode and there are explanation
for each operation mode for better application.
P17 Operation mode
4.2.1 Gateway Mode:
Before Click Gateway mode, confirm your internet will be static IP, PPPoE, or DHCP:
Then will pop up following picture after click it, Please choose the right WAN setting mode, then click next to
continue.

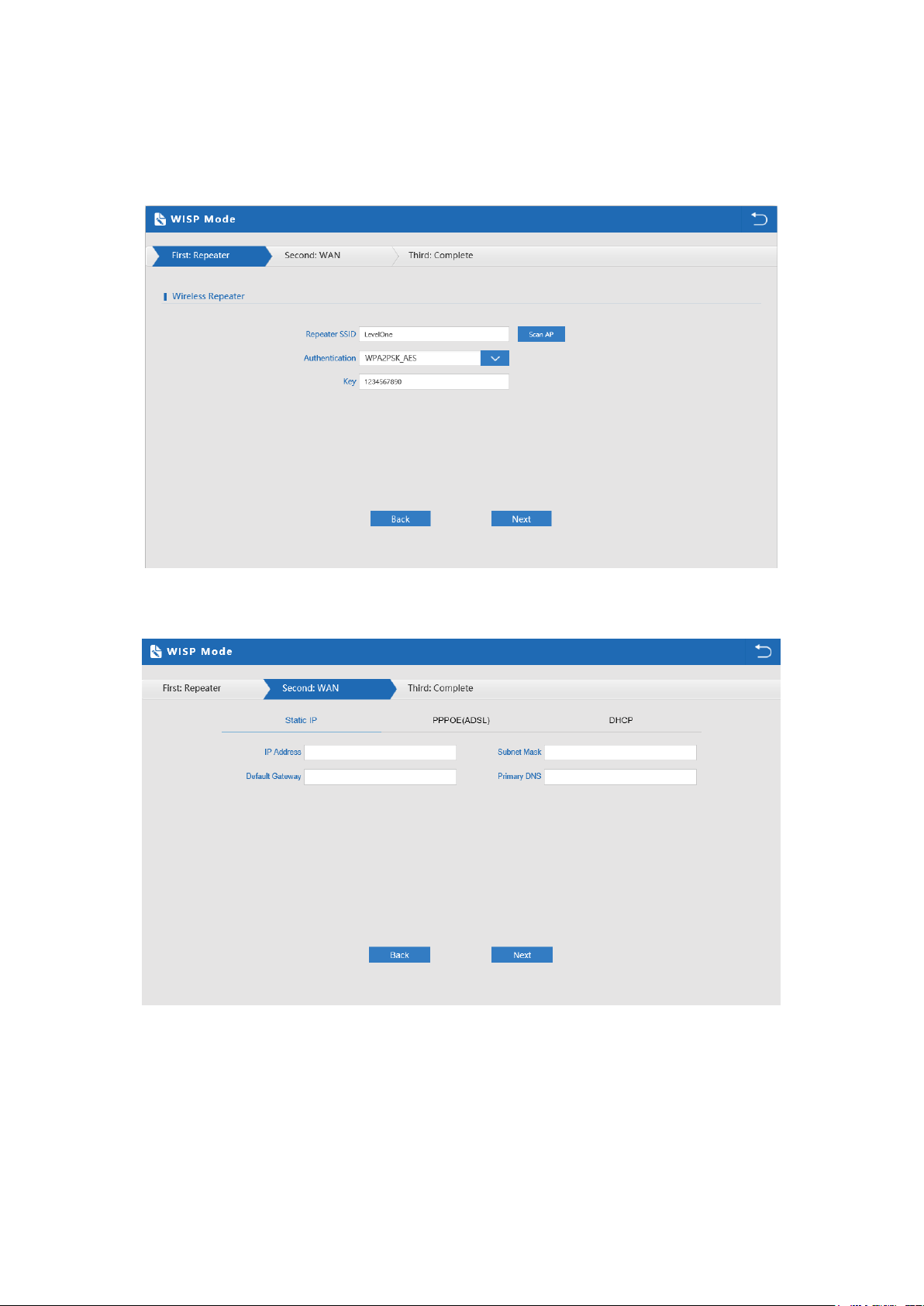

P18. WAN setting in Gateway Mode
12
P19 Wireless Setting in Gateway Mode
When click Next, then will complete the Gateway mode setting and show following picture:
P20 Complete the setting in Gateway Mode

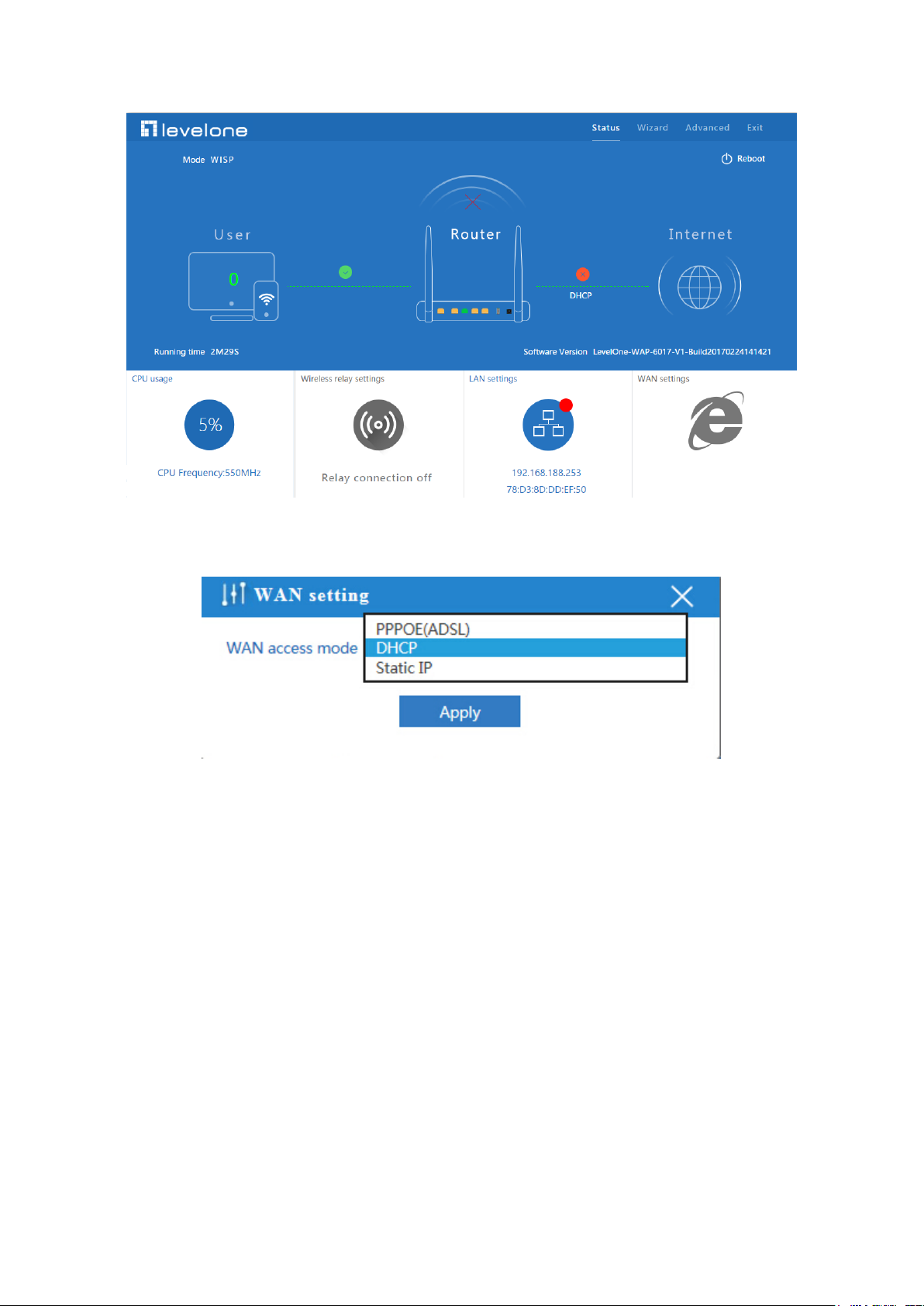

When return to Status, will show wireless router’s SSID, internet connection, LAN connection status showed as
follow:
13
P21 Status in Gateway Mode
4.2.2 WiFi Repeater mode

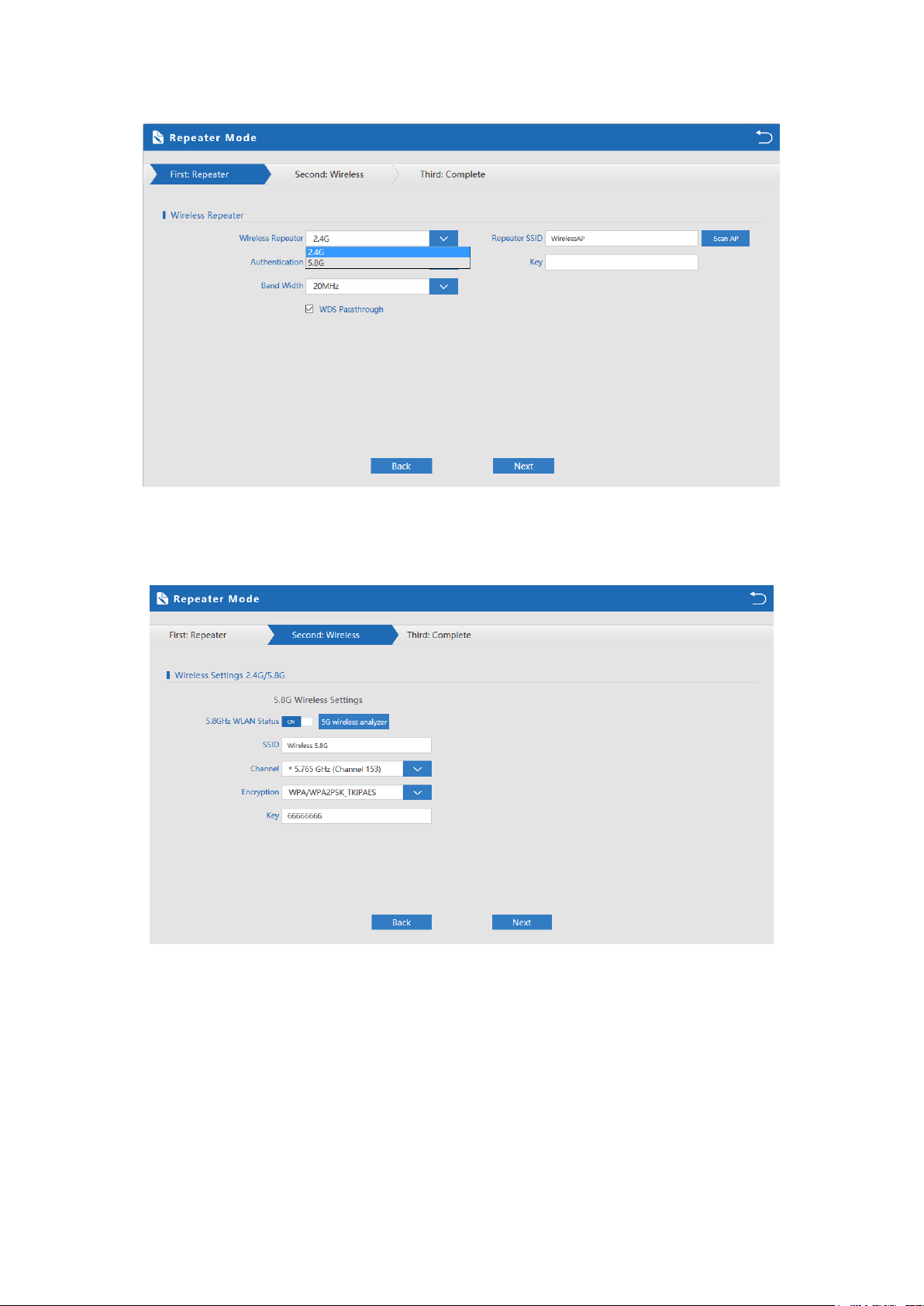

A. Login the Web management page, click “Wizard”, then “WiFi Repeater”
B. Select the AP’s SSID want to bridge, take “wireless 2.4G” for example, then input the AP’s key, click next to
complete.
P22 WAP-6017 Repeater Mode
Click Return button, will back to Status, show Repeater mode data, show fail or success, and user can configure this
data in this page if required.
14
P23 WAP-6017 Status in Repeater Mode

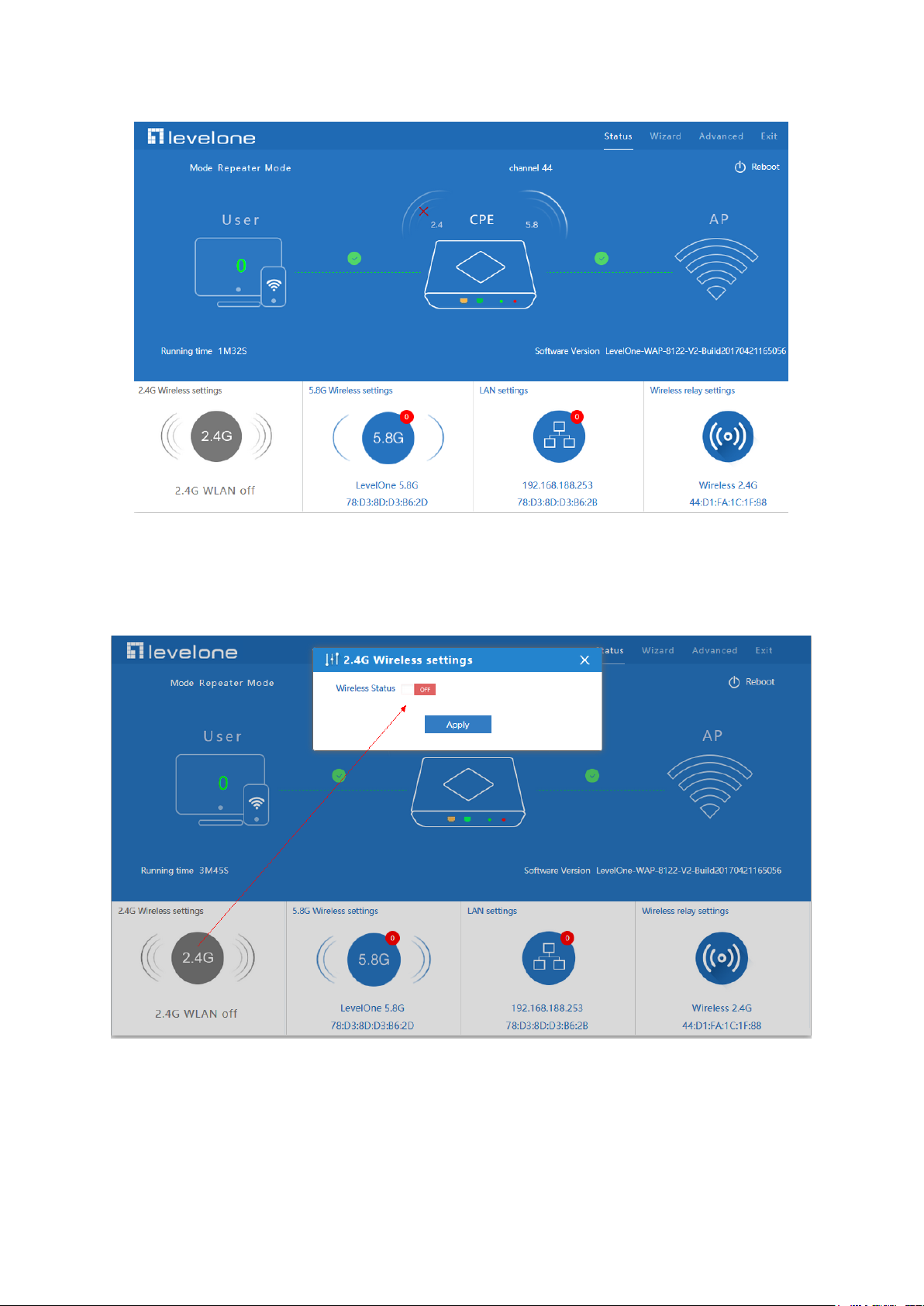

In wifi repeater operation mode, the default is SSID disable. If want to enable SSID, then click Wireless Setting.
Pls note, when click wireless relay setting, following page will pop up, you can make change from here easily:
P24 WAP-6017 Wireless Relay Setting
WAP-8021
A. Login the Web management page, click “Wizard”, then “WiFi Repeater”
B. Scan AP and select the AP’s SSID want to bridge, take “wireless 2.4G” for example, then input the AP’s key, click
next to complete.
15
