For WPS connection and Enable “Wireless Function”
Reset Button
Reset to Factory Default setting
LED Indication
Status / LAN1 ~ LAN5/ WiFi
Power Jack
DC Power Jack, powered via external DC 5V/1A
switching power adapter
Wireless LAN (WiFi)
Standard
IEEE 802.11b/g/n-lite compliance
SSID
SSID broadcast or in stealth mode
Channel
Auto-selection, manually
Security
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
WPS
WPS (Wi-Fi Protected Setup)
WMM
WMM (Wi-Fi Multimedia)
Functionality
Congratulations on your purchase of this outstanding Wireless Broadband Router. This
product is specifically designed for Small Office and Home Office needs. It is easy to configure
and operate even for non-technical users. Instructions for installing and configuring this
product can be found in this manual. Before you install and use this product, please read this
manual carefully for fully exploiting the functions of this product.
1.1 Packing List
WAP-6013
Power Adapter
Antenna (x2)
Network Cable
Quick Installation Guide
CD User Manual / Utility / QIG
DC 5V/1A power adapter, Quick Installation Guide
Information
Device dimension (mm) 185 x 119 x 32 mm
Operation Temp.
Temp.: 0~40oC, Humidity 10%~90% non-condensing
Storage Temp.
Temp.: -10~70oC, Humidity: 0~95% non-condensing
EMI Certification
CE/FCC compliance
RoHS
RoHS compliance
*Specifications are subject to change without prior notice.
Auto MDI/MDIX RJ-45 Ports
Automatically sense the types of LAN
when connecting to Ethernet
Power Jack
Antenna
1.3 Hardware Configuration
7
LED status
Description
Status
Green in flash
Device status is working.
LAN LED
Green
RJ45 cable is plugged
Green in flash
Data access
WiFi LED
Green
WLAN is on
Green in flash
Data access
Green in fast flash
Device is in WPS PBC mode
Green in dark
Wi-Fi Radio is disabled
LAN1~LAN5
LEDs
Wi-Fi
LED
WPS/Reset
Button
Status
LED
1.4 LED indicators
8
1.5 Procedure for Hardware Installation
Step 1. Attach the antenna.
1.1. Remove the antenna from its plastic
wrapper.
1.2. Screw the antenna in a clockwise direction
to the back panel of the unit.
1.3. Once secured, position the antenna
upward at its connecting joint. This will ensure
optimal reception.
1.Turn off the Power Switch
first.
Step 2 Insert the Ethernet cable into LAN
Port:
Insert the Ethernet patch cable into LAN port
on the back panel of Router, and an available
Ethernet port on the network adapter in the
computer you will use to configure the unit.
Step 4. Power on Router:
4.1. Connect the power adapter to the receptor
on the back panel of your Router.
Step 5. Complete the setup.
5.1. When complete, the Status LED will flash.
9
C
C
C
h
h
h
a
a
a
p
p
p
t
t
t
e
e
e
r
r
r
3
3
3
M
M
M
a
a
a
k
k
k
i
i
i
n
n
n
g
g
g
C
C
C
o
o
o
n
n
n
f
f
f
i
i
i
g
g
g
u
u
u
r
r
r
a
a
a
t
t
t
i
i
i
o
o
o
n
n
n
Type in the IP Address
(http://192.168.1.1)
Type password, the default is
“admin” and click ‘login’ button.
Press “Wizard” for basic
settings with simple way,
Press “Next” to start wizard.
This product provides Web based configuration scheme, that is, configuring by your Web
browser, such as Mozilla Firefox or or Internet Explorer. This approach can be adopted in any
MS Windows, Macintosh or UNIX based platforms.
3.1 Login to Configure from Wizard
10
Step 1:
Set up your system password.
Step 2:
Setup the LAN IP

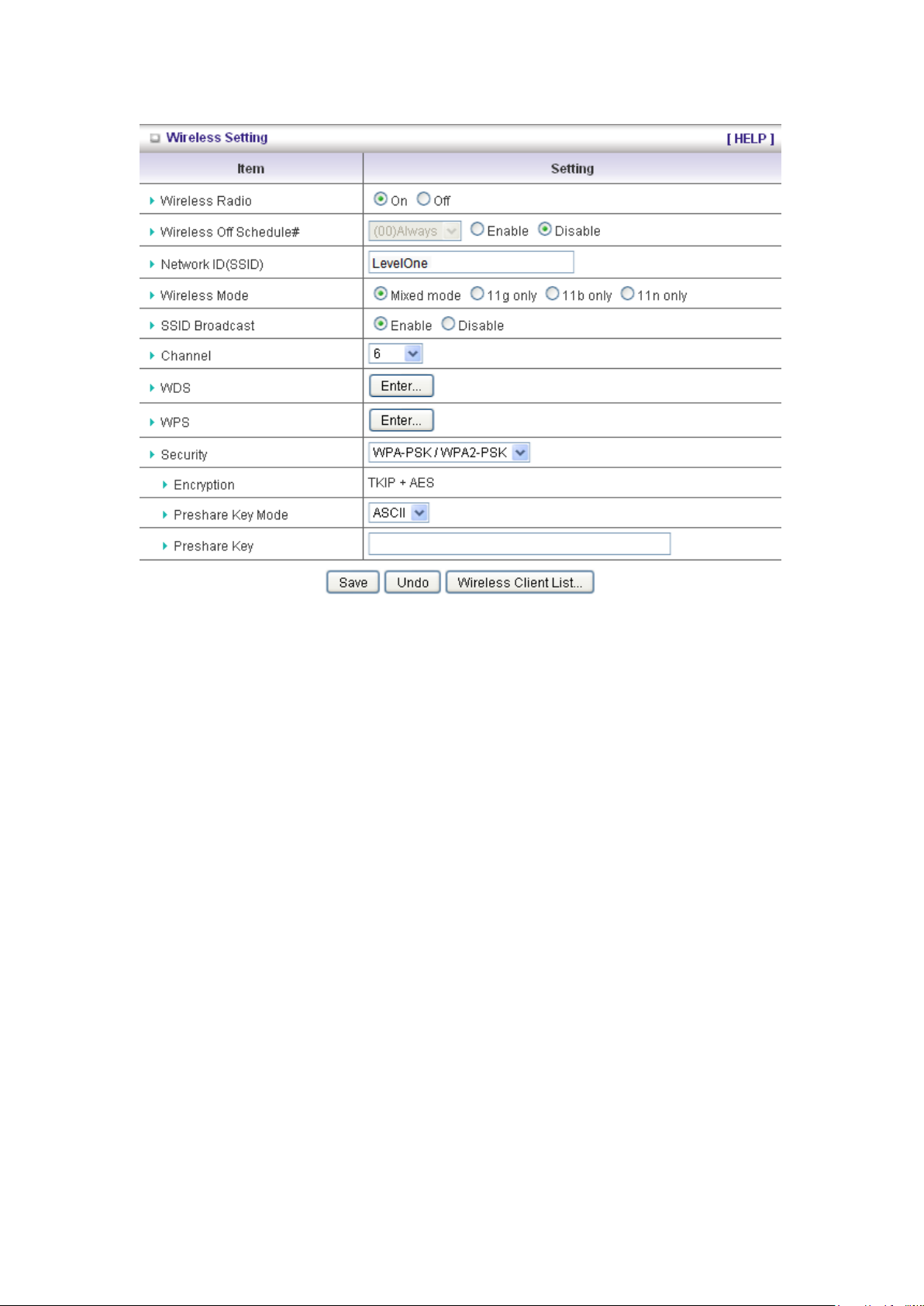

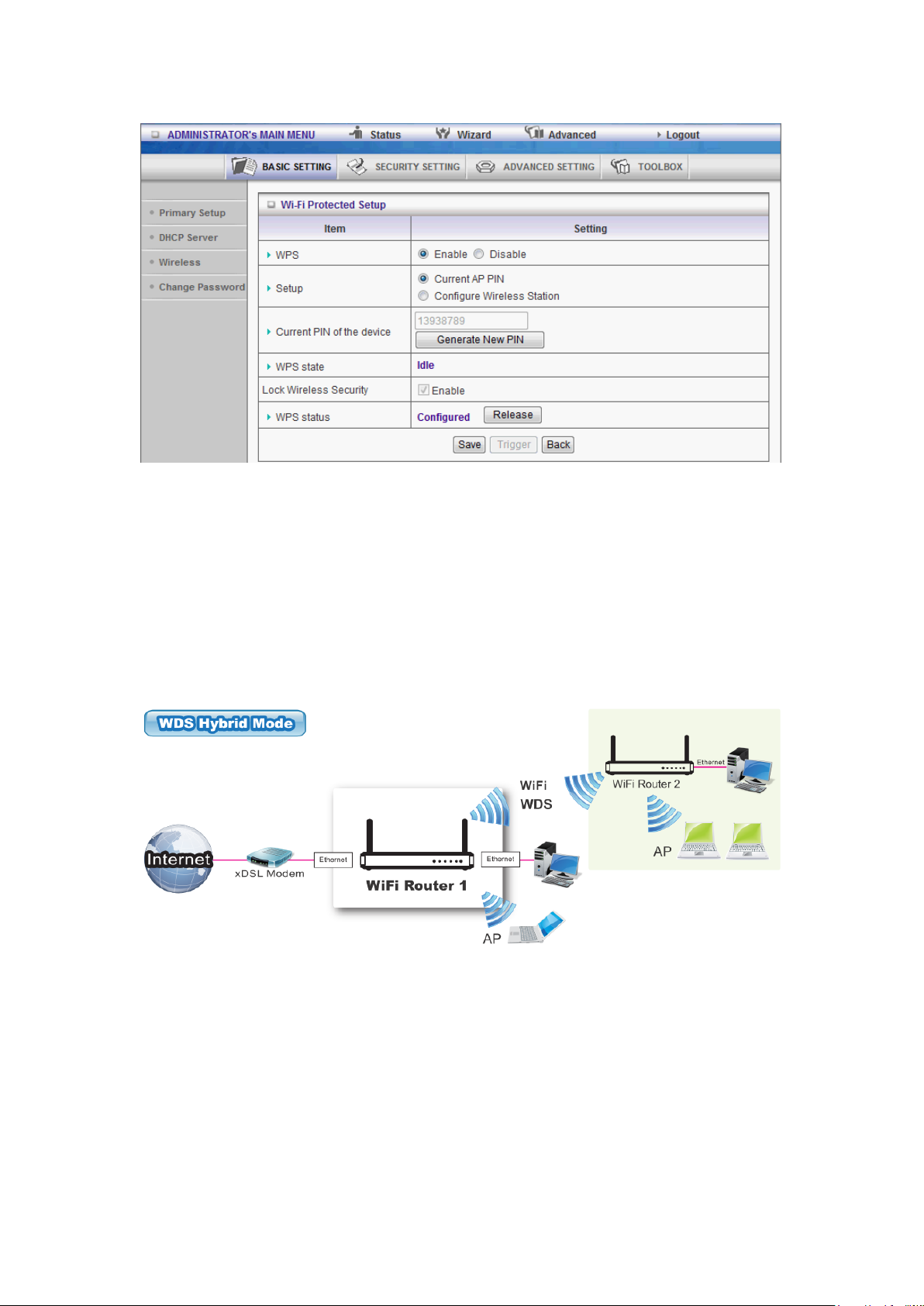

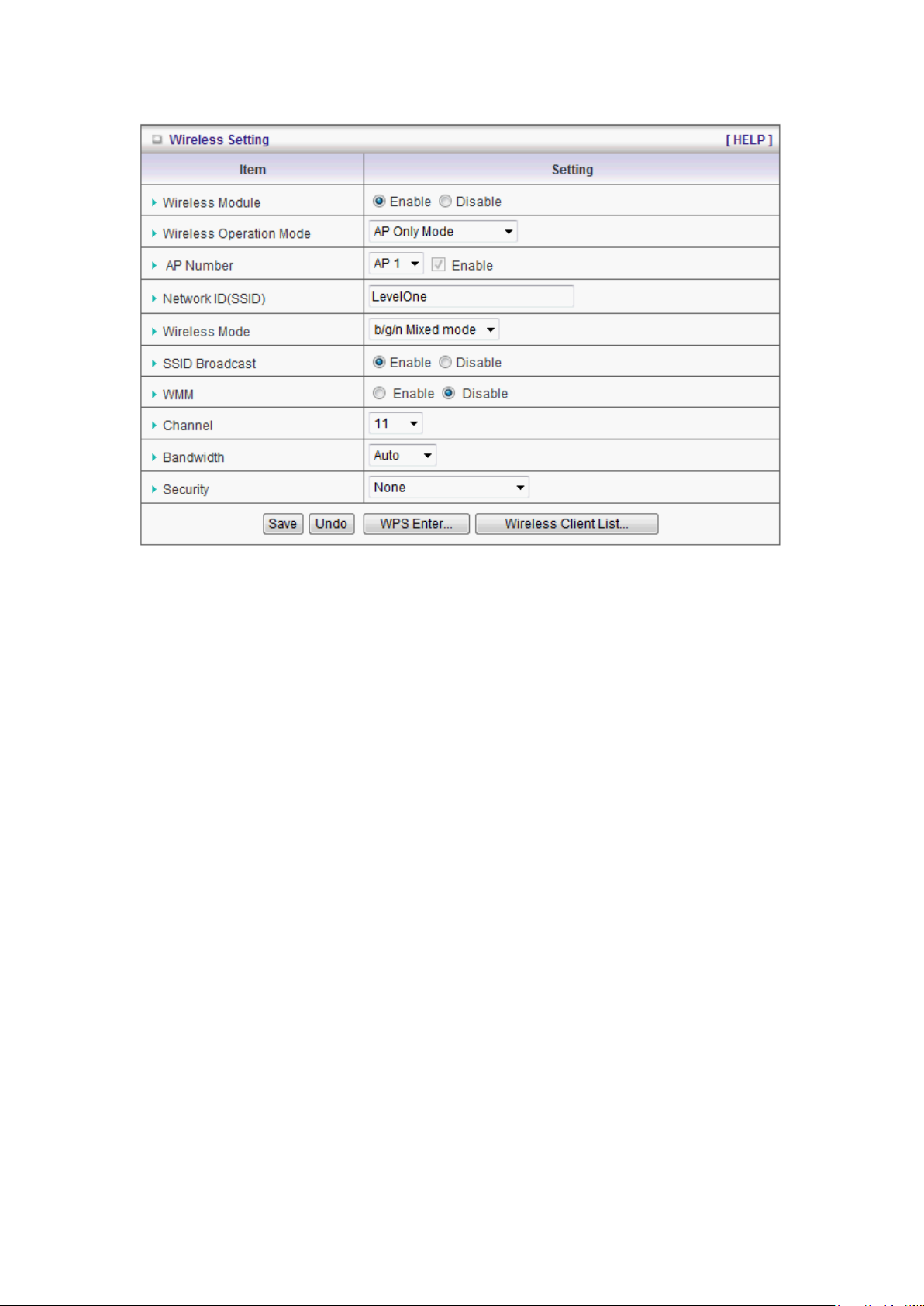

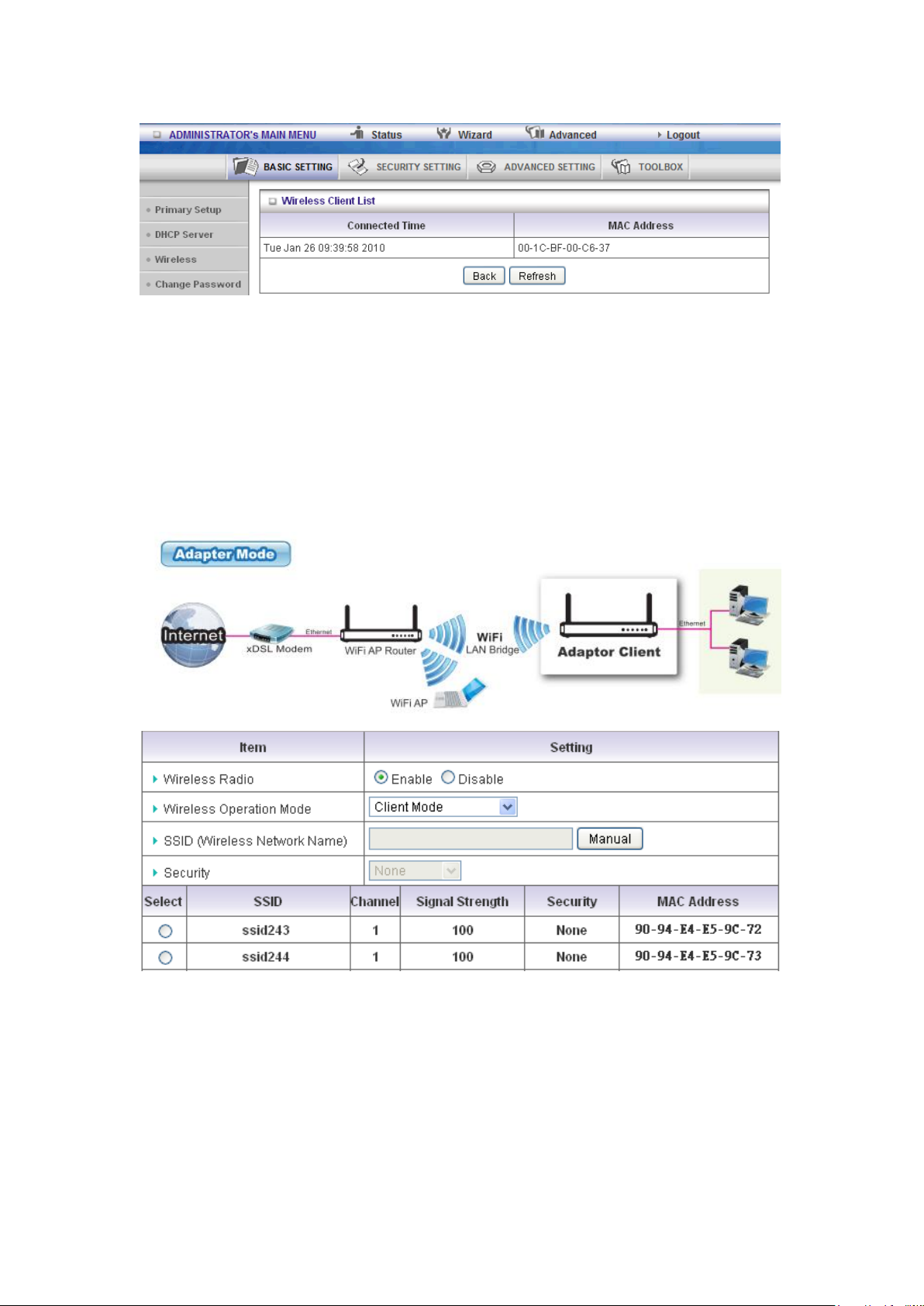

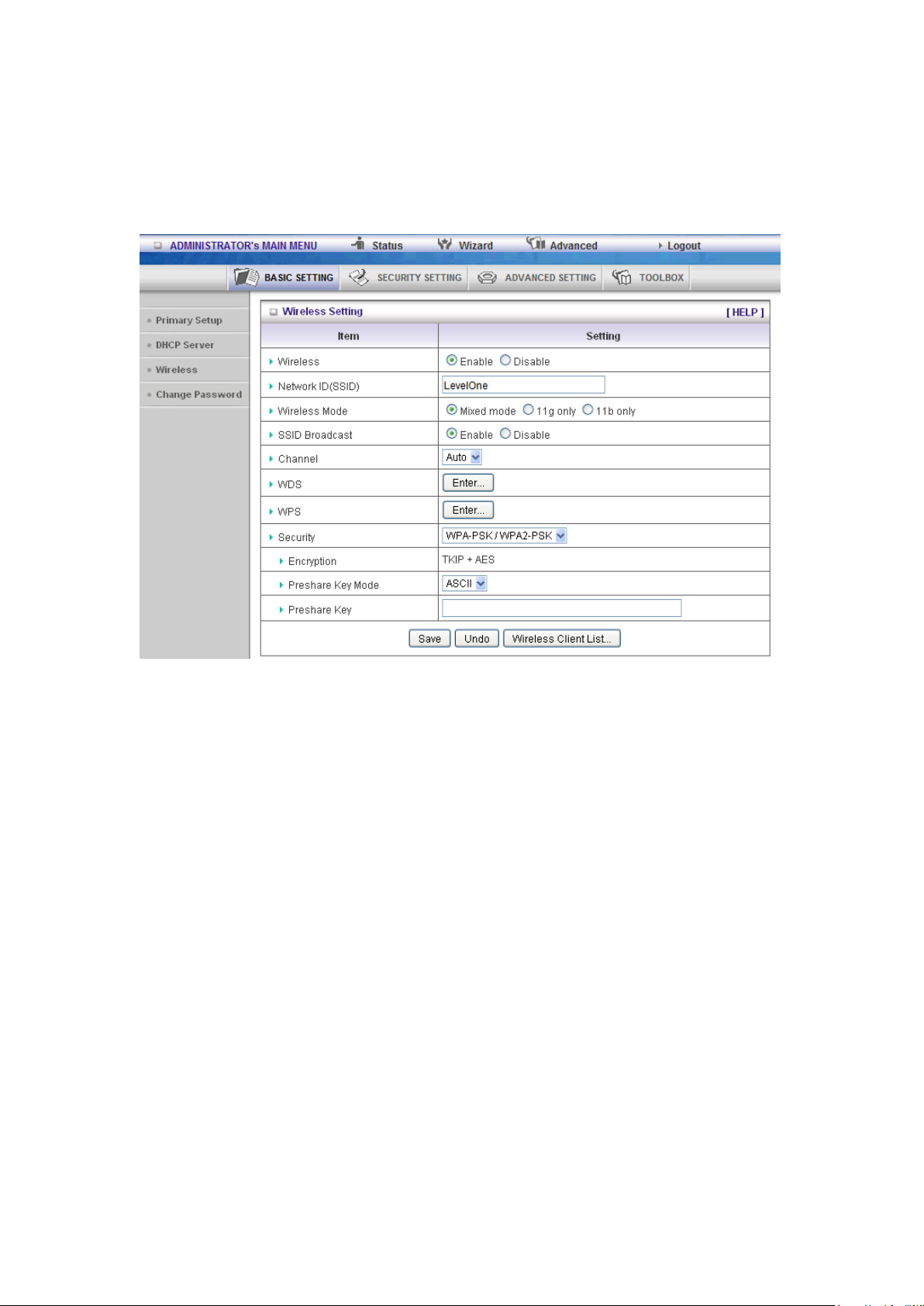

Step 3:
Set up your Wireless.
11

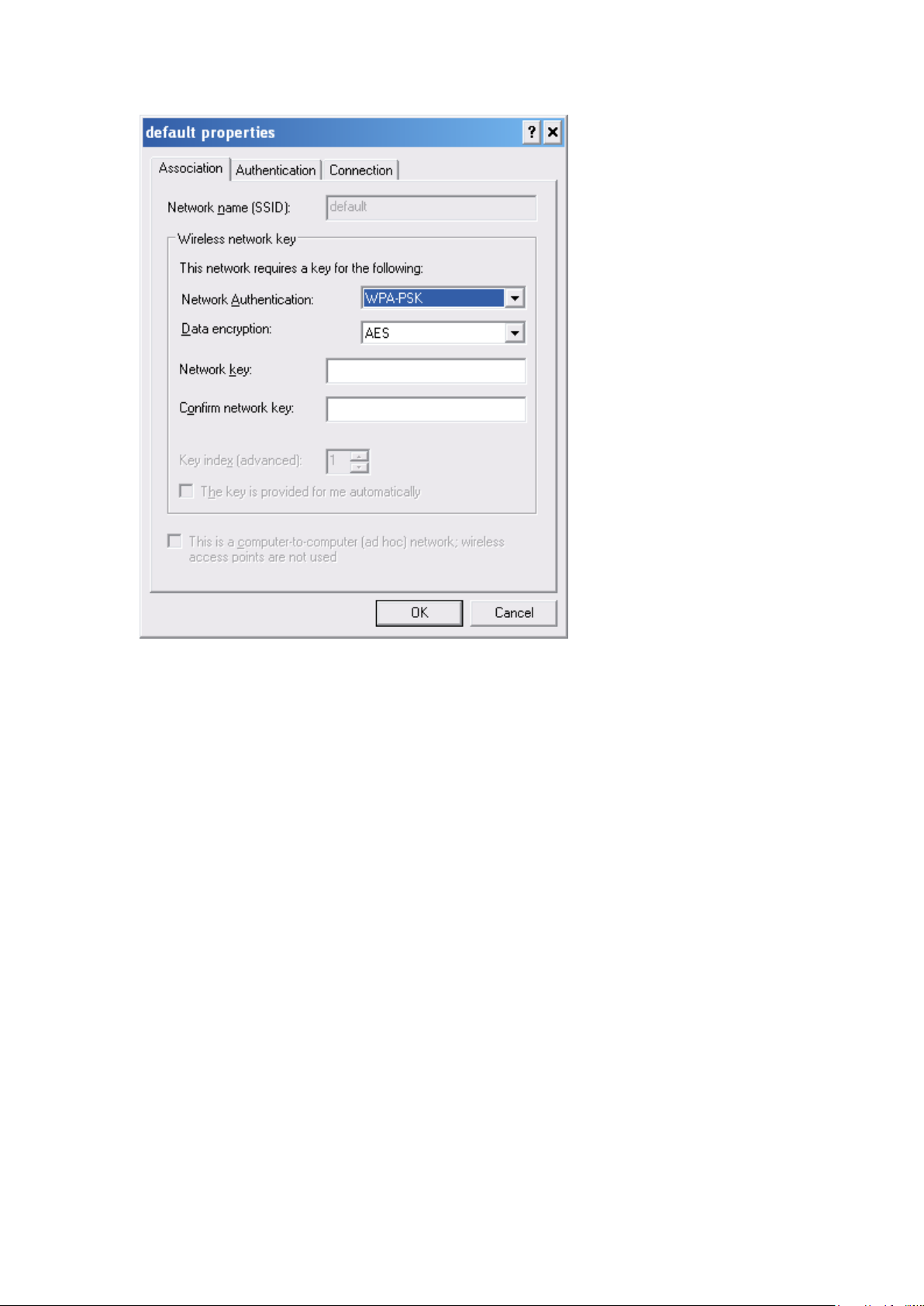

Set up your Authentication and
Encryption.
Step 4:
Then click Apply Setting.

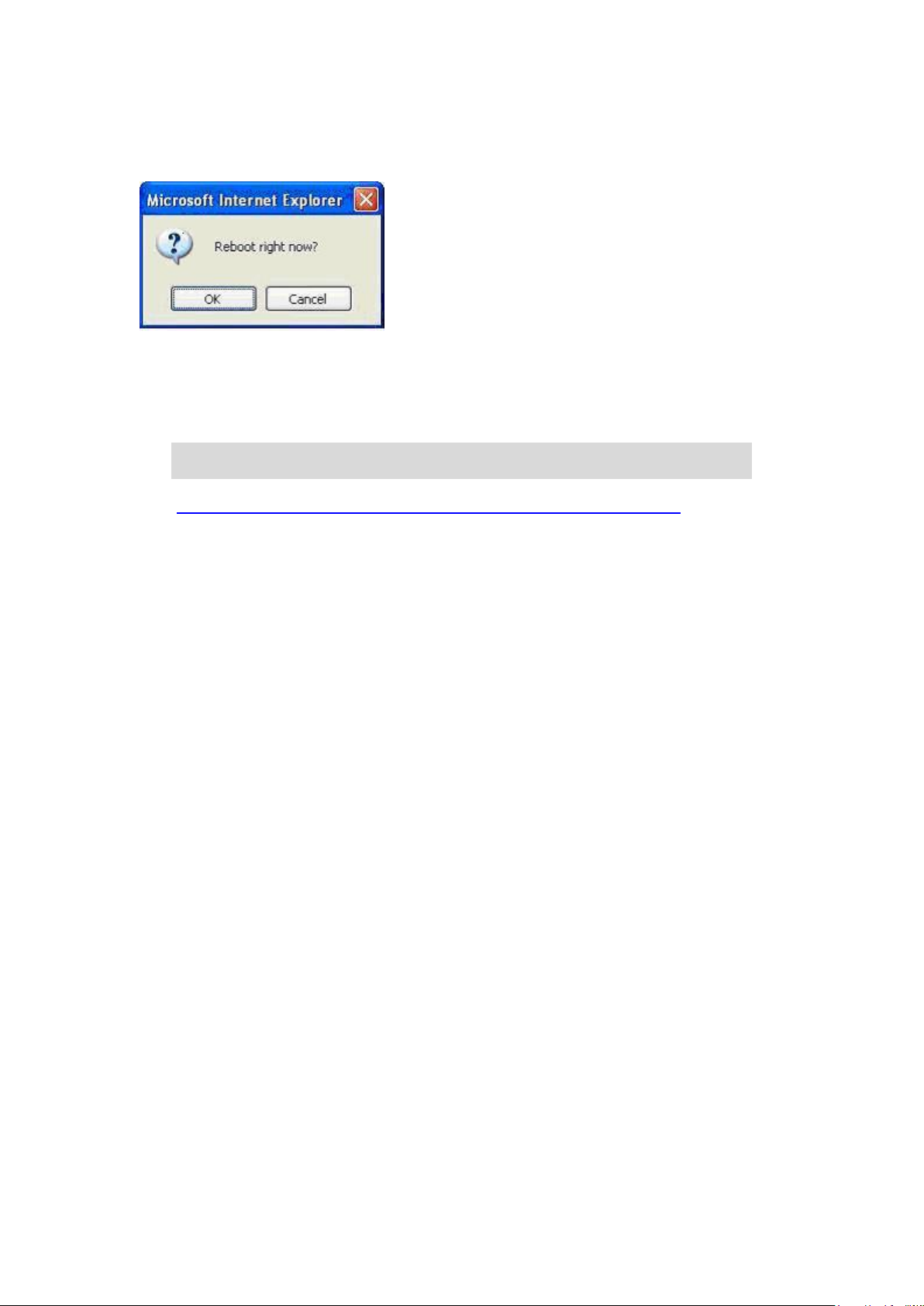

And then the device will reboot.
Step 5:
Click Finish to complete it.
12
3.2 System Status
This option provides the function for observing this product’s working status:
13

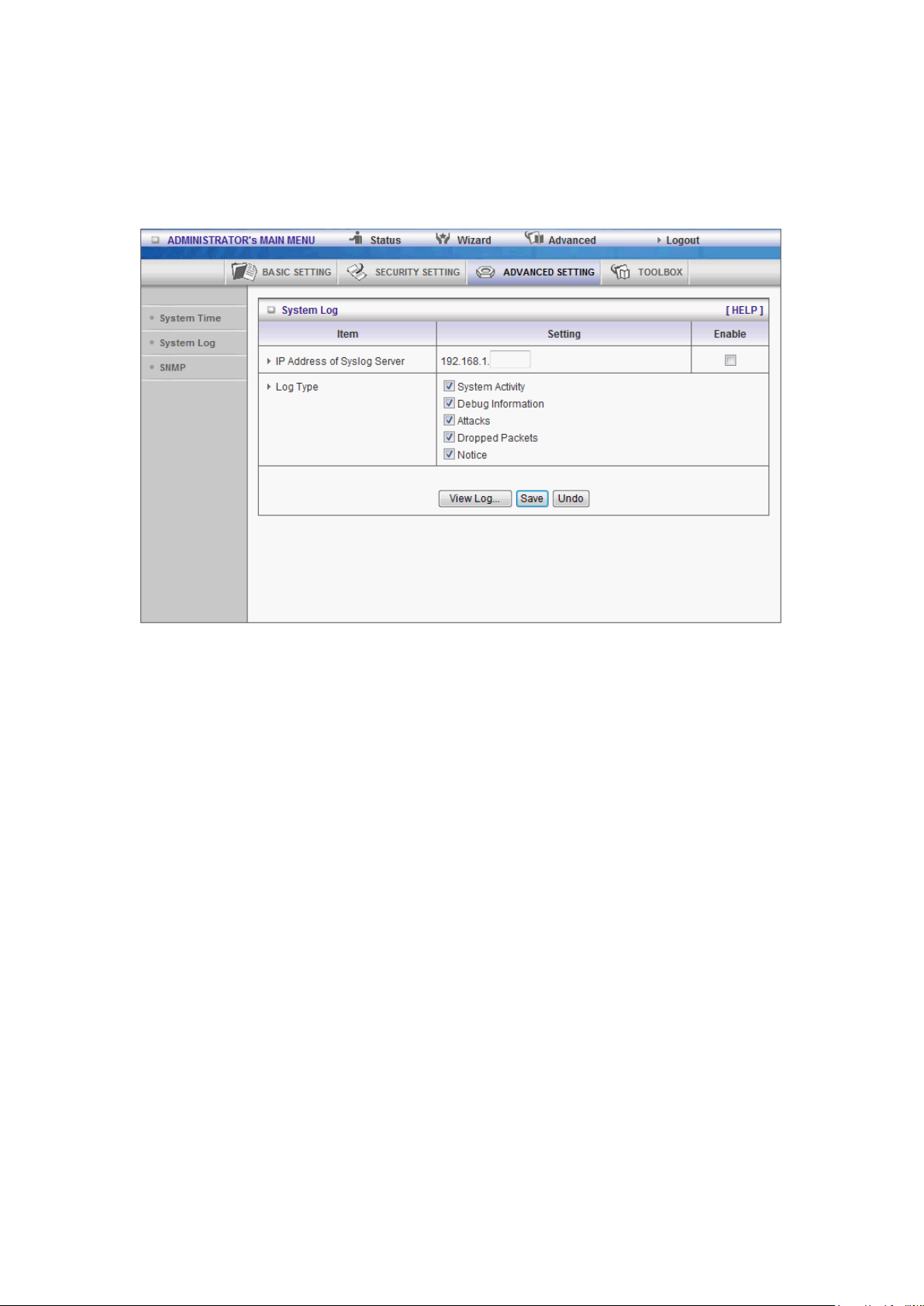

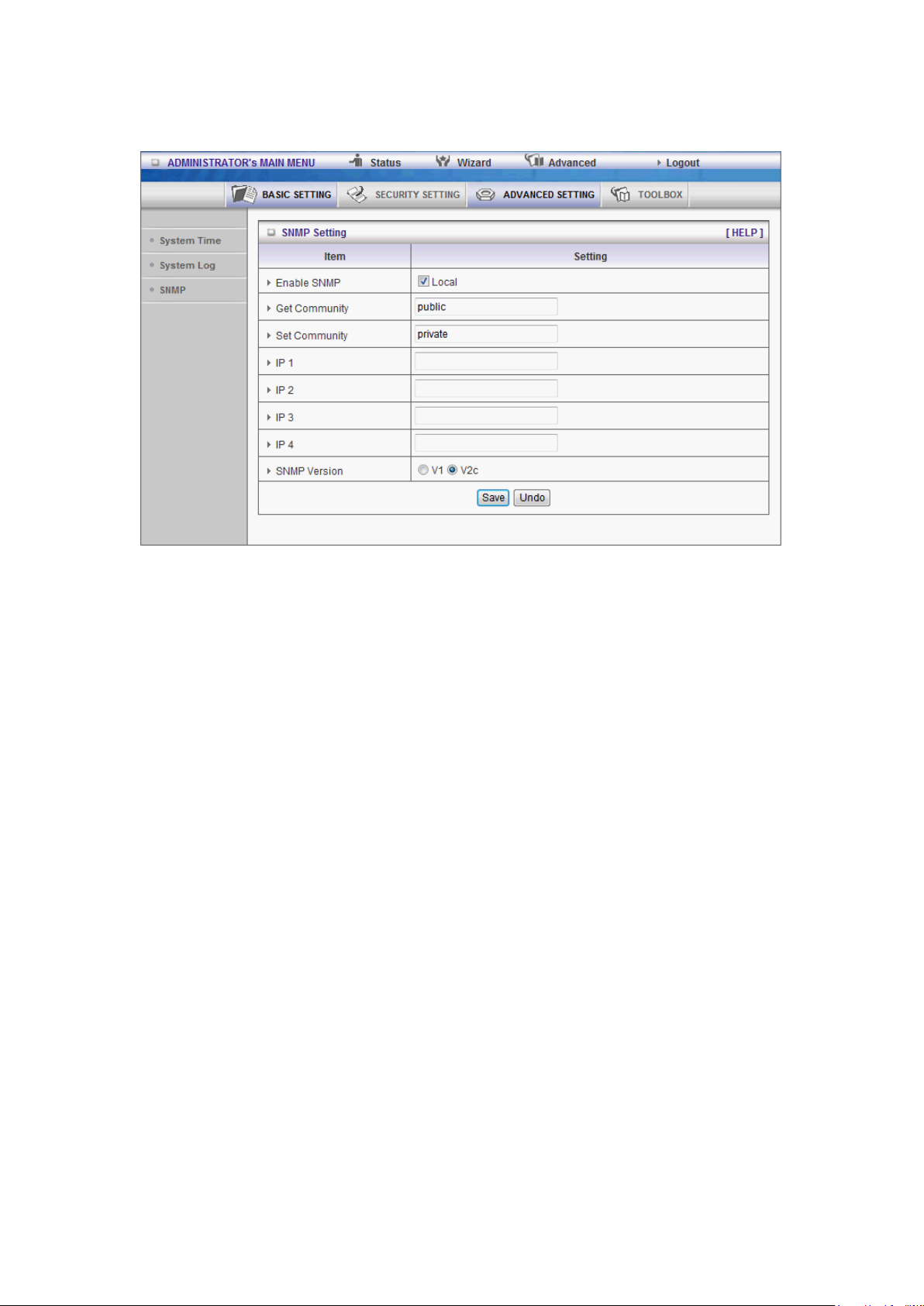

3.3 Advanced

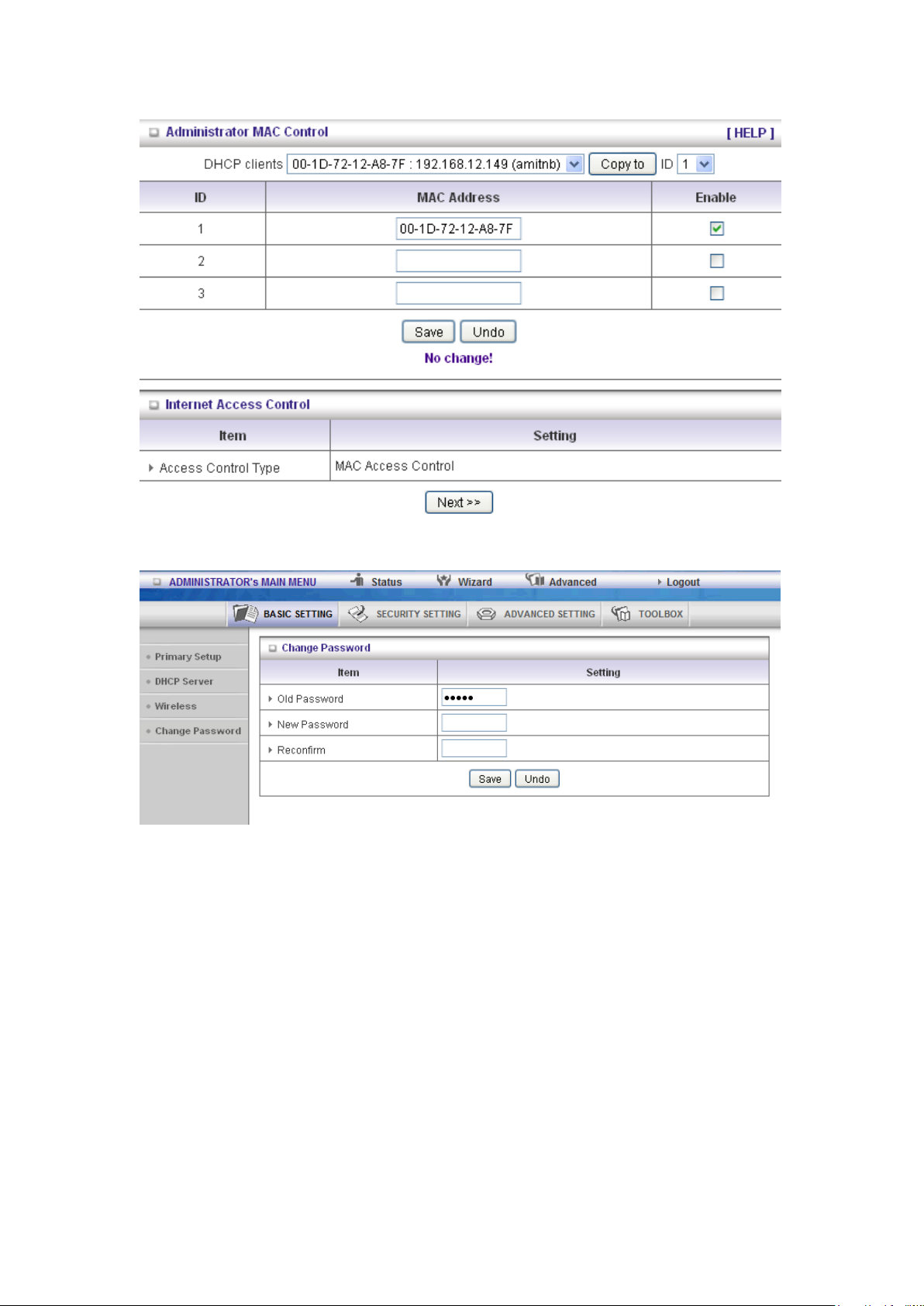

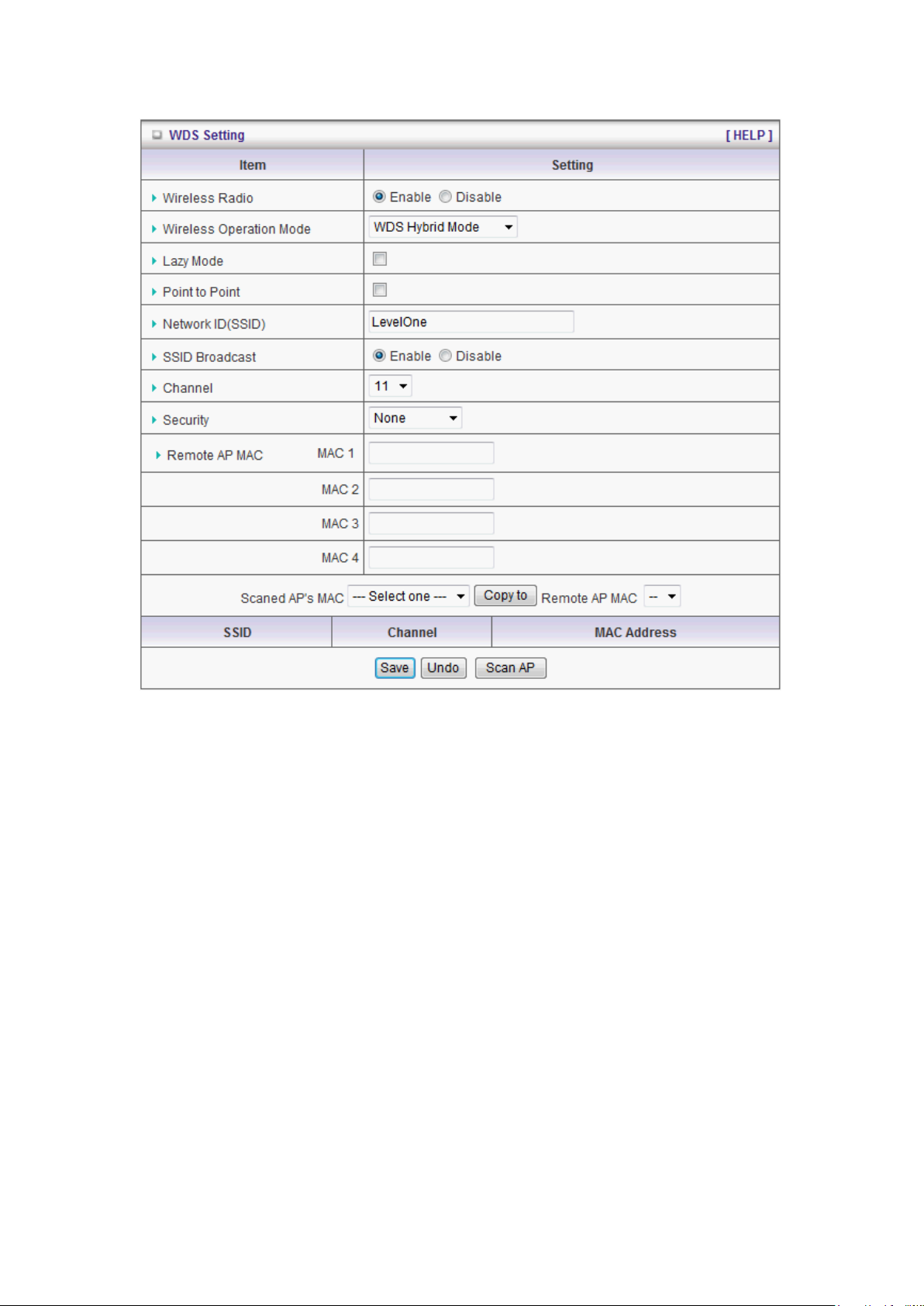

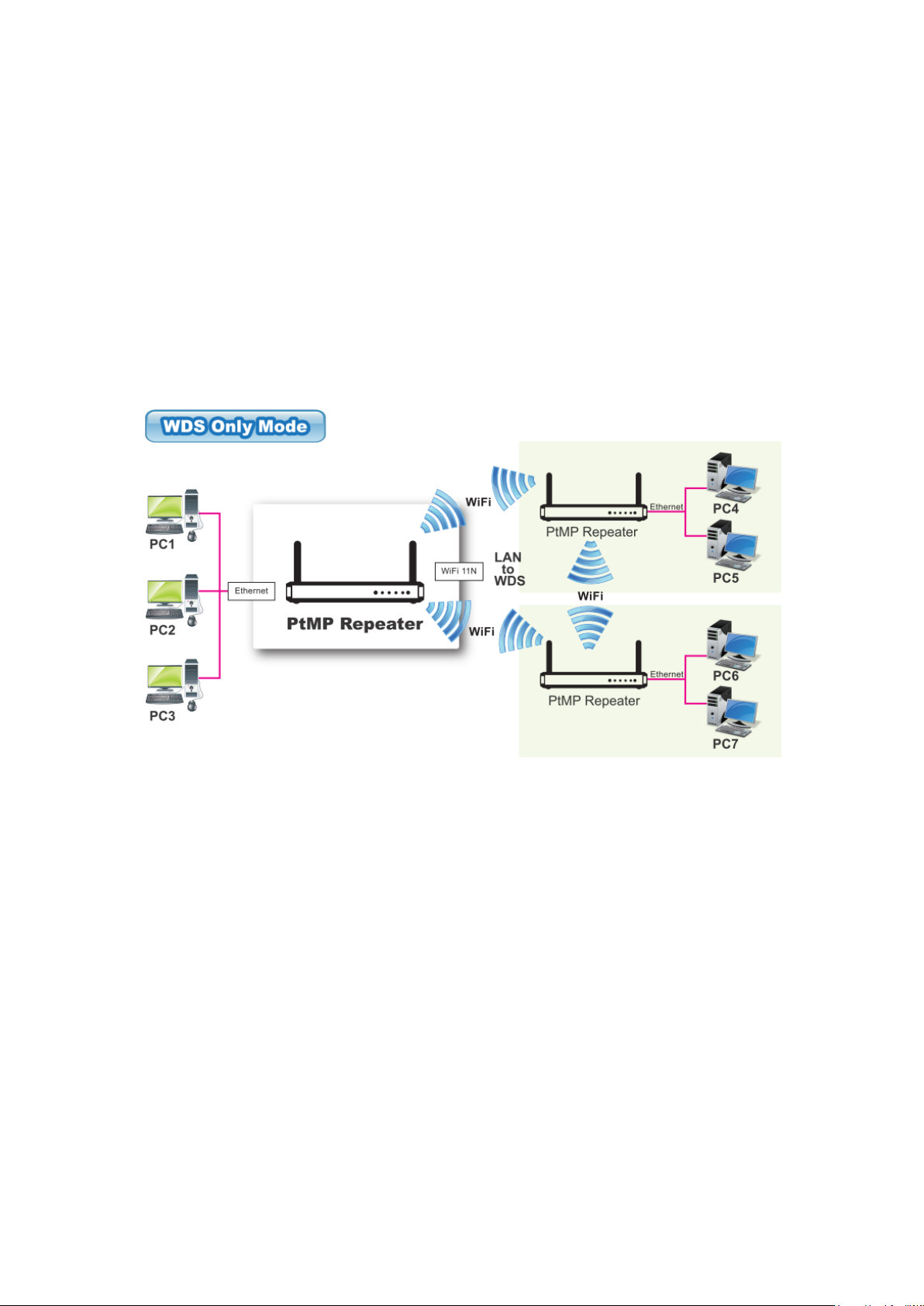

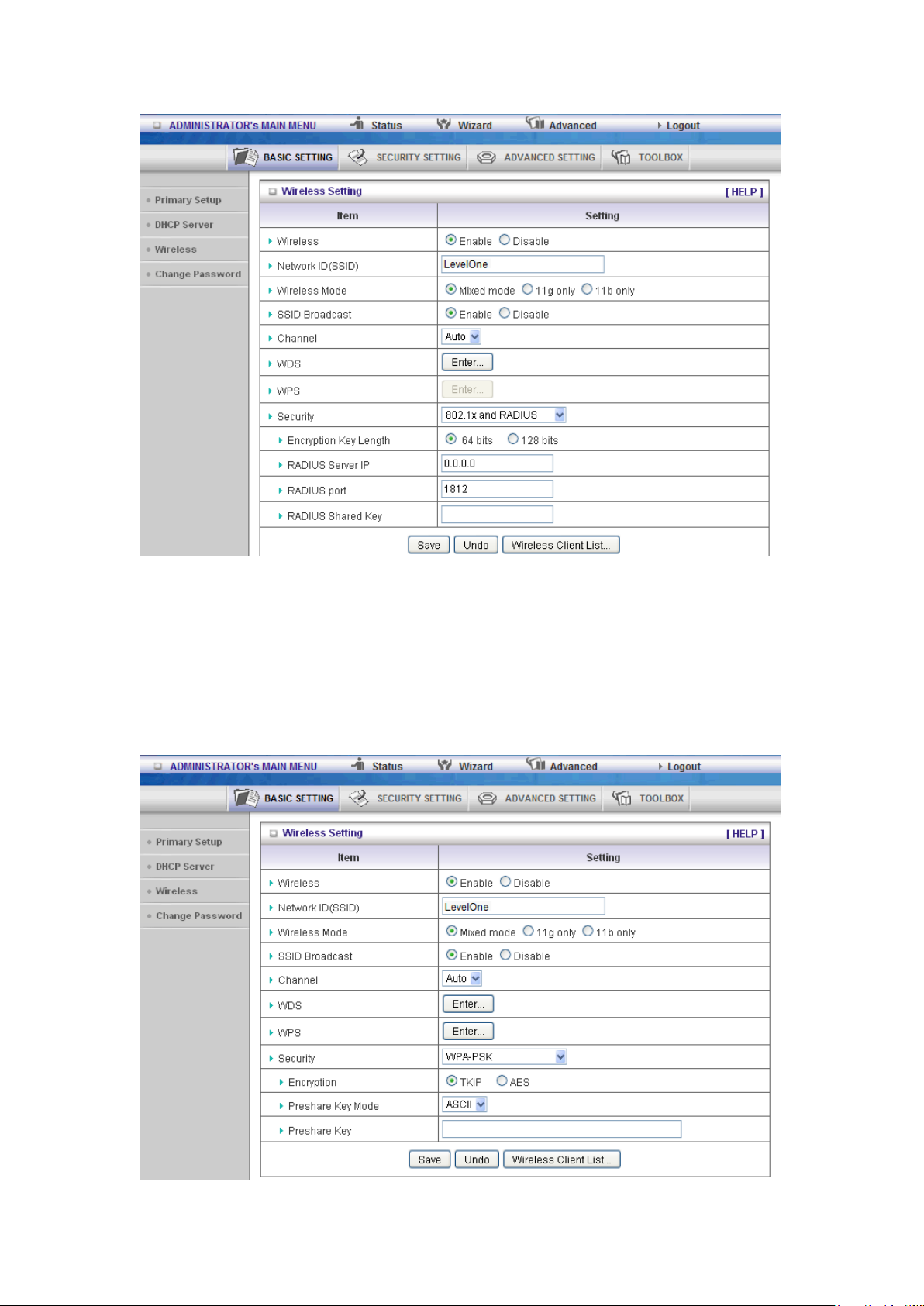

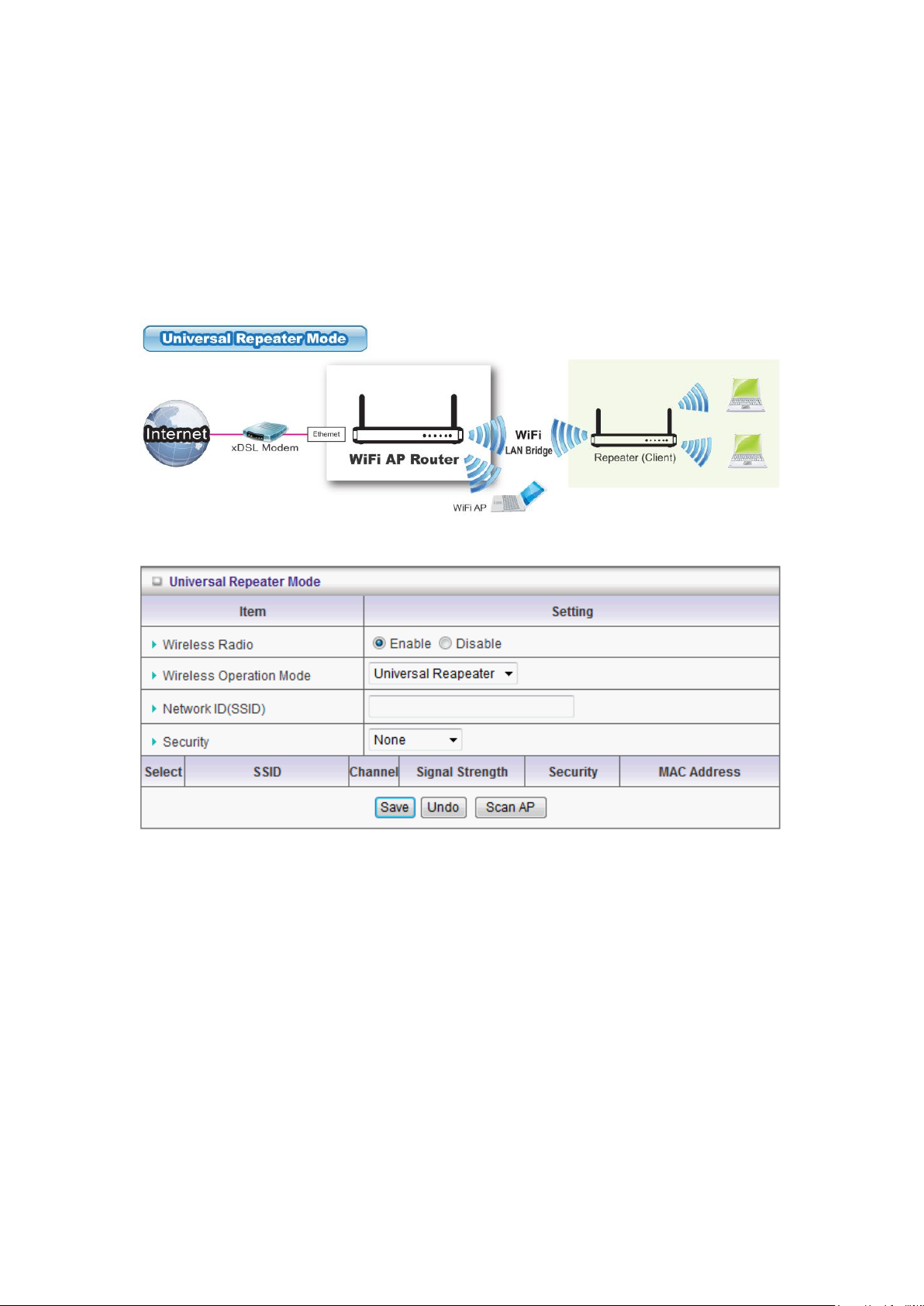

3.3.1 Basic Setting
Please Select “Advanced Setup” to Setup
14
1. LAN IP Address: the local IP address of this device. The computers on your network must
use the LAN IP address of your product as their Default Gateway. You can change it if
necessary.

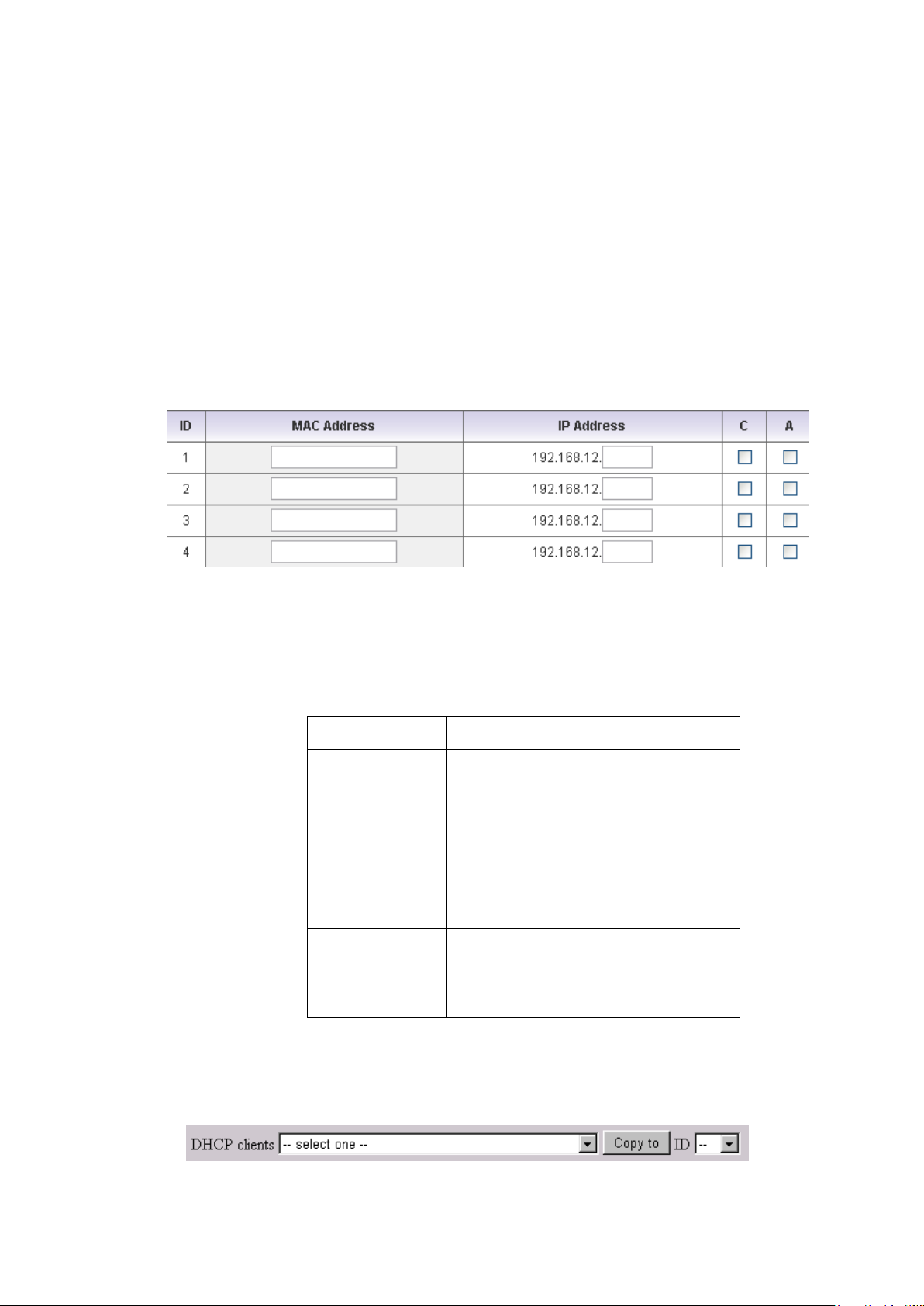

3.3.1.2 DHCP Server

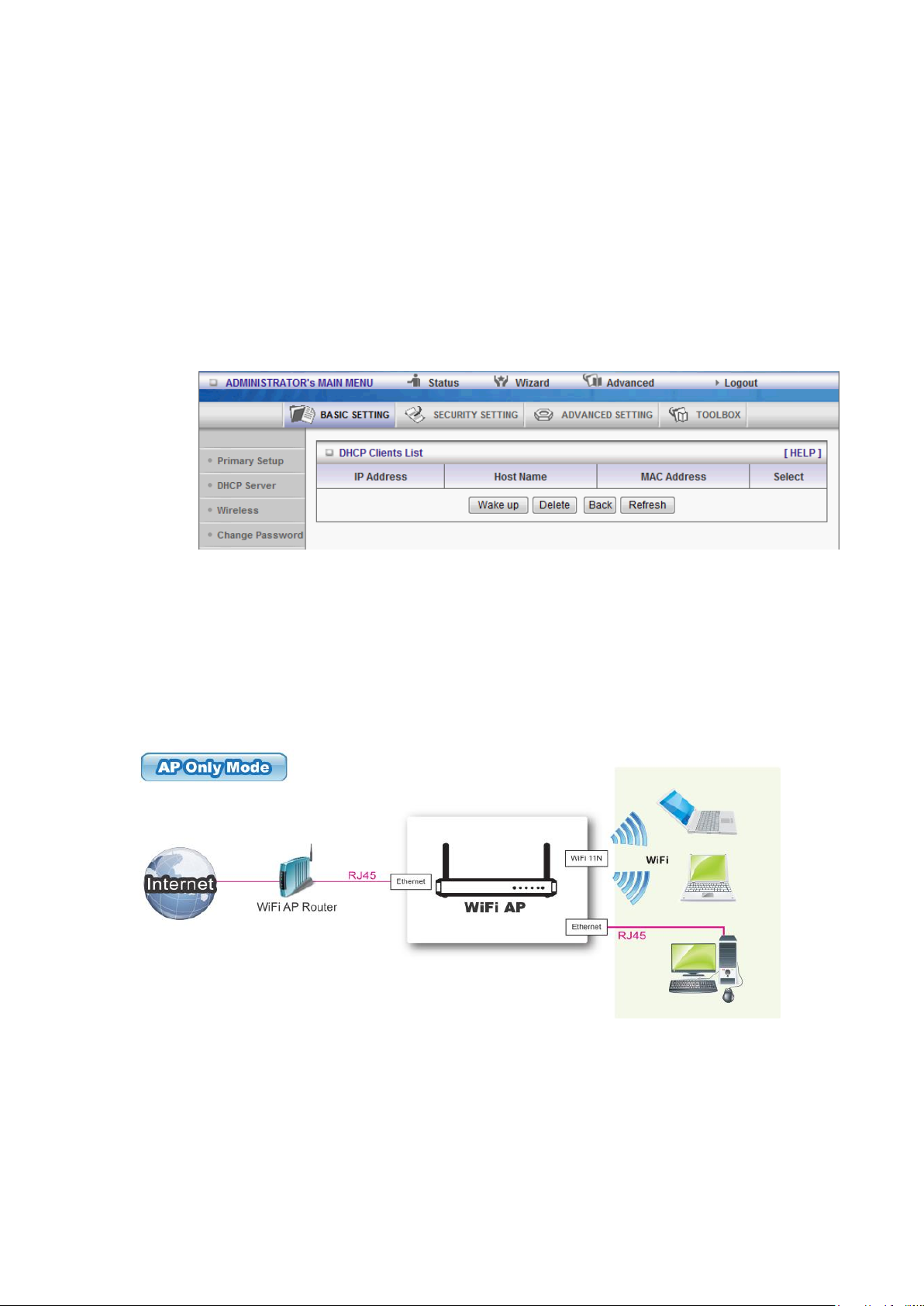

Press “More>>”
1. DHCP Server: Choose “Disable” or “Enable.”
2. Lease time: This is the length of time that the client may use the IP address it has
been
Assigned by dhcp server.
3. IP pool starting Address/ IP pool starting Address: Whenever there is a request,
the DHCP
server will automatically allocate an unused IP address from the IP address pool to
the requesting computer. You must specify the starting and ending address of the IP
