LevelOne KVM-0217 User Manual

LevelOne
KVM-0217
17” Modularized KVM Console
User Manual
SAFETY INSTRUCTIONS
1. Please read these safety instructions carefully.
2. Please keep this User Manual for later reference.
3. Please disconnect this equipment from AC outlet before cleaning. Don’t use liquid or sprayed
detergent for cleaning. Use moisture sheet or clothe for cleaning.
4. For pluggable equipment, the socked-outlet shall be installed near the equipment and shall be
easily accessible.
5. Please keep this equipment from humidity.
6. Lay this equipment on a reliable surface when install. A drop or fall could cause injury.
7. Do not leave this equipment at temperature above 600C. It may damage the equipment.
8. The opening on the enclosure is for air convection hence the equipment from overheating. DO
NOT COVER THE OPENING.
9. All cautions and warning on the equipment should be noted.
10. If the equipment is not in use for long time, disconnect the equipment from mains to avoid being
damaged by transient over-voltage.
11. Never pour any liquid into ventilation openings; this could cause fire or electrical shock.
12. Never open the equipment. For safety reason, only qualified service personnel should open the
equipment.
13. If one of the following situations arises, get the equipment checked by service personnel.
The Power Cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment has not worked well or you can not get it work according to User Manual.
The equipment has dropped and damaged.
The equipment has obvious signs or breakage.
2
INDEX OF CONTENTS
CHAPTER 1 INTRODUCTION .............................................................................................. 4
1.1 O
VERVIEW
1.2 PACKING LIST.................................................................................................................. 4
CHAPTER 2 INSTALLATION................................................................................................ 5
2.1 I
NSTALL CONSOLE TO CABINET
2.1.1 Before Installation ....................................................................................................... 5
2.1.2 Hardware kits contents:............................................................................................... 5
2.1.3 Installation Step .......................................................................................................... 7
2.1.4 Replace bracket A step (For cabinet depth 828 ~ 1000 mm):...................................... 9
2.1.5 Replace bracket B and C step (For cabinet depth is 504 ~ 614 mm):........................ 10
.......................................................................................................................... 4
............................................................................................ 5
2.2 KVM S
2.3 U
2.4 C
WITCH MODULE INSTALLATION
NLOAD STEPS
ONNECTING THE CONSOLE AND CONFIGURING THE DISPLAY SETTINGS
................................................................................................................. 14
.................................................................................. 12
.............................. 16
2.4.1 Configuring the Display Settings ............................................................................... 16
2.4 T
URNING ON THE CONSOLE
2.5 T
ESTING THE CONSOLE
............................................................................................... 16
..................................................................................................... 16
CHAPTER 3 PANEL CONTROLS AND OSD FUNCTIONS ................................................ 18
3.1 A
3.2 B
3.3 C
3.4 C
3.5 P
3.6 L
3.7 R
3.8 E
UTO TUNE
RIGHTNESS
ONTRAST
OLOR
OSITION
ANGUAGE
ECALL
XIT
................................................................................................................................. 20
....................................................................................................................... 18
..................................................................................................................... 18
........................................................................................................................ 18
............................................................................................................................. 19
.......................................................................................................................... 19
........................................................................................................................ 19
............................................................................................................................ 20
3.9 P
OWER INDICATOR
............................................................................................................ 20
TECHNICAL SPECIFICATIONS.............................................................................................. 21
KVM-0217 S
PECIFICATIONS
.................................................................................................... 21
3
CHAPTER 1 Introduction
1.1 Overview
Congratulations on your purchase of LevelOne KVM-0217 17-inch modularized KVM console. The 17-inch large size TFT LCD color display and ultra-low-profile compact industrial keyboard / touchpad provide the user-friendliest and most reliable environment for server and network administrators. With the unique modular design, user can easily integrate with KVM switches and expand the system. * All these functions are integrated in a 19-inch 1U space with rugged construction design to achieve ultra space saving and high reliability for high quality industrial network applications. This user manual tells you how to install your KVM-0217, how to operate the OSD (On Screen Display) and the specifications. For KVM switch functions, please refer to KCM-0831/1631 user manual.
* KVM-0217 must co-work with KCM-0831 or KCM-1631, it is not a stand alone device.
For stand alone KVM console, please refer to KVM-0115 or KVM-0117.
1.2 PACKING LIST
The complete KVM-0217 package consists of:
1U 19” rack mount console
Two rail with front and rear bracket
Two brackets A. (Needed for rack depth 828 ~ 1000 mm)
Two brackets B. (Needed for rack depth 504 ~ 614 mm)
Two brackets C. (Needed for rack depth 504 ~ 614 mm)
Power Adapter
CD Manual
Quick Installation Guide
Two keys
Screws
Check to make sure that the unit was not damaged in shipping. If you encounter a problem, contact your local dealer. Please read this manual thoroughly, and follow the installation and operation procedures carefully to prevent any damage to the product, and/or any of the devices that connect to it.
4
CHAPTER 2 INSTALLATION
2.1 Install Console to Cabinet
2.1.1 Before Installation
1. Before installation, please check all peripherals according to the list. Make sure the whole unit was not damaged and lost during shipping process. If you encounter any problem, please contact your local dealer.
2. Before installation, make sure all peripherals and computer have been turned off.
3. The standard brackets are for 614~1000mm (distance means front bracket to rear bracket)
cabinet, contact your dealer if you need longer rear brackets.
4. If your cabinet depth is 828 ~ 1000 mm, please refer to “Replace bracket A step”. If your
cabinet depth is 504 ~ 614 mm, please refer to “Replace bracket B and bracket C step”.
2.1.2 Hardware kits contents:
1. Rail with front and rear bracket x 2 (Please identify the brackets. Right and left sides are different.
For cabinet depth 614 ~ 828 mm)
2. Bracket A x 2 (For cabinet depth 828~1000 mm. Please refer page 5)
3. Bracket B x 2 (For cabinet depth 504 ~614 mm. Please refer page 6)
4. Bracket C x 2 (For cabinet depth 504 ~614 mm. Please refer page 6)
5
5. Screw (length = 6 mm) x 6
6. Screw x 8
7. Key x 2
6
2.1.3 Installation Step

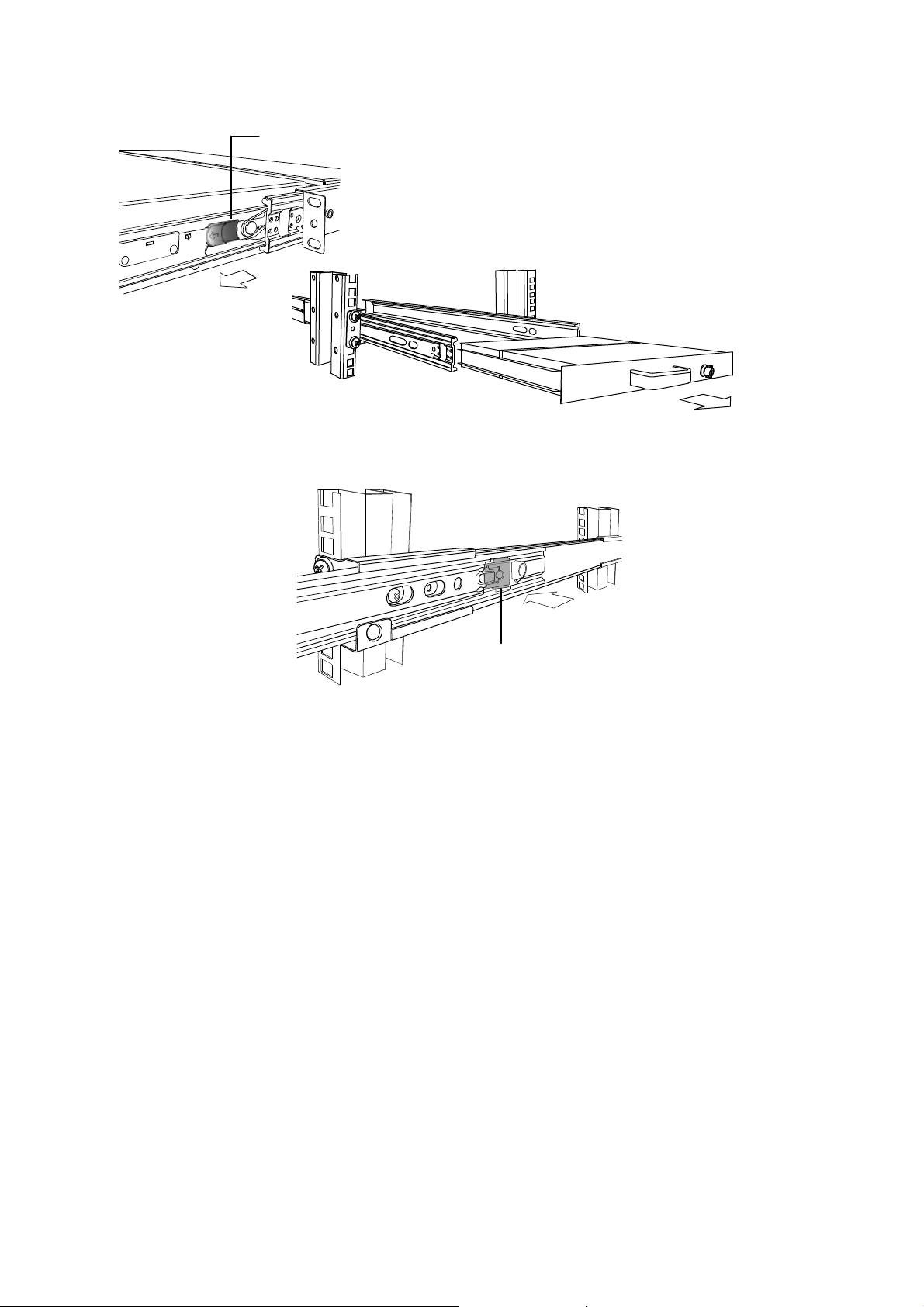

1. Adjust rail until two screws appear.
rail
2. Loose (Not remove) seven rear screws.
3. Adjust rail to fit your cabinet
two screws
4. Install front and rear bracket on cabinet.
7
