LevelOne IES-0920 User Manual

User Manual

v1.00 - 1206

IES-0920

8 FE + 1 MM SC Unmanaged Switch -40 to 75, DIN-rail

Preface

This manual desc r ibes how to install and use the Industrial Ethernet Switch. This switch
integra tes full wire speed switching technology. This switch brings t he answer to
complicated Industrial networking environments.

To get the most out of this manual, you should have an understanding of Ethernet
networking concepts.

In this manual, you will find:

• Features on the switch

• Illustrative LED functions

• Installation instructions

• Specifications

IES-0920 User Manual Page 1

Table of Contents

PREFACE .................................................................................................................. 1

PRODUCT OVERVIEW ............................................................................................. 3

INDUSTRIAL ETHERNET SWITCH ......................................................................................................... 3

PACKAGE CONTENTS........................................................................................................................... 3

PRODUCT HIGHLIGHTS ....................................................................................................................... 4

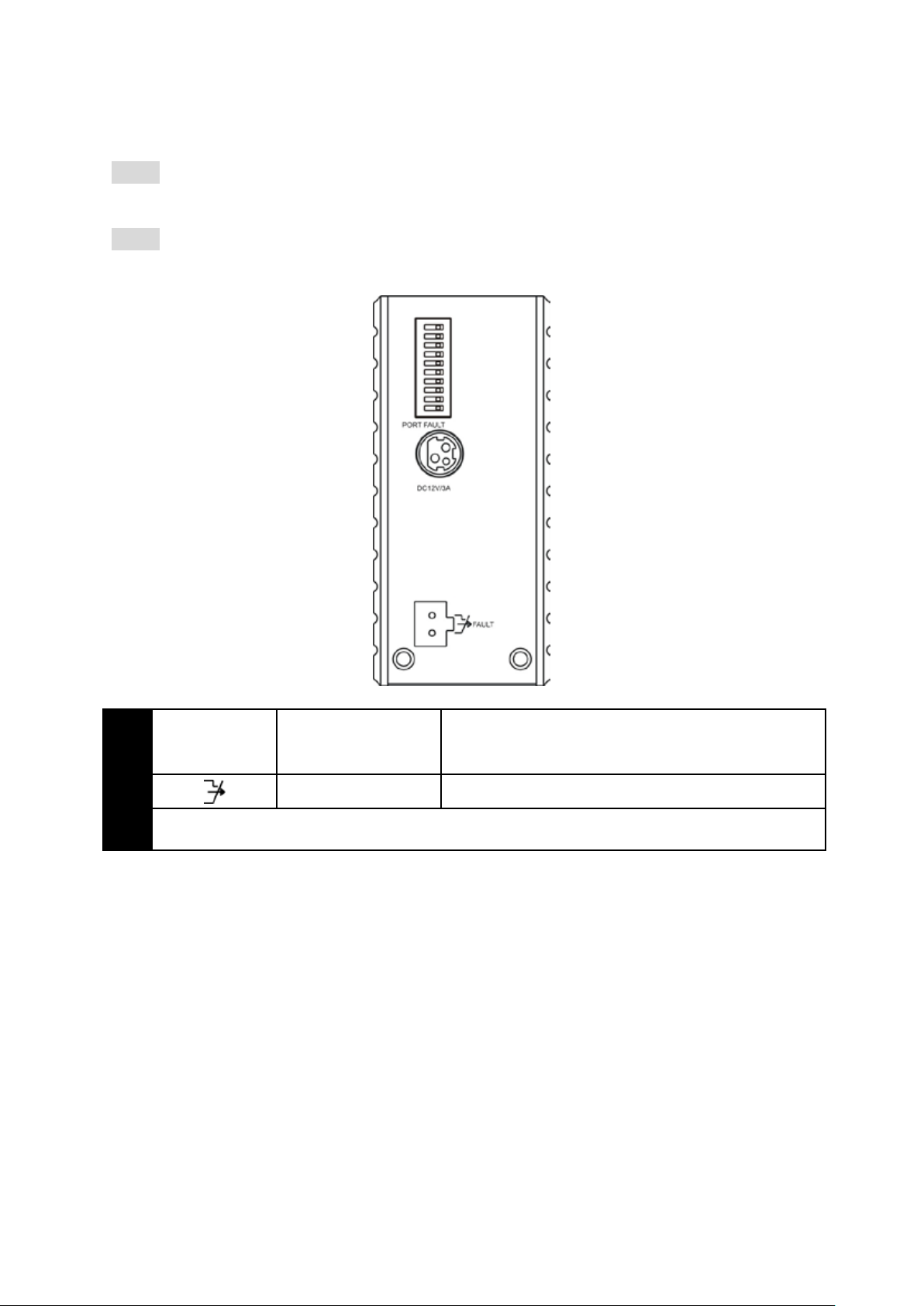

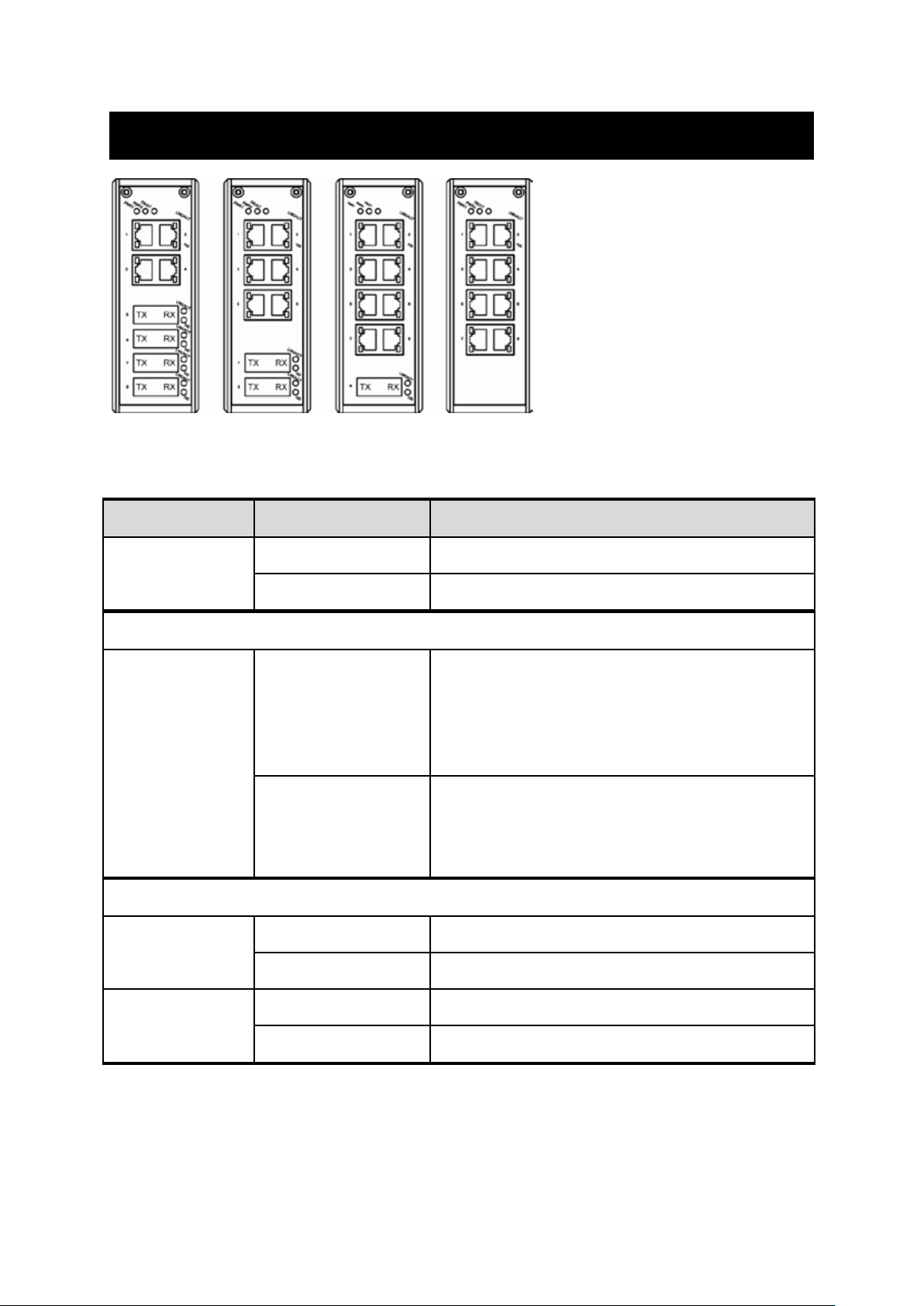

FRONT PANEL DISPLAY ....................................................................................................................... 5

PHYSICAL PORTS ................................................................................................................................ 6

INSTALLATION ........................................................................................................ 7

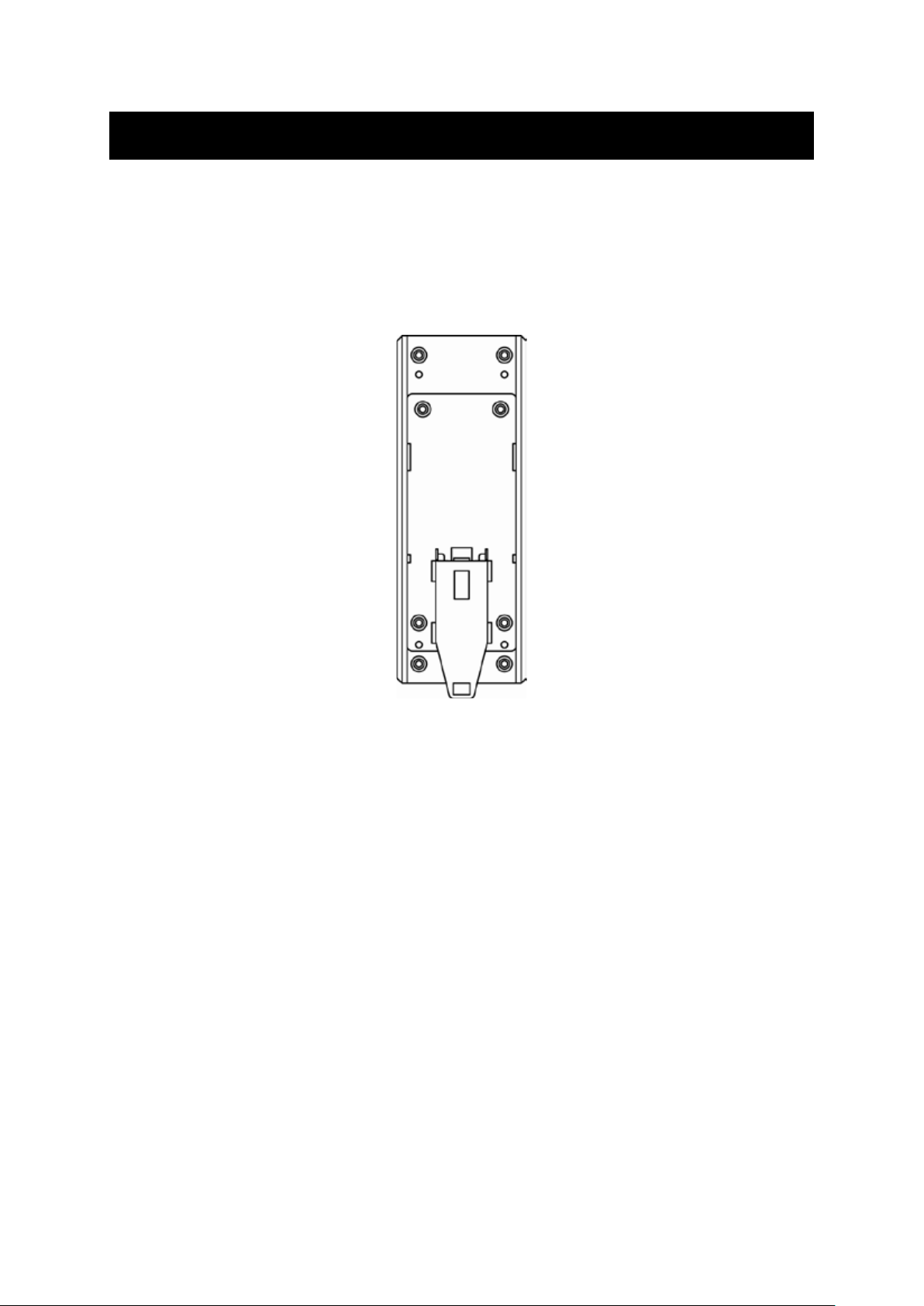

DIN RAIL MOUNTING......................................................................................................................... 8

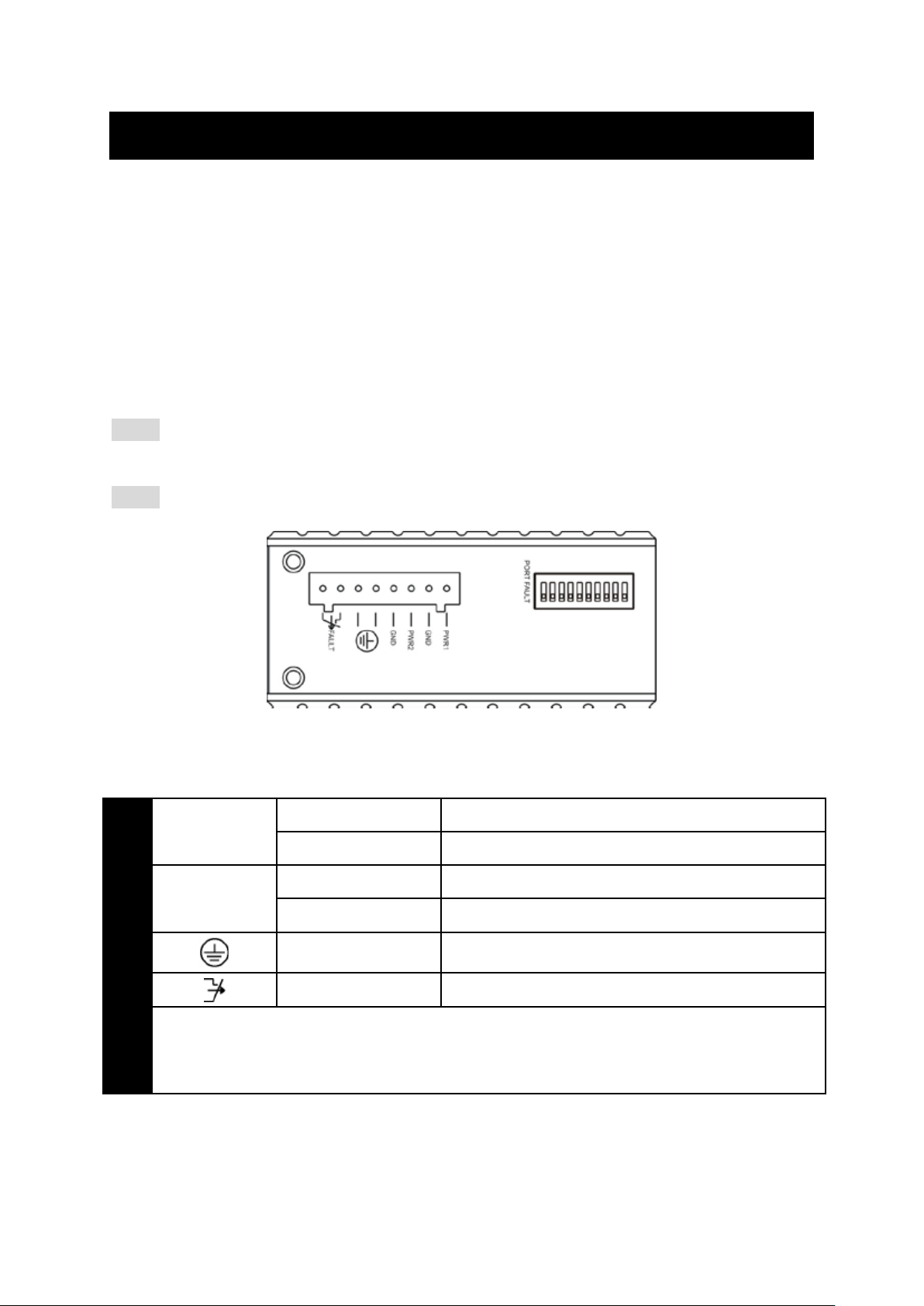

CONNECTING TO POWER .................................................................................................................... 9

CONNECTING TO YOUR NETWORK ................................................................................................... 12

SPECIFICATIONS ................................................................................................... 13

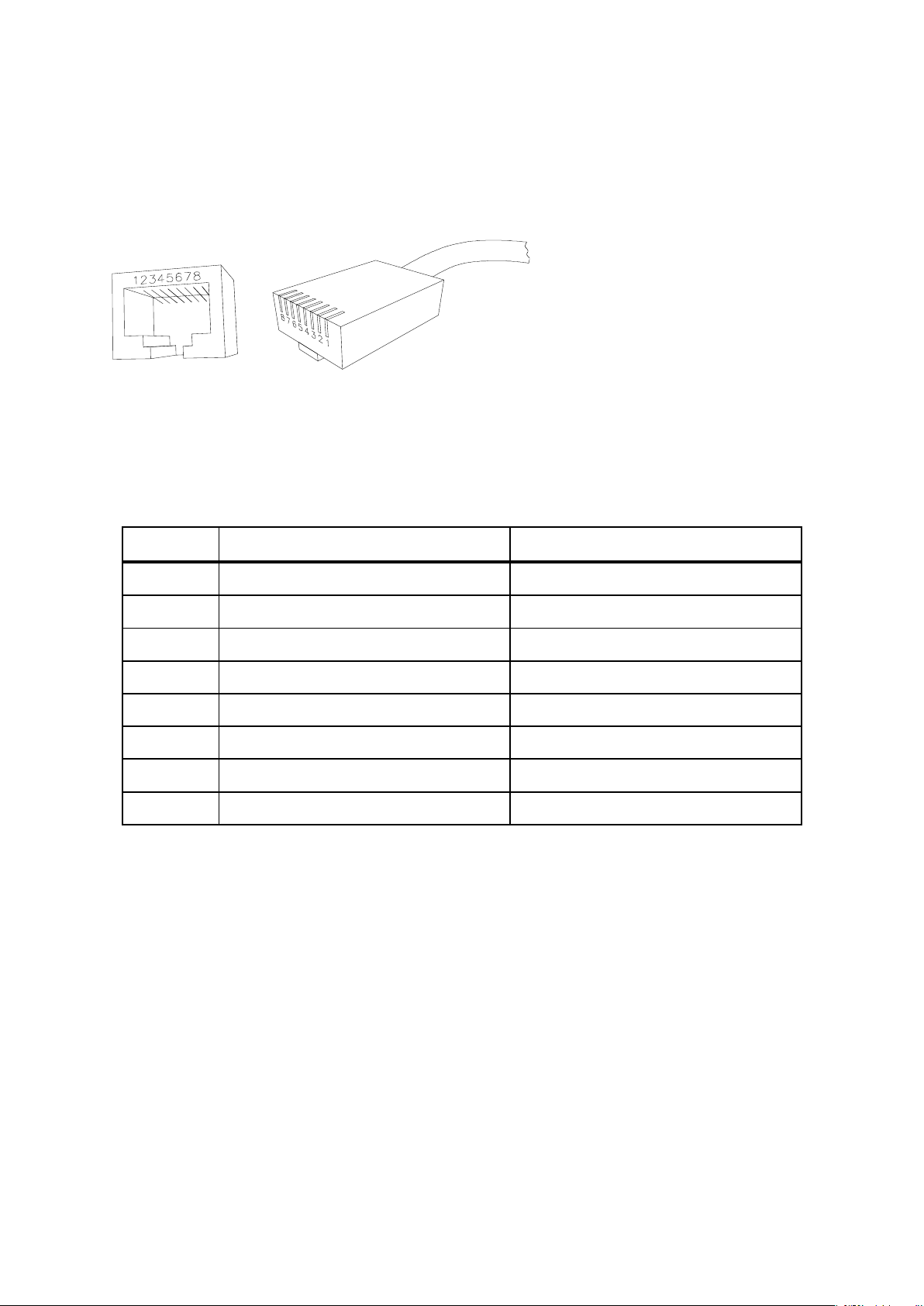

APPENDIX A – CONNE CTOR PINOUTS ................................................................. 15

IES-0920 User Manual Page 2

Product Overview

Industrial Ethernet Switch

Package Contents

When you unpack the product package, you shall find the items listed below. Please
inspect the contents, and report any apparent damage or missing items immediately to
your authorized reseller.

• IES-0920

• Quick Installation Guide

• CD User Manual

IES-0920 User Manual Page 3

Product Highlights

Basic Features

• Meets NEMA TS1/TS2 Envir onmental requir em ents such as temperature, shock, and
vibration for traffic control equipment.

• Meets EN61000-6-2 & EN61000-6-3 EMC Generic Standard Immunity for industrial
environment.

• UL1604 Class I, Division 2 classified f or use in hazardous locations (applicable to
versions with terminal block power option) .

• Supports 802.3/802.3u/802.3X.

• Auto-negotiation: 10/100Mbps, full/half-duplex. Auto MDI/MDIX.

• Supports 2048 MAC addresses.

• Provides 768K bits memory buffer.

• Alarms for power and port link failure by relay output 1.5A @ 24VDC.

• Operating voltage and Max. current consumption: 0.76A @ 12VDC, 0.38A @ 24VDC,

0.19A @ 48VDC. Power consumption: 9.12W Max.

• Power Supply: Redundant DC Terminal Block power inputs or 12VDC DC JACK with
100-240VAC external power supply.

• Field Wiring Terminal: Use Copper Conductors Only, 60/75℃, 12-24 AWG torque value 7
lb-in.

• -40℃ to 75℃ (-40℉ to 167℉) operating temperature range. Tested for functional
operation @ -40℃ to 85℃ (-40℉ to 185℉). UL1604 Industrial Control Equipment
certified Maximum Surrounding Air Temperature @ 74℃ (165℉).

• Supports DIN-Rail or Panel Mounting installation.

IES-0920 User Manual Page 4
