LevelOne IES-0842 User Manual

IES-0842

4 x 802.3at PoE + 4 FE Web Smart Switch -10 to 60C, DIN-rail

User Manual

v1.00 - 1206

Preface

This manual describes how to install and use the Industrial Web-Smart PoE & High Power PoE Ethernet Switch. This switch introduced here is designed to deliver full scalability with web-based management functions. Capable of operating at temperature extremes of -40°C to +75°C, this is the switch of choice for harsh environments constrained by space.

Port 1 to port 4 on this switch supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE) and can detect an IEEE802.3af compliant Powered Device (PD). Using external 48VDC power inputs through Terminal Block or Power Jack, data and power can be transmitted to a Powered Device (PD) over the same twisted-pair Ethernet cable through port 1 to port 4 on the switch.

Port 1 to port 4 on this switch also supports High Power PoE Power Sourcing Equipment (PSE) and can detect a Powered Device (PD). Using external 55VDC power inputs through Terminal Block or Power Jack, data and power can be transmitted to a Powered Device (PD) over the same twistedpair Ethernet cable through port 1 to port 4 on the switch.

To get the most out of this manual, you should have an understanding of Ethernet networking concepts.

In this manual, you will find:

 Features  Illustrative LED functions  Installation instructions  Management Configuration  Specifications

Table of Contents

OVERVIEW ........................................................................................................................... 4

INDUSTRIAL WEB-SMART POE ETHERNET SWITCH ............................................................................................. 4

FEATURES ............................................................................................................................................................... 5

PACKAGE CONTENTS ............................................................................................................................................. 5

FRONT PANEL DISPLAY .......................................................................................................................................... 6

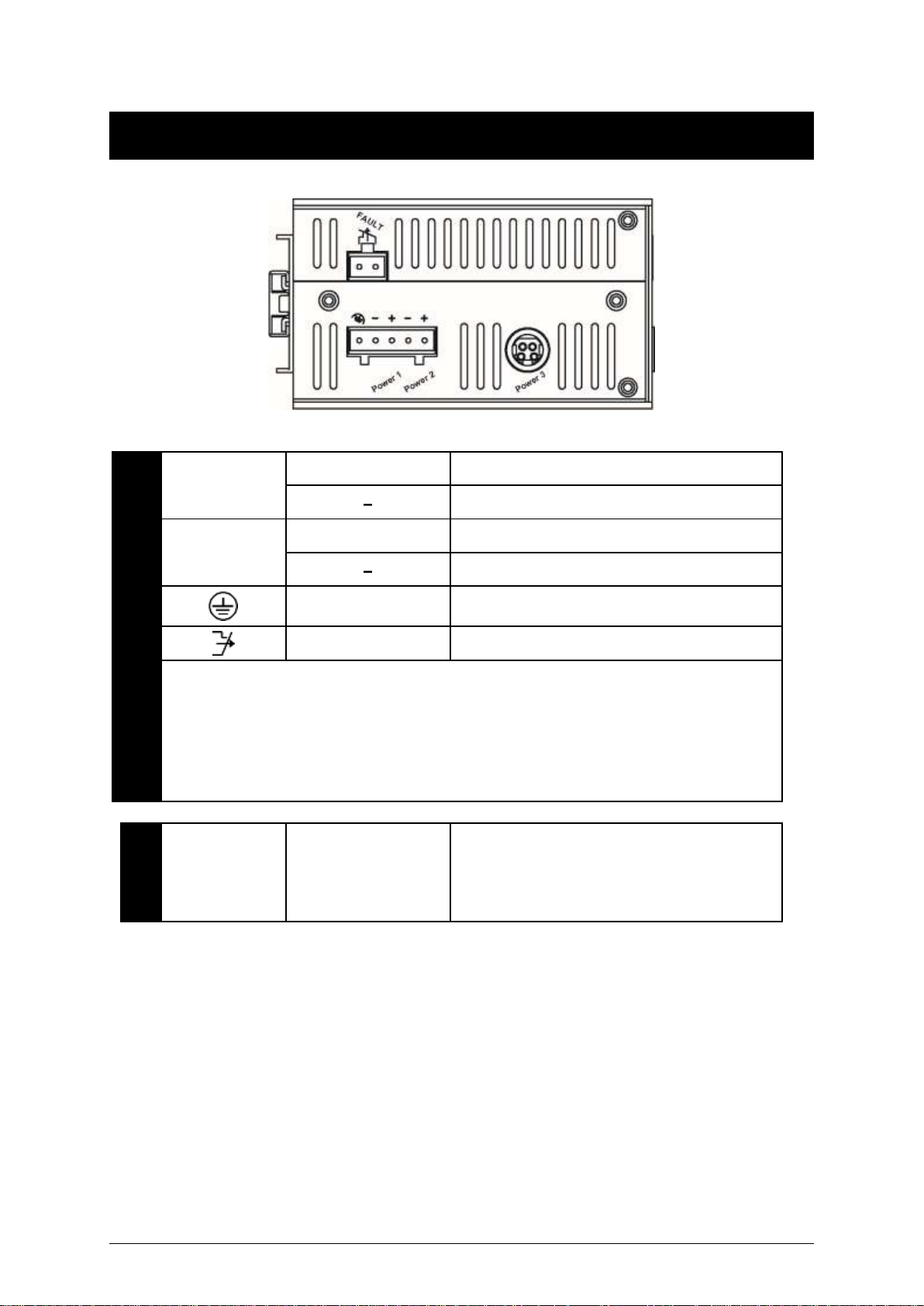

POWER INPUT ........................................................................................................................................................ 7

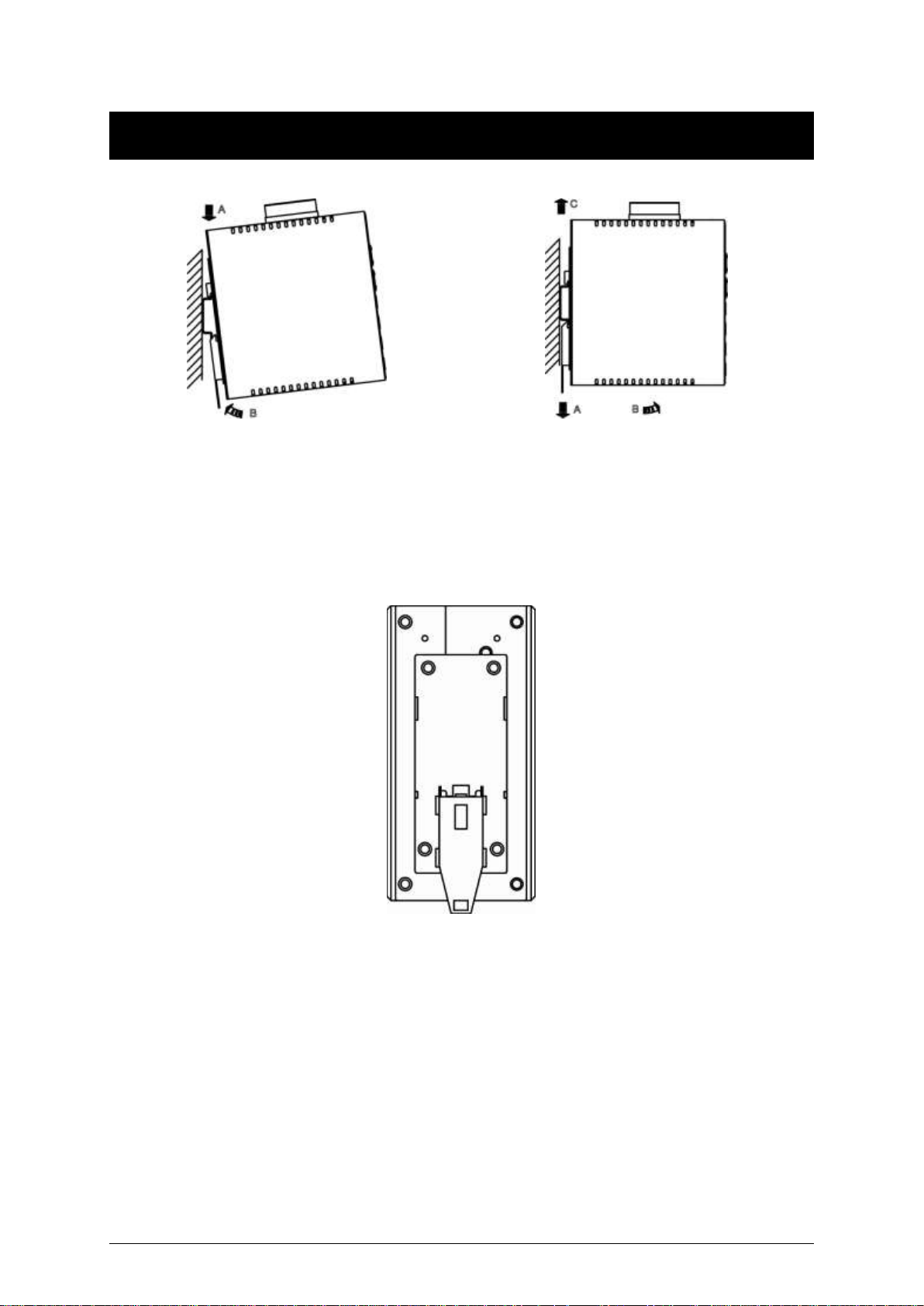

DIN RAIN MOUNT ................................................................................................................................................. 8

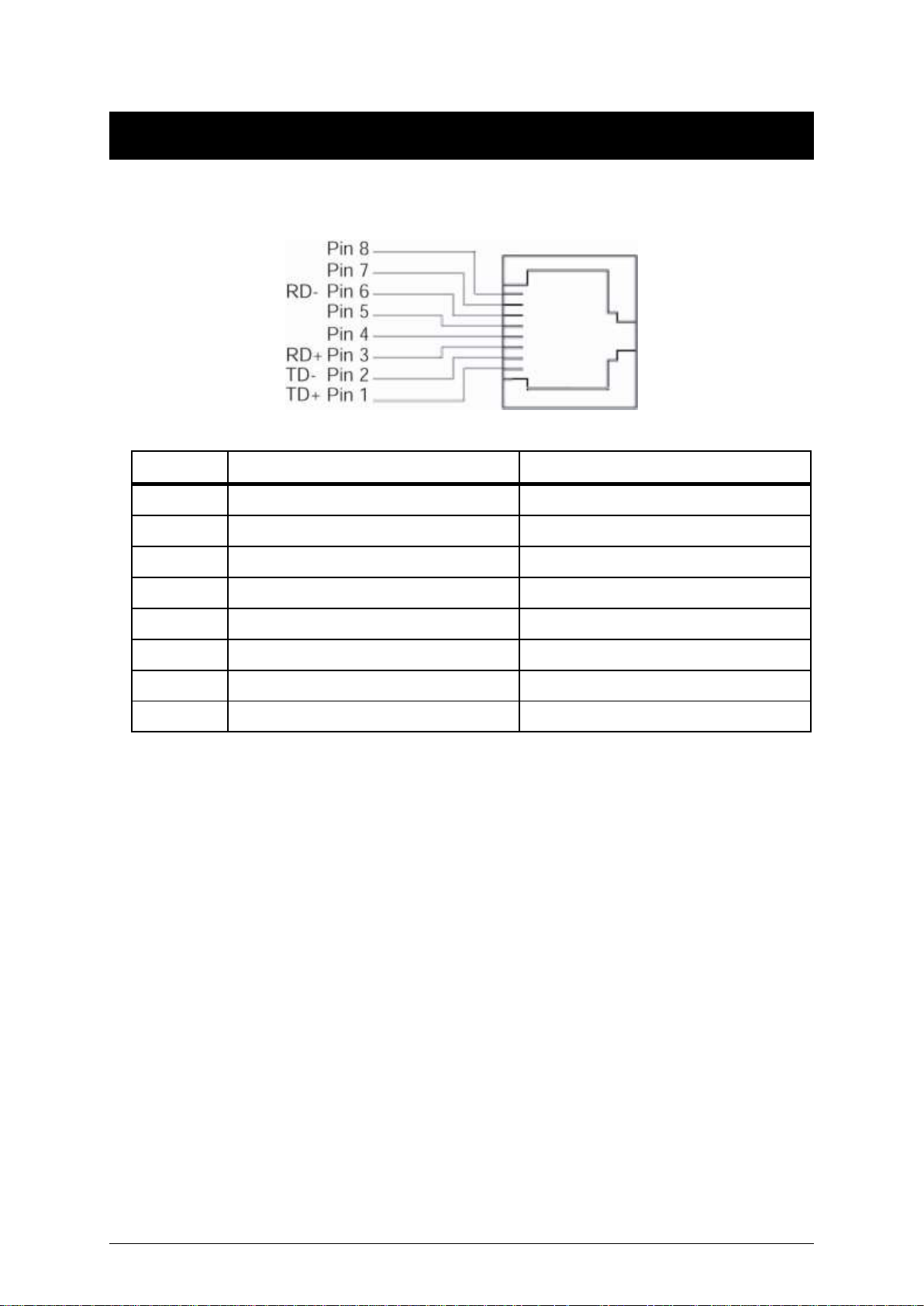

10/100BASE-TX CONNECTOR ............................................................................................................................ 9

WEB MANAGEMENT ......................................................................................................... 10

DEFAULT SETTING ............................................................................................................................................... 10

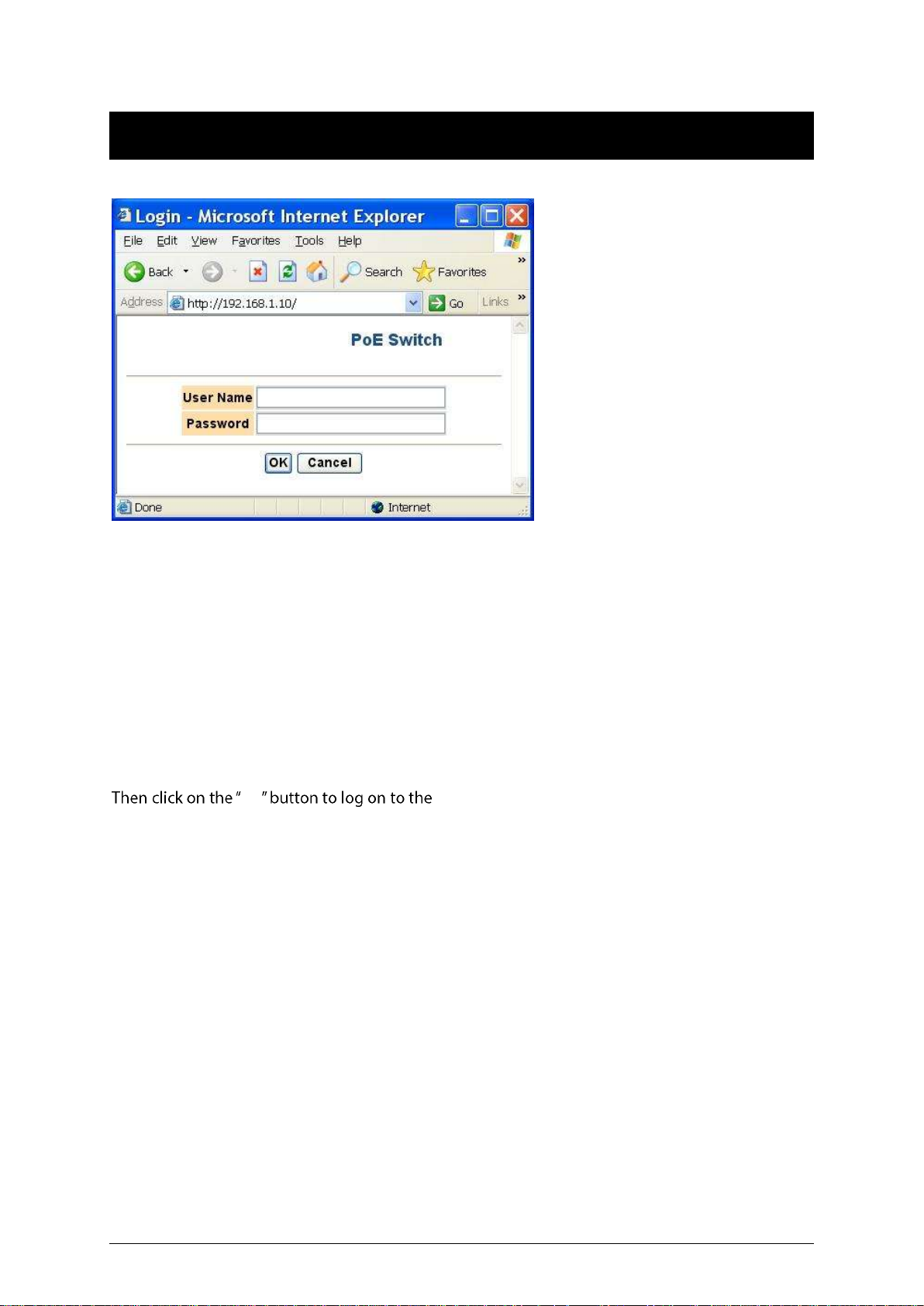

LOGGING ON TO THE SWITCH ............................................................................................................................. 11

BROWSER INTERFACE .......................................................................................................................................... 12

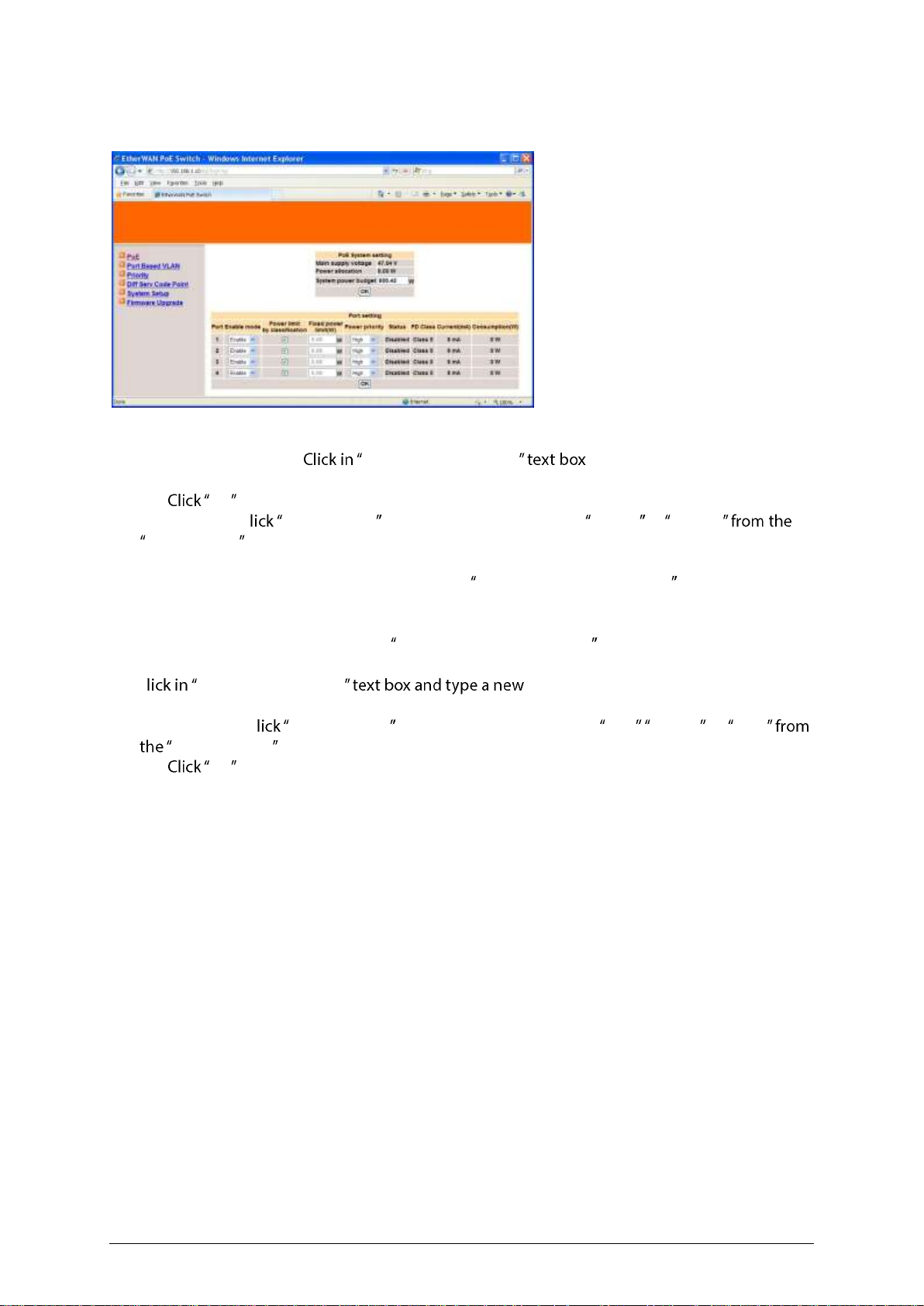

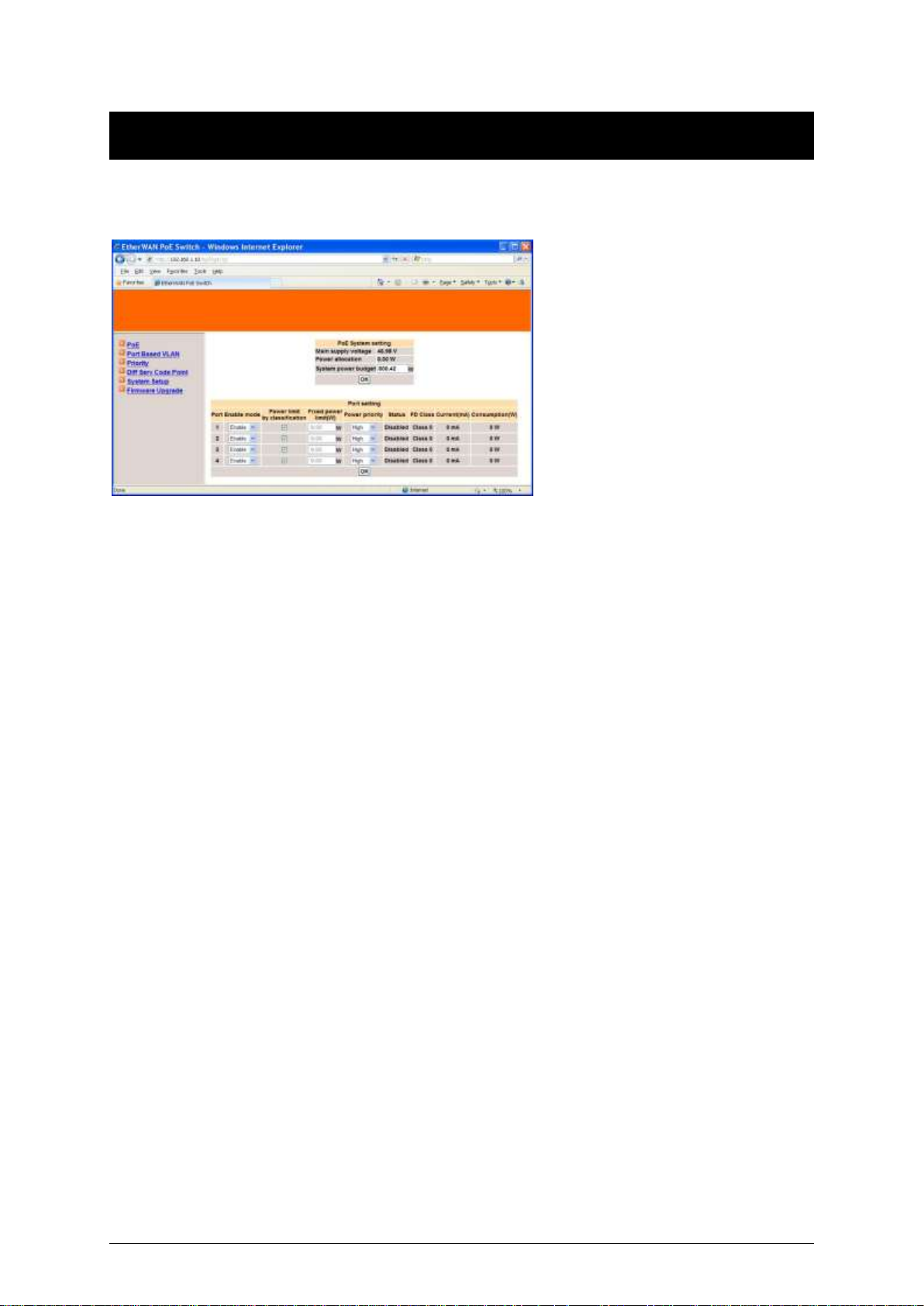

PoE ............................................................................................................................................................. 13

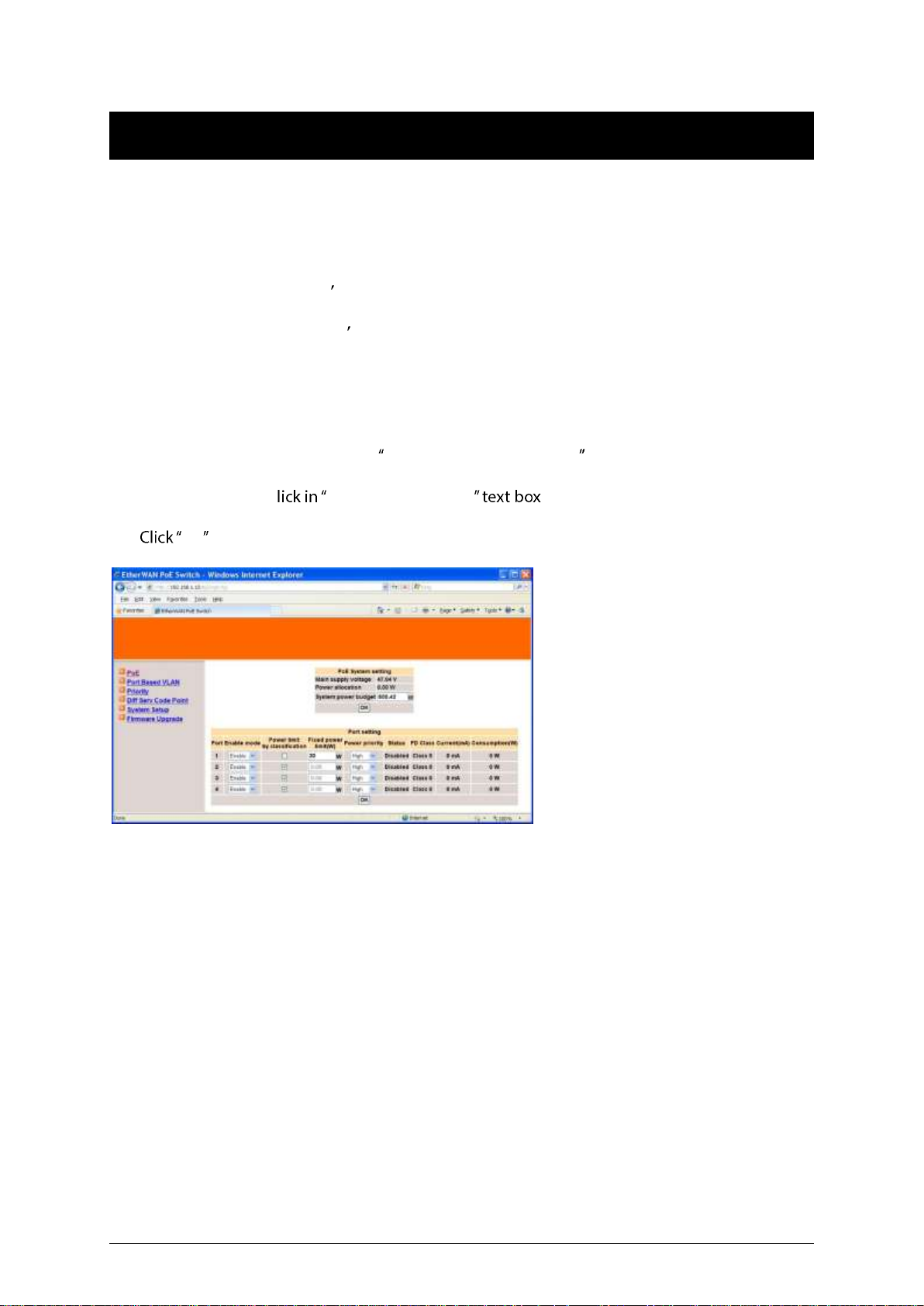

HIGH POWER POE OPERATION .......................................................................................................................... 14

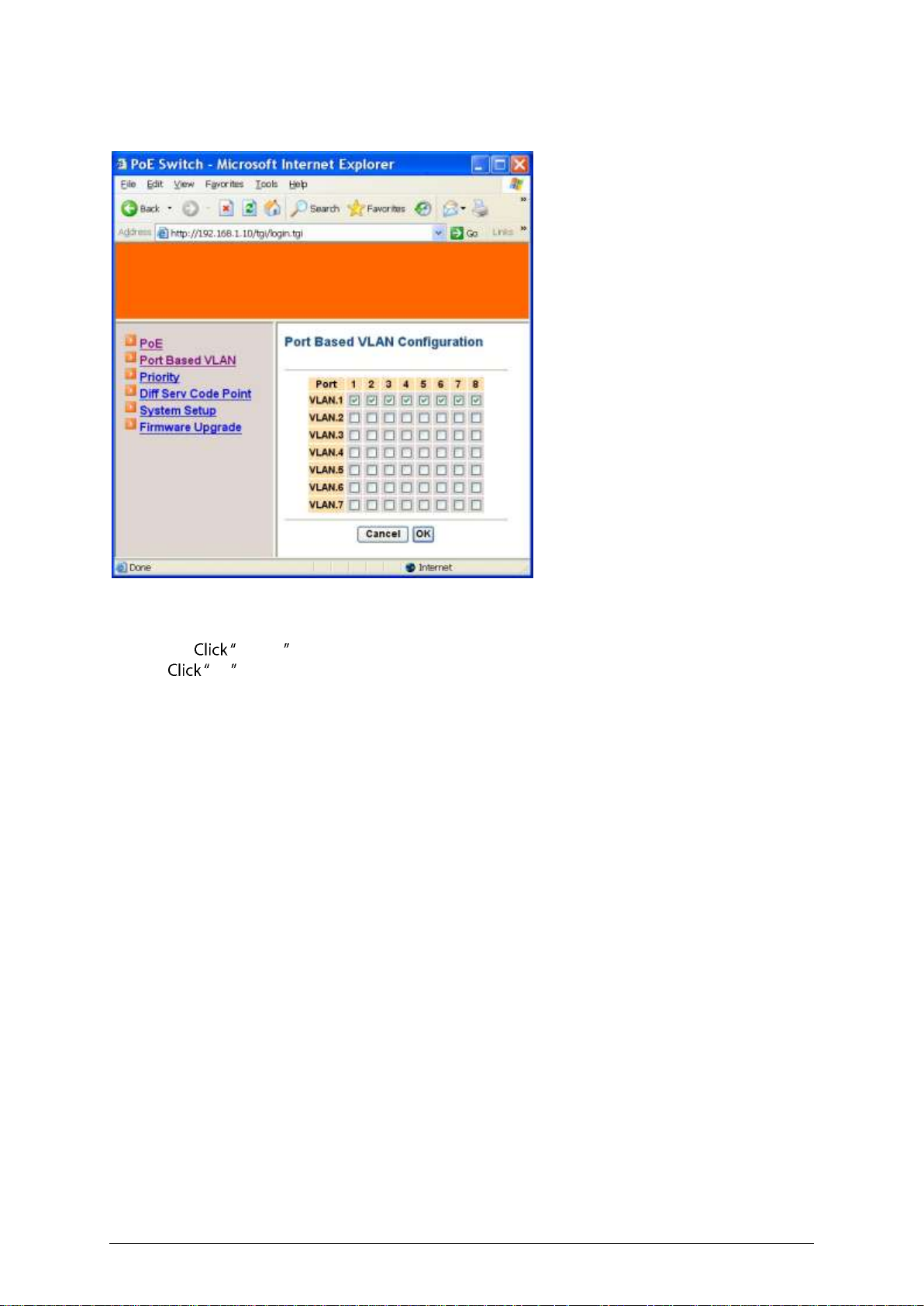

Port Based VLAN ..................................................................................................................................... 15

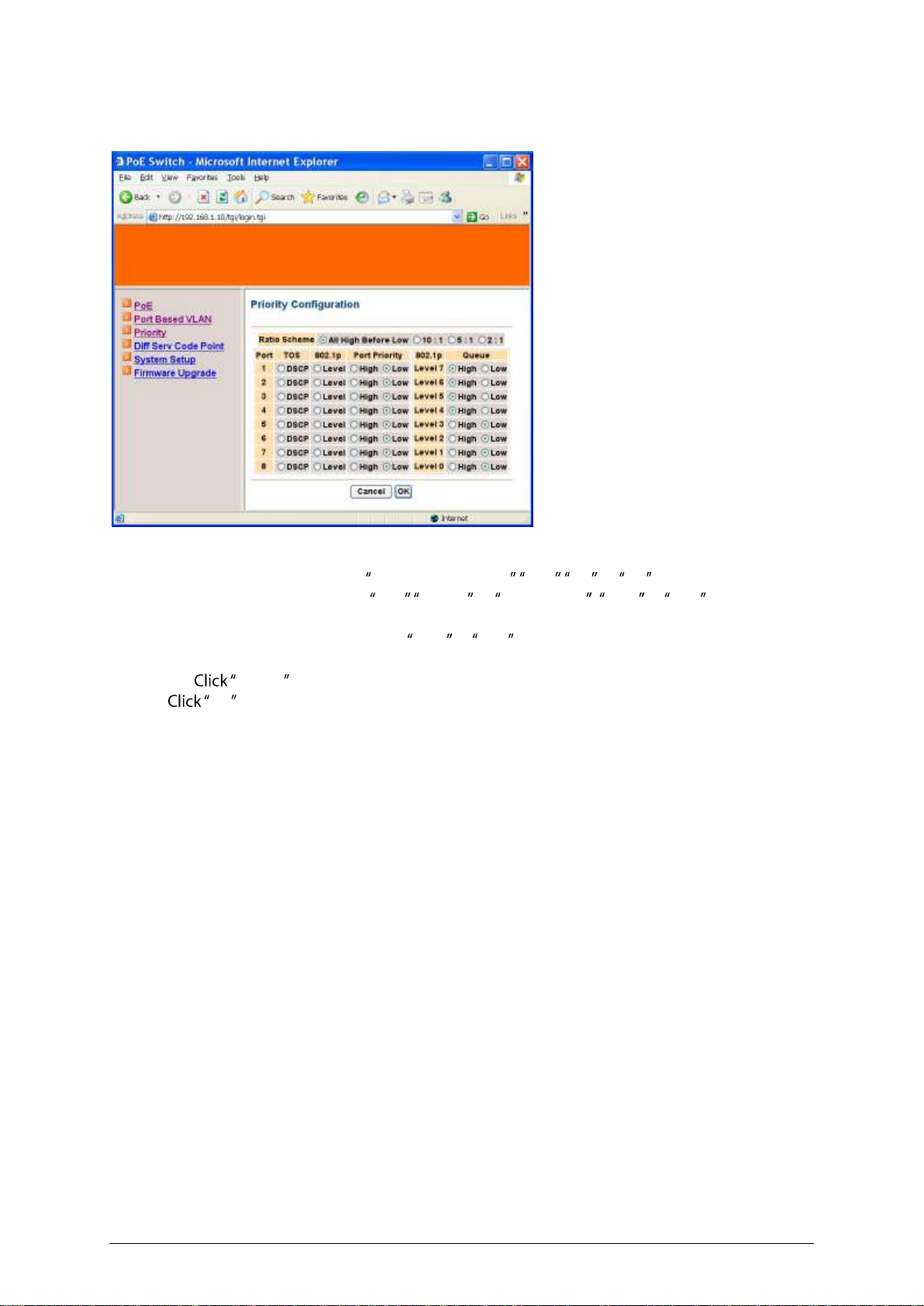

Priority....................................................................................................................................................... 16

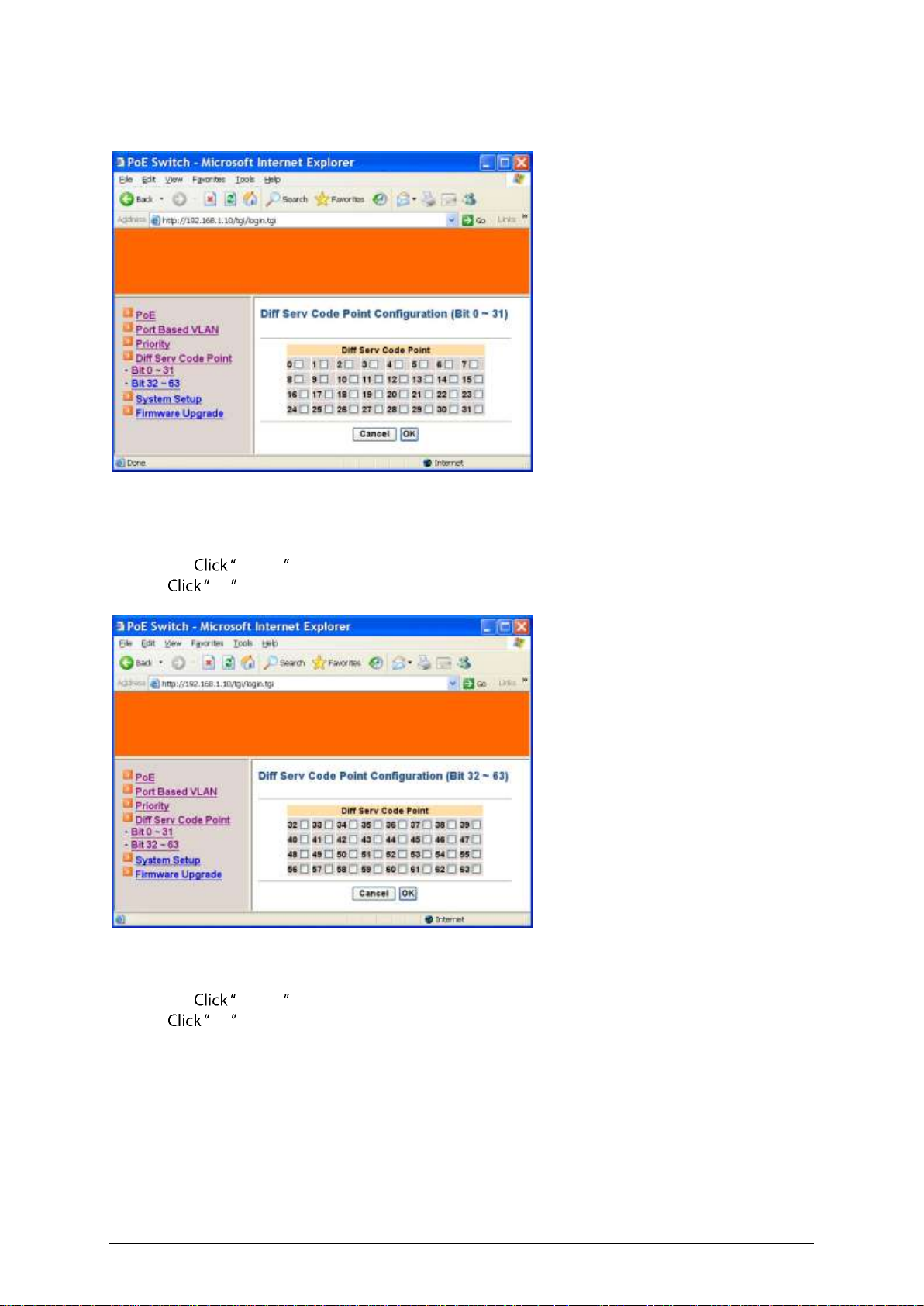

Diff Serv Code Point ............................................................................................................................... 17

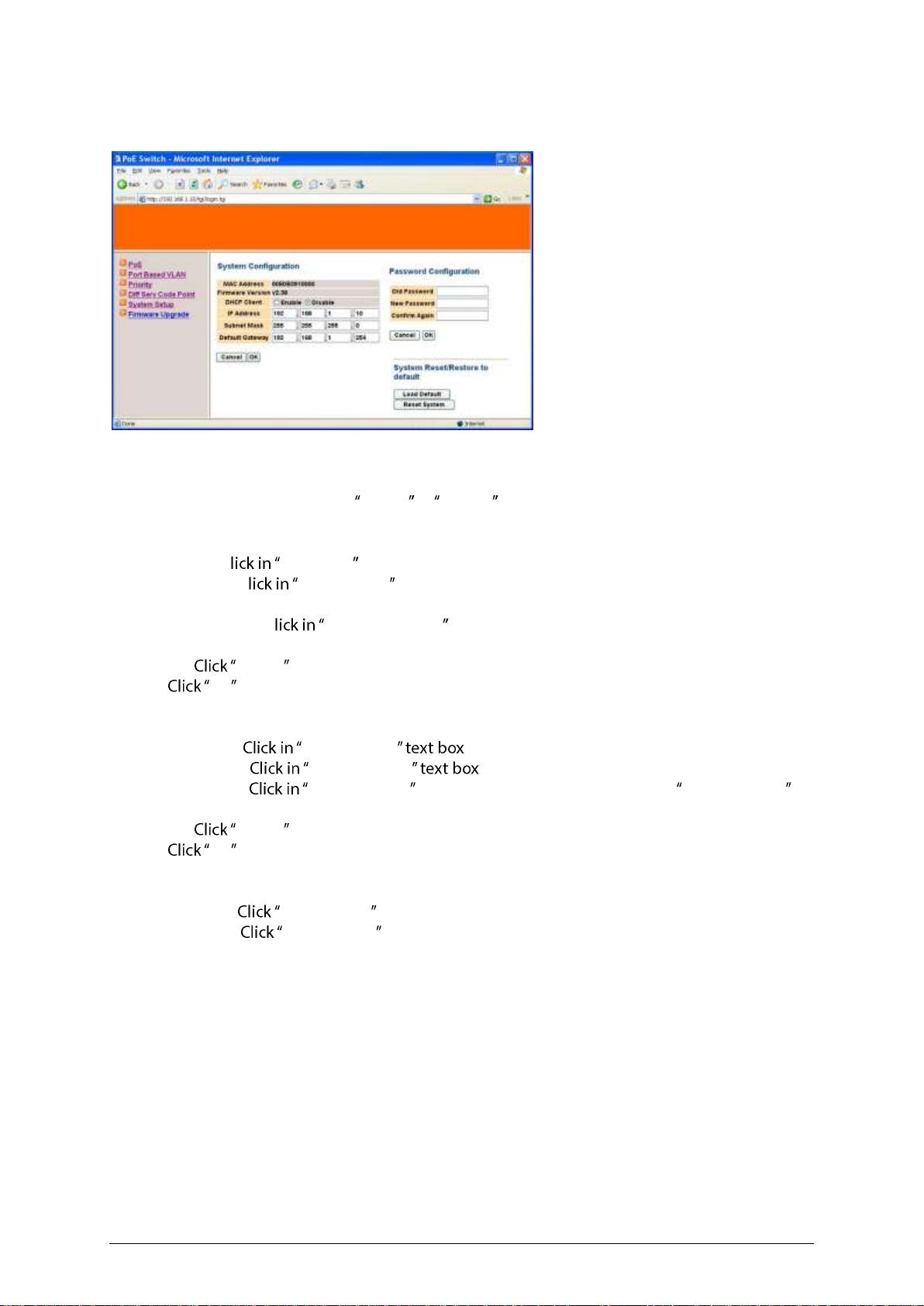

System Setup ........................................................................................................................................... 18

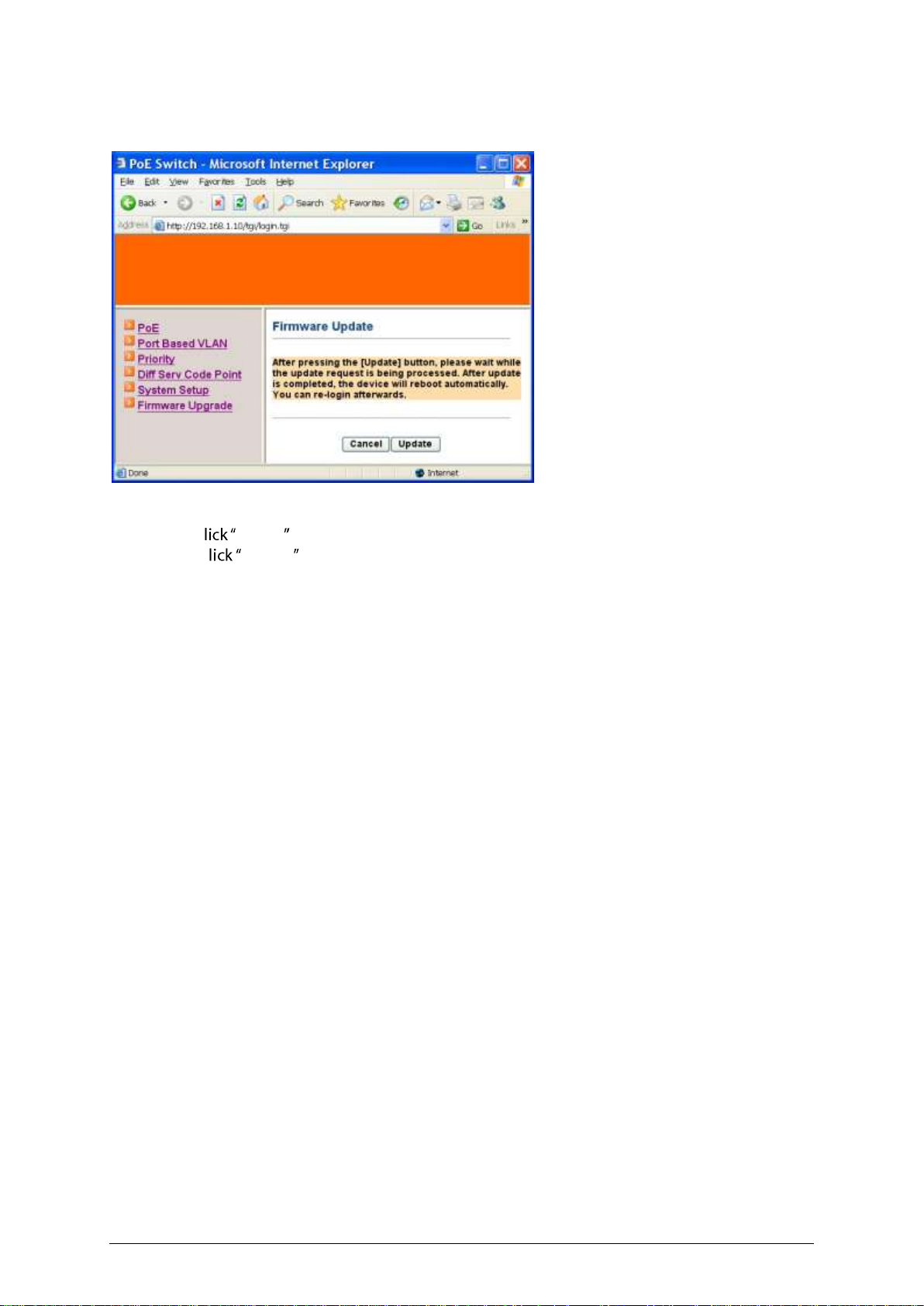

Firmware Upgrade ................................................................................................................................. 19

SPECIFICATIONS ............................................................................................................... 20

Overview

Industrial Web-Smart PoE Ethernet Switch

LevelOne IES-0842 Industry Ethernet Switch provides 4 PoE ports of 10/100Base-TX plus 4 ports of 10/100Base-TX Ethernet to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Cost Effective

This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit) temperature that offers optimal suitability for industrial applications at low cost while maintaining all components built to withstand harsh environment applications without compromise reliability and stability.

Web Management

Web-based GUI management features implementation of Port-based VLAN, IEEE802.1p QoS, Prioritised DSCP, set up Admin Password with ease. Plus, the Power over Ethernet ports can be On / Off and limits the power budget remotely

Power over Ethernet

This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.

Safety

This device has been tested under UL508 standard for Industrial Control Equipment to endurance

iability and

safety measurement to ensure field hardened, especially for the harsh environment.

Features

 Complies with EN61000-6-2 & EN61000-6-3 EMC Generic standard immunity for Industrial

environment.

 Manageable via Web browser interface.  Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE).  High Power PoE design up to 30W (enhancement of IEEE802.3af PoE).  Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps-full/half-duplex; Auto

MDI/MDIX.

 100Base-FX: Multi mode SC or ST type, Single mode SC or ST type. 100Base-BX: WDM Single

mode SC type.

 Supports 1024 MAC addresses. Provides 1M bits memory buffer.  Store-and-forward mechanism.  Full wire-speed forwarding rate.  Alarms for power and port link failure by relay output.  PoE: Redundant 48VDC Terminal Block power inputs and 48VDC DC JACK power input for

15.4W per PoE port. Operating voltage and Max. current consumption: 1.5A @ 48VDC. Power consumption: 72W Max.

 High Power PoE: Redundant 55VDC Terminal Block power inputs and 55VDC DC JACK power

input for 30W per High Power PoE port. Operating voltage and Max. current consumption: 2.3A @ 55VDC. Power consumption: 130W Max.

 -10℃ to 60℃ (14℉ to 140℉) operating temperature range. Tested for functional operation @ -

20℃ to 70℃ (-4℉ to 158℉).

 Reset button on front panel.  Front panel port status LEDs.  Industrial aluminum case.  Supports DIN-Rail, Panel, or Rack Mounting installation.

Package Contents

When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.

 IES-0842 Industrial Web-Smart PoE Ethernet Switch  Quick Installation Guide

 CD User Manual

Front Panel Display

LED

Status

Description

PW 1,2,3 Steady

Power On

Off

Power Off

10/100Base-TX or 100Base-FX/BX

LNK/ACT Steady

Network connection is established

Flashing

Transmitting or Receiving data

PoE (High Power)

Steady

Power Device (PD) is connected

Off

Power Device (PD) is disconnected
