LevelOne IES-0841 User Manual

IES-0841

4 x 802.3af PoE + 3 FE + 1 MM SC Web Smart Switch -10 to 60C, DIN-rail

User Manual

v1.00 - 1206

Preface

This manual describes how to install and use the Industrial Web-Smart PoE Ethernet Switch. This switch introduced here is designed to deliver full scalability with web-based management functions. Capable of operating at temperature extremes of -10°C to +60°C, this is the switch of choice for harsh environments constrained by space.

Port 1 to port 4 on this switch supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE) and can detect an IEEE802.3af compliant Powered Device (PD). Using external 48VDC power inputs through Terminal Block or Power Jack, data and power can be transmitted to a Powered Device (PD) over the same twisted-pair Ethernet cable through port 1 to port 4 on the switch.

To get the most out of this manual, you should have an understanding of Ethernet networking concepts.

In this manual, you will find:

 Features  Illustrative LED functions  Installation instructions  Management Configuration  Specifications

Table of Contents

OVERVIEW ........................................................................................................................... 4

INDUSTRIAL WEB-SMART POE ETHERNET SWITCH ............................................................................................. 4

FEATURES ............................................................................................................................................................... 5

PACKAGE CONTENTS ............................................................................................................................................. 5

FRONT PANEL DISPLAY .......................................................................................................................................... 6

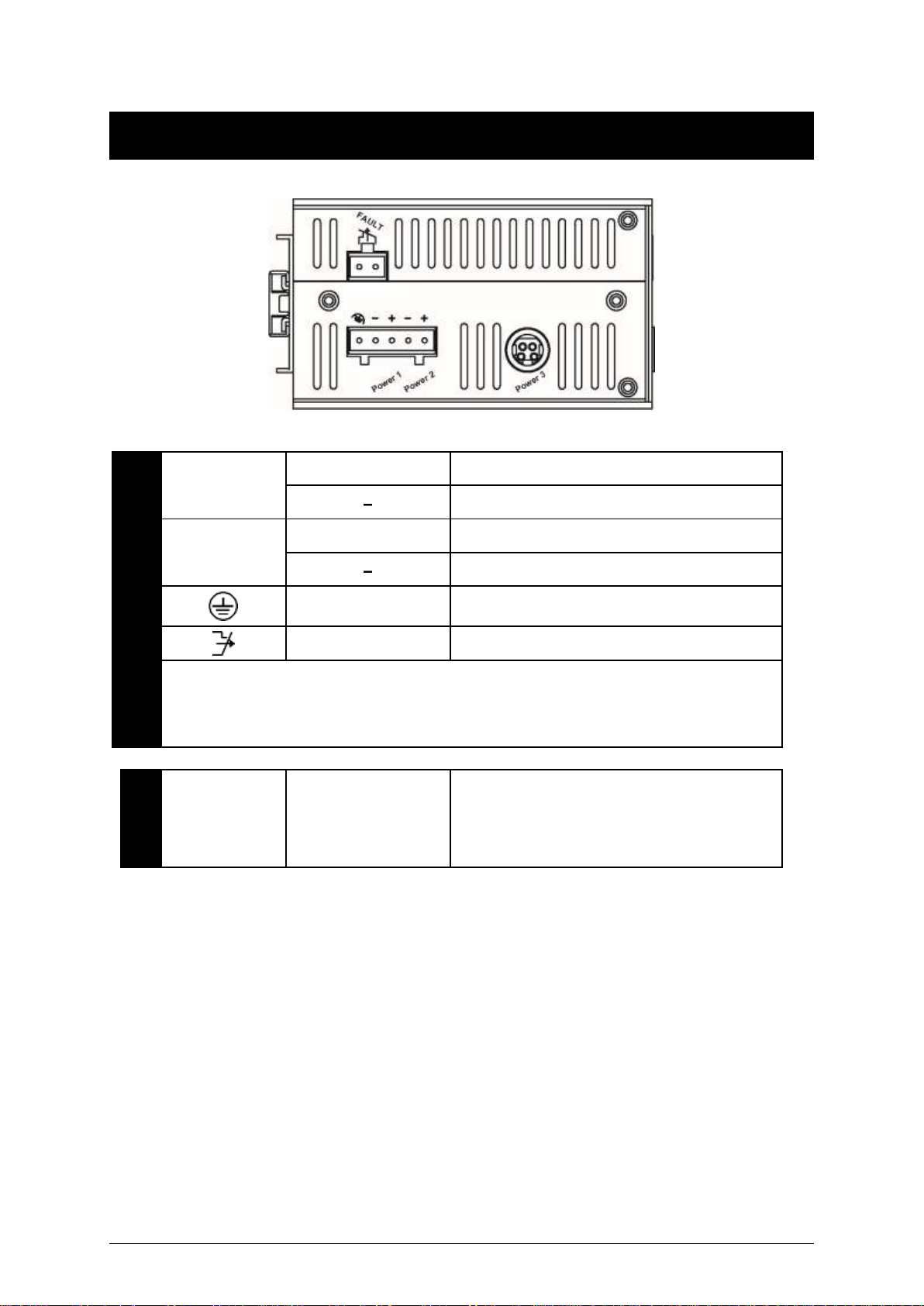

POWER INPUT ........................................................................................................................................................ 7

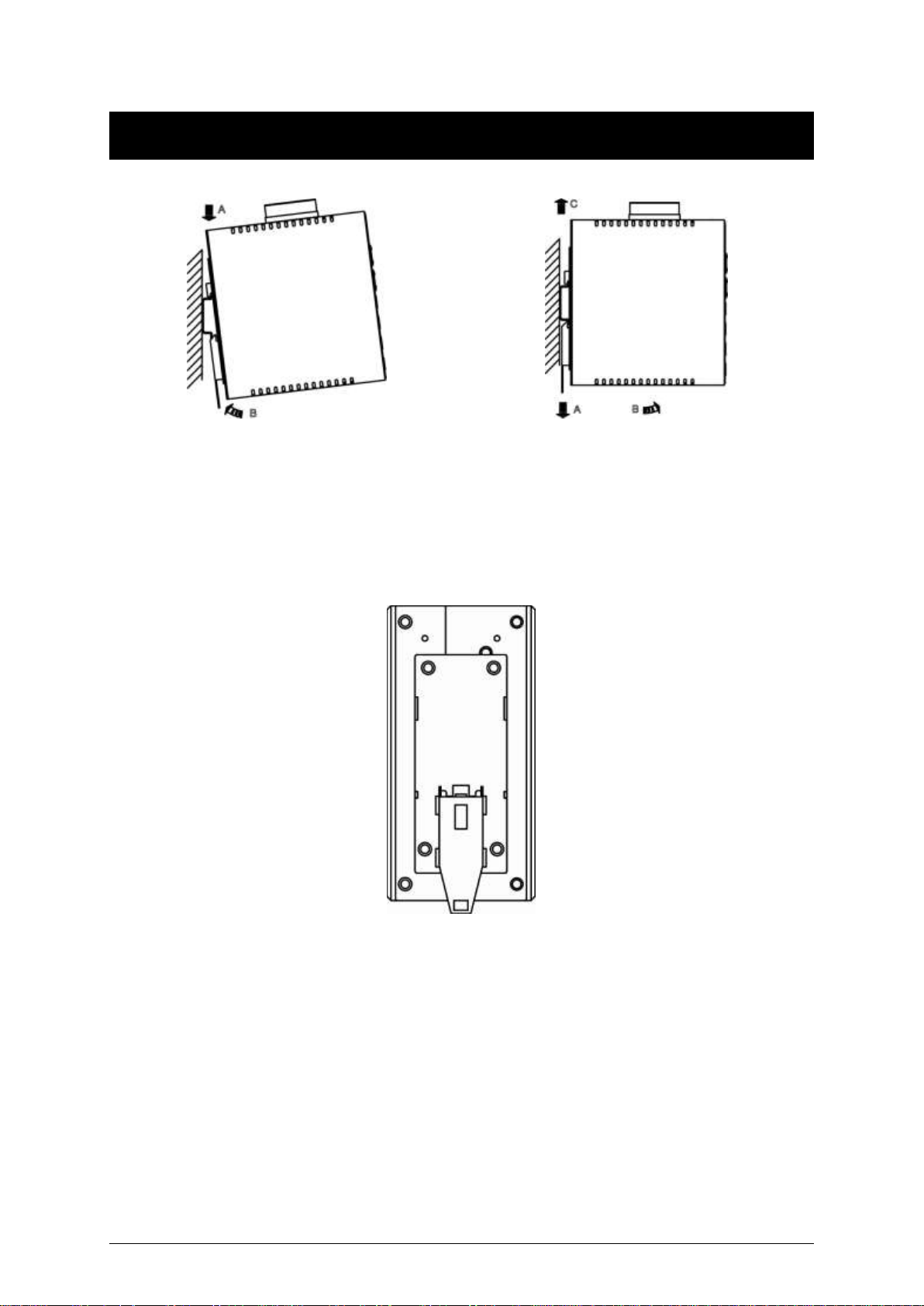

DIN RAIN MOUNT ................................................................................................................................................. 8

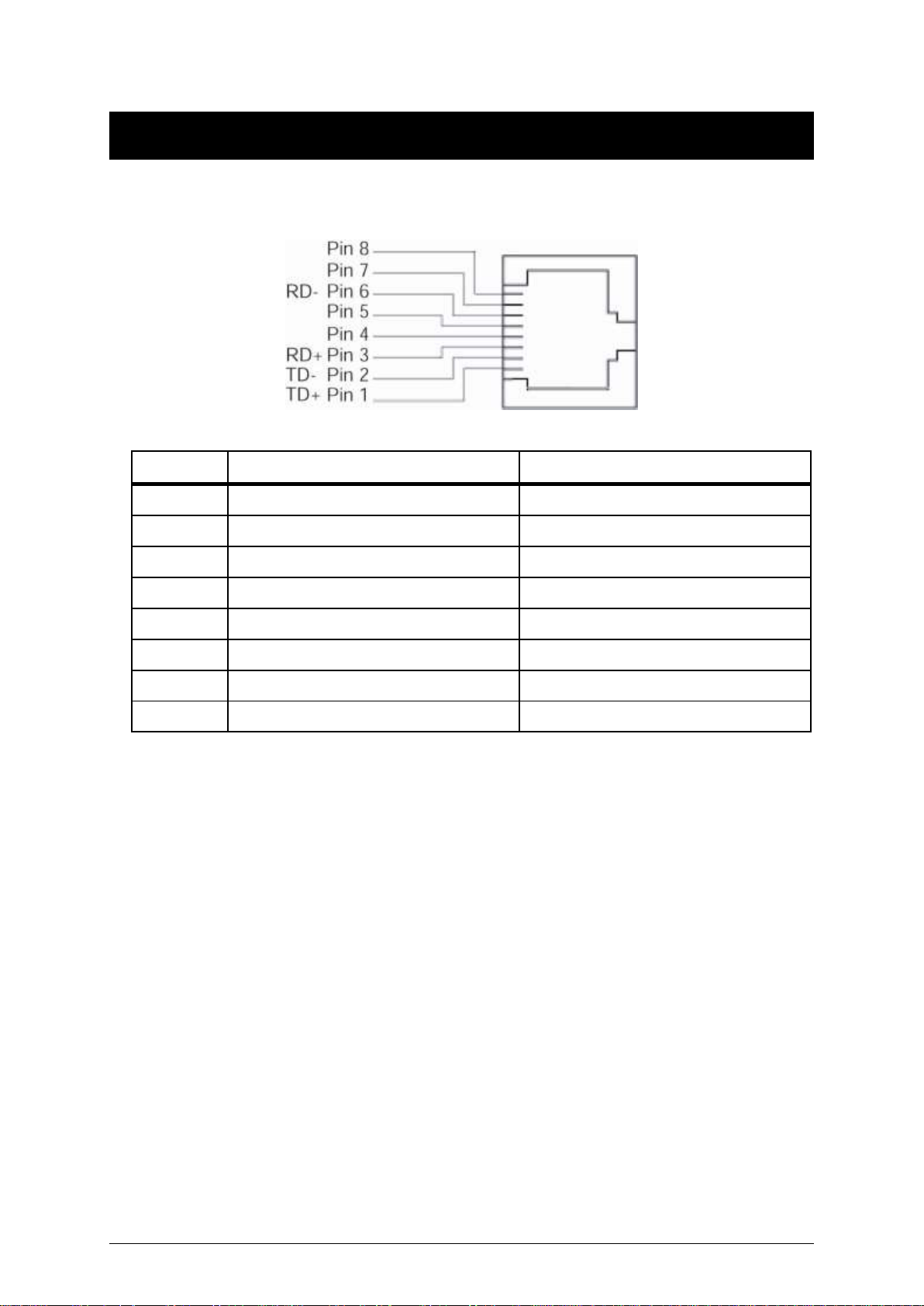

10/100BASE-TX CONNECTOR ............................................................................................................................ 9

WEB MANAGEMENT ......................................................................................................... 10

DEFAULT SETTING ............................................................................................................................................... 10

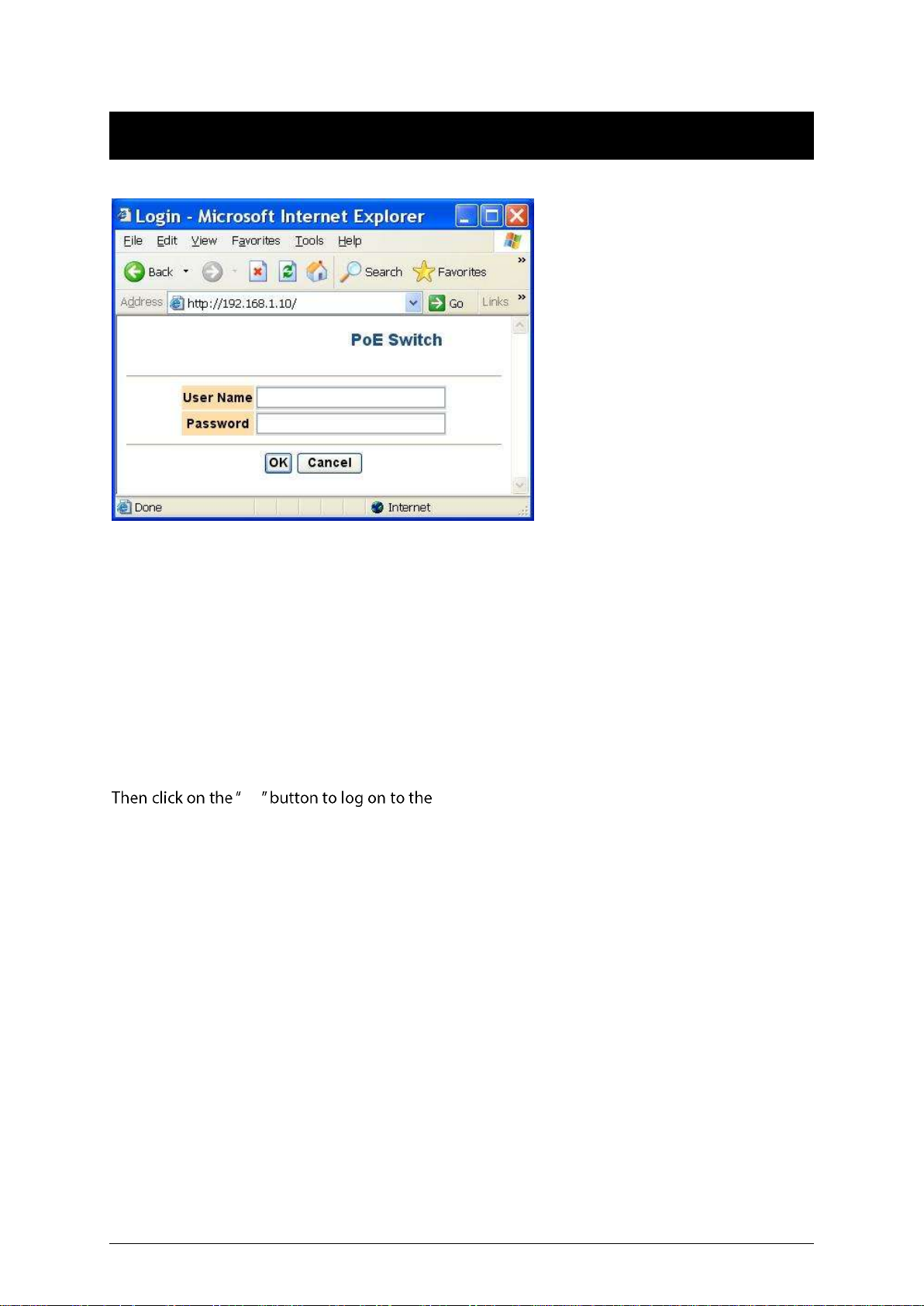

LOGGING ON TO THE SWITCH ............................................................................................................................. 11

BROWSER INTERFACE .......................................................................................................................................... 12

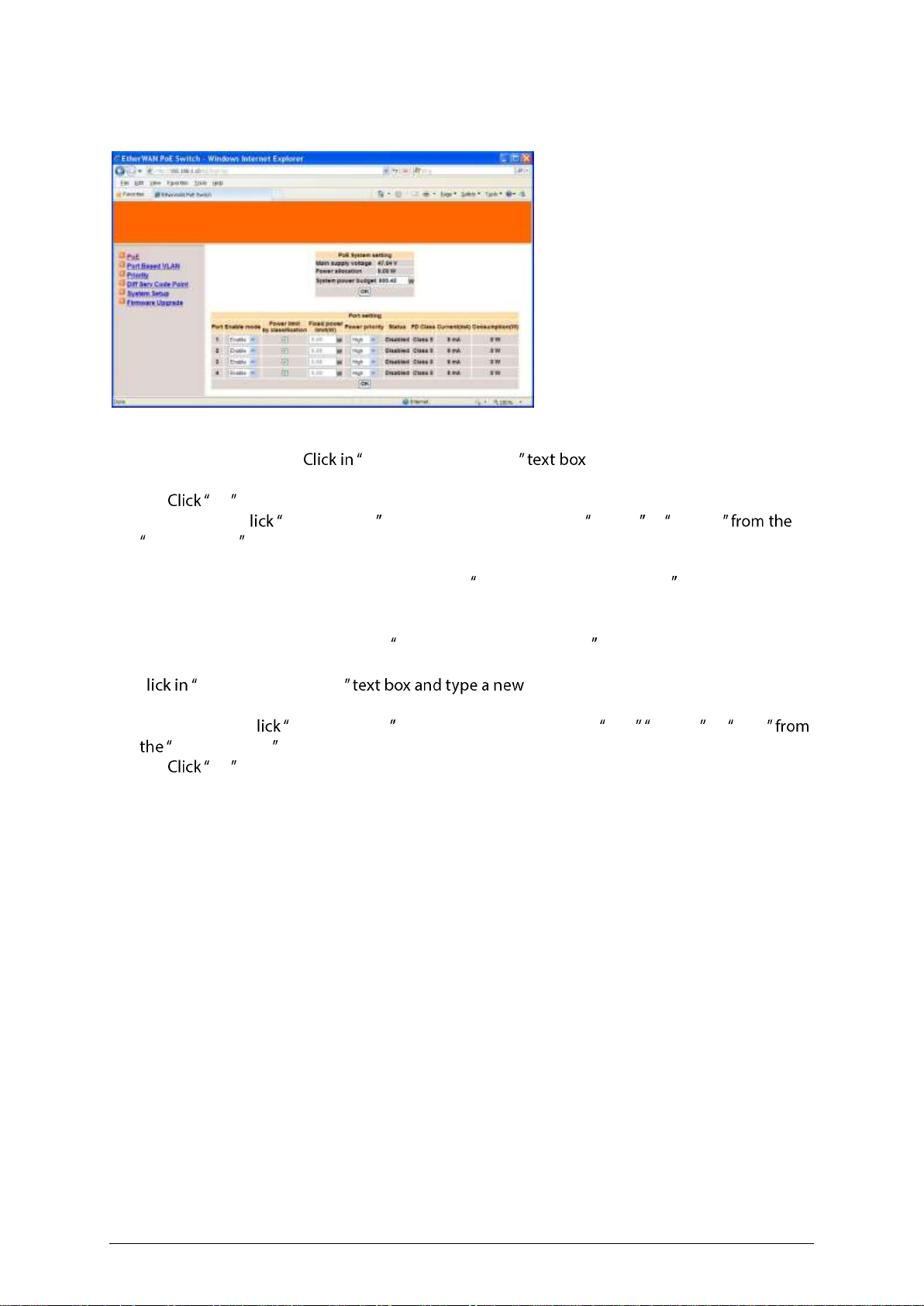

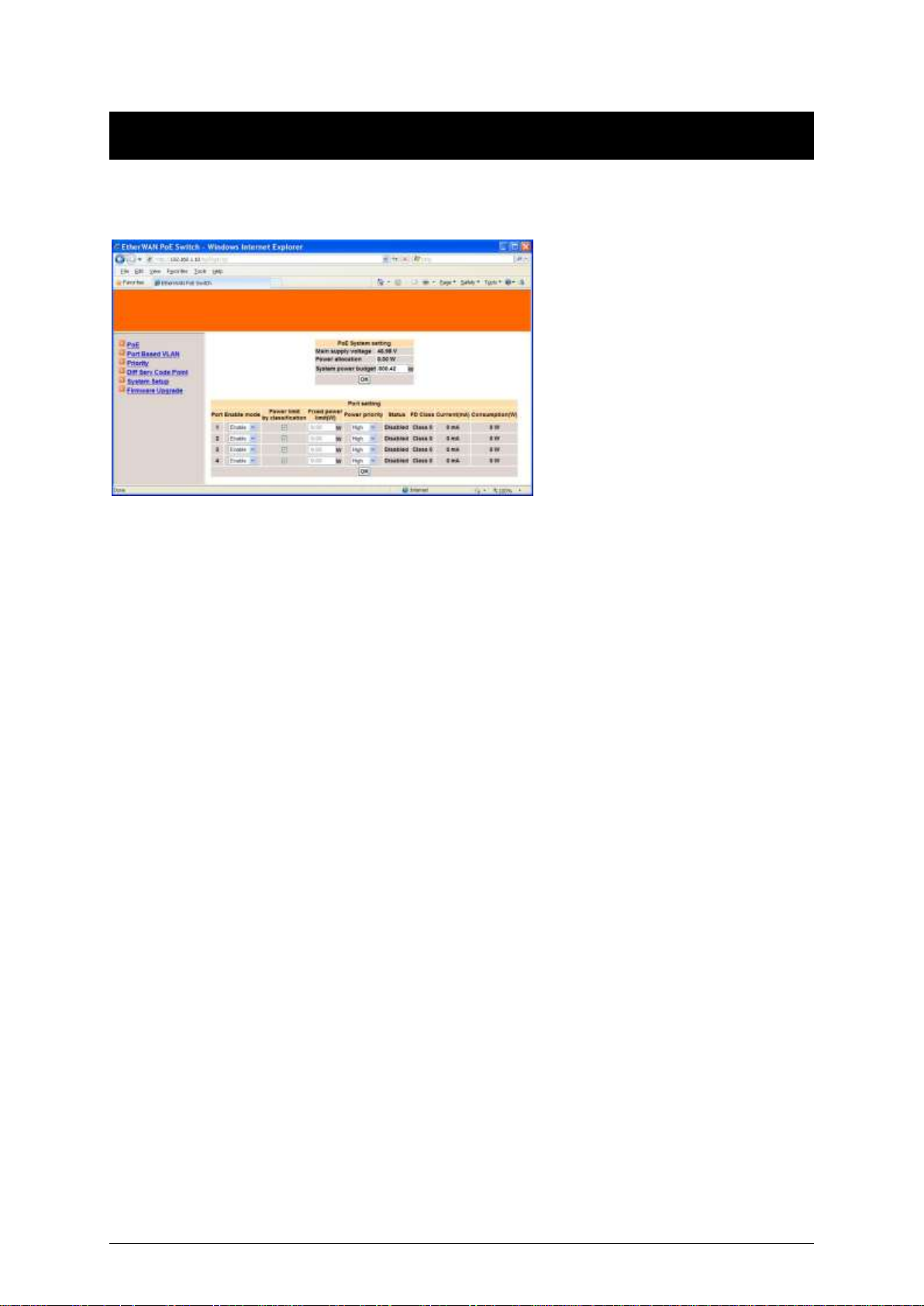

PoE ............................................................................................................................................................. 13

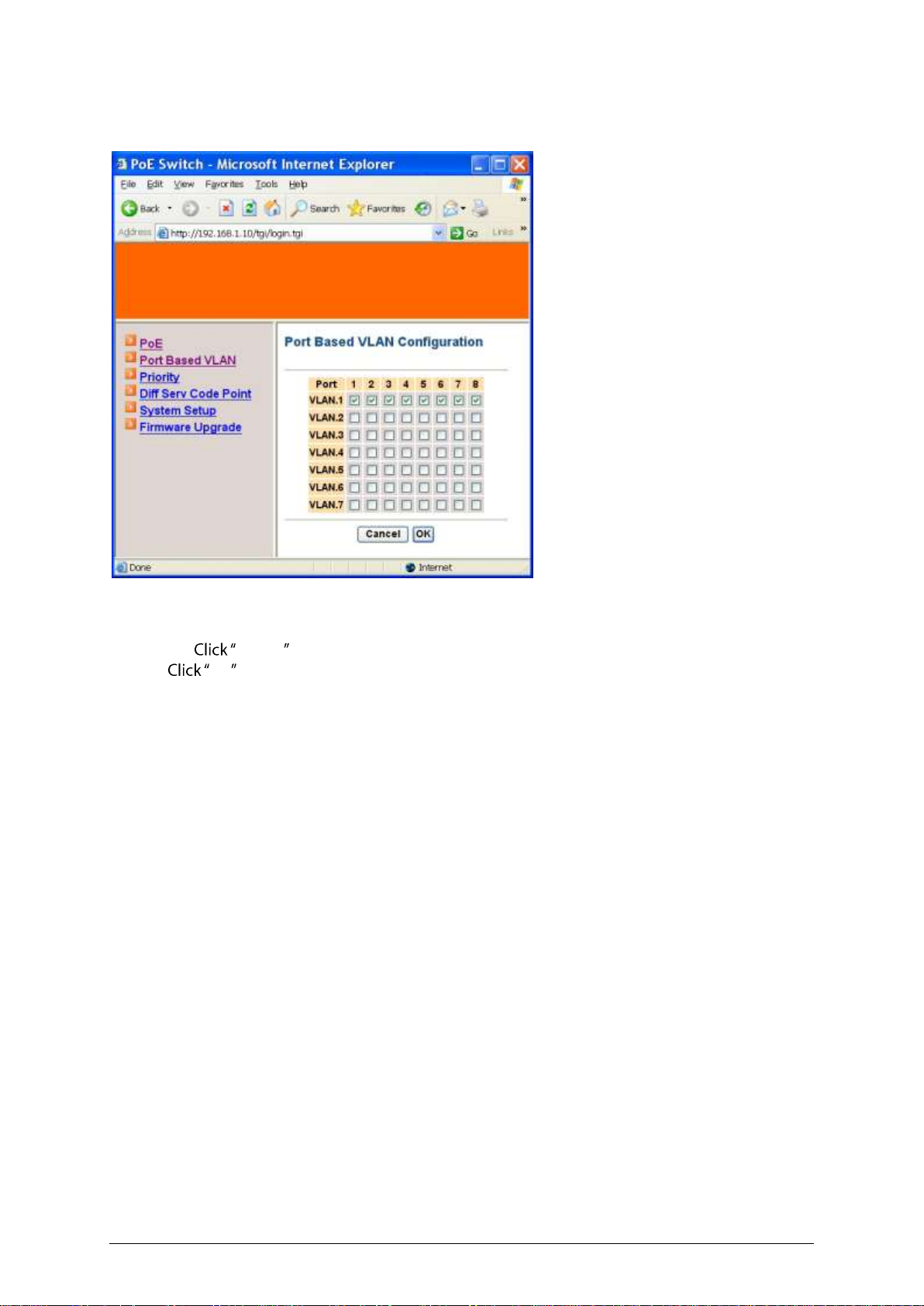

Port Based VLAN ..................................................................................................................................... 14

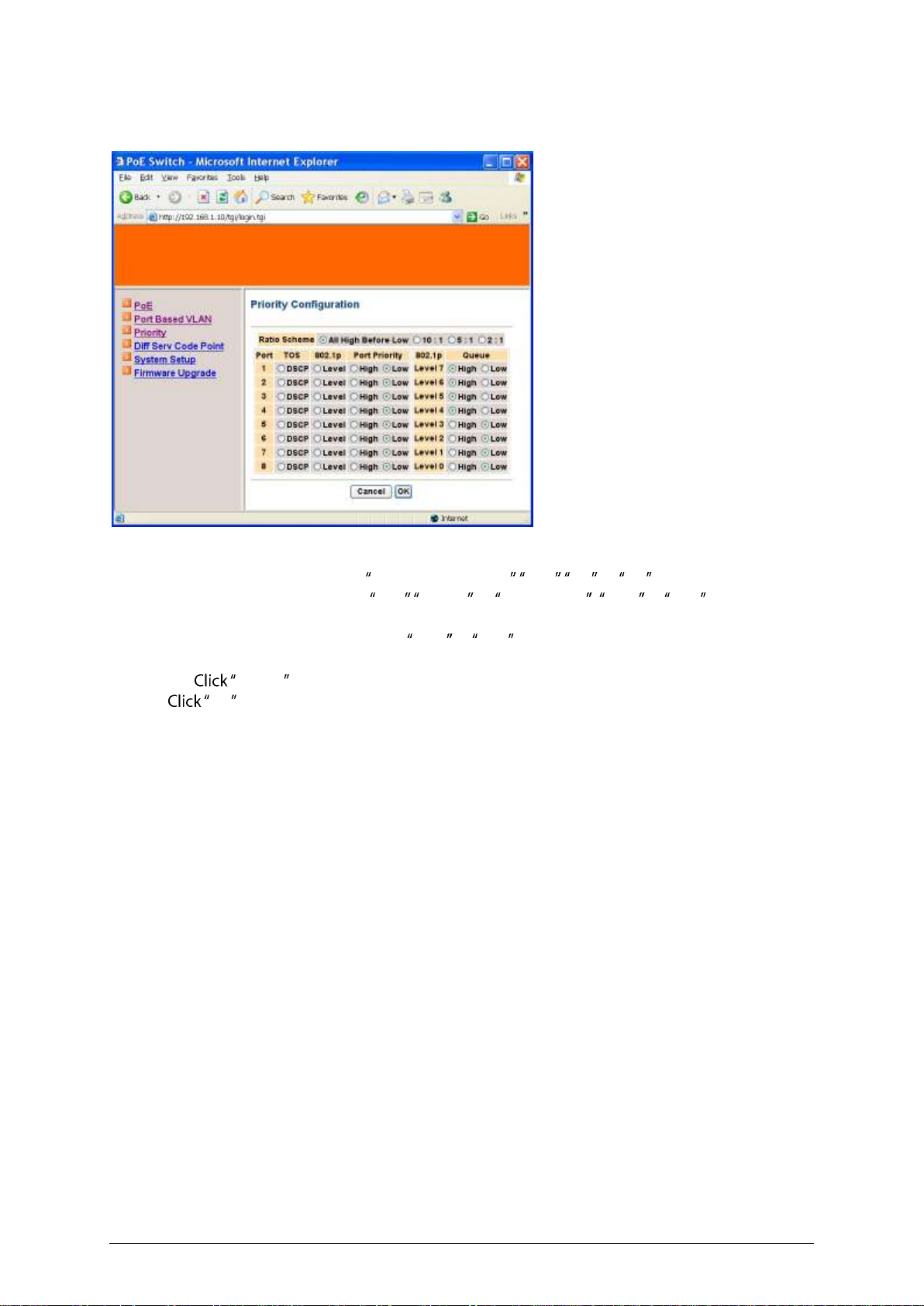

Priority....................................................................................................................................................... 15

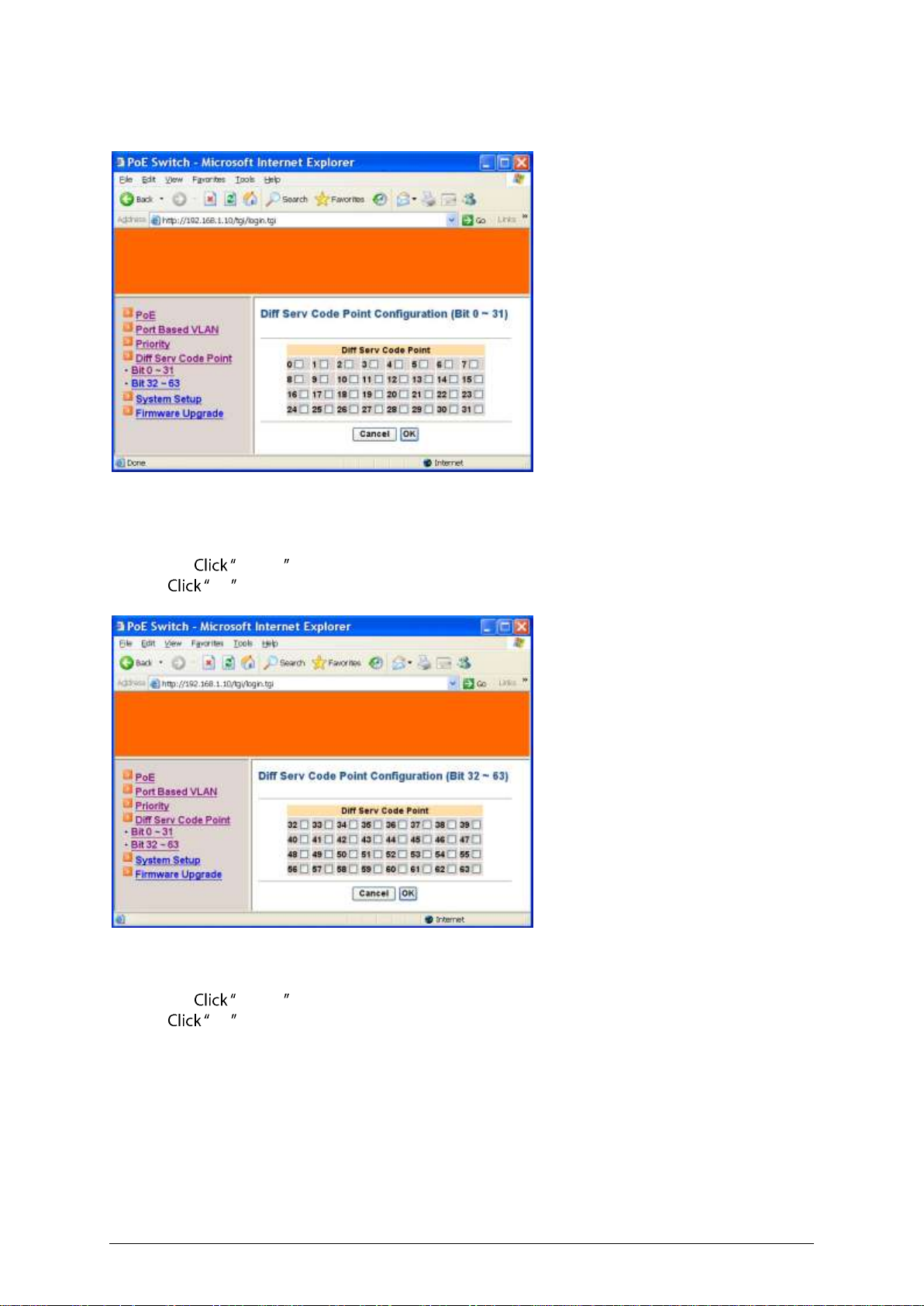

Diff Serv Code Point ............................................................................................................................... 16

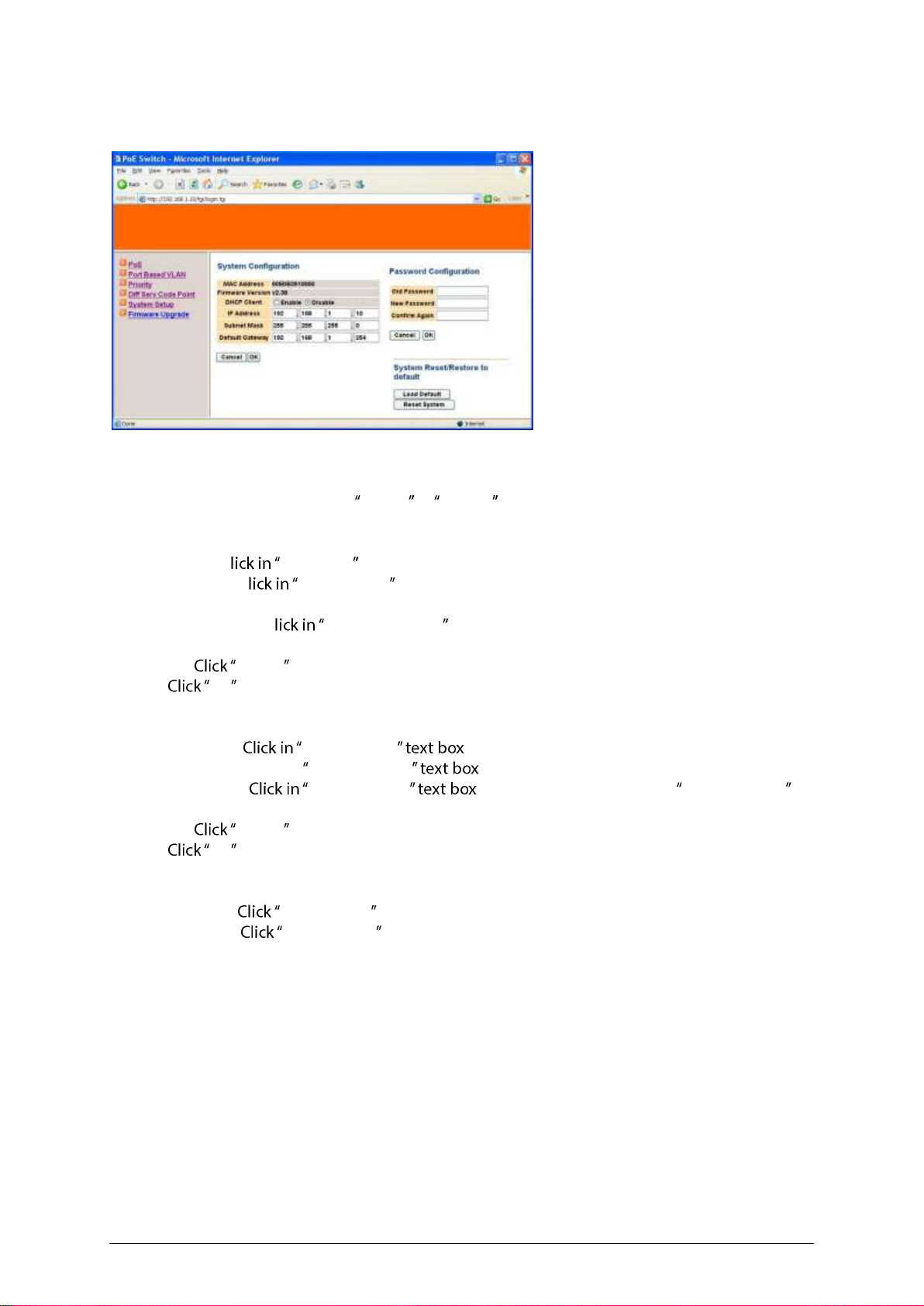

System Setup ........................................................................................................................................... 17

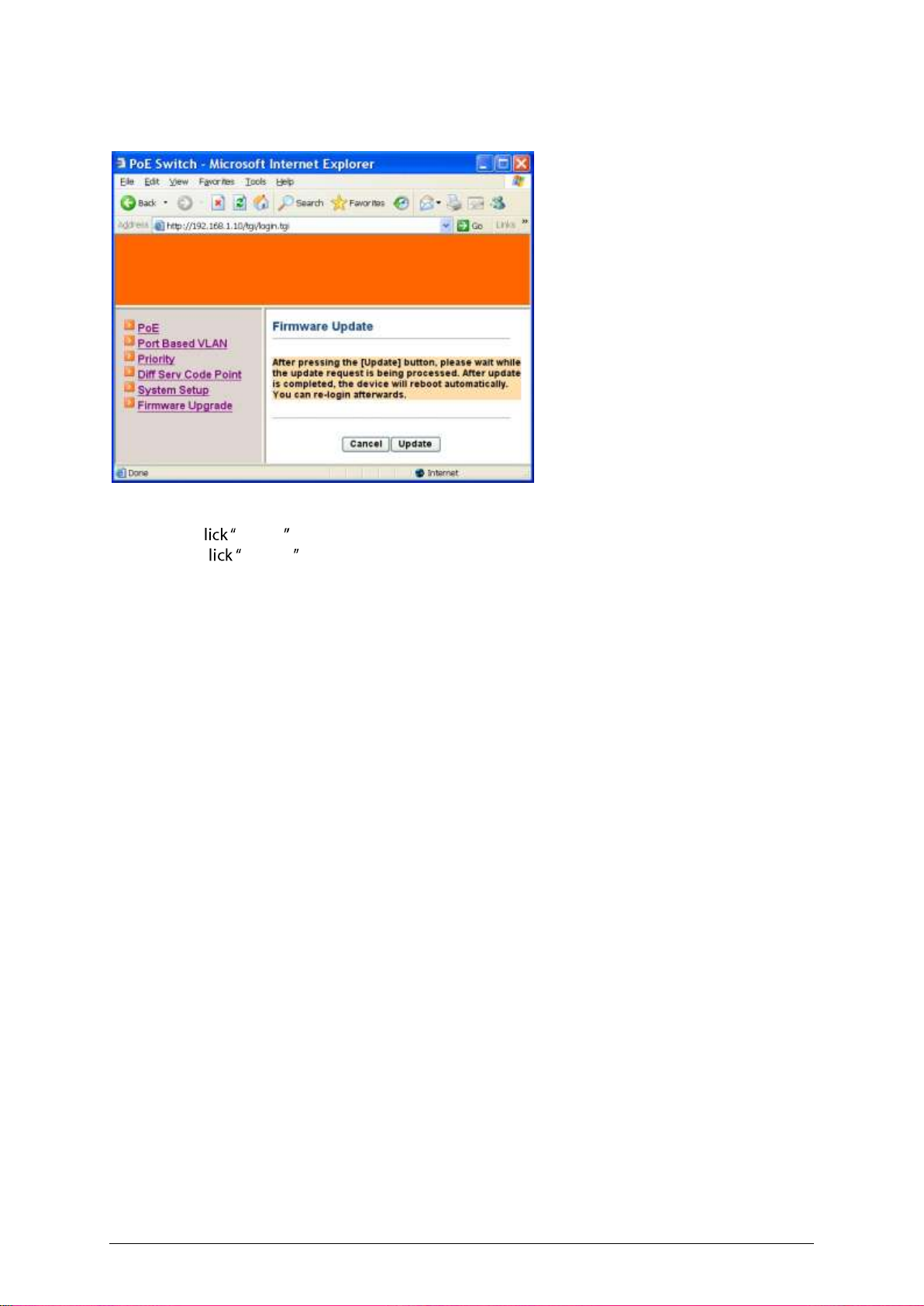

Firmware Upgrade ................................................................................................................................. 18

SPECIFICATIONS ............................................................................................................... 19

Overview

Industrial Web-Smart PoE Ethernet Switch

LevelOne IES-0841 Industry Ethernet Switch provides 4 PoE ports of 10/100Base-TX plus 3 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DINrail, plus the clearly visible status LEDs provide simple monitoring of port link activity.

Cost Effective

This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit) temperature that offers optimal suitability for industrial applications at low cost while maintaining all components built to withstand harsh environment applications without compromise reliability and stability.

Web Management

Web-based GUI management features implementation of Port-based VLAN, IEEE802.1p QoS, Prioritised DSCP, set up Admin Password with ease. Plus, the Power over Ethernet ports can be On / Off and limits the power budget remotely

Power over Ethernet

This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3af PoE standard at maximum 15.4W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed.

Safety

This device has been tested under UL508 standard for Industrial Control Equipment to endurance safety measurement to ensure field hardened, especially for the harsh environment.

Features

 Complies with EN61000-6-2 & EN61000-6-3 EMC Generic standard immunity for Industrial

environment.

 Manageable via Web browser interface.  Supports IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE).  Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps-full/half-duplex; Auto

MDI/MDIX.

 100Base-FX: Multi mode SC or ST type; Single mode SC or ST type; WDM Single mode SC type.  Supports 1024 MAC addresses. Provides 1M bits memory buffer.  Store-and-forward mechanism.  Full wire-speed forwarding rate.  Alarms for power and port link failure by relay output.  Power Supply: Redundant 48VDC Terminal Block power inputs and 48VDC DC JACK with 100-

240VAC external power supply.

 Operating voltage and Max. current consumption: 1.5A @ 48VDC. Power consumption: 72W

Max.

 -10℃ to 60℃ (14℉ to 140℉) operating temperature range. Tested for functional operation @ -

20℃ to 70℃ (-4℉ to 158℉).

 Reset button on front panel.  Front panel port status LEDs.  Industrial aluminum case.  Supports DIN-Rail, Panel, or Rack Mounting installation.

Package Contents

When you unpack the product package, you shall find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller.

 IES-0841 Industrial Web-Smart PoE Ethernet Switch  Quick Installation Guide

 CD User Manual

Front Panel Display

LED

Status

Description

PW 1,2,3 Steady

Power On

Off

Power Off

10/100Base-TX or 100Base-FX/BX

LNK/ACT Steady

Network connection is established

Flashing

Transmitting or Receiving data

PoE Steady

Power Device (PD) is connected

Off

Power Device (PD) is disconnected
