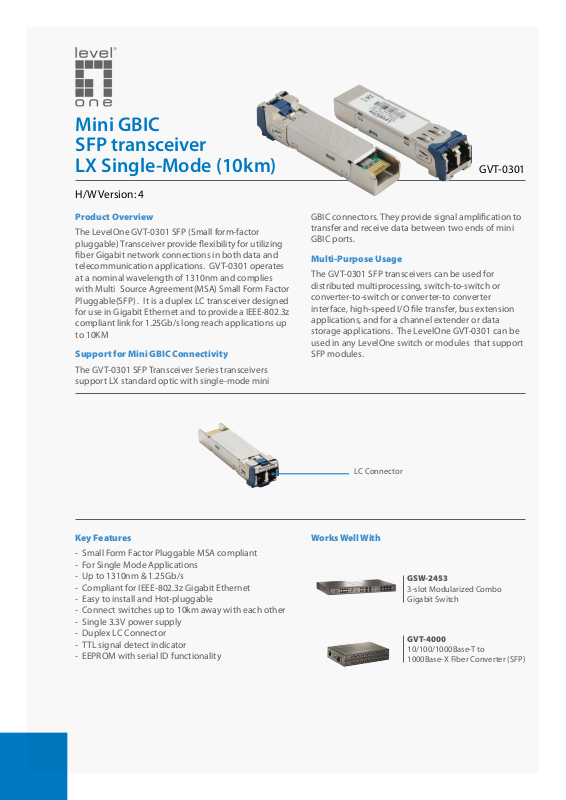

Level One GVT-0301 User Manual

Mini GBIC SFP transceiver LX Single-Mode (10km)

H/W Version: 4

Product Overview

The LevelOne GVT-0301 SFP (Small form-factor pluggable) Transceiver provide exibility for utilizing ber Gigabit network connections in both data and telecommunication applications. GVT-0301 operates at a nominal wavelength of 1310nm and complies with Multi_Source Agreement(MSA) Small Form Factor Pluggable(SFP) . It is a duplex LC transceiver designed for use in Gigabit Ethernet and to provide a IEEE-802.3z compliant link for 1.25Gb/s long reach applications up to 10KM

Support for Mini GBIC Connectivity

The GVT-0301 SFP Transceiver Series transceivers support LX standard optic with single-mode mini

GVT-0301

GBIC connectors. They provide signal amplication to transfer and receive data between two ends of mini GBIC ports.

Multi-Purpose Usage

The GVT-0301 SFP transceivers can be used for distributed multiprocessing, switch-to-switch or converter-to-switch or converter-to converter interface, high-speed I/O le transfer, bus extension applications, and for a channel extender or data storage applications. The LevelOne GVT-0301 can be used in any LevelOne switch or modules that support SFP modules.

Key Features

- Small Form Factor Pluggable MSA compliant

- For Single Mode Applications

- Up to 1310nm & 1.25Gb/s

- Compliant for IEEE-802.3z Gigabit Ethernet

- Easy to install and Hot-pluggable

- Connect switches up to 10km away with each other

- Single 3.3V power supply

- Duplex LC Connector

- TTL signal detect indicator

- EEPROM with serial ID functionality

LC Connector

Works Well With

GSW-2453

3-slot Modularized Combo Gigabit Switch

GVT-4000

10/100/1000Base-T to 1000Base-X Fiber Converter (SFP)

www.level1.com I one world_one brand_one level_

Technical Specications

Tranceiver

Standard Compliance

IEEE 802.3z

Data Rate Gigabit

1.25Gbd

Data Rate Fiber Channel

1.0625Gbd

Media

SMF

Optical Receiver Sensitivity

-20dBm

Optical Transmission Power

-9.5 ~ -3.0dBm

Power Budget

10.5dB

Center Wave Length

1310nm

Transmission Range

9/125um (up to 10km)

Application

Connector

LC type

Supply Votage

3.1~3.5V

Max Voltage/Current

6V / 300mA

Temperature

0°C ~ 70°C

Humidity

5 ~ 90% (non-condensing)

Dimensions: (L x W x H)

55.5mm x 13.5mm x 8.5mm

Certications

Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11

MGB Mini-GBIC Transceiver 10km

Order Information GVT-0301: Mini GBIC SFP transceiver LX Single-Mode (10km)

Package Contents GVT-0301

GVT-0301

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.

V4.0
