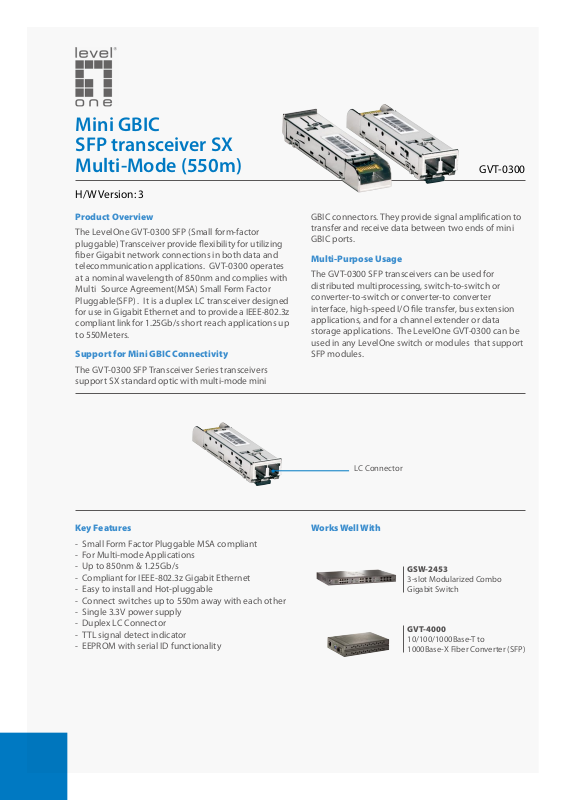

Level One GVT-0300 User Manual

Mini GBIC SFP transceiver SX Multi-Mode (550m)

H/W Version: 3

Product Overview

The LevelOne GVT-0300 SFP (Small form-factor pluggable) Transceiver provide exibility for utilizing ber Gigabit network connections in both data and telecommunication applications. GVT-0300 operates at a nominal wavelength of 850nm and complies with Multi_Source Agreement(MSA) Small Form Factor Pluggable(SFP) . It is a duplex LC transceiver designed for use in Gigabit Ethernet and to provide a IEEE-802.3z compliant link for 1.25Gb/s short reach applications up to 550Meters.

Support for Mini GBIC Connectivity

The GVT-0300 SFP Transceiver Series transceivers support SX standard optic with multi-mode mini

GVT-0300

GBIC connectors. They provide signal amplication to transfer and receive data between two ends of mini GBIC ports.

Multi-Purpose Usage

The GVT-0300 SFP transceivers can be used for distributed multiprocessing, switch-to-switch or converter-to-switch or converter-to converter interface, high-speed I/O le transfer, bus extension applications, and for a channel extender or data storage applications. The LevelOne GVT-0300 can be used in any LevelOne switch or modules that support SFP modules.

Key Features

- Small Form Factor Pluggable MSA compliant

- For Multi-mode Applications

- Up to 850nm & 1.25Gb/s

- Compliant for IEEE-802.3z Gigabit Ethernet

- Easy to install and Hot-pluggable

- Connect switches up to 550m away with each other

- Single 3.3V power supply

- Duplex LC Connector

- TTL signal detect indicator

- EEPROM with serial ID functionality

LC Connector

Works Well With

GSW-2453

3-slot Modularized Combo Gigabit Switch

GVT-4000

10/100/1000Base-T to 1000Base-X Fiber Converter (SFP)

www.level1.com I one world_one brand_one level_

Technical Specications

Tranceiver

Standard Compliance

IEEE 802.3z

Data Rate Gigabit

1.25G

Data Rate Fiber Channel

1.0625G

Media

MMF

Optical Receiver Sensitivity

-18dBm

Optical Transmission Power

-9.5 ~-4.0dBm

Power Budget

8.5dB

Center Wave Length

850nm

Transmission Range

50/125 or 62.5/125um, up to 550m

Application

Connector

LC type

Supply Votage

3.1~3.5V

Max Voltage/Current

6V / 300mA

Temperature

0°C ~ 70°C

Humidity

5 ~ 90% (non-condensing)

Dimensions: (L x W x H)

56.6mm x 13.4mm x 8.4mm

Certications

Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11

MGB Mini-GBIC Transceiver 550m

Order Information GVT-0300: Mini GBIC SFP transceiver SX Multi-Mode (550m)

Package Contents GVT-0300

GVT-0300

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.

V3.0
