LevelOne GSW-0503T, GSW-0803T User Manual
LevelOne
GSW-0503T
GSW-0803T
5/8-port Gigabit Switch
User’s Manual
1
TABLE OF CONTENTS
INTRODUCTION ............................................................................ 1
F
EATURES ......................................................................................2
P
ACKAGE CONTENTS ......................................................................2
HARDWARE DESCRIPTION......................................................... 3
F

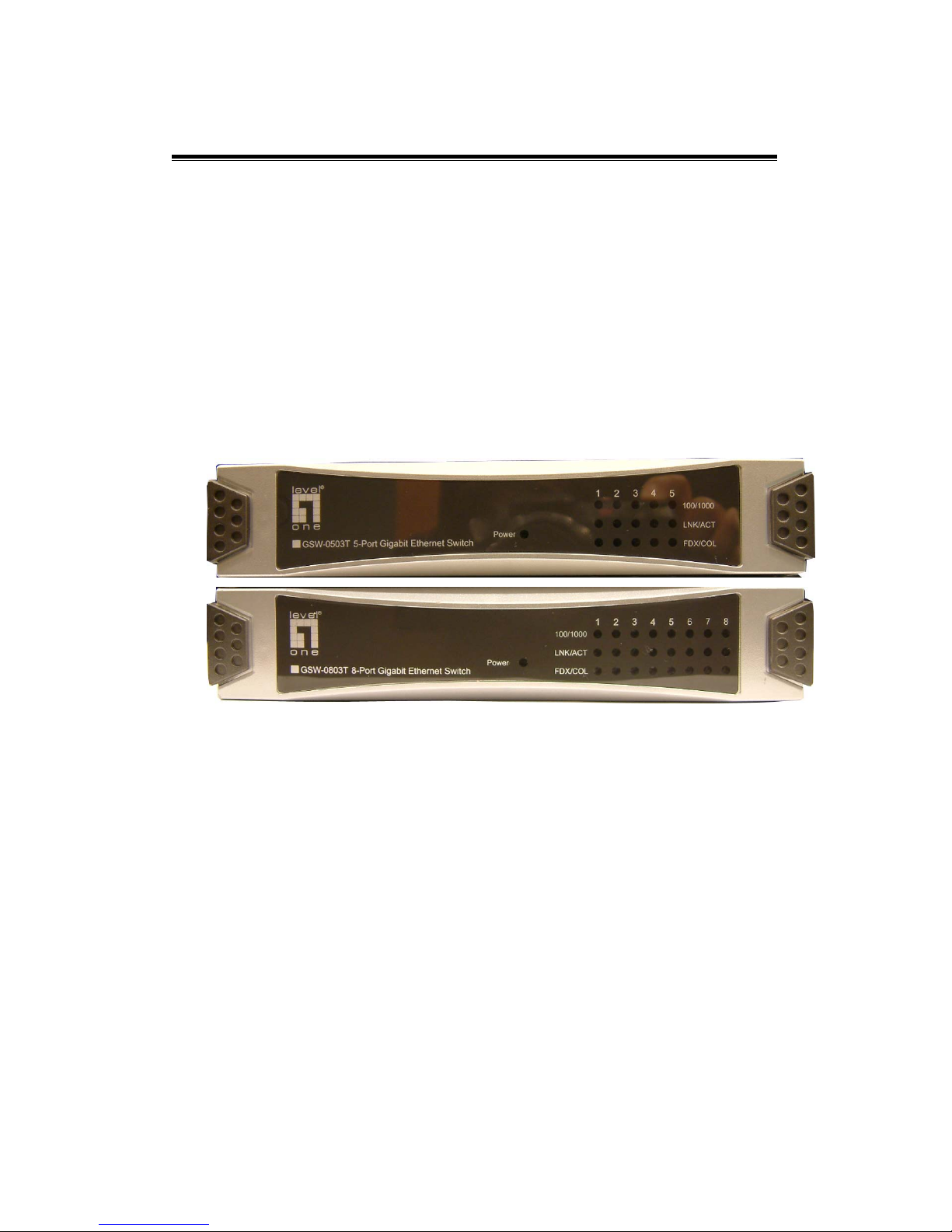

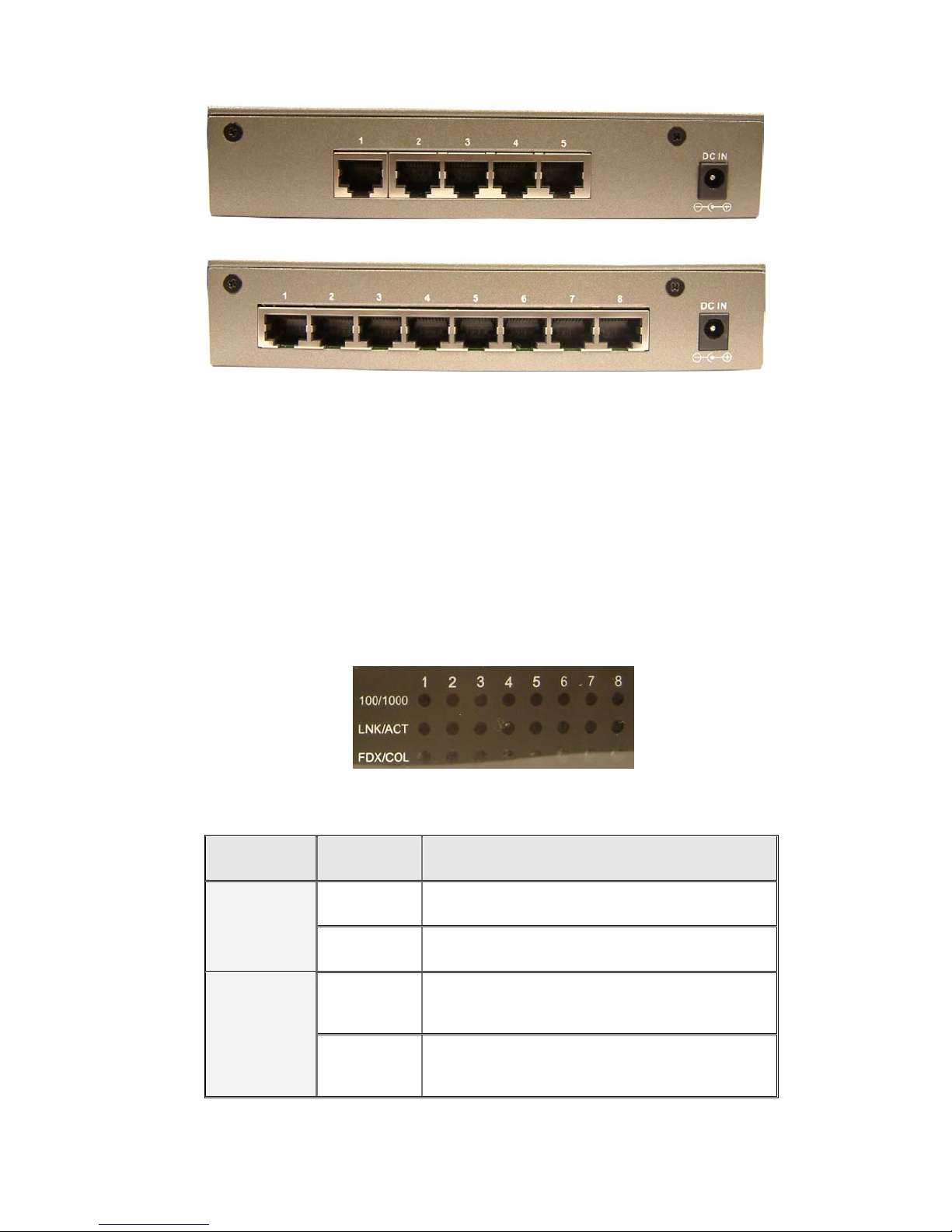

RONT & REAR PANEL ....................................................................3
LED I
NDICATORS ............................................................................4
INSTALLATION ............................................................................. 6
NETWORK APPLICATION............................................................ 7
TECHNICAL SPECIFICATION ...................................................... 8
2
Introduction
In the modern business society, communication and sharing information is
essential. Computer networks have proven to be one of the fastest
methods of communication.
Gigabit Ethernet over copper technology is a cost effective way for
network equipments to be upgraded from Fast Ethernet to Gigabit speeds.
By using standard 4-pair Category 5 copper cabling, it doesn’t need to pull
expensive fiber optics cabling. This Technology will create high-speed
backbone connections between switches, servers, database, and end
stations.
The GSW-0503T/0803T 5/8-Port Gigabit Switch is an ideal solution
for solving traffic block at the core of the network. It offers 5/8
auto-negotiation 10/100/1000Base-T Gigabit Ethernet ports which
can significantly improve your network backbone performance.
Besides, this Switch will fit into any enterprise level network to act as
an exit to the backbone switch.
The GSW-0503T/0803T 5/8-Port Gigabit Switch features Auto
MDI/MDIX function for each port. [In general, MDI means connecting to
another Hub or Switch while MDIX means connecting to a workstation or
PC. Therefore, Auto MDI/MDIX means that you can connect to another
Switch or workstation without changing non-crossover or crossover
cabling. Besides, it also features a store-and-forward switching and can
auto-learn and store source address on a 4K MAC address table.
1
Features
Conforms to IEEE 802.3, 802.3u, 802.3ab and 802.3x
5 / 8-port 10/100/1000 Mbps Gigabit Switch
Automatic MDI/MDIX crossover for all ports
Back-plane:
5-port: 10Gbps back-plane
8-port: 16Gbps back-plane
N-Way Auto-Negotiation
Back pressure half duplex
Flow control full duplex
True non-blocking switching
Store-and-Forward architecture support
Package Contents
One 5/8-Port Gigabit Switch
Power Adapter
Four Rubber Feet
User’s Manual
One 5/8-Port Gigabit Switch Power Adapter
Four Rubber Feet User’s Manual
Figure 1-1. Package Contents
Compare the contents of your 5/8-Port Gigabit Switch package with the
standard checklist above. IF any item is missing or damaged, please
contact your local dealer for service.
2
