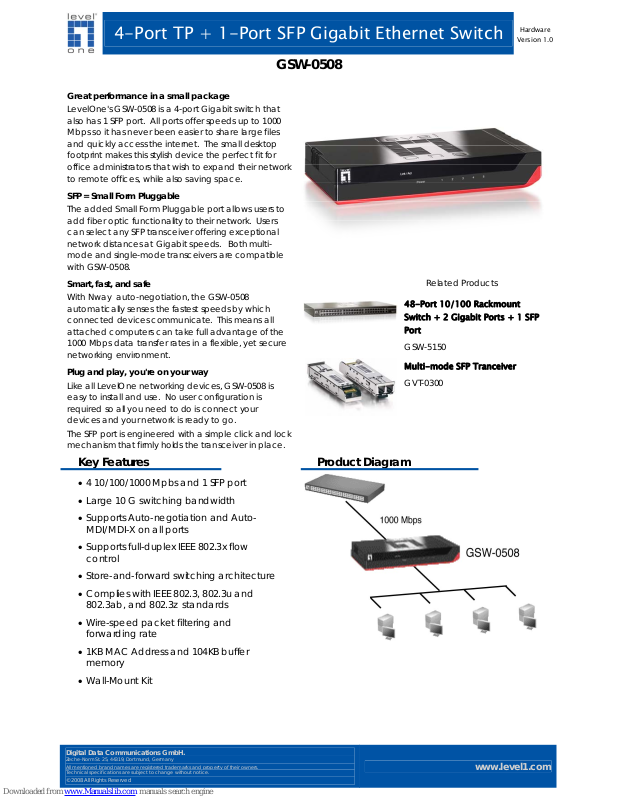

LevelOne GSW-0508 User Manual
4-Port TP + 1-Port SFP Gigabit Ethernet Switch
Hardware
Version 1.0
GSW-0508
Digital Data Communications GmbH.
Zeche-Norm St. 25, 44319, Dortmund, Germany
All mentioned brand names are registered trademarks and property of their owners.
Technical specifications are subject to change without notice.
© 2008 All Rights Reserved
www.level1.com
Related Products
48-Port 10/100 Rackmount
Switch + 2 Gigabit Ports + 1 SFP
Port
GSW-5150
Great performance in a small package
LevelOne's GSW-0508 is a 4-port Gigabit switch that
also has 1 SFP port. All ports offer speeds up to 1000
Mbps so it has never been easier to share large fil es
and quickly access the internet. The small desktop
footprint makes this stylish device the perfect fi t for
office administrators that wish to expa nd their network
to remote offices, while also saving space.
SFP = Small Form Pluggable
The added Small Form Pluggable port allows users to
add fiber optic functionality to their network. Users
can select any SFP transceiver offering exceptional
network distances at Gigabit speeds. Both multimode and single-mode transceivers are compatible
with GSW-0508.
Smart, fast, and safe
With Nway auto-negotiation, the GSW-0508
automatically senses the fastest speeds by which
connected devices communicate. This means all
attached computers can take full advantage of the
1000 Mbps data transfer rates in a flexible, yet secure
networking environment.
Plug and play, you're on your way
Like all LevelOne networking devices, GSW-0508 is
easy to install and use. No user configuration is
required so all you need to do is connect your
devices and your network is ready to go.
The SFP port is engineered with a simple click and lock
mechanism that firmly holds the transceiver in place.
Multi-mode SFP Tranceiver
GVT-0300
Key Features
Product Diagram
• 4 10/100/1000 Mpbs and 1 SFP port
• Large 10 G switching bandwidth
• Supports Auto-negotiation and Auto-
MDI/MDI-X on all ports
• Supports full-duplex IEEE 802.3x flow
control
• Store-and-forward switching architecture
• Complies with IEEE 802.3, 802.3u and
802.3ab, and 802.3z standards
• Wire-speed packet filtering and
forwarding rate
• 1KB MAC Address and 104KB buffer
memory
• Wall-Mount Kit
4-Port TP + 1-Port SFP Gigabit Ethernet Switch
Hardware
Version 1.0
GSW-0508
Digital Data Communications GmbH.
Zeche-Norm St. 25, 44319, Dortmund, Germany
All mentioned brand names are registered trademarks and property of their owners.
Technical specifications are subject to change without notice.
© 2008 All Rights Reserved
www.level1.com
Technical Specifications
Physical Connections
4 x 10/100/1000 Mbps RJ-45 N-way ports
1 x SFP port (for fiber optical connections)
NWay Protocol Support
1000Mbps: Full/Half Duplex
Switch Backplane
10 Gbps
Architecture
Store-and-forward
Mac Address
1K MAC address table
Jumbo Frame
16KB Jumbo Frame
IEEE Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3ab 1000Base-T Ethernet
IEEE 802.3z 1000BaseLX/SX
IEEE 802.3x Flow control and Back Pressure
Power Supply
External power adapter 12VDC/1A
LED
Power, Link/Acti
Operating Environment
Temperature: 0°C ~ 40°C
Humidity: 10% ~ 90% (Non-condensing)
Storage: 0°C ~ 40°C
Dimensions
154.5mm (W) x 85mm (D) x 26mm (H)
Certification
FCC Class A, CE
Package Contents
[1] GSW-0508
[1] Power Adapter
[1] User Manual
[1] Wall-Mount Kit
Ordering Information
GSW-0508: 4-Port TP + 1-Port SFP Gigabit Ethernet Switch
