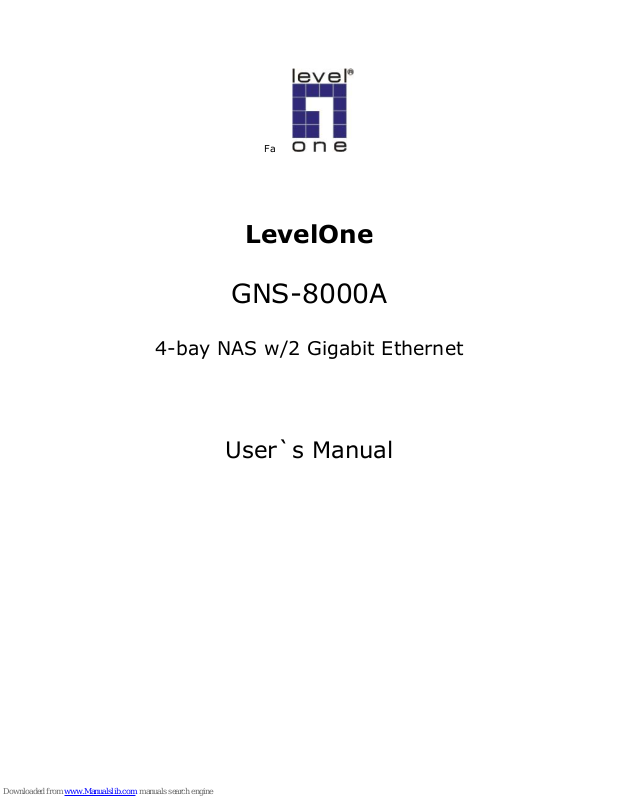

LevelOne GNS-8000A User Manual
Fa
LevelOne
GNS-8000A
4-bay NAS w/2 Gigabit Ethernet
User`s Manual
CUSTOMER SERVICE
To obtain service or technical support for your system, please refer to the
registration card for detailed contacts.
Trademarks
GNS-8000A and LevelOne® are trademarks of Digital Data Communications Asia
Co., Ltd.
Microsoft®, Windows® and Internet Explorer® are registered trademarks of
Microsoft Inc. Novell® and NetWare® are registered trademarks of Novell Inc.
Apple® and Macintosh® are registered trademarks of Apple Computer Inc.
Linux® is a registered trademark of Linus Torvald. All other brand or product
names are trademarks of their respective companies or organizations.
LIMITED WARRANTY
In no event shall DDC’s liability exceed the price paid for the product from direct,
indirect, special, incidental, or consequential software, or its documentation. DDC
offers no refunds for its products. DDC makes no warranty or representation,
expressed, implied, or statutory, with respect to its products or the contents or
use of this documentation and all accompanying software, and specifically
disclaims its quality, performance, merchantability, or fitness for any particular
purpose. DDC reserves the right to revise or update its products, software, or
documentation without obligation to notify any individual or entity.
FCC STATEMENT
The DDC GNS-8000A has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used according to the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
is found by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or device
• Connect the equipment to an outlet other than the receiver’s
• Consult a dealer or an experienced radio/TV technician for assistance
CAUTION
Please be aware of the danger causing explosion if battery is replaced incorrectly.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer's
instruction.
2
Table of Contents
CHAPTER 1
OVERVIEW OF GNS-8000A.................................................................................... 4
1.1 PACKAGE CONTENTS................................................................................................................. 4
1.2 SYSTEM OVERVIEW................................................................................................................... 5
1.3 INDICATOR LIGHTS ON THE LEFT OF THE LCD PANEL................................................................ 6
CHAPTER 2 INSTALLATION AND SET-UP OF GNS-8000A...................................................7
2.1 INSTALLING THE HARDWARE ....................................................................................................7
2.2 SET-UP BEFORE FIRST OPERATION ............................................................................................8
CHAPTER 3 ADMINISTRATION OF GNS-8000A......................................................................9
3.1 ACCESSING THE ADMINISTRATION PAGE .................................................................................. 9
3.2 SERVER ADMINISTRATION ......................................................................................................11
3.3 QUICK CONFIGURATION .......................................................................................................... 12
3.4 SYSTEM SETTINGS...................................................................................................................12
3.5 NETWORK SETTINGS ...............................................................................................................13
3.6 DISK CONFIGURATION............................................................................................................. 15
3.7 USER MANAGEMENT ...............................................................................................................17
3.8 NETWORK SHARE MANAGEMENT ........................................................................................... 20
3.9 SYSTEM TOOLS ....................................................................................................................... 21
3.10 STATISTICS & LOGS ................................................................................................................25
CHAPTER 4 ACCESSING GNS-8000A........................................................................................26
4.1 USING MICROSOFT WINDOWS .................................................................................................26
4.2 USING THE APPLE MAC OPERATING SYSTEM .......................................................................... 28
4.3 USING THE UNIX/LINUX OPERATING SYSTEM .........................................................................33
4.4 USING NOVELL NETWARE ......................................................................................................33
4.5 USING A WEB BROWSER .........................................................................................................33
4.6 USING FILE TRANSFER PROTOCOL (FTP) ................................................................................ 33
CHAPTER 5 INTRODUCTION TO BACKUP FUNCTIONS ...................................................34
5.1 TAPE BACKUP .........................................................................................................................34
5.2 REMOTE REPLICATION ............................................................................................................39
5.3 BACKUP AGENT ......................................................................................................................42
CHAPTER 6 SNAPSHOT...............................................................................................................45
6.1 WHAT IS SNAPSHOT?............................................................................................................... 45
6.2 TO ACTIVATE OR DISABLE SNAPSHOT .................................................................................... 45
6.3 CREATING A SNAPSHOT OR A SCHEDULE.................................................................................47
6.4 RESTORING DATA FROM SNAPSHOTS ......................................................................................49
6.5 VIEWING SNAPSHOT STATUS................................................................................................... 50
6.6 USING SNAPSHOT FOR TAPE BACKUP AND REMOTE REPLICATION ......................................... 51
CHAPTER 7 GNS-8000A - MAINTENANCE..............................................................................53
7.1 SHUTDOWN/RESTART THE SERVER .........................................................................................53
7.2 RESET THE ADMINISTRATOR PASSWORD & NETWORK SETTINGS ...........................................53
7.3 DISK FAILURE OR MALFUNCTION ........................................................................................... 54
7.4 POWER OUTAGE OR ABNORMAL SHUTDOWN ..........................................................................54
APPENDIX A: LCD PANEL ..............................................................................................................55
APPENDIX B: WEB FILE MANAGER............................................................................................ 57
APPENDIX C: JAVA WEB FILE MANAGER ................................................................................ 60
APPENDIX D: USING FTP................................................................................................................63
3
APPENDIX E: ACTIVE DIRECTORY USER GUIDE ................................................................... 66
APPENDIX F: QUICK INSTALL WIZARD.................................................................................... 70
APPENDIX G: NETBAK REPLICATOR......................................................................................... 74
APPENDIX H: VIRUS SCAN.............................................................................................................83
INSTALLING VIRUS SCAN AGENT ........................................................................................................83
ENABLING VIRUS SCAN SUPPORT .......................................................................................................86
VIEWING DETAILS OF INFECTED FILES................................................................................................ 86
4
Chapter 1
Overview of GNS-8000A
1.1 Package Contents
The GNS-8000A box contains:
• Network Attached Storage Appliance
• Quick Installation Guide
• Power Cord
• Ethernet Cables
• Software Companion CD-ROM (including Quick Install Wizard, User Manual and
other associated software)
Important Note:
i. Please back up the system periodically to avoid any potential data loss caused
by improper operations or hardware failures.
ii. It is recommended to use UPS with GNS-8000A to avoid abnormal system
shutdown or data loss due to unpredicted power outage.
iii. LevelOne reserves the right to change specifications of the product without
notice. Please contact our representatives for the most updated product
information.
5
1.2 System Overview
GNS-8000A
• Front View
• Rear View
ATX Redundant Power Supply
Power Switch
RJ-45 Gigabit
Ethernet Port 1
RS232 Connector
(for UPS)
SCSI Connector
(for Tape Drive)
Configuration Reset Switch
RJ-45 Gigabit
Ethernet Port 2
Power Connector
Setting
Switch B
Setting
Switch A
4 LED indicators: Power,
Error, Network, and Disk
Access
LCD Panel
6
1.3 Indicator lights on the left of the LCD panel
This light shines when power is on.
This light indicates a system error which needs
to be corrected.
This light flashes when data is being
transmitted through the network.
This light flashes when data is being stored or
retrieved from the disks.
7
Chapter 2
Installation and Set-up of GNS-8000A
2.1 Installing the Hardware
The following steps will guide you through the GNS-8000A hardware installation:
1. Connect the GNS-8000A to your Network.
Note: The system provides two network ports. To configure Fail Over
and Load Balance, at least two network ports must be connected.
2. If you want to back up your files to the tape, please connect the tape drive to
the SCSI port on the back of your GNS-8000A. Then turn on the tape drive.
3. To use a UPS with your unit, please connect the UPS to the RS-232 port on
the back of your GNS-8000A via a serial cable. And connect the power plug
of the GNS-8000A to the output power inlet of the UPS.
4. Power on the GNS-8000A.
Note: The power switch uses toggle switch design (after pushing the button
it will return to the original position). All you need to do is to flip the switch
one to turn-on or turn-off.
8
When all power cables have been properly connected, push the Power Switch on
the back of the GNS-8000A. The LCD Panel will light up and the system is ready
for set-up:
At this time the hardware installation of your GNS-8000A is complete. Please
proceed to “Set-up before First Operation”.
2.2 Set-up before First Operation
The factory default settings of your GNS-8000A will search the network via DHCP
(Dynamic Host Configuration Protocol) to automatically detect IP address settings.
If your network does not support the DHCP protocol, the GNS-8000A will use the
default settings listed below:
IP Address: 192.168.0.1
Subnet Mask: 255.255.255.0
Once the GNS-8000A completes its boot-up process, the LCD panel displays the
current IP address settings.
If your network does not support the DHCP protocol, you must configure your
GNS-8000A to the proper LAN settings before using it for the first time. (If you
do not know your LAN settings, please contact your network administrator).
1. Use the LCD panel to change the network settings. For more information, see
Appendix A.
2. Use the Quick Install Wizard on the CD-ROM to change the network settings.
For more information, see Appendix F.
Once you complete the GNS-8000A settings, you can use your web browser to
perform further administrative settings.
NAS001122 05/22
192.168.0.1 02:48
Server Name
IP Address
Date
Time
9
Chapter 3
Administration of GNS-8000A
Once you have installed the GNS-8000A and other hardware and connected it to
the networks, you can use your browser (supports Microsoft Internet Explorer 5.0
or later and Netscape Navigator 4.5 or later; Microsoft Internet Explorer 5.5 is
recommended) to complete administrative tasks for the GNS-8000A.
3.1 Accessing the Administration Page
The following methods allow administrator to access the Administration page:
1. Launch your web browser (Microsoft Internet Explorer version 5.5 is
recommended). If you know the IP address of the GNS-8000A, type the IP
address in the address bar of the browser and press “Enter”. The IP address
can also be obtained on the LCD display of the GNS-8000A (see Appendix A).

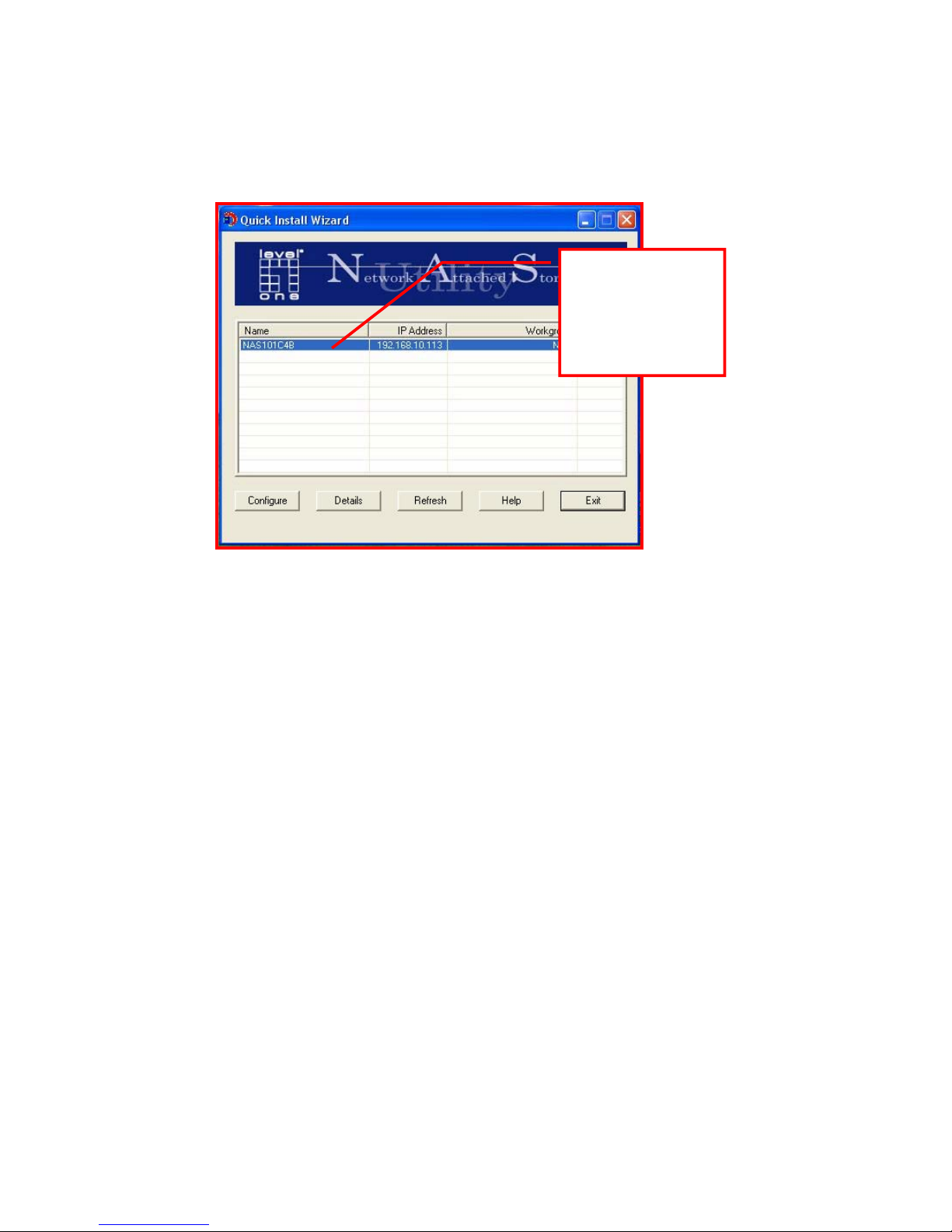

2. Use the Quick Installation Wizard (see Appendix F) and double-click on GNS8000A in the list that appears. When the browser displays the home page of
your GNS-8000A, click on the Administration link.
Enter the user name and password to continue the administration setup.
10
The default login name and password are as follows:
Login: administrator
Password: admin
If this is the first time you enter the Administration page, the Quick
Configuration page appears automatically. Please refer to the Quick
Configuration section for more details.
11
3.2 Server Administration
12
3.3 Quick Configuration
The Quick Configuration will guide you through the configuration process step-bystep, as follows:
1. Enter the name, workgroup and description for this server.
2. Change the administrator password.
3. Enter the date, time and time zone for this server.
4. Select the language that this server will use for file names.
5. Enter the IP address, subnet mask and default gateway for this server.
6. Select the network file services that you want to provide on this server.
7. Configure disk volume on this server.
Note: The configuration made in this section will be applied to all disk
volumes. If more than one disk volume is created, go to “Create disk
volume” in Disk Configuration for disk volume management.
8. Configure the method of user authentication.
9. Manage users and user groups for this server.
10. Manage network shares on this server. It might take 3 to 10 minutes to
complete the Quick Configuration depending on the type of configurations.
3.4 System Settings
Basic system settings include the server name, date, time, and language settings.
• Server Name
You must assign a unique name for your GNS-8000A for ease of identification
within the local network. The server name can accommodate as much as 14
characters, which can be a combination of letters (A-Z or a-z), numbers (0-9)
and hyphens (-). The server will not accept name containing blank spaces,
period (.), or names with only numbers. The LCD display will show the
current server name.
Next, you must configure your GNS-8000A to the workgroup. The workgroup
represents a basic computer group within the Microsoft Network. Files are
normally shared within the group. Workgroups can accommodate as much as
15 characters but must exclude the following characters:
; : " < > * + = \ | ? , [ ] /
The first character cannot be a period (.). For ease of management and
usage, please set your GNS-8000A and attached computer(s) in the same
workgroup.
Moreover, the GNS-8000A allows you to specify comments (such as
administrator name, department, or location) that describe the GNS-8000A
for ease of identification to an on-line user.
13
• Date & Time
Set the date, time, and time zone according to your current location. If the
settings are incorrectly entered, the following problems may occur:
1. When using a web browser to access or save a file, the time of the file
accessed or saved may be out of sync.
2. The system event log time will be incorrect compared to the actual time
an action occurred.
• Language Setting
The server is based on the language settings and uses it accordingly while
creating or displaying files and directories. Select the correct language
settings to avoid the following problems:
1. Inability to create files or directories with special wording.
2. Inability to display files or directories name with special wording.
• View System Settings
You can view all the current system settings such as server name and
workgroup from this page.
3.5 Network Settings
The network settings include TCP/IP configuration and network service settings.

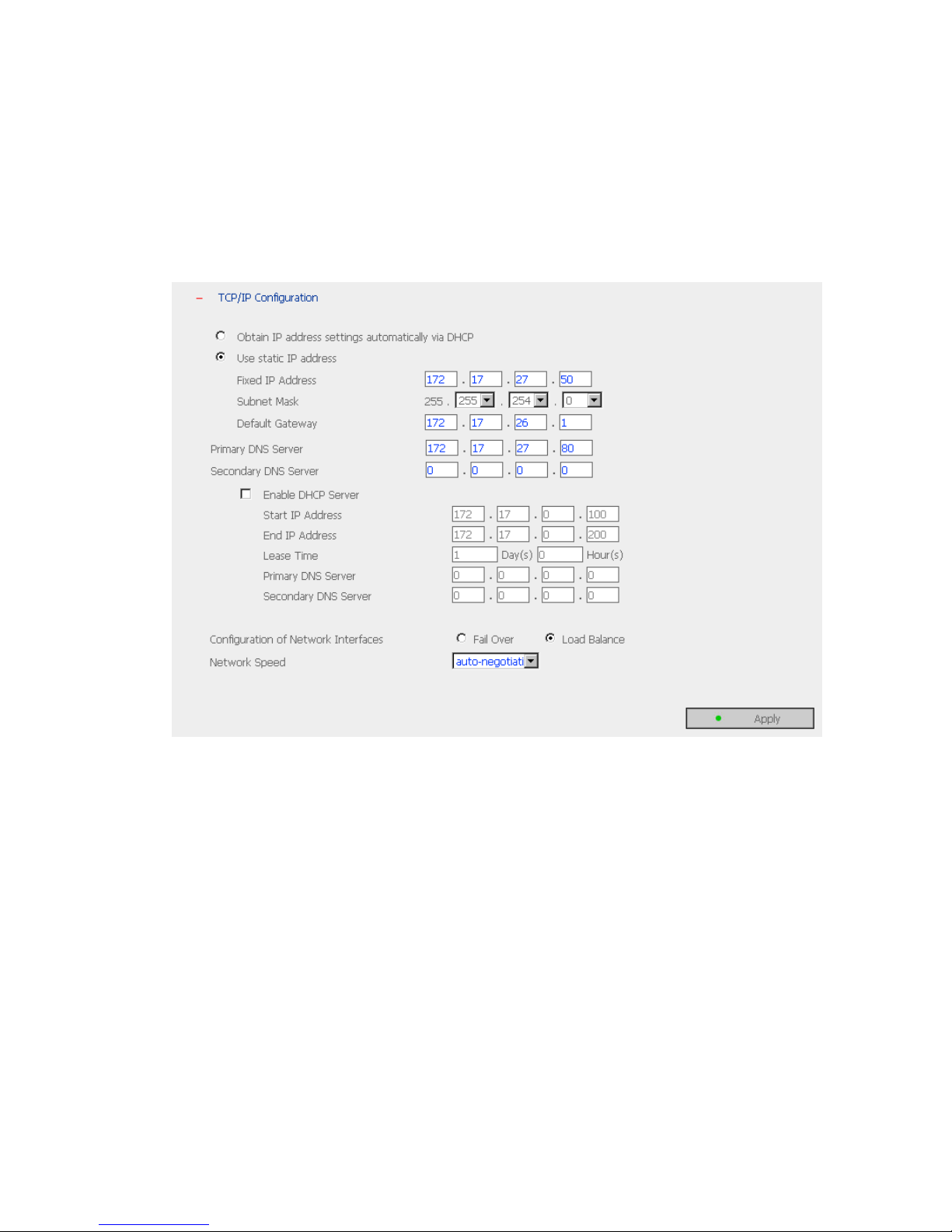

• TCP/IP Configuration
According to your local network, you can choose the following two methods
to configure the TCP/IP settings:
Obtain IP address settings automatically via DHCP
If your network supports DHCP, the GNS-8000A will automatically use
the DHCP protocol to retrieve the IP (Internet Protocol) address and
related information.
Use static IP address
Use the user defined IP address settings.
- Fixed IP Address
The IP address is a 32-bit digit code used to differentiate each single
entity on a network. The IP address is separated into 4 groups of
eight bits separated by dots: 192.168.0.1.
14
- Subnet Mask
The subnet mask is used to define computer within the same local
network. It is a 32-bits digit code: 255.xxx.xxx.xxx.
- Default Gateway
The gateway is generally referred as an interchange point that
connects two networks, such as LAN and WAN. If you do not need to
configure gateway address, set it as 0.0.0.0.
- Enable DHCP Server
Once the DHCP server’s dynamic address allocation function is
activated it will automatically assign dynamic addresses to any
computer in the network that is configured to automatically obtain IP
addresses.
Note: Only one DHCP server may be activated at any time in a
network to avoid causing conflicts in communication.
- Configuration of Network Interfaces
The system supports multiple network interfaces that enable you to
perform Fail Over and Load Balance functions. Fail over ensures server
availability to the network. If the primary port is disconnected due to a
hardware or cable problem, the secondary port will replace its network
identity. If the failed port resumes the network connection, it will also
resume the role as the primary interface.
When using Fail Over or Load Balance, you can select to connect the
network cable to an exchange device that supports trucking function and
then enable the function.

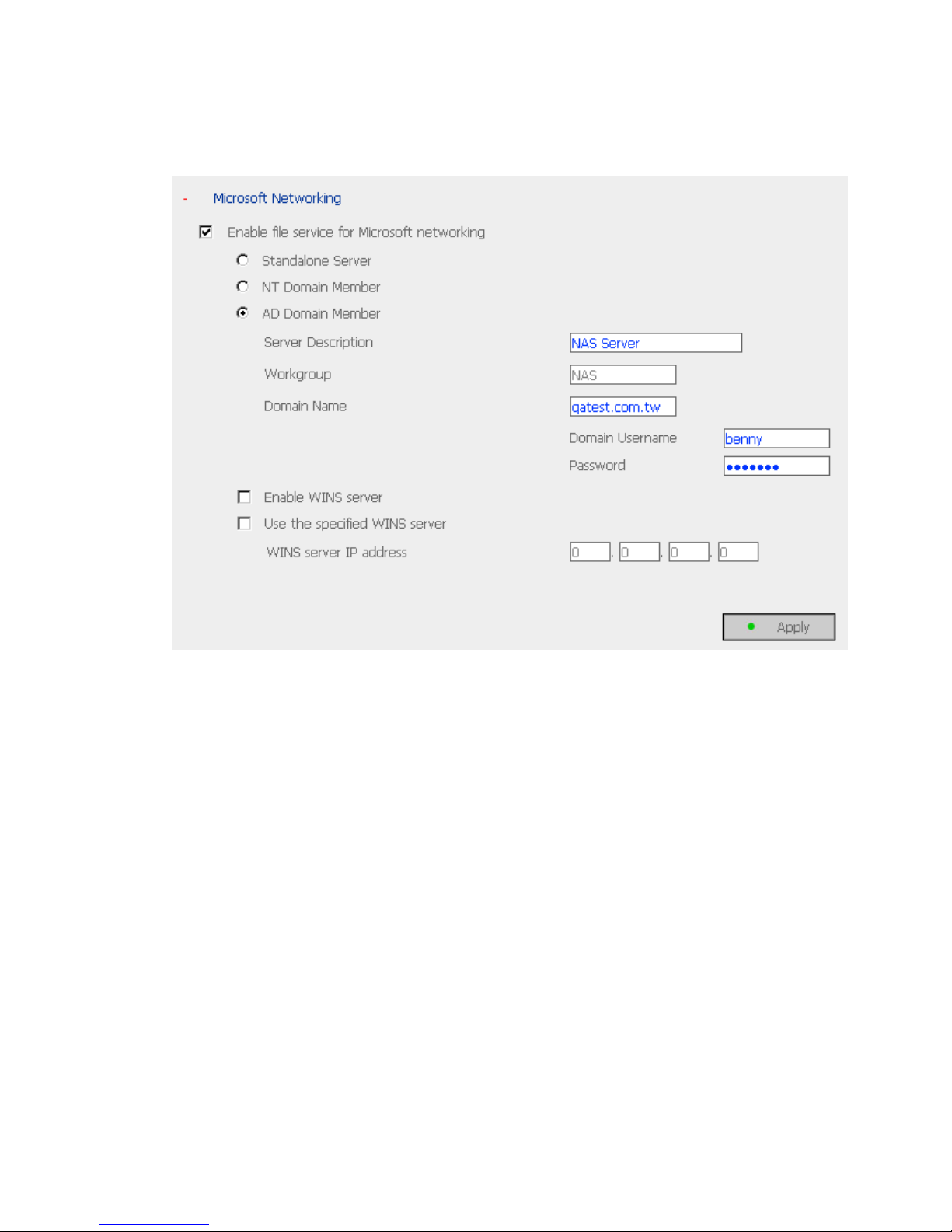

• Microsoft Networking
Users using the GNS-8000A on the Microsoft Windows operating systems must
start Microsoft Network Services.
If the local network has a WINS server installed, please specify the IP
address. The GNS-8000A will automatically register its name and IP address
with the WINS service. Or you can enable your GNS-8000A as the WINS
server for your network.

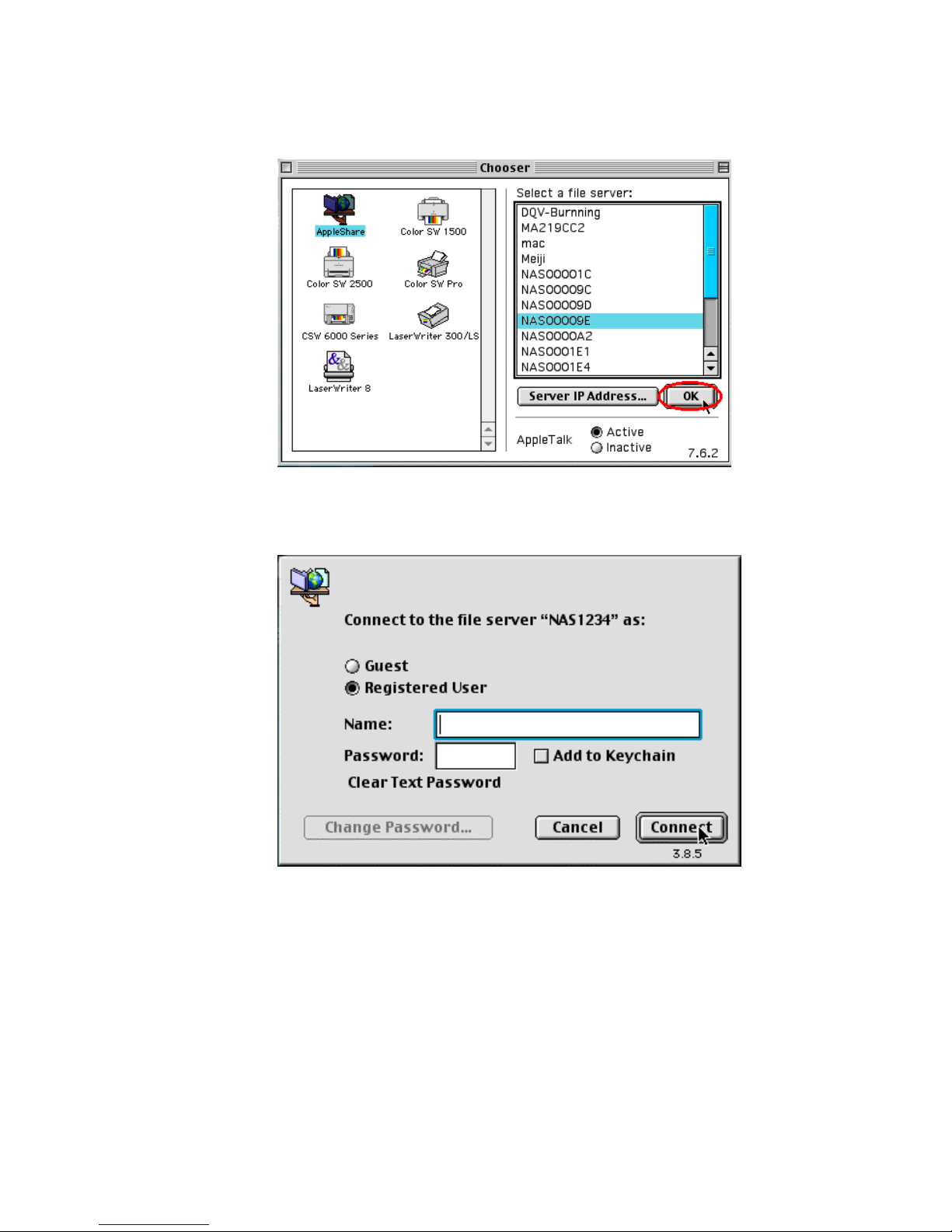

• Apple Networking
Users using the GNS-8000A on Apple’s Mac operating systems must enable
AppleTalk network support.
If your AppleTalk network uses extended networks, and is assigned with
multiple zones, please assign a zone name to the GNS-8000A. If you do not
want to assign a network zone, please enter an asterisk (*). Asterisk (*) is
the default setting.
15
• NFS Service
Users using GNS-8000A on Unix/Linux operating system computer or server
must start Unix/Linux NFS service. The GNS-8000A supports NFS version
2.0/3.0. To correctly use the NFS service, you must assign a User’s UID and IP
address. Please select User Management · Users · NFS Settings to start the
setup.
• NetWare Service
If you wish to use NetWare to access the GNS-8000A, you must activate the
NetWare service. The GNS-8000A will then operate in a manner similar to a
Novell NetWare 3.12 file server.
• Web Service
Other than standard OS support, you have the choice to use a web browser to
access your files on the GNS-8000A. If your GNS-8000A is connected to the
Internet and uses a valid IP address, the GNS-8000A allows you to access your
files using a web browser from anywhere in the world.
• FTP Service
If you wish to download files from or upload files to your GNS-8000A by using file
transfer protocol (FTP), you must first activate the FTP service.
• View Network Settings
You can view all the current system settings such as server name and workgroup
from this page.
3.6 Disk Configuration
Depending on the models, the GNS-8000A can accommodate a maximum of eight
disks. The Disk Volume can be configured according to your needs.
• Single Disk
You can choose to use a stand-alone disk. However, if the disk is damaged,
all data will be lost.
• RAID 5 Disk Volume
Three or more hard disks can be teamed up to form a large-capacity RAID 5
disk group. This system will distribute and store data among its various
member disks as it is received. At the same time it uses an amount of space
roughly equivalent to a whole disk to store reference numbers with the same
elements. Should one of the disks in the group suffer some kind of damage,
you can shut down the computer and install a new disk, and the system will
restore the data on the new disk using the reference number. In addition, if
you have a system with four disks but use only three in your RAID 5 group,
the fourth will serve as a backup disk. If one of the three disks is damaged
the system will automatically start using the spare disk without powering
down and changing the affected disk. Generally speaking, the capacity of a
16
RAID 5 disk group is one disk’s worth of space less than the total rated
capacity of the group.
Note: RAID 5 may be used only with equipment that has three or more
disks.
• RAID 1 Mirroring Disk Volume
Mirroring Disk protects your data by automatically backing up the contents of
one disk onto the second disk of a mirrored pair. This protects your data if
one of the disks fails. Unfortunately, the storing capacity is equal to a single
disk, as the second drive is used to automatically back up the first. Mirroring
Disk is suitable for personal or corporate use to store important data.
• RAID 0 Striping Disk Volume
Striping disk combines two or more disks into one larger disk. It offers the
fastest disk access but it does not have any protection of your data if the
striped array fails. The disk capacity equals the number of disks in the array
times the size of the smallest disk. Striping disk is usually used to maximize
your disk capacity or for fast disk access but not for storing important data.
• Linear Disk Volume
You can combine two or more disks into one larger disk. During file saving,
the files are saved on physical disks sequentially but do not have a disk
failure file protection function. The overall capacity of linear disks is the sum
of all disks. Linear disks are generally used for storing large data and are not
appropriate to use for file protection of important data.
By factory default, the GNS-8000A has been pre-set into one large disk. If
you wish to use other disk configurations, the settings can be changed during
the first Quick Configuration access. Furthermore, to increase the hard disk
life, the hard disk will go to standby mode if there is no access within 30
minutes. If any data access happens while the hard disk is in stand-by mode,
it will take 3 or 5 seconds for the hard disk to return to normal mode. You
can select System Tools · Hardware Settings to change the setting.
You can also perform the following disk administration:
Create Disk Volume
Delete Disk Volume
Examine Disk Volume
Format Disk Volume
View Disk & Volume Status

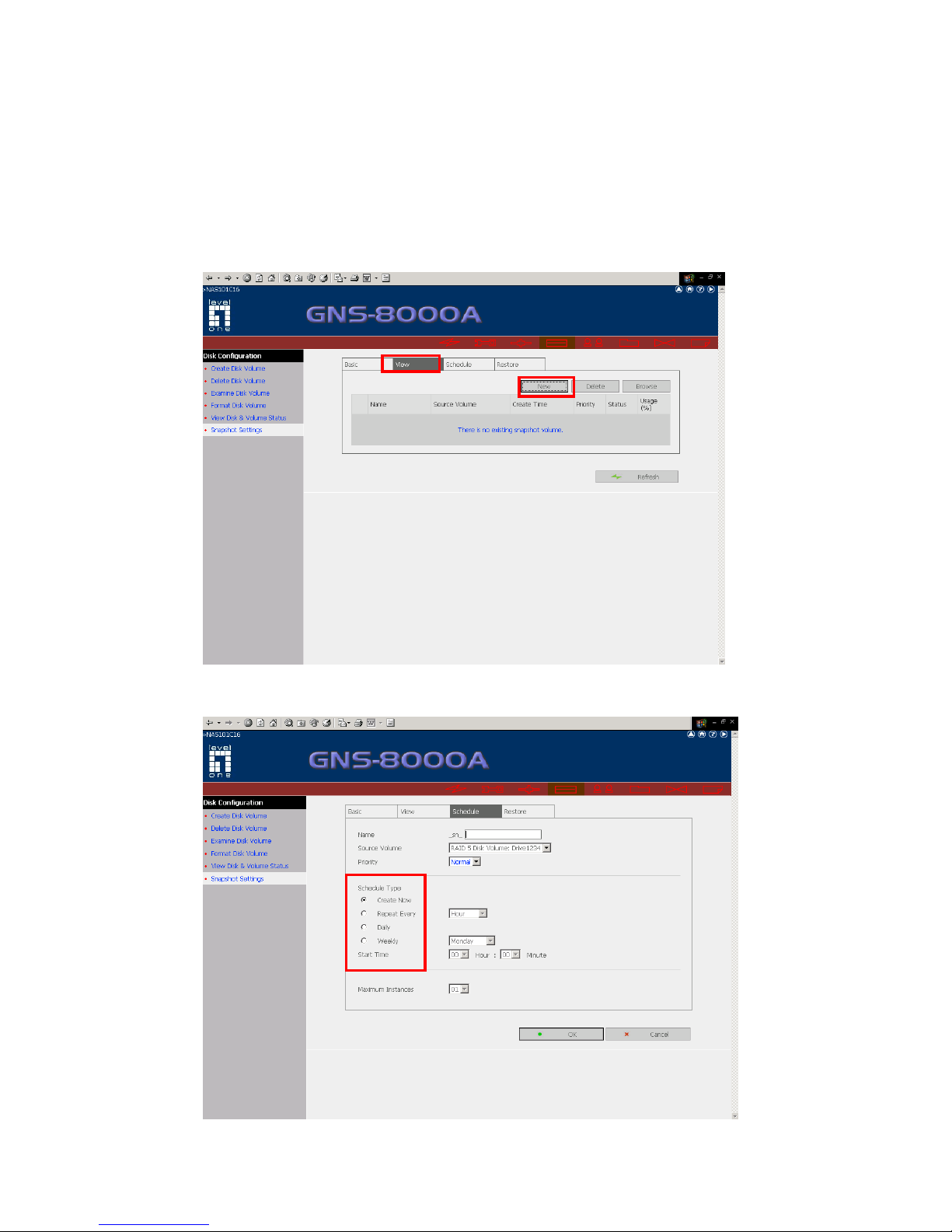

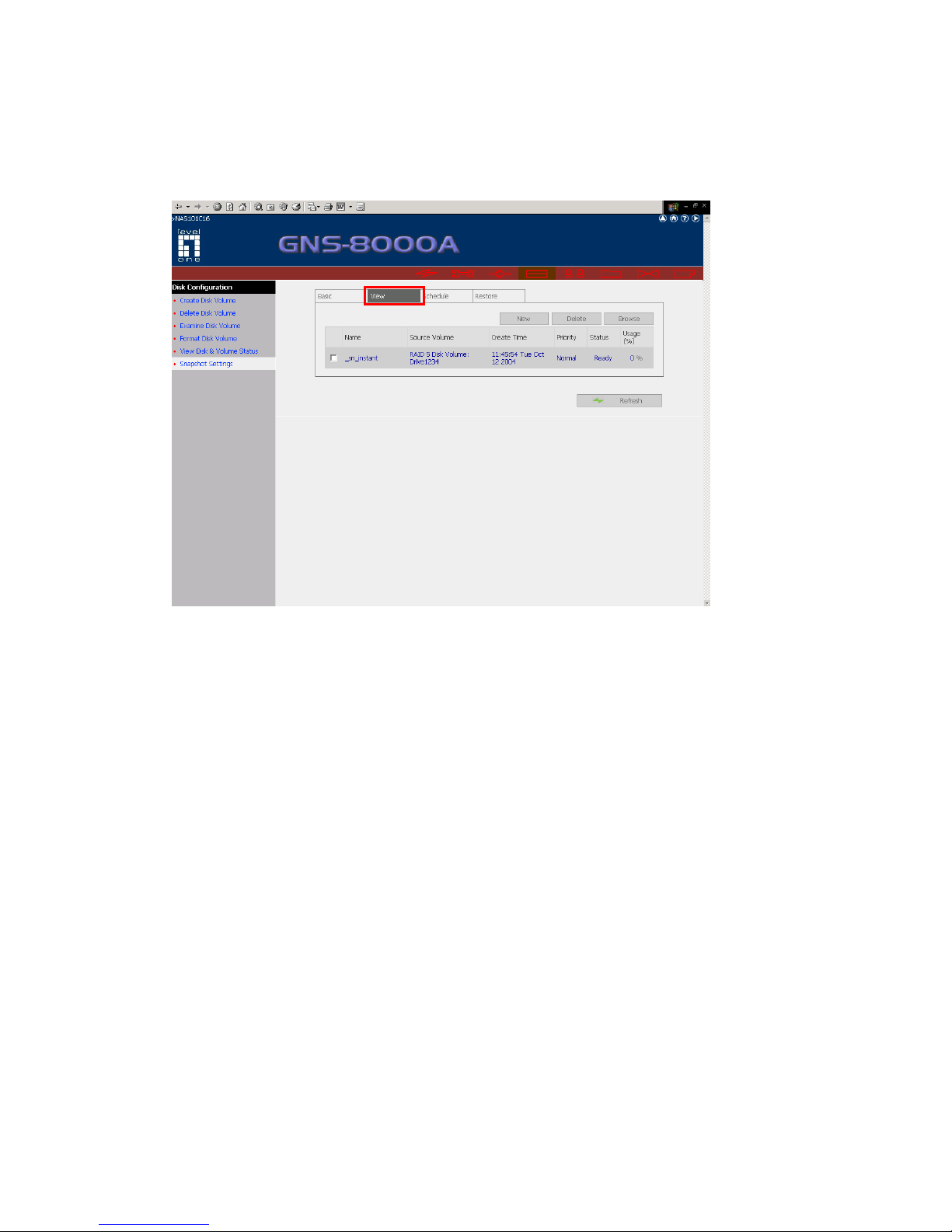

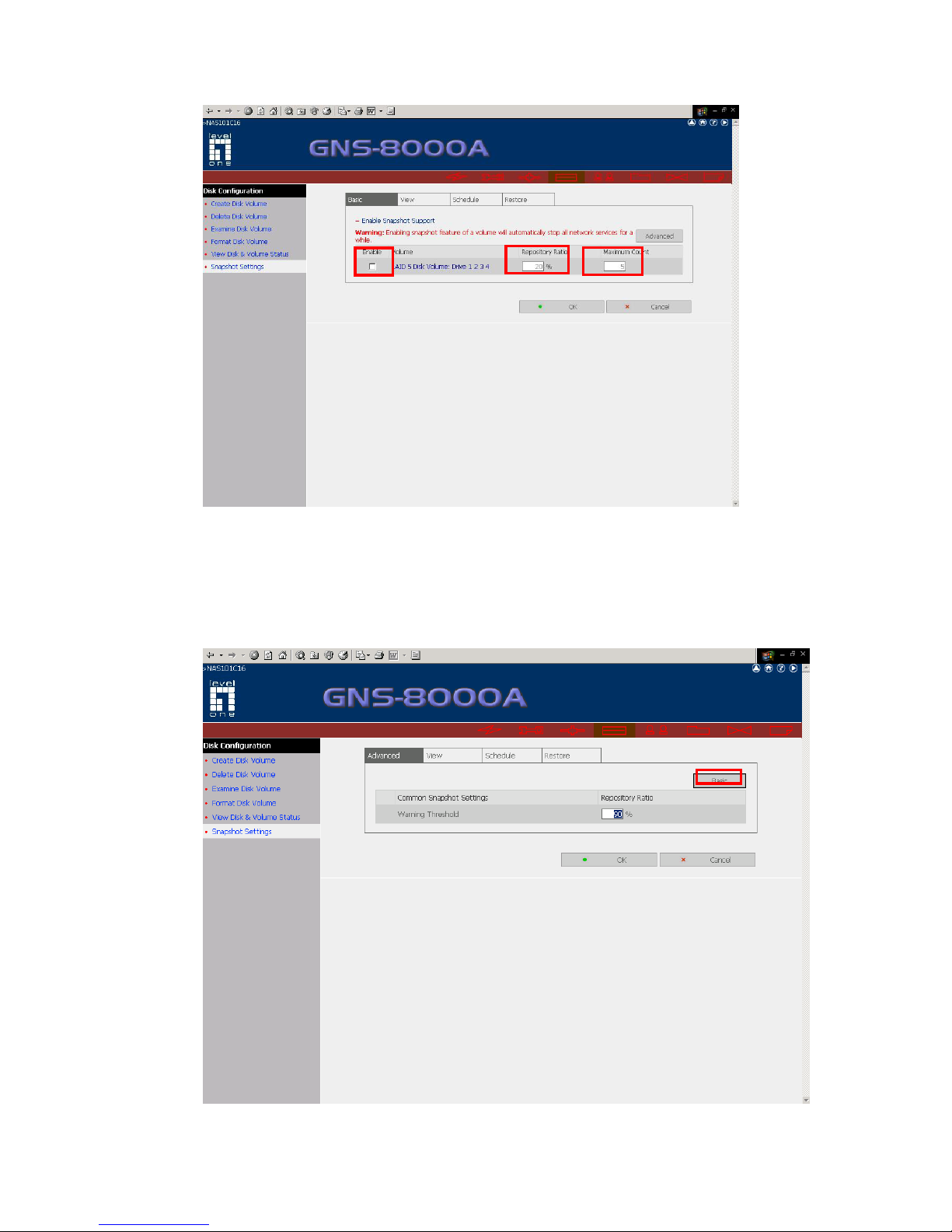

In addition to the above functions, users can also perform snapshot taking in
Snapshot Settings of System Tools. This function enables users to take a
real-time and dynamic replication of the snapshot according to the disk
volume at a certain point of time. The data contained in the snapshot is the
same as the previously copied network hard disk drives. The content in the
snapshot will not be affected even when changing the content of the disk
volume. If an original data is damaged, it can be restored from the snapshot
image.
17
3.7 User Management
The GNS-8000A can share its files with multiple users. It is important to plan and
organize users and user groups’ accessibility to ease the administration work.
• Users
The factory default settings include the following users:
Administrator
By default, the administrator is a member of the administrators group and
has access to the system administration. You cannot delete the user
Administrator.
Guest
When you use a non-registered user name to login, the server recognizes it
as a Guest and will allow limited access. A guest does not belong to any user
group. You cannot delete the user Guest or create a password.
Anonymous
When you connect to the server by FTP service, you can use the name to
login as a guest. You cannot delete this user or change its password.
You can create a new user according to your needs. The following
information is required to create a new user:
• User Name
The user name must not exceed 32 characters. It is case insensitive and it
can contain double-byte characters. (Such as Chinese, Japanese, and Korean)
But it cannot contain any of the characters below:
" / \ [ ] : ; | = , + * ? < > ` '
• Password
The password must not exceed 16 characters. Due to security concerns, the
password must be at least 6 characters. Try to avoid using codes that are
easily decipherable.
You can perform the following settings for users:
• Create User
• Create Multiple Users
• Create Private Network Share
• Assign User Groups
• NFS Settings
• Quota Settings
• Delete User
• User Groups
To administer access rights, you can create user groups. User groups are a
collection of users with the same access rights to files or folders. By factory
default, the server contains the following pre-defined user groups:
18
Administrators
All members of the administrator group have the rights to perform system
management. You cannot delete the administrator group.
Everyone
All registered users belongs to everyone group. You cannot delete the user
groups, “Everyone” or delete any of its users.
You can manage user groups with the following options:
• Create User Groups
• Create Private Network Share
• Assign Users
• Delete User Groups
User groups name must not exceed 256 characters. It is case insensitive and
it can contain double-byte characters such as Chinese, Japanese, and Korean.
But it cannot contain any of the characters below:
" / \ [ ] : ; | = , + * ? < > ` '
To properly manage security, it is very important to manage users and user
groups. You may set the share access parameters of each user or user group
accordingly.
• PDC Authentication Settings
If you have a Windows PDC (Primary Domain Controller) server to handle the
domain security in your network, you don’t need to re-enter all the users and
groups with the GNS-8000A. You can simply enable the PDC authentication
feature; the GNS-8000A will connect with the NT domain and get all the
information of the domain users and groups automatically.
To enable PDC authentication, you must enter the domain name as well as
the user name and password already established in this domain. The GNS8000A will use the user name and password to log in to the NT domain and
retrieve user and group information. Once you have configured the GNS8000A to use PDC authentication, all NT domain users and groups will appear
in lists of users and groups for which you can define access rights.
Note: NetWare users cannot be authenticated via the PDC server. To
properly authenticate NetWare users, please go to User Management ·
Users · Change Password page and type the password for that user
manually.
• AD Authentication Settings
If you have a Windows AD (Active Directory) server to handle the domain
security in your network, you do not need to re-enter all the users and
groups with Disk On-line Server. You can simply enable the AD
authentication feature; Disk On-line Server will connect with the AD domain
and get all the information of the domain users and groups automatically.
To enable AD authentication, you must enter the domain name as well as the
administrator’s user name and password already established in this domain.
Disk On-line Server will use the user name and password to log in to the AD
19
domain and retrieve user and group information. Once you have configured
Disk On-line Server to use AD authentication, all AD domain users and groups
will appear in lists of users and groups for which you can define access rights.
Note: NetWare users cannot be authenticated via PDC and AD servers. To
properly authenticate NetWare users, please go to User Management ·
Users · Change Password page and type the password for that user
manually.
For more information, please refer to Appendix E, Active Directory User Guide
• Quota
The amount of space given out to all users in the system can be limited in
order to manage and allocate it efficiently. Once these restrictions are in
place, users will be prevented from obtaining more space once they have
reached their limit. This prevents monopolizing of a large amount of disk
space by a small group of users. No limitations are set on the system when it
leaves the factory.
20
3.8 Network Share Management
The primary purpose of network storage is file sharing. In a standard operation
environment, you can create different network share folders for various types of
files, or provide different file access rights to users or user groups. By factory
default, a “public” share folder is created. The share folder gives full access to all
users or guests.
Administer network shares with the following:
• Create a Network Share
• Change the name, path and comment of a network share
• Set access right for a network share
• Remove a network share
You can create new network shares according to your needs. While creating a
network share the following parameters must be set:
• Network Share Name
The network share name must not exceed 32 characters. It cannot contain
double-byte characters (such as Chinese, Japanese, and Korean) as well as
the characters listed below:
" . + = / \ : | * ? < > ; [ ] %
• Disk Volume
The network share will be created under the specified disk volume.
• Path
All data are stored under the assigned path onto the disk volume. You can
select Specify Path Automatically to allow the server to automatically
create a new path on the disk volume to store the network share files. Or
you can assign a specific path for the share folder. The manually assigned
path cannot exceed 256 characters and cannot contain the characters listed
below:
" \ : | * ? < > ; ` '
• Comment
The Comment field allows a brief description of the share folder to help
users identify its purpose in a network neighborhood window. The comment
cannot exceed 128 characters.
Once the network share is created, you can start assigning access rights to
users or user groups:
• Full Access
Full access allows the user or user group to read, write, create, or remove all
files and directories in the network share.
21
• Read Only
Reads files only in the network share but denies functions to write, create or
delete files or directories.
• Deny Access
Denies all files access on the network share.
3.9 System Tools
The following system tools allow optimized maintenance or management of your
GNS-8000A:
• SNMP Settings
In order to use Simple Network Management Protocol (SNMP) to manage the
GNS-8000A's network components, the SNMP service must be started.
• Alert Notification
Configures administrator’s e-mail address and SMTP server IP address. In
case of warning or malfunction, an email is automatically sent to the
administrator.
• Restart / Shutdown
Powers off or restarts the GNS-8000A.
• Hardware Settings
You can enable or disable the following hardware functions of your GNS8000A:
1. Enable LCD panel setting function
Allow you to change the TCP/IP configuration using the LCD panel
buttons.
2. Enable configuration reset switch
Depress and hold on the configuration reset switch for 5 seconds to reset
the administrator password and network settings to the factory default.
3. Enable hard disk standby mode
Hard disk will go to standby mode if there is no access within the period
you specify.
4. Enable buzzer
If the buzzer is disabled, it will not sound when a system error occurs,
but the warning light will still shine.
• UPS
By enabling the UPS support, you can protect the system from abnormal
shutdown caused by power outage. In the event of utility power failure, the
system will shut down automatically by probing the power status of the
22
connected UPS unit. You can also set a shutdown timer to turn off the
system automatically after it detects the AC power failure. In general, the
UPS can keep supplying the power for the system for about 5 to 10 minutes.
But this depends on the maximum load of the UPS and the number of the
loads connected to it.
The UPS is supported by the following two ways:
1. via a serial port interface (only for models with serial port)
2. via SNMP network management protocol
If the UPS you used is not supported, please contact technical support or visit
our web site for updated news.
• System Update
Performs system software updates. Make sure that the image file that you
are about to update is the correct version and read through the instructions
carefully. It is wise to back up all existing data on the GNS-8000A prior to
performing system software update. The current settings will remain
unchanged after the system is upgraded.
• Change Logo
You can place a picture that you desire on the upper right corner of the home
page. The size of the picture cannot exceed 20K bytes.

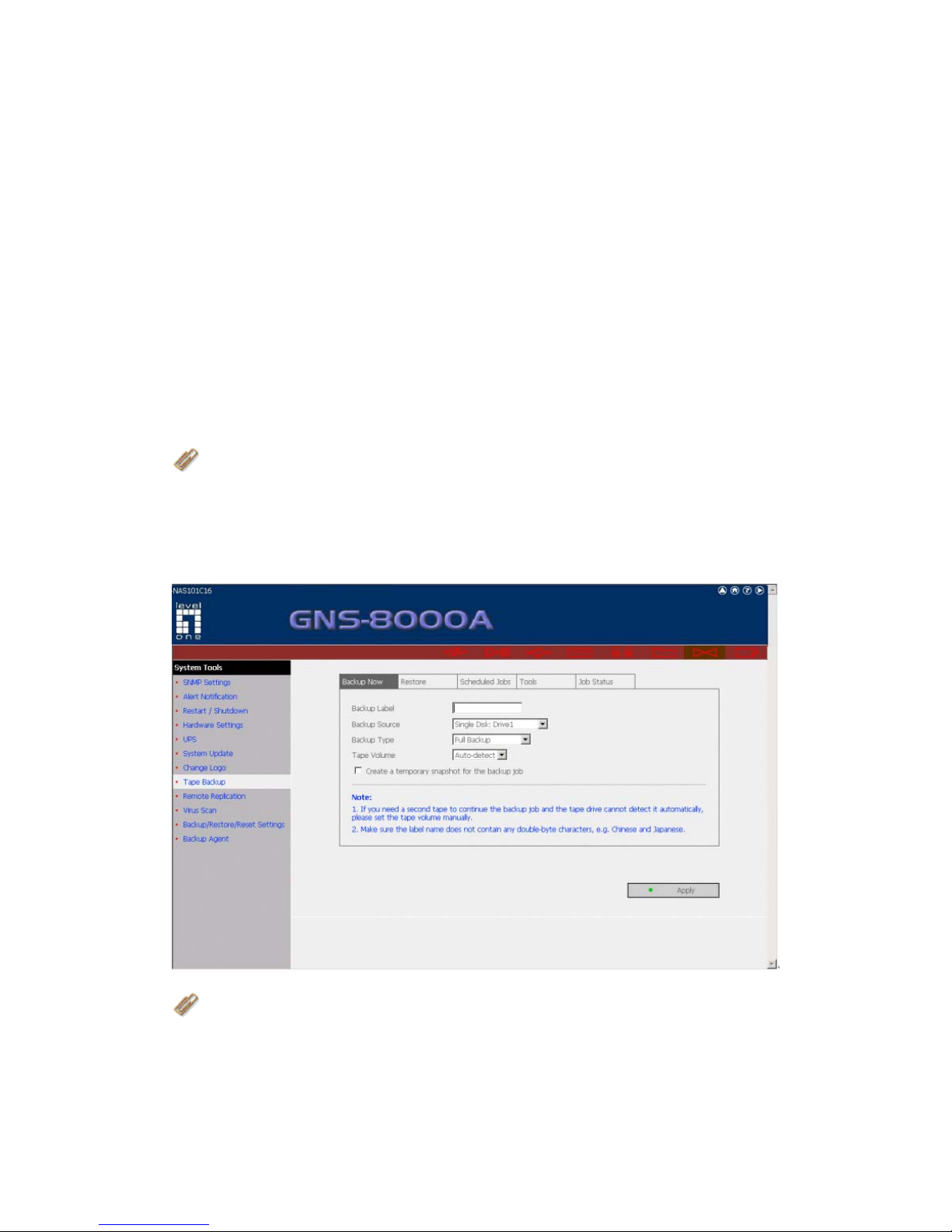

• Tape Backup (Applicable for models with SCSI port only)

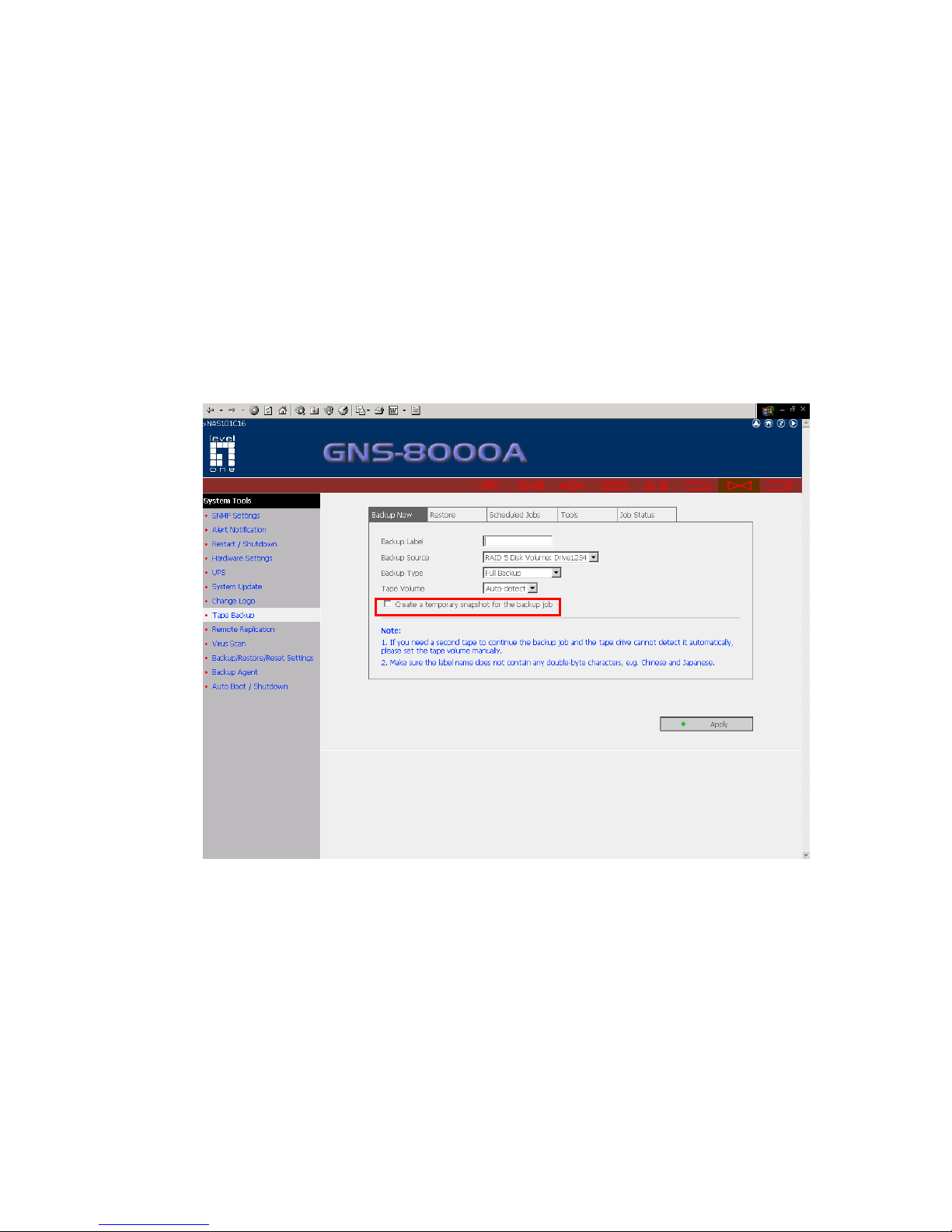

The tape backup tools allow you to perform the backup or restore jobs using
a tape drive with ease. In principal, there are two different types of backups:
Full Backup or Incremental Backup. Full backup will back up all the files in the
backup source. However, the incremental backup will only back up any
modified or new files after last backup.

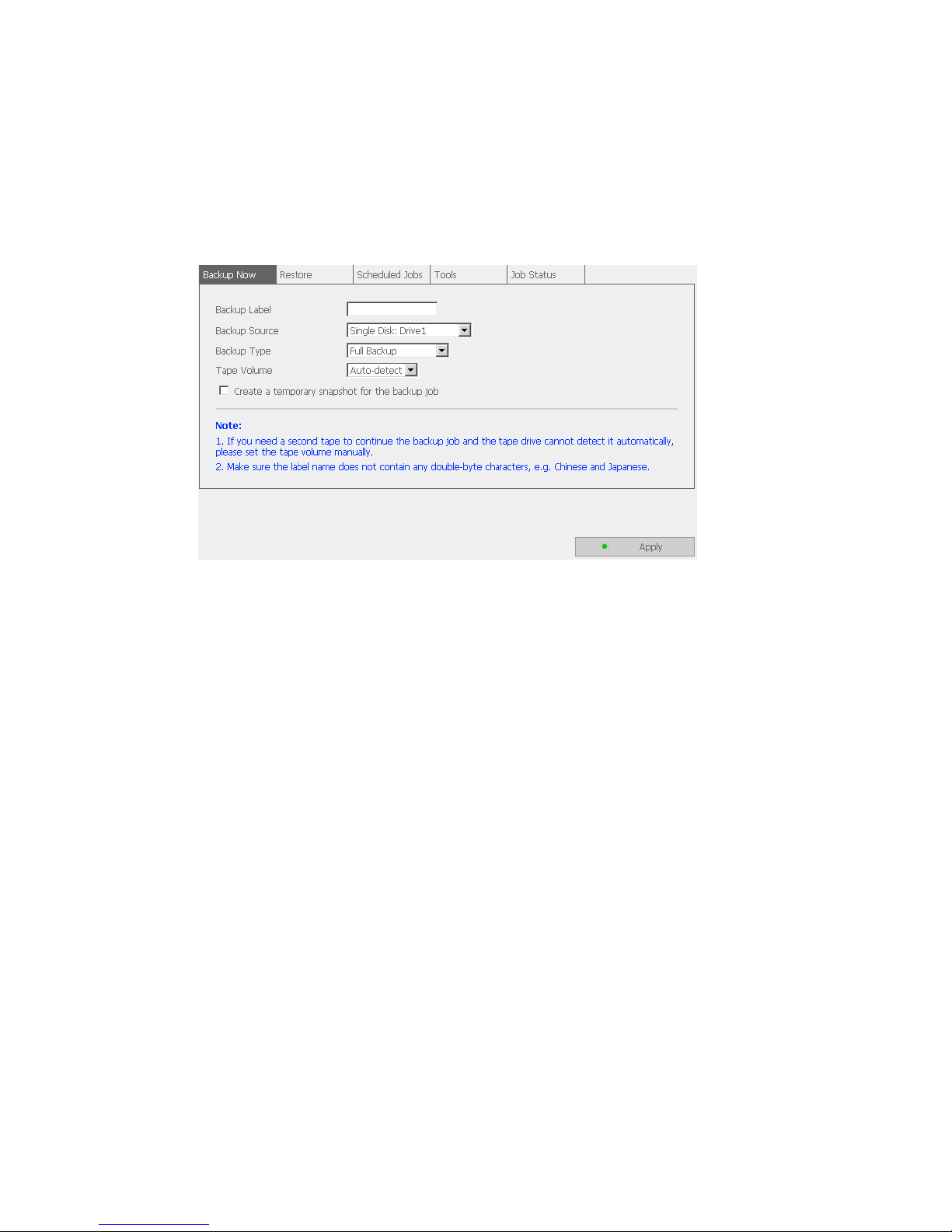

- Backup Now
To back up the files to the tape right away, you can run an immediate
backup job.

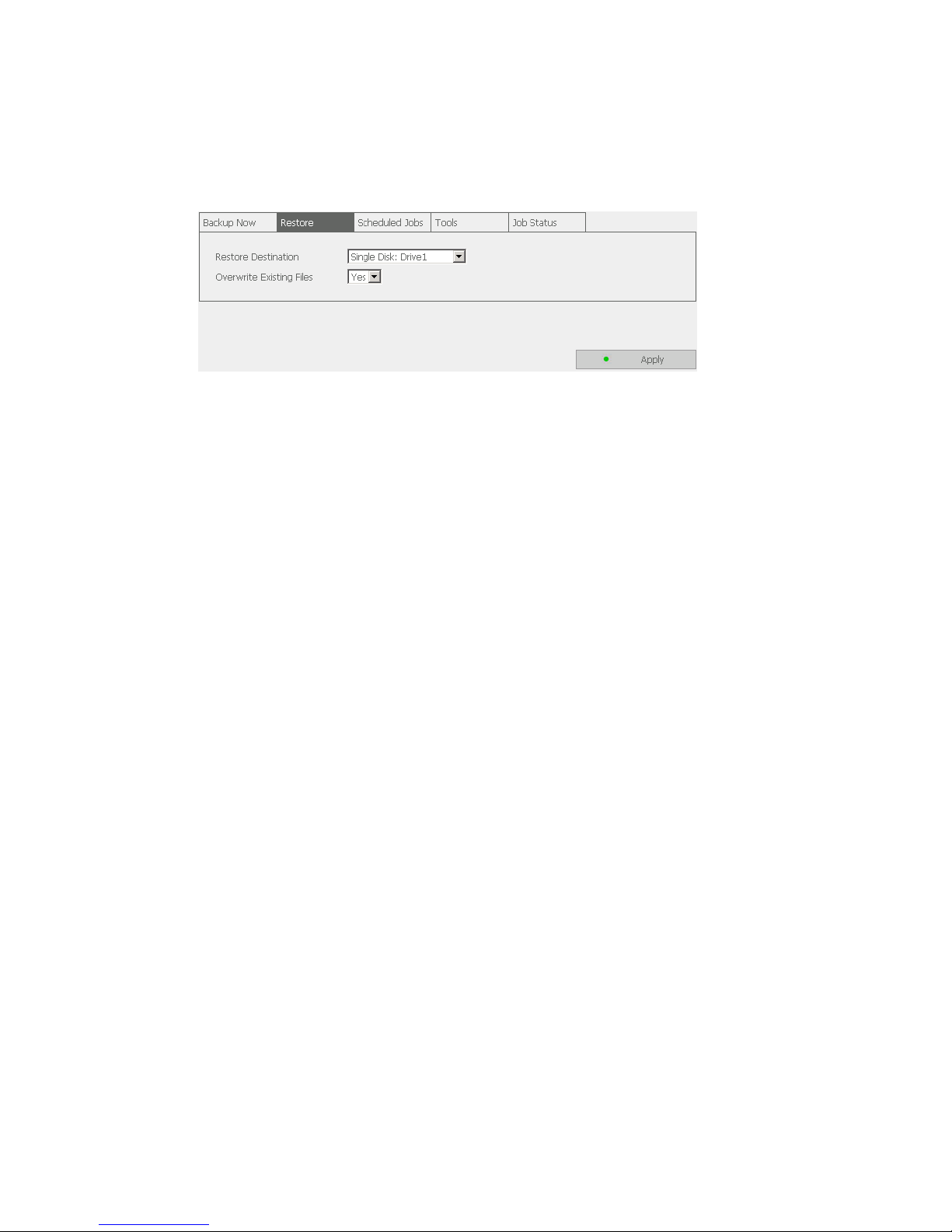

- Restore
To restore from the previously backup tape, you can perform the restore
operation.

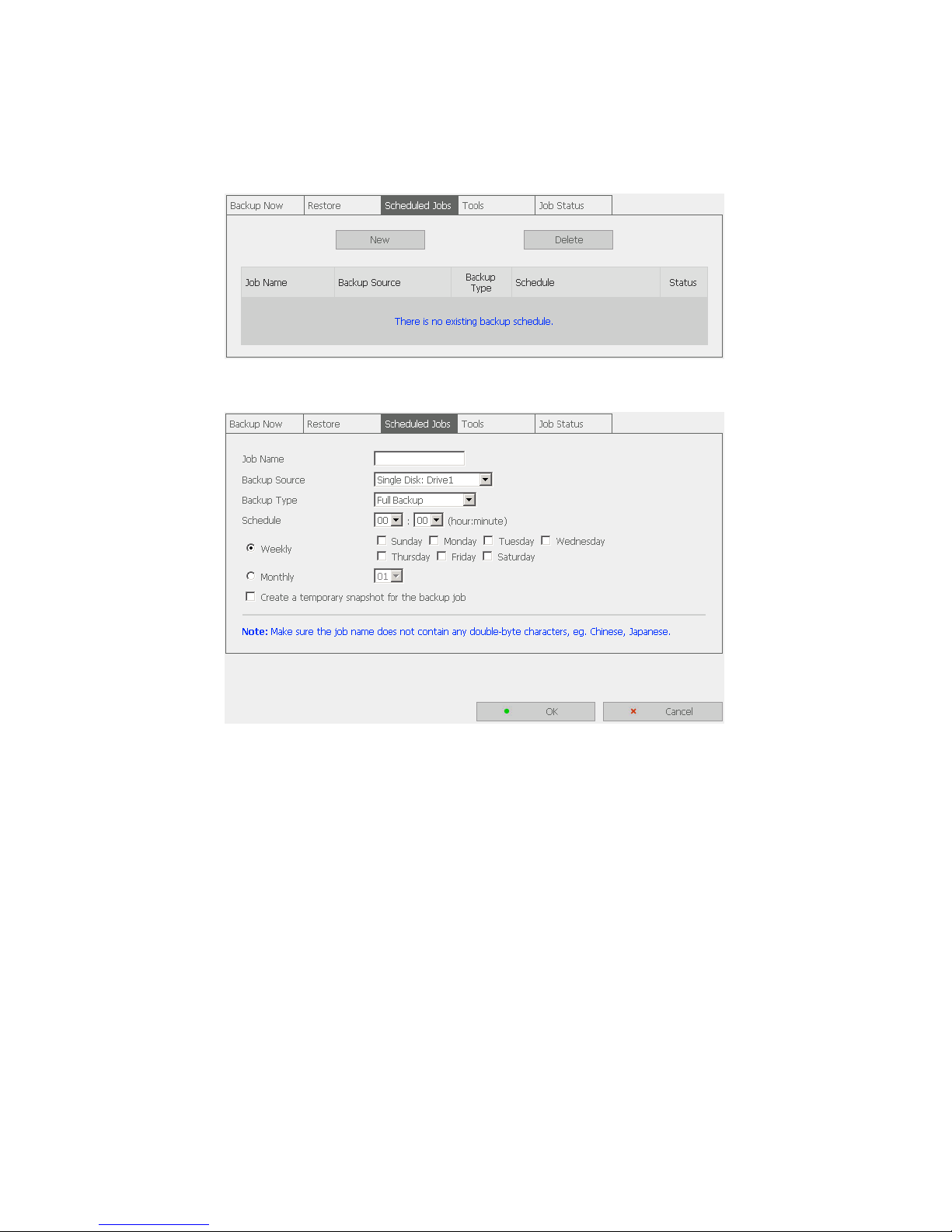

- Scheduled Jobs
You can schedule a backup job to be executed automatically at any later
time periodically.
- Tools

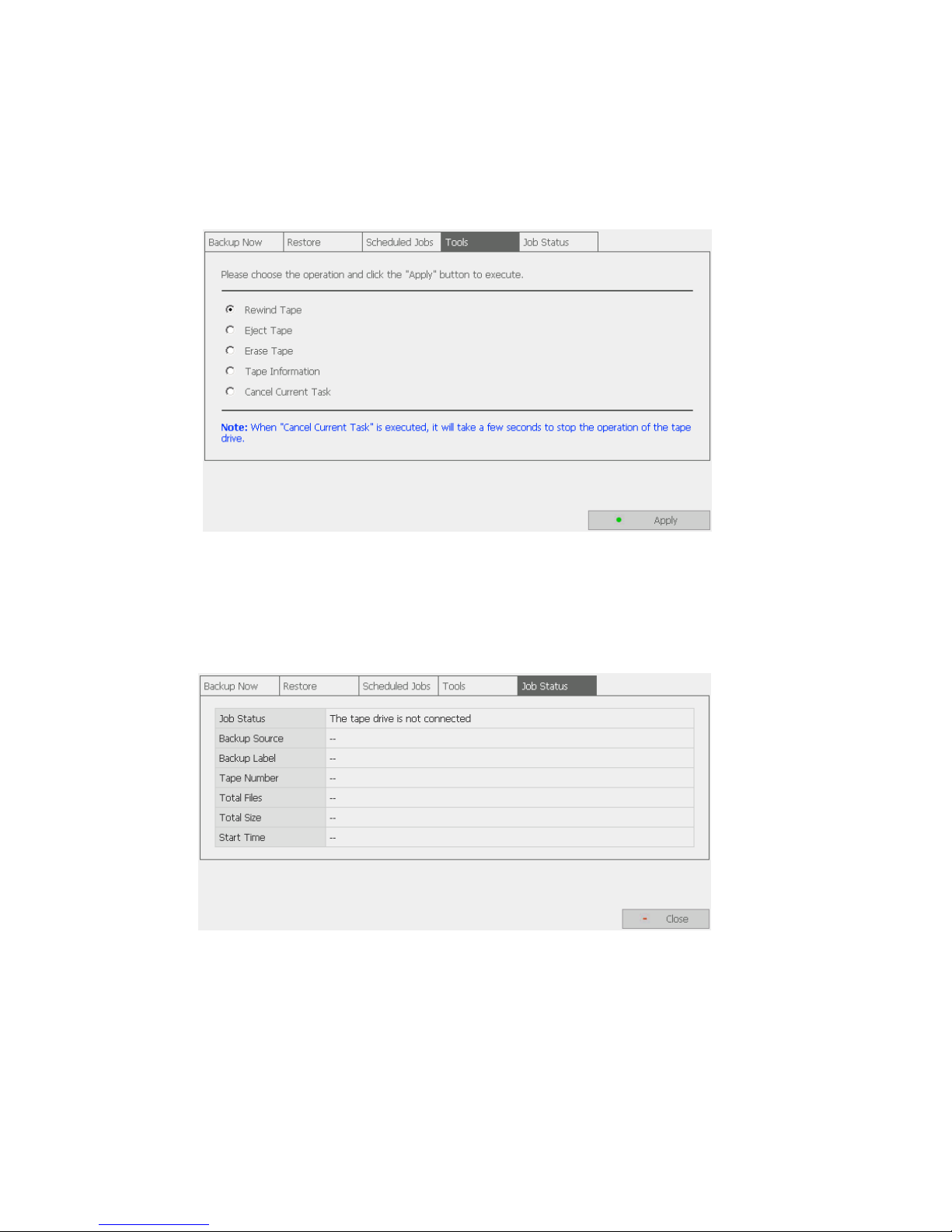

There are several useful tape functions to operate on the tape drive. For
example, you can rewind, eject or erase the tape here.
23
- Job Status
You can review or monitor the status of the backup or restore job.
Note:
1. The SCSI tape drive has to be properly connected and turned on
before starting the system, or it will not be detected.
2. The HVD (High Voltage Differential) SCSI tape drive is not
supported by this system.

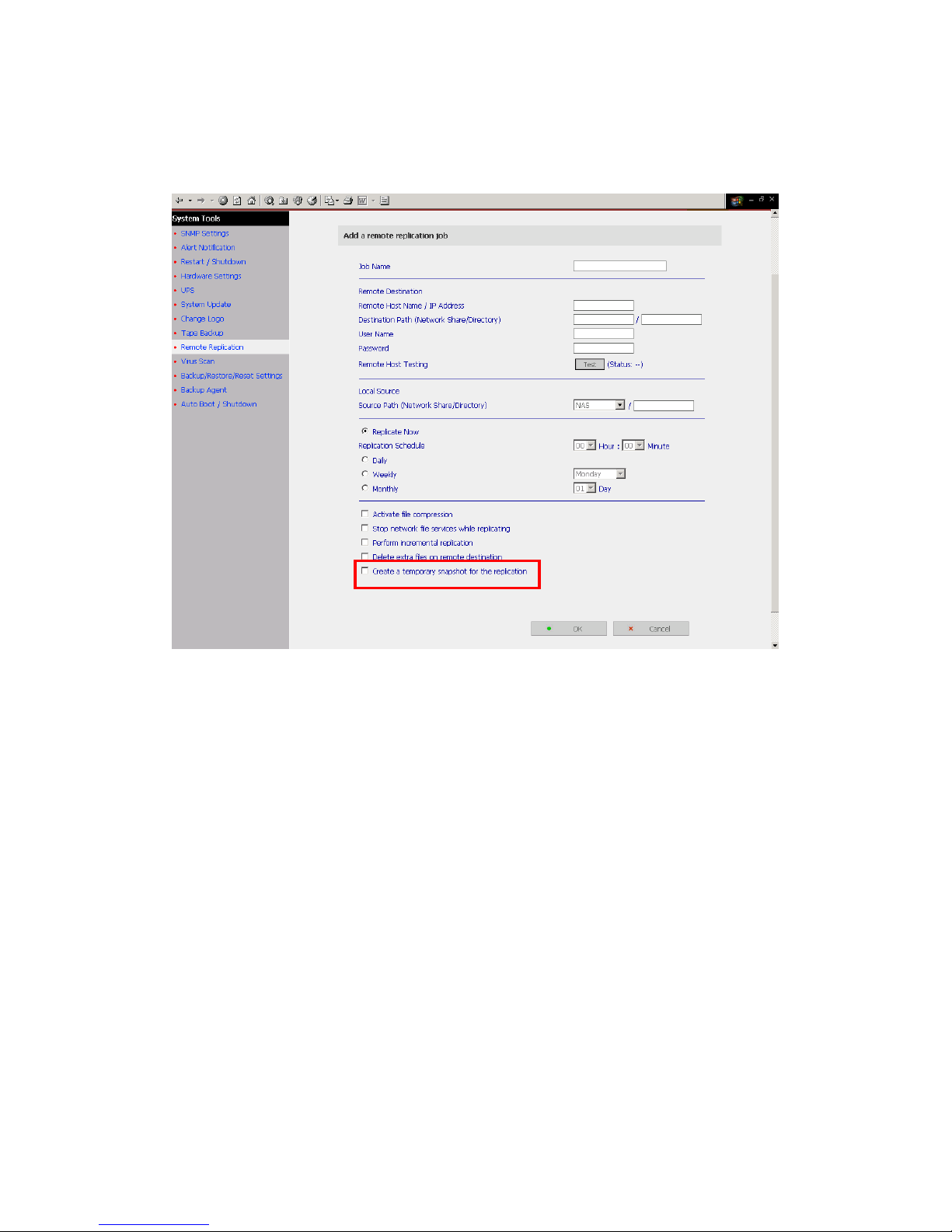

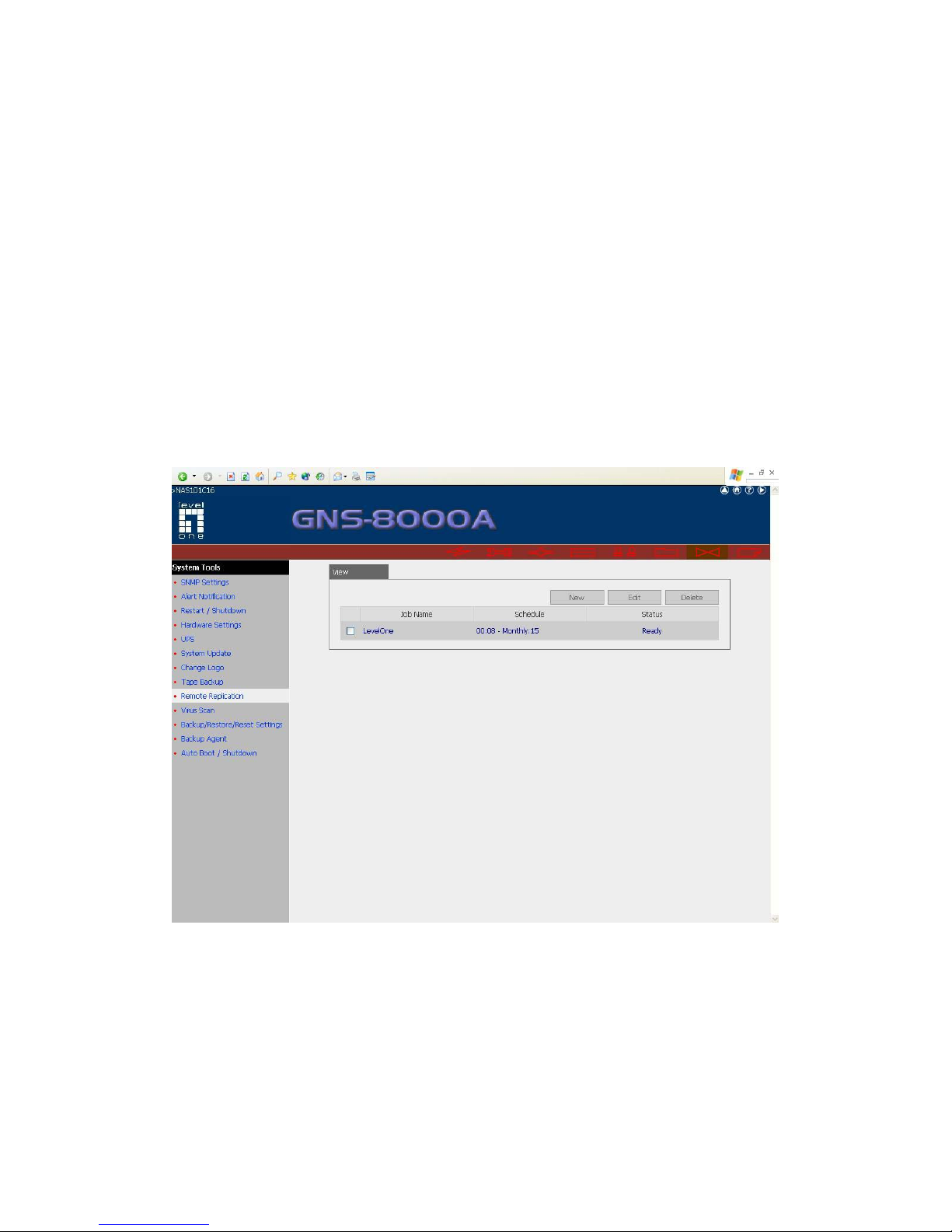

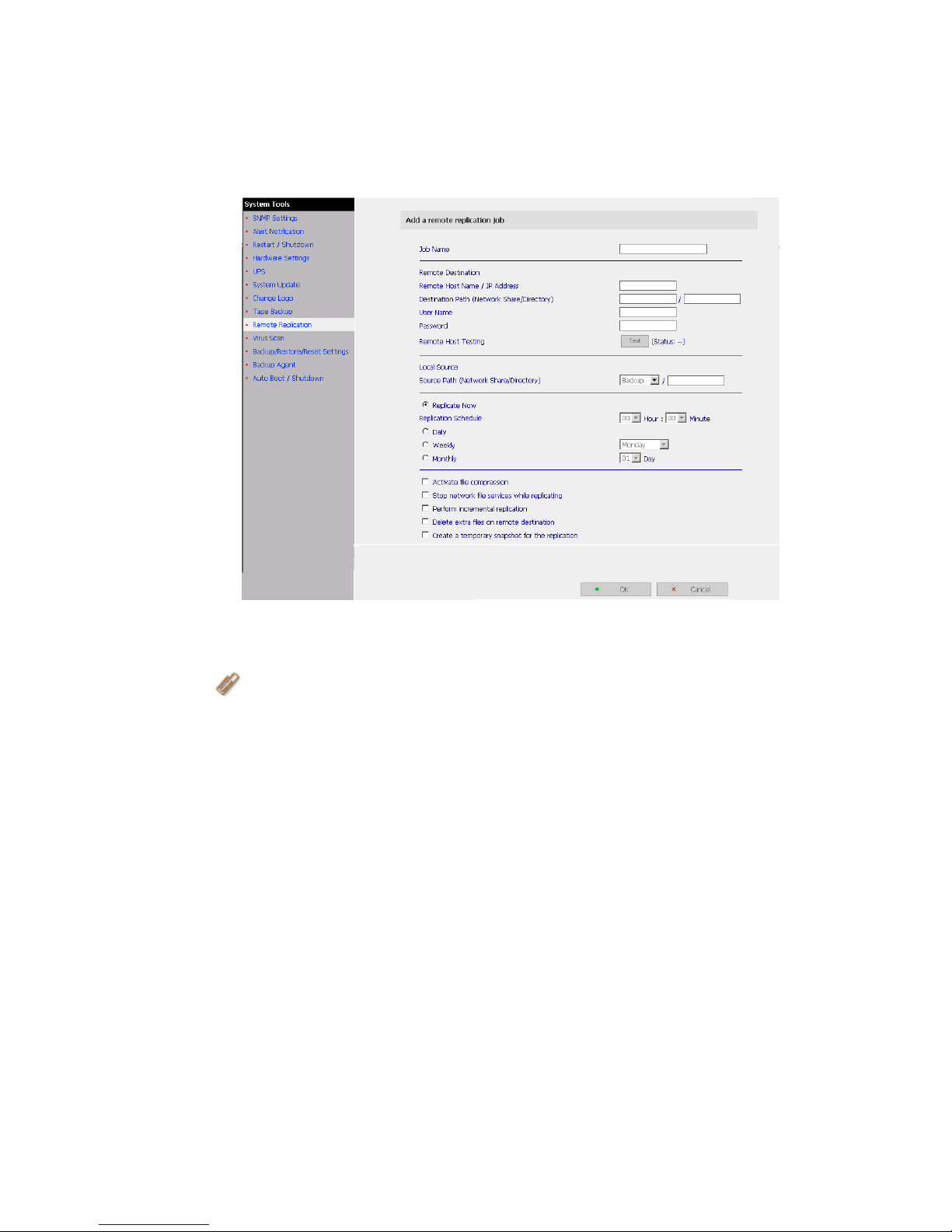

• Remote Replication
When you want to replicate the local files to the remote folder on another
GNS-8000A, the remote replication function allows you to perform this job
with ease. You can perform immediate replication job or schedule a
replication job to be executed at the specified time periodically. In order to
reduce the network bandwidth usage as well as the time consumed, you can
select to compress the files before transferring them over the network.

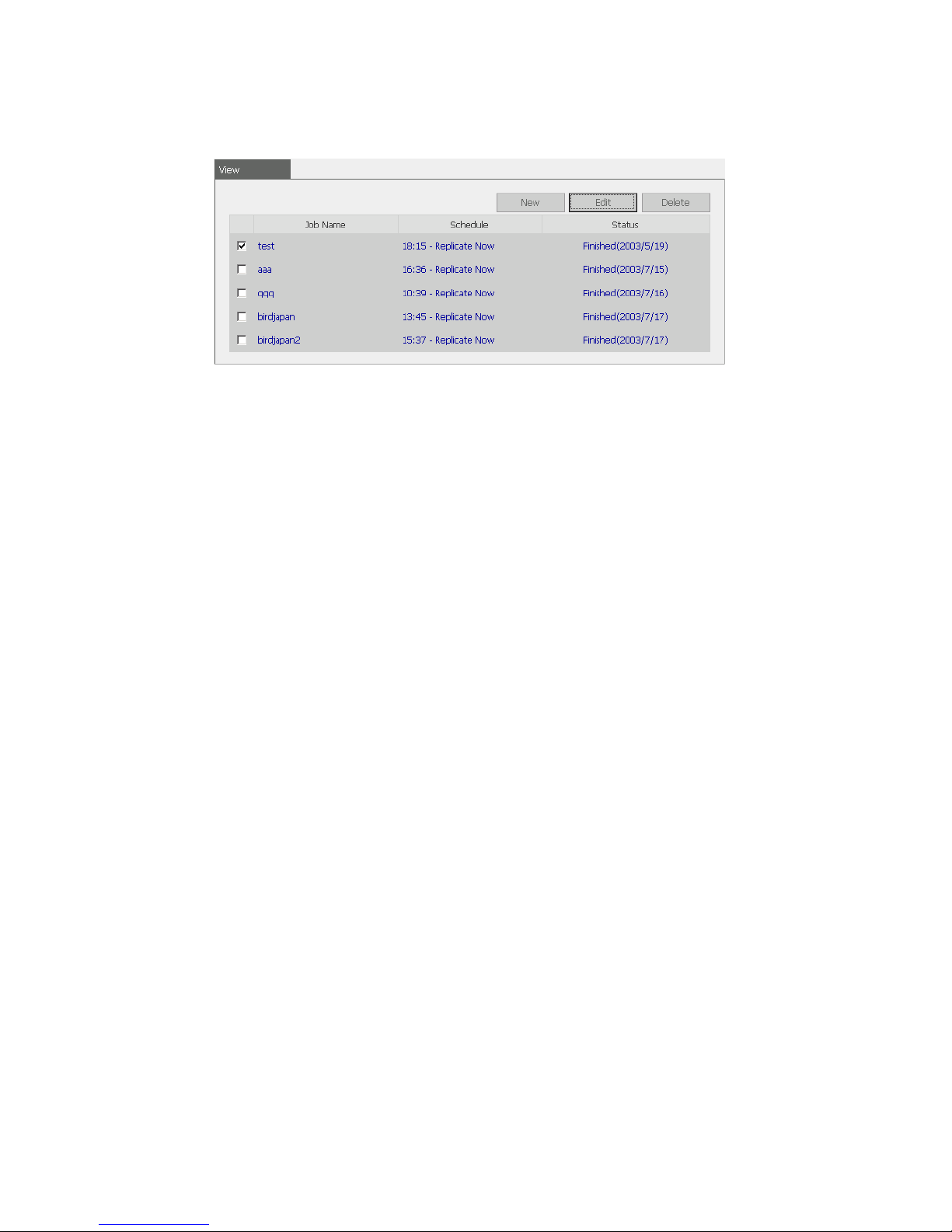

- Scheduled
You can schedule remote replication job every day, week, or month at a
particular time.
This option enables you to carry out real-time remote replication job.
Specify the source path, remote server, destination and port; files will be
backed up to a particular remote folder when the job is executed.
- Real-time
This function makes real-time remote replication possible. Once the local
client and the remote server are set up probably, files copied to the
specific local folders will be replicated immediately to the corresponding
remote folder. The replicating process has been optimized. Therefore,
only different part of a file is copied. When a local file is removed, the file
on the destination folder will also be removed.
- Server Setup
A real-time remote replication server can accept specific client connections,
and makes a duplicate of the client data. To make this server a real-time
remote replication server, you have to set up the server first.
Note:
1. Before using this function, make sure Microsoft network service of
remote GNS-8000A has been enabled. Check that the replication path
is correct and the user account is authorized for accessing the remote
server.
2. Do not enter the same IP address for “Remote Host Name / IP” and
“Local Source Path”, i.e. do not use the same host name or IP address
for the source and destination of remote replication.)
24

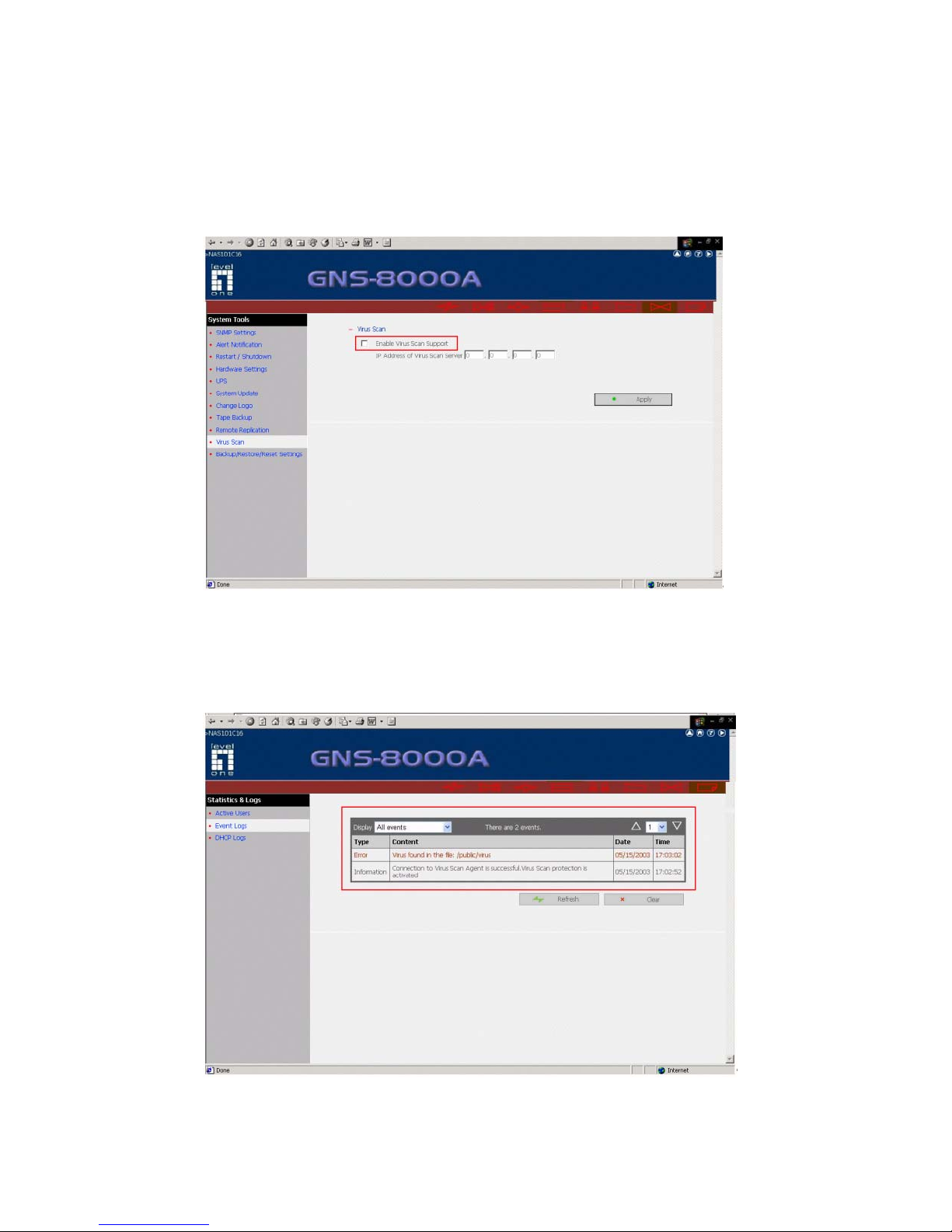

• Virus Scan

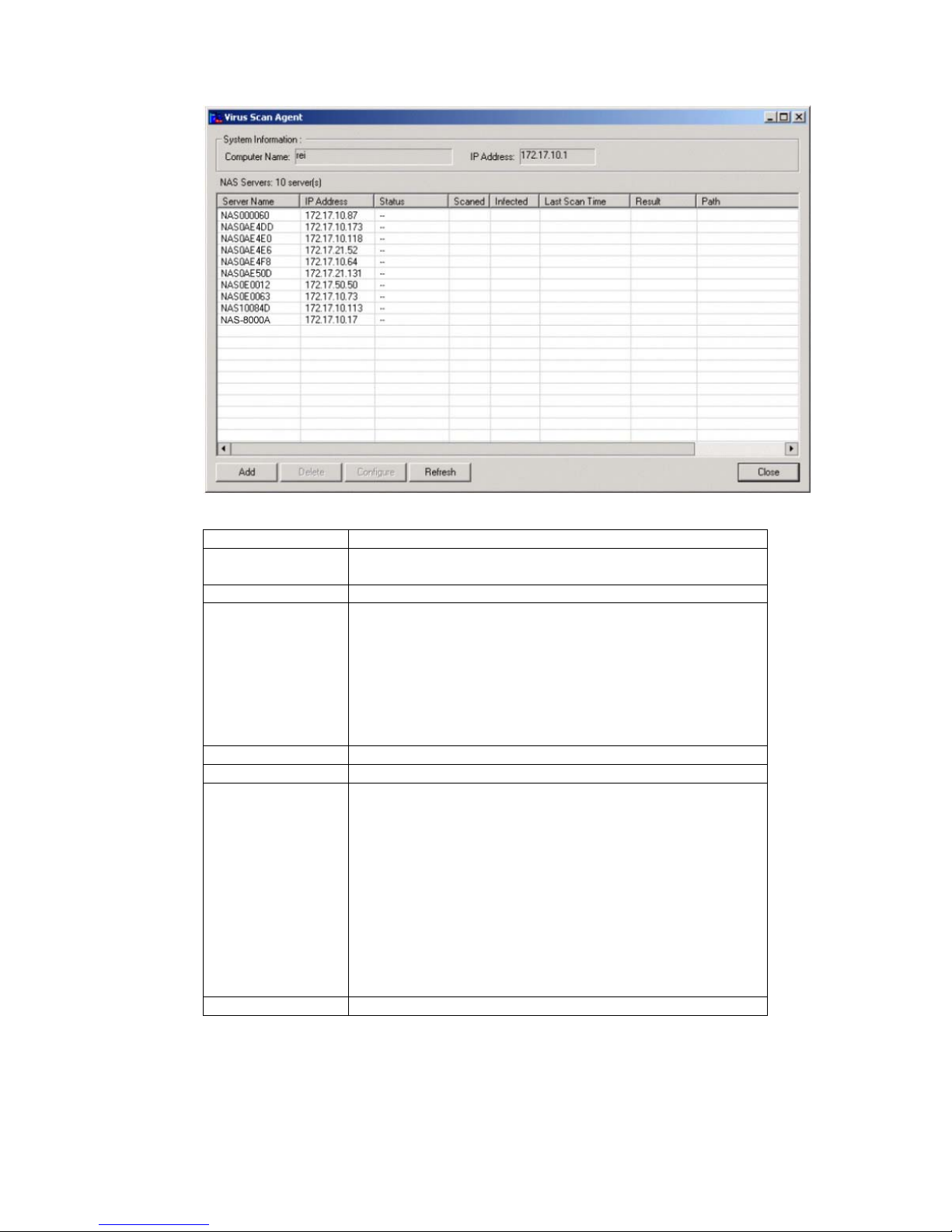

Virus scanning agent helps you protect your system from being infected by
viruses. You need to operate Windows NT or Windows 2000 server with
virus-scanning software installed to perform real-time virus scanning. To
enable virus scan support, specify the IP address of network share, the
administrator IR and password.
Infected files are automatically deleted or quarantined by the NT virusscanning software as setup by the NT administrator.
• Backup/ Restore/ Reset Settings
If you want to backup configuration settings, please select one configuration
and then click [Save] button. The system may ask you whether to save or
open the backup configuration file, in this case please choose to save it.
Please keep the backup image file carefully.
If you want to restore configuration settings, please select one configuration
and then first click the [Browse...] button to specify the backup image file
then click the [Restore] button.
You can also reset the following settings to the default values:
- Users/Groups settings
- Disk configuration
- Share Volume Settings
- Hardware settings
- System settings
- Network configuration
- All settings

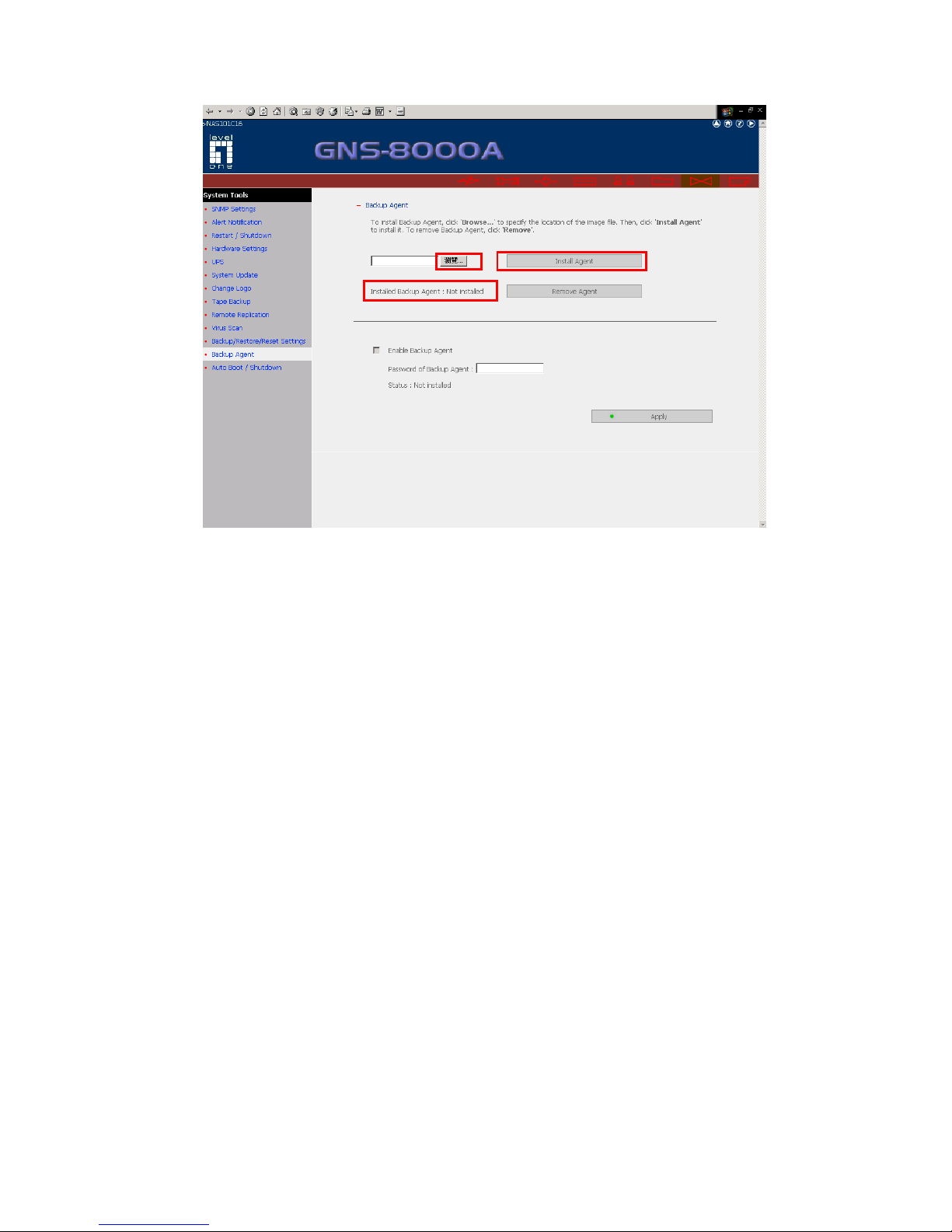

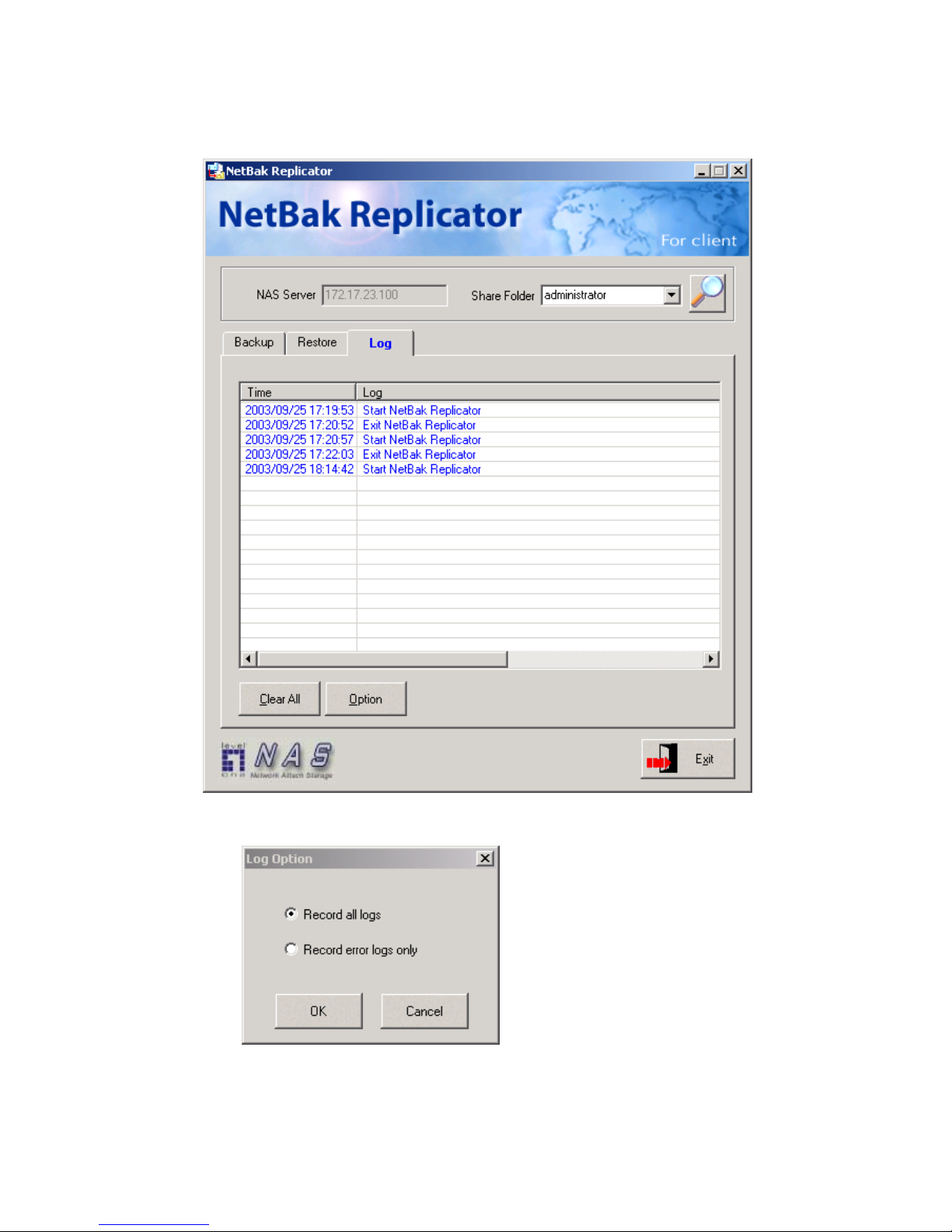

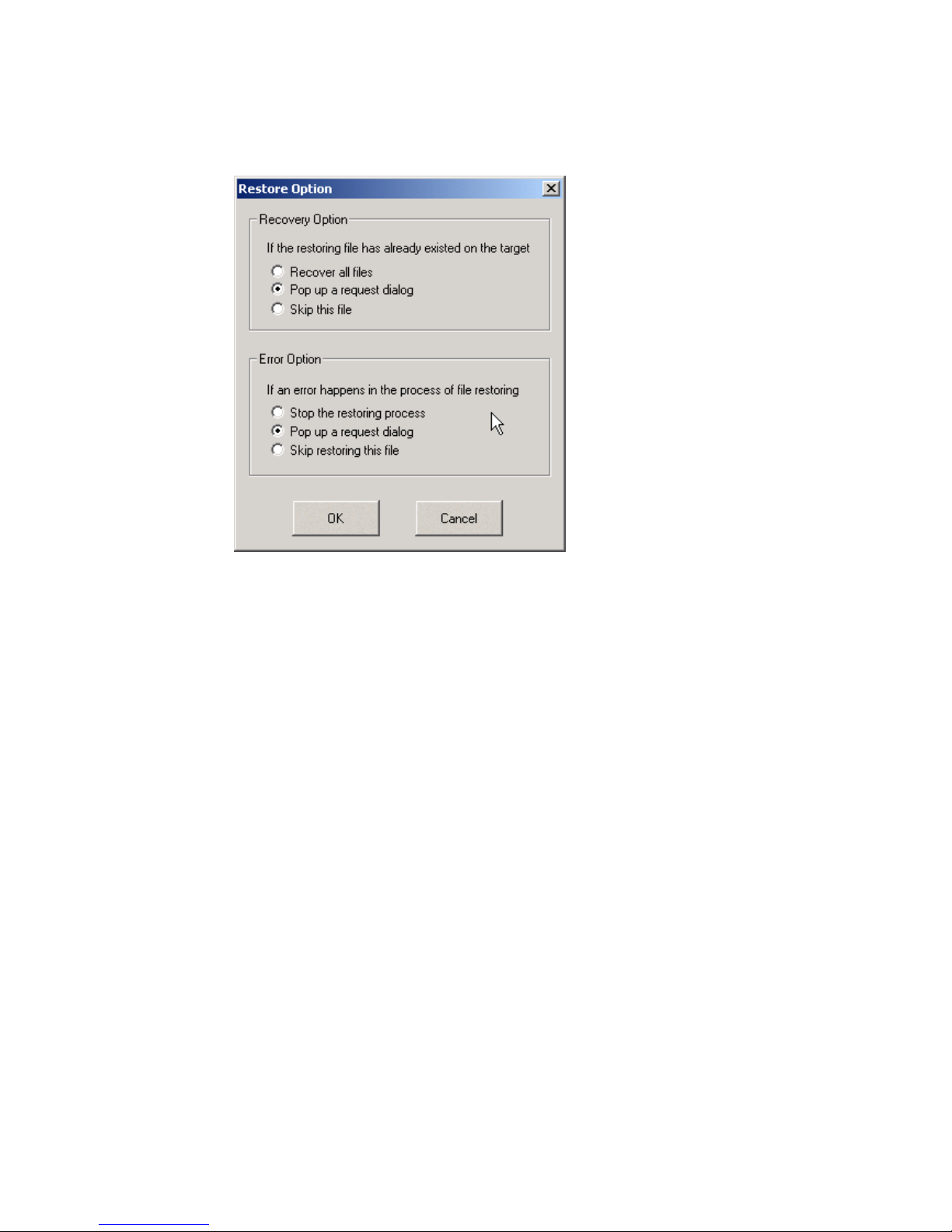

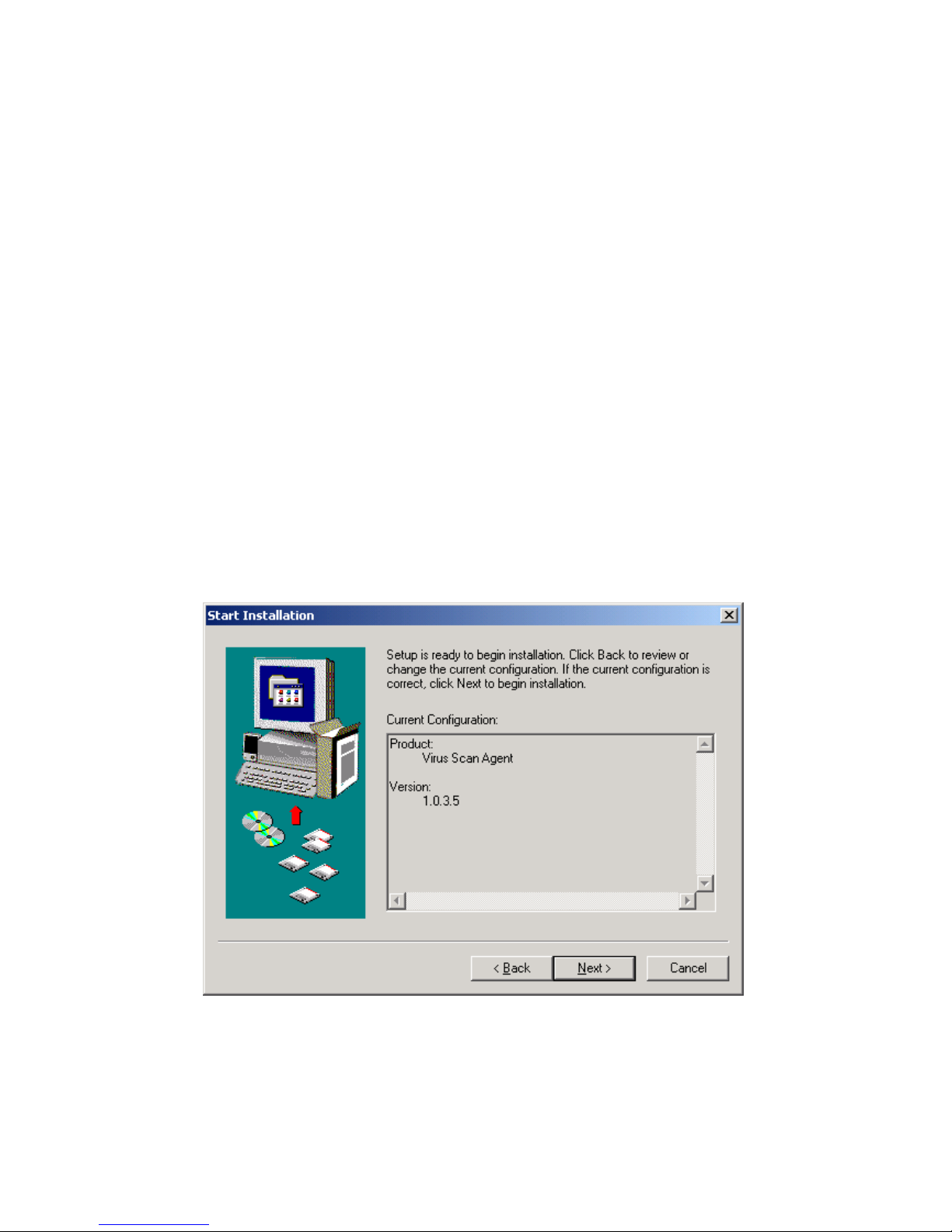

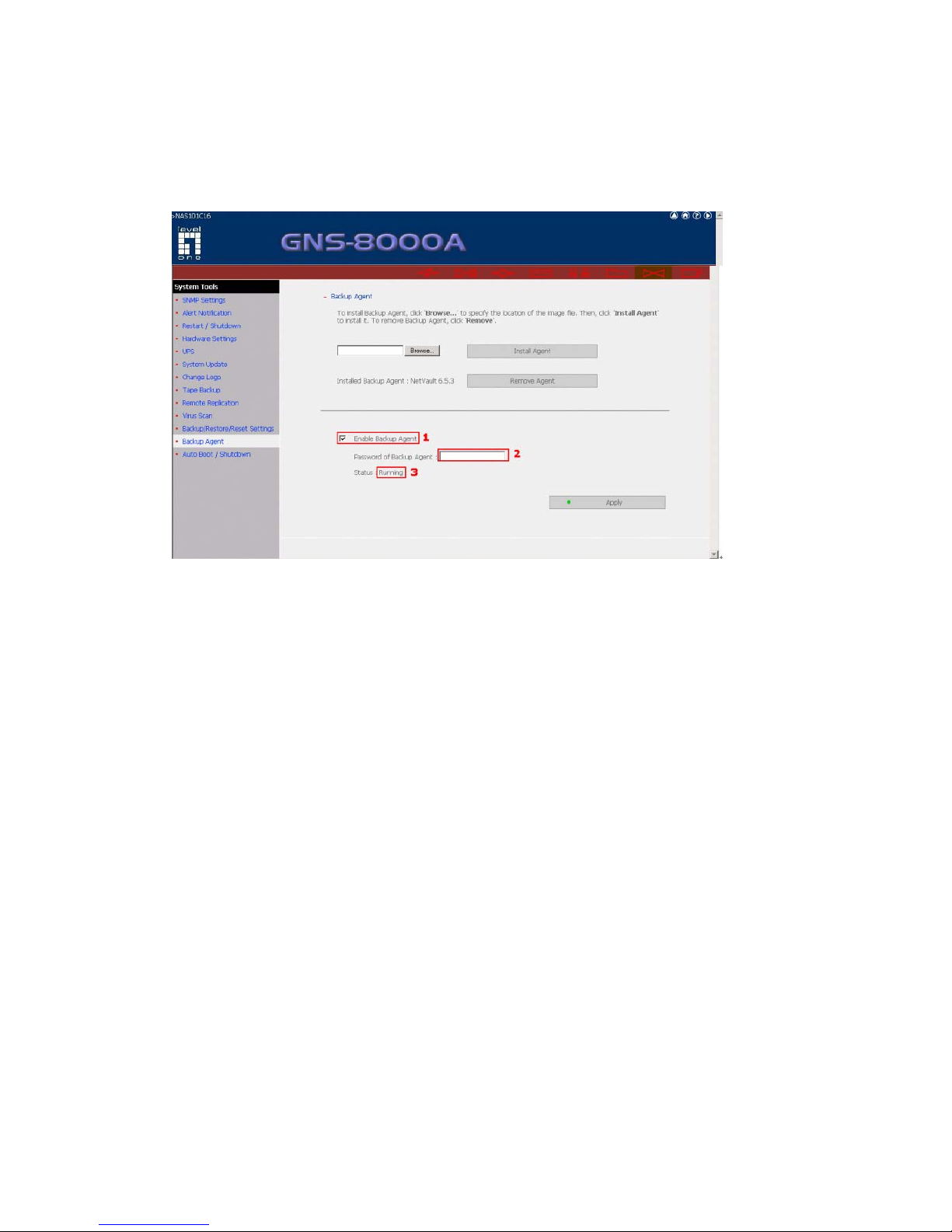

• Backup Agent
Backup Agent enables GNS-8000A to fully support most backup software
developed by storage management companies. Not only can the server be
compatible with more tape drive and tape library models, but also support
backup jobs in different OS. In addition, some cooperating companies have
developed certain virtual tape library models with backup agents, which have
enhanced the backup function of GNS-8000A and also turn GNS-8000A to a
multi-functional virtual tape library.
25
3.10 Statistics & Logs
You can monitor the current logon user of the GNS-8000A and the system event
logs for the purpose of user administration or system diagnostic reference.
• Active Users
Displays information on all online users.
• Event Logs
The GNS-8000A can store thousands of recent event logs, including warning,
error and information messages. In the event of a system malfunction (LCD
error indicator lights up), the event logs can be retrieved to help diagnose the
system problem.
• DHCP Logs
If the DHCP server function is activated, you can use it to monitor all of the
assigned dynamic addresses, client MAC addresses and other information.
26

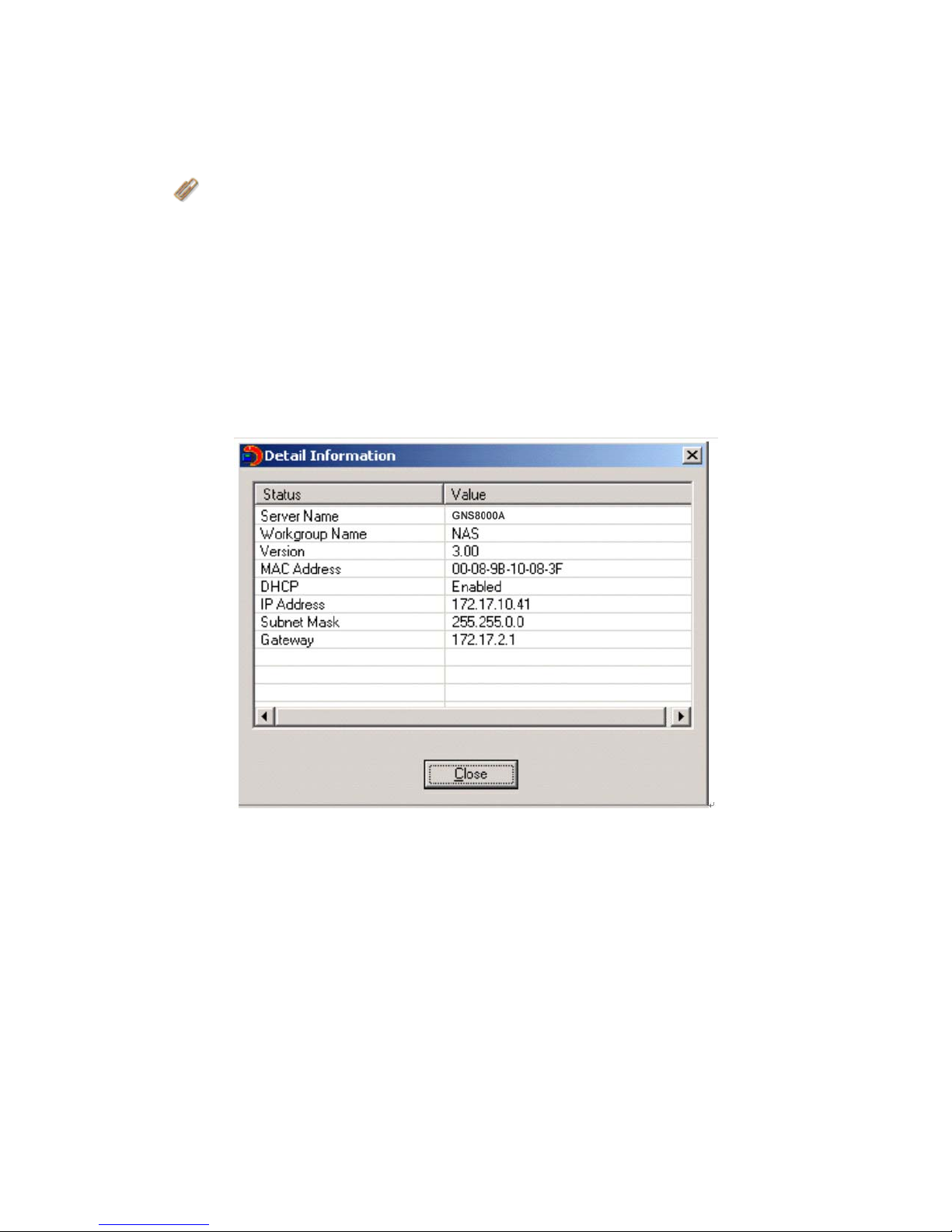

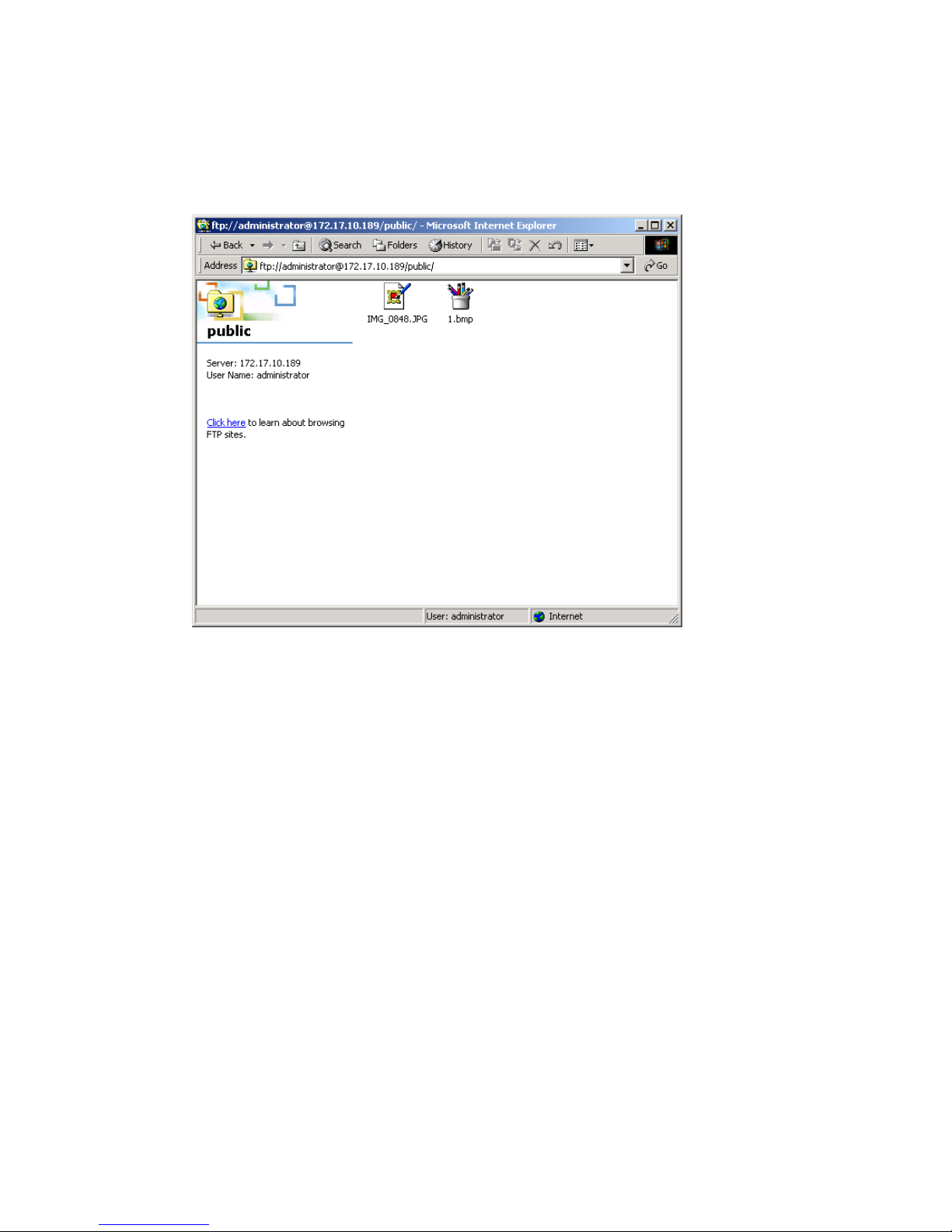

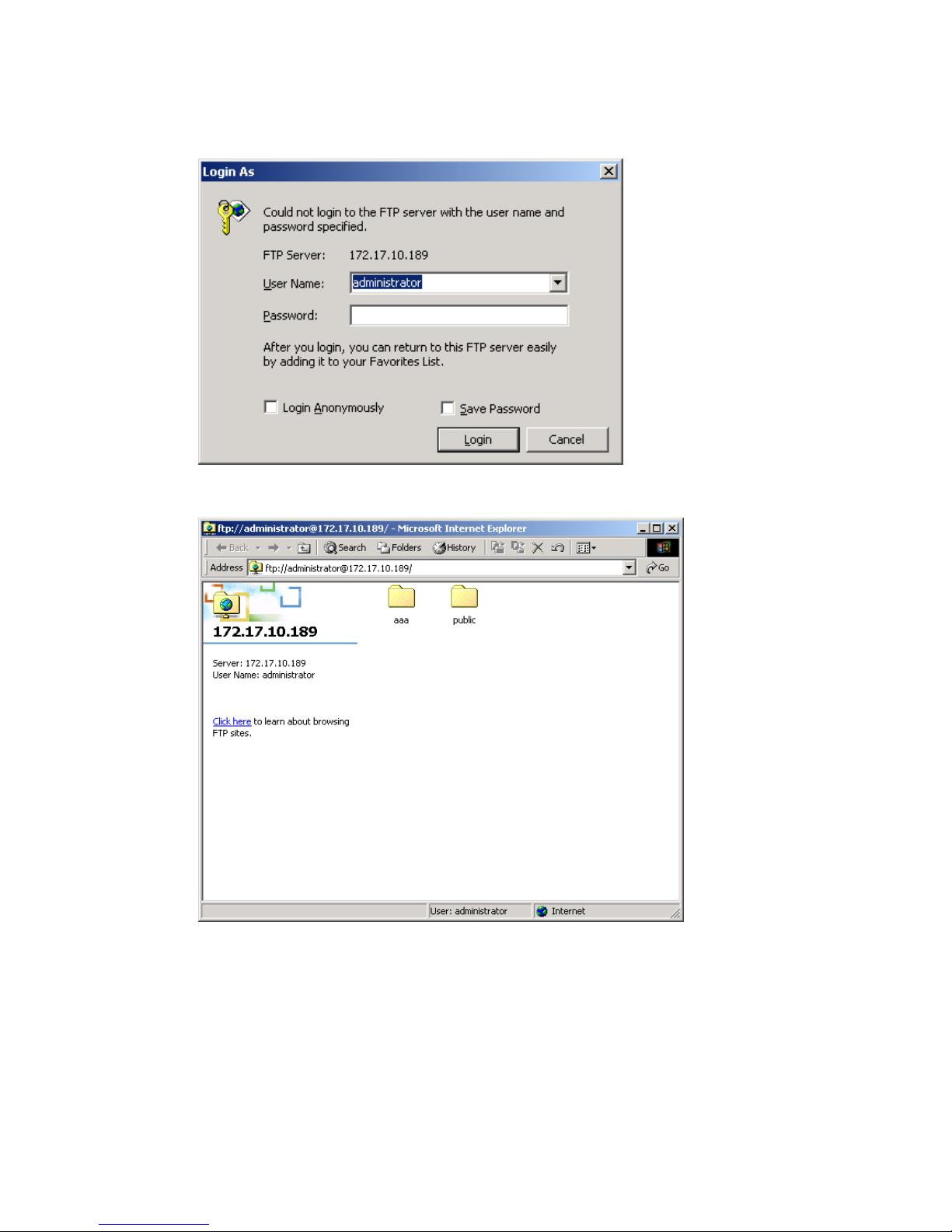

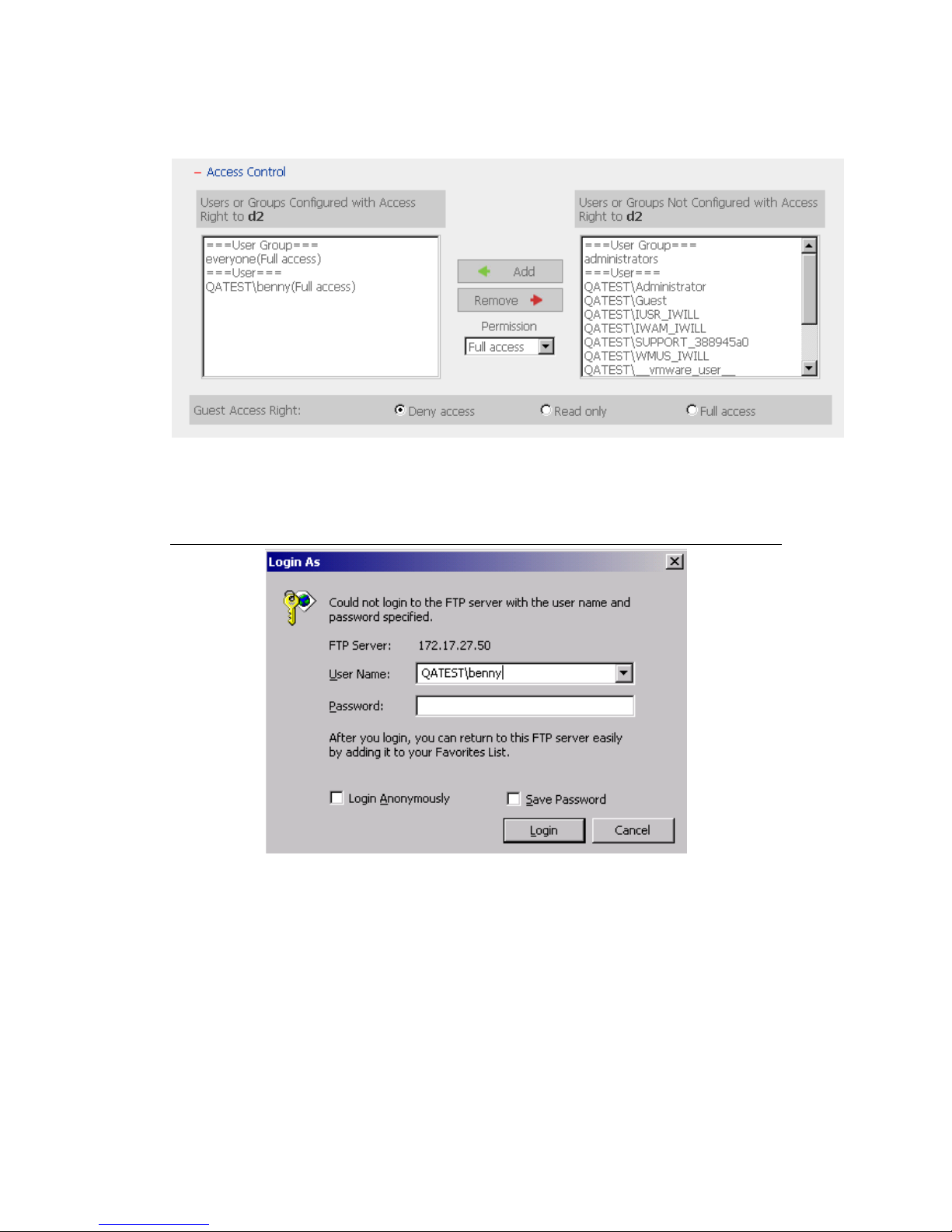

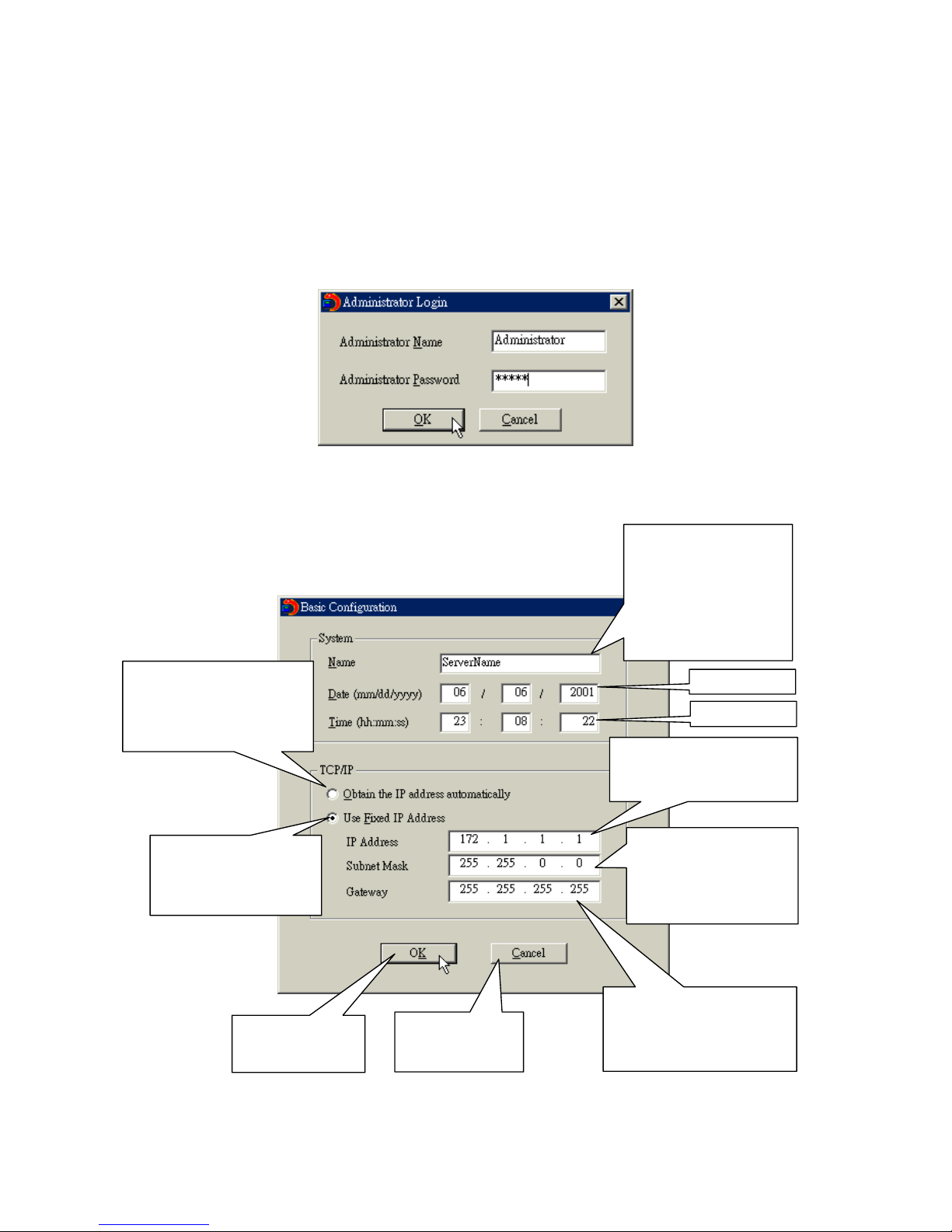

Chapter 4 Accessing GNS-8000A
4.1 Using Microsoft Windows
Under the Microsoft Windows operating system, you can access the GNS-8000A
using the following steps:
1. Use the following methods to locate and connect the GNS-8000A within the
local network:
• Click on the Start button and select Run in the Windows menu bar.
Enter the name of the GNS-8000A, for example: \\NAS004001, and
press Enter.
• You may also look for the GNS-8000A within the Network Neighborhood.
Locate the workgroup and find the name of your GNS-8000A. When the
server is found, double-click on the server name to connect.
• You may also use the “Search for Computers” function to look for your
GNS-8000A in Windows. Under Windows ME or Windows 2000, please
follow these steps:
1. Open “My Network Places” folder.
2. Under the tools bar menu click “Search”.
3. Computer Name path key-in GNS-8000A name.
4. Click once on Search.
Once the GNS-8000A is found, double-click your mouse button to
connect.

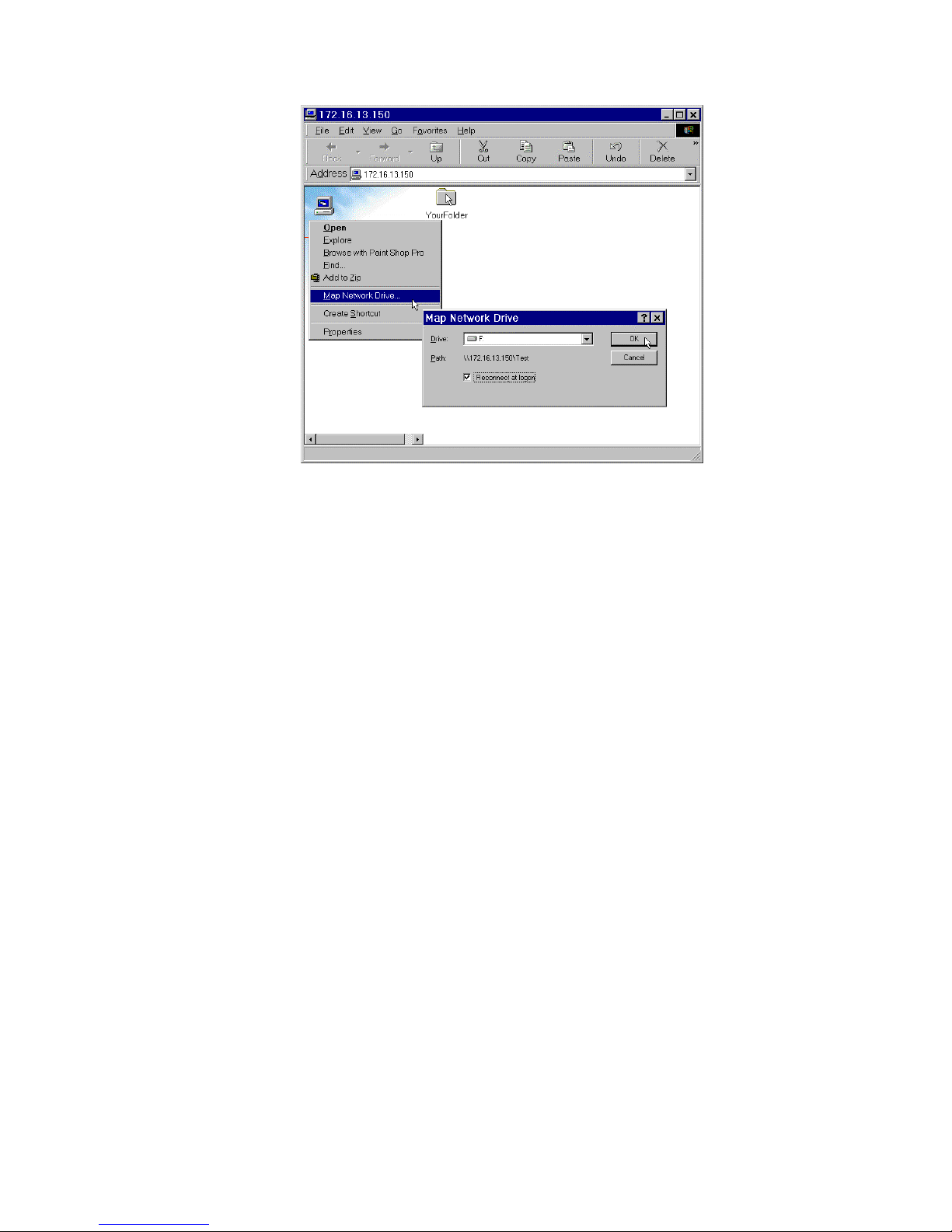

2. Once the connection to the GNS-8000A is successful, all listing on your
available network share are displayed. Move the mouse pointer to the
network share you want to access and click the right button once. A popup
menu appears; select “Map Network Drive”. A popup window that allows you
to assign a drive letter for the network share appears (note: do not use the
drive letter used by the CD-ROM). If you wish to make the share folder
available for your next start-up, check the “Reconnect at logon” box on the
popup window and click on “OK” to make the network share as one disk drive
in your system.
Loading...
