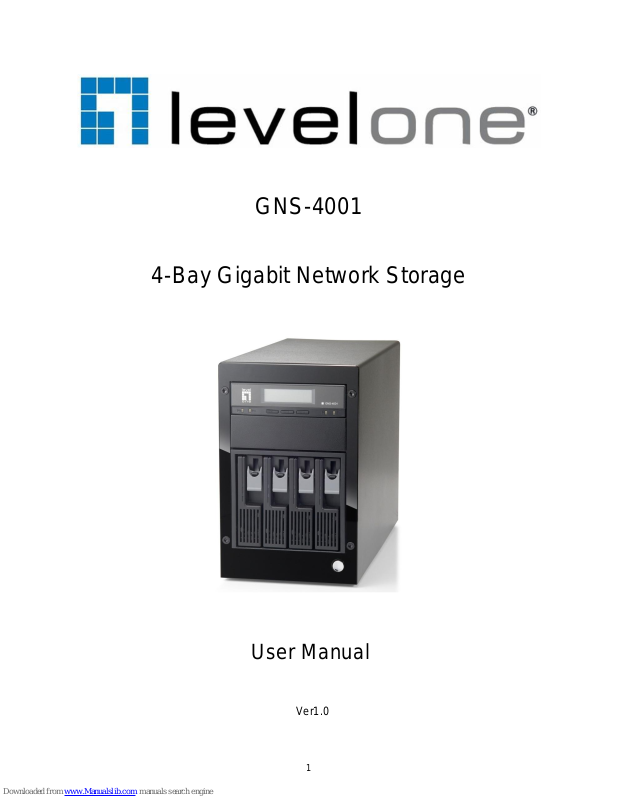

LevelOne GNS-4001 User Manual
1
GNS-4001
4-Bay Gigabit Network Storage
User Manual
Ver1.0
2
Electronic Emission Notice
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
CE Notice
This device complies with the EMC directive of the European Community and meets or exceeds the
following technical standard: EN 55022 ~ “Limits and Methods of Measurement of Radio interference
Characteristics of information Technology Equipment.” This device complies with CISPR Class A
standard.
Warning:
This is a Class A product. In a domestic environment
this
product may cause radio interference in which case the
3
Safety Information
To reduce the risk of fire or electric shock, install the unit in a temperature-controlled indoor area free
of conductive contaminants. Do not place the unit near liquids or in an excessively humid
environment.
Do not allow liquids or foreign objects to enter the unit. All servicing of this equipment must be
performed by qualified service personnel. Remove rings, watches and other jewelry before servicing
the unit.
Before maintenance, repair or shipment, the unit must be completely switched off and unplugged and
all connections must be removed.
Safety Notices:
The computer may provided with CD drives
comply with appropriate safety standards
including IEC 60825
Caution:
This unit is provided real-time clock circuit. There is
a danger of explosion if battery is incorrectly
replaced. Replace only with 3-Volt Lithium cell
(CR2032) or equivalent type. Discard used batteries
according to the manufacturer’s instructions.
Caution:
Before connect or disconnect power cord of the
power supply, ensure to turn the power supply switch
OFF to avoid the risk of equipment damage.
4
Table of Contents
1. INTRODUCTION ...................................................................................................................................7
1.1 Features ............................................................................................................................................................ 7
2. INSTALLING AND STARTING NAS SYSTEM ............................................................................................8
2.1 First & Quick Installation ........................................................................................................................... 8
2.2 Tower installation ...................................................................................................................................... 9
2.3 Setting the IP Addresses .......................................................................................................................... 10
2.4 Configuring the IP addresses using NAStool ........................................................................................... 13
2.5 Accessing the Administration Home Page ............................................................................................... 14
3. SERVER CONFIGURATION .................................................................................................................. 15
3.1 Server Information and Settings ..................................................................................................................... 15
3.2 Upgrading the Firmware ................................................................................................................................. 16
3.3 Shutting Down the Server ............................................................................................................................... 17
3.4 Enabling UPS Support ...................................................................................................................................... 18
3.5 Modifying the Administrator’s Password ........................................................................................................ 19
4. NETWORK CONFIGURATION .............................................................................................................. 20
4.1 Network Information....................................................................................................................................... 20
4.2 TCP/IP Settings ................................................................................................................................................ 21
4.3 Windows Settings ............................................................................................................................................ 23
4.4 UNIX/Linux Settings......................................................................................................................................... 24
4.5 Macintosh Settings .......................................................................................................................................... 26
4.6 Web Data Access Settings ............................................................................................................................... 27
4.7 FTP Data Access Settings ................................................................................................................................. 28
4.8 SNMP Settings ................................................................................................................................................. 29
4.9 Email Settings .................................................................................................................................................. 30

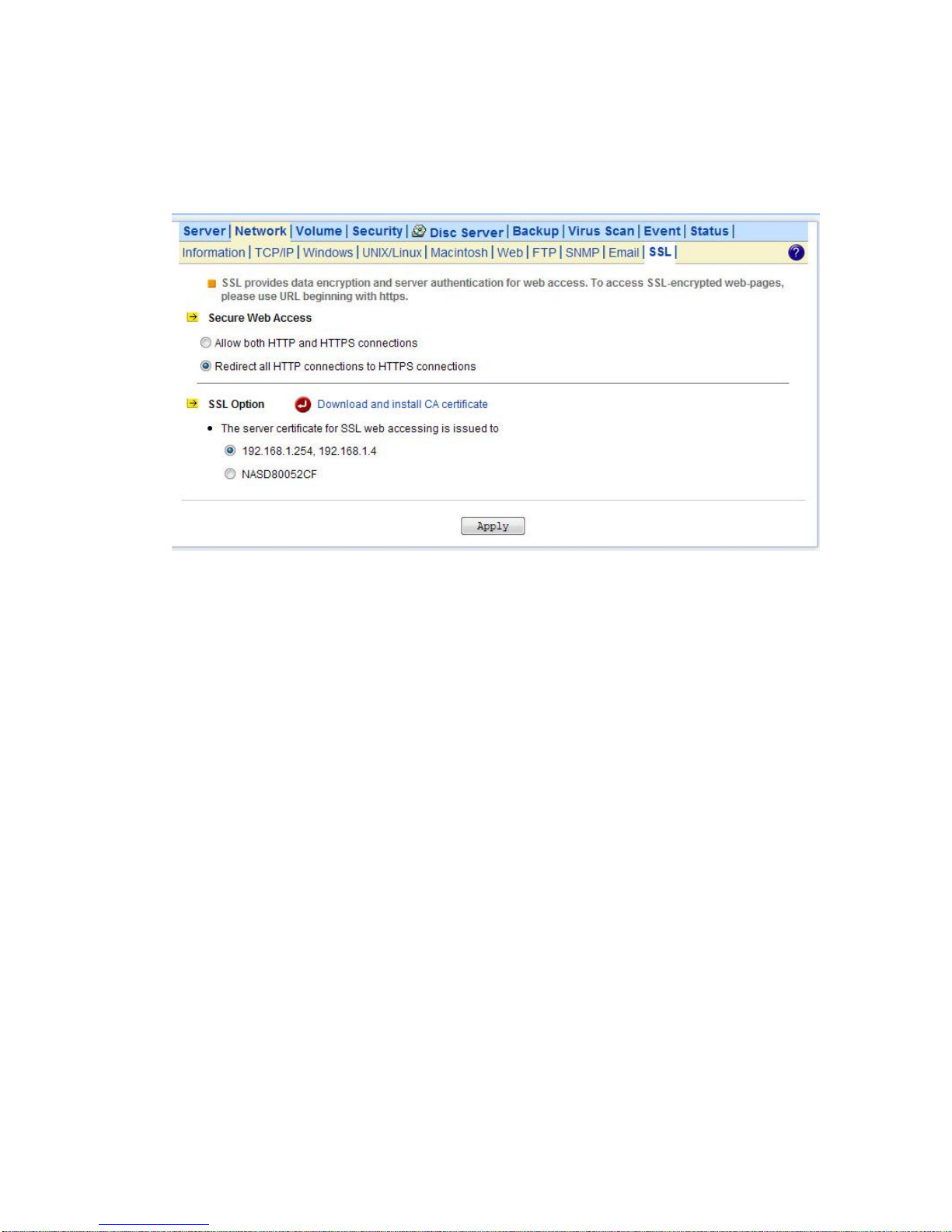

4.10 SSL Settings ................................................................................................................................................... 30
5. STORAGE MANAGEMENT .................................................................................................................. 32
5.1 Volume Usage and Status ............................................................................................................................... 32
5.2 Creating a Volume ........................................................................................................................................... 34

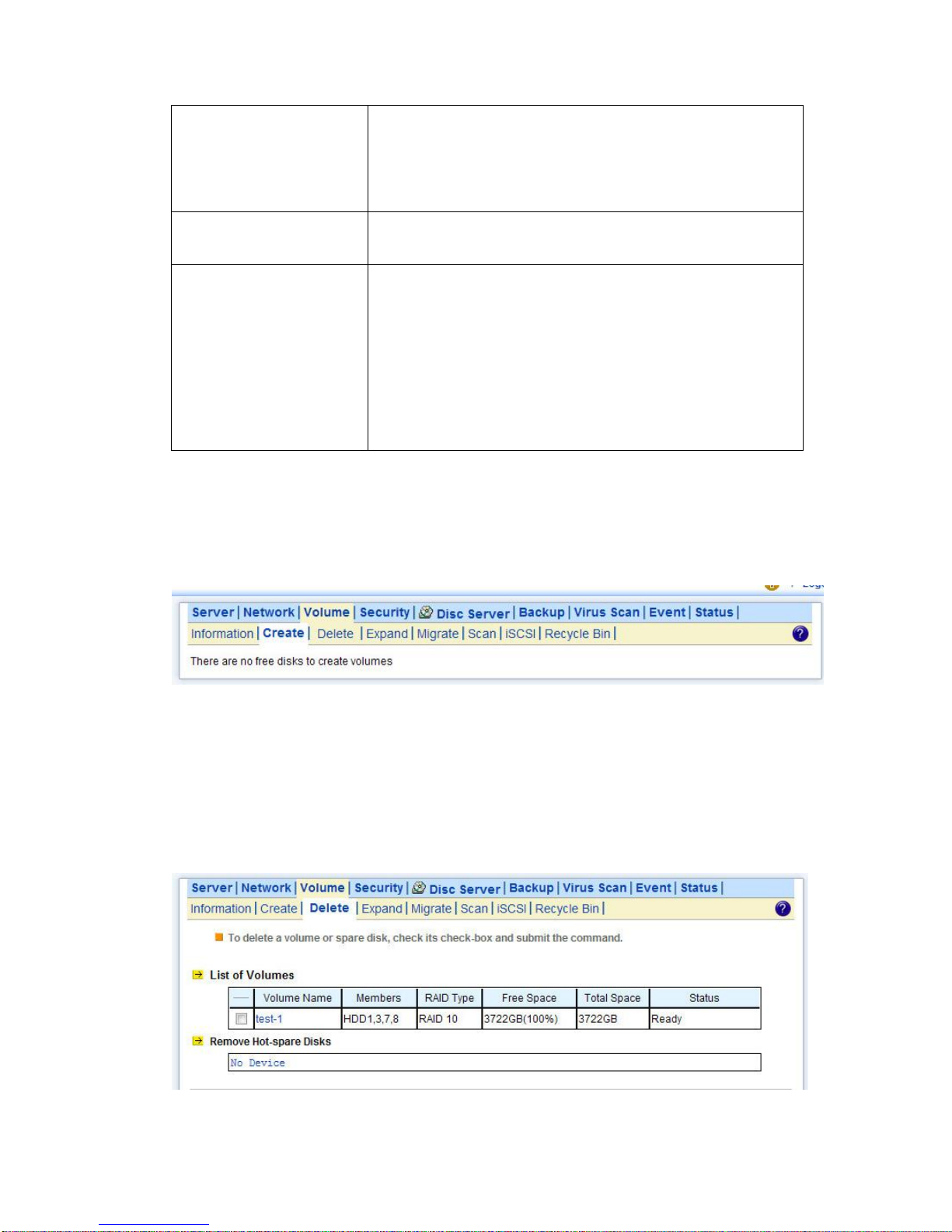

5.3 Deleting a Volume ........................................................................................................................................... 35

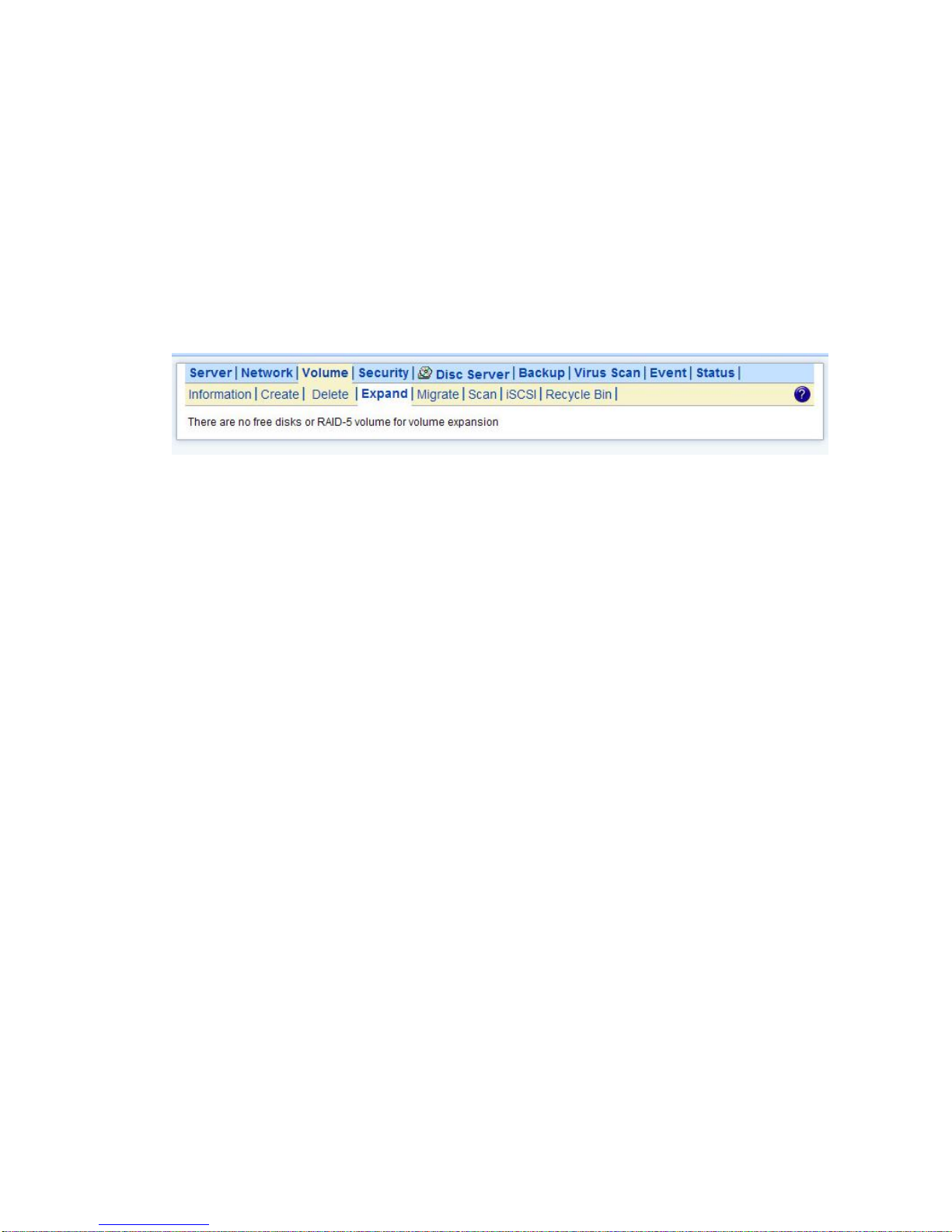

5.4 Expanding a RAID-5 Volume............................................................................................................................ 36

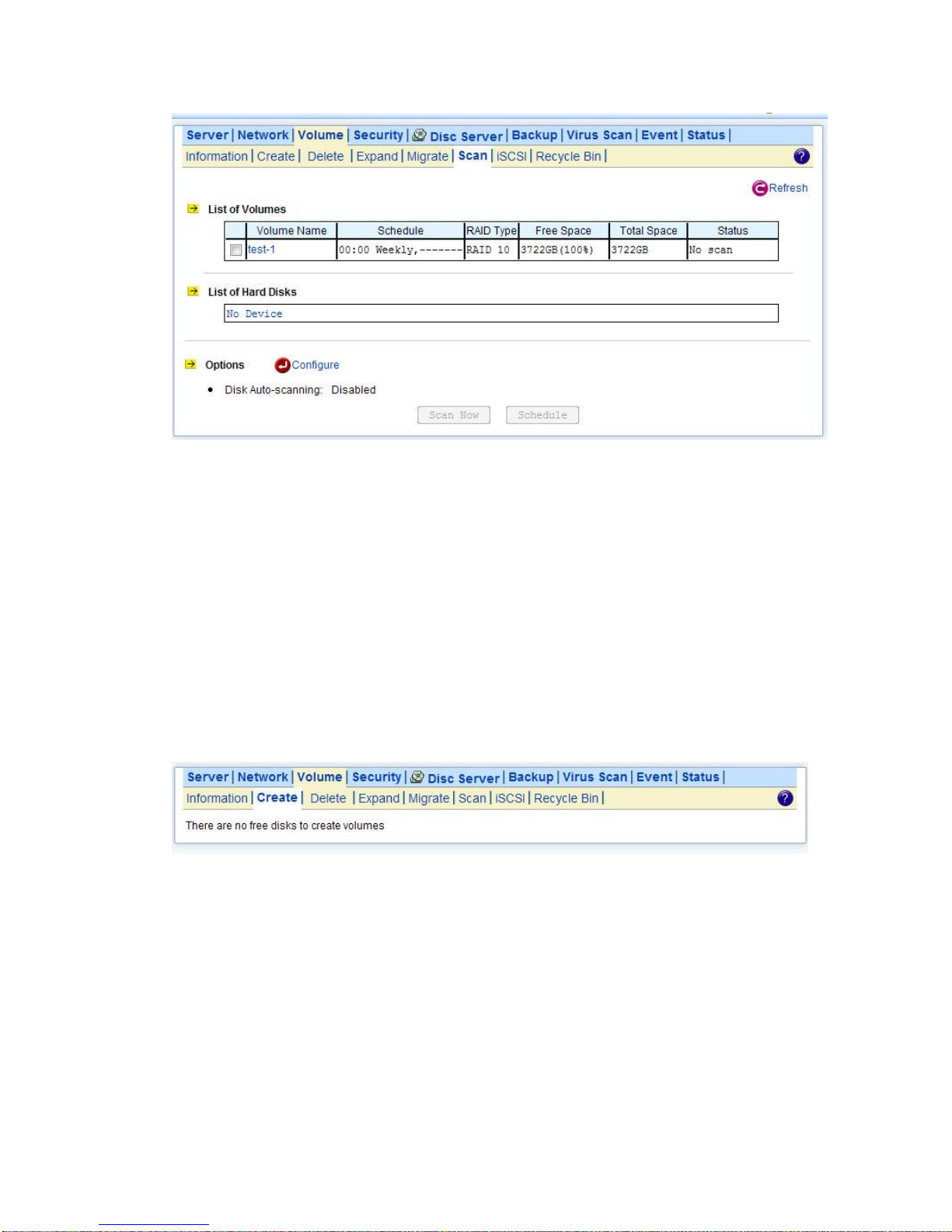

5.5 Volume/Disk Scan ............................................................................................................................................ 36
5.6 Assigning Hot-spare Disks ............................................................................................................................... 37
5.7 Migrating Data Volumes ................................................................................................................................. 37
5
5.8 Hot-swapping .................................................................................................................................................. 38
5.9 iSCSI ................................................................................................................................................................. 38
6. SECURITY CONTROL........................................................................................................................... 40

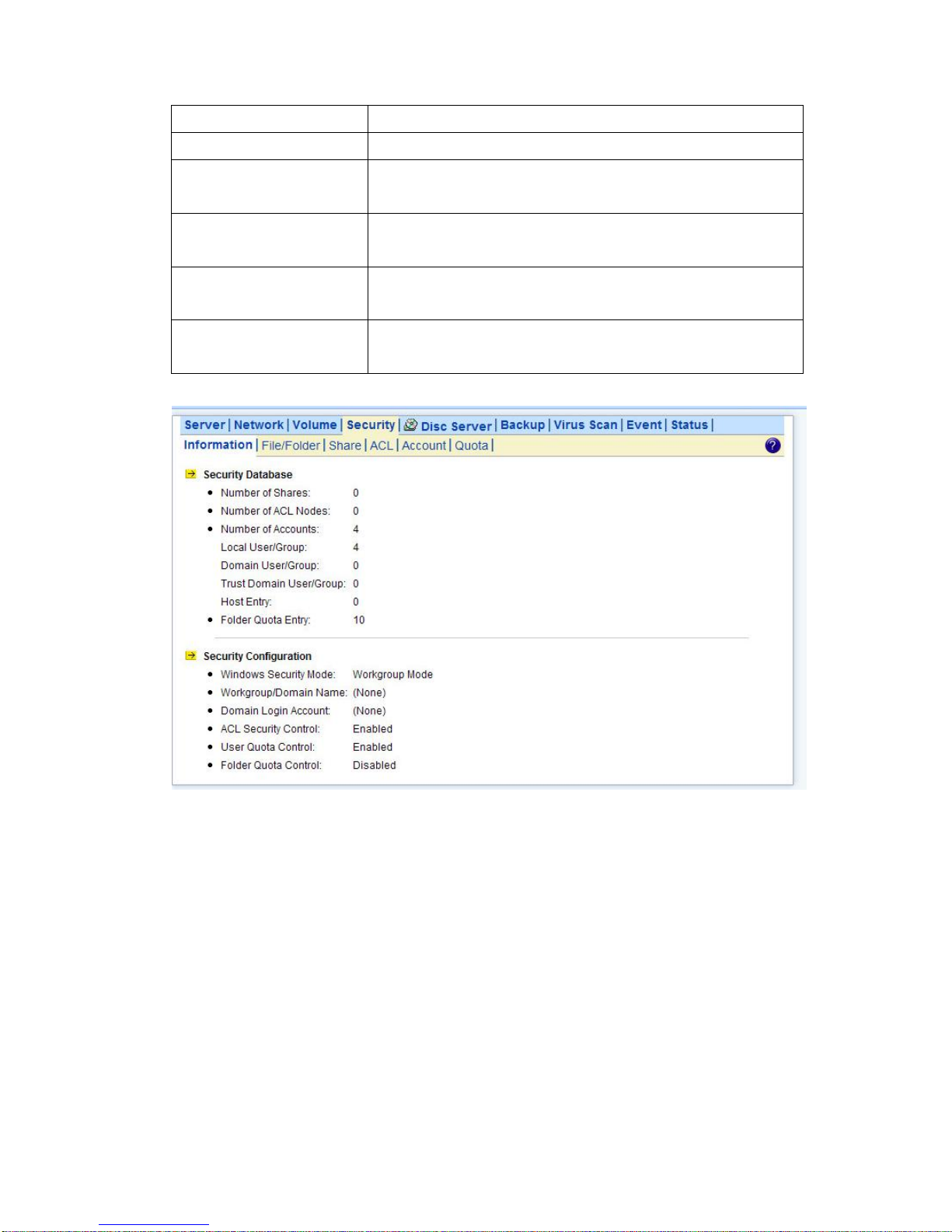

6.1 Security Information ........................................................................................................................................ 40
6.2 Creating the Local User and Local Group Accounts ......................................................................................... 41
6.3 Caching Windows Domain User Accounts ....................................................................................................... 43

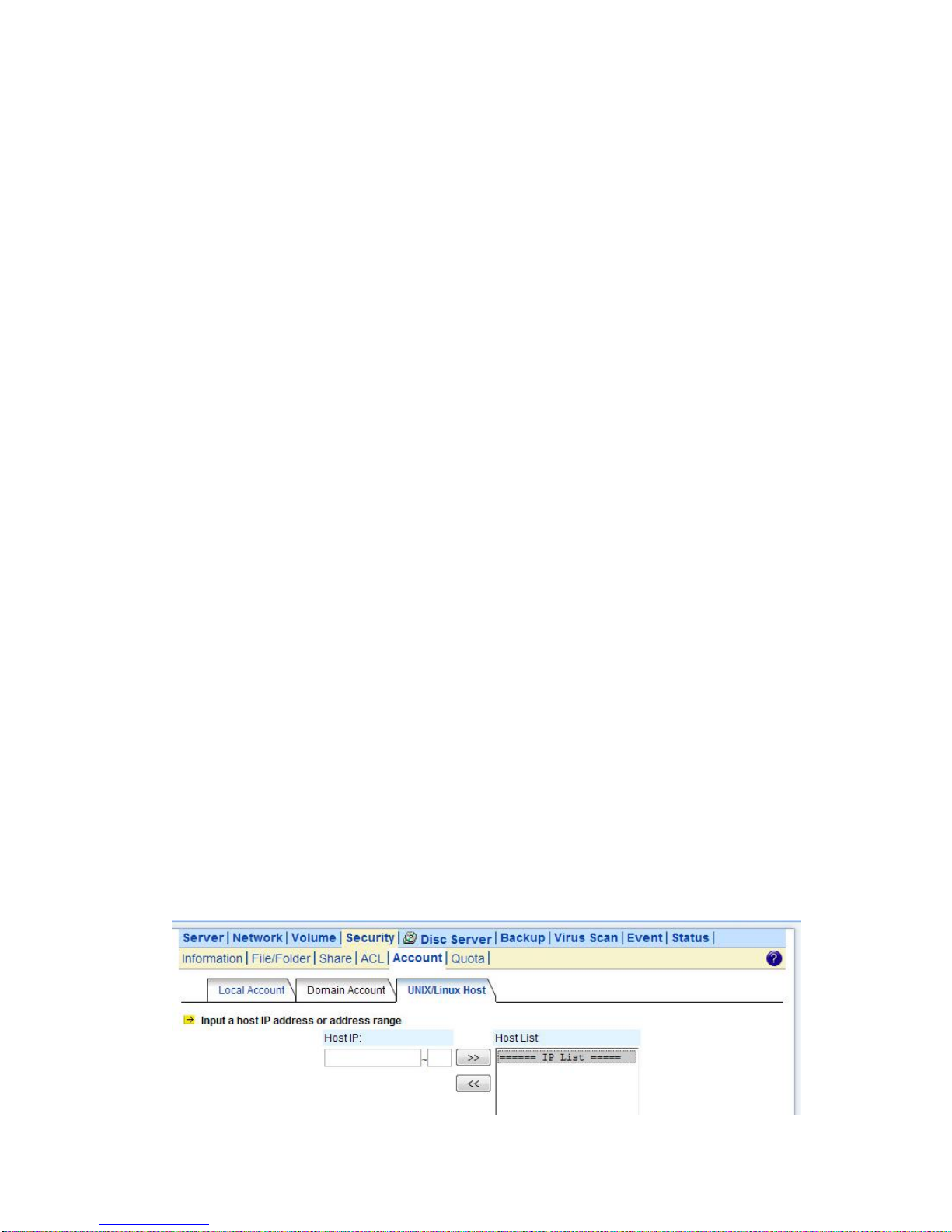

6.4 Creating UNIX/Linux Host ............................................................................................................................... 44
6.5 Creating Share and Assigning Share Permissions ........................................................................................... 45

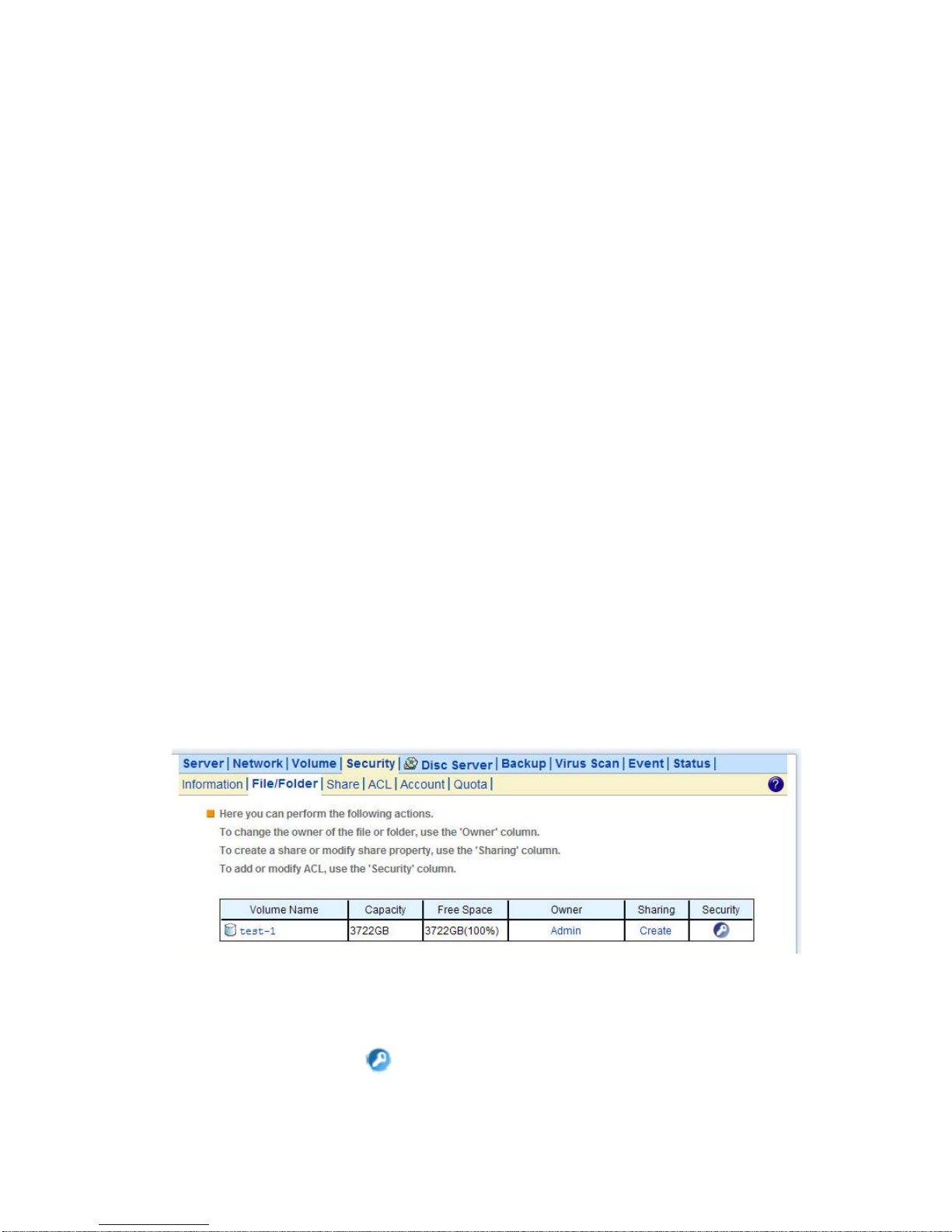

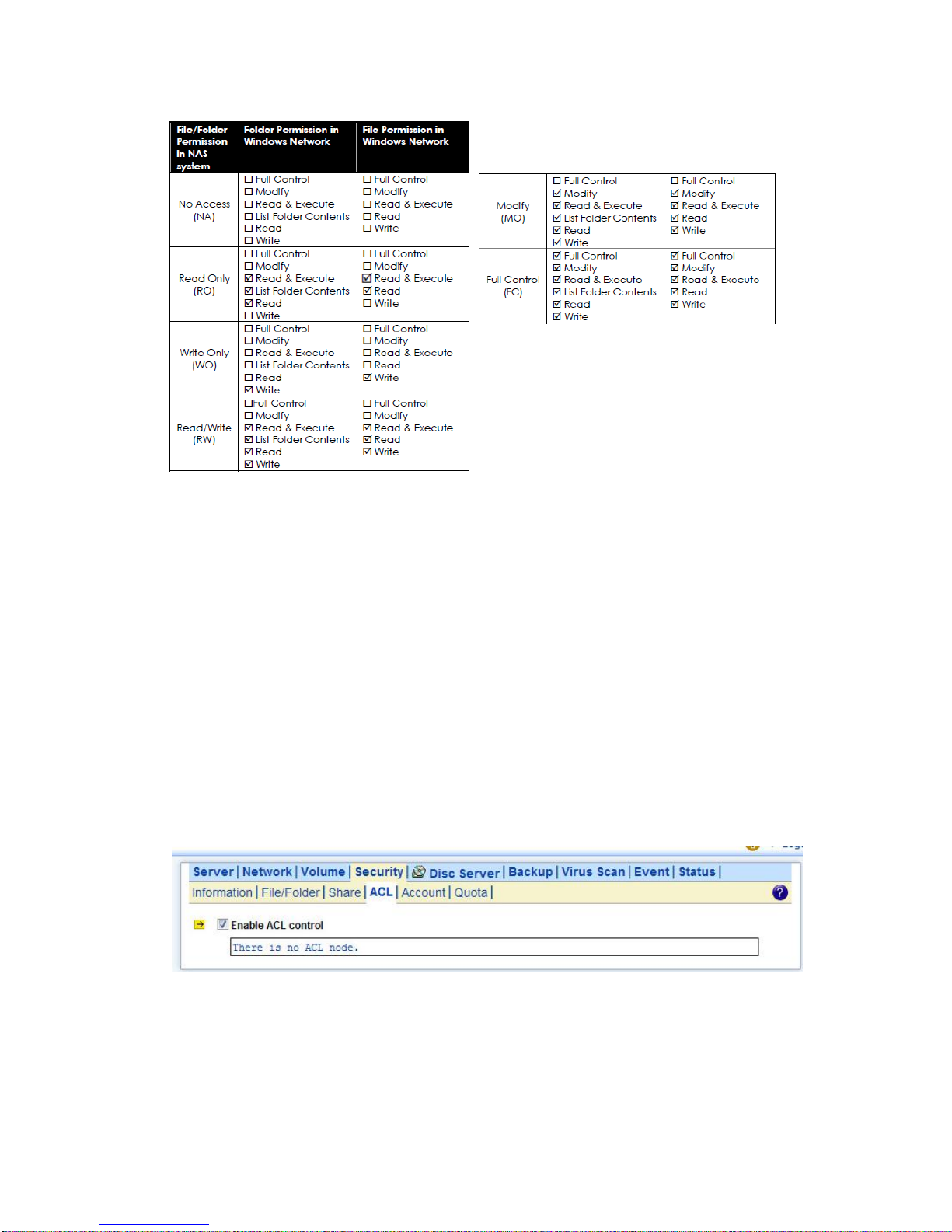

6.6 Configuring File and Folder Security and ACL .................................................................................................. 47

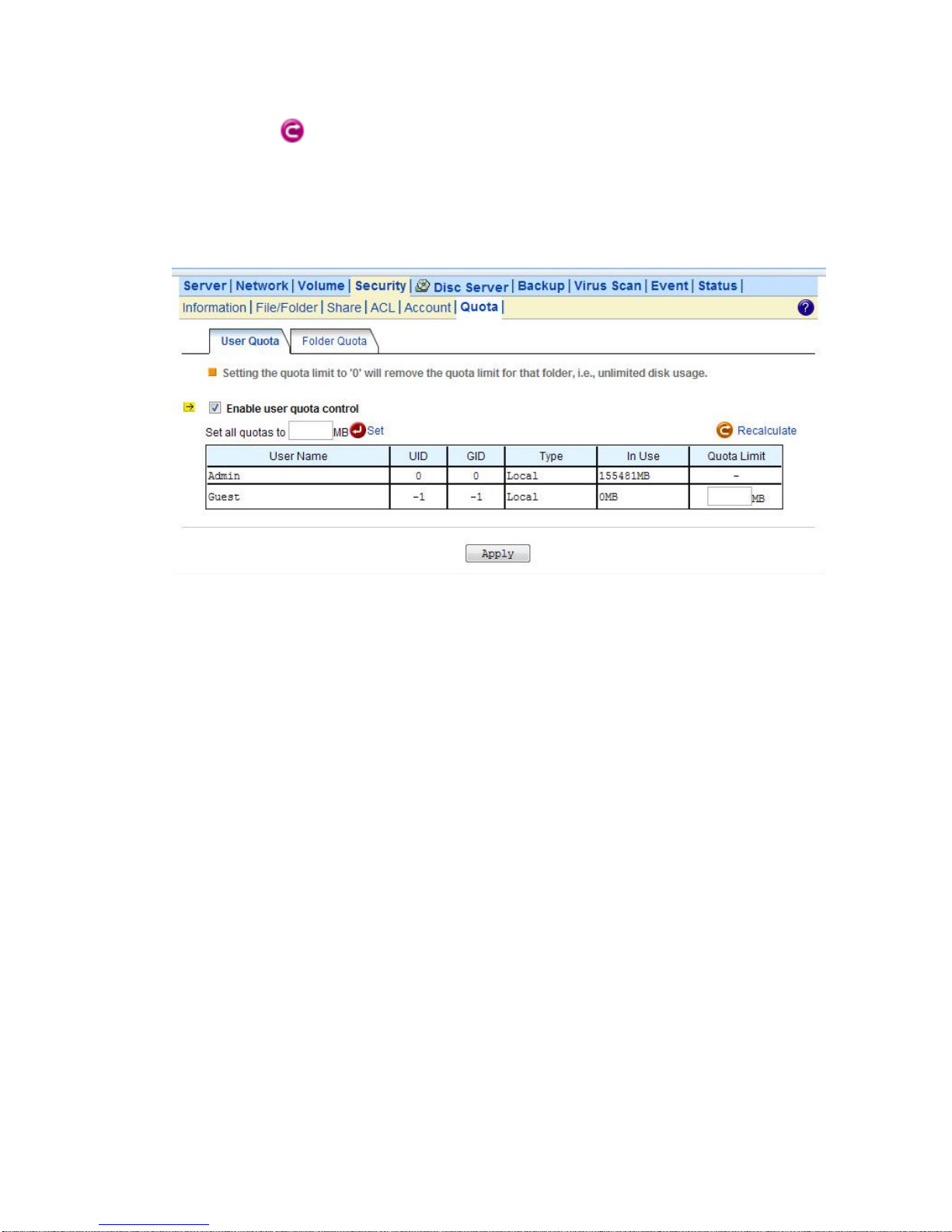

6.7 Managing Quotas ........................................................................................................................................... 49
7. DISC SHARING AND DATA ARCHIVING ............................................................................................... 52

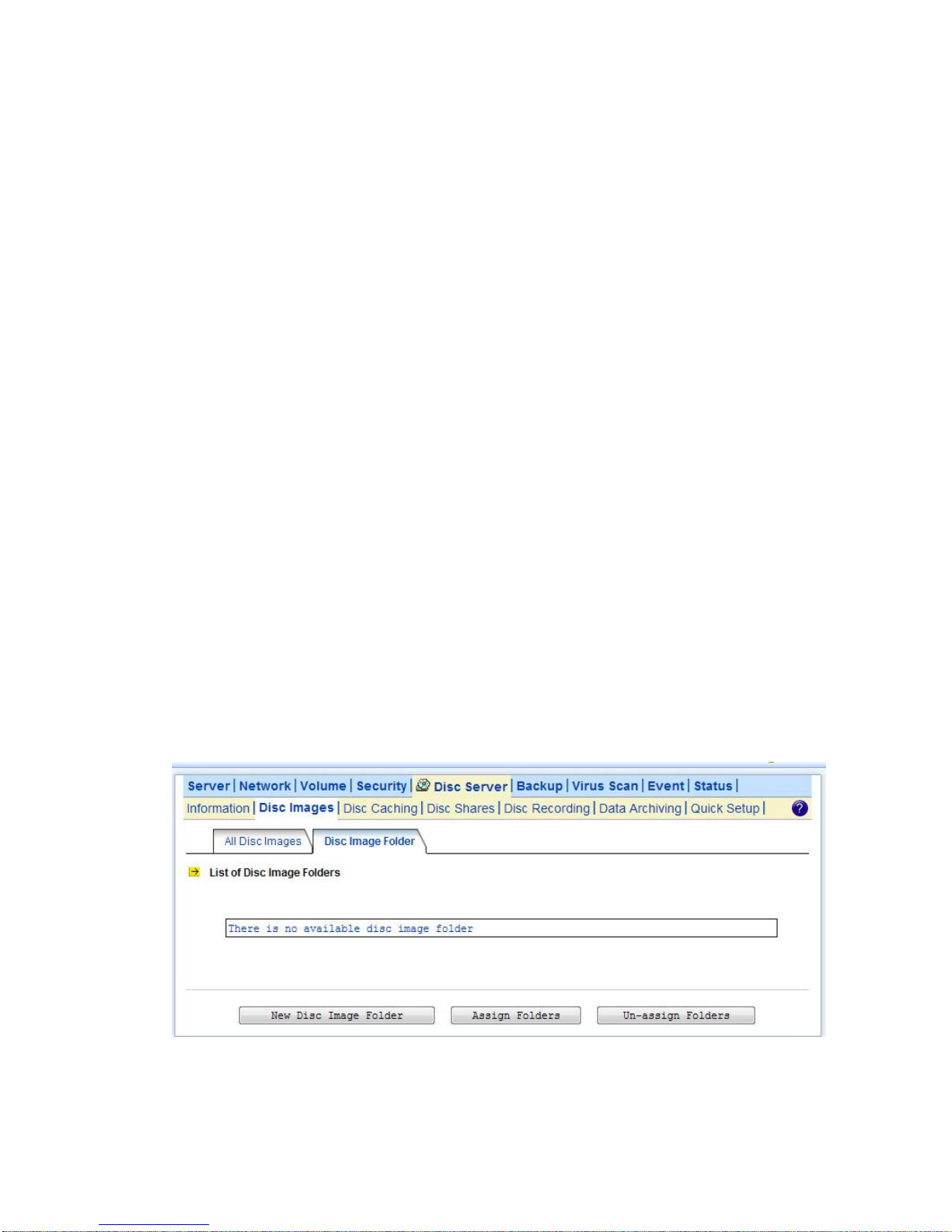

7.1 Creating Disc Images ....................................................................................................................................... 52
7.2 Managing Discs ............................................................................................................................................... 53

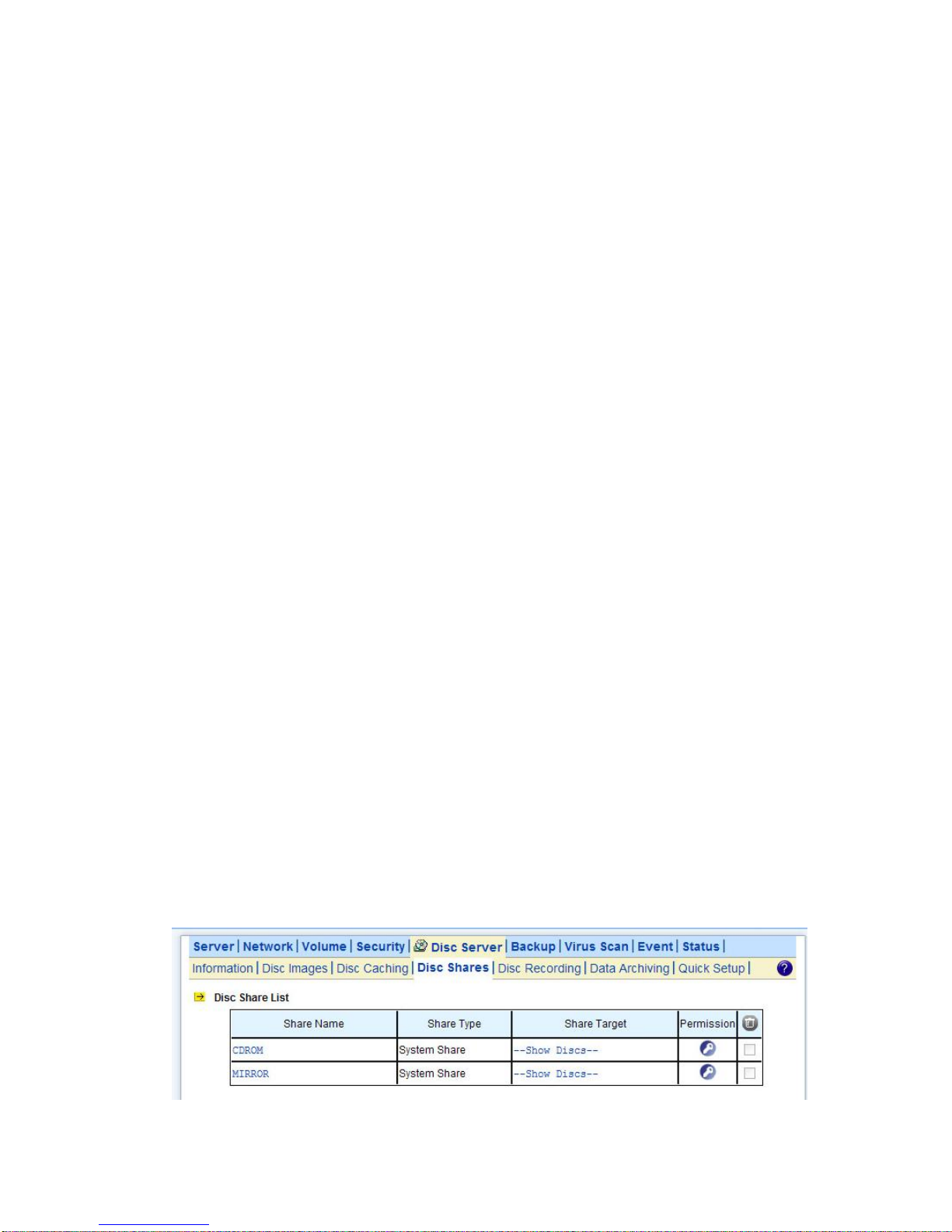

7.3 Sharing Discs ................................................................................................................................................... 54

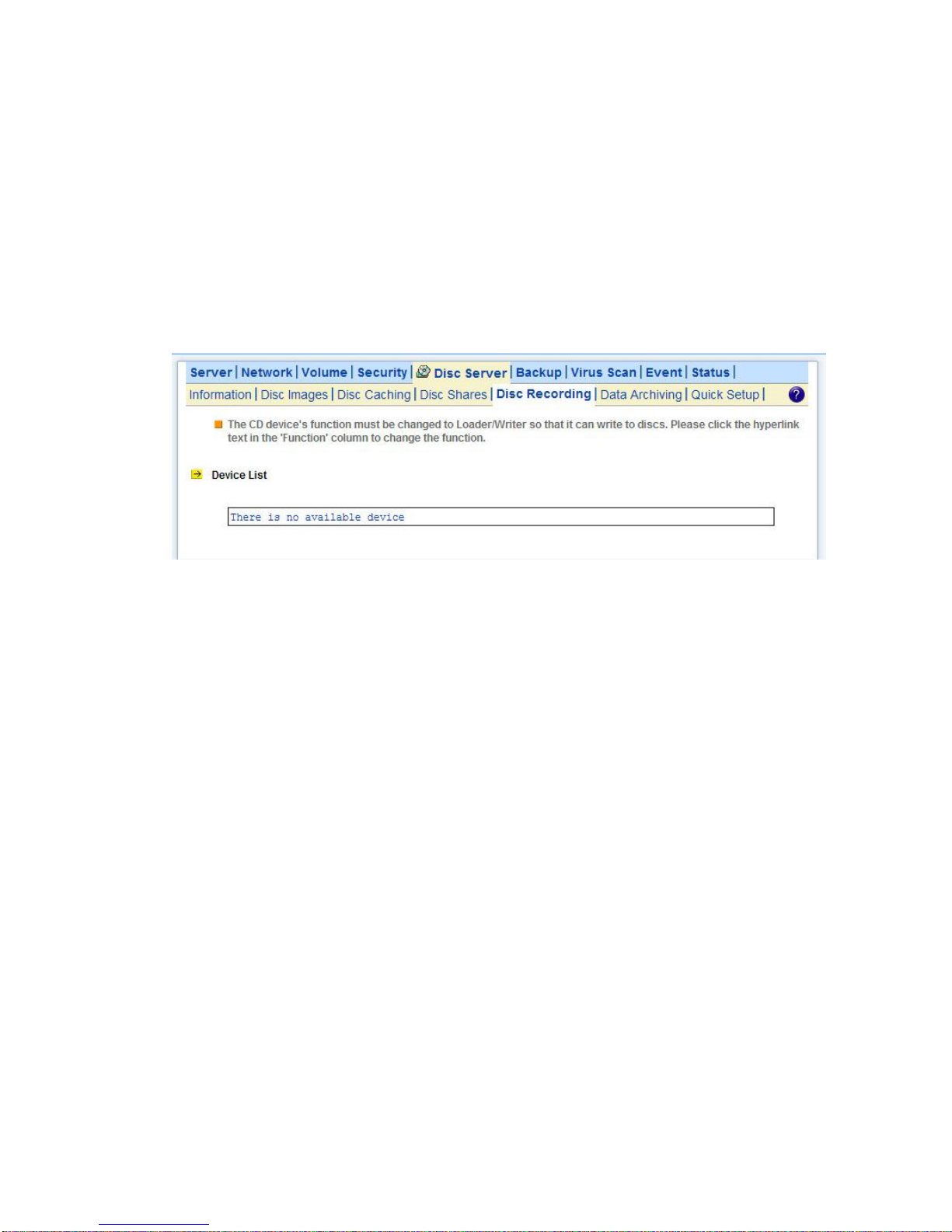

7.4 Burning Disc Images ........................................................................................................................................ 55

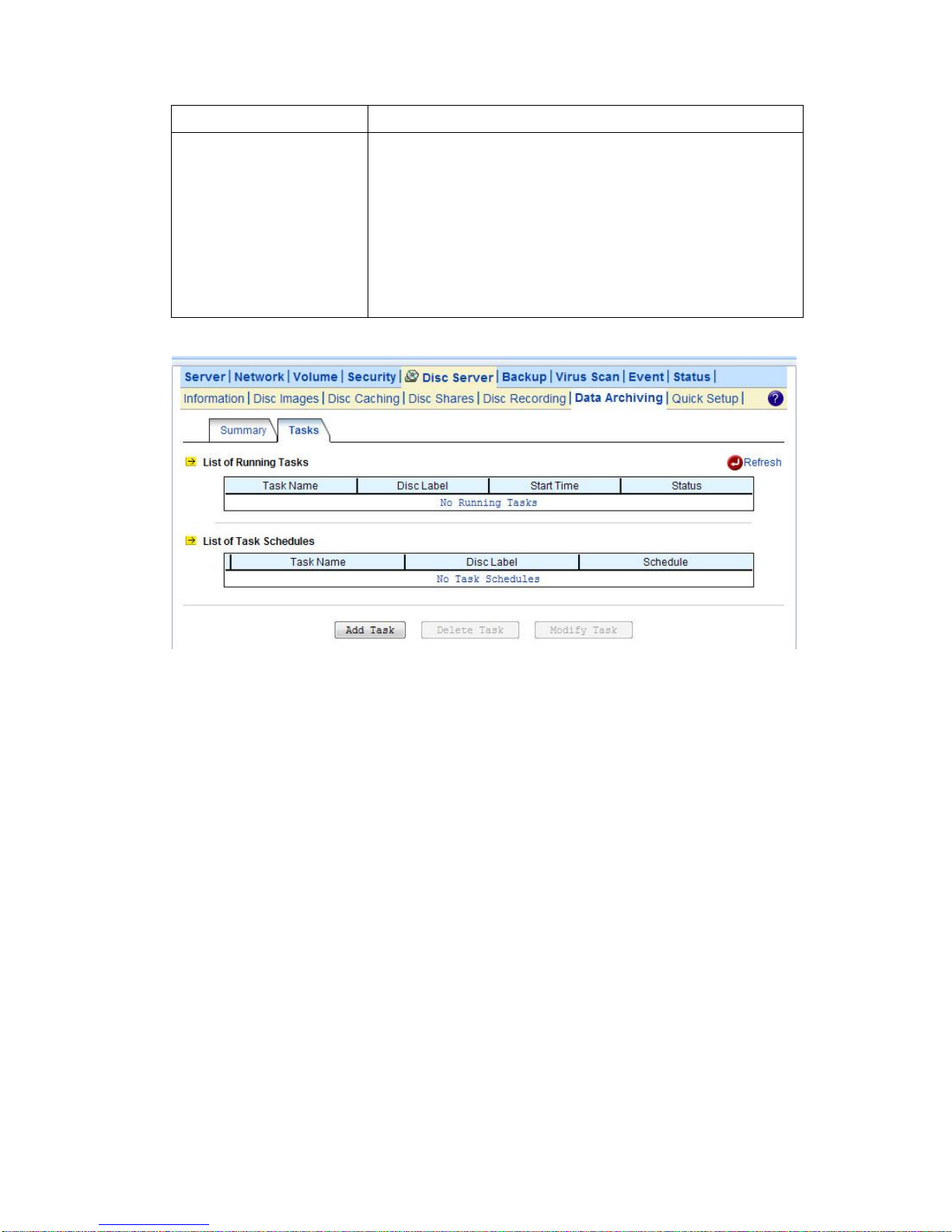

7.5 Archiving Data to CD/DVD Discs ..................................................................................................................... 55
8. USER ACCESS ..................................................................................................................................... 58
8.1 Workgroup or Domain Mode .......................................................................................................................... 58
8.2 Accessing from Windows ................................................................................................................................ 58

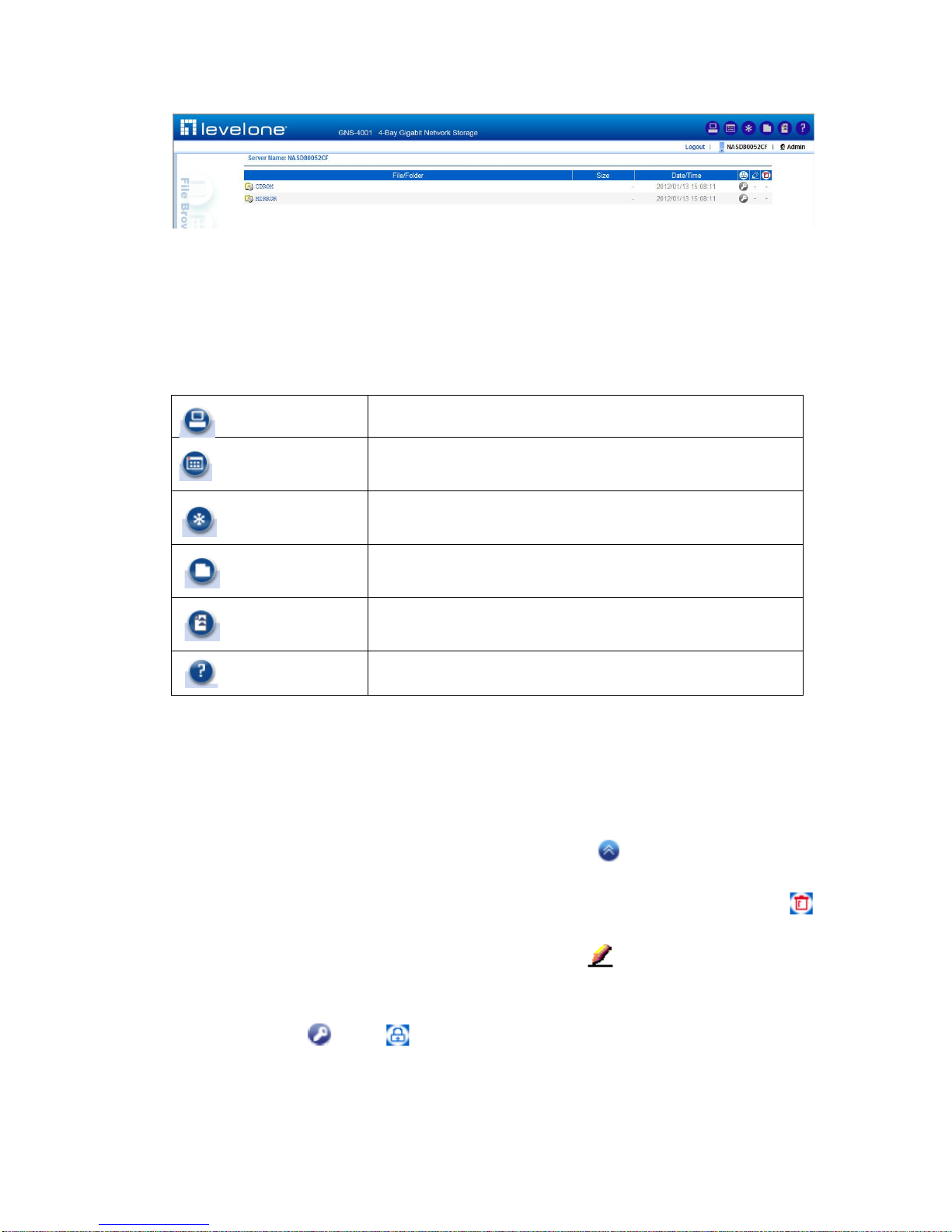

8.3 Accessing from Web Browsers ........................................................................................................................ 59
8.4 Accessing from MacOS .................................................................................................................................... 61
8.5 Accessing from FTP Clients .............................................................................................................................. 62
8.6 Accessing from NFS Clients .............................................................................................................................. 62
9. BACKUP AND RECOVERY ................................................................................................................... 64
9.1 Loading and Writing CD/DVD Discs ................................................................................................................. 64

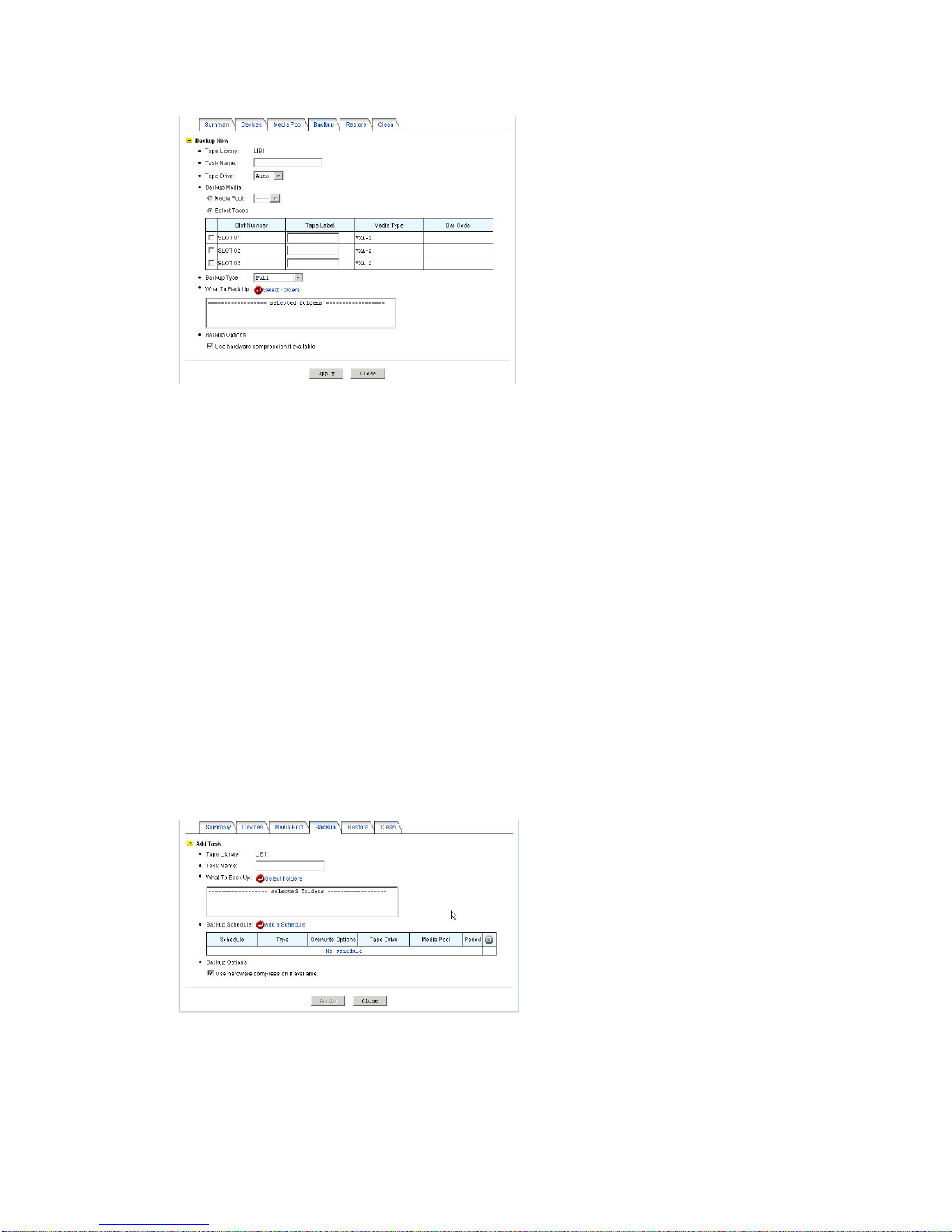

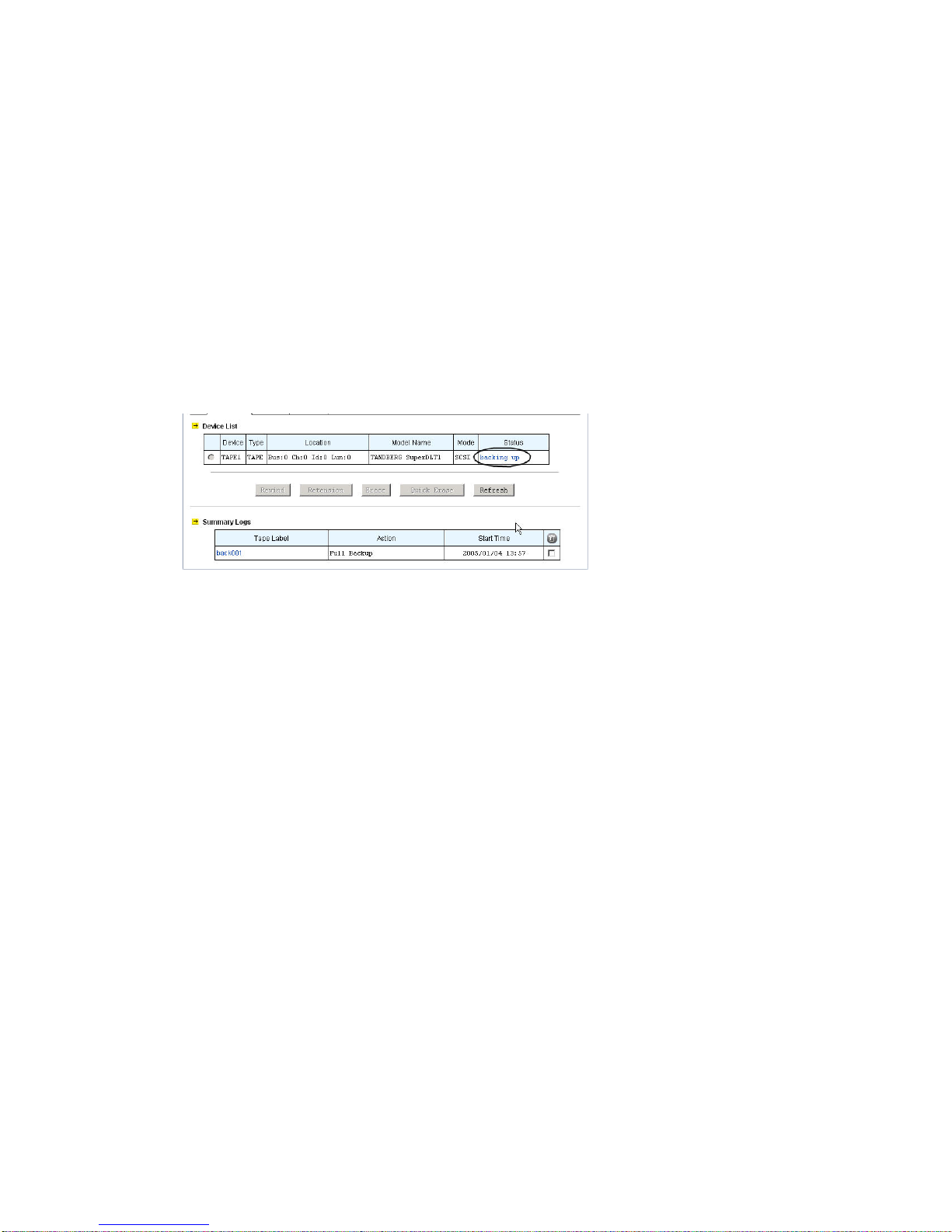

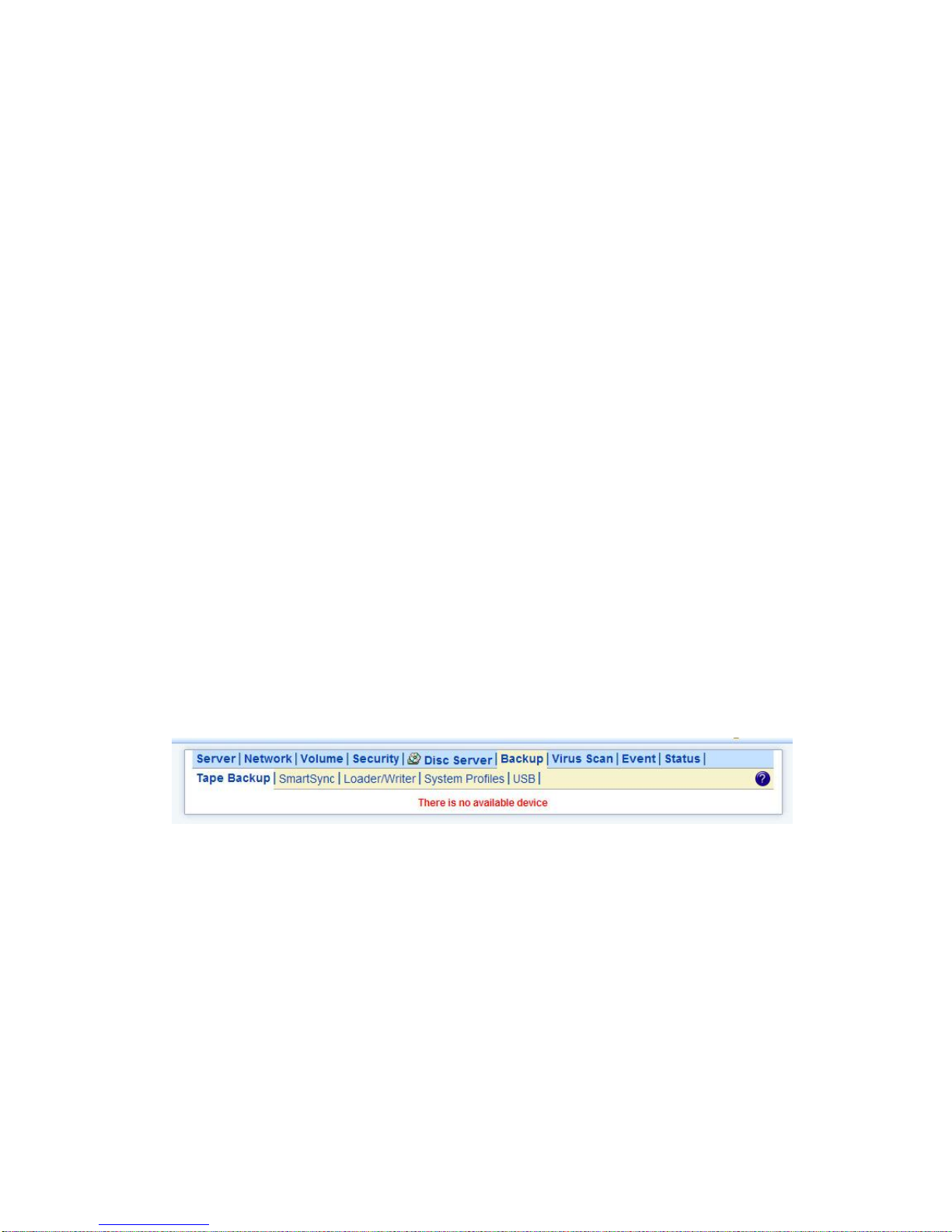

9.2 Tape Backup and Restore ................................................................................................................................ 66

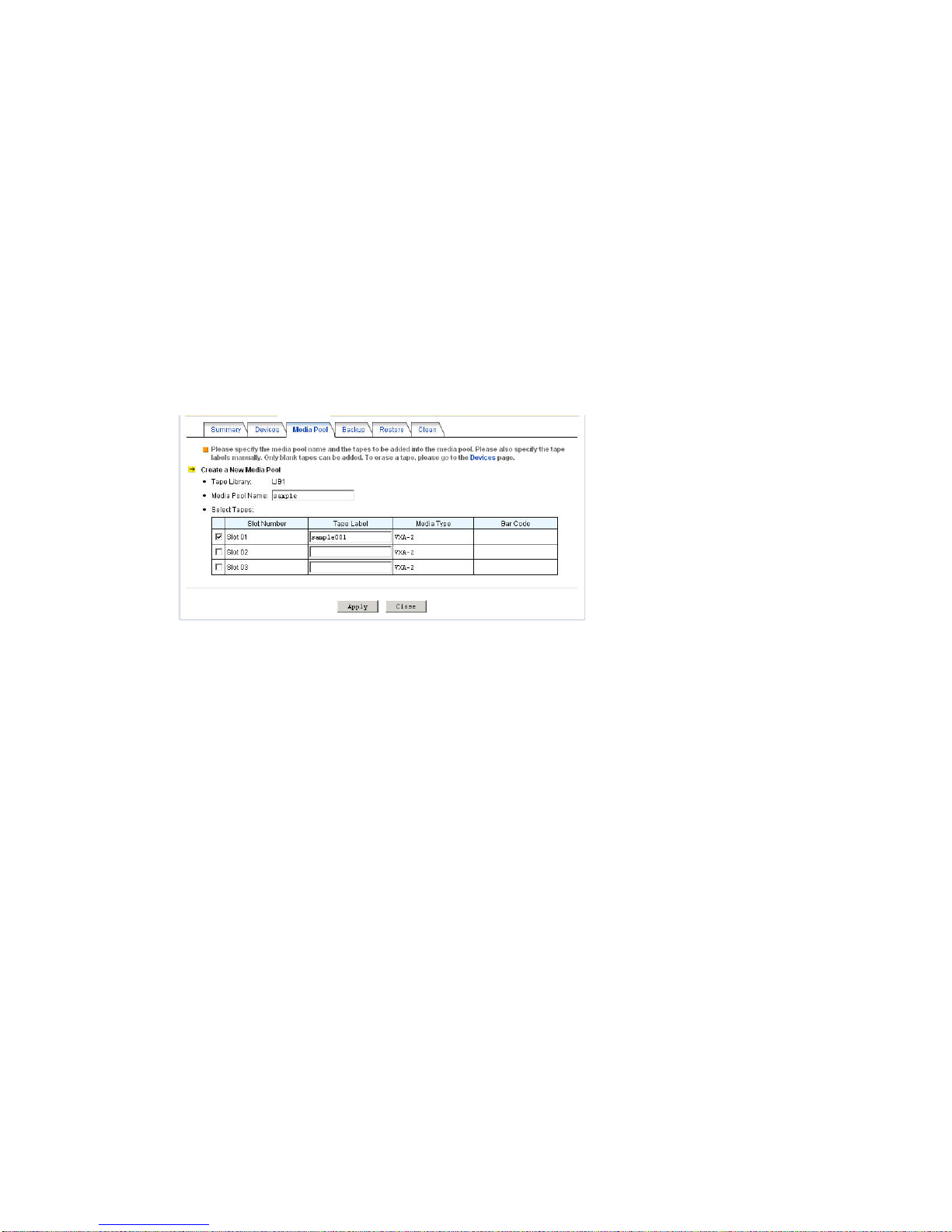

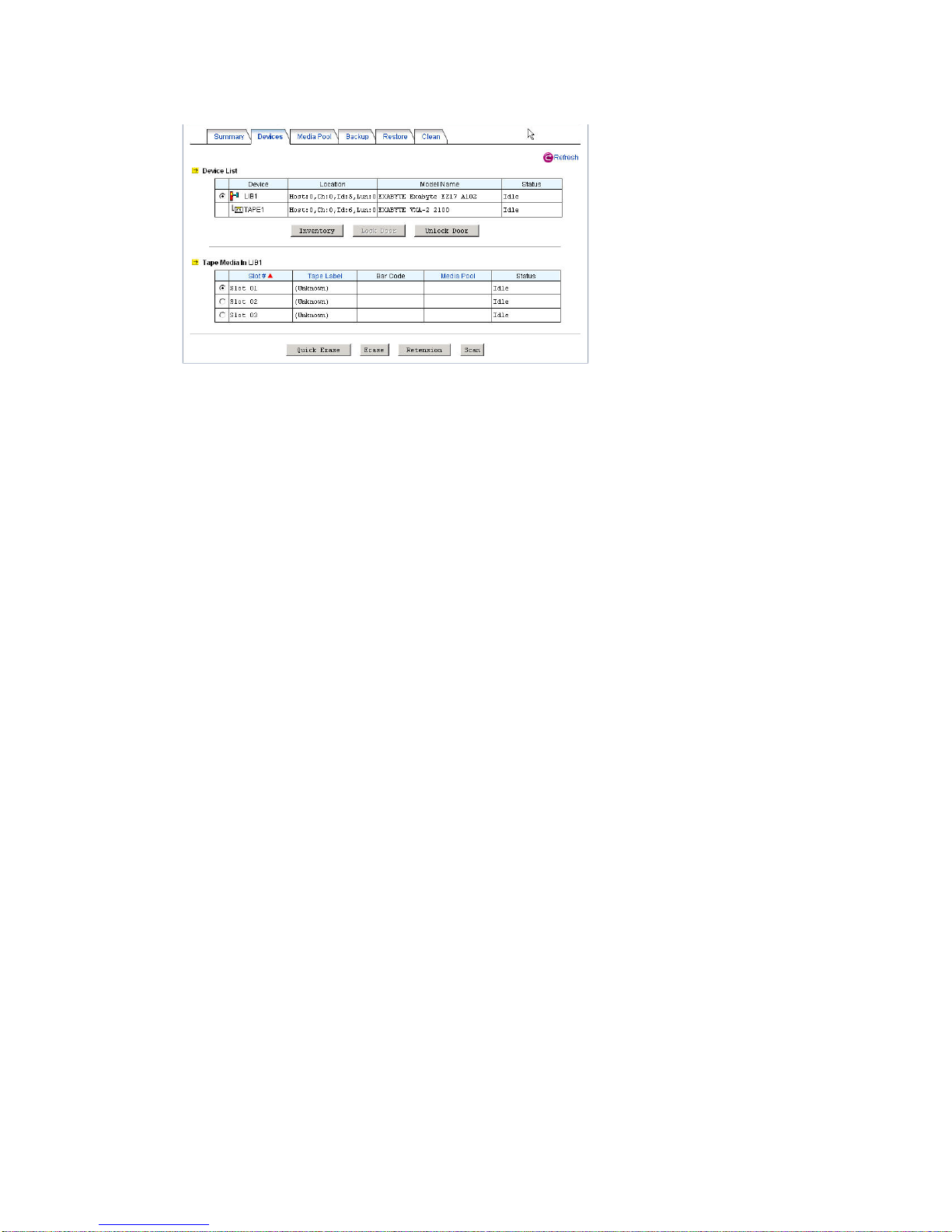

9.3 Using a Tape Library ........................................................................................................................................ 68

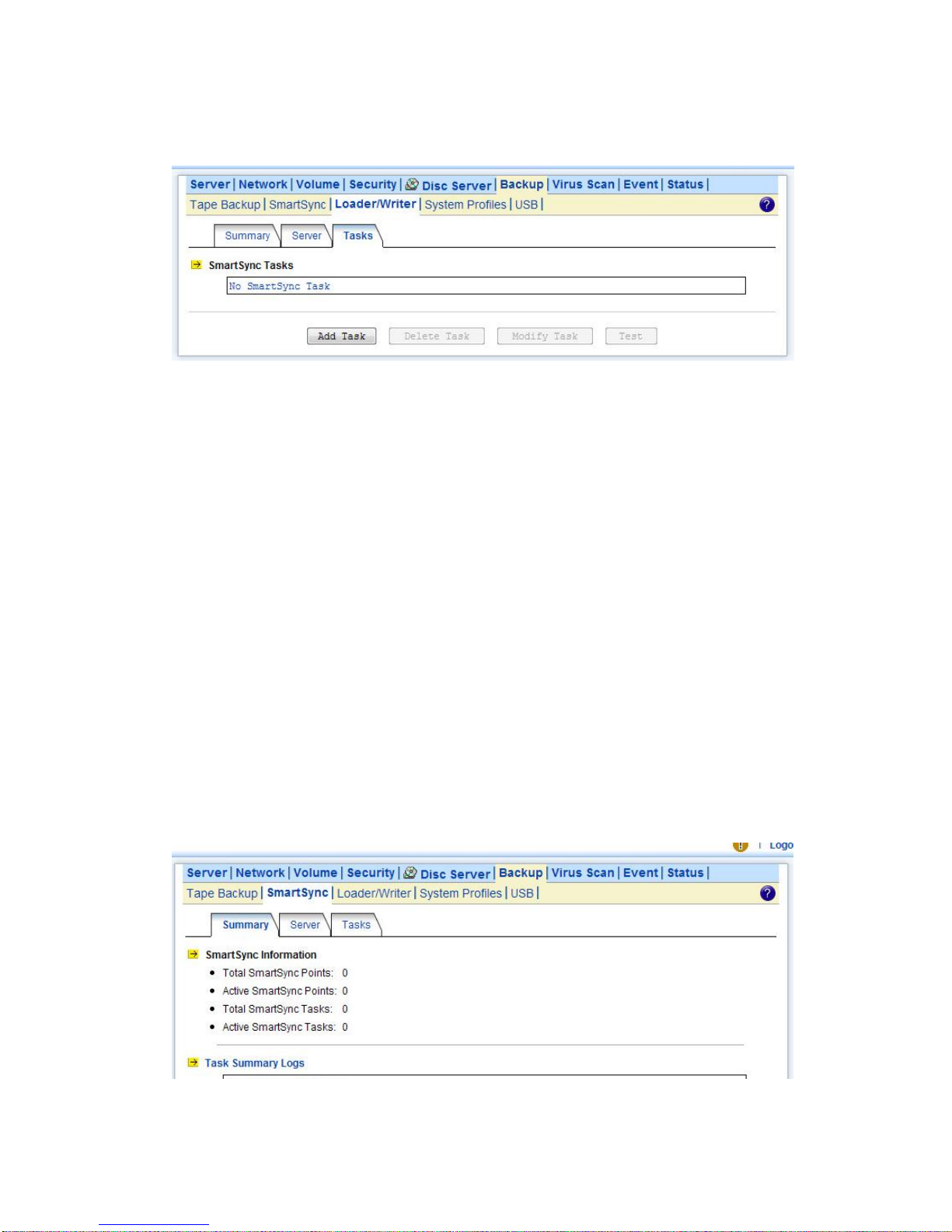

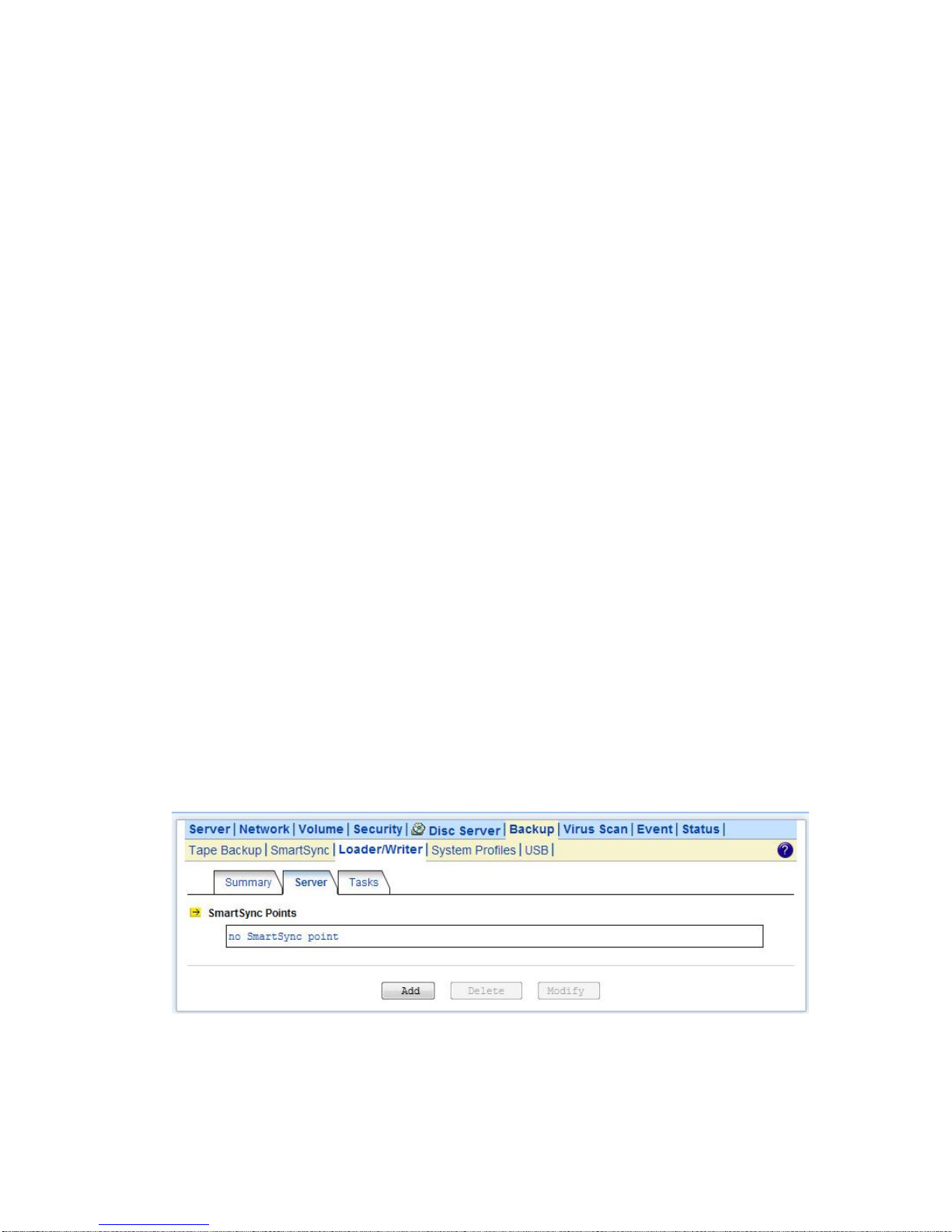

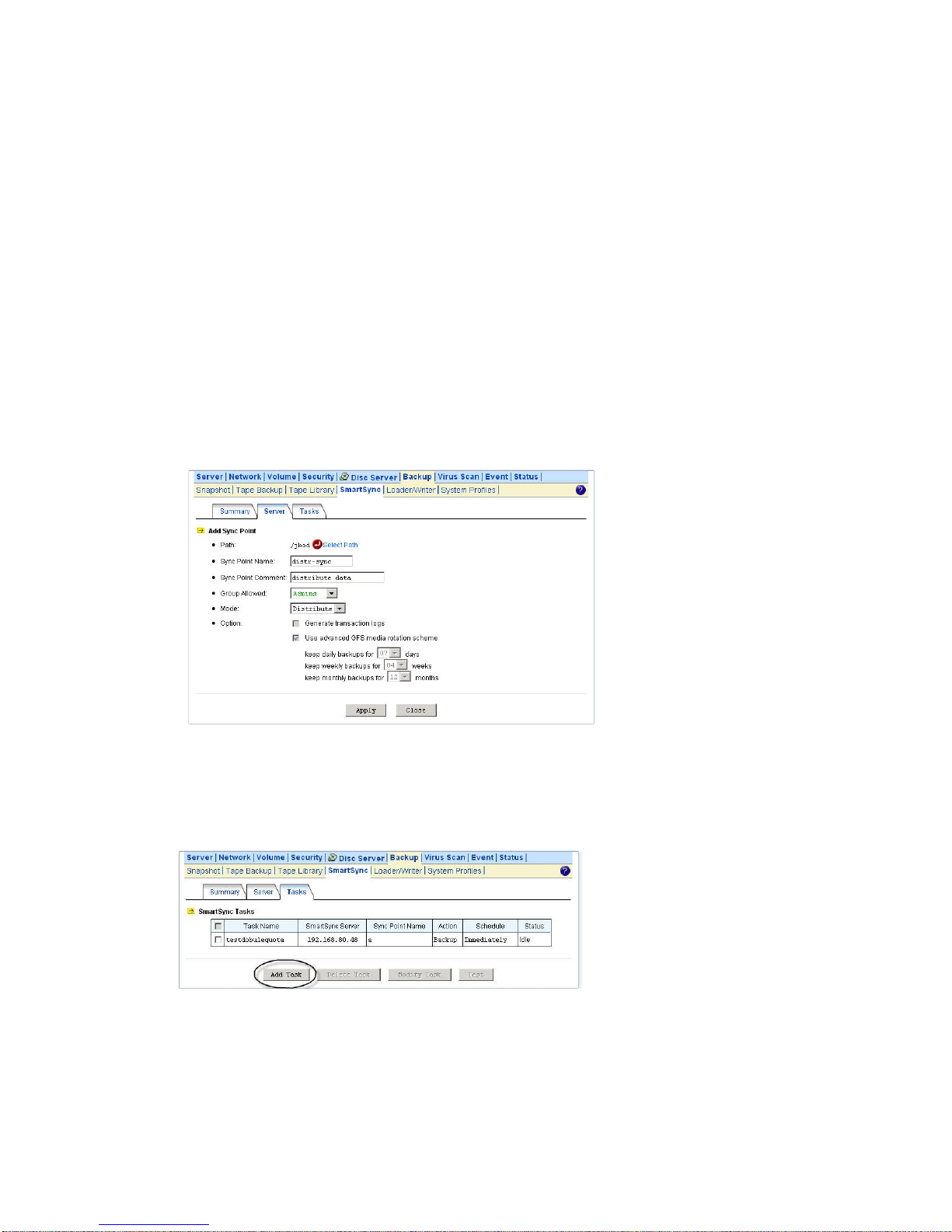

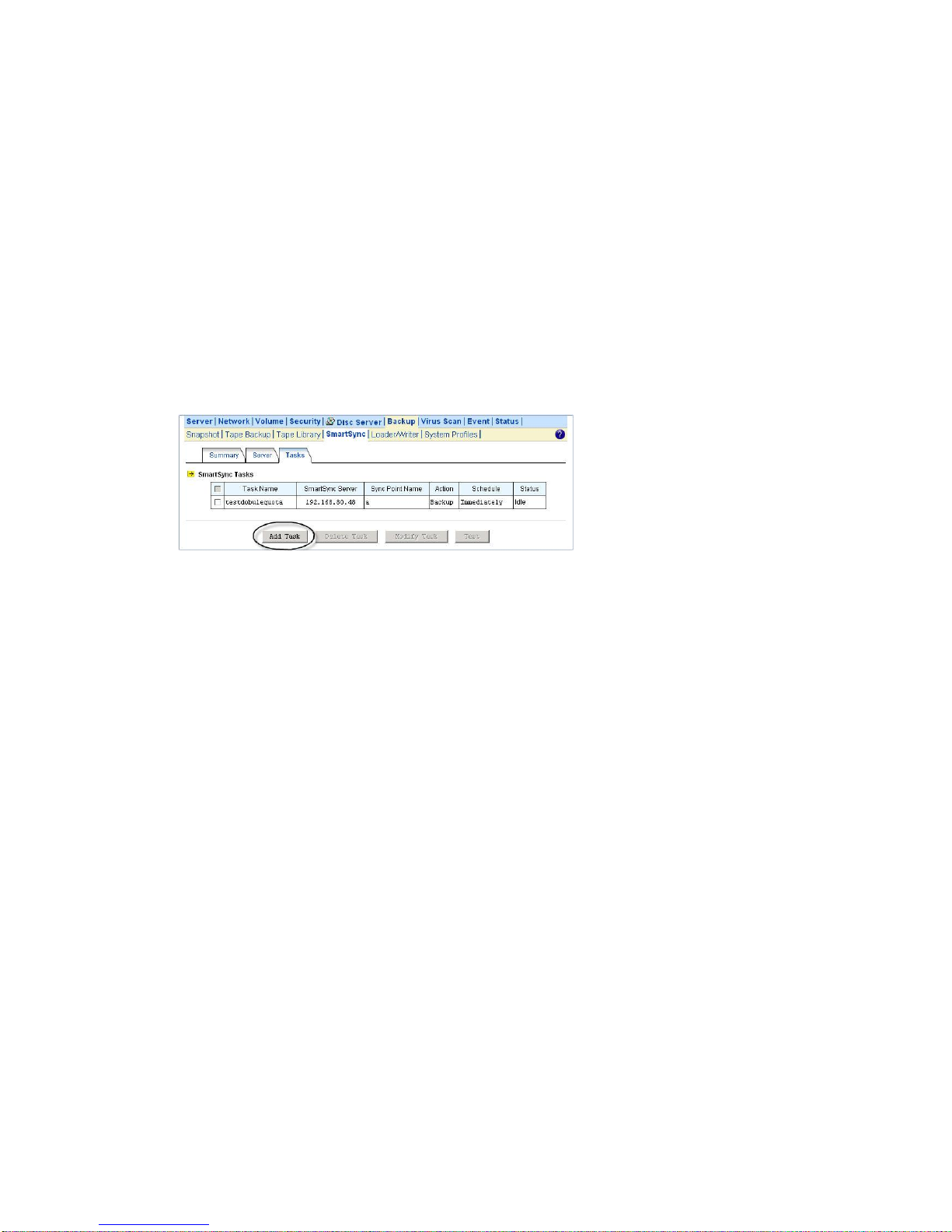

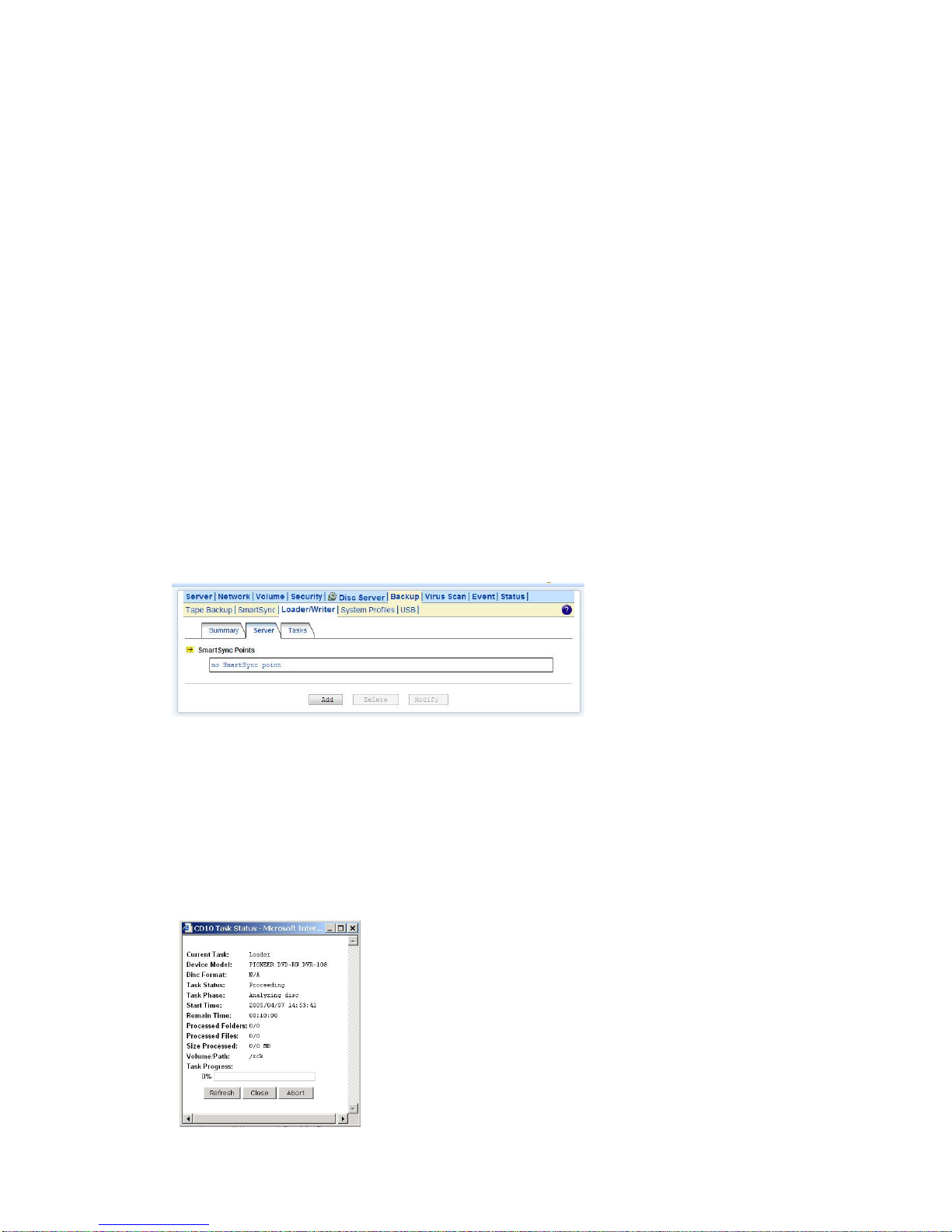

9.4 SmartSync – NAS-to-NAS Data Replication ..................................................................................................... 73

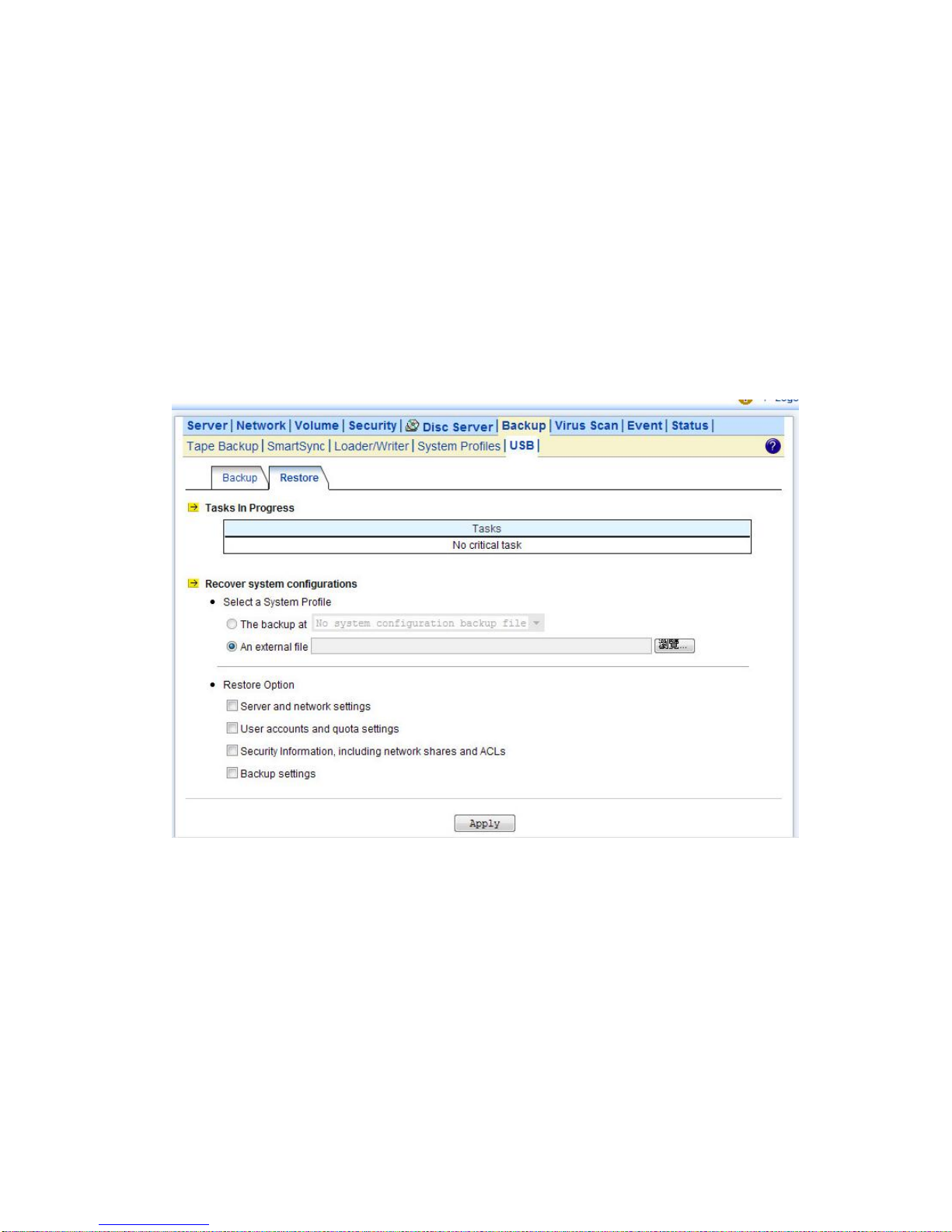

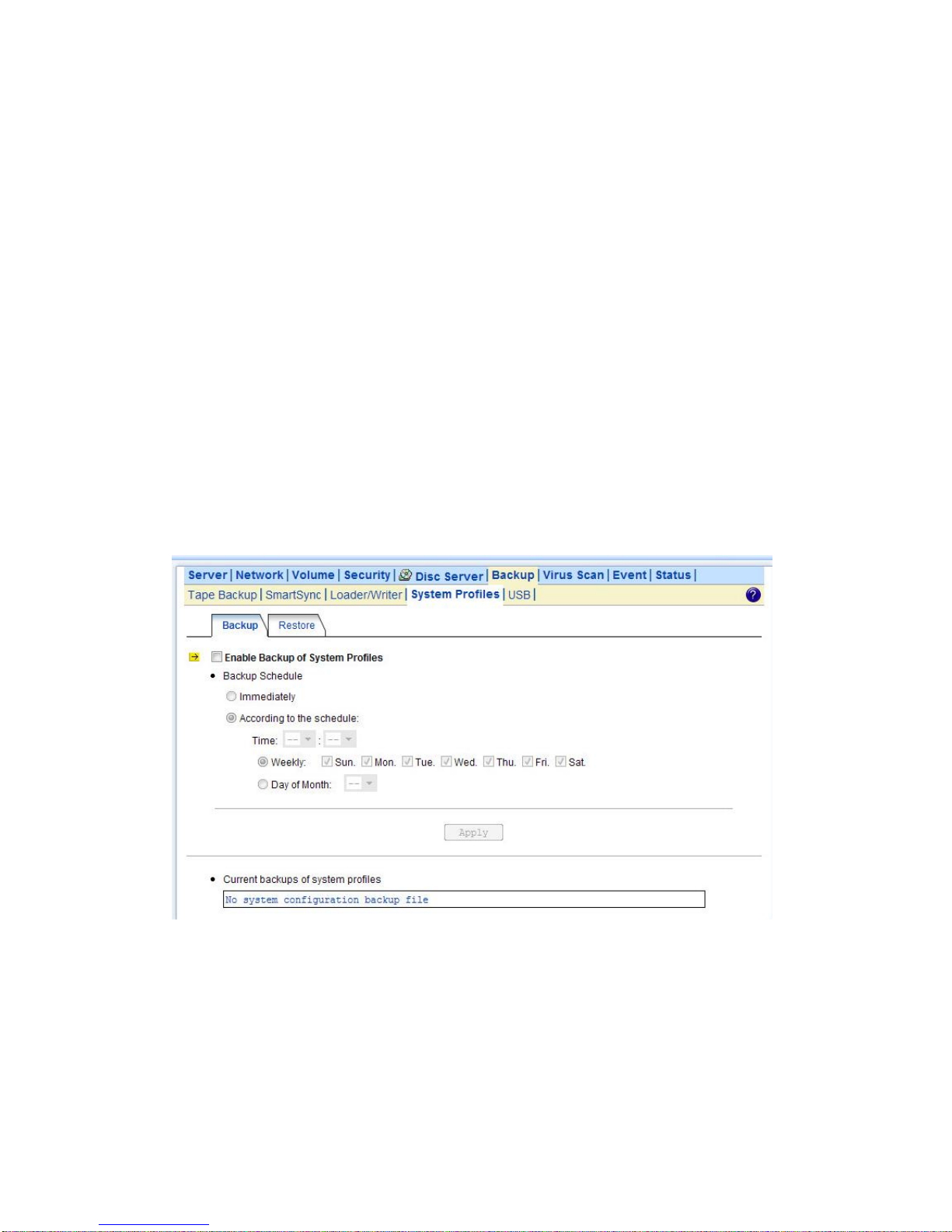

9.5 Backup and Restore System Profiles ................................................................................................................ 77
9.6 Backup USB Device .......................................................................................................................................... 78
10. EVENT LOGS AND SYSTEM STATUS..................................................................................................... 80

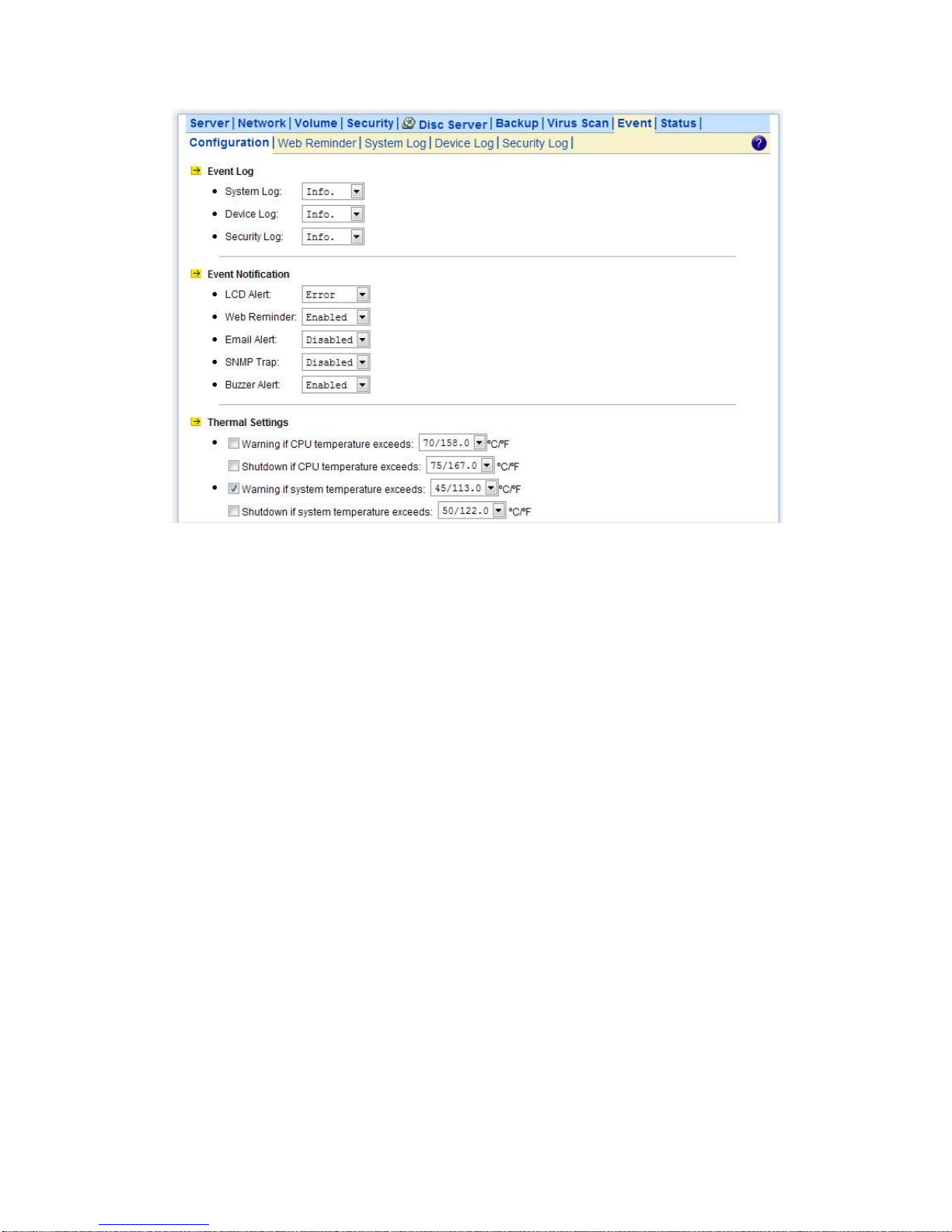

10.1 Thermal Settings ........................................................................................................................................... 81

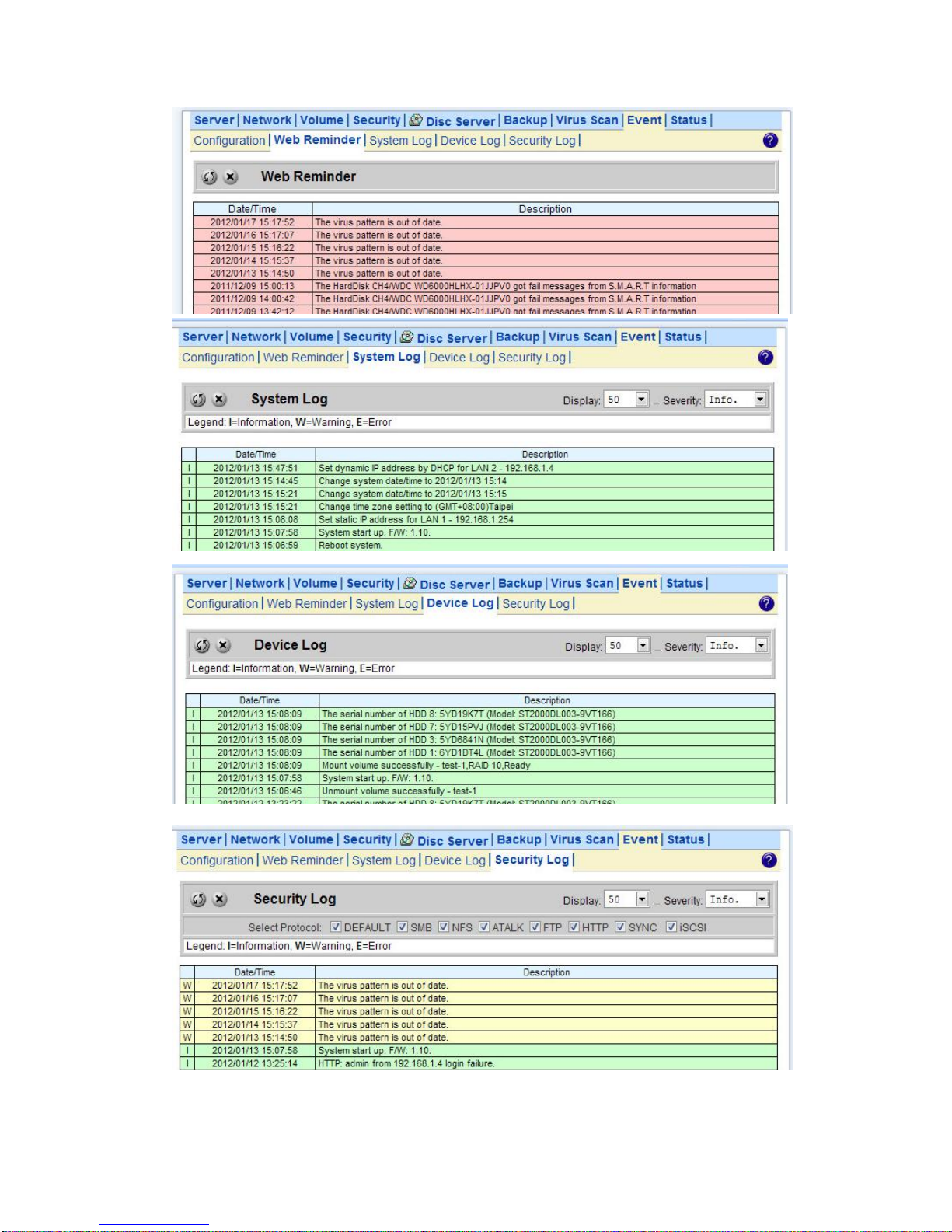

10.2 Checking the Event Logs ................................................................................................................................ 81
10.3 Viewing System Status .................................................................................................................................. 84
10.4 Saving System Settings and Status as HTML Files ......................................................................................... 85
6

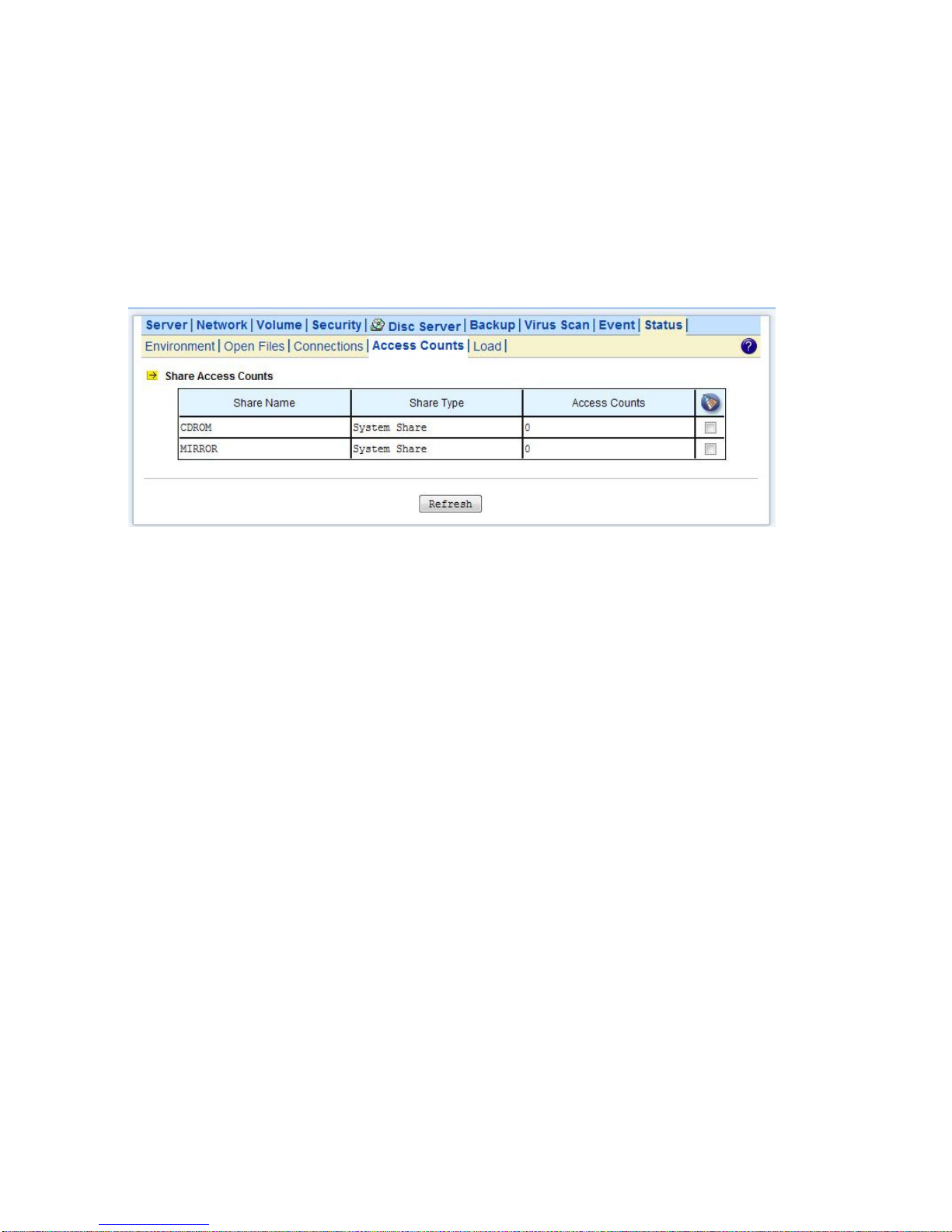

10.5 Share Access Counts ...................................................................................................................................... 85
11. VIRUS PROTECTION ........................................................................................................................... 87
11.1 Information ................................................................................................................................................... 87
11.2 Real-time, Manual and Schedule Scanning ................................................................................................... 87

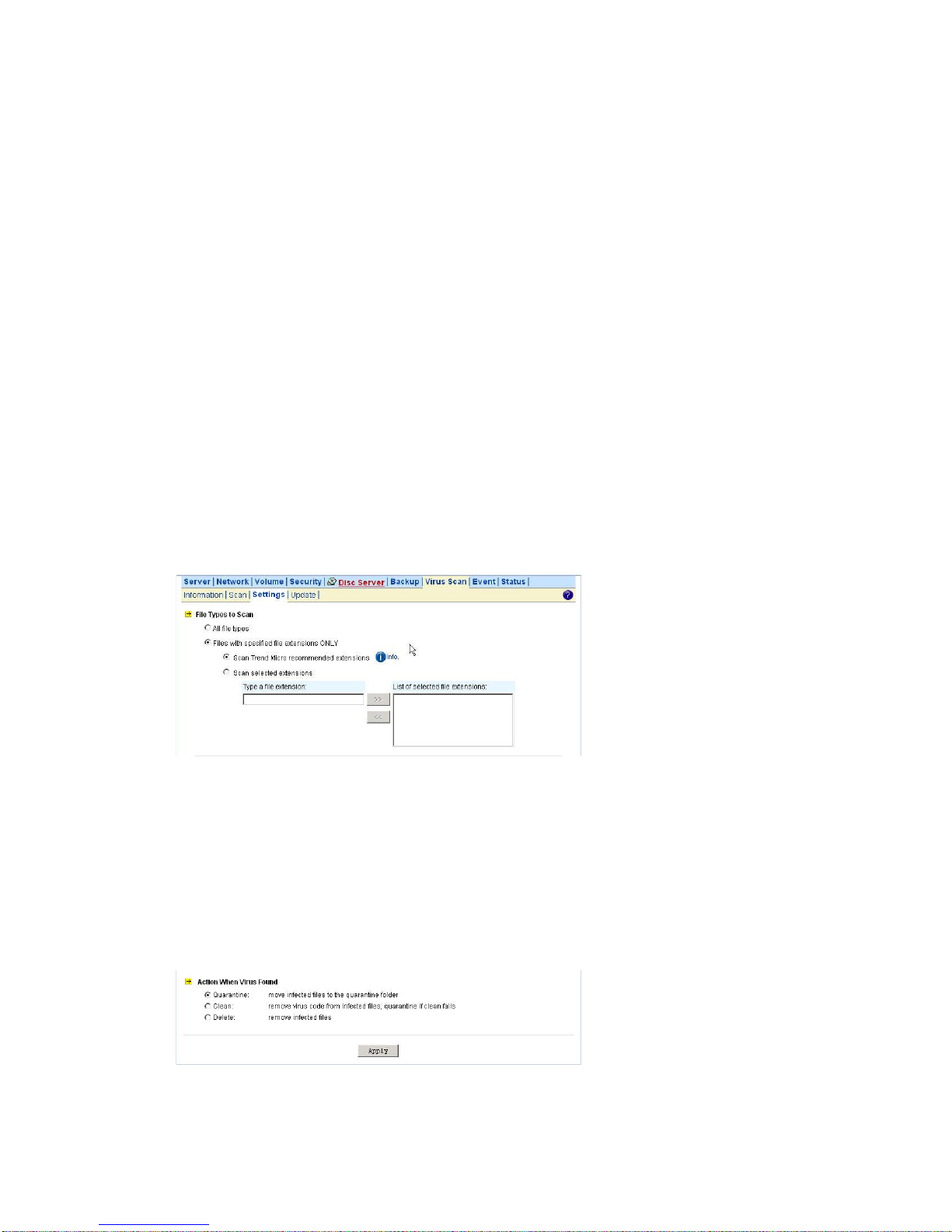

11.3 Configuring Scan Settings ............................................................................................................................. 89
11.4 Updating Virus Pattern File ........................................................................................................................... 90
12. APPENDIX A: PRODUCT SPECIFICATION ............................................................................................. 91
13. APPENDIX B: HARDWARE SETTING .................................................................................................... 92
Appendix C: LED Indicators.................................................................................................................................. 103
Appendix D Utility for NAS system ...................................................................................................................... 104
Installation .......................................................................................................................................................... 104
Discovering NAS system ...................................................................................................................................... 105
Browsing & Administering Servers ...................................................................................................................... 107

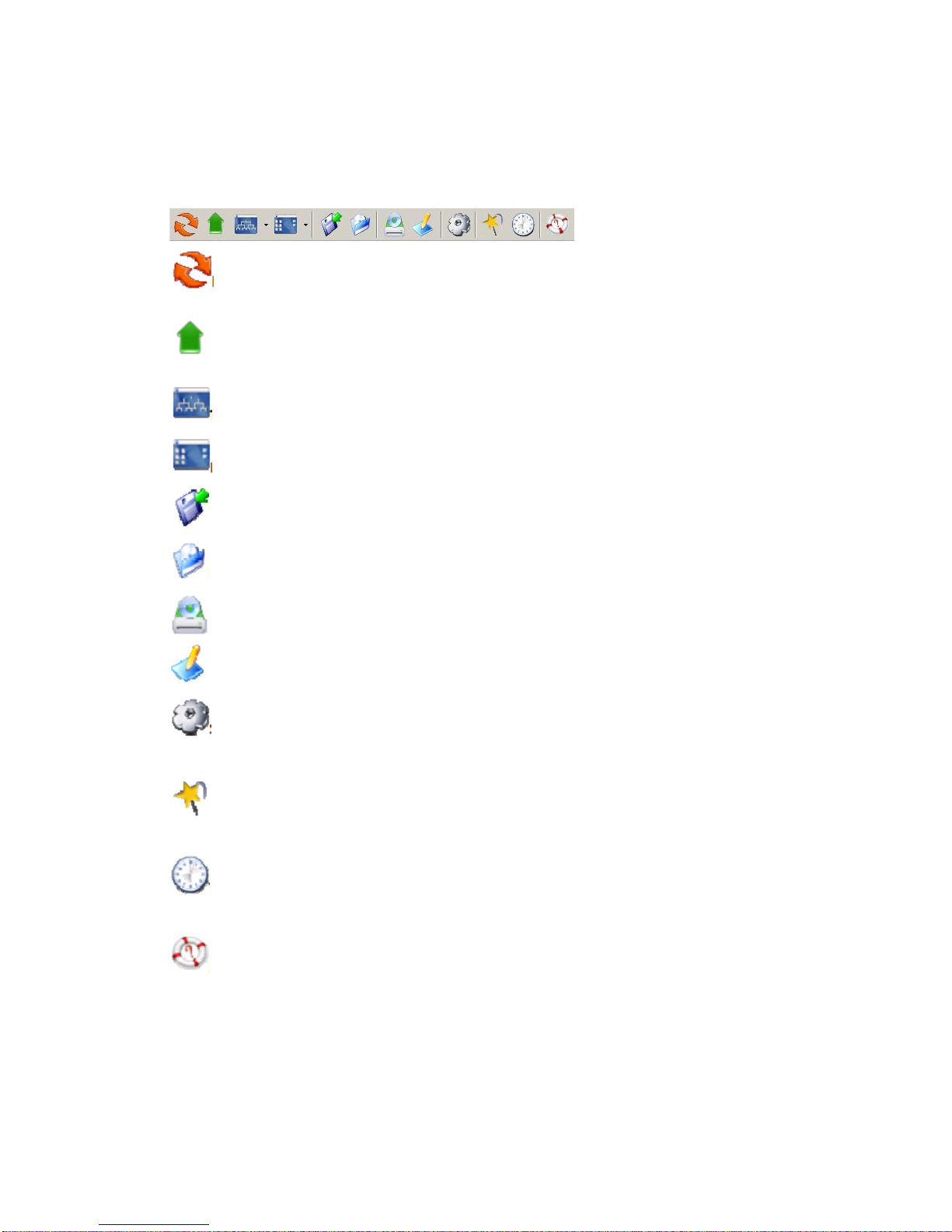

Tool Bar Functions ............................................................................................................................................... 109

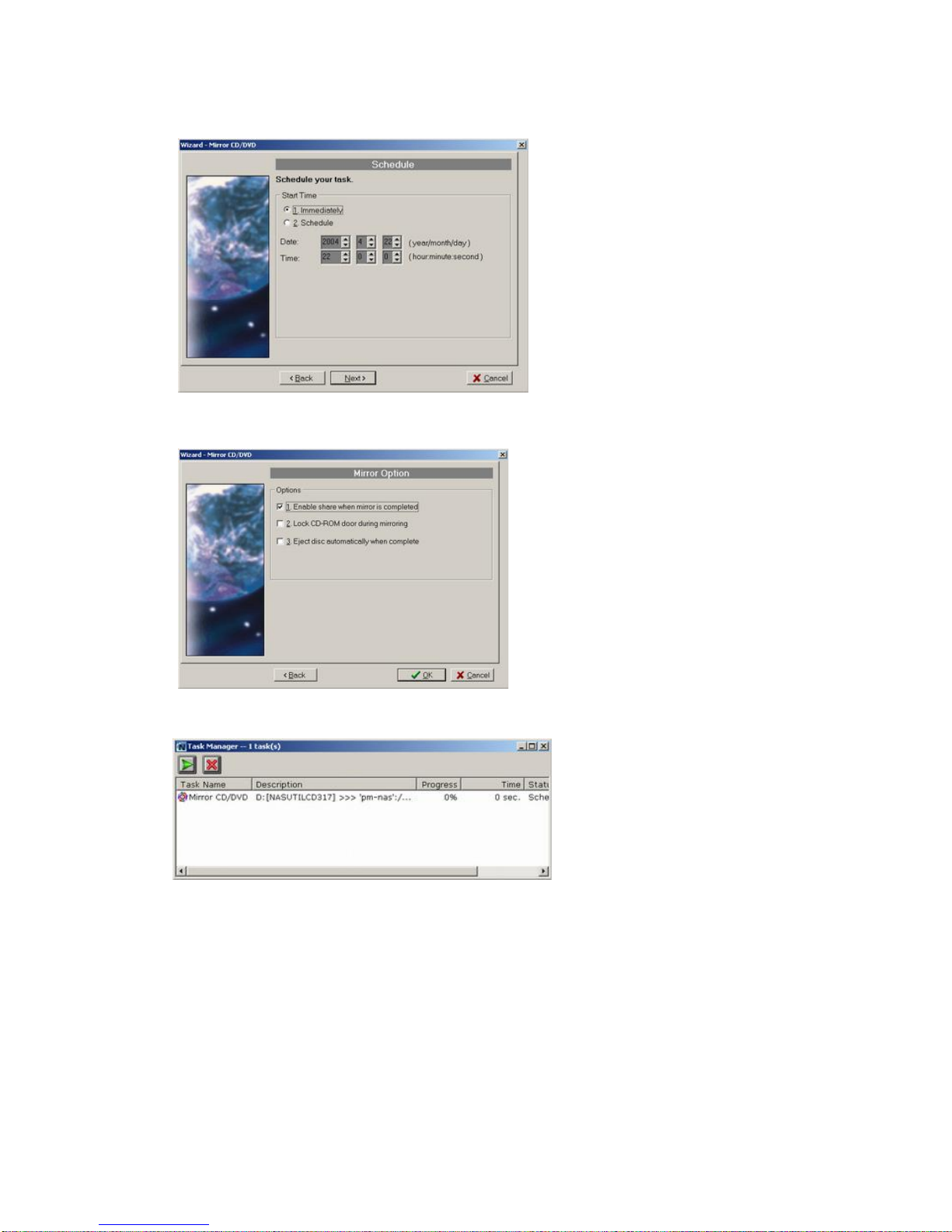

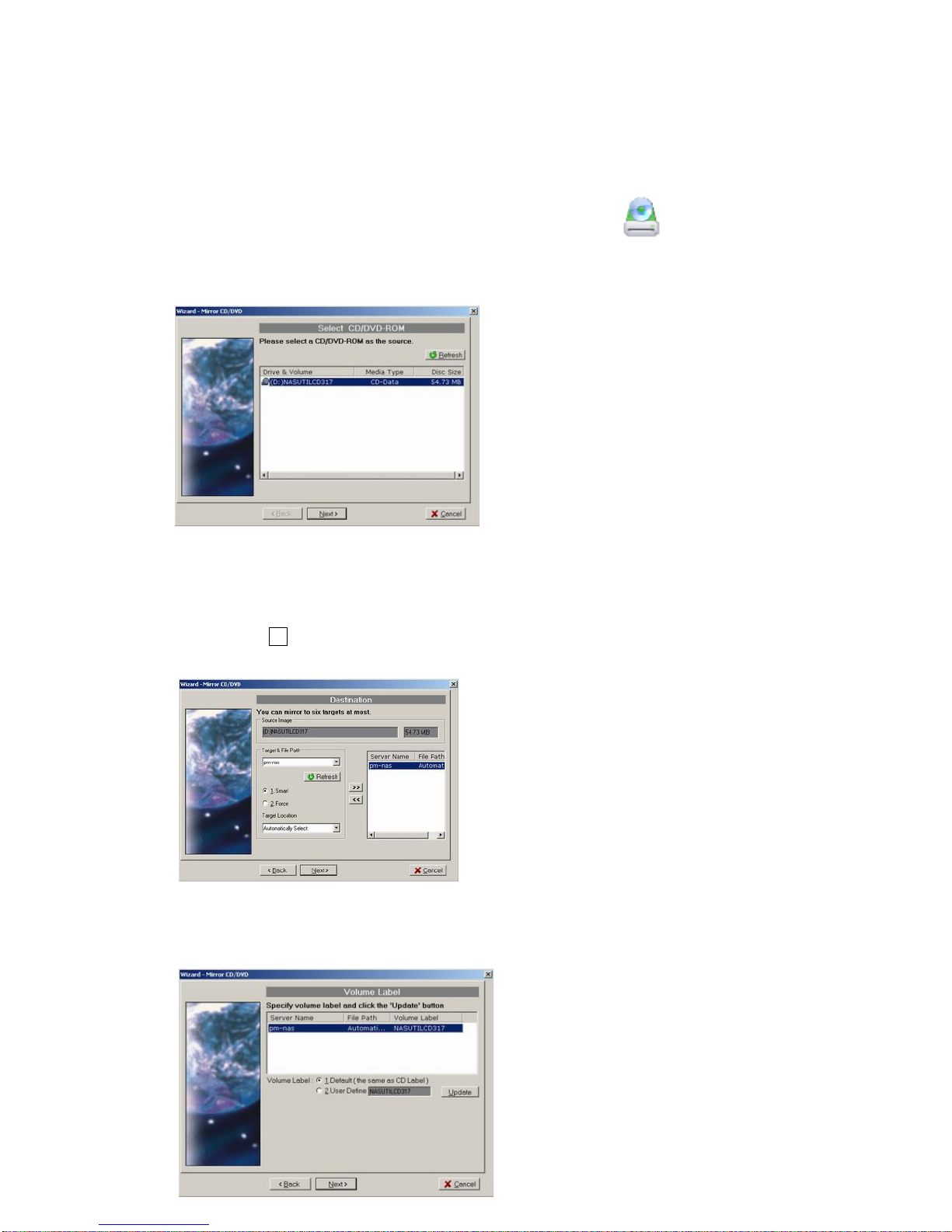

Mirroring CD/DVD Remotely ............................................................................................................................... 110
Archiving Files As a CD/DVD Image..................................................................................................................... 112
Burning Disc Images ............................................................................................................................................ 114
7
1. Introduction
1.1 Features
The NAS server is a premier NAS product featuring tera-bytes of massive storage capacity and
full-range data protection to provide a cost-effective, highly reliable and high-performance storage
system for the fast growing network storage demand.
• Deliver storage capacity over tera-bytes
• Expand RAID storage capacity without downtime
• Feature with hot-swappable HDD to maximize storage flexibility
• Accelerate network throughput with the dual-NIC and Gigabit Ethernet support
• Utilize the power management support with UPS
• Seamless integration into heterogeneous networking security
• Backup and archive important data to the local tape drive, CD/DVD writer or a remote storage
server
Default Settings
IP Address
192.168.1.254
Username
admin
Password
admin
This Quick Installation Guide only describes the most basic situations and settings. All detailed
information is described in the user manual.
8
2. Installing and Starting NAS system
This chapter covers the installation procedure of different form factors of NAS server . Instruction on
how to startup the NAS server by setting up the basic configuration through the Admin Home page or
provided software tool – NAStool is also outlined in this chapter.
The GNS-4001 4-Bay Gigabit Network Storage (no HDD installed) are pre-installed before shipping.
2.1 First & Quick Installation
Installation Hard Disk
(Fig. 1) (Fig. 2)
(Fig. 3) (Fig. 4)
(Fig. 5)
9

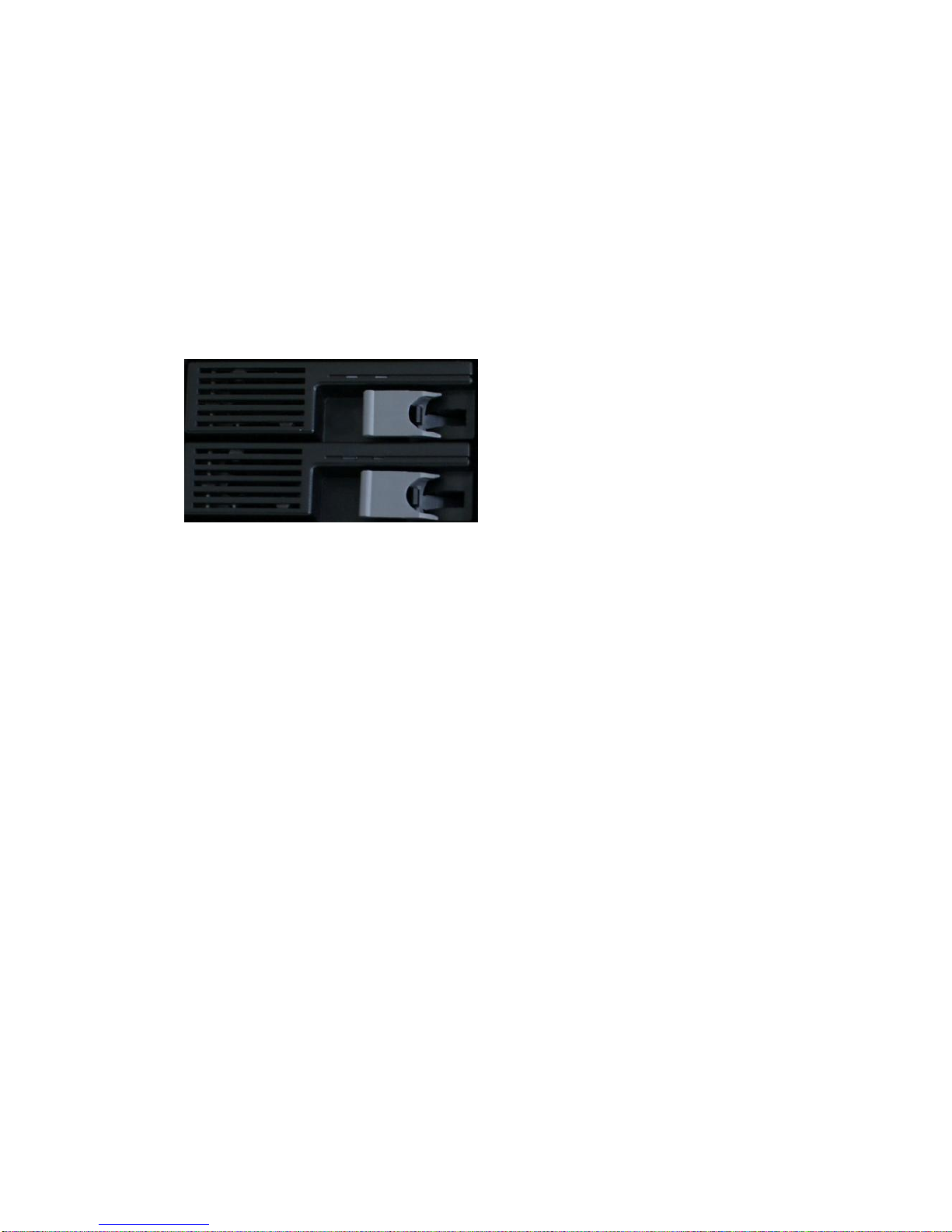

2.2 Tower installation
1. Pull out a HDD tray from the GNS-4001 mobile rack.
2. Secure and mount a hard disk onto the HDD tray using four screws under the tray.
3. Insert the HDD tray back in the mobile rack. Make sure the lever of the mobile rack is properly in
place.
4. Repeat Step 1 to Step 3 if necessary for the other HDD trays.
5. Connect your NAS server to the network by attach a LAN cable from the LAN port located at the
back of your NAS server.(At least one network connection is required)
6. Plug the power cord into the power connector on you NAS server.
7. Make sure the power switch on the power supply is in ON position.
8. Press the power button on the upper right hand corner of your NAS server.
9. Wait for the server to boot up. The boot up process takes approximately 2 minutes.
10
2.3 Setting the IP Addresses
LCD console flow chart
11
Configuring the IP addresses using the LCD console
1. After NAS server is boot up, the LCD console shows System Ready. Press the right button.
2. The IP address of LAN1 is shown. Press the middle button to configure LAN1 IP address. Note that
the symbol at the right hand upper corner indicates that the IP address can be configured
using the LCD console.
3. Move the cursor to Yes by pressing the left button and then press the middle button to confirm.
4. Move the cursor to the correct position using the left or right button. Then press the middle button
to change that number.
System Ready
12
5. After you edit the last digit of the IP address, press the right button and configure the Subnet Mask
address.
6. Repeat Steps 4 to Steps 5 to configure the Subnet Mask and Gateway address.
7. After you edit the last digit of the Gateway address, press the right button. Move the cursor to Save
and save the setting or Edit to repeat the above process or Abort to quit the configuration process
without saving.
8. Repeat the above process to configure the other LAN port.
13

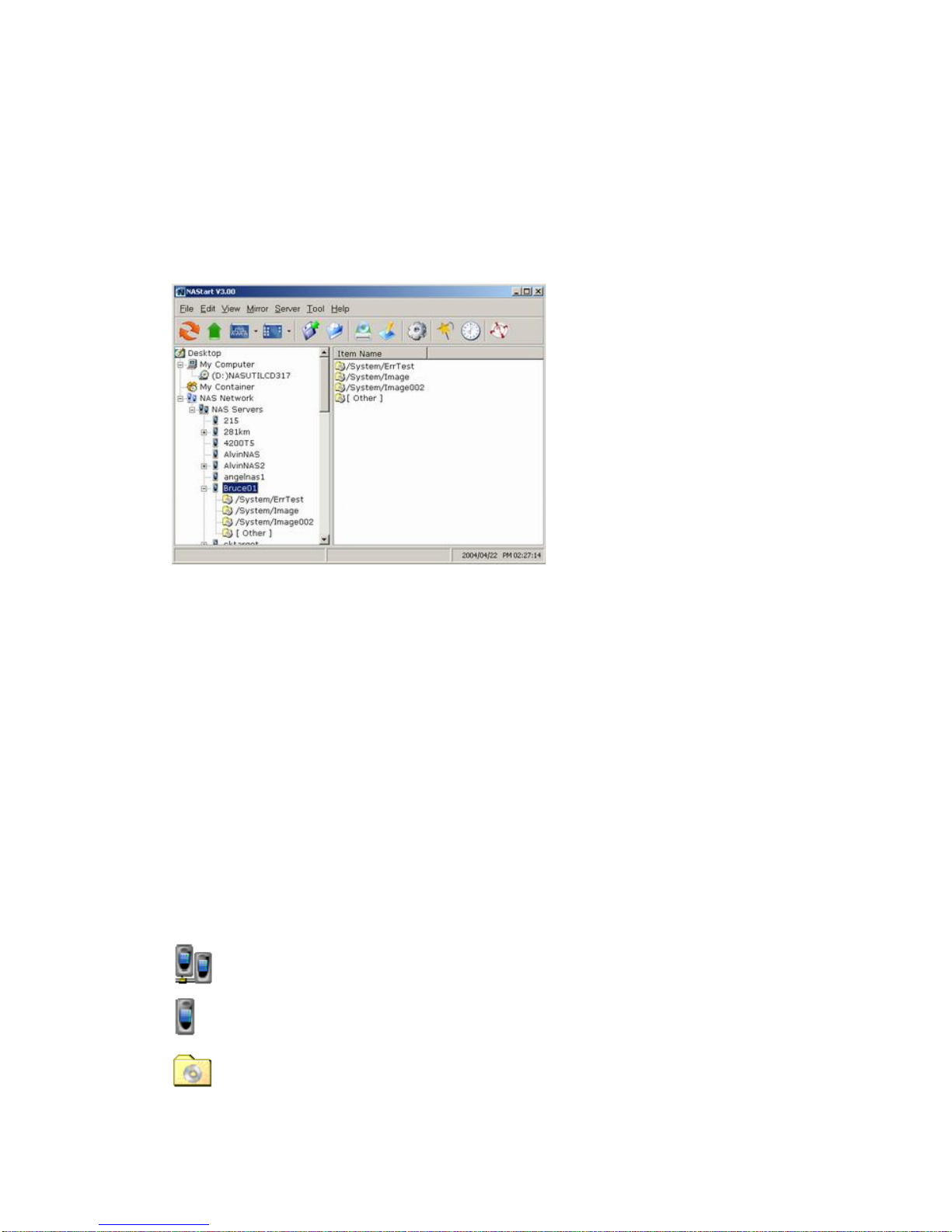

2.4 Configuring the IP addresses using NAStool
You can use the provided utility NAStool to perform the initial setup of your newly arrived NAS server.
The utility designed to perform a quick set up and put your NAS server online in just a few minutes.
During startup, NAStool begins to discover all the NAS server on the network. The default server
name would be NASxxxxxxxx, where xxxxxxxx is the last eight digits of the Ethernet address of
LAN1.
Highlight the server you want to configure from the left hand pane.
1. Click the button on the toolbar
2. Or, right click the server and select Configure…
3. Enter the Server Name, Server Comment, and Workgroup/Domain Name and select either
the Workgroup mode or Domain mode.
4. Click Next button to go to the next page.
5. Choose the Network Teaming Mode from the pull down menu. If you are not clear about this
feature, continue with the default value.
6. If you want IP settings to be assigned automatically, click Obtain IP settings automatically.
7. Or, you can specify IP settings manually.
8. Click Next button to go to the next page.
9. Change the admin password if necessary.
10. Click the Finish button to save the settings. Note that server may need to reboot for certain
parameters changes to take effect.
14
2.5 Accessing the Administration Home Page
You can configure the detail settings of your NAS server in the administration home page. To access
the administration home page of NAS server, type the URL name of your NAS server in the address
field of the web browser: http://192.168.1.254 /admin/ or run the utility NAStool provided in the
CD-ROM, right-click on a NAS server on the left-hand tree-view pane. Select Admin page item from
the right-click menu to open the administration page. It will prompt for username and password. By
factory default, the username is admin and password is admin .
Note: It is recommended that user change the admin
password immediately to keep your NAS server
secure
and to protect resources from inappropriate access
by
other users on the network.
15
3. Server Configuration
This chapter describes how to name the server, specify the server date and time, upgrade the OS
firmware, shut down the system and use UPS with the NAS server.
3.1 Server Information and Settings
Click Server from the administration homepage. You will see the Information page describing the
summary information of the NAS server.
The Information page is divided into two sections. The General Settings section shows the
parameters which can be modified on the Server→General page.
Server Name
Name of the NAS server. A NAS server has one unique name,
applicable to all network protocols.
Server Comment
The text which is shown in the comment field when browsing network
computers in Windows Network Neighborhood
Date/Time
Server date and time in 24-hour format
Time Zone
The time zone setting of the server relative to the Greenwich standard
time
Configure from LCD
Indicates whether users can configure the server from the LCD console
System LCD Banner
Indicates the banner text which is displayed on the LCD console when
it receives no user input or event messages for a period of time
UPS Support
Indicates whether the UPS support is enabled or not
Auto Power Restoration
If enabled, the server will power on automatically when the power
restores after abnormal shutdown
System folder resides in
Display the volume name of which the system folder is located
The System Information section shows the hardware and firmware status of the server.
Firmware Version
The version number of the OS firmware
Processor Type
The CPU operating frequency
Memory Capacity
The total size of the main memory
No. of HDD/CD/tape
Display the number of HDD/CD/tape installed in the system
LAN1/2/3 Ethernet Address
The Ethernet MAC addresses of the network controller chips and their types
PCI-E Slot
Display the type of the add-on adaptor installed in the system
16
3.2 Upgrading the Firmware
Updating OS firmware will accommodate new functions or bug-fixes. Once you get new releases of
an OS firmware image, you can upgrade the OS firmware by using the web browser. The process is
simple and fast. Once you get the image file of the new OS firmware from your vendor, open the
Administration Homepage of the NAS server and select the Server→Upgrade menu. Specify the
full path of the image file or click the Browse… button to find it. Click Apply to begin. The process
might take several minutes. The server will reboot after the firmware is upgraded.
17
3.3 Shutting Down the Server
Shutdown, reboot and startup actions
The NAS server can be shut down by pressing the power button twice at the front of the server case. The whole shutdown
process might take seconds to minutes until data are all safely saved to the hard disks. To shut down the server from the
Administration Homepage, select Shutdown from the Server menu and click the Reboot or Shutdown button.
You can specify the actions to take during the next startup.
Recalculate user quota
information
Recalculate the storage consumption per user during the next startup.
It may take much time if there are a huge amount of files in disk.
Reset configuration to
factory default
Reset all configurations to default.
Scheduled shutdown and power-on
To set the automatic power-on and shutdown schedules, select the Server→Shutdown menu. Click the Schedule tab to
modify the schedules. On the schedule settings page, you can set daily or day of month schedules. Check the Enable
check-boxes and specify the time of powering on or shutting down. Remember to click the Apply button to submit the
changes.
18
3.4 Enabling UPS Support
The NAS server supports UPS and basic power management functions. It sends alerts when there are power events like
utility power failure or low battery capacity. When power events occur, the NAS server can shut down itself automatically
to prevent potential data loss.
To use smart-signaling UPS, connect UPS to the NAS server with an RS-232 or USB cable. Then go to the Server UPS
Settings menu on the administration page to enable UPS support.
To use network-type UPS, connect the UPS to the LAN first. Then go to the Server UPS Settings page on the
administration page. Enable APC Smart UPS series、 USB UPS、 Generic serial UPS Type 1 and Type 2, select Network
UPS from the UPS Type menu and enter the UPS IP address and correct community.
Below are the shutdown options on the page.
Shut down immediately
when battery is low
Specify whether to shut down the server when UPS battery is low.
Note:
When utility power fails, the NAS server will always shut down.
Shut down in x minutes
when AC fails
Specify how many minutes to wait before shutting down the server
when a power event occurs.
Turn off UPS when shut
down by power failure
If checked, the NAS server will turn off the UPS while it is shutting
down by power failure. If not, the UPS will still be working when the
server is shut down.
19
3.5 Modifying the Administrator’s Password
Admin is a built-in user account for the administrator. It is like the root account in UNIX or the administrator account
in Windows 2000 or XP. Using this account, users have access to the administration homepage and all the storage
resources. By default, the password for this user account is empty. To prevent security vulnerability, it is strongly suggested
to specify the password when performing the first-time setup of the NAS server.
To specify or modify the administrator’s password, please select the Server→Password menu on the administration
homepage. Input the current admin password in the Old Admin Password field, and the new password in the New
Admin Password and Confirm Admin Password fields. Then click Apply.
The administrator can delegate the administrator’s privilege to other users by including them into the Admins built-in

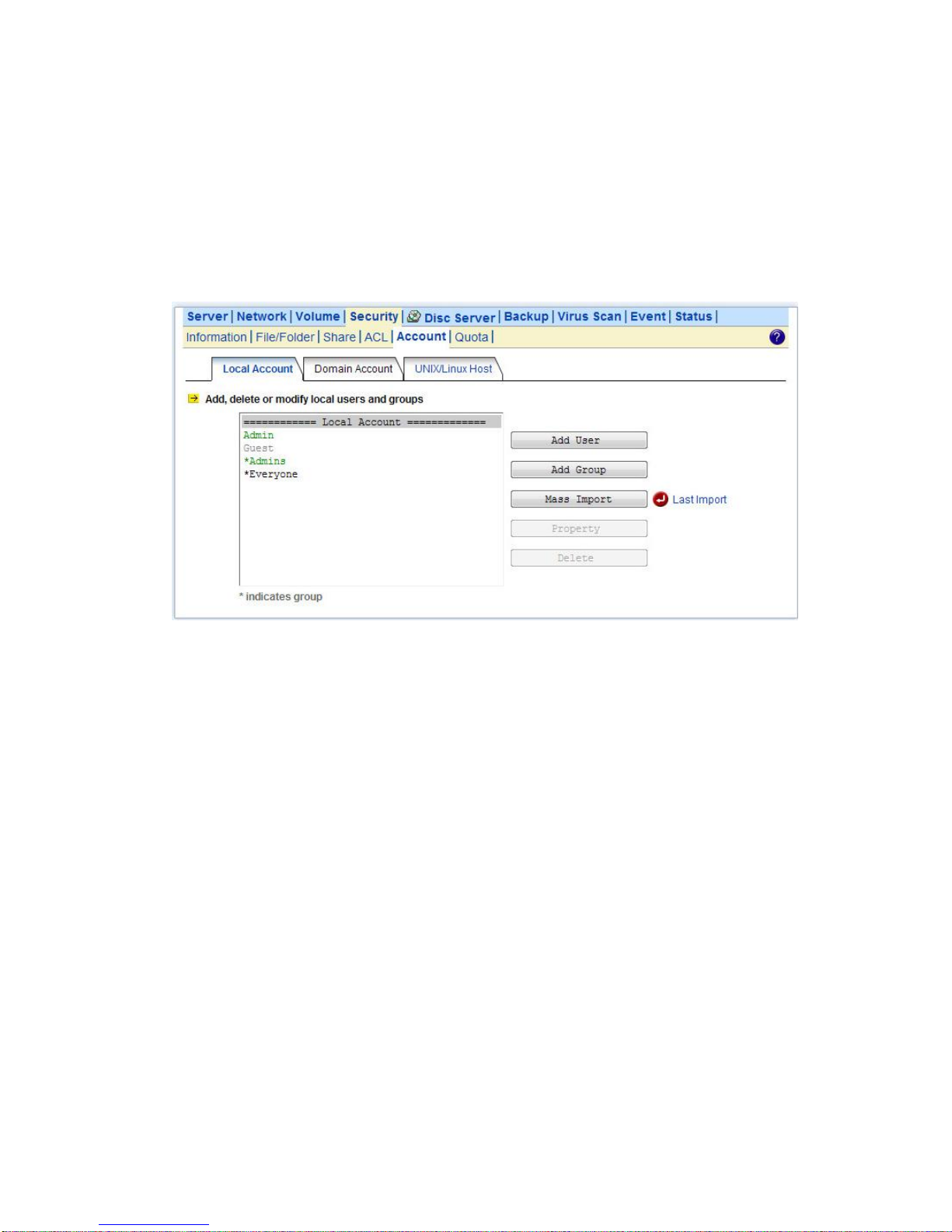

group. Please select the Security→Account menu. Select Admins* in the Local User/Group window and click
Property. Specify the users to have the privilege and click Apply.
20
4. Network Configuration
This chapter details concepts and procedures for configuring the NAS server and establishing the
system that can communicate among various OS platforms. Management protocol and email
notification setting are also covered in this chapter.
4.1 Network Information
The Network Information screen is the summary of the current network settings of the NAS server.
It provides the administrator a quick look of the basic network setting of the NAS server.
The Information page is divided into two sections. The Network Protocols section displays the
current network protocol settings of the server.
Protocol Type
Display network protocol supported by the server
Configuration
Current status of the network protocol.
Status: Enabled or Disabled
Security Policy
Display type of the security policy of the network protocol
The TCP/IP Suite Settings section shows the various TCP/IP
settings of the server.
Port
Display Ethernet port #.
IP Address
An identifier for a network resource on a TCP/IP network.
Subnet Mask
A subnet mask used to determine what subnet an IP address
belongs to.
Gateway
A node on a network that work as a point of entry to another
network
Speed/Mode
10/100/1000 Mbps and full/half Duplex
Network Teaming Mode
Display the current network teaming mode.
Obtain TCP/IP settings from
Display the IP settings is either assigned automatically from
DHCP or assigned manually
WINS Server IP Address
Windows Internet Naming Service (WINS), manages the
association of network resources name and its IP addresses
without the user or an administrator having to be involved in each
configuration change.
DNS Server IP Address
IP address of the domain name system (DNS) server which
located the domain names and translate it into IP addresses.
DNS Suffix
Display the DNS suffix
21
NTP Time Server IP Address
The IP address of the NTP (Network Time Protocol) server, which
is used to synchronize system time automatically over the net.
The system time will be synchronized with the NTP server every
24 hours.
SMTP Server Address
IP address or server name of the SMTP (Simple Mail Transfer
Protocol) server used in sending and receiving e-mail.
HTTP Proxy Server IP
Address
IP address of the HTTP proxy server. Next to the IP address is the port
number.
4.2 TCP/IP Settings
TCP/IP handles network communications between network nodes that are connected to the network.
It is important to setting up correct TCP/IP setting that for NAS server to function properly.
Network Teaming Mode
The NAS server provides two on-board 10/100/1000 or Gigabit Ethernet ports (LAN1 & LAN2). You
can configure the Ethernet ports using the following operating modes:
Stand Alone: Each LAN1 & LAN2 are configured with a unique IP address, which are independent to
each other.
Fault Tolerance: Uses LAN2 to take over for the LAN1 if LAN1 is fail to connect to the network which
designed to ensure server availability to the network.
Load Balancing: Offers increased network bandwidth by allowing transmission to multiple
22
destination addresses using both LAN1 and LAN2. If the traffic of one of the LAN port starts to get
congested, requests are then forwarded to the other LAN port with more capacity until the traffic of
both LAN ports start to get balance. Note that only the LAN1 Ethernet port receives incoming traffic.
Load Balancing also incorporates Fault Tolerance protection.
Link Aggregation: combines both LAN1 & LAN2 into a single channel, appearing to use a single
MAC address to provide greater bandwidth. It must be used with a network switch having the Link
Aggregation or Trunking function.
Wake-On-LAN
NAS server also supports Wake-On-LAN (available for LAN2 only). Wake-On-LAN allows
administrators to remotely power on your NAS server to perform maintenance task on the server with
no need to go to the server physically.
Configuring TCP/IP Settings
1. Select a Network Teaming Mode from the pull-down menu that suit you need.
2. Enable or Disable Wake On LAN (Available for LAN2 only).
3. Click the Obtain IP settings automatically radio button to obtain IP addresses of your NAS server from DHCP, BOOP
or RARP server on the network.
4. Or, click the Use the following IP settings radio button to assign the IP addresses manually.
5. Note that LAN3 IP address field will appear only when the optional Gigabit Ethernet adapter is installed in your system.
6. Input the WINS server IP address.
7. Input the DNS server IP address.
8. Input the DNS Suffix.
9. Input the NTP Time Server IP Address if available.
10. Click Apply to save the setting.
To disable a LAN port, enter 0.0.0.0 in its IP address field. If you happen to disable all LAN ports and
cannot access the administration page, please use the LCD panel to change the IP address to
non-zero values.
23
4.3 Windows Settings
NAS server using SMB/CIFS protocol- short for Server Message Block/Common Internet File System,
a protocol used by Microsoft to share files, directories and devices with the Windows client.
You can configure the Windows Network Settings using the following operating mode:
Workgroup Mode: NAS server becomes a member of a workgroup and communicates with the
clients using its internal user database for authentication and do not require other authentication
server present in the network.
Domain Mode: NAS server become member of a domain and communicates with the client using the
user database stored in an authentication server which must be present in the network Optionally,
you can register the NAS server to the domain. Once registered, the NAS server will be created as a
machine account on the domain controller. And it will use Kerberos as the authentication mechanism,
which provides better integration into the Windows network environment.
Configuring Windows Network Settings
1. Click the Enable Windows Network (SMB/CIFS Protocol) checkbox to enable access for SMB client.
2. Enter the Workgroup/Domain name. Use FQDN if you want to configure NAS server in Domain Mode Ex:
Microsoft.com
3. Click the Workgroup Mode radio button if you want to configure NAS server in Workgroup Mode.
4. Or, click the Domain Mode radio button if you want to configure NAS server in Domain Mode.
5. Input the domain manager’s user name and password (Power Users at least)
6. Select the option to disconnect idle connection automatically. Server will disconnect the
connections which have been idle for 5 minutes if this option is enabled.
7. Click Apply to save the setting.
24
4.4 UNIX/Linux Settings
NAS server can export shares to UNIX/Linux client via NFS protocol. UNIX/Linux client then can
mount the shares and gain access to the content of the shares. UNIX/Linux client uses UNIX user
identification, typically consisting of User Identifier (UID) and Group Identifier (GID), for access
control. Non-NFS clients do not use UIDs and GIDs for identification. Since NAS server is intended
for working in a heterogeneous network, files created by non-NFS client could possess incorrect
ownership information and generate inaccurate quota information for UNIX/Linux clients due to the
unmatched UID and GID. A mapping is needed to maintain the correct identity of the user using
multiple protocols to access NAS server, for example Windows and UNIX/Linux clients. Windows
based clients need to map the Windows user name to UID/GID before forwarding a request to retain
the correct ownership information for UNIX/Linux clients. By default, the NAS server maps all
non-NFS users, including local users and domain users, with the same UID/GID as defined on this
page. If the administrator wants to have different UID/GID for different users, he should click the
Modify button to modify the user mapping to UID/GID.
UID: User ID. The numerical number assigned to a user in Unix/Linux permissions. NFS uses UID to
determine permissions on files and directories.
GID: Group ID. A part of POSIX permissions that determine groups of users. NFS files have a GID
assigned to them.
Permission: Three numbers are used for setting the file permission. Each of the three numbers
corresponds to the type of users- Owner, Members of a group and Everyone Else.
Number
Read (R)
Write (W)
Execute (X)
0
No
No
No
1
No
No
Yes
2
No
Yes
No
3
No
Yes
Yes
4
Yes
No
No
5
Yes
No
Yes
6
Yes
Yes
No
7
Yes
Yes
Yes
Example: If the permission of a file is set to 777, this file has read, write and execute permissions for
the owner, the group and for other users.
Configuring UNIX/Linux Network Settings
1. Click the Enable UNIX/Linux Network (NFS Protocol) checkbox to enable access for NFS client.
2. Enter the default permission for files created via non-NFS protocol. (Default setting = 755)
3. Click Apply to save the settings.
4. Click the Modify icon and enter the default UID and GID. (Default setting = 0)
5. Choose to map all users to the default UID/GID or assign UID/GID for each user manually.
6. Click Set Default link to set the UID/GID of all users to the default UID/GID. Note that the value ‘-1’
25
represent that the UID/GID is equal to the default UID/GID configured above.
7. Click Apply to save the settings
Configuring NIS settings
The NIS (network information services), formerly known as Yellow Pages, is a UNIX standard for
centralizing the management of UNIX resources. The NAS server supports the retrieval of user
accounts and their UID/GID from a NIS server.
If the NIS support is enabled, the NAS server can auto-map NIS users with local/domain users. It
matches user names and assigns the UID/GID of the matched NIS users to local/domain users. The
user auto-mapping function provides better and tighter integration between NFS clients and other
network operating systems.
The steps of enabling NIS support are as follows:
1. Check the Enable NIS Support checkbox.
2. The NIS domain name is required. Please fill in the correct name in NIS Domain Name field.
3. If you do not know the IP address of the NIS server, please specify Find by broadcast. Otherwise,
specify the IP address in the fields.
4. After enabling the NIS support, you can auto-mapping NIS users with local/domain users. In
UNIX/Linux menu, click the Modify icon.
5. Select Map users to UID/GID as defined below to Apply.
6. Click the Auto-map with NIS users link to map with the users in the configured NIS server.
26
4.5 Macintosh Settings
NAS server supports two kinds of protocols used for Mac OS clients –TCP/IP (Open Transport) and
Both AppleTalk and TCP/IP. Also, NAS server provides two kinds of security polices for Macintosh
Network AFP client.
Local account authentication: Authenticate user using NAS server’s internal user database.
Local and domain authentication: If Windows Network is enabled, you can enable both local and
domain authentication for AFP client.
Current Zone: A division between groups of machines when viewed using AppleTalk. AppleTalk
Zones can be seen in the Chooser, the AppleTalk Control Panel, and the Network Browser.
AppleTalk Address: It is a unique number that identify the server on the network. The number to the
left of the dot is the network number. The number to the right of the dot is the node number.
Configuring Macintosh Network Settings
1. Click the Enable Macintosh Network (AFP Protocol) checkbox to enable access for AFP client.
2. Select a protocol and click the radio button beside it.
3. Click the Local account authentication radio button to authenticate user using the server’s local
user database.
4. Or, click the Local and domain account authentication radio button to use both local account
and Microsoft domain security authentication.
5. Select the Current Zone from the pull down menu or Default Zone is assigned by default.
6. Click Apply to save the setting.
27
4.6 Web Data Access Settings
This section shows the parameters that you can set up for user to access NAS system user’s home
page. You can configure the user access constraint, authentication policy and default setting by
defining the Access Control, Security Policy and Default User Page settings.
Configuring Web Data Access
1. Click the Enable Web Data Access (HTTP Protocol) checkbox to enable Web data accessing.
2. Choose Allow file download only or Allow file upload and download.
3. Click the Local account authentication radio button to authenticate user using the server’s local
user database.
4. Or, click the Local and domain account authentication radio button to use both local account
and Microsoft domain security authentication.
5. Select the default type of the folder display on the user page. You can choose from Detail View,
Large Icons or Small Icons.
6. Click the checkbox beside the Allow users to modify ACL to give users the privilege to modify the
ACL table entries.
7. Click Apply to save the setting.
28
4.7 FTP Data Access Settings
NAS system supports File Transfer Protocol (FTP) that allows users to transfer files via the Internet.
By properly configuring the FTP settings, you can effectively control how users access the content in
your NAS server via FTP.
Configuring FTP Data Access
1. Click the Enable FTP Data Access checkbox to enable FTP data accessing.
2. Select the Access Control type. Click the Allow file download only or Allow file upload and
download radio button.
3. Select the appropriate Security Policy. Check the Allow anonymous login and map to:
check-box, and select a local user from the pull down menu. User using the anonymous login will
then possess the same security privilege as the selected local user.
4. Or, click Allow individual user login. Select Local account authentication to authenticate user
using the local user database or click the Local and domain account authentication radio button to
use both local account and Microsoft domain security authentication.
5. Select the User Limit. Click the Unlimited radio button or specify the maximum number of users
allowed to access the content in your NAS server via FTP.
6. Specify the Home Directory when user connects to the NAS server via FTP. Note that you must
select a volume to create a FTP home directory.
7. Specify the permission of the home directory by clicking the Set icon.
8. Click Apply to save the setting.
29
4.8 SNMP Settings
Simple network management protocol (SNMP) provides the ability to monitor and gives status
information of the SNMP agent to the SNMP management console. NAS server behaves as an
SNMP agent that answers requests from management console and sends trap information to it. The
following options should be configured to using SNMP protocol:
Community: A name serves as a simple authentication. The communication between the SNMP
management console and the NAS server cannot be established if the community names are
mismatch.
IP: IP address of the SNMP management console
Trap: A trap is a voluntary message send out from a SNMP agent (which is in this case your NAS
server) when there is an event occurred.
Management: Configure the SNMP management console as Read Only or Full Control.
Location: Provide location information of the SNMP agent.
Contact: Provide name of the contact person who has the management information of the SNMP
agent.
Configuring SNMP Settings
1. Click the Enable SNMP Protocol checkbox to enable SNMP accessing.
2. Enter a Community name.
3. Enter the IP address of the management console.
4. Select Yes from the pull down menu if you want the corresponding management console to receive
trap message.
5. Select Read Only from the pull down menu if you want the corresponding management console
has read only privilege.
6. Repeat Step 2 to Step 5 if more than one management console is available. NAS server supports
up to 4 management consoles.
7. Enter the location information of your NAS server.
8. Enter the name of the contact person who has the management information of the NAS server.
9. You can check the checkbox beside Send a test trap to send sample trap information to validate
your setting of the SNMP settings.
10. Click Apply to save the setting.
30
4.9 Email Settings
You can configure email notification to notify you when there is an event occurred to the NAS server.
Enter the information of the SMTP server on your network in this menu; you can configure what kind
of event should trigger the email notification process in the Event→Configuration→Advance menu.
Configuring Email Settings
1. Click the Enable SMTP Protocol checkbox to enable SMTP protocol.
2. Enter the SMTP Server Address.
3. Enter an existing user account name of the SMTP server.
4. Enter the password of the account.
5. Enter up to two email addresses you want to send email notification to when event occurred.
6. Click the Send a test email checkbox if you want to send out a test email to validate your email
setting.
7. Click Apply to save the setting.
4.10 SSL Settings
The NAS server enables secure web access by supporting SSL 3.0, both for the user homepage and
the administration homepage. To use SSL 3.0, the NAS server will generate a server certificate for
authentication and data encryption. By default, the server certificate is issued to the NAS server
designated by its IP address. You can also specify to use the server's full name on the server
certificate.
For clients to access server web-pages with secure connection, they have to install the CA certificate
first. First fo to the Network→SSL page.Click Download and install CA certificate hyperlink.
Choose to install the certificate when a dialog-box pops up. Once the CA certificate is installed, the
client can access all NAS server s' web pages with SSL connection. Suppose that the server IP
address is 192.168.1.10. To access the NAS system's web pages with SSL connection, please open
Loading...
