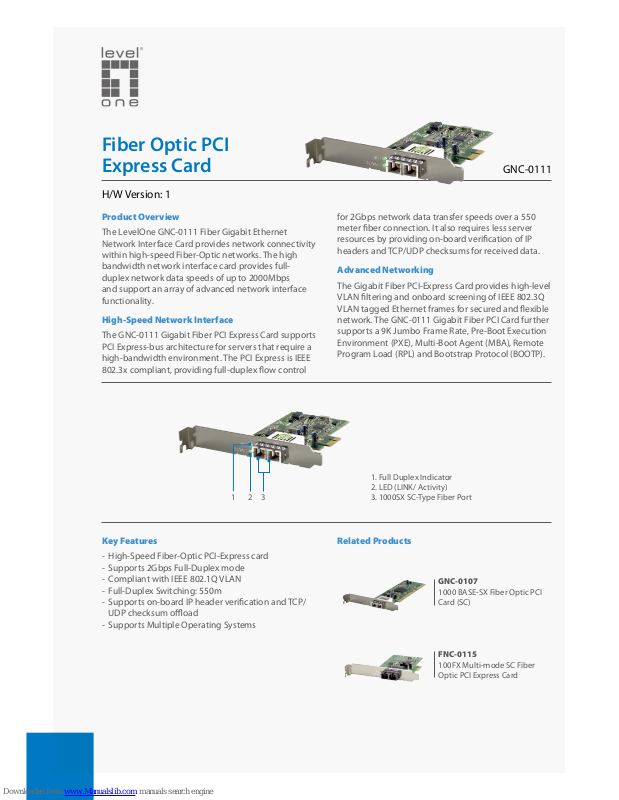

LevelOne GNC-0111 Specifications

2

Fiber Optic PCI
Express Card

GNC-0111

Product Overview

The LevelOne GNC-0111 Fiber Gigabit Ethernet
Network Interface Card provides network connectivity
within high-speed Fiber-Optic networks. The high
bandwidth network interface card provides full­duplex network data speeds of up to 2000Mbps
and support an array of advanced network interface
functionality.

High-Speed Network Interface

The GNC-0111 Gigabit Fiber PCI Express Card supports
PCI Express-bus architecture for servers that require a
high-bandwidth environment. The PCI Express is IEEE

802.3x compliant, providing full-duplex ow control

for 2Gbps network data transfer speeds over a 550
meter ber connection. It also requires less server
resources by providing on-board verication of IP
headers and TCP/UDP checksums for received data.

Advanced Networking

The Gigabit Fiber PCI-Express Card provides high-level
VLAN ltering and onboard screening of IEEE 802.3Q
VLAN tagged Ethernet frames for secured and exible
network. The GNC-0111 Gigabit Fiber PCI Card further
supports a 9K Jumbo Frame Rate, Pre-Boot Execution
Environment (PXE), Multi-Boot Agent (MBA), Remote
Program Load (RPL) and Bootstrap Protocol (BOOTP).

Key Features

- High-Speed Fiber-Optic PCI-Express card

- Supports 2Gbps Full-Duplex mode

- Compliant with IEEE 802.1Q VLAN

- Full-Duplex Switching: 550m

- Supports on-board IP header verication and TCP/
UDP checksum ooad

- Supports Multiple Operating Systems

GNC-0107

1000 BASE-SX Fiber Optic PCI
Card (SC)

Related Products

1. Full Duplex Indicator

2. LED (LINK/ Activity)

3. 1000SX SC-Type Fiber Port

H/W Version: 1

2

FNC-0115

100FX Multi-mode SC Fiber
Optic PCI Express Card

31

www.level1.com I one world_one brand_one level_

Network Adapters

3

Technical Specications

Product Diagram

Server

Physical Specications

Power Requirement

5W

3.3V DC, 1.5A

Operating Parameters

Temperature: 0°C to 50°C
Humidity: 5% to 90%

Dimensions

108mm (L) x 68.5mm (H)

Weight

60g

Certications

FCC Class B
CE Mark
RoHS

Software Support

Windows 98/ME/2000/NT4.0/2003/XP/Vista/7
Novel Netware 4.x, 5.x, 6.x
Linux
PXE & RPL Boot ROM

Network Interface

Standards Compliant

IEEE 802.3z Gigabit Ethernet 1000Base-SX
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN

Connector

850nm SC multi-mode

Fiber Optic Cable and Length

62.5/125μm, 50/125μm Multi-Mode up to 550m

Data Transfer Mode/Speed

Full duplex with NWay ow control
100Mbps speed

Bus Slot

PCI-e x1 bus (PCI-e Rev. 1.1 Interface)

Diagnostics LEDs

Link/Activity
Full-duplex Activity

GNC-0111

Server

GNC-0111

GSW-2494

Order Information GNC-0111: 1000SX Multi-mode SC Fiber Optic PCI Express Card

Package Contents GNC-0111

CD Manual

All mentioned brand names are registered trademarks and property of their owners. Technical specications are subject to change without notice.

© Copyright Digital Data Communications GmbH. All Rights Reserved.

V1.0
