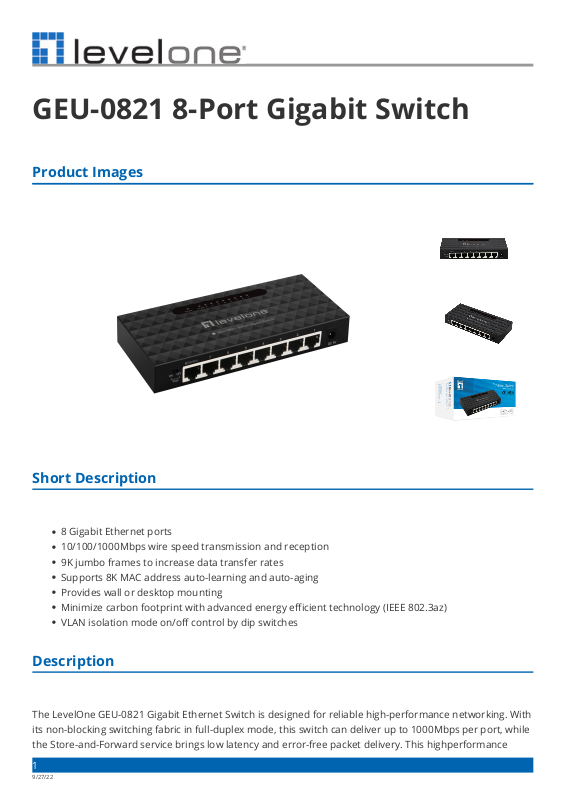

GEU-0821 8-Port Gigabit Switch
Product Images
Short Description
8 Gigabit Ethernet ports
10/100/1000Mbps wire speed transmission and reception
9K jumbo frames to increase data transfer rates
Supports 8K MAC address auto-learning and auto-aging
Provides wall or desktop mounting
Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
VLAN isolation mode on/off control by dip switches
Description
The LevelOne GEU-0821 Gigabit Ethernet Switch is designed for reliable high-performance networking. With
its non-blocking switching fabric in full-duplex mode, this switch can deliver up to 1000Mbps per port, while
the Store-and-Forward service brings low latency and error-free packet delivery. This highperformance
1
9/27/22
Page 2
Gigabit Ethernet switch is perfect for fulfilling the demands of online gaming and multimedia streaming.
Moreover, this switch also supports VLAN isolation mode on/off control by dip switches.
Power Saving Features
The GEU-0821 supports IEEE 802.3az Energy Efficient Ethernet to provide power-saving benefits without
compromising performance. One way is to automatically detecting the length of connected cables and to
adjust power usage by saving energy on shorter cable connections.
Compact and Stylish Design
The stylish, compact wall-mountable housing of GEU-0821 fits any working environment. It comes with 8 x
10/100/1000Mbps ports to meet SOHO and home network expansion needs.
Easy to Use
The GEU-0821 features plug-and-play for easy installation. No configuration is required. Autonegotiation on
each port senses the link speed of a network device and adjusts for compatibility and optimal performance.
Additional Information
Approval and compliance
Max. operating humidity (%) 90
Max. operating temperature (°C) 40
Max. storage humidity (%) 90
Max. storage temperature (°C) 70
Min. operating humidity (%) 10
Min. storage humidity (%) 5
Min. storage temperature (°C) -40
Backplane (Gbps) 16
Dip switch VLAN isolation mode on/off
Indicators
Jumbo frame (KB) 9
MAC address table 8 K
Mount Desk mount, Wall mount
Power supply Input : 5VDC, 1.0A (External Power Adapter)
Chipset EN8850
Standards
Energy Saving IEEE 802.3az (Energy Efficient Ethernet)
Product weight (kg) 0.12
Product breadth (mm) 160.9
● CE ● RoHS
● Power ● Link/Active
● IEEE802.3(10BASE-T) ● IEEE802.3u(100BASE-T) ●
IEEE802.3ab(1000BASE-T) ● IEEE802.3az Energy Efficient
Ethernet
2
9/27/22
Page 3
Product depth (mm) 71.6
Product height (mm) 26.3
Color Black
EAN 4015867228319
Model number GEU-0821
Package contents
● GEU-0821 ● Power Adapter ● Quick Installation Guide
● Declaration of Conformity
Grade Commercial
Data Rate Gigabit Ethernet
PoE Supported No
Manageable No
Fanless Yes
Concurrent ports Total8.00
Power consumption 3.5 W
