LevelOne
FPS-3003
2-port USB/MFP Server
User`s Manual
Table of Contents
CHAPTER1 INTRODUCTION..........................................................................5
1.1 About this Manual...................................................................................... 5
1.2 Support Services.........................................................................................5
CHAPTER2 PRODUCT OVERVIEW ..............................................................6
2.1 Package Contents.......................................................................................6
2.2 FPS-3003 USB MFP Server Product CD..................................................6
2.2.1 Start-up Procedures for Windows ..................................................6
2.3 Physical Description..................................................................................6
2.3.1 Ethernet Connector ........................................................................7
2.3.2 USB Host Ports..............................................................................7
2.3.3 Init Button ......................................................................................7
2.3.4 Indicators........................................................................................7
2.4 Installation Methods ..................................................................................8
2.4.1 Installation and Integration ............................................................8
2.4.2 Configuration and Management ....................................................8
2.5 Features and Benefits.................................................................................8
CHAPTER3 BASIC INSTALLATION ............................................................10
3.1 Connecting the Hardware ........................................................................10
3.2 Assigning an IP Address to the MFP Server............................................10
3.2.1 Preliminary...................................................................................10
3.2.2 Ethernet Address..........................................................................10
3.2.3 IP Address ....................................................................................11
3.2.4 Methods for Setting the IP Address .............................................11
3.2.5 Host Names and Host Name Rules.............................................. 11
3.2.6 Set the IP Address Using DHCP ..................................................11
3.2.7 Set the IP Address Using LevelOne MFP Control Center ...........12
3.2.8 Set the IP Address Using Server’s Web Pages.............................13
3.3 Naming Your USB Devices.......................................................................15
3.3.1 Printer Names...............................................................................15
3.3.2 Storage Names .............................................................................17
3.3.3 Scanner Names.............................................................................17
CHAPTER4 ADDING PRINTERS IN WINDOWS ....................................... 18
4.1 Overview of Installation Methods............................................................18
2
4.2 Connecting FPS-3003 MFP Server .........................................................19
4.2.1 MFP Server and Windows PC on Same LAN .............................19
4.2.2 MFP Server and Windows PC on Different LANs ......................19
4.3 Setting up Local Windows Printer Driver................................................20
4.4 Adding Network Printers in Windows......................................................20
4.4.1 Using Standard Windows Methods for SMB Printing Protocol ..21
4.4.2 Using LevelOne MFP Control Center Tool for SMB Printing ....22
4.4.3 Using Standard Windows Methods for LPR Printing Protocol ...23
4.4.4 Using LevelOne MFP Control Center Tool for LPR Printing .....26
4.4.5 Using Standard Windows Method for Raw TCP Printing ...........28
4.4.6 Using LevelOne MFP Control Center for Raw TCP Printing .....30
4.4.7 Using Standard Windows Method for IPP Printing ..................... 31
CHAPTER5 ADDING PRINTERS IN UNIX/LINUX ........................................... 33
5.1 Configuring Host File..............................................................................33
5.2 Printing by LPD/LPR...............................................................................33
5.3 Using FPS-3003 on BSD UNIX/Linux.....................................................34
5.4 Using RedHat Linux Printer System Manager ........................................35
CHAPTER6 FILE SERVER FUNCTION....................................................... 37
6.1 Preliminary ..............................................................................................37
6.2 Storage Names .........................................................................................37
6.3 Connecting USB Mass Storage to FPS-3003...........................................37
6.4 Supported Code Pages.............................................................................38
6.5 Sharing Your USB Mass Storages ............................................................40
6.5.1 Use Shared Storages by SMB Method for Windows...................40
6.5.2 Use Shared Storage by FTP Methods for Windows.....................41
CHAPTER7 SCAN SERVER FUNCTION .....................................................43
7.1 Connecting HP Office Jets to MFP Server ..............................................43
7.2 Using the Shared Scanner in Windows ....................................................43
7.2.1 Using LevelOne MFP Control Center Tool .................................43
7.2.2 Using Windows Applications.......................................................45
CHAPTER8 LEVELONE MFP CONTROL CENTER .................................47
8.1 Installing Your LevelOne MFP Control Center .......................................47
8.2 Using LevelOne MFP Control Center .....................................................47
8.2.1 Use Tools of MFP Control Center ...............................................47
8.2.2 Display Server’s Status................................................................48
3
8.2.3 Set up Server’s Configuration......................................................48
CHAPTER 9 MFP SERVER’S WEB PAGES ..................................................55
9.1 Introduction..............................................................................................55
9.2 Using Server’s Web Pages........................................................................55
9.2.1 Display Server Status...................................................................55
9.2.2 Set up Server Configuration.........................................................56
CHAPTER 10 EMAIL ALERTING ................................................................62
CHAPTER 11 SNMP ........................................................................................62
CHAPTER 12 TROUBLESHOOTING ..........................................................63
12.1 LED Indicators.........................................................................................63
CHAPTER13 RESTORE FACTORY DEFAULT ............................................... 65
13.1 Using Server’s Web Pages........................................................................65
13.2 Using LevelOne MFP Control Center .....................................................66
13.3 Using Init Button......................................................................................66
13.4 Default Parameters List...........................................................................67
CHAPTER14 UPGRADE NEW FIRMWARE..................................................69
CHAPTER15 INIT BUTTON .............................................................................71
CHAPTER16 TECHNICAL SPECIFICATIONS.............................................72
CHAPTER17 APPENDIX ................................................................................... 74
17.1
Compatibility List .......................................................................74
4
Chapter1 Introduction
Thank you for purchasing the FPS-3003 USB MFP server. This product
is designed to connect your printers, USB Mass Storage/Memory Card
Reader, and scanners of HP Office Jet series all-in-one printers (MFP),
anywhere in your network, allowing all network users access to
shared USB devices resources.
1.1 About this Manual
This manual provides introductory information as well as detailed
instructions on how to set up and manage the print server in various
network environments. To fully benefit from this manual, you should
be familiar with basic networking principles.
These instructions are based on the settings in a new MFP server. To
reload the Factory Parameters, you can perform a Factory Default,
which will restore most of the settings. See “Factory Default” on page.
1.2 Support Services
Should you require any technical assistance, please contact your
product reseller. Or you can visit our website at
http://www.level1.com for latest product information.
This manual is subject to changed without notice.
5
Chapter2 Product Overview
2.1 Package Contents
Verify that nothing is missing from the FPS-3003 USB MFP server
package by using the checking list below. Please contact your dealer if
anything is missing or damaged. All packing materials are recyclable.
Please confirm the items in the Package below:
● One FPS-3003 USB/MFP Server.
● One FPS-3003 MFP Control Center Software CD.
● One AC Adaptor.
● One Quick Installation Guide.
2.2 FPS-3003 USB MFP Server Product CD
The FPS-3003 USB MFP Server Product CD provides an easy-to-use
control center software for Windows PC, and user documents.
2.2.1 Start-up Procedures for Windows
If your computer is configured to auto start CDs, the FPS-3003 USB
MFP Server Product CD will start automatically when inserted. You can
also navigate to the CD and start the autorun.exe file from within the
Windows file manager.
2.3 Physical Description
Power Adaptor
USB Port
1
Connector
USB Port
2
Init Button
Ethernet
Connector
Indicators
Power Link Status USB1 USB2
6
2.3.1 Ethernet Connector
The network connector of FPS-3003 is designed for 10 Mbps or 100
Mbps Ethernet networks and connects to the network via a twisted
pair category 5 cable (10baseT and 100baseTX) or better.
2.3.2 USB Host Ports
FPS-3003 has two USB host ports which are USB 1.1/2.0 low and full
speed compliant and successfully tested with USB 1.1/2.0 printers,
Mass Storage and HP Office Jet series printers (MFP).
2.3.3 Init Button
The Init button is used for:

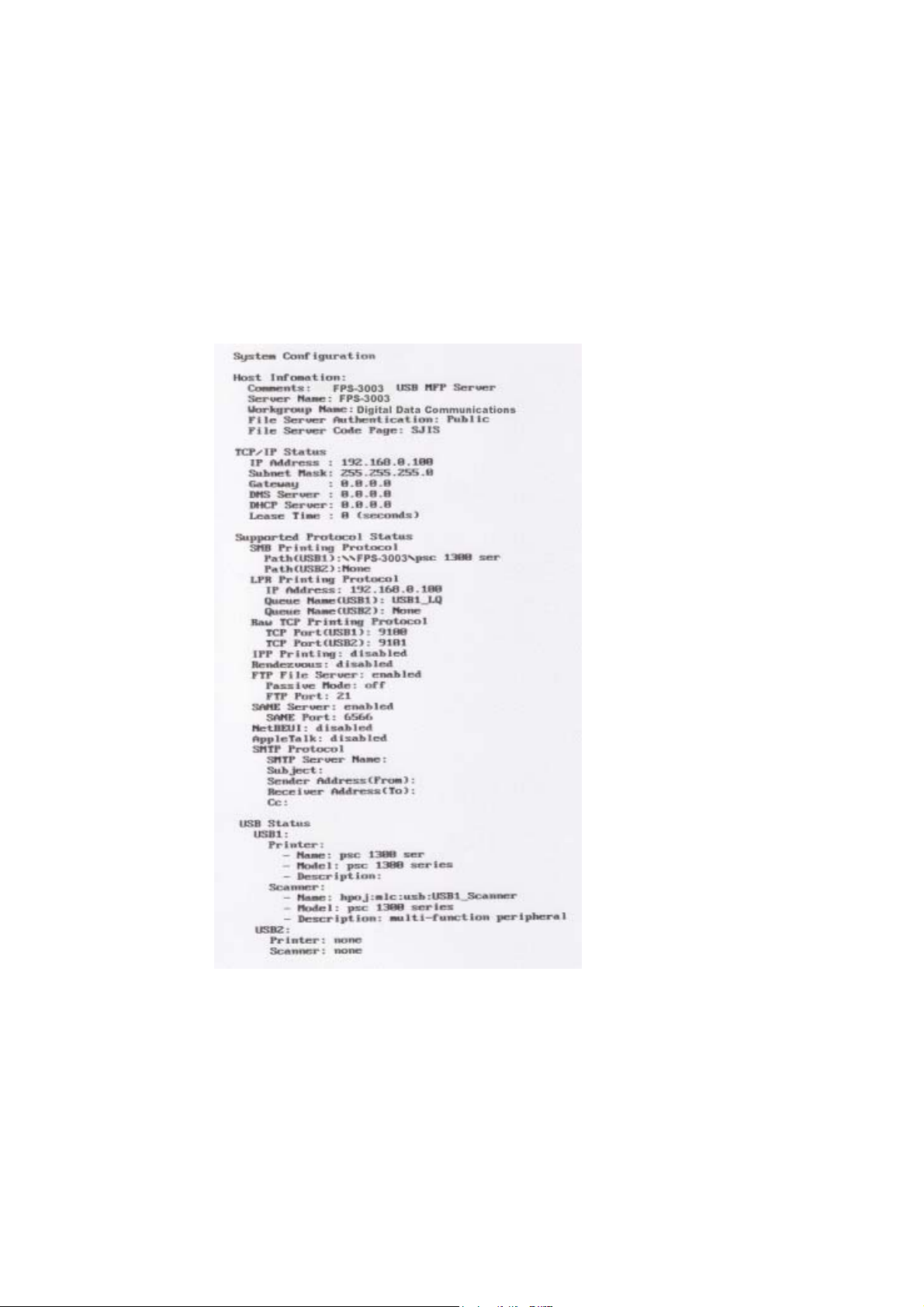

printing a page of configuration report to check the connection
to the printer and showing the MFP server settings
performing a Factory Default of the MFP server, which will
restore most of the parameters and settings to factory default
values
performing the new firmware upgrade using in fallback
2.3.4 Indicators
Power Indicator is lit while power is applied. If it is not lit, or if
it blinks, there is a problem with MFP server or Power Adapter.
Link Status is lit while network is applied. If it is not lit, it
indicates that the server does not connect to network.
Status Indicator blinks to indicate network activity.
USB1 Indicator is lit while an USB device connects to USB1
Port of MFP server. If it is not lit, or if it blinks, there is a
problem with the USB device or the MFP server.
USB2 Indicator is lit while an USB device connects to USB2
Port of the MFP server. If it is not lit, or if it blinks, there is a
problem with the USB device or the MFP server.
7
2.4 Installation Methods
2.4.1 Installation and Integration
Refer to the table below to select the appropriate installation method.
LevelOne MFP Control Center tool is available on the FPS-3003 USB
MFP Server Product CD or from LevelOne’s web site.
Function OS Method Description
Print
Server
Server
Scan
Server
Windows
Unix/Linux
Windows None Don’t need installation File
Unix/Linux Samba Use smbclient in Samba
Windows MFP Control
Standard
Windows Add
Printer Wizard
MFP Control
Center Tool
Edit /etc/printcap
File
RedHat Linux
Printer System
Manager
Center tool
Installation of LPR, Raw
TCP, Local Port Using
SMB, and IPP
Installation of LPR, Raw
TCP, Local Port Using
SMB
Using vi or other editors
to edit the printcap file
Using X-Windows
Interface to operate
Installation of SANE
Client and SANE-Twain
Driver
Unix/Linux SANE Frontends Use SANE Applications
such as XSANE
2.4.2 Configuration and Management
FPS-3003 USB MFP server can be configured and managed from its
internal web pages, using HTTP or from user software: FPS-3003 MFP
Control Center, using Windows. These web pages or PC tools offer you
a management tool that is suitable for all supported network
environments.
2.5 Features and Benefits
FPS-3003 provides the following features and benefits:
8
1. Reliability: The MFP server provides high performance and
reliability combined with low power consumption.
2. Flexibility: The MFP server supports print/File/Scan sharing
in all major computer systems and environments.
3. Easy to Install: The MFP server installs, operates and is
managed in a reliable and easy fashion.
4. Security: You can assign administrator name and password
to restrict login.
5. Monitoring: The MFP server’s web pages and user software
allow you to continuously monitor MFP status.
6. Future Proof: The firmware stored in the MFP server Flash
memory can be upgraded over the network. This allows you to
quickly update and enhance its operational features when new
MFP server software becomes available.
9
Chapter3 Basic Installation
3.1 Connecting the Hardware
1. Make sure that your USB devices are switched off and that the
MFP server’s Power Adapter is disconnected.
2. Connect the USB devices to the USB ports using the USB
cables.
3. Connect the MFP server to the network using a twisted pair
category 5 cable, 10baseT or 100baseTX.
4. Turn on the USB devices and make sure it is ready for use.
5. Connect the Power Adapter to the server. The power indicator
will light up and USB1 and USB2 indicators will flash in turn.
When the Link indicator lights up, the server is correctly
connected to the network. When USB1 and USB2 indicators do
not flash, the server starts to work normally.
6. If you connected USB HP printers to server, please press the
Init button for 3 seconds on the server once to print a page of
server configuration report.
3.2 Assigning an IP Address to the MFP Server
3.2.1 Preliminary
If you have a DHCP server on your network, your MFP server
will receive an IP address automatically. The IP address will
then appear on user software: FPS-3003 MFP Control center
or on the page of configuration report that you printed earlier.
If your DHCP server does not give IP address to the server, the
server will use the Factory IP address: 192.168.1.100.
If you are not working in a DHCP network, you need to set an
IP address of MFP server manually.
3.2.2 Ethernet Address
You do not need to know the Ethernet address of your FPS-3003 USB
MFP server for assigning an IP address to it. MFP Control Center
software can automatically search MFP servers and list their Ethernet
10
addresses. Besides, you can find Ethernet address that is located on
the backside label of the server.
3.2.3 IP Address
Unless you are assigning an IP address using DHCP, you must obtain
an unused IP address from your network administrator.
3.2.4 Methods for Setting the IP Address
You can set the IP address of your FPS-3003 USB MFP server using
one of the following methods, depending on your network operating
environment:
Automatic IP Address Assignment
Manual IP Address Assignment
3.2.5 Host Names and Host Name Rules
The host name of the FPS-3003 USB MFP server is specified by
“FPS-3003”in Factory Parameter. If you put two or more KMFP servers
in your local area network, to avoid using same host names you have
to change the host names by LevelOne MFP Control Center or server’s
web pages. If your host name is longer than 15 characters, FPS-3003
USB MFP server limits the length of host name to 15 characters.
3.2.6 Set the IP Address Using DHCP
Follow the instructions below to get an IP address using DHCP:
1. Edit or create a scope in the DHCP manager of the DHCP
daemon. The entries included in this scope should contain the
following parameters:
range of IP addresses
subnet mask
default router IP address
DNS server IP address
lease duration
2. Activate the scope. The MFP server automatically gets the DHCP
parameters. If you are using DNS, you may include at least one
DNS server IP address in the DHCP scope or manually set DNS
server IP in MFP server’s web pages or LevelOne MFP Control
11
Center tool.
3.2.7 Set the IP Address Using LevelOne MFP Control Center
1. Install LevelOne MFP Control Center. LevelOne MFP Control
Center is available in the FPS-3003 USB MFP Server Product CD.
2. Start LevelOne MFP Control Center and Auto-searching MFP
server window will appear.
3. If the tool finds MFP servers in your local area network, then you
have to select a MFP server from the server list.
4. Double click the highlight list and type the server’s administrator
(default: admin) and password (default: admin).
12
5. After you login successfully, from the Server menu, select
TCP/IP. The Set IP Address dialog appears.
6. Click the button that corresponds to your choice of IP setting
method (static or dynamic using DHCP). When assigning a
static IP address you also have to define Subnet Mask and
Default Gateway. If you choose Automatically get IP by
DHCP, you can use desired DNS by clicking the Manual DNS
button and manually assigning a DNS.
7. Click Apply to save your settings. And the server will reboot.
8. You have now finished the procedure of setting the IP address.
3.2.8 Set the IP Address Using Server’s Web Pages
13
1. If you don’t know the current IP of server, you have to do the
Step1~Step4 of Set the IP Address Using LevelOne MFP
Control Center.
2. You can see the IP address of MFP server in the server list.
Open IE Browser and type server’s IP address or click the
Home Icon of LevelOne MFP Control center.
3. Go to the web page and click TCP/IP icon.
4. Login your administrator (default: admin) and password
(default: admin).
5. Click the button that corresponds to your choice of IP setting
methods (static or dynamic using DHCP). When assigning a
static IP address you also have to define Subnet Mask and
Default Gateway.
14
6. Click Submit to save your settings. And the server will reboot.
You have now finished the procedure of setting the IP address.
3.3 Naming Your USB Devices
3.3.1 Printer Names
Default Printer Name
1. The system will set the printer model names as the default
printer names. The system only allows a 12 characters
long USB device name. For example, the printer model
name is “psc 1300 series” and then the default printer
name will be set as “psc 1300 ser”.
2. If system can not get the printer model (For ex, you use
some parallel printers and use Parallel-to-USB cables to
connect the printers), the default printer names are set as:
USB1_Printer and USB2_Printer with respect to USB1 port
and USB2 port.
Set Printer Name
You can set yourself printer names by LevelOne MFP Control
Center or server’s web pages.
i. Using LevelOne MFP Control Center
1. Start LevelOne MFP Control Center and Auto-searching
MFP server window will appear.
2. If the tool finds MFP servers in your local area network,
15
then you have to select a MFP server from the server
list.
3. Double click the highlight list and type the server’s
administrator (default: admin) and password (default:
admin).
4. After you login successfully, from the Server menu,
select USB Device Information. The Set USB Device
Information dialog appears.
5. Set your printer names in Printer Name box and then
click Apply.
ii. Using Server’s Web Pages
1. Go to the web page and click USB Device
Information icon.
2. Login your administrator (default: admin) and
password (default: admin).
16
3. Set your printer names in Printer Name box and then
click Apply.
3.3.2 Storage Names
The local drives of the two storages in USB1 port and USB2 port are
named as USBx_DxPx, where USBx represents the USBx port, Dx
represents the the x-th Disk (in particular to card reader plugging in
multiple cards) and Px represents the x-th partition.
3.3.3 Scanner Names
The name of connected scanner of HP office jet series consists of the
“vender” + “model”. For example, the scanner name of HP PSC 1310
office jet is named as “HP PSC 1310 series”.
17
Chapter4 Adding Printers in Windows
4.1 Overview of Installation Methods
This chapter describes how to add network printers to Windows PC.
Table List for Installing Network Printer
Windows
Platform
Windows 98, ME,
2000,XP and 2003
Windows 2000, XP
and 2003
Printing
Protocols
SMB Printing
IPP Printing Standard Windows Add Printer
LPR Printing
Raw TCP Printing
Method
Standard Windows Add Printer
Wizard
LevelOne MFP Control Center’s
Add Printer
Wizard
Standard Windows Add Printer
Wizard
LevelOne MFP Control Center’s
Add Printer
Standard Windows Add Printer
Wizard
LevelOne MFP Control Center’s
Add Printer
Steps for Installing Network Printer
Step 1 Step 2 Step 3
Set up Local Window
Connect Your Printer
Connect MFP Server
Printer Driver
Add Network Printer by
- Windows Standard
Method
- PC User Software
to MFP Server
Configure Your MFP
Server
to Network
Step 4 Step 5 Step 6
Printer and MFP
Turn on Your
Server
18
4.2 Connecting FPS-3003 MFP Server
To configure your server correctly, you have to know your server
connecting to what type of network topology.

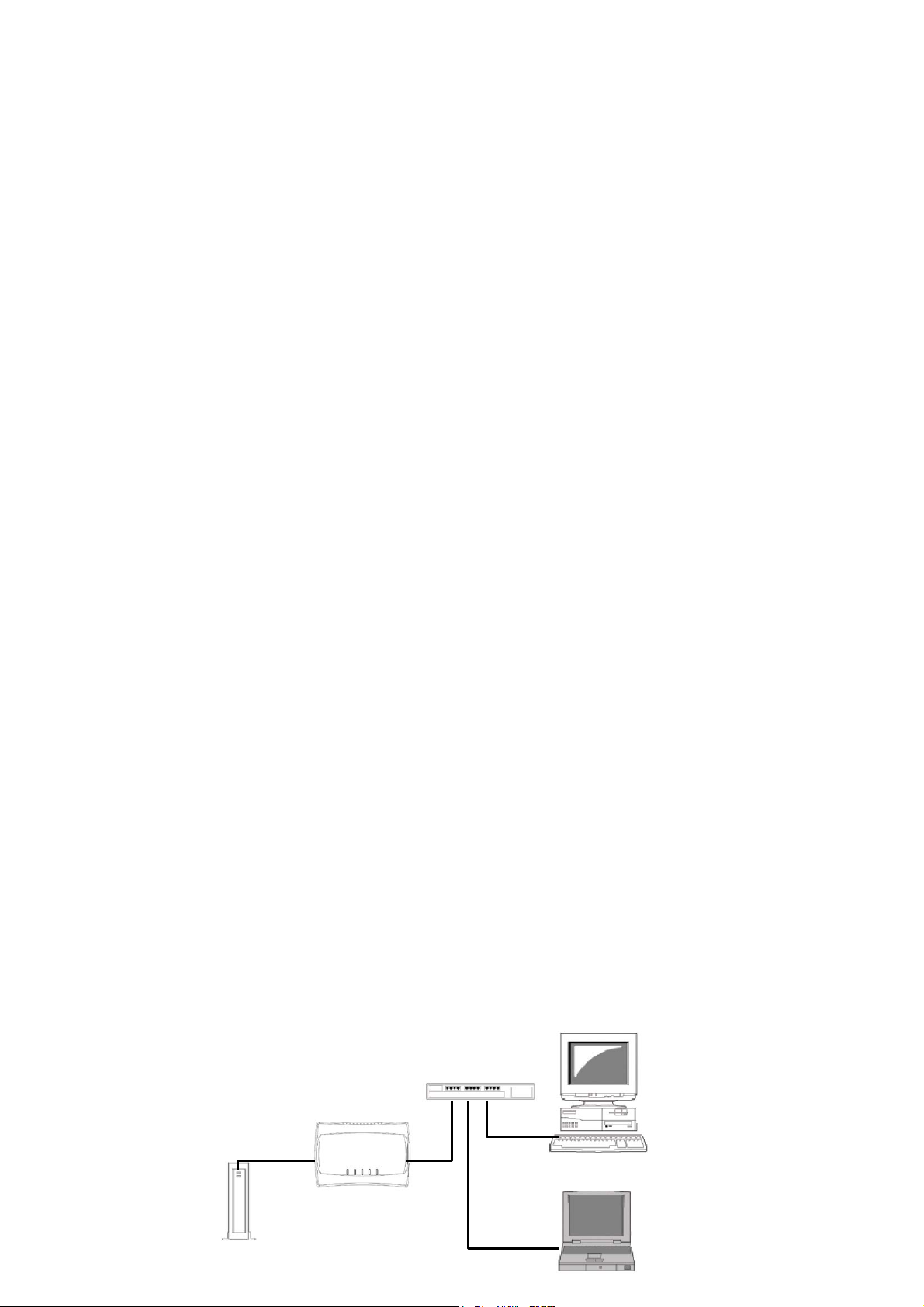

4.2.1 MFP Server and Windows PC on Same LAN
LAN HUB/Switch
MFP Server
PC
USB Printer
PC
4.2.2 MFP Server and Windows PC on Different LANs
1. Wired Windows PC across Internet
Router
LAN HUB/Switch
MFP Server
Internet
Router
Switch
USB Printer
PC
19
2. Wireless Windows PC
MFP Server
USB Printer
LAN HUB/Switch
Wireless AP Router
Wireless PC
4.3 Setting up Local Windows Printer Driver
You are advised to install your Windows printer driver in advance. For
most printers, you can install the printer drivers as the following
procedure:
1. Click Start, click Control Panel, click Printers and Other
Hardware, and then click Printers and Faxes.
2. Double click Add Printer to start the Add Printer Wizard, and
then click Next.
3. Click Local printer, clear the Automatically detect and
install my Plug-n-Play printer check box to avoid having to
wait for the completion of another printer search, and then
click Next. If you leave this option selected, Windows will
attempt to find the printer itself and figure out what kind it is.
If Windows does not find the printer, the wizard will continue
as described in this task.
4. Select a Windows driver for your printer. Click Next.
5. Choose whether you want to share the printer with other
network users. Do you want to print a test page? Select the
appropriate radio button and click Next and Finish.
4.4 Adding Network Printers in Windows
Follow the instructions below to use the standard Windows Add Printer
20
Wizard and LevelOne MFP Control Center for adding a network printer
in Windows 98 SE, ME, 2000, XP and 2003. Before adding a network
printer, you are advised to install the local Windows printer driver in
advance.
4.4.1 Using Standard Windows Methods for SMB Printing
Protocol
Windows Platform: Windows 98SE, ME, 2000, XP and 2003
1. Open Printers and Faxes
2. Right-click the printer for which you want to change settings,
and then click Properties.
3. Click the Ports tab.
4. Clear Enable bidirectional support and click add port, and
then click Local Port in the Port type section.
In the Port Name box, type the path to the printer in the
following format: ”\\ server’s host name\printer name” or ”\\
server’s IP address \printer name” (Please refer to server’s
web pages or LevelOne MFP Control Center tool to know exact
path). For example: if you set server’s host name as
FPS-3003 and printer name (USB1 port) as psc 1300 ser, then
the network path is expressed as: \\FPS-3003\psc 1300 ser
If your server is running on a different LAN than your
windows PC such as wireless Windows PC, you must type IP
address in Port Name box.
5. Click OK, and then select a Windows driver for your printer. If
you already have the printer’s driver installed, you will be asked
whether to keep it or to replace it. Click Next.
6. Choose whether you want to share the printer with other
network users. Do you want to print a test page? Select the
appropriate radio button and click Next and Finish.
21
4.4.2 Using LevelOne MFP Control Center Tool for SMB
Printing
Windows Platform: Windows 98, ME, 2000, XP and 2003
1. Start LevelOne MFP Control Center, select your MFP server and
click Add Printer.
2. Select USB1 Port or USB2 Port to add the printer in Add the
printer box, choose to use host name or IP address to
represent MFP server in Select IP Address or Host Name in
printer port box, and select the network printing protocol of
Printing with Network Path (SMB).
If your server is running on a different LAN than your
Windows PC such as wireless Windows PC, you must choose IP
address in Select IP address or Host Name in printer port
box.
3. Click Apply.
4. Select the desired printer driver and click Set Port to Printer.
22
5. If you can not find any printer driver in Printer List, please
install your printer driver first or click Add New Printer to
install the printer driver.
4.4.3 Using Standard Windows Methods for LPR Printing
Protocol
Windows Platform: Windows 2000, XP and 2003
1. Open Printers and Faxes
2. Right-click the printer for which you want to change settings,
and then click Properties/ports
3. Clear Enable bidirectional support and click Add port, and
then click Standard TCP/IP Port from the dropdown and click
New port.

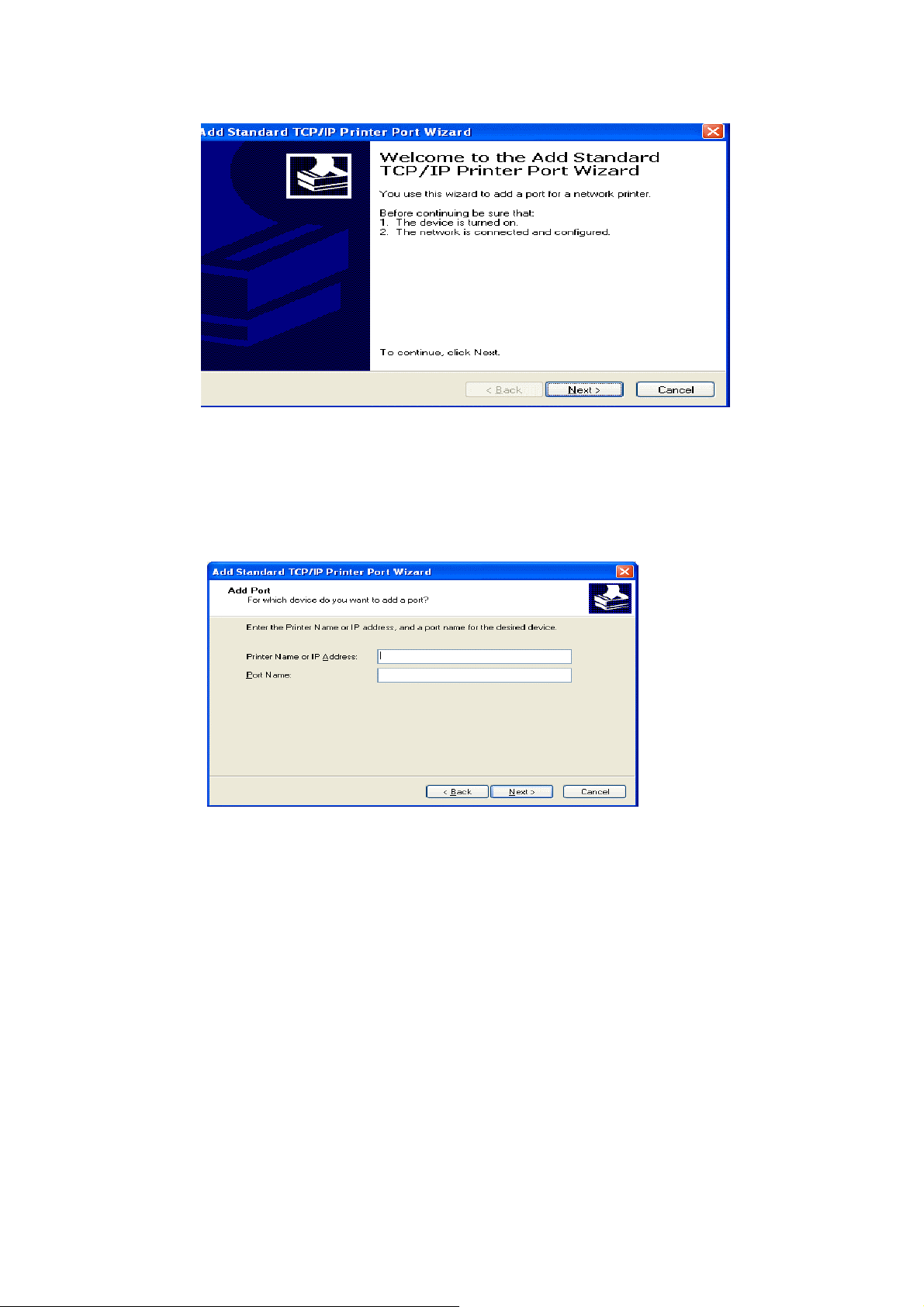

4. The "Add Standard TCP/IP Printer Port Wizard" will pop
up and click Next.
23
5. In the Printer Name or IP Address box, type host name of
the MFP server (default: FPS-3003) or IP address of MFP server.
In the Port Name box, type your desired names or USB1_LPR
or USB2_LPR for printer connected to USB1 port and USB2
port, respectively.
If your server is running on a different LAN than your
Windows PC such as wireless Windows PC, you must type
server’s IP address in Printer Name or IP Address box.
6. Click Next.
24

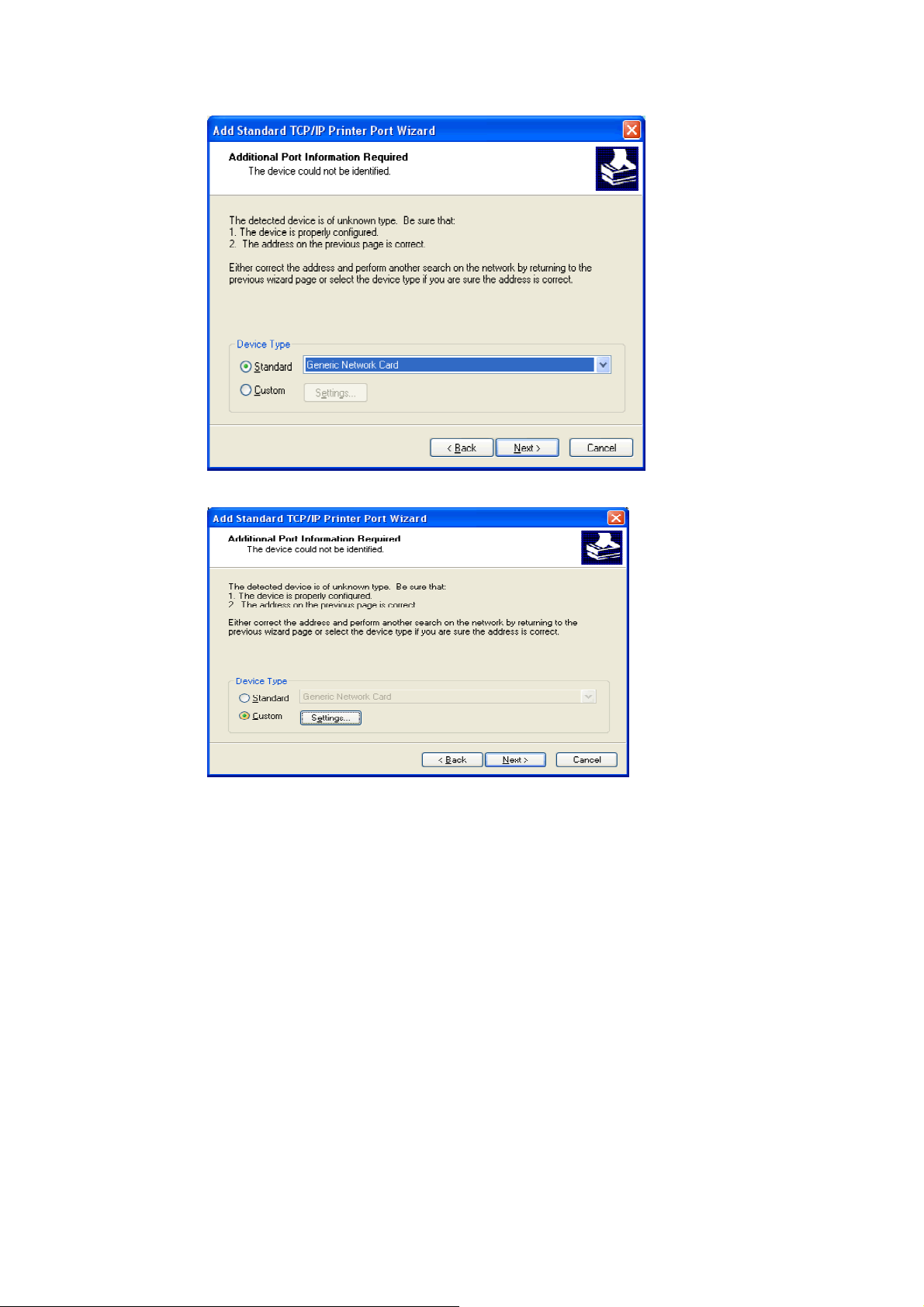

7. Click Custom/settings.
8. Click Settings and confirm that the settings are as below. The
queue names are USB1_LQ, USB2_LQ for USB1 port 1 and
USB2 port, respectively.
25
9. Click OK to finish.
4.4.4 Using LevelOne MFP Control Center Tool for LPR
Printing
Windows Platform: Windows 2000, XP and 2003
1. Start LevelOne MFP Control Center, select your MFP server and
click Add Printer.
26
2. Select USB1 Port or USB2 Port to add the printer in Add the
printer box, choose to use host name or IP address to
represent MFP server in Select IP address or Host Name in
printer port box, and select the network printing protocol of
Printing with LPR (Line Printer Remote).
If your server is running on a different LAN than your
Windows PC such as wireless Windows PC, you must choose IP
address in Select IP address or Host Name in printer port
box.
3. Click Apply.
4. Select the desired printer driver and click Set Port to Printer.
27
5. If you can not find any printer driver in Printer List, please
install your printer driver first or click Add New Printer to
install the printer driver.
4.4.5 Using Standard Windows Method for Raw TCP Printing
Windows Platform: Windows 2000, XP and 2003
1. Open Printers and Faxes
2. Right-click the printer for which you want to change settings,
and then click Properties
3. Clear Enable bidirectional support and click Add port, and
then click Standard TCP/IP Port from the dropdown and click
New port.
4. The "Add Standard TCP/IP Printer Port Wizard" will pop
up and click Next.
5. In the Printer Name or IP Address box, type host name of
the MFP server (default: FPS-3003) or IP address of MFP server.
In the Port Name box, type USB1_RAW or USB2_RAW for
printer connected to USB1 port and USB2 port, respectively.
28
If your server is running on a different LAN than your
Windows PC such as wireless Windows PC, you must type
server’s IP address in Printer Name or IP Address box.
6. Click Next.
7. Click Custom/settings.
8. The click Settings and confirm that the settings are as below.
The default Port Number values are 9100, 9101 for USB port 1
and USB port 2, respectively. Refer to server’s web pages or
LevelOne MFP Control Center tool, you can get exact values.
9. Click OK and then Finish.
29
4.4.6 Using LevelOne MFP Control Center for Raw TCP
Printing
Windows Platform: Windows 2000, XP and 2003
1. Start LevelOne MFP Control Center, select your MFP server and
click Add Printer.
2. Select USB1 Port or USB2 Port to add the printer in Add the
printer box, choose to use or IP address to represent MFP
server in Select IP Address or Host Name in printer port
box, and select the network printing protocol of Print with
Raw TCP Mode.
If your server is running on a different LAN than your
Windows PC such as wireless Windows PC, you must choose
IP address in Select IP Address or Host Name in printer
30
port box.
3. Click Apply.
4. Select the desired printer driver and click Set Port to Printer.
5. If you can not find any printer driver in Printer List, please
install your printer driver first or click Add New Printer to
install the printer driver.
4.4.7 Using Standard Windows Method for IPP Printing
Windows Platform: Windows 98 SE, ME, 2000, XP and 2003
1. Click Start, click Control Panel, click Printers and Other
Hardware, and then click Printers and Faxes.
2. Double click Add Printer to start the Add Printer Wizard, and
then click Next.

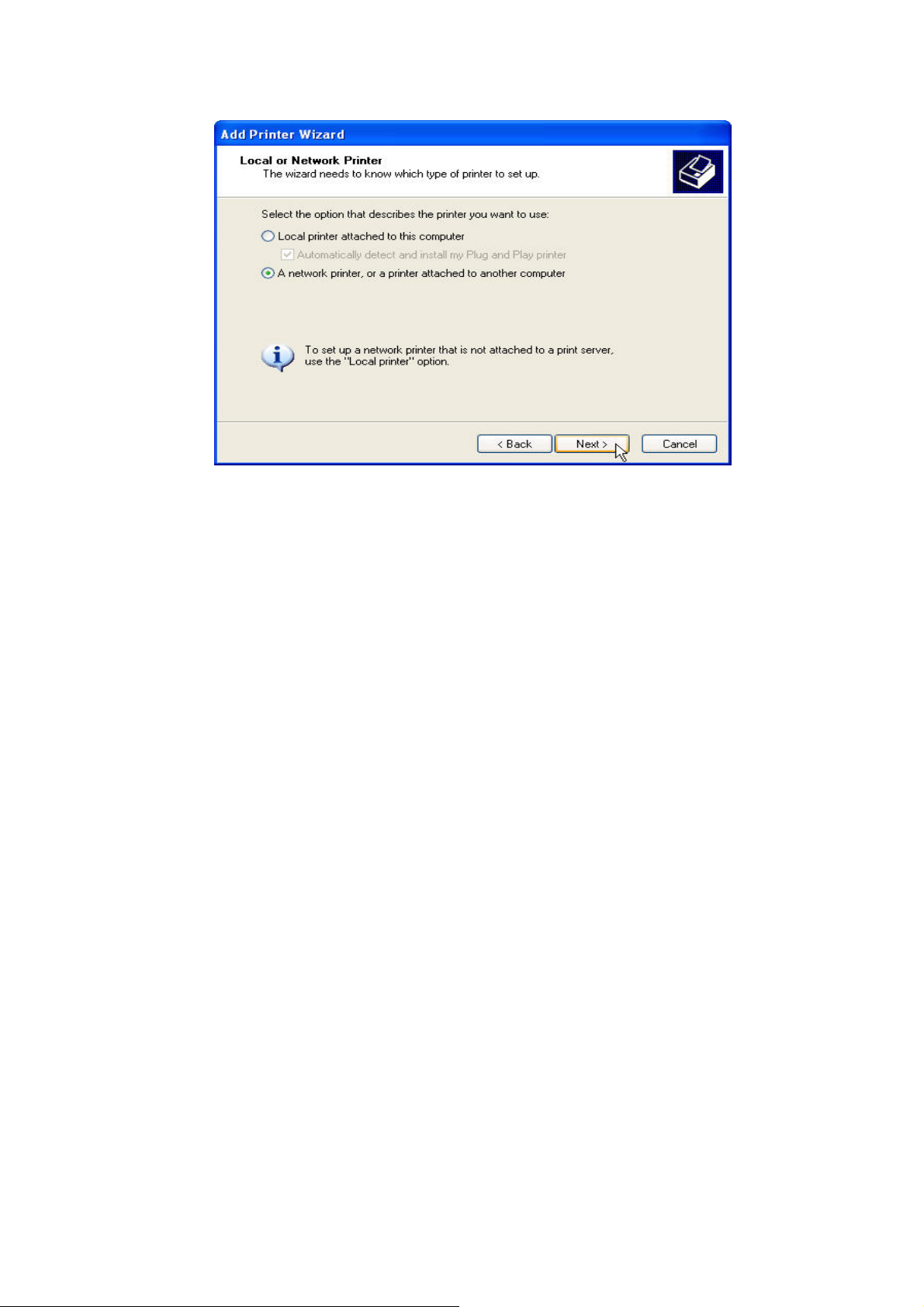

3. In this window, select A network printer, or a printer
attached to another computer
and click Next.
31
4. Click the Next button. On the next window, select Connect to
a printer on the Internet or on a home or office network. In
the URL: field, enter the following to connect to MFP server:
http://sercver’s host name /printer name or http:/server’s IP
address /printer name
For example, http://FPS-3003/psc 1310 ser
If your server is running on a different LAN than your
windows PC such as wireless Windows PC, you must type
IP address in URL: Field.
5. Click Next and then continue Windows Add Printer Wizard.
32
Chapter5 Adding Printers in Unix/Linux
This chapter describes how to add network printers to Unix/Linux PC.
5.1 Configuring Host File
If using IP administration system like DNS, manually registering the
host name and IP address may be not required. Otherwise, you have
to edit hosts file and contact your network administrator.
1. Log in to Linux machine by “root”.
# login root
2. Register FPS-3003 MFP server’s host name and IP address to
/etc/hosts file.
To edit host file, use an editor, e.g. “vi”.
Example: The IP address is “192.168.1.100”, host name is
“FPS-3003”
192.168.1.1 dns # DNS Server
192.168.1.2 mail # Mail Server
192.168.1.100 FPS-3003 # MFP-Server
3. Switch on the MFP server. Verify the network connection by
using ping command.
# ping FPS-3003
If there is no response or error is indicated, there may be
problems with IP address configuration, host file editing or
network status. Please contact your network administrator.
5.2 Printing by LPD/LPR
This section explains how to print using LPD protocol of TCP/IP.
For further information on “lpr” and “lp” commands, refer to your
workstation manual.
LPD Protocol: LPD (Line Printer Daemon) is a protocol that enables
you to execute printing to a printer on the network.
Remote-Printer Queue: FPS-3003 has two remote printer queues
USB1_LQ and USB2_LQ with respect to USB port 1 and UB port2.
To print files using a printer driver, use “lp” or “lpr”.
33
5.3 Using FPS-3003 on BSD UNIX/Linux
1. Log in to the BSD Unix machine through “root”.
# login root
2. Register the FPS-3003 MFP server to /etc/printcap file.
Example: To register the printer of USB1 port by the printer
name “Printer1”.
Printer1:\ ---(A)
:lp=:rm=FPS-3003:rp=USB1_LQ:\ ---(B)
:sd=/var/spool/lpd/Printer1:\ ---(C)
:lf=/var/spool/lpd/Printer1/Printer1_errs: ---(D)
where
(A) Describes the printer name.
(B) lp: Device file name to connect printer. No name
designation required on the network.
rm: Host name for the remote printer. Type the host name
registered to /etc/hosts file.
rp: Remote printer name. Please input the remote printer queue
name.
(C) sd: Spool directory name. It must be the absolute path.
(D) lf: Error log file name. It must be the absolute path.
3. Create the spool directory and error log file registered to
/etc/printcap file.
Example: To create the spool directory “Printer1” and error log
file “Printer1_errs”.
# mkdir /var/spool/lpd/Printer1 Create the spool directory
# touch /var/spool/lpd/Printer1/Printer1_errs Create the error
log file
# chown -R daemon /var/spool/lpd/Printer1 Change the owner
to daemon
# chgrp -R daemon /var/spool/lpd/Printer1 Change the group
to daemon
4. Start Printing.
A. Use the "lp" command.
- # lp -d Printer1 <Print file name>
- # lp -d Printer2 <Print file name>
34
B. Use the “lpr” command.
- # lpr -P Printer1 <print file name>
- # lpr -P Printer2 <Print file name>
5.4 Using RedHat Linux Printer System Manager
In the RedHat x-window user interface, do the steps as follows:
1. Form the Start menu, choose Programs -> Administration
-> Click Printer Tool. Windows will display the RHS Linux
Print System Manager folder.
2. Click on the ADD button in the RHS Linux Print System
Manager folder. Windows will display the Add a Printer Entry
folder.
3. You will now be asked to specify which Printer type you are
using, select the "Remote Unix (lpd) Queue" option.
4. Click the OK button. Windows will display the Under Edit
Remote Unix(lpd) queue Entry folder
5. In the Under Edit Remote Unix(lpd) queue Entry folder,
enter values for the fields as follows:
- Input Names (name1[name2]*): Printer1 or Printer2
(any name)
- Spool Directory: /var/spool/lpd/Printer1 or Printer2
- File Limit in Kb (0=no limit): 0
- Remote Host: FPS-3003 or IP address of MFP server
- Remote Queue: USB1_LQ or USB2_LQ
- Input Filter [select] : select the printer driver
6. Click OK. In the RHS Linux Print System Manager folder,
select Tests in the menu bar.
7. Start printing:
A. Use the "lp" command.
- # lp -d Printer1 <Print file name>
- # lp -d Printer2 <Print file name>
35
B. Use the “lpr” command.
- # lpr -P Printer1 <print file name>
- # lpr -P Printer2 <Print file name>
36
Chapter6 File Server Function
This chapter describes the file server function of FPS-3003 MFP server
which allows USB storage devices to be shared across a network by
using SMB: NetBIOS over TCP/IP and FTP protocol.
6.1 Preliminary
1. This product supports a file format of FAT12/16/32. It will not
support a drive formatted by NTFS, etc.
2. LevelOne technology is not responsible for the loss or
corruption of data in memory devices, including hard disk;
LevelOne is not responsible for the leak, manipulation, loss, or
corruption of data in memory devices connected to MFP server
after unauthorized access.
3. In order to use the USB Mass Storage device connected to the
MFP server, the SMB protocol or FTP protocol must be set up.
4. This product does not support to magnet optical drive devices
such as CD/DVD.
5. This product allows shared two USB storage devices over the
network in Windows through the USB ports.
6. This product does not support the USB devices through USB
hub.
6.2 Storage Names
The local drives of the two storages in USB1 port and USB2 port are
named as USBx_DxPx, where USBx represents the USBx port, Dx
represents the the x-th Disk and Px represents the x-th partition.
6.3 Connecting USB Mass Storage to FPS-3003
Storage
FPS-3003
LAN HUB/Switch
37
6.4 Supported Code Pages
- What is codepage?
Used by the system to encode and interpret string characters.
Codepage formats are not the same for each language. Some
languages, such as Japanese have multibyte characters, while
others, such as English and German, need only one byte to
represent each character.
- Filename Encoding of FAT File System
This is known as an 8.3 file name, a short file name using code page
encoding. The FAT file system also supports file names that can be
up to 255 characters long. This is known as a long file name using
Unicode (UTF-16) encoding.
- Configuring FPS-3003 Codepages
MFP Server supports Windows Codepages. If users want to
communicate files with FPS-3003 MFP server, they have to set their
MFP server code page to be same as the codepage that their
Windows PC is using. Users can use the following methods to set
MFP server codepage.
i. Using LevelOne MFP Control Center
1. Start LevelOne MFP Control Center and Auto-searching MFP
server window will appear.
2. If the tool finds MFP servers in your local area network, then
you have to select a MFP server from the server list.
3. Double click the highlight list and type the server’s
administrator (default: admin) and password (default: admin).

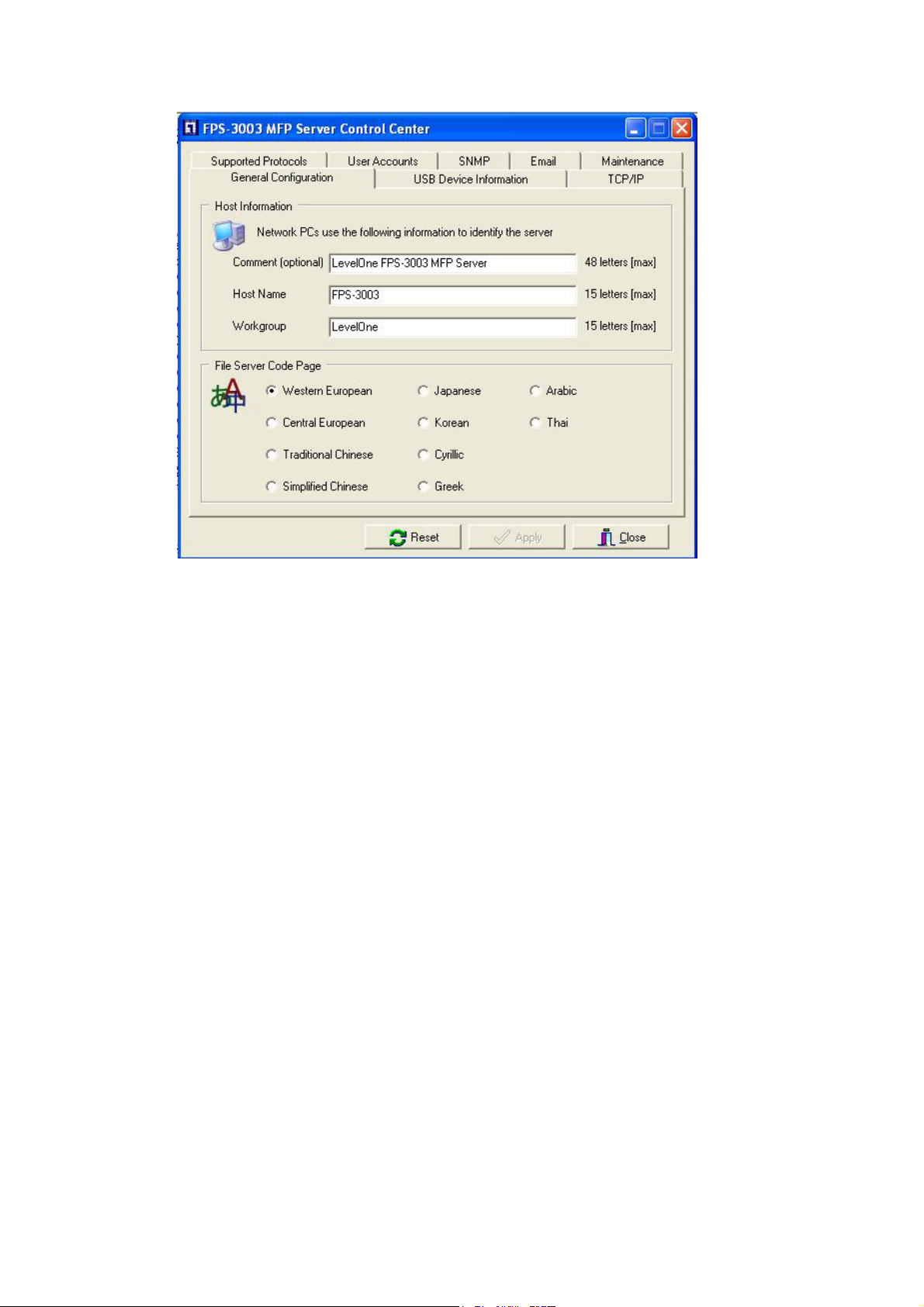

4. After you login successfully, setting General Configuration
dialog appears.
38
5. Select your code page form File Server Code Page box and
click Apply.

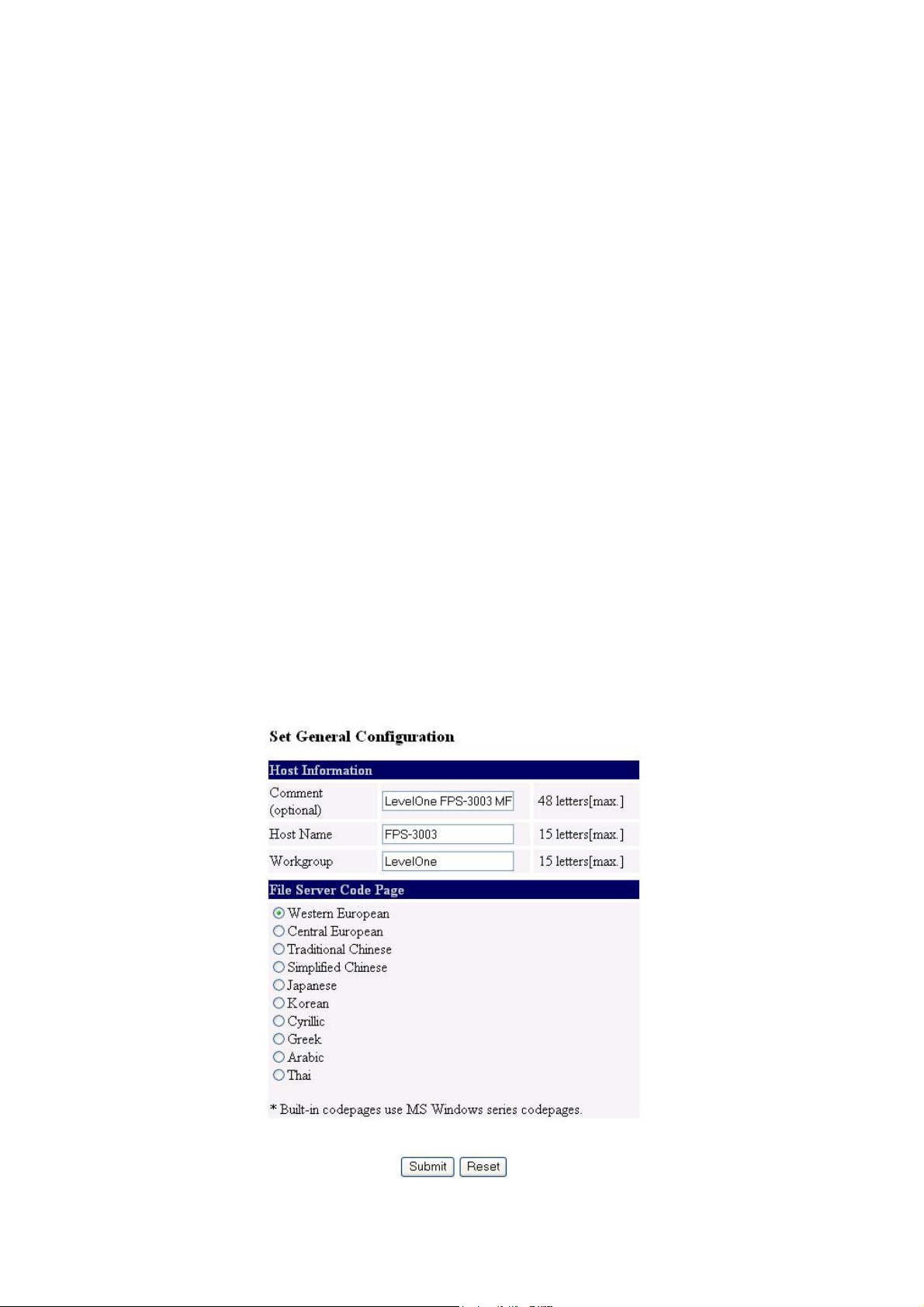

ii. Using Server’s Web Pages
1. Go to the web page, click Config -> General
Configuration icon.
2. Login your administrator (default: admin) and password
(default: admin).

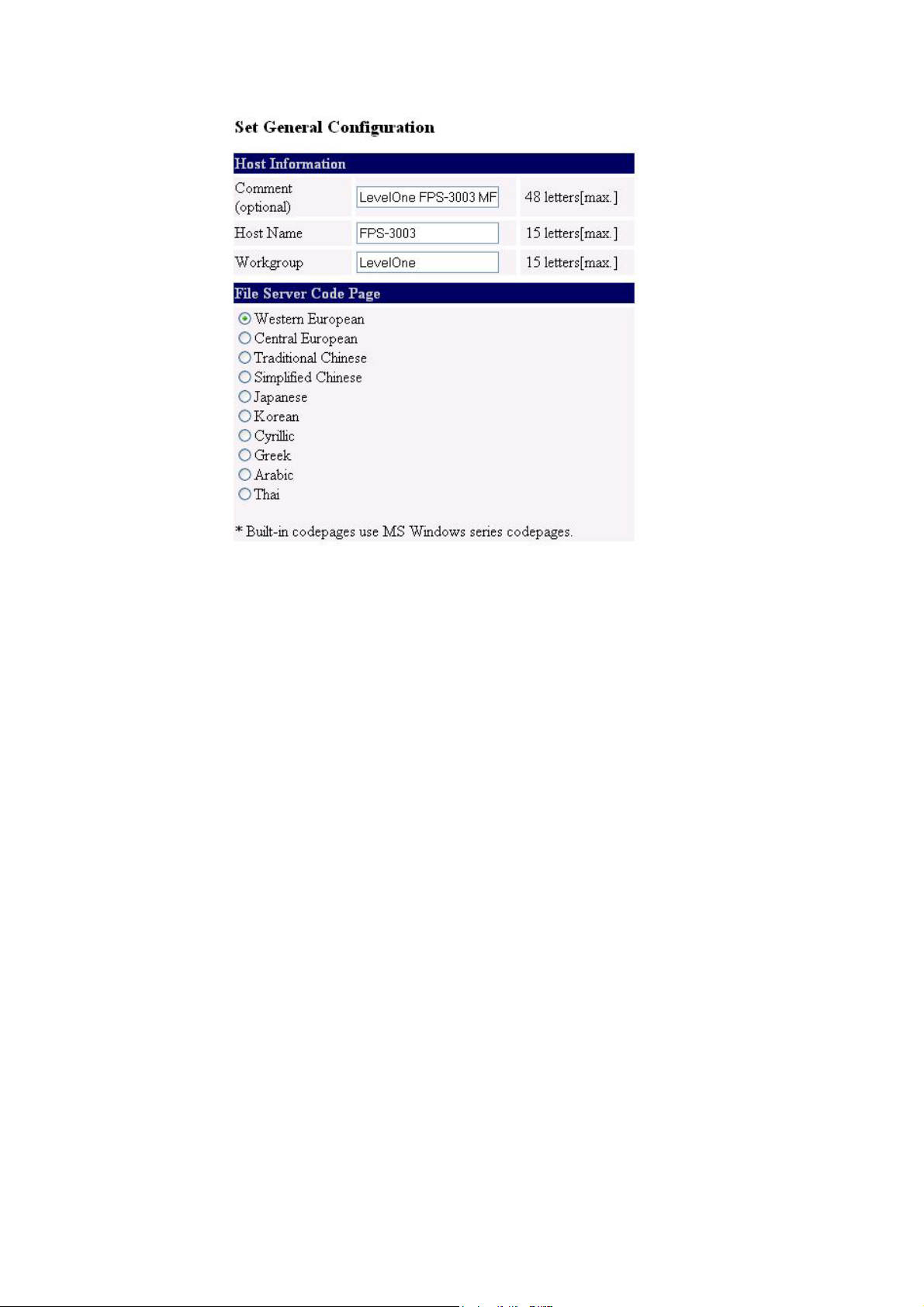

3. After you login successfully, setting General
Configuration dialog appears.
39
4. Select your code page form File Server Code Page box
and click Apply.
6.5 Sharing Your USB Mass Storages
You can use the following protocols to share your USB Mass Storages
in network:
SMB: NetBIOS over TCP/IP
FTP
Prior to using the above protocols, you must select Enable SMB
Print/File Server and Enable FTP Server options in Set Supported
Protocols box.
6.5.1 Use Shared Storages by SMB Method for Windows
1. Connect a USB storage device to this product.
2. Select My Network Places
3. Click Display the Computers of Workgroup
4. Double click Microsoft Windows Network icon.
5. Double click the Workgroup that MFP server belongs to. The
default Workgroup name is “LevelOne”. You can refer to
40
LevelOne MFP Control Center or server’s web pages to get it.
You will see that the MFP server will be displayed as the
default host name "FPS-3003" or the host name that you have
set.
6. If you can not find Workgroup name of MFP server in Microsoft
Windows Network, you can select Search Computer in My
Network Places and type the hostname of MFP server (ex,
default host name “FPS-3003” ) to find it.
7. Double click this host name icon. The folders will be displayed
as USB1_DxPx, and USB2_DxPx where Dx represents the
x-th disk and Px represents the x-th partition with respect to
USB1 port and USB2 port.
8. Double click the one of folders to open the folders over the
network.
6.5.2 Use Shared Storage by FTP Methods for Windows
i. Use Microsoft IE to the shared USB Mass Storages
1. Open Microsoft IE
2. In Web Address List, type command: “ftp://server’s host
name“ or “ftp://server’s IP address”. If you have changed the
default FTP port : 21 to the new value, you have to add the
new port number in the tail of command as “ftp://server’s
host name: ftp port” or “ftp://server’s IP address: ftp port”
3. If you clear Enable FTP Authentication in Set Supported
protocols, you login to the FTP server as anonymous login;
otherwise you have to type user name and password to login
to the server.
4. The shared folders will be listed in IE.
5. Perform Paste, Remove or Copy the files to the shared folders.
ii. Use Microsoft Dos’s FTP client
1. Type Dos command as “ftp”
2. Type “open server’s host name” or “open server’s IP address”.
If you have changed the default FTP port : 21 to the new value,
you have to add the new port number in the tail of command
as “open server’s host name ftp port” or “open server’s IP
address ftp port”
41
3. If you clear Enable FTP Authentication in Set Supported
protocols, you login to the FTP server as anonymous login;
otherwise you have to type user name and password to login
to the server.
4. Perform FTP commands to use this FTP server.
42
Chapter7 Scan Server Function
This chapter explains how to use the scan server function of this
product. The scan server function enables a USB scanner of HP OJ
series, connected to this product, to be shared as a network scanner.
The scan server function is available in any platform that can use
SANE client.
7.1 Connecting HP Office Jets to MFP Server
er
HP MFP
Scanner
FPS-3003
LAN HUB/Switch
7.2 Using the Shared Scanner in Windows
7.2.1 Using LevelOne MFP Control Center Tool
1. Start LevelOne MFP Control Center, select your MFP server,
and click LevelOne Network Scanner.
43
2. Select your scanner for USB1 port or USB2 port.
3. Set the options. The options are defined as follows:
- Source: choose flatbed scanning or scrolledbed scanning
- Mode: choose lineart (black/white), Gray and color mode
- Resolution: choose the image resolution
- Contrast: tune the contrast of the image
- Brightness: tune brightness of the image
- Range: define the scanning range of the image
4. Click Preview button
5. Adjust the window size to be scanned
6. Click Scan button
7. Save as your images to the file
44
7.2.2 Using Windows Applications
Prior to using scanning functions in Windows applications such as MS
Word, Photoshop …etc, you have to install network scanner’s TWAIN
driver in advance. When you install LevelOne MFP Control Center
tool, it will also install this TWAIN driver.
Example: Using Photoshop
1. Start Photoshop, click File ->Import->FPS-3003 Network
Scanner
2. Select a server’s IP address or type a server IP address in Server
Information box. You can click Search Server button to
search existing MFP servers in your network.
45
3. Click Connect to Network Scanner button in Server
Information box
4. Select your scanner in Server Information box.
5. Click Preview button
6. Adjust the window size to be scanned
7. Click Scan button
46
Chapter8 LevelOne MFP Control Center
This chapter describes how to use LevelOne MFP Control Center in
your Windows.
8.1 Installing Your LevelOne MFP Control Center
1. Click Install Product button.
2. Click Next, if you see Next button in installation windows.
3. Click Finish.
8.2 Using LevelOne MFP Control Center
8.2.1 Use Tools of MFP Control Center
You can use the following tools to help you using the MFP server:
Auto Search : renew to auto search the existing MFP
servers in network
IP Search : search the MFP server by IP address
Refresh : refresh the highlight list’s server status
Go to web : go to web pages of the highlight list’s server
Network Scanning : perform network scanner function of
the highlight list’s server
47
Add Printer : perform add printer function of the highlight
list’s server
8.2.2 Display Server’s Status
You can start LevelOne MFP Control Center and select your MFP server
to see the server status which includes Host Information, TCP/IP, USB
Devices Status and Supported Protocols.
8.2.3 Set up Server’s Configuration
General Configuration
Set Host Information: You have to set some
information for networking using SMB protocol:
Comment: optionally set to describe the server
Host Name: the name to represent the server for
Windows networking using SMB protocol
Workgroup: the SMB workgroup name that the server
belongs to.
File Server Code Page: You have to select your code
page while operating network file sharing. Generally, the
criteria of choosing code page are based on your Windows
code page. For example, if your Windows code page is
Traditional Chinese, you have to select Traditional Chinese
(Big5) in server. Please refer to Chapter 6 File Server
Function.
USB Device Information: You can set printer names and
display some information of USB mass storages and scanners.
Please refer to Chapter 4, Chapter 6 and Chapter 7.
TCP/IP: You have to set the server’s TCP/IP configuration to
connect TCP/IP network. Please see Chapter 3 Basic
Installation for more details.

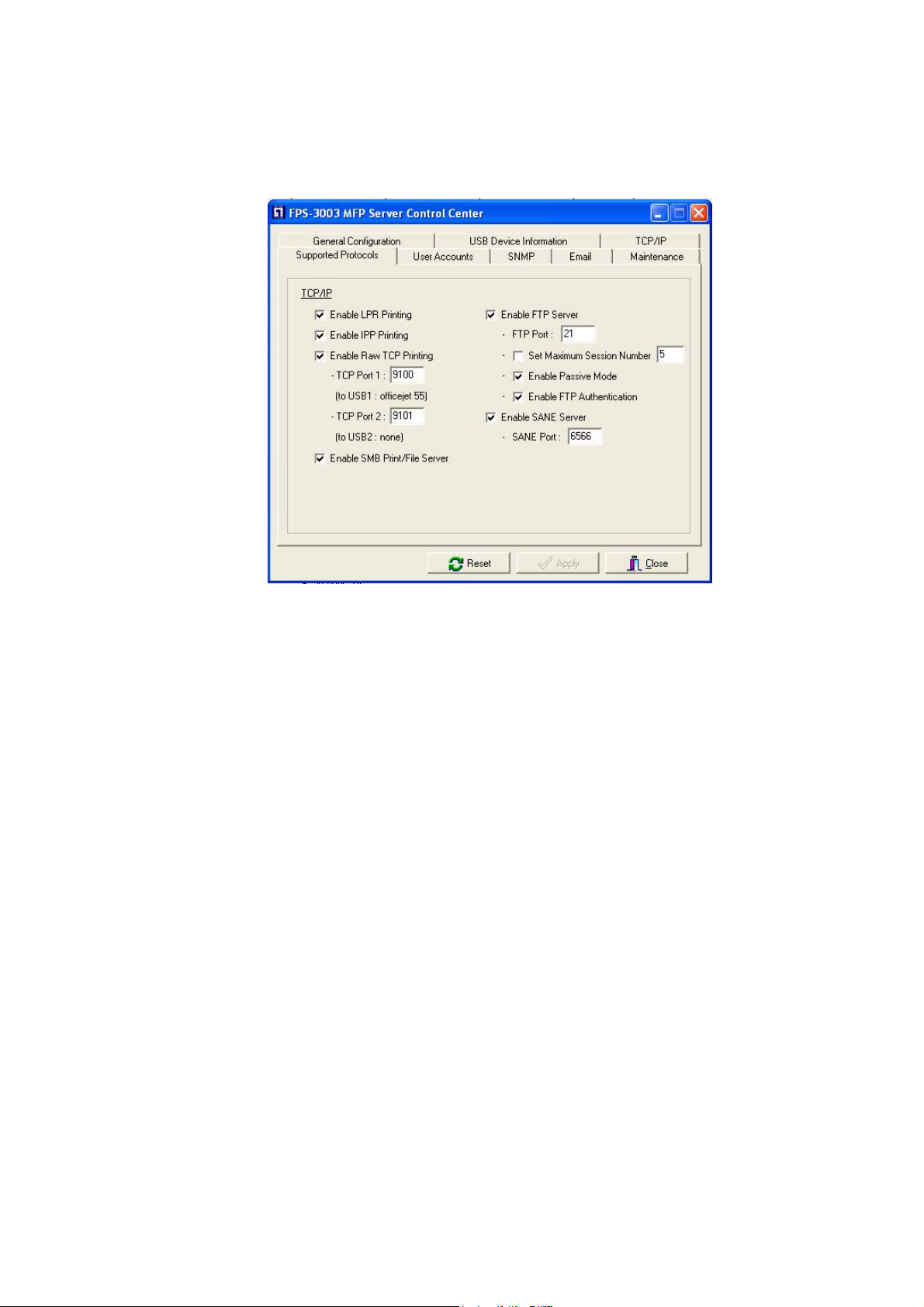

Supported Protocols: The server supports the following
TCP/IP protocols:
TCP/IP
Enable LPR (Line Printer Remote) Printing: select or
48
clear Enable LPR Printing support. It is enabled in
Factory Default.
Enable IPP Printing: select or clear Enable IPP
Printing support. It is enabled in Factory Default.
Enable Raw TCP Printing: select or clear Enable Raw
TCP Printing support. It is enabled in Factory Default
and users may set the protocol’s TCP ports as
following boxes:
- TCP Port 1: set TCP port for the printer of USB1 port
(default: 9100)
- TCP Port 2: set TCP port for the printer of USB2 port
(default: 9101)
Enable SMB (Server Message Block) Print/File Server:
select or clear Enable SMB Print/File Server
support. It is enabled in Factory Default.
Enable FTP Server: select or clear Enable FTP
Server support. It is enabled in Factory Default and
users may set some parameters as follows:
- FTP Port: type an integer number to set FTP
server’s TCP port (default: 21)
- Set Maximum Session Number: select or clear Set
Maximum Session Number support. You can
limit the FTP session number by selecting the
support and type an integer to set the allowable
maximum session number. If you clear the support,
it means that FTP server will have not any limitation
in session number.
- Set Passive Mode: select or clear Set Passive
Mode support that FTP server can accept passive
mode.
- Enable FTP Authentication: select or clear Enable
FTP Authentication support. If you select the
support, you need to type user name and password
to login to the server. If you clear the support, you
enter the server as anonymous login.
Enable SANE (Scanner Access Now Easy) Server:
select or clear Enable SANE Server support. It is
enabled in Factory Default and users may set the
49
TCP port as follows:
- SANE Port: set SANE server’s TCP port (default:
6566)
50

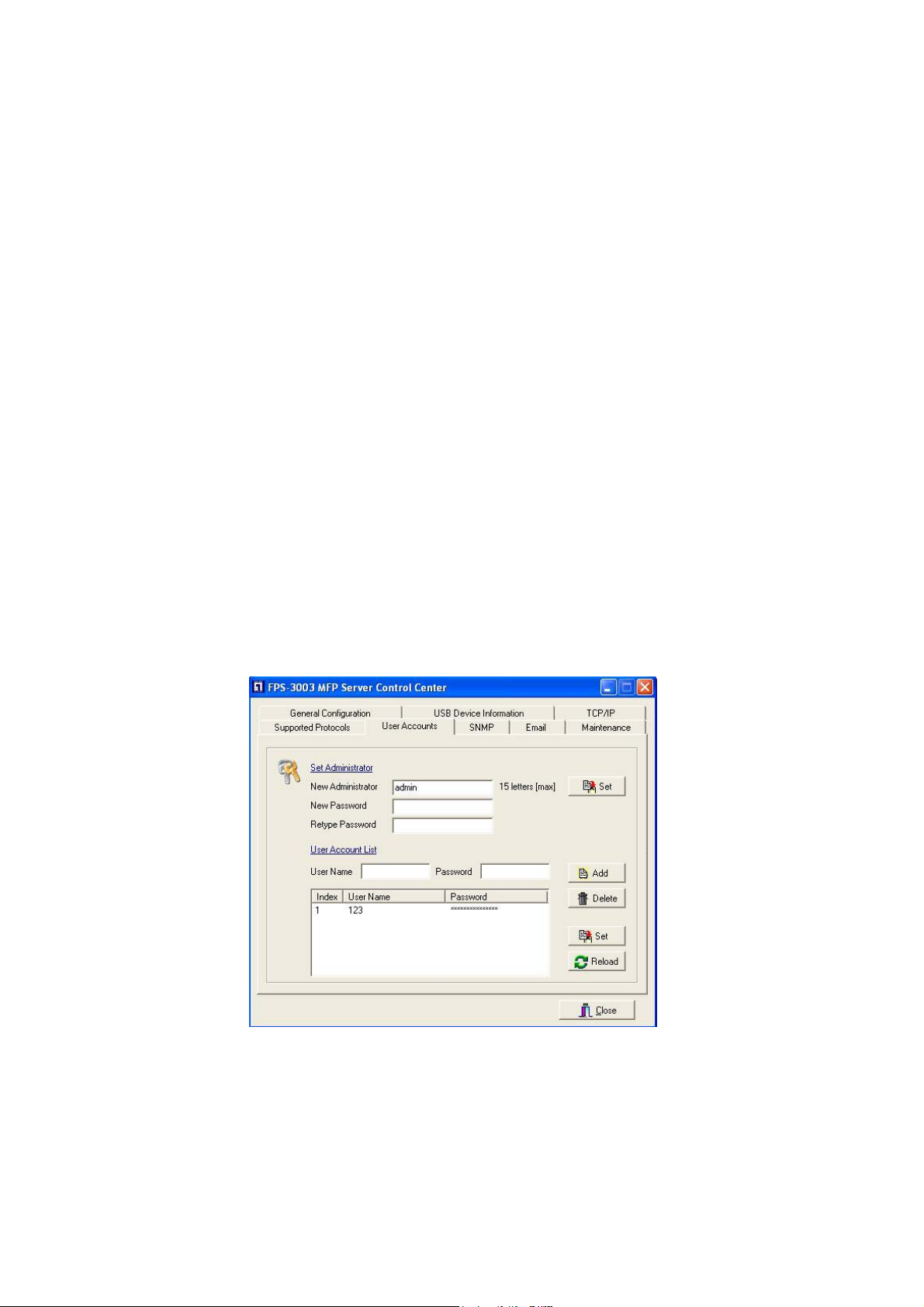

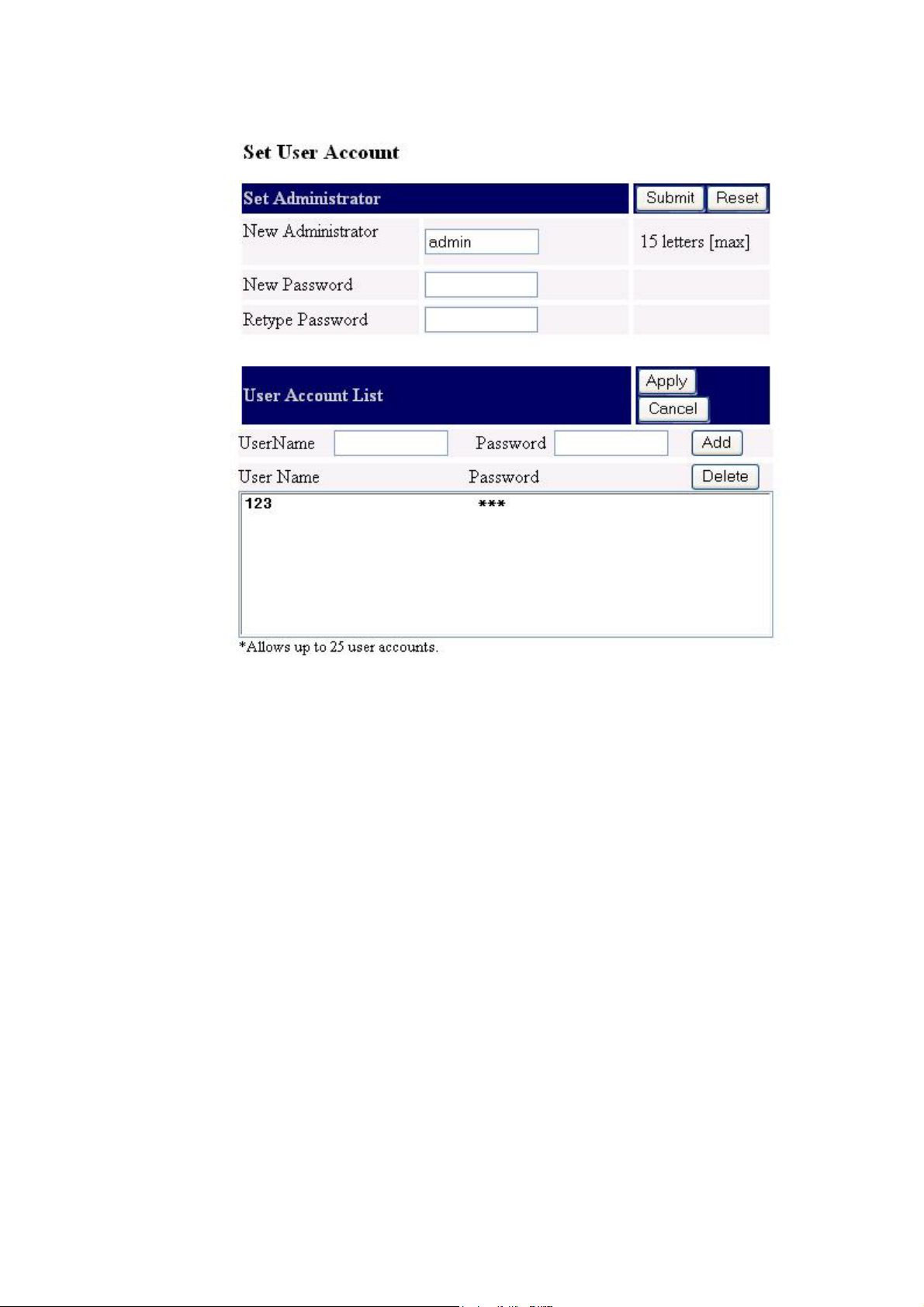

User Accounts: You can change administrator name and
password or add a FTP account. If you forgot administrator
name and password, you must to perform Restore Factory
Default action by pressing Init button and plugging Power
adaptor simultaneously. Please refer to Chapter 13 Restore
Factory Default.
Set Administrator
New Administrator: type your desired administrator
name.
New Password: type your desired password.
Retype Password: confirm your previous password
typing.
User Accounts list
User name: Administrator can add a new FTP user
account for accessing the storage attached to
FPS-3003.
Password: After entering the user name and
corresponding password, click “Add”. The account will
take effect once shown in the blank below.
51
SNMP: You can set community and some parameters for
SNMP server. Furthermore, you can enable SNMP v3 for more
security.
Set SNMP Configuration
Authentic Community: set Community name of SNMP
server.
Trap Community: set Trap Community name for SNMP
server to send trap packets.
Trap Address: type an IP address to send the Trap packet.
SysContact: type some letters for variable of SysContact
that represents the name of system contact.
SysName: type some letters for variable of SysName that
represents the name of system.
SysLocation: type some letters for variable of SysLocation
that represents the location of system.
EnableAuthenTrap: type 1 or 2 for the variable of
EnableAuthenTrap that represents to enable (1) or disable (2)
to send Trap packets receiving the wrong Community name.
SNMP V3
Enable SNMP V3: select or clear Enable SnmpV3 support
User Security name: set user security name of SNMP v3
Auth Password: set authentication password of SNMP v3.
Privacy Password: set privacy password of SNMP v3.
52
Email: If you want to receive some alerting mail from the
server, you have to enable SMTP Protocol, and set Email
configuration. You can set new SMTP port number (default:
25).
Set Email Configuration
SMTP Protocol: select or clear Enable SMTP support
SMTP Server Name: type your SMTP server’s host
name or IP address.
SMTP Port Number: set new SMTP server’s TCP port
number (default: 25).
Subject: type the subject of the e-mail.
From Address: type the sender’s e-mail address
To Address: type an e-mail address to send that mail
to a person
Cc: stands for carbon copy; type an e-mail address to
send that mail to a second person
53

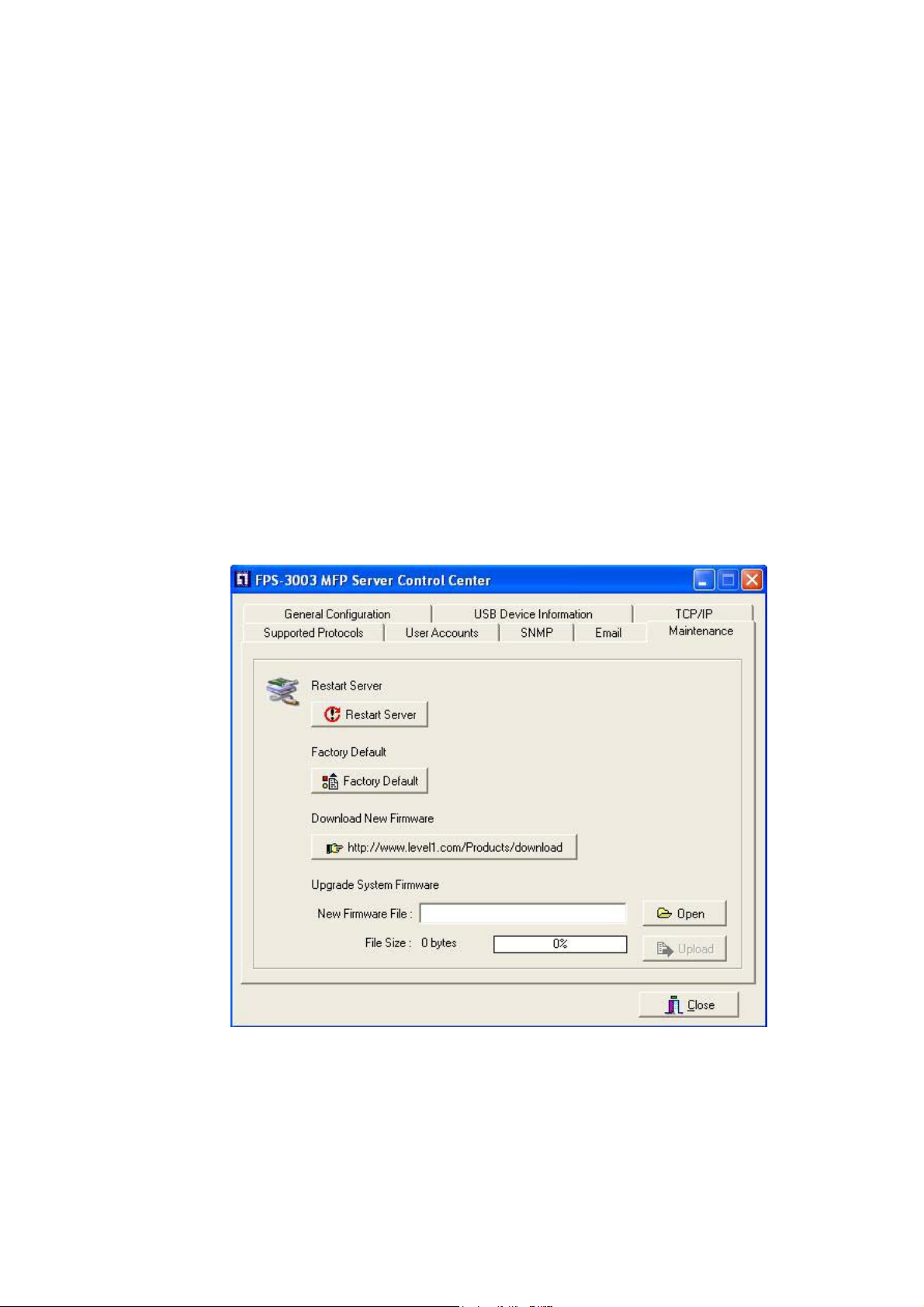

Maintenance: If you want to restart server, restore factory
default values of the server, download new firmware file from
product’s public web site and upgrade new firmware, you can
use the Maintenance tool.
Restart Server: click the button, the server will be
restarted.
Factory Default: click the button, the server will restore
factory default values.
Download New Firmware: click the button and you can
download new firmware or user software from product’s
public web site.
Upgrade New Firmware: click Open to find the system
firmware file to be upgraded. Click Upgrade to do the real
firmware upgrading task.
54
Chapter 9 MFP Server’s Web Pages
9.1 Introduction
FPS-3003 USB MFP server runs the daemon of http server, httpd on
TCP port: 80. Users may use the web pages to see the server’s
system status and configure the server.
9.2 Using Server’s Web Pages
9.2.1 Display Server Status
You can see the status of Host Information, TCP/IP and USB devices.
55
9.2.2 Set up Server Configuration
To set up the server configuration, the system will request user to
enter administrator (default: admin) and password (default: admin)
to login.
General Configuration
Set Host Information: You have to set some
information for networking using SMB protocol:
Comment: optionally set to describe the server
Host Name: the name to represent the server for
Windows networking using SMB protocol
Workgroup: the SMB workgroup name that the server
belongs to.
File Server Code Page: You have to select your code
page while operating network file sharing. Generally, the
criteria of choosing code page are based on your Windows
code page. For example, if your Windows code page is
Traditional Chinese, you have to select Traditional Chinese
(Big5) in server. Please refer to Chapter 6 File Server
Function.
56
USB Device Information: You can set printer names and
display some information of USB mass storages and scanners.
Please refer to Chapter 4, Chapter 6 and Chapter 7.
TCP/IP: You have to set the server’s TCP/IP configuration to
connect TCP/IP network. Please see Chapter 3 Basic
Installation for more details.
Supported Protocols: The server supports the following
TCP/IP protocols:
TCP/IP
Enable LPR (Line Printer Remote) Printing: select or
clear Enable LPR Printing support. It is enabled in
Factory Default.
Enable IPP Printing: select or clear Enable IPP
Printing support. It is enabled in Factory Default.
Enable Raw TCP Printing: select or clear Enable Raw
TCP Printing support. It is enabled in Factory Default
and users may set the protocol’s TCP ports as
following boxes:
- TCP Port 1: set TCP port for the printer of USB1 port
(default: 9100)
- TCP Port 2: set TCP port for the printer of USB2 port
(default: 9101)
Enable SMB (Server Message Block) Print/File Server:
select or clear Enable SMB Print/File Server
support. It is enabled in Factory Default.
Enable FTP Server: select or clear Enable FTP
Server support. It is enabled in Factory Default and
users may set some parameters as follows:
- FTP Port: type an integer number to set FTP
server’s TCP port (default: 21)
- Set Maximum Session Number: select or clear Set
Maximum Session Number support. You can
limit the FTP session number by selecting the
support and type an integer to set the allowable
maximum session number. If you clear the support,
it means that FTP server will have not any limitation
57
in session number.
- Set Passive Mode: select or clear Set Passive
Mode support that FTP server can accept passive
mode.
- Enable FTP Authentication: select or clear Enable
FTP Authentication support. If you select the
support, you need to type user name and password
to login to the server. If you clear the support, you
enter the server as anonymous login.
Enable SANE (Scanner Access Now Easy) Server:
select or clear Enable SANE Server support. It is
enabled in Factory Default and users may set the
TCP port as follows:
- SANE Port: set SANE server’s TCP port (default:
6566)
User Accounts: You can change administrator name and
password or add a FTP user account. If you forgot
administrator name and password, you must to perform
Restore Factory Default action by pressing Init button and
plugging Power adaptor simultaneously. Please refer to
Chapter 13 Restore Factory Default.
Set Administrator
New Administrator: type your desired administrator
name.
New Password: type your desired password.
Retype Password: confirm your previous password
typing.
User Accounts list
User name: Administrator can add a new FTP user
account for accessing the storage attached to
FPS-3003.
Password: After entering the user name and
corresponding password, click “Add”. The account will
take effect once shown in the blank below.
58
SNMP: You can set community and some parameters for
SNMP server. Furthermore, you can enable SNMP v3 for more
security.
Set SNMP Configuration
Authentic Community: set Community name of SNMP
server.
Trap Community: set Trap Community name for
SNMP server to send trap packets.
Trap Address: type an IP address to send the Trap
packet.
SysContact: type some letters for variable of
SysContact that represents the name of system
contact.
SysName: type some letters for variable of SysName
that represents the name of system.
SysLocation: type some letters for variable of
SysLocation that represents the location of system.
59
EnableAuthenTrap: type 1 or 2 for the variable of
EnableAuthenTrap that represents to enable (1) or
disable (2) to send Trap packets receiving the wrong
Community name.
SNMP V3
Enable SNMP V3: select or clear Enable SnmpV3
support
User Security name: set user security name of SNMP
v3
Auth Password: set authentication password of SNMP
v3.
Privacy Password: set privacy password of SNMP v3.
Restart Server: click the button, the server will be restarted.
60
Maintenance If you want to restore factory default values of
the server and upgrade new firmware, you can use the
Maintenance tool.
Factory Default: click the button, the server will restore
factory default values.
Download New Firmware from Web Site: click the
button and you can download new firmware or user
software from product’s public web site.
Upgrade New Firmware: click Open to find the system
firmware file to be upgraded. Click Upgrade to do the
real firmware upgrading task.
61
Chapter 10 Email Alerting
FPS-3003 USB MFP server can send some email messages to the user
while the following events occurs
1. Add/Remove USB device: When add new USB device or
remove current USB device, the server will send the mail to
notify the user.
2. System Error: When there are some errors occur in the server,
the server will send the mail to notify the user.
Chapter 11 SNMP
FPS-3003 USB MFP server runs the daemon of SNMP server that
supports the SNMP v1, v2c and v3 protocols (Simple Network
Management Protocol). Users can use SNMP client software as actual
management tool such as HP Openview to management your MFP
server. The FPS-3003 MFP servers support all relevant parts of MIB-II
and a private FPS-3003 MFP server MIB. You can set value of some
MIB variables from the server’s web pages or LevelOne MFP Control
Center Tool.
62
Chapter 12 Troubleshooting
This chapter provides useful information to help you resolve
difficulties you may experience with your FPS-3003 USB MFP server.
Fault symptoms, possible causes and remedial actions are provided
within a quick reference table. General USB ports in FPS-3003 USB
MFP server only support USB printers, USB Mass storages and USB
scanner of HP Office Jet Series.
12.1 LED Indicators
Indicators Color/Behavior Description
Orange Power On Power
Not lit Power off/System error
Green Network connected Link
Not Lit No physical connection to
network
Green blinking Activity on network Status
Not lit No activity on network
USB1
USB2
Green USB device connected
Green blinking Connected USB device error
Not lit No physical connection to USB
device
Green USB device connected
Green blinking Connected USB device error
Not lit No physical connection to USB
device
USB Device Status
Devices Status Description
Ready Printer is ready. Printer
Printing Printer is printing.
63
Out of paper Printer is out of paper.
Error There are errors in network
printing.
Ready Storage is ready. Mass
Storage
Scanner
Error There are errors in network File
server.
Ready Scanner is ready.
Flatbed Scanning Flatbed of scanner is scanning.
Scrollfed
Scanning
Error There are errors in network
Scrollfed of scanner is scanning.
scanning.
64
Chapter13 Restore Factory Default
This chapter describes how to restore default parameters of the MFP
server.
The server provides the following methods to achieve restoring
default parameters of the MFP server.
13.1 Using Server’s Web Pages
1. Go to the server’s web page and click Maintenance
2. Login your administrator (default: admin) and password
(default: admin).
3. Click Factory Default.
4. Click Yes to confirm your action
65

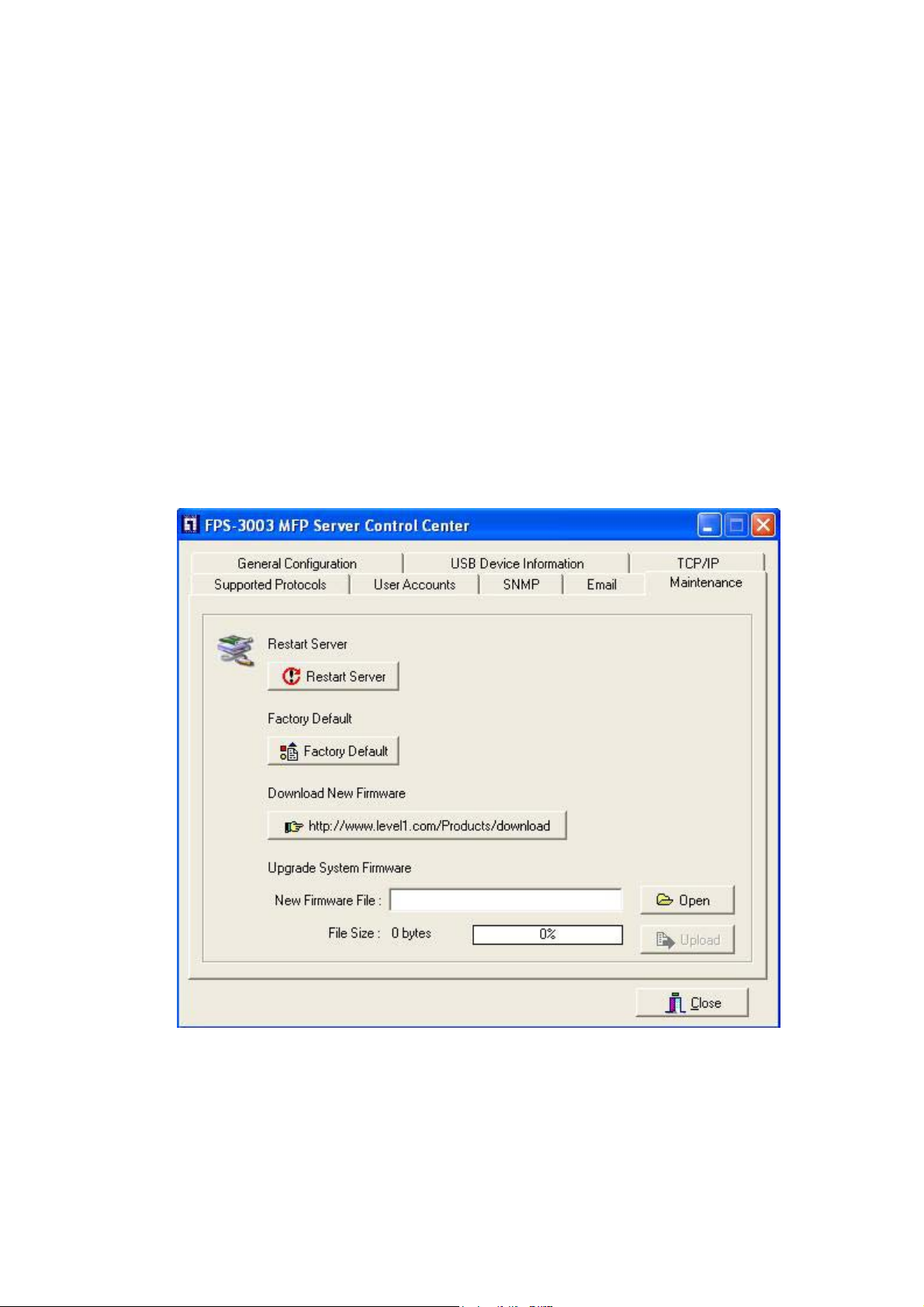

13.2 Using LevelOne MFP Control Center
1. Start LevelOne MFP Control Center and Auto-searching MFP
server window will appear.
2. If the tool finds MFP servers in your local area network, then
you have to select a MFP server from the server list.
3. Double click the highlight list and type the server’s
administrator (default: admin) and password (default:
admin).
4. After you login successfully, from the Server menu, select
Maintenance. The Maintenance dialog appears.
5. Click Factory Default.
13.3 Using Init Button
Simultaneously press Init button and power on (plug the power
adaptor line) the server until LED indicators of Power, USB1 and USB2
blink. After that, the servers will operate using the Factory Default
values after next restarts.
66
13.4 Default Parameters List
Host Information
Comment (Optional): FPS-3003 USB MFP Server
Host Name: FPS-3003
Workgroup: LevelOne
Code Page of File Server: Western European
Product ID: FPS-3003 xxxx, where xxxx represents the last 4
bytes of Ethernet address.
TCP/IP
Automatically get IP using DHCP
Default IP: 192.168.1.100
Default Subnet Mask: 255.255.255.0
Protocols
Enable SMB Print/File Server
Enable IPP Printing
Enable LPR Printing
Device: FPS-3003
Port Name:
- USB1_LPR (queue name: USB1_LQ)
- USB2_LPR (queue name: USB2_LQ)
Enable Raw TCP Printing
Device: FPS-3003
Port Name:
- USB1_RAW: TCP port 9100
- UBB2_RAW: TCP port 9101
Enable SANE Server
SANE Port: 6566
FTP Server
FTP Port: 21
Passive Mode: Disabled
Set Maximum Session Number: Disabled
FTP Authentication: Disabled
SNMP
Authentic Community: public
Trap Community: public
67
SysContact: sales@LevelOne.com
SysName: FPS-3003 USB MFP Server
SysLocation: www.LevelOne.com
EnableAuthenTrap: 2 (disable)
User Account
Administrator:admin
Password: admin
68
Chapter14 Upgrade New Firmware
This chapter describes how to upgrade your new firmware. You can
use the following Procedures to upgrade new firmware

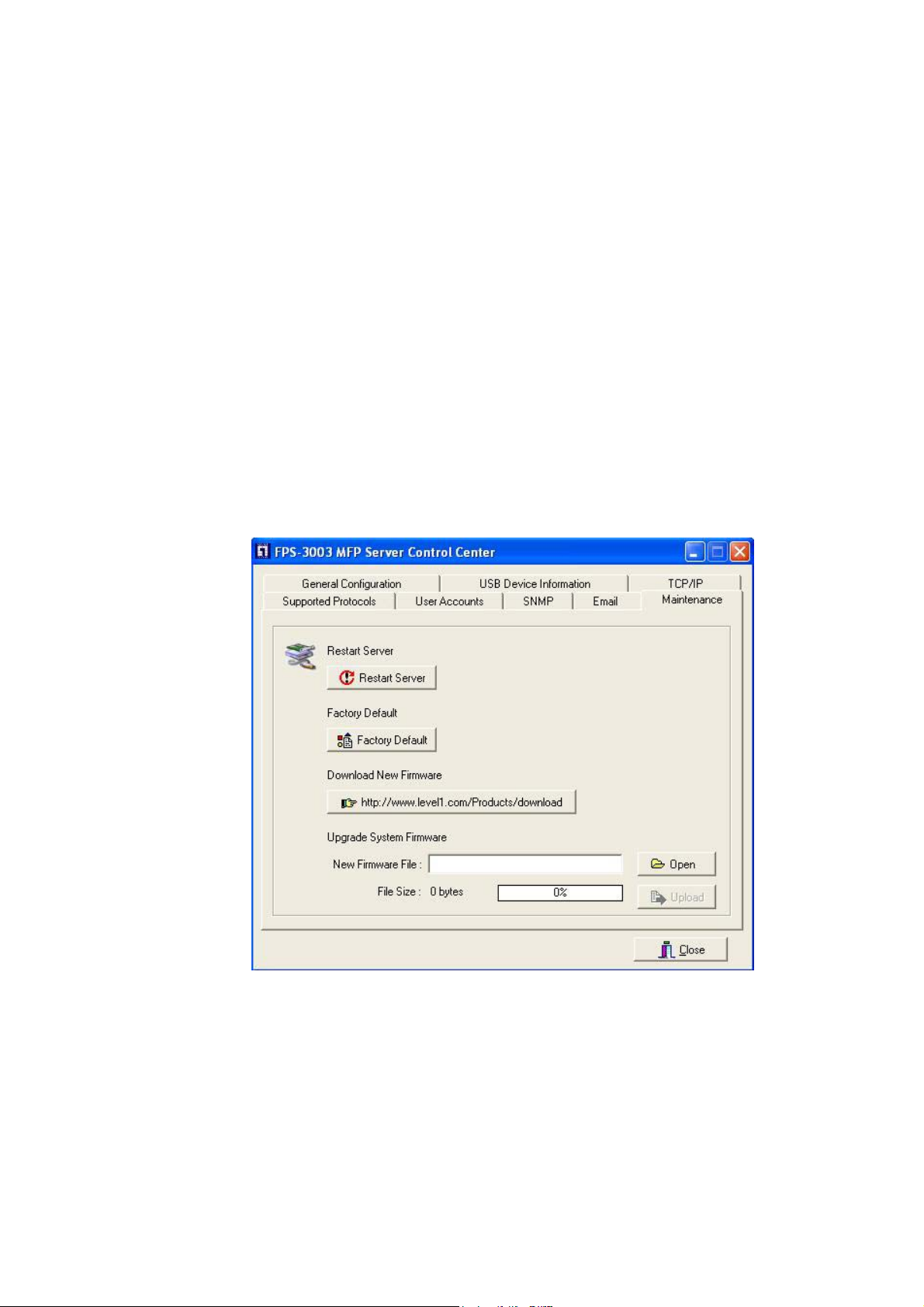

Procedure A: Using PC User Software
1. Open the FPS-3003 MFP Control Center. It will automatically
search the existing servers and display their status.
2. Select the server that you want to upgrade the firmware.
Double click the selected server and enter Administrator Name
and Password. Please note that the default values of
Administrator and Password are admin.
3. Select the Maintenance button.
4. Click Open your new firmware file and click Upgrade.
5. Wait about 15 seconds for system reboot.
Procedure B: Using Server’s Web Pages
1. Power on FPS-3003. Suppose FPS-3003 is in DHCP mode.
2. Check FPS-3003's IP address.
3. First, run FPS-3003 control center. The control center will
69
automatically search FPS-3003 on the LAN. Then FPS-3003's
IP address will be shown in control center.
4. Run any web browser, like Microsoft Internet Explorer. Go to
http://a.b.c.d to access FPS-3003's home page, where a.b.c.d
is FPS-3003's IP address.
5. Click "Maintenance" at the left side menu.
6. Login FPS-3003 with administrator "admin" and password
"admin".
7. Click "Upgrade Firmware".
8. Click "Browse" button to choose the file of new FPS-3003
firmware.
9. Click "Upload" button to start firmware upgrade.
10. Wait about 15 seconds for system reboot.
Procedure C: Using Init Button and TFTP Client
1. Simultaneously press Init button and power on (plug the power
adaptor line) the server until LED indicators of Power, USB1 and
USB2 blink. After that, the servers will operate using the
factory default values after next restarts.
2. Start the TFTP client Tool which contains in the CD-Rom: Image
Burner
3. Type the server’s Fallback IP address: 192.168.1.100 and click
Open Image to open your new firmware.
4. Click Upload Image
70
Chapter15 Init Button
The Init button is used for:
1. Print Configuration Report: Press Init button for
exceeding 3 seconds and then the connected HP printer or
PCL supported printer will print out the system configuration.
2. Maintenance: Simultaneously press Init button and turn
on (plug the power adaptor line) the server until USB1 and
USB2 LED indicators simultaneously blink. After that, the
server will do the following tasks:
A. Perform a Factory Default of the MFP server, which will
restore most of the parameters and settings to factory
default values,
71
B. Perform a TFTP server. You can upgrade new firmware
using any TFTP client tool.
Chapter16 Technical Specifications
Supported Printers
Support for printers and MFPs from
Brother, Canon, Epson, HP, IBM, Kyocera,
Lexmark, Minolta, NEC, Oce, OKI, Ricoh,
Sharp, Star, TEC, Toshiba, Zebra, Xerox,
etc.
Please note that the server do not
support GDI printers.
Supported Scanners
Support for scanners of MFPs from HP
office jet and some recommended
scanners.
Print Server Supported Systems
Microsoft Windows: 98, Me, 2000, XP,
and 2003
Firmware Upgrade
Firmware upgrade using the internal
web pages, Windows Tool, and TFTP
Network Connection
LAN: 10/100 Mbps Ethernet
MFP Connection
2 USB 1.1/2.0 Low and Full speed.
Bi-directional support
Hardware
2 USB 1.1/2.0 Full-speed host
ports
Ethernet 10/100 Mbps
ARM9-based RISC microprocessor,
operating at 166MHz
Unix/Linux
File Server Supported Systems
Microsoft Windows: 98, Me, 2000, XP,
and 2003
Unix/Linux
File Server Supported Code Pages
Western Europe and United States
Central Europe
Greek
Cyrillic
Japanese (Shift JIS)
Korean
Traditional Chinese (Big 5)
Simplified Chinese (GB 2312)
Thai
Memory: 2 MB Flash, 8 MB RAM
Front Panel
5 LED indicators: Power, Link,
Status, USB1 and USB2
Init button to perform factory
default, upgrade firmware, and
print configuration
Power Consumption
Power provided by external supply
(5V 2A).
Maximum consumption 10W
Dimensions
Height 2.6 cm
Width: 7.6 cm
72
Arabic
Scan Server Supported Systems
Microsoft Windows: 98, 2000, XP and
2003
Supported Protocols
General
- DHCP, FTP, HTTP, SNMP v1/v2c/v3
Print Server
- TCP/IP: LPR, Raw TCP,
NetBIOS over TCP/IP (SMB), IPP,
File Server
- SMB: NetBIOS over TCP/IP
- FTP
Scan Server
- SANE Server
Depth: 10.4 cm
Weight: 125 g
Environmental
Temperature: 40-105 °F (5-40 °C)
Humidity 0 – 70%
Approvals
EMC:
- EN 55022/1998
- EN 55024:1998
- EN 61000-3-2
- EN 61000-3-3
- FCC part 15 Subpart B,
Class A
Safety:
- EN 60950
Supported Web Browsers
Any standard web browser (Netscape
6.x or higher and MS Internet Explorer
5.x or higher).
MFP Server Management
Internal web pages for configuration,
monitoring and firmware upgrading
Windows tool for installation,
configuration, monitoring and
firmware upgrading
Included Accessories
Quick Installation Guide
Power supply
Installation CD
73
Chapter17 Appendix
17.1 Compatibility List
FPS-3003 USB MFP server should support most USB printers
(except Host-based/GDI printers), and USB disks or USB
memory cards.
FPS-3003 USB MFP server should support the scanners of HP
Office Inkjet Series all-in-one printers (MFP). The supported
MFPs are list below.
Model MFP Series
HP Office jet
HP LaserJet
ll-in-ones
4100 series, 4200 series, 5500 series, 6100
series, 7100 series, 9100 series, PSC 1200
series, PSC 1300series, PSC 2400 series,
PSC 2500 series
HP LaserJet 1220, HP LaserJet 3200, HP
LaserJet 3200se, HP LaserJet 3200m,
HP LaserJet 3300, HP LaserJet 3310, HP
LaserJet 3320, HP LaserJet 3330
Others
FPS-3003 USB MFP server should support the following printers
to print configuration report using Init button
Model Printer
Business
Inkjet
1100 series, 2300 series, 2600 series, 3000
series
Desk jet
3600 series, 5100 series, 5550 series,
5600series, 5850 series, 6122 series, 6127
series, 9300 series, 9600 series, 995c series,
cp1700 series
Office jet 4100 series, 4200 series, 5500 series, 6100
series, 7100 series, 9100 series, PSC 1200
series, PSC 1300series, PSC 2400 series,
PSC 2500 series
Photo smart 140 series, 240 series, 7200 series, 7600
74
series, 7700 series, 7900 series
Laser Printer most PCL black & white and color printers
75
Loading...
