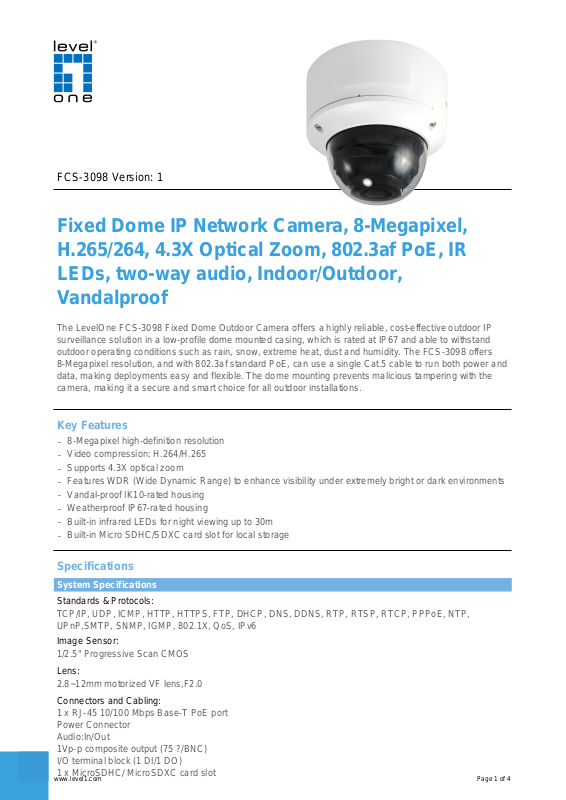

FCS-3098 Version: 1

Fixed Dome IP Network Camera, 8-Megapixel,
H.265/264, 4.3X Optical Zoom, 802.3af PoE, IR
LEDs, two-way audio, Indoor/Outdoor,
Vandalproof

The LevelOne FCS-3098 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP
surveillance solution in a low-profile dome mounted casing, which is rated at IP67 and able to withstand
outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3098 offers
8-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and
data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the
camera, making it a secure and smart choice for all outdoor installations.

Key Features

8-Megapixel high-definition resolution

­Video compression: H.264/H.265

­Supports 4.3X optical zoom

­Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments

­Vandal-proof IK10-rated housing

­Weatherproof IP67-rated housing

­Built-in infrared LEDs for night viewing up to 30m

­Built-in Micro SDHC/SDXC card slot for local storage

-

Specifications

System Specifications

Standards & Protocols:

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

Image Sensor:

1/2.5" Progressive Scan CMOS

Lens:

2.8~12mm motorized VF lens,F2.0

Connectors and Cabling:

1 x RJ-45 10/100 Mbps Base-T PoE port
Power Connector
Audio:In/Out
1Vp-p composite output (75 ?/BNC)
I/O terminal block (1 DI/1 DO)
1 x MicroSDHC/ MicroSDXC card slot

www.level1.com Page 1 of 4

Button/Knob:

Reset Button

Indicator:

Power

IR Cut Filter:

Removable infrared-cut filter for day & night function

IR LED:

IR LEDs for illumination up to 30m

Shutter Time:

1/3 ~ 1/100,000 sec

Angle of View:

Horizontal field of view: 115° to 35°
Vertical field of view: 60° to 19°
Diagonal field of view: 146° to 38.5°

Pan/Tilt/Zoom:

4.3X Optical Zoom

Video Compression:

H.265, H.264

Resolution:

50Hz: 20 fps (3840 × 2160), 25 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3840 × 2160), 30 fps (2944 × 1656, 2560 × 1440, 1920 × 1080, 1280 × 720)

Video Format:

AVI

Audio Compression:

G722.1/G711ulaw/G711alaw/G726/MP2L2

Power Input:

12 VDC, 0.95A, max. 11.5W
PoE (802.3af, 37V to 57V), 0.3A to 0.1A, max. 12.9W

Power Consumption:

11.5-12.9W

Data Transfer Rate:

Video Bit Rate: 32 Kbps to 16 Mbps
Audio Bit Rate: 32 to 128kbps

Features

General:

rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser,Motion
Detection

PoE:

PoE(802.3af, class 3)

Security:

One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark,IP Address
Filter

Management:

Behavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection, object
removal detection
Line Crossing Detection: Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection: Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions
supported
Object Removal Detection: Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection: Objects left over in the pre-defined region such as the baggage, purse,
dangerous materials
Face Detection: Human face appears in the image can be detected and trigger linkage method.
