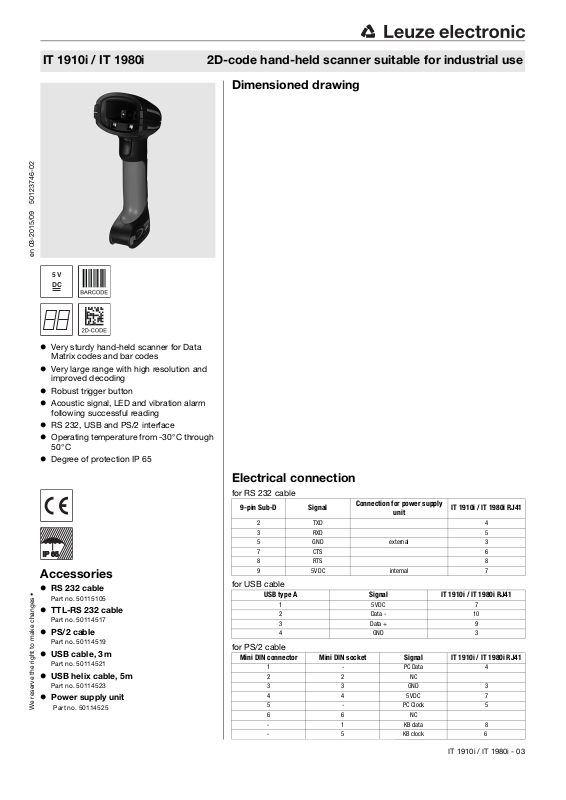

Leuze IT 1910i, IT 1980i Data Sheet
5 V
DC
IP 65
Specifications and description
IT 1910i / IT 1980i 2D-code hand-held scanner suitable for industrial use
Dimensioned drawing
en 03-2015/09 50123746-02
Very sturdy hand-held scanner for Data
Matrix codes and bar codes
Very large range with high resolution and
improved decoding
Robust trigger button
Acoustic signal, LED and vibration alarm
following successful reading
RS 232, USB and PS/2 interface
Operating temperature from -30°C through
50°C
Degree of protection IP 65
Accessories
RS 232 cable
Part no. 50115105
TTL-RS 232 cable
Part no. 50114517
PS/2 cable
Part no. 50114519
USB cable, 3m
Part no. 50114521
USB helix cable, 5m
Part no. 50114523
Power supply unit
Part no. 50114525
We reserve the right to make changes •
Electrical connection
for RS 232 cable
9-pin Sub-D Signal
2TXD 4
3RXD 5
5 GND external 3
7CTS 6
8RTS 8
9 5V DC internal 7
for USB cable
USB type A Signal IT 1910i / IT 1980i RJ41
15VDC7
2Data -10
3Data +9
4GND3
for PS/2 cable
Mini DIN connector Mini DIN socket Signal IT 1910i / IT 1980i RJ41
1-PC Data4
22NC
33GND3
445VDC7
5-PC Clock5
66NC
-1KB data8
-5KB clock6
Connection for power supply
unit
IT 1910i / IT 1980i RJ41
IT 1910i / IT 1980i - 03
0 200 400 600100 300 500 700 800
7.5 Mil
(0.191 mm)
Code 39
PDF 417
Data Matrix
QR Code
UPC
13 Mil
(0.330 mm)
20 Mil
(0.508 mm)
6.7 Mil
(0.170 mm)
10 Mil
(0.254 mm)
20 Mil
(0.508 mm)
Code 39
IT 1910i ER-3
Typ. reading distance depending on the code module [mm]
0 4000 8000 120002000 6000 10000 14000 16000
7.5 Mil
(0.191 mm)
Code 39
Code 39
Data Matrix
Data Matrix
UPC
13 Mil
(0.330 mm)
20 Mil
(0.508 mm)
100 Mil
(2.540 mm)
10 Mil
(0.254 mm)
100 Mil
(2.540 mm)
Code 39
IT 1980i FR-3
Typ. reading distance depending on the code module [mm]
IT 1910i / IT 1980i
Specifications
Electrical data
Operating voltage U
Power consumption max. 2.35W
B
4…5.5VDC
Interfaces
Interface type RS 232, PS/2 and USB
Trigger via button or serial command
Types of codes
2D-codes Data Matrix ECC 200, MaxiCode, PDF417, MicroPDF, QR Code,
Bar codes 2/5 Interleaved, Code 39, Code 128, Code 93, Codabar, UPC/
Aztec, Aztec Mesas, Code 49, EAN/UCC Composite
EAN, Codablock, GS1 Databar
Optical data
Optical system high-resolution pixel array
Symbol contrast PCS 20% minimum
Light source integrated diffuse LED, wavelength 617nm ± 18nm
Read direction omnidirectional, various tilt and rotational angles up to 45°
Alignment aid laser pattern 630 … 680 nm; IEC 60825-1:2007 Class 2
Mechanical data
Weight (without cable) IT 1910i: approx. 300g
Dimensions 133 x 75 x 195mm
Shock resistance 50 falls from a height of 2m at -30 °C
IT 1980i: approx. 325g
Environmental data
Ambient temp. (operation/storage) -30°C … +50°C/-40°C … +70°C
Relative humidity 0 … 95 % (non-condensing)
Degree of protection IP 65
Reading field
Tables
Diagrams
Order guide
2D-code hand-held scanner (Extended Range optics with large operating range) Part no.
IT 1910i ER-3 with RS 232, PS/2 and USB interface 50122436
2D-code hand-held scanner (Full Range optics with very large operating range) Part no.
IT 1980i FR-3 with RS 232, PS/2 and USB interface 50130497
IT 1910i / IT 1980i - 03 2015/09
Remarks
Operate in accordance
with intended use!
The product may only be put into
operation by competent persons.
Only use the product in accor-
dance with the intended use.
Hand-held scanner with integrated decoder for high-contrast codes suitable for
industrial use.
Data transmission via configurable RS 232 interface.
Or keyboard-wedge operation via PS/2 or USB interface.
A Laser aperture
B Laser warning sign
C Laser information sign with laser parameters
A CA
B
IT 1910i / IT 1980i 2D-code hand-held scanner suitable for industrial use
Laser safety notices
ATTENTION, LASER RADIATION – LASER CLASS 2
Never look directly into the beam!
The device fulfills the EN 60825-1:2007 safety regulations for a product in laser class 2 as well as the U.S. 21 CFR 1040.10 regulations
with deviations corresponding to "Laser Notice No. 50" from June 24th, 2007.
Never look directly into the laser beam or in the direction of reflecting laser beams!
If you look into the beam path over a longer time period, there is a risk of injury to the retina.
Do not point the laser beam of the device at persons!
Interrupt the laser beam using a non-transparent, non-reflective object if the laser beam is accidentally directed towards a person.
When mounting and aligning the device, avoid reflections of the laser beam off reflective surfaces!
CAUTION! Use of controls or adjustments or performance of procedures other than specified herein may result in hazardous light
exposure.
Observe the applicable statutory and local laser protection regulations.
The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by Leuze electronic GmbH + Co. KG.
NOTICE
Laser information and warning signs firmly attached to the device.
IT 1910i / IT 1980i - 03
