Leuze BCL500i, BCL501i TECHNICAL DESCRIPTION

Download

BCL500i and BCL501i

Barcode Readers

GB 02-10/08 50108325

TECHNICAL DESCRIPTION

Nortécnica S. R. L. Tel. Int. + 54 1147 57-3129 Fax Int. + 54 1147 57-1088

Tel. Int. + 43 732 76460 Fax Int. + 43 732 785036

Balluff-Leuze Pty. Ltd. Tel. Int. + 61 3 9720 4100 Fax Int. + 61 3 9738 2677

Leuze electronic nv/ sa Tel. Int. + 32 2253 16-00 Fax Int. + 32 2253 15-36

ATICS Tel. Int. + 359 2 847 6244 Fax Int. + 359 2 847 6244

Leuze electronic Ltda. Tel. Int. + 55 11 5180-6130 Fax Int. + 55 11 5181-3597

Leuze electronic AG Tel. Int. + 41 44 834 02-04 Fax Int. + 41 44 833 26-26

Imp.Tec. Vignola S.A.I.C. Tel. Int. + 56 3235 11-11 Fax Int. + 56 3235 11-28

Leuze electronic Trading (Shenzhen) Co. Ltd. Tel.Int. + 86 755 862 64909 Fax Int.+ 86 755 862 64901

Componentes Electronicas Ltda. Tel. Int. + 57 4 3511049 Fax Int. + 57 4 3511019

Schmachtl CZ s.r.o. Tel. Int. + 420 244 0015-00 Fax Int. + 420 244 9107-00

Desim Elektronik APS Tel. Int. + 45 7022 00-66 Fax Int. + 45 7022 22-20

SKS-automaatio Oy Tel. Int. + 358 20 764-61 Fax Int. + 358 20 764-6820

Leuze electronic sarl. Tel. Int. + 33 160 0512-20 Fax Int. + 33 160 0503-65

Leuze Mayser electronic Ltd. Tel. Int. + 44 14 8040 85-00 Fax Int. + 44 14 8040 38-08

UTECO A.B.E.E. Tel. Int. + 30 211 1206 900 Fax Int. + 30 211 1206 999

Sensortech Company Tel. Int. + 852 26510188 Fax Int. + 852 26510388

Leuze electronic OOO Tel. Int. + 7 495 93375 05 Fax Int. + 7 495 93375 05

Leuze electronic AB Tel. + 46 8 7315190 Fax + 46 8 7315105

Ingermark (M) SDN.BHD Tel. Int. + 60 360 3427-88 Fax Int. + 60 360 3421-88

Leuze Lumiflex México, S.A. de C.V. Tel. Int. + 52 8183 7186-16 Fax Int. + 52 8183 7185-88

Leuze electronic BV Tel. Int. + 31 418 65 35-44 Fax Int. + 31 418 65 38-08

LA2P, Lda. Tel. Int. + 351 214 447070 Fax Int. + 351 214 447075

Balluff Sp. z o.o. Tel. Int. + 48 71 338 49 29 Fax Int. + 48 71 338 49 30

O`BOYLE s.r.l Tel. Int. + 40 2 56201346 Fax Int. + 40 2 56221036

Elteco A/S Tel. Int. + 47 35 56 20-70 Fax Int. + 47 35 56 20-99

Great Cofue Technology Co., Ltd. Tel. Int. + 886 2 29 83 80-77 Fax Int. + 886 2 29 85 33-73

Countapulse Controls (PTY.) Ltd.

04/2008

Tel. Int. + 27 116 1575-56 Fax Int. + 27 116 1575-13

Schmachtl SK s.r.o. Tel. Int. + 421 2 58275600 Fax Int. + 421 2 58275601

Tipteh d.o.o. Tel. Int. + 386 1200 51-50 Fax Int. + 386 1200 51-51

Industrial Electrical Co. Ltd. Tel. Int. + 66 2 6426700 Fax Int. + 66 2 6424249

Balluff Sensör Ltd. Sti. Tel. Int. + 90 212 3200411 Fax Int. + 90 212 3200416

Balluff Asia pte Ltd Tel. Int. + 65 6252 43-84 Fax Int. + 65 6252 90-60

Leuze electronic, Inc. Tel. Int. + 1 248 486-4466 Fax Int. + 1 248 486-6699

SV Altera OOO Tel. Int. + 38 044 4961888 Fax Int. + 38 044 4961818

C. illies & Co., Ltd. Tel. Int. + 81 3 3443 4143 Fax Int. + 81 3 3443 4118

Profa-Tech Ltd. Tel. Int. + 254 20 828095/6 Fax Int. + 254 20 828129

Leuze electronic Co., Ltd. Tel. Int. + 82 31 3828228 Fax Int. + 82 31 3828522

KazPromAutomatics Ltd. Tel. Int. + 7 7212 50 11 50 Fax Int. + 7 7212 50 11 50

Leuze electronic S.A. Tel. Int. + 34 93 4097900 Fax Int. + 34 93 4903515

Logoprom ODO Tel. Int. + 375 017 235 2641 Fax Int. + 375 017 230 8614

Schmachtl GmbH

SABROW HI-TECH E. & A. LTD. Tel. Int. + 234 80333 86366 Fax Int. + 234 80333 84463518

Tipteh d.o.o. Beograd Tel. Int. + 381 11 3131 057 Fax Int. + 381 11 3018 326

Leuze electronic S.r.l. Tel. Int. + 39 02 26 1106-43 Fax Int. + 39 02 26 1106-40

Kvalix Automatika Kft. Tel. Int. + 36 272 2242 Fax Int. + 36 272 2244

P.T. Yabestindo Mitra Utama Tel. Int. + 62 21 92861859 Fax Int. + 62 21 6451044

Galoz electronics Ltd. Tel. Int. + 972 3 9023456 Fax Int. + 972 3 9021990

Global- Tech (India) Pvt. Ltd. Tel. Int. + 91 20 24470085 Fax Int. + 91 20 24470086

Tavan Ressan Co. Ltd. Tel. Int. + 98 21 2606766 Fax Int. + 98 21 2002883

Tipteh Zagreb d.o.o. Tel. Int. + 385 1 381 6574 Fax Int. + 385 1 381 6577

Tipteh d.o.o. Skopje Tel. Int. + 389 70 399 474 Fax Int. + 389 23 174 197

Leuze electronic GmbH + Co. KG P.O. Box 1111, D- 73277 Owen / Teck Tel. +49(0) 70 21/ 573-0, Fax +49(0 )7021 / 573-199

• www.leuze.com

Sales Region East

Phone 035027/629-106 Fax 035027/629-107

Postal code areas 01000-19999 39000-39999 98000-99999

Sales Region North

Phone 07021/573-306 Fax 07021/9850950

Postal code areas 20000-38999 40000-65999 97000-97999

Sales Region South

Phone 07021/573-307 Fax 07021/9850911

Postal code areas 66000-96999

Sales and Service

Worldwide

AT (Austria)

AR (Argentina)

AU + NZ (Australia + New Zealand)

BE (Belgium)

BG (Republic of Bulgaria)

BR (Brasil)

CH (Switzerland)

CO (Colombia)

CZ (Czech Republic)

CL (Chile)

CN (People’s Republic of China)

DK (Denmark)

FI (Finland)

GB (United Kingdom)

GR (Greece)

HK (Hong Kong)

IT (Italy)

HU (Hungary)

ID (Indonesia)

IL (Israel)

IN (India)

IR (Iran)

FR (France)

RU (Russian Federation)

SE (Sweden)

MY (Malaysia)

MX (Mexico)

NL (Netherlands)

PT (Portugal)

PL (Poland)

RO (Romania)

NO (Norway)

TW (Taiwan)

ZA (South Africa)

SK (Slowakia)

SI (Slovenia)

TH (Thailand)

TR (Turkey)

SG + PH (Singapore + Philippines)

US + CA (United States + Canada)

UA (Ukraine)

JP (Japan)

KR (South Korea)

KZ (Republic of Kazakhstan)

ES (Spain)

BY (Republic of Belarus)

Germany

KE (Kenia)

NG (Nigeria)

RS (Republic of Serbia)

HR (Croatia)

MK (Macedonia)

reproductions in any form require the written consent of the manufacturer. Changes reflecting technical improvements may be made.

BCL 500

Navigate

upward/laterally

Navigate

downward/laterally ESCAPE

Leave

ENTER

confirm

Device buttons:

Delete character

Enter digit

Save input

The main menus

ESC

Input of values

12|

<-|0123456789 save Standard----- Unit 126 | |

BCL500i SF 102

Leuze electronic GmbH & Co. KG SW: V 1.3.1 HW:1 SN: 0704-081894 001

IO1 IO2 IO3 IO4 ATT ERR

12345678

Parameter

Parameter handling Decoder table Digital SWIO Com

Language selection o Deutsch o English o Español o Français o Italiano

Ser vi ce

Diagnostics Status messages

Device information - main menu

Information about

• Device type

• Software version

• Hardware version

• Serial number

Barcode reading window - main menu

Visualisation of the read barcode information. See "Indicators in the display" on page 87.

Parameter - main menu

Configuration of the barcode reader. See "Parameter menu" on page 92.

Language selection - main menu

Selection of the display language. See "Language selection menu" on page 100.

Service - main menu

Scanner diagnosis and status messages. See "Service menu" on page 101.

PWR LED BUS LED

Off Device OFF Off No supply voltage

Flashes green Device ok, initialisation phase Flashes green Initialisation

Green, continuous light Device OK Green, continuous light Operation OK

Orange, continuous light Service mode Flashes orange Timeout

Flashes red Device ok, warning set Flashes red Communication error

Red, continuous light Device error Red, continuous light Network error

Actions

o Start decoding o Start alignment o Start auto-setup o Start teach-in

Actions main menu

Various functions for scanner configuration and manual operation. See "Actions menu" on page 101.

Table of contents

1 General information......................................................................................... 10

1.1 Explanation of symbols................................................................................................... 10

1.2 Declaration of conformity ............................................................................................... 10

2 Safety notices .................................................................................................. 11

2.1 General safety notices..................................................................................................... 11

2.2 Safety standards .............................................................................................................. 11

2.3 Approved purpose ........................................................................................................... 11

2.4 Working safely ................................................................................................................. 12

3 Fast commissioning / operating principle..................................................... 14

3.1 Mounting the BCL 500i\ BCL 501i.................................................................................. 14

3.2 Device arrangement and selection of the mounting location...................................... 14

3.3 Electrical connection BCL 500

3.4 Starting the device........................................................................................................... 16

3.5 Barcode reading............................................................................................................... 18

4 Device description........................................................................................... 19

4.1 About the barcode readers of the BCL 500i series....................................................... 19

4.2 Characteristics of the barcode readers of the BCL 500

4.3 Device construction......................................................................................................... 22

4.4 Reading techniques......................................................................................................... 23

4.4.1 Line scanner (single line)............................................................................................................. 23

4.4.2 Line scanner with oscillating mirror.............................................................................................. 24

4.4.3 Omnidirectional reading............................................................................................................... 25

4.5 Stand-alone connection ..................................................................................................25

4.6 Networking - Leuze multiNet plus ..................................................................................26

4.7 Leuze multiScan............................................................................................................... 26

4.8 Heater................................................................................................................................ 28

4.9 External parameter memory ........................................................................................... 28

4.10 autoReflAct....................................................................................................................... 29

4.11 Reference codes ..............................................................................................................29

4.12 autoConfig ........................................................................................................................ 30

and BCL 501i............................................................... 15

series................................... 19

Leuze electronic BCL 500i\BCL501

Table of contents

5 Specifications .................................................................................................. 31

5.1 General specifications of the barcode readers............................................................. 31

5.1.1 Line scanner.................................................................................................................................31

5.1.2 Oscillating-mirror scanner ............................................................................................................33

5.1.3 Line scanner with deflection mirror...............................................................................................33

5.2 Heating models of the barcode readers ........................................................................ 34

5.2.1 Line scanner with heating ............................................................................................................35

5.2.2 Oscillating-mirror scanner with heating ........................................................................................35

5.2.3 Line scanner with deflection mirror and heating...........................................................................36

5.3 Dimensioned drawings.................................................................................................... 37

5.3.1 Line scanner with / without heating ..............................................................................................37

5.3.2 Deflection mirror scanner with / without heating...........................................................................38

5.3.3 Oscillating-mirror scanner with / without heating..........................................................................39

5.4 Type overview ..................................................................................................................40

5.4.1 BCL 500i......................................................................................................................................40

5.4.2 BCL 501

5.5 Reading field curves / optical data................................................................................. 42

5.6 Reading field curves........................................................................................................ 43

5.6.1 High Density (N) Optics: BCL 500i\ BCL 501iSN 100/102.........................................................44

5.6.2 High Density (N) Optics: BCL 500

5.6.3 Medium Density (M) Optics: BCL 500

5.6.4 Medium Density (M) Optics: BCL 500

5.6.5 Low Density (F) Optics: BCL 500

5.6.6 Low Density (F) Optics: BCL 500

5.6.7 Ultra Low Density (L) Optics: BCL 500

5.6.8 Ultra Low Density (L) Optics: BCL 500

5.7 Reading field curves for heating devices ...................................................................... 52

5.7.1 High Density (N) Optics: BCL 500i\ BCL 501iSN 102 H ............................................................52

5.7.2 High Density (N) Optics: BCL 500

5.7.3 High Density (N) Optics: BCL 500

5.7.4 Medium Density (M) Optics: BCL 500

5.7.5 Medium Density (M) Optics: BCL 500

5.7.6 Medium Density (M) Optics: BCL 500

5.7.7 Low Density (F) Optics: BCL 500

5.7.8 Low Density (F) Optics: BCL 500

5.7.9 Low Density (F) Optics: BCL 500

5.7.10 Ultra Low Density (L) Optics: BCL 500

5.7.11 Ultra Low Density (L) Optics: BCL 500

......................................................................................................................................41

\ BCL 501iON 100 ...............................................................45

\ BCL 501iSM 100/102...................................................46

\ BCL 501iOM 100 .........................................................47

\ BCL 501iSF 100/102 ..........................................................48

\ BCL 501iOF 100.................................................................49

\ BCL 501iSL 102 .........................................................50

\ BCL 501iOL 100.........................................................51

\ BCL 501iSN 100 H ............................................................53

\ BCL 501iON 100 H............................................................54

\ BCL 501iSM 102 H......................................................55

\ BCL 501iSM 100 H......................................................56

\ BCL 501iOM 100 H......................................................57

\ BCL 501iSF 102 H..............................................................58

\ BCL 501iSF 100 H..............................................................59

\ BCL 501iOF 100 H .............................................................60

\ BCL 501iSL 102 H......................................................61

\ BCL 501iOL 100 H .....................................................62

2BCL500

\ BCL 501

Leuze electronic

Table of contents

6 Installation and mounting ............................................................................... 63

6.1 Storage, transportation ...................................................................................................63

6.2 Mounting the BCL 500

6.2.1 Fastening with M4 x 6 screws...................................................................................................... 64

6.2.2 BT 56 mounting device ................................................................................................................ 65

6.3 Device arrangement......................................................................................................... 66

6.3.1 Selecting a mounting location...................................................................................................... 66

6.3.2 Avoiding total reflection – Line scanner ....................................................................................... 67

6.3.3 Avoiding total reflection – oscillating/deflection-mirror scanner ................................................... 67

6.3.4 Mounting location......................................................................................................................... 68

6.3.5 Devices with integrated heating................................................................................................... 68

6.3.6 Maximum permissible read angles between BCL 500

6.4 Attaching laser warning sign.......................................................................................... 69

6.5 Cleaning............................................................................................................................ 69

7 Electrical connection....................................................................................... 70

7.1 Safety notices for the electrical connection.................................................................. 71

7.2 Electrical connection of the BCL 500

7.2.1 PWR – Voltage supply and switching input/outputs 3 and 4 .......................................................73

7.2.2 SERVICE – USB interface (type A) ............................................................................................. 75

7.2.3 SW IN/OUT – Switching input/switching output........................................................................... 76

7.2.4 HOST / BUS IN for BCL 500

7.2.5 BUS OUT for the BCL 500

7.3 Electrical connection of the BCL 501i............................................................................ 80

7.3.1 PWR – Voltage supply and switching input/outputs 3 and 4 .......................................................80

7.3.2 SERVICE – USB interface (type A) ............................................................................................. 80

7.3.3 SW IN/OUT – Switching input/switching output........................................................................... 80

7.3.4 HOST / BUS IN for BCL 501

7.3.5 BUS OUT for the BCL 501

7.4 Leuze multiNet plus ......................................................................................................... 82

7.4.1 Wiring the multiNet plus............................................................................................................... 83

7.4.2 The BCL 500

7.4.3 The BCL 500

7.4.4 The BCL 501

7.5 Line lengths and shielding.............................................................................................. 86

as network master ................................................................................................84

as network slave................................................................................................... 85

as network slave................................................................................................... 86

\ BCL 501i.................................................................................. 64

\ BCL 501i and barcode......................... 69

............................................................................ 72

....................................................................................................... 77

.......................................................................................................... 79

....................................................................................................... 81

.......................................................................................................... 81

Leuze electronic BCL 500i\BCL501

Table of contents

8 Display and control panel ............................................................................... 87

8.1 Structure of the control panel......................................................................................... 87

8.2 Status display and operation.......................................................................................... 87

8.2.1 Indicators in the display................................................................................................................87

8.2.2 LED status indicators ...................................................................................................................88

8.2.3 Control buttons.............................................................................................................................90

8.3 Menu description .............................................................................................................91

8.3.1 The main menus ..........................................................................................................................91

8.3.2 Parameter menu ..........................................................................................................................92

8.3.3 Language selection menu ..........................................................................................................100

8.3.4 Service menu .............................................................................................................................101

8.3.5 Actions menu .............................................................................................................................101

8.4 Operation ........................................................................................................................ 103

9 Leuze webConfig tool.................................................................................... 104

9.1 Connecting the SERVICE USB interface ..................................................................... 104

9.2 Installing the required software.................................................................................... 104

9.2.1 System requirements .................................................................................................................104

9.2.2 Installing the USB driver.............................................................................................................105

9.3 Starting the webConfig tool .......................................................................................... 106

9.4 Short description of the webConfig tool ..................................................................... 107

9.4.1 Module overview in the Configuration menu ..............................................................................107

10 Commissioning and configuration .............................................................. 109

10.1 BCL 500i.......................................................................................................................... 110

10.1.1 Measures to be performed prior to the initial commissioning.....................................................110

10.1.2 Starting the device .....................................................................................................................110

10.1.3 Operation as a stand-alone device ............................................................................................110

10.1.4 Selecting the operating mode ....................................................................................................111

10.1.5 Operation as a multiNet plus master..........................................................................................112

10.2 multiNet plus slave BCL 501i........................................................................................ 114

10.2.1 Measures to be performed prior to the initial commissioning.....................................................114

10.2.2 Starting the device .....................................................................................................................115

10.2.3 Setting the device address.........................................................................................................115

10.3 Additional settings for the BCL 500i and the BCL 501i.............................................. 117

10.3.1 Decoding and processing the read data ....................................................................................117

10.3.2 Control of the decoding ..............................................................................................................118

10.3.3 Control of the switching outputs .................................................................................................119

10.4 Transmitting configuration data................................................................................... 120

10.4.1 Via the webConfig tool ...............................................................................................................120

10.4.2 With the external parameter memory.........................................................................................120

4BCL500

\ BCL 501

Leuze electronic

Table of contents

11 Online commands.......................................................................................... 123

11.1 Overview of commands and parameters..................................................................... 123

11.1.1 General 'online' commands .......................................................................................................124

11.1.2 ’Online’ commands for system control....................................................................................... 131

11.1.3 ’Online’ commands for the parameter set operations................................................................ 132

12 Diagnostics and troubleshooting................................................................. 139

12.1 General causes of errors............................................................................................... 139

12.2 Interface errors............................................................................................................... 139

13 Type overview and accessories ................................................................... 141

13.1 Type key.......................................................................................................................... 141

13.2 Type overview BCL 500

13.2.1 BCL 500i.................................................................................................................................... 141

13.2.2 BCL 501

.................................................................................................................................... 143

13.3 Accessory terminating resistor .................................................................................... 144

13.4 Accessory connectors .................................................................................................. 144

13.5 Accessory USB cable .................................................................................................... 144

13.6 Accessory external parameter memory....................................................................... 144

13.7 Accessory mounting device .........................................................................................144

13.8 Accessory ready-made cables for voltage supply...................................................... 145

13.8.1 Contact assignment of PWR connection cable.......................................................................... 145

13.8.2 Specifications of the cables for voltage supply.......................................................................... 145

13.8.3 Order codes of the cables for voltage supply ............................................................................145

13.9 Accessory ready-made cables for bus connection .................................................... 146

13.9.1 General information ................................................................................................................... 146

13.9.2 Contact assignment of KB PB… connection cable for PROFIBUS/multiNet plus .....................146

13.9.3 Technical data of interface connection cable.............................................................................147

13.9.4 Order codes for interface connection cables ............................................................................. 147

................................................................................................ 141

14 Maintenance ................................................................................................... 148

14.1 General maintenance information................................................................................ 148

14.2 Repairs, servicing .......................................................................................................... 148

14.3 Disassembling, packing, disposing ............................................................................. 148

Leuze electronic BCL 500i\BCL501

Table of contents

15 Appendix ........................................................................................................ 149

15.1 Declaration of conformity ............................................................................................. 149

15.2 ASCII character set ........................................................................................................ 150

15.3 Barcode samples ...........................................................................................................154

15.3.1 Module 0.3 .................................................................................................................................154

15.3.2 Module 0.5 .................................................................................................................................155

6BCL500

\ BCL 501

Leuze electronic

Figures and tables

Figure 2.1: Attachment of the stick-on labels with warning notices at the BCL 500i \BCL501i ................................ 13

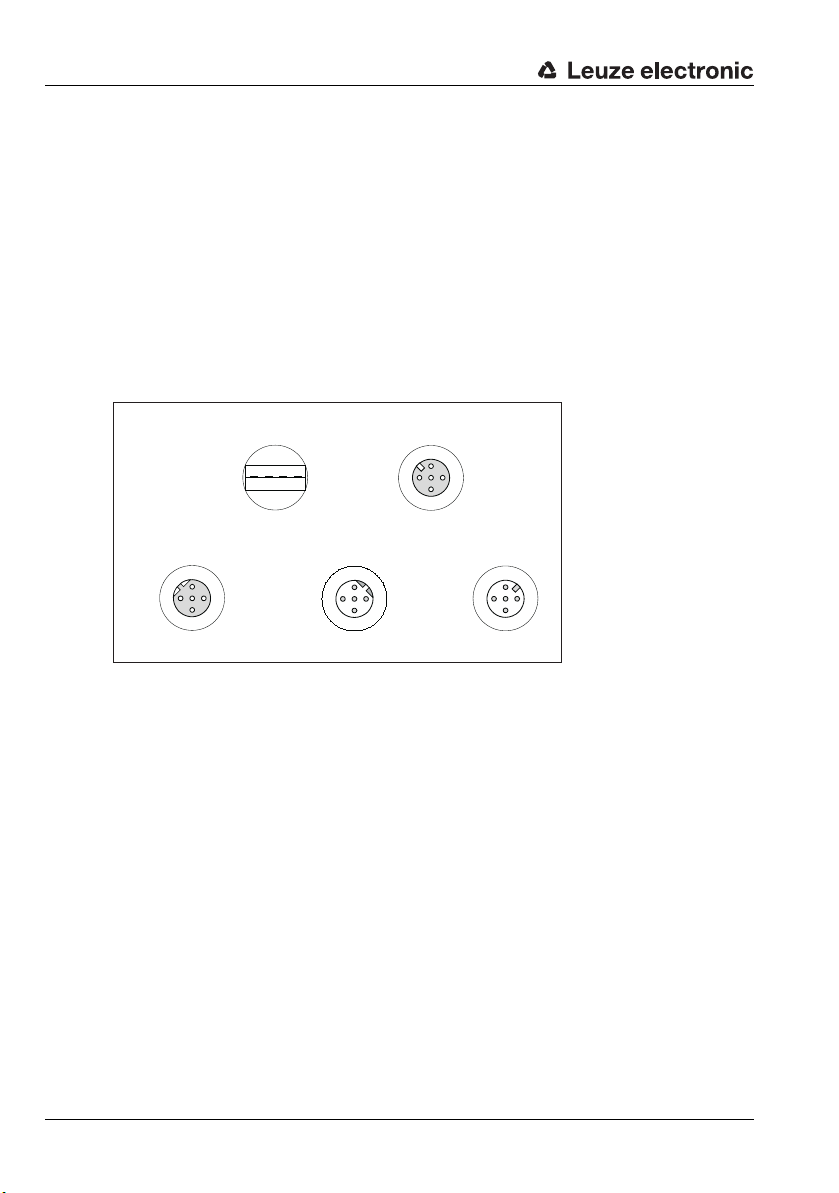

Figure 3.1: Connections of the BCL 500i ................................................................................................................... 15

Figure 3.2: Connections of the BCL 501i ................................................................................................................... 15

Figure 4.1: Line scanner, line scanner with deflection mirror and oscillating-mirror scanner .....................................19

Figure 4.2: Possible barcode orientation .................................................................................................................... 21

Figure 4.3: Device construction .................................................................................................................................. 22

Figure 4.4: Deflection principle for the line scanner ................................................................................................... 23

Figure 4.5: Deflection principle for the line scanner with oscillating mirror add-on .................................................... 24

Figure 4.6: Principle arrangement for omnidirectional reading................................................................................... 25

Figure 4.7: Stand-alone connection ........................................................................................................................... 25

Figure 4.8: Networking possibilities using the multiNet plus ...................................................................................... 26

Figure 4.9: Scanner arrangement with the multiScan function................................................................................... 27

Figure 4.10: External parameter memory..................................................................................................................... 28

Figure 4.11: Reflector arrangement for autoReflAct..................................................................................................... 29

Table 5.1: Specifications of the BCL 501i and BCL 500i line scanners without heating........................................... 31

Table 5.2: Specifications of the BCL 501i and BCL 500i oscillating-mirror scanners without heating ...................... 33

Table 5.3: Specifications of the BCL 501i and BCL 500i deflection-mirror scanners without heating ...................... 33

Table 5.4: Specifications of the BCL 501i

Table 5.5: Specifications of the BCL 501i and BCL 500i oscillating-mirror scanners with heating ........................... 35

Table 5.6: Specifications of the BCL 501i and BCL 500i deflection-mirror scanners with heating ........................... 36

Figure 5.1: Dimensioned drawing BCL 500i \ BCL 501i line scanner S…102 ...........................................................37

Figure 5.2: Dimensioned drawing BCL 500i \ BCL 501i deflection-mirror scanner S…100....................................... 38

Figure 5.3: Dimensioned drawing BCL 500i \ BCL 501i oscillating-mirror scanner O…100 ...................................... 39

Table 5.7: Type overview BCL 500i .......................................................................................................................... 40

Table 5.8: Type overview BCL 501i .......................................................................................................................... 41

Figure 5.4: The most important characteristics of a barcode ..................................................................................... 42

Figure 5.5: Zero position of the reading distance .......................................................................................................43

Table 5.9: Reading conditions................................................................................................................................... 43

Figure 5.6: "High Density" reading field curve for line scanner (with/without deflection mirror) ................................. 44

Figure 5.7: "High Density" reading field curve for oscillating-mirror scanners............................................................ 45

Figure 5.8: Lateral "High Density" reading field curve for oscillating-mirror scanners ................................................ 45

Figure 5.9: "Medium Density" reading field curve for line scanner (with/without deflection mirror) ............................46

Figure 5.10: "Medium Density" reading field curve for oscillating-mirror scanners ......................................................47

Figure 5.11: Lateral "Medium Density" reading field curve for oscillating-mirror scanners .......................................... 47

Figure 5.12: "Low Density" reading field curve for line scanner (with/without deflection mirror) .................................

Figure 5.13: "Low Density" reading field curve for oscillating-mirror scanners ............................................................ 49

Figure 5.14: Lateral "Low Density" reading field curve for oscillating-mirror scanners................................................. 49

Figure 5.15: "Ultra Low Density" reading field curve for line scanner without deflection mirror ...................................50

Figure 5.16: "Ultra Low Density" reading field curve for oscillating-mirror scanners .................................................... 51

Figure 5.17: Lateral "Ultra Low Density" reading field curve for oscillating-mirror scanners ........................................ 51

Figure 5.18: "High Density" reading field curve for line scanner with heating (without deflection mirror)..................... 52

Figure 5.19: "High Density" reading field curve for line scanner with heating (with deflection mirror).......................... 53

Figure 5.20: "High Density" reading field curve for oscillating-mirror scanners with heating........................................ 54

Figure 5.21: Lateral "High Density" reading field curve for oscillating-mirror scanners with heating............................ 54

Figure 5.22: "Medium Density" reading field curve for line scanner with heating (without deflection mirror) ...............55

Figure 5.23: "Medium Density" reading field curve for line scanner with heating (with deflection mirror) ....................56

Figure 5.24: "Medium Density" reading field curve for oscillating-mirror scanners with heating ..................................57

Figure 5.25: Lateral "Medium Density" reading field curve for oscillating-mirror scanners with heating ......................57

and BCL 500i line scanners with heating................................................ 35

.48

Leuze electronic BCL 500i\BCL501

Figures and tables

Figure 5.26: "Low Density" reading field curve for line scanner with heating (without deflection mirror) ..................... 58

Figure 5.27: "Low Density" reading field curve for line scanner with heating (with deflection mirror) ..........................59

Figure 5.28: "Low Density" reading field curve for oscillating-mirror scanners with heating ........................................ 60

Figure 5.29: Lateral "Low Density" reading field curve for oscillating-mirror scanners with heating ............................ 60

Figure 5.30: "Ultra Low Density" reading field curve for line scanner with heating (without deflection mirror)............. 61

Figure 5.31: "Ultra Low Density" reading field curve for oscillating-mirror scanners with heating................................ 62

Figure 5.32: Lateral "Ultra Low Density" reading field curve for oscillating-mirror scanners with heating.................... 62

Figure 6.1: Device name plate BCL 500i \BCL501i ................................................................................................. 63

Figure 6.2: Fastening options using M 4x6 threaded holes........................................................................................ 64

Figure 6.3: BT 56 mounting device ............................................................................................................................ 65

Figure 6.4: Mounting example BCL 500i \BCL501i .................................................................................................. 66

Figure 6.5: Total reflection – line scanner .................................................................................................................. 67

Figure 6.6: Total reflection – BCL 500i \BCL501i with oscillating/deflection mirror.................................................. 68

Figure 6.7: Reading angle for the line scanner .......................................................................................................... 69

Figure 7.1: Location of the electrical connections ...................................................................................................... 70

Figure 7.2: Connections of the BCL 500i ................................................................................................................... 72

Table 7.1: Pin assignment PWR ............................................................................................................................... 73

Figure 7.1: Switching input connection diagram SWIO_3 and SWIO_4 .................................................................... 74

Figure 7.2: Switching output connection diagram SWIO_3 / SWIO_4 .................................................................

Table 7.2: Pin assignments of SERVICE – USB interface........................................................................................ 75

Table 7.3: Pin assignment SW IN/OUT..................................................................................................................... 76

Figure 7.3: Switching input connection diagram SWIO_1 and SWIO_2 .................................................................... 76

Figure 7.4: Switching output connection diagram SWIO_1 / SWIO_2 ....................................................................... 77

Table 7.4: Pin assignment HOST / BUS IN BCL 500i............................................................................................... 77

Figure 7.5: Pin assignments - HOST / BUS IN as RS 232 ......................................................................................... 78

Figure 7.6: Pin assignments - HOST / BUS IN as RS 422 ......................................................................................... 78

Table 7.5: Pin assignment BUS OUT ....................................................................................................................... 79

Figure 7.7: Connections of the BCL 501i ................................................................................................................... 80

Table 7.6: Pin assignment HOST / BUS IN BCL 501i............................................................................................... 81

Figure 7.8: Leuze multiNet plus system topology....................................................................................................... 82

Figure 7.9: System topology of Leuze multiNet plus with BCL 500i as slave ............................................................ 85

Table 7.7: Line lengths and shielding ....................................................................................................................... 86

Figure 8.1: Structure of the control panel ...................................................................................................................87

Table 8.1: Parameter handling submenu ..................................................................................................................92

Table 8.2: Decoder table submenu ...........................................................................................................................93

Table 8.3: Digital SWIO submenu............................................................................................................................. 96

Table 8.4: Com submenu.......................................................................................................................................... 99

Figure 9.1: Connecting the SERVICE USB interface ...............................................................................................104

Figure 9.2: The start page of the webConfig tool ..................................................................................................... 106

Figure 9.3: Module overview in the webConfig tool.................................................................................................. 107

Figure 10.1: Connections of the BCL 500i ................................................................................................................. 110

Figure 10.2: Connections of the BCL 501i ................................................................................................................. 114

Figure 10.3: Storing configuration data in the webConfig tool ................................................................................... 120

Figure 10.4: Installing the external parameter memory.............................................................................................. 121

Figure 10.5: BCL 500i \BCL501i with installed parameter memory .........................................................................121

Table 12.1: General causes of errors ....................................................................................................................... 139

Table 12.2: Interface error ........................................................................................................................................ 139

Table 13.1: Type overview BCL 500i........................................................................................................................ 141

...... 74

8BCL500

\ BCL 501

Leuze electronic

Figures and tables

Table 13.2: Type overview BCL 501i ........................................................................................................................ 143

Table 13.3: Terminating resistor for the BCL 500i \ BCL 501i .................................................................................. 144

Table 13.4: Connectors for the BCL 500i \BCL501i................................................................................................ 144

Table 13.5: Cables for the BCL 500i \BCL501i ....................................................................................................... 144

Table 13.6: External parameter memory for the BCL 500i \ BCL 501i ..................................................................... 144

Table 13.7: Mounting devices for the BCL 500i \ BCL 501i ...................................................................................... 144

Table 13.8: PWR cables for the BCL 500i \BCL501i .............................................................................................. 145

Figure 13.9: Cable structure of PROFIBUS/multiNet plus connection cable.............................................................. 146

Table 13.10: Bus connection cables for the BCL 500i \ BCL 501i .............................................................................. 147

Figure 15.1: Barcode sample labels (module 0.3)...................................................................................................... 154

Figure 15.2: Barcode sample labels (module 0.5)...................................................................................................... 155

Leuze electronic BCL 500i\BCL501

General information

1 General information

1.1 Explanation of symbols

The symbols used in this technical description are explained below.

Attention!

This symbol precedes text messages which must strictly be observed. Failure to comply with this information results in injuries to personnel or damage to the equipment.

Attention Laser!

This symbol warns of possible danger caused by hazardous laser radiation.

Notice!

This symbol indicates text passages containing important information.

1.2 Declaration of conformity

The barcode readers of the BCL 500i series have been developed and manufactured in accordance with the applicable European standards and directives.

The BCL 500 and fulfils the requirements of Underwriter Laboratories Inc. (UL).

Notice!

You can find the Declaration of Conformity of the devices in the appendix of the manual on page 149.

The manufacturer of the product, Leuze electronic GmbH & Co KG in D-73277 Owen/Teck, possesses a certified quality assurance system in accordance with ISO 9001.

10 BCL 500i\ BCL 501

series is "UL LISTED" according to American and Canadian safety standards,

LISTED

Leuze electronic

2 Safety notices

2.1 General safety notices

Documentation

All entries in this technical description must be heeded, in particular the present chapter "Safety notices". Keep this technical description in a safe place. It should be available at all times.

Safety regulations

Observe the locally applicable regulations and the rules of the employer's liability insurance association.

Repair

Repairs must only be carried out by the manufacturer or an authorised representative.

2.2 Safety standards

The barcode readers of the BCL 500iseries were developed, manufactured and tested in accordance with the applicable safety standards. They correspond to the state of the art.

2.3 Approved purpose

Safety notices

Attention!

The protection of personnel and the device cannot be guaranteed if the device is operated in a manner not complying with its intended use.

Barcode readers of the BCL 500i series are conceived as stationary, high-speed scanners with integrated decoders for all current barcodes used for automatic object detection.

In particular, unauthorised uses include:

• rooms with explosiv operation for medical purposes

•

e atmospheres

Areas of application

The barcode readers of the BCL 500i series are especially designed for the following areas of application:

• Storage and conveying technologies, in particular for object identification on fast-moving conveyor belts

• Pallet transportation applications

• Automobile sector

• Omnidirectional reading

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Safety notices

2.4 Working safely

Attention!

Access to or changes on the device, except where expressly described in this operating manual, are not authorised.

Safety regulations

Observe the locally applicable legal regulations and the rules of the employer's liability insurance association.

Qualified personnel

Mounting, commissioning and maintenance of the device must only be carried out by qualified personnel. Electrical work must be carried out by a certified electrician.

Attention, laser radiation! If you look into the beam path over a longer time period, the retina of your eye may

be damaged!

Never look directly into the beam path!

Do not point the laser beam of the BCL 500i \ BCL 501i at persons!

When mounting and aligning the BCL 500i \ BCL 501i, avoid reflections of the laser beam off reflective surfaces!

The BCL 500i \ BCL 501i barcode readers comply with safety standards EN 60825-1 for a class 2 product. They also comply with the U.S. 21 CFR 1040.10 regulations for a class II laser product except for deviations pursuant to Laser Notice No. 50, dated July 26, 2001.

Radiant Energy: The BCL 500i \ BCL 501i uses a low power visible laser diode. The emitted wavelength is 655nm. The average laser power is less than 1mW in accordance with the definition of class 2 lasers.

Adjustments: Do not attempt any adjustments to or alterations of this product.

Do not remove the protective housing of the barcode reader. There are no user-serviceable parts inside.

The scanner window is the only aperture through which light may be observed on this product. A failure of the scanner motor, while the laser diode continues to emit a laser beam, may cause emission levels to exceed those for safe operation. The barcode reader has safeguards to prevent this occurrence. If, however, a stationary beam is emitted, the failing barcode reader should be disconnected from its power source immediately.

CAUTION: Use of controls or adjustments or performance of procedures other than specified herein may result in hazardous light exposure.

The use of optical instruments or devices in combination with the device increases the danger of eye damage!

12 BCL 500i\ BCL 501

Leuze electronic

Safety notices

BCL 500

\ BCL 501

Line scanner

BCL 500

\ BCL 501

with oscillating/deflection mirror

A Included stick-on labels B Aperture label C Name plate

The housing of the BCL 500i \ BCL 501i is provided with warning notices B and C above and next to the reading window as shown in the following figure:

Figure 2.1: Attachment of the stick-on labels with warning notices at the

Notice!

It is important that you attach the stick-on labels supplied to the device (A in figure 2.1)! If the signs would be covered due to the installation situation of the BCL 500i \ BCL 501i, attach them instead in the immediate vicinity of the BCL 500i \ BCL 501i in such a way that it is not necessary to look into the laser beam when reading the notices!

Leuze electronic BCL 500i\BCL501

BCL 500

\ BCL 501

TNT 35/7-24V

Fast commissioning / operating principle

3 Fast commissioning / operating principle

Below you will find a short description for the initial commissioning of the

BCL 500 technical description.

\BCL501i. Detailed explanations for all listed points can be found throughout this

3.1 Mounting the BCL 500i\ BCL 501

The BCL 500i\ BCL 501i barcode readers can be mounted in two different ways:

• Using two M4x6 screws on the rear of the device or using four M4x6 screws on the bottom of the device.

• Using a BT 56 mounting device on the two fastening grooves.

3.2 Device arrangement and selection of the mounting location

In order to select the right mounting location, several factors must be considered:

• Size, orientation, and position tolerance of the barcodes on the objects to be scanned.

• The reading field of the BCL 500

• The resulting minimum and maximum reading distance from the respective reading field (see chapter 5.5 "Reading field curves / optical data").

• The permissible line lengths between the BCL 500 depending on which interface is used.

• The correct time for data output. The BCL 500 such a way that, taking into consideration the time required for data processing and the conveyor belt speed, there is sufficient time to e.g. initiate sorting operations on the basis of the read data.

• The display and control panel should be very visible and accessible.

• For configuring and commissioning with the webConfig tool, the USB interface should be easily accessible.

For specific information, please refer to chapter 4.4.

Notice!

The beam exits the BCL 500i \BCL501i as follows for the respective devices:

- line scanner parallel to the housing base

- oscillating mirror and deflection mirror perpendicular to the housing base The black areas in figure 6.1 are the housing base. The best read results are obtained when:

• The BCL 500i\ BCL 501i is mounted in such a way that the scanning beam is incident on the barcode at an angle of inclination greater than ±10° … 15° to vertical.

•

The reading distance lies in the middle area of the reading field.

• The barcode labels are of good print quality and have good contrast ratios.

•

You do not use high-gloss labels.

• There is no direct sunlight.

\ BCL 501i in relation to the barcode module width.

\BCL501i and the host system

\ BCL 501i should be positioned in

14 BCL 500i\ BCL 501

Leuze electronic

Fast commissioning / operating principle

USB socket

Type A

M12 socket

(A-coded)

M12 socket

(B-coded)

M12 plug (B-coded)

M12 plug (A-coded)

SW IN/OUT

VOUT

SWIO_1

SWIO_2

GND

SERVICE

2134

GND D+ D-

PWR

SWIO_4

SWIO_3

GND VIN

BUS OUT RS 485

VCC485

RS485B

RS485A

GND485

HOST / BUS IN

GND485

RS485B

RS485A

USB socket

Type A

M12 socket

(A-coded)

M12 socket

(B-coded)

M12 plug (B-coded)

M12 plug (A-coded)

3.3 Electrical connection BCL 500i and BCL 501

The BCL 500i\ BCL 501i is equipped with four M12 plugs/sockets which are A- and Bcoded, and an A-coded USB socket.

SERVICE

GND D+ D-

2134

BUS OUT RS 485

RS485B

VCC485

RS485A

GND485

HOST / BUS IN

GND_H

RXD/RX-

TXD/TX-

RTS/TX+

Figure 3.1: Connections of the BCL 500

SW IN/OUT

SWIO_1

VOUT

SWIO_2

GND

PWR

SWIO_3

CTS/RX+

GND VIN

SWIO_4

Figure 3.2: Connections of the BCL 501

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Fast commissioning / operating principle

Voltage supply and switching inputs/outputs

The voltage supply (10 … 30VDC) is connected at the PWR M12 connector. Available at both the PWR M12 connector as well as at the SW IN/OUT M 12 socket are four

freely programmable switching inputs/outputs for custom adaptation to the respective application. Detailed information on this topic can be found in chapter 7.2.1 and chapter

7.2.3 (for the BCL 500

) and in chapter 7.3.1 and chapter 7.3.3 (for the BCL 501i).

Stand-alone operation

During stand-alone operation of the BCL 500i, the host interface of the primary system is connected to HOST/BUS IN. Please make certain that the correct interface is used on the primary system. The standard setting of the BCL 500

Network operation in the Leuze multiNet plus

In Leuze multiNet plus network operation, the primary system (PC/PLC) is connected to the

host interface of the BCL 500 occurs via BUS OUT.

If BUS OUT is not used for the connection to the next participant, the Leuze multiNet plus network must be terminated with an M12 terminating resistor at the last participant (see chapter 13.3 "Accessory terminating resistor").

, the bus connection to the next participant, e.g. a BCL 501i,

3.4 Starting the device

Connect the supply voltage +10 … 30V DC (typ. +24 V DC); the BCL 500i \ BCL 501i starts up and the barcode reading window appears on the display:

for the host interface is RS 232.

As a first step, you need to set the operating mode of the BCL 500i. The BCL 500i can be operated as a stand-alone device, multiNet plus master, or multiNet plus slave.

You can make the necessary settings via the display or via the webConfig tool. Provided here is only a brief description of the settings via the webConfig tool; detailed information can be found in chapter 10.

Select the desired operating mode

• Via webConfig:

Configuration -> Communication -> Overview

By default, parameter enabling is deactivated and you can-

not change any settings. If you wish to carry out the configuration via the display, you must activate parameter enabling. Further information can be found in chapter "Parameter enabling" on page 103

Operation as a multiNet plus master

Set the max. slave number parameter to the desired value:

• Via webConfig:

Configuration -> Communication -> BUS OUT -> Protocol

16 BCL 500i\ BCL 501

Leuze electronic

Fast commissioning / operating principle

Select the desired interface standard (RS 232 / RS 422) and set the associated communication parameters:

• Via webConfig:

Configuration -> Communication -> HOST/BUS IN -> Data transmission

Select the desired communication protocol and set associated parameters:

• Via webConfig: first

Configuration -> Communication -> HOST/BUS IN -> Protocol

Operation as a multiNet plus slave

Notice!

The BCL 501i always automatically starts as a slave participant in the multiNet plus. The default address is 1.

The Leuze multiNet plus permits an address range from 0 to 31. Address 31 must not be used for data communication. It may only be used temporarily for commissioning.

Set the Slave address parameter to a value > 0 and <31. Start with address 01 for the first slave and assign further addresses in contiguous ascending order.

• Via webConfig:

Configuration -> Communication -> BUS OUT -> Protocol

Further settings

After the basic configuration of the operating mode and the communication parameters, you need to carry out further settings:

• Decoding and processing the read data

Define at least one code type with the desired settings.

• Via webConfig:

Configuration -> Decoder

• Control of the decoding

Configure the connected switching inputs according to your requirements. To do

this, first set the I/O mode to Input and then configure the switching behaviour:

• Via webConfig:

Configuration -> Device -> Switching inputs/outputs

• Control of the switching outputs

Configure the connected switching outputs according to your requirements. To do this, first set the I/O mode to Output and then configure the switching behaviour:

• Via webConfig:

Configuration -> Device -> Switching inputs/outputs

TNT 35/7-24V

Leuze electronic BCL 500i\BCL501

Fast commissioning / operating principle

3.5 Barcode reading

With the aid of the "Action menu", you can instruct the BCL 500i\ BCL 501i to read a barcode.

Actions

o Start decoding o Start alignment o Start auto-setup o Start teach-in

To test, you can use the following barcode in the 2/5 Interleaved format. The barcode module here is 0.5:

In the main menu, use the buttons to select the Actions menu item. Activate the Actions menu with . Then select Start decoding with and press again to start the barcode reading operation.

Modul 0,5

6677889900

The read information appears in the display and is simultaneously passed on to the primary system (PLC or PC).

Please check the incoming data of the barcode information there. Alternatively, you can connect a photoelectric sensor or a 24 V DC switching signal to the

SW IN/OUT socket for read activation. To do this, however, you must appropriately configure the switching input (see chapter 7.2.3 "SW IN/OUT – Switching input/switching output").

18 BCL 500i\ BCL 501

Leuze electronic

4 Device description

Line scanner

Oscillating-mirror scanner /

Line scanner with deflection mirror

4.1 About the barcode readers of the BCL 500i series

Barcode readers of the BCL 500i series are high-speed scanners with integrated decoder for all commonly used barcodes, e.g. 2/5 Interleaved, Code 39, Code 128, EAN 8/13 etc., as well as codes from the RSS family.

Barcode readers of the BCL 500 scanners, line scanners with deflection mirrors, oscillating mirrors and also optionally as heated models.

series are available in various optics models as well as line

Device description

Figure 4.1: Line scanner, line scanner with deflection mirror and oscillating-mirror scanner

The extensive options for device configuration via display or software enable adaptation to a multitude of reading tasks. Due to the large reading distance combined with the great depth of field and a very compact construction, the device is ideally suited for package and pallet transportation systems. In general, the barcode readers of the BCL 500 designed for the conveyor and storage technology market.

The interfaces (RS 232, RS 485 and RS 422) integrated in the various device models and the fieldbus systems (PROFIBUS DP, ProfiNet and Ethernet) of the barcode readers of the BCL 500

4.2 Characteristics of the barcode readers of the BCL 500i series

Performance features:

• Integrated fieldbus connectivity = working

• Numerous interface variants facilitate connection to the primary systems

• RS 232, RS 422 as well as with integrated multiNet plus master

Leuze electronic BCL 500i\BCL501

series offer optimum connection to the primary host system.

-> Plug-and-Play fieldbus coupling and easy net-

series are

TNT 35/7-24V

Device description

• RS 485 and multiNet plus slave alternatively, various fieldbus systems, such as

•PROFIBUS DP

•PROFINET

• Ethernet

• Integrated code fragment technology (CRT) enables the identification of soiled or damaged barcodes

• Maximum depth of field and reading distances from 200mm to 1600mm

• Large optical opening angle and, thus, large reading field width

• High scanning rate from 800 - 1200 scans/s for fast reading tasks

• Intuitive, backlit, multi-language display with user-friendly menu navigation

• Integrated USB 1.1 service interface

• Adjustment of all device parameters with a web browser

• Connection options for an external parameter memory

• Easy alignment- and diagnosis functions

• M12 connections with Ultra-Lock™ technology

• Four freely programmable switching inputs/outputs for the activation or signalling of states

• Automatic monitoring of the read quality with autoControl

• Automatic recognition and setting of the barcode type using autoConfig

• Reference code comparison

• Optional heating models to -35°C

• Heavy-duty housing of protection class IP 65

Notice!

Information on technical data and characteristics can be found in chapter 5.

General information

The integrated fieldbus connectivity = i contained in the barcode readers of the BCL 500 series facilitates the use of identification systems which function without connector unit or gateways. The integrated fieldbus interface considerably simplifies handling. The Plug-andPlay concept enables easy networking and very simple commissioning: Directly connect the respective fieldbus and all configuration is performed with no additional software.

For decoding barcodes, the barcode readers of the BCL 500 proven CRT decoder with code fragment technology:

The proven code fragment technology (CRT) enables barcode readers of the BCL 500 series to read barcodes with a small bar height, as well as barcodes with a damaged or soiled print image.

20 BCL 500i\ BCL 501

series make available the

Leuze electronic

Device description

With the aid of the CRT decoder, barcodes can also be read without problem in other demanding situations, such as with a large tilt angle (azimuth angle or even twist angle).

Figure 4.2: Possible barcode orientation

The BCL 500 tool via the USB service interface; alternatively, the barcode readers can be adjusted using configuration commands via the host/service interface.

The BCL 500 object is in the reading field. This opens a time window ("reading gate") in the BCL 500 detect and decode a barcode.

In the basic setting, triggering takes place through an external reading cycle signal. Alternative activation options include online commands via the host interface and the autoReflAct function.

Through the read operation, the BCL 500 data for diagnosis which can also be transmitted to the host. The quality of the read operation can be inspected using the alignment mode which is integrated in the webConfig tool.

A multi-language display with buttons is used to operate the BCL 500 for visualisation purposes. Two LEDs provide additional optical information on the current operating state of the device.

The four freely configurable switching inputs/outputs "SWIO 1 … SWIO 4" can be assigned various functions and control e.g. activation of the BCL 500 such as a PLC.

System, warning and error messages provide assistance in set-up/troubleshooting during commissioning and read operation.

\ BCL 501i can be operated and configured using the integrated webConfig

\ BCL 501i needs a suitable activation to start a read process as soon as an

\ BCL 501i for the read process during which the barcode reader has time to

\ BCL 501i collects additional useful pieces of

\BCL501i as well as

\BCL501i or external devices,

TNT 35/7-24V

Leuze electronic BCL 500i\BCL501

Device description

USB interface

M12 connection

technology

Reading window

Dovetail mounting and 4 mounting threads

Dovetail mounting and 2 mounting threads

Display, LEDs

and buttons

4.3 Device construction

Figure 4.3: Device construction

22 BCL 500i\ BCL 501

Leuze electronic

4.4 Reading techniques

4.4.1 Line scanner (single line)

A line (scan line) scans the label. Due to the opt. opening angle, the reading field width is dependent on the read distance. Through the movement of the object, the entire barcode is automatically transported through the scan line.

The integrated code fragment technology permits twisting of the barcode (tilt angle) within certain limits. These are dependent on the transport speed, the scanning rate of the scanner and the barcode properties.

Areas of application of the line scanner

The line scanner is used:

• when the bars of the barcode are printed in the conveying direction ('ladder arrangement').

• with barcodes having very short bar lengths.

• when the ladder code is turned out of the vertical position (tilt angle).

• when the scanning distance is large.

Device description

Figure 4.4: Deflection principle for the line scanner

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Device description

4.4.2 Line scanner with oscillating mirror

The oscillating mirror deflects the scan line additionally to both sides across the scan direction at a randomly adjustable oscillation frequency. In this way, the BCL 500 also scan larger areas or spaces for barcodes. The reading field height (and the scan line length useful for evaluation) depends on the reading distance due to the optical beam width of the oscillating mirror.

Areas of application of the line scanner with oscillating mirror

For line scanners with oscillating mirror, oscillation frequency, start/stop position etc. are adjustable. It is used:

• when the position of the label is not fixed, e.g. on pallets – various labels can, thus, be detected at various positions.

• when the bars of the barcode are printed perpendicular to the conveying direction ('picket fence arrangement').

• when reading stationary objects.

• when the barcode is turned out of the horizontal position.

• when the scanning distance is large.

• when a large reading field (reading window) has to be covered.

\ BCL 501i can

Figure 4.5: Deflection principle for the line scanner with oscillating mirror add-on

24 BCL 500i\ BCL 501

Leuze electronic

4.4.3 Omnidirectional reading

Supply voltage

PC / PLC host interface

Switching inputs/outputs

In order to read arbitrarily oriented barcodes on an object, at least 2 barcode readers are necessary. If the barcode is not printed over-square, i.e. bar length > code length, barcode readers with integrated code fragment technology are necessary.

Device description

Figure 4.6: Principle arrangement for omnidirectional reading

4.5 Stand-alone connection

The barcode readers of the BCL 500i series can be operated as individual "stand alone"

devices. The BCL 500 tion of the supply voltage, the interface and the switching inputs and outputs.

Figure 4.7: Stand-alone connection

Leuze electronic BCL 500i\BCL501

features multiple M12 connectors / sockets for the electrical connec-

TNT 35/7-24V

Device description

BCL 500i master

BCL 501i slave 1 BCL 501i slave 2 BCL 501i slave n

to PC/PLC

Terminating resistor on the last slave

4.6 Networking - Leuze multiNet plus

In the Leuze multiNet plus network, up to 32 barcode readers can be networked together. The respective network devices transmit the read data when requested to by the BCL 500 (or MA 31) network master. For this purpose, each BCL 500i / BCL 501i is assigned its own station address which is set with the aid of the display on the respective BCL 500

BCL 501 The master then transmits the data of all network devices via its host interface to a primary

PLC control system or a computer, i.e. it "collects" the scanner data in the network and transmits it to an interface on the host computer. This reduces interface costs (CPs) and time spent programming the software.

Figure 4.8: Networking possibilities using the multiNet plus

Two-wire RS 485

The Leuze multiNet plus is optimised for fast transmission of scanner data to a primary host computer. The multiNet plus consists physically of a two-wire RS 485 interface through which the Leuze multiNet plus software protocol is controlled. This makes wiring the network easy and inexpensive as slaves are connected to one another in parallel.

In principle, networking occurs via a parallel connection of the individual RS 485 interfaces of the respective barcode scanners. Shielded, twisted pair conductors should be used for the Leuze multiNet plus. This allows a total network length of up to 1200m.

4.7 Leuze multiScan

The multiScan operating mode is based on Leuze multiNet plus and links individual barcode readings from multiple barcode scanners into a single decoding result. This is used, for example, on a packet conveyor system on which the label can be affixed on either the right or left side, thereby requiring two read stations. To prevent the host from having to

26 BCL 500i\ BCL 501

Leuze electronic

Device description

always process two readings for a single packet, i.e. a decoding result and a No Read, a multiScan arrangement is used which transmits only one reading from the two read stations to the host; this single reading is transmitted by the multiScan master.

Notice!

Thus, from the perspective of the host, the scanner network appears to be just a single barcode reader!

For this purpose one multiScan master and one or more multiScan slaves are connected together via the RS 485 interface.

Figure 4.9: Scanner arrangement with the multiScan function

Notice!

The multiScan function on the RS 485 interface is possible for minimum of 2 and a maximum of 32 devices!

The protocol set on the RS 485 interface is the multiNet protocol. As a result, during multi-

Scan operation on the RS 485 interface, the multiNet master also functions as the multiScan master and the multiNet slaves function as multiScan slaves (thus, all multiNet

slave are included in multiScan operation).

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Device description

4.8 Heater

For low-temperature applications to min. -35°C (e.g. in cold storage), the barcode readers

of the BCL 500 and these barcode readers purchased as separate device models.

\ BCL 501i series can optionally be permanently fitted with a built-in heating

4.9 External parameter memory

The optionally available external parameter memory – based on a USB memory stick (compatible with version 1.1) – is housed in an external hood with integrated connectors which cover the USB service interface when installed (IP 65). By having available a copy of the current parameter set of the

BCL 500 makes it easy and reduces the time needed to replace the BCL 500 tion of the exchanged device is thereby omitted.

The procedure for transferring the configuration with the aid of the external parameter memory is described on page 120.

The delivery contents of the external parameter memory include the hood with integrated connectors with unscrewable cover and the USB memory stick.

\BCL501i, the external parameter memory

\ BCL 501i on site. A manual configura-

Figure 4.10: External parameter memory

Notice!

To mount, the cover of the hood with integrated connectors must be unscrewed. The tube is then screwed onto the USB connection on the BCL 500i \BCL501i after which the USB memory stick is plugged into the connection and the hood with integrated connectors closed with the cover in order to ensure protection class IP 65.

28 BCL 500i\ BCL 501

Leuze electronic

4.10 autoReflAct

AutoReflAct stands for Automatic Reflector Activation and permits an activation without

additional sensors. This is achieved by directing the scanner with reduced scanning beam towards a reflector mounted behind the conveyor path. As long as the scanner is targeted at the reflector, the reading gate remains closed. If, however, the reflector is blocked by an object such as a container with a barcode label, the scanner activates the read procedure, and the label on the container is read. When the path from the scanner to the reflector has cleared, the read procedure has completed and the scanning beam is reduced and again directed onto the reflector. The reading gate is closed.

Device description

Figure 4.11: Reflector arrangement for autoReflAct

The autoReflAct function uses the scanning beam to simulate a photoelectric sensor and thus permits an activation without additional sensory mechanism.

4.11 Reference codes

The BCL 500i\ BCL 501i offers the possibility of storing one or two reference codes. It is possible to store the reference codes by means of teach-in (display command), via the

webConfig tool or via online commands. The BCL 500

and execute user-configurable functions depending on the comparison result.

Leuze electronic BCL 500i\BCL501

\ BCL 501i can compare read barcodes with one and/or both reference codes

TNT 35/7-24V

Device description

4.12 autoConfig

With the autoConfig function, the BCL 500i\BCL501i offers the user who only wishes to simultaneously read one code type (symbology) with one number of digits an extremely simple and convenient configuration option.

After starting the autoConfig function via the display, switching input or from a primary control, it is sufficient to position a barcode label with the desired code type and number of digits in the reading field of the BCL 500

Afterward, barcodes with the same code type and number of digits are recognised and decoded.

\ BCL 501i.

30 BCL 500i\ BCL 501

Leuze electronic

5 Specifications

5.1 General specifications of the barcode readers

5.1.1 Line scanner

Specifications

Typ e BCL 500

Stand alone or multiNet plus master

BCL 501

multiNet plus slave

Typ e Line scanner without heating

Optical data

Light source laser diode λ = 650nm / 655 nm (red light) Beam exit front Scanning rate 1000 scans/s (adjustable in the range 800 … 1200 scans/s) Beam deflection by means of rotating polygon wheel Useful opening angle max. 60° Optics models / resolution High Density (N): 0.25 … 0.5mm

Read distance see reading field curves Laser safety class 2 acc. to EN 60825-1,

Medium Density (M): 0.35 … 0.8mm

Low Density (F): 0.5 … 1.0mm

Ultra Low Density (L): 0,7 … 1,0mm

CDRH (U.S. 21 CFR 1040.10)

Barcode data

Code types 2/5 Interleaved, Code 39, Code 128, EAN 128, EAN / UPC,

Barcode contrast (PCS) >= 60 % External light tolerance 2000 lx (on the barcode) Number of barcodes per scan 6

Codabar, Code 93, RSS 14

Electrical data

Interface type 1x RS 232/422

Protocols Leuze Standard, Leuze multiNet plus,

Baud rate 4800 … 115400 Baud Data formats Data bits: 7,8

Service interface USB 1.1 compatible, A-coded Switching input /

switching output

Operating voltage 10 … 30V DC (Class II, Safety Class III) Power consumption max. 10W

ACK / NAK, 3964 (R) RK 512, Xon/XOff

- Switching input: 10 … 30V DC depending on supply voltage, I max. = 8mA

- Switching output: 10 … 30V DC, depending on supply voltage, I max. = 100mA

at M12 (B) and

1x RS 485 at M12 (B)

Parity: None, Even, Odd

4 switching inputs/outputs, freely programmable functions

Switching inputs/outputs are protected against polarity reversal!

(short-circuit proof)

Leuze Standard, Leuze multiNet plus

Stop bits: 1,2

1x RS 485 at

2x M12 (B)

Table 5.1: Specifications of the BCL 501i and BCL 500i line scanners without heating

TNT 35/7-24V

Leuze electronic BCL 500i\BCL501

Specifications

Type BCL 500

Stand alone or multiNet plus master

BCL 501

multiNet plus slave

Type Line scanner without heating

Operating and display elements

Display monochromatic graphical display, 128 x 64 pixel, with background lighting Keyboard 4 buttons LEDs 2 LEDs for power (PWR) and bus state (BUS), two-coloured (red/green)

Mechanical data

Protection class Weight Dimensions (Wx H x D) Housing

IP 65 (with screwed-on M12 connectors or mounted caps)

1.1kg

63 x123.5 x 106.5 mm

diecast aluminium

Environmental data

Operating temperature range 0°C … +40 °C Storage temperature range -20°C … +70°C Air humidity max. 90% rel. humidity, non-condensing Vibration IEC 60068-2-6, test FC Shock IEC 60068-2-27, test Ea Continuous shock IEC 60068-2-29, test Eb Electromagnetic compatibility EN 55022;

Table 5.1: Specifications of the BCL 501

1) This is a Class A product. In a domestic environment this product may cause radio interference, in which case the operator may be required to take adequate measures.

IEC 61000-6-2 (contains IEC 61000-4-2, -3, -4, -5 and -6)

and BCL 500i line scanners without heating

Attention!

For UL applications, use is permitted exclusively in Class 2 circuits according to NEC (National Electric Code).

The BCL 500i \BCL501i barcode readers are designed in accordance with safety class III for supply by PELV (protective extra-low voltage with reliable disconnection).

32 BCL 500i\ BCL 501

Leuze electronic

5.1.2 Oscillating-mirror scanner

Technical data same as for line scanner without heating with the following differences:

Specifications

Typ e BCL 500

Stand alone or multiNet plus master

BCL 501

multiNet plus slave

Typ e Oscillating-mirror scanner without heating

Optical data

Beam exit Lateral zero position at an angle of 90° Beam deflection Via rotating polygon wheel (horizontal) and stepping motor with mirror (vertical) Oscillation frequency 0 … 10Hz

Max. swivel angle ±20°(adjustable) Reading field height see reading field curves

(adjustable, max. frequency is dependent on set swivel angle)

Electrical data

Power consumption max. 14W

Mechanical data

Weight 1.5kg

Dimensions (Wx H x D)

84 x173 x 147 mm

Table 5.2: Specifications of the BCL 501i and BCL 500i oscillating-mirror scanners without

heating

5.1.3 Line scanner with deflection mirror

Technical data same as for line scanner without heating with the following differences:

Typ e BCL 500

Stand alone or multiNet plus master

Typ e Line scanner with deflection mirror without heating

Optical data

Beam exit Lateral zero position at an angle of 90° Beam deflection Via rotating polygon wheel (horizontal) and deflection mirror (vertical) Max. optical adjustment range of

the beam exit

Electrical data

Power consumption max. 11W

Mechanical data

Weight 1.4kg Dimensions (Wx H x D)

Table 5.3: Specifications of the BCL 501i and BCL 500i deflection-mirror scanners without

heating

±10° (adjustable via display or software)

84 x173 x 147 mm

BCL 501

multiNet plus slave

TNT 35/7-24V

Leuze electronic BCL 500i\BCL501

Specifications

5.2 Heating models of the barcode readers

The BCL 500i\ BCL 501i barcode readers are optionally available as models with integrated heating. In this case, heating is permanently installed ex works. Self-installation onsite by the user is not possible!

Features

• Integrated heating (permanently installed)

• Extends the application range of the BCL 500

• Supply voltage 24VDC ±20%

• BCL 500 (switch-on delay about 30min for 24V DC and minimum ambient temperature of 35°C)

• Necessary conductor cross-section for the voltage supply: at least 0.75mm²; the use of ready-made cables is, thus, not possible.

Construction

The heating consists of two parts:

• The front cover heater

• The housing heater

Function

When the 24V DC supply voltage is applied to the BCL 500i\ BCL 501i, a temperature switch initially only connects the heating to electrical power (front cover heater and housing heater). During the heating phase (around 30min), when the inside temperature rises above 15°C, the temperature switch connects the BCL 500 is followed by the self test and the changeover to read operation. The "PWR" LED lights up showing overall readiness for operation.

When the inside temperature reaches approximately 18 °C, another temperature switch turns the housing heater off and, if necessary, back on again (if the inside temperature drops below 15°C). This does not interrupt the read operation. The front cover heater remains activated until an inside temperature of 25°C is reached. At temperatures above this, the front cover heater switches off and, with a switching hysteresis of 3°C, back on again at an inside temperature below 22°C.

\ BCL 501i enabling through an internal temperature switch

\ BCL 501i to -35°C

\ BCL 501i to the supply voltage. This

Electrical connection

The required core cross-section of the connection cable for the voltage supply must be at least 0.75 mm².

Attention!

The voltage supply must not be looped through from one device to the next.

34 BCL 500i\ BCL 501

Leuze electronic

Power consumption

The energy requirement depends on the model:

• the line scanner with heating typically consumes 40W and a maximum of 50W power.

• the line scanner with oscillating mirror and heating typically consumes 60W and a maximum of 75W.

These values are based on operation with unconnected switching outputs.

5.2.1 Line scanner with heating

Technical data same as for line scanner without heating with the following differences:

Specifications

Typ e BCL 500

Stand alone or multiNet plus master

BCL 501

multiNet plus slave

Typ e Line scanner with heating

Electrical data

Operating voltage 24VDC ±20% Power consumption max. 50W Structure of the heating Housing heating and separate heating of the optics glass Warmup time Min. 30min at +24 V DC and an ambient temperature of -35°C Min. conductor cross-section Conductor cross-section of at least 0.75mm² for the supply-voltage supply line.

Wiring through of the voltage supply to multiple heating devices is not permissi-

Standard, M12 ready-made cable not usable

(insufficient cable cross-section)

ble.

Environmental data

Operating temperature range -35°C … +40°C Storage temperature range -20°C … +70°C

Table 5.4: Specifications of the BCL 501i and BCL 500i line scanners with heating

5.2.2 Oscillating-mirror scanner with heating

Technical data same as for line scanner without heating with the following differences:

Typ e BCL 500

Stand alone or multiNet plus master

Typ e Oscillating-mirror scanner with heating

Optical data

Useful opening angle max. 50° Max. swivel angle ±12 °(adjustable)

Table 5.5: Specifications of the BCL 501i and BCL 500i oscillating-mirror scanners with heating

BCL 501

multiNet plus slave

TNT 35/7-24V

Leuze electronic BCL 500i\BCL501

Specifications

Type BCL 500

Stand alone or multiNet plus master

BCL 501

multiNet plus slave

Type Oscillating-mirror scanner with heating

Electrical data

Operating voltage 24V DC ±20 % Power consumption max. 75W Structure of the heating Housing heating and separate heating of the optics glass Warmup time Min. 30 min at +24VDC and an ambient temperature of -35°C Min. conductor cross-section Conductor cross-section of at least 0.75mm² for the supply-voltage supply line.

Wiring through of the voltage supply to multiple heating devices is not permissi-

Standard, M12 ready-made cable not usable

(insufficient cable cross-section)

ble.

Environmental data

Operating temperature range -35°C … +40 °C Storage temperature range -20°C … +70 °C

Table 5.5: Specifications of the BCL 501

and BCL 500i oscillating-mirror scanners with heating

5.2.3 Line scanner with deflection mirror and heating

Technical data same as for line scanner without heating with the following differences:

Type BCL 500

Stand alone or multiNet plus master

Type Deflection mirror scanner with heating

Optical data

Useful opening angle max. 50° Max. adjustment range ±10°(adjustable via display or software)

Electrical data

Wiring through of the voltage supply to multiple heating devices is not permissi-

Environmental data

Operating temperature range -35°C … +40 °C Storage temperature range -20°C … +70 °C

Table 5.6: Specifications of the BCL 501i and BCL 500i deflection-mirror scanners with heating

Standard, M12 ready-made cable not usable

(insufficient cable cross-section)

ble.

BCL 501

multiNet plus slave

36 BCL 500i\ BCL 501

Leuze electronic

5.3 Dimensioned drawings

A – Optical axis

5.3.1 Line scanner with / without heating

Specifications

Leuze electronic BCL 500i\BCL501

Figure 5.1: Dimensioned drawing BCL 500i\BCL501i line scanner S…102

TNT 35/7-24V

Specifications

A – Optical axis B – Optical adjustment range C – Opening angle

The opening angle is reduced on devices with heating, see "Reading field curves for heating devices" on page 52.

5.3.2 Deflection mirror scanner with / without heating

Figure 5.2: Dimensioned drawing BCL 500i\ BCL 501i deflection-mirror scanner S…100

38 BCL 500i\ BCL 501

Leuze electronic

5.3.3 Oscillating-mirror scanner with / without heating

A – Optical axis B – Optical swivel range C – Opening angle

The optical swivel range and the opening angle are reduced on devices with heating, see "Reading field curves for heating devices" on page 52.

Specifications

Leuze electronic BCL 500i\BCL501

Figure 5.3: Dimensioned drawing BCL 500i\ BCL 501i oscillating-mirror scanner O…100

TNT 35/7-24V

Specifications

5.4 Type overview

For different reading task and connection requirements, the barcode readers of the

BCL 500

series are available in various models and versions.

5.4.1 BCL 500

(Stand alone or multiNet plus master with 1x RS 232/RS 422 and 1x RS 485 interface)

Type designation Description Part No.

High Density Optics (m = 0.25 … 0.5mm)

BCL 500

BCL 500 BCL 500

Medium Density Optics (m = 0.35 … 1.0mm)

BCL 500

i i

BCL 500 BCL 500

i i

BCL 500

Low Density Optics (m = 0.5 … 1.0mm)

BCL 500

i i

BCL 500

Ultra Low Density Optics (m = 0.7 … 1.0mm)

BCL 500

i i

BCL 500

Table 5.7: Type overview BCL 500

SN 100 Line scanner with deflection mirror 501 05453 SN 102 Line scanner, beam exit at the front 501 05454 ON 100 Oscillating-mirror scanner 501 05455 SN 100 H Line scanner with deflection mirror, with heating 501 05456 SN 102 H Line scanner, beam exit at the front, with heating 501 05457 ON 100 H Oscillating-mirror scanner with heating 501 05458

SM 100 Line scanner with deflection mirror 501 05459 SM 102 Line scanner, beam exit at the front 501 05460 OM 100 Oscillating-mirror scanner 501 05461 SM 100 H Line scanner with deflection mirror, with heating 501 05462 SM 102 H Line scanner, beam exit at the front, with heating 501 05463 OM 100 H Oscillating-mirror scanner with heating 501 05464

SF 100 Line scanner with deflection mirror 501 05465 SF 102 Line scanner, beam exit at the front 501 05466 OF 100 Oscillating-mirror scanner 501 05467 SF 100 H Line scanner with deflection mirror, with heating 501 05468 SF 102 H Line scanner, beam exit at the front, with heating 501 05469 OF 100 H Oscillating-mirror scanner with heating 501 05470

SL 102 Line scanner, beam exit at the front 501 09911 OL 100 Oscillating-mirror scanner 501 09912 SL 102 H Line scanner, beam exit at the front, with heating 501 09914 OL 100 H Oscillating-mirror scanner with heating 501 09915

40 BCL 500i\ BCL 501

Leuze electronic

Specifications

5.4.2 BCL 501

(multiNet plus slave with 1x RS 485 interface at 2 x M 12 B-coded connectors)

Type designation Description Part No.

High Density Optics (m = 0.25 … 0.5mm)

BCL 501

i i

BCL 501

BCL 501 BCL 501

i i

BCL 501

Medium Density Optics (m = 0.35 … 1.0mm)

BCL 501

i i

BCL 501

Low Density Optics (m = 0.5 … 1.0mm)

BCL 501

BCL 501 BCL 501

i i

BCL 501

Ultra Low Density Optics (m = 0.7 … 1.0mm)

BCL 501

i i

BCL 501

BCL 501 BCL 501

Table 5.8: Type overview BCL 501

SN 100 Line scanner with deflection mirror 501 05471 SN 102 Line scanner, beam exit at the front 501 05472 ON 100 Oscillating-mirror scanner 501 05473 SN 100 H Line scanner with deflection mirror, with heating 501 05474 SN 102 H Line scanner, beam exit at the front, with heating 501 05475 ON 100 H Oscillating-mirror scanner with heating 501 05476

SM 100 Line scanner with deflection mirror 501 05477 SM 102 Line scanner, beam exit at the front 501 05478 OM 100 Oscillating-mirror scanner 501 05479 SM 100 H Line scanner with deflection mirror, with heating 501 05480 SM 102 H Line scanner, beam exit at the front, with heating 501 05481 OM 100 H Oscillating-mirror scanner with heating 501 05482

SF 100 Line scanner with deflection mirror 501 05483 SF 102 Line scanner, beam exit at the front 501 05484 OF 100 Oscillating-mirror scanner 501 05485 SF 100 H Line scanner with deflection mirror, with heating 501 05486 SF 102 H Line scanner, beam exit at the front, with heating 501 05487 OF 100 H Oscillating-mirror scanner with heating 501 05488

SL 102 Line scanner, beam exit at the front 501 09890 OL 100 Oscillating-mirror scanner 501 09891 SL 102 H Line scanner, beam exit at the front, with heating 501 09893 OL 100 H Oscillating-mirror scanner with heating 501 09894

TNT 35/7-24V

Leuze electronic BCL 500i\BCL501

Specifications

M = Module: The narrowest line or space of a barcode in

= Wide element: Wide lines and spaces are a multiple

(ratio) of the module. Module x Ratio = Z

(Normal Ratio 1 : 2.5)

= Quiet zone: The quiet zone should be at least 10

times the module, but not less than 2.5mm.

L = Code length: The length of the barcode in mm includ-

ing the start and stop characters. The quiet zone is included depending on the code definition.

= Bar length: Height of the elements in mm

5.5 Reading field curves / optical data

Barcode characteristics

Notice!

Please note that the size of the barcode module influences the maximum reading distance and the width of the reading field. Therefore, when selecting a mounting location and/or the barcode label, take into account the different reading characteristics of the scanner with various barcode modules.

Figure 5.4: The most important characteristics of a barcode

The range in which the barcode can be read by the BCL 500 reading field) depends on the quality of the printed barcode and its dimensions.

Therefore, above all, the module of a barcode is decisive for the size of the reading field.

\ BCL 501i (the so-called

Notice!

A rule of thumb: The smaller the module of the barcode is, the smaller the maximum reading distance and reading field width will be.

42 BCL 500i\ BCL 501

Leuze electronic

5.6 Reading field curves

Zero position

Distance acc. to reading field curves

Notice!

Please notice that the real reading fields are also influenced by factors such as labelling material, printing quality, scanning angle, printing contrast etc., and may thus deviate from the reading fields specified here.

The zero position of the reading distance always refers the front edge of the housing of the beam exit and is shown in figure 5.5 for the two housing types of the BCL 500

Specifications

\ BCL 501i.

Figure 5.5: Zero position of the reading distance

Reading conditions for the reading field curves

Barcode type

Ratio

Leuze electronic BCL 500i\BCL501

ANSI specification

Reading rate

Table 5.9: Reading conditions

2/5 Interleaved

1:2.5

class A

> 75%

TNT 35/7-24V

Specifications

Read distance [mm]

Reading field width [mm]

5.6.1 High Density (N) Optics: BCL 500i\ BCL 501iSN 100/102

400

300

200

100

-100

-200

-300

-400 0-100 200100 300 400 500 600 700 800 900 1000

BCL 500/501/504/508i SN 100/102

m = 0,3

m = 0,35

m = 0,25

m = 0,5

Figure 5.6: "High Density" reading field curve for line scanner (with/without

deflection mirror)

The reading field curve applies for the reading conditions stated in table 5.9.

m = 0,25

m = 0,3

m = 0,35

m = 0,5

44 BCL 500i\ BCL 501

Leuze electronic

5.6.2 High Density (N) Optics: BCL 500i\ BCL 501iON 100

0-100 100 200 300 400 500 600 700 800 900 1000

100

200

300

400

-100

-200

-300

-400

BCL 500/501/504/508i ON 100

m = 0,25

m = 0,3

m = 0,35

m = 0,5

m = 0,35

m = 0,3

m = 0,25

m = 0,5

Read distance [mm]

Reading field width [mm]

0 100

-100

200 300 400 500 600 700 800 900 1000

100

200

300

400

-100

-200

-300

-400

BCL 500/501/504/508i ON 100

m = 0,25

m = 0,3

m = 0,35

m = 0,5

m = 0,35

m = 0,3

m = 0,25

m = 0,5

Read distance [mm]

Reading field height [mm]

Figure 5.7: "High Density" reading field curve for oscillating-mirror scanners

Specifications

Figure 5.8: Lateral "High Density" reading field curve for oscillating-mirror scanners

The reading field curves apply for the reading conditions stated in table 5.9.

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Specifications

Read distance [mm]

Reading field width [mm]

5.6.3 Medium Density (M) Optics: BCL 500i\ BCL 501iSM 100/102

BCL 500/501/504/508i SM 100/102

m = 0,35

m = 0,5

m = 0,8 … 1,0

m = 0,35

m = 0,5

m = 0,8 … m = 1,0

-100

-200

-300

-400

400

300

200

100

100 200-100 0 300 400 500 600 700 800 900 1000 1100

Figure 5.9: "Medium Density" reading field curve for line scanner (with/without deflection

mirror)

The reading field curves apply for the reading conditions stated in table 5.9.

46 BCL 500i\ BCL 501

Leuze electronic

5.6.4 Medium Density (M) Optics: BCL 500i\ BCL 501iOM 100

0-100 100 200 300 400 500 600 700 800 900 1000 1100

100

200

300

400

-100

-200

-300

-400

BCL 500/501/504/508i OM 100

m = 0,35

m = 0,5

m = 0,8 … m = 1,0

m = 0,5

m = 0,35

m = 0,8 … 1,0

Read distance [mm]

Reading field width [mm]

Read distance [mm]

Reading field height [mm]

Figure 5.10: "Medium Density" reading field curve for oscillating-mirror scanners

Specifications

400

300

200

100

-100

-200

-300

-400

-100

0 100

BCL 500/501/504/508i OM 100

200 300 400 500 600 700 800 900 11001000

Figure 5.11: Lateral "Medium Density" reading field curve for oscillating-mirror scanners

The reading field curves apply for the reading conditions stated in table 5.9.

Leuze electronic BCL 500i\BCL501

m = 0,35

m = 0,5

m = 0,8 … 1,0

m = 0,35

m = 0,5

m = 0,8 … m = 1,0

TNT 35/7-24V

Specifications

100 200-100 0 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700

100

-100

-200

-300

-400

-500

-600

-700

200

300

400

500

600

700

BCL 500/501/504/508i SF 100/102

m = 1,0

m = 0,8

m = 0,5

m = 0,8

m = 1,0

Read distance [mm]

Reading field width [mm]

5.6.5 Low Density (F) Optics: BCL 500i\ BCL 501iSF 100/102

Figure 5.12: "Low Density" reading field curve for line scanner (with/without

deflection mirror)

The reading field curves apply for the reading conditions stated in table 5.9.

48 BCL 500i\ BCL 501

Leuze electronic

5.6.6 Low Density (F) Optics: BCL 500i\ BCL 501iOF 100

0-100 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 17001600

100

-100

-200

-300

-400

-500

-600

-700

200

300

400

500

600

700

BCL 500/501/504/508i OF 100

m = 1,0

m = 0,8

m = 0,5

m = 0,8

m = 1,0

Read distance [mm]

Reading field width [mm]

0 100

-100

200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 17001600

100

-100

-200

-300

-400

-500

-600

-700

200

300

400

500

600

700

BCL 500/501/504/508i OF 100

m = 0,5

m = 0,8

m = 1,0

m = 0,8

m = 0,5

Read distance [mm]

Reading field height [mm]

Figure 5.13: "Low Density" reading field curve for oscillating-mirror scanners

Specifications

Figure 5.14: Lateral "Low Density" reading field curve for oscillating-mirror scanners

The reading field curves apply for the reading conditions stated in table 5.9.

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Specifications

Read distance [mm]

Reading field width [mm]

5.6.7 Ultra Low Density (L) Optics: BCL 500i\ BCL 501iSL 102

800

600

400

200

-200

-400

-600

-800 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 26000

BCL 500/501/504/508i SL 102

m = 0,7

m = 0,8

m = 1,0

m = 0,8

m = 1,0

Figure 5.15: "Ultra Low Density" reading field curve for line scanner without

deflection mirror

The reading field curves apply for the reading conditions stated in table 5.9.

50 BCL 500i\ BCL 501

Leuze electronic

5.6.8 Ultra Low Density (L) Optics: BCL 500i\ BCL 501iOL 100

Read distance [mm]

Reading field width [mm]

200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 26000

-200

-400

-600

-800

-1000

1000

200

400

600

800

BCL 500/501/504/508i OL 100

m = 0,7

m = 0,8

m = 1,0

m = 0,8

m = 0,7

Read distance [mm]

Reading field height [mm]

Specifications

800

600

400

200

-200

-400

-600

-800 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 26000

BCL 500/501/504/508i OL 100

m = 0,7

m = 0,8

m = 1,0

m = 0,8

m = 1,0

Figure 5.16: "Ultra Low Density" reading field curve for oscillating-mirror scanners

Leuze electronic BCL 500i\BCL501

Figure 5.17: Lateral "Ultra Low Density" reading field curve for oscillating-mirror scanners

The reading field curves apply for the reading conditions stated in table 5.9.

TNT 35/7-24V

Specifications

Read distance [mm]

Reading field width [mm]

5.7 Reading field curves for heating devices

The reading field curves of the heating devices differ to some extent from the normal reading curves due to the optics heating and are somewhat reduced in the reading field width as well as in the reading field height!

• The maximum opening angle for all oscillating and deflection mirror devices

(BCL 500

• In addition, the maximum swivel range for all oscillating mirror devices (BCL 500 deflection mirror models (BCL 500 itation.

• The reading field curves and opening angles are unchanged for all line scanners with heating (BCL 500

For details, please refer to the following reading field curves for the heating devices.

5.7.1 High Density (N) Optics: BCL 500i\ BCL 501iSN 102 H

\ BCL 501i…100 H) is reduced to ±28° (without heating = ±30°).

\ BCL 501iO…100 H) is reduced to ±12° (without heating = ±20°). The

\ BCL 501iS…100 H) are not affected by this lim-

\ BCL 501iS…102 H), .

400

300

200

100

-100

-200

-300

-400

Figure 5.18: "High Density" reading field curve for line scanner with heating

The reading field curve applies for the reading conditions stated in table 5.9.

BCL 500/501/504/508i SN 102 H

m = 0,3

m = 0,5

m = 0,35

m = 0,25

100 200-100 0 300 400 500 600 700 800 900 1000

(without deflection mirror)

m = 0,25

m = 0,3

m = 0,35

m = 0,5

52 BCL 500i\ BCL 501

Leuze electronic

5.7.2 High Density (N) Optics: BCL 500i\ BCL 501iSN 100 H

100 200-100 0 300 400 500 600 700 800 900 1000

100

200

300

400

-100

-200

-300

-400

BCL 500/501/504/508i SN 100 H

m = 0,25

m = 0,3

m = 0,35

m = 0,5

m = 0,35

m = 0,3

m = 0,25

m = 0,5

Read distance [mm]

Reading field width [mm]

Figure 5.19: "High Density" reading field curve for line scanner with heating

(with deflection mirror)

The reading field curve applies for the reading conditions stated in table 5.9.

Specifications

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Specifications

Read distance [mm]

Reading field width [mm]

0 100

-100

200 300 400 500 600 700 800 900 1000

100

200

300

400

-100

-200

-300

-400

BCL 500/501/504/508i ON 100 H

m = 0,25

m = 0,3

m = 0,35

m = 0,5

m = 0,35

m = 0,3

m = 0,25

m = 0,5

= ±12˚

Read distance [mm]

Reading field height [mm]

5.7.3 High Density (N) Optics: BCL 500i\ BCL 501iON 100 H

BCL 500/501/504/508i ON 100 H

m = 0,3

m = 0,5

m = 0,35

m = 0,25

m = 0,3

m = 0,35

m = 0,5

-100

-200

-300

-400

400

300

200

100

1000-100 200 300 400 500 600 700 800 900 1000

Figure 5.20: "High Density" reading field curve for oscillating-mirror scanners with heating

Figure 5.21: Lateral "High Density" reading field curve for oscillating-mirror scanners

54 BCL 500i\ BCL 501

The reading field curves apply for the reading conditions stated in table 5.9.

with heating

Leuze electronic

5.7.4 Medium Density (M) Optics: BCL 500i\ BCL 501iSM 102 H

100 200-100 0 300 400 500 600 700 800 900 1000 1100

100

200

300

400

-100

-200

-300

-400

BCL 500/501/504/508i SM 102 H

m = 0,35

m = 0,5

m = 0,8 … m = 1,0

m = 0,5

m = 0,35

m = 0,8 … 1,0

Read distance [mm]

Reading field width [mm]

Figure 5.22: "Medium Density" reading field curve for line scanner with heating

(without deflection mirror)

The reading field curves apply for the reading conditions stated in table 5.9.

Specifications

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Specifications

Read distance [mm]

Reading field width [mm]

5.7.5 Medium Density (M) Optics: BCL 500i\ BCL 501iSM 100 H

BCL 500/501/504/508i SM 100 H

m = 0,35

m = 0,5

m = 0,8 … 1,0

-100

-200

-300

-400

400

300

200

100

100 200-100 0 300 400 500 600 700 800 900 1000 1100

Figure 5.23: "Medium Density" reading field curve for line scanner with heating

(with deflection mirror)

The reading field curves apply for the reading conditions stated in table 5.9.

m = 0,35

m = 0,5

m = 0,8 … m = 1,0

56 BCL 500i\ BCL 501

Leuze electronic

5.7.6 Medium Density (M) Optics: BCL 500i\ BCL 501iOM 100 H

1000-100 200 300 400 500 600 700 800 900 1000 1100

100

200

300

400

-100

-200

-300

-400

BCL 500/501/504/508i OM 100 H

m = 0,35

m = 0,5

m = 0,8 … m = 1,0

m = 0,5

m = 0,35

m = 0,8 … 1,0

Read distance [mm]

Reading field width [mm]

Read distance [mm]

Reading field height [mm]

Figure 5.24: "Medium Density" reading field curve for oscillating-mirror scanners

with heating

Specifications

400

300

200

100

-100

-200

-300

-400

-100

= ±12˚

0 100

Figure 5.25: Lateral "Medium Density" reading field curve for oscillating-mirror scanners

The reading field curves apply for the reading conditions stated in table 5.9.

with heating

Leuze electronic BCL 500i\BCL501

BCL 500/501/504/508i OM 100 H

m = 0,5

m = 0,35

200 300 400 500 600 700 800 900 11001000

m = 0,8 … 1,0

m = 0,35

m = 0,5

m = 0,8 … m = 1,0

TNT 35/7-24V

Specifications

100 200-100 0 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700

100

-100

-200

-300

-400

-500

-600

-700

200

300

400

500

600

700

BCL 500/501/504/508i SF 102 H

m = 1,0

m = 0,8

m = 0,5

m = 0,8

m = 1,0

Read distance [mm]

Reading field width [mm]

5.7.7 Low Density (F) Optics: BCL 500i\ BCL 501iSF 102 H

Figure 5.26: "Low Density" reading field curve for line scanner with heating

(without deflection mirror)

The reading field curves apply for the reading conditions stated in table 5.9.

58 BCL 500i\ BCL 501

Leuze electronic

5.7.8 Low Density (F) Optics: BCL 500i\ BCL 501iSF 100 H

100 200-100 0 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700

100

-100

-200

-300

-400

-500

-600

-700

200

300

400

500

600

700

BCL 500/501/504/508i SF 100 H

m = 1,0

m = 0,8

m = 0,5

m = 0,8

m = 1,0

Read distance [mm]

Reading field width [mm]

Figure 5.27: "Low Density" reading field curve for line scanner with heating

(with deflection mirror)

The reading field curves apply for the reading conditions stated in table 5.9.

Specifications

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Specifications

Read distance [mm]

Reading field width [mm]

0 100

-100

200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 17001600

100

-100

-200

-300

-400

-500

-600

-700

200

300

400

500

600

700

BCL 500/501/504/508i OF 100 H

m = 0,5

m = 0,8

m = 1,0

m = 0,8

m = 0,5

= ±12˚

Read distance [mm]

Reading field height [mm]

5.7.9 Low Density (F) Optics: BCL 500i\ BCL 501iOF 100 H

700

600

500

400

300

200

100

-100

-200

-300

-400

-500

-600

-700 1000-100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700

BCL 500/501/504/508i OF 100 H

m = 0,5

m = 0,8

m = 1,0

m = 0,8

m = 1,0

Figure 5.28: "Low Density" reading field curve for oscillating-mirror scanners with heating

60 BCL 500i\ BCL 501

Figure 5.29: Lateral "Low Density" reading field curve for oscillating-mirror scanners with

heating

The reading field curves apply for the reading conditions stated in table 5.9.

Leuze electronic

5.7.10 Ultra Low Density (L) Optics: BCL 500i\ BCL 501iSL 102 H

Read distance [mm]

Reading field width [mm]

Specifications

800

600

400

200

-200

-400

-600

-800 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 26000

BCL 500/501/504/508i SL 102 H

m = 0,7

m = 0,8

m = 1,0

m = 0,8

m = 1,0

Figure 5.30: "Ultra Low Density" reading field curve for line scanner with heating

(without deflection mirror)

The reading field curves apply for the reading conditions stated in table 5.9.

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Specifications

Read distance [mm]

Reading field width [mm]

200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 26000

-200

-400

-600

-800

-1000

1000

200

400

600

800

BCL 500/501/504/508i OL 100 H

m = 0,7

m = 0,8

m = 1,0

±12˚

m = 1,0

m = 0,8

m = 0,7

Read distance [mm]

Reading field height [mm]

5.7.11 Ultra Low Density (L) Optics: BCL 500i\ BCL 501iOL 100 H

800

600

400

200

-200

-400

-600

-800 200 400 600 800 1000 1200 1400 1600 1800 2000 2200 2400 26000

BCL 500/501/504/508i OL 100 H

m = 0,7

m = 0,8

m = 1,0

m = 0,8

m = 1,0

Figure 5.31: "Ultra Low Density" reading field curve for oscillating-mirror scanners

with heating

62 BCL 500i\ BCL 501

Figure 5.32: Lateral "Ultra Low Density" reading field curve for oscillating-mirror scanners

The reading field curves apply for the reading conditions stated in table 5.9.

with heating

Leuze electronic

6 Installation and mounting

6.1 Storage, transportation

Attention!

When transporting or storing, package the device so that it is protected against collision and humidity. Optimum protection is achieved when using the original packaging. Heed the required environmental conditions specified in the technical data.

Unpacking

Check the packaging for any damage. If damage is found, notify the post office or shipping agent as well as the supplier.

Check the delivery contents using your order and the delivery papers:

• Delivered quantity

• Device type and model as indicated on the nameplate

• Laser warning signs

• Brief manual

The name plate provides information as to what BCL type your device is. For specific information, please refer to chapter 5.

Name plates of the barcode readers of the BCL 500i series

Installation and mounting

Figure 6.1: Device name plate BCL 500i\BCL501

Save the original packaging for later storage or shipping.

If you have any questions concerning your shipment, please contact your supplier or your local Leuze electronic sales office.

Observe the applicable local regulations when disposing of the packaging materials.

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Installation and mounting

6.2 Mounting the BCL 500i\ BCL 501

The BCL 500i\ BCL 501i barcode readers can be mounted in two different ways:

• Using two M4x6 screws on the rear of the device or using four M4x6 screws on the bottom of the device.

• Using a BT 56 mounting device on the two fastening grooves.

6.2.1 Fastening with M4 x 6 screws

Figure 6.2: Fastening options using M4x6 threaded holes

64 BCL 500i\ BCL 501

Leuze electronic

6.2.2 BT 56 mounting device

Clamping jaws for mounting on the BCL 500

\ BCL 501

Clamp profile for mounting to round or oval pipes Ø16…20mm

A Rod holder, turnable 360 ° B Rods Ø 16 … 20 mm

All dimensions in mm

The BT 56 mounting device is available for mounting the BCL 500i\ BCL 501i using the fastening grooves. It is designed for rod installation (Ø 16mm to 20 mm). For ordering instructions, please refer to chapter "Type overview and accessories" on page 141.

BT 56 mounting device

Installation and mounting

Figure 6.3:BT 56 mounting device

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Installation and mounting

Figure 6.4: Mounting example BCL 500i\ BCL 501

Notice!

When mounting, ensure that the scanning beam is not reflected directly back to the scanner by the label which is being read. For further information, see the notices in chapter 6.3!: Please refer to chapter 5.6 for the permissible minimum and maximum distances between the BCL 500i \ BCL 501i and the labels to be read.

6.3 Device arrangement

6.3.1 Selecting a mounting location

In order to select the right mounting location, several factors must be considered:

• Size, orientation, and position tolerance of the barcodes on the objects to be scanned.

• The reading field of the BCL 500

• The resulting minimum and maximum reading distance from the respective reading field (see chapter 5.5 "Reading field curves / optical data").

• The permissible line lengths between the BCL 500 depending on which interface is used.

• The display and control panel should be very visible and accessible.

• For configuring and commissioning with the webConfig tool, the USB interface should be easily accessible.

For specific information, please refer to chapter 4.4.

\ BCL 501i in relation to the barcode module width.

\BCL501i and the host system

\ BCL 501i should be positioned in

66 BCL 500i\ BCL 501

Leuze electronic

Notice!

Barcode

The BCL 500i\ BCL 501i should be mounted in such a way that the scanning beam is incident on the barcode at an angle of inclination greater than ±10° … 15° to vertical.

…

The beam exits the BCL 500i \ BCL 501i as follows for the respective devices:

- line scanner parallel to the housing base

- oscillating mirror and deflection mirror perpendicular to the housing base The black areas in figure 6.1 are the housing base. The best read results are obtained when:

• The BCL 500i \BCL501i is mounted in such a way that the scanning beam is inci- dent on the barcode at an angle of inclination greater than ±10° … 15° to vertical.

• The reading distance lies in the middle area of the reading field.

• The barcode labels are of good print quality and have good contrast ratios.

• You do not use high-gloss labels.

• There is no direct sunlight.

6.3.2 Avoiding total reflection – Line scanner

The barcode label must be positioned at an angle of inclination greater than ±10° … 15° from vertical in order to avoid total reflection of the laser beam (see figure 6.5)!

Total reflection occurs whenever the laser light of the barcode reader is directly incident on the surface of the barcode at an angle of 90°. The light directly reflected by the barcode may overload the barcode reader and thereby cause non-readings!

Installation and mounting

Figure 6.5: Total reflection – line scanner

6.3.3 Avoiding total reflection – oscillating/deflection-mirror scanner

For the BCL 500i\ BCL 501i with oscillating/deflection mirror, the laser beam exits at an angle of 90° to vertical.

For the BCL 500 adjust the direction of the beam by ±10°.

For the BCL 500 devices with heating) is to be taken into account.

This means that in order to be on the safe side and to avoid total reflection, the BCL 500 20° … 30°!

Leuze electronic BCL 500i\BCL501

\ BCL 501i with deflection mirror, it is also possible to use software to

\BCL501i with oscillating mirror, the swivel range of ±20° (±12° for

\ BCL 501i with oscillating/deflection mirror must be inclined upward or downward

TNT 35/7-24V

Installation and mounting

anc

adi

Barcode

The BCL 500i\ BCL 501i should be mounted in such a way that the scanning beam is incident on the barcode at an angle of inclination greater than ±25° to vertical.

Notice!

Mount the BCL 500i \ BCL 501i with oscillating/deflection mirror in such a way that the outlet window of the barcode reader is parallel to the object. This will result in an angle of inclination of approx. 25°.

Figure 6.6: Total reflection – BCL 500i\ BCL 501i with oscillating/deflection mirror

6.3.4 Mounting location

When selecting a mounting location, pay attention to:

• Maintaining the required environmental conditions (temperature, humidity).

• Possible soiling of the reading window due to liquids, abrasion by boxes, or packaging material residues.

• Lowest possible chance of damage to the BCL 500i \ BCL 501i by mechanical collision or jammed parts.

• Possible extraneous light (no direct sunlight or sunlight reflected by the barcode).

6.3.5 Devices with integrated heating

For devices with integrated heating, also observe the following points:

• Mount the BCL 500i\ BCL 501i in a way which provides maximum thermal isolation, e.g. using rubber-bonded metal.

• Mount in such a way that the device is protected from draughts and wind; mount additional shields if necessary.

Notice!

When installing the BCL 500i \ BCL 501i in a protective housing, it must be ensured that the scanning beam can exit the protective housing without obstruction.

68 BCL 500i\ BCL 501

Leuze electronic

Installation and mounting

6.3.6 Maximum permissible read angles between BCL 500i\ BCL 501i and barcode

The optimum alignment of the BCL 500i\BCL501i is accomplished when the scan line scans the code bars almost at a right angle (90°). All read angles that are possible between the scan line and barcode must be taken account (figure 6.7).

Figure 6.7: Reading angle for the line scanner

α Tilt - max. 45 ° β Pitch - max. 45 ° γ Skew - max. 45°

In order to avoid total reflection, the skew

γ should be greater than 10°

6.4 Attaching laser warning sign

Attention Laser!

Follow the safety notices in chapter 2.

It is important that you attach the sticky labels supplied to the device (laser warning signs and laser emission symbol)! If the signs would be covered due to the installation situation of the BCL 500i \ BCL 501i, attach them instead in the immediate vicinity of the BCL 500i \ BCL 501i in such a way that it is not necessary to look into the laser beam when reading the notices!

6.5 Cleaning

Clean the glass window of the BCL 500i \ BCL 501i with a soft cloth after mounting. Remove all packaging remains, e.g. carton fibres or Styrofoam balls. In doing so, avoid leaving fingerprints on the front cover of the BCL 500i \ BCL 501i.

Attention!

Do not use aggressive cleaning agents such as thinner or acetone for cleaning the device.

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Electrical connection

7 Electrical connection

The barcode readers of the BCL 500i series are connected using variously coded M12 connectors. This ensures unique connection assignments.

The additional USB interface is used for configuring the device. The two product series BCL 500

as multiNet plus master or slave.

BCL 500 (Stand alone or multiNet plus master)

BCL 501 (multiNet plus slave)

For the locations of the individual device connections, please refer to the device detail shown below.

Notice!

The corresponding mating connectors and ready-made cables are available as accessories for all connections. For additional information, refer to chapter chapter 13.

and BCL 501i differ in their interfaces and in their function

HOST / BUS IN BUS OUT

RS 232 / RS 422 RS 485

RS 485 RS 485

Figure 7.1: Location of the electrical connections

70 BCL 500i\ BCL 501

Leuze electronic

7.1 Safety notices for the electrical connection

Attention!

Do not open the device yourself under any circumstances! There is otherwise a risk of uncontrolled emission of laser radiation from the device. The housing of the BCL 500i \ BCL 501i contains no parts that need to be adjusted or maintained by the user.

Before connecting the device, be sure that the supply voltage agrees with the value printed on the name plate.

Connection of the device and cleaning must only be carried out by a qualified electrician.

Ensure that the functional earth (FE) is connected correctly. Unimpaired operation is only guaranteed when the functional earth is connected properly.

If faults cannot be corrected, the device should be removed from operation and protected against possible use.

Attention!

For UL applications, use is permitted exclusively in Class 2 circuits according to NEC (National Electric Code).

The barcode readers of the BCL 500i series are designed in accordance with safety class III for supply by PELV (protective extra-low voltage with reliable disconnection).

Notice!

Protection class IP 65 is achieved only if the connectors and caps are screwed into place!

Electrical connection

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Electrical connection

SW IN/OUT

VOUT

SWIO_1

SWIO_2

GND

HOST / BUS IN

GND_H

RXD/RX-

TXD/TX-

RTS/TX+

CTS/RX+

SERVICE

2134

GND D+ D-

PWR

SWIO_4

SWIO_3

GND VIN

BUS OUT RS 485

VCC485

RS485B

RS485A

GND485

USB socket

Type A

M12 socket

(A-coded)

M12 socket

(B-coded)

M12 plug (B-coded)

M12 plug (A-coded)

7.2 Electrical connection of the BCL 500

As "stand alone" or multiNet plus "master" participant, the BCL 500i is equipped with four M12 plugs/sockets which are A- and B-coded.

The voltage supply (PWR) as well as the four freely configurable switching inputs/outputs (SW IN/OUT and PWR) are connected there.

An RS 232 or an RS 422 is available for connection to the host system as "HOST / BUS IN" interface. Available as a second physical "BUS OUT" interface is an RS 485 for setting up the Leuze multiNet plus scanner network. The BCL 500 multiNet plus as network master/multiScan master.

A USB connection serves as a "SERVICE" interface.

is suited for use in the Leuze

Figure 7.2: Connections of the BCL 500

Described in detail in the following are the individual connections and pin assignments.

72 BCL 500i\ BCL 501

Leuze electronic

Electrical connection

M12 plug (A-coded)

7.2.1 PWR – Voltage supply and switching input/outputs 3 and 4

PWR (5-pin plug, A-coded)

PWR

SWIO_3

GND VIN

SWIO_4

Table 7.1: Pin assignment PWR

Supply voltage

Attention!

For UL applications, use is permitted exclusively in Class 2 circuits according to NEC (National Electric Code).

The barcode readers of the BCL 500i … series are designed in accordance with safety class III for supply by PELV (protective extra-low voltage with reliable disconnection).

Connecting functional earth FE

Ensure that the functional earth (FE) is connected correctly. Unimpaired operation is only guaranteed when the functional earth is connected properly. All electrical disturbances (EMC couplings) are discharged via the functional earth connection.

Pin Name Remark

1 VIN Positive supply voltage +10 … +30V DC

2 SWIO_3 Configurable switching input / output 3

3 GND Negative supply voltage 0VDC

4 SWIO_4 Configurable switching input / output 4

5 FE Functional earth

Thread FE Functional earth (housing)

Switching input / output

The barcode readers of the BCL 500i series are equipped with four freely programmable, opto-decoupled switching inputs and outputs SWIO_1 … SWIO_4.

The switching inputs can be used to activate various internal functions of the

BCL 500 signal the state of the BCL 500

\ BCL 501i (decoding, autoConfig, …). The switching outputs can be used to

\BCL501i and to implement external functions independent

of the primary control. The two switching inputs/outputs SWIO_1 and SWIO_2 are located on the SW IN/OUT M12

socket and are described in chapter 7.2.3. The other two (SWIO_3 and SWIO_4) of the four freely configurable switching inputs/outputs are located on the PWR M12 connector.

Notice!

The respective function as input or output can be set via the display or with the aid of the "webConfig" configuration tool!

Described in the following is the external wiring for use as a switching input or output; the respective function assignments to the switching inputs/outputs can be found in chapter 10.

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Electrical connection

Switching input

Switching output from controller (deactivated)

Switching input to controller

Switching output

Switching output from controller

Switching input to controller (deactivated)

Function as switching input

Figure 7.1: Switching input connection diagram SWIO_3 and SWIO_4

If you use a sensor with a standard M12 connector, please note the following:

• Pins 2 and 4 must not be operated as switching outputs if sensors which function as inputs are also connected to these pins.

If, for example, the inverted sensor output is connected to pin 2, and pin 2 of the barcode reader is, at the same time, configured as an output (and not as an input), the switching output malfunctions.

Attention!

The maximum input current must not exceed 8mA!

Function as switching output

Figure 7.2: Switching output connection diagram SWIO_3 / SWIO_4

Attention!

Each configured switching output is short-circuit proof! Do not load the respective switching output of the BCL 500i with more than 60mA at +10 … +30VDC in normal operation!

Notice!

Both switching inputs/outputs SWIO_3 and SWIO_4 are configured by default in such a way that:

• Switching input SWIO_3 activates the reading gate.

• Switching output SWIO_4 switches by default on "No Read"

74 BCL 500i\ BCL 501

Leuze electronic

7.2.2 SERVICE – USB interface (type A)

SERVICE

2134

GND D+ D-

SERVICE – USB interface (type A )

Pin Name Remark

1 VB Positive supply voltage +5VDC

2 D- Data -

3 D+ Data +

4 GND Ground

Table 7.2: Pin assignments of SERVICE – USB interface

Attention!

Maximum load of the +5VDC supply voltage of the Service - USB interface is 200mA!

Ensure adequate shielding.

The entire connection cable must absolutely be shielded acc. to the USB specifications. Line length must not exceed 3m.

Use the Leuze-specific USB service cable (see chapter 13 "Type overview and acces-

sories") for the connection and use a service PC to configure.

Notice!

IP 65 is achieved only if the connectors and caps are screwed into place. Alternatively, a parameter memory in the form of a USB memory stick certified by Leuze electronic GmbH + Co. can be connected to the provided USB service interface. With this Leuze memory stick, protection class IP 65 is also ensured. For further information, please refer to chapter 4.9 and chapter 10.4.2 of this documentation!

Electrical connection

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Electrical connection

SW IN/OUT

VOUT

SWIO_1

SWIO_2

GND

M12 socket

(A-coded)

Diffuse reflection light scanner

Switching output from controller (deactivated)

Switching input to controller

Output

7.2.3 SW IN/OUT – Switching input/switching output

SW IN/OUT (5-pin socket, A-coded)

Pin Name Remark

1VOUT

2 SWIO_1 Configurable switching input / output 1

3 GND GND for the sensors

4 SWIO_2 Configurable switching input / output 2

5 FE Functional earth

Thread FE Functional earth (housing)

Table 7.3: Pin assignment SW IN/OUT

The barcode readers of the BCL 500i series are equipped with four freely programmable, opto-decoupled switching inputs and outputs SWIO_1 … SWIO_4.

The two switching inputs/outputs SWIO_1 and SWIO_2 are located on the SW IN/OUT M12 socket. The other two (SWIO_3 and SWIO_4) of the four freely configurable switching inputs/outputs are located on the PWR M12 connector and are described in chapter 7.2.1.

Described in the following is the external wiring for use as a switching input or output; the respective function assignments to the switching inputs/outputs can be found in chapter 10.

Function as switching input

Voltage supply for sensors (VOUT identical to VIN at PWR IN)

Figure 7.3: Switching input connection diagram SWIO_1 and SWIO_2

If you use a sensor with a standard M12 connector, please note the following:

• Pins 2 and 4 must not be operated as switching outputs if sensors which function as inputs are also connected to these pins.

Attention!

76 BCL 500i\ BCL 501

The maximum input current must not exceed 8mA!

Leuze electronic

Electrical connection

Switching output

Switching output from controller

Switching input to controller (deactivated)

HOST / BUS IN

GND_H

RXD/RX-

TXD/TX-

RTS/TX+

CTS/RX+

M12 plug

(B-coded)

Function as switching output

Figure 7.4: Switching output connection diagram SWIO_1 / SWIO_2

Attention!

Each configured switching output is short-circuit proof! Do not load the respective switching output of the BCL 500i with more than 60mA at +10 … +30V DC in normal operation!

Notice!

Both switching inputs/outputs SWIO_1 and SWIO_2 are configured by default in such a way that they function as switching inputs:

• Switching input SWIO_1 activates the start reading gate function

• Switching input SWIO_2 activates the reference code teach-in function

The functions of the individual switching inputs/outputs are programmed via the display or via configuration in the webConfig tool under the Switching input or Switching output heading.

For further information, see also "Commissioning and configuration" on page 109.

7.2.4 HOST / BUS IN for BCL 500

The BCL 500i makes either the RS 232 or RS 422 interface available as host interface. This is selected via the display or the "webConfig" configuration software. The pin assignments change depending on the selected interface type, see table 7.4 and figure 7.5/figure 7.6.

HOST / BUS IN RS 232 / RS 422 (5-pin connector, B-coded)

Pin Name Remark

1 CTS / RX+ CTS signal (RS 232) / RX+ (RS 422)

2 TxD / Tx- TXD signal (RS 232) / TX- (RS 422)

3GND_H

4 RTS/Tx+ RTS signal (RS 232) / TX+ (RS 422)

5 RxD / Rx- RxD signal (RS 232) / Rx- (RS 422)

Thread FE Functional earth (housing)

Table 7.4: Pin assignment HOST / BUS IN BCL 500

Leuze electronic BCL 500i\BCL501

Reference potential 0 V for RS 232 / RS 422

TNT 35/7-24V

Electrical connection

BCL500 HOST / BUS IN

GND_H

RXD/RX-

TXD/TX-

RTS/TX+

CTS/RX+

Host

RXD

TXD

GND

CTS

RTS

up to 10m

Shield

BCL500 HOST / BUS IN

GND_H

RXD/RX-

TXD/TX-

RTS/TX+

CTS/RX+

Host

RX-

TX-

GND

RX+

TX+

Twisted pair

RS 232 interface

Figure 7.5: Pin assignments - HOST / BUS IN as RS 232

Notice for connecting the RS 232 interface!

Ensure adequate shielding. The entire connection cable must be shielded and earthed. The wiring for RTS and CTS must only be connected if RTS/CTS hardware handshake is used.

RS 422 interface

Figure 7.6: Pin assignments - HOST / BUS IN as RS 422

Notice for connecting the RS 422 interface!

Ensure adequate shielding. The entire connection cable must be shielded and earthed. The Rx+/Rx- and Tx+/Tx- wires must be stranded in pairs.

78 BCL 500i\ BCL 501

Leuze electronic

Electrical connection

M12 socket

(B-coded)

7.2.5 BUS OUT for the BCL 500

To set up the Leuze multiNet plus network with additional participants, the BCL 500i makes available another interface in the form of an RS 485.

BUS OUT RS 485 (5-pin socket, B-coded)

BUS OUT RS 485

RS485B

VCC485

RS485A

GND485

Table 7.5: Pin assignment BUS OUT

Notice!

Ensure adequate shielding. The entire connection cable must be shielded and earthed. The signal lines must be stranded in pairs.

Termination of the RS 485 interface at the master

The RS 485 interface must always be externally terminated at the master with the use of a T-connector and a terminating resistor (see chapter 13 "Type overview and accessories").

Termination of the RS 485 interface on the slave

On the last network device, the Leuze multiNet plus network (RS 485 interface) should be terminated with a terminating resistor (see chapter 13 "Type overview and accessories") on the BUS OUT socket.

Pin Name Remark

1 VCC485

2 RS 485 B RS 485 B - signal line

3 GND 485

4 RS 485 A RS 485 A - signal line

5 FE Functional earth / shield

Thread FE Functional earth (housing)

+5V DC for bus termination (termination)

Reference ground RS 485 - potential equalisation

Attention!

The BCL 500i can only participate as a slave in the Leuze multiNet plus on the BUS OUT socket and via an external M12 T-connector! For further information, see chapter 7.4.3 and figure 7.9!

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Electrical connection

SW IN/OUT

VOUT

SWIO_1

SWIO_2

GND

SERVICE

2134

GND D+ D-

PWR

SWIO_4

SWIO_3

GND VIN

BUS OUT RS 485

VCC485

RS485B

RS485A

GND485

HOST / BUS IN

GND485

RS485B

RS485A

USB socket

Type A

M12 socket

(A-coded)

M12 socket

(B-coded)

M12 plug (B-coded)

M12 plug (A-coded)

7.3 Electrical connection of the BCL 501

As a network slave participant, the BCL 501i is equipped with four M12 plugs/sockets which are A- and B-coded.

There, the voltage supply (PWR), the four freely configurable switching inputs and outputs (SW IN/OUT and PWR), the Leuze multiNet plus interface (HOST / BUS IN) as well as the connection to another multiNet plus network device (BUS OUT) are carried out. A USB connection serves as a SERVICE interface.

Figure 7.7: Connections of the BCL 501

Described in detail in the following are the individual connections and pin assignments.

7.3.1 PWR – Voltage supply and switching input/outputs 3 and 4

The PWR connection of the BCL 501i is identical to the PWR connection of the BCL 500 (see chapter 7.2.1).

7.3.2 SERVICE – USB interface (type A)

7.3.3 SW IN/OUT – Switching input/switching output

80 BCL 500i\ BCL 501

The SERVICE - USB interface of the BCL 501i is identical to the SERVICE - USB interface of the BCL 500

The SW IN/OUT connection of the BCL 501i is identical to the SW IN/OUT connection of the BCL 500

(see chapter 7.2.3).

(see chapter 7.2.2).

Leuze electronic

Electrical connection

HOST / BUS IN

GND485

RS485B

RS485A

M12 plug

(B-coded)

7.3.4 HOST / BUS IN for BCL 501

The BCL 501i makes available an RS 485 as HOST / BUS IN interface for the connection to the host system. This interface is physically looped through to the BUS OUT RS 485 socket.

With its RS 485 interface, the BCL 501 network.

HOST / BUS IN RS 485 (5-pin connector, B-coded)

Thread FE Functional earth (housing)

Table 7.6: Pin assignment HOST / BUS IN BCL 501

7.3.5 BUS OUT for the BCL 501

To set up the Leuze multiNet plus network with additional participants, the BCL 501i makes available another socket with the RS 485 interface wired through from the HOST / BUS IN.

The pin assignments are identical to those of the BUS OUT connection of the BCL 500 table 7.5 on page 79).

Notice!

Ensure adequate shielding. The entire connection cable must be shielded and earthed. The signal lines must be stranded in pairs.

is suitable for use in the Leuze multiNet plus scanner

Pin Name Remark

1 N.C. Reserved

2 RS 485 B RS 485 B - signal line

3 GND 485

Reference ground RS 485 - potential equalisation

4 RS 485 A RS 485 A - signal line

5 FE Functional earth / shield

(see

Termination of the RS 485 interface

The BCL 501i functions as a slave in the Leuze multiNet plus network. At the last physical participant, the Leuze multiNet plus network (RS 485 interface) must be terminated with a terminating resistor (see chapter 13 "Type overview and accessories"). This prevents reflections on the Leuze multiNet plus and improves the interference immunity.

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Electrical connection

BCL 500i master

BCL 501i slave 1 BCL 501i slave 2 BCL 501i slave n

to PC/PLC

Terminating resistor on the last slave

7.4 Leuze multiNet plus

This makes wiring the network easy and inexpensive as slaves are connected to one another in parallel.

Figure 7.8: Leuze multiNet plus system topology

With the aid of a BCL 500 this purpose, each participating BCL 500 address via the display and the control panel. The devices are networked by connecting the individual RS 485 interfaces in parallel.

In the Leuze multiNet plus network, the individual network devices sequentially transfer their data to the network master BCL 500

The BCL 500

82 BCL 500i\ BCL 501

(either an RS 232 or RS 422) to a primary PLC control or to a computer, i.e. it "collects" the scanner data in the network and transmits it to an interface on the host computer. This reduces interface costs (CPs) and time spent programming the software.

master then transmits the data of all network devices via its host interface

network master, up to 31 barcode readers can be networked. For

or BCL 501i is assigned its respective station

when requested.

Leuze electronic

7.4.1 Wiring the multiNet plus

Leuze multiNet plus connection hints

Shielded, twisted pair conductors should be used for the Leuze multiNet plus. This allows a total network length of up to 1200m.

Recommended network cable (e.g. LiYCY 2x0.2mm²):

- Twisted pairs, shielded

- Cross section: min. 0.2 mm²

- Copper resistance <100 Ω/km

When wiring the network, note the following points:

• The RS 485A, RS 485B and GND lines are wired through in the network and must not in any case be misconnected; the Leuze multiNet plus network is otherwise not functional. It is recommended that the GND of the RS 485 interface of the participants be wired through with the other wires.

• Connect the shielding to the slaves with FE.

• The maximum line length in the network is 1200m.

• The (physically) last slave in the network should be fitted with a terminating resistor of 220Ω between RS 485A and RS 485B. This prevents reflections on the multiNet plus and improves the interference immunity.

Notice!

Use the recommended connectors / sockets or the ready-made lines and terminating resistors (see chapter 13 "Type overview and accessories").

Electrical connection

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Electrical connection

7.4.2 The BCL 500i as network master

Master operation

The barcode readers of the BCL 500i series are specially designed for master operation in a network. They manage slave data in the multiNet plus and establish the connection to the primary host computer. Only a few parameters need to be set for master operation (see chapter 10 "Commissioning and configuration"). Network commissioning can thus be performed in very little time.

Last slave address

Unlike the slaves, the network address is not set on the display of the BCL 500i (the master always has address 00), but rather the last slave address, i.e. the number of the highestvalue slave. As a result, the BCL 500 on the network without you having to call up the webConfig tool. If the network is expanded at a later time, you only need to change the number of slaves (last slave address) – a task which can be accomplished with the aid of the display.

Start-up / timeout messages

During the initialisation phase, i.e. after switching-on the operating voltage, the master searches for the set number of slaves. When a slave is found, the master generates a startup message "S" for the respective found address, e.g. "04S" -> slave with address 04 has responded correctly.

If a slave is not found or does not respond, the master generates a "timeout" at this address (response-time timeout).

At the host interface, the slave address and a "T" are output. For example, "08T" means that no slave has responded at network address 08. The network remains operational after one or more timeouts, but a slave for which a timeout has been reported cannot be accessed.

master is "informed" how many slaves are operating

Mounting location of the BCL 500i - master

When mounting the BCL 500i, make sure that it is in an easily accessible, clearly visible location in your system. Once the network has been put into operation, it is possible to set (configure) each scanner in the network centrally via the USB-service interface or host inter-

face of the BCL 500

84 BCL 500i\ BCL 501

without having to connect a PC/terminal to the individual read stations.

Leuze electronic

7.4.3 The BCL 500i as network slave

BCL 500i master

BCL 500i slave 1 BCL 500i slave 2 BCL 500i slave n

to PC/PLC

Terminating resistor on the last slave

The barcode readers of the BCL 500i series can alternatively function as slave participants in network operation. They now only transmit data to the multiNet - master (e.g. BCL 500 when requested to do so by the master and establish the continuing connection to the next slave via the BUS OUT socket with the aid of an external M12 T-connector (order information see chapter 13.4 "Accessory connectors"). The last participant in the network must be terminated with a terminating resistor.

Electrical connection

)

Figure 7.9: System topology of Leuze multiNet plus with BCL 500

Only a few parameters need to be set for slave operation (see chapter 10 "Commissioning and configuration"). Network commissioning can thus be performed in very little time.

Slave address

The display of the BCL 500i possesses an important function for setting the network address. The network address is set on the display, i.e. the respective station number of the slave. The address which is set must be > 0 since the master always has address 0

Leuze electronic BCL 500i\BCL501

(Adr.00). Each network device with an address > 0 is thereby automatically informed that it is a slave

in the Leuze multiNet plus with this address and that it is initialised and queried by the network master. No other settings are necessary for commissioning in the Leuze multiNet plus.

Other settings

The parameters necessary for the reading task, such as the code types to be read and the number of digits of the code, must be set. This can be performed via the display as well as with the aid of the webConfig tool.

as slave

TNT 35/7-24V

Electrical connection

7.4.4 The BCL 501i as network slave

The BCL 501i barcode readers are specially designed for slave operation in a network. They transmit data to the multiNet master only after the master prompts it to do so and establish the continuing connection via the BUS OUT socket to the slaves which follow. Only a few parameters need to be set for slave operation (see chapter 10 "Commissioning and configuration"). Network commissioning can thus be performed in very little time.

The connection is performed as shown in figure 7.8.

Slave address

With the BCL 501i, the network address is set on the display, i.e. the respective station number of the slave. The address which is set must be > 0 since the master always has address 0 (Adr.00).

Each network device with an address > 0 is thereby automatically informed that it is a slave in the Leuze multiNet plus with this address and that it is initialised and queried by the network master. No other settings are necessary for commissioning in the Leuze multiNet plus.

Other settings

7.5 Line lengths and shielding

Observe the following maximum line lengths and shielding types:

Connection Interface Max. line

length

BCL – service

BCL – host

Network from the first BCL to the last BCL

BCL – power supply unit

Switching input

Switching output

Table 7.7: Line lengths and shielding

86 BCL 500i\ BCL 501

USB 3m

RS 232 RS 422 RS 485

RS 485 1200m

10m 1200m 1200m

30m not necessary

10m not necessary

shielding absolutely necessary acc. to USB

Shielding

specifications

absolutely required, shielded

RS 422/485 strands, stranded in pairs

absolutely required, shielded

RS 485 strands, stranded in pairs

Leuze electronic

8 Display and control panel

IO1 IO2 IO3 IO4 ATT ERR

126 USB

12345678

LED

Control buttons

Read result

Bar graph

Status display Device address

USB interface

8.1 Structure of the control panel

Figure 8.1: Structure of the control panel

8.2 Status display and operation

Display and control panel

8.2.1 Indicators in the display

Status displays of the switching inputs/outputs

IO1 Switching input or switching output 1 active (function dependent on set configura-

tion). Default: Switching input with the "Reading gate activation" function

IO2 Switching input or switching output 2 active (function dependent on set configura-

tion). Default: Input with the "Teach-in" function

IO3 Switching input or switching output 3 active (function dependent on set configura-

IO4 Switching input or switching output 4 active (function dependent on set configura-

ATT Warning (Attention) ERR Internal device error (Error) -> The device must be sent in for inspection

tion). Default: Switching input with the "Reading gate activation" function

tion). Default: Switching output with the "No read" function

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Display and control panel

Status display of the USB interface

USB The BCL 500i\ BCL 501i is connected to a PC via the USB interface. MS An external parameter memory is properly connected to the USB interface of the

BCL 500

Read result

The read barcode information is displayed.

Device address

Shows the set multiNet plus network address (default = 1).

8.2.2 LED status indicators

PWR LED

off Device OFF

flashes green Device ok, initialisation phase

green continuous light Device ok

\ BCL 501i.

- no supply voltage

- no barcode reading possible

- voltage connected

- self test running

- initialisation running

- barcode reading possible

- self test successfully finished

- device monitoring active

orange continuous light Service mode

- barcode reading possible

- configuration via the USB service interface

- configuration via the display

- no data on the host interface

flashes red Device ok, warning set

- barcode reading possible

- temporary operating fault

red continuous light Device error / parameter enable

- no barcode reading possible

88 BCL 500i\ BCL 501

Leuze electronic

BUS LED

off No supply voltage

- no communication possible

flashes green Initialisation

- of interfaces (BCL 500

- of the network (BCL 500

- of the network, slaves waiting for initialisation by the master (BCL 500

green continuous light Operation ok

- interfaces (BCL 500

-network (BCL500

- network, slaves were initialised by the master (BCL 500

flashes red Communication error

- a slave which was already initialised was lost in the network (BCL 500

- network error after initialisation by the master (BCL 500

red continuous light Network error

- slave cannot transmit any more data to the master (BCL 500

Display and control panel

stand-alone)

master)

and BCL 501i slave)

stand-alone)

master)

and BCL 501i slave)

master).

and BCL 501i slave).

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Display and control panel

ESC

8.2.3 Control buttons

Up Navigate upward/laterally.

Down Navigate downward/laterally.

ESC Exit menu item.

ENTER Confirm/enter value, change menu levels.

Navigating within the menus

The menus within a level are selected with the up/down buttons . The selected menu item is activated with the enter button . Press the ESC button to move up one menu level. When one of the buttons is actuated, the display illumination is activated for 10min.

Setting values

If input of a value is possible, the display looks like this:

0000|

<-|0123456789 save Standard ----- Unit 0000 | |

Use the and buttons to set the desired value. An accidental, incorrect entry can be corrected by selecting

<-| and then pressing .

Then use the buttons to select save and save the set value by pressing .

Selecting options

If options can be selected, the display looks like this:

o OFF

ON Standard ----- Unit OFF | |

Select the desired option with the buttons. Activate the option by pressing .

90 BCL 500i\ BCL 501

Leuze electronic

8.3 Menu description

After voltage is applied to the barcode reader, a startup screen is displayed for several seconds. The display then shows the barcode reading window with all status information.

8.3.1 The main menus

Display and control panel

BCL500i SF 102

Leuze electronic GmbH & Co. KG SW: V 1.3.1 HW:1 SN: 0704-081894 001

IO1 IO2 IO3 IO4 ATT ERR

12345678

Parameter 1

Parameter handling Decoder table Digital SWIO Com

Language selection o Deutsch o English o Español o Français o Italiano

Ser vi ce

Diagnostics Status messages

Device information - main menu

This menu item contains detailed information on

• Device type

• Software version

• Hardware version

• Serial number

Barcode reading window - main menu

• Visualisation of the read barcode information

• Status overview of the switching inputs/outputs

• Set device address

• Bar graphs for read quality of the current barcode. See "Indicators in the display" on page 87.

Parameter - main menu

• Configuration of the barcode reader. See "Parameter menu" on page 92.

Language selection - main menu

• Selection of the display language. See "Language selection menu" on page 100.

Service - main menu

• Scanner diagnosis and status messages See "Service menu" on page 101.

TNT 35/7-24V

Actions

o Start decoding o Start alignment o Start auto-setup o Start teach-in

Actions main menu

• Various functions for scanner configuration and manual operation See "Actions menu" on page 101.

Leuze electronic BCL 500i\BCL501

Display and control panel

Notice! The rear cover of this manual includes a fold-out page with the complete menu structure.

It describes the menu items in brief. The display offers only limited configuration options. The configurable parameters are described here in chapter 8.3. Only the webConfig tool provides complete configuration options and is largely self-explanatory. The use of the webConfig tool is described inchapter 9. Notes on commissioning via the webConfig tool can be found in chapter 10.

8.3.2 Parameter menu

Parameter handling

The Parameter handling submenu is used to lock and release the parameter input via the display and for resetting to default values.

Table 8.1: Parameter handling submenu

Level 3 Level 4 Level 5 Selection/configuration option

Param eter enabling

Description

OFF/ON

The standard setting (OFF) prevents unintended parameter changes.

If parameter enabling is activated (ON), parameters can be changed manually.

Standard

OFF

Parameters to default

By pressing the enter button after selecting Parameters to default, all parameters are reset to their standard settings without any further security prompts.

In this case, English is selected as the display language.

92 BCL 500i\ BCL 501

Leuze electronic

Display and control panel

Decoder table

In the Decoder table submenu, 4 different code type definitions can be stored. Barcodes that have been read can only be decoded if they correspond to one of the definitions stored here.

Table 8.2: Decoder table submenu

Level 3 Level 4 Level 5 Selection/configuration option

Max. no. of labels

Decoder 1 Symbology

(Code type)

Number of digits Interval mode OFF/ON

Digits 1 0 to 64 characters

Digits 2 0 to 64 characters

Digits 3 0 to 64 characters

Digits 4 0 to 64 characters

Digits 5 0 to 64 characters

Reading reliability Value from 2 to 100

Description

Value between 0 and 64

The value set here specifies the maximum number of labels that should be detected for each reading gate.

No code Code 2 of 5 interleaved Code 39 Code 32 Code UPC Code EAN Code 128 EAN Addendum Codabar Code 93 RSS 14 RSS Limited RSS Expanded

If No code is configured, the current and all subsequent decoders are deactivated.

With the ON setting, the values in digits 1 and 2 define a range of character numbers that are to be read.

First decodable number of characters or lower range limit.

Second decodable number of characters or upper range limit.

Third decodable number of characters.

Fourth decodable number of characters.

Fifth decodable number of characters.

Number or scans required to reliably detect a label.

Standard

Code 2/5i

OFF

TNT 35/7-24V

Leuze electronic BCL 500i\BCL501

Display and control panel

Table 8.2: Decoder table submenu

Level 3 Level 4 Level 5 Selection/configuration option

Check digit method Standard

Check digit transm. Standard

Decoder 2 Symbology

Number of digits

Reading reliability

Check digit method

Check digit transm.

Decoder 3 Symbology

Number of digits

Reading reliability

Check digit method

Check digit transm.

Description

No check Depending on the symbology (code type) selected for the decoder, further calculation algorithms can be selected here.

Check digit method used for the decoding of the barcode that has been read.

If Standard is set, the check digit method intended for the respective code type is used.

Not standard

Specifies whether the check digit is transmitted. Standard means that the transmission matches the standard intended for the respective code type.

as decoder 1

Interval mode OFF/ON ON

Digits 1 0 to 64 characters 4

Digits 2 0 to 64 characters 30

Digits 3 0 to 64 characters 0

Digits 4 0 to 64 characters 0

Digits 5 0 to 64 characters 0

Value from 2 to 100 4

as decoder 1

Interval mode OFF/ON ON

Digits 1 0 to 64 characters 4

Digits 2 0 to 64 characters 63

Digits 3 0 to 64 characters 0

Digits 4 0 to 64 characters 0

Digits 5 0 to 64 characters 0

Value from 2 to 100 4

as decoder 1

Standard

Code 39

Standard

Code 128

Standard

94 BCL 500i\ BCL 501

Leuze electronic

Display and control panel

Table 8.2: Decoder table submenu

Level 3 Level 4 Level 5 Selection/configuration option

Decoder 4 Symbology

Number of digits

Reading reliability

Check digit method

Check digit transm.

Interval mode OFF/ON OFF

Digits 1 0 to 64 characters 8

Digits 2 0 to 64 characters 0

Digits 3 0 to 64 characters 0

Digits 4 0 to 64 characters 0

Digits 5 0 to 64 characters 0

Description

as decoder 1

Value from 2 to 100 4

as decoder 1

Standard

Code UPC

Standard

Leuze electronic BCL 500i\BCL501

TNT 35/7-24V

Display and control panel

Digital SWIO

The Digital SWIO submenu is used to configure the 4 switching inputs/outputs of the

BCL 500

Table 8.3: Digital SWIO submenu

Level 3 Level 4 Level 5 Selection/configuration option

Sw. input/ output 1

\BCL501i.

I/O mode Input / Output / Passive

Switching input Inverted OFF / ON

Description

Determines the function of switching input/output 1.

In the case of passive, the connection is on 0V if the Inverted parameter is set to OFF

parameter is set to ON.

OFF = activation of the switching input function upon high level at the switching input

ON = activation of the switching input function upon low level at the switching input

Debounce time Value from 0 to 1000

Start-up delay Value from 0 to 65535

Pulse duration Value from 0 to 65535

Switch-off delay Value from 0 to 65535

Function No BCL500i function

Time in milliseconds for which the input signal must be present and stable.

Time in milliseconds between the end of the debounce time and activation of the function configured below.

Minimum activation time in milliseconds for the function configured below.

Time in milliseconds for which the function configured below remains activated after the switching input signal is deactivated and the pulse duration has expired.

Rd. gate start/stop Rd. gate stop Rd. gate start Teach reference code Autoconfig start/stop

The function set here is carried out after the switching input is activated.

and on +UB if the Inverted

Standard

Input

OFF

Reading gate start/stop

96 BCL 500i\ BCL 501

Leuze electronic

Display and control panel

Table 8.3: Digital SWIO submenu

Level 3 Level 4 Level 5 Selection/configuration option

Switching output

Inverted OFF / ON

Signal delay Value from 0 to 65535

Pulse duration Value from 0 to 65535

Activation function 1 No function

Deactivation function 1 See Activation function 1 for selection

Description

OFF = activated switching output upon high level

ON = activated switching output upon low level

Time in milliseconds between activation function and switching of the switching output.

Switch-on time of the switching output in milliseconds. If the Pulse duration is set to 0, the switching output is switched on via the Activation function and switched off via the Deactivation function.

If the Pulse duration is greater than 0, the Deactivation function has no effect.

Reading gate start Reading gate end Positive reference code comparison 1 Negative reference code comparison 1 Valid read result Invalid read result Device ready Device not ready Data transmission active Data transmission not active AutoCont. good quality AutoCont. bad quality Reflector detected Reflector not detected External event, pos. edge External event, neg. edge Device active Device standby No device error Device error Positive reference code comparison 2 Negative reference code comparison 2

The function set here specifies which event activates the switching output.

options

The function set here specifies the event that deactivates the switching output.

Standard

OFF

400

No function

TNT 35/7-24V

No function

Leuze electronic BCL 500i\BCL501

Leuze BCL500i, BCL501i TECHNICAL DESCRIPTION

Specifications and Main Features

Frequently Asked Questions

User Manual

1 General information

1.1 Explanation of symbols

1.2 Declaration of conformity

2 Safety notices

2.1 General safety notices

Documentation

Safety regulations

Repair

2.2 Safety standards

2.3 Approved purpose

Areas of application

2.4 Working safely
