Part no.: 63000306 – S300-P13C1-M20-CB – Safety position switch
Technical data
Basic data
Series S300
Functions
Functions Locking device without guard interlocking according to ISO 14119
Characteristic parameters
Mission time T
B10
d
Electrical data
Usage category at DC 13 Ue / Ie: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A, EN 60947-5-1
Usage category at AC 15 Ue / Ie: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A, EN 60947-5-1
Contact allocation 2NC + 1NO
Contact opening Force-fit
Short circuit protected 500 V, 10 A, type aM, IEC 60269-1
Contact protection Protective insulation O
Performance data
Rated insulation voltage 400 V AC, 500 V DC
Conventional thermal current, max. 10 A
M
Integration in control circuits up to category 4 in accordance with EN
ISO 13849
20 years, EN ISO 13849-1
40,000,000 number of cycles
Connection
Number of connections 1 Piece(s)
Number of cable entries 1 Piece(s)
Connection 1
Type of connection Terminal
Function Contact connection
Type of terminal Screw terminal
No. of pins 6 -pin
Cable properties
Connection cross sections 1 x 0.34 mm² to 2 x 1.5 mm², wire
Mechanical data
Design Cubic
Dimension (W x H x L) 40 mm x 39 mm x 97 mm
Housing material Plastic, Glass fiber reinforced (PPS), self-extinguishing
Electrical contact material Silver alloy
Net weight 145 g
Housing color Black
Type of fastening Through-hole mounting
Type of cable entry M20 x 1.5
Switch type Interlock device without guard interlocking, ISO 14119
Switching principle Slow-action contact
Switching direction One side
Approach actuation directions 360°
Both sides
4 x side (90°)
eng 2018-04-03
2 / 6
Page 3
Part no.: 63000306 – S300-P13C1-M20-CB – Safety position switch
Approach speed Depending on actuator used
Mechanical life time 20,000,000 actuation cycles, IEC 60947-5-1 switching cycles
Actuation frequency, max. 3,600 per hour, IEC 60947-5-1
Actuator mount Short
Environmental data
Ambient temperature, operation -25 ... 80 °C
Degree of contamination 3, EN 60947-1
Certifications
Degree of protection IP 67
Certifications IMQ
Classification
eCl@ss 8.0 27272601
eCl@ss 9.0 27272601
ETIM 5.0 EC000030
c UL US

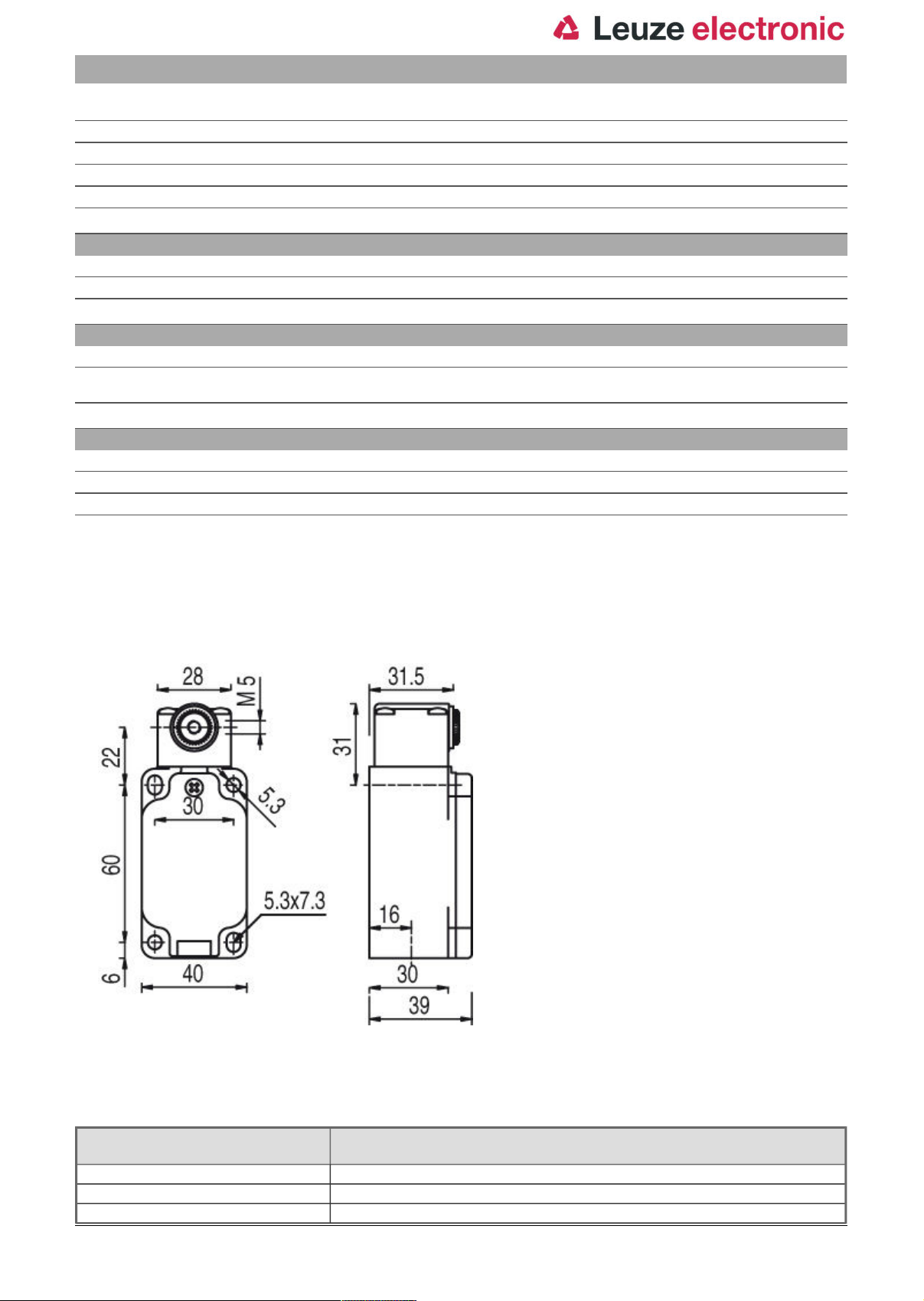

Dimensioned drawings
All dimensions in millimeters
Electrical connection
Connection 1
Type of connection Terminal
Function Contact connection
Type of terminal Screw terminal
eng 2018-04-03
3 / 6

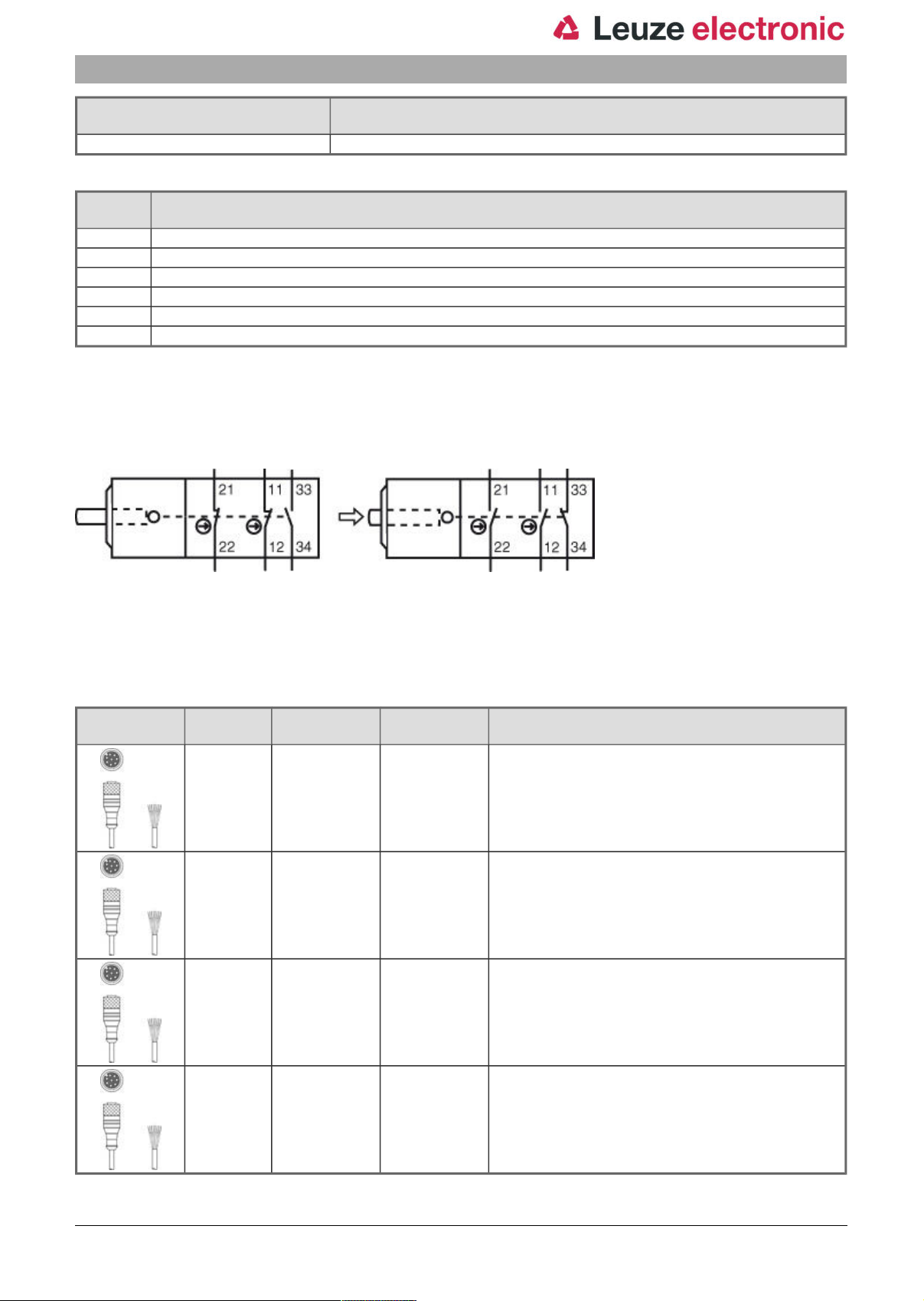

Page 4
Part no.: 63000306 – S300-P13C1-M20-CB – Safety position switch
Connection 1
No. of pins 6 -pin
Terminal Assignment
11 NC(1)
12 NC(1)
21 NC(2)
22 NC(2)
33 NO(1)
34 NO(1)
Circuit diagrams
Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50135128 KD S-M12-8A-
P1-050
50135129 KD S-M12-8A-
P1-100
50135130 KD S-M12-8A-
P1-150
50135131 KD S-M12-8A-
P1-250
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 8 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PUR
Connection 2: Open end
Shielded: Yes
Cable length: 10,000 mm
Sheathing material: PUR
Connection 2: Open end
Shielded: Yes
Cable length: 15,000 mm
Sheathing material: PUR
Connection 2: Open end
Shielded: Yes
Cable length: 25,000 mm
Sheathing material: PUR
eng 2018-04-03
4 / 6

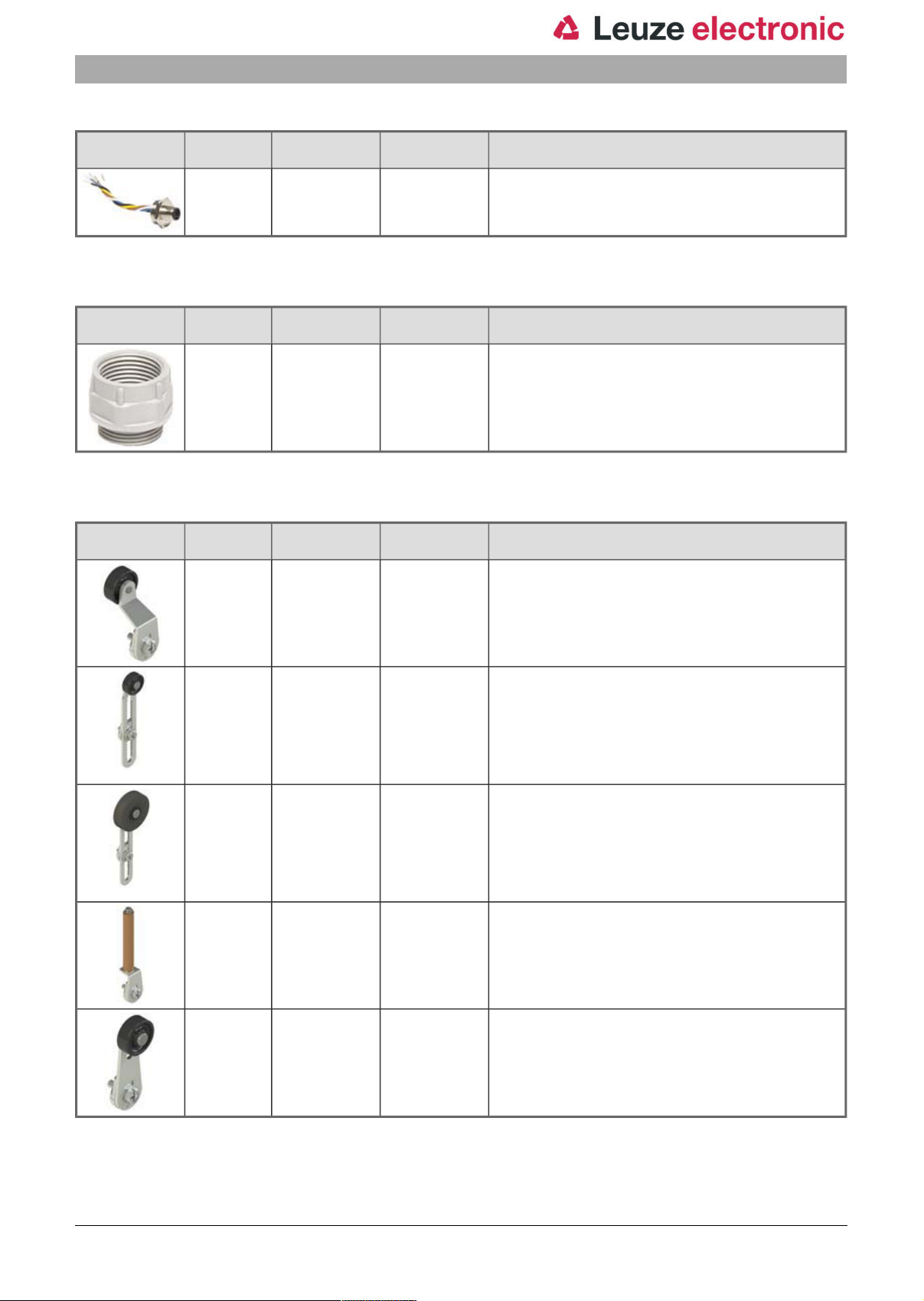

Page 5
Part no.: 63000306 – S300-P13C1-M20-CB – Safety position switch
Connection technology - Connectors
Part no. Designation Article Description
63000845 AC-PLM-8 Built-in plug Number of conductors: 8 Piece(s)
Connection technology - Adapters
Part no. Designation Article Description
63000843 AC-A-M20-12NPT Adapter Design: M20 x 1.5 on 1/2 NPT
Actuator
Part no. Designation Article Description
63000881 AC-AL-R Actuator Dimensions: 27.5 mm x 20 mm x 40 mm
63000882 AC-LL-R Actuator Dimensions: 14.5 mm x 20 mm
63000884 AC-LL-R40 Actuator Dimensions: 14.5 mm x 40 mm
63000883 AC-PL Actuator Dimensions: 9 mm x 14 mm x 80 mm
63000880 AC-SL-R Actuator Dimensions: 14.5 mm x 20 mm x 49 mm
Connection: Connector, M12, Metal, Axial, 8 -pin
Type of fastening: Through-hole mounting
Design: Angled
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Steel, galvanized, Plastic
Functions: Easy installation, quick vertical and axial alignment in
just a few steps, Linkage via roller
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Steel, galvanized, Plastic
Length: 34 mm ... 93 mm
Functions: Easy installation, quick vertical and axial alignment in
just a few steps, Linkage via roller
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Steel, galvanized, Rubber
Length: 50 mm ... 103 mm
Functions: Easy installation, quick vertical and axial alignment in
just a few steps, Linkage via roller
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Steel, Porcellan
Functions: Easy installation, quick vertical and axial alignment in
just a few steps, Linkage via sleeve
Type of fastening: Through-hole mounting
Design: Straight
Area of application: Heavy duty
Mounting bore holes: 90° to key direction
Material: Steel, galvanized, Plastic
Functions: Easy installation, quick vertical and axial alignment in
just a few steps, Linkage via roller
eng 2018-04-03
5 / 6
Page 6
Part no.: 63000306 – S300-P13C1-M20-CB – Safety position switch
Notes
Observe intended use!
• The product may only be put into operation by competent persons.
• Only use the product in accordance with its intended use.
