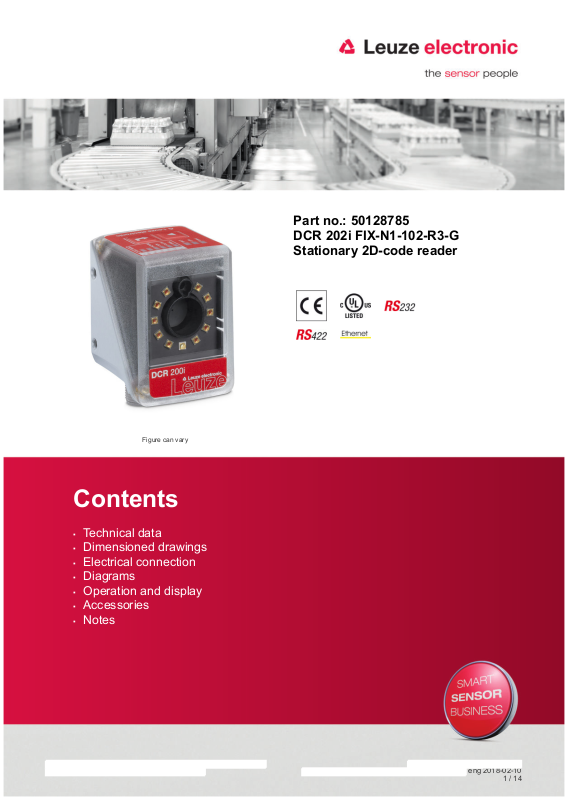

Part no.: 50128785 DCR 202i FIX-N1-102-R3-G Stationary 2D-code reader

Contents

Technical dataDimensioned drawingsElectrical connectionDiagramsOperation and displayAccessoriesNotes
Part no.: 50128785 – DCR 202i FIX-N1-102-R3-G – Stationary 2D-code reader

Technical data

Basic data
Series DCR 200i
Functions
Software functions Reading of 2D codes
Read data
Code types, readable UPC
Reading of 1D codes
Code 128 GS1 Databar Omnidirectional Aztec Pharma Code Code 39 GS1 Databar QR code QR code EAN 8/13 PDF417 Data Matrix Code GS1 Databar Code 93 Codabar Code 32 EAN 128 GS1 Databar Stacked 2/5 Interleaved
Optical data

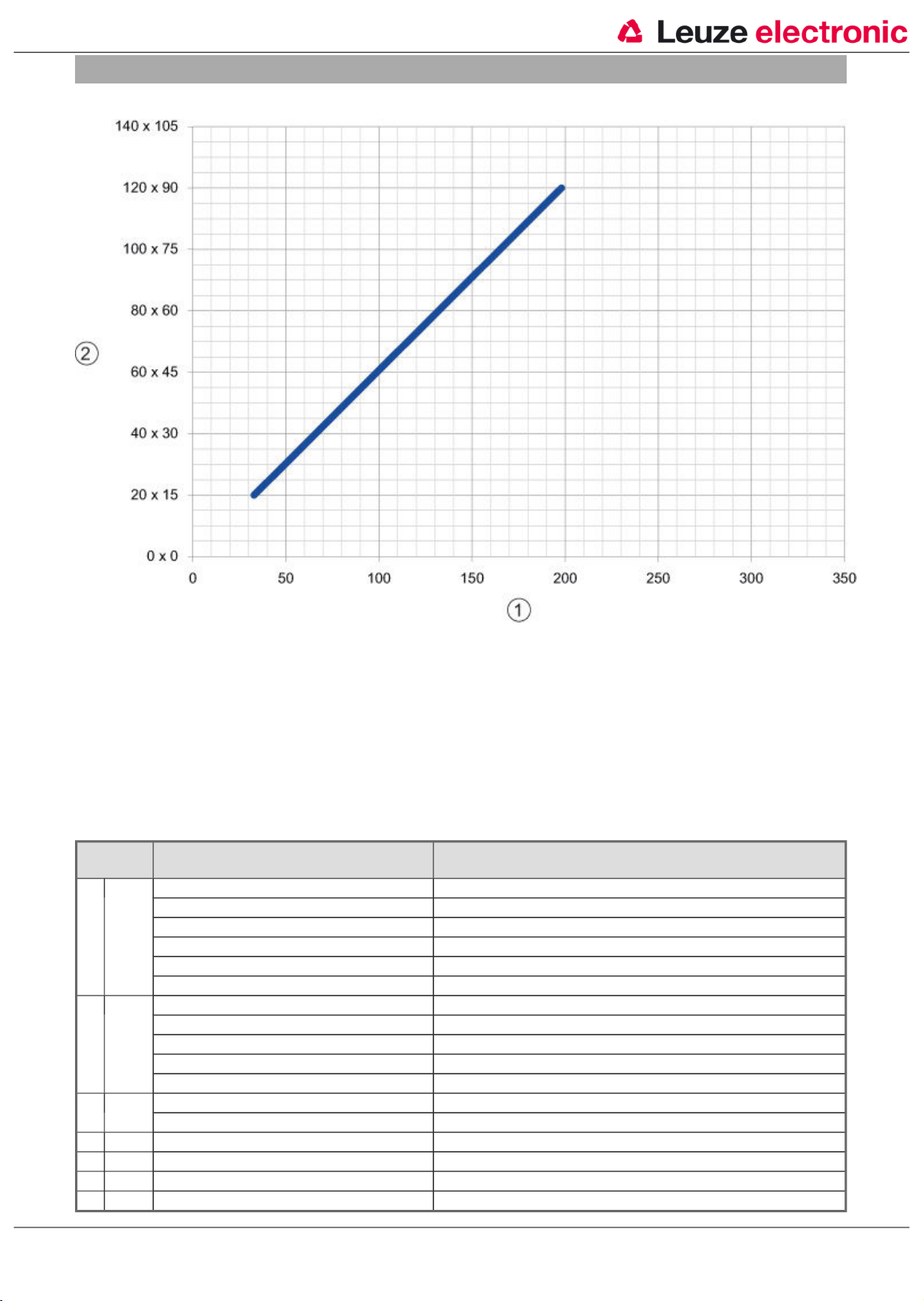

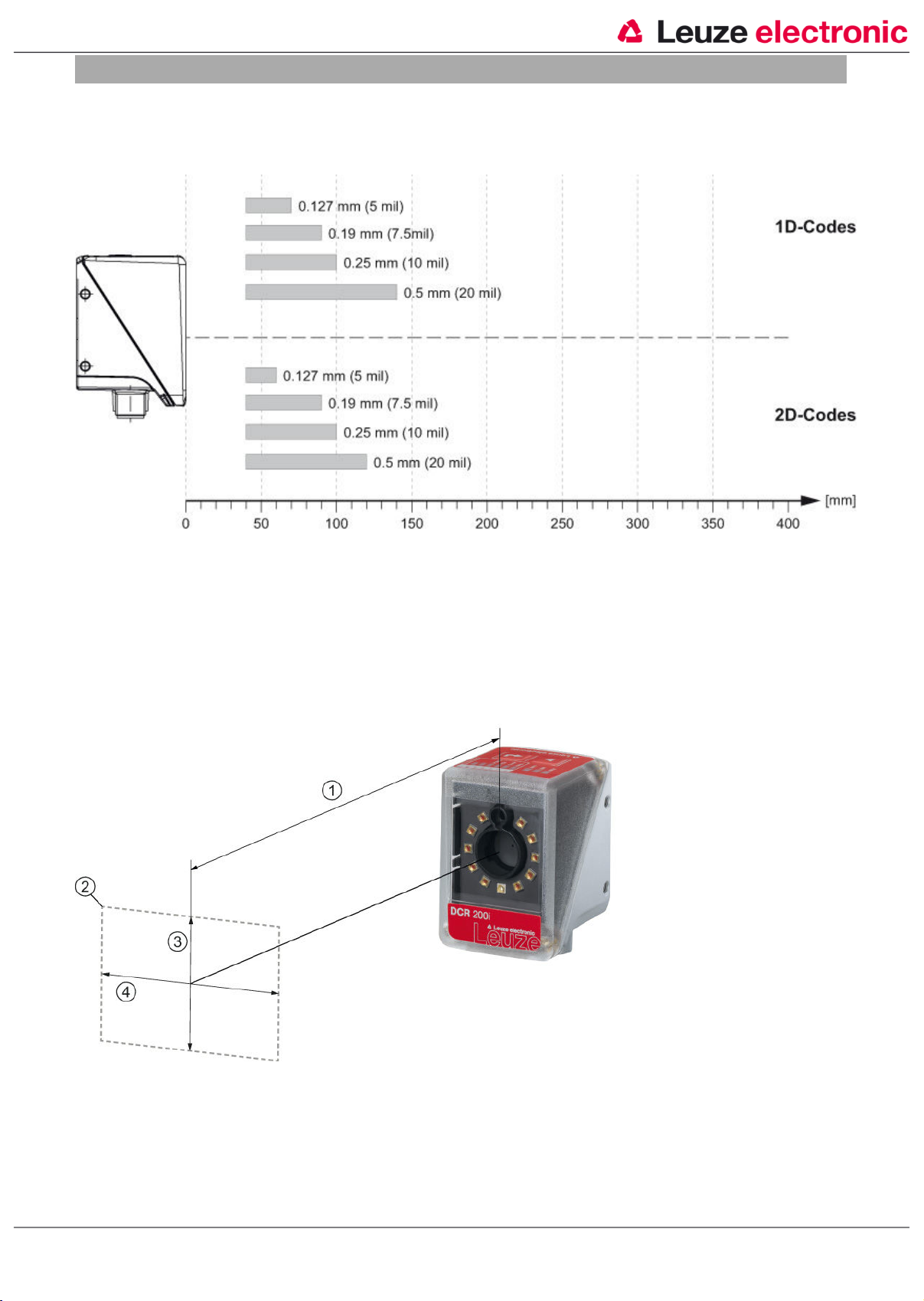

Reading distance 40 ... 120 mm
Light source LED, Red
Transmitted-signal shape Pulsed
Camera resolution, horizontal 1,280 px
Camera resolution, vertical 960 px
Chip CMOS
Module size 0.127 ... 0.5 mm
Electronic shutter speed 0.068 ... 5 ms
Camera type Monochrome
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage 18 ... 30 V, DC
Average power consumption 8 W
Inputs
Number of digital switching inputs 1 Piece(s)
Switching inputs
Type Digital switching input
Voltage type DC
Polarity reversal protection
eng 2018-02-10
2 / 14
Part no.: 50128785 – DCR 202i FIX-N1-102-R3-G – Stationary 2D-code reader
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Type Digital switching output
Voltage type DC
Switching current, max. 100 mA
Switching output 1
Switching element Transistor,
Switching principle +24 V switching
Inputs/outputs selectable
Number of inputs/outputs selectable 2 Piece(s)
Type Inputs/outputs selectable
Voltage type DC
Voltage type DC
Interface
Type RS 232, RS 422, Ethernet
RS 232
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 8 data bits
Stop bit 1 stop bit
Parity None
Transmission protocol <STX><data><CR><LF>
Data encoding ASCII
RS 422
Function Process
Transmission speed 4,800 ... 115,200 Bd
Data format Adjustable
Start bit 1
Data bit 7, 8 data bits
Stop bit 1, 2 stop bits
Data encoding ASCII
Ethernet
Architecture Server
Address assignment Manual address assignment
Transmission speed 100 Mbit/s
Function Process
Switch functionality None
Transmission protocol TCP/IP , UDP
Binary
Binary
Client
DHCP
10 Mbit/s
Service interface
Type Ethernet
eng 2018-02-10
3 / 14
Part no.: 50128785 – DCR 202i FIX-N1-102-R3-G – Stationary 2D-code reader
Ethernet
Function Service
Connection
Number of connections 2 Piece(s)
Connection 1
Type of connection Connector
Function Data interface
Thread size M12
Type Male
Material Metal
No. of pins 12 -pin
Encoding A-coded
Connection 2
Type of connection Connector
Function Data interface
Thread size M12
Type Female
Material Metal
No. of pins 4 -pin
Encoding D-coded
Signal OUT Signal IN Voltage supply
Configuration interface
Mechanical data
Design Cubic
Dimension (W x H x L) 43 mm x 61 mm x 44 mm
Housing material Plastic
Lens cover material Glass
Net weight 120 g
Housing color Silver

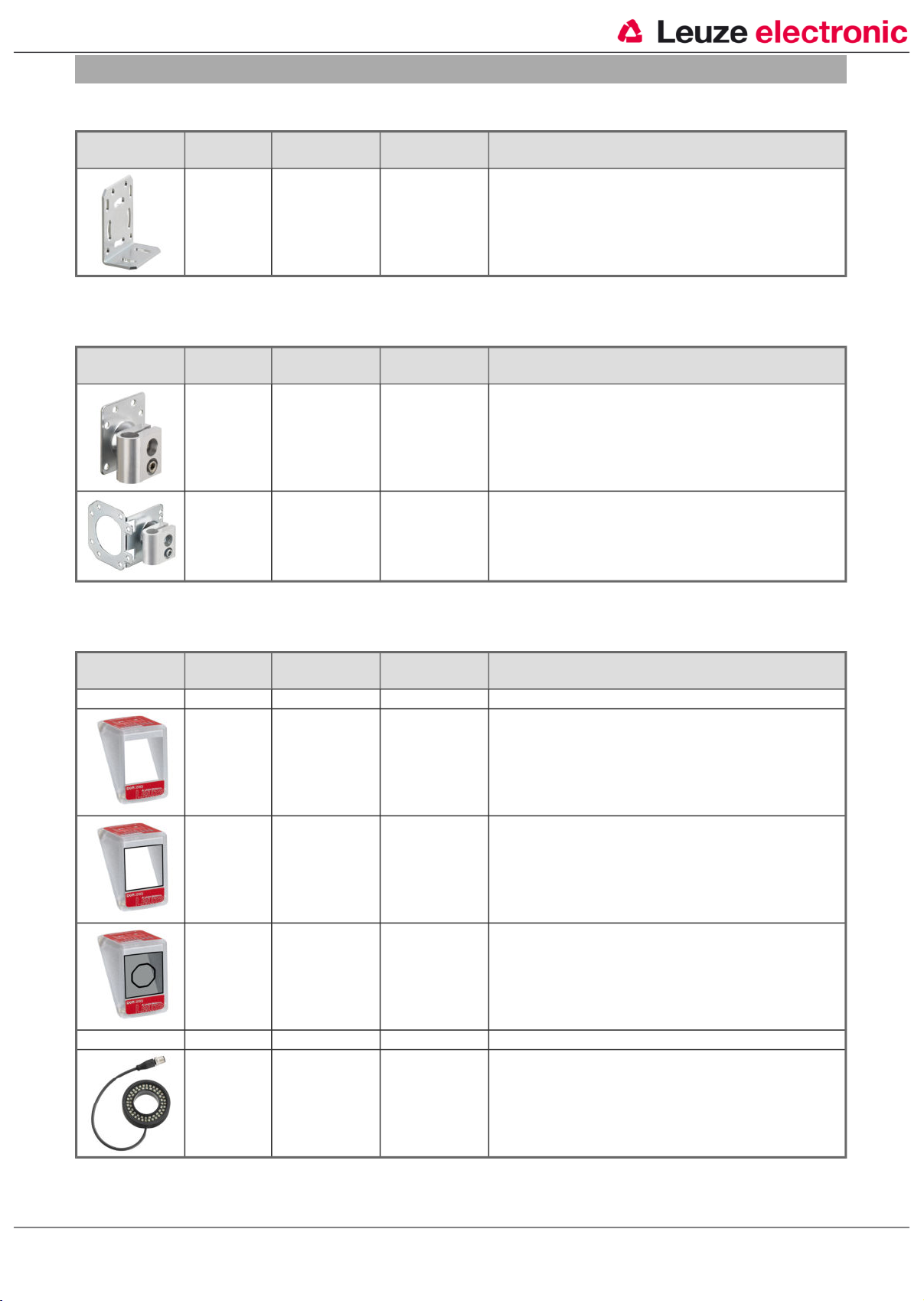

Type of fastening Mounting thread
Operation and display
Type of display LED
Number of LEDs 10 Piece(s)
Type of configuration Via web browser
Operational controls Buttons
Function of the operational control Adjustment mode
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -20 ... 70 °C
Relative humidity (non-condensing) 90 %
Metal, Diecast aluminum, PC
Via optional mounting device
Teach-in Configuration codes
Trigger Auto-setup
eng 2018-02-10
4 / 14
Part no.: 50128785 – DCR 202i FIX-N1-102-R3-G – Stationary 2D-code reader
Certifications
Degree of protection IP 65
Protection class III
Certifications c UL US
Test procedure for EMC in accordance with standard EN 61000-6-4
Test procedure for continuous shock in accordance with standard IEC 60068-2-29, test Eb
Test procedure for vibration in accordance with standard IEC 60068-2-6, test Fc
Classification
eCl@ss 8.0 27280103
eCl@ss 9.0 27280103
ETIM 5.0 EC002550

Dimensioned drawings

All dimensions in millimeters
EN 61000-6-2

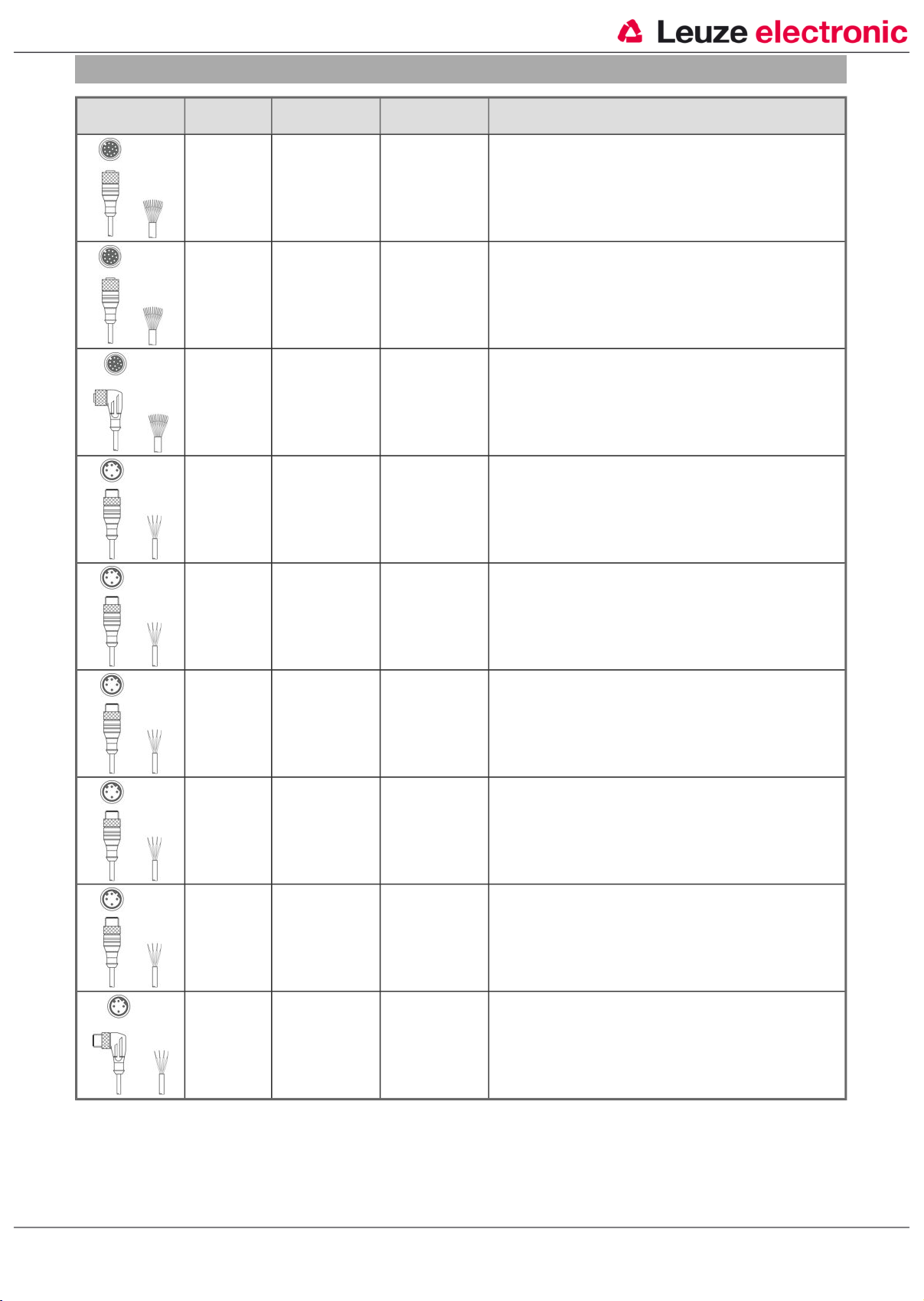

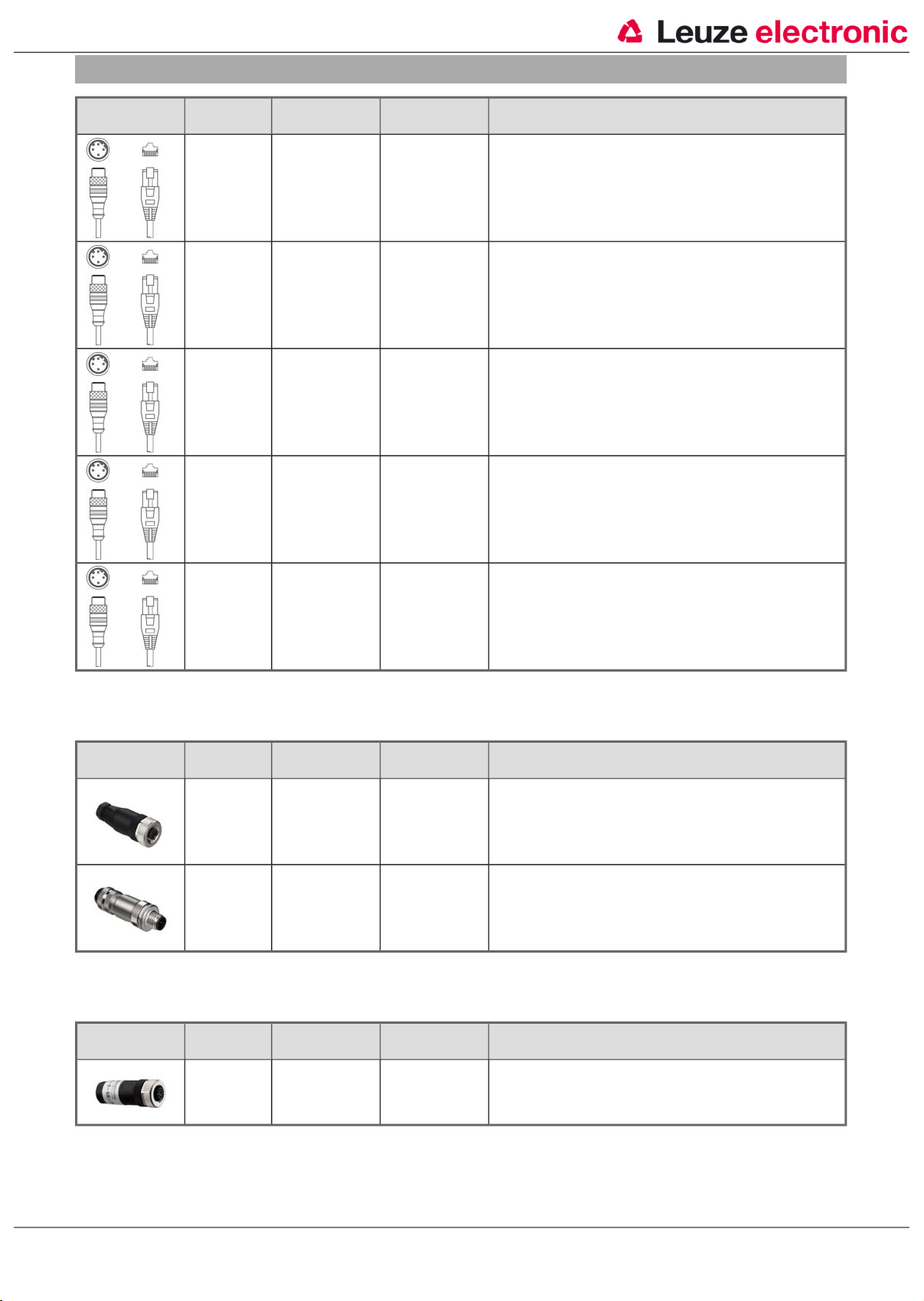

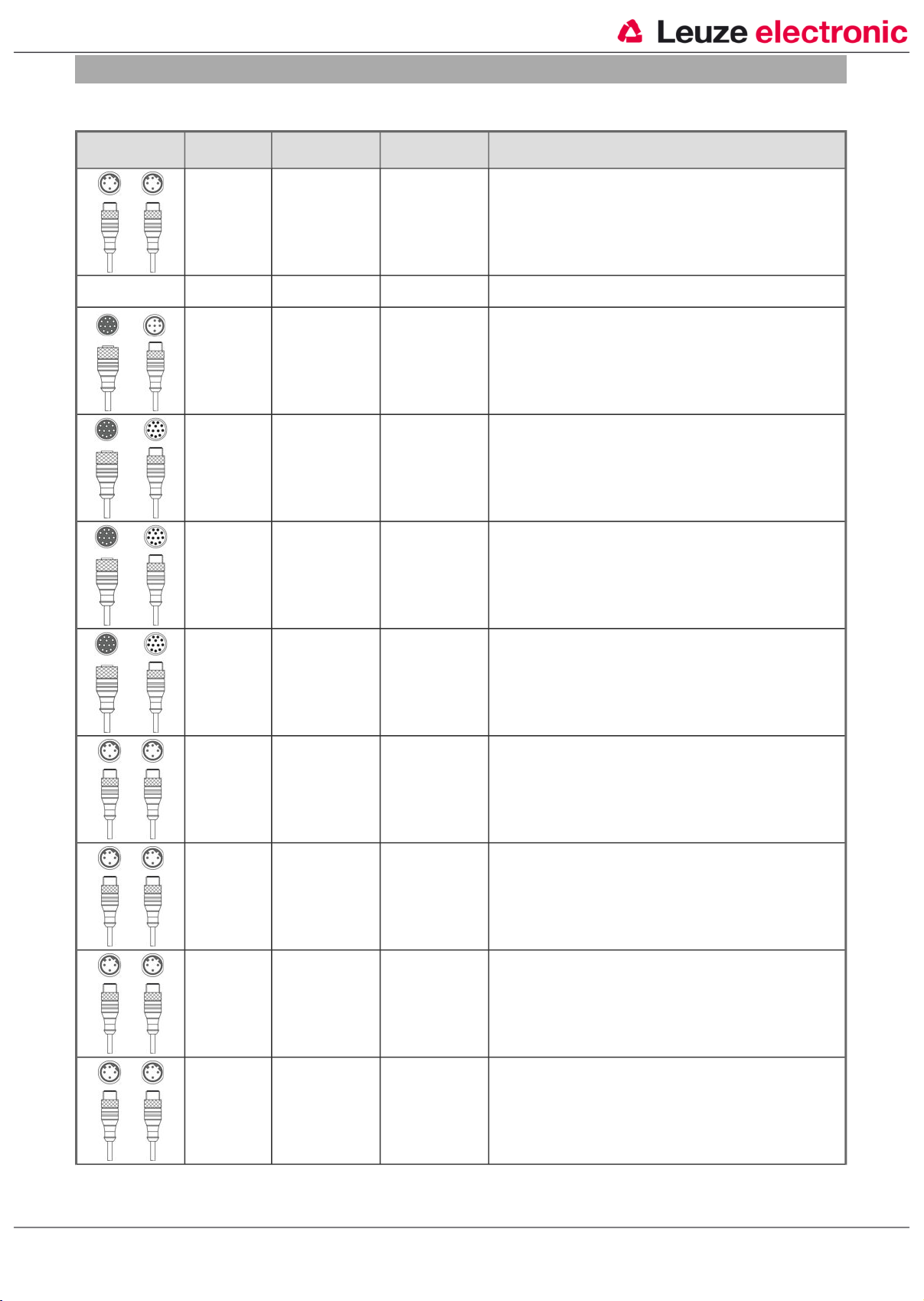

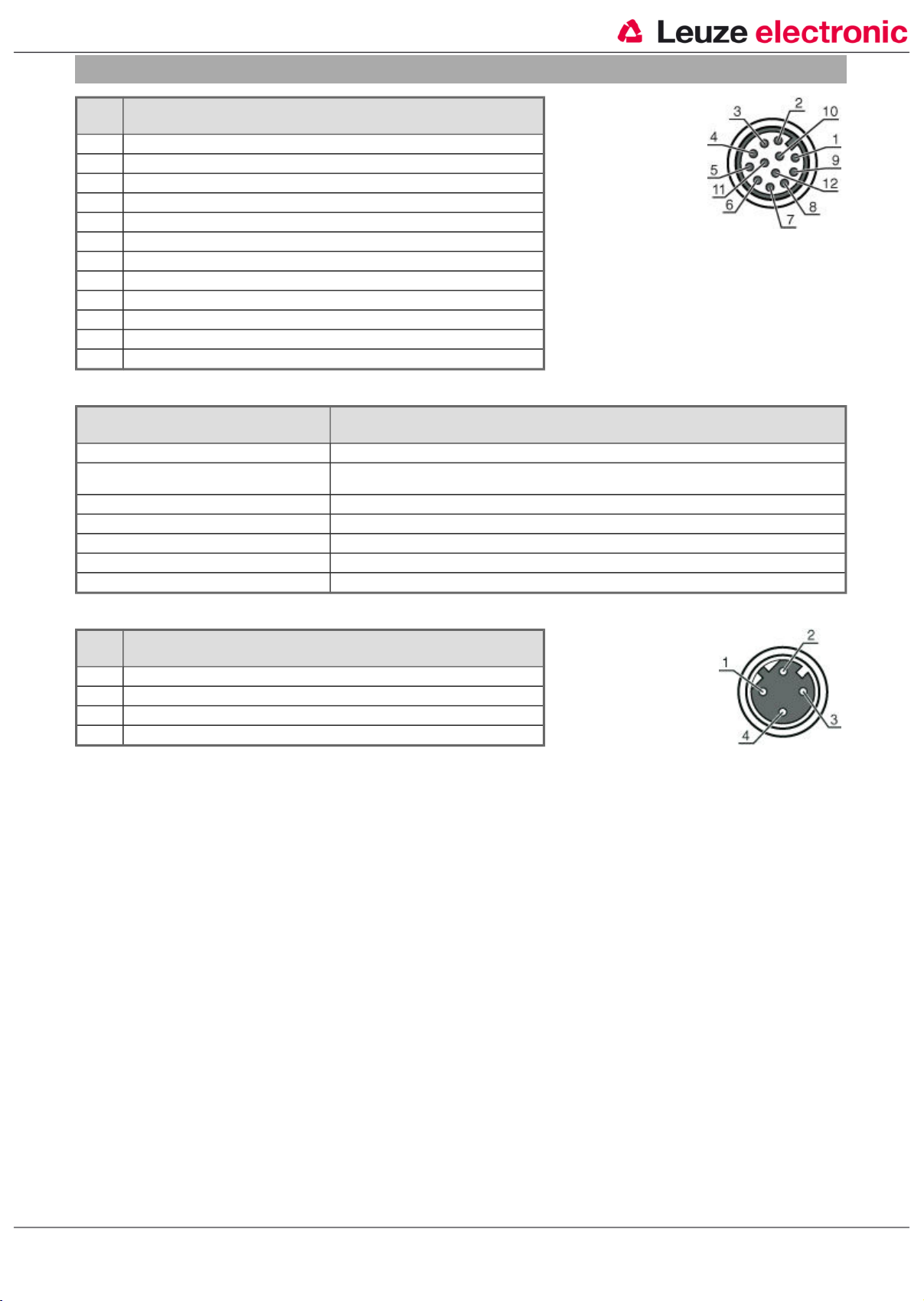

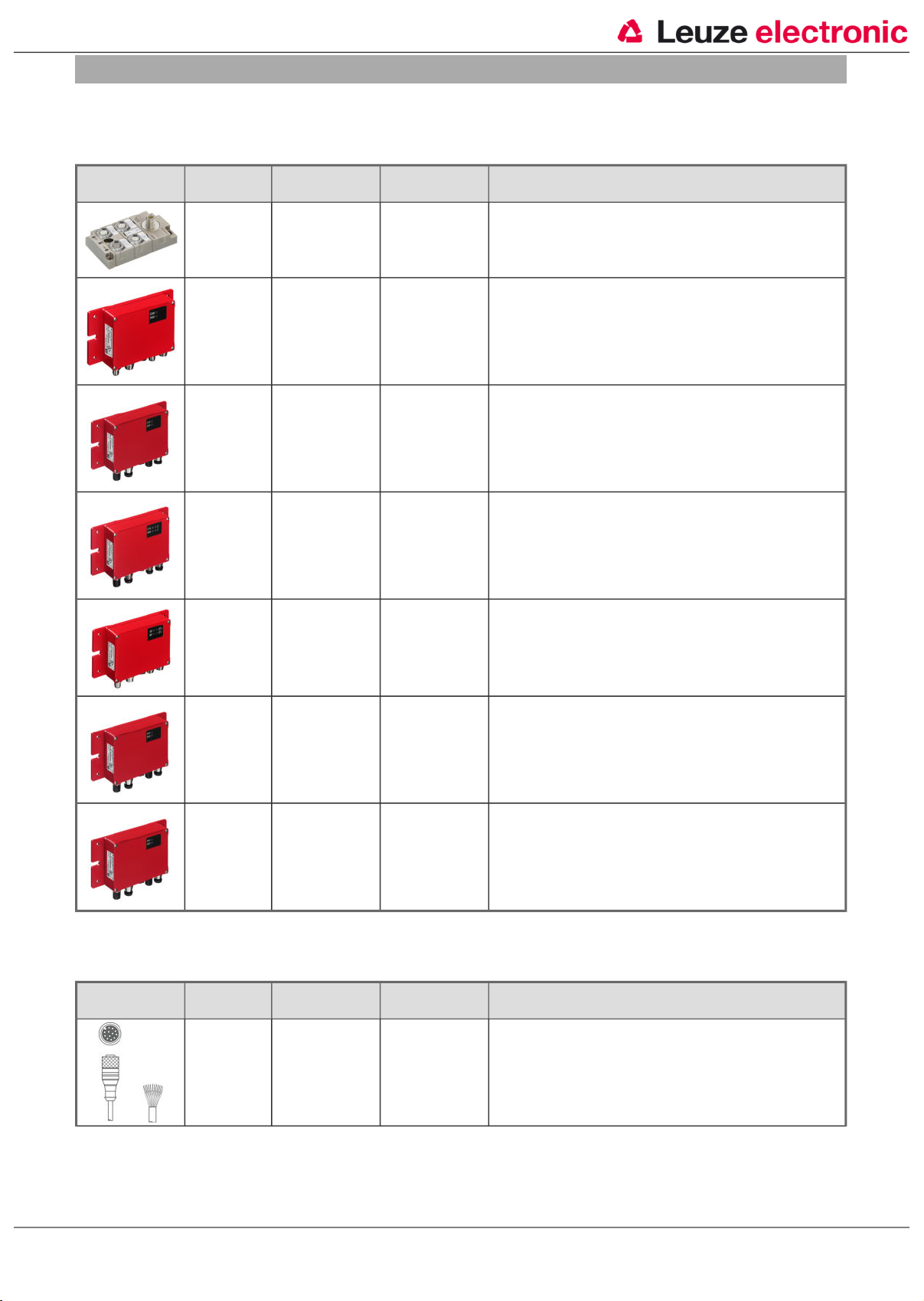

Electrical connection

Connection 1 PWR / SWIO
Type of connection Connector
Function Data interface
Signal OUT Signal IN Voltage supply
Thread size M12
Type Male
Material Metal
No. of pins 12 -pin
Encoding A-coded
eng 2018-02-10
5 / 14
