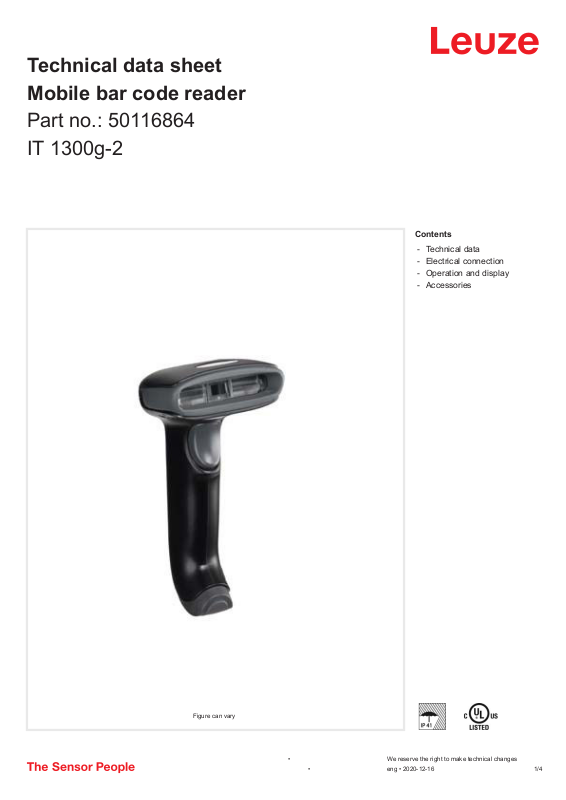

Page 1
Technical data sheet
Mobile bar code reader
Part no.: 50116864
IT 1300g-2
Contents
-
T
echnical data
-
Electrical connection
-
Operation and display
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-12-16
1 /4
Page 2
Mobile bar code reader • Part no.: 50116864 • IT 1300g-2
Technical data
Basic data
Series IT1300
Read data
Code types, readable 2/5 Interleaved
Codabar
Codablock
Code 128
Code 39
Code 93
EAN 128
EAN 8/13
EAN Addendum
GS1 Databar
GS1 Databar Expanded
GS1 Databar Limited
GS1 Databar Omnidirectional
GS1 Databar Stacked
GS1 Databar Truncated
Others on request
UPC
Optical data
Reading distance 10 ... 460 mm
Light source LED
LED group 1
Camera resolution, horizontal 3,648 px
Camera resolution, vertical 1 px
Bar code contrast (PCS) 20 %
Modulus size 0.127 ... 1.4 mm
Electrical data
Performance data
Supply voltage U
Power consumption, max. 1.8 W
B
5 V, DC
Interface
Type RS 232, USB
RS 232
Function Process
USB
Function Process
Connection
Connection 1
Type of connection RJ41
Mechanical data
Dimension (W x H x L) 79 mm x 150 mm x 112 mm
Housing material Plastic
Plastic housing UL 94-V0
Net weight 159 g
Environmental data
Ambient temperature, operation 0 ... 50 °C
Ambient temperature, storage -40 ... 60 °C
Relative humidity (non-condensing) 0 ... 95 %
Drop height 1.5 m
Measurements relative to Concrete floor
Certifications
Degree of protection IP 41
Certifications c UL US
Classification
Customs tariff number 84719000
eCl@ss 5.1.4 27280101
eCl@ss 8.0 27280101
eCl@ss 9.0 27280101
eCl@ss 10.0 27280101
eCl@ss 11.0 27280101
ETIM 5.0 EC002550
ETIM 6.0 EC002550
ETIM 7.0 EC002550
Electrical connection
Connection 1
Function Configuration interface
Data interface
Service interface
Type of connection
Pin Pin assignment
1 Shield
2 Cable ID
3 GND
4 TxD RS 232 / n.c. USB
RJ41
• We reserve the right to make technical changes
• eng • 2020-12-16
1
2
3
4
5
6
10
9
8
7
2 /4
Page 3
Mobile bar code reader • Part no.: 50116864 • IT 1300g-2
Electrical connection
Pin Pin assignment
5 RxD RS 232 / n.c. USB
6 CTS RS 232 / n.c. USB
7 +5 V DC
8 RTS RS 232 / n.c. USB
9 n.c. RS 232 / Data + USB
10 n.c. RS 232 / Data - USB
Operation and display
LED Display Meaning
1 Green, 1x flashing Reading successful
Red No reading result

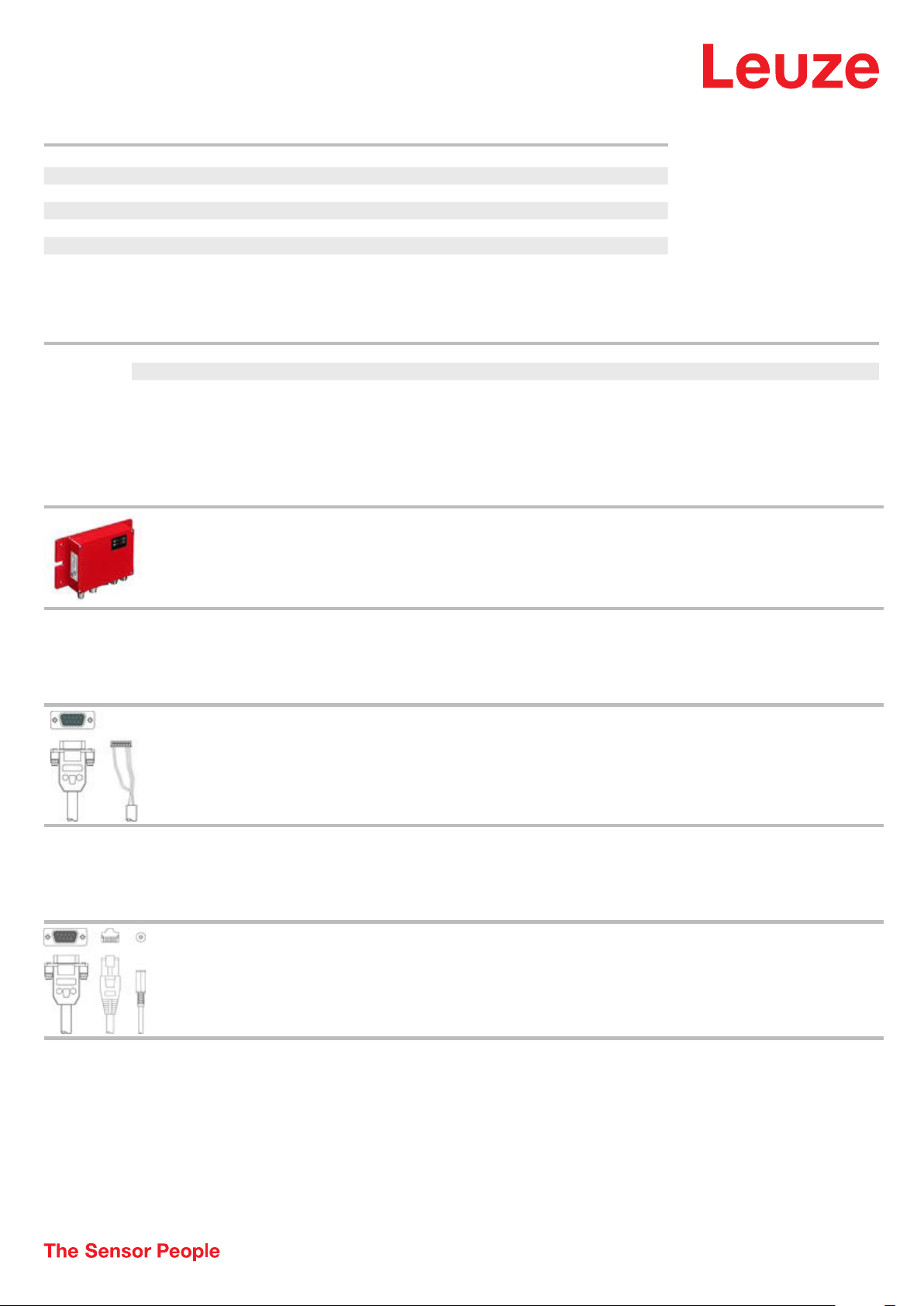

Accessories
Connection technology - Connection unit
Part no. Designation Article Description
50112891 MA 248i Profinet
Connection technology - Interconnection cables
Part no. Designation Article Description
50113397 KB JST-HS-300 Connection cable Suitable for interface: RS 232
Connection technology - Y distribution cables
Part no. Designation Article Description
50114517 KB 232-1 IT190x Interconnection cable Suitable for interface: RS 232, TTL
Gateway
Modular connection
unit
Supply voltage: 18 ... 30 V
Current consumption, max.: 300 mA
Interface: PROFINET, RS 232
Connections: 6 Piece(s)
Degree of protection: IP 65
Connection 1: JST ZHR
Connection 2: Sub-D, Axial, Male, 9 -pin
Shielded: Yes
Cable length: 300 mm
Sheathing material: PUR
Connection 1: Sub-D, Axial, Female, 9 -pin
Connection 2: RJ41
Connection 3: Connector, Pluggable, Axial, Female, 2 -pin
Shielded: Yes
Cable length: 3,000 mm
Sheathing material: PVC
• We reserve the right to make technical changes
• eng • 2020-12-16
3 /4
Page 4
Mobile bar code reader • Part no.: 50116864 • IT 1300g-2

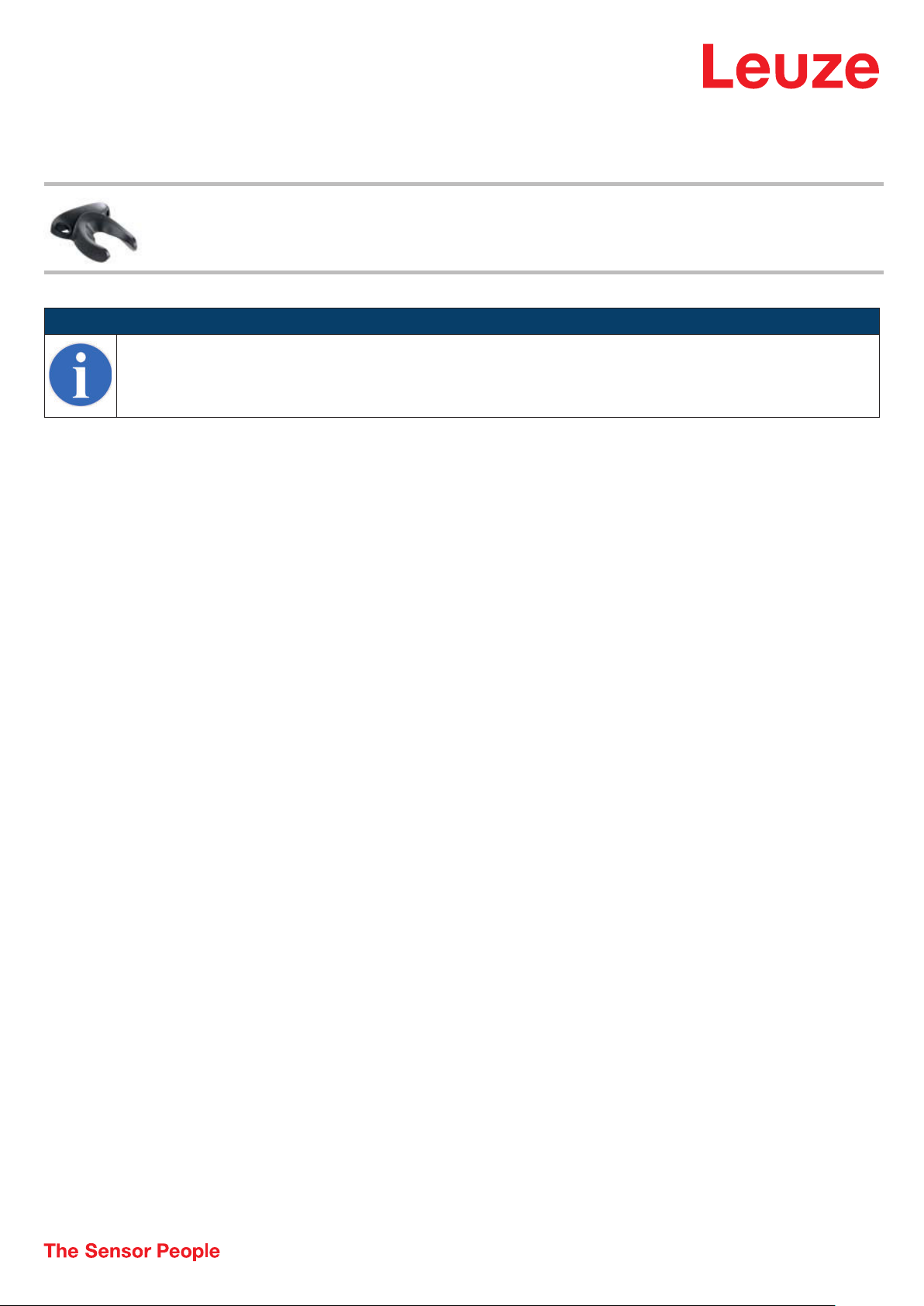

Accessories
Mounting technology - Other
Part no. Designation Article Description
50120444 BT Wallholder
HS65x8
Wall mount Design of mounting device: Wall mounting
Fastening, at system: Through-hole mounting
Mounting bracket, at device: insertable
Material: Plastic
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
