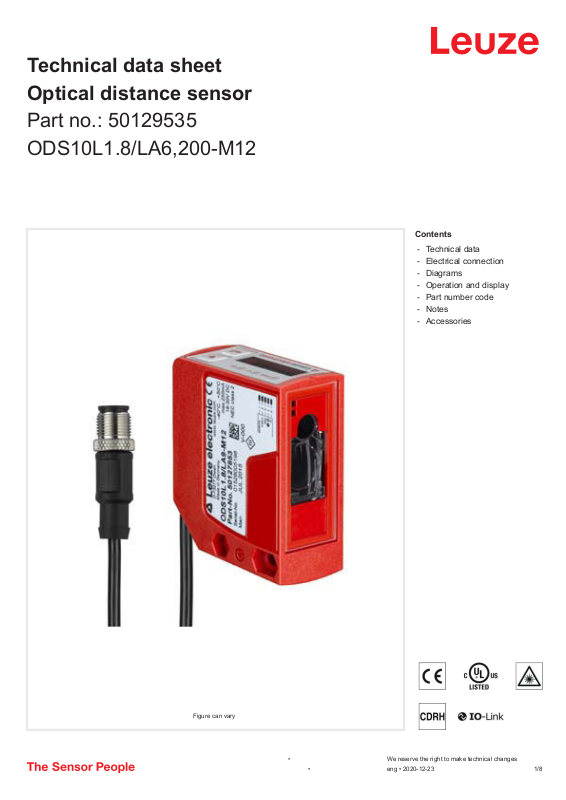

Page 1
Technical data sheet
Optical distance sensor
Part no.: 50129535
ODS10L1.8/LA6,200-M12
Contents
-
Technical data
-
Electrical connection
-
Diagrams
-
Operation and display
-
Part number code
-
Notes
-
Accessories
Figure can vary
• We reserve the right to make technical changes
• eng • 2020-12-23
1 /8
Page 2
Optical distance sensor • Part no.: 50129535 • ODS10L1.8/LA6,200-M12
Technical data
Basic data
Series 10
Application Collision protection for transport vehicles
Fill-level monitoring
Type of scanning system Against object
Characteristic parameters
MTTF 29 years
Optical data
Beam path Collimated
Light source Laser, Red
Laser light wavelength 658 nm
Laser class 1, IEC/EN 60825-1:2007
Transmitted-signal shape Pulsed
Light spot size [at sensor distance] 7 mm x 7 mm [8,000 mm]
Type of light spot geometry Rectangular
Measurement data
Measurement range 50 ... 8,000 mm
Resolution 1.0 mm
Accuracy 15 mm
Measurement time, measure mode "Fast": response time = 15 ms/output
Reproducibility (1 sigma) 4 mm
Temperature drift 2 mm/K
Referencing No
Black/white behavior 10 mm
time = 3.4 ms
"Fast": response time = 50 ms/output
time = 3.4 ms
"High precision": response time = 1000
ms/output time = 3.4 ms
"Individual": response time = 3.4 ... 1020
ms/output time = 3.4 ms
"Outlier suppression": response time =
17 ... 1020 ms/output time = 17 ... 1020
ms
"Precision": response time = 200 ms/
output time = 3.4 ms
Individual measure modes, see diagram
Electrical data
Protective circuit Polarity reversal protection
Short circuit protected
Transient protection
Performance data
Supply voltage U
Residual ripple 0 ... 15 %, From U
Open-circuit current
B
18 ... 30 V, DC
B
0 ... 150 mA
Outputs
Number of analog outputs
Number of digital switching outputs 2 Piece(s)
1 Piece(s)
Analog outputs
Switching outputs
Voltage type DC
Setting for the switching outputs Independently adjustable switching
Switching voltage high: ≥(UB-2V)
outputs
Low: ≤2V
Switching output 1
Assignment
Switching element Transistor, Push-pull
Switching principle IO-Link / light switching (PNP)/dark swit-
Function Independently adjustable switching
Connection 1, pin 4
ching (NPN)
outputs
Switching output 2
Assignment Connection 1, pin 5
Switching element
Switching principle Light switching (PNP)/dark switching
Function Independently adjustable switching
Transistor, Push-pull
(NPN)
outputs
Timing
Readiness delay 300 ms
Interface
Type IO-Link
IO-Link
COM mode COM2
Frame type 2.V
Port type A
Specification V1.1
SIO-mode support
Process data IN 3 byte
Process data OUT 0 byte
Dual-core operating mode Yes
Min. cycle time COM2 = 2.3 ms
Yes
Connection
Number of connections 1 Piece(s)
Connection 1
Function Signal OUT
Voltage supply
Type of connection Cable with connector, Turning, 90°
Cable length 200 mm
Sheathing material PUR
Cable color
Wire cross section
Thread size
Type Male
Material Plastic
No. of pins 5 -pin
Encoding A-coded
Black
0.14 mm²
M12
Analog output 1
Type Configurable, factory setting: current
Assignment
Connection 1, pin 2
• We reserve the right to make technical changes
• eng • 2020-12-23
2 /8
Page 3
Optical distance sensor • Part no.: 50129535 • ODS10L1.8/LA6,200-M12
Technical data
Mechanical data
Design Cubic
Dimension (W x H x L) 25 mm x 65 mm x 55 mm
Lens cover material Glass
Net weight 90 g
Housing color Red
Type of fastening Through-hole mounting
Via optional mounting device
Operation and display
Type of display LED
OLED display
Number of LEDs 5 Piece(s)
Operational controls Control buttons
PC software
Environmental data
Ambient temperature, operation -40 ... 50 °C
Ambient temperature, storage -40 ... 70 °C
Electrical connection
Connection 1
Certifications
Degree of protection IP 67
Protection class III
Certifications c UL US
Classification
Customs tariff number 90318020
eCl@ss 5.1.4 27270801
eCl@ss 8.0 27270801
eCl@ss 9.0 27270801
eCl@ss 10.0 27270801
eCl@ss 11.0 27270801
ETIM 5.0 EC001825
ETIM 6.0 EC001825
ETIM 7.0 EC001825
Function Signal OUT
Voltage supply
Type of connection Cable with connector
Cable length 200 mm
Sheathing material
Cable color Black
Wire cross section 0.14 mm²
Thread size M12
Type Male
Material Plastic
No. of pins 5 -pin
Encoding
PUR
A-coded
Pin Pin assignment
1 18 ... 30 V DC +
2 OUT mA / V
3 GND
4 IO-Link / OUT 1
5 OUT 2
• We reserve the right to make technical changes
• eng • 2020-12-23
3 /8
Page 4
Optical distance sensor • Part no.: 50129535 • ODS10L1.8/LA6,200-M12
2,0
3,0
4,0
2000 4000 6000 80000
y
1,0
2,0
3,0
y
0,5
1,0
1,5
2000 4000 6000 80000
y
Diagrams

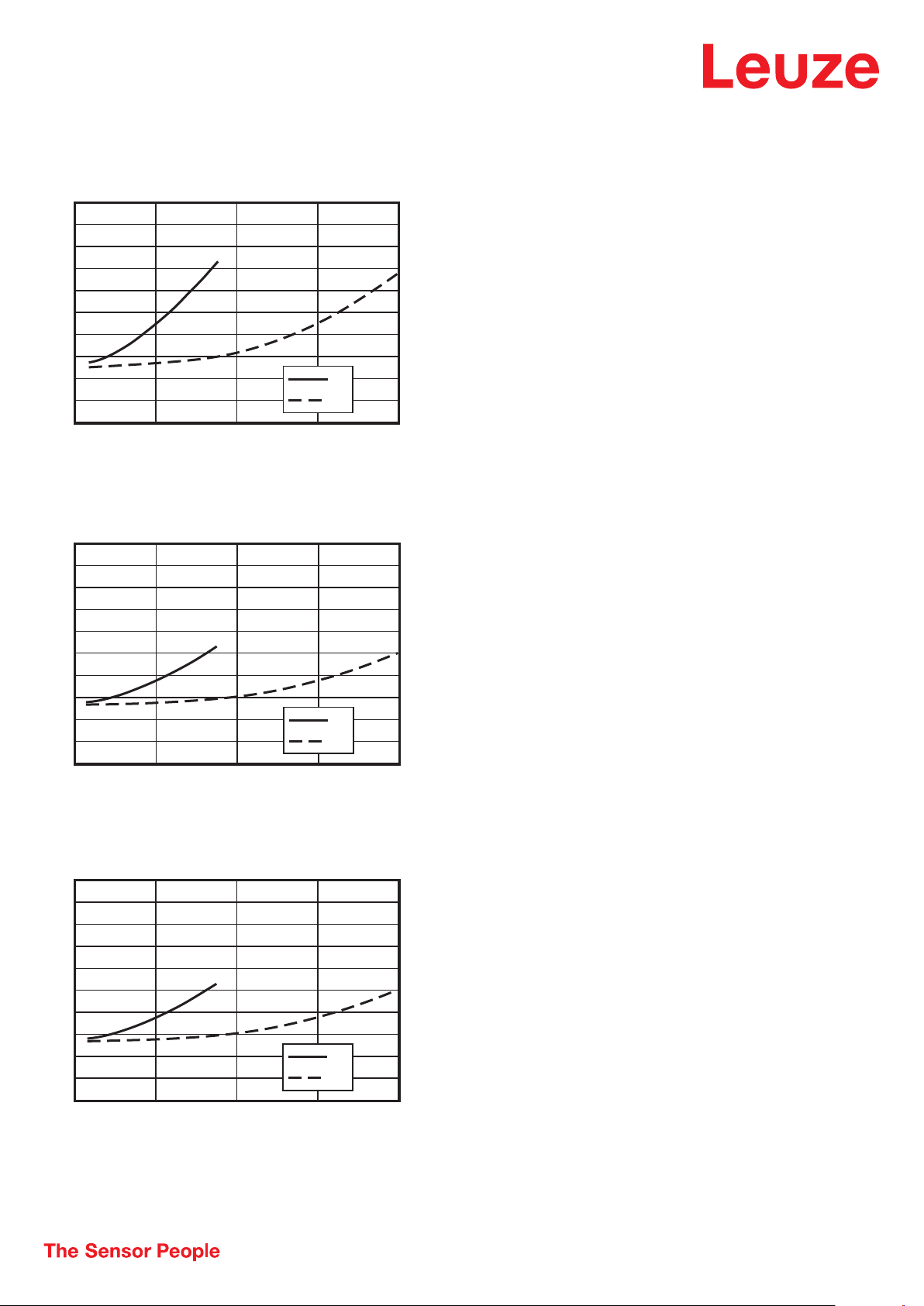

Typical reproducibility: "Fast" measure mode
A
B
x
Typical reproducibility: "Standard" measure mode
x Distance [mm]
y Reproducibility [mm]
A At 6% diffuse reflection
B At 90% diffuse reflection
A
B
x
2000 4000 6000 80000
Typical reproducibility: "Precision" measure mode
x Distance [mm]
y Reproducibility [mm]
A At 6% diffuse reflection
B At 90% diffuse reflection
x Distance [mm]
y Reproducibility [mm]
A At 6% diffuse reflection
B At 90% diffuse reflection
A
B
x
• We reserve the right to make technical changes
• eng • 2020-12-23
4 /8
Page 5
Optical distance sensor • Part no.: 50129535 • ODS10L1.8/LA6,200-M12
0,3
0,4
0,5
2000 4000 6000 80000
y
Diagrams

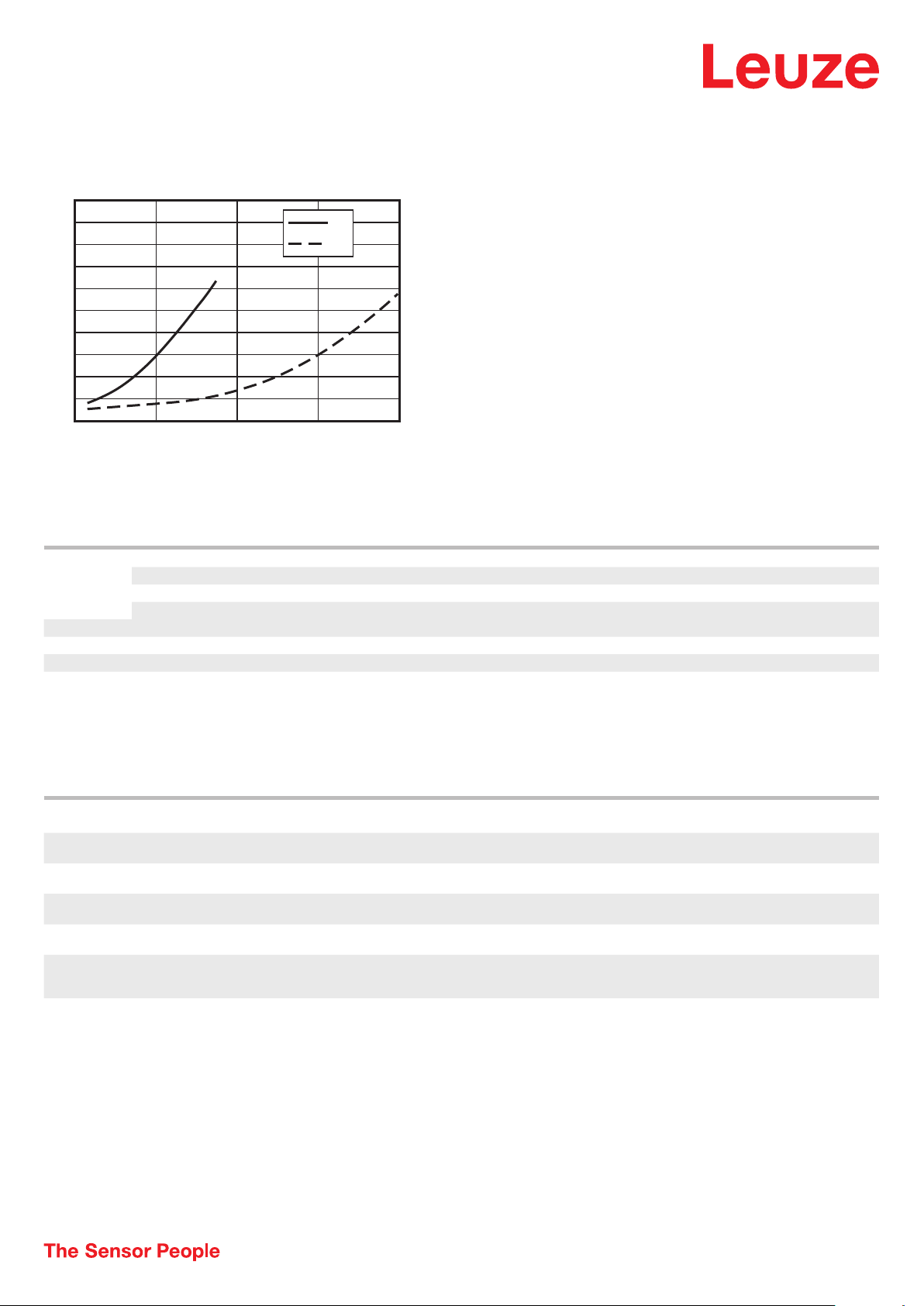

Typical reproducibility: "High precision" measure mode
x Distance [mm]
y Reproducibility [mm]
A
B
A At 6% diffuse reflection
B At 90% diffuse reflection
x
Operation and display
LED Display Meaning
1 PWR Green, continuous light Operational readiness
Red, continuous light Sensor error
Orange, continuous light No function reserve
Off No supply voltage
2 Q1 Yellow, continuous light Object detected
3 Q2 Yellow, continuous light Object detected
4 Yellow, continuous light (behind lens cover) Object detected
5 Yellow, continuous light (behind lens cover) Object detected
Part number code
Part designation: ODS10XX-YYY.Z/ABC,DDD-EEE
ODS10 Operating principle
XX Light source
YYY Measurement range
Z Equipment
A Assignment pin 4
B Assignment pin 2
ODS10: Optical distance sensor
L1: laser class 1
25M: Extended measurement range 50 … 25000 mm, measurement on HighGain tape REF 7-A-100x100
8: OLED display and membrane keyboard for configuration
L: IO-Link (with dual channel, also push/pull switching output)
A: Analog output current (factory setting) and voltage
6: push-pull switching output, PNP light switching, NPN dark switching
• We reserve the right to make technical changes
• eng • 2020-12-23
5 /8
Page 6
Optical distance sensor • Part no.: 50129535 • ODS10L1.8/LA6,200-M12
Part number code
C Assignment pin 5
DDD-EEE Electrical connection
K: Multifunction input (factory setting: deactivation input)
6: push-pull switching output, PNP light switching, NPN dark switching
X: pin not used
M12: M12 connector, 5-pin
200-M12: Cable, length 200 mm with M12 connector, 5-pin
YYYY: Cable, length YYYY mm with wire-end sleeves, 5-wire (no information = standard length 2000 mm)
Note
ª A list with all available device types can be found on the Leuze website at
Notes
Observe intended use!
ª This product is not a safety sensor and is not intended as personnel protection.
ª The product may only be put into operation by competent persons.
ª Only use the product in accordance with its intended use.
For UL applications:
ª For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).
WARNING! LASER RADIATION – CLASS 1 LASER PRODUCT
The device satisfies the requirements of IEC 60825-1:2007 (EN 60825-1:2007) safety regulations for a product of laser class 1 as well as the
U.S. 21 CFR 1040.10 regulations with deviations corresponding to "Laser Notice No. 50" from June 24, 2007.
ª Observe the applicable statutory and local laser protection regulations.
ª The device must not be tampered with and must not be changed in any way.
There are no user-serviceable parts inside the device.
Repairs must only be performed by
Accessories
Connection technology - Connection cables
Part no. Designation Article Description
50133855 KD S-M12-5A-V1- 020 Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 2,000 mm
Sheathing material: PVC
• We reserve the right to make technical changes
• eng • 2020-12-23
6 /8
Page 7
Optical distance sensor • Part no.: 50129535 • ODS10L1.8/LA6,200-M12

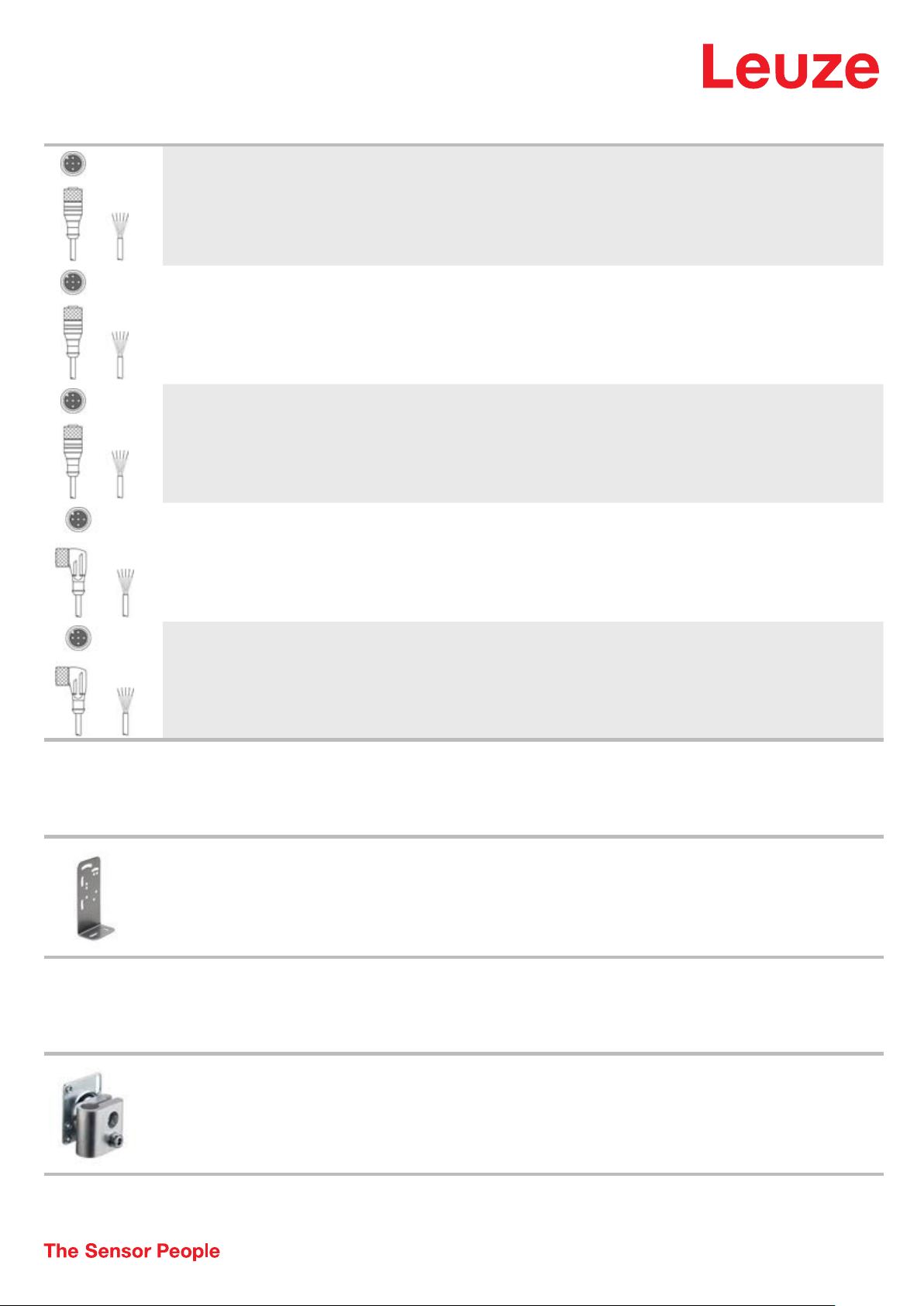

Accessories
Part no. Designation Article Description
50133856 KD S-M12-5A-V1- 050 Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
50132077 KD U-M12-5A-V1-
020
50132079 KD U-M12-5A-V1-
050
50133842 KD U-M12-5W-V1-
020
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection cable Connection 1: Connector, M12, Axial, Female, A-coded, 5 -pin
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 5 -pin
Connection 2: Open end
Shielded: Yes
Cable length: 5,000 mm
Sheathing material: PVC
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
Connection 2: Open end
Shielded: No
Cable length: 2,000 mm
Sheathing material: PVC
50133802 KD U-M12-5W-V1-
Mounting technology - Mounting brackets
050
Connection cable Connection 1: Connector, M12, Angled, Female, A-coded, 5 -pin
Part no. Designation Article Description
50118543 BT 300M.5 Mounting bracket Design of mounting device: Angle, L-shape
Mounting technology - Rod mounts
Part no. Designation Article Description
50117252 BTU 300M-D12 Mounting system Design of mounting device: Mounting system
Connection 2: Open end
Shielded: No
Cable length: 5,000 mm
Sheathing material: PVC
Fastening, at system: Through-hole mounting
Mounting bracket, at device: Screw type, Suited for M4 screws
Type of mounting device: Adjustable
Material: Stainless steel
Fastening, at system: For 12 mm rod, Sheet-metal mounting
Mounting bracket, at device: Screw type, Suited for M4 screws
Type of mounting device: Clampable, Adjustable, Turning, 360°
Material: Metal
• We reserve the right to make technical changes
• eng • 2020-12-23
7 /8
Page 8
Optical distance sensor • Part no.: 50129535 • ODS10L1.8/LA6,200-M12
Accessories
Note
ª A list with all available accessories can be found on the Leuze website in the Download tab of the article detailed page.
• We reserve the right to make technical changes
• eng • 2020-12-23
8 /8
