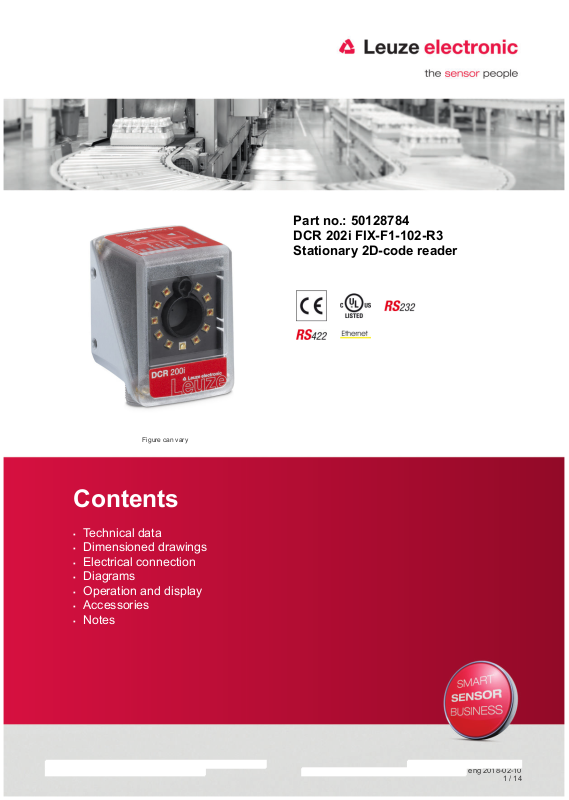

Leuze 50128784 Data Sheet

Figure can vary

Part no.: 50128784
DCR 202i FIX-F1-102-R3
Stationary 2D-code reader

Contents

▪ Technical data
▪ Dimensioned drawings
▪ Electrical connection

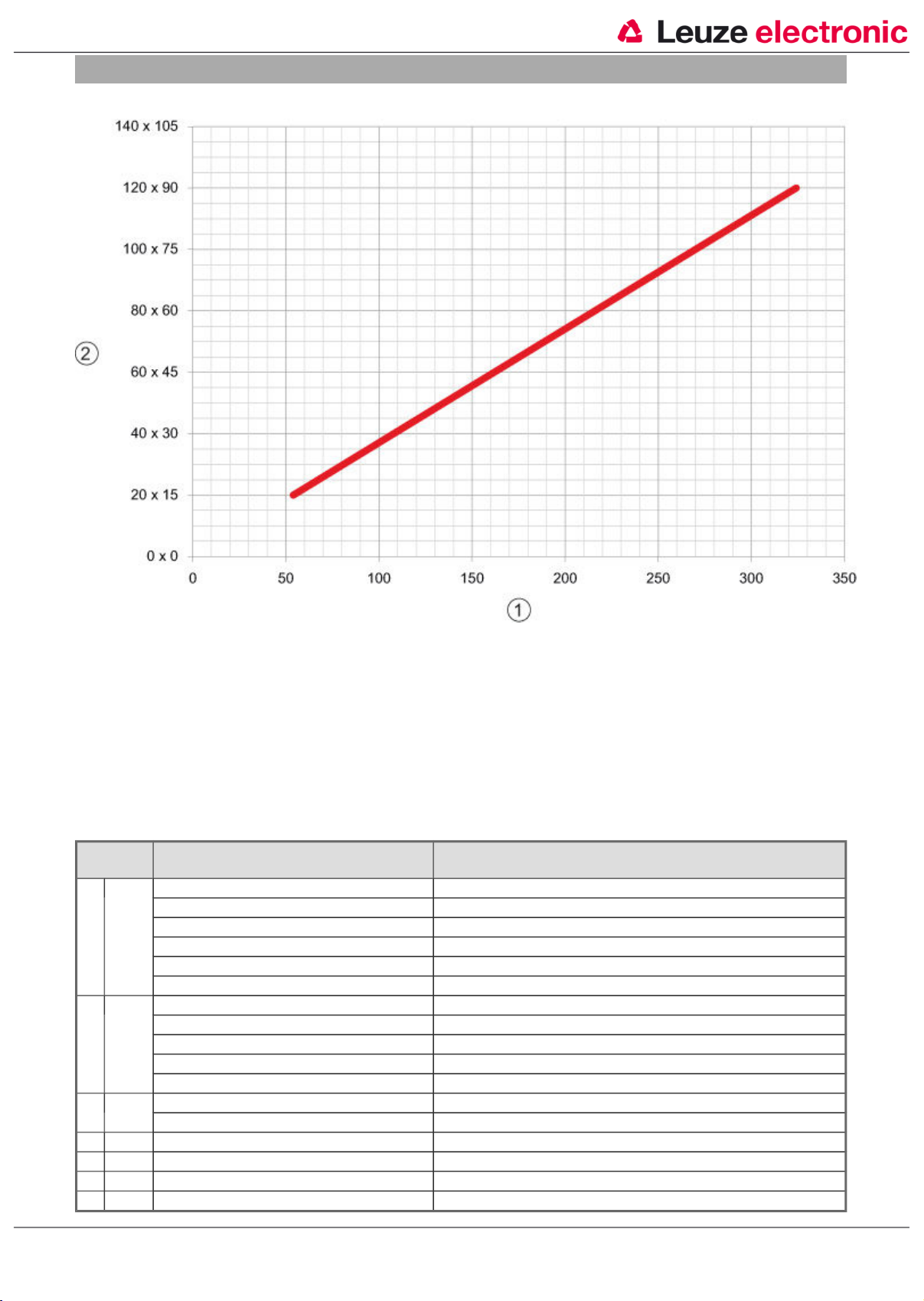

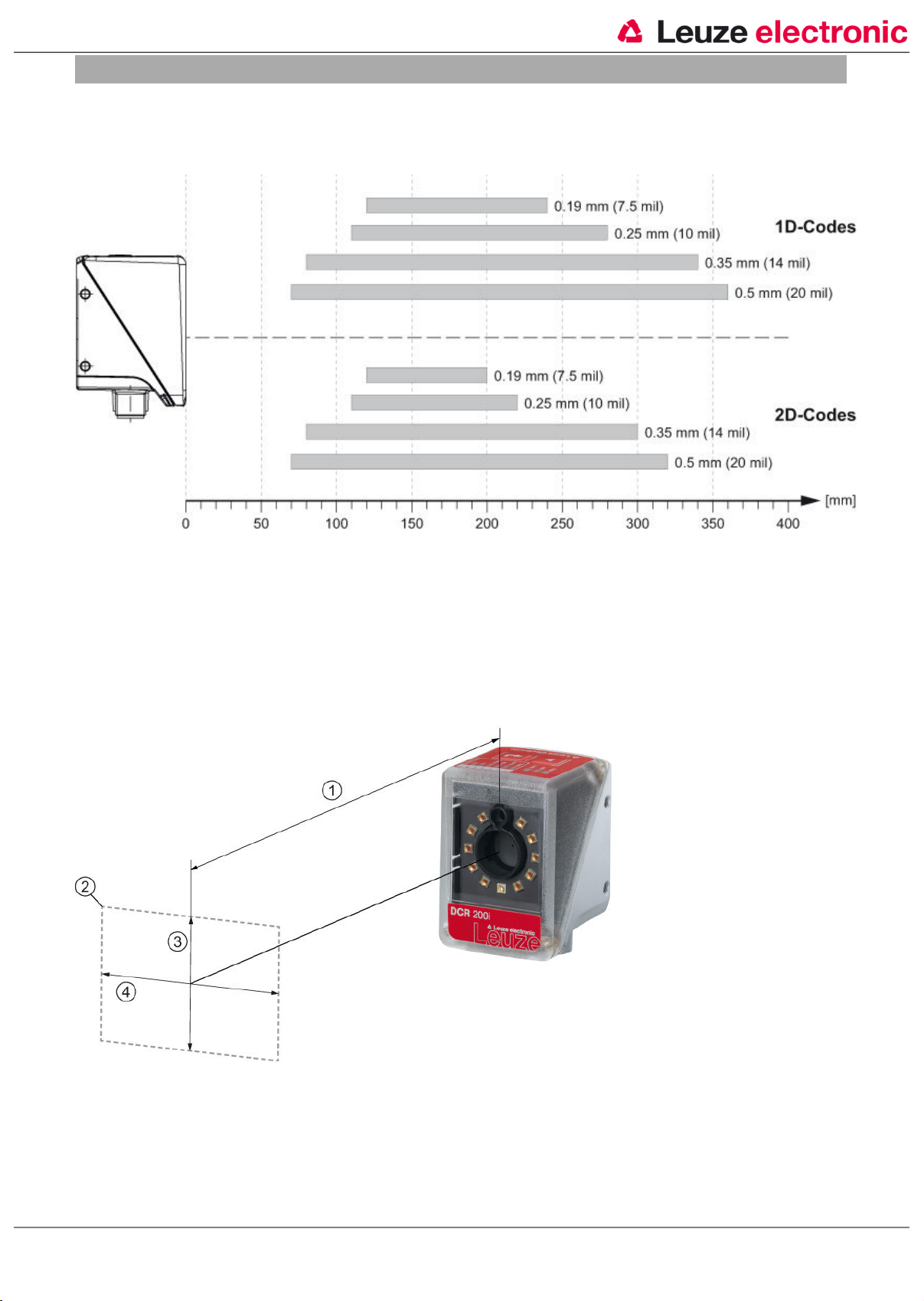

▪ Diagrams
▪ Operation and display

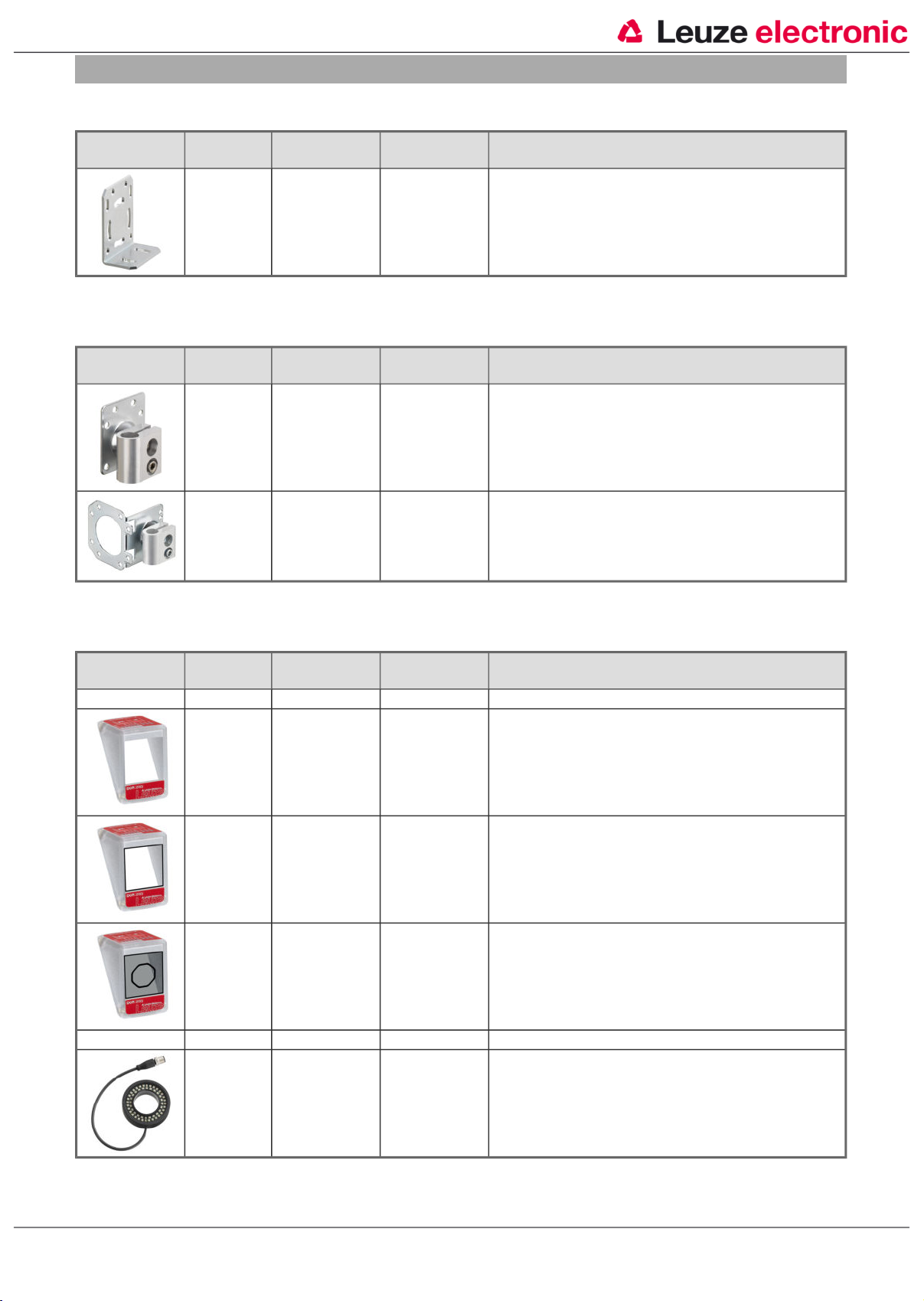

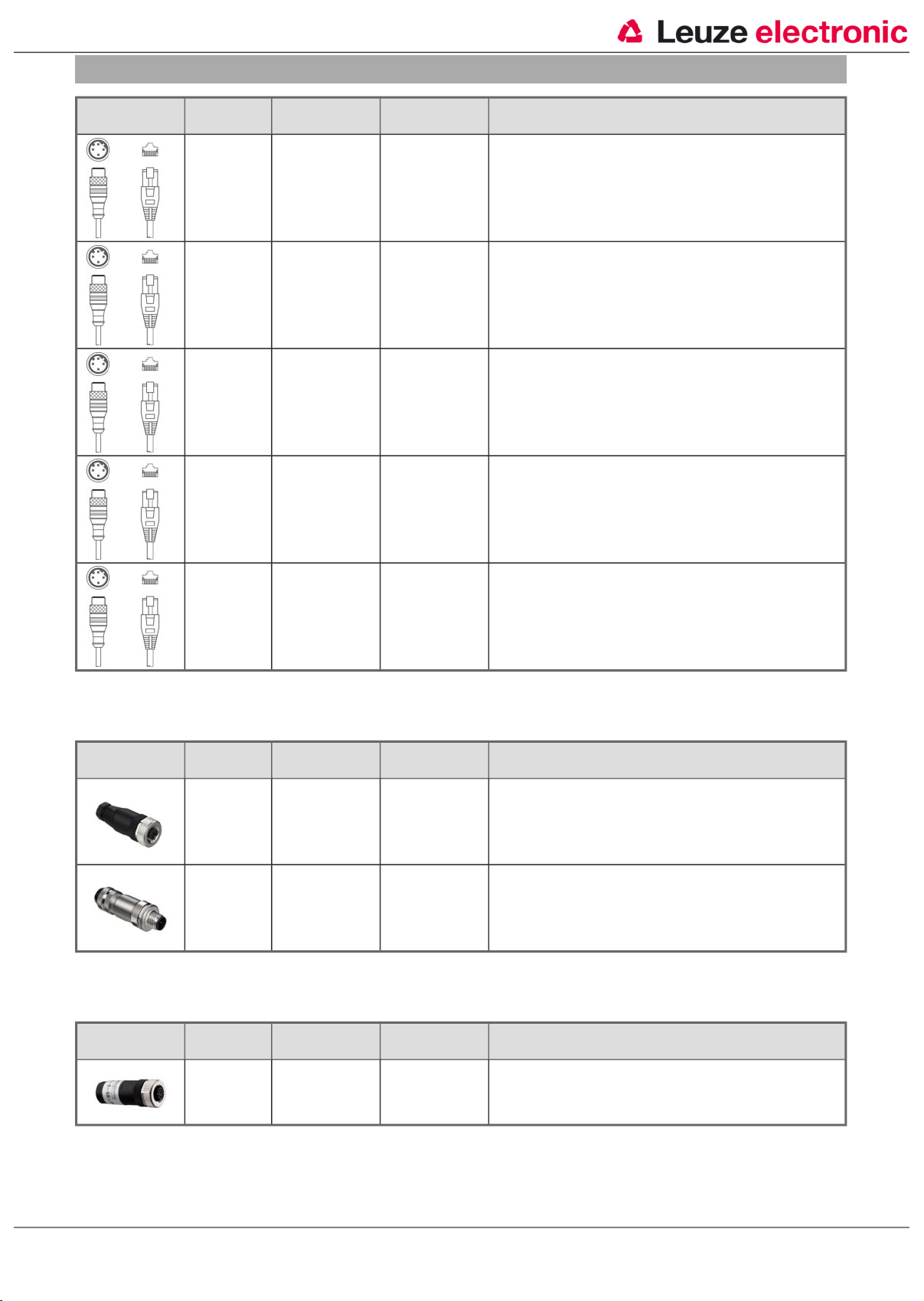

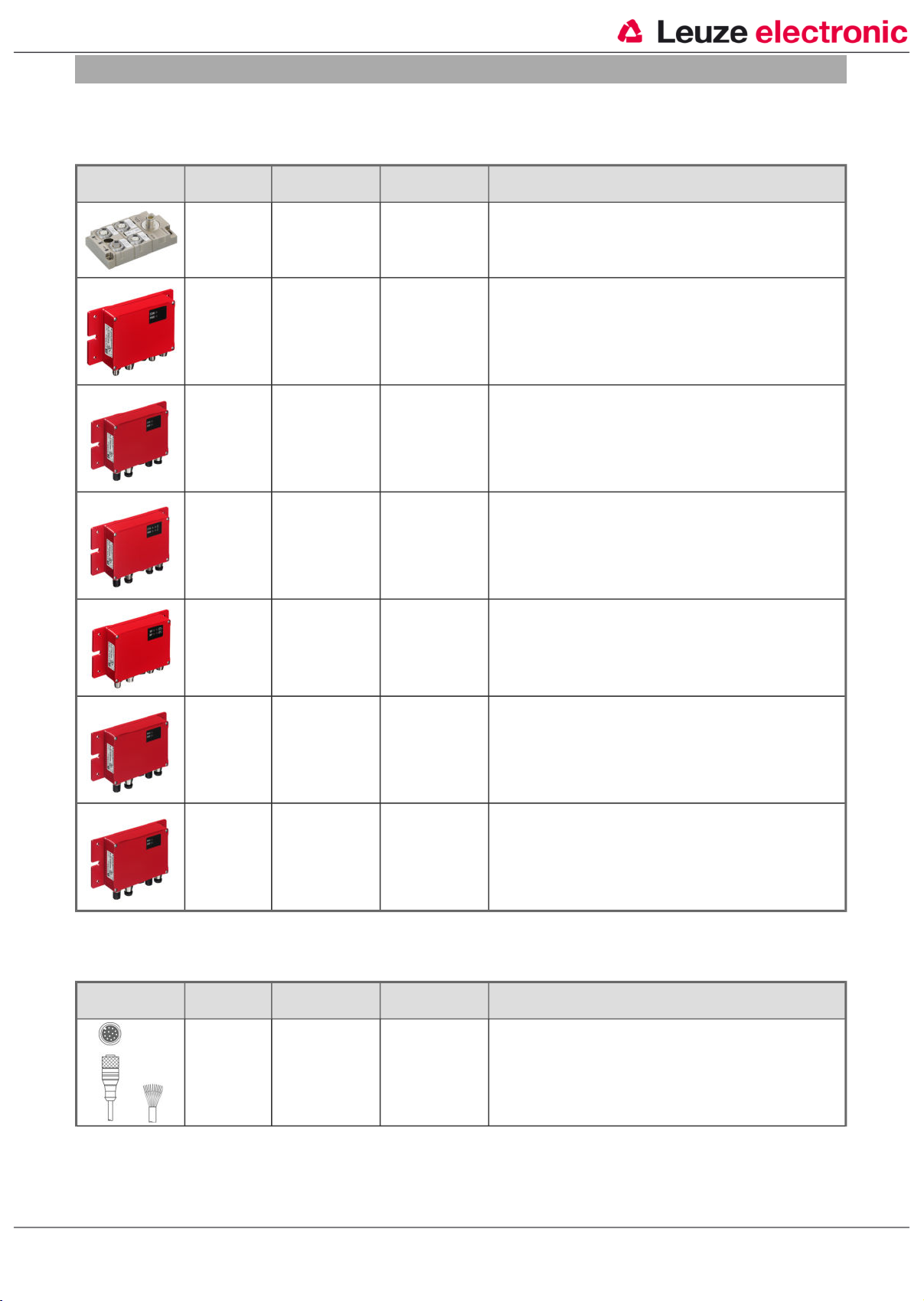

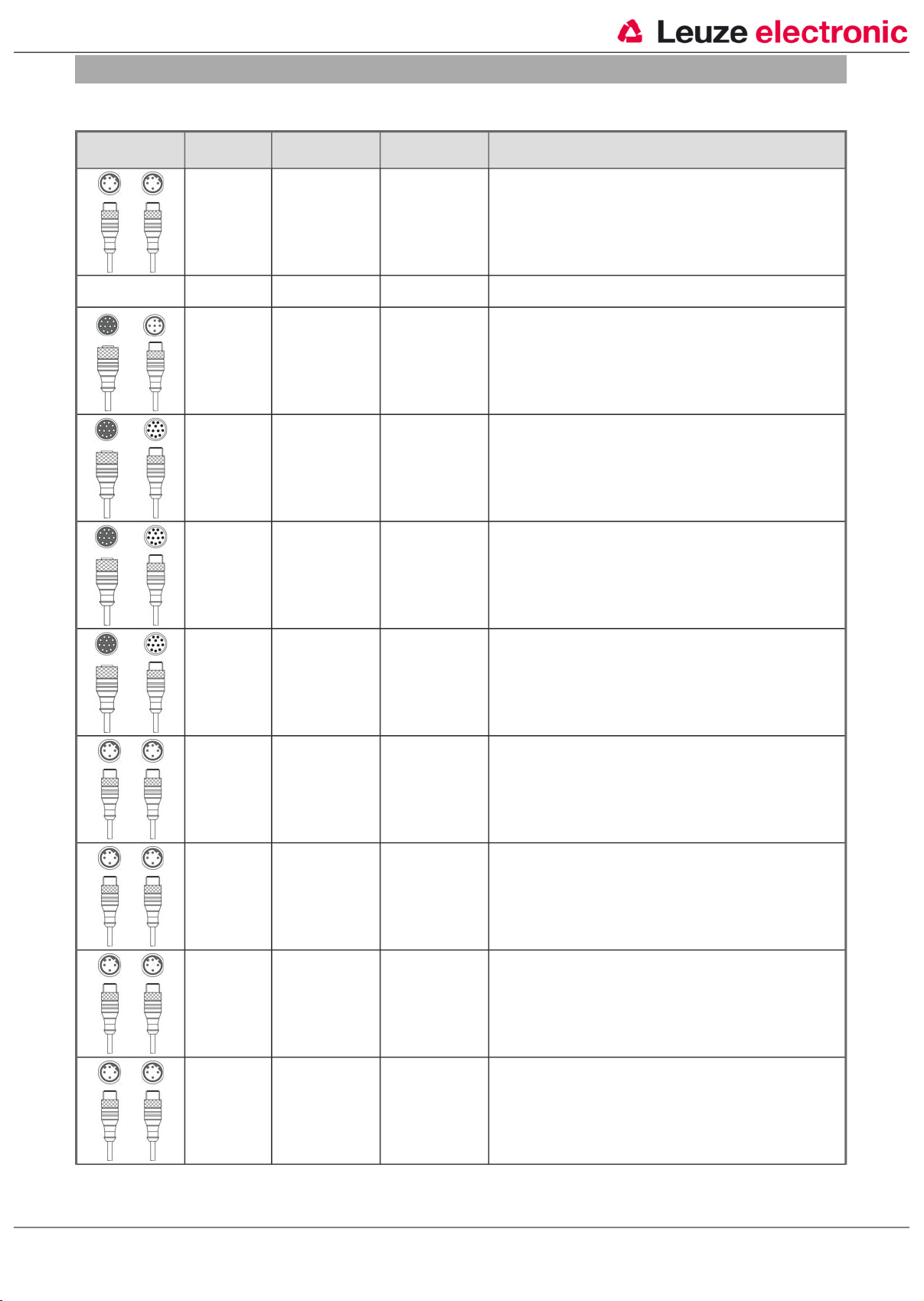

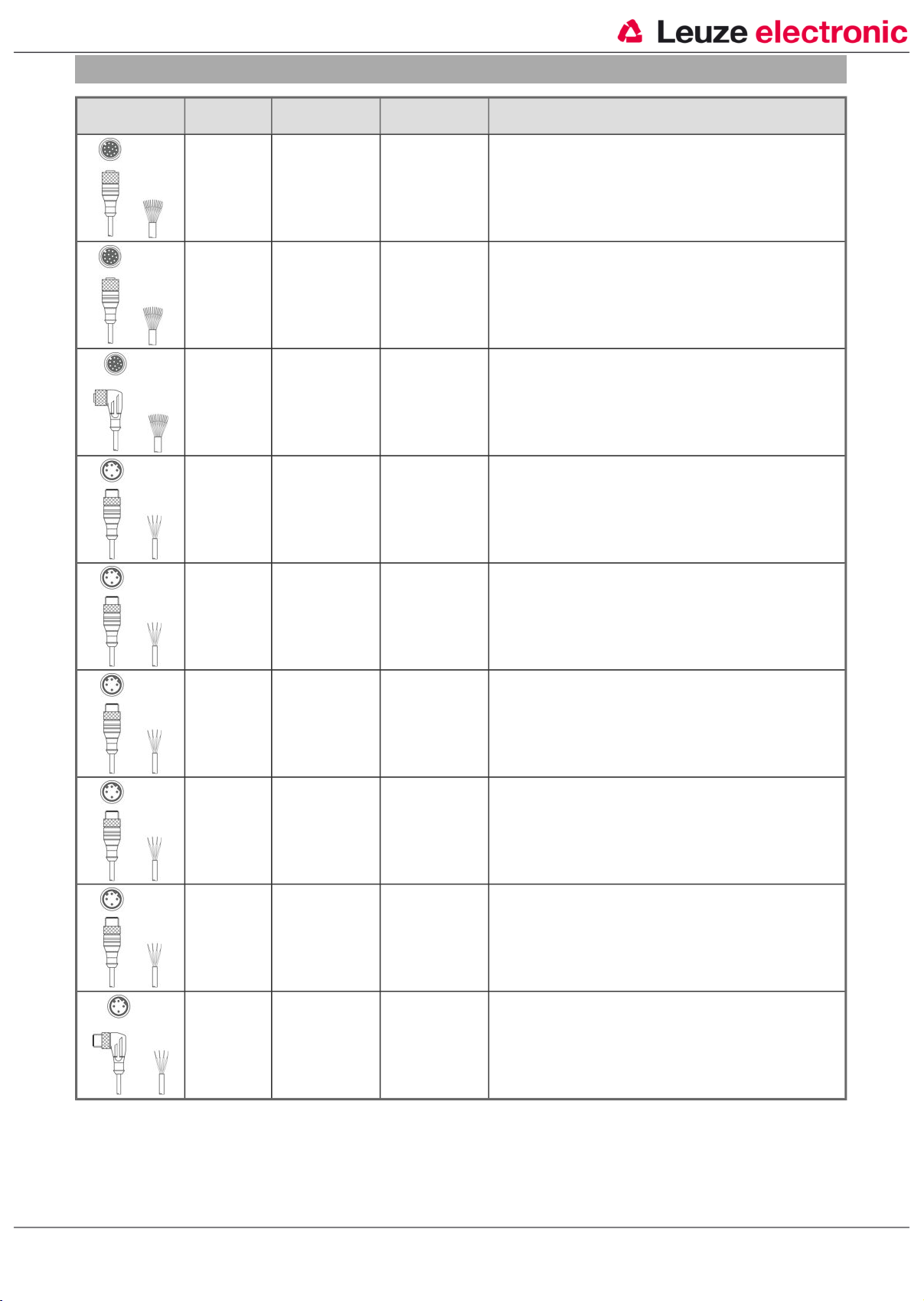

▪ Accessories
▪ Notes

Part no.: 50128784 – DCR 202i FIX-F1-102-R3 – Stationary 2D-code reader

Technical data

Basic data

Series DCR 200i

Functions

Software functions Reading of 1D codes

Read data

Code types, readable Code 32

Reading of 2D codes

EAN 8/13
Pharma Code
EAN 128
GS1 Databar
QR code
PDF417
2/5 Interleaved
GS1 Databar QR code
Aztec
Code 128
Data Matrix Code
GS1 Databar Omnidirectional
UPC
Code 39
GS1 Databar Stacked
Code 93
QR code
Codabar

Optical data

Reading distance 70 ... 360 mm

Light source LED, Red

Transmitted-signal shape Pulsed

Camera resolution, horizontal 1,280 px

Camera resolution, vertical 960 px

Chip CMOS

Module size 0.19 ... 0.5 mm

Electronic shutter speed 0.068 ... 5 ms

Camera type Monochrome

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage 18 ... 30 V, DC

Average power consumption 8 W

Inputs

Number of digital switching inputs 1 Piece(s)

Switching inputs

Type Digital switching input

Voltage type DC

Polarity reversal protection

eng 2018-02-10

2 / 14

Part no.: 50128784 – DCR 202i FIX-F1-102-R3 – Stationary 2D-code reader

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Type Digital switching output

Voltage type DC

Switching current, max. 100 mA

Switching output 1

Switching element Transistor,

Switching principle +24 V switching

Inputs/outputs selectable

Number of inputs/outputs selectable 2 Piece(s)

Type Inputs/outputs selectable

Voltage type DC

Voltage type DC

Interface

Type RS 232, RS 422, Ethernet

RS 232

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 8 data bits

Stop bit 1 stop bit

Parity None

Transmission protocol <STX><data><CR><LF>

Data encoding Binary

RS 422

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 7, 8 data bits

Stop bit 1, 2 stop bits

Parity Adjustable

Transmission protocol Adjustable

Data encoding ASCII

Ethernet

Architecture Client

Address assignment DHCP

Transmission speed 100 Mbit/s

Function Process

Switch functionality None

Transmission protocol TCP/IP , UDP

ASCII

Binary

Server

Manual address assignment

10 Mbit/s

Service interface

Type Ethernet

eng 2018-02-10

3 / 14

Part no.: 50128784 – DCR 202i FIX-F1-102-R3 – Stationary 2D-code reader

Ethernet

Function Service

Connection

Number of connections 2 Piece(s)

Connection 1

Type of connection Connector

Function Signal OUT

Thread size M12

Type Male

Material Metal

No. of pins 12 -pin

Encoding A-coded

Connection 2

Type of connection Connector

Function Data interface

Thread size M12

Type Female

Material Metal

No. of pins 4 -pin

Encoding D-coded

Voltage supply
Signal IN
Data interface

Configuration interface

Mechanical data

Design Cubic

Dimension (W x H x L) 43 mm x 61 mm x 44 mm

Housing material Plastic

Lens cover material Plastic

Net weight 120 g

Housing color Silver

Type of fastening Via optional mounting device

Operation and display

Type of display LED

Number of LEDs 10 Piece(s)

Type of configuration Configuration codes

Operational controls Buttons

Function of the operational control Auto-setup

Environmental data

Ambient temperature, operation 0 ... 50 °C

Ambient temperature, storage -20 ... 70 °C

Relative humidity (non-condensing) 90 %

Metal, Diecast aluminum, PC

Mounting thread

Via web browser
Teach-in

Trigger
Adjustment mode

eng 2018-02-10

4 / 14

Part no.: 50128784 – DCR 202i FIX-F1-102-R3 – Stationary 2D-code reader

Certifications

Degree of protection IP 65

Protection class III

Certifications c UL US

Test procedure for EMC in accordance with standard EN 61000-6-2

Test procedure for continuous shock in accordance with standard IEC 60068-2-29, test Eb

Test procedure for vibration in accordance with standard IEC 60068-2-6, test Fc

Classification

eCl@ss 8.0 27280103

eCl@ss 9.0 27280103

ETIM 5.0 EC002550

Dimensioned drawings

All dimensions in millimeters

EN 61000-6-4

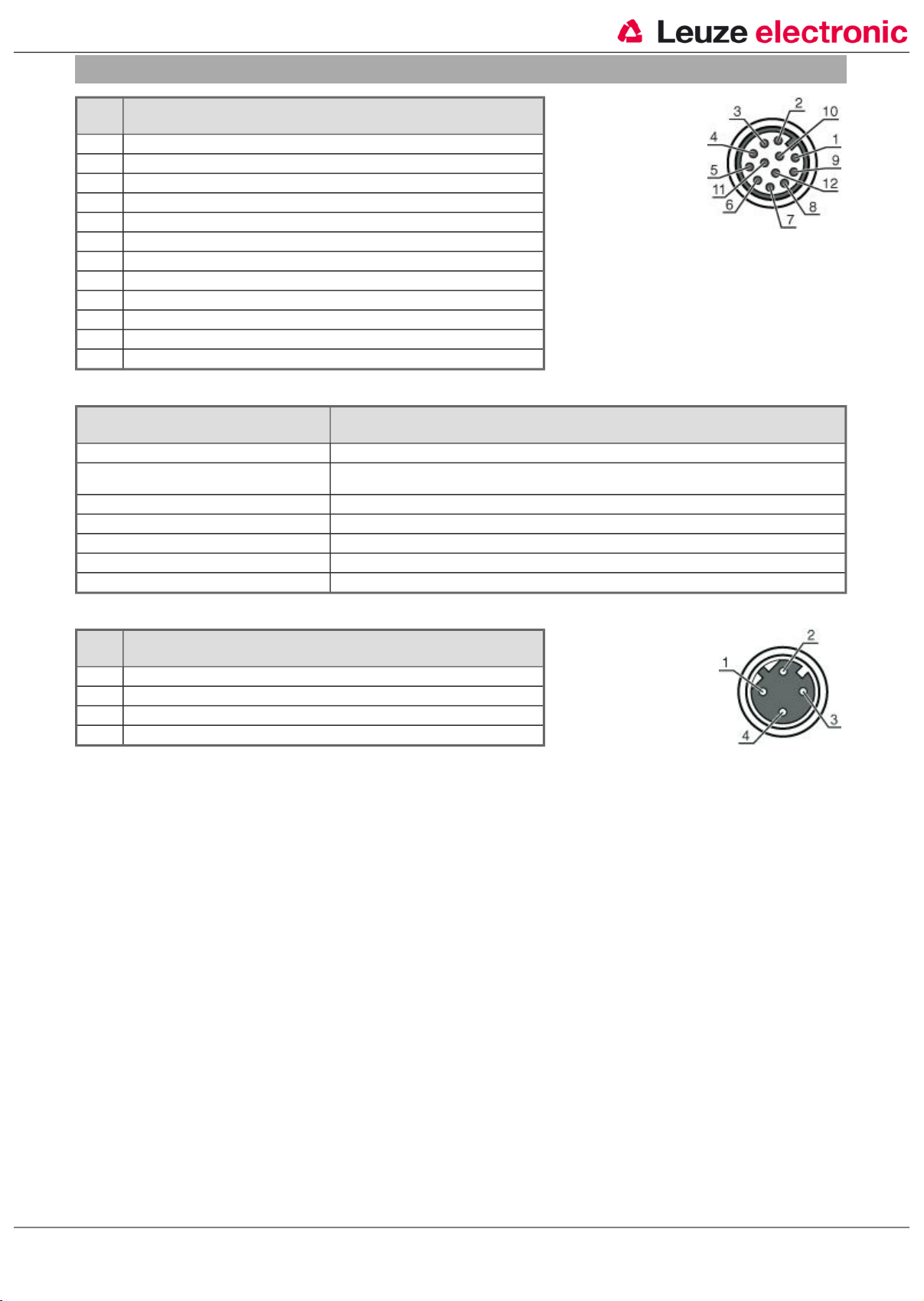

Electrical connection

Connection 1 PWR / SWIO

Type of connection Connector

Function Signal OUT

Voltage supply
Signal IN
Data interface

Thread size M12

Type Male

Material Metal

No. of pins 12 -pin

Encoding A-coded

eng 2018-02-10

5 / 14
