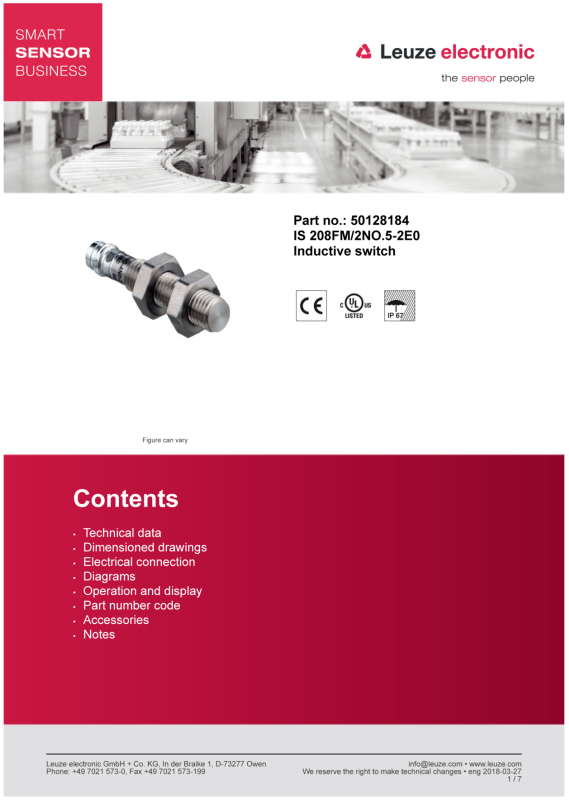

Part no.: 50128184 – IS 208FM/2NO.5-2E0 – Inductive switch
Technical data
Basic data
Series208
Typ. operating range limit S
Operating range S
Special design
Special designReduction factor 1
Electrical data
Protective circuitShort circuit protected
Performance data
Supply voltage10 ... 30 V, DC
Residual ripple0 ... 20 %, From U
Open-circuit current0 ... 10 mA
Temperature drift, max. (in % of Sr)10 %, Over the entire operating temperature range
Repeatability, max. (in % of Sr)5 %, For UB= 20 … 30 V DC, ambient temperature
Switching hysteresis20 %
Outputs
Number of digital switching outputs1 Piece(s)
Switching outputs
Voltage typeDC
Switching current, max.200 mA
Switching voltageLow: ≤2V
Residual current, max.0.1 mA
Voltage drop2 V
Switching output 1
Switching elementTransistor, NPN
Switching principleNO (normally open)
a
n
2 mm
0 ... 1.6 mm
Polarity reversal protection
Inductive protection
B
Ta= 23 °C ± 5 °C
Timing
Switching frequency100 Hz
Readiness delay30 ms
Connection
Number of connections1 Piece(s)
Connection 1
Type of connectionCable
FunctionSignal OUT
Voltage supply
Cable length2,000 mm
Sheathing materialPUR
Cable colorBlack
Number of conductors3 -wire
Wire cross section0.14 mm²
Mechanical data
eng 2018-03-27
2 / 7
Part no.: 50128184 – IS 208FM/2NO.5-2E0 – Inductive switch
DesignCylindrical
Thread sizeM8 x 1 mm
Dimension (Ø x L)8 mm x 45 mm
Type of installationEmbedded
Housing materialStainless steel, V2A
Sensing face materialStainless steel, AISI 303
Net weight50 g
Housing colorSilver
Type of fasteningVia optional mounting device
Standard measuring plate8 x 8 mm², Fe360
Operation and display
Type of displayLED
Number of LEDs1 Piece(s)
Environmental data
Ambient temperature, operation-25 ... 70 °C
Mounting thread
Certifications
Degree of protectionIP 67
Certificationsc UL US
Test procedure for EMC in accordance with standardIEC 61000-4-2
Standards appliedIEC 60947-5-2
Correction factors
Aluminum1
Stainless steel0.4
Copper0.8
Brass1.4
Classification
eCl@ss 8.027270101
eCl@ss 9.027270101
ETIM 5.0EC002714
IP 68
IEC 61000-4-4
IEC 61000-4-3
Dimensioned drawings
All dimensions in millimeters
eng 2018-03-27
3 / 7
Part no.: 50128184 – IS 208FM/2NO.5-2E0 – Inductive switch
AActive surface
BYellow LED
Electrical connection
Connection 1
Type of connectionCable
FunctionSignal OUT
Cable length2,000 mm
Sheathing materialPUR
Cable colorBlack
Number of conductors3 -wire
Wire cross section0.14 mm²
Conductor colorConductor assignment
BrownV+
BlueGND
BlackOUT 1
Voltage supply
eng 2018-03-27
4 / 7
Part no.: 50128184 – IS 208FM/2NO.5-2E0 – Inductive switch

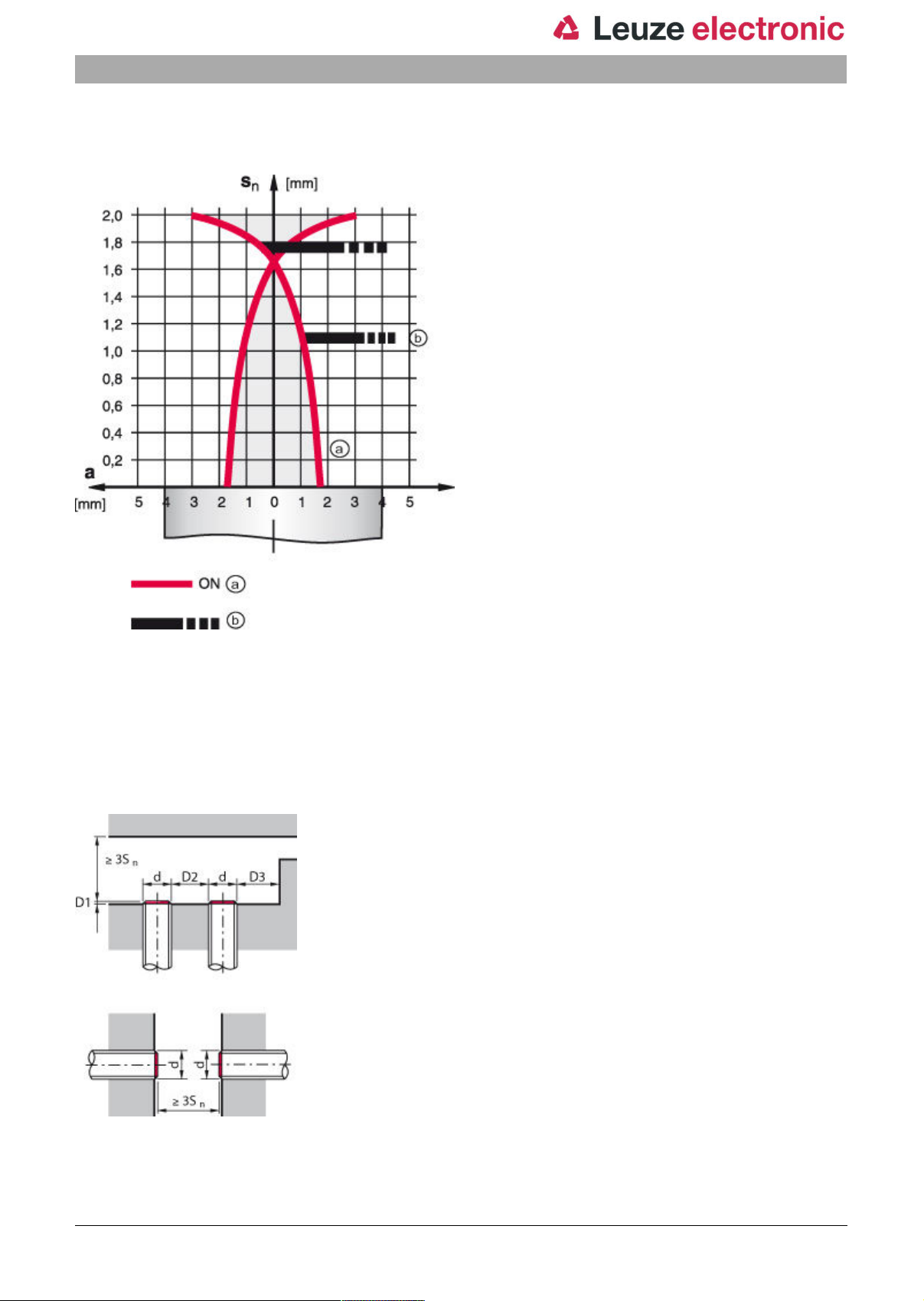

Diagrams
Embedded installation
Sn[mm]
D1 [mm]0
D2 [mm]12
D3 [mm]1
2
Types with Sn= 2.0 mm
aInductive switch
b
Standard measuring plate
eng 2018-03-27
5 / 7
Part no.: 50128184 – IS 208FM/2NO.5-2E0 – Inductive switch
Operation and display
LEDs
LEDDisplayMeaning
1Yellow, flashingNo function reserve
Yellow, continuous lightSwitching output/switching state
Part number code
Part designation: ISX YYY ZZ/AAA.BB-CCC-DDD-DDD
ISXOperating principle / construction:
YYYSeries:
ZZHousing / thread:
AAAOutput current / supply:
BBSpecial equipment:
CCCMeasurement range / type of installation:
DDDElectrical connection:
IS: inductive switch, standard design
ISS: inductive switch, short construction
203: series with Ø 3 mm
204: series with Ø 4 mm
205: series with M5 x 0.5 external thread
206: series with Ø 6.5 mm
208: series with M8 x 1 external thread
212: series with M12 x 1 external thread
218: series with M18 x 1 external thread
230: series with M30 x 1.5 external thread
240: series in cubic design
244: series in cubic design
255: series with 5 x 5 mm² cross section
288: series with 8 x 8 mm² cross section
n/a: no special equipment
5F: food version
5: housing material V2A (1.4305, AISI 303)
1E0: typ. scanning range limit 1.0 mm / embedded installation
1E5: typ. scanning range limit 1.5 mm / embedded installation
2E0: typ. scanning range limit 2.0 mm / embedded installation
3E0: typ. scanning range limit 3.0 mm / embedded installation
4E0: typ. scanning range limit 4.0 mm / embedded installation
5E0: typ. scanning range limit 5.0 mm / embedded installation
6E0: typ. scanning range limit 6.0 mm / embedded installation
8E0: typ. scanning range limit 8.0 mm / embedded installation
10E: typ. scanning range limit 10.0 mm / embedded installation
12E: typ. scanning range limit 12.0 mm / embedded installation
20E: typ. scanning range limit 20.0 mm / embedded installation
22E: typ. scanning range limit 22.0 mm / embedded installation
2N5: typ. scanning range limit 2.5 mm / non-embedded installation
4N0: typ. scanning range limit 4.0 mm / non-embedded installation
8N0: typ. scanning range limit 8.0 mm / non-embedded installation
10N: typ. scanning range limit 10.0 mm / non-embedded installation
12N: typ. scanning range limit 12.0 mm / non-embedded installation
15N: typ. scanning range limit 15.0 mm / non-embedded installation
20N: typ. scanning range limit 20.0 mm / non-embedded installation
25N: typ. scanning range limit 25.0 mm / non-embedded installation
40N: typ. scanning range limit 40.0 mm / non-embedded installation
n/a: cable, PVC, standard length 2000 mm
S12: M12 connector, 4-pin, axial
200-S12: cable, PVC, length 200 mm with M12 connector, 4-pin, axial
Note
A list with all available device types can be found on the Leuze electronic website at www.leuze.com.
eng 2018-03-27
6 / 7
Part no.: 50128184 – IS 208FM/2NO.5-2E0 – Inductive switch
Accessories
Mounting technology - Mounting brackets
Part no.DesignationArticleDescription
50113550BT D08M.5Mounting bracket Diameter, inner: 8 mm
Design of mounting device: Angle, L-shape
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Screw type
Type of mounting device: Rigid
Material: Stainless steel
Diameter, inner: 8 mm
Design of mounting device: Mounting clamp
Mounting bracket, at system: Screw type, Through-hole
mounting
Mounting bracket, at device: Insertable, Clampable with limit
stop
Type of mounting device: Clampable, With limit stop
Material: Metal
Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable
Type of mounting device: Rigid
Material: Plastic
Design of mounting device: Mounting clamp
Mounting bracket, at system: Through-hole mounting
Mounting bracket, at device: Clampable with limit stop
Type of mounting device: Rigid
Material: Plastic
Notes
Observe intended use!
•This product is not a safety sensor and is not intended as personnel protection.
•The product may only be put into operation by competent persons.
•Only use the product in accordance with its intended use.
For UL applications:
•For UL applications, use is only permitted in Class 2 circuits in accordance with the NEC (National Electric Code).
eng 2018-03-27
7 / 7
