Leuze 50128149 Data Sheet

Part no.: 50128149 – IS 212MM/1NC.3-2E0 – Inductive switch

Technical data

Basic data

Series 212

Typ. operating range limit S

Operating range S

Measurement data

Repeatability 0.5 mm

Electrical data

Protective circuit Inductive protection

Performance data

Supply voltage 10 ... 320 V, AC/DC

Residual ripple 0 ... 20 %, From U

Open-circuit current 0 ... 1 mA

Temperature drift, max. (in % of Sr) 10 %, Over the entire operating temperature range

Repeatability, max. (in % of Sr) 5 %, For UB= 20 … 30 V DC, ambient temperature

Switching hysteresis 20 %

Outputs

Number of digital switching outputs 1 Piece(s)

Switching outputs

Voltage type AC/DC

Switching current, max. 200 mA

Switching voltage low: ≤6V

Voltage drop 6 V

Switching output 1

Switching element Relay, NC

Switching principle NC (normally closed)

a

n

2 mm

0 ... 1.6 mm

Polarity reversal protection
Short circuit protected

B

Ta= 23 °C ± 5 °C

Timing

Switching frequency 3,000 Hz

Oscillator frequency 350,000 Hz

Readiness delay 10 ms

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Cable

Function Voltage supply

Cable length 2,000 mm

Sheathing material PVC

Cable color Black

Number of conductors 2 -wire

Wire cross section 0.34 mm²

Mechanical data

eng 2018-03-27

2 / 7

Part no.: 50128149 – IS 212MM/1NC.3-2E0 – Inductive switch

Design Cylindrical

Thread size M12 x 1 mm

Dimension (Ø x L) 12 mm x 52 mm

Type of installation Embedded

Housing material Metal, Chromed brass

Sensing face material Plastic, Polybutylene (PBT)

Net weight 93 g

Housing color Silver

Type of fastening Mounting thread

Standard measuring plate 12 x 12 mm², Fe360

Operation and display

Type of display LED

Number of LEDs 1 Piece(s)

Environmental data

Ambient temperature, operation -25 ... 70 °C

Via optional mounting device

Certifications

Degree of protection IP 67

Test procedure for EMC in accordance with standard IEC 61000-4-4

Standards applied IEC 60947-5-2

Correction factors

Aluminum 0.27

Stainless steel 0.78

Copper 0.23

Brass 0.4

Fe360 steel 1

Classification

eCl@ss 8.0 27270101

eCl@ss 9.0 27270101

ETIM 5.0 EC002714

IEC 61000-4-3
IEC 61000-4-2

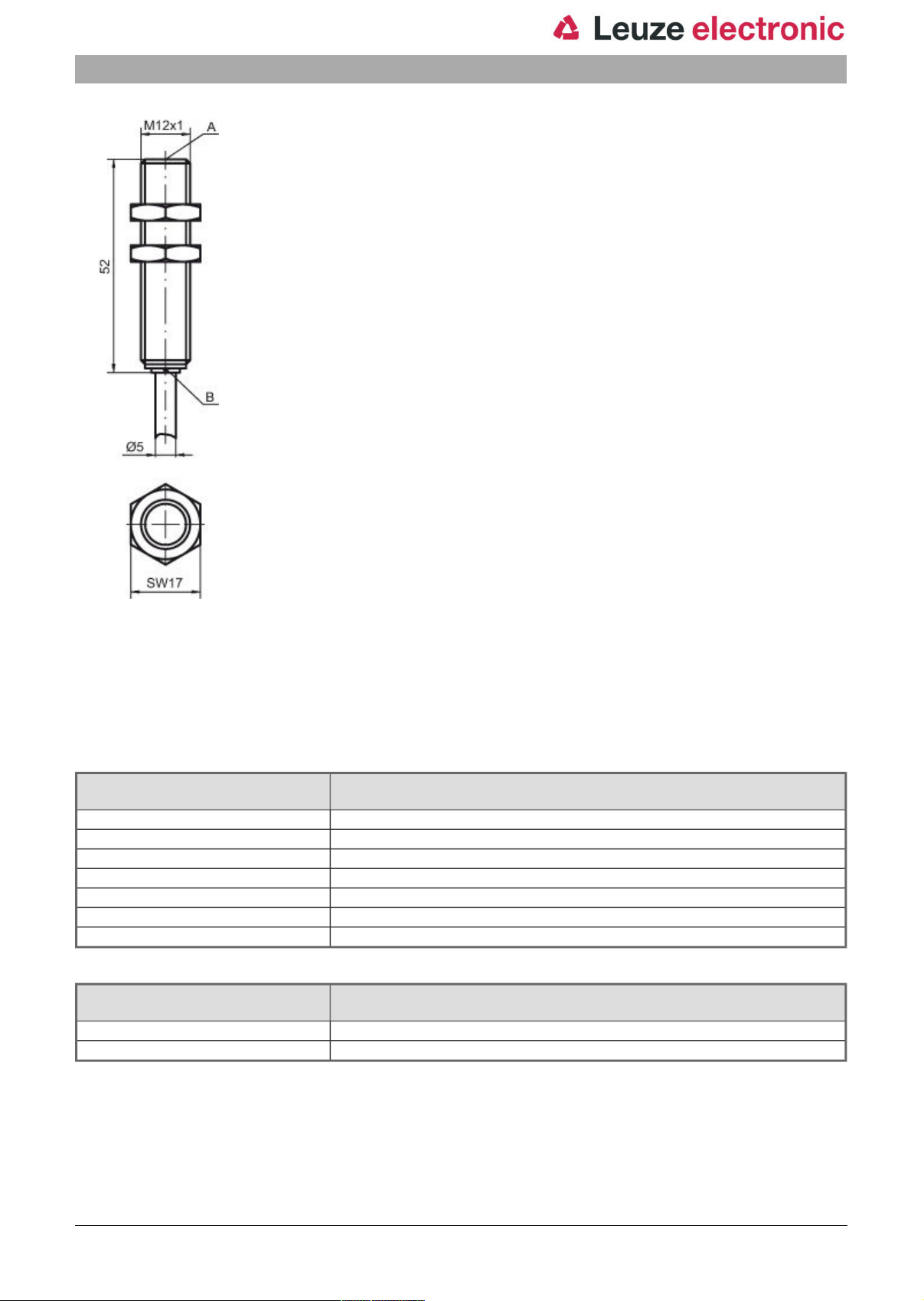

Dimensioned drawings

All dimensions in millimeters
