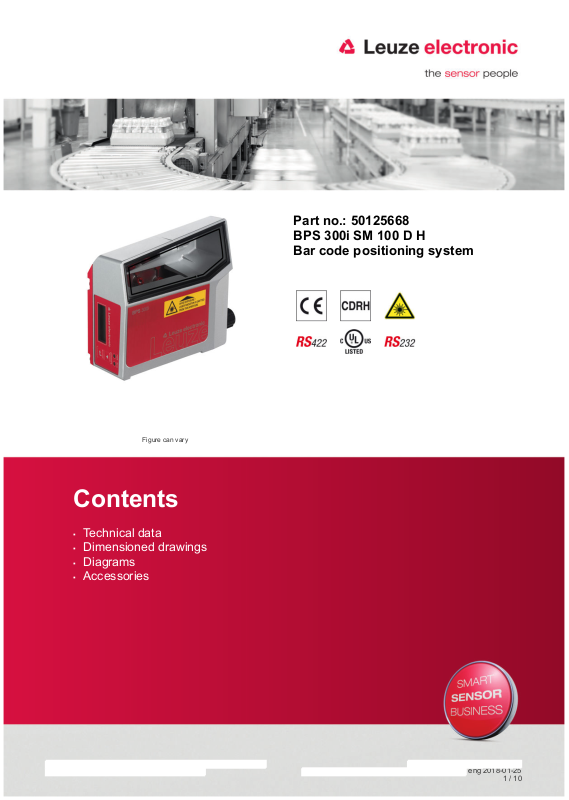

Leuze 50125668 Data Sheet

Figure can vary

Part no.: 50125668
BPS 300i SM 100 D H
Bar code positioning system

Contents

▪ Technical data
▪ Dimensioned drawings

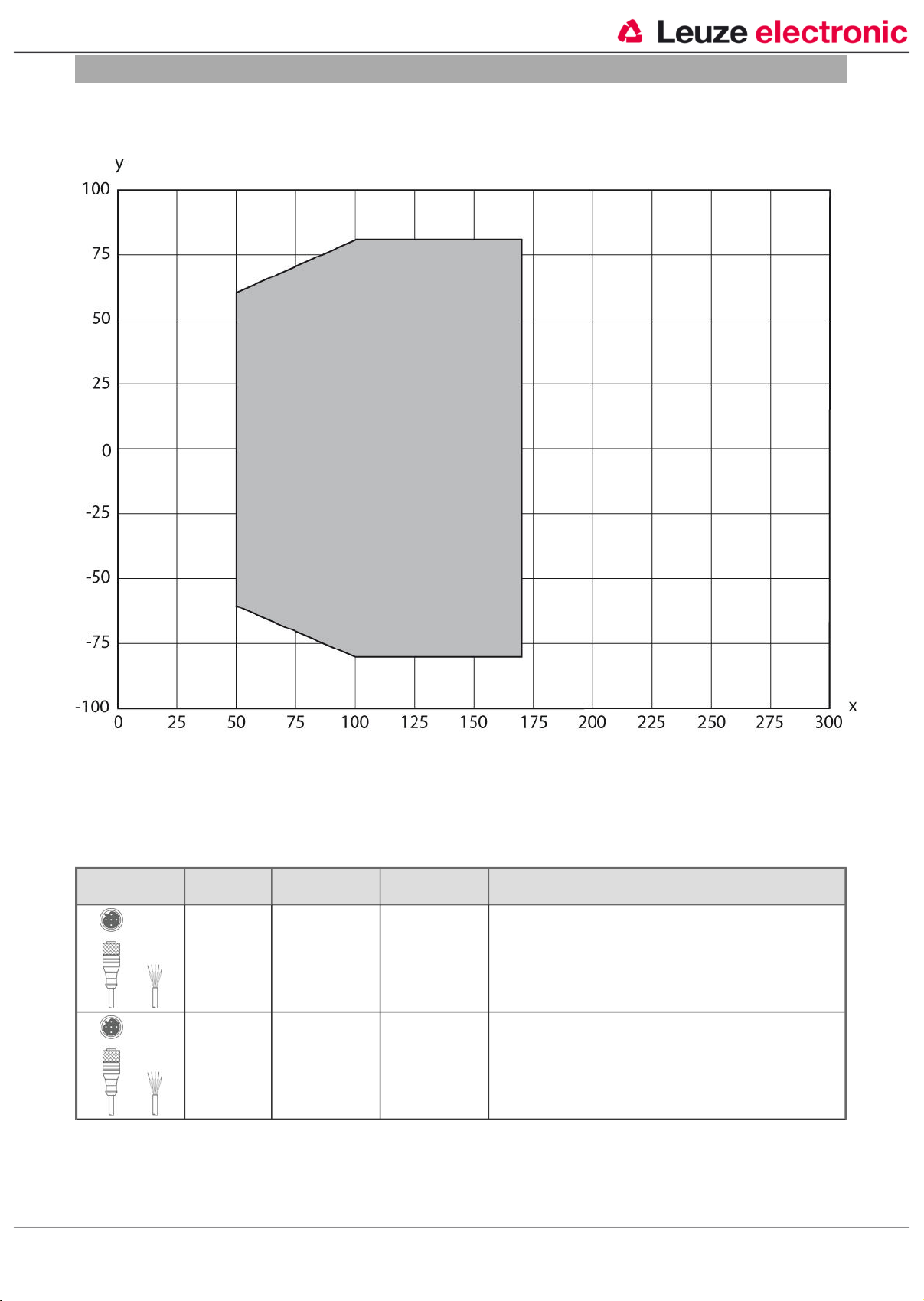

▪ Diagrams

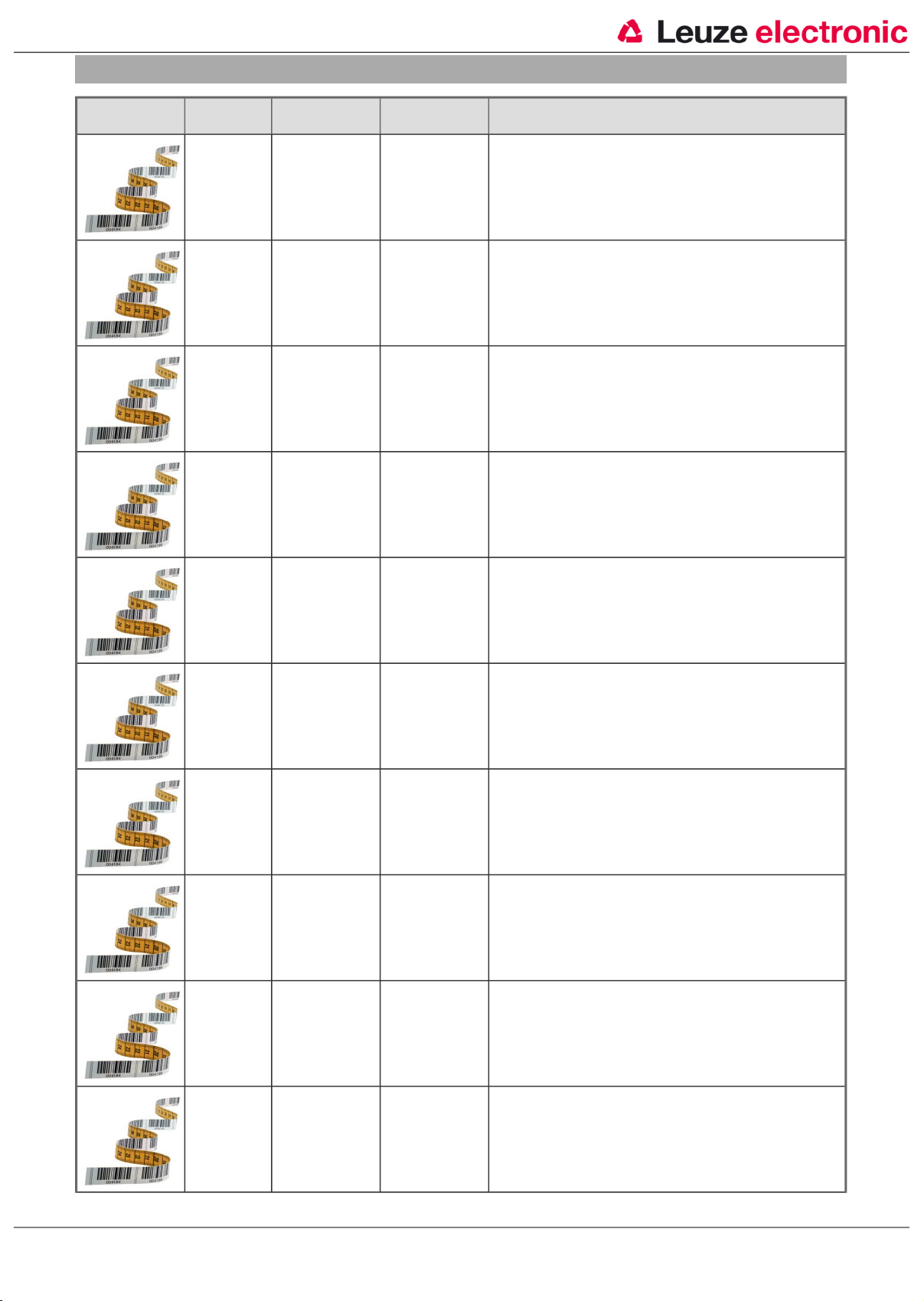

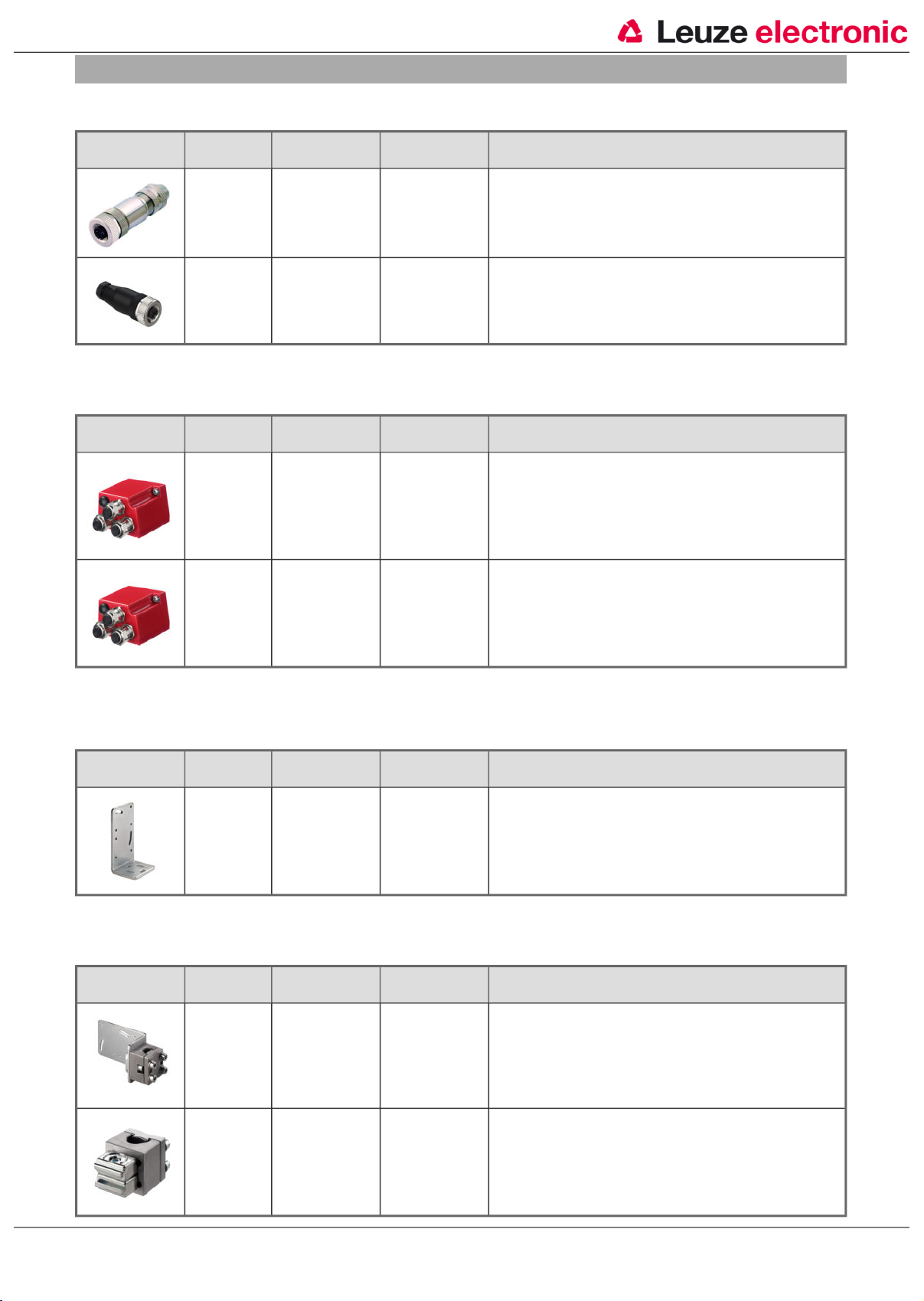

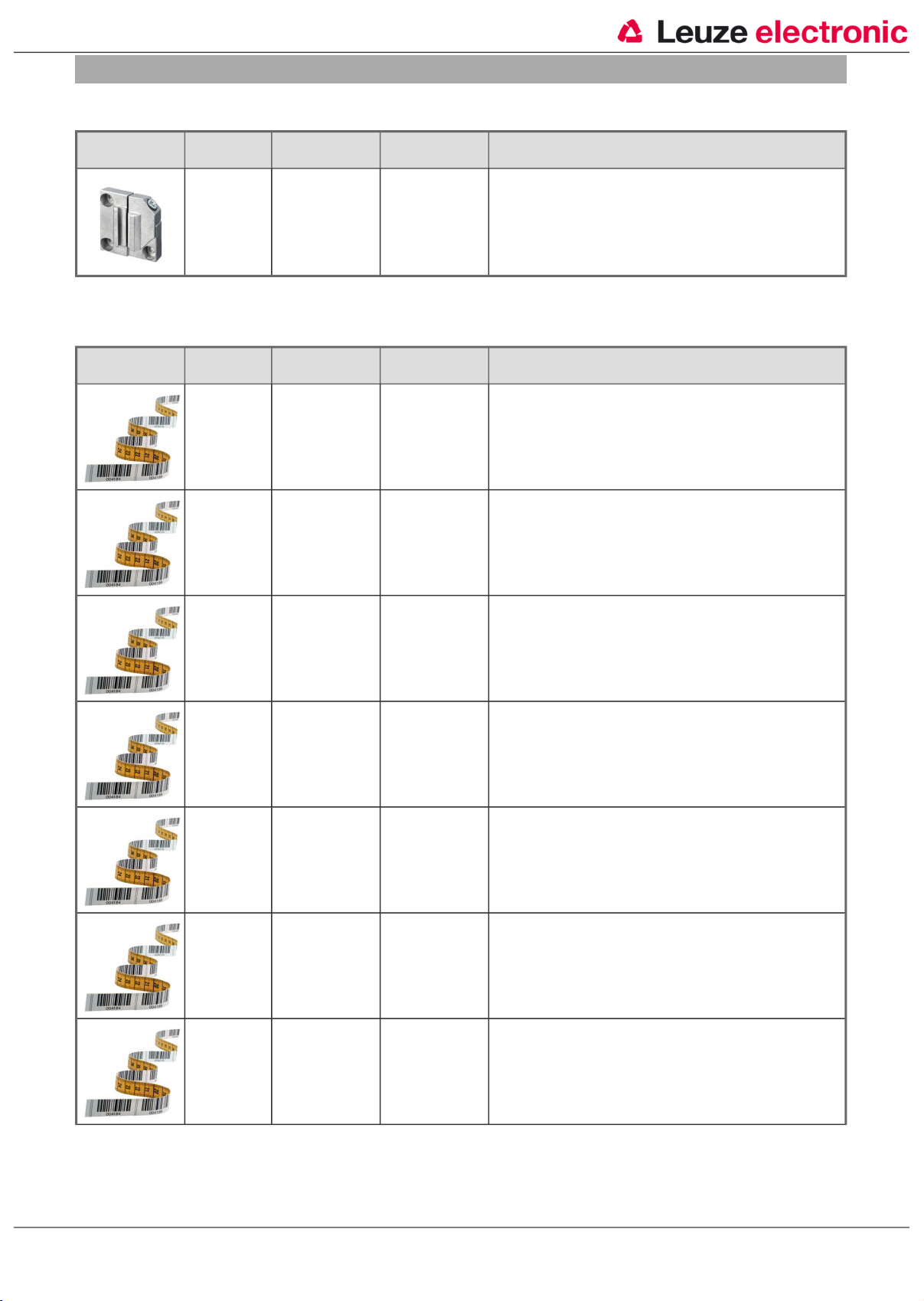

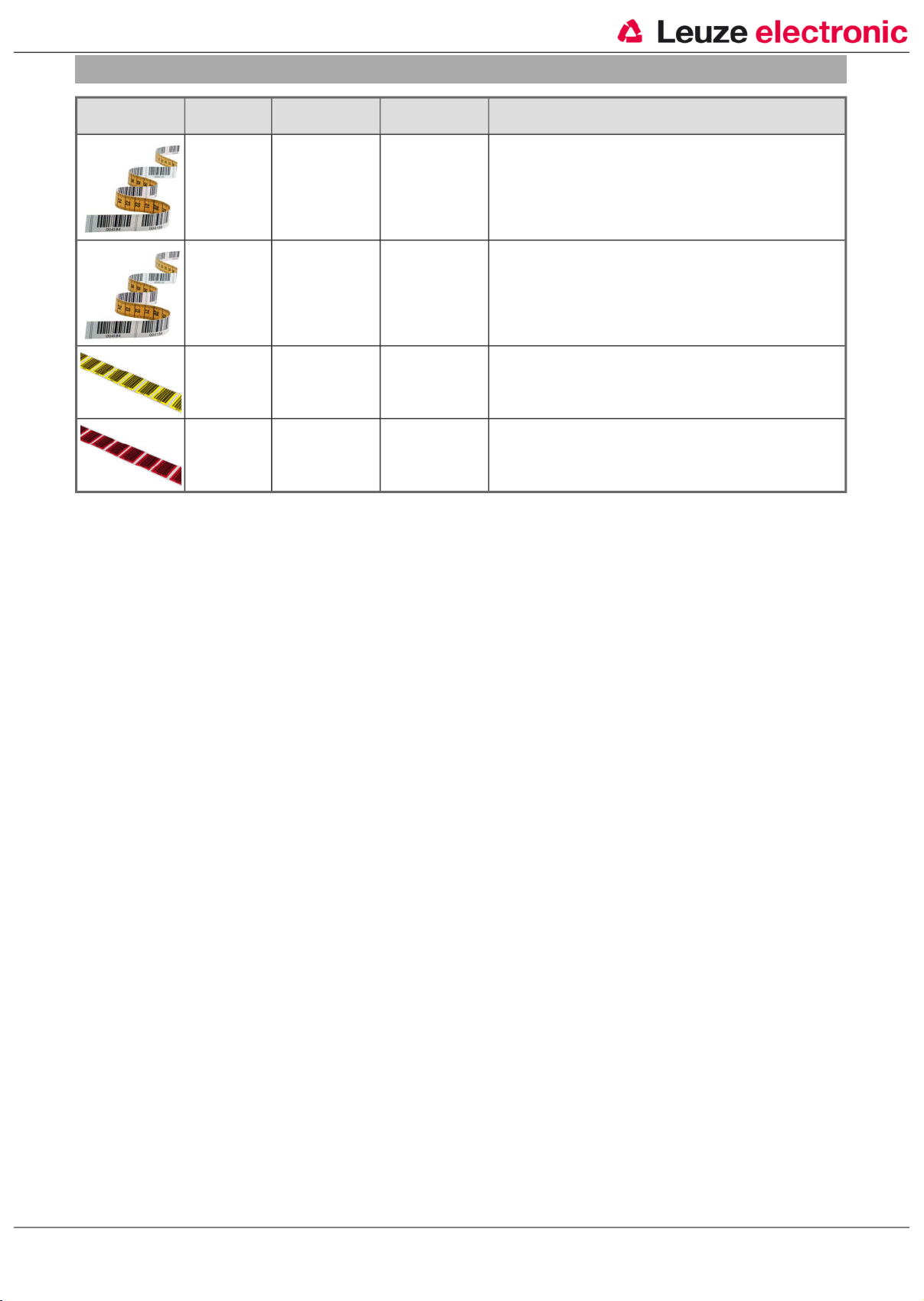

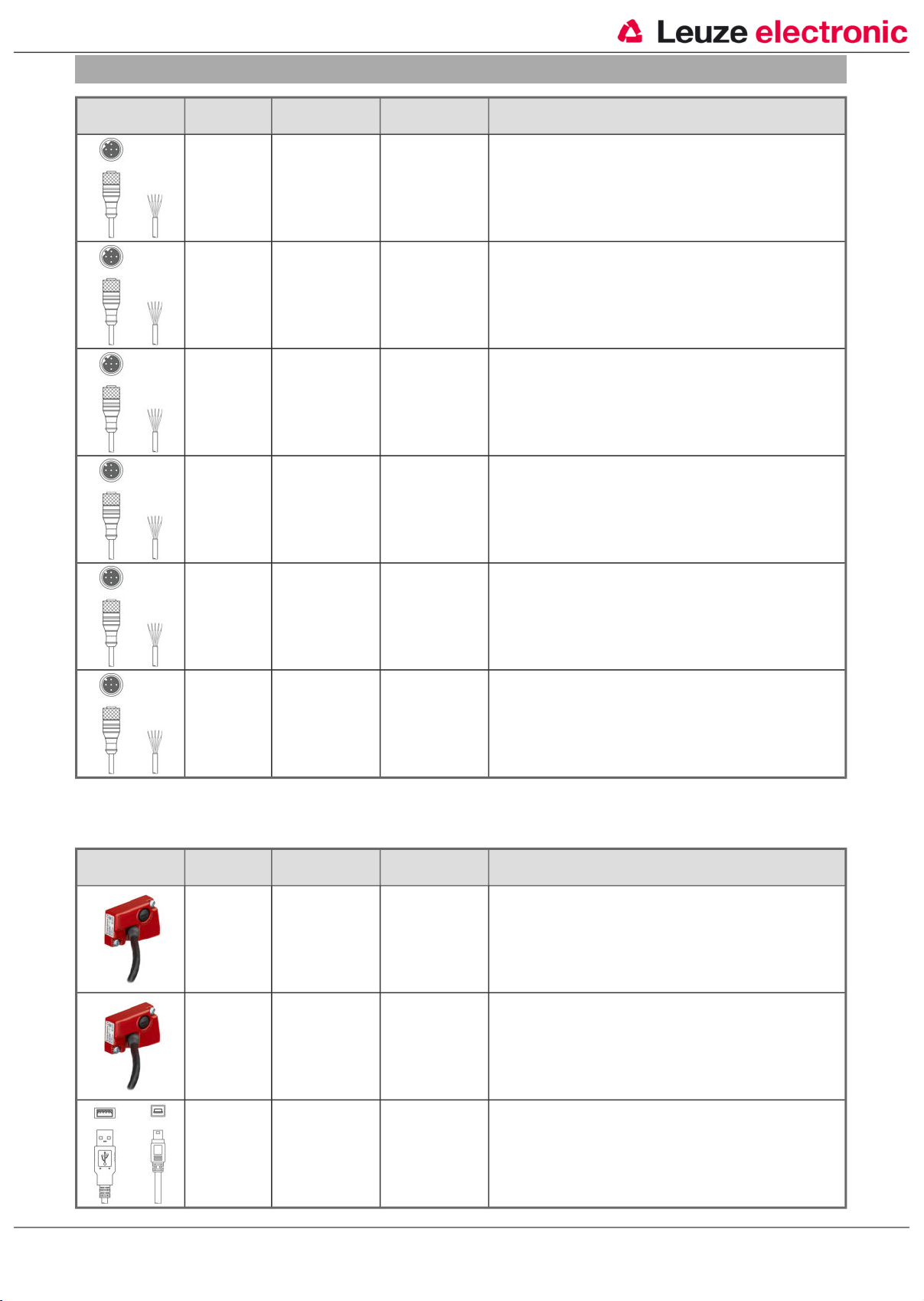

▪ Accessories

Part no.: 50125668 – BPS 300i SM 100 D H – Bar code positioning system

Technical data

Basic data

Series BPS 300i

Order guide Bar code tape must be ordered separately

Functions

Functions Heating

Optical data

Depth of field 50 ... 170 mm

Light source Laser, Red

Laser class 2, IEC/EN 60825-1:2007

Light beam exit Lateral

Measurement data

Measurement range 0 ... 10,000,000 mm

Geometric resolution 0.01 ... 10 mm

Reproducibility (1 sigma) 0.15 mm

Measurement value output 1 ... 30 ms

Max. traverse rate 10 m/s

Electrical data

Protective circuit Short circuit protected

Performance data

Supply voltage 18 ... 30 V, DC

Power consumption, max. 17.7 W

Inputs/outputs selectable

Current, max. 60 mA

Number of inputs/outputs selectable 2 Piece(s)

Input current, max. 8 mA

Interface

Type RS 232, RS 422

RS 232

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 7,8

Stop bit 1, 2 stop bits

Parity Adjustable

Data encoding Binary

Polarity reversal protection

eng 2018-01-25

2 / 10

Part no.: 50125668 – BPS 300i SM 100 D H – Bar code positioning system

RS 422

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 8 data bits

Stop bit 1, 2 stop bits

Parity Adjustable

Data encoding Binary

Service interface

Type USB

USB

Function Service

Mechanical data

Dimension (W x H x L) 100 mm x 108.7 mm x 48.3 mm

Housing material Metal, Diecast aluminum

Lens cover material Glass

Net weight 580 g

Housing color Red

Type of fastening Via optional mounting device

Silver

Dovetail grooves
Fastening on back

Operation and display

Type of display LED

Type of configuration Via web browser

Environmental data

Ambient temperature, operation -35 ... 50 °C

Ambient temperature, storage -35 ... 70 °C

Relative humidity (non-condensing) 90 %

Certifications

Degree of protection IP 65, EN 60529 with various connectors or screwed-on caps

Protection class III

Certifications c UL US

Classification

eCl@ss 8.0 27280190

eCl@ss 9.0 27280190

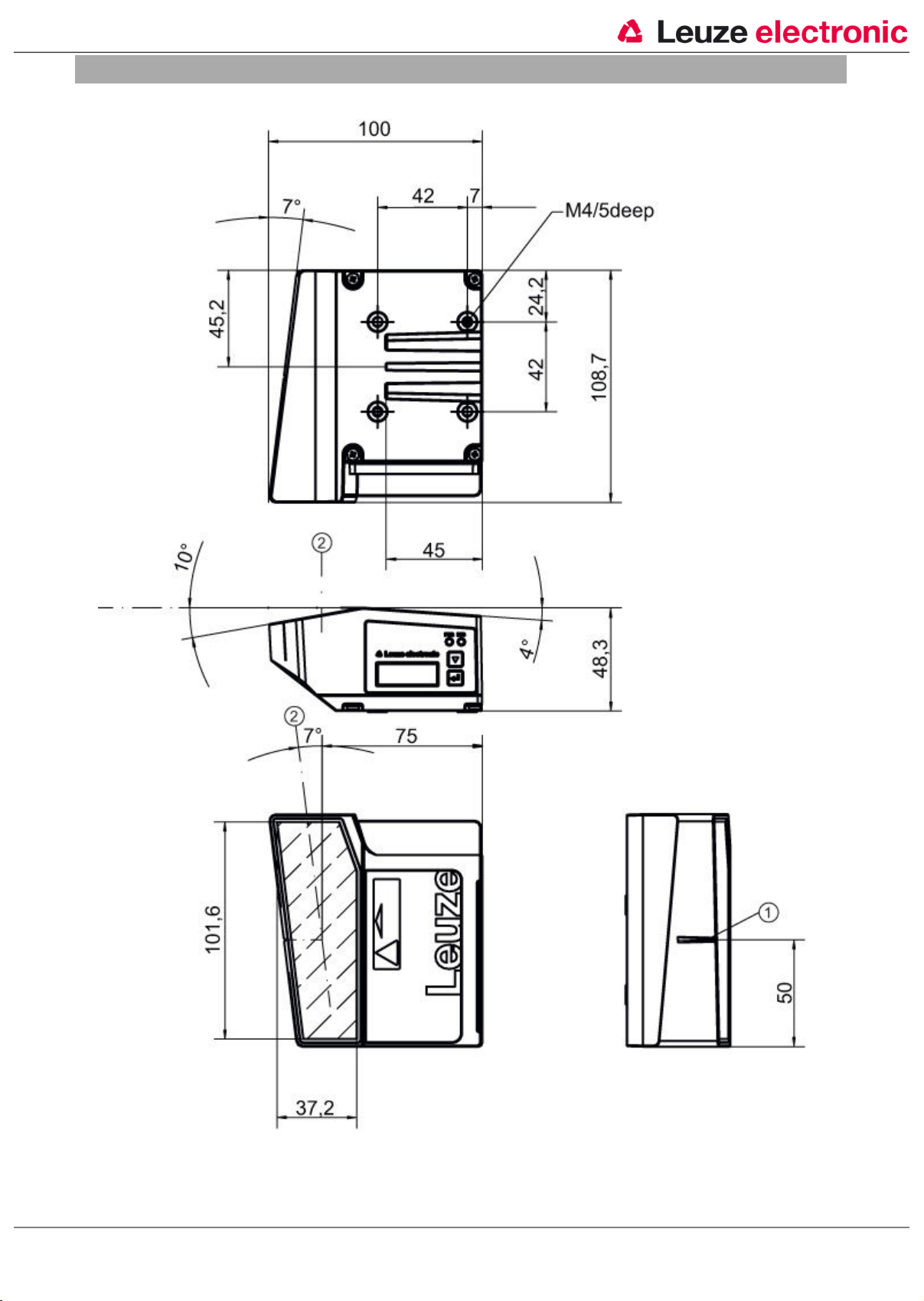

Dimensioned drawings

All dimensions in millimeters
