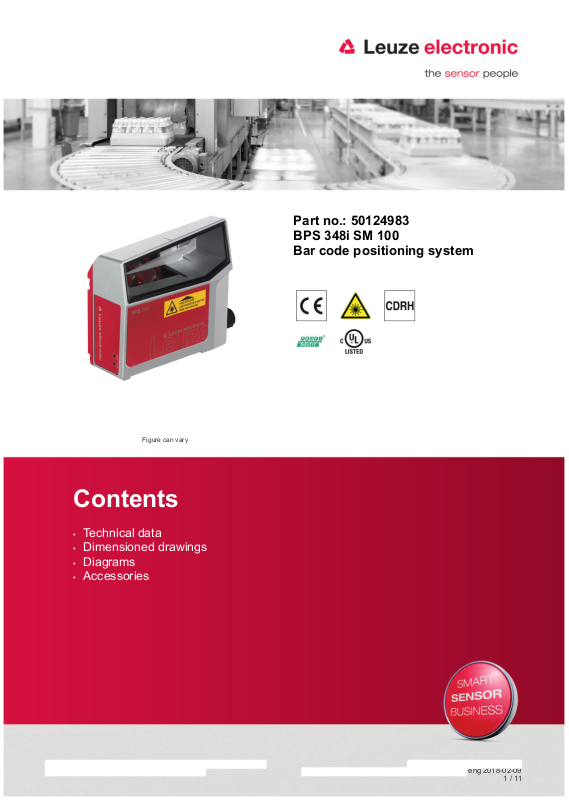

Leuze 50124983 Data Sheet

Figure can vary

Part no.: 50124983
BPS 348i SM 100
Bar code positioning system

Contents

▪ Technical data
▪ Dimensioned drawings

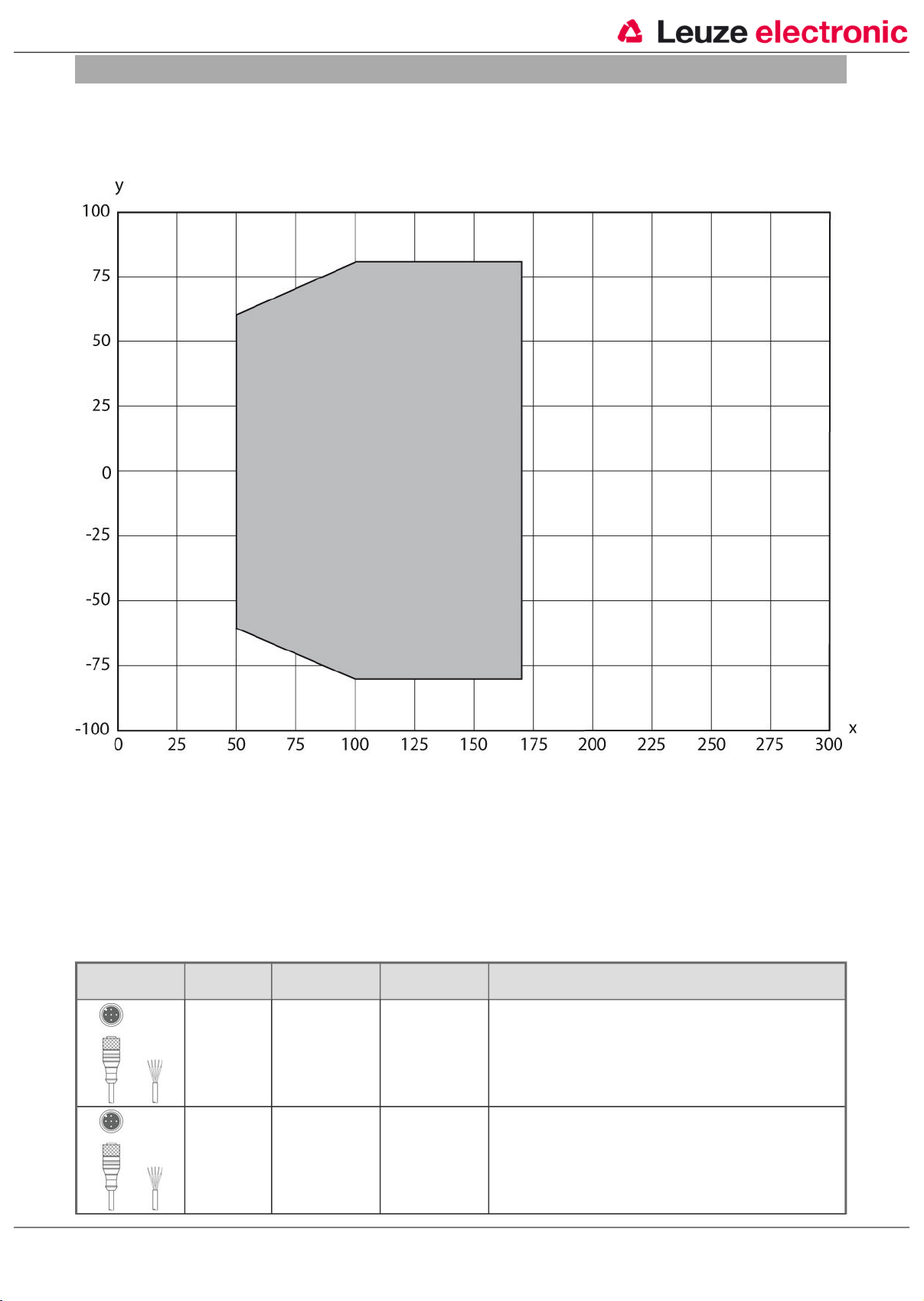

▪ Diagrams

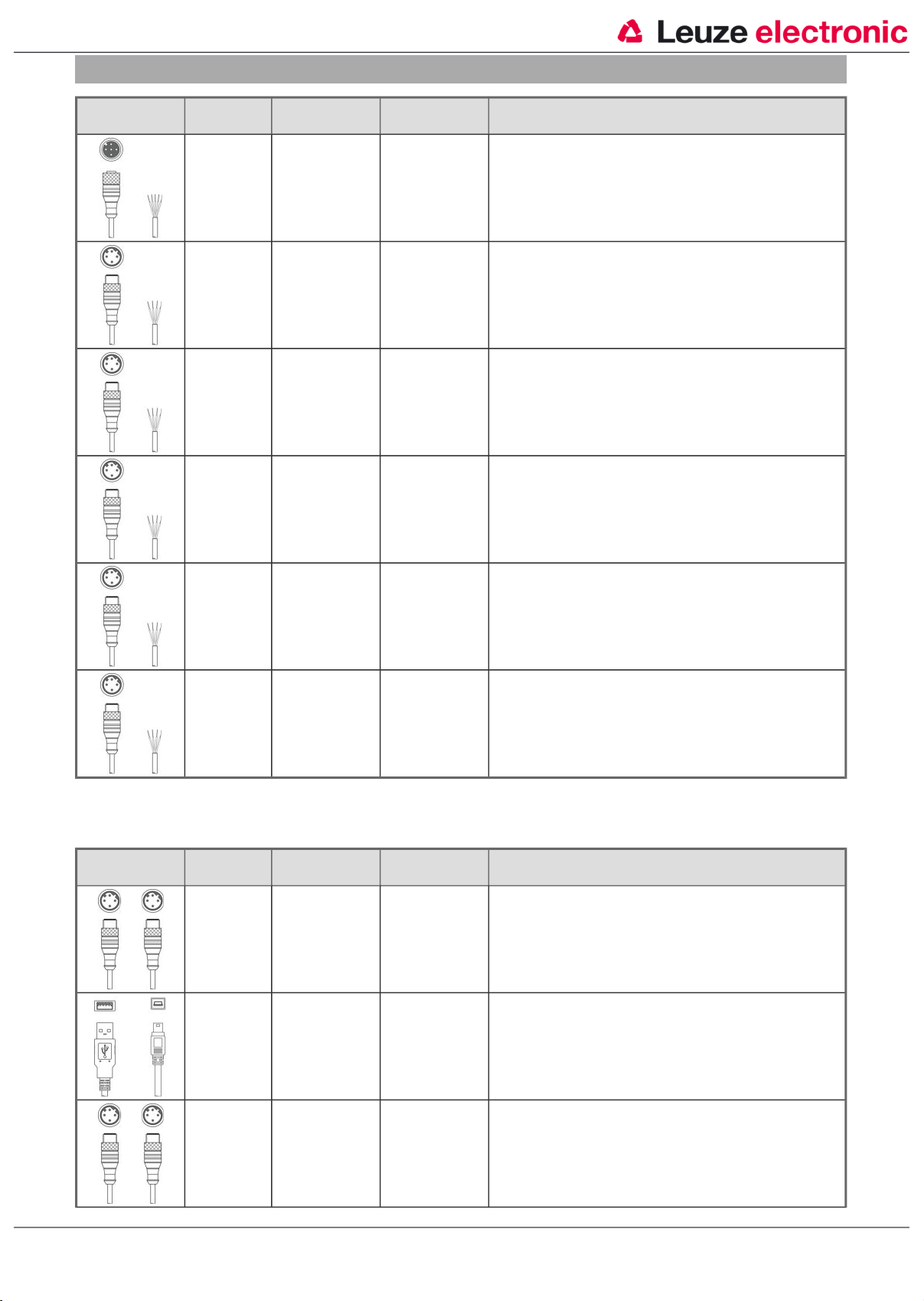

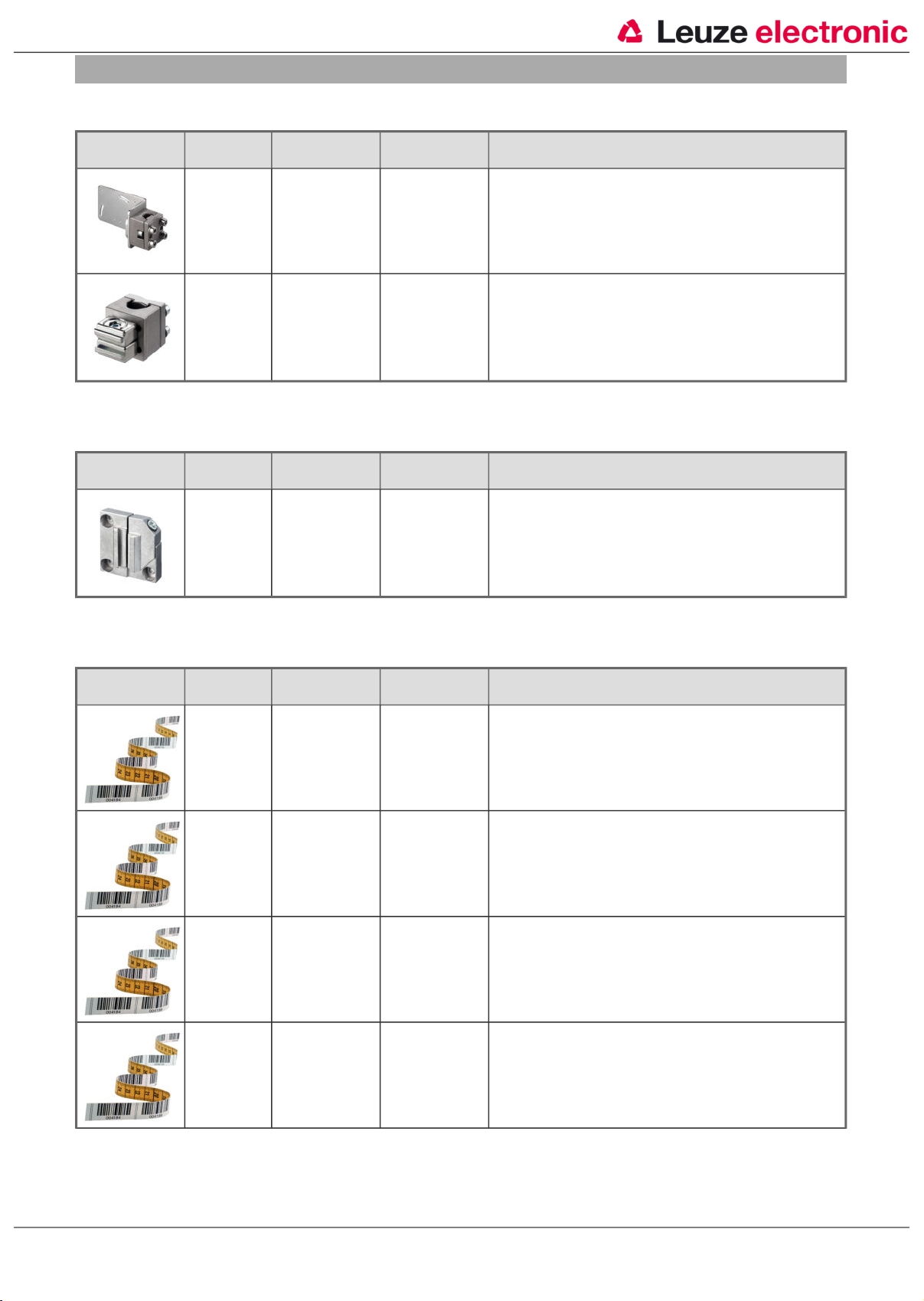

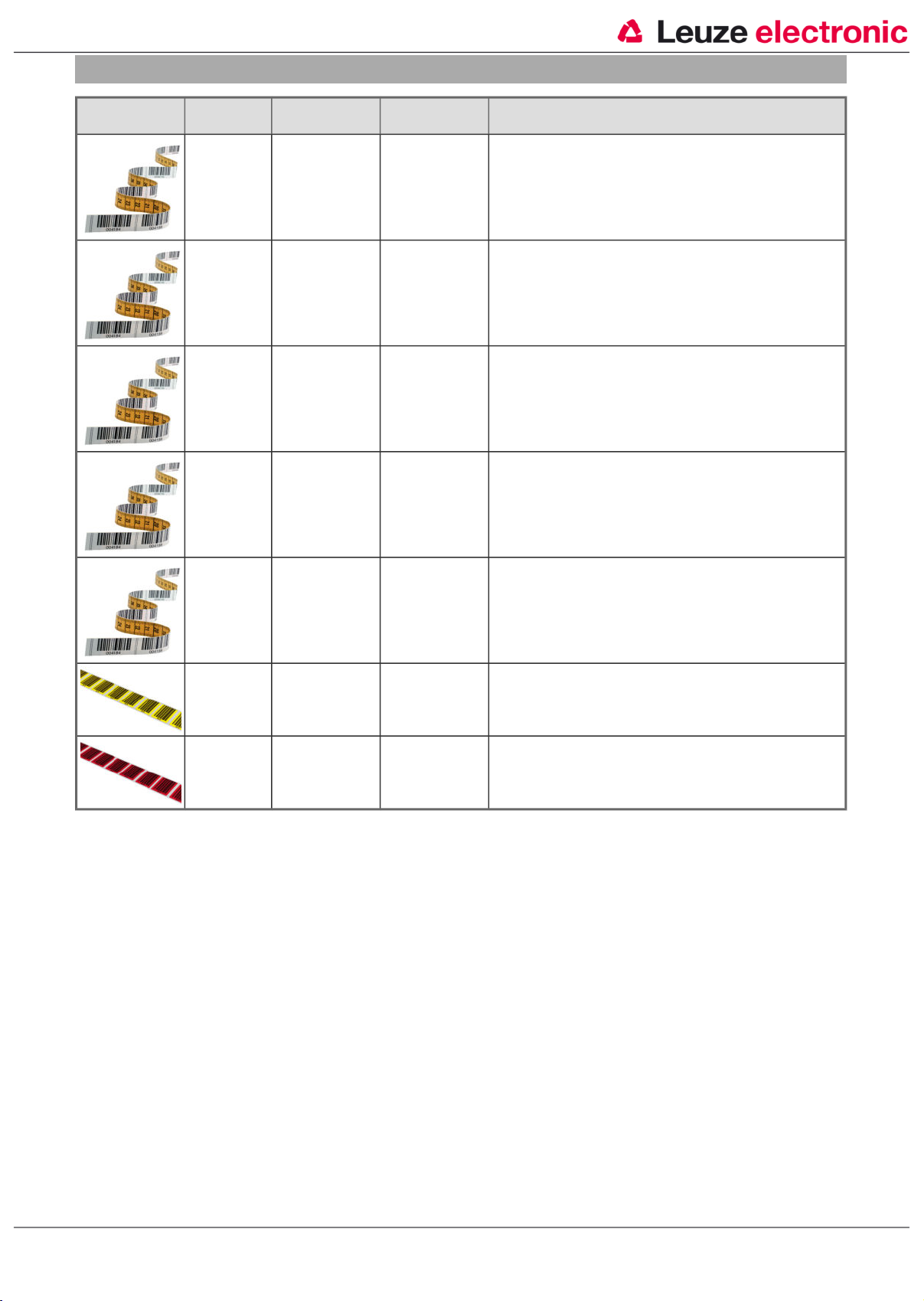

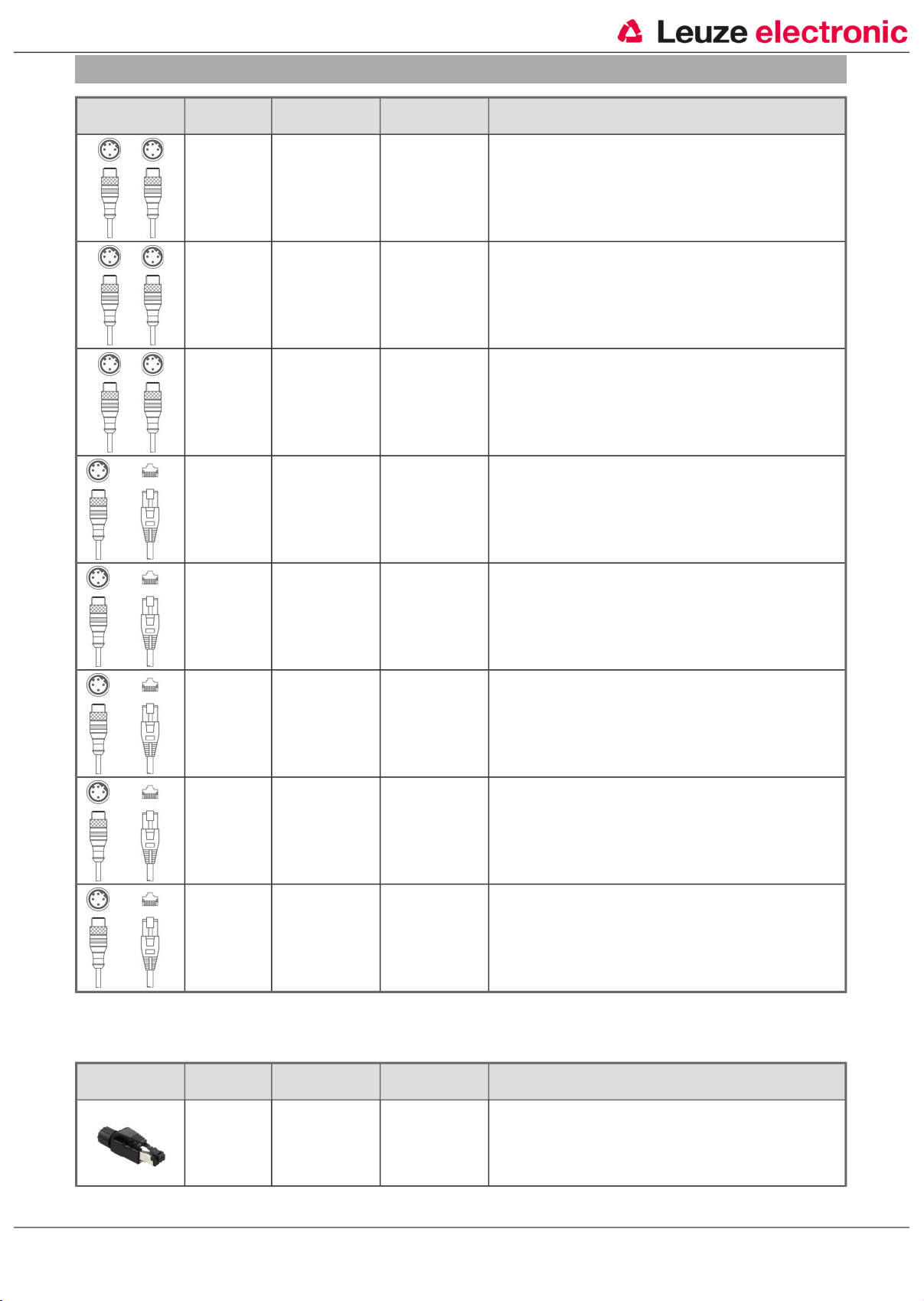

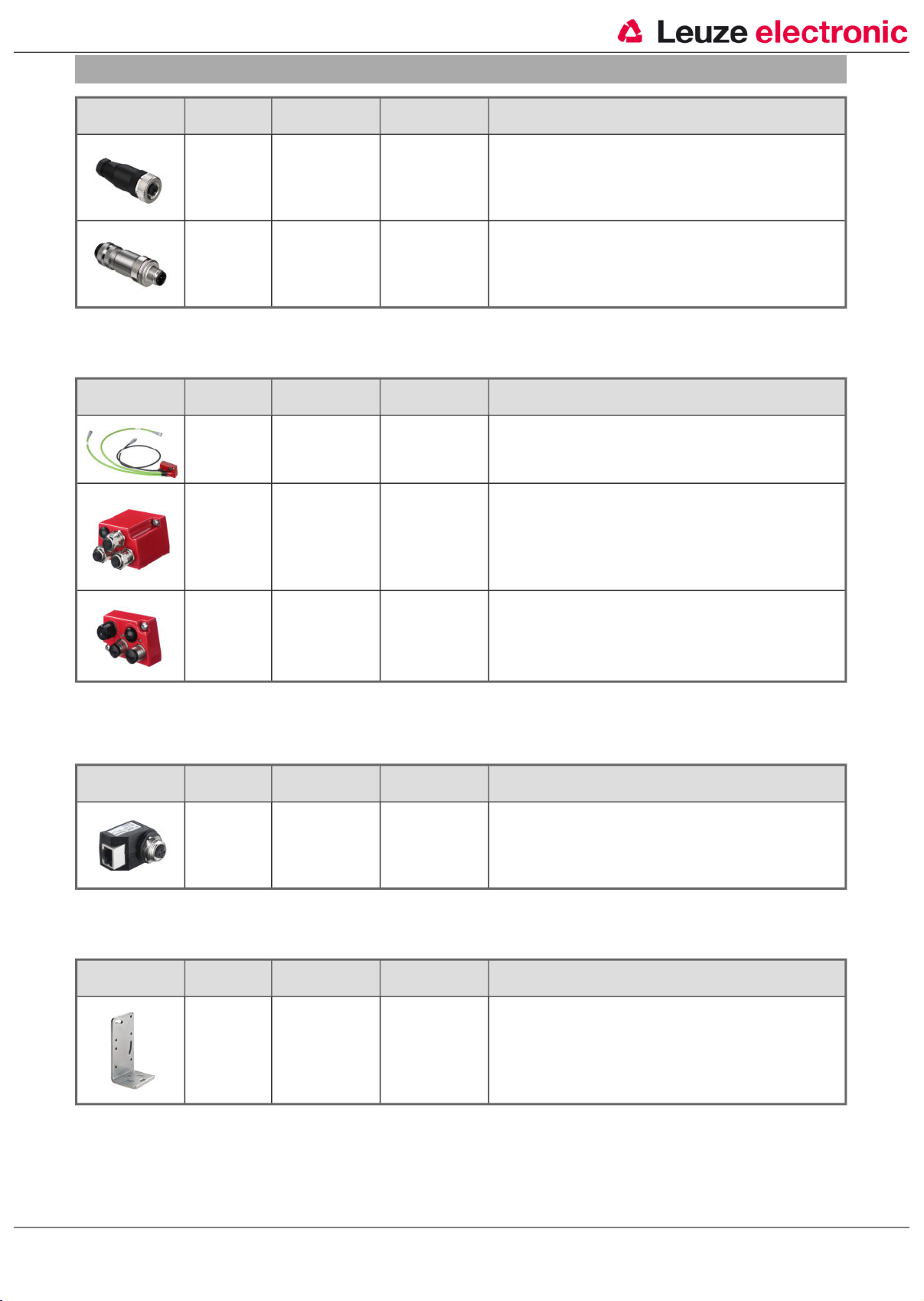

▪ Accessories

Part no.: 50124983 – BPS 348i SM 100 – Bar code positioning system

Technical data

Basic data

Series BPS 300i

Order guide Bar code tape must be ordered separately

Optical data

Depth of field 50 ... 170 mm

Light source Laser, Red

Laser class 2, IEC/EN 60825-1:2007

Light beam exit Lateral

Measurement data

Measurement range 0 ... 10,000,000 mm

Geometric resolution 0.001 ... 10 mm

Reproducibility (1 sigma) 0.15 mm

Measurement value output 2 ms

Max. traverse rate 10 m/s

Operation only possible in combination with MS 3xx, MK 3xx or ME
348 103 connection unit

Electrical data

Protective circuit Polarity reversal protection

Performance data

Supply voltage 18 ... 30 V, DC

Power consumption, max. 3.7 W

Inputs/outputs selectable

Output current, max. 60 mA

Number of inputs/outputs selectable 2 Piece(s)

Input current, max. 8 mA

Interface

Type PROFINET

Profinet

Conformance class B

Protocol PROFINET RT

Switch functionality Integrated

Transmission speed max. 100 Mbit/s

Service interface

Type USB

USB

Function Service

Short circuit protected

Configuration via GSDML modules

Mechanical data

Dimension (W x H x L) 100 mm x 108.7 mm x 48.3 mm

Housing material Metal, Diecast aluminum

Lens cover material Glass

Net weight 580 g

eng 2018-02-09

2 / 11

Part no.: 50124983 – BPS 348i SM 100 – Bar code positioning system

Housing color Silver

Type of fastening Fastening on back

Operation and display

Type of display LED

Type of configuration Via web browser

Environmental data

Ambient temperature, operation -5 ... 50 °C

Ambient temperature, storage -35 ... 70 °C

Relative humidity (non-condensing) 90 %

Certifications

Degree of protection IP 65, EN 60529 with various connectors or screwed-on caps

Protection class III

Certifications c UL US

Classification

eCl@ss 8.0 27280190

eCl@ss 9.0 27280190

Red

Via optional mounting device
Dovetail grooves

Dimensioned drawings

All dimensions in millimeters
