Leuze 50121902 Data Sheet
Part no.: 50121902 – IS 206MP/4NO-2E0,300-S8.3W – Inductive switch
Technical data
Basic data
Series 206
Typ. operating range limit S
Operating range S
Characteristic parameters
MTTF 900 years
Electrical data
Protective circuit Short circuit protected
Performance data
Supply voltage 10 ... 30 V, DC
Residual ripple 0 ... 20 %, From U
Open-circuit current 0 ... 10 mA
Temperature drift, max. (in % of Sr) 10 %, Over the entire operating temperature range
Repeatability, max. (in % of Sr) 5 %, For UB= 20 … 30 V DC, ambient temperature
Switching hysteresis 10 %
Outputs
Number of digital switching outputs 1 Piece(s)
Switching outputs
Voltage type DC
Switching current, max. 200 mA
Switching voltage Low: ≤2V
Residual current, max. 0.1 mA
Voltage drop 2 V
Switching output 1
Switching element Transistor, PNP
Switching principle NO (normally open)
a
n
2 mm
0 ... 1.6 mm
Inductive protection
Polarity reversal protection
B
Ta= 23 °C ± 5 °C
Timing
Switching frequency 5,000 Hz
Readiness delay 10 ms
Connection
Number of connections 1 Piece(s)
eng 2018-03-27
2 / 9
Part no.: 50121902 – IS 206MP/4NO-2E0,300-S8.3W – Inductive switch
Connection 1
Type of connection Cable with connector
Function Signal OUT
Cable length 300 mm
Sheathing material PVC
Cable color Gray
Wire cross section 0.14 mm²
Thread size M8
Type Male
Material Stainless steel
No. of pins 3 -pin
Encoding A-coded
Design Angled
Mechanical data
Design Cylindrical
Dimension (Ø x L) 6.5 mm x 35 mm

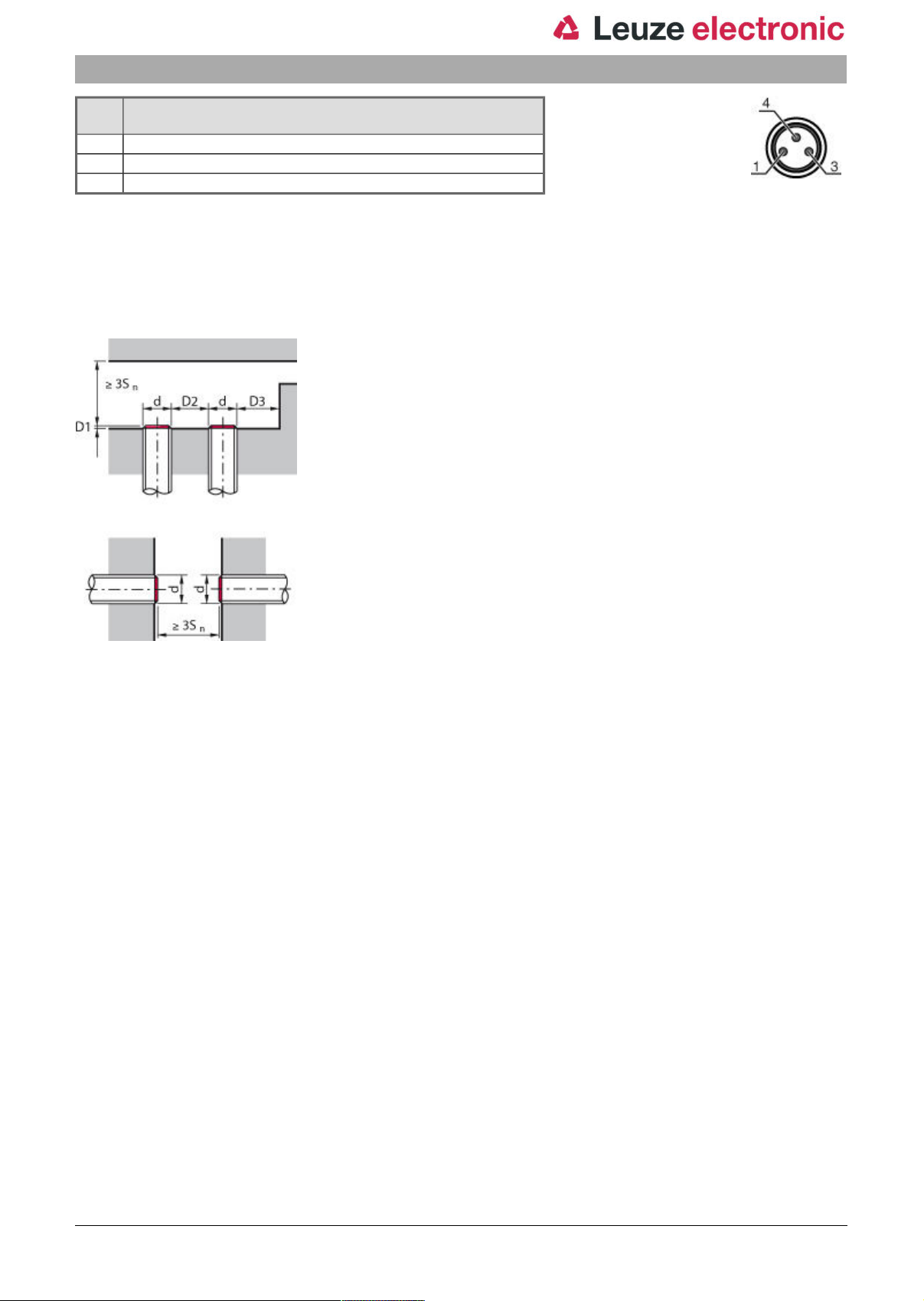

Type of installation Embedded
Housing material Stainless steel, V2A
Sensing face material Plastic, Polyamide (PA 12)
Net weight 10 g
Housing color Red, RAL 3000

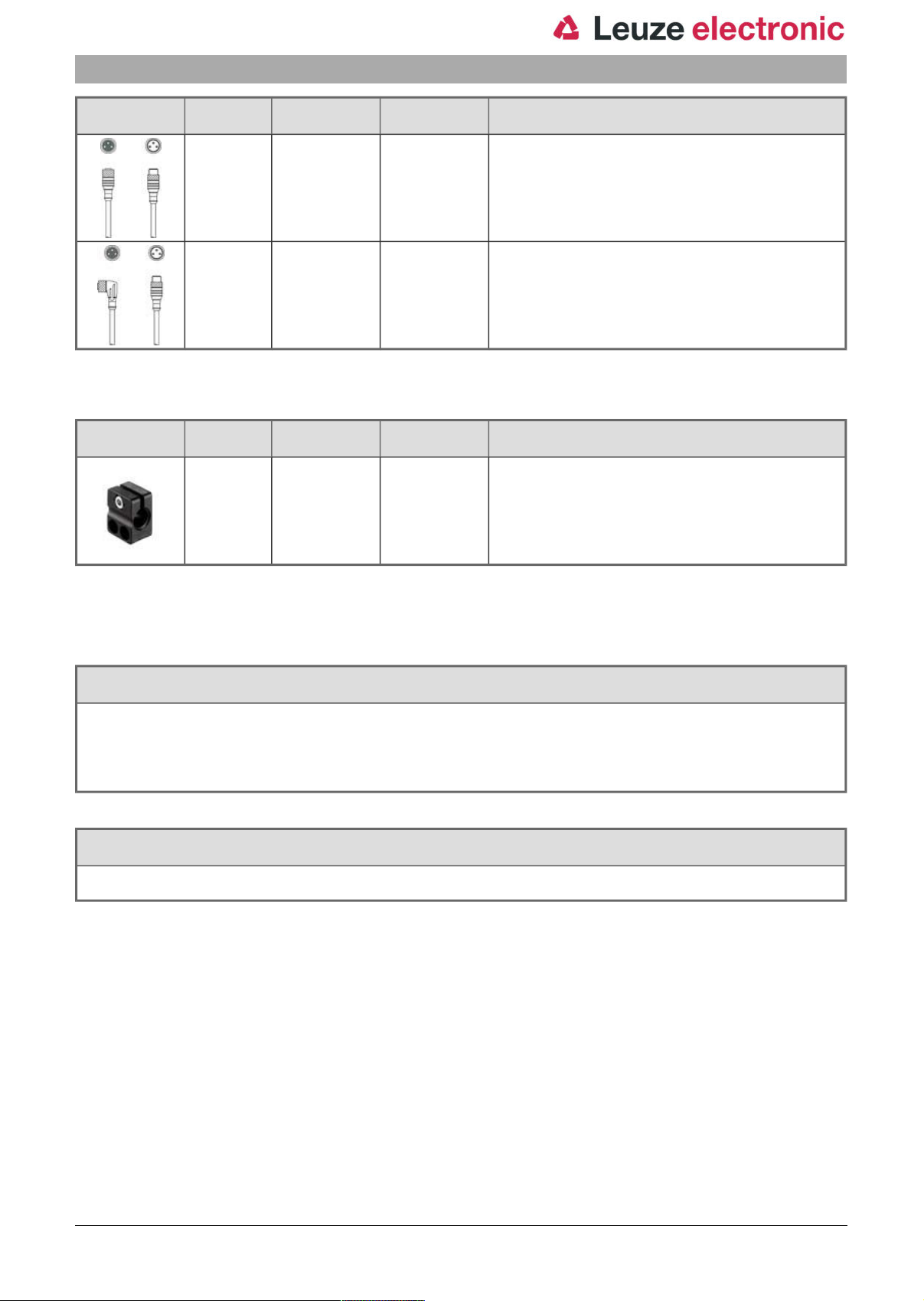

Type of fastening Via optional mounting device
Standard measuring plate 6.5 x 6.5 mm², Fe360
Voltage supply
Silver
Operation and display
Type of display LED
Number of LEDs 1 Piece(s)
Environmental data
Ambient temperature, operation -25 ... 70 °C
Ambient temperature, storage -25 ... 70 °C
Certifications
Degree of protection IP 67
Protection class III
Certifications c UL US
Test procedure for EMC in accordance with standard IEC 61000-4-3
Standards applied IEC 60947-5-2
Correction factors
Aluminum 0.3
Stainless steel 0.7
Copper 0.25
Brass 0.4
Fe360 steel 1
IEC 61000-4-4
IEC 61000-4-2
eng 2018-03-27
3 / 9
