Leuze 50116195 Data Sheet

Part no.: 50116195 – BCL 300i R1 M 100 D – Stationary bar code reader

Technical data

Basic data

Series BCL 300i

Functions

Functions AutoReflAct

Characteristic parameters

MTTF 110 years

Read data

Code types, readable 2/5 Interleaved

Scanning rate, typical 1,000 scans/s

Bar codes per reading gate, max. number 64 Piece(s)

Reference code comparison
LED indicator
Alignment mode
AutoConfig
AutoControl
Code fragment technology

EAN 8/13
Codabar
GS1 Databar Limited
Code 93
UPC
GS1 Databar Omnidirectional
Code 39
GS1 Databar Expanded
Code 128

Optical data

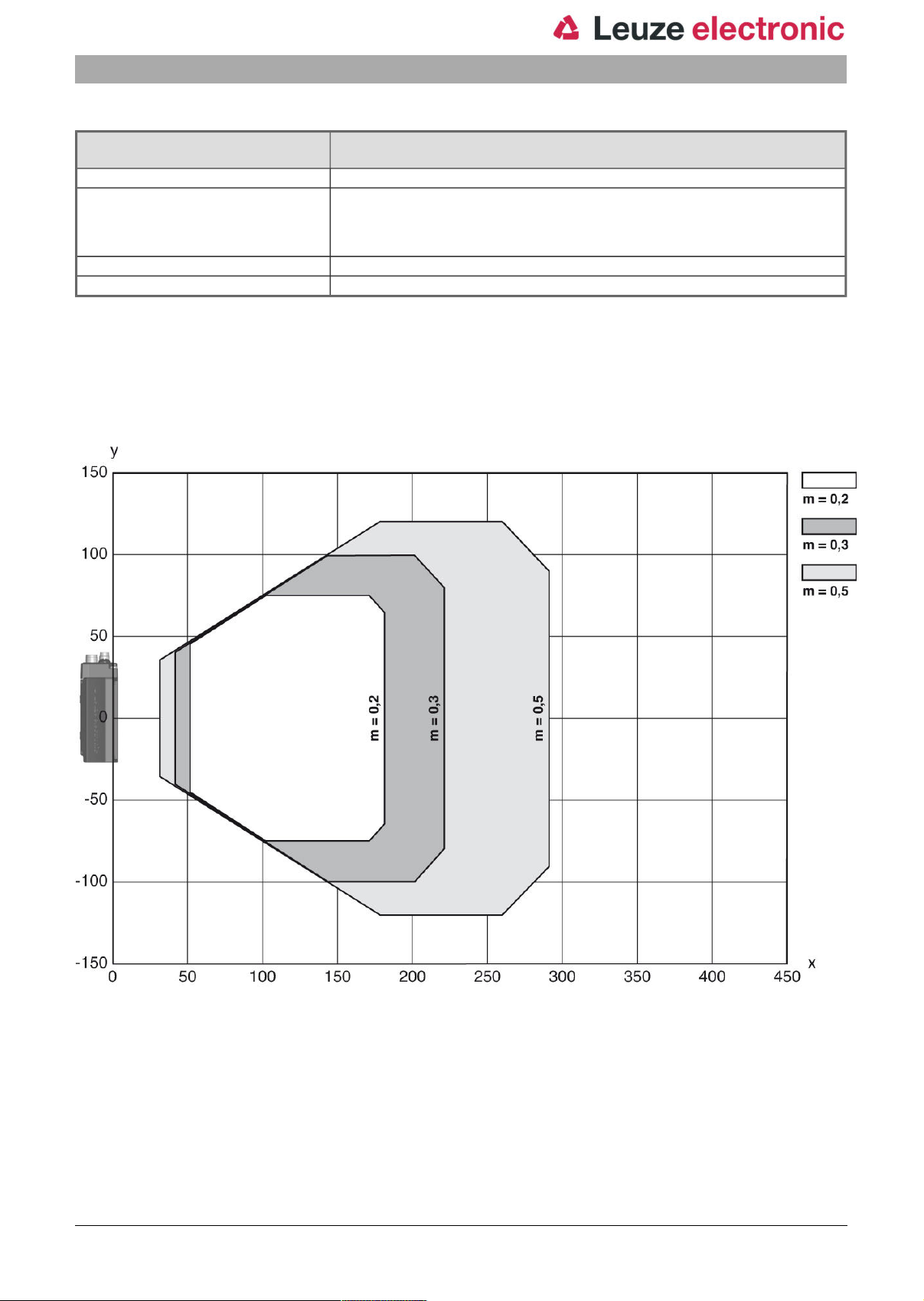

Reading distance 30 ... 290 mm

Light source Laser, Red

Laser light wavelength 655 nm

Laser class 2, IEC/EN 60825-1:2007

Transmitted-signal shape Continuous

Usable opening angle (reading field opening) 60 °

Module size 0.2 ... 0.5 mm

Reading method Raster scanner with deflecting mirror

Beam deflection By means of rotating polygon mirror wheel + deflecting mirror

Light beam exit Lateral with deflecting mirror

Raster (number of lines) 8 Piece(s)

Scanning field at scanner distance of 100 mm 17 mm

Scanning field at scanner distance of 200 mm 27 mm

Scanning field at scanner distance of 300 mm 38 mm

Scanning field at scanner distance of 400 mm 48 mm

Electrical data

Protective circuit Polarity reversal protection

Performance data

Supply voltage 18 ... 30 V, DC

Power consumption, max. 4.5 W

eng 2018-03-20

2 / 11

Part no.: 50116195 – BCL 300i R1 M 100 D – Stationary bar code reader

Inputs/outputs selectable

Output current, max. 60 mA

Number of inputs/outputs selectable 2 Piece(s)

Input current, max. 8 mA

Interface

Type RS 232, RS 422

RS 232

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 7,8

Stop bit 1, 2 stop bits

Parity Adjustable

Transmission protocol <STX><data><CR><LF>

Data encoding ASCII

RS 422

Function Process

Transmission speed 4,800 ... 115,200 Bd

Data format Adjustable

Start bit 1

Data bit 7, 8 data bits

Stop bit 1, 2 stop bits

Transmission protocol Adjustable

Data encoding ASCII

Service interface

Type USB

USB

Function Configuration via software

Connection

Number of connections 1 Piece(s)

Connection 1

Type of connection Plug connector

Function Data interface

No. of pins 32 -pin

Type Male

Mechanical data

Design Cubic

Dimension (W x H x L) 103 mm x 44 mm x 96 mm

Housing material Metal, Diecast aluminum

Lens cover material Glass

Net weight 350 g

Service interface
BUS OUT
Connection to device
PWR / SW IN/OUT

eng 2018-03-20

3 / 11

Part no.: 50116195 – BCL 300i R1 M 100 D – Stationary bar code reader

Housing color Black

Type of fastening Fastening on back

Operation and display

Type of display Monochromatic graphic display, 128 x 32 pixels

Number of LEDs 2 Piece(s)

Type of configuration Via web browser

Environmental data

Ambient temperature, operation 0 ... 40 °C

Ambient temperature, storage -20 ... 70 °C

Relative humidity (non-condensing) 0 ... 90 %

Certifications

Degree of protection IP 65

Protection class III

Certifications c UL US

Test procedure for EMC in accordance with standard EN 61000-4-2, 3, -4, -6

Test procedure for shock in accordance with standard IEC 60068-2-27, test Ea

Test procedure for continuous shock in accordance with standard IEC 60068-2-29, test Eb

Test procedure for vibration in accordance with standard IEC 60068-2-6, test Fc

Red

Dovetail grooves
Via optional mounting device

LED

EN 55022

Classification

eCl@ss 8.0 27280102

eCl@ss 9.0 27280102

ETIM 5.0 EC002550

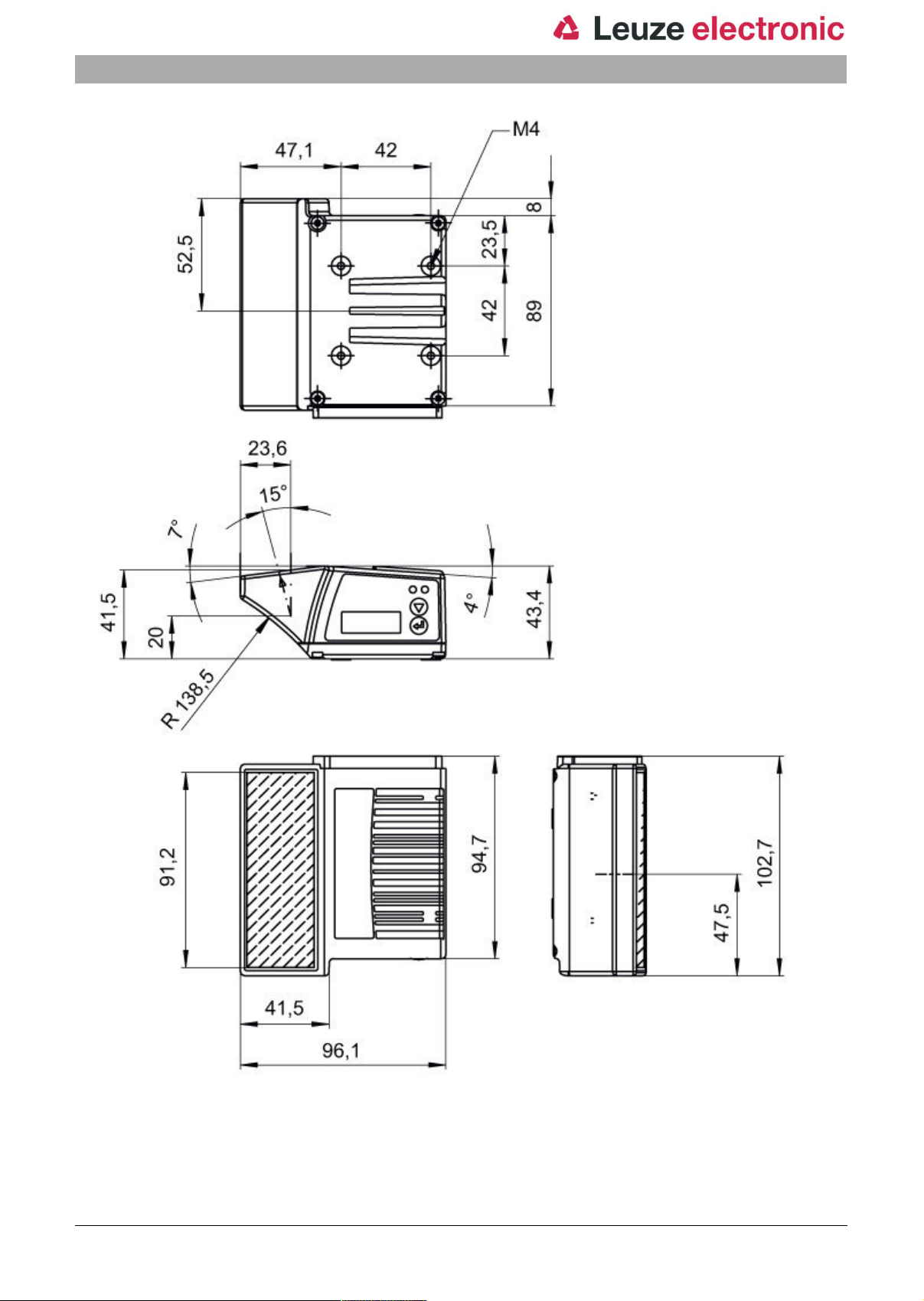

Dimensioned drawings

All dimensions in millimeters
