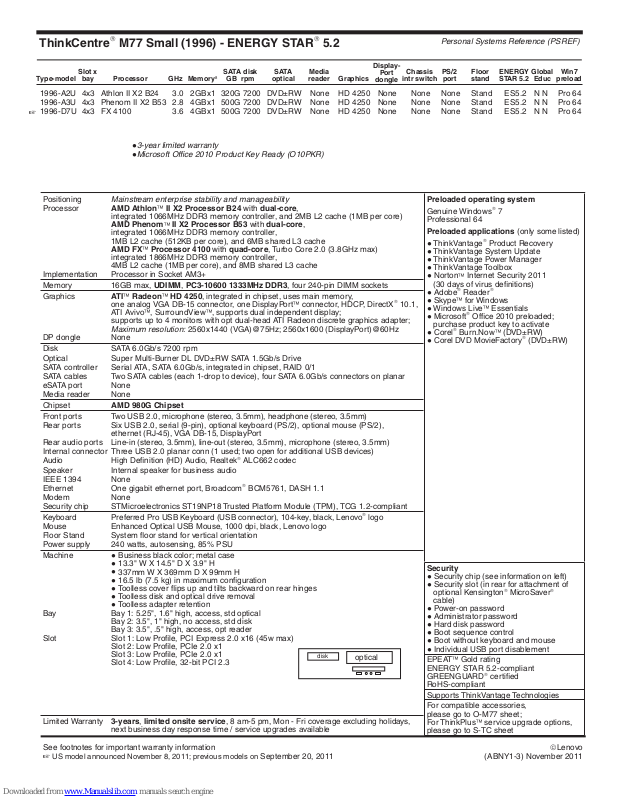

ThinkCentre® M77 Small (1996) - ENERGY STAR® 5.2
Personal Systems Reference (PSREF)
Type-model Processor Memory
Slot x
bay
GHz
SATA disk
8
GB rpm
SATA
optical Graphics
Media
reader
Display-
Port
dongle
Chassis
intr switch
PS/2
port
Floor
stand
ENERGY
STAR 5.2
Global
Educ
1996-A2U 4x3 Athlon II X2 B24 3.0 2GBx1 320G 7200 DVD±RW None HD 4250 None None None Stand ES5.2 N N Pro 64
1996-A3U 4x3 Phenom II X2 B53 2.8 4GBx1 500G 7200 DVD±RW None HD 4250 None None None Stand ES5.2 N N Pro 64
1996-D7U 4x3 FX 4100 3.6 4GBx1 500G 7200 DVD±RW None HD 4250 None None None Stand ES5.2 N N Pro 64
☞
Ɣ
3-year limited warranty
Ɣ
Microsoft Offi ce 2010 Product Key Ready (O10PKR)
Positioning Mainstream enterprise stability and manageability
Processor AMD Athlon™ II X2 Processor B24 with dual-core,
integrated 1066MHz DDR3 memory controller, and 2MB L2 cache (1MB per core)
AMD Phenom™ II X2 Processor B53 with dual-core,
integrated 1066MHz DDR3 memory controller,
1MB L2 cache (512KB per core), and 6MB shared L3 cache
AMD FX™ Processor 4100 with quad-core, Turbo Core 2.0 (3.8GHz max)
integrated 1866MHz DDR3 memory controller,
4MB L2 cache (1MB per core), and 8MB shared L3 cache
Implementation Processor in Socket AM3+
Memory 16GB max, UDIMM, PC3-10600 1333MHz DDR3, four 240-pin DIMM sockets
Graphics ATI™ Radeon™ HD 4250, integrated in chipset, uses main memory,
one analog VGA DB-15 connector, one DisplayPort™ connector, HDCP, DirectX
ATI Avivo™, SurroundView™, supports dual independent display;
supports up to 4 monitors with opt dual-head ATI Radeon discrete graphics adapter;
DP dongle None
Maximum resolution: 2560x1440 (VGA)@75Hz; 2560x1600 (DisplayPort)@60Hz
®
Preloaded operating system
Genuine Windows
®
7
Professional 64
Preloaded applications (only some listed)
Ɣ
ThinkVantage
Ɣ
ThinkVantage System Update
Ɣ
ThinkVantage Power Manager
Ɣ
ThinkVantage Toolbox
Ɣ
Norton™ Internet Security 2011
(30 days of virus defi nitions)
Ɣ
Adobe
Ɣ
10.1,
Skype™ for Windows
Ɣ
Windows Live™ Essentials
Ɣ
Microsoft® Offi ce 2010 preloaded;
purchase product key to activate
Ɣ
Corel
Ɣ
Corel DVD MovieFactory® (DVD±RW)
®
Product Recovery
®
Reader®
®
Burn.Now™ (DVD±RW)
Disk SATA 6.0Gb/s 7200 rpm
Optical Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive
SATA controller Serial ATA, SATA 6.0Gb/s, integrated in chipset, RAID 0/1
SATA cables Two SATA cables (each 1-drop to device), four SATA 6.0Gb/s connectors on planar
eSATA port None
Media reader None
Chipset
AMD 980G Chipset
Front ports Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)
Rear ports Six USB 2.0, serial (9-pin), optional keyboard (PS/2), optional mouse (PS/2),
ethernet (RJ-45), VGA DB-15, DisplayPort
Rear audio ports Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone (stereo, 3.5mm)
Internal connector Three USB 2.0 planar conn (1 used; two open for additional USB devices)
Audio High Defi nition (HD) Audio, Realtek
®
ALC662 codec
Speaker Internal speaker for business audio
IEEE 1394 None
Ethernet One gigabit ethernet port, Broadcom® BCM5761, DASH 1.1
Modem None
Security chip STMicroelectronics ST19NP18 Trusted Platform Module (TPM), TCG 1.2-compliant
Keyboard Preferred Pro USB Keyboard (USB connector), 104-key, black, Lenovo
®
logo
Mouse Enhanced Optical USB Mouse, 1000 dpi, black, Lenovo logo
Floor Stand System fl oor stand for vertical orientation
Power supply 240 watts, autosensing, 85% PSU
Machine
Bay Bay 1: 5.25", 1.6" high, access, std optical
Slot Slot 1: Low Profi le, PCI Express 2.0 x16 (45w max)
Ɣ
Business black color; metal case
Ɣ
13.3" W X 14.5" D X 3.9" H
Ɣ
337mm W X 369mm D X 99mm H
Ɣ
16.5 lb (7.5 kg) in maximum confi guration
Ɣ
Toolless cover fl ips up and tilts backward on rear hinges
Ɣ
Toolless disk and optical drive removal
Ɣ
Toolless adapter retention
Bay 2: 3.5", 1" high, no access, std disk
Bay 3: 3.5", .5" high, access, opt reader
Slot 2: Low Profi le, PCIe 2.0 x1
Slot 3: Low Profi le, PCIe 2.0 x1
Slot 4: Low Profi le, 32-bit PCI 2.3
disk
optical
Security
Ɣ Security chip (see information on left)
Ɣ Security slot (in rear for attachment of
optional Kensington® MicroSaver®
cable)
Ɣ Power-on password
Ɣ Administrator password
Ɣ Hard disk password
Ɣ Boot sequence control
Ɣ Boot without keyboard and mouse
Ɣ Individual USB port disablement
EPEAT™ Gold rating
ENERGY STAR 5.2-compliant
GREENGUARD
®
certifi ed
RoHS-compliant
Supports ThinkVantage Technologies
For compatible accessories,
Limited Warranty 3-years, limited onsite service, 8 am-5 pm, Mon - Fri coverage excluding holidays,
next business day response time / service upgrades available
See footnotes for important warranty information
US model announced November 8, 2011; previous models on
☞
September 20, 2011
please go to O-M77 sheet;
For ThinkPlus™ service upgrade options,
please go to S-TC sheet
©
(ABNY1-3) November 2011
