Lenovo LT2013P User Manual

LT2013p Wide Flat Panel Monitor
User’s Guide

Product numbers

60A0-MAR1-WW

First Edition (January 2013)
© Copyright Lenovo 2013.

LENOVO products
sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted rights to use
reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products
pursuant a General Services Administration "GSA" contract
forth in Contract No. GS-35F-05925.

, data, computer software, and services have been developed exclusively at private expense and are

, data, computer software, or services are delivered

, use, reproduction, or disclosure is subject to restrictions set

,

Contents

Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

General Safety guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Chapter 1. Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

Shipping contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Notice for use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Types of adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Tilt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Swivel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Height Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Monitor Pivot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Monitor controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Cable lock slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Setting up your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Connecting and turning on your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Registering your option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Chapter 2. Adjusting and using your monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1

Comfort and accessibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Arranging your work area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Positioning your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Quick tips for healthy work habits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Accessibility information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Adjusting your monitor image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Using the direct access controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Using the On-Screen Display (OSD) controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Selecting a supported display mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Image rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Understanding power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10

Caring for your monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11

Detaching the monitor base and stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Chapter 3. Reference information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1

Monitor specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Manual image setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Manually installing the monitor driver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Installing the monitor driver in Windows 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Installing the monitor driver in Windows Vista . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Installing the monitor driver in Windows 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Getting further help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Service information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Customer responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Service parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Appendix A. Service and Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Registering your option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Online technical support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Telephone technical support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Appendix B. Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

Recycling information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2

Contents 1

Safety information

General Safety guidelines

For tips to help you use your computer safely, go to:
http://www.lenovo.com/safety

Before installing this product, read the Safety Information.

iii

ííí

Chapter 1. Getting started

This User’s Guide provides detailed operation instructions for the user. For quick instruction
overview, please see the Setup Poster for brief information.

Shipping contents

The product package should include the following items:

• Setup Poster

• Reference and Driver CD

• Flat Panel Monitor

• Power Cord

• USB 2.0 Cable

• Analog Cable(for VGA use)

Chapter 1. 1-1

Notice for use

To set up your monitor, please see the illustrations below.
Note: Do not touch the monitor within the screen area. The screen area is glass and can be

damaged by rough handling or excessive pressure.

1. Place your monitor with the screen face down on a soft flat surface.

2. Align the stand assembly bracket to the monitor.

3. Insert the bracket towards monitor until it locks in place.
Note: To install a VESA mount, please see "Wall Mounting (Optional)"on page 2-11.

Chapter 1. 1-2

Product overview

Types of adjustments
Tilt

This section will provide information on adjusting monitor positions, setting user controls, and
using the cable lock slot.

Please see the illustration below for an example of the tilt range.

0°

5°

3

0°

Swivel

With the built-in pedestal, you can tilt and swivel the monitor for the most comfortable
viewing angle.

R

 





R

Chapter 1. 1-3

Height Adjustment

For height adjustment, user needs to press down or lift up the monitor.

Monitor Pivot

- Adjust the screen position before rotating the monitor screen. (Make sure that the monitor
screen ascent to its highest point, and it inclines backward at 30°.)

- then rotate clockwise until the monitor stops at 90°.

PP

Chapter 1. 1-4

Monitor controls

The keypad controls on the panel frame are accesses to various functions.

For information on how to utilize these keypad controls, please see "Adjusting your monitor
image"on page 2-3.

Cable lock slot

Your monitor is equipped with a cable lock slot located on the rear of your monitor.

Chapter 1. 1-5

Setting up your monitor

This section provides information on how to set up your monitor.

Connecting and turning on your monitor

Note: Be sure to read the Safety information on page iii before carrying out this procedure.

1. Power off your computer and all attached devices, then unplug the computer power cord.

2. Connect the cables according to below icon indication.

3. Connect one end of the DP cable to the DP connector on the back of the computer, and the

other end to the DP connector on the monitor. Lenovo recommends that customers who
require to use the Display Port input on their monitor purchase the "Lenovo Display Port
to Display Port cable 0A36537".

www.lenovo.com/support/accessories

www.lenovo.com/support/displayport-cables

www.lenovo.com/accessoriesguide

Chapter 1. 1-6

4. Connect one end of the HDMI cable to the monitor HDMI port and the other end to the

computer if it has HDMI output terminal.

5. Connect one end of the analog signal cable to the monitor VGA (Analog) connector and

the other end to the computer.

Chapter 1. 1-7

6. Connect the speaker’s audio cable and audio jack of monitor to transfer audio source from

Display Port, or HDMI.
Note: The audio output in HDMI/DP modes.

7. Connect one end of the USB cable to the USB upstream terminal on the back of the

monitor, and connect the other end of the USB cable to an appropriate USB port on your
computer.

Note: The USB port will stay in function as long as the monitor is connected to power,

regardless of whether the monitor is switched on or off.

Chapter 1. 1-8

8. Connect one end of the USB cable to the USB upstream terminal on the side of the

monitor, and connect the other end of the USB cable to an appropriate USB port on your
device.

9. Isnsert the power cord into the monitor, then plug the monitor power cord and the

computer cord into grounded electrical outlets.
Note: A certified power supply cord has to be used with this equipment. The relevant

national installation and or equipment regulations shall be considered. A certified power
supply cord not lighter than ordinary polyvinyl chloride flexible cord according to

IEC 60227 (designation H05VV-F 3G 0.75mm2 or H05VVH2-F2 3G 0.75mm2 ) shall be
used. Alternative a flexible cord be of synthetic rubber according to IEC 60245

(designation H05RR-F 3G 0.75mm2 ) shall be used.

Chapter 1. 1-9

10. Assembled Line Cleaner as shown below.

11. Power on the monitor and the computer.

Chapter 1. 1-10

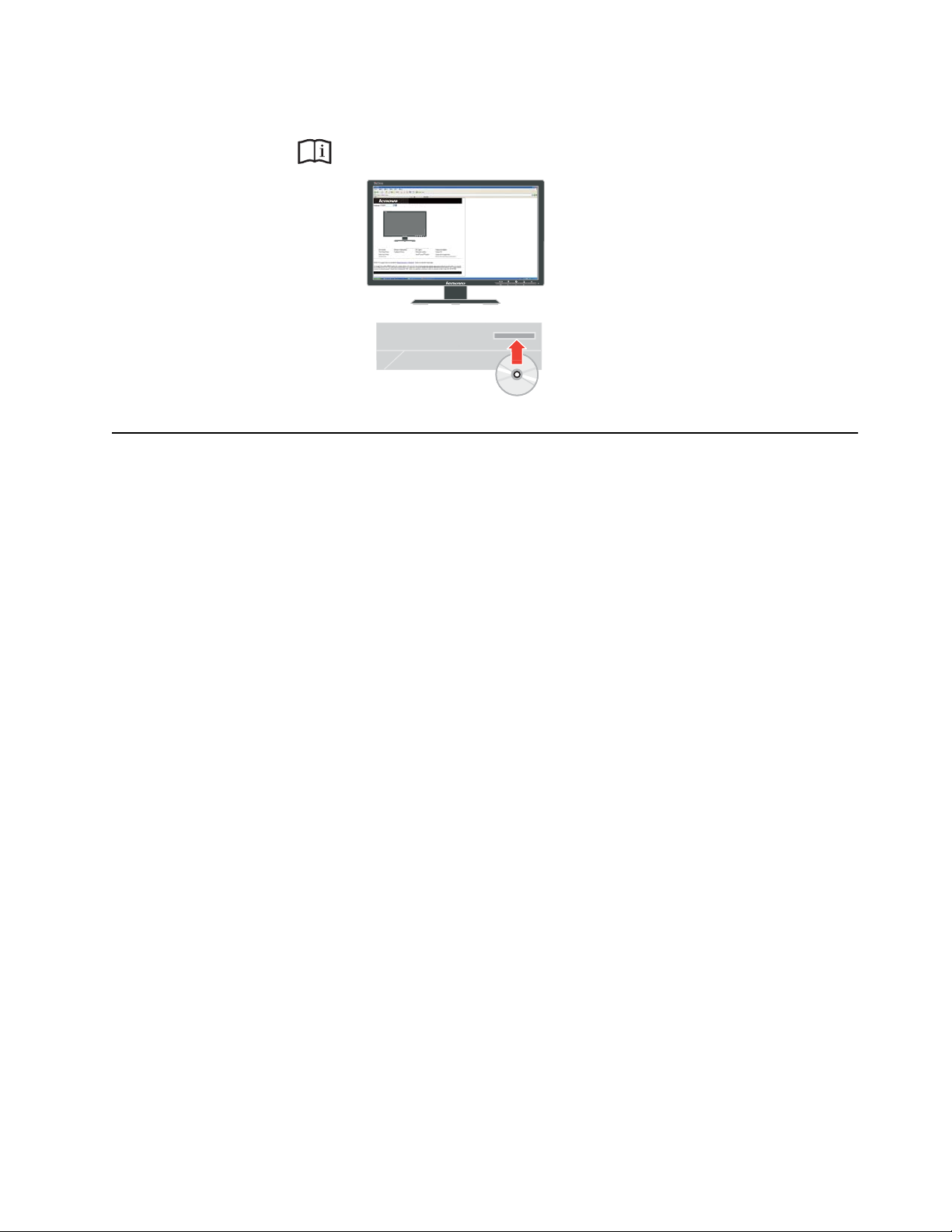

12. To initiate the monitor driver, insert the Reference and Driver CD, click Install driver, and

follow the on-screen instructions.

Registering your option

Thank you for purchasing this Lenovo™ product. Please take a few moments to
register your Product and provide us with information that will help Lenovo to better
serve you in the future. Your feedback is valuable to us in developing product and
services that are important to you, as well as in developing better ways to
communicate with you. Register your option on the following Web site:
http://www.lenovo.com/register
Lenovo will send you information and updates on your registered product unless you
indicate on the Web site questionnaire that you do not want to receive further
information.

Chapter 1. 1-11

Chapter 2. Adjusting and using your monitor

This section will give you information on adjusting and using your monitor.

Comfort and accessibility

Good ergonomic practice is important to get the most from your personal computer and to
avoid discomfort. Arrange your workplace and the equipment you use to suit your individual
needs and the kind of work that you perform. In addition, use healthy work habits to maximize
your performance and comfort while using your computer. For more detailed information on
any of these topics, visit the Healthy Computing Web site at:
http://www.lenovo.com/healthycomputing/.

Arranging your work area

Use a work surface of appropriate height and available working area to allow you to work in
comfort.

Organize your work area to match the way you use materials and equipment. Keep your work
area clean and clear for the materials that you typically use and place the items that you use
most frequently, such as the computer mouse or telephone, within the easiest reach.

Equipment layout and setup play a large role in your working posture. The following topics
describe how to optimize equipment setup to achieve and maintain good working posture.

Positioning your monitor

Position and adjust your computer monitor for comfortable viewing by considering the
following items:

• Viewing distance: Optimal viewing distances for monitors range from approximately

510 mm to 760 mm (20 in to 30 in) and can vary depending on ambient light and time of
day. You can achieve different viewing distances by repositioning your monitor or by
modifying your posture or chair position. Use a viewing distance that is most comfortable
for you.

• Monitor height: Position the monitor so your head and neck are in a comfortable and

neutral (vertical, or upright) position. If your monitor does not have height adjustments,
you might have to place books or other sturdy objects under the base of the monitor to
achieve the desired height. A general guideline is to position the monitor such that the top
of the screen is at or slightly below your eye-height when you are comfortably seated.
However, be sure to optimize your monitor height so the line of site between your eyes
and the center the monitor suits your preferences for visual distance and comfortable
viewing when your eye muscles are in a relaxed state.

• Tilt: Adjust the tilt of your monitor to optimize the appearance of the screen content and

to accommodate your preferred head and neck posture.

• General location: Position your monitor to avoid glare or reflections on the screen from

overhead lighting or nearby windows.

Chapter 2. 2-1

The following are some other tips for comfortable viewing of your monitor:

• Use adequate lighting for the type of work you are performing.

• Use the monitor brightness, contrast controls, if equipped to optimize the image on your

screen to meet your visual preferences.

• Keep your monitor screen clean so you can focus on the screen’s contents.

Any concentrated and sustained visual activity can be tiring for your eyes. Be sure to
periodically look away from your monitor screen and focus on a far object to allow your eye
muscles to relax. If you have questions on eye fatigue or visual discomfort, consult a vision
care specialist for advice.

Quick tips for healthy work habits

The following information is a summary of some important factors to consider to help you
remain comfortable and productive while you use your computer.

• Good posture starts with equipment setup: The layout of your work area and the setup

of your computer equipment have a large effect on your posture while using your
computer. Be sure to optimize the position and orientation of your equipment by following
the tips outlined in "Arranging your work area"on page 2-1 so you can maintain a
comfortable and productive posture. Also, be sure to use the adjustment capabilities of
your computer components and office furniture to best suit your preferences now and as
your preferences change over time.

• Minor changes in posture can help avoid discomfort: The longer you sit and work with

your computer, the more important it is to observe your working posture. Avoid assuming
any one posture for an extended period of time. Periodically make minor modifications in
your posture to help deter any discomforts that might arise. Make use of any adjustments
that your office furniture or equipment provide to accommodate changes in posture.

• Short, periodic breaks help ensure healthy computing: Because computing is primarily

a static activity, it is particularly important to take short breaks from your work.
Periodically, stand up from your work area, stretch, walk for a drink of water, or otherwise
take a short break from using your computer. A short break from work gives your body a
welcome change in posture and helps to ensure you remain comfortable and productive
while you do work.

Accessibility information

Lenovo is committed to providing greater access to information and technology to
people with disabilities. With assistive technologies, users can access information in
the way most appropriate to their disability. Some of these technologies are already
provided in your operating system; others can be purchased through vendors or
accessed at:
http://www-03.ibm.com/research/accessibility/requests/accvpat.nsf/lenovo-bidx?OpenForm

Chapter 2. 2-2

Adjusting your monitor image

This section describes the control features to adjust your monitor image.

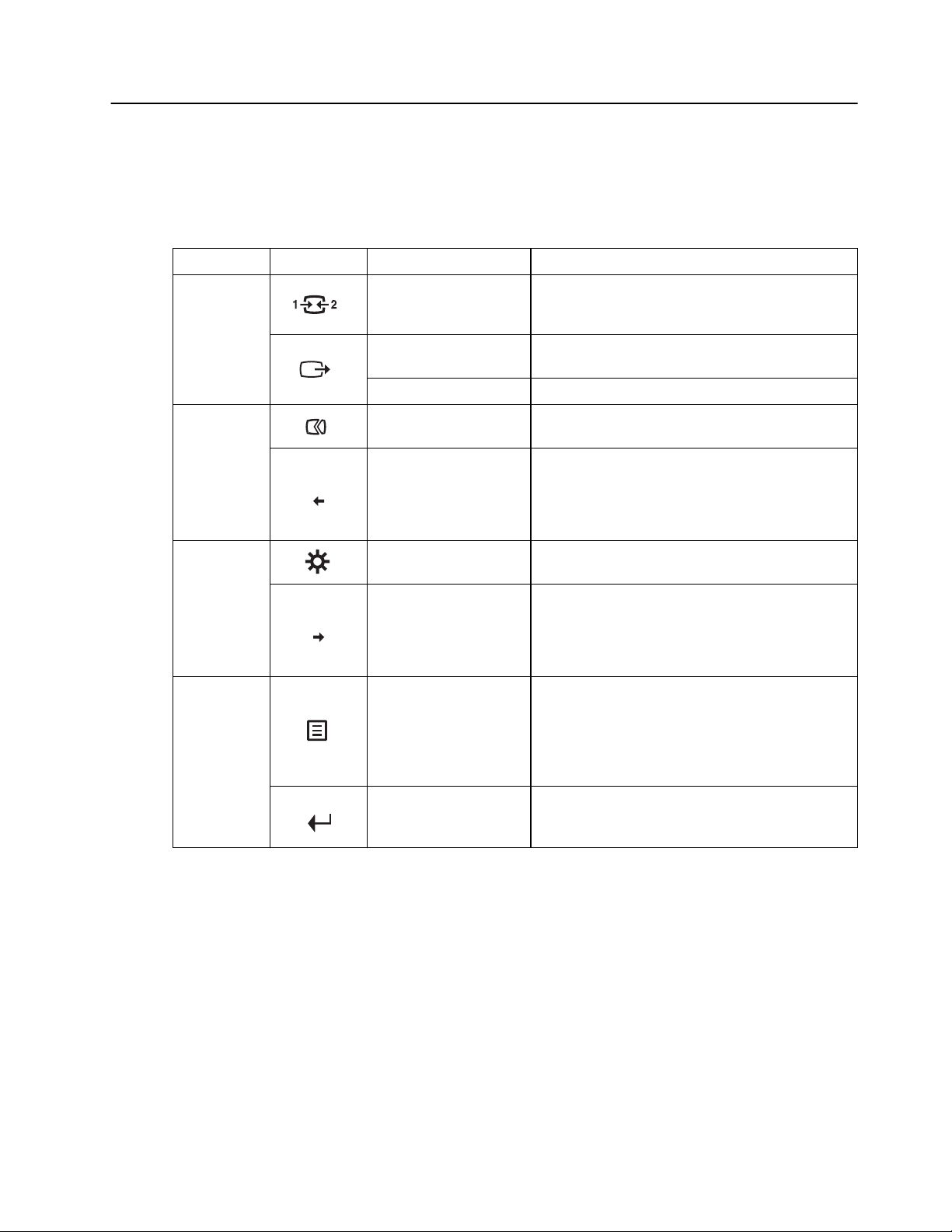

Using the direct access controls

The direct access controls can be used when the On-Screen Display (OSD) is not displayed.

Icon Control Description

Input Source

1

DDC-CI

Exit Exit and return to previous level

Switches the video input source

Shift back to previous level when in OSD mode
Press and hold for 10 seconds to enable or disable the

DDC-CI function

Auto Adjustment

2

Decrease/Down

Brightness Direct access to Brightness adjustment

3

Increase/Up

Menu

4

Enter

Optimizes image (size, position, phase and clock) (For
analog [VGA] source only)

Left browsing key

For decreasing the value on adjustment bar/tune in

Press to move to previous item

Right browsing key

For increasing the value on adjustment bar/tune in

Press to move to next item
To access OSD menu

Press to confirm selection

Press and hold for 10 seconds will lock menu/un-lock
menu

Press to enter next level on main menu/sub menu status
or enter previous level on adjustment bar

Chapter 2. 2-3

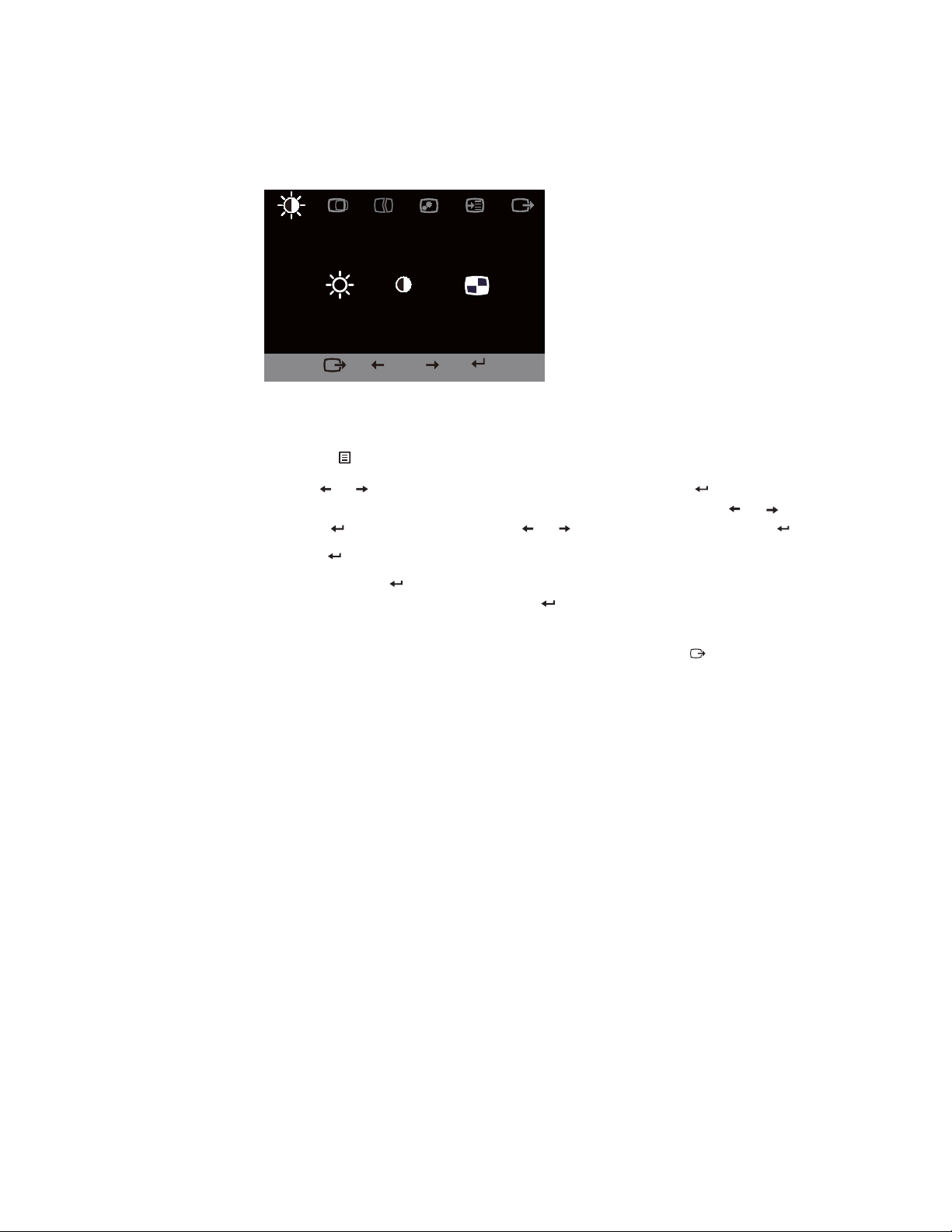

Using the On-Screen Display (OSD) controls

To adjust the settings, the user controls can be viewed through the OSD.

Brightness / Contrast / DCR

To use the controls:

1. Press

to open the main OSD menu.

2. Use or to move among the icons. Select an icon and press to access the selected
function. If there is a sub-menu, you can move between options using or , then
press to select that function. Use or to make adjustments then press to save.

3. Press to move backwards through the sub-menus and exit from the OSD.

4. Press and hold for 10 seconds to lock the OSD. This will prevent accidental
adjustments to the OSD. Press and hold for 10 seconds to unlock the OSD and allow

adjustments to the OSD.

5. Enables DDC/CI by default. Use OSD Exit Key, press and hold for 10 seconds to
disable / enable DDC/CI function. A message "DDC/CI disable" is shown on the screen.

Chapter 2. 2-4

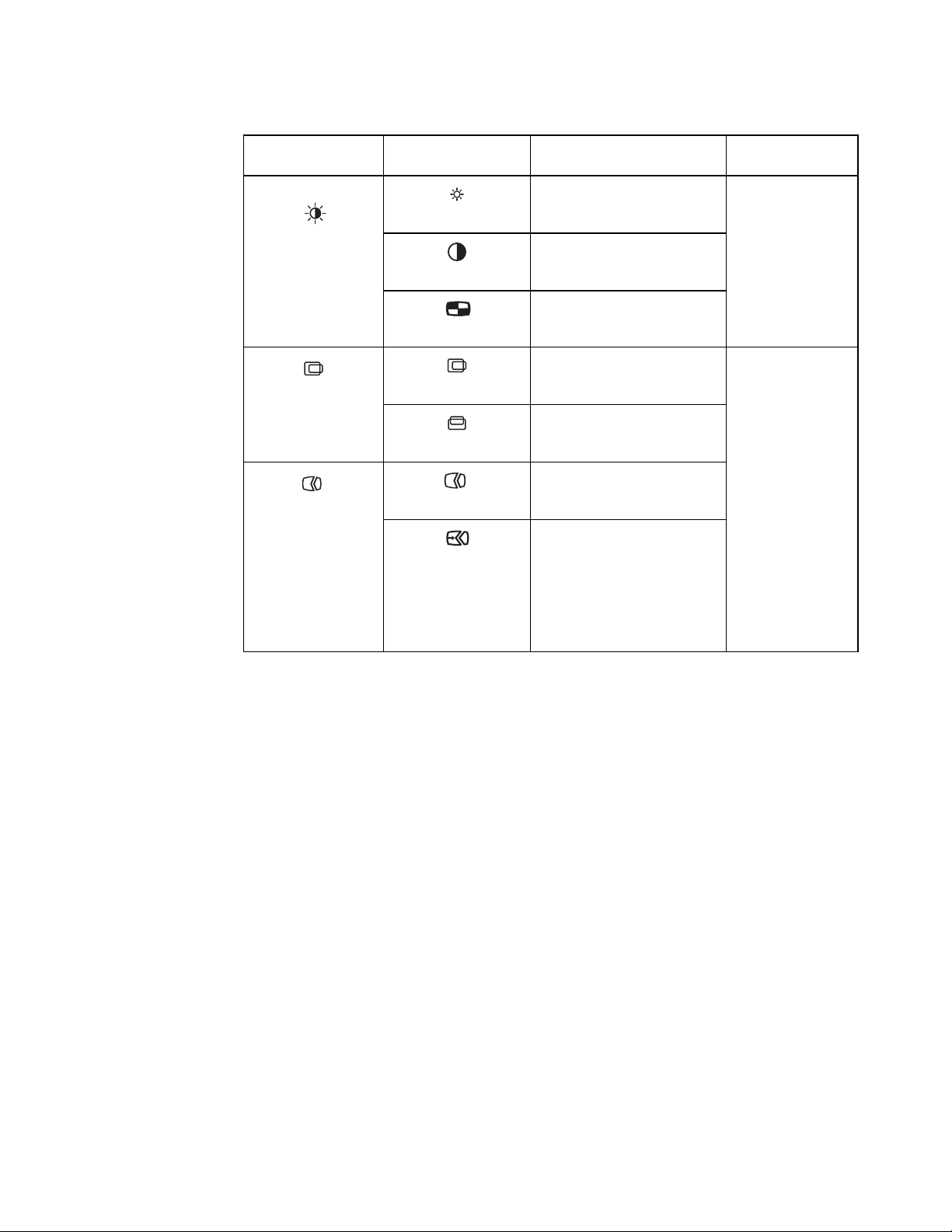

Table 2-1. OSD functions

OSD Icon on Main

Menu

Brightness/

Contrast/DCR

Image Position

Image Setup

Submenu Description

Adjusts overall screen
brightness.

Brightness

Adjusts difference between light
and dark areas.

Contrast

Enable dynamic contrast ratio.

DCR

Moves image left or right. Analog(VGA) only

Horizontal Position

Moves image up or down.

Vertical Position

Optimizes image (size, position,
phase and clock).

Automatic

Manually optimizes image. See
"Manual image setup"on page

Manual

3-4.

• Clock

• Phase

• Save

Controls and
Adjustments

All input ports

Chapter 2. 2-5

Table 2-1. OSD functions

OSD Icon on Main

Menu

Image Properties

Submenu Description

Adjusts intensity of red, green,
and blue.

Color

Preset mode

• Neutral

• sRGB

• Reddish

• Bluish

Custom

• Red: Increases or decreases

the saturation of Red in the
image.

• Green: Increases or
decreases the saturation of
Green in the image.

• Blue: Increases or decreases
the saturation of Blue in the
image.

• Save: Saves the custom
color choices.

This monitor can accept video
signals through three different

Input Signal

connectors. Most desktop
computers use a analog
connector. Select digital among
OSD Controls when you use DP
/ HDMI connector.

Controls and
Adjustments

All input ports

All input ports

- Select 1- Analog (VGA)

- Select 2-HDMI (digital)

- Select 3-DP (digital)

Selects type of scaled image.

Off(1:1)

Scaling

Same Aspect Ratio with input
signal.

On(Expand)
Expand image to full screen.

Shows resolution, refresh rate,

All input ports

and product details.

Options

Information

Note: This screen offers
information only, and (does) not
allow for setting changes.

Chapter 2. 2-6

Table 2-1. OSD functions

OSD Icon on Main

Menu

Options

Submenu Description

Changes languages of menu.

Menu Language

Menu Position

Factory default

Accessibility

Note: The selected language
only affects the language of the
OSD. It has no effect on any
software running on the
computer.

Adjusts menu location.
Default

The menu position to the default
settings.

Custom

• Horizontal: Changes the
horizontal position of the
OSD.

• Vertical: Changes the
vertical position of the
OSD.

• Save: Save the custom
position choices.

Reset all settings to the default
settings.

• Cancel

• Reset

Changes button repeat rate and
menu time-out settings.

Button repeat rate

•Off

• Default

• Slow

Controls and
Adjustments

All input ports

Menu time out
Set the duration of time that the

OSD will remain active when no
operation is performed( ).

Exit from menu.

Exit

Chapter 2. 2-7

Selecting a supported display mode

The display mode of the monitor uses is controlled by the computer. Therefore, refer to your
computer documentation on how to change display modes.

The image size, position and shape might be changed when the display mode changes. This is
normal and the image can be re-adjusted using automatic image setup and the image controls.

Unlike CRT monitors, which require a high refresh rate to minimize flicker, LCD or Flat Panel
technology is inherently flicker-free.

Note: If your system has previously been used with a CRT monitor and is currently configured
to a display mode outside the range of this monitor, you may need to reattach the CRT monitor
temporarily until you have re-configured the system; preferably to 1600 x 900 at 60 Hz, which
is a common display mode.

The display modes shown below have been optimized at the factory.

Table 2-2. Factory set display modes

Timing Refresh rate(Hz)

PAL 50 Hz
640x350 70 Hz
640x480 60 Hz
640x480 72 Hz
640x480 75 Hz
720x400 70 Hz
800x600 56 Hz
800x600 60 Hz
800x600 72 Hz
800x600 75 Hz
832x624 75 Hz
1024x768 60 Hz
1024x768 70 Hz
1024x768 75 Hz
1152x864 75 Hz
1280x1024 60 Hz
1280x1024 70 Hz
1280x1024 75 Hz
1366x768 60 Hz
1440x900 60 Hz
1600x900 60 Hz
1600x900 75 Hz
480p(640x480) 60 Hz
480p(720x480) 60 Hz
576p(720x576) 50 Hz
720p(1280x720) 50 Hz

Chapter 2. 2-8

Table 2-2. Factory set display modes

Timing Refresh rate(Hz)

720p(1280x720) 60 Hz

Image rotation

Before rotating the monitor, you should set-up your computer to rotate the image.
Rotating the image may require special rotation software or you may find that your
computer is preloaded with video graphic drivers that allows image rotation. Check
the Graphic Properties setting on your computer to see if this feature is available.
Try these steps to check if image rotation is available on your computer.

1. Right-click on the desktop and click Properties.

2. Select the Settings tab and click Advanced.

3. If you have ATI, select the Rotation tab and set the preferred rotation. If you have
nVidia, click the nVidia tab, in the left-hand column select NV Rotate, and then
select the preferred rotation. If you have Intel, select the Intel graphics tab, click
Graphic Properties, select the Rotation tab, and then set the preferred rotation.
Check with the manufacturer of your computer to see if graphic drivers with image
rotation can be downloaded from their support website.

Chapter 2. 2-9

Understanding power management

Power management is invoked when the computer recognizes that you have not used your
mouse or keyboard for a user-definable period. There are several states as described in the
table below.

For optimal performance, switch off your monitor at the end of each working day, or whenever
you expect to leave it unused for long periods during the day.

Table 2-3. Power indicator

State Power Indicator Screen

On Green Normal
Standby/Suspend Amber Blank Press a key or

Off Off Blank Press the power

Restoring

Operation

move the mouse

There may be a
slight delay before
the image
reappears.

Note: Standby
also occurs if there
is no image output
to the monitor.

button

There may be a
slight delay before
the image
reappears.

Compliance

ENERGY STAR

ENERGY STAR

Chapter 2. 2-10

Caring for your monitor

Be sure to turn off the power before you perform any maintenance on the monitor.

Do not:

• Apply water or liquid directly to your monitor.

• Use solvents or abrasives.

• Use flammable cleaning materials to clean your monitor or any other electrical equipment.

• Touch the screen area of your monitor with sharp or abrasive items. This type of contact

may cause permanent damage to your screen.

• Use any cleaner which contains an anti-static solution or similar additives. This may harm

the coating of the screen area.

Do:

• Lightly dampen a soft cloth with water and use this to gently wipe the covers and the

screen.

• Remove grease or finger marks with a damp cloth and a little mild detergent.

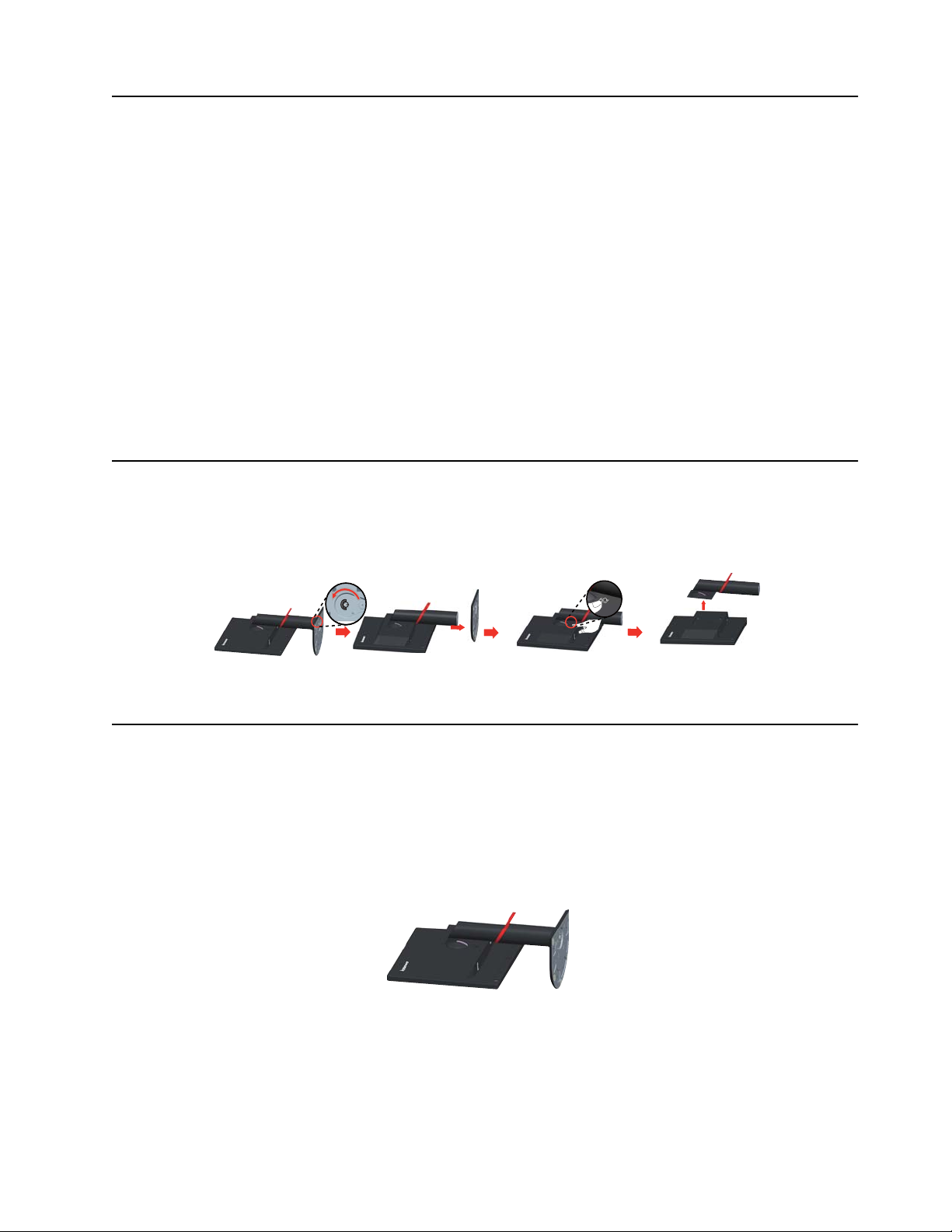

Detaching the monitor base and stand

Step 1: Place the monitor on a soft and flat surface.
Step 2: Remove the screws from base before detaching base and stand from the monitor.

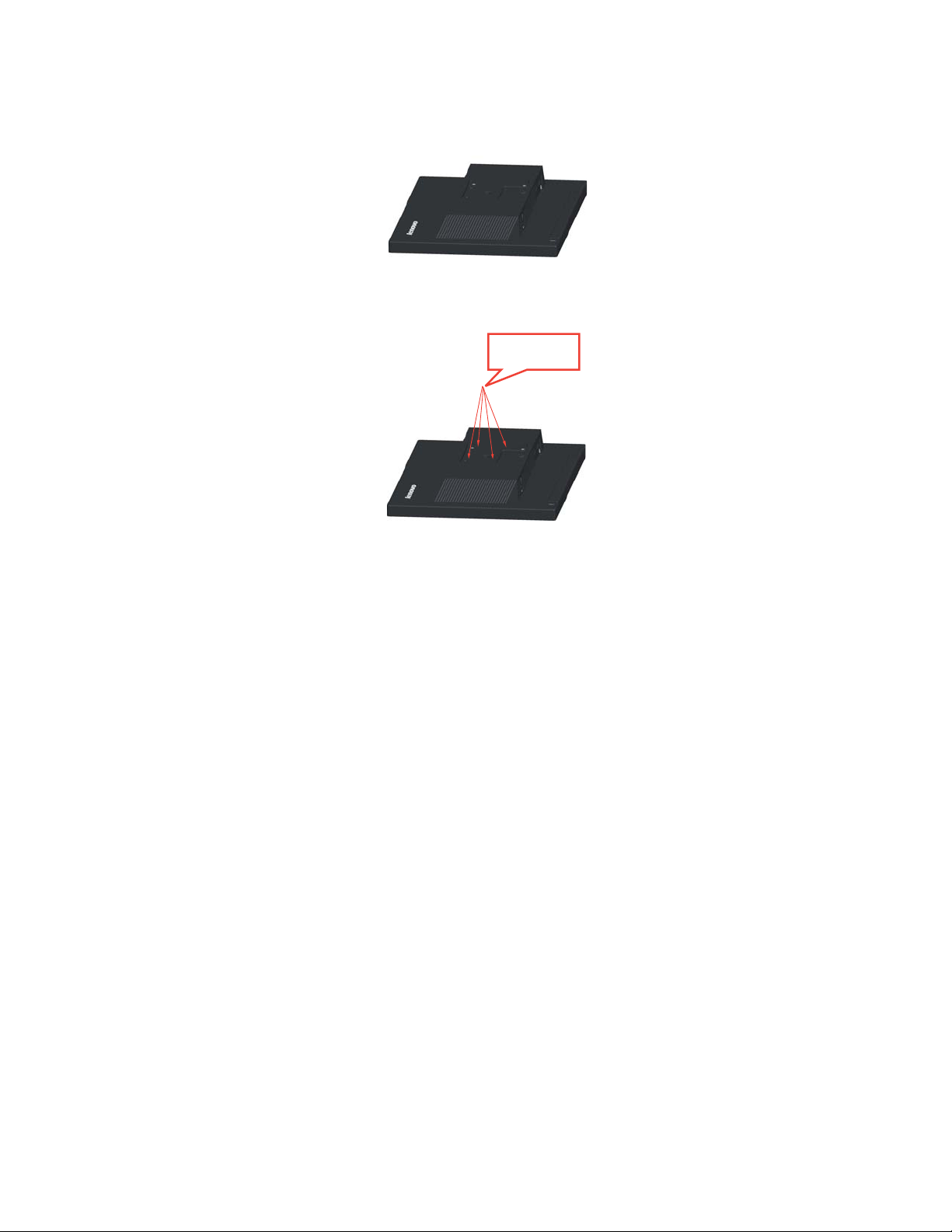

Wall Mounting (Optional)

Refer to the instructions that come with the base mounting kit. To convert your LCD display
from a desk-mounted to a wall-mounted display, do the following:

Step 1: Verify that the Power button is turned Off, then disconnect the power cord.
Step 2: Lay the LCD display face down on a towel or blanket.

Chapter 2. 2-11

Step 3: Remove the base and stand from the monitor, refer to "Detaching the monitor base and

stand"on page 2-11".

Step 4: Attach the mounting bracket from the VESA compatible wall mounting kit

(100mm x100mm distance), the type of VESA mounting screw is M4 x 10 mm.

VESA hole

Step 5: Attach the LCD display to the wall, and follow the instructions in the wall-mounting

kit.

For use only with UL Listed Wall Mount Bracket with minimum weight/load: 8kg

Chapter 2. 2-12

Chapter 3. Reference information

This section contains monitor specifications, instructions to manually install the monitor
driver, troubleshooting information, and service information.

Monitor specifications

Table 3-1. Monitor specifications for type-model 60A0-MAR1-WW

Dimensions Depth

Height

Width
Stand Tilt Range: -5° ~ 30°
VESA mount Supported 100 mm x 100 mm (3.94 in. x 3.94 in.)
Image Viewable image size

Maximum height

Maximum width

Pixel pitch
Power input Supply voltage

Max supply current

Power consumption

Note: Power consumption
figures are for the monitor and
the power supply combined

Normal operation

Standby/Suspend

Off

221.6 mm (8.72 in.)

336.5 mm (13.25 in.)

467 mm (18.39 in.)

494.03 mm (19.45 in.)

239.76 mm (9.44 in.)

432.0 mm (17.0 in.)

0.27 mm (0.01 in.)
90-264 V AC (100-240 V AC +/-10%)

1.5 A -

<17W

<1W (Analog), <1W (Digital)

<0.5W at 100VAC and 240VAC

Note: without USB/

Webcam/external

speaker
Video input (Analog) Interface

Input signal

Horizontal

addressability

Vertical addressability

Clock frequency

VGA

Analog Direct Drive, 75 ohm 0.7V

1600 pixels (max)

--

900 lines (max)

205 MHz

Chapter 3. 3-1

Table 3-1. Monitor specifications for type-model 60A0-MAR1-WW

Video input DP (Digital) Interface

Input signal

Horizontal

addressability

Vertical addressability

Clock frequency
Video input HDMI (Digital) Interface

Input signal

Horizontal

addressability

Vertical addressability

Clock frequency
Communications VESA DDC/CI
Supported display modes Horizontal frequency

Vertical frequency

Native Resolution 1600 x 900 at 60 Hz

DP

VESA TMDS (Panel Link™)/DP

1600 pixels (max)

--

900 lines (max)

205 MHz
HDMI

VESA TMDS (Panel Link™)/HDMI

1600 pixels (max)

--

900 lines (max)

225 MHz

30 KHz - 83 KHz

50 Hz - 75 Hz

Temperature Operating

Storage

Shipping
Humidity Operating

Storage

Shipping

0° to 45° C (32° to 113° F)

-20° to 60° C (-4° to 140° F)

-20° to 60° C (-4° to 140° F)
10% to 80% non-condensing

5% to 95% non-condensing

5% to 95% non-condensing

Chapter 3. 3-2

Troubleshooting

If you have a problem setting up or using your monitor, you might be able to solve it yourself.
Before calling your dealer or Lenovo, try the suggested actions that are appropriate to your
problem.

Table 3-2. Troubleshooting

Problem Possible cause Suggested action Reference

The words "Out of
Range" are shown
on the screen, and
the power
indicator is
flashing green.

The image quality
is unacceptable.

The system is set to a
display mode which is
not supported by the
monitor.

The video signal cable
is not connected with
the monitor or system
completely.

The color settings may
be incorrect.

If you are replacing an old
monitor, reconnect it and
adjust the display mode to
within the specified range
for your new monitor.

If using a Windows system,
restart the system in safe
mode, then select a
supported display mode for
your computer.

If these options do not work,
contact the Support Center.

Be sure the signal cable is
firmly plugged into the
system and monitor.

Select another color setting
from the OSD menu.

"Selecting a supported
display mode"on page
2-8

"Connecting and
turning on your
monitor"on page 1-6

"Adjusting your
monitor image"on page
2-3

The power
indicator is not lit
and there is no
image.

Screen is blank
and power
indicator is
amber.

The automatic image
setup function was not
performed.

• The monitor’s
power switch is not
switched on.

• The power cord is
loose or
disconnected.

• There is no power
at the outlet.

The monitor is in
Standby/Suspend mode.

Perform automatic image
setup.

• Be sure the power cord
is connected properly.

• Be sure the outlet has
power.

• Power on the monitor.

• Try using another
power cord.

• Try using another
electrical outlet.

• Press any key on the
keyboard or move the
mouse to restore
operation.

• Check the Power
Options settings on
your computer.

"Adjusting your
monitor image"on page
2-3

"Connecting and
turning on your
monitor"on page 1-6

"Understanding power
management"on page
2-10

Chapter 3. 3-3

Table 3-2. Troubleshooting

Problem Possible cause Suggested action Reference

The power
indicator is amber,
but there is no
image.

One or more of the
pixels appear
discolored.

• Fuzzy lines in
text or a
blurry image.

• Horizontal or
vertical lines
through the
image.

The video signal cable
is loose or disconnected
from the system or
monitor.

The monitor brightness
and contrast are at the
lowest setting.

This is a characteristic
of the LCD technology
and is not an LCD
defect.

• Image setup has not
been optimized.

• Your system
Display Properties
setting have not
been optimized.

Be sure the video cable is
connected with the system
properly.

Adjust the brightness and
contrast setting on the OSD
menu.

If there are more than five
pixels missing, contact the
Support Center.

Adjust the resolution
settings on your system to
match the native resolution
for this monitor: 1600 x 900
at 60 Hz.

Perform automatic image
setup. If automatic image
setup does not help, perform
manual image setup.

When working in the native
resolution, you may find
additional improvements by
adjusting the Dots Per Inch
(DPI) setting on your
system.

"Connecting and
turning on your
monitor"on page 1-6

"Adjusting your
monitor image"on page
2-3

Appendix A."Service
and Support"on page
A-1

"Adjusting your
monitor image"on page
2-3

"Selecting a supported
display mode"on page
2-8

See the Advanced
section of your
system’s display
properties.

Manual image setup

If automatic image setup does not establish the image that you prefer, perform manual image
setup.(For analog [VGA] only)

Note: Have your monitor powered on for about 15 minutes, until the monitor warms up.

1. Press to open the OSD menu.

2. Use or to select and press to access.

3. Use or to select and press to access.

4. Use or to select Clock or Phase adjustment.

• Clock: (pixel frequency) adjusts the number of pixels scanned by one horizontal

sweep. If the frequency is not correct, the screen shows vertical stripes and the picture
does not have the correct width.

• Phase: adjusts the phase of the pixel clock signal. With a wrong phase adjustment, the

picture has horizontal disturbances in light picture.

5. When the image no longer looks distorted, select Save to save the adjustments of Clock
and Phase.

6. Press to leave the OSD menu.

Chapter 3. 3-4

Manually installing the monitor driver

Below are steps for manually installing the monitor driver in Microsoft Windows 7, Microsoft
Windows Vista, Microsoft Windows 8.

Installing the monitor driver in Windows 7

To use the Plug and Play feature in Microsoft Windows 7, do the following:
Note: You must download file from the Reference and Driver CD to use the Plug and Play

feature in Windows 7.

1. Turn off the computer, all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow your computer to start the
Windows 7 operating system.

4. Open the Display Properties window by clicking Start, Control Panel, Hardware and
Sound icon, and then clicking the Display icon.

5. Click the Change the display settings tab.

6. Click the Advanced Settings icon.

7. Click the Monitor tab.

8. Click the Properties button.

9. Click the Driver tab.

10. Click Update Driver, then click Browse the computer to find the driver program.

11. Select Pick from the list of device driver program on the computer.

12. Click the Have Disk button. Click the Browse button and navigate to the following
directory:

X:\Monitor Drivers

(where X is the drive letter designator for the CD-ROM drive).

13. Select the "lenlt2013pwa.inf" file and click the Open button. Click the OK button.

14. Select LEN LT2013pwA and click Next. The files will be copied from the CD to your
hard disk drive.

15. Close all open windows and remove the CD.

16. Restart the system. The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality.
Lenovo recommends using either 1600 x 900 at a refresh rate of 60 Hz, or 640 x 480 at a
refresh rate of 60 Hz.

Chapter 3. 3-5

Installing the monitor driver in Windows Vista

To use the Plug and Play feature in Microsoft Windows Vista, do the following:
Note: You must download file from the Reference and Driver CD to use the Plug and Play

feature in Windows Vista.

1. Turn off the computer and all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow your computer to start the Windows
Vista operating system.

4. Click Start, Control Panel and then click the Hardware and Sound icon.

5. Click the Personalization icon.

6. Click the Display Settings icon.

7. Click the Advanced Settings button.

8. Click the Monitor tab.

9. Click the Properties button.

10. Click the Driver tab.

11. Click Update Driver, then click Browse the computer to find the driver program.

12. Select Pick from the list of device driver program on the computer.

13. Click the Have Disk button. Click the Browse button and navigate to the following
directory: X:\Monitor Drivers

(where X is the drive letter designator for the CD-ROM drive).

14. Select the "lenlt2013pwa.inf" file and click the Open button. Click the OK button.

15. Select LEN LT2013pwA and click Next. The files will be copied from the CD to your
hard disk drive.

16. Close all open windows and remove the CD.

17. Restart the system. The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.

Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display quality.
Lenovo recommends using either 1600 x 900 at a refresh rate of 60 Hz, or 640 x 480 at a
refresh rate of 60 Hz.

Chapter 3. 3-6

Installing the monitor driver in Windows 8

To use the Plug and Play feature in Microsoft Windows 8, do the following:
Note: You must download file from the Reference and Driver CD to use the Plug and Play

feature in Windows 8.

1. Turn off the computer, all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow your computer to start the Windows
8 operating system.

4. Open the Display Properties window by clicking Start, right-click, choose All

Application, enter Control Panel and Hardware and Sound icon. and then clicking the
Display icon.

5. Click the Change the display settings tab.

6. Click the Advanced Settings icon.

7. Click the Monitor tab.

8. Click the Properties button.

9. Click the Driver tab.

10. Click Update Driver, then click Browse the computer to find the driver program.

11. Select Pick from the list of device driver program on the computer.

12. Click the Have Disk button. Click the Browse button and navigate to the following
directory:
X:\Monitor Drivers\Windows 8
(where X is the drive letter designator for the CD-ROM drive).

13. Select the "lenlt2013pwa.inf" file and click the Open button. Click the OK button.

14. Select LEN LT2013pwA and click Next. The files will be copied from the CD to your
hard disk drive.

15. Close all open windows and remove the CD.

16. Restart the system. The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.

Note: Note: On LCD monitors, unlike CRTs, a faster refresh rate does not improve display
quality. Lenovo recommends using either 1600 x 900 at a refresh rate of 60 Hz, or 640 x 480 at
a refresh rate of 60 Hz.

Getting further help

If you still can’t solve your problem, please contact the Lenovo Support Center. For more
information on contacting the Support Center, please see Appendix A."Service and Support"on
page A-1

Chapter 3. 3-7

Service information

Customer responsibilities

The warranty does not apply to a product which has been damaged due to accident, misuse,
abuse, improper installation, usage not in accordance with product specifications and
instructions, natural or personal disaster, or unauthorized alterations, repairs or modifications.

The following are examples of misuse or abuse and not covered by warranty:

• Images burned onto the screen of a CRT monitor. Burned image is preventable by utilizing

• Physical damage to covers, bezel, base and cables.

• Scratches or punctures on monitor screens.

Service parts

The following parts are for use by Lenovo service, or Lenovo aurthorized dealers, to supprot
the customer warranty. Parts are for service use only. The table below shows information for
model 60A0-MAR1-WW.

Table 3-3. List of service parts

a moving screen saver or power management.

FRU (FIELD

REPLACEABLE UNIT)

PART NUMBER

03X7999 LT2013p Wide -

03X8000 LT2013p Wide-Analog

03T8438 LT2013p Wide- USB 2.0

03T8439 LT2013p Wide-FRU

DESCRIPTION

60A0 Raven Black

Monitor (HDMI)

60A0 Raven Black

cable (1.8m, RoHS)

60A0 Raven Black

cable (1.8m, RoHS)

60A0 Raven Black

Stand and Base

Machine

Type/Model(MTM)

COLOR

Chapter 3.

3-8

Appendix A. Service and Support

The following information describes the technical support that is available for your product,
during the warranty period or throughout the life of your product. Refer to the Lenovo Limited
Warranty for a full explanation of Lenovo warranty terms.

Registering your option

Register to receive product service and support updates, as well as free and discounted
computer accessories and content. Go to: http://www.lenovo.com/register

Online technical support

Online technical support is available during the lifetime of a product at:
http://www.lenovo.com/support

Product replacement assistance or exchange of defective components also is available during
the warranty period. In addition, if your option is installed in a Lenovo computer, you might be
entitled to service at your location. A Lenovo technical support representative can help you
determine the best alternative.

Telephone technical support

Installation and configuration support through the Customer Support Center will be available
until 90 days after the option has been withdrawn from marketing. After that time, the support
is cancelled, or made available for a fee, at Lenovo’s discretion. Additional support is also
available for a nominal fee.

Before contacting a Lenovo technical support representative, please have the following
information available: option name and number, proof of purchase, computer manufacturer,
model, serial number and manual, the exact wording of any error message, description of the
problem, and the hardware and software configuration information for your system.

Your technical support representative might want to walk you through the problem while you
are at your computer during the call.

Telephone numbers are subject to change without notice. The most up-to-date telephone list
for Lenovo Support is always available at: http://consumersupport.lenovo.com

Country or Region Telephone Number

Africa Africa: [phone]

Argentina 0800-666-0011 (Spanish)

South Africa: [phone] and 0800110756
Central Africa: Contact the nearest Lenovo
Business Partner

Australia 131-426 (English)
Austria Warranty service and support: 01-211-454-610 (German)
Belgium Warranty service and support: 02-225-3611 (Dutch, French)
Bolivia 0800-10-0189 (Spanish)

Appendix A.

A-1

Country or Region Telephone Number

Brazil Sao Paulo region: (11) 3889-8986

Outside Sao Paulo region: 0800-701-4815

(Brazilian Portuguese)
Brunei 801-1041 (English, Bahasa Melayu)
Canada Toronto: 416-383-3344

Outside Toronto: 1-800-565-3344

(English, French)
Chile Toll Free: 188-800-442-488

800-361-213

(Spanish)
China 86-10-58851110

800-990-8888

(Mandarin)
China

(Hong Kong S.A.R.)

ThinkCentre® Commercial PC: 8205-0333

Multimedia Home PC: 800-938-228

(Cantonese, English, Mandarin)
China

(Macau S.A.R.)

ThinkCentre Commercial PC: 795-9892

Multimedia Home PC: 0800-336

(Cantonese, English, Mandarin)
Colombia 1-800-912-3021 (Spanish)
Costa Rica 0-800-011-1029 (Spanish)
Croatia 0800-0426
Cyprus [phone]
Czech Republic [phone]
Denmark Warranty service and support: 7010-5150 (Danish)
Dominican Republic 1-866-434-2080 (Spanish)
Ecuador 1-800-426911 (Spanish)
Egypt [phone]
El Salvador 800-6264 (Spanish)
Estonia [phone]

[phone]
Finland Warranty service and support: [phone] (Finnish)
France Warranty service and support (hardware): 0810-631-213

Warranty service and support (software): 0810-631-020

(French)
Germany Warrantyserviceandsupport:01805 004618 (German)
Greece [phone]
Guatemala 1800-624-0051 (Spanish)
Honduras Tegucigalpa: 232-4222

San Pedro Sula: 552-2234

(Spanish)
Hungary [phone]

[phone]

(English, Hungarian)

Appendix A. A-2

Country or Region Telephone Number

India 1800-425-2666

[phone]

(English)
Indonesia 021 5238 823

Local number only: 001-803-606-282

DID (Direct Inward Dialing): [phone]

(English, Bahasa Indonesia)
Ireland Warranty service and support: 01-881-1444 (English)
Israel Givat Shmuel Service Center: [phone]

(Hebrew, English)
Italy Warranty service and support: [phone] (Italian)
Japan Toll Free: 0120-20-5550

International: [phone]

The above numbers will be answered with a Japanese language voice

prompt. For telephone support in English, please wait for the Japanese

voice prompt to end, and an operator will answer. Please say "English

support please," and your call will be transferred to an English-speaking

operator.

PC software: 0120-558-695

Overseas calls: [phone]

(Japanese)
Korea 1588-6782 (Korean)
Latvia [phone]
Lithuania [phone]
Luxembourg [phone] (French)
Malaysia Local number only: 1800-88-1889

DID: [phone]

(English, Bahasa Melayu)
Malta [phone]
Mexico 001-866-434-2080 (Spanish)
Middle East [phone]
Netherlands [phone] (Dutch)
New Zealand 0800-733-222 (English)
Nicaragua 001-800-220-1830 (Spanish)
Norway Warranty service and support: 8152-1550 (Norwegian)
Panama Lenovo Customer Support Center: 001-866-434-2080 (Toll Free)

206-6047 (Spanish)
Peru 0-800-50-866 (Spanish)
Philippines 1800-1601-0033 (English, Filipino)
Poland [phone] (Polski)
Portugal [phone] (Portuguese)
Romania [phone]

Appendix A. A-3

Country or Region Telephone Number

Russia Moscow: [phone]

Toll Free: [phone]

(Russian)
Singapore Local number only: 800-6011-343

DID: [phone] (English)
Slovakia [phone]
Slovenia [phone] (Slovenian)
Spain 91-714-7983

0901-100-000

(Spanish)
Sri Lanka [phone]

[phone]

(English)
Sweden Warranty service and support: 077-117-1040 (Swedish)
Switzerland Warranty service and support: 0800-55-54-54

(German, French, Italian)
Taiwan 886-2-8723-9799

0800-000-700

(Mandarin)
Thailand Local number only: 1-800-060-066

66 2273 4088

DID: [phone] (Thai, English)
Turkey 0212 336 0366 , 00800 448 825 165 (Turkish)
United Kingdom Standard warranty support: 08705-500-900 (English)
United States 1-800-426-7378 (English)
Uruguay 000-411-005-6649 (Spanish)
Venezuela 0-800-100-2011 (Spanish)
Vietnam For Northern Area and Hanoi City:

844 3 946 2000 or 844 3 942 6457

For Southern Area and Ho Chi Minh City:

848 3 829 5160 or 844 3 942 6457

(Vietnamese, English)

Appendix A. A-4

Appendix B. Notices

Lenovo may not offer the products, services, or features discussed in this document in all
countries. Consult your local Lenovo representative for information on the products and
services currently available in your area. Any reference to a Lenovo product, program, or
service is not intended to state or imply that only that Lenovo product, program, or service
may be used. Any functionally equivalent product, program, or service that does not infringe
any Lenovo intellectual property right may be used instead.
However, it is the user 's responsibility to evaluate and verify the operation of any other
product, program, or service.

Lenovo may have patents or pending patent applications covering subject matter described in
this document. The furnishing of this document does not give you any license to these patents.
You can send license inquiries, in writing, to:

Lenovo (United States), Inc.
1009 Think Place - Building One
Morrisville, NC 27560
U.S.A.
Attention: Lenovo Director of Licensing

LENOVO PROVIDES THIS PUBLICATION "AS IS" WITHOUT WARRANTY OF ANY
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of
express or implied warranties in certain transactions, therefore, this statement may not apply
to you.

This information could include technical inaccuracies or typographical errors. Changes are
periodically made to the information herein; these changes will be incorporated in new editions
of the publication. Lenovo may make improvements and/or changes in the product(s) and/or
the program(s) described in this publication at any time without notice.

The products described in this document are not intended for use in implantation or other life
support applications where malfunction may result in injury or death to persons. The
information contained in this document does not affect or change Lenovo product
specifications or warranties. Nothing in this document shall operate as an express or implied
license or indemnity under the intellectual property rights of Lenovo or third parties. All
information contained in this document was obtained in specific environments and is presented
as an illustration. The result obtained in other operating environments may vary.

Lenovo may use or distribute any of the information you supply in any way it believes
appropriate without incurring any obligation to you.

Any references in this publication to non-Lenovo Web sites are provided for convenience only
and do not in any manner serve as an endorsement of those Web sites. The materials at those
Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at
your own risk.

Any performance data contained herein was determined in a controlled environment.
Therefore, the result obtained in other operating environments may vary significantly. Some
measurements may have been made on development-level systems and there is no guarantee
that these measurements will be the same on generally available systems. Furthermore, some
measurements may have been estimated through extrapolation. Actual results may vary. Users
of this document should verify the applicable data for their specific environment.

Appendix B. B-1

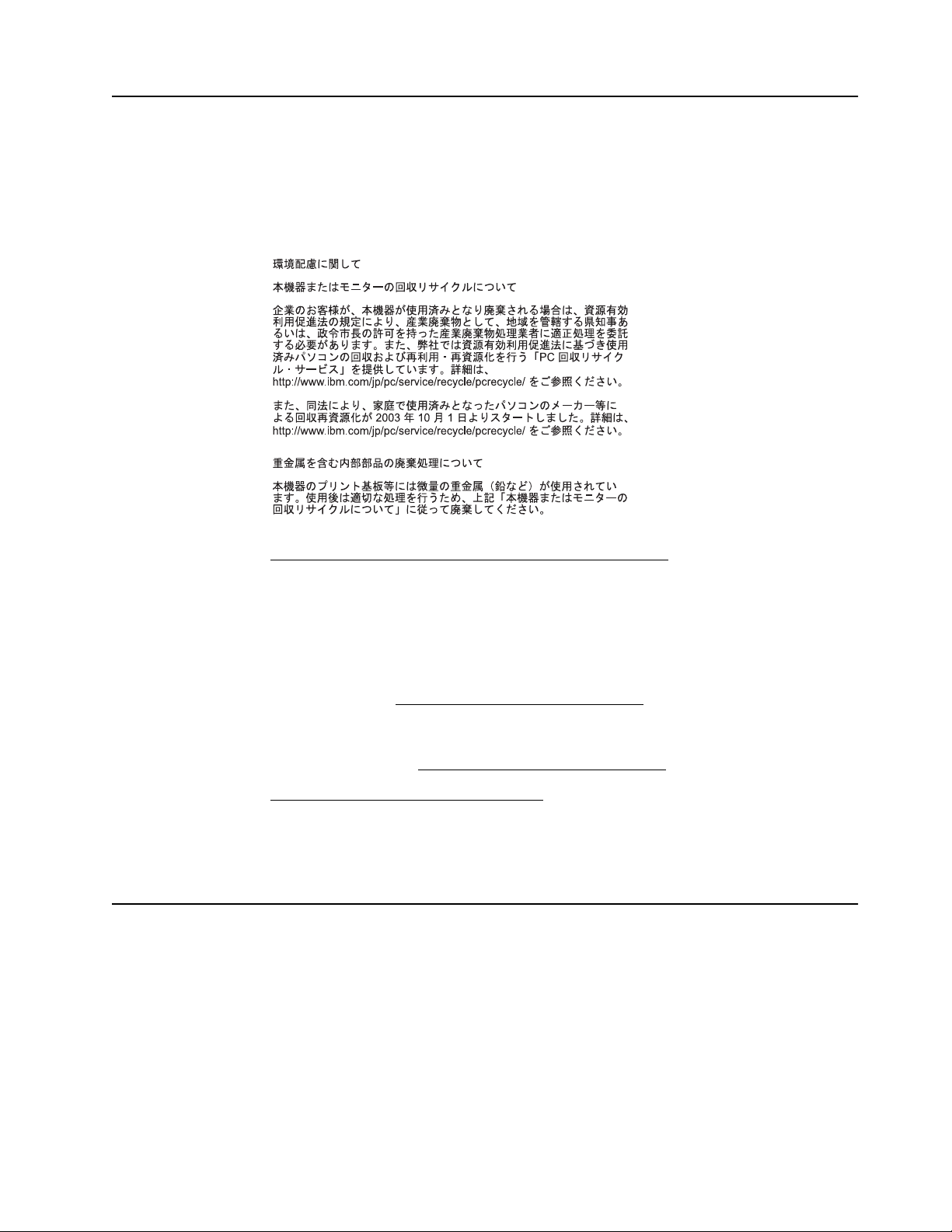

Recycling information

Lenovo encourages owners of information technology (IT) equipment to responsibly recycle
their equipment when it is no longer needed. Lenovo offers a variety of programs and services
to assist equipment owners in recycling their IT products. For information on recycling
Lenovo products, go to:

http://www.lenovo.com/lenovo/environment/recycling

Trademarks

Collecting and recycling a disused Lenovo computer or monitor
If you are a company employee and need to dispose of a Lenovo computer or monitor that is

the property of the company, you must do so in accordance with the Law for Promotion of
Effective Utilization of Resources. Computers and monitors are categorized as industrial waste
and should be properly disposed of by an industrial waste disposal contractor certified by a
local government. In accordance with the Law for Promotion of Effective Utilization of
Resources, Lenovo Japan provides, through its PC Collecting and Recycling Services, for the
collecting, reuse, and recycling of disused computers and monitors. For details, visit the
Lenovo Web site at http://www.lenovo.com/recycling/japan. Pursuant to the Law for
Promotion of Effective Utilization of Resources, the collecting and recycling of home-used
computers and monitors by the manufacturer was begun on October 1, 2003. This service is
provided free of charge for home-used computers sold after October 1, 2003. For details, visit
the Lenovo Web site at http://www.lenovo.com/recycling/japan.

Disposing of Lenovo computer components
Some Lenovo computer products sold in Japan may have components that contain heavy

metals or other environmental sensitive substances. To properly dispose of disused
components, such as a printed circuit board or drive, use the methods described above for
collecting and recycling a disused computer or monitor.

The following terms are trademarks of Lenovo in the United States, other countries, or both:
Lenovo
The Lenovo logo
ThinkCenter
ThinkPad
ThinkVision
Microsoft, Windows, and Windows NT are trademarks of the Microsoft group of companies.

Other company, product, or service names may be trademarks or service marks of others.

Appendix B. B-2
