Thank you
Thank you for purchasing the Jabra M5390 Multiuse headset.
The Jabra M5390 Multiuse headset is supplied together with the Jabra A335w Dongle and the Jabra M5390 Multiuse base.
This unique combination allows you to use one single headset for all your communication needs. The Jabra M5390 Multiuse
headset connects simultaneously to mobile phones and desk phones - or to mobile phones and PC softphones.
The headset base and the headset are used together with your desk phone.
The dongle allows the headset to communicate with a softphone such as Microsoft Office Communicator, Skype or Cisco IP
Communicator, etc. through your PC or laptop.
The headset can also be connected directly to your Bluetooth
Furthermore, the headset and dongle have been optimised for the new wideband technology and are compliant to the
TIA-920 specifications that ensure clear and crisp voice reception and transmission (wideband is only supported between
the dongle and the headset).
®
-enabled mobile phone.
Contents
1. Overview ..................................................2
2. Fitting the headset ...........................................3
3. Setting up your desk phone ....................................4
4. Setting up your mobile phone ..................................7
5. Making a call from your desk phone ..............................8
6. Answering a call from your desk phone ............................9
7. Making and answering a call from your mobile phone ................10
8. Features ..................................................12
9. Reset/Pairing ..............................................15
English
10.
Using the Jabra M5390 Multiuse Headset with multiple
Bluetooth®-enabled devices ...................................
16
11. Operating devices in multiuse scenarios ..........................16
12. Switching between Base and Jabra A335w Dongle in a multiuse scenario ..17
13. Troubleshooting & FAQ .......................................17
14. Maintenance, safety and disposal ...............................18
15. Appendix – GN 1000 Remote Handset Lifter (RHL) (optional accessory) ...19
1
1. Overview
10
9
19
20
15
13
12
14
11
16
17
18
22
23
21
1
2
3
5
4
6
1
5
4
6
8
7
English
Headset
[1] Visual indicator
[2] Answer/End button
[3] Volume up/down
[4] Ear hook
[5] Mute button
[6] Microphone
[7] Reset button
[8] Snap-on cover (replaceable)
2
!
Definition of “Tap, double tap and press”:
Tap = Button press for up to 0.8 sec.
Press = Button press for longer than 0.8 sec, and release before 1.5 sec. Tone indication is heard.
Double tap = Two taps made within 0.5 sec.
Base unit
[9] Charge cradle
[10] Visual indicator
[11] Clear dial tone switch
[12] AUX port
[13] Telephone port
[14] Handset port
[15] AC power adapter port
[16] Transmit volume
[17] Reset button
[18] Headset switch
Cords & adapters
[19] Connection cord
[20] AC power adapter
[21] Dongle
[22] Travel charger
[23] USB cable for travel
charger

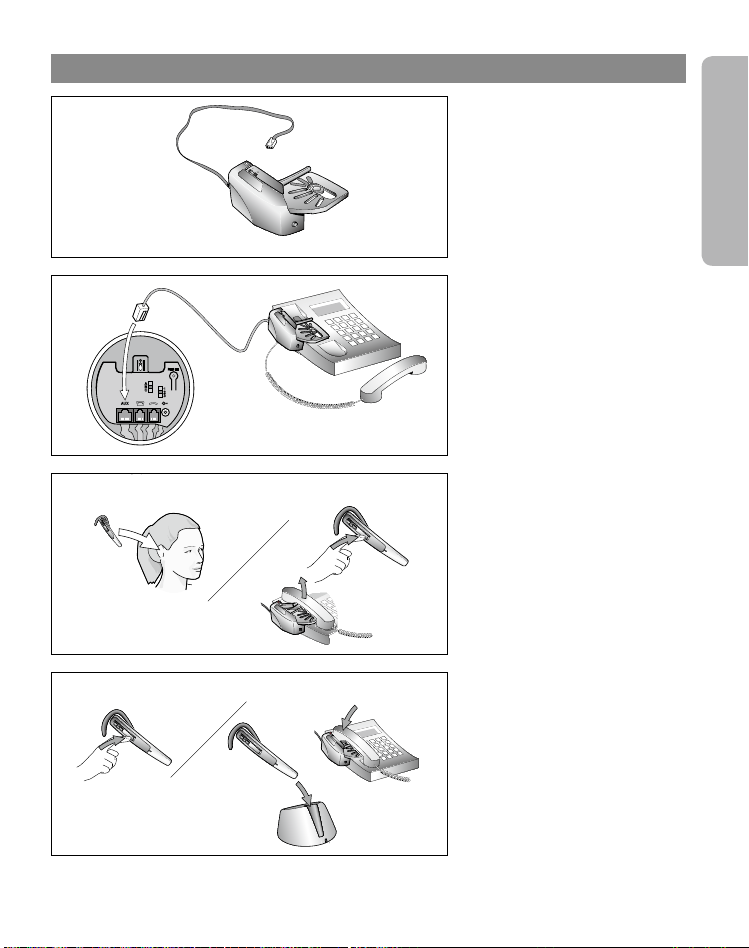

2. Fitting the headset
2.1 2.2
Fitting to ear
2.1 Open hinged ear hook as
wide as possible.
1)
2.3
2.4
2.5
2.2 Hold headset to the ear so
speaker fits comfortably and
microphone points towards the
mouth.
2.3 Close hinged ear hook over
the ear.
2.4 Adjust ear hook for a
comfortable fit.
Fitting to left ear
2.5 Pull ear hook hinge from the
slot and insert it on opposite
side of headset marked with L.
Perform steps 2.1 – 2.4 above.
English
1)
Note: The headset is configured for use with the right ear.
3
3. Setting up your desk phone
3.1
English
If your telephone has a headset
port, go directly to 3.2b.
3.1 Unplug handset cord from
your telephone and connect to
the port on base unit marked
.
with
3.2a
3.2b
3.3
Note: AUX port is used for Remote Handset Lifter (RHL). Please refer to Appendix.
4
3.2a Connect enclosed telephone
cord to the now empty handset
port on telephone, and to the port
on base unit marked with
3.2b (Headset port use only)
Connect enclosed telephone cord
to the headset port on telephone,
and to the port on base unit marked
.
with
3.3 Connect AC power adapter
to port on bottom of base unit,
then connect to AC power outlet.
If the headset is disconnected,
the indicator on the base will
flash green.
.
4.6
4.7
3.4
4.6
4.7
4.8
4.6
3.5
2 sec
3.4 Place headset in charge
cradle and charge for a minimum
of 30 min. before use. A full
charge takes about 2 hours.
Visual indicator on headset will
flash green while headset is
charging, and light steady green
when fully charged. The same
procedure is to be followed when
using the travel charger.
3.5 Turn on headset by pressing
Answer/End button for 1 sec.
(visual indicator will flash blue
four times and headset will beep
three times), or by placing headset
in charge cradle. Turn off headset
by pressing Answer/End button
for 2 sec. (visual indicator will
flash blue four times and headset
will beep three times).
English
3.6
3.8
3.7
3.9

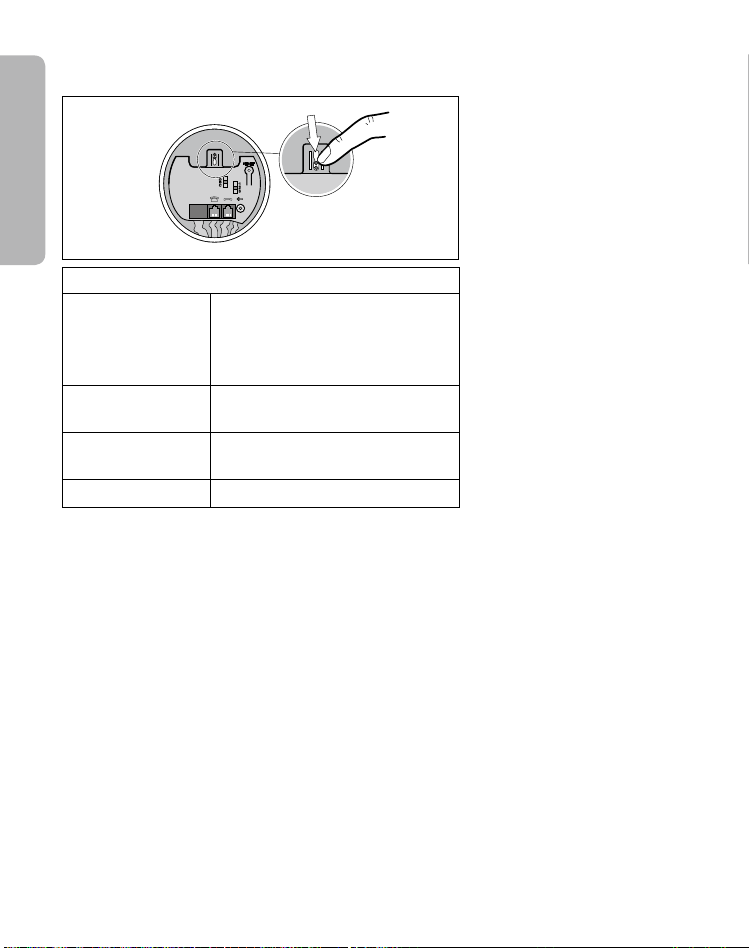

Clear dial tone
3.6 Take headset out of charge
cradle and put it on.
3.7 Lift handset from telephone
and listen for a dial tone in headset.
3.8 If dial tone is missing or unclear,
slowly slide the clear dial tone
switch on bottom of base unit
through the 3 settings.
3.9 Set switch to the position
that gives the clearest dial tone.
5
