24” Wide screen LCD TV with DVB
Model No.: TFT-2411
For information and support, www.lenco.eu
7-8
9
9-10
9
12
12
13
14-15
16
17
1
2
User’s Manual
ediuGresUsihTelbacsniaMMains adaptor
3
TV/AV
Remote Control Window
(keep clear)
LED Indicator
POWER
Indicator on(Blue) Standby mode
Indicator on(Null) Power on mode
4
YPbPr
TV Signal
5
10
10M5
6
Remote Control Key Functions
POWER
TV/RADIO
MENU
DVB
-/--
INPUT
NICAM/A2
MUTE
EXIT
SLEEP
POWER
Switch off the power supply.
INPUT
Press to display the input source menu
.(see page 10)
Buttons for Teletext
TV/TXT: Turn off/on the Teletext display.
CANCEL: Cancel the Teletext display.
REVEAL: Reveal any hidden text.
NICAM/A2
HOLD: Hold or carry on the current subpage.
SIZE: Press to see top half of page double size.
Press again to see the bottom half of page double size.
Press again for normal size.
SUBPAGE: Selects subpage, press again to cancel.
INDEX: Go to index.
Colour buttons: short cuts-follow the coloured links in
the text.
RED KEY: In DTV mode, press red key to switch between
TV and radio.
SUBTITLE LANGUAGE
TEXT
FAV
FAV +
DISPLAY/INFO
FAV -
CH+/-: Scan through channels.
VOL+/-: Adjust the volume.
MENU: System setup menu.
MUTE: Mutes the Audio.
Cursor left/right/up/down: Cursor buttons used in menus.
OK: CONFIRM BUTTON for menu.
DVB: Switch to DVB source.
EXIT: Exit the OSD menu.
0-9,-/--
Choose channel directly.
: go back to play the last channel.
7
POWER
TV/RADIO
MENU
DVB
-/--
SUBTITLE LANGUAGE
TEXT
INPUT
NICAM/A2
MUTE
EXIT
SLEEP
DISPLAY/INFO
Press repeatedly to cycle through the available video
picture modes.
SOUND
Press to cycle through the different sound settings.
SLEEP
Shutdown timer.
SUBTITLE
To switch the dialog at the bottom of the screen.
LANGUAGE
To select audio language.
DISPLAY / INFO
DISPLAY: display current mode.
INFO: Means information, to display brief information
concerning the current channel you are viewing.
ZOOM
Select display mode.
TEXT
Turn off/on the Teletext display.
EPG
To show the Electronic Program Guide during no-menu
state only.
FAV
Means favorite, to display the favorite channel list
defined by you.
FAV +/-
Press to scan through favorite channels.
FAV +
FAV
FAV -
8
blue
blue
9
Picture Mode
Contrast
Brightness
Color
Tint
Sharpness
Select
Enter
Personal
50
50
50
0
Normal
Volume
Sound Mode
Bass
Treble
Balance
SOUND
Select
Enter
20
Personal
50
50
50
Country
Auto tuning
Manual tuning
Program Edit
SETUP
Select
UK
Enter
Sleep Timer
OSD Timer
TIMER
Select
Enter
0 Min
30Sec
Language
Video Size
Blue Screen
Child Lock
First Time Installation
Reset
INPUT
FUNCTION
Select
English
Auto
On
Enter
TV
SCART
CVBS
10
S-VIDEO
YPbPr
VGA
HDMI
DTV
11
12
Child Lock
Key Lock
Change PIN Code
Child Lock
Off
Off
Change PIN Code: Set pin code.
Old PIN Code: The default is no password, press
OK to confirm. If the Pin code has been changed you must
enter the present code.
New PIN Code: Enter the new password.
Enter Again: Enter the new password and press
OK to complete the change.
Old PIN Code
New PIN Code
Enter Again
PIN Code:
Delete Input Enter
Select
Change PIN Code
Select
Delete Input Confirm
0 9 OK
0 9 OK
Adjust
13
SETUP menu options
(used in TV/DTV source)
Press the MENU button on the front panel or on the remote control and then use button to select
the Setup menu, press button to enter(see the picture below).
1. Use button to select what you want to adjust
in the Setup menu.
2. Press button to setup.
3. When you are satisfied with your adjustment, press
MENU button.
Country
This option allows you to select the country.
Auto Tuning
Press button to start auto tuning.
Note: Before you perform Auto Tuning, you must choose the country where you are by selecting
COUNTRY option.
Auto tuning
Press OK key to start
OK
Enter
MENU
Return
Manual Tuning
Note: Before you perform Manual Tuning, you must choose the country where you are by selecting
Country option.
Manual Tuning in TV mode
Manual Tuning
Program
Sound System
Colour System
Program Lable
AFT
Manual Search
Select
Adjust
0-9
99
DK
Auto
Off
471.43MHz
Input
Program: Select the current channel.
Sound System: Select a corresponding sound system.
Color System: Select a corresponding color system.
Program Label: Name the current channel, you can also rename the program which you have named.
Press button to enter, and press button to select the position, then press button
or 0-9 button to enter the character, press OK button to confirm.
AFT: Due to weak signals or a wrong antenna configuration, some of the channels may not be turned
to the best reception condition. AFT function allows you to fine tune channel selected.
Manual Search: Press button to search.
14
Manual Tuning in DTV mode
Manual Tuning
Channel
Start Search
Service Found
Signal Quality
Signal Strength
Frequency
Select
Enter
32
Begin
0
0%
0%
474.00MHz
Channel: Select the current channel.
Start Search: press button to begin searching, and it will display “Search”, after a few second,
it will display “Finish”.
Program Edit
Channel list
Flags
X
X
X
X
Favorite Delete Lock radio
1.
2.
3.555
4.flash
5.
6. aaa
7.
8.
Favorite(in DTV mode): Set favorite channels.(You could use the
FAV+/- button to view the favorite channels in DTV
source.)
Use / button to select the channel, and press the
green button on the remote control to set, and there
will be a “ ” on the channel, press the green button again
to cancel. Such as channel 2.
Delete: Delete the channel, the channel will be skiped when you scan
the channels with CH+/- button.
Lock: Lock the channel, you have to enter the code(PIN code in
Child Lock menu--Function menu) to view the channel.
Use / button to select the channel, and press the blue
button on the remote control to set, and there will be a
“ ” on the channel, press the blue button again to cancel.
Such as channel 5 and 6.
Radio: In DTV mode, press red key to switch between TV and radio.
15
16

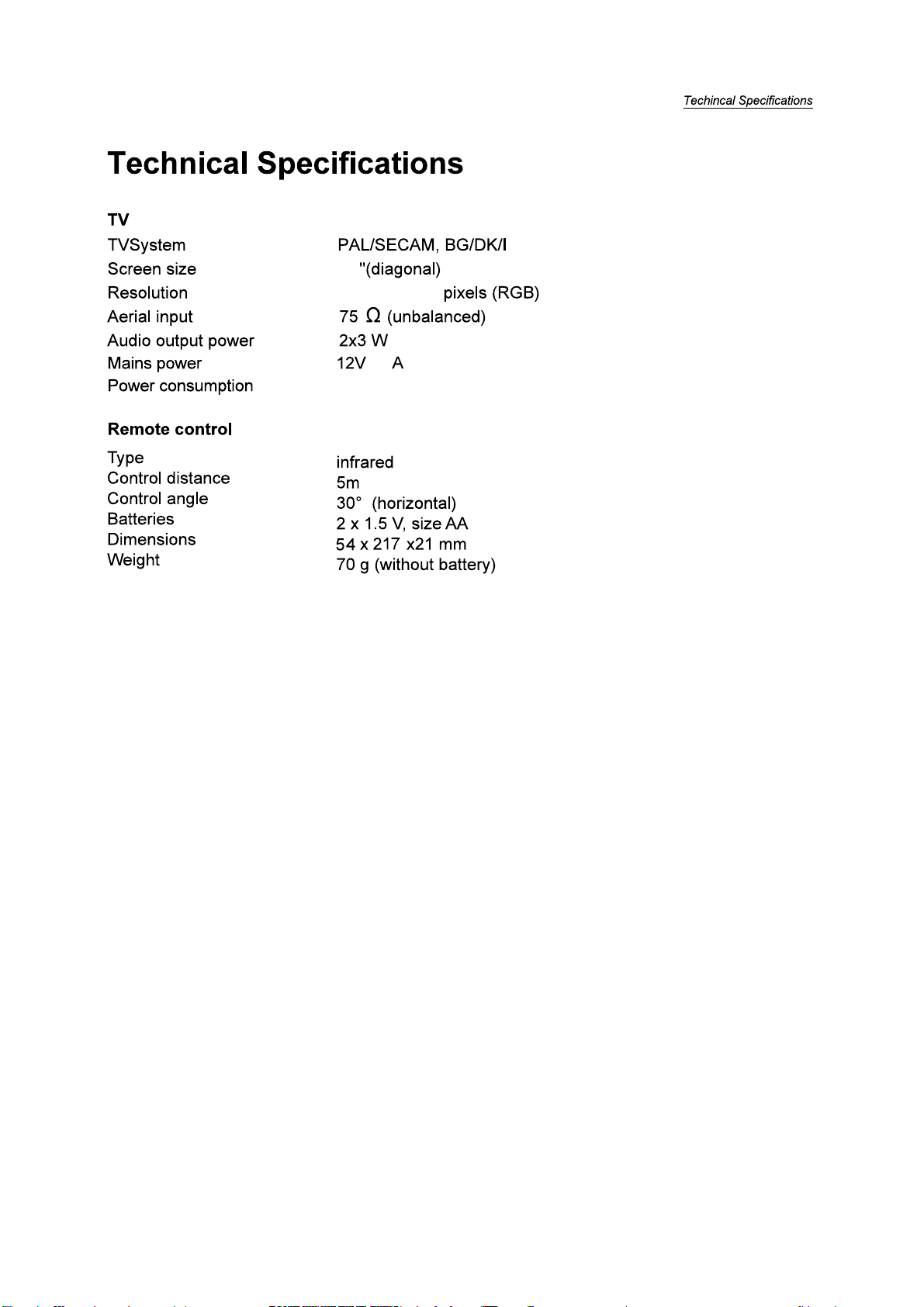

24
1920 x 1080
5
60W
