61cm(24”) LED TV with DVBT/C
Model：DVL-2483 BLACK
For information and support, www.lenco.eu
Contents
Contents
Caution
Safety Information
Accessories
Technical Specification
Product Introduction
Front View
Connections
Basic Operation
OSD Menu
1. Video menu
2. Audio menu
3. TV menu
4. Setup menu
5. Time menu
6. Others menu
7. PC menu(In PC mode) 18
1
2
3
3
4
4
5
6-7Remote Control
8
9-19
9
10
11-13
14
15
16-17
DVD Operation
19-22
Caution
Caution
The lightening flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
directives.
1
Safety Information
Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below
Electrical safety
• The TV set should only be connected to a mains supply which matches that stated on
the label on the mains adaptor.
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains adaptor from the supply.
- Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2
Accessories & Technical Specification
Accessories
POWER MUTE
PICTURE SOUND FREEZE AUTO
SLEEP NICAM SUBPAGE SIZE
EPG LANGUAGE SUBTITLE TV/RADIO
TV/AV
OK
MENU EXIT
1 2 3 4
5 6 7 8
9 0
MENU
SETUP
VOL CH
FAV FAV+ FAV- ASPECT
REPEAT
A-B TITLE
TV/TXT INDEX R.VEAL HOLD
SLOW GOTO SUB.
INFO
-/--
ZOOM
LAN.
User’s Manual
Remote control Mains adaptor
Mains cable
* Note: The configuration of the components may look different from the folltowing illustration
Technical Specification
- TV System
- Screen Size
- Resolution
- Aerial input
- Audio output powe
- Power Consumption
Remote Control
PAL BG/DK/I SECAM BG/DK/L
24 inch(diagonal)
1920x1080
75 Ω (unbalanced)
2x3W
12V 5A 60W
Type
Control distance
Control angle
Batteries
infrared
5m
0
30 (horizontal)
2 x 1.5V, size
3
AAA
Product Introduction
Introduction
Front View
Product Introduction
Please insert a 12cm disc
according to the silk
LED Indicator
Remote Control Window
(keep clear)
POWER to turn on and off.
Indicator on(Blue) Standby mode
Indicator on(Null) Power on mode
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 30
0
to the left or right side and 200above or below the remote control
window.
MENU Press to display the OSD menu, Press again to exit the menu. :
CH-/CH+: Press to scan through channels.
They are also can be used to move down/up in the OSD menu screen.
VOL-/VOL+: Press to adjust the volume.
They are also can be used to move left/right in the OSD menu screen.
VOL+ button can be used to skip forward to next menu.
INPUT: Press to select the source.
PLAY: Play / Pause the disc playing.
EJECT: Eject the disc.
Power: Turn on/off the TV set.
4
Connections
Connections
USB SCART
POWER: Connect to the mains adaptor.
USB: For DVB-T software upgrade only.
HDMI: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC-IN: Connect it to the audio output terminal of PC.
SCART: Connect them to the SCART video output terminal of DVD.(used in component source)
Headphone: Connect it to your headphone or other audio equipment.
Coax: Coaxial audio output.
Common Interface: CI slot.
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
R/L in: Connect them to the audio output terminal of DVD.(shared with YPbPr)
VIDEO: Connect it to video output terminal of DVD.
YPbPr: Connect them to the YPbPr video output terminal of DVD.(used in
component source)
Caution:
Before connecting external devices:
Makes sure to disconnect the appliances from the power supply in order to avoid any
potential damage from occurring.
Make sure to establish the required connection.
Make sure that the connectors are properly and correctly attached before connecting
the appliances to the power supply.
5
Remote Control
Remote Control

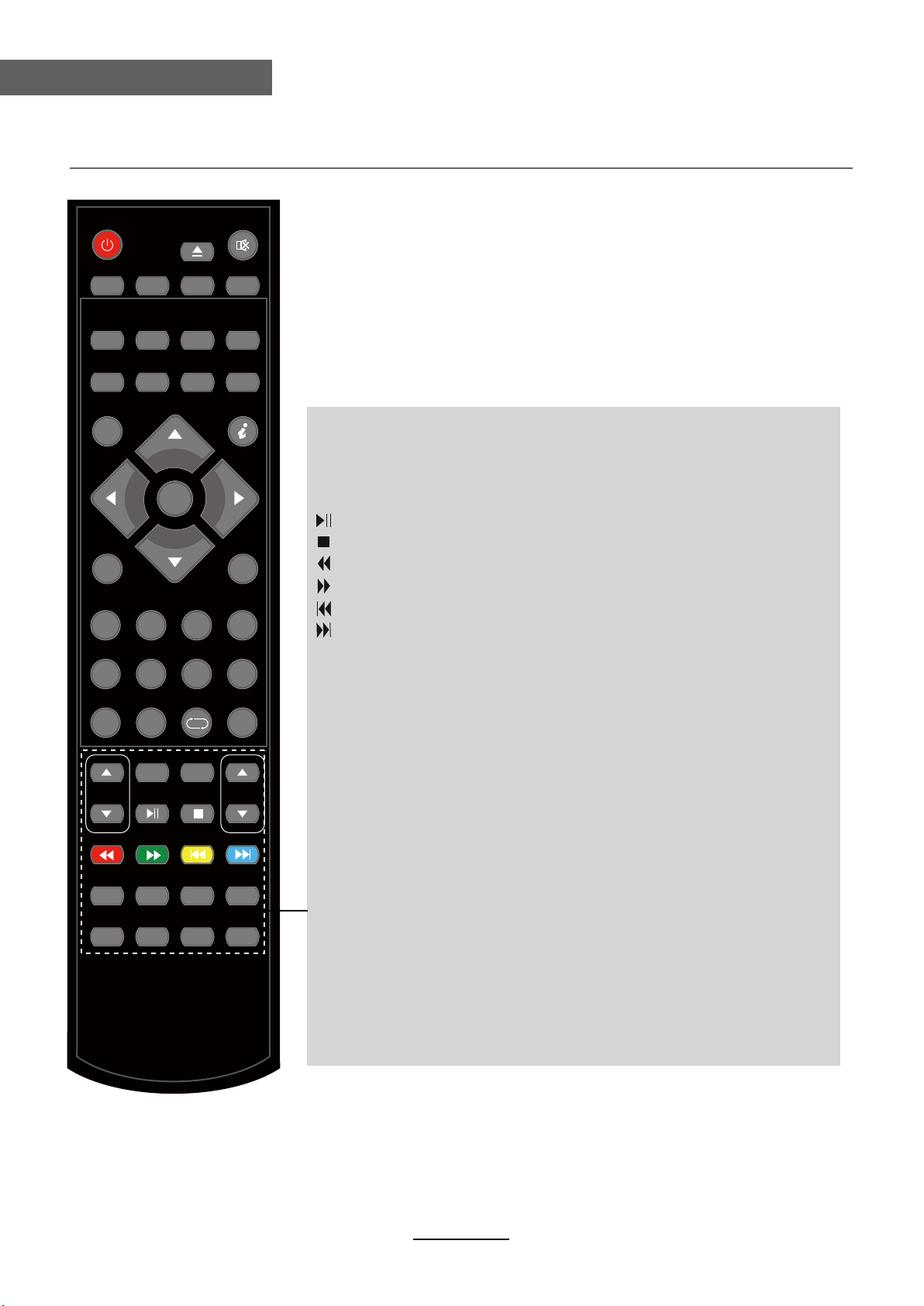

The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote
control may not work correctly if it is operated out of range or out of angle.
POWER
PICTURE SOUND FREEZE AUTO
SLEEP NICAM SUBPAGE SIZE
EPG LANGUAGE SUBTITLE TV/RADIO
INPUT
OK
MENU EXIT
1 2 3 4
5 6 7 8
9 0
MUTE
INFO
-/--
POWER: Turn the TV on/standby.
MUTE: Press to mute the sound, press again or press VOL+ to
unmute.
: Load/eject DVD disc.
PICTURE: Select the picture mode.
SOUND: Select the sound mode.
FREEZE: Catch the picture of the current program.
AUTO: Auto adjust in the PC mode.
SLEEP: Standby timer.
NICAM: NICAM/A2.
SUBPAGE: For example to go directly to subpage 4:
press SUBPAGE, then 0,0,0,4; press SUBPAGE again
to cancel subpage mode.
SIZE: Press to see top half of page double size, Press again to
see the bottom half og page double size, Press again
for normal size.
EPG: To show the Electronic Program Guide during no-menu
state only in DTV mode.
LANGUAGE: Select the language for the TV in DTV mode.
SUBTITLE: Turn on/off the subtitle display in DTV mode.
TV/RADIO: Change the state between DTV and RADIO in
DTV mode.
SETUP
VOL CH
FAV FAV+ FAV- ASPECT
REPEAT
TV/TXT INDEX R.VEAL HOLD
SLOW GOTO SUB.
MENU
A-B TITLE
ZOOM
LAN.
INPUT: Press to display the input source menu.
INFO: Display brief information concerning the current channel
you are view.
Cursor left/right/up/down: Cursor buttons used in menus.
OK: CONFIRM BUTTON for menu.
MENU: System setup menu.
EXIT: Exit the OSD menu.
0-9,-/--: Choose channel directly.
: Return to the previous channel viewed.
6
Remote Control
Remote Control
POWER
PICTURE SOUND FREEZE AUTO
SLEEP NICAM SUBPAGE SIZE
EPG LANGUAGE SUBTITLE TV/RADIO
INPUT
OK
MENU EXIT
1 2 3 4
5 6 7 8
9 0
SETUP
VOL CH
FAV FAV+ FAV- ASPECT
REPEAT
TV/TXT INDEX R.VEAL HOLD
SLOW GOTO SUB.
A-B TITLE
MUTE
INFO
-/--
MENU
ZOOM
LAN.
VOL▲/▼: Adjust the volume.
CH▲/▼-:Scan through channels.
SETUP : Press to display the DVD menu in DVD mode.
MENU (PBC): DVD play list/Disc menu
: Play/pause DVD program.
: Stop DVD program.
: DVD fast reverse.
: DVD fast forward.
: DVD previous chapter.
: DVD next chapter.
Colour buttons: short cuts-follow the coloured links in the text.
FAV: Display the favourite program list.
FAV+: Add the program to the favourite program list.
FAV-: Remove the program from the favourite program list.
ASPECT: Press to change the display mode of the screen.
TV/TXT: Turn off/on the Teletext display.
INDEX: Go to index.
R.VEAL: Reveal any hidden text, for example-quiz answer.
HOLD: Hold or carry on the current subpage.
REPEAT: Repeat playing the title or chapter.
A-B: Select and play the preferable paragraph of DVD program
by pressing this key twice at the beginning and end of it.
TITLE: DVD title.
ZOOM: Adjust picture size in DVD mode.
SLOW: Play DVD programs at slow speed.
GOTO: Play your favorite title/chapter/track.
SUB: Select DVD disc subtitle.
LAN : Select DVD disc language.
7
Basic Operation
Power on/off
1. Connect to the power supply with a power code and an adaptor.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Basic Operation
Input Source select
Press INPUT button on the TV set or remote control to display the
input source menu, and use CH+/- button on the TV set or ∧/∨ button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Signs on the screen
Mute No signal

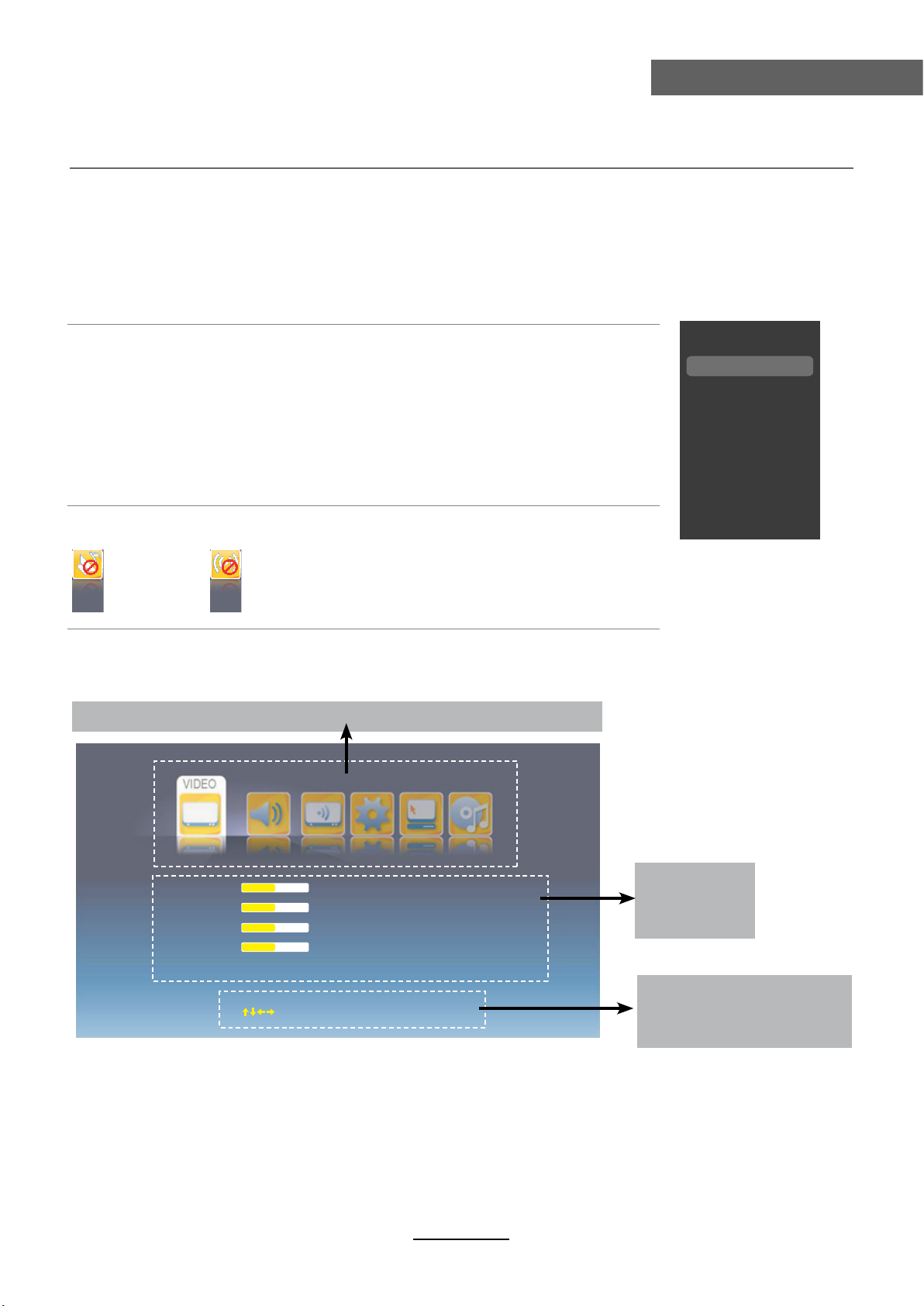

Basic OSD Menu operation
Press MENU button to display the OSD menu as below:
Main menu: VIDEO AUDIO TV SETUP TIME OTHERS
SOURCE
DTV
ATV
AV
SCART
YPBPR
PC
HDMI
DVD
Brightness
Contrast
Saturation
Sharpness
50
50
50
50
Picture Mode
Color Temp
NR
MPEG NR
Cinema Mode
Custom
Normal
Medium
Low
Low
Submenu
(Video menu
for example)
Hint---you should operate
Move
ENTER Se lect
Exit Ex it
the OSD menu according
to the hint.
Use∧/
In the submenu, use ∧/ / /
button to select the main menu, and press button to enter the submenu.
∨
∨
button to select the function item, press OK button to enter
∧
∨
∨
the adjust/setup menu.
* (Press MENU button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
8
OSD Menu
OSD Menu

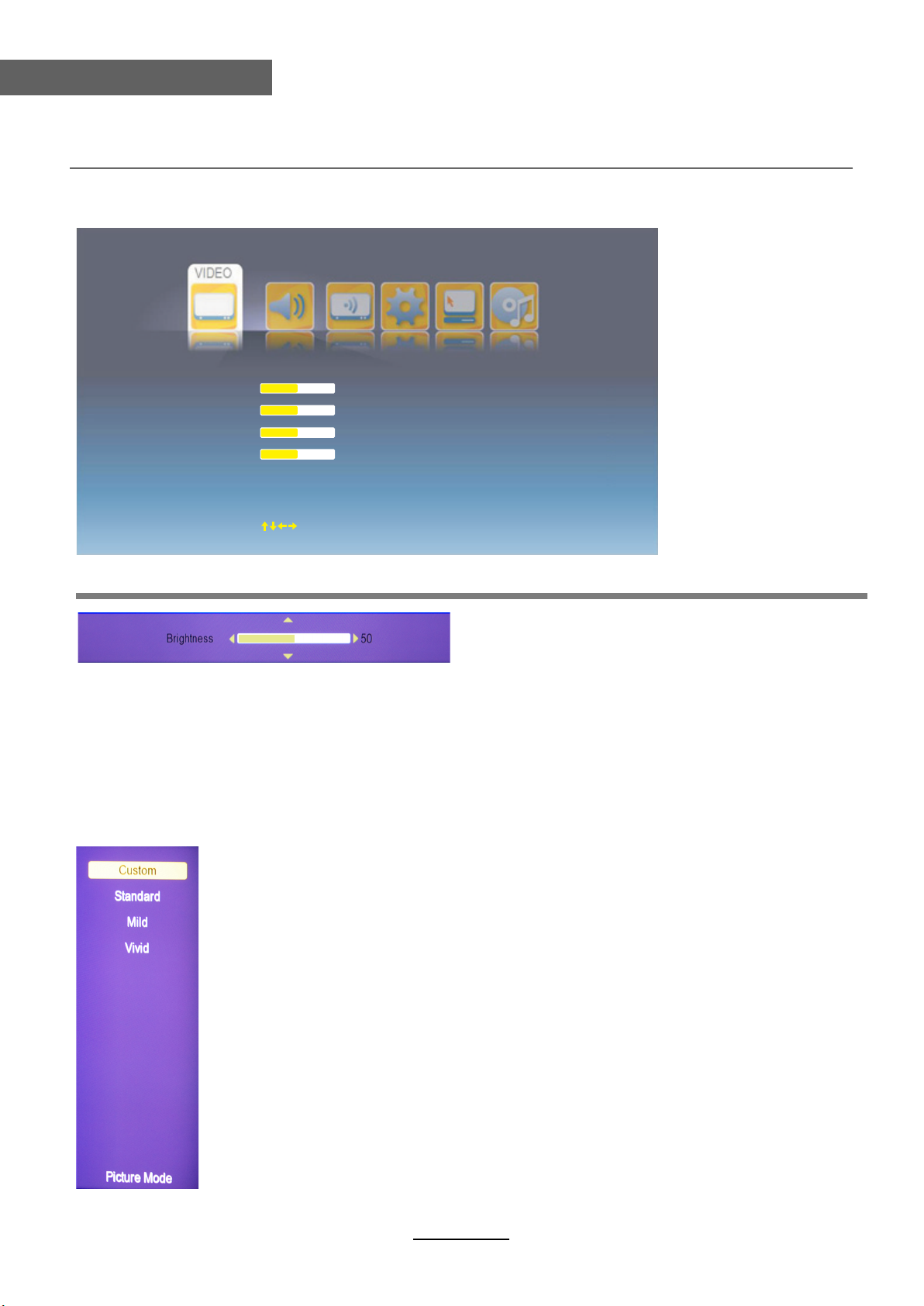

1. Video menu
Bright ness
Contra st
Satura tion
Sharpn ess
Move
50
50
50
50
OK Select
Pictur e Mode
Color Temp
NR
MP
EG NR
Cinema Mode Low
EXIT Exit
Standard
Normal
Low
Low
Description
Adjust menu (Brightness menu for example)
Adjust menu: Press / button to adjust, and press / button to switchover between
∧
∨
∧ ∨
Brightness, Contrast, Saturation, Sharpness.
Brightness: Adjust image black level.
Contrast: Adjust image contrast.
Saturation: Adjust image saturation.
Sharpness: Adjust the sharpness(Gray and invalid in VGA/PC mode).
Select menu (Picture mode menu for example)
Select menu: Press / button to select, and press OK button to confirm.
∧ ∨
Picture Mode: Select your desired picture mode from Custom, Standard,
Mild, Vivid.
You may select the picture mode directly by pressing the PICTURE button
on the remote control.
Color Temp: Select an optimum color temperature mode to suit your eyes
for viewing from Cold, Normal, Warm)
NR: If the broadcast signal received is weak, you can select the NR option
to reduce the video noise level between Off, Low, Medium and High.
MPEG NR: Select MPEG NR mode from Off, Low, Medium and High.
9
OSD Menu

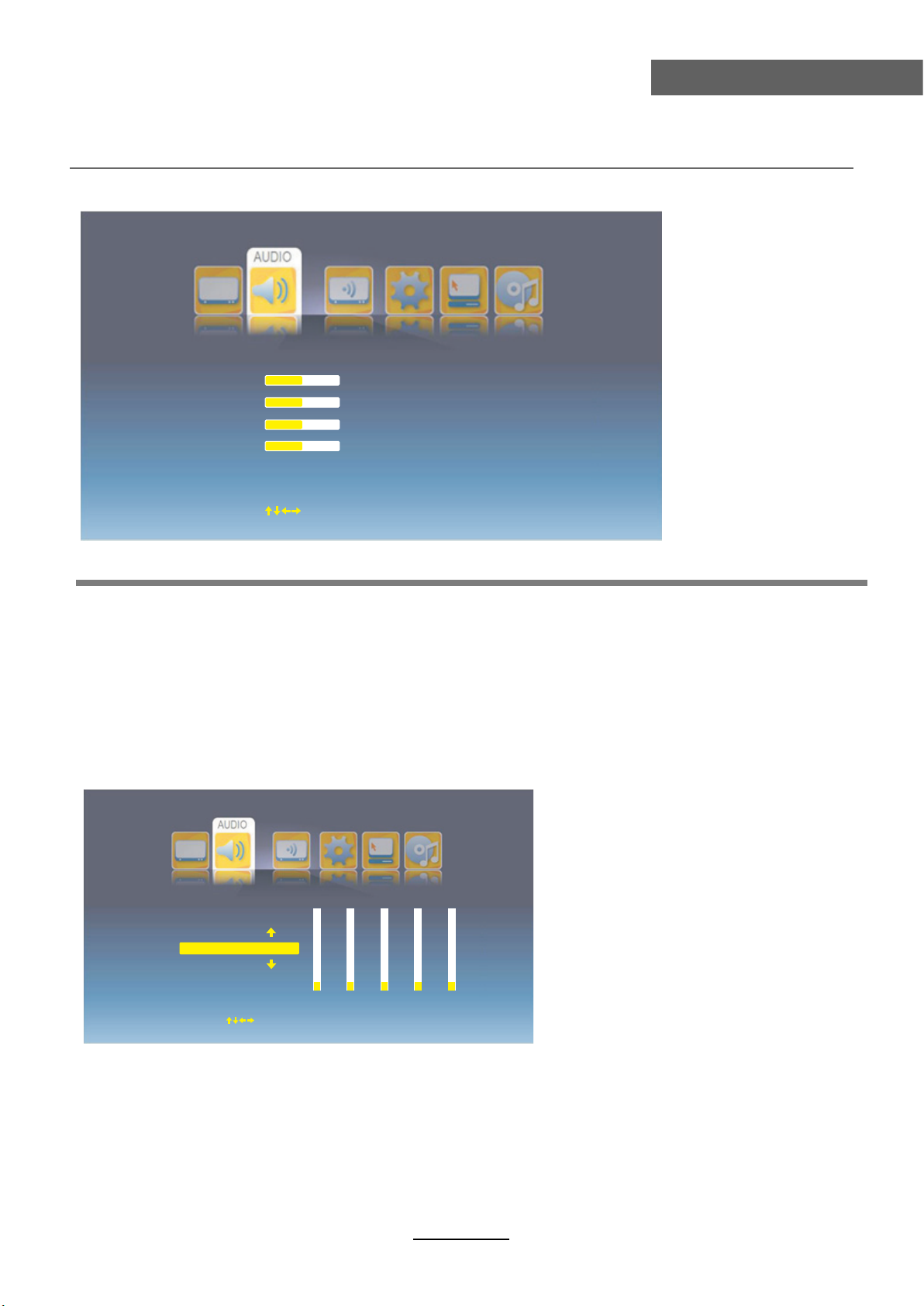

2. Audio menu
OSD Menu
Volume
Balanc e
Trebl e
Bass
Move
50
0
50
50
OK Select
Sound Effect
SPDIF Ou tput
Equali zer
EXIT Exit
Normal
OFF
Description
Volume: Adjust vollume.
Balance: Adjust the audio output between left and right speakers.
Treble: Adjust the level of the higherpitched sounds.
Bass: Adjust the level of the lower-pitched sounds.
Sound Effect: Select the sound effect from BBE, SRS, Normal.
SPDIF Output: Select the Spide Ouput mode from Off, PCM, RAW.
Equalizer: Enter the Equalizer menu to adjust.
0
53
0 0 0
Equ alize r
Cus tomer
Move
100 H z
OK Sel ec t
1K Hz
5K Hz
EXIT Ex it
3K Hz
12K H z
Select the Equalizer mode from Rock, Country, Jazz, Classical, Blue, Default and Customer.
Note: You could adjust by yourself when you select “Customer” mode.
10
OSD Menu
Move
OK Select
EXITExit
OSD Menu

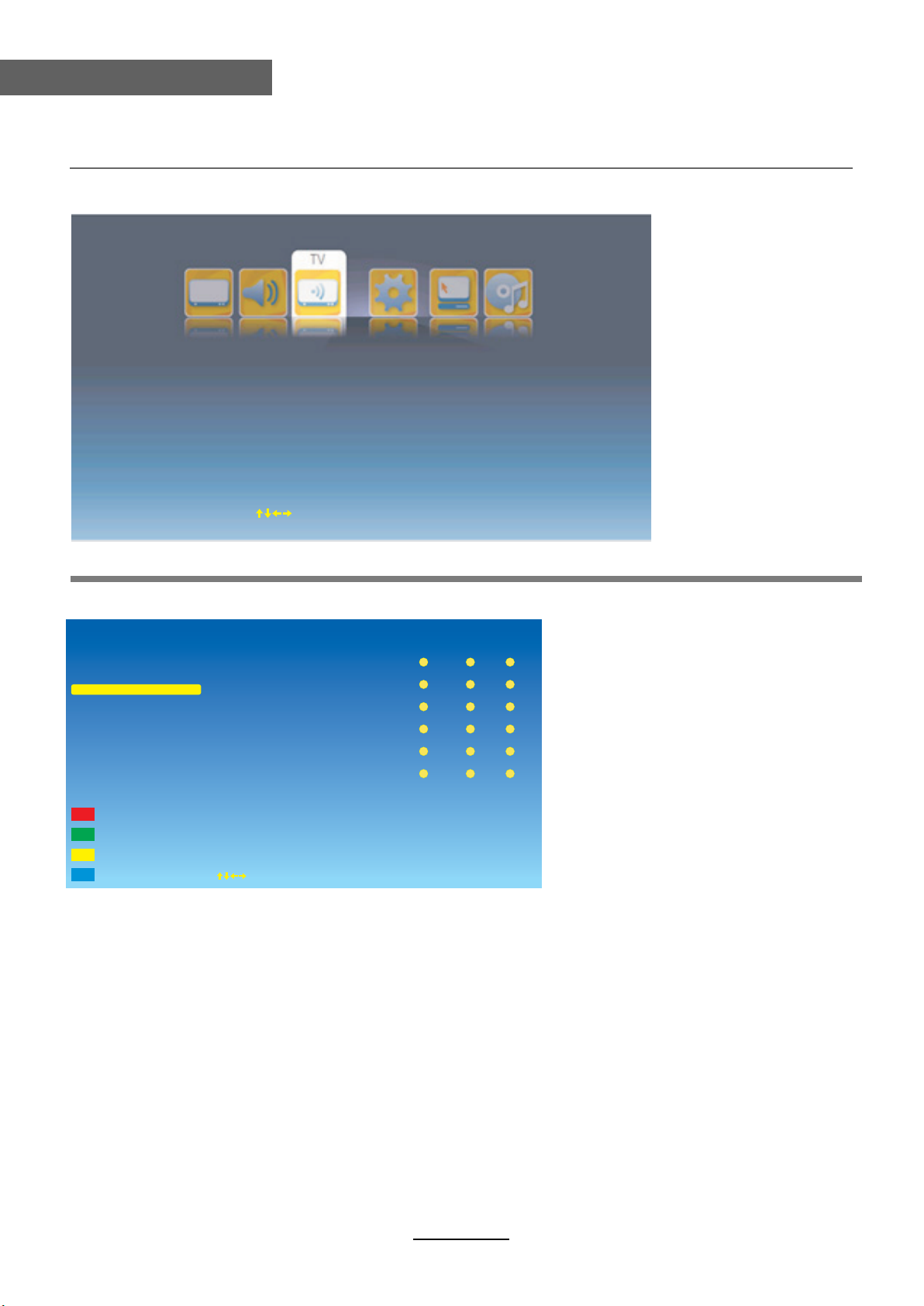

3. TV menu(In ATV/DTV mode)
Progra m Edit
E
PG
LCN Off
Move
OK Select
Auto Sea rch
Manual S earch
EXITExit
Description
Program Edit: Enter the Program Edit menu as below:
Service Type
ATV
Press colo r ke y to e dit
Rename
Delete
Swap
Move
Fav. Lock
1
6
2
3
4
5
CATV 1
CATV 6
CATV 2
CATV 3
CATV 4
CATV 5
Skip
Service Type: Select the Service Type you want.
Network: Select the Network mode you want from All, Rowridge, Crystal Palace, Digita
Finland, Winter Hill.
Operation on the Program Edit menu:
After you select the Service Type and Network modes, you will see the program’s
information displays on the right side of the screen.
Rename: Select the program you want to rename by / button, and press RED button
on the remote control to start renaming the program, you should select the position by /
button and select the character you like on the position by / button. Press OK
∨
∧ ∨
∧
∧ ∨
button to confirm.
Delete: Delete the program you select by GREEN button.
Swap: Select the program you want to swap, and press YELLOW button, then select
the other program you want it to be swaped and press OK button to swap.
Move: Select the program you want to move, and press BLUE button, then select the position
you want the program to be moved to and press OK button to move.
11
OSD Menu
OSD Menu
Fav.: Press OK button to add the program to the favorite channel list, and press OK button
to cancel.
Lock: Press OK button to lock the channel, and you have to enter the code to view the
program. (Note: you should set the code in Parent control menu of OTHERS menu).
Press OK button to cancel.
Skip: Press OK button to skip the channel, and the channel will be skipped when you
scan the channels by CH+/- buttons, and press OK button to cancel.
EPG(Gray and invalid in ATV mode): To display the Electronic Program Guide in DTV mode.
Auto Search: Press OK button to enter the Auto Search select menu.
(*Needs 10 minutes for each search.)
Digital
Analog
Aerial
Cable
Select the Digital/Analog, and press OK button to start autoscan.
Note: 1. When auto searching, it will store the channel it found.
2. You could press MENU/EXIT button to cancel the auto searching, or it will
stop when all the frequency has been searched.
3. You should select Aerial/Cable to start autoscan in Digital mode.
ATV
430.23MH z
75%
Found Chan ne ls
6
Analog
autoscan menu
Press Key ME NU o r EXIT to stop sear ch ing
DVB-T
430.23MH z
75%
Found Chan ne ls
6
Digital-Aerial
autoscan menu
Press Key ME NU o r EXIT to stop sear ch ing
Network ID
Frequency
Symbol Rate
41111
362MHz
Auto
Move
Demodulation
Service Type
Scan Type
Start
OK Select
EXITExit
Auto
All Services
Quick Scan
Digital-Cable
autoscan menu
Select the options for the cable autoscan, select “Start”, and press OK button to start
atuoscan.
DVB-C
362.00MHz 6875kS/s 128QAM
Press Ke y MENU or EXI T to s top sea rching
8%
Found Ch annels
6
12
OSD Menu
OSD Menu
Manual Search(in ATV mode): Press OK button to enter the Manual menu.
Channe l No.
AFT
Signal S trength
0
On
Color Sy stem
Freque ncy
Auto
49.78M Hz
2%
Sound Sy stem
Store
B/G
Note: Press /
button to select.
∨
Channel No.: Select the channel you want to manual search.
Color System: Select the Color System for the channel.
Sound System: Select the Sound System for the channel.
AFT: Due to weak signals or a wrong antenna configuration, some of the channels may
not be turned to the best reception condition. AFT function allows you to fine tune
channel selected.
Frequency: Press / button to search the signal.
∧
∨
Store: Press OK button to store the settings.
∧
13
OSD Menu

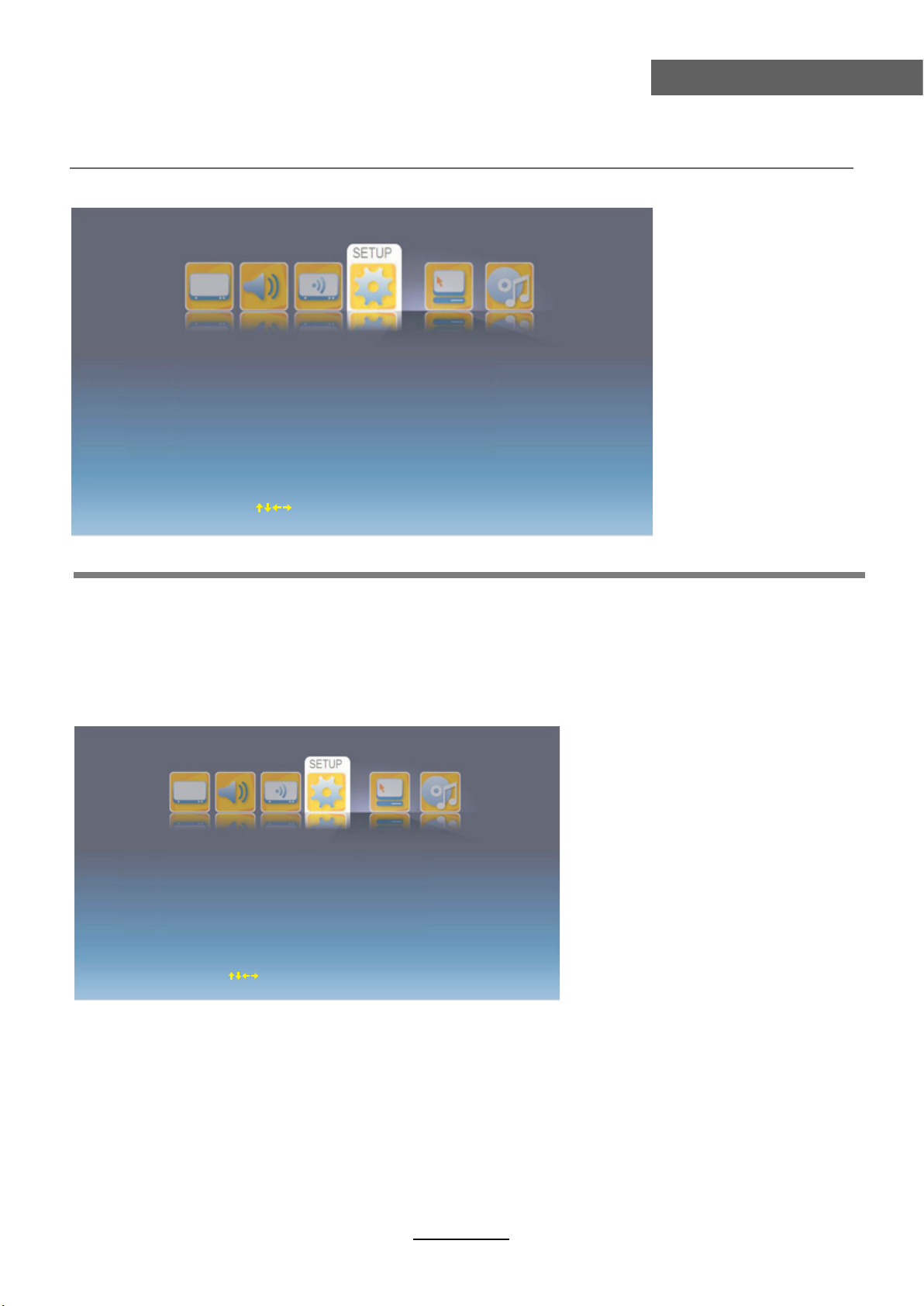

4. SETUP menu
OSD Menu
Countr y
OSD Lang uage
Audio La nguage
Teletext L anguage
Subtit le
Denmark
Move
Englis h
Englis h
OK Select
Setup Wizard
R
eset
EXIT Exit
Description
Country: Select the Country in ATV/DTV mode.
OSD Language: Select the OSD language.
Audio Language: Enter the submenu and select the audio languages for the programs in DTV
mode.
Teletext Language: Select th Teletext language in ATV/DTV mode.
Subtitle: Enter the submenu and set the subtitle settings for the programs in DTV mode.
Move
On
Nor mal
Eng lish
Wel sh
Gae lic
OK Sele ct
EXIT Ex it
Sub title
Sub title M ode
Sub title L angua ge
Alt .Lang uage1
Alt .Lang uage2
Alt .Lang uage3
Subtitle: Turn on/off the subtitle display.
Subtitle Mode: Select the the subtitle display mode from Normal or Hard of Hearing.
Subtitle Language: Select the subtitle languages for the programs.
Setup Wizard: Turn on/off the setup wizard.
Customer Reset: Reset all the settings above.
14
OSD Menu
OSD Menu
5. Time menu
Time Mo de
Sleep Tim e
Curren t Time
Wake Up Time r
Auto
Move
ENTE R Select
Off
Exit Exit
Description
Time Mode: Select Time mode from Auto or Maunal.
Note: You should select Manual mode when you want to setting the Current Time below.
Sleep Time: Set the sleep time for the TV.
Current Time: Press OK button to enter the submenu and set the current time yourself.
Wake Up Timer: Press OK button to enter the submenu and set the wakeup timer for the TV.
Cur rent Tim e 2009- 01-01 T hu 01:0 0 AM
200 9
200 9
Dat e
. 1 . 1
Mov e
Operation for Time: Press / to select the position you want to edit, and press /
OK Setect
Time
EXIT Exit
1 : 0 AM
∧
∨
Dat e
. 1 . 1
Mov e
Time
OK Setect
1 : 0 AM
EXIT Exit
∧ ∨
button to select.
15
OSD Menu
Move
ENTER Sele ct
Exit Exit
Mov e
ENT ER Sele ct
Exi tE xit

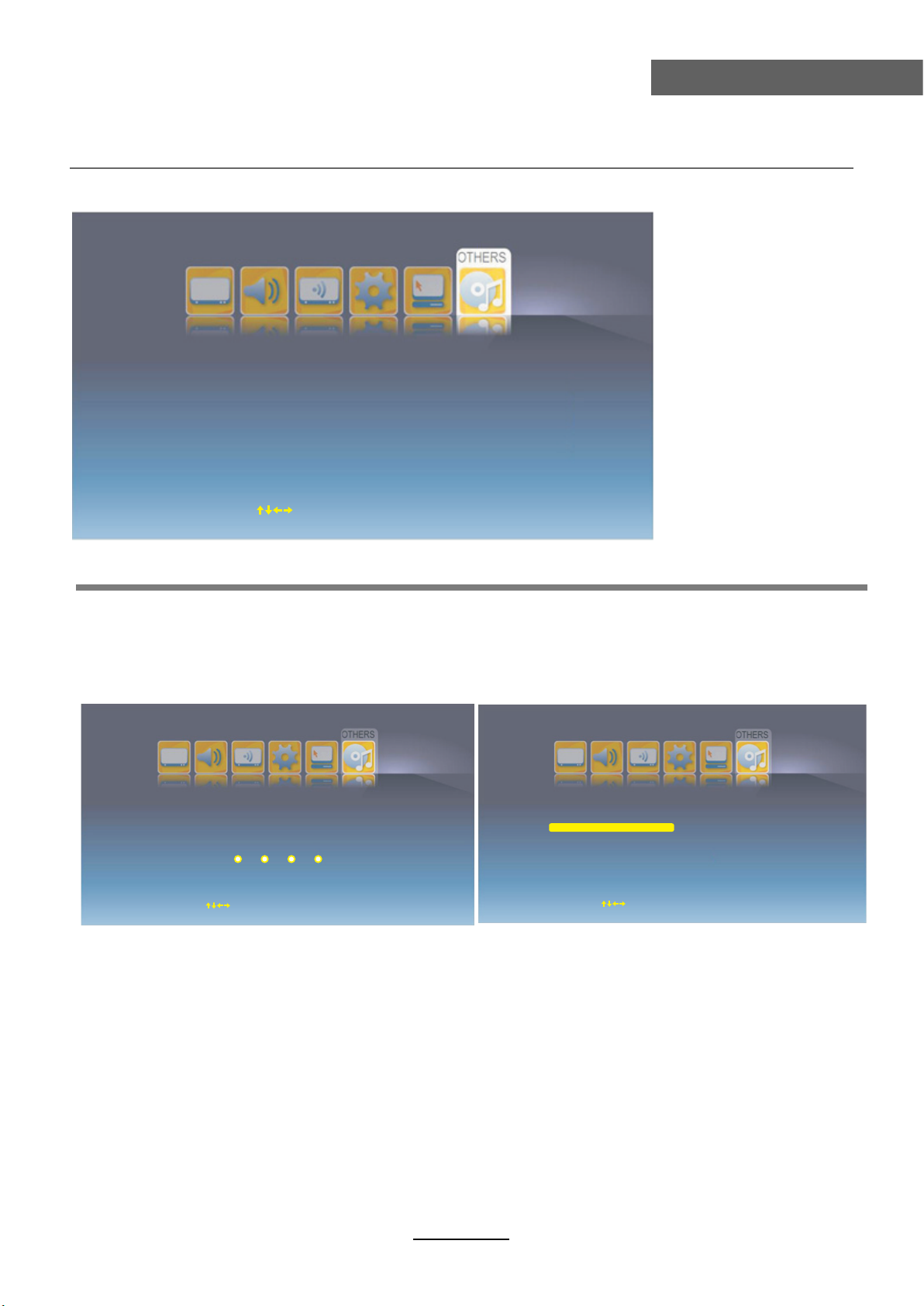

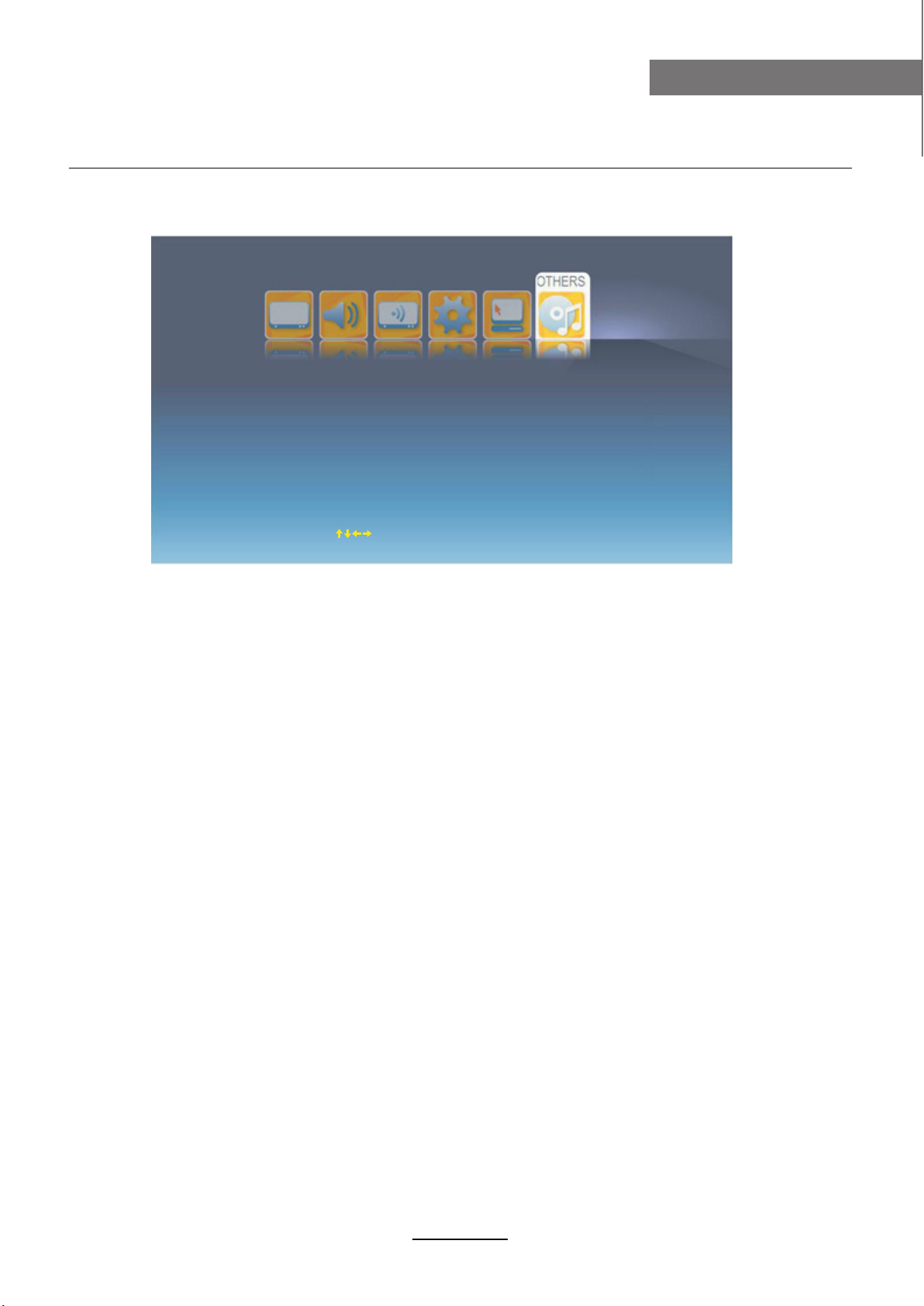

6. OTHERS menu
OSD Menu
Screen M ode
Parent C ontrol
Blue Scr een
Off
Move
PIP
P
Hotel Mode
OK Select
IP Po sitio n
EXIT Exit
Off
Top Left
Description
Screen Mode: Select the screen mode for the TV from auto, 16:9Wide, 16:9 Zoom,16:9 Subtitle,
4:3.
Parent Control: Press OK button and enter the code by the number buttons to enter Parent
Control menu(the original password is 8888).
Ple ase Inp ut Pass word
Par ental L ock
Par ental R ating
Cha nge PIN
Off
4
Parental Lock: Turn on/off the Parental Lock function.
Parental Rating: Select the Parental Rating from 3 to 18.
Change PIN: Press OK button to enter the submenu and change the PIN code.
Note: You should enter the old code, then enter the new code twice to change the code.
Blue Screen: Turn on/off the blue screen function.
The background will be blue screen when there’s no signal.
PIP Function
PIP: Select the input source for the PIP window.
PIP Position: Select the PIP Position on the screen.
16
Mov e
ENT ER Sele ct
Exi tE xit
OSD Menu
Hotel Mode: Press OK button and enter the code by the number buttons to enter Parent
Control menu(the original password is 8888).
OSD Menu
Hotel Mode
Change Password
Clear Lock
Tuner Lock
Key Lock
Source On
Default Source
Off
Off
Off
Off
DTV
Move
Channel No.
Max Volume
Volume On
Source Lock
Export
Import
OK Select
EXIT Exit
1
100
30
Hotel Mode: Press ▲▼ to select Hotel Mode and press ◄► to select the ON or OFF.
Change Password: Press ▲▼ to select Change Password then press ◄► to change hotel mode
password.
Clear Lock: Press ▲▼ to select Clear Lock and press ► to cancel all the settings of lock, it means
set all the locks to OFF; max volume to 100...
Tuner Lock: Press ▲▼ to select Tuner Control and press ◄► to select the ON or OFF.
If set to ON, it would prohibit the search of channel and other related operations.
Key Lock: This function is used for Lock the TV keys.
Source On: Select the source on on/offf.
Default Source: If “Source On” set to ON, you can select the default source when you turn on the TV.
Channel No.: If current Channel No is TV, pess ▲▼ button select Channel No. and then use
◄► to select the program number.
Max Volume: You can choose the maximum volume limit, the user cannot set a volume level higher
than this limit.
Volume On: Select the default volume when you turn on the TV.
Source Lock: Press ►to select the source for prohibiting any external input.
Export: Copy the default setting to the U-device.
Import: Update the default setting to the unit form U-device.
17
OSD Menu
OSD Menu
7. PC menu(In PC mode)
PC
V.Posi tion
H.Posi tion
Phase
Clock
Move
50
50
50
50
OK Select
Auto Adju st
Auto Pha se
Reset
EXIT Exit
Description
V.Position: Adjust the vertical position of the picture.
H.Position: Adjust the horizontal position of the picture.
Phase: Adjust the phase of the picture.
Clock: Adjust the clock of the picture.
Auto Adjust: Auto adjust the PC/VGA settings.
Auto Phase: Auto adjust the phase of the picture.
Reset: Reset the PC/VGA settings to factory default.
18
DVD Operation
DVD Operation

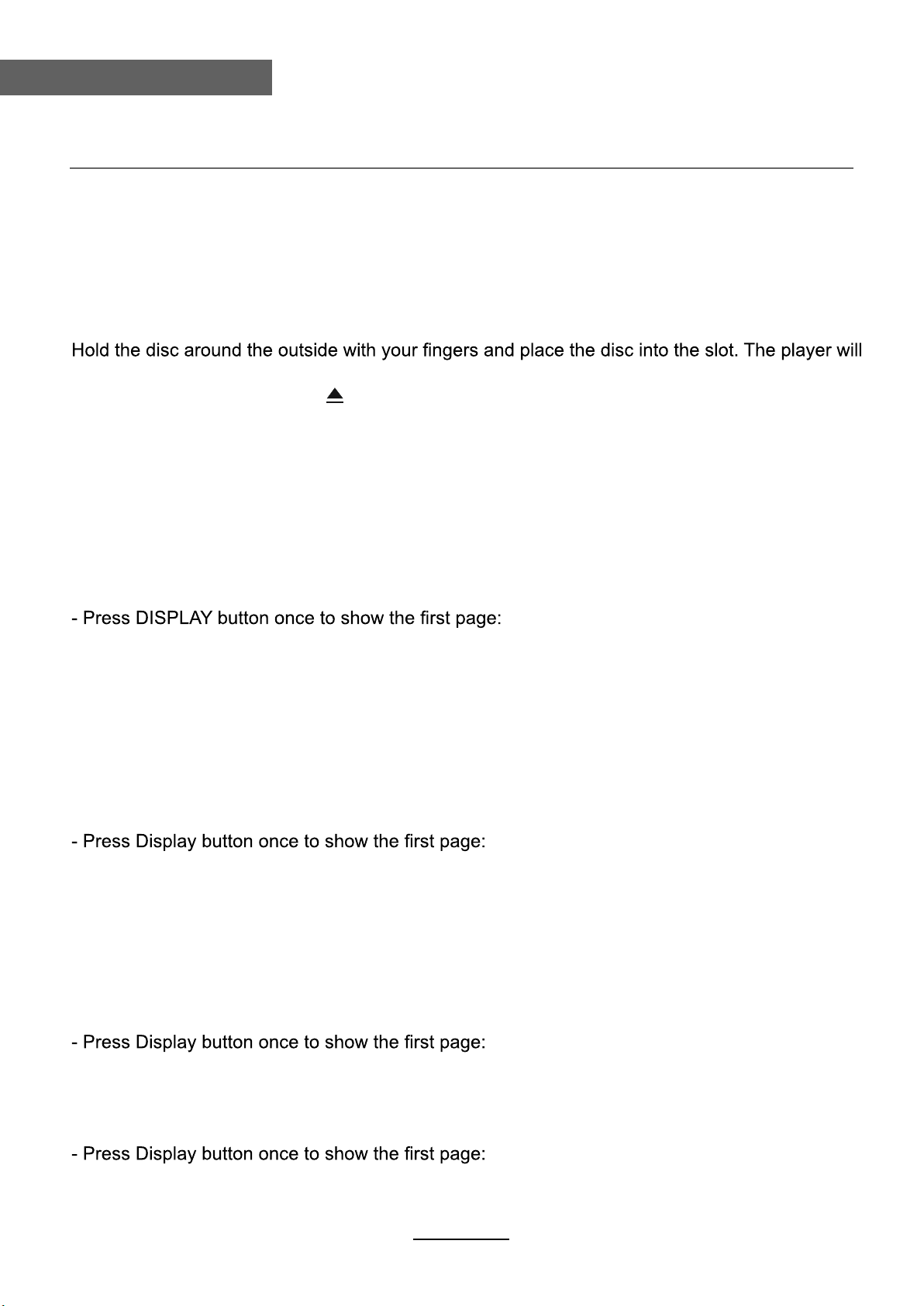

DVD Basic Operation
Turn on your TV then use the INPUT button on the remote control or on the TV to select DVD
mode. If there is no disc in the DVD players the screen will show “NO DISC”.
Place a disc
Insert a disc according to the silk.
Do not touch the playing surface.
automatically draw the disc into the player.
To "Eject" the disc, press the " " (EJECT)button on the remote control or on the TV.
Play
The contents of each disc vary, as to how the disc was authored and what features are included.
Some discs start playing as soon as they have been read, some need "Play" selecting in the
Menu. Different play modes are offered, such as Menu Play, Sequence Play and other modes.
Using the Display Feature
1. Compatible with DVD, SVCD, VCD, CD, HD-CD, WMA, Digital Audio disc discs.
2. Loading and playing DVDs (two pages)
- "Disc Type, Title * / * (the playing title / total titles), Chapter * / * (the playing chapter / total
chapters), Elapsed Time of the Disc".
- Press the button again to show the second page:
- "Language */* (the serial number of playing language / the amount of optional languages) or
Off, Language Type, Audio Type, Subtitle * / * (the serial number of playing subtitle /the
amount of optional subtitles) or Off, Angle * / * (the serial number of playing angle / the amount
of optional angles) or Off".
- Press the button for the third time, the display menu fades out.
3. Loading and playing SVCD discs (two pages)
- "Disc Type, Track * / * (the playing track / total tracks), Mute, PBC, Repeat Mode, Elapsed
Time of the Playing Track".
- Press the button again to show the second page:
- "Language * / * (the serial number of playing language/ the amount of optional languages) or
Off, Language Type, Audio Type, Subtitle * / * (the serial number of playing subtitle / the
amount of optional subtitles) or Off".
- Press the button for the third time, the display menu fades out.
4. Loading and playing VCD
- "Disc Type, Track * / * (the playing track / total tracks), Mute, PBC, Repeat Mode, Elapsed
Time of the Playing Track".
- Press the button again, the display menu fades out.
5. Loading and playing CD, HD-CD, WMA, Digital Audio / JPEG discs
- "Disc Type, Track * / * (the playing track / total tracks), Mute, Repeat Mode, Elapsed Time of
the Playing Track".
- Press the button again, the display menu fades out.
19
DVD Operation
DVD Operation
Subtitles
1. Compatible with DVD, SVCD discs.
2. Press the Subtitle button on the remote once, and the subtitle info banner appears
3. When a DVD or SVCD is recorded with subtitles, you can use the Subtitle feature to view the
subtitles on-screen. By default, subtitles are off. The info banner will display Subtitle Off.
4. To display subtitles, press the Subtitle button again. The default language with its responding
serial number will be displayed in the info banner and subtitles will be displayed in that
language. There are 8 supported subtitles: Chinese, English, Japanese, French, Spanish,
Portuguese, Germany and Latin. With each consecutive press of the Subtitle button, the
subtitle switches. For example, "Language Icon: [1 English DTS 6CH] or [Off]" (the availability
of the subtitles are disc-dependent). To turn subtitles off, press the Subtitle button until
Subtitle Off is displayed.
Zoom In the Video Image
1. Compatible with DVD, SVCD, VCD, JPEG discs.
2. The Zoom Function allows you to enlarge the video image.
3. Press Zoom repeatedly to activate the function and choose the required zoom factor: Zoom 2,
Zoom 3, Zoom 4, Zoom 1 /2, Zoom 1 /3, Zoom 1/4, Zoom Off.
Digital Audio Disc
1. Compatible with Digital Audio discs
2. The player will search the disc directory automatically and display the contents on screen.
4. To change directories use the direction buttons.
Disc Care
About Disc Terms
Title
Generally, pictures or music compressed on a DVD are divided into several sections, "title".
Chapter
The smaller section unit of picture or music in a DVD under the title, usually one title is
comprised of one or more chapters and each of them is numbered for easy searching, but some
discs may not have a recording chapter.
Track
A segment of picture or music on a CD, Each track is numbered for searching.
Care of Disc
Video disc contains high-density compressed data that needs proper handling.
indle hole. Do not touch the discs
surface.
2. Do not bend or press the disc.
3. Do not expose the disc to direct sunlight or heating sources, Stere discs in cabinet vertically,
and in dry condition.
Prevent exposure to:
Direct sunlight, Heat or exhaust from a heating device, Extreme humidity
Clean the disc surface with a soft, dry cleaning cloth, Wipe the disc surface gently and radically
from center toward the outer edge.
will permanently damage the disc surface.
20
DVD Operation
DVD Operation
DVD System Setup
change them again.
General Steps of Setup Menu
1. Pause or Stop the player. Press SETUP on the remote control. The main menu will be
shown as below.
2. Press the
>
3. Press
4. Press
5.To exit the menu, press "SETUP " or ∨ button to select EXIT SETUP and then press
"OK" When launching the setup routine, the pressing of the following buttons will turn off the
setup menu, while the choices that have been changed will be saved.

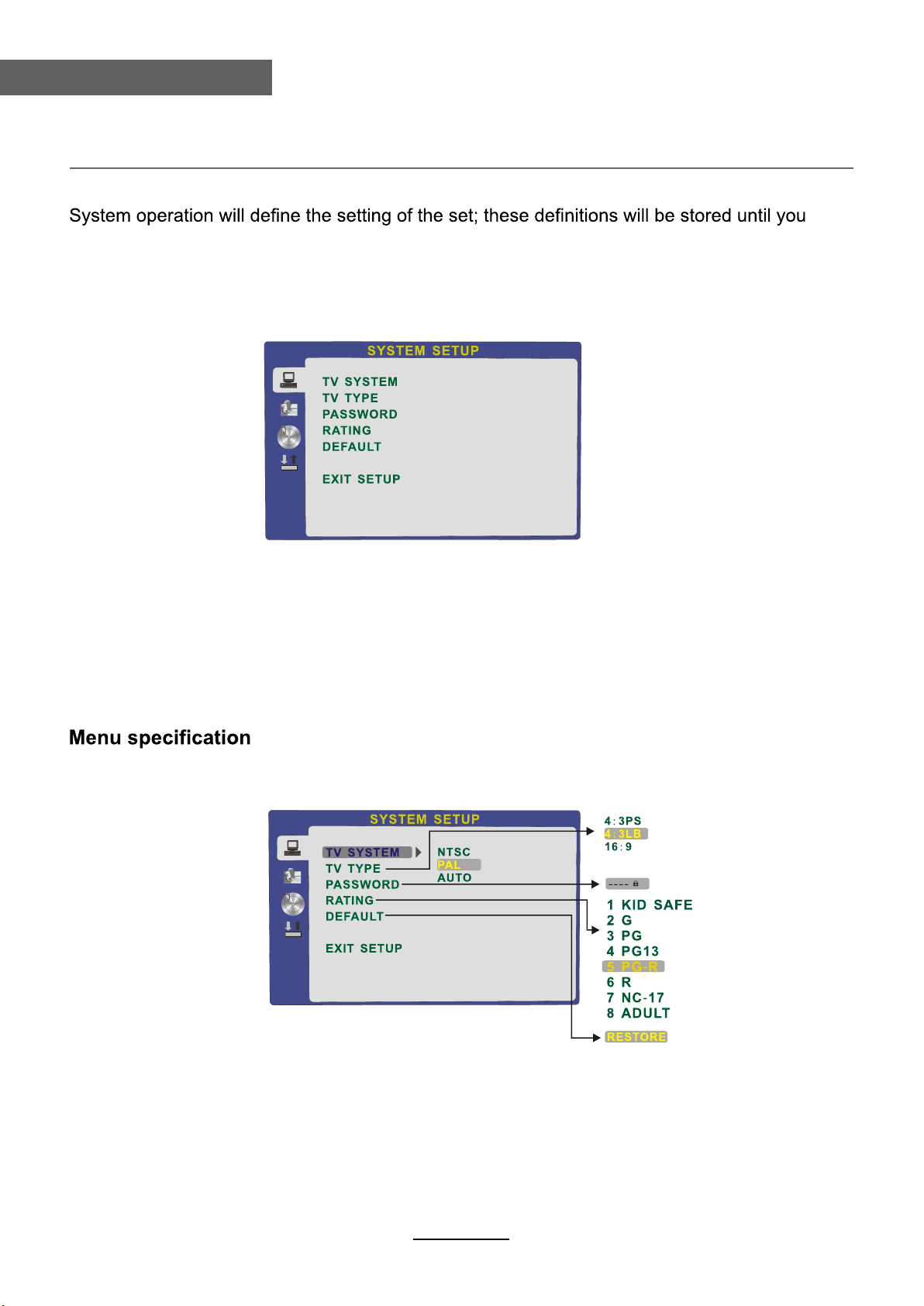

1. SYSTEM SETUP
The system setup options are illustrated below:
button to open that section.
∧ / ∨
∧ / ∨
∧ / ∨
button to select the Icon of the desired section, e.g. “TV System" and press
to select the desired feature and again press
to select the desired feature and then press "OK" to select the new setting.
>
button to open that section.
TV SYSTEM
According to the Color system of your TV, select proper TV TYPE.
PASSWORD
The password option is initialized as locked. You cannot set the ratings limit or change the
password. To enable these features you must unlock the Password. The default password is
21
DVD Operation
DVD Operation
"0000". Using the
enter "0000". You will see the padlock symbol open. You may now change the RATING or put in
a new password number. If the Lock symbol is BLUE you must press
Please remember or write down the new Password and keep safe.
RATING
The Rating feature is a rating limit feature, like movie ratings. This helps you to control what
DVD the family watches. There are 8 levels of selection, from KIDS SAFE to ADULT. Adult is the
"play all" selection.
2. LANGUAGE SETUP
The language setup options are illustrated below:
- OSD LANGUAGE: The OSD will display in the
language you choose.
- AUDIO LANG: If the disc you are playing has
the language you choose, it will output audio in
that language.
- SUBTITLE LANG: If the disc you are playing
has the language you require you may select this
either in the Menu or using the "SUBTITLE"
button on the Remote control. You may also
switch this OFF.
- MENU LANG: If the disc you are playing has
the language you require you may select this.
∧ / ∨
button, move the highlight to "PASSWORD", press
>
>
the button and
the button to enter the
3. AUDIO SETUP
-TONE: Use the
scroll and adjust the tone.
4. DIGITAL SETUP
The video setup options are illustrated below:
- DYNAMIC RANGE: Use the
move the scroll and adjust the dynamic range.
- DUAL MONO: Choose the mode of the audio
output.
There are four modes: STEREO, MONO L,
MONO R,MIX MONO.
∧ / ∨
button to move the
∧ / ∨
button to
22
Loading...
