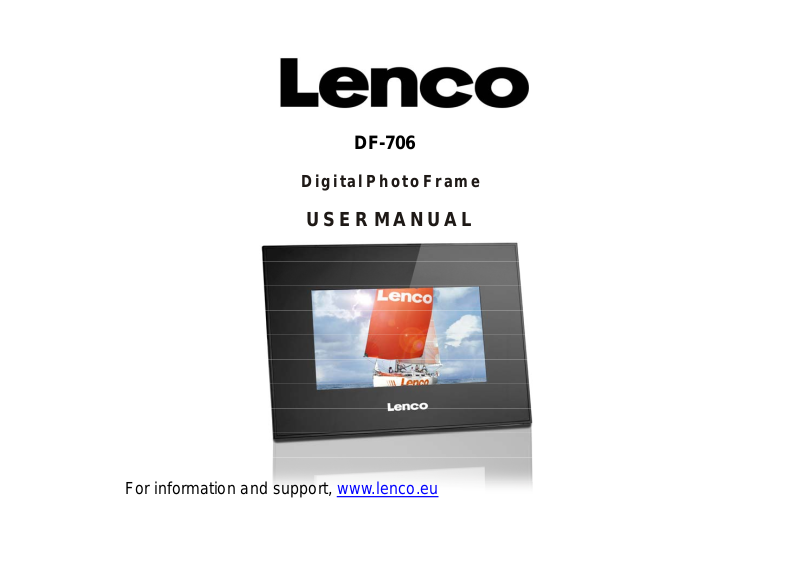

DF-706
Digital Photo Frame
USER MANUAL
For information and support, www.lenco.eu
Introduction
Precautions and Maintenance
For indoor use only.
To avoid risk of fire or electric shock, do not expose this appliance to moistu re.
To avoid overheating, do no t block the ventila tion holes on the back of th is digital photo frame at any time .
Keep this Multimedia Digital Photo Frame out of sunlight. Direct sunlight may cause damage.
Do not dismantle the Multimedia Digital Photo Frame. There is a risk of electric shock, and there are no user
serviceable parts inside. Dismantling your Multimedia Digital Photo Frame will void your warranty.
Do not use the Multimedia Digital Photo Frame if conditions could allow condensation to occur, or damage
may result.
Cleaning the LCD Scr een
Treat the screen gently. The screen on the multimedia Digital Photo Frame is made of glass and can be
easily scratched or broken.
If fingerprints or dust accumulates on the LCD screen, we recommend using a soft, non-abrasive cloth such
as a camera lens cloth to clean the LCD screen.
If you use the LCD cleaning Kit sold at various retail outlets, do not apply the cleaning liquid directly to the
LC D s c r e e n . Mo i s t e n th e cl e a n i n g c lo t h wi t h t h e cl e a n i n g so lu t i o n a n d a pp l y th e c lo t h t o th e s c re e n .
WARNING:
Please STOP the unit before inserting or removing a card or USB Drive. Failure to do so may cause
damage to the card/USB and the unit. To reduce the risk o f fire or electric shock, do not expose
this appliance to rain or moisture.
1
Table of contents
Precautions and maintenance 1
Cleaning the LCD Screen
Important Safety Precautions
Resource
Player Overview
Getting Started
Memory Card Choice
Play Photo File
Setup
Calender
Troubleshooting Guide
Specifications
4
7
8
9
1
3
5
6
7
10
11
2
Important Safety Precautions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinch particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Unplug this apparatus during lightening storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power supply cord or plug is damaged. Liquid has been
exposed to rain or moisture, does not operate normally or has been dropped.
This appliance shall not be exposed to dripping or splashing water and that no object filled with
liquid such as vases shall be placed on the apparatus.
This symbol on the product or in the instructions means that your electrical and
electronic equipment should be disposed at the end o f its life separately from your
household waste. There are separate collection systems for recycling in the EU.
For more information, please contact the local authori ty or your retailer where you
purchased the product.
3
Resource
Inserting Memory Cards
Your multimedia DPF is compatible with the following memory cards:
Secure Digital Card (SD)
Multimedia Card (MMC)
USB drive
Insert the memory card with the screen and slots all facing yourself. Do not force the card in the slot.
If you are not able to easily insert the memory card completely, you may have inserted it in a wrong way.
Note:DPF = Digital Photo Frame
4
Player Overview
Key control and Key functions:
1. SETUP BUTTON/OFF: Used to power on and
off the Digital Photo Frame.
2. EX I T : Press EXIT key to return into
last interface. Use for setup programs, then by pressing
long (above 2 seconds) enter to execute the command.
3. RIGHT SHIFT BUTTON: Right cursor selecting
function and next photo.
4. LEFT SHIFT BUTT ON: Left cursor selecting
function and previous photo.
5. ENTER(PLAY/EN TER) BUTTON: Confirm that what
you choosed and Pause or Play.
6. DC 5V:Input for the DC Power Adapter into the DPF.
7. SD/MMC/MS CARD: The slot for DPF player to
connect the SD or MMC memory card.
8. USB: C on n e c t t o a US B D r i v e .
9. Bracket jack.
5
Getting started
Getting started
1. Assemble the Multimedia Digital photo Frame bracket to prop the unit up insert adaptor DC plug into
the DPF player first, then plug the power cord to a standard wall outlet.
Then the screen will display as below: ( wil l play the pictures auto matically stored), If insert the
SD/MMC card, then will play the pictures in the card.
power adapter
socket
6
Memory Card Choice
When power on, the digital frame will go into automatic
show mode of SlideShow if it is inserted with memory
Cards or keeps pictures in the bu ilt-in flash.
Press EXIT key to return to Photo menu ( Fig 1 ).
If the digital frame is not inserted with memory cards
or there is no pictures in its built-in flash, then it goes
into Photo menu. After memory card inserted,
it goes into Select Cards mode (Fig 2).
Play Photo File
After memory card inserted, the digital frame goes into
Select Cards mode.
Operation:
In Select Cards mode, you can choose different
memory cards by or key. Press ENTER key
after choosing the memory card to go into SlideShow
or Photo mode to play pictures (Fig 3). Press EXIT
you can return from playing status.
SlideShow
Fig 1
Fig 2
7
Fig 3
Setup
Operation:
In any menu, press SETUP key to go into the SETUP
interface (Fig 4).
Press key to choose the set item.
Use the ENTER but ton to change the setting.
1. Image Size
Allows user change how the images are displayed on
the photo frame. Choose between, Auto Fit, Optimal
or Full.
2. Slide Show Effect
Allows user to set different effects to the slides when
the images change. There are 8 options you can
choose from Random, S plit Horizontal in, S plit
Horizontal out, Jalousie, Split Vertical in, Split
Vertical out, Radiation, Surround.
Image Size
Slide Show Effect
Slide
Show Interval
Split
Slide Show
Start
Slide Show
Rotate
Zoom
Save icture
Fig 4
Calendar
3. Slide Show Interval
Allows user to change the speed of the slideshow.
The interval speed can be changed from 0 seconds
to 1 minute. Use the button to change the setting.
4. Split Slide Show
Allows user to change the Separated Slide Show
from On to Off.
5. Start Slide Show
Allows user to choose the start slide show.
6. Rotate
Rotate Photos 90 degrees Clockwise.
(Be effective when preview pictures on full screen)
7. Zoom
Allows user to zoom in and out on f iles.
(Be effective when preview pictures on full screen)
8. Save Picture
Allow user to copy pictures from memory cards into
the built-in flash.
(Be effective when preview pictures on full screen)
9. Delete File
Allow user to delete pictures from the built-in flash.
(B e e ff e c t i v e i n Ph o t o m e n u , u s e Z o o m b u t t o n t o
select multiple files in Photo menu.)
10. Format Memory:
Formatting the contents of the machine
11. Reset Setting
Allows user to the restore default settings.
12. Language
Choose between 2 different languages: English,
French.
8
Setup
13. Brightness
Allows you to change the brightness of the LCD
screen.
14. Contrast
Allows you to change the contrast of the LCD screen.
15. Color
Allows you to change the color of the LCD screen.
16. Tint
Allows you to change the tint of the LCD screen.
17. Time
This function allows the user to set the system time.
Calendar
Calendar
Fig 5
Allow user to setup date and time of the system (Fig 5).
Operation
Press key to choose Calendar in Select Mode,
Press ENTER key to go into t he calendar interface.
In addition to displaying the current data, the user can
the navigation key you can preview different year,
Month, and day.
9
Troubleshooting Guide
If you are experiencing problems with your DPF, please consult both this guide and manual.
If you need further assistance, please contact Technical Support.
No power:
Please check whethe r there is power, and that
the DC power cord is plugged in correctly.
Display too bright or too dark:
please adjust the brightness or contrast in the
setup menu.
Can not read the CARD:
Please check that there is content on the card.
Can not play the file:
Please confirm whether the file format can be
played the player.
The color is light or no color:
Please adjust the color setup.
10
Specifications
Display: 7 TFT LCD 480(RGB)x234
Power: AC Adapter; lnput 100-240V~; Output 5V, 1A
Environmental operating ranges
Operating Temperature: 0~50 degrees
Storage Temperature: 0~60 degrees
Accessories:
Power Adapter
User Manual
All specifications and instructions are subject to change without notice.
If at any time in the future you sh ould need to dispose of this product please
note that: Waste electrical products should not be disposed of with household
waste.
Please recycle where facilities exist. Check with your Local Aut h ority or
retailer for
recycling advice. (W aste Electrical and Electronic Equipment Directive)
11
